Murray 224110X92E0 User Manual MOWER Manuals And Guides L0504509

MURRAY Walk Behind Lawnmower, Gas Manual L0504509 MURRAY Walk Behind Lawnmower, Gas Owner's Manual, MURRAY Walk Behind Lawnmower, Gas installation guides

User Manual: Murray 224110X92E0 224110X92E0 MURRAY MOWER - Manuals and Guides View the owners manual for your MURRAY MOWER #224110X92E0. Home:Lawn & Garden Parts:Murray Parts:Murray MOWER Manual

Open the PDF directly: View PDF .
Page Count: 20

MOWER"°°es

224110X92E0

225114X92E0

INSTRUCTIONBOOK

This Instruction Book contains information for several models.

Read and keep this book for future reference.

This book contains important information on

SAFETY, ASSEMBLY, OPERATION, MAINTENANCE & STORAGE.

PRODUCT INFORMATION

The owner must be certain that all the product information is in-

cluded with the unit. This information includes the INSTRUCTION

BOOKS, the REPLACEMENT PARTS and the WARRANTIES.

This information must be included to make sure state laws and

other laws are followed.

RECORD THE FOLLOWING INFORMATION ABOUTYOUR UNIT.

THIS INFORMATION IS NECESSARY WHEN ORDERING PARTS

OR IN CASE OF LOSS OR THEFT.

WHEREPURCHASED:

DATEPURCHASED:Month Day Year

MODELNO.: DATEOFMANUFACTURE:

198189 Rev. 3 04.19.05 BY Printed in U.S.A.

Warranty .................................................. 2

Safety Rules ......................................... 3-5

Product Specifications ........................... 5

Assembly/Pre-Operation ......................... 5

Operation .............................................. 6-8

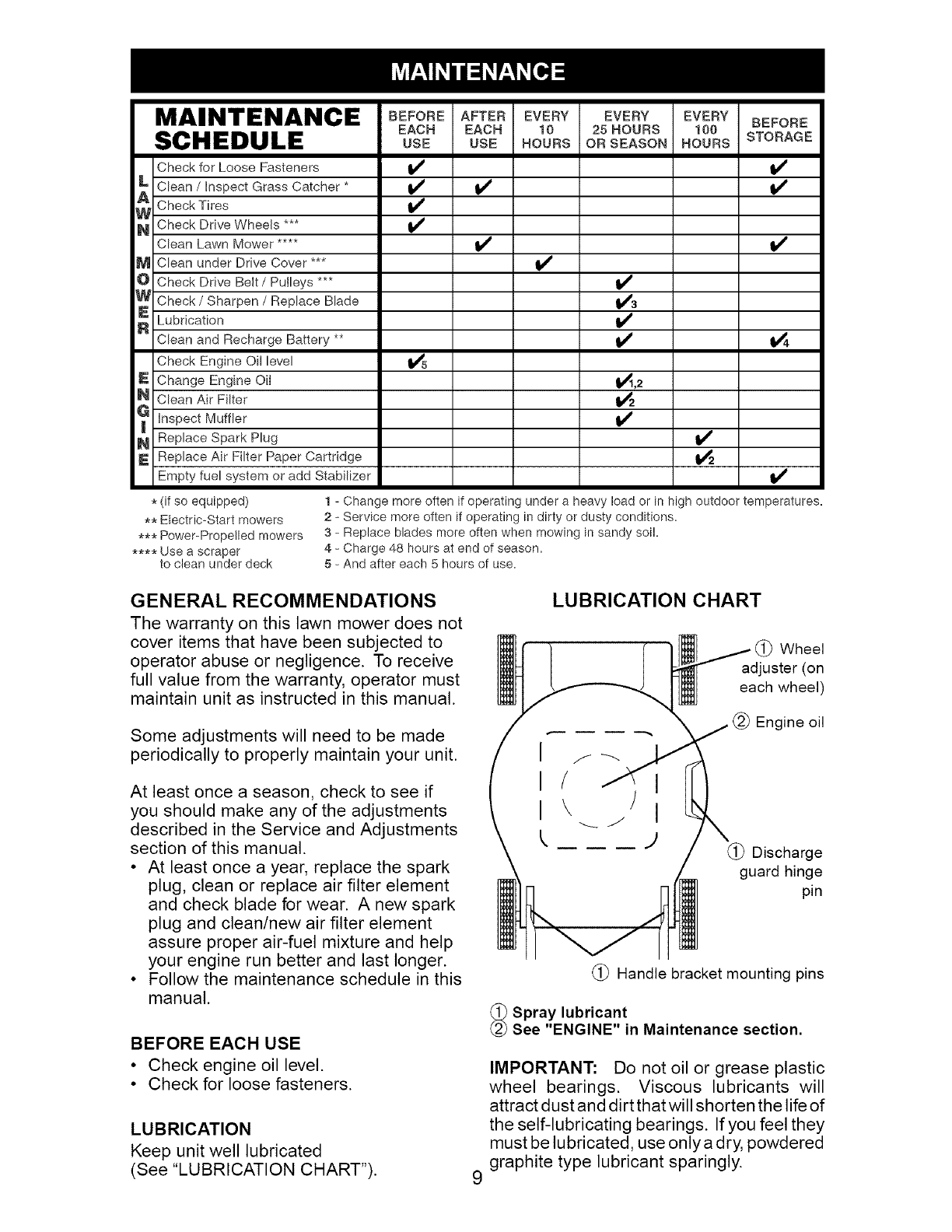

Maintenance Schedule ............................ 9

Maintenance ....................................... 9-11

Service and Adjustments ....................... 12

Storage ............................................. 13-14

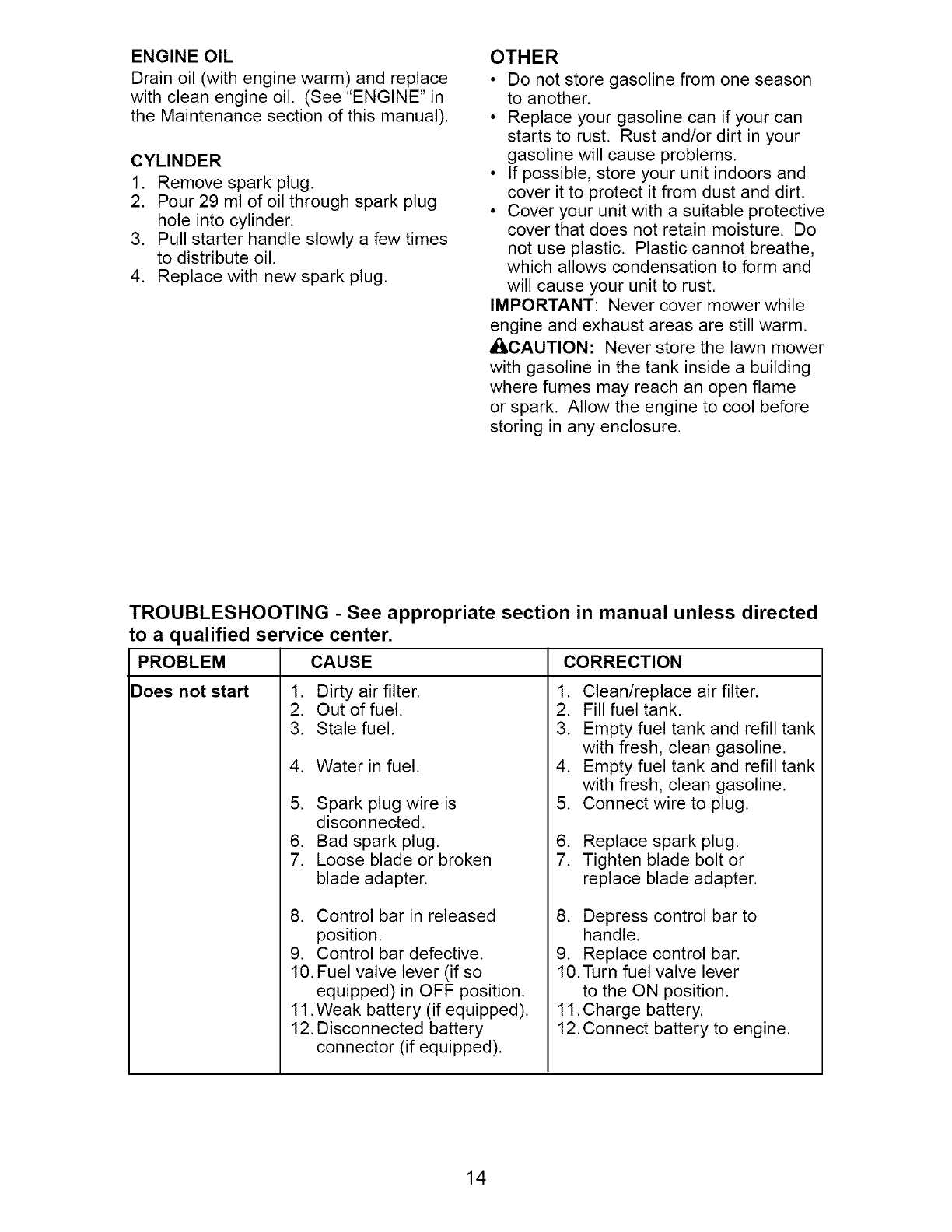

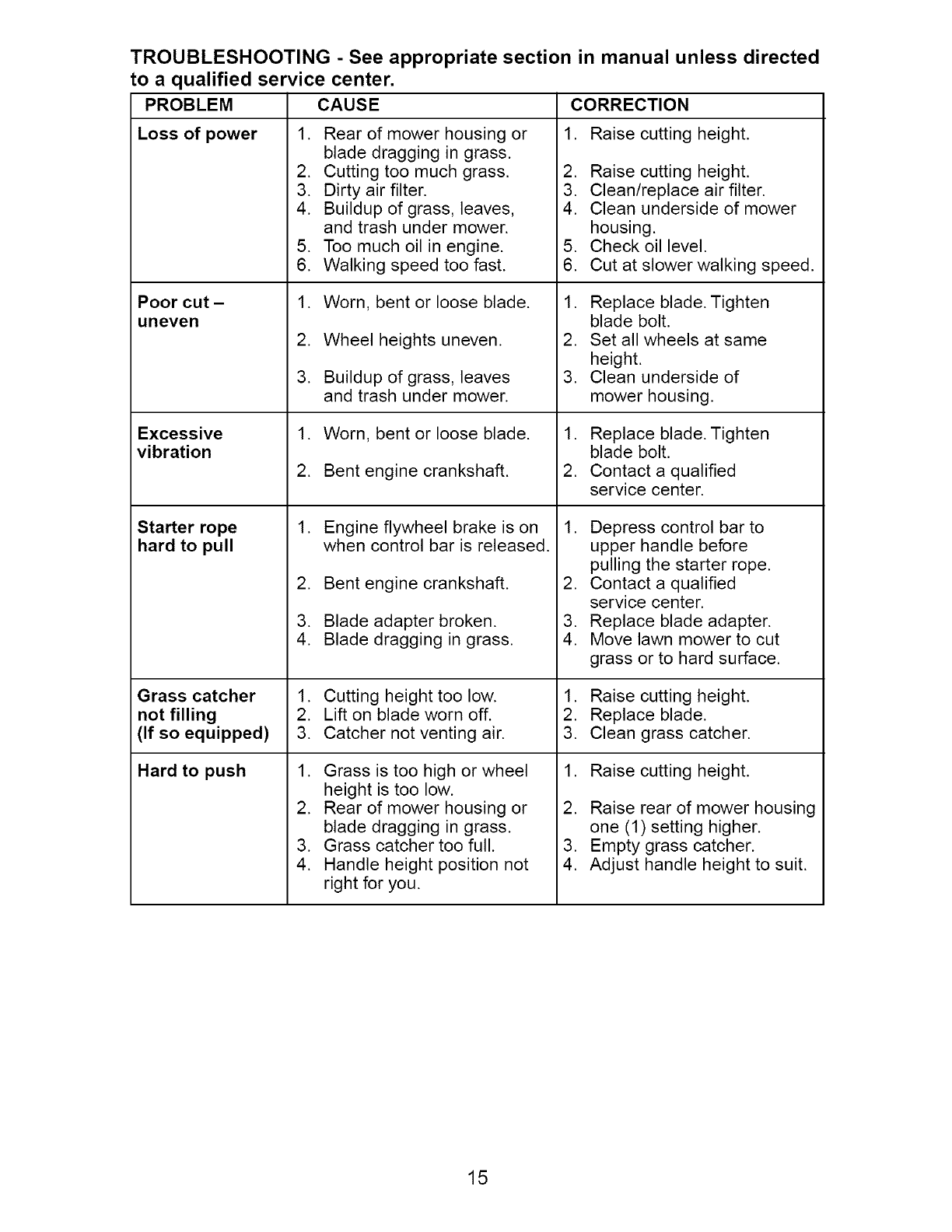

Troubleshooting ................................ 14-15

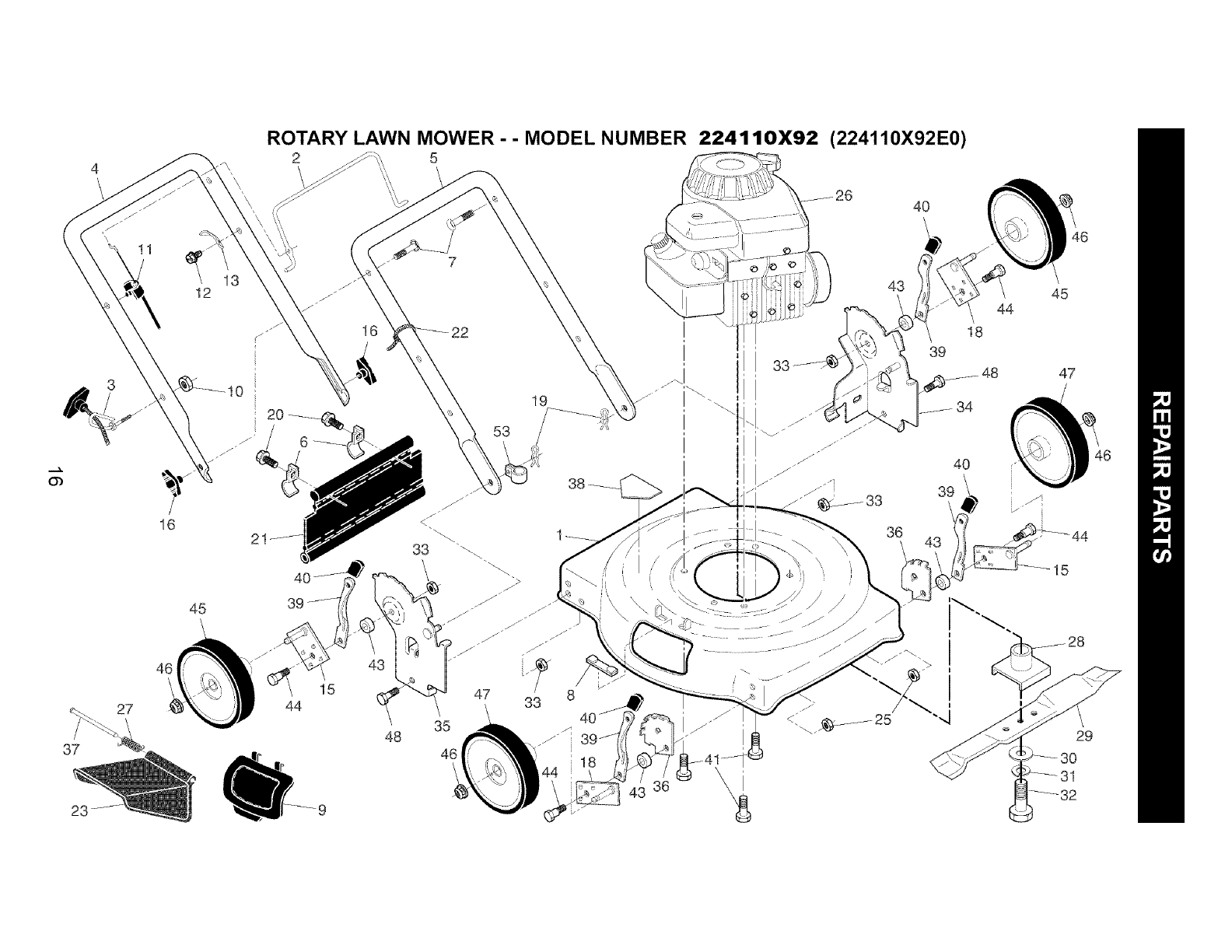

Repair Parts ...................................... 16-17

Service .................................... Back Cover

The Manufacturer warrants to the original consumer purchaser that this product as manu-

factured is free from defects in materials and workmanship. For a period of two (2) years

from date of purchase by the original consumer purchaser, we will repair or replace, at our

option, without charge for parts or labor incurred in replacing parts, any part which we find

to be defective due to materials or workmanship. This Warranty is subject to the following

limitations and exclusions.

1. This warranty does not apply to the engine, other than EHP manufactured transaxle/

transmission components, battery (except as noted below) or components parts thereof.

Please refer to the applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment

are the responsibility of the purchaser. Transportation charges for any parts submitted

for replacement under this warranty must be paid by the purchaser unless such return

is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge

to you, any battery which we find to be defective in manufacture, during the first ninety

(90) days of ownership. After ninety (90) days, we will exchange the Battery, charging

you 1/12 of the price of a new Battery for each full month from the date of the original

sale. Battery must be maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited

to 45 days from the date of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted,

operated, and maintained in accordance with the instructions furnished. This Warranty

does not apply to any product which has been subjected to alteration, misuse, abuse,

improper assembly or installation, delivery damage, or to normal wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear,

normal adjustments, standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an

authorized service dealer.

Should you have any unanswered questions concerning this Warranty, contact:

Electrolux Home Products, Inc.

Outdoor Products Customer Service Dept.

1030 Stevens Creek Road

Augusta, GA 30907 USA

In Canada contact:

Electrolux Consumer Outdoor Products

5855 Terry Fox Way

Mississauga, Ontario

L5V 3E4

giving the model number, serial number and date of purchase of your product and the name

and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAM-

AGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS

STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas do not allow the

limitation of consequential damages or limitations of how long an implied Warranty may

last, so the above limitations or exclusions may not apply to you. This Warranty gives you

specific legal rights, and you may have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the Magnuson-

Moss Act of 1975. 2

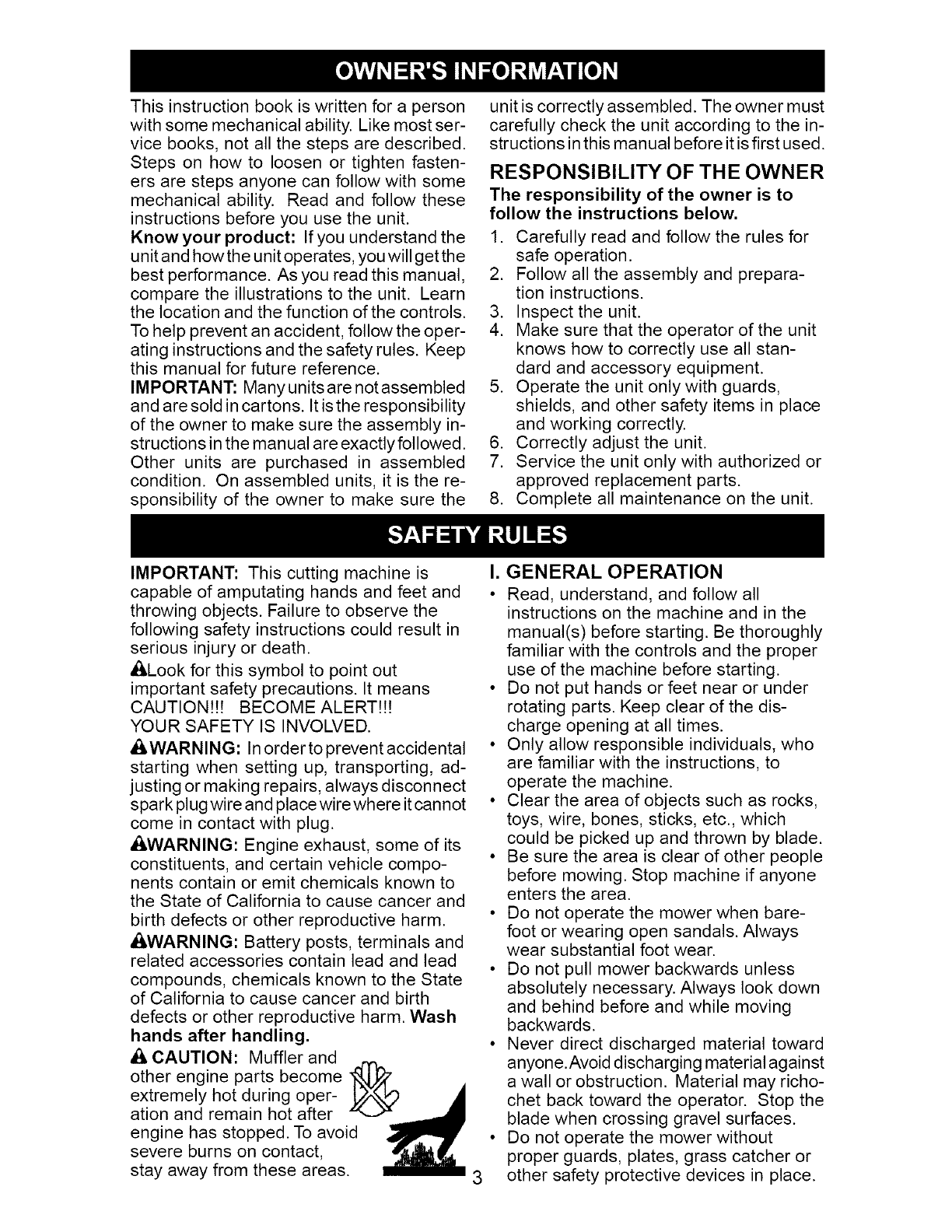

This instruction book is written for a person

with some mechanical ability. Like most ser-

vice books, not all the steps are described.

Steps on how to loosen or tighten fasten-

ers are steps anyone can follow with some

mechanical ability. Read and follow these

instructions before you use the unit.

Know your product: If you understand the

unit and how the unit operates, you will get the

best performance. As you read this manual,

compare the illustrations to the unit. Learn

the location and the function of the controls.

To help prevent an accident, follow the oper-

ating instructions and the safety rules. Keep

this manual for future reference.

IM PORTANT: Many units are not assembled

and are sold in cartons. It is the responsibility

of the owner to make sure the assembly in-

structions in the manual are exactly followed.

Other units are purchased in assembled

condition. On assembled units, it is the re-

sponsibility of the owner to make sure the

unit is correctly assembled. The owner must

carefully check the unit according to the in-

structions in this manual before it is first used.

RESPONSIBILITY OF THE OWNER

The responsibility of the owner is to

follow the instructions below.

1. Carefully read and follow the rules for

safe operation.

2. Follow all the assembly and prepara-

tion instructions.

3. Inspect the unit.

4. Make sure that the operator of the unit

knows how to correctly use all stan-

dard and accessory equipment.

5. Operate the unit only with guards,

shields, and other safety items in place

and working correctly.

6. Correctly adjust the unit.

7. Service the unit only with authorized or

approved replacement parts.

8. Complete all maintenance on the unit.

IMPORTANT: This cutting machine is

capable of amputating hands and feet and

throwing objects. Failure to observe the

following safety instructions could result in

serious injury or death.

ALook for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOME ALERT!!!

YOUR SAFETY IS INVOLVED.

_,WARNING: In order to prevent accidental

starting when setting up, transporting, ad-

justing or making repairs, always disconnect

spark plug wire and place wire where it cannot

come in contact with plug.

_,WARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

AWARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of California to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling.

_, CAUTION: Muffler and

other engine parts become

extremely hot during oper-

ation and remain hot after

engine has stopped. To avoid

severe burns on contact,

stay away from these areas. 3

I. GENERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thoroughly

familiar with the controls and the proper

use of the machine before starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which

could be picked up and thrown by blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Do not operate the mower when bare-

foot or wearing open sandals. Always

wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look down

and behind before and while moving

backwards.

• Never direct discharged material toward

anyone.Avoid discharging material against

a wall or obstruction. Material may richo-

chet back toward the operator. Stop the

blade when crossing gravel surfaces.

• Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

• See manufacturer'sinstructionsfor

properoperationand installationof

accessories.Onlyuse accessoriesap-

provedbythe manufacturer.

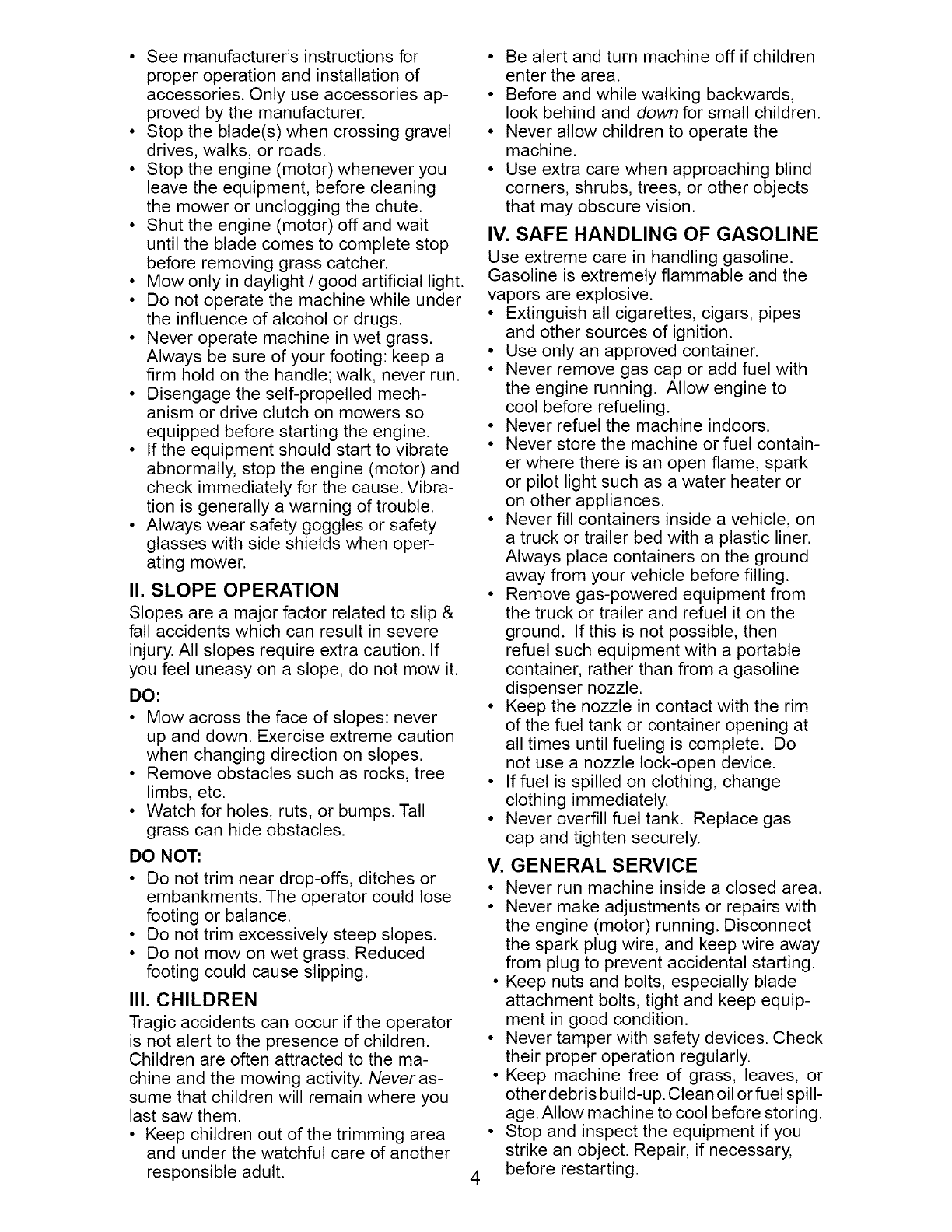

• Stopthe blade(s)when crossinggravel

drives,walks,or roads.

• Stopthe engine(motor)wheneveryou

leavethe equipment,beforecleaning

the moweror uncloggingthe chute.

• Shutthe engine(motor)off and wait

until the bladecomesto completestop

beforeremovinggrasscatcher.

• Mowonly indaylight/good artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle; walk, never run.

• Disengage the self-propelled mech-

anism or drive clutch on mowers so

equipped before starting the engine.

• If the equipment should start to vibrate

abnormally, stop the engine (motor) and

check immediately for the cause. Vibra-

tion is generally a warning of trouble.

• Always wear safety goggles or safety

glasses with side shields when oper-

ating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip &

fall accidents which can result in severe

injury. All slopes require extra caution. If

you feel uneasy on a slope, do not mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small children.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes

and other sources of ignition.

• Use only an approved container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never refuel the machine indoors.

• Never store the machine or fuel contain-

er where there is an open flame, spark

or pilot light such as a water heater or

on other appliances.

• Never fill containers inside a vehicle, on

a truck or trailer bed with a plastic liner.

Always place containers on the ground

away from your vehicle before filling.

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do

not use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfill fuel tank. Replace gas

cap and tighten securely.

V. GENERAL SERVICE

• Never run machine inside a closed area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep wire away

from plug to prevent accidental starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices. Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel spill-

age. Allow machine to cool before storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Neverattemptto makewheel height

adjustmentswhile the engineis running.

Grasscatchercomponentsaresubjectto

wear, damage,and deterioration,which

couldexposemovingpartsorallowobjects

to be thrown. Frequentlycheck compo-

nents and replace with manufacturer's

recommendedparts, when necessary.

• Mowerbladesare sharp and can cut.

Wrap the blade(s)or wear gloves,and

useextracautionwhenservicingthem.

• Do notchangethe enginegovernorset-

ting or overspeedthe engine.

• Maintainor replacesafety and instruc-

tion labels,as necessary.

AWARNING:Thislawnmowerisequippedwithaninternalcombustionengineandshould

notbe usedon ornearany unimprovedforest-covered,brush-coveredor grass-covered

land unlessthe engine'sexhaustsystem is equippedwith a spark arrestermeetingap-

plicablelocalor state laws (if any). If a spark arresteris used, it should be maintained

ineffectiveworkingorder bytheoperator. Inthe stateof Californiathe aboveis required

by law(Section4442of the CaliforniaPublicResourcesCode). Otherstates mayhave

similar laws. Federallaws apply on federal lands. A spark arresterfor the muffler is

availablethroughyour nearestauthorizedservice center.

GasolineCapacity/Type:

Oil Capacity:

Oil Type (API SG-SL):

Spark Plug:

Blade Bolt Torque:

1.0 Quarts (0,94 Litres) Unleaded Regular

20 Ounces (0,58 Litres)

SAE 30 (above 0°C/32°F); SAE 5W-30 (below 0°C/32°F)

Champion RJ19LM (Gap: 0.30" /0,76 mm)

35-40 ft. Ibs. (47-54 N-m)

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been assembled

at the factory with the exception of those

parts leftunassembled forshipping purposes.

All parts such as nuts, washers, bolts, etc.,

necessary to complete the assembly have

been placed in the parts bag. To ensure safe

and proper operation of your lawn mower, all

parts and hardware you assemble must be

tightened securely. Use the correct tools as

necessary to ensure proper tightness.

TO REMOVE MOWER FROM CARTON

1. Remove loose parts included with mower.

2. Cut down two end corners of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thoroughly for additional

loose parts.

HOW TO SET UP YOUR MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle sec-

tion locks into place in mowing position.

2. Remove protective padding, raise up-

per handle section into place on lower

handle and tighten both handle knobs.

3. Remove handle padding holding operator

presence control bar to upper handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "AD-

JUST HANDLE" in the Service and Adjust-

ments section of this manual.

Operator

control bar

MOWING

POSITION

Upper

UP handle

Handle

knob

Lower handle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to dis-

charging, see "TO CONVERT MOWER" in

the Operation section of this manual.

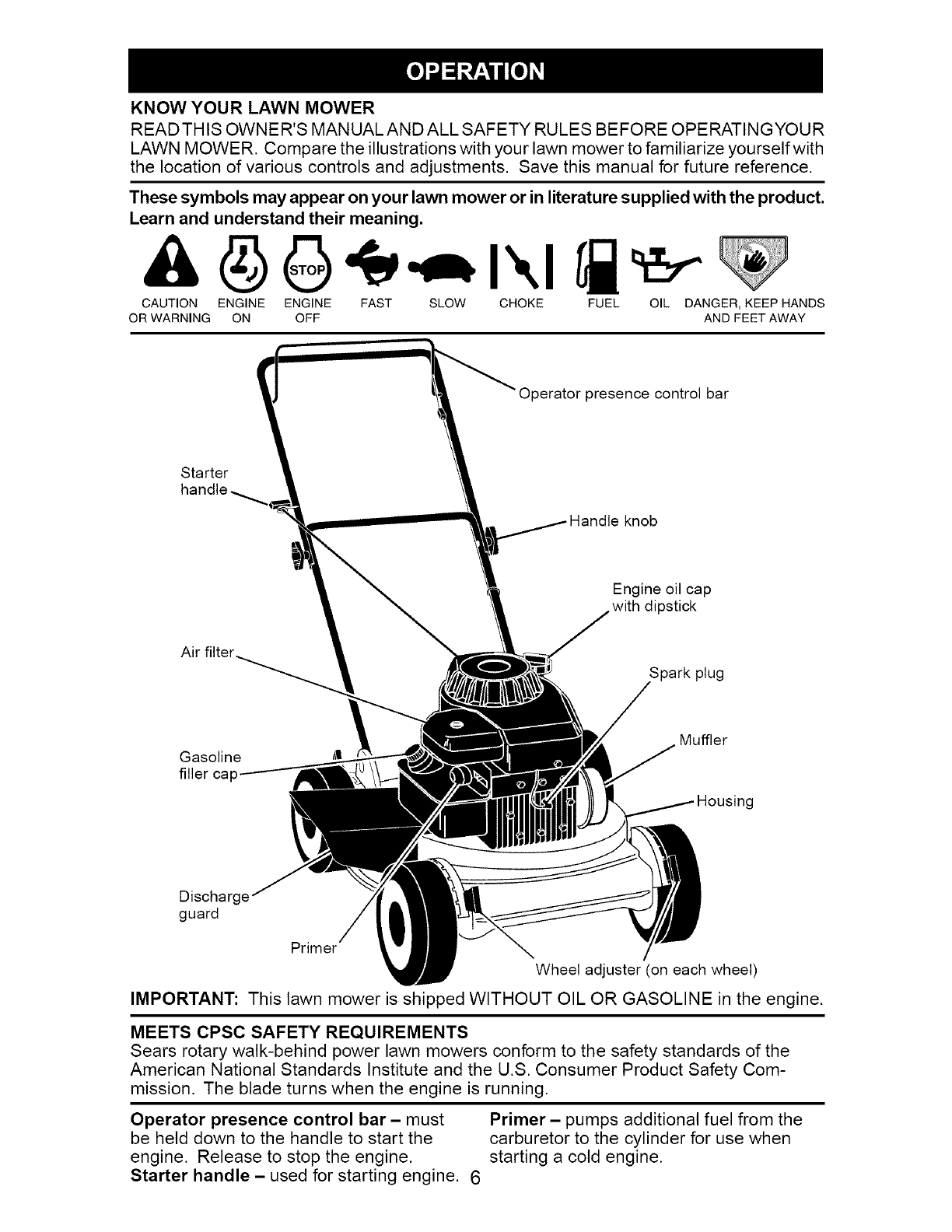

KNOWYOUR LAWN MOWER

READTHISOWNER'SMANUALANDALLSAFETYRULESBEFOREOPERATINGYOUR

LAWNMOWER.Comparetheillustrationswithyourlawnmowertofamiliarizeyourselfwith

the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the product.

Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control bar

Starter

handle

Handle knob

Engine oil cap

Air

Spark plug

Gasoline _,|

filler ca_

Muffler

Discharge

guard

Primer

Wheel adjuster (on each wheel)

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Com-

mission. The blade turns when the engine is running.

Operator presence control bar- must

be held down to the handle to start the

engine. Release to stop the engine.

Starter handle - used for starting engine. 6

Primer- pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

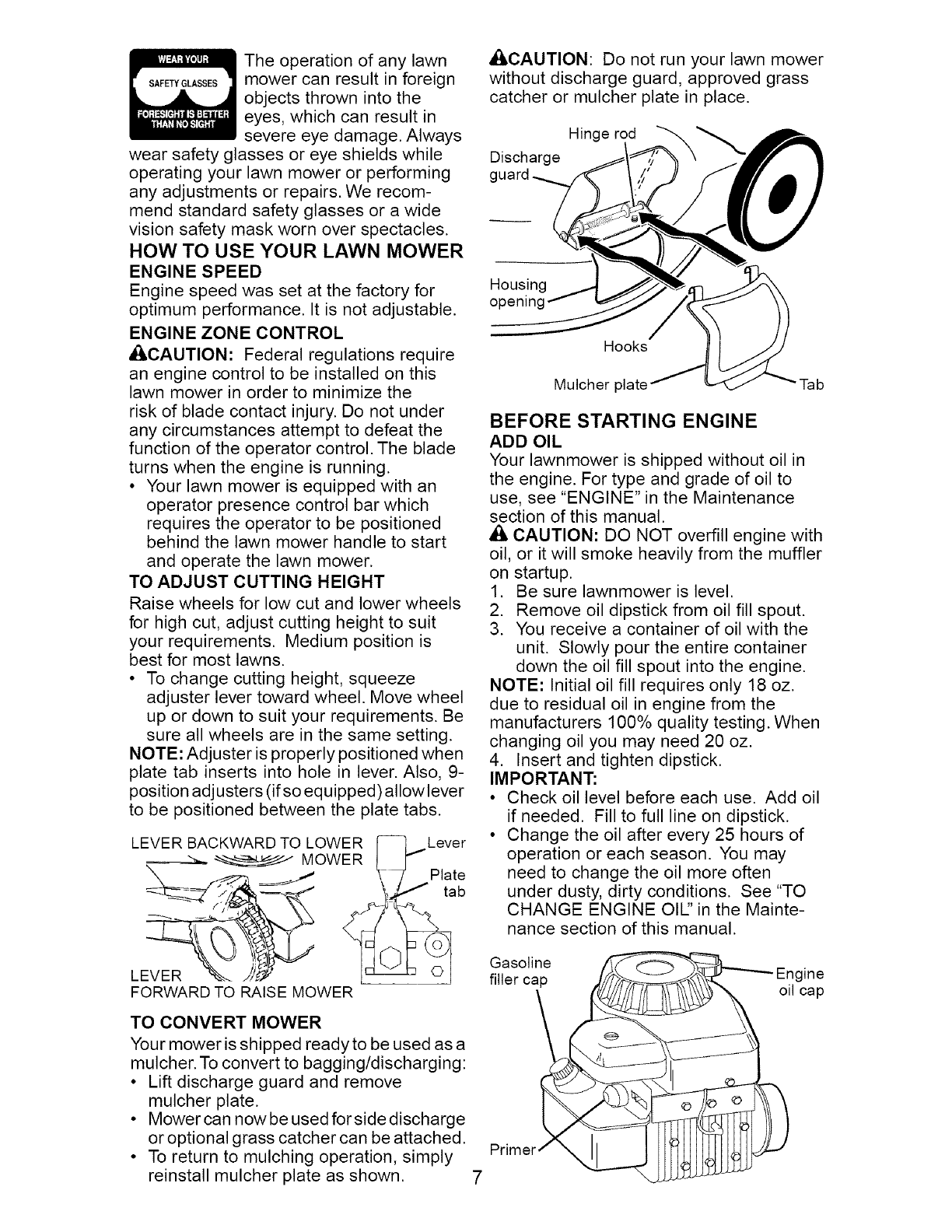

The operationof anylawn

SAFE,GLASSESmowercanresult inforeign

objects thrownintothe

eyes,which canresultin

severeeyedamage.Always

wear safetyglassesor eyeshieldswhile

operatingyourlawn moweror performing

anyadjustmentsor repairs.We recom-

mendstandardsafetyglassesor a wide

vision safetymaskworn overspectacles.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

Engine speed was set at the factory for

optimum performance. It is not adjustable.

ENGINE ZONE CONTROL

_I, CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not under

any circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower wheels

for high cut, adjust cutting height to suit

your requirements. Medium position is

best for most lawns.

• To change cutting height, squeeze

adjuster lever toward wheel. Move wheel

up or down to suit your requirements. Be

sure all wheels are in the same setting.

NOTE: Adjuster is properly positioned when

plate tab inserts into hole in lever. Also, 9-

position adjusters (if so equipped) allowlever

to be positioned between the plate tabs.

LEVER BACKWARD TO LOWER [_jLever

<-=._-_,,, _ MOWER I ['-

X _->-_-_-_-_-_-_-_-_._ _ fPlate

__=_/_/__" _)i_ tab

FORWARD TO RAISE MOWER

TO CONVERT MOWER

Your mower is shipped ready to be used as a

mulcher. To convert to bagging/discharging:

• Lift discharge guard and remove

mulcher plate.

• Mower can now be used for side discharge

or optional grass catcher can be attached.

• To return to mulching operation, simply

reinstall mulcher plate as shown.

_CAUTION: Do not run your lawn mower

without discharge guard, approved grass

catcher or mulcher plate in place.

Hinge rod

Discharge

Housing

opening

Hooks

Mulcher plate Tab

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see "ENGINE" in the Maintenance

section of this manual.

• i, CAUTION: DO NOT overfill engine with

oil, or it will smoke heavily from the muffler

on startup.

1. Be sure lawnmower is level.

2. Remove oil dipstick from oil fill spout.

3. You receive a container of oil with the

unit. Slowly pour the entire container

down the oil fill spout into the engine.

NOTE: Initial oil fill requires only 18 oz.

due to residual oil in engine from the

manufacturers 100% quality testing. When

changing oil you may need 20 oz.

4. Insert and tighten dipstick.

IMPORTANT:

• Check oil level before each use. Add oil

if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions. See "TO

CHANGE ENGINE OIL" in the Mainte-

nance section of this manual.

Gasoline

filler cap Engine

oil cap

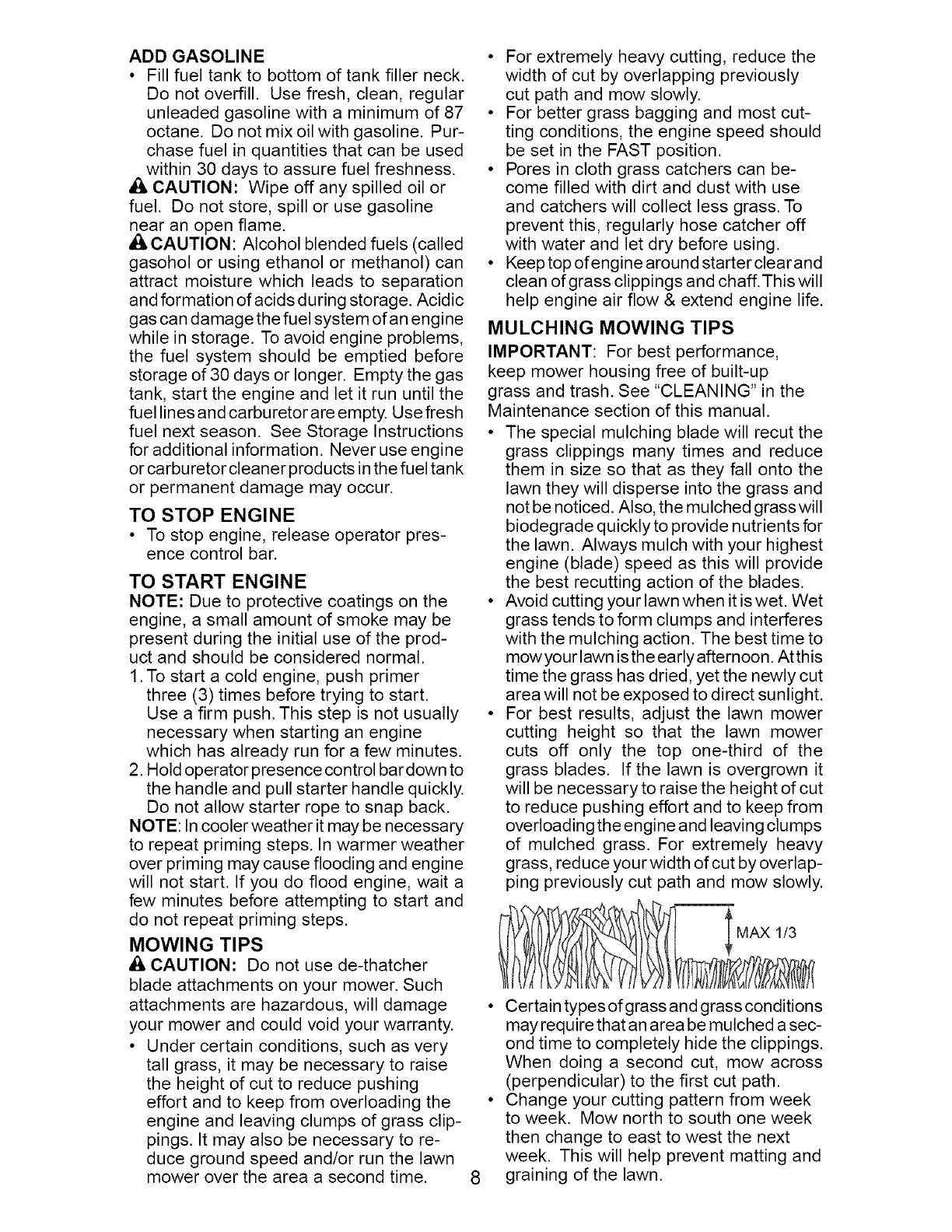

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oil with gasoline. Pur-

chase fuel in quantities that can be used

within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

A CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage. Acidic

gas can damage the fuel system of an engine

while in storage. To avoid engine problems,

the fuel system should be emptied before

storage of 30 days or longer. Empty the gas

tank, start the engine and let it run until the

fuel lines and carburetor are empty. Use fresh

fuel next season. See Storage Instructions

for additional information. Never use engine

or carburetor cleaner products in the fuel tank

or permanent damage may occur.

TO STOP ENGINE

• To stop engine, release operator pres-

ence control bar.

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the prod-

uct and should be considered normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not usually

necessary when starting an engine

which has already run for a few minutes.

2. Hold operator presence control bar down to

the handle and pull starter handle quickly.

Do not allow starter rope to snap back.

NOTE: In cooler weather it may be necessary

to repeat priming steps. In warmer weather

over priming may cause flooding and engine

will not start. If you do flood engine, wait a

few minutes before attempting to start and

do not repeat priming steps.

MOWING TIPS

ACAUTION: Do not use de-thatcher

blade attachments on your mower. Such

attachments are hazardous, will damage

your mower and could void your warranty.

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass clip-

pings. It may also be necessary to re-

duce ground speed and/or run the lawn

mower over the area a second time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most cut-

ting conditions, the engine speed should

be set in the FAST position.

• Pores in cloth grass catchers can be-

come filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

• Keeptopofenginearoundstarterclearand

clean of grass clippings and chaff.This will

help engine air flow & extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See "CLEANING" in the

Maintenance section of this manual.

• The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

notbe noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recutting action of the blades.

• Avoid cutting your lawn when it is wet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mowyour lawn is the early afternoon. Atthis

time the grass has dried, yet the newly cut

area will not be exposed to direct sunlight.

• For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown it

will be necessary to raise the height of cut

to reduce pushing effort and to keep from

overloading the engine and leaving clumps

of mulched grass. For extremely heavy

grass, reduce your width of cut by overlap-

ping previously cut path and mow slowly.

1/3

• Certain types of grass and grass conditions

may require that an area be mulched a sec-

ond time to completely hide the clippings.

When doing a second cut, mow across

(perpendicular) to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

MAINTENANCE

SCHEDULE

Check for Loose Fasteners

_ Clean /Inspect Grass Catcher *

Check Tires

_ Check Drive Wheels

Clean Lawn Mower ....

M Clean under Drive Cover ***

O Check Drive Belt /Putleys ***

W Check /Sharpen /Replace Blade

_ ubrication

Clean and Recharge Battery **

Check Engine Oil level

E Change Engine Oil

N Clean Air Filter

_ Inspect Muffler

N Replace Spark Plug

E Replace Air Filter Paper Cartridge

Empty fuel system or add Stabilizer

BEFORE AFTER EVERY EVERY EVERY BEFORE

EACH EACH 10 25HOURS 100

USE USE HOURS OR SEASON HOURS STORAGE

v' v'

v'3

11_,2

* (if so equipped)

** Electric-Start mowers

*** Power-Propelled mowers

**** Use a scraper

to clean under deck

1 - Change more often if operating under a heavy load or in high outdoor temperatures.

2 - Service more often if operating in dirty or dusty conditions,

3 - Replace blades more often when mowing in sandy soil,

4 - Charge 48 hours at end of season.

5 - And after each 5 hours of use.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain unit as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year, replace the spark

plug, clean or replace air filter element

and check blade for wear. A new spark

plug and clean/new air filter element

assure proper air-fuel mixture and help

your engine run better and last longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated

(See "LUBRICATION CHART").

LUBRICATION CHART

Wheel

adjuster (on

each wheel)

(_) Engine oil

(_) Discharge

guard hinge

(_) Handle bracket mounting pins

_Spray lubricant

See "ENGINE" in Maintenance section.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will

attract dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel they

must be lubricated, use only a dry, powdered

graphite type lubricant sparingly.

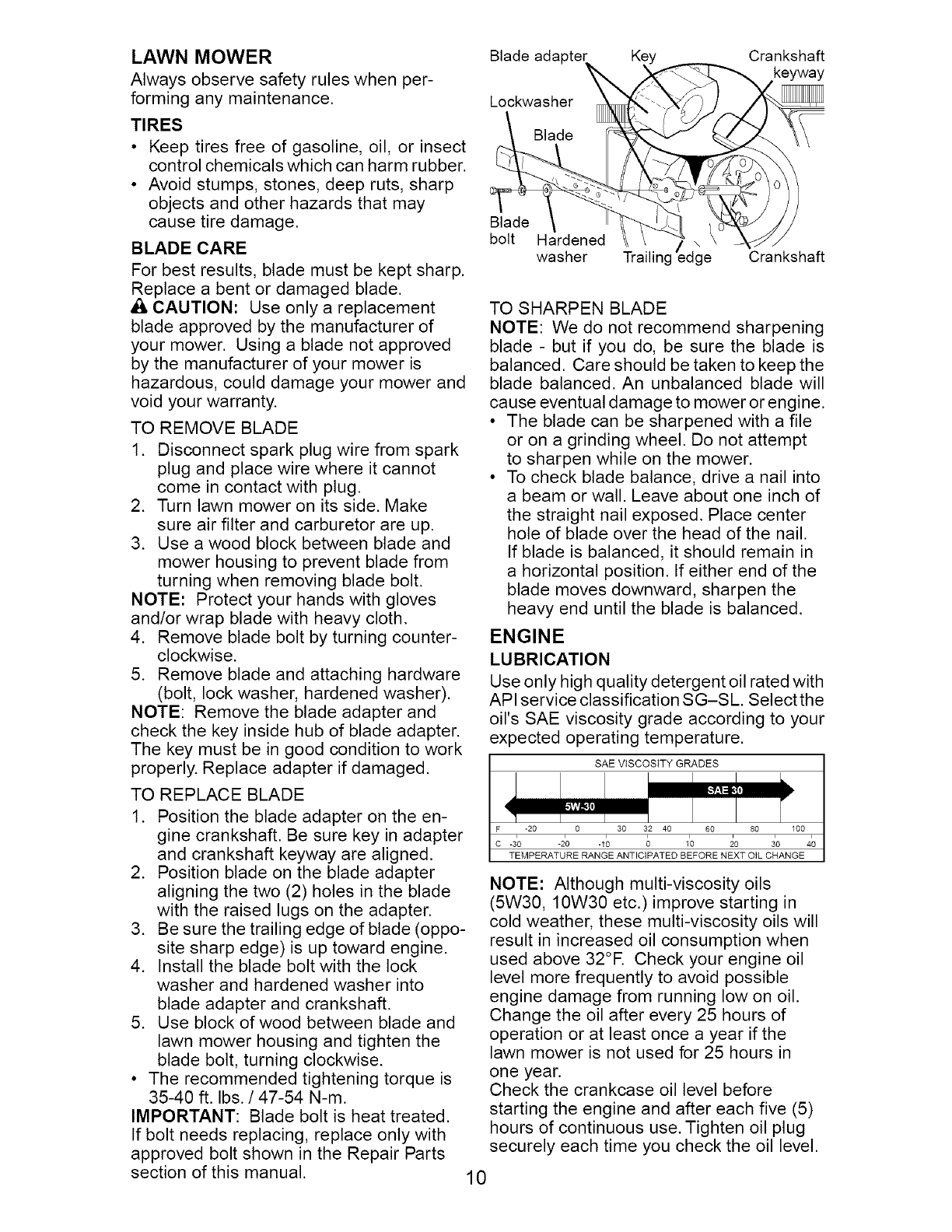

LAWN MOWER

Always observe safety rules when per-

forming any maintenance.

TIRES

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, blade must be kept sharp.

Replace a bent or damaged blade.

A CAUTION: Use only a replacement

blade approved by the manufacturer of

your mower. Using a blade not approved

by the manufacturer of your mower is

hazardous, could damage your mower and

void your warranty.

TO REMOVE BLADE

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Turn lawn mower on its side. Make

sure air filter and carburetor are up.

3. Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade and attaching hardware

(bolt, lock washer, hardened washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade adapter.

The key must be in good condition to work

properly. Replace adapter if damaged.

TO REPLACE BLADE

1. Position the blade adapter on the en-

gine crankshaft. Be sure key in adapter

and crankshaft keyway are aligned.

2. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

3. Be sure the trailing edge of blade (oppo-

site sharp edge) is up toward engine.

4. Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

5. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. Ibs. /47-54 N-m.

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approved bolt shown in the Repair Parts

section of this manual.

Blade adapter

Lockwasher _

Blade

bolt Hardened

washer

Key __ Crankshaft

ICrankshaft

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade - but if you do, be sure the blade is

balanced. Care should be taken to keep the

blade balanced. An unbalanced blade will

cause eventual damage to mower or engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, drive a nail into

a beam or wall. Leave about one inch of

the straight nail exposed. Place center

hole of blade over the head of the nail.

If blade is balanced, it should remain in

a horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with

API service classification SG-SL Select the

oil's SAE viscosity grade according to your

expected operating temperature.

SAE VlSCOStTY GRADES

F -20 0 30 32 40 60 80 100

c -_0 -27 -_; ; ;0 _0 _0 47

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°R Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil level.

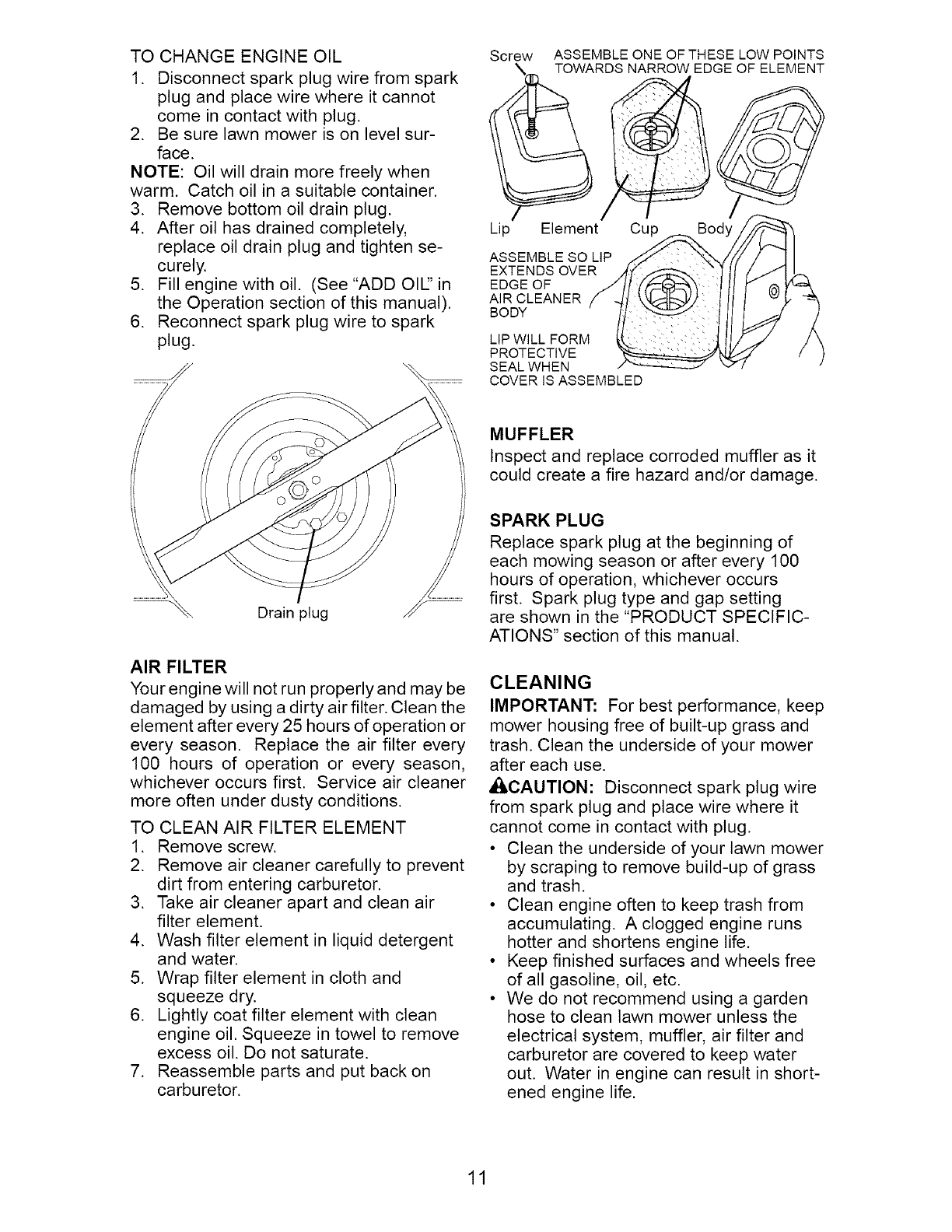

TO CHANGE ENGINE OIL

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Be sure lawn mower is on level sur-

face.

NOTE: Oil will drain more freely when

warm. Catch oil in a suitable container.

3. Remove bottom oil drain plug.

4. After oil has drained completely,

replace oil drain plug and tighten se-

curely.

5. Fill engine with oil. (See "ADD OIL' in

the Operation section of this manual).

6. Reconnect spark plug wire to spark

plug.

Screw ASSEMBLE ONE OF THESE LOW POINTS

\_ TOWARDS NARROW EDGE OF ELEMENT

Li Element Cup Bed

ASSEMBLE SO LIP

EXTENDS OVER

EDGE OF

AIR CLEANER

BODY

LIP WILLFORM

PROTECTIVE

SEAL WHEN

COVERISASSEMBLED

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or damage.

AIR FILTER

Your engine will not run properly and may be

damaged by using a dirty air filter. Clean the

element after every 25 hours of operation or

every season. Replace the air filter every

100 hours of operation or every season,

whichever occurs first. Service air cleaner

more often under dusty conditions.

TO CLEAN AIR FILTER ELEMENT

1. Remove screw.

2. Remove air cleaner carefully to prevent

dirt from entering carburetor.

3. Take air cleaner apart and clean air

filter element.

4. Wash filter element in liquid detergent

and water.

5. Wrap filter element in cloth and

squeeze dry.

6. Lightly coat filter element with clean

engine oil. Squeeze in towel to remove

excess oil. Do not saturate.

7. Reassemble parts and put back on

carburetor.

SPARK PLUG

Replace spark plug at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

first. Spark plug type and gap setting

are shown in the "PRODUCT SPECIFIC-

ATIONS" section of this manual.

CLEANING

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean the underside of your mower

after each use.

_I_CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with plug.

• Clean the underside of your lawn mower

by scraping to remove build-up of grass

and trash.

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• We do not recommend using a garden

hose to clean lawn mower unless the

electrical system, muffler, air filter and

carburetor are covered to keep water

out. Water in engine can result in short-

ened engine life.

AWARNING: To avoid serious injury, before performing any service or adjustments:

1. Release control bar and stop engine.

2. Make sure the blade and all moving parts have completely stopped.

3. Disconnect spark plug wire from spark plug and place wire where it cannot come in

contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the rear

wheels of your mower, is provided to minimize

the possibility that objects will be thrown out

of the rear of the mower into the operator

mowing position. If the deflector becomes

damaged, it should be replaced.

LOW POSITION HIGH POSITION

DISCHARGE GUARD

The discharge guard, attached to the

discharge opening of your lawn mower, is

provided to prevent the possibility of injury

resulting from objects being thrown out of

the discharge opening into the operator

mowing position. If the discharge guard

becomes damaged, it should be replaced.

TO ADJUST HANDLE

The handle can be mounted in a high or

low position. The mounting holes in the

bottom of lower handle are off center for

raising or lowering the handle.

1. Remove upper handle and all wire

tie(s) securing cable(s) to lower handle.

2. Remove hairpin cotters from lower

handle bracket mounting pin.

3. Squeeze lower handle in to remove it

from mounting pins.

4. Turn lower handle over to raise or

lower handle.

5. Squeeze lower handle in and position

holes onto mounting pins on handle

bracket.

6. Reassemble upper handle and all

parts removed from lower handle.

SQUEEZE

TO ADJUST

Lower handle i

Handle

bracket

Mounting pin

Hairpin cotter

'\f _

Lower

handle

ROTATE

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too

fast or too slow, take your lawn mower to

a qualified service center for repair and

adjustment.

CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

lawn mower to a qualified service center

for repair or adjustment.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

T_,_ setting can be dangerous. If you think

the engine-governed high speed needs

adjusting, contact a qualified service

center, which has proper equipment and

experience to make any necessary adjust-

ments.

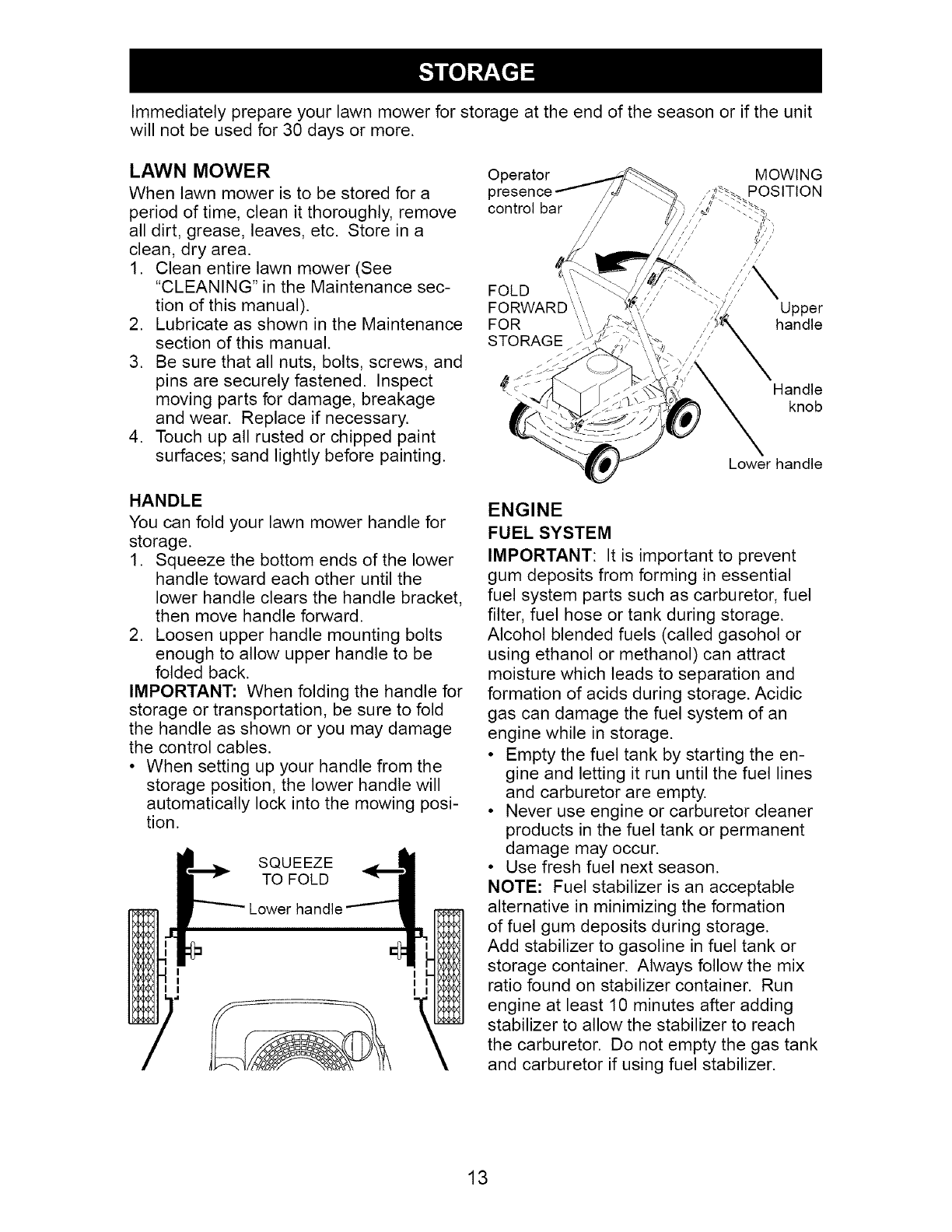

Immediatelyprepareyour lawn mowerfor storageat the end of the seasonor if the unit

will not beused for 30days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire lawn mower (See

"CLEANING" in the Maintenance sec-

tion of this manual).

2. Lubricate as shown in the Maintenance

section of this manual.

3. Be sure that all nuts, bolts, screws, and

pins are securely fastened. Inspect

moving parts for damage, breakage

and wear. Replace if necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

Operator MOWING

POSITION

control bar J

Handle

knob

Lower handle

HANDLE

You can fold your lawn mower handle for

storage.

1. Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle bracket,

then move handle forward.

2. Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle for

storage or transportation, be sure to fold

the handle as shown or you may damage

the control cables.

• When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing posi-

tion.

SQUEEZE

TO FOLD

"-"'-" Lower handle

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose or tank during storage.

Alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation

of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not empty the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER

1. Remove spark plug.

2. Pour 29 ml of oil through spark plug

hole into cylinder.

3. Pull starter handle slowly a few times

to distribute oil.

4. Replace with new spark plug.

OTHER

•Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and

cover it to protect it from dust and dirt.

• Cover your unit with a suitable protective

cover that does not retain moisture. Do

not use plastic. Plastic cannot breathe,

which allows condensation to form and

will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

ACAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TROUBLESHOOTING - See appropriate section in manual unless directed

to a qualified service center,

PROBLEM CAUSE CORRECTION

Does not start 1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken

blade adapter.

8. Control bar in released

position.

9. Control bar defective.

10. Fuel valve lever (if so

equipped) in OFF position.

11 .Weak battery (if equipped).

12. Disconnected battery

connector (if equipped).

1. Clean/replace air filter.

2. Fill fuel tank.

3. Empty fuel tank and refill tank

with fresh, clean gasoline.

4. Empty fuel tank and refill tank

with fresh, clean gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

10. Turn fuel valve lever

to the ON position.

11. Charge battery.

12. Connect battery to engine.

TROUBLESHOOTING - See appropriate section in manual unless directed

to a qualified service center,

PROBLEM CAUSE

Loss of power

Poor cut -

uneven

Excessive

vibration

Starter rope

hard to pull

Grass catcher

not filling

(If so equipped)

Hard to push

1. Rear of mower housing or

blade dragging in grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

1. Worn, bent or loose blade.

2. Bent engine crankshaft.

1. Engine flywheel brake is on

when control bar is released.

2. Bent engine crankshaft.

3. Blade adapter broken.

4. Blade dragging in grass.

1. Cutting height too low.

2. Lift on blade worn off.

3. Catcher not venting air.

1. Grass is too high or wheel

height is too low.

2. Rear of mower housing or

blade dragging in grass.

3. Grass catcher too full.

4. Handle height position not

right for you.

CORRECTION

1. Raise cutting height.

2. Raise cutting height.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking speed.

1. Replace blade. Tighten

blade bolt.

2. Set all wheels at same

height.

3. Clean underside of

mower housing.

1. Replace blade. Tighten

blade bolt.

2. Contact a qualified

service center.

1. Depress control bar to

upper handle before

pulling the starter rope.

2. Contact a qualified

service center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface.

1. Raise cutting height.

2. Replace blade.

3. Clean grass catcher.

Raise cutting height.

Raise rear of mower housing

one (1) setting higher.

Empty grass catcher.

Adjust handle height to suit.

\11

ROTARY LAWN MOWER - -MODEL NUMBER 22411OX92 (224110X92E0)

2 5

_-6

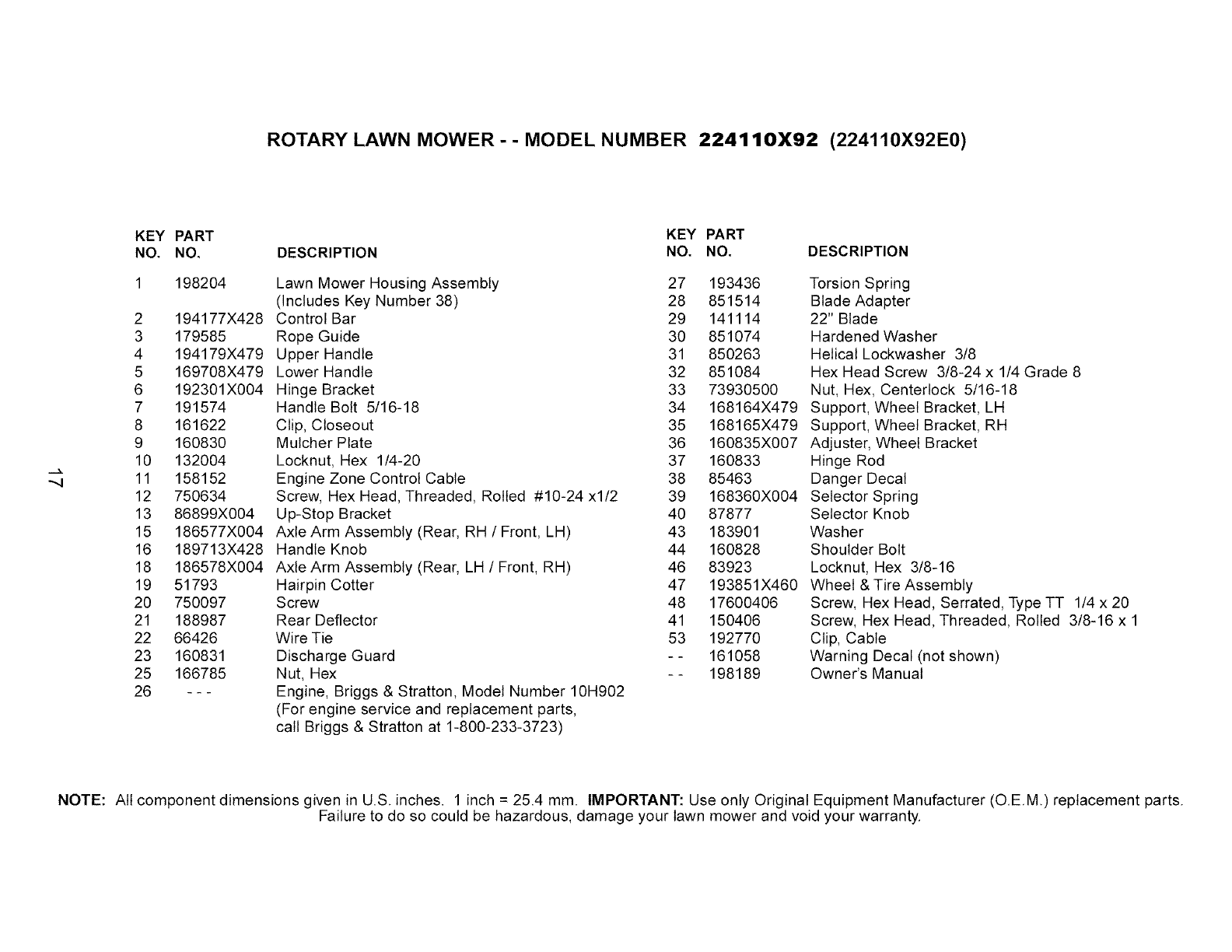

ROTARY LAWN MOWER - - MODEL NUMBER 22411OX92 (224110X92E0)

.--3.

KEY PART

NO, NO.

198204

2 194177X428

3 179585

4 194179X479

5 169708X479

6 192301X004

7 191574

8 161622

9 160830

10 132004

11 158152

12 750634

13 86899X004

15 186577X004

16 189713X428

18 186578X004

19 51793

20 750097

21 188987

22 66426

23 160831

25 166785

26 ---

KEY PART

DESCRIPTION NO, NO, DESCRIPTION

Lawn Mower Housing Assembly 27 193436

(Includes Key Number 38) 28 851514

Control Bar 29 141114

Rope Guide 30 851074

Upper Handle 31 850263

Lower Handle 32 851084

Hinge Bracket 33 73930500

Handle Bolt 5/16-18 34 168164X479

Clip, Closeout 35 168165X479

Mulcher Plate 36 160835X007

Locknut, Hex 1/4-20 37 160833

Engine Zone Control Cable 38 85463

Screw, Hex Head, Threaded, Rolled #10-24 x1/2 39 168360X004

Up-Stop Bracket 40 87877

Axle Arm Assembly (Rear, RH /Front, LH) 43 183901

Handle Knob 44 160828

Axle Arm Assembly (Rear, LH /Front, RH) 46 83923

Hairpin Cotter 47 193851X460

Screw 48 17600406

Rear Deflector 41 150406

Wire Tie 53 192770

Discharge Guard - - 161058

Nut, Hex -- 198189

Engine, Briggs & Stratton, Model Number 10H902

(For engine service and replacement parts,

call Briggs & Stratton at 1-800-233-3723)

Torsion Spring

Blade Adapter

22" Blade

Hardened Washer

Helical Lockwasher 3/8

Hex Head Screw 3/8-24 x 1/4 Grade 8

Nut, Hex, Centertock 5/16-18

Support, Wheel Bracket, LH

Support, Wheel Bracket, RH

Adjuster, Wheel Bracket

Hinge Rod

Danger Decal

Selector Spring

Selector Knob

Washer

Shoulder Bolt

Locknut, Hex 3/8-16

Wheel & Tire Assembly

Screw, Hex Head, Serrated, Type TT 1/4 x 20

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1

Clip, Cable

Warning Decal (not shown)

Owner's Manual

NOTE: All component dimensions given in US. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

13 t2

ROTARY LAWN MOWER - -MODEL NUMBER 225114X92E

/-//

(225114X92EO)

39,

2! 6

48 35 46

44 47

45 43

23 18

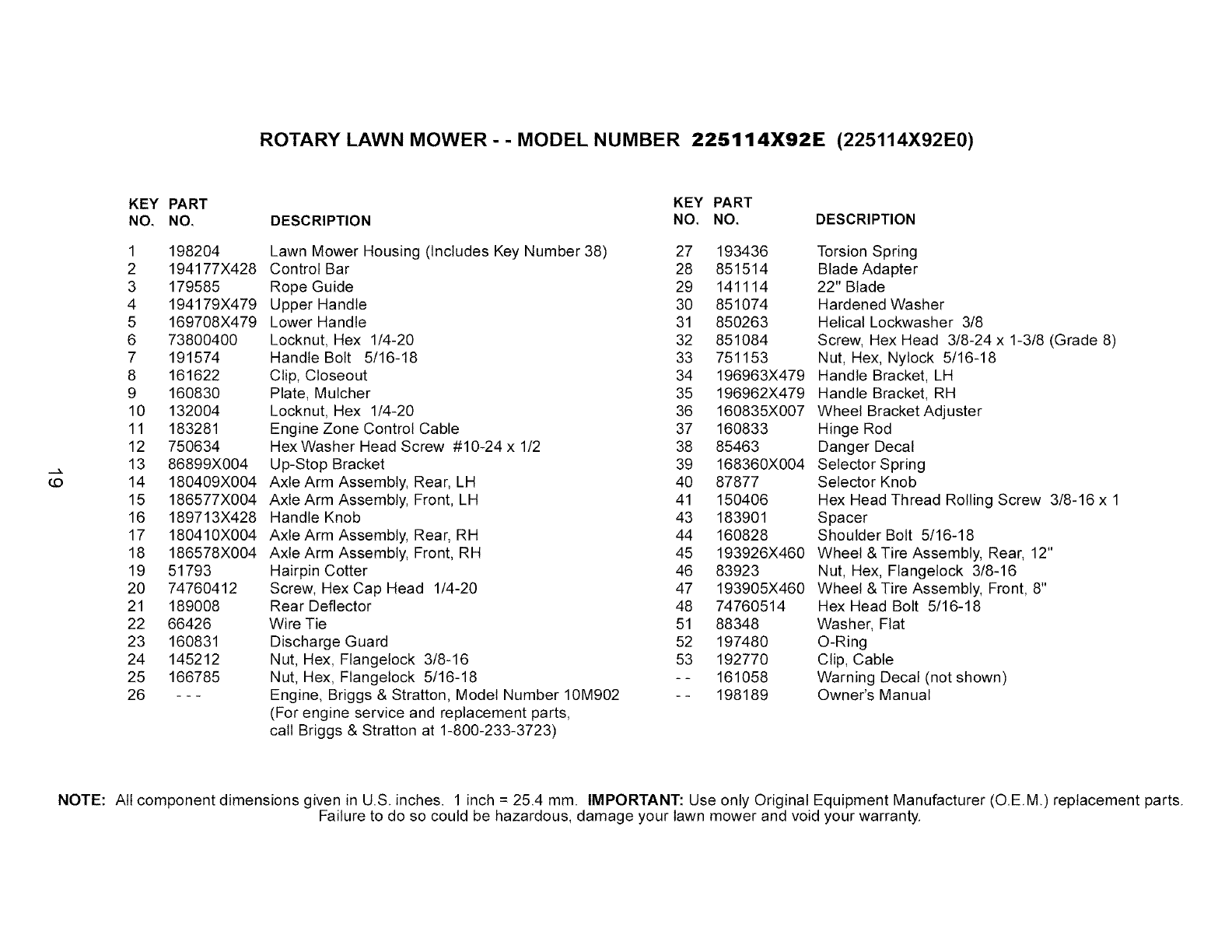

ROTARY LAWN MOWER - - MODEL NUMBER 225114X92E (225114X92E0)

KEY PART

NO, NO,

1 198204

2 194177X428

3 179585

4 194179X479

5 169708X479

6 73800400

7 191574

8 161622

9 160830

10 132004

11 183281

12 750634

13 86899X004

14 180409X004

15 186577X004

16 189713X428

17 180410X004

18 186578X004

19 51793

20 74760412

21 189008

22 66426

23 160831

24 145212

25 166785

26 ---

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Lawn Mower Housing (Includes Key Number 38) 27 193436

Control Bar 28 851514

Rope Guide 29 141114

Upper Handle 30 851074

Lower Handle 31 850263

Locknut, Hex 1/4-20 32 851084

Handle Bolt 5/16-18 33 751153

Clip, Closeout 34 196963X479

Plate, Mulcher 35 196962X479

Locknut, Hex 1/4-20 36 160835X007

Engine Zone Control Cable 37 160833

Hex Washer Head Screw #10-24 x 1/2 38 85463

Up-Stop Bracket 39 168360X004

Axle Arm Assembly, Rear, LH 40 87877

Axle Arm Assembly, Front, LH 41 150406

Handle Knob 43 183901

Axle Arm Assembly, Rear, RH 44 160828

Axle Arm Assembly, Front, RH 45 193926X460

Hairpin Cotter 46 83923

Screw, Hex Cap Head 1/4-20 47 193905X460

Rear Deflector 48 74760514

Wire Tie 51 88348

Discharge Guard 52 197480

Nut, Hex, Flangelock 3/8-16 53 192770

Nut, Hex, Flangetock 5/16-18 -- 161058

Engine, Briggs & Stratton, Model Number 10M902 - - 198189

(For engine service and replacement parts,

call Briggs & Stratton at 1-800-233-3723)

Torsion Spring

Blade Adapter

22" Blade

Hardened Washer

Helical Lockwasher 3/8

Screw, Hex Head 3/8-24 x 1-3/8 (Grade 8)

Nut, Hex, Nytock 5/16-18

Handle Bracket, LH

Handle Bracket, RH

Wheel Bracket Adjuster

Hinge Rod

Danger Decal

Selector Spring

Selector Knob

Hex Head Thread Rolling Screw 3/8-16 x 1

Spacer

Shoulder Bolt 5/16-18

Wheel & Tire Assembly, Rear, 12"

Nut, Hex, Flangetock 3/8-16

Wheel & Tire Assembly, Front, 8"

Hex Head Bolt 5/16-18

Washer, Flat

O-Ring

Clip, Cable

Warning Decal (not shown)

Owner's Manual

NOTE: All component dimensions given in US. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

PARTS AND SERVICE

This product has been expertly engineered and carefully manufactured to rigid

quality standards. As with all mechanical products, some adjustments or part

replacement may be necessary during the life of your unit.

For Parts and Service, contact our authorized distributor: call 1-800-849-1297

• For replacement parts, have available the following information:

a. Model Number /Manufacturer's I.D. Number

b. Description of part.

For Technical Assistance: call 1-800-829-5886

Murray 224110X92E0 User Manual MOWER Manuals And Guides L0504509

MURRAY Walk Behind Lawnmower, Gas Manual L0504509 MURRAY Walk Behind Lawnmower, Gas Owner's Manual, MURRAY Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
