The owner must be certain that all

the product information is included with the unit.

This information includes

the INSTRUCTION BOOKS,

the REPLACEMENT PARTS and the WARRANTIES.

This information must be included to make sure state laws and other laws

are followed.

PRODUCT INFORMATION

This Instruction Book contains information

for several models. Read and keep this book

for future reference. This book contains

important information on SAFETY, PREPARATION,

OPERATION, AND MAINTENANCE.

RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT. THIS

INFORMATION IS NECESSARY WHEN ORDERING PARTS OR IN CASE

OF LOSS OR THEFT.

F–000700L

BUILT IN THE

MODEL

42514x8A

2

F–000700L

TABLE OF CONTENTS

WARRANTY 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RESPONSIBILITY OF THE OWNER 3. . . . . . . . . . . . . . . . .

SAFETY RULES 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

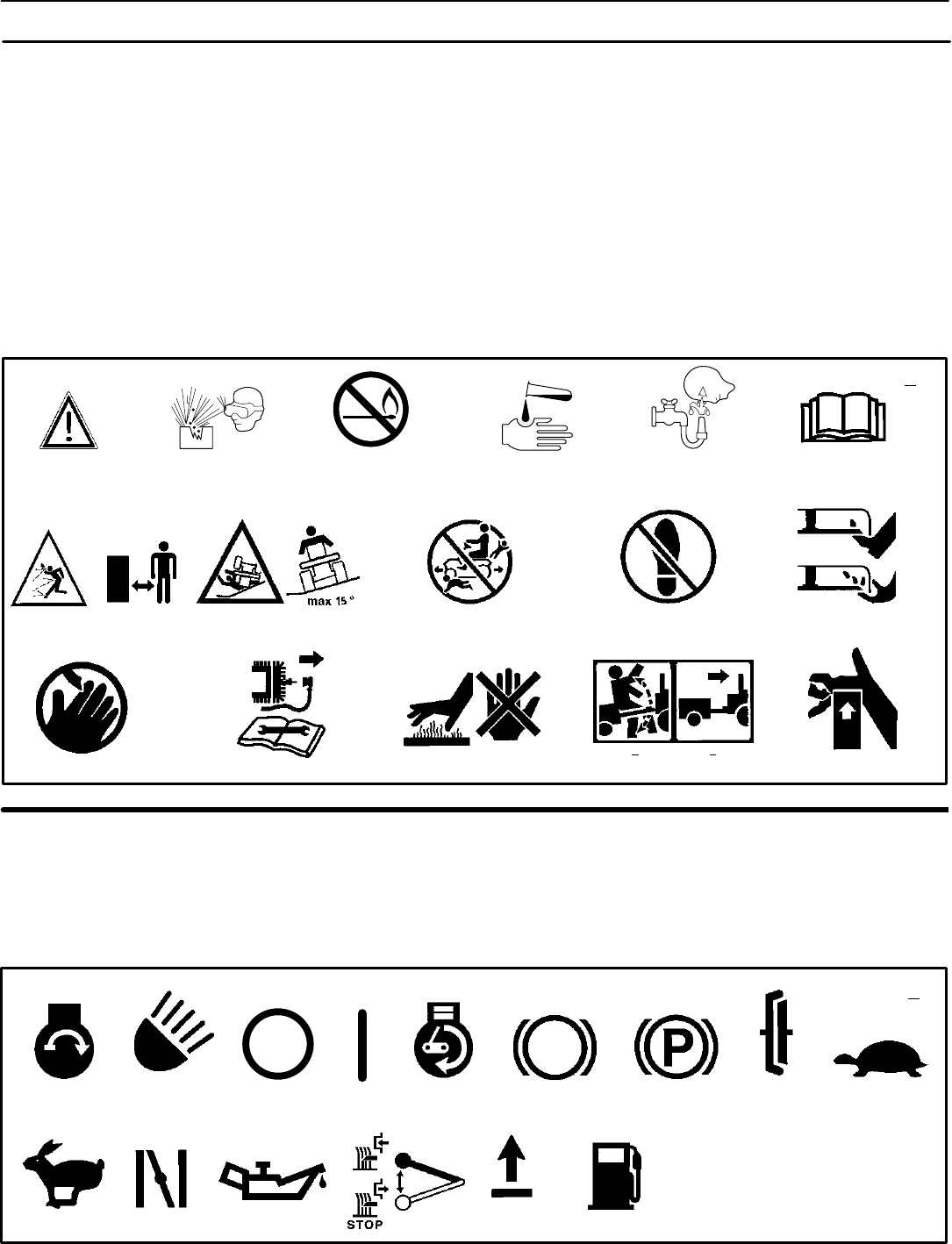

INTERNATIONAL PICTORIALS 9. . . . . . . . . . . . . . . . . . . . .

ASSEMBLY 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

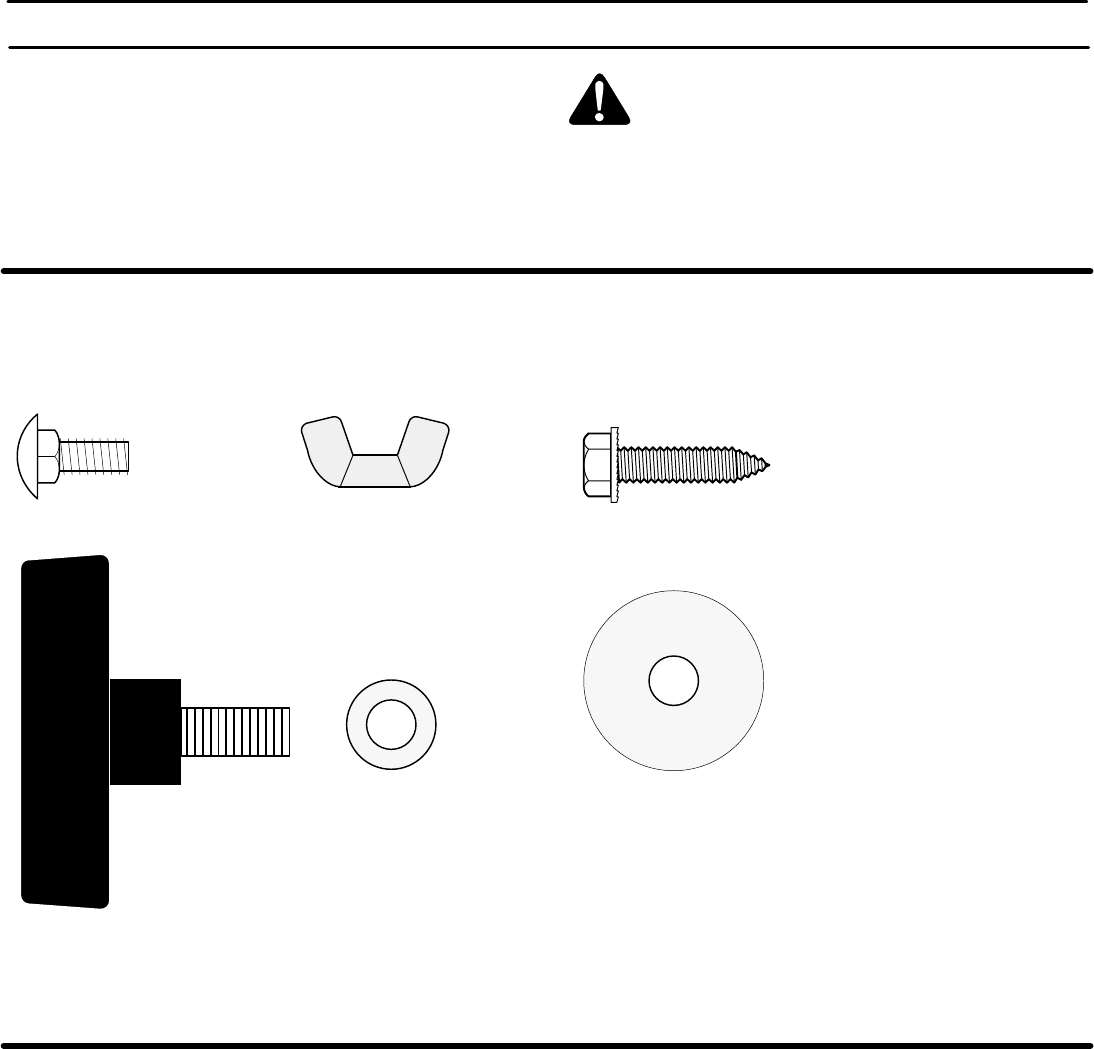

PARTS BAG – CONTENTS 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

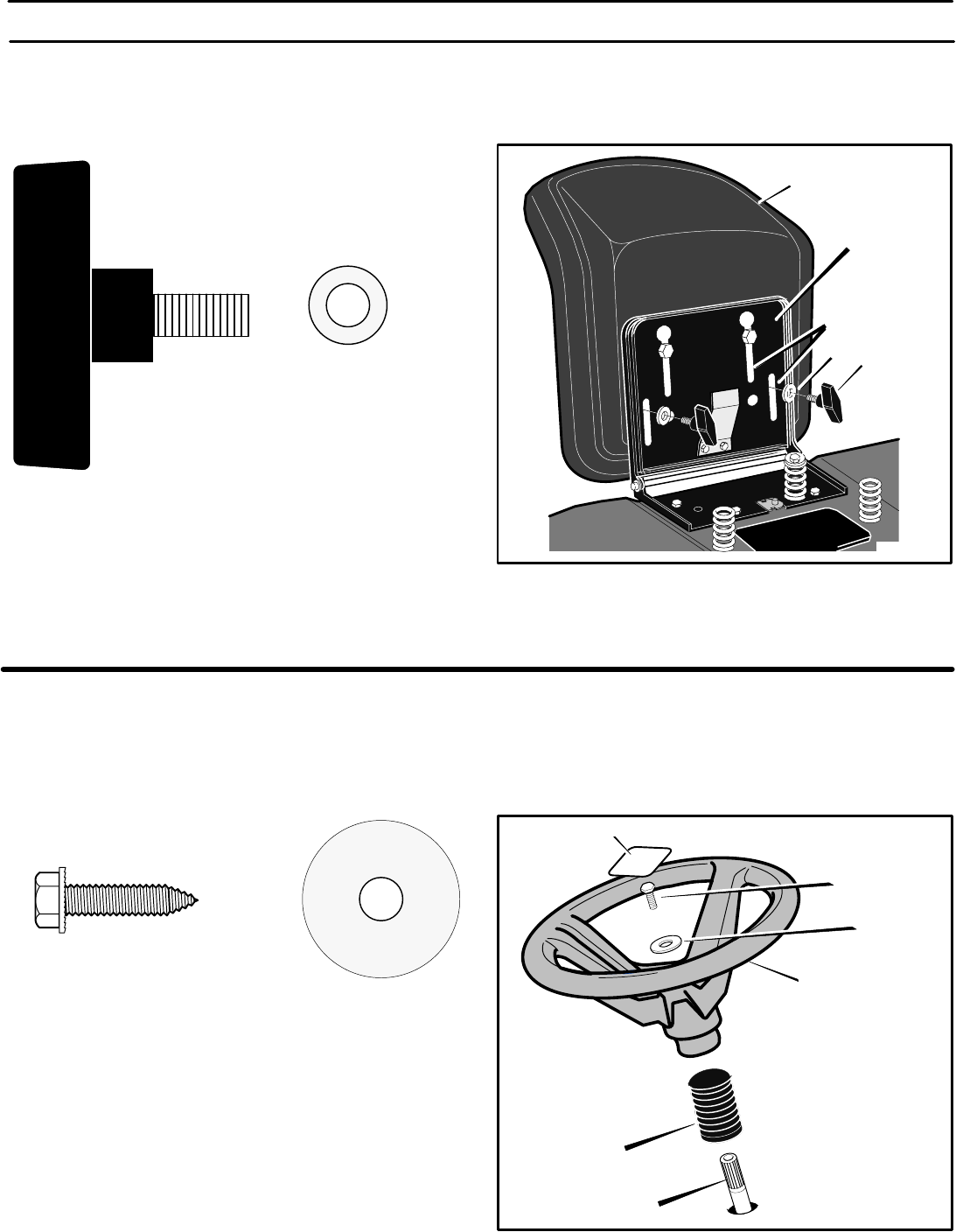

HOW TO INSTALL THE SEAT 11. . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO ASSEMBLE THE STEERING WHEEL 11. . . . . . . . . . . .

MAINTENANCE FREE BATTERY 12. . . . . . . . . . . . . . . . . . . . . . . .

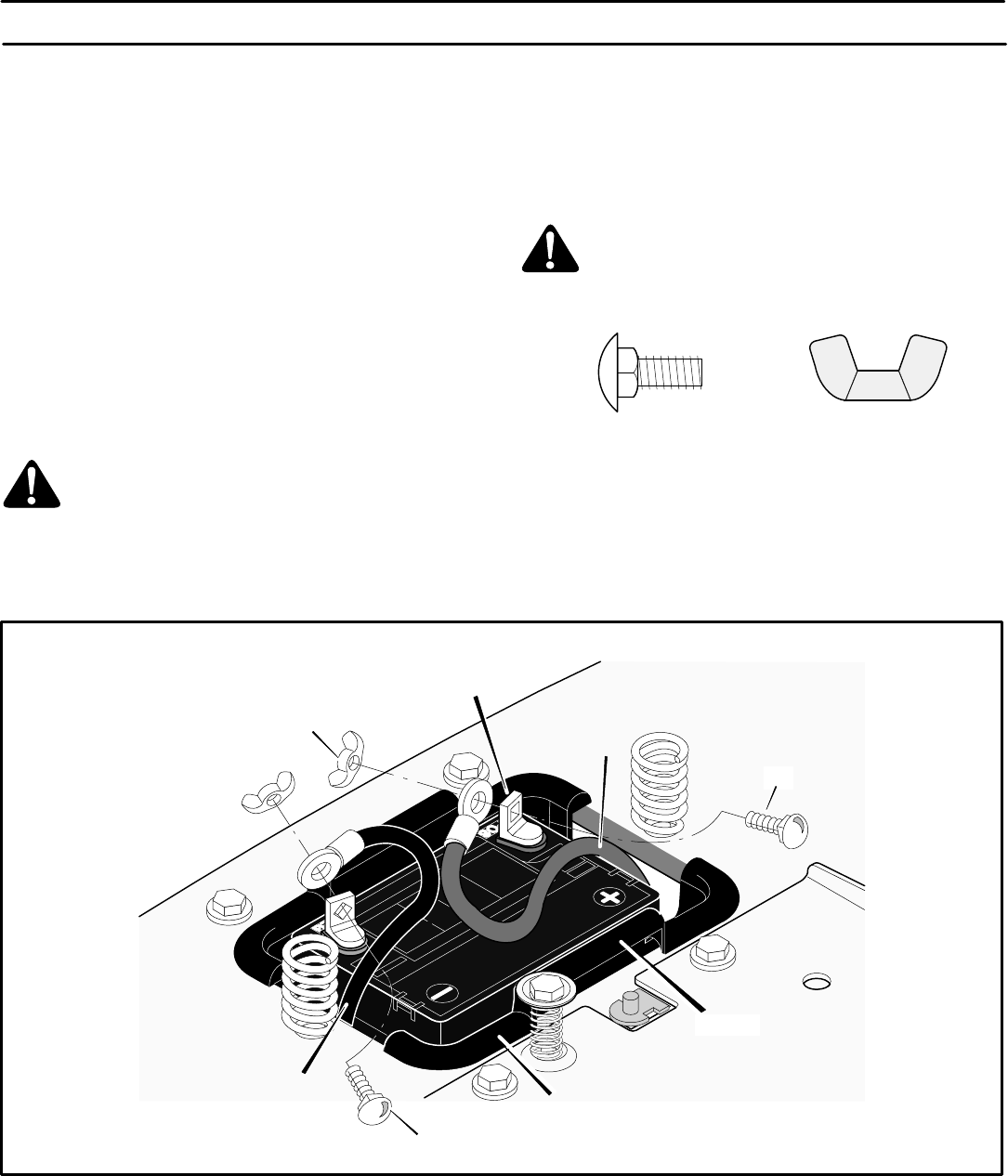

HOW TO INSTALL THE BATTERY CABLES 12. . . . . . . . . . . . . .

HOW TO PREPARE THE ENGINE 13. . . . . . . . . . . . . . . . . . . . . . .

CHECK THE LEVEL OF THE MOWER HOUSING 13. . . . . . . . . .

CHECK THE TIRES 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATION 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

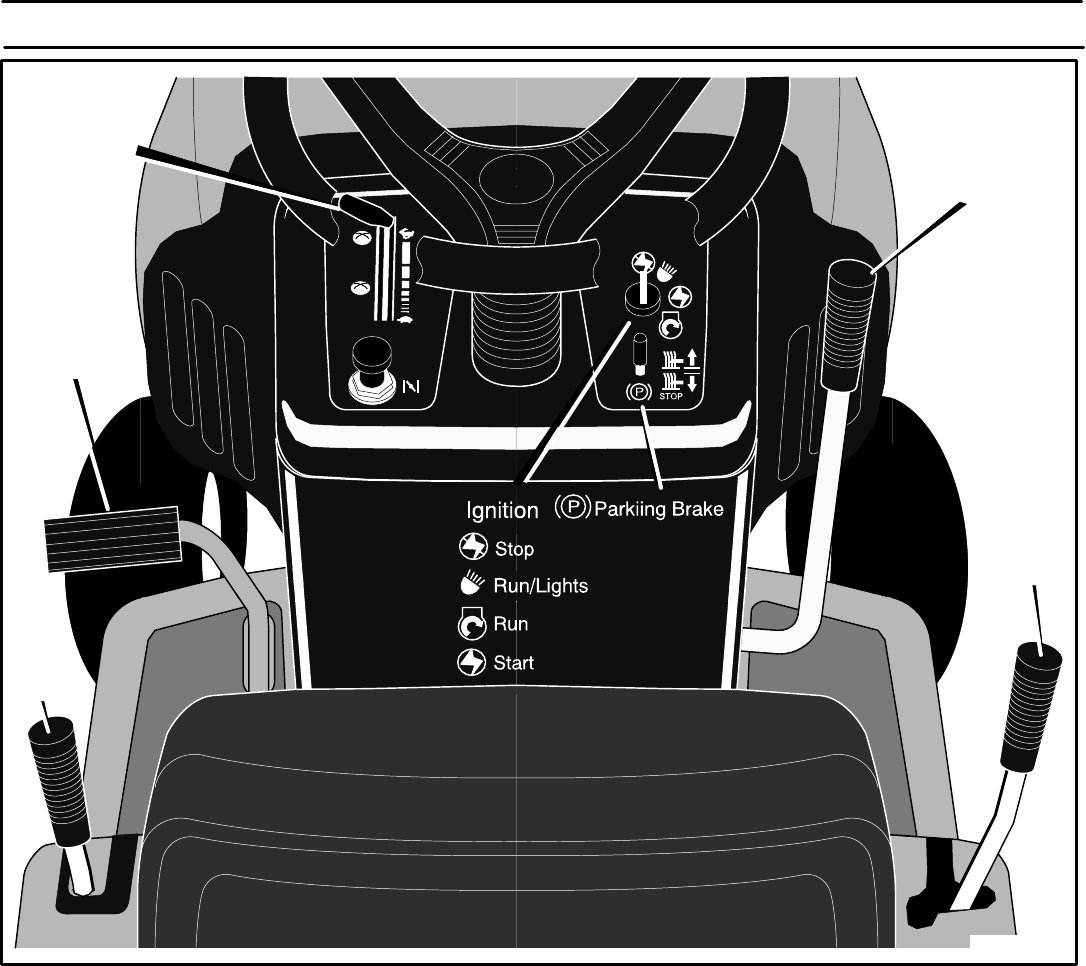

LOCATION OF CONTROLS 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATTACHMENTS 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO USE THE THROTTLE/CHOKE CONTROL 15. . . . . . . .

HOW TO USE THE BLADE ROTATION CONTROL 15. . . . . . . . .

HOW TO USE THE SHIFT LEVER 15. . . . . . . . . . . . . . . . . . . . . . .

HOW TO SET THE PARKING BRAKE 16. . . . . . . . . . . . . . . . . . . .

HOW TO CHANGE THE CUTTING HEIGHT 16. . . . . . . . . . . . . . .

HOW TO STOP THE UNIT 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO TRANSPORT THE UNIT 16. . . . . . . . . . . . . . . . . . . . . . . .

HOW TO OPERATE WITH THE MOWER HOUSING 17. . . . . . . .

HOW TO OPERATE THE UNIT ON HILLS 17. . . . . . . . . . . . . . . . .

BEFORE STARTING THE ENGINE 18. . . . . . . . . . . . . . . . . . . . . . .

HOW TO START THE ENGINE 18. . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATING TIPS 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

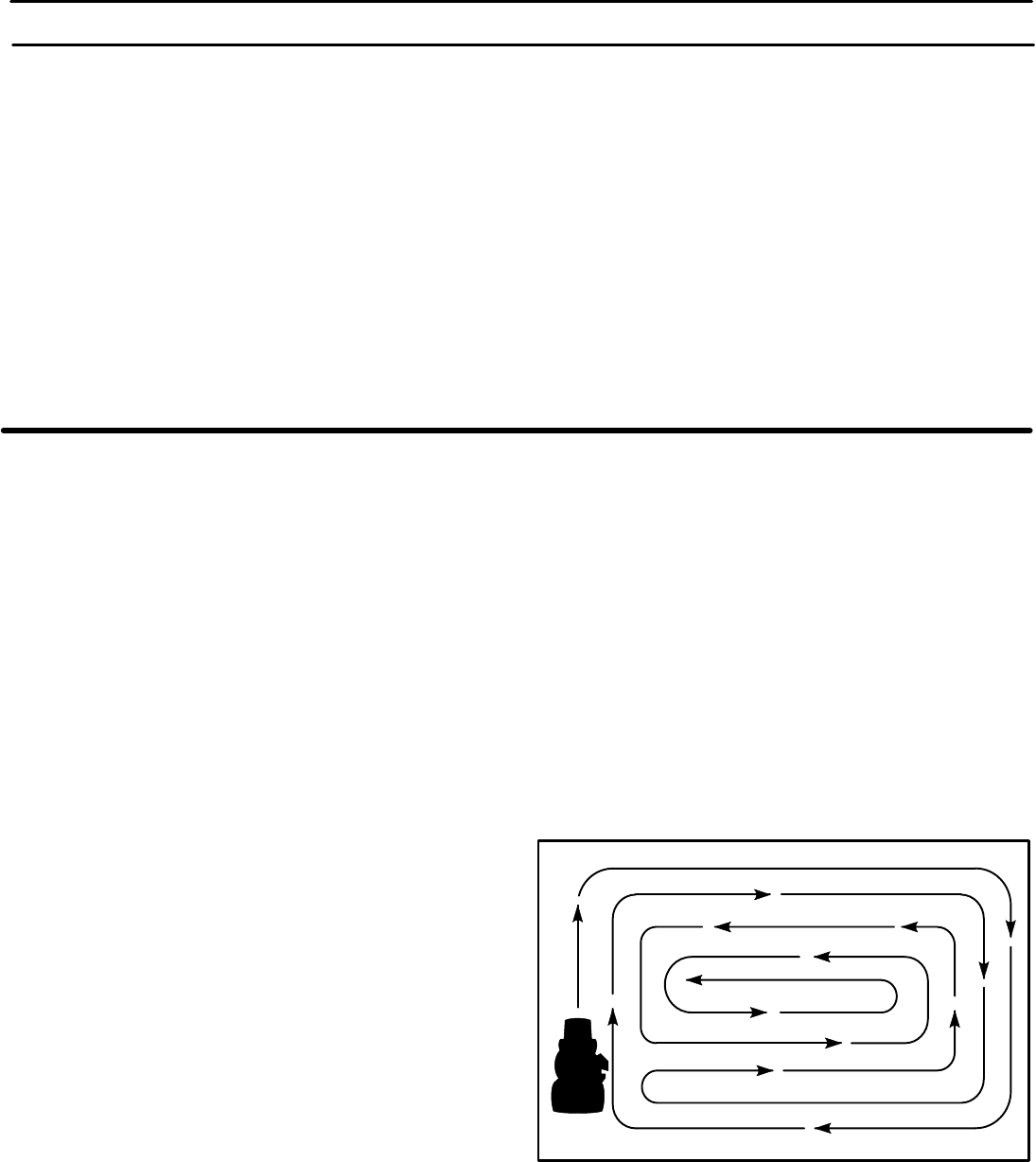

MOWING AND BAGGING TIPS 19. . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE CHART 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO CHECK THE MUFFLER 20. . . . . . . . . . . . . . . . . . . . . . . .

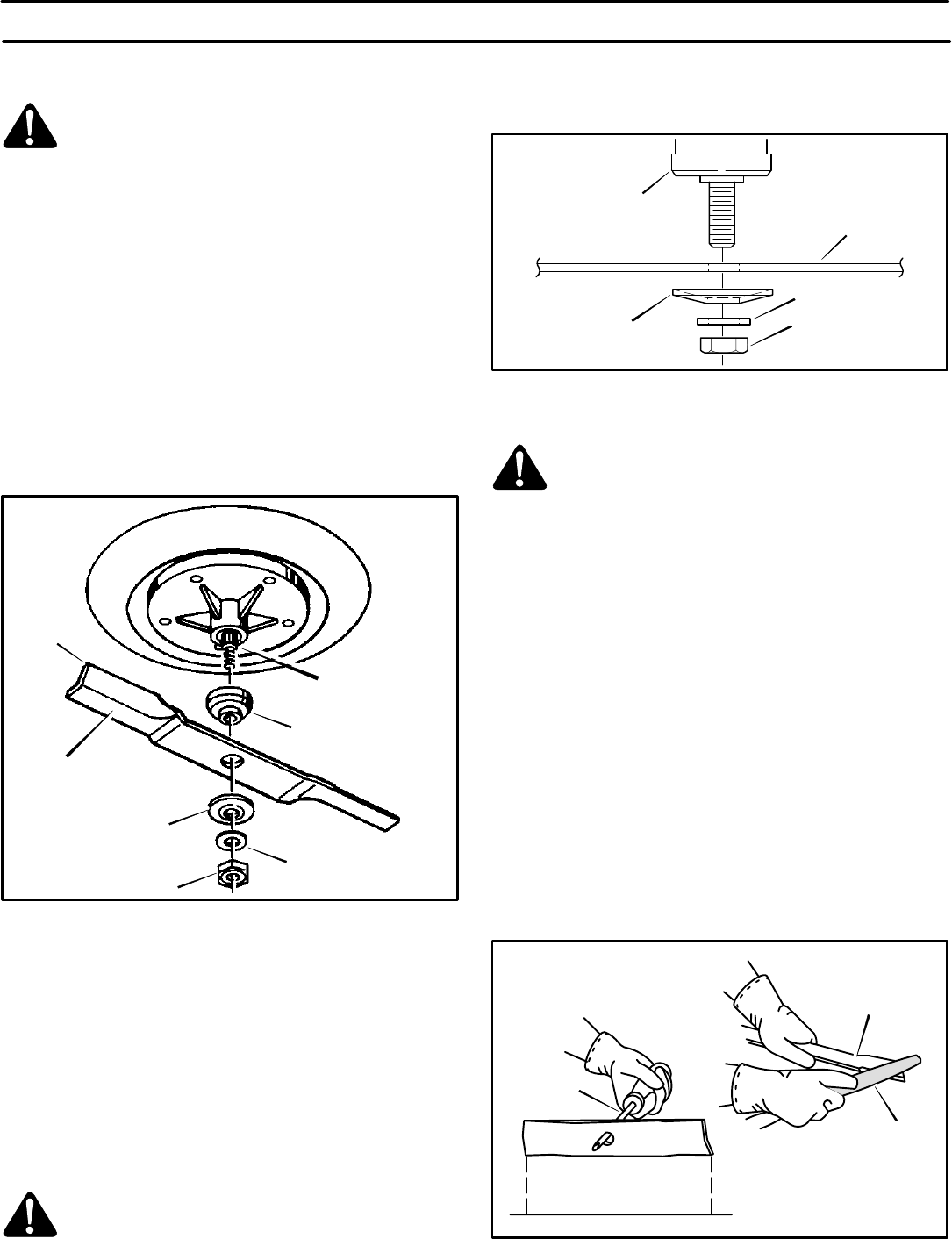

HOW TO REMOVE AND INSTALL THE BLADE 21. . . . . . . . . . .

HOW TO SHARPEN THE BLADE 21. . . . . . . . . . . . . . . . . . . . . . . .

HOW TO ADJUST THE BLADE ROTATION CONTROL 22. . . . .

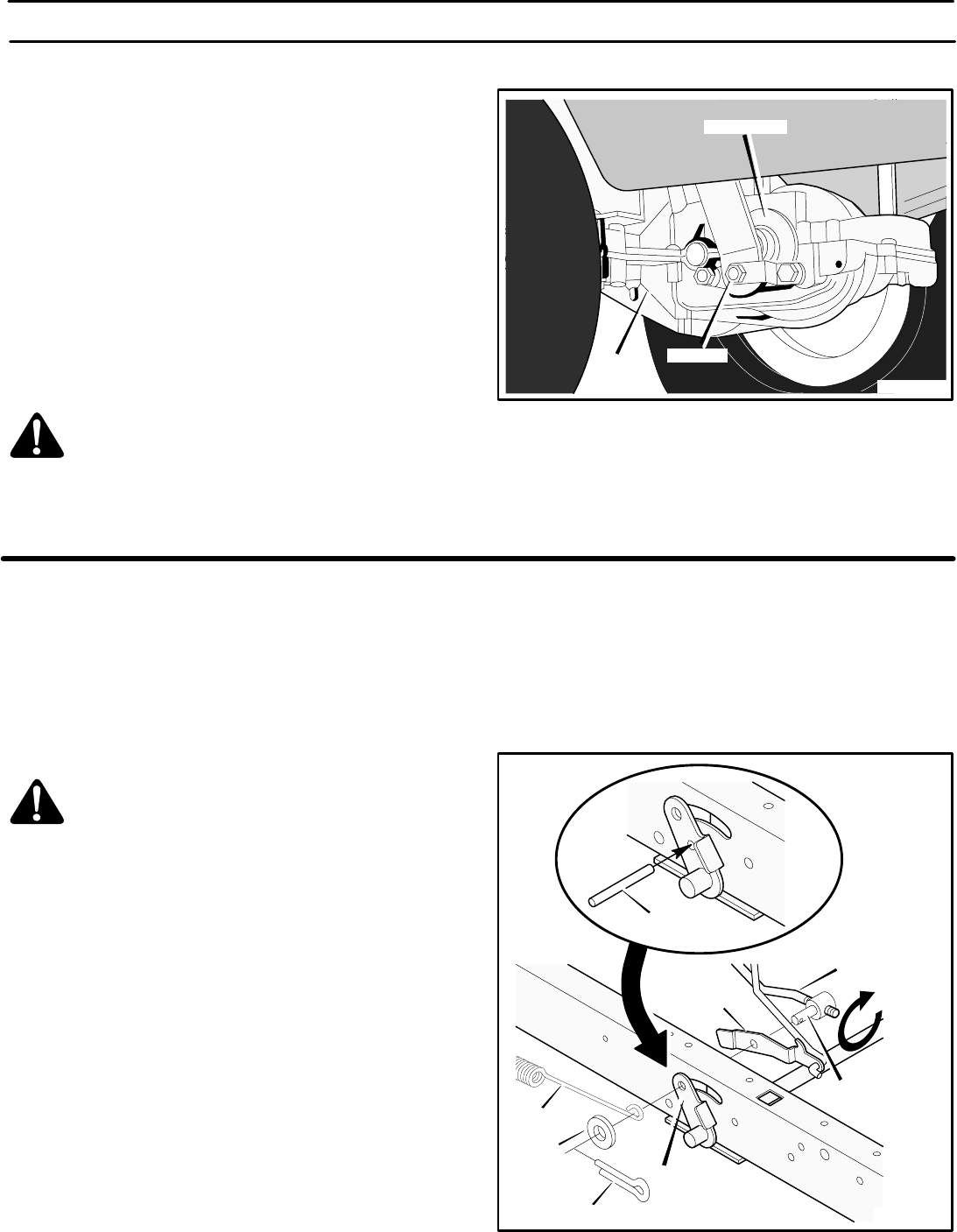

HOW TO CHECK AND ADJUST THE DRIVE BRAKE 23. . . . . . .

HOW TO CHECK AND ADJUST THE CLUTCH 23. . . . . . . . . . . .

HOW TO ADJUST THE SHIFT LEVER 24. . . . . . . . . . . . . . . . . . . .

MAINTENANCE FREE BATTERY 24. . . . . . . . . . . . . . . . . . . . . . . .

HOW TO CHARGE THE BATTERY 24. . . . . . . . . . . . . . . . . . . . . . .

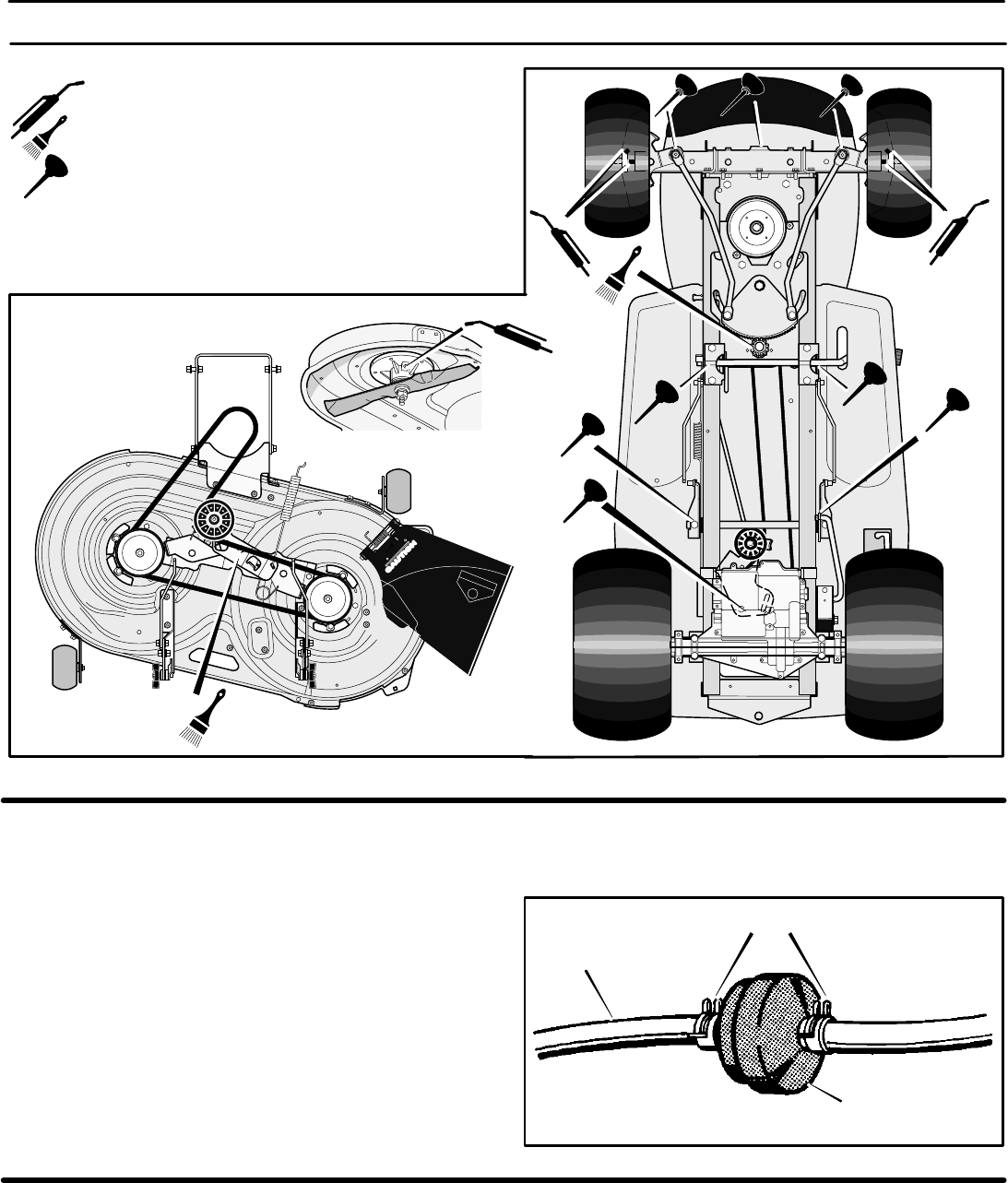

WHERE TO LUBRICATE 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO CHECK THE FUEL FILTER 25. . . . . . . . . . . . . . . . . . . . .

CHECK THE TIRES 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REMOVE THE MOWER HOUSING 26. . . . . . . . . . . . . .

HOW TO INSTALL THE MOWER HOUSING 26. . . . . . . . . . . . . . .

HOW TO ADJUST THE GAUGE WHEELS 27. . . . . . . . . . . . . . . .

HOW TO LEVEL THE MOWER HOUSING 28. . . . . . . . . . . . . . . .

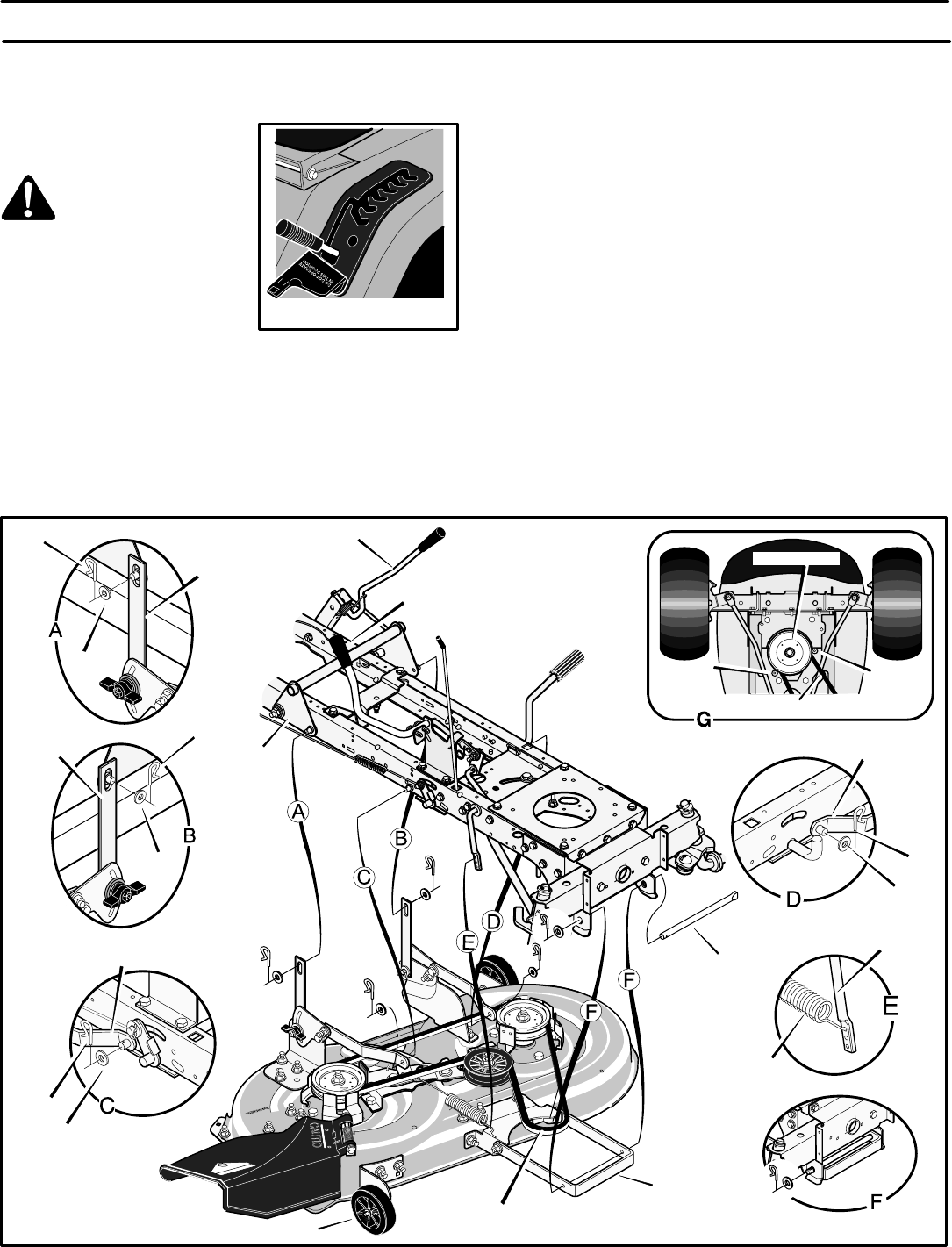

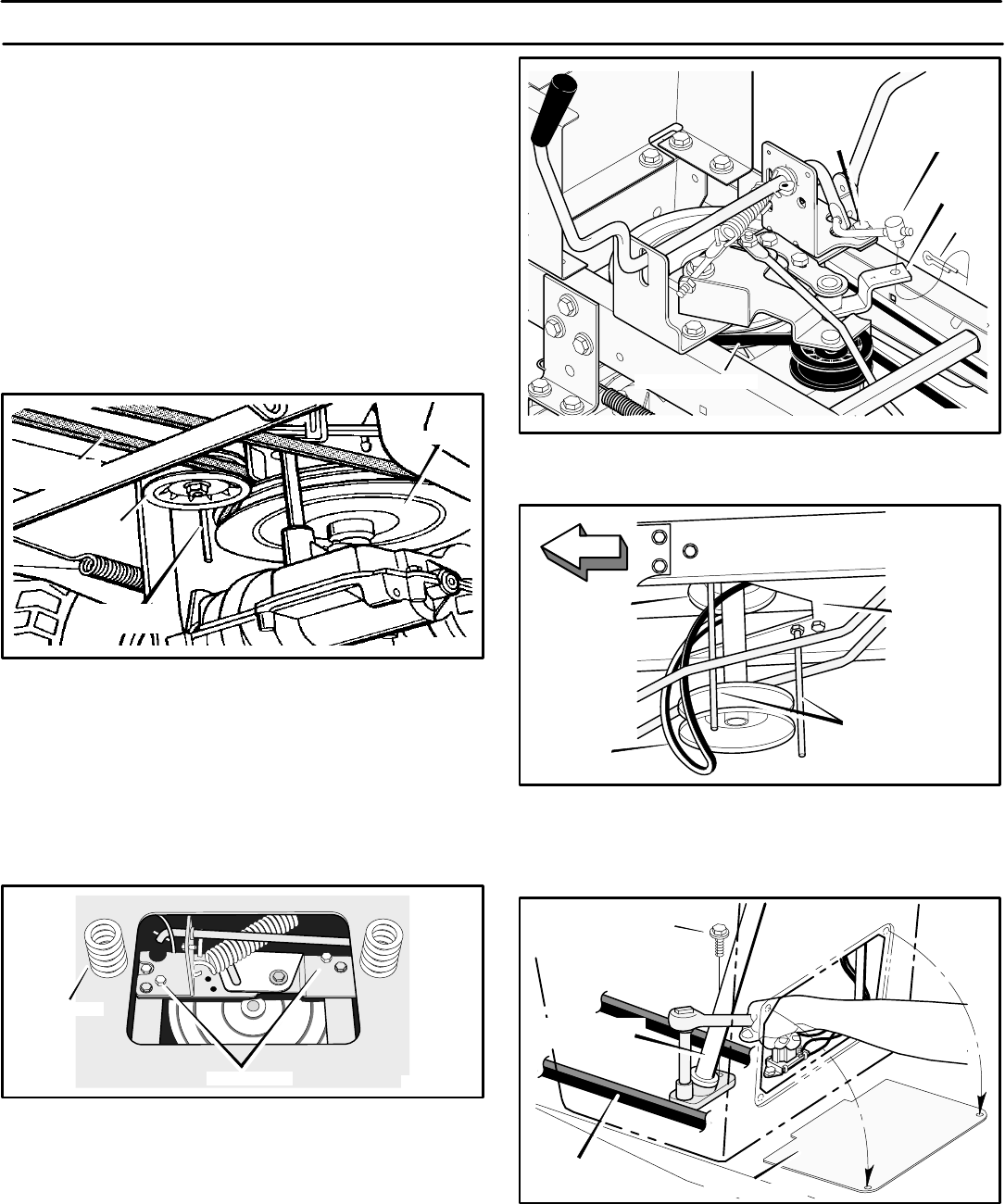

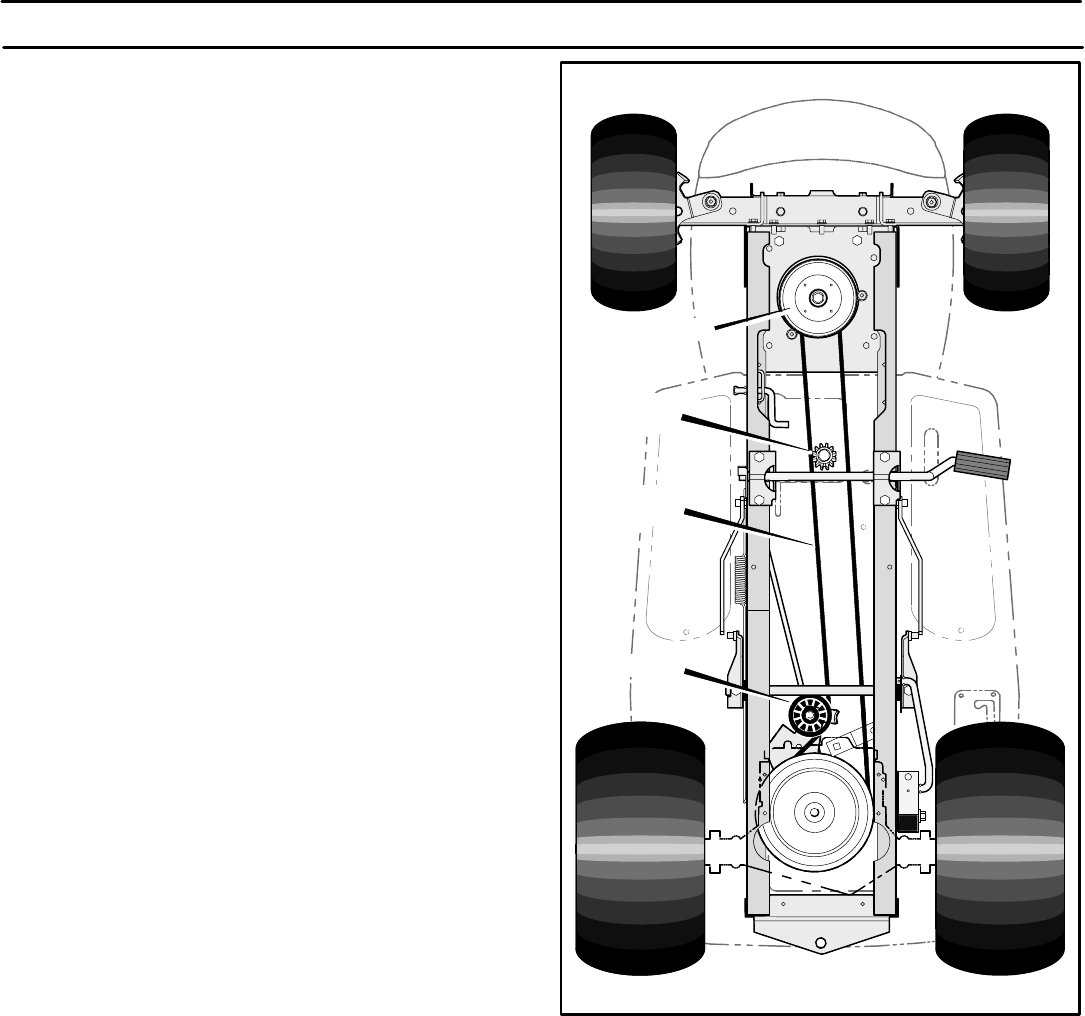

HOW TO REPLACE THE MOTION DRIVE BELT 29. . . . . . . . . . .

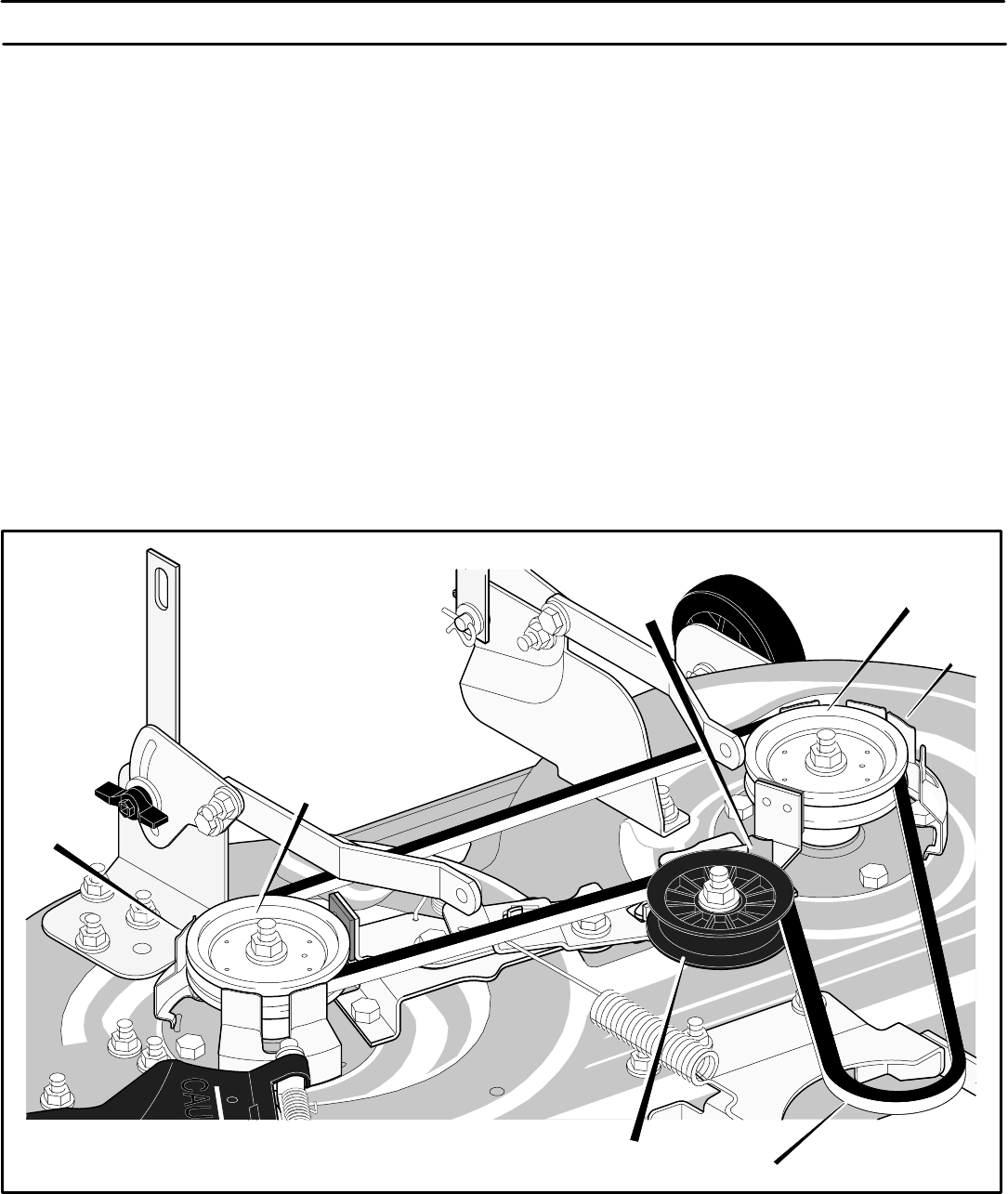

HOW TO REPLACE THE MOWER DRIVE BELT 31. . . . . . . . . . .

HOW TO INSTALL THE WHEELS 32. . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REPLACE THE FUSE 33. . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REPLACE THE LIGHT BULB 33. . . . . . . . . . . . . . . . . . .

HOW TO CLEAN THE MOWER HOUSING 33. . . . . . . . . . . . . . . .

STORAGE (OVER 30 DAYS) 33. . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLE SHOOTING CHART 34. . . . . . . . . . . . . . . . . . . . .

HOW TO ORDER REPAIR PARTS 35. . . . . . . . . . . . . . . . . . .

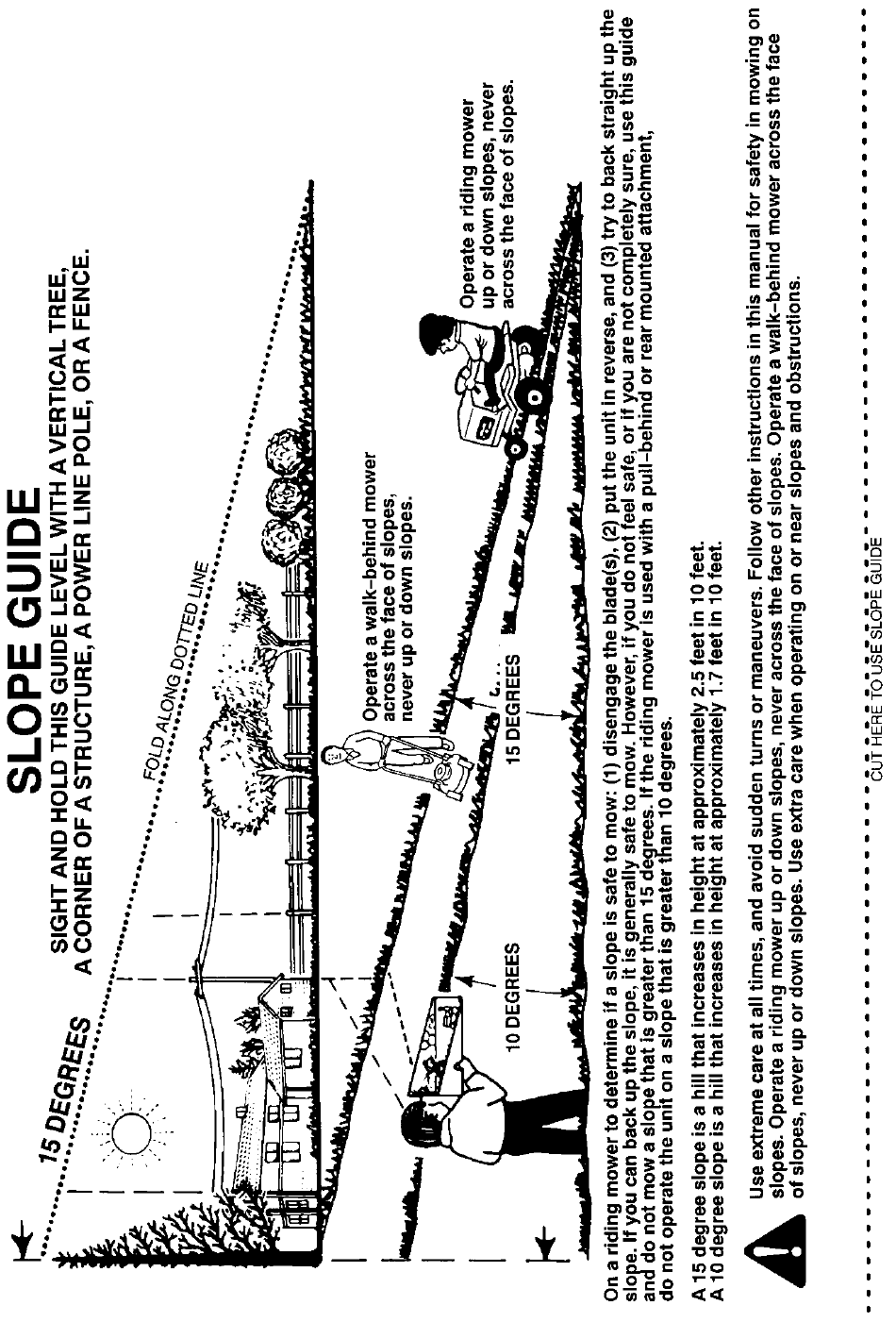

SLOPE GUIDE 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INDEX 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

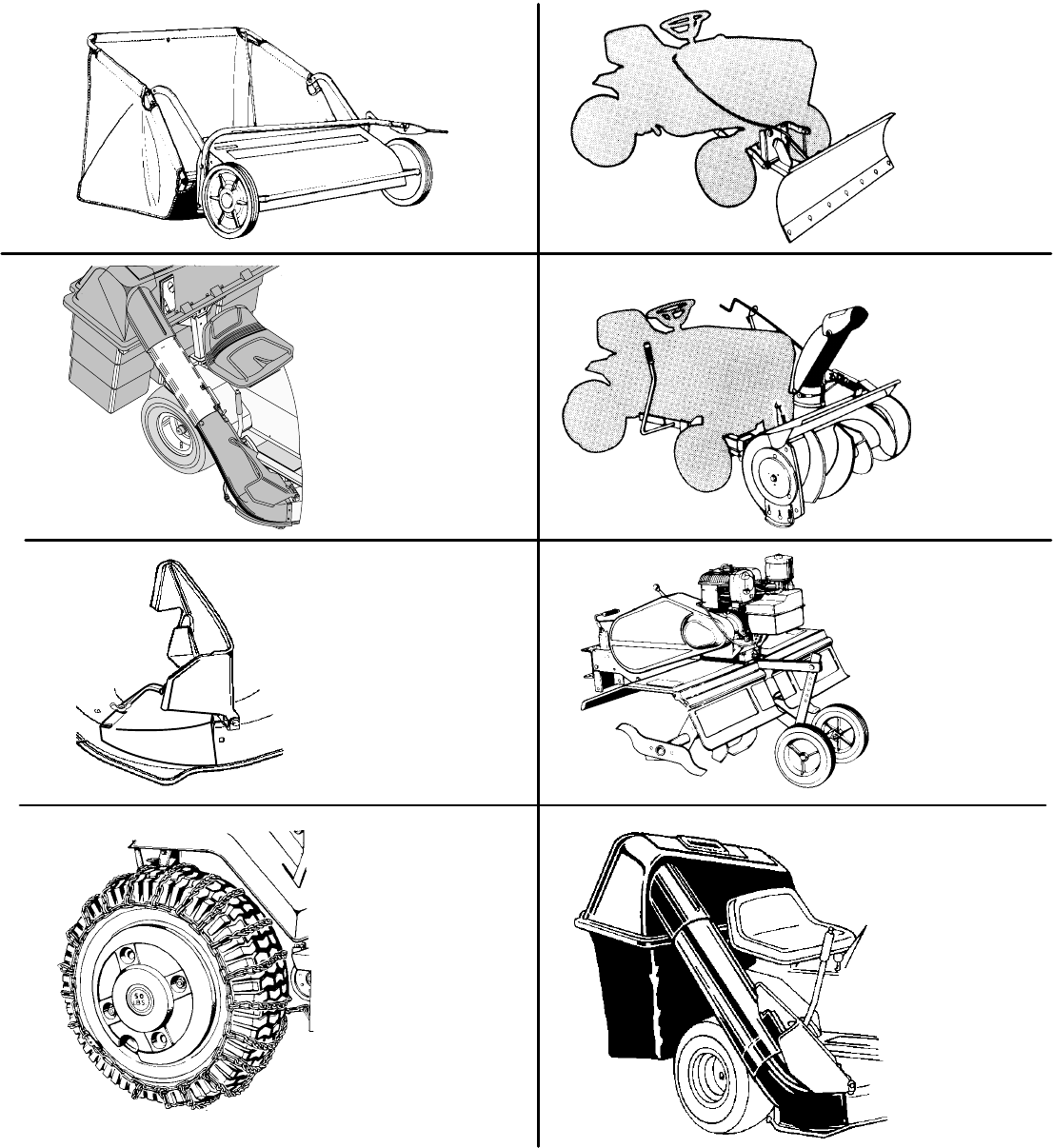

LAWN TRACTOR ACCESSORIES 52. . . . . . . . . . . . . . . . . .

MURRAY, INC. Two Year Limited Warranty

Murray, Inc. warrants to the original purchaser that this unit shall be free from defects in material and workmanship under normal

use and service for a period of Two (2) Years from the date of purchase; however, this warranty does not cover engines,

accessories (such as snow blowers, snow blades, grass baggers and plows), transmissions, batteries and Normal Wear Parts

(except as noted below) or transaxles as the companies that manufacture these items furnish their own warranties and provide

service through their authorized field service facilities. For additional information, see the warranties covering these particular

parts. If you are uncertain whether your unit contains or is equipped with one or more of these parts, consult your dealer prior

to purchase. Subject to the terms and conditions noted in this Limited Warranty, we shall, at our option, repair or replace at no

cost to the original purchaser any part covered by this Limited Warranty during the applicable warranty period.

In the event the battery proves defective within ninety (90) days from the date of purchase, we will replace it without charge. If

the battery proves defective after (90) days but within one hundred twenty (120) days from the date of purchase, we will replace

it for a charge of one half (1/2) of the retail price of the battery in effect at the time of return.

Normal Wear Parts are defined as belts, blades, blade adapters, pneumatic tires, headlights and seat covers. These parts are

warranted to be free from defects in material and workmanship as delivered with the product. Any claim for repair or replacement

of Normal Wear Parts must be made within thirty (30) days of the date of purchase. No claims involving damage caused from

material use, abuse or misuse will be honored.

This Murray, Inc. Two (2) Year Limited Warranty is your exclusive remedy; however, this warranty is void or does not apply

to any unit that has been tampered with, altered, misused, abused or used for rental or other commercial and/or professional

(non–homeowner) uses. Your warranty does not cover minor mechanical adjustments which are not due to any defect in material

or workmanship. For assistance in making such adjustments, consult your Instruction Book.

To make a claim under this Murray, Inc. Two (2) Year Limited Warranty, return the unit (or if authorized in advance, the defective

part) along with your proof of purchase to an Authorized Service Center near you. To locate the nearest Authorized Service

Center, call the Central Parts Distributor for your area shown in the list provided with your unit or check the Yellow Page listings

in your local telephone directory. If you return the entire unit, we will repair the unit. If we authorize the return of the defective

part only, we will either replace or repair the part. In the case of a defect in a transmission or differential (as distinguished from

a transaxle), the entire transmission or differential must be returned since they do not include user serviceable parts.

This Murray, Inc. Two (2) Year Limited Warranty gives you specific legal rights, and you may also have other rights which vary

from state to state. This Limited Warranty is given in lieu of all other expressed and implied warranties including the

implied warranty of merchantability and warranty of fitness for a particular purpose. If you need additional information

on this written warranty or assistance in obtaining service, write or call: MURRAY, INC., Outdoor Power Equipment, Customer

Service Department, P.O. Box 268, Brentwood, Tennessee 37027. (1–800–251–8007)

OWNER’S INFORMATION

3

F–000700L

This instruction book is for several different models. The instructions

are written for a person with some mechanical ability. Like most ser-

vice books, not all the steps are described. Steps on how to loosen or

tighten fasteners are steps anyone can follow with some mechanical

ability. Read and follow these instructions before you use the unit.

Know your product: If you understand the unit and how the unit oper-

ates, you will get the best performance. As you read this manual, com-

pare the illustrations to the unit. Learn the location and the function of

the controls. To help prevent an accident, follow the operating instruc-

tions and the safety rules. Keep this manual for future reference.

IMPORTANT: Many units are not assembled and are sold in car-

tons. It is the responsibility of the owner to make sure the assembly

instructions in this manual are exactly followed. Other units are pur-

chased in an assembled condition. On assembled units, it is the re-

sponsibility of the owner to make sure the unit is correctly

assembled. The owner must carefully check the unit according to

the instructions in this manual before it is first used.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

RESPONSIBILITY OF THE OWNER

The responsibility of the owner is to follow the instructions below.

1. Carefully read and follow the rules for safe operation.

2. Follow all the assembly instructions.

3. Inspect the unit.

4. Make sure that the operator of the unit knows how to correctly

use all standard and accessory equipment.

5. Operate the unit only with guards, shields, and other safety

items in place and working correctly.

6. Correctly adjust the unit.

7. Service the unit only with authorized or approved replacement

parts.

8. Complete all maintenance on the unit.

Environmental Awareness

Do not fill the engine’s fuel tank completely full.

Drain fuel for off–season storage.

Use only unleaded gasoline.

Service the air cleaner regularly.

Change oil regularly. Use 10W–30 oil in summer.

Tune–up the engine regularly.

Keep equipment in efficient operating condition.

Dispose of used engine oil properly.

SAFETY RULES

Safe Operation Practices for Ride–on Mowers

WARNING: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the

following safety instructions could result in serious injury or death.

I. General operation

1. Read, understand and follow all instructions in the Instruction Book, on the machine, the engine and with any attachments before starting.

2. Only allow responsible adults, who are familiar with the instructions, to operate the machine.

3. Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.

4. Be sure the area is clear of other people before mowing. Stop the machine if anyone enters the area.

5. Never carry passengers.

6. Turn off power to the blades or any attachments before backing up. Do not mow in reverse unless absolutely necessary. Always look

down and behind before and while backing.

7. Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower without either the entire grass bagger

or the mower guard in place.

8. Slow down before turning.

9. Never leave a machine unattended with the engine running. Always turn off the blade(s), set the parking brake, stop the engine and

remove the key before dismounting.

10. Turn off power to attachment(s) when transporting or not in use. Turn off the blade(s) when not mowing.

11. Stop the engine before removing the grass bagger or unclogging the chute.

12. Mow only in daylight or good artificial light.

13. Do not operate the machine while under the influence of alcohol or drugs or when very tired.

14. Watch for traffic when operating near or crossing roadways.

15. Use extra caution when loading or unloading the machine into a trailer or truck.

16. Disengage all attachment clutches and shift into Neutral before attempting to start the engine.

17. Always wear goggles, safety glasses, or an eye shield when you operate the unit to protect your eyes from foreign objects that can be

thrown from the unit. Always wear eye protection when you make an adjustment or repair to the machine.

18. Use care when pulling loads or using heavy equipment.

a. Use only approved drawbar hitch points.

b. Limit loads to those you can safely control.

c. Do not turn sharply. Use care when backing.

d. Use counterweights or wheel weights when suggested in the Instruction Book.

19. Do not operate this machine if you are taking drugs or other medication which can cause drowsiness or affect your ability to operate

this machine.

OWNER’S INFORMATION

4

F–000700L

20. Do not use this machine if you are mentally or physically unable to operate this machine safely.

21. Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower related injuries. These opera-

tors should evaluate their ability to operate a riding mower safely enough to protect themselves and others from serious injury.

II. Slope operation

Slopes and rough terrain are major factors related to loss–of–control and tip–over accidents, which can result in severe injury

or death. ALL slopes require extra caution. If you cannot back up the slope or if you feel uneasy on the slope, do not mow it. See

the “Slope Guide” in the back of this book to check for safe operation.

DO

1. Mow up and down slopes, not across.

2. Remove obstacles such as rocks, limbs, etc...

3. Watch for holes, ruts or bumps. Uneven terrain could overturn the machine.

Tall grass can hide obstacles.

4. Use slow speed. Choose a low enough gear so that you will not have to stop or shift while on the slope.

5. Follow the manufacturer’s recommendations for wheel weights or counterweights to improve stability.

6. Use extra care with grass baggers or other attachments, they can change the stability of the machine.

7. Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction.

8. Avoid starting or stopping on a slope. If tires lose traction, turn off the blades and proceed slowly

straight

down the slope.

DO NOT

1. Do not turn on slopes unless absolutely necessary, then only turn slowly and gradually downhill, if possible.

2. Do not mow drop–offs, ditches or embankments. A wheel over the edge or an edge caving in could cause a sudden overturn and an

injury or death.

3. Do not mow on wet grass. Reduced traction could cause sliding.

4. Do not try to stabilize the machine by putting your foot on the ground.

5. Do not use a grass bagger or other rear mounted accessories on steep slopes (greater than 10 degrees).

III. Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and

the mowing activity. NEVER assume that children will remain where you last saw them.

1. Keep children out of the mowing area and in the watchful care of another responsible adult.

2. Be alert and turn the engine off if children enter the area.

3. Before and when backing, look behind and down for small children.

4. Never carry children or any passengers, even with the blades off. They may fall off and be seriously injured or interfere with the safe

operation of the machine.

5. Never allow children to operate the machine. Instruct children in the potential dangers of the machine.

6. Use extra care when approaching blind corners, shrubs, trees or other objects that may obscure vision.

IV. Service

1. Use extra care when handling gasoline and other fuels. Fuels are flammable and the vapors are explosive.

a. Use only an approved container.

b. Never remove the gas cap or add fuel with the engine running. Allow the engine to cool for several minutes before refueling. Do

not smoke.

c. Never refuel the machine indoors.

d. Never store the machine with fuel in the tank or fuel container inside where there is an open flame, such as a water heater.

2. Never start or run the engine inside a closed area.

3. Keep all nuts and bolts, especially the blade attachment nuts tight. Frequently check the blade(s) for wear or damage such as cracks

and nicks. A blade that is bent or damaged must be immediately replaced with an original equipment blade from an authorized service

dealer. For safety, replace the blade every two years. Keep the equipment in good condition.

4. Never tamper with the safety devices. Check their proper operation regularly.

5. To reduce fire hazards, keep the machine free of grass, leaves or other debris build–up. Clean up oil or fuel spills. Allow the machine

to cool before storing.

6. Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

7. Never make adjustments or repairs with the engine running. The carburetor can be adjusted with the engine running. Do not change

the engine governor settings or over–speed the engine.

8. Grass bagger components are subject to wear, damage and deterioration, which could expose moving parts or allow objects to be

thrown. For storage, always make sure the grass bag is empty. Frequently check components and replace with manufacturer’s recom-

mended parts when necessary.

9. Mower blade(s) are sharp and can cut. Wrap the blade(s) or wear gloves and use extra caution when servicing them or the blade housing

area.

10. Check the brake operation frequently. Adjust and service as required.

11. Wait for all movement to stop before servicing any part of the unit.

Look for this symbol to indicate important safety

precautions. This symbol indicates: “Attention!

Become Alert! Your Safety Is At Risk.”

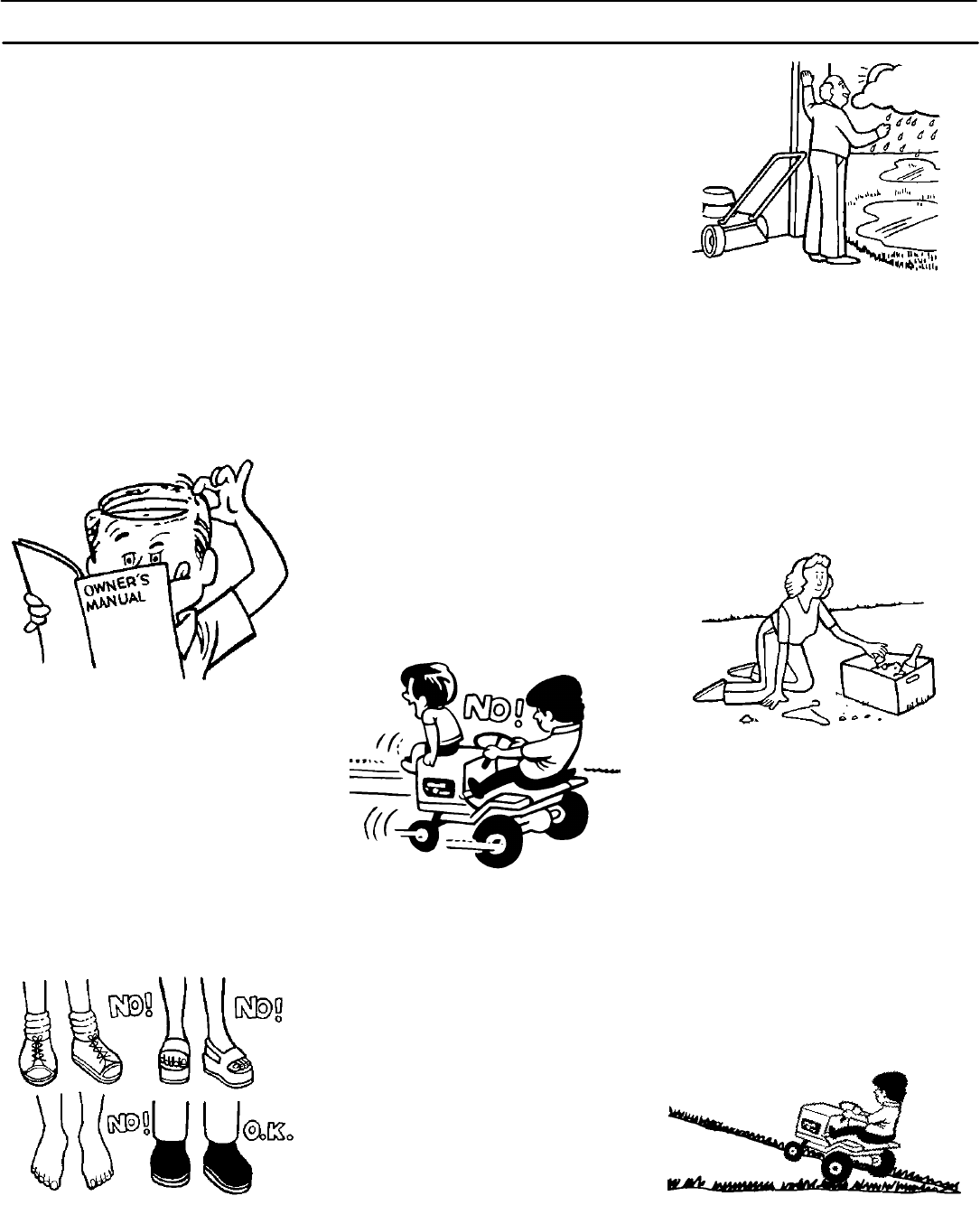

SAFE MOWING GUIDE

5

F–000700L

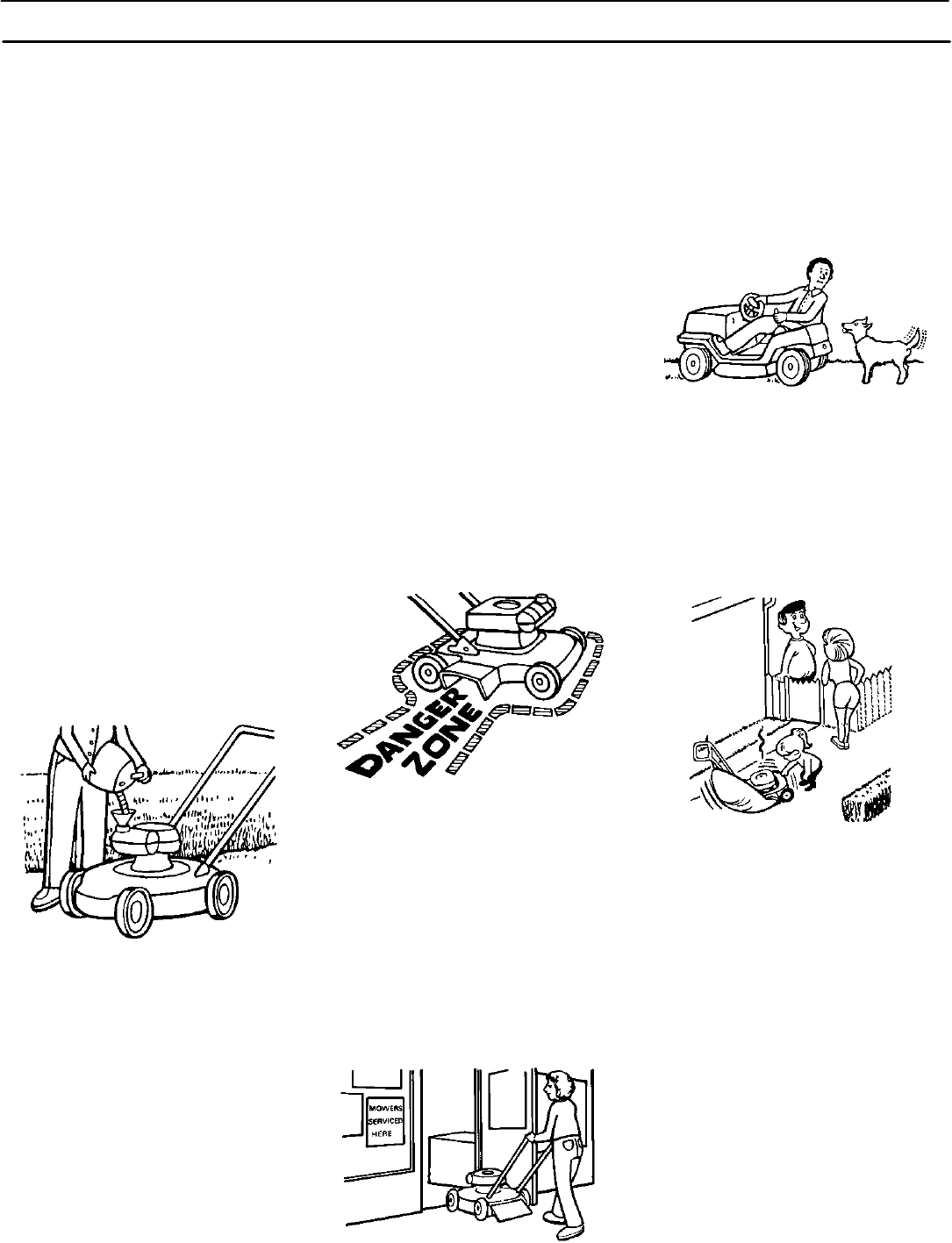

Each person that operates power

equipment must learn to use correct and

safe mowing procedures. To help you

learn, carefully read the following

pages. Most of the time the operator was

not correctly shown or did not read the

instructions on the unit or in the Instruction

Book before using the unit. Also, some

operators do not have enough experience.

The result is unsafe use, endangering the

operator, bystanders and the equipment.

Another result can be a poor appearance

of the area mowed.

Read this book. Read the instructions on

the unit. Operate the mower according to

the Safe Mowing Guide. Follow all safety

rules, cautions or warnings in this book

and on the unit. Make sure anyone that

uses the unit reads the instructions and is

told how to safely operate the mower.

The mower will give you good service and

durability, if operated in normal conditions.

If the mower is not correctly serviced or is

used where the terrain is rough or

unsuitable, product performance and

safety will be decreased.

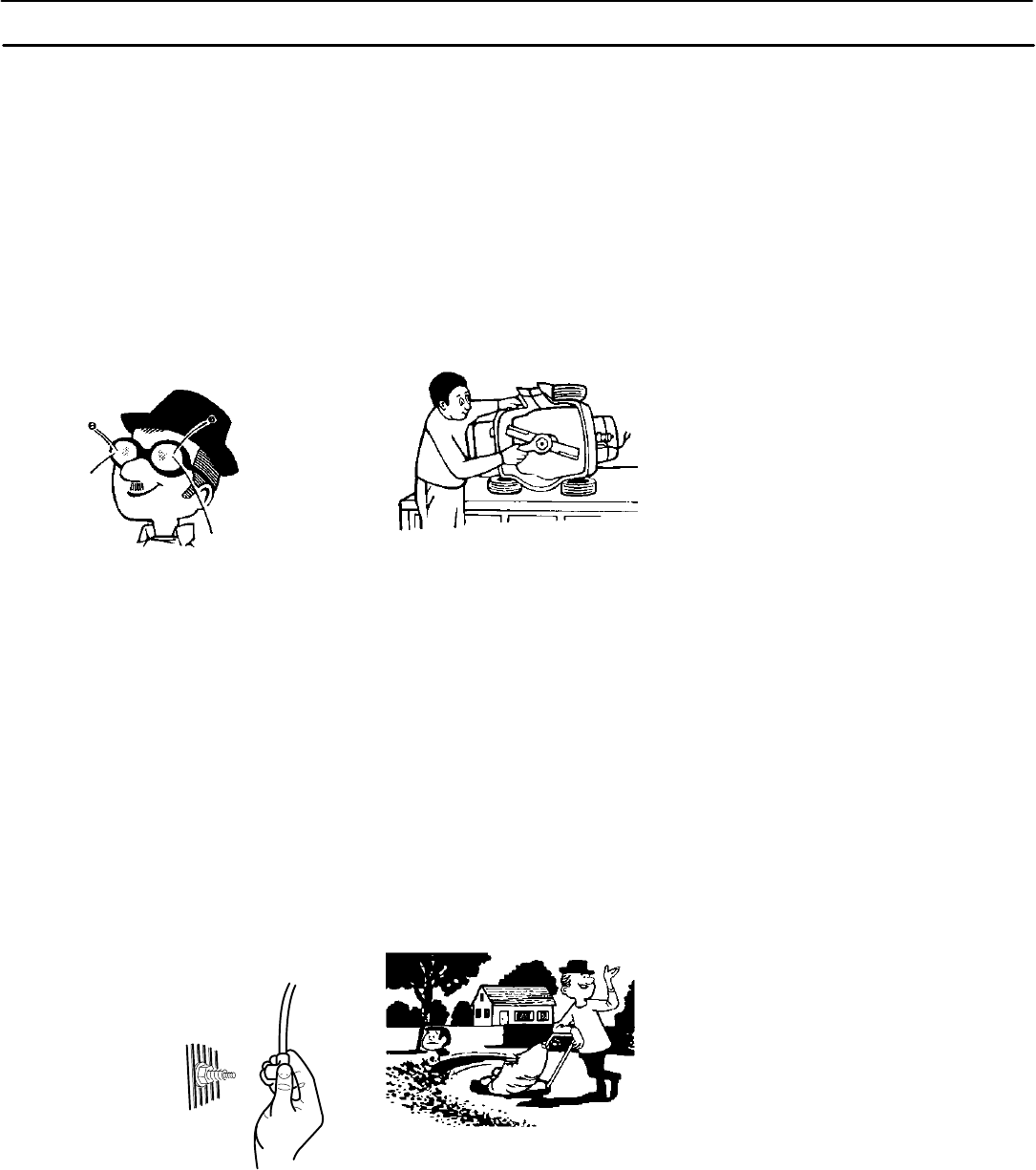

Correct clothing is an important part of safe

mowing. Safety glasses will protect the

eyes from objects discharged by the

mower. Safety shoes with steel plates can

protect a foot from injury by the blade. For

protection from objects discharged from

the mower, wear clothing that will cover the

arms and legs.

Before you start cutting the grass, practice

using the mower in a large open and level

area. Learn the location of the controls on

the mower. Know the purpose of the

controls and how they work. In an

emergency, how fast you can stop the

blade is important. Learn how to control

the mower at all times.

Many engines are started by hand. When

you use a pull start or rope start, place

your feet apart and away from the blade(s).

Hold the rope handle tight. Never wrap the

rope around your arm or fingers for a

“better grip”. To start the engine, follow the

instructions on the mower, in this book and

in the engine operating instructions.

For electric start engines, sit in the seat to

start the engine. The battery can be

dangerous. Follow the instructions on the

battery, the acid container, and in this book

when working with the battery. Even small

batteries have enough voltage to cause an

injury. Always be careful.

The mower is designed to be operated by

one person. Never let another person ride

with you on the unit or on any accessories.

A passenger will make the unit harder to

control, block the visibility or distract the

operator and is dangerous to the operator,

the passenger and the equipment. Without

a passenger seat, the passenger can fall

from the mower or contact dangerous

parts. A mower is not a toy for showing off

or for giving rides.

Never cut a wet lawn. Wet grass can

cause an accident, affect mower

performance and can cause problems with

future lawn growth and appearance. Wet

grass is slippery and can cause the mower

to slip. Someone can get injured by

touching the blade(s). Wet grass tends to

clog the mower, causing poor discharge.

Cut wet grass will collect on the lawn,

retarding the growth of the grass. Also,

getting the mower wet will cause parts to

rust and decrease the life of the unit.

When you look over the lawn, remember

obstacles that cannot be removed, like

pipes, stumps or rocks. Keep away from

these obstacles that can cause damage to

the mower or injury to the operator or a

person near the mower. Clear the area of

rocks, toys, wire or other loose objects.

These items can damage the mower or

can be discharged by the mower blade.

The blade of a power mower rotates very

fast. It can discharge rocks and other

objects over a long distance which can be

dangerous. The force of the objects can

break windows, cause injuries or even put

an eye out. Most of the time the injury is to

a person, like a child. Keep every person

completely away from the area to be

mowed. Make sure the grass is not

discharged toward anyone. Planning your

mowing pattern has a double advantage. It

can decrease the possibility of an injury

and make the clean up after mowing

easier.

Check the terrain of the area to be mowed.

Mow in a pattern that will keep you away

from dangerous areas. Check the distance

you need to stop and the distance

available to turn. Slopes and rough terrain

must be mowed carefully and some areas

must not be mowed at all. With riding

mowers, mow up and down the hill. When

you must mow rough terrain or on slopes,

never change directions or change gears

and stop in these areas only in an

emergency. Before you ride up or down a

slope, try to back straight up the slope. Do

not ride up or down a slope that is too

steep to back straight up. See the “Guide”

in the back of this Instruction Book to

check any slopes.

Before you start cutting, make sure the

mower was completely assembled

according to the Instruction Book. If the

SAFE MOWING GUIDE

6

F–000700L

mower was completely assembled at the

store, you must still check the mower

according to the assembly instructions.

Make sure the mower is correctly

assembled and that all fasteners are tight.

Make sure the engine has the correct

amount of oil. Check these items often

during the life of the mower.

Your mower has a gasoline engine.

Gasoline is a dangerous fuel. Keep

gasoline only in an approved safety

gasoline container. Do not keep large

amounts of gasoline. When you add

gasoline to the fuel tank, do not smoke.

Store the gasoline container and the

mower in an area that has good ventilation.

Also, keep the gasoline away from any

flames like the pilot light of a furnace or

any other source of ignition. If the mower is

to be stored for more than a few weeks,

remove the gasoline from the fuel tank.

When inside an enclosure, do not add

gasoline to the fuel tank. Before you add

gasoline, move the mower outside and add

gasoline carefully. Before you start the

engine, remove any gasoline from the

outside of the fuel tank or from the mower.

Warm gasoline will expand. Leave some

space in the fuel tank for the gasoline to

expand. Also, the fuel cap has a vent hole

for fuel vapors. Always use the correct fuel

cap. Failure to follow safety rules about

gasoline will cause fires and explosions,

injury to you and damage to the equipment

and other property.

If you add gasoline to an engine that is

running or hot, the result can be an

explosion. Before you add gasoline, stop

the engine and let the engine cool for

several minutes. Remove dry grass and

other debris from the mower. Keep the

mower clean to improve the performance,

help the engine and transmission run

cooler, extend the life of moving parts, and

decrease the danger of a fire.

Fires and explosions are not the only

dangers when working around a mower.

The engine, transmission, and the muffler

will get hot in several minutes when the

engine is running. Do not touch these parts

of the mower. Stop the engine. Let the

engine and transmission cool before

servicing the mower. Remember, exhaust

fumes are dangerous. Never operate the

engine inside a building.

When you get a new mower, it can be a

new experience for the family. Tell each

person how a mower can be dangerous.

Remember, a mower is not a toy. A mower

is not to be used by children or anyone not

old enough, strong enough or that does not

have experience.

If the mower is not correctly assembled,

not operated correctly, or not regularly

serviced, the mower can be dangerous.

The most important rule to follow is always

use good judgement and common sense.

Mow safely and carefully.

Your mower will easily cut thick grass.

Fingers, feet and other parts can also be

cut by the blade. Injuries occur when the

operator does not think and reaches into

the chute opening. Always operate the

mower as if the blade is rotating. Do not

service or make an adjustment, except to

the carburetor, while the engine is running.

Use only accessories that are factory

approved for your mower. The wrong

accessory can decrease the safety of the

mower and can even damage the unit.

Read and follow the instructions included

with the accessory and the mower.

Use only original equipment or

replacement parts that are factory

approved for service. If you need service,

select an Authorized Service Center for

your mower. If you do the work on the unit,

follow the instructions in the Instruction

Book.

When you mow, remember that children

are attracted to the mower. Always use

caution when mowing around obstacles

like trees or shrubs or when moving

backward. Only mow in a forward direction

if possible. Your visibility is decreased

when you mow backward. Also, the blades

are made to cut while the unit is moving

forward. If you mow backward, the cutting

performance decreases.

Before you leave the mower, stop the

engine. Remove the key. Disengage and

lower any attachment. Set the parking

brake. Never mount or dismount from the

seat while the engine is running. An

accident can occur if you touch the brake,

shift lever, throttle, clutch or blade control

while the engine is running. Mount and

dismount from the seat on the side of the

unit that is marked ENTER–EXIT.

Make sure you are in good condition when

you mow. When you mow for several hours

your reflexes will decrease and your mind

will not be as alert. Take a short break or

an accident can occur. If the temperature is

hot, use caution to prevent dehydration. If

you are tired, angry or not completely alert,

do not operate the mower. If you use

alcohol, medication or drugs, do not use

the mower or any type of power

equipment.

Engine speed is a key to safe mowing and

to a good looking lawn. The maximum

speed of the engine was set at the factory.

Do not change the setting of the engine

governor.

Select the maximum engine and ground

speed that is right for the terrain and the

height of the grass. The blade cuts best

when the engine is operating at maximum

speed. The engine and transmission will

also run cooler at maximum engine speed.

SAFE MOWING GUIDE

7

F–000700L

Also, the grass bagger will function better

when the engine is operating at maximum

speed. On slopes, decrease the ground

speed and use care making sure the

mower feels safe to operate.

If the weather conditions are bad, do not

mow. If weather conditions become bad,

stop cutting and finish later. It is dangerous

to cut grass in the rain. Always find

protection in an electrical storm. If the

weather conditions are extra dry, protect

your eyes with safety glasses from the dust

and from the objects discharged by the

mower. Also, a dust or a pollen mask can

help.

Your mower is equipped with a number of

safety devices which are important to the

safety of the operator and bystanders and

must never be changed or removed from

the mower. If a safety device is lost,

damaged or no longer functions, repair or

replace the device before you operate the

mower.

It is best to mow during the day. If you

must mow at night, make sure there is

enough light for safe operation.

Your mower will require regular

maintenance and service. The

maintenance schedule depends on the

hours of use. Also, mowing conditions can

change the schedule. Check the

Instruction Book for more information.

Correct maintenance will help the mower

function safely.

Do not service the

mower (except for the

carburetor adjustment)

while the engine is

running. Before you

service the unit, even

with the engine stopped,

always disconnect the

wire from the spark plug

to prevent the engine

from starting.

If you hit a large object during operation,

stop the engine. Remove the wire from the

spark plug. Carefully inspect the mower for

damage. Before you start the engine

again, make the necessary repairs. If you

feel new or excessive vibration,

immediately stop the engine and check for

the problem. Vibration can be a warning of

a problem. Keep all nuts, bolts and screws

tight.

The blade is the most dangerous part of

the mower. Frequently check the blade and

the blade mounting fasteners. Keep the

fasteners tight. If the blade hits a solid

object, stop the engine. Remove the wire

from the spark plug. Check for a blade that

is bent, cracked or for other damages.

Before you start the engine, replace a

damaged blade(s). For safety, replace the

blade every two years.

A sharp blade decreases the workload on

the engine and more evenly cuts grass.

Frequently sharpen the blade for a better

looking cut. Use the left side of the mower

housing to trim near an object.

A grass bagger is a good accessory for

your mower. For best performance and

safety, make sure the grass bagger is

approved for use with your mower. Follow

the assembly and operation instructions

included with the grass bagger.

Some grass baggers require a special

blade for best performance. Before you

attach, check, or empty the grass bagger,

always stop the engine. Before each use of

the grass bagger, check for cracks, wear or

deterioration. Before you use the grass

bagger, replace a damaged part with a

replacement part approved by the factory.

For you to have a good green lawn, follow

the mowing procedures below. Do not cut

the grass too short. If you cut the grass too

short you can cause the grass to become

yellow or make the lawn look brown. Use a

lower height of cut in cool months when

the grass is thicker. Raise the height of cut

in hot dry periods. If you cut the grass with

a blade that is not sharp or at a slow

engine speed you can damage the grass.

Move the throttle control to the FAST

position when mowing and using the grass

bagger. Also, use a slower ground speed

when using the grass bagger.

If you change the direction or pattern of cut

slightly every time you mow will make the

grass grow stronger and thicker. Do not

add oil or gasoline to the mower while on

the lawn. Spilled oil or gasoline can kill the

grass. In high or thick grass, do not try to

cut all the grass the first time. Raise the

height of cut on the first cutting and lower

the height for the next cutting. Another way

is to cut only part of the width of the mower

and decrease your ground speed (not the

engine) to move more slowly so that the

mower can discharge the grass as it

moves forward.

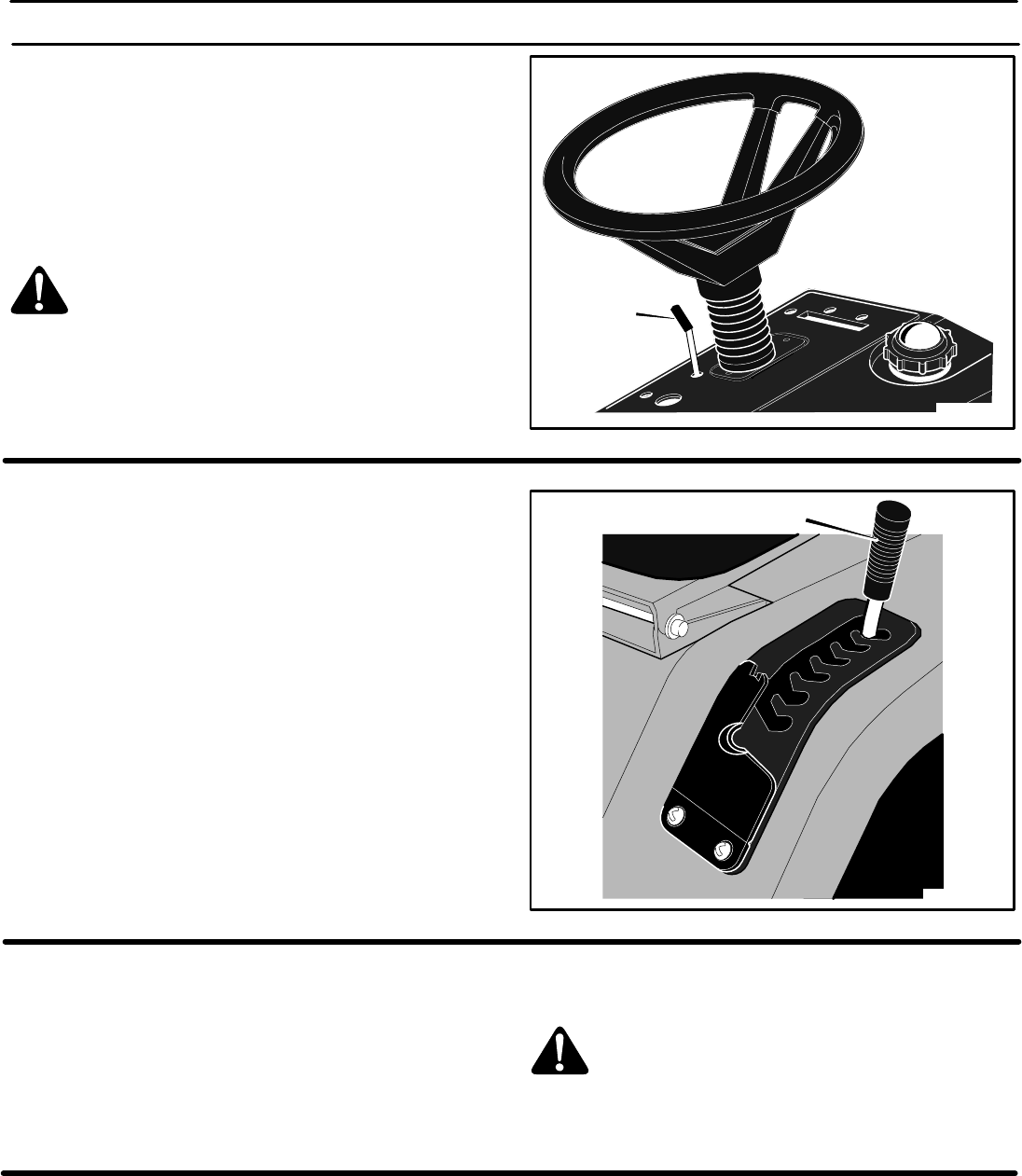

Understand the controls and how they

work. Learn the ground speed(s) of your

mower. Check the stopping distance

required at different travel speeds. Check

the turning radius of the mower. The

controls on your riding mower are different

from an automobile. The throttle is

operated by hand and holds the engine

speed constant until it is changed. The

location of the shift lever and the shift

pattern is different from that of an

automobile. Also, the brake and clutch

systems are different. Remember the

procedures to follow in an emergency.

Remember, turning off the engine ignition

switch will stop the blade and the drive

mechanism. If the traction of the wheels is

lost or does not feel safe, disengage all

systems and stop the engine. Dismount

from the mower. Push the unit to a safe

place before you begin mowing again.

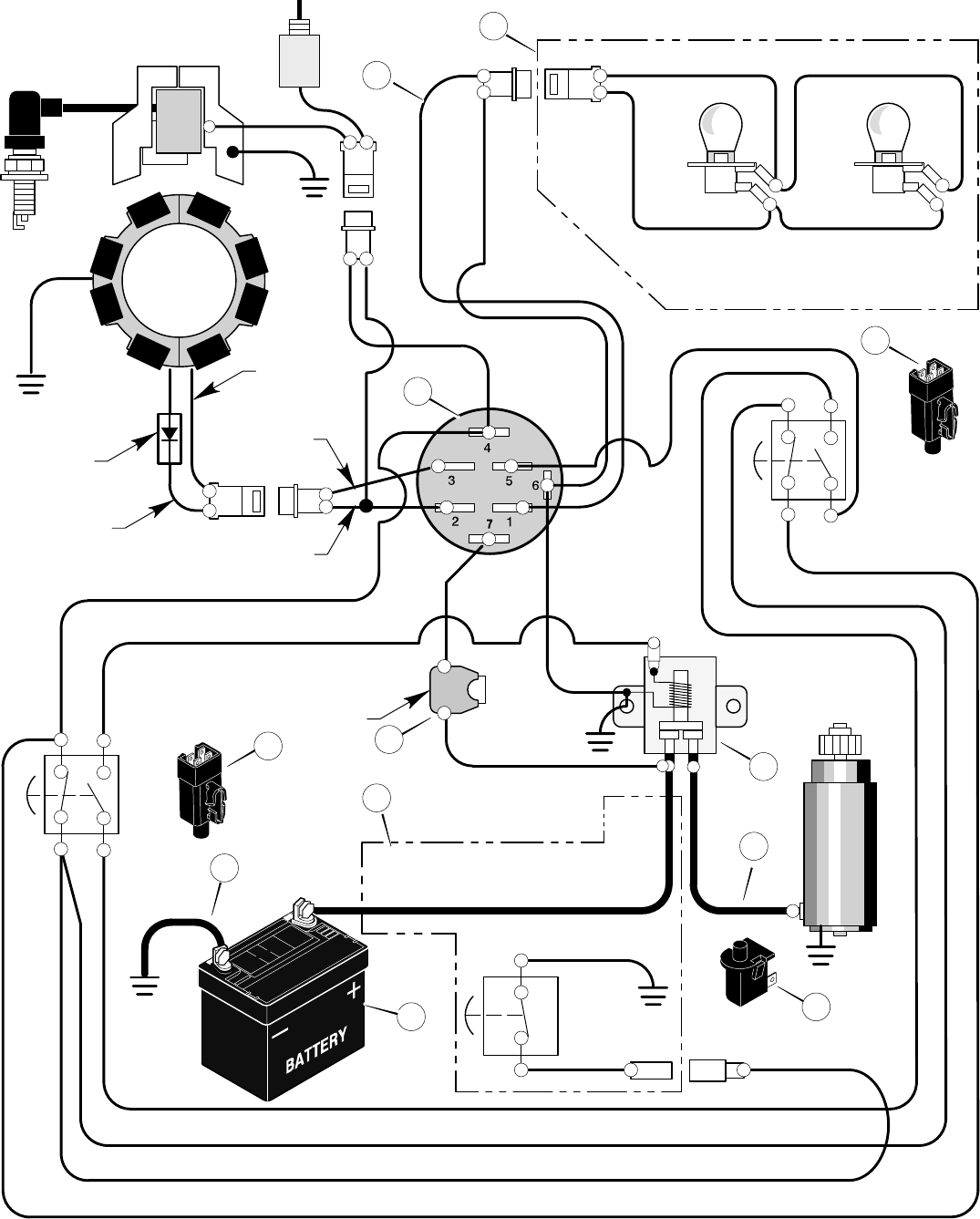

Your unit has an electrical system that

includes an operator presence switch in

the seat. The operator presence switch

detects if the operator is sitting on the seat.

The engine will stop if the operator leaves

the seat when the blade engagement

control is engaged. This operator presence

switch is a safety device only. It must not

regularly be used to stop the engine or the

blade. There are other control systems on

the mower for this purpose. Always keep

the operator presence switch and other

safety devices and controls in place and

operating for your protection.

Remember, your mower is a tool that can

be dangerous if it is not correctly used.

Follow the instructions in this Instruction

Book. Safe and careful use of the mower

will give you many safe hours of problem

free use.

STEPS TO FOLLOW

8

F–000700L

BEFORE MOWING

Be sure to dress correctly. Wear hard shoes, not sandals or tennis shoes.

Examine the blade. A blade that is bent, cracked, or damaged must be replaced with a factory replacement blade.

Fill the fuel tank outside. Clean off spilled fuel.

Read and follow the Owner’s Manual, the instructions with the engine, and the instructions with any attachments. Owner’s Manual

instructions are for your safety and the safety of others.

Exhaust fumes are dangerous. Start the engine outside.

Make sure all safety devices are in place and working correctly.

Operation of the mower is only for a person that has experience.

Wet grass can be dangerous. Let the grass dry.

Instruct children and others to keep away from the work area.

Never cut the grass without good light.

Pick up loose objects. Remove them from the mowing area.

WHILE MOWING

Watch for fixed objects and avoid them. They can damage the mower or cause injury.

A hot engine, muffler, and transmission will cause a burn. Do not touch.

Inclines and slopes must be carefully mowed. See the “Guide” in the back of this book to check a slope.

Lack of daylight or good artificial light is cause to stop mowing.

Examine the mower, the blade, and other parts for damage after hitting a foreign object or if the unit vibrates excessively.

Do not make adjustments or repairs without stopping the engine. Disconnect the spark plug wire.

On or near roads, watch out for traffic. Direct discharge away from roads.

When mowing, avoid areas where traction is unsure. Look back before changing direction of travel.

In heavy grass, raise the cutting height. Cut slower. Stop the engine to remove clogged grass from the mower.

Never remove any safety related parts.

Do not pour gasoline into a engine that is hot or running.

AFTER MOWING

Always let the mower cool before storing in an enclosed area.

Foreign material on the mower is dangerous. Clean off grass, leaves, grease and oil before storing.

Tighten all loose nuts, bolts and screws before you use the unit.

Empty and clean any grass catcher or other accessory.

Remove the key or disconnect the spark plug wire to prevent unauthorized use.

Make sure the mower is not kept near a source of ignition. Gas fumes can cause an explosion.

Only original parts or factory approved substitutes can be used to service the mower.

When storing the mower for an extended period, remove the fuel from the fuel tank.

Instruct children to leave the mower alone. It is not a toy.

Never keep gasoline near a source of ignition. Always use an approved container. Keep gasoline away from children.

Lubricate according to the Instruction Book. See “Lubrication”.

IMPORTANT––Read the Instruction Book. Keep this book for future use and reference.

WARNING: Look for this symbol to point out important

safety precautions. It means: “Attention! Become Alert!

Your Safety Is Involved.”

INTERNATIONAL PICTORIALS

9

F–000700L

INTERNATIONAL PICTORIALS

IMPORTANT: Some of the following pic-

torials are located on your unit or on

literature supplied with the product. Be-

fore you operate the unit, learn and un-

derstand the purpose for each pictorial.

Safety Warning Pictorials

1Warning

2Shield Eyes. Explosive Gases Can

Cause Blindness Or Injury.

3No Sparks, Flames or Smoking.

4Sulphuric Acid Can Cause Blindness

Or Severe Burns

5Flush Eyes Immediately With Water.

Get Medical Help Fast.

6IMPORTANT: Read Owner’s Manual

Before Operating This Machine.

7WARNING: Thrown Objects. Keep

Bystanders Away. Read User

Instructions Before Operating This

Machine.

8WARNING: Do Not Use This Machine

On Slopes Greater Than 15 Degrees.

9DANGER: Keep People, Especially

Children, Away From Unit.

10 DANGER: No Step.

11 DANGER: Keep Feet And Hands

Away From Rotating Blade.

12 DANGER: Keep Hands Away From

Rotating Blade.

13 DANGER: Disconnect Spark Plug

Wire Before Servicing Unit.

14 WARNING: Hot Surface.

15 WARNING: Use Caution When

Connecting Or Disconnecting

Accessories.

16 WARNING: Crushed Fingers.

MAX 90N

+MAX 150N

+

12 3546

78910

12

11

13 14 15 16

1

Control And Operating Pictorials

1Engine Start

2Lights

3Engine Stop

4Engine Stop

5Engine Run

6Brake

7Parking Brake

8Clutch

9Slow

10 Fast

11 Choke

12 Oil

13 Blade Rotation Control

14 Raise

15 Fuel

1234567

89

10 11 12 13 14 15

2

ASSEMBLY

10

F–000700L

ASSEMBLY

Read and follow the assembly and adjustment instructions for your

mower. All fasteners are in the parts bag. Do not discard any parts

or material until the unit is assembled.

NOTE: In this instruction book, left and right describe the loca-

tion of a part with the operator on the seat.

WARNING: Before doing any assembly or mainte-

nance to the mower, remove the wire from the spark

plug.

PARTS BAG – CONTENTS

The fasteners and other loose parts are shown below. The fasteners are shown full size. The quantity is shown in brackets ( ).

2x82

(2) Carriage Bolt 14x79

(2) Wing Nut

17x47Z

(2) Washer

94160

(2) Knob

25x3

(1) Bolt

17x146 Z

(1) Washer

ASSEMBLY

11

F–000700L

HOW TO INSTALL THE SEAT

1. Carefully remove the plastic bag from the seat.

Use the fasteners shown below to install the seat. The fasteners are

shown at full size.

(A)

94160 (B)

17x47 Z

NOTE: Fasteners may be attached to seat for shipping

purposes, if so remove fasteners before proceeding.

2. Align the holes in the seat hinge to the holes in the seat

(Figure 1). Fasten the seat to the seat hinge with the fasteners

as shown.

3. Check the operating position of the seat. If the seat needs to

be adjusted, loosen the two wing bolts. Slide the seat forward

or backward along the seat adjusting holes as shown. Tighten

the wing bolts (A).

Figure 1

Seat

Seat

Adjusting Hole

Seat Hinge

A

B

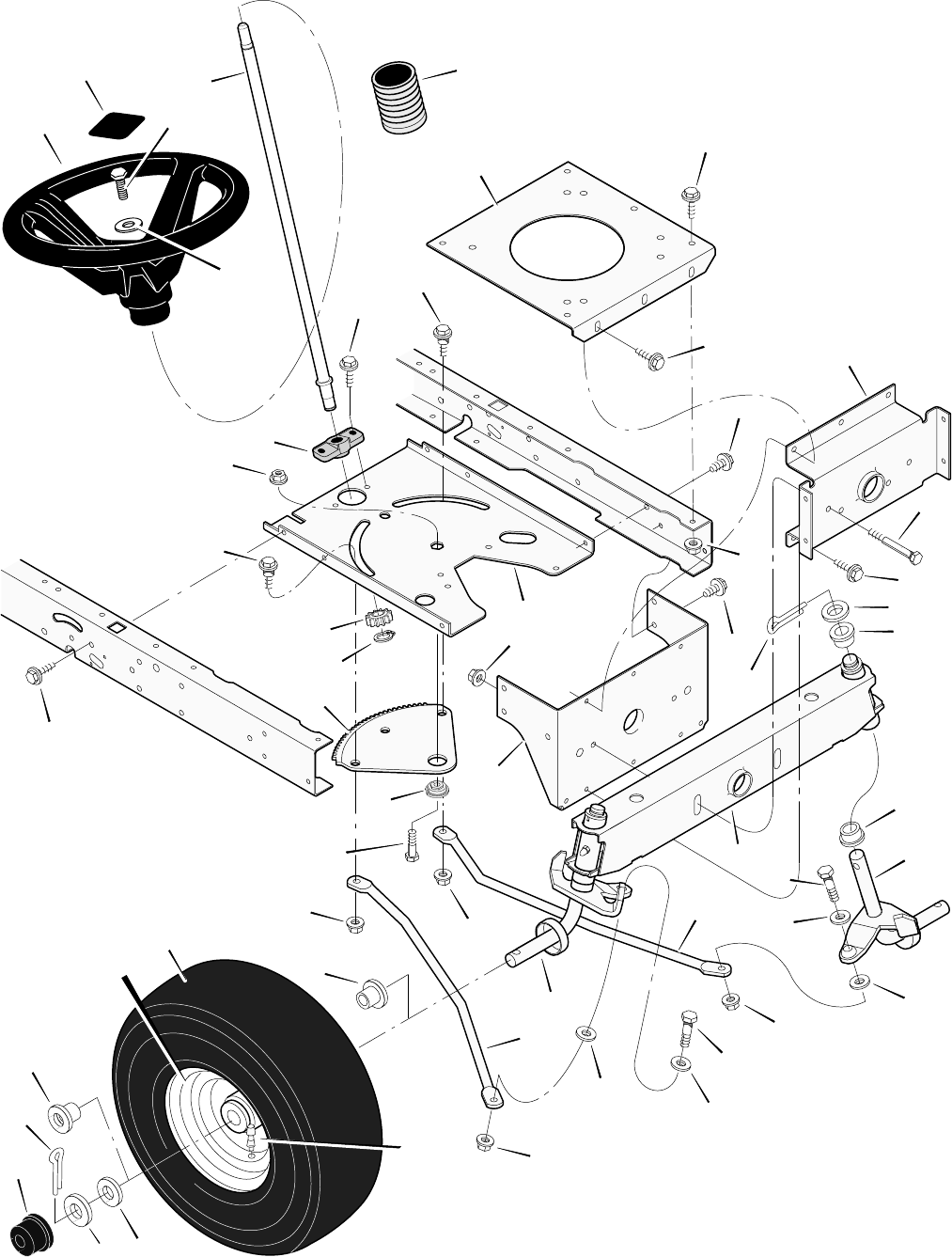

HOW TO ASSEMBLE THE STEERING WHEEL

Attach the steering wheel as follows:

(A)

25x3

(C)

17x146 Z

1. Make sure the front wheels point forward.

2. Slide the cover over the steering post (Figure 2).

3. Slide the steering wheel onto the steering post.

4. Apply firm pressure to center of the steering wheel with the

palm of your hand until you hear a clicking noise. To check for

proper locking of the steering wheel to the steering post, pull

upward on steering wheel.

5. Use the fasteners shown above to secure the steering wheel.

The fasteners are shown at full size. Tighten the screw. DO

NOT over tighten.

6. Remove adhesive backing from hub cover (found in parts bag)

and place hub cover over hub.

Steering Wheel

Cover

Hub Cover

Figure 2

A

C

Steering Post

ASSEMBLY

12

F–000700L

MAINTENANCE FREE BATTERY

IMPORTANT: Before you attach the battery cables to the

battery, check the battery date. The battery date tells if the

battery must be charged.

1. Check the top of the battery for the location of the battery date

(Figure 3).

2. If the battery is put into service

before

the battery date, the

battery cables can be attached without charging the battery.

See “How To Install The Battery Cables”.

3. If the battery is put into service

after

the battery date, the

battery must be charged. See “How To Charge The

Maintenance Free Battery”.

HOW TO CHARGE

THE MAINTENANCE FREE BATTERY

WARNING: When you charge the battery, do not

smoke. Keep the battery away from any sparks. The

fumes from the battery acid can cause an explosion.

1. Remove the battery and battery tray.

2. Remove the protective caps from the battery terminals.

3. Use a 12 volt battery charger to charge the battery. Charge at

a rate of 6 amperes for one hour. If you do not have a battery

charger, have an authorized service center charge the battery.

4. Install the battery and battery tray. Make sure the positive (+)

terminal is on the left side.

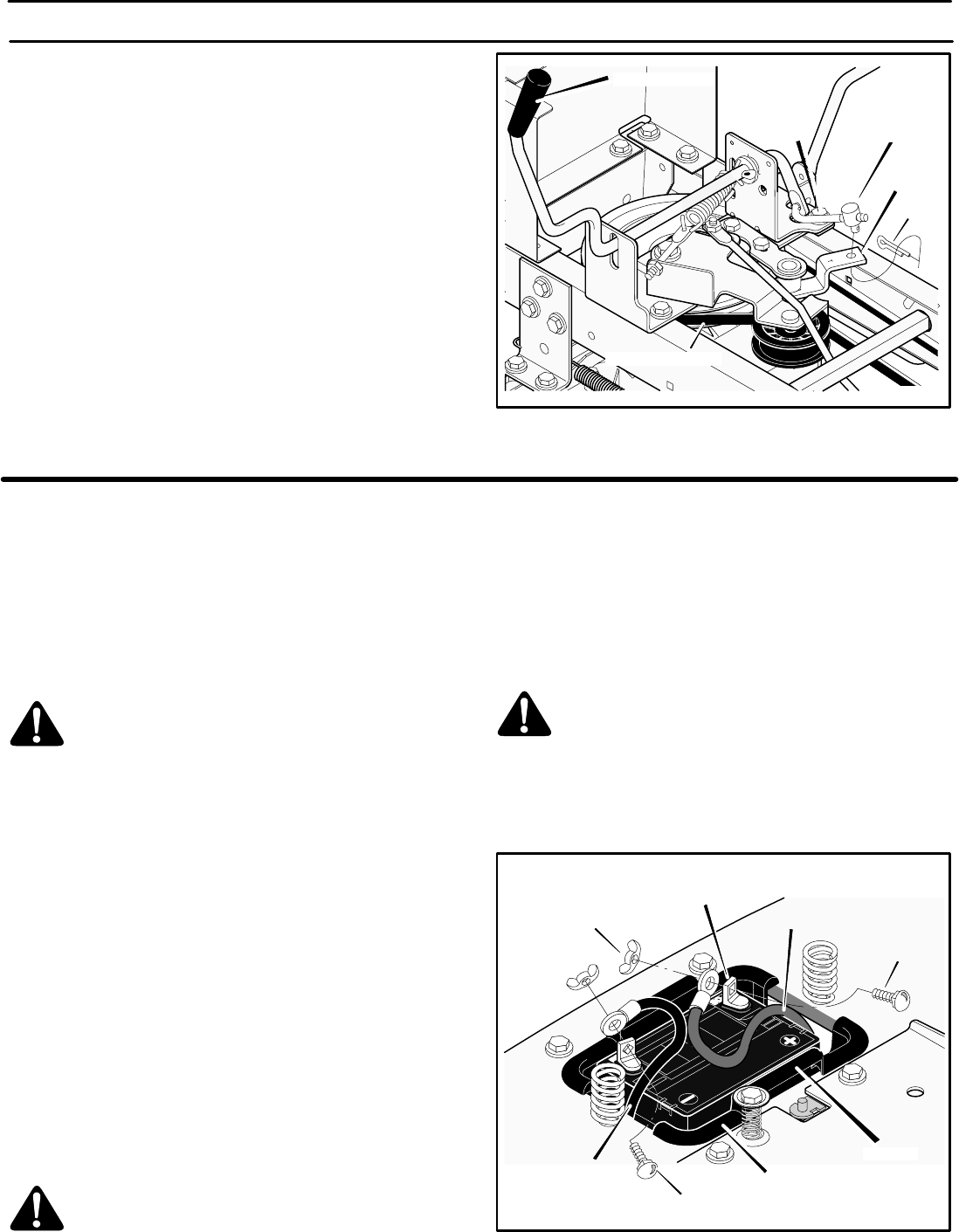

HOW TO INSTALL THE BATTERY CABLES

WARNING: To prevent sparks, fasten the red cable to

the positive (+) terminal before you connect the black

cable.

Use the fasteners shown below to install the battery cables. The

fasteners are shown at full size.

(B)

14x79

(A)

2x82

1. Remove the protective caps from the battery terminals.

2. Fasten the red cable to the positive (+) terminal with the

fasteners as shown (Figure 3).

3. Fasten the black cable to the negative (–) terminal with the

fasteners as shown.

B

A

Positive (+)

Terminal

Black Cable

Red Cable

Battery Tray

A

Battery

Figure 3

ASSEMBLY

13

F–000700L

IMPORTANT! BEFORE YOU START MOWING

Check the engine oil.

Fill the fuel tank with gasoline.

Check the level of the mower housing.

Check the air pressure of the tires.

Make sure the battery cables are attached.

WARNING: Before doing any assembly or mainte-

nance to the mower, remove the wire from the spark

plug.

NOTE: In this instruction book, left and right describe the loca-

tion of a part with the operator on the seat.

HOW TO PREPARE THE ENGINE

NOTE: The engine was shipped from the factory filled with oil.

Check the level of the oil. Add oil as needed.

See the engine manufacturer’s instructions for the type of gasoline

and oil to use. Before you use the unit, read the information on

safety, operation, maintenance, and storage.

WARNING: Follow the engine manufacturer’s

instructions for the type of gasoline and oil to use.

Always use a safety gasoline container. Do not

smoke when adding gasoline to the engine. When

inside an enclosure, do not fill with gasoline. Before

you add gasoline, stop the engine. Let the engine

cool for several minutes.

IMPORTANT: This unit is equipped with an internal combustion

engine and must not be used on or near any unimproved

forest–covered, brush–covered or grass–covered land unless

the engine’s exhaust system is equipped with a spark arrester

meeting applicable local or state laws (if any). If a spark

arrester is used, it must be maintained in effective working

order by the operator.

In the State of California the above is required by law (Section

4442 of the California Public Resources Code). Other states

may have similar laws. Federal laws apply on federal lands.

See an Authorized Service Center for a spark arrester for the

muffler.

In some areas, local law requires the use of a resistor spark

plug to control the ignition signals. See an Authorized Service

Center for a resistor spark plug for the engine.

CHECK THE LEVEL OF THE MOWER HOUSING

Make sure the level of cut is still correct. After you mow a short

distance, look at the area that was cut. If the mower housing does

not cut level, see the instructions on “How To Level The Mower

Housing” in the Maintenance section of this instruction book.

CHECK THE TIRES

Check the air pressure in the tires. Tires with too much air pressure

will cause the unit to ride rough. Also, the wrong air pressure will

keep the mower housing from cutting level. The correct air pressure

(PSI) is 14 PSI (1 BAR). The tires were over inflated for shipment.

OPERATION

14

F–000700L

Figure 4

Throttle Control

Lever

Blade Rotation

Control

Clutch / Brake

Pedal

Lift

Lever

Shift Lever

LOCATION OF CONTROLS

BLADE ROTATION CONTROL: Use the blade rotation

control to start and stop the rotation of the blades.

CLUTCH / BRAKE PEDAL: The pedal has two functions.

The first function is a clutch. The second function is a brake.

HEADLIGHT SWITCH: The headlight switch is the first part

of the ignition switch. To use the lights with the engine running, turn

the key to the position for the lights.

IGNITION SWITCH: Use the ignition switch to start and stop

the engine.

SHIFT LEVER: Use the shift lever to change the speed of the

unit.

LIFT LEVER: Use the lift lever to change the height of cut.

PARKING BRAKE LEVER: Use the parking brake lever

to engage the brake when you leave the unit.

THROTTLE CONTROL LEVER: Use the throttle control

lever to increase or decrease the speed of the engine.

OPERATION

15

F–000700L

ATTACHMENTS

This unit can use many different attachments. See the attachment

page in this book. This unit can pull attachments like a lawn

sweeper, a lawn aerator, or a hopper spreader. This unit can not use

attachments that engage the ground like a plow, a disk harrow, or

a cultivator.

For trailer and pull–behind attachments, the maximum weight is 250

pounds.

HOW TO USE

THE THROTTLE/CHOKE CONTROL

Use the throttle/choke control to choke the engine for cold starts

and increase or decrease the speed of the engine.

1. Move the throttle/choke control completely forward to the

CHOKE position to start a cold engine.

2. The FAST position is marked with a detent. For normal opera-

tion and when using a grass bagger, move the throttle control

to the FAST position. For maximum charging of the battery and

for a cooler running engine, operate the engine in the FAST

position.

3. The engine governor is set at the factory for maximum perfor-

mance. Do not adjust the governor to increase the speed of the

engine.

HOW TO USE THE BLADE ROTATION CONTROL

Use the blade rotation control to engage the blade(s) (Figure 5).

1. Before you start the engine, make sure the blade rotation con-

trol is in the DISENGAGE position.

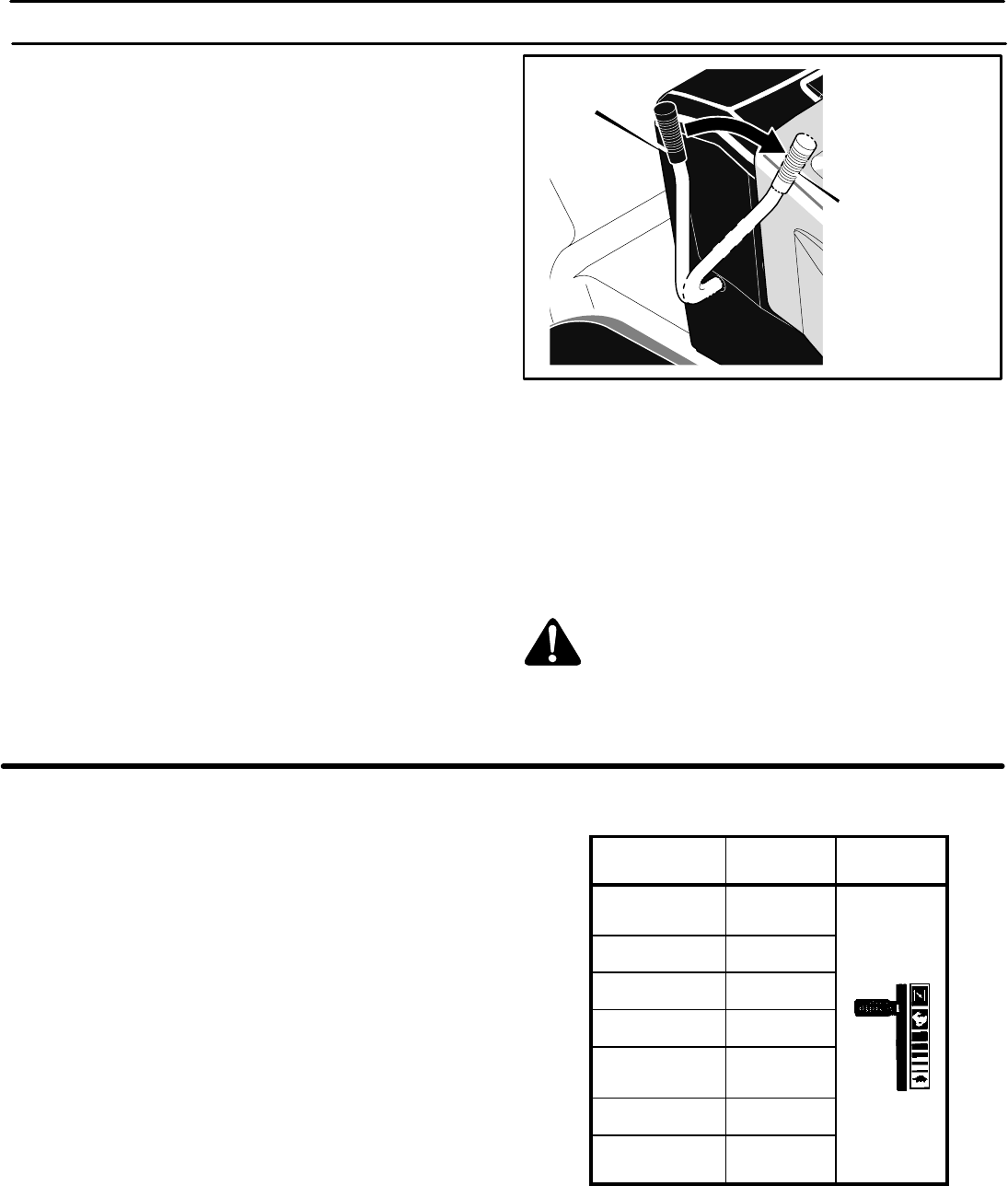

Blade Rotation Control

Engage Position

Disengage

Position

Figure 5

2. Move the blade rotation control to the ENGAGE position to

rotate the blade(s).

NOTE: If the engine stops when you engage the blade(s),

the seat switch is not activated. Make sure you sit in the

middle of the seat.

3. Move the blade rotation control to the DISENGAGE position

to stop the blade(s). Before you leave the operator’s position,

make sure the blade(s) has stopped rotating.

4. Before you ride the unit across a sidewalk or a road, move the

blade rotation control to the DISENGAGE position.

WARNING: Always keep your hands and feet away

from the blade, deflector opening, and the mower

housing when the engine runs.

HOW TO USE THE SHIFT LEVER

To change the forward speed or the direction of the unit, follow the

steps below.

CAUTION: Before you move the shift lever, completely push

the clutch/brake pedal forward to stop the unit. If the unit is not

stopped, the gearbox can be damaged.

1. Completely push the clutch/brake pedal forward to stop the

unit. Keep your foot on the pedal.

2. Move the throttle control lever to the SLOW position.

3. To go forward, move the shift lever to a forward speed setting.

To go backward, move the shift lever to reverse.

4. Slowly release the clutch/brake pedal. Do not keep your foot on

the pedal.

5. Move the throttle control to the FAST position.

FUNCTION SHIFT LEVER

6 Speeds

THROTTLE

Trimming

Snow Thrower 1

Bagging Grass 1 or 2

FAST

Mulching Grass 1 or 2

FAST

CHOKE

Normal Mowing 2 or 3 FAST

Easy Mowing

Snow Blade 3 or 4

SLOW

Transport 5 or 6 THROTTLE

Attachments *

* See the Instruction Book for the Attachment.

OPERATION

16

F–000700L

HOW TO SET THE PARKING BRAKE

1. Completely push the clutch/brake pedal forward.

2. Lift the parking brake lever (Figure 6).

3. Remove your foot from the clutch/brake pedal and then release

the parking brake lever. Make sure the parking brake will hold

the unit.

4. To release the parking brake, completely push the clutch/brake

pedal forward. The parking brake will automatically release.

WARNING: Before you leave the operator’s position,

move the shift lever to the neutral (N) position. Set the

parking brake. Move the blade rotation control to the

DISENGAGE position. Stop the engine and remove

the ignition key.

Figure 6

Parking

Brake

HOW TO CHANGE THE CUTTING HEIGHT

To change the cutting height, raise or lower the lift lever as follows.

1. Move the lift lever forward to lower the mower housing and

back to raise the mower housing (Figure 7).

2. When you ride on a sidewalk or road, move the lift lever to the

highest position and move the blade rotation control to the

DISENGAGE position.

Lift Lever

Figure 7

HOW TO STOP THE UNIT

1. Completely push the clutch/brake pedal forward to stop the

unit. Keep your foot on the pedal.

2. Move the blade rotation control to the DISENGAGE position.

3. Move the shift lever to the NEUTRAL position.

4. Set the parking brake.

WARNING: Make sure the parking brake will hold the

unit.

5. Move the throttle control to the SLOW position.

6. To stop the engine, turn the ignition key to the OFF position. Re-

move the key.

HOW TO TRANSPORT THE UNIT

To transport the unit, follow the steps below.

1. Move the blade rotation control to the DISENGAGE position

2. Raise the lift lever to the highest position.

3. Move the throttle control to a position between SLOW and

FAST.

4. To go faster, move the shift lever to a faster speed.

OPERATION

17

F–000700L

HOW TO OPERATE WITH THE MOWER HOUSING

WARNING: The deflector is a safety device. Do not re-

move the deflector. The deflector forces the dis-

charged material toward the ground. Always keep the

deflector in the down position. If the deflector is dam-

aged, replace the deflector with an original equipment

part from an authorized service center.

IMPORTANT: When you operate with the mower housing,

always operate with the throttle control in the FAST position.

1. Start the engine.

2. Move the lift lever to a height of cut position. In high or thick

grass, cut the grass in the highest position first and then lower

the mower housing to a lower position.

CAUTION: Do not operate with the mower housing in the

LEVEL ADJUSTMENT position. If you operate in the

LEVEL ADJUSTMENT position, the mower housing and

blades can be damaged.

3. Move the throttle control to the SLOW position.

4. Slowly move the blade rotation control to the ENGAGE

position.

5. Push the clutch/brake pedal completely forward.

6. Move the shift lever to one of the speed settings.

NOTE: When you mow in heavy grass or mow with a

bagger, put the shift lever in the slowest speed.

7. Slowly release the clutch/brake pedal.

8. Move the throttle control to the FAST position. If you need to go

faster or slower, stop the unit and move the shift lever to another

speed setting.

9. Make sure the level of cut is still correct. After you mow a short

distance, look at the area that was cut. If the mower housing

does not cut level, see the instructions on “How To Level The

Mower Housing” in the Maintenance section.

WARNING: For better control of the unit, always

select a safe speed.

HOW TO OPERATE THE UNIT ON HILLS

WARNING: Do not ride up or down slopes that are too

steep to back straight up. Never ride the unit across

a slope. See the “Slope Guide” in the back of this

book for information on how to check slopes.

1. Before you ride up or down a hill, move the shift lever to the

slowest speed.

2. Do not stop or change speed settings on a hill. If you must stop,

quickly push the clutch/brake pedal forward and set the parking

brake.

3. To start again, make sure the shift lever is in the slowest speed.

Move the throttle control to the SLOW position. Slowly release

the pedal.

4. If you must stop or start on a hill, always have enough space

for the unit to roll when you release the brake and engage the

clutch.

5. Be very careful when you change directions on a hill. When on

a slope or in a turn on a hill, move the throttle control to the

SLOW position to help prevent an accident.

OPERATION

18

F–000700L

BEFORE STARTING THE ENGINE

CHECK THE OIL

NOTE: The engine was shipped from the factory filled with oil.

Check the level of the oil. Add oil as needed. See the engine

manufacturer’s instructions for the type of gasoline and oil to

use.

1. Make sure the unit is level.

NOTE: Do not check the level of the oil while the engine

runs.

2. Check the oil. Follow the procedure in the engine manufactur-

er’s instructions.

3. If necessary, add oil until the oil reaches the FULL mark on the

dipstick. The quantity of oil needed from ADD to FULL is shown

on the dipstick. Do not add too much oil.

ADD GASOLINE

WARNING: Always use a safety gasoline container.

Do not smoke when adding gasoline to the fuel tank.

Do not add gasoline when you are inside an enclo-

sure. Before you add gasoline, stop the engine and

let the engine cool for several minutes.

Fill the fuel tank with regular

unleaded gasoline. Do not use

premium unleaded gasoline.

Make sure the gasoline is fresh

and clean. Leaded gasoline will

increase deposits and shorten

the life of the valves.

CAUTION: A mixture of alcohol (ethanol or methanol) and

gasoline (called gasohol), will attract moisture and cause acid

deposits during storage. While the unit is in storage, the acids

in the fuel can damage the fuel system.

To prevent engine problems with the fuel system, empty the fuel

system before storage of 30 days or longer as follows.

1. Drain the fuel tank.

2. Start the engine. Let the engine run until the fuel lines and the

carburetor are empty.

3. After storage, make sure you use fresh fuel. See the storage

instructions for additional information.

4. Never use engine cleaner or carburetor cleaner in the fuel tank

or permanent damage can occur.

CARBURETOR

The factory settings for the carburetor are for most conditions. If the

engine is operated under the following conditions, you can adjust

the carburetor mixture. To adjust the carburetor, see the engine

manufacturer’s instructions.

1. The engine has a loss of power or does not run smooth.

2. A change from summer to winter operation.

3. A 40 degree change in the operation temperature. The carbure-

tor was adjusted at 80 degrees at the factory.

4. The engine is operated above 4,000 feet.

HOW TO START THE ENGINE

WARNING: The electrical system has an operator

presence system that includes a sensor switch for the

seat. These components tell the electrical system if

the operator is sitting on the seat. This system will

stop the engine when the operator leaves the seat if

the blade rotation control is engaged or if the trans-

mission is engaged. For your protection, always

make sure this system operates correctly.

NOTE: The engine will not start unless you depress the

clutch/brake pedal or engage the parking brake and move the

blade rotation control to the DISENGAGE position.

1. Push the clutch/brake pedal completely forward. Keep your

foot on the pedal.

2. Move the shift lever to the neutral (N) position.

3. Make sure the blade rotation control is in the DISENGAGE

position.

4. Move the throttle control completely forward to the CHOKE or

FAST position. Some models have a separate choke knob. Pull

the choke knob to the full CHOKE position.

5. Turn the ignition key to the START position. Release the key

when the engine starts.

NOTE: If the engine does not start after four or five tries,

see the TROUBLE SHOOTING CHART.

6. Slowly move the throttle control to the SLOW position.

7. Let a cold engine run for several minutes. Begin work when the

engine is warm. To start a hot engine, move the throttle control

to a position between FAST and SLOW.

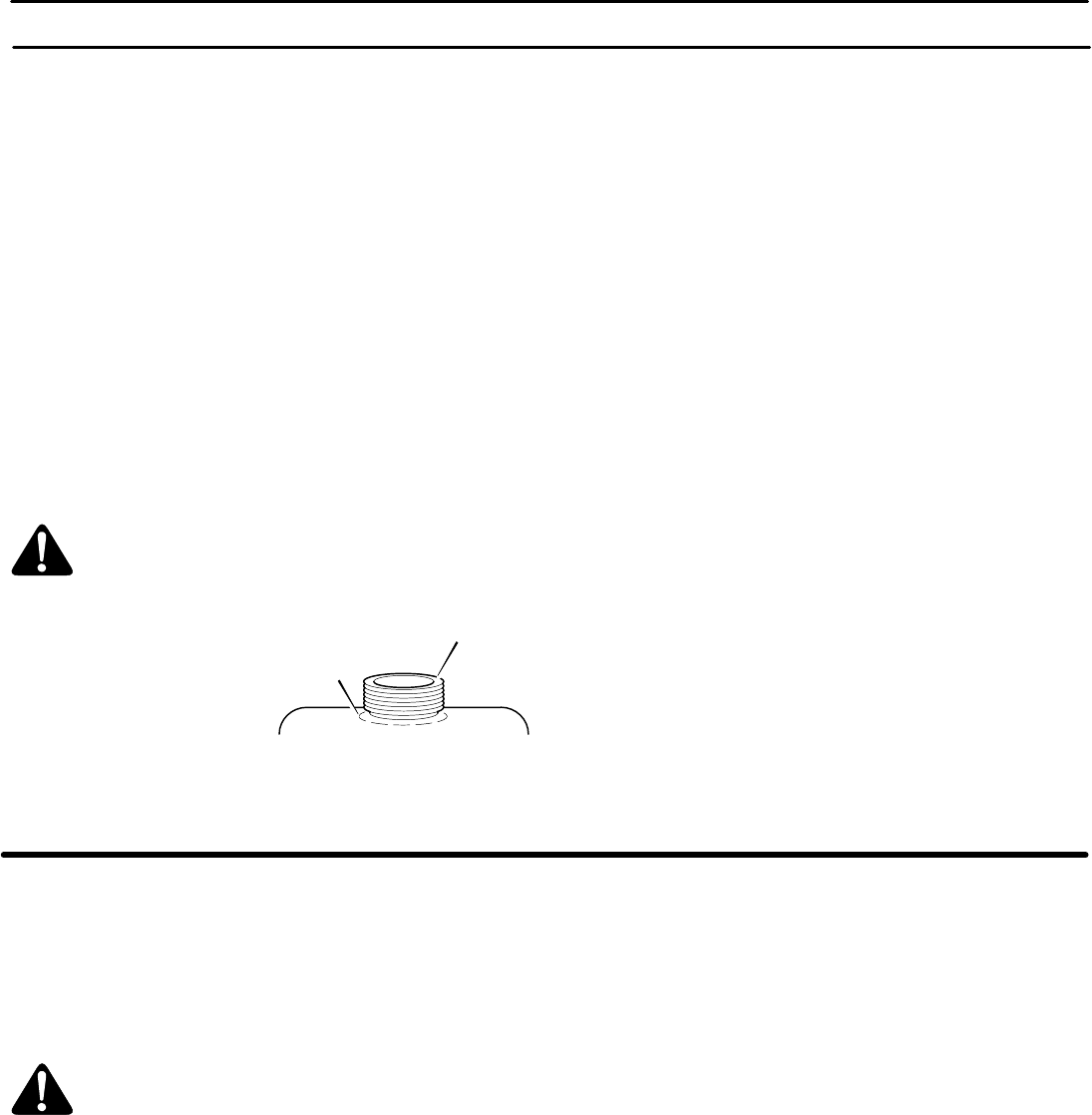

Fuel Tank

Full

OPERATION

19

F–000700L

OPERATING TIPS

1. Check the blade rotation control for correct adjustment. For the

blade(s) to disengage correctly, the adjustment must be cor-

rect.

2. Before you use the unit, check the oil in the engine and add oil

if necessary.

3. If the engine will not start, first make sure the wire is attached

to the spark plug.

4. Make sure all the belts are inside all the belt guides. See the in-

structions on how to remove and install the motion drive and

mower drive belts.

5. Before you make an inspection, adjustment (except for the car-

buretor) or repair, make sure the wire from the spark plug is dis-

connected.

6. For longer life of the battery on electric start models, charge the

battery every three months.

7. Use the shift lever to change the ground speed, not the throttle

control.

8. Belt noise can occur when the blade or clutch is engaged. This

noise is normal and does not affect the operation of the unit.

MOWING AND BAGGING TIPS

1. For a lawn to look better, check the cutting level of the mower

housing. See “How To Level The Mower Housing” in the Main-

tenance section.

2. For the mower housing to cut level, make sure the tires have

the correct amount of air pressure.

3. Every time you use the unit, check the blade. If the blade is bent

or damaged, immediately replace the blade. Also, make sure

the nut for the blade is tight.

4. Keep the blade(s) sharpened. Worn blades will cause the ends

of the grass to turn brown.

5. Do not cut or bag grass that is wet. Wet grass will not discharge

correctly. Let the grass dry before cutting.

6. Use the left side of the mower housing to trim near an object.

7. Discharge the cut grass onto the mowed area. The result is a

more even discharge of cut grass.

8. When you mow large areas, start by turning to the right so that

the cut grass will discharge away from shrubs, fences, drive-

ways, etc. After one or two rounds, mow in the opposite direc-

tion making left turns until finished (Figure 8).

9. If the grass is very high, cut two times to decrease the load on

the engine. First cut with the mower housing in the highest posi-

tion and then lower the mower housing for the second cut.

10. For better engine performance and an even discharge of the

cut grass, always operate the engine with the throttle in FAST

position.

11. When you use a bagger, operate the engine with the throttle in

FAST position and the shift lever in first or second gear.

12. For better cutting performance and a quality cut, mow with the

shift lever in one of the slower speeds.

13. After each use, clean the bottom and top of the mower housing

for better performance. Also, a clean mower housing will help

prevent a fire.

Figure 8

MAINTENANCE

20

F–000700L

MAINTENANCE CHART

FREQUENCY MAINTENANCE REQUIRED COMMENTS

Daily or before each

use Maintenance engine. Refer to the Engine Owner’s Manual.

Examine blade(s). Check for cracks, wear, and excessive

damage.

Remove debris from unit and mowing area.

Examine all rotating and sliding parts.

Check tire inflation. Refer to the Maintenance section.

Verify that the mower housing is level. Refer to the Maintenance section.

Examine V–belts. Check for cracks, wear, and excessive

damage.

Check brake operation. Refer to the Operation and Maintenance

sections.

After completion of

first 5 hours Change oil. Refer to the Engine Owner’s Manual.

After 25 hours Maintenance engine. Refer to the Engine Owner’s Manual.

Remove, examine, sharpen, and balance

blade(s). Refer to Maintenance section.

Check adjustments:

a. Blade Rotation Control

b. Brake

c. Clutch

d. Steering

Refer to Maintenance section.

Lubricate chassis and mower housing. Refer to Where to Lubricate instructions.

Check the muffler:

a. Torque

b. For wear or burn out

c. Condition of spark arrestor, (if applicable).

Refer to Maintenance section.

Before storage of 30

days or more Prepare engine for storage. Refer to the Engine Owner’s Manual.

Drain fuel system. Refer to warnings in the Owner’s Manual.

Add fuel stabilizer. Refer to the Engine Owner’s Manual.

Prepare battery for storage:

a. Remove from unit.

b. Fully charge.

c. Move to cool dry place.

GENERAL RECOMMENDATIONS

1. The owner’s responsibility is to maintain this product. This will

extend the life of the product and is also necessary to maintain

warranty coverage.

2. Check the spark plug, drive brake, lubricate the unit, and clean

the air filter once a year.

3. Check the fasteners. Make sure all fasteners are tight.

4. Follow the Maintenance section to keep the unit in good operat-

ing condition.

WARNING: Before you make an inspection, adjust-

ment, or repair to the unit, disconnect the wire to the

spark plug. Remove the wire from the spark plug to

prevent the engine from starting by accident.

NOTE: Torque is measured in foot pounds (metric Nm). This

measurement describes how tight a nut or bolt must be. The

torque is measured with a torque wrench.

HOW TO

CHECK THE MUFFLER

Check the muffler every 50 hours. Make sure the muffler is correctly

mounted and is not loose. If the muffler is worn or burnt, replace with

a new muffler. A worn muffler is a fire hazard and can also damage

the engine.

If you mount a spark arrester to the muffler, also check the spark

arrester when you check the muffler. If the spark arrester is worn or

damaged, replace it with a new spark arrester. See your nearest

authorized service center for a spark arrester.

MAINTENANCE

21

F–000700L

INSPECT BLADE

WARNING: Before you inspect or remove the blade,

disconnect the wire to the spark plug. If the blade hits

an object, stop the engine. Check the unit for dam-

age. The blade has sharp edges. When you hold the

blade, use gloves or cloth material to protect your

hands.

If you keep the blade sharp and inspect the blade for damage, the

blade will cut better and be more safe to operate. Frequently check

the blade for excessive wear, cracks, or other damage. Frequently

check the nut that holds the blade. Keep the nut tight. If the blade

hits an object, stop the engine. Disconnect the wire to the spark plug.

See if the blade is bent or damaged. Check the blade adapter for

damage. Before you operate the unit, replace damaged parts with

original equipment parts. See the authorized service center in your

area. Every three years, have an authorized service person inspect

the blade or replace the old blade with an original equipment part.

HOW TO REMOVE AND INSTALL THE BLADE

1. Remove the mower housing. See the instructions on “How To

Remove The Mower Housing”.

2. Use a piece of wood to keep the blade from rotating.

3. Remove the nut that holds the blade (Figure 9).

Hi–Lift

Edge Up

Mandrel

Blade Adapter

Blade

Belleville Washer

Washer

Nut Figure 9

4. Check the blade and the blade adapter according to the in-

structions for “Inspect Blade”. Replace a badly worn or dam-

aged blade with an original equipment blade. See an

authorized service center in your area.

5. Clean the top and bottom of the mower housing. Remove all the

grass and debris.

6. Mount the blade and blade adapter on the mandrel

(Figure 9).

7. Mount the blade so that the hi–lift edges are up. If the blade

is upside down, the blade will not cut correctly and can cause

an accident.

8. Fasten the blade with the original washers and nut. Make sure

the outside rim of the Belleville washer is against the blade

(Figure 10).

WARNING: Always keep the nut tight that holds the

blade. A loose nut or blade can cause an accident.

9. Tighten the nut that holds the blade to a torque of 35 foot

pounds (47,5 N–m).

10. Install the mower housing. See “How To Install The Mower

Housing”.

Blade Adapter

Blade

Belleville Washer

(Outside rim must be

against the blade.)

Washer

Nut

Figure 10

HOW TO SHARPEN THE BLADE

WARNING: Vibration can be caused if the blade is

not correctly balanced or if the blade is damaged. A

blade that is damaged with cracks can break and

cause an accident.

Keep a sharp edge on the blade. A blade that is not sharp will cause

the tips of the grass to become brown.

1. Sharpen the blade two times a year or every 25 hours.

2. Remove the blade according to the instructions in “How To Re-

move And Install The Blade”.

3. Clean the blade with a brush, soap and water. Check the

blade. Look for cracks, nicks, or other damage. Replace a

badly worn or damaged blade with an original equipment blade.

See an authorized service center in your area.

4. Sharpen the blade with a file (Figure 11). Make sure you keep

the original bevel angle.

5. Make sure the blade is balanced. Use a screwdriver and hold

the blade parallel to the ground (Figure 11). A blade that is bal-

anced will stay parallel to the ground. If the blade is not bal-

anced, the heavy end will rotate toward the ground. Sharpen

the heavy end until the blade is balanced.

6. A new blade will cut better than a badly worn blade. Every three

years, have an authorized service person inspect the blade or

replace the old blade with an original equipment blade.

7. Assemble the blade according to the instructions “How To Re-

move And Install The Blade”.

Ground

Blade is balanced

when parallel to the ground.

Screwdriver

Blade

File

Figure 11

MAINTENANCE

22

F–000700L

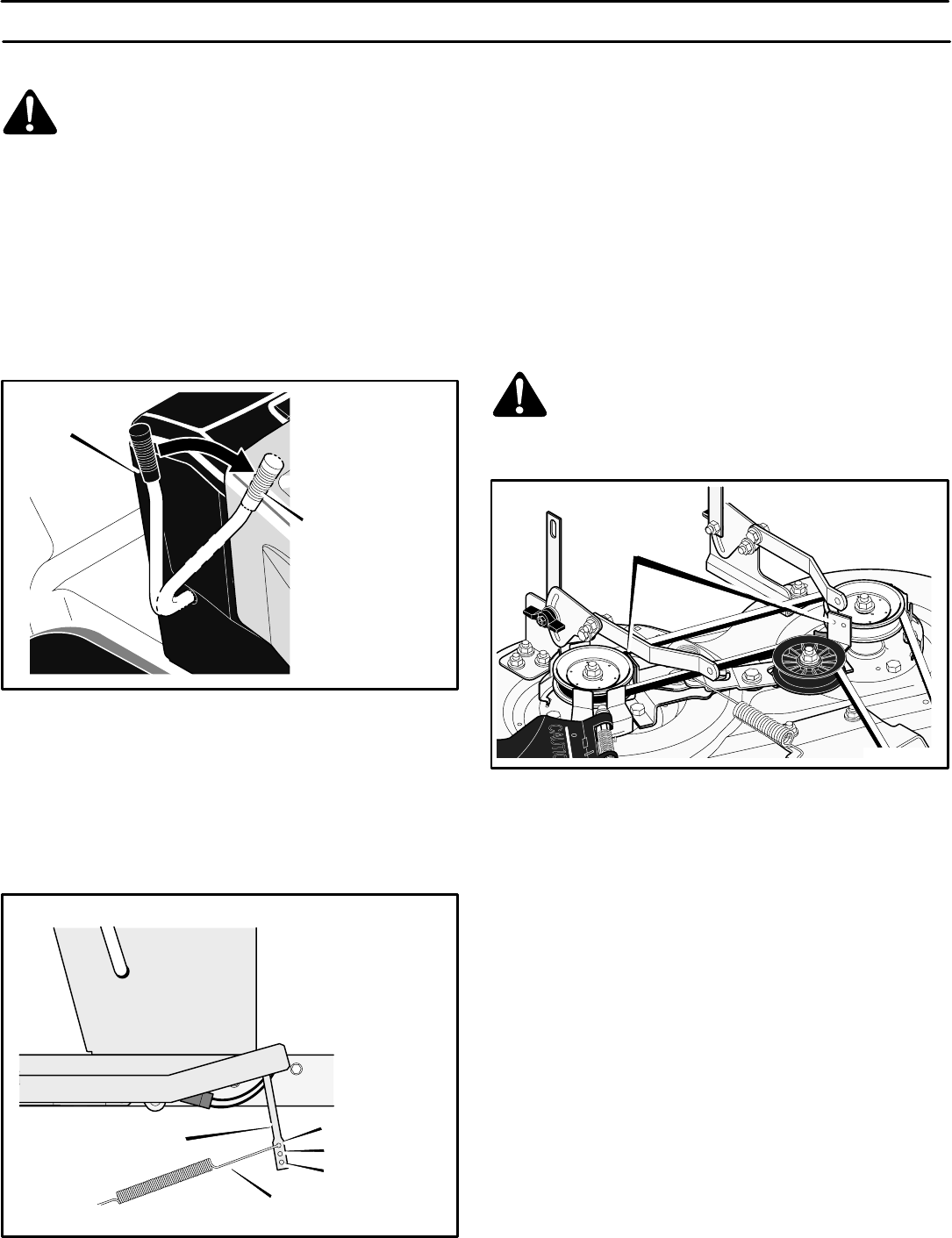

HOW TO ADJUST THE BLADE ROTATION CONTROL

WARNING: To prevent an injury, the blade rotation

control must operate correctly.

In normal usage, the blade rotation control will not require an

adjustment. However, if the cutting performance decreases or the

quality of cut is poor, make the following changes.

1. When you mow, make sure the throttle control in in the FAST

position.

2. Move the blade rotation control to the DISENGAGE position

(Figure 12).

3. Stop the engine. Disconnect the wire from the spark plug.

Blade Rotation Control

Engage Position

Disengage

Position

Figure 12

4. Check the blade(s). Keep a sharp edge on the blade(s). A blade

that is not sharp will cause the tips of the grass to become

brown.

5. Disconnect the blade drive spring from the blade control

rod. Move the blade drive spring to the

middle hole

(Figure 13). This will increase the tension on the mower drive

belt.

Figure 13

Blade

Control Rod

Blade Drive Spring

Top Hole (New Belt)

Middle Hole

Bottom Hole

DISENGAGE POSITION

6. Attach the wire to the spark plug. Mow for a short distance and

again check the quality of cut. If necessary, move the blade

drive spring to the

bottom hole

.

7. Again check the quality of cut. If the quality of cut has not im-

proved, replace the mower drive belt. See “How To Replace

The Mower Drive Belt”. If replacing the belt does not correct the

problem, take the unit to an authorized service center.

8. Move the blade rotation control to the DISENGAGE posi-

tion. Stop the engine. Disconnect the wire from the spark plug.

Check the operation of the blade brake. Rotate the pulleys with

your hand. Make sure the brake pads are pressed tightly

against the pulleys (Figure 14).

WARNING: If the brake pads do not press tightly

against the pulleys, take the unit to an authorized

service center.

Blade Brake

Brake Pad

Against Pulley

Figure 14

9. Move the blade rotation control to the ENGAGE position.

Check the pads for the blade brake. If the pads are excessively

worn or damaged, replace the brake pad assemblies. Correct

replacement parts and assistance are available from an autho-

rized service center.

10. Attach the wire to the spark plug. Mow for a short distance and

again check the operation of the blade rotation control.

11. When you move the blade rotation control to the

DISENGAGE position, all movement will stop within five se-

conds. If there is movement of the belt or the blades continue

to rotate, engage and disengage the blade rotation control

five times to remove any excess rubber from a new mower

drive belt. If you need assistance, take the unit to an autho-

rized service center.

12. If you replace the mower drive belt, move the blade drive

spring to the

top hole

(Figure 13).

MAINTENANCE

23

F–000700L

HOW TO CHECK AND ADJUST THE DRIVE BRAKE

Completely push the clutch/brake pedal forward. Set the parking

brake. Move the shift lever to the neutral (N) position. Push the unit.

If the rear wheels rotate, adjust or replace the brake pads. Adjust the

drive brake as follows.

1. The location of the drive brake is on the right side of the

gearbox (Figure 15).

2. Make sure the parking brake is set and the shift lever is in

neutral (N). Turn the hex nut in a clockwise direction until the

rear wheels do not turn when the unit is pushed forward.

3. Release the parking brake and push the unit. If the unit does not

roll, turn the hex nut in a counterclockwise direction until the

unit rolls.

4. Set the parking brake. Push the unit. If the rear wheels do not

turn, the drive brake is correctly adjusted. Release the parking

brake.

WARNING: If you cannot correctly adjust the drive

brake, replace the brake pads. Correct replacement

parts and assistance are available from an autho-

rized service center.

Figure 15

Drive Brake

Gearbox Hex Nut

HOW TO CHECK AND ADJUST THE CLUTCH

If the motion drive belt is loose, the clutch will slip when; (1) going

up a hill, (2) pulling a heavy load, or (3) the unit will not move forward.

Adjust the clutch as follows.

WARNING: Before you make an inspection, adjust-

ment, or repair to the unit, disconnect the wire to the

spark plug. Remove the wire from the spark plug to

prevent the engine from starting by accident.

1. Check the routing of the motion drive belt. Make sure the belt

is installed correctly and is inside all the belt guides.

2. Remove the cotter pin, washer, and brake spring from the

adjustable nut (Figure 16).

3. Disconnect the adjustable nut from the brake lever assembly

and the parking brake latch.

4. Align the hole in the brake lever with the hole in the frame. Hold

the brake lever in place with a 1/4 inch (6 mm) pin or bolt

(Figure 16).

5. Pull the clutch rod forward until tight. Turn the adjustable nut

until the nut will fit through the hole in the brake lever.

6. Assemble the adjustable nut to the parking brake latch,

brake lever and brake spring. Fasten with the washer and

cotter pin.

7. Remove the 1/4 inch (6 mm) pin or bolt.

8. If the belt still slips after the clutch has been adjusted, then the

motion drive belt is worn or damaged and must be replaced.

See “How To Replace The Motion Drive Belt”.

Clutch Rod

Brake Lever

Assembly

Adjustable Nut

Figure 16Cotter Pin

Brake Spring

Washer

Parking Brake

Latch

Pin or Bolt

MAINTENANCE

24

F–000700L

HOW TO ADJUST THE SHIFT LEVER

If the NEUTRAL position on the shift lever does not match neutral

on the gearbox, adjust the shift lever as follows.

1. Stop the engine.

2. Disconnect the adjuster nut from the shifter bracket

(Figure 17).

3. Make sure the shift lever is in the NEUTRAL position.

4. Push the unit forward. Make sure the gearbox is in neutral.

5. To align the adjuster nut with the hole in the shifter bracket,

turn the adjuster nut.

6. Connect the adjuster nut to the shifter bracket.

7. Make sure the NEUTRAL position on the shift lever matches

neutral on the gearbox.

Adjuster Nut

Hair

Pin

Shift

Link

Shifter

Bracket

Motion Drive Belt

Figure 17

Shift Lever

MAINTENANCE FREE BATTERY

HOW TO REMOVE THE BATTERY

To charge or clean the battery, remove the battery from the unit as

follows.

WARNING: To prevent sparks, disconnect the black

battery cable from the negative (–) terminal before you

disconnect the red cable.

WARNING: The battery contains sulfuric acid which is

harmful to the skin, eyes and clothing. If the acid gets

on the body or clothing, wash with water.

1. Disconnect the black cable from the negative (–) terminal

(Figure 18).

2. Disconnect the red cable from the positive (+) terminal.

3. Lift the battery tray and the battery out of the unit.

HOW TO CLEAN THE BATTERY

1. Remove the battery.

2. Wash the battery with a solution of one gallon of water and four

tablespoons of baking soda (sodium bicarbonate). Make sure

the solution does not get into the battery cells.

3. Clean the terminals and the ends of the cables with a wire

brush.

4. Install the battery.

5. To prevent corrosion, apply grease to the battery terminals.

HOW TO CHARGE THE BATTERY

WARNING: When you charge the battery, do not

smoke. Keep the battery away from any sparks. The

fumes from the battery acid can cause an explosion.

1. Before you charge the battery, remove the battery.

2. To charge the battery, use a 12 volt battery charger. Charge at

a rate of 6 amperes for 1 hour.

3. Install the battery.

WARNING: To prevent sparks, fasten the red cable to

the positive (+) terminal before you connect the black

cable.

4. Fasten the red cable to the positive (+) terminal with the fas-

teners as shown.

5. Fasten the black cable to the negative (–) terminal with the fas-

teners as shown.

Positive (+)

Terminal

Black Cable

Red Cable

Battery Tray

Battery

Figure 18

Carriage Bolt

Wing Nut

Carriage Bolt

MAINTENANCE

25

F–000700L

WHERE TO LUBRICATE

Lubricate the areas shown with engine oil.

Apply grease with a brush to the areas shown.

Models with grease fittings: Lubricate with grease gun.

NOTE: Apply grease to the steering gear assembly.

CAUTION: If the unit is operated in dry areas that have sand,

use a dry graphite spray to lubricate the unit.

HOW TO CHECK THE FUEL FILTER

NOTE: Before you replace the fuel filter or the fuel line, the fuel

tank must be empty.

If the fuel filter is dirty, the engine will run rough and have less

performance. Remove the old filter (Figure 20). Replace the old

filter with a new filter. Use an original equipment part. See an

authorized service dealer in your area.

Fuel Line

Clips

Fuel Filter

Figure 20

CHECK THE TIRES

Check the air pressure in the tires. Tires with too much air pressure

will cause the unit to ride rough. Also, the wrong air pressure will

keep the mower housing from cutting level. The correct air pressure

is 14 PSI (1 BAR).

Figure 19

WARNING: The lift lever

is spring loaded. Make

sure the lift lever is locked

in the LEVEL ADJUST-

MENT position.

Level Adjustment

Position Figure 21

MAINTENANCE

26

F–000700L

HOW TO REMOVE THE MOWER HOUSING

1. Move the blade rotation control to the DISENGAGE position.

2. If equipped, remove the gauge wheels.

3. Move the lift lever to the level

adjustment position(Figure 21).

4. Remove the hair pins and the

washers from the adjuster

arms (Figure 22). See illustra-

tions “C” and “D”.

5. Remove the hair pins and washers from the suspension links.

See illustrations “A” and “B”.

6. Disconnect the extension spring from the blade control rod.

See illustration “E”.

7. Disconnect the front hanger from the axle support. See

illustration “F”.

8. Remove the mower drive belt from the stack pulley.

9. Pull the mower housing away from the right side of the unit.

10. To operate without the mower housing, move the lift lever to the

TOP position.

HOW TO INSTALL THE MOWER HOUSING

1. Push the mower housing under the right side of the unit.

2. Put the mower drive belt around the stack pulley. Make sure

the “V” side of the mower drive belt is against the stack pulley.

Also, make sure the mower drive belt is not twisted.

3. Attach the front hanger to the axle support with the hanger

rod. Fasten with the fasteners as shown. See illustration “F”.

4. Make sure the mower drive belt is between the stack pulley

and the two belt guides. See illustration “G”.

5. Attach the suspension links to the lifter assembly. Fasten

with the washers and hair pins. See illustrations “A” and “B”.

6. Attach the right and the left adjuster arms to the suspension

brackets. Fasten with the washers and hair pins. See illustra-

tions “C” and “D”.

7. Attach the extension spring to the blade control rod. See

illustration “E”.

8. Move the blade rotation control to the ENGAGE position.

Make sure the mower drive belt is inside all the belt guides.

9. Make sure the mower housing is level. See the instructions on

“How To Level The Mower Housing”.

10. If equipped, install the gauge wheels.

11. Check the operation of the blade rotation control. See the in-

structions on “How To Adjust The Blade Rotation Control”.

Lifter

Assembly

Blade Rotation

Control

Hanger Rod

Mower Drive Belt

Lift Lever

Front Hanger

Extension

Spring

Blade

Control Rod

Suspension

Link

Adjuster

Arm

Belt

Guide

Belt

Guide

Stack Pulley

Mower Drive Belt

Suspension

Link

A

B

A

B

A

B

A

B

Adjuster

Arm

Figure 22Gauge Wheel

MAINTENANCE

27

F–000700L

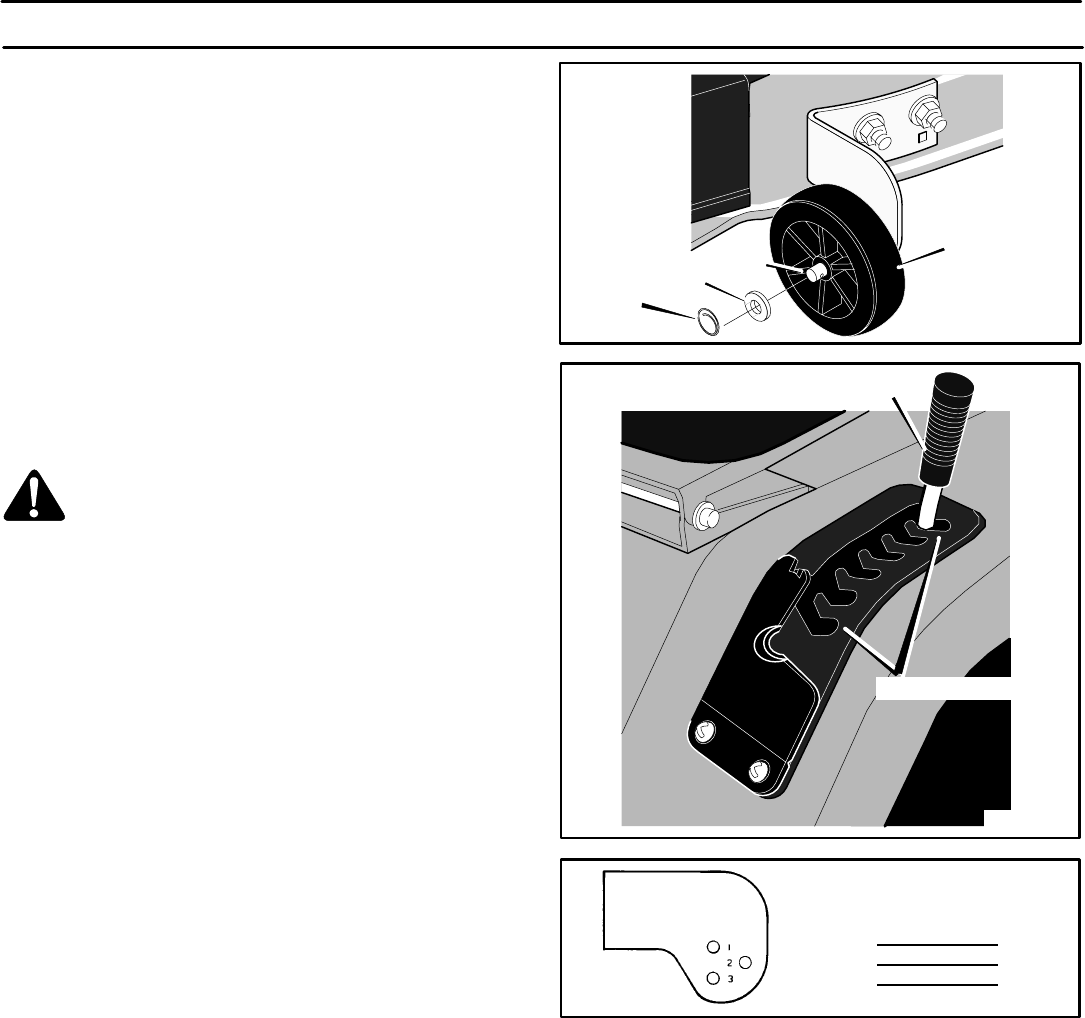

HOW TO ADJUST THE GAUGE WHEELS

The axle bolts for the gauge wheels were mounted in the LOW cut

position. To change the position of the gauge wheels, move the axle

bolts as follows.

IMPORTANT: Before you adjust the gauge wheels, you must do

the following. Make sure the mower housing is level. Make sure

the height of cut is set at the height you want for your lawn.

Mow a short distance on a flat level area and look at the area

that was cut. If the mower housing does not cut level, see the

instructions “How To Level The Mower Housing.”

WARNING: Before you make an inspection, adjust-

ment, or repair to the unit, disconnect the wire to the

spark plug. Remove the spark plug wire to prevent

the engine from starting by accident.

1. Remove the gauge wheels (Figure 23).

2. Mow a short distance on a flat level area to check the level of

cut and the height of cut. Look at the height of cut position

number on the lift lever (Figure 24).

3. Look at each gauge wheel bracket. There are 3 holes in each

bracket and a number next to each hole. The number for the

height of cut position on the lift lever indicates the correct hole

to use on each gauge wheel bracket (Figure 25).

4. Assemble the axle bolts to the gauge wheel brackets using

the correct hole in the bracket as indicated (Figure 25).

NOTE: If the height of cut position is changed by the lift lever,

you must move the gauge wheels to the correct hole

(Figure 25) to keep a level height of cut.

Gauge Wheel

Figure 23

Locking

Ring

Washer

Axle Bolt

Figure 24

Cutting Height Positions

Lift Lever

Wheel Bracket

Hole No. Lift Lever

Position No.

1 1

2 2

3 3,4,5,6

Gauge

Wheel Bracket Figure 25

MAINTENANCE

28

F–000700L

HOW TO LEVEL THE MOWER HOUSING

If the mower housing is level, the blade will cut easier and the lawn

will look better.

WARNING: Before you make an inspection, adjust-

ment, or repair to the unit, disconnect the wire to the

spark plug. Remove the spark plug wire to prevent

the engine from starting by accident.

1. Make sure the unit is on a hard flat surface.

2. Check the air pressure in the tires. If the air pressure is incor-

rect, the mower housing will not cut level. Make sure the tires

are inflated to 14 PSI. (1 BAR).

IMPORTANT: On models equipped with gauge wheels, the

gauge wheels must be removed to correctly adjust the

level of the mower housing.

3. Some models have gauge wheels on the mower housing. If

equipped, remove the gauge wheels.

4. Open the cover.

5. Move the lift lever to the LEVEL ADJUSTMENT position

(Figure 26).

WARNING: The lift lever is spring loaded. Make sure

the lift lever is locked in the LEVEL ADJUSTMENT

position.

6. Loosen the left and right adjuster knobs (Figure 27). Push

down on each side of the mower housing. Make sure both sides

of the mower housing are setting on a flat surface. Also, make

sure the lift links are loose and can easily move up or down.

7. Push down on the lift links and tighten the left and right adjust-

er knobs (Figure 27). Make sure the adjuster knobs are tight.

If necessary, use a wrench to tighten the adjuster knobs. For

plastic adjuster knobs, tighten to a torque of 7 foot pounds (9,5

N–m). For metal adjuster knobs, tighten to a torque of 10 foot

pounds (13,5 N–m).

8. Raise the lift lever from the LEVEL ADJUSTMENT position to

a CUTTING HEIGHT position (Figure 28).

9. Close the cover.

10. If equipped, install the gauge wheels.

11. Mow for a short distance. If the height of cut is not level, repeat

the above steps.

CAUTION: Do not operate with the mower housing in the

LEVEL ADJUSTMENT position. If you operate in the LEVEL

ADJUSTMENT position, the mower housing and blades can be

damaged.

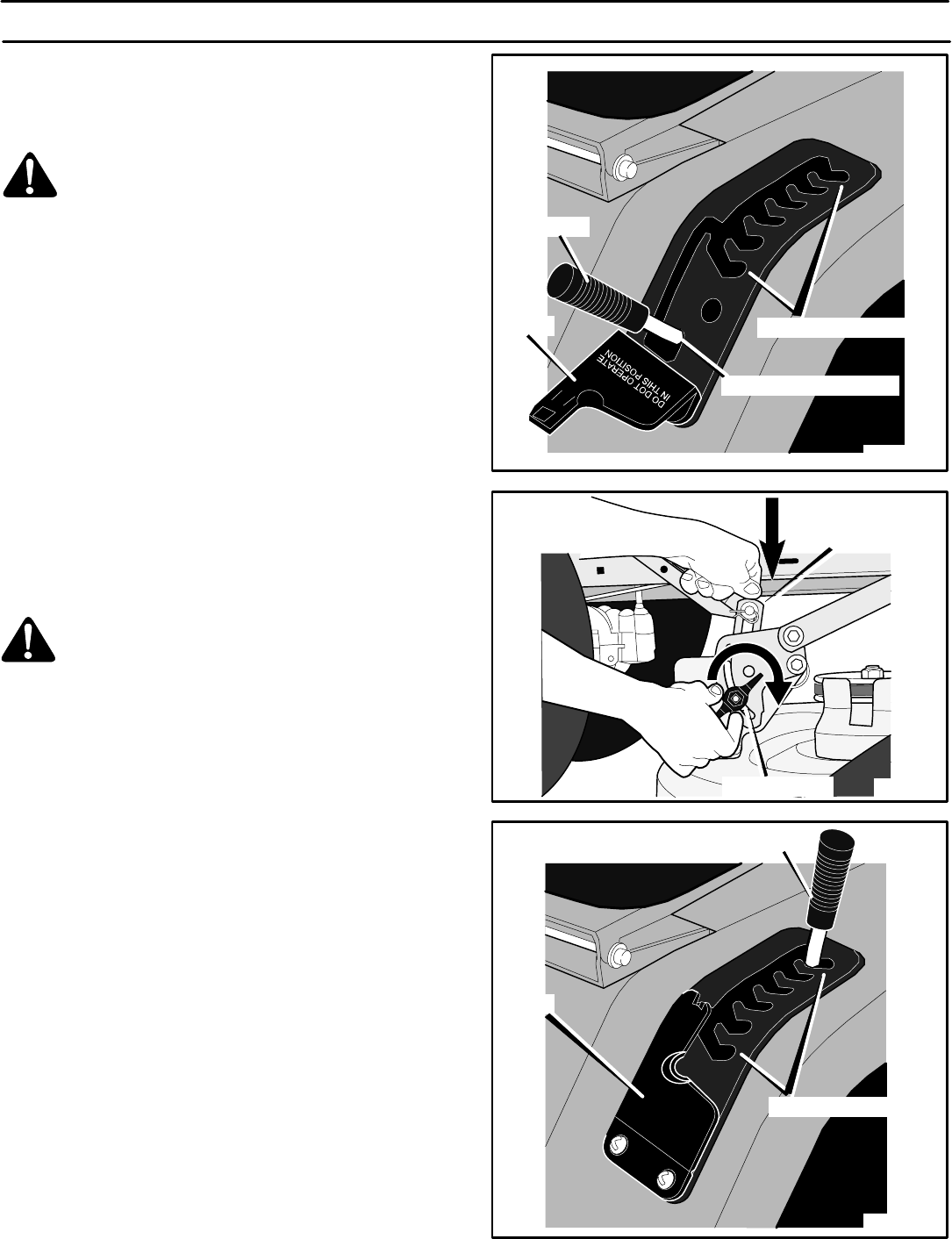

Figure 26

Level Adjustment Position

Cutting Height Positions

Cover

Lift Lever

Figure 27

Adjuster Knobs

Lift Link

Figure 28

Cutting Height Positions

Cover

Lift Lever

MAINTENANCE

29

F–000700L

HOW TO REPLACE

THE MOTION DRIVE BELT

REMOVAL

1. Remove the mower housing. See the instructions on “How To

Remove The Mower Housing”.

2. Completely push the pedal forward and engage the parking

brake.

3. Remove the idler pulley (Figure 29).

Idler Pulley

Motion

Drive Belt

Loosen The

Belt Guides

Drive Pulley

Figure 29

4. To access the belt guides, remove the battery and battery tray.

See “How To Remove The Battery”.

5. Loosen the belt guides at the drive pulley (Figure 30).

Figure 30

Belt Guides

Seat Spring

6. Remove the motion drive belt from the drive pulley

(Figure 29).

7. Remove the adjuster nut from the shifter bracket (Figure 31).

Pull the motion drive belt over the shifter bracket.

Adjuster Nut

Hair

Pin

Shift

Link

Shifter

Bracket

Motion Drive Belt

Figure 31

8. To remove the motion drive belt from the stack pulley, pull the

front end of the belt under the stack pulley and then back

between the stack pulley and the steering plate (Figure 32).

Motion

Drive

Belt Figure 32

FRONT

Stack Pulley Steering

Plate

Belt Guides

9. Remove the access panel (Figure 33).

10. Remove the two screws that attach the steering shaft

assembly (Figure 33). Raise the steering wheel and steering

shaft assembly. Pull the motion drive belt under the steering

shaft assembly.

Figure 33

Screw

Steering Shaft

Assembly

Motion Drive

Belt Access Panel

11. Remove the motion drive belt. A correct replacement part or

assistance is available from an Authorized Service Center in

your area.

MAINTENANCE

30

F–000700L

INSTALLATION

1. Slide the motion drive belt between the stack pulley and the

belt guides (Figure 32). Install the motion drive belt on the

top pulley of the stack pulley. Make sure the “V” side of the belt

is against the pulley.

2. Push the motion drive belt through the opening between the

steering plate and the engine plate.

3. Install the end of the motion drive belt around the drive pulley

(Figure 29).

4. Tighten the belt guides at the drive pulley (Figure 30).

5. Put the belt around the idler pulley (Figure 29, Figure 34).

Assemble the idler pulley. Fasten the idler pulley with the hex

nut. Make sure the flat side of the belt is against the idler pulley.

Also, make sure the belt is not twisted.

6. Make sure the motion drive belt is inside all the belt guides

(Figure 29, Figure 30).

7. Attach the adjuster nut and shift link to the adjuster bracket

with a hair pin (Figure 31). See “How To Adjust The Shift

Lever”.

8. Attach the steering shaft assembly to the steering plate with

two screws (Figure 33).

9. Attach the access panel (Figure 33).

10. Check the routing of the motion drive belt. Make sure the

motion drive belt is installed correctly on the idler pulley.

Make sure the steering shaft assembly in inside the motion

drive belt (Figure 34).

11. Install the battery.

12. Before you use the unit, check the adjustment of the clutch. See

the instructions “How To Check And Adjust The Clutch”.

13. Install the mower housing. See the instructions “How To Install

The Mower Housing”.

Figure 34

Motion Drive

Belt

Idler Pulley

Stack Pulley

Steering Shaft

Assembly

MAINTENANCE

31

F–000700L

HOW TO REPLACE THE MOWER DRIVE BELT

1. Remove the mower housing. See the instructions on “How To

Remove The Mower Housing”.

2. Pull the belt retainer away from the idler pulley and remove

the mower drive belt (Figure 35).

3. Pull the belt retainer away from the right mandrel pulley and

remove the mower drive belt.

4. Pull the belt retainer away from the left mandrel pulley and

remove the mower drive belt.

NOTE: Replace the mower drive belt with an original

equipment belt from an authorized service center.

5. Install the new mower drive belt. Pull the belt retainer away

from the right mandrel pulley. Put the belt around the right

mandrel pulley.

6. Pull the belt retainer away from the left mandrel pulley. Put

the belt around the left mandrel pulley.

7. Pull the belt retainer away from the idler pulley. Put the flat

side of the mower drive belt around the idler pulley.

8. Make sure the “V” side of the mower drive belt is against the

mandrel pulleys as shown.

9. Install the mower housing. See the instructions on “How To

Install The Mower Housing”.

10. Before you mow, check the blade rotation control. See the in-

structions on “How To Adjust The Blade Rotation Control”.

Figure 35Mower Drive Belt

Belt Retainer

Right Mandrel Pulley

Belt Retainer Left Mandrel Pulley

Idler Pulley

Belt Retainer

MAINTENANCE

32

F–000700L

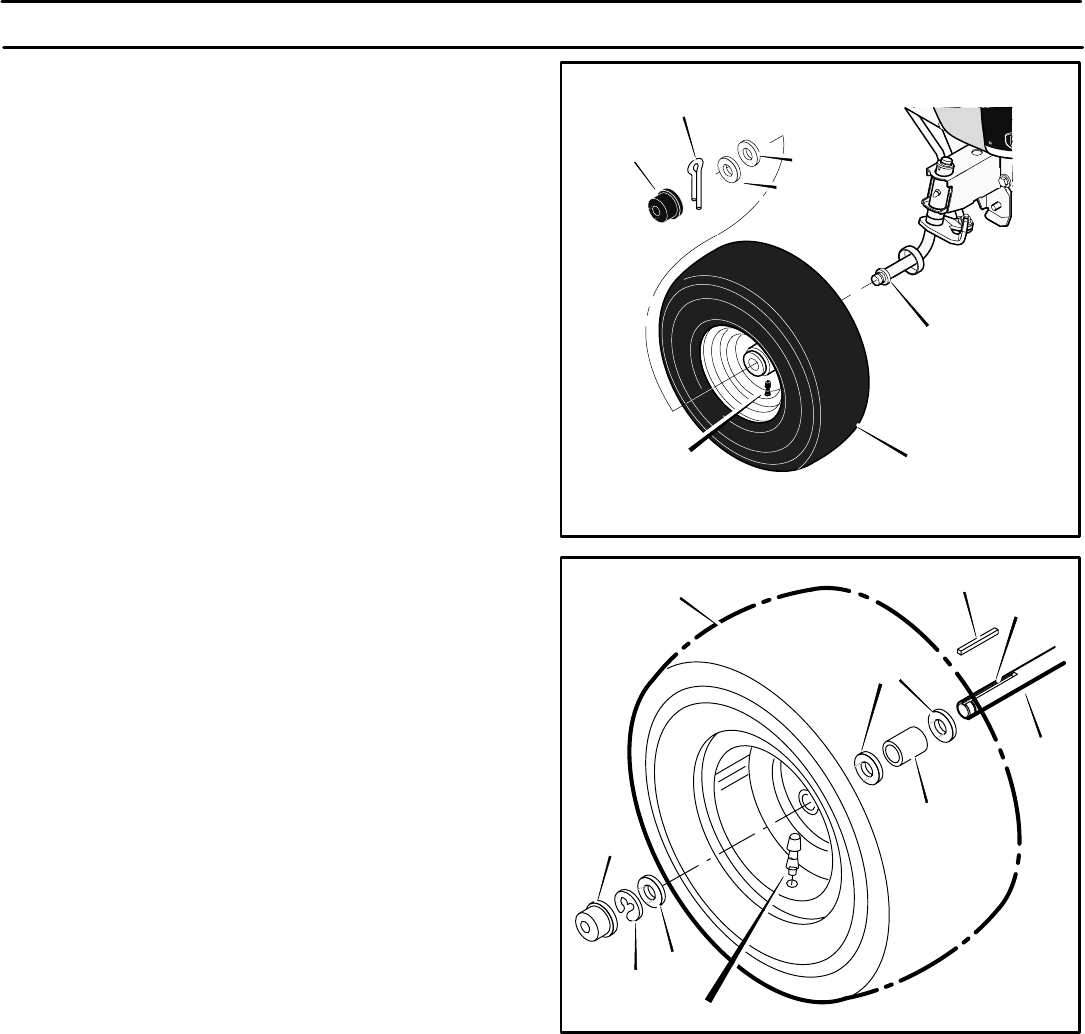

HOW TO INSTALL THE WHEELS

If the wheels must be removed for service, make sure they are

installed as follows.

Front Wheel

1. Make sure the valve stem is to the outside of the tractor. Slide

the front wheel on the spindle (See Figure 36).

2. Fasten the front wheel with washer and cotter pin. Bend the

ends of the cotter pin apart to keep the front wheel on the

spindle.

3. If your model has hub caps, install the hub caps. Make sure

the washer hold the hub caps in place.

Rear Wheel

1. Mount the square key in the key slot (See Figure 37).

2. Install the washers and spacer onto the axle as shown in

Figure 37.

3. Make sure the valve stem is to the outside of the tractor. Align

the slot in the rear wheel with the square key. Slide the rear

wheel on the axle.

4. Fasten the rear wheel with washer and e–ring.

5. If your model has hub caps, install the hub caps. Make sure

the washer hold the hub caps in place.

Figure 36

Front Wheel

Spindle

Valve Stem

Washer

Washer

Hub Cap

Cotter Pin

Figure 37

E–Ring

Washer

Washer

Washer

Spacer

Square Key

Valve Stem

Key Slot

Axle

Rear Wheel

MAINTENANCE

33

F–000700L

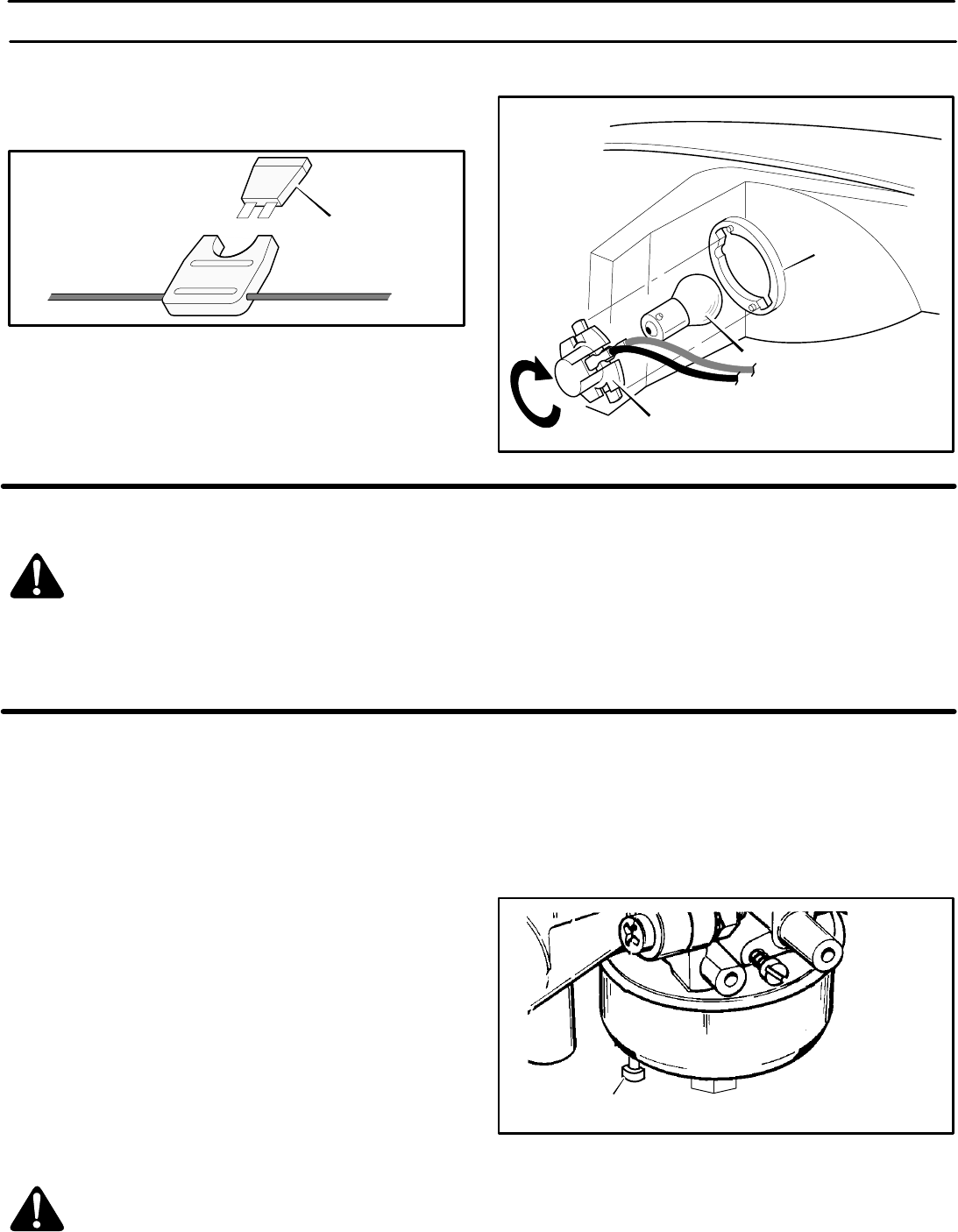

HOW TO REPLACE THE FUSE

If the fuse is blown, the engine will not start. The location of the fuse

is next to the battery. Remove the fuse and replace with a

automotive fuse (Figure 38).

Figure 38

Automotive Fuse

HOW TO REPLACE THE LIGHT BULB

1. Raise the tractor hood.

2. Turn the light socket until the tabs on the socket align with the

notches in the bezel (Figure 39). Remove the light socket.

Turn the light bulb and remove the bulb.

3. Install a new light bulb. Align the light socket with the notches

in the bezel and turn the light socket to lock in position.

Bezel

Light Bulb

Light Socket Figure 39

HOW TO CLEAN THE MOWER HOUSING

WARNING: Before you clean the mower housing,

stop the engine and disconnect the wire to the spark

plug.

Grass and other debris on top of the mower housing can keep the

belt from working correctly. For safety and correct operation,

frequently clean the top of the mower housing. Remove grass and

debris from around the pulleys and other moving parts.

1. Move the lever for the blade rotation control to the ENGAGE

position.

2. Clean the top of the mower housing.

3. Move the lever for the blade rotation control to the

DISENGAGE position.

4. Again clean the top of the mower housing.

5. After you cut the grass, clean the bottom of the mower housing.

STORAGE (over 30 days)

At the end of each year, prepare the unit for storage as follows.

THE ENGINE

For storage information, see the the engine manufacturer’s

instructions.

THE BATTERY

1. Remove the battery.

2. Clean the battery terminals of any deposits.

3. Charge the battery. See the instructions on “How To Prepare

And Charge The Battery”.

4. Store the battery in a cool, dry place.

NOTE: After a long time in storage, charge the battery.

THE FUEL SYSTEM

WARNING: Do not drain the gasoline inside a build-

ing or near a fire. Do not smoke because the fumes

from the fuel can cause an explosion.

1. Start the engine.

2. Run the engine until the fuel tank and the carburetor are out of

fuel and the engine stops.

3. Do not leave fuel in the fuel tank or the carburetor. The fuel can

damage the function of the fuel system. Some models have a

fuel drain (Figure 40). Hold a cloth under the fuel drain. Push

the fuel drain until the carburetor is empty.

4. After storage, make sure you use fresh fuel.

Figure 40

Fuel Drain

CLEAN THE UNIT

1. Clean the dirt and grass from the engine.

2. Clean the mower housing.

LUBRICATE THE UNIT

See the “Lubrication” instructions in this book.

TROUBLE SHOOTING CHART

34

F–000700L

PROBLEM: The engine will not start.

1. Follow the steps, “How To Start The Engine” in this book.

2. Electric–Start Models: Clean the battery terminals. Tighten the

cables.

3. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.

4. Remove the spark plug(s). Move the throttle to the SLOW posi-

tion. Turn the ignition key to the ON position. Try to start the en-

gine several times. Install the spark plug.

5. Replace the spark plug.

6. Adjust the carburetor.

PROBLEM: The engine will not turn over.

1. Follow the steps, “How To Start The Engine” in this book.

2. Electric–Start Models: Check the level of the acid in the battery.

If needed, add water. Charge the battery.

3. Replace the fuse.

4. Check the wiring harness for damage or a loose connection.

Repair the damaged wire.

5. Electric–Start Models: replace the solenoid. Recoil–Start Mod-

els: replace the module.

PROBLEM: The engine is difficult to start.

1. Adjust the carburetor.

2. Replace the spark plug.

3. Replace the fuel filter.

PROBLEM: The engine does not run smooth or has a

loss of power.

1. Check the oil.

2. Clean the air filter.

3. Clean the air screen.

4. Replace the spark plug.

5. The engine is working too hard. Use a lower gear.

6. Adjust the carburetor.

7. Replace the fuel filter.

PROBLEM: The engine does not run smooth at fast

speed.

1. Replace the spark plug.

2. Adjust the throttle control.

3. Clean the air filter.

4. Replace the fuel filter.

PROBLEM: The engine stops when the blades are

engaged.

1. To activate the seat sensor, always sit in the middle of the seat.

2. Check the wiring harness for damage or a loose connection.

Repair the damaged wire.

PROBLEM: On slopes, the engine stops.

1. Mow up and down slopes. Never mow across a slope.

2. To activate the seat sensor, always sit in the middle of the seat.

PROBLEM: The engine will not idle.

1. Replace the spark plug.

2. Clean the air filter.

3. Adjust the carburetor.

4. Adjust the throttle control.

5. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.

PROBLEM: A hot engine causes a decrease in power.

1. Clean the air screen.

2. Check the oil.

3. Adjust the carburetor.

4. Replace the fuel filter.

PROBLEM: Excessive vibration.

1. Replace the blade.

2. Check for loose engine bolts.

3. Decrease the air pressure in the tires.

4. Adjust the carburetor.

5. Check for a damaged belt or damaged pulley. Replace the

damaged parts.

PROBLEM: The grass does not discharge correctly.

1. Stop the engine. Clean the mower housing.

2. Raise the height of cut.

3. Replace or sharpen the blade(s).

4. Move the shift lever to a slower speed.

5. Move the throttle control to the FAST position.

6. Replace the spring for the blade idler.

PROBLEM: The mower housing does not cut level.

1. Check the air pressure in the tires.

2. Adjust the level of the mower housing.

3. Check the front axle. If the front axle does not freely pivot, loos-

en the axle bolt(s).

PROBLEM: The mower blades will not rotate.

1. Check the mower drive belt. Make sure the belt is installed cor-

rectly.

2. Replace the mower drive belt.

PROBLEM: The unit will not move when the clutch is

engaged.

1. Check the motion drive belt. Make sure the belt is installed

correctly.

2. Adjust the clutch.

3. Replace the motion drive belt.

PROBLEM: The unit moves slower or stops when the

clutch is engaged.

1. Adjust the clutch.

2. Replace the motion drive belt.

PROBLEM: When the clutch/brake pedal is released, belt

noise can be heard.

1. Temporary belt noise does not change the operation of the unit.

If belt noise is continuous, check the routing of the belt. Make

sure the belt is inside all belt guides.

2. If the noise is continuous, adjust the clutch.

PROBLEM: The rear wheels spin over uneven terrain.

1. Check the front axle. If the front axle does not freely pivot, loos-

en the axle bolt(s).

PROBLEM: The transaxle is difficult to shift between

gears with the engine running and the clutch depressed.

1. Check the clutch adjustment to make sure the belt stops when

the clutch pedal is depressed with the transaxle in (N) neutral.

2. Check the belt guides around the transaxle drive pulley. Make

sure the belt guides do not touch the pulley.

F–000700L 35

Only use a factory repair part. Repair parts, except for the engine or the transmission, are available from the store where the unit was

purchased, a service shop recommended by the store, or an authorized service shop found in the yellow pages of the telephone directory.

If you cannot get a repair part or service as described above, call or write to the Central Parts Distributor shown below. When you order,

include the following information: (1) Complete Model Number (see nameplate), (2) Date of Manufacture, (3) Complete Part Number, (4)

Description, (5) Quantity. Repair parts for the engine or the transmission are available from the manufacturer's authorized service center

found in the yellow pages of the telephone directory. See the individual engine or transmission warranties.

MURRAY, INC. LAWN MOWER CENTRAL PARTS DISTRIBUTORS

BEBCO, INC.

2221 2nd. Ave. South

Birmingham, AL. 35233

(205) 251-4600 1-800-828-8094

Alabama, Florida, Georgia, Puerto Rico

BILLIOU'S, INC.

1343 South Main St.

Porterville, CA. 93257

(559) 784-4102 1-877-245-5468

FAX 1-800-226-7337

Arizona, California, Hawaii, Nevada

BROWN & WISER, INC.

9991 S.W. Avery Street

P.O. Box 1109

Tualatin, OR. 97062

(503) 692-0330 1-800-882-4782

Alaska, Idaho (counties Ada, Adams,

Benewah, Boise, Bonner, Boundry, Canyon,

Clearwater, Elmore, Gem, Idaho, Kooten,

Latah, Lewis, Nez Perce, Owyee, Payette,

Ravalli, Shoshone, Valley, Washington),

Montana (counties Flathead, Lake, Lincoln,

Mineral, Missoulo, Ravalli, Sanders), Oregon,

Washington

CPT CANADA POWER

TECHNOLOGY LIMITED

161 Watline Avenue

Mississauga, Ontario

L4Z-1P2

(905) 890-6900 1-800-861-9559

13315-146 Street

Edmonton, Alberta

T5L 4S8

(403) 453-5791 1-800-861-9559

234 Migneron Street

Ville St-Laurent, Quebec

H4T 1Y7

(514) 731-3559 1-800-861-9559

Canada

CHILTON AIR COOLED ENGINE

319 4th. Ave. South

P.O. Box 150806

Nashville, TN. 37215

(615) 254-1637 1-800-621-6934

www.chiltoncompanies.com

Arkansas (counties Clay, Craighead,

Crittendan, Cross, Greene, Jackson,

Lawrence, Lee, Mississippi, Monroe, Phillips,

Poinsett, Randolph, St. Francis, Woodruff),

Mississippi (counties Desota, Panola,

Quitman, Tate, Tunica), Missouri (counties

Dunkin, New Madrid, Pemiscot), Tennessee,

Virginia (counties Bland, Buchanan,

Dickenson, Lee, Russell, Scott, Smyth,

Tazewell, Washington, Wise)

ENGINES SOUTHWEST

1255 North Hearne

Shreveport, LA. 71107

PO Box 67

Shreveport, LA. 71161

(318) 222-3871 1-800-388-6995

www.enginessw.com

Arkansas (except these counties: Clay,

Craighead, Crittendan, Cross, Greene,

Hempstead, Howard, Jackson, Lafayette,

Lawrence, Lee, Little River, Miller, Mississippi,

Monroe, Nevada, Phillips, Pike, Poinsett,

Randolph, Sevier, St. Francis, Woodruff)

Louisiana, Mississippi (except these

counties: Desota, Panola, Quitman Tate,

Tunica,)

FRANK EDWARDS CO.

3626 Parkway Blvd.

West Valley City, UT 84120

(801) 736-8060 1-800-318-0201

FAX 1-800-570-0491

Colorado, Idaho (counties Bannock Bearlake,

Bingham, Blaine, Booneville, Butte, Camas,

Caribou, Cassia, Custer, Franklin, Fremont,

Gooding, Jefferson, Jerome, Lemhi, Lincoln,

Madison, Minidoka, Oneida, Power, Teton,

Twin Falls) Montana (all counties except

Flathead, Lake, Lincoln, Mineral, Missoulo,

Ravalli, and Sanders), Utah, Wyoming

GARDNER, INC.

1150 Chesapeake Ave.

Columbus, OH. 43212

(614) 488-7951 1-800-848-8946

Indiana, Kentucky, Michigan (except upper

Peninsula), Ohio, Western Pennsylvania

with zip codes up to and including 16999,

West Virginia

GULF COAST ENGINE, INC.

4202 Russell Dr.

P.O. Box 9724

Corpus Christi, TX. 78408

(512) 888-6999 1-800-825-6999

Arkansas (counties Hempstead, Howard,

Lafayette, Little River, Miller, Nevada, Pike,

Sevier) New Mexico, Oklahoma, Texas,

Mexico

OSCAR WILSON ENGINE & PARTS

826 Lone Star Dr.

O'Fallon, MO. 63366

(314) 978-1313 1-800-873-6722

Illinois (S. of Hwy. 80), Iowa, Kansas,

Missouri (all counties except Dunkin,

New Madrid, Pemiscot) Nebraska

R.B.I. CORPORATION

P.O. Box 9318

Richmond, VA. 23227

(804) 550-2210 1-800-888-7149

FAX 1-800-947-1335

Connecticut, Delaware, District of

Columbia, Maine, Maryland, Massachusetts,

New Hampshire, New Jersey, New York, N.

& S. Carolina, Pennsylvania zips 17000 & up,

Rhode Island, Vermont, Virginia (all counties

except Bland, Buchanan, Dickenson, Lee,

Russell, Scott, Smyth, Tazewell, Washington,

Wise)

WISCONSIN MAGNETO

4727 N. Teutonia Ave.

P.O. Box 9218

Milwaukee, WI. 53209

(414) 445-2800 1-800-733-7388

Illinois (N. of Hwy. 80), Michigan (upper

Peninsula), Wisconsin

800 McKinley St.

Anoka, MN. 55303

(612) 323-7477 1-800-248-4016

Minnesota, North & South Dakota

REPAIR PARTSMODEL 42514x8A

36

F–000700L

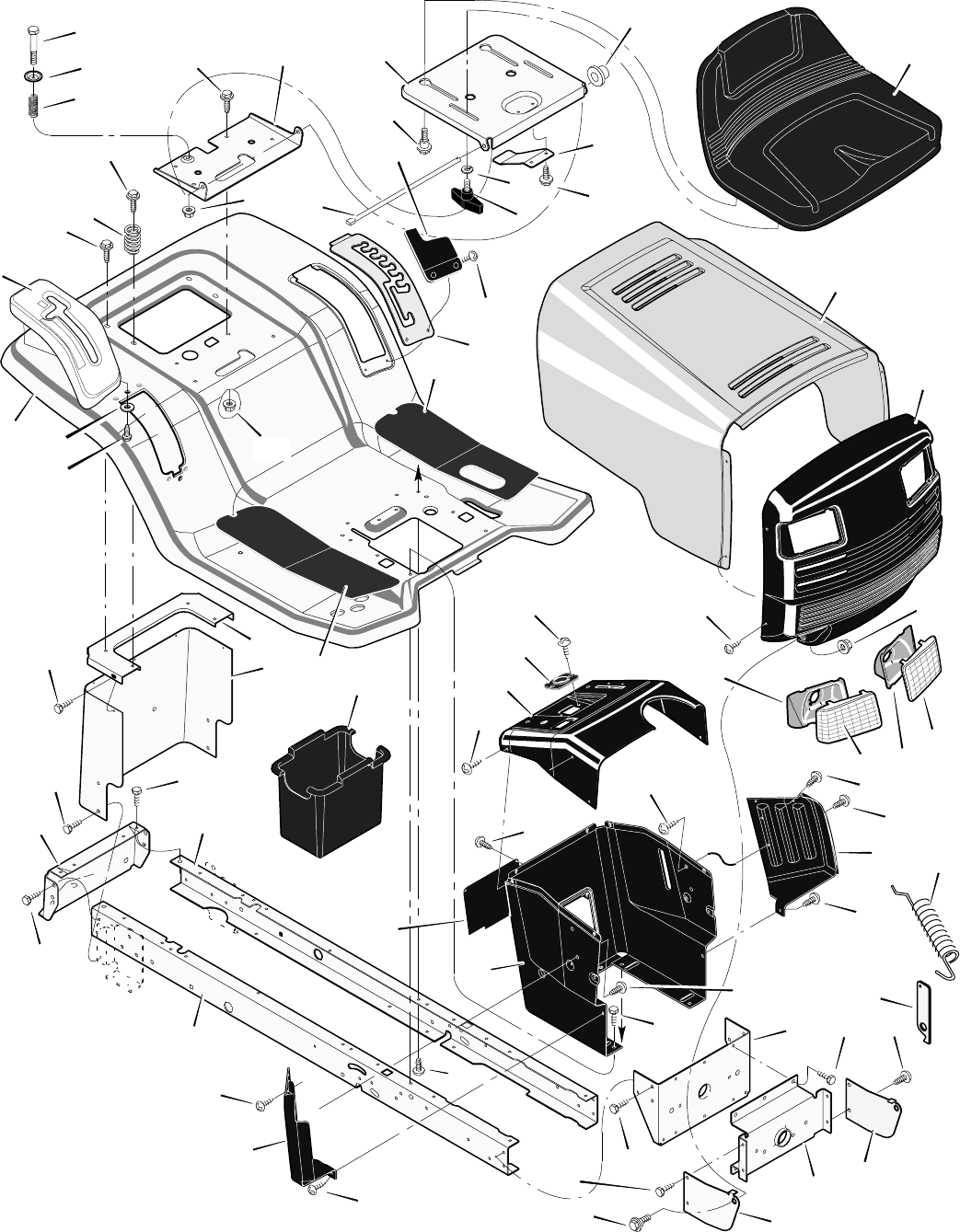

CHASSIS & HOOD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17 18

21

48

22

23

24

25

26

27

28

29

30

3132

33

34

61

31

35

36

37

38

39

40

41

42

16 16

16

16

43

44

45

46

47

16

16 16

31

31

31

31

31

31

31

50

49

31

16

17

20

55

58

59

19

64

65

66

REPAIR PARTSMODEL 42514x8A

37

F–000700L

CHASSIS & HOOD

Key

No. Description Part No. Key

No. Description Part No.

1 Seat 690566

2 Cap, Push 0n 28x23

3 Spring 94057

4 Screw 26x229

5 Bolt, Wing 94160

6 Washer 17x47 Z

7 Bolt, Shoulder 9x56

8 Support, Seat 94154E700

9 Rod, Pivot 94156 Z

10 Bracket, Pivot 94153E700

11 Bolt 1x45

12 Nut 15x89

13 Bolt, Shoulder 9x55

14 Washer 94155 Z

15 Spring 164x31

16 Screw 26x249

17 Screw 26x263

18 Spring 164x30

19 Deck, Seat 94845E700

20 Nut 15x88

21 Plate, Index 94194E700

22 Screw 9x47

23 Mat, Left 94109

24 Mat, Right 94108

25 Hood 94090E700

26 Grille 94087E700

27 Lens, Left 94093

28 Bezel, Left 94089 Z

29 Lens, Right 94092

30 Bezel, Right 94088 Z

31 Screw 26x270

32 Screw 26x238

33 Bearing, Steering 94075

34 Dash 94590E700

35 Nut 15x84

36 Panel, Access 93007E700

37 Support, Dash 95318E700

38 Bracket, Rear Hanger 94013E700

39 Support, Left Grille 94085E700

40 Axle, Hanger 94007E700

41 Support, Right Grille 94084E700

42 Bolt, Shoulder 9x58

43 Frame, Right 690206E700

44 Frame, Left 690207E700

45 Container, Battery 690424

46 Plate, Hitch 94002E700

47 Panel, Rear 690218E700

48 Cover, Level Adjustment 94680

49 Panel, Left Side 95218E700

50 Panel, Right Side 95217E700

55 Plate, Rear 94186E700

58 Extension, Spring 165x124

59 Bracket 94830 Z

61 Screw 26x201

64 Cover, Shift 690624

65 Washer 17x38

66 Screw 26x284

–– Decal, Right Hood 44x418

–– Decal, Left Hood 44x419

–– Decal, Warning 44x7325

–– Book, Instruction F–000700L

REPAIR PARTSMODEL 42514x8A

38

F–000700L

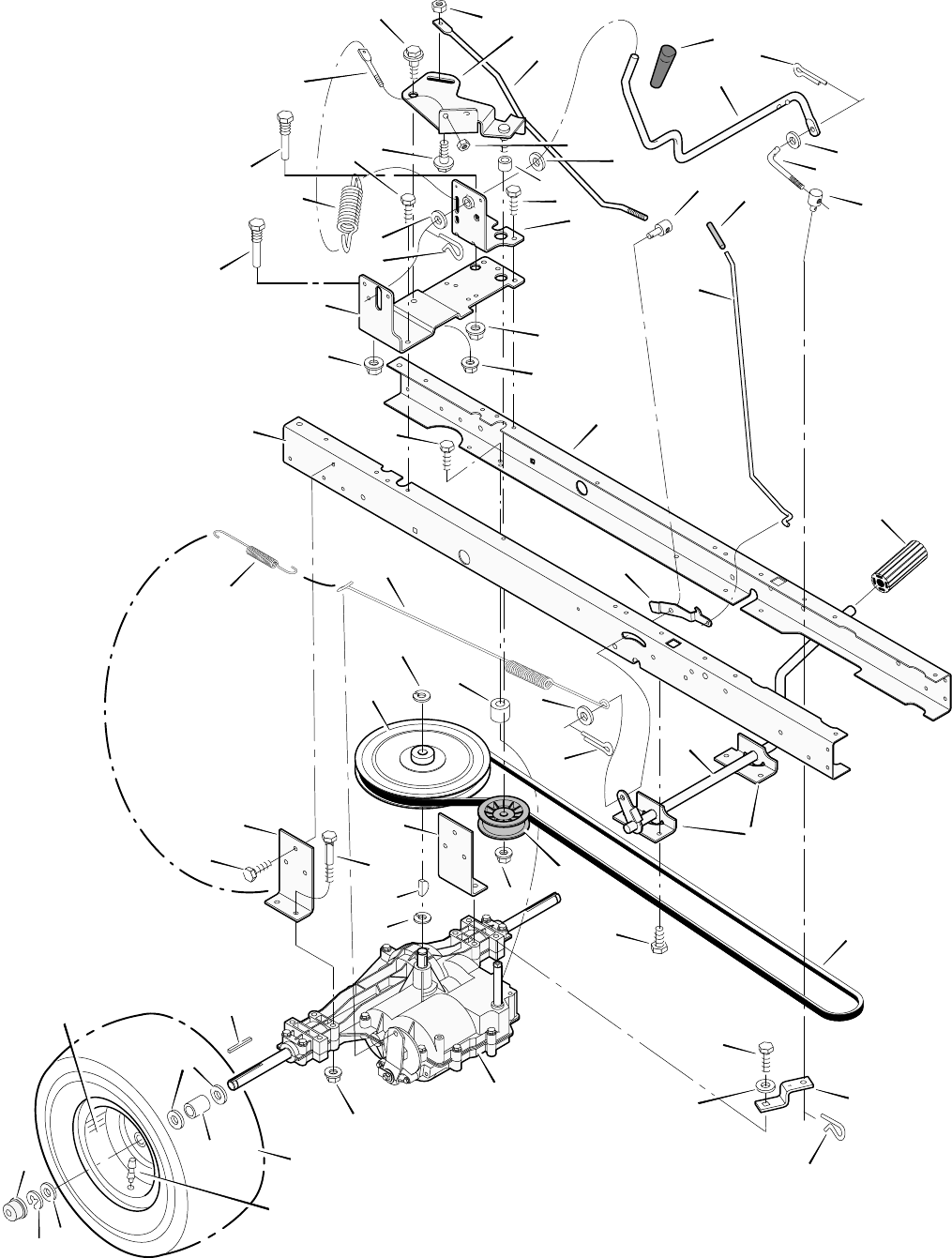

MOTION DRIVE

1234

56

78

9

10

12

11

13

14

15

16

17

18

19

20

17

21

6

55

22

23 24 25

26

27

28

29

30

31

32

33

35

17

41

18

17

40

39

58

38

45

37

46

49

48

50

53

51

52

47

36

8

10

42

43

56

44

43

54

54

5

5

57

34

REPAIR PARTSMODEL 42514x8A

39

F–000700L

MOTION DRIVE

Key

No. Description Part No. Key

No. Description Part No.

1 Bolt, Shoulder 9x39

2 Nut, Hex 15x89

3 Arm, Idler 690173 Z

4 Rod, Clutch 94041 Z

5 Nut 15x79

6 Washer 17x102

7 Grip 92697

8 Pin, Cotter 30x20

9 Lever, Shift 94043 Z

10 Washer 17x47 Z

11 Link, Shift 94044 Z

12 Nut, Adjuster 21920

13 Grip 91079

14 Rod, Parking Brake 94152 Z

15 Nut, Adjuster 94815

16 Bracket, Shift 94034E700

17 Screw 26x249

18 Nut 15x84

19 Mount, Stud Spring 94042 Z

20 Bolt, Shoulder 9x54

21 Spring, Extension 165x116

22 Bracket, Shifter 690166E700

23 Frame, Right 690206E700

24 Screw 25x12

25 Frame, Left 690207E700

26 Latch, Parking Brake 94045 Z

27 Pedal 21544

28 Lever, Brake/Clutch 94038E700

29 Bracket, Pedal 94035E700

30 Belt, Motion Drive 37x87

31 Yoke, Shift 94031Z

32 Pin, Hair 31x6

33 Washer 17x148

34 Spacer 690369

35 Bolt 6x105

36 Transaxle ** ––––

37 Nut 15x88

38 Key, Woodruff 20697

39 Bolt 1x155

40 Bracket, Right Transaxle 94184E700

41 Pulley 690409

42 Spacer 94132

43 E–Ring 11x7

44 Pulley, Drive 95094

45 Key, Square 21553

46 Washer 17x160

47 Spacer, Axle 690554 Z

48 Stem, Valve 24373

49 Tire * 407926

–– Tube 407049

50 Wheel & Tire Assembly 92511–601

51 Washer 17x195

52 E–Ring 11x3

53 Hub Cap 94618

54 Guide, Belt 93349

55 Pin, Hair 31x4

56 Spring, Extension 165x115

57 Spring, Extension 165x92

58 Bracket, Left Transaxle 94185E700

* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.

** For information on Replacement Parts see the Central Parts Distributor in your area.

REPAIR PARTSMODEL 42514x8A

40

F–000700L

STEERING

1

2

4

5

6

7

8

9

10

11

12

15

6

13

30

30

30

17

18

30

14

30

19

16

26

24

21

22

23

25

27

24

25

22

23

28

29

25

25

30

33

35

36

19

31

31

32

38

20

20

37

40

39

34

3

41

43

REPAIR PARTSMODEL 42514x8A

41F–000700L

STEERING

Key

No. Description Part No. Key

No. Description Part No.

1 Wheel, Steering 95185

2 Post, Steering 690625

3 Insert, Steering Wheel 711326

4 Bearing 94124

5 Nut, Flange 15x111

6 Bolt, Shoulder 9x57

7 Gear, Pinion 690183

8 Ring, Snap 11x25

9 Gear, Sector 94121E700

10 Bearing 94123

11 Bolt 1x84

12 Plate, Steering 690551E700

13 Plate, Engine 94006

14 Nut, Flange 15x88

15 Nut, Flange 15x118

16 Bracket, Hanger 94013E700

17 Axle, Hanger 94007E700

18 Bolt 1x146

19 Pin, Cotter 30x49

20 Bearing 690150

21 Spindle Assembly, Left 94576E700

22 Bolt 1x111

23 Washer 17x104

24 Washer 17x53 Z

25 Nut, Flange 15x84

26 Axle Assembly 690210E700

27 Drag Link, Left 95329E700

28 Spindle Assembly, Right 94575E700

29 Drag Link, Right 95328E700

30 Screw 26x249

31 Bearing, Wheel 91334

32 Stem, Valve 24373

33 Tire * 91912

–– Tube 407924

34 Wheel and Tire Assembly 94581–601

35 Washer 17x195

36 Washer 17x192

37 Washer 17x113

38 Hub Cap 94618

39 Screw 26x267

40 Bellows 92059

41 Bolt 25x3

43 Washer 17x146

* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.

REPAIR PARTSMODEL 42514x8A

42

F–000700L

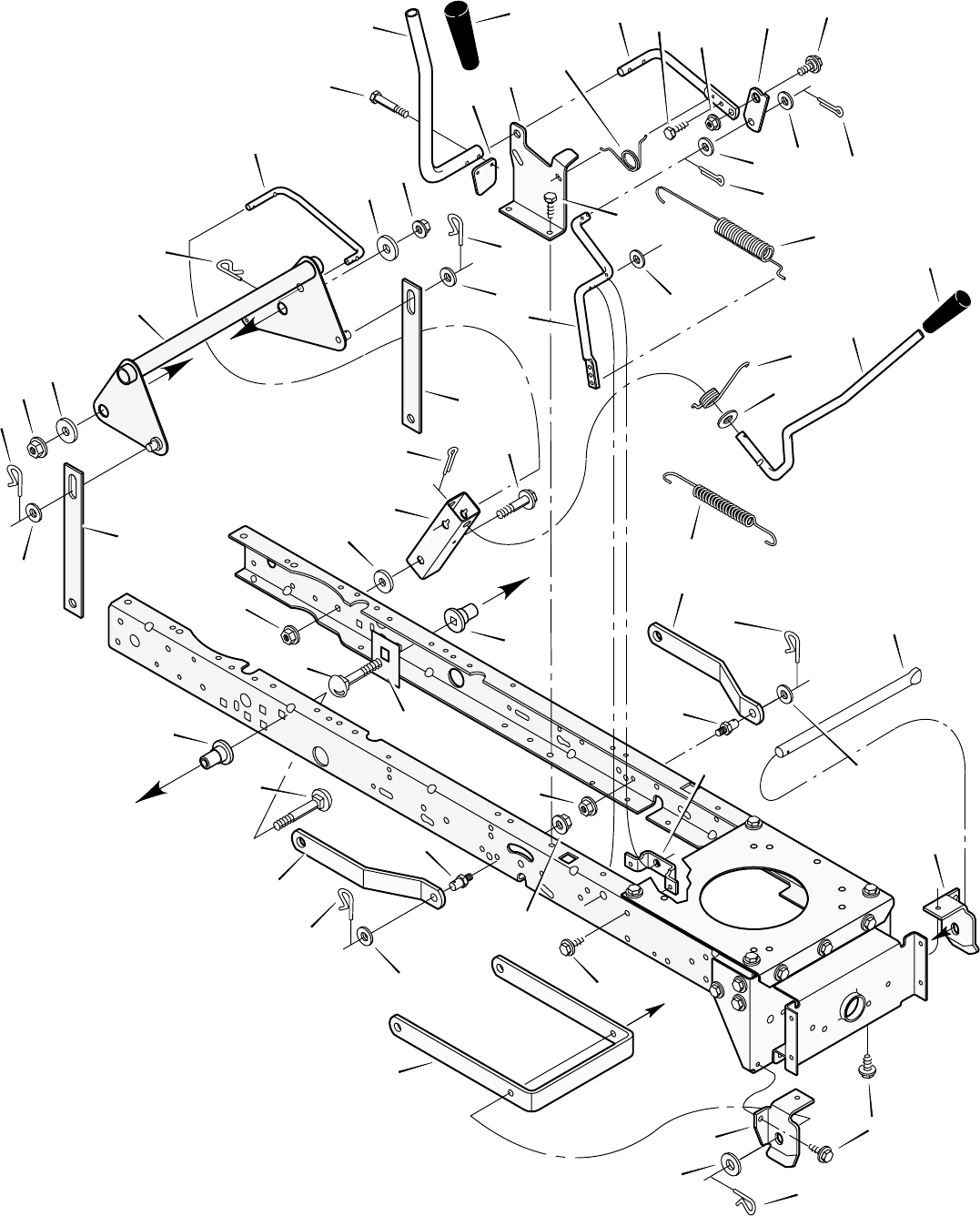

MOWER HOUSING SUSPENSION

1

2

3

4

5

6

7

8

14

14

910

11

12

12

11

13

14

15

16

17

18

19

20

20

21

22

22

23

24 24

24

25

25

11

15

27

26

26

24

25 15

33

34

36

37

32

32

38

31

24

30

25

41

43

15

30

31

44

42

24

7

40

39

39

45

REPAIR PARTSMODEL 42514x8A

43

F–000700L

MOWER HOUSING SUSPENSION

Key

No. Description Part No. Key

No. Description Part No.

1 Grip 92698

2 Handle, PTO 94100 Z

3 Pad, Switch 94022 Z

4 Bolt 25x3

5 Grip 92697

6 Spring 166x40

7 Washer 17x103

8 Lever, Lift 690533

9 Lever, PTO 94017 Z

10 Bolt, Shoulder 9x39

11 Pin, Cotter 30x20

12 Washer 17x102

13 Link, PTO 94004 Z

14 Nut, Flange 15x84

15 Screw 26x249

16 Spring 166x39

17 Bracket, PTO 94018E700

18 Spring 165x119

19 Crank, PTO 690394E700

20 Link, Lift 690212E700

21 Link, Lift Handle 690122E700

22 Washer 17x168

23 Washer 17x57

24 Pin, Hair 31x4

25 Washer 17x91 Z

26 Bolt, Carriage 2x85

27 Lever Assembly, Lift 690363E700

30 Pin 94067

31 Bracket, Rear Suspension 94055E700

32 Spacer, Lifter 690151

33 Bolt, Shoulder 9x53

34 Bracket, Pivot 94015E700

36 Washer 17x191

37 Nut, Flange 15x84

38 Spring 165x131

39 Nut, Flange 15x68

40 Bracket, PTO 94005E700

41 Hanger, Left Deck 94027E700

42 Hanger, Right Deck 94026E700

43 Rod, Hanger 94158Z

44 Bracket, Suspension 94058E700

45 Plate, Stiffening 690389E700

REPAIR PARTSMODEL 42514x8A

44

F–000700L

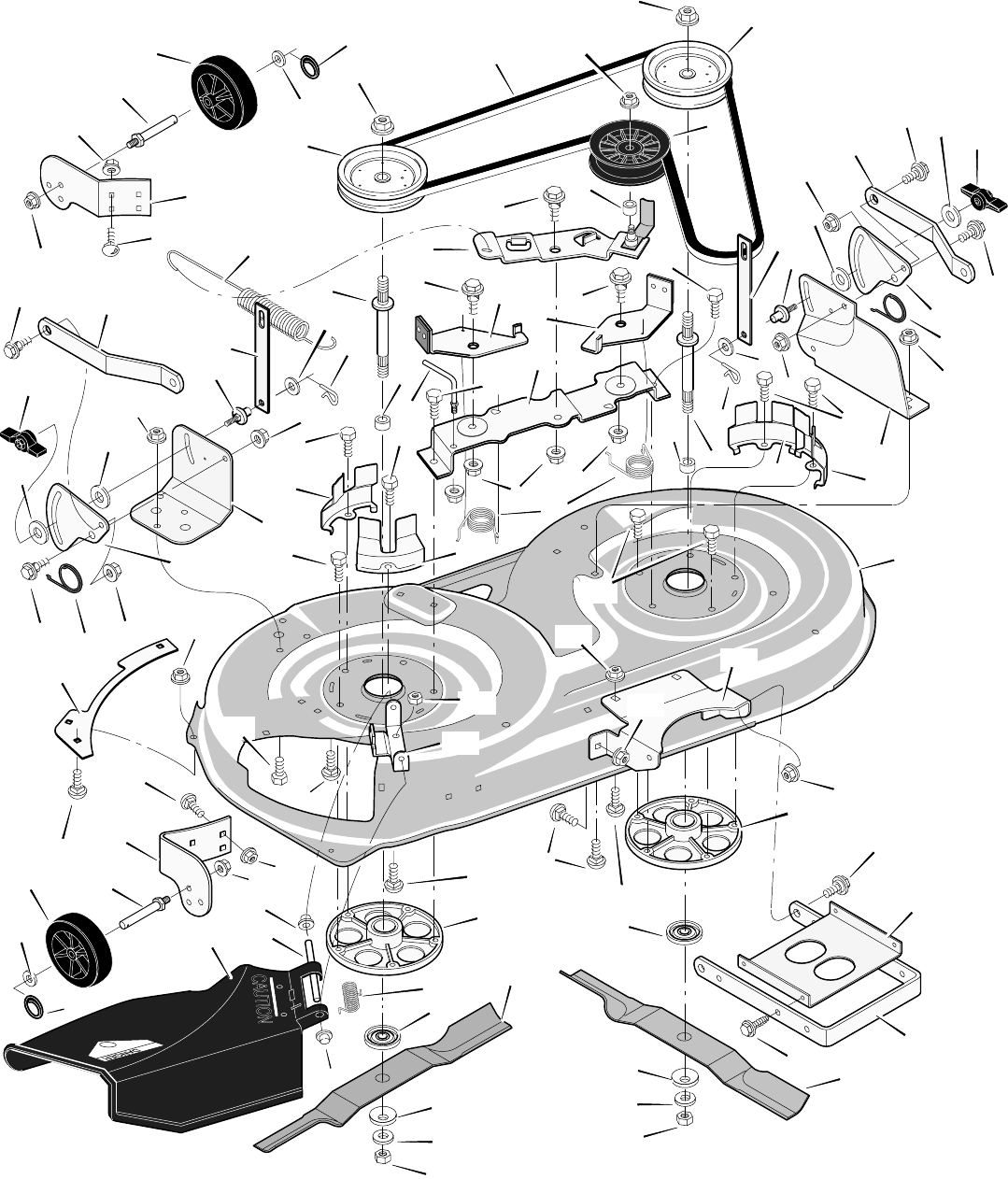

MOWER HOUSING

1

2

35

21

4

5

11

10 47 13

1

4

15

16

17

18

23

22

9

19

8

22

20

5

21

623

23

23

7

24

12

27

25

24

28

22

526

5

24

6

21

20

52

8

19

5

22

11

10

17

13

47

9

14 29 5

33

31

32

30

22

7

22

5

33

55

32

53

50

51

50

51

53

54

33 33

32

5

44

42

42

33

34

43

41

36

37

38

39

40

38

39

40

37

35

36

14

34

5

33

33

59

45

32

17

22

46

17

48

15

22

57

58

60

60

49

REPAIR PARTSMODEL 42514x8A

45

F–000700L

MOWER HOUSING

Key

No. Description Part No. Key

No. Description Part No.

1 Pulley, Jackshaft 94199

2 Nut, Hex 15x121

3 Belt, Mower Drive 37x88

4 Pulley, Idler 690387

5 Nut, Flange 15x84

6 Jackshaft 94129

7 Spacer 94130

8 Link, Lift 690212E700

9 Pad, Friction 94137

10 Bolt, Shoulder 9x52

11 Bracket, Suspension 94055E700

12 Pad Assembly, Left Brake 94049E700

13 Knob 94068

14 Bolt, Shoulder 9x51

15 Plate, Suspension 94128E700

16 Spring 166x43

17 Nut, Flange 15x79

18 Bracket, Suspension 94192E700

19 Pin, Hanger 94194

20 Washer 17x103

21 Pin, Hair 31x4

22 Bolt 25x7

23 Cover, Pulley 94051E700

24 Bolt, Shoulder 9x39

25 Arm, Idler 690408E700

26 Spring 166x41

27 Pad Assembly, Right Brake 94047E700

28 Bracket, Brake 94193E700

29 Spring 166x42

30 Bracket, Suspension 94191E700

31 Plate 92426E700

32 Nut, Flange 15x88

33 Bolt, Carriage 2x53

34 Mandrell Housing 92574

35 Bracket, Suspension 94058E700

36 Adapter, Blade 92466

37 Blade 95100E701

38 Washer 17x166

39 Washer 17x165

40 Nut 15x100

41 Spring 166x4

42 Cap, Push On 28x23

43 Rod, Deflector 94957 Z

44 Deflector Assembly 94707 SE

45 Bracket, Deflector Hinge 94956E700

46 Bracket, Front Hanger 94686E700

47 Washer 17x45 Z

48 Guide, Belt 94781

49 Spacer 690369

50 Bolt, Axle 94025

51 Washer 17x91 Z

52 Spring, Extension 165x119

53 Wheel, Gage 92683

54 Bracket, Right Wheel 92422E700

55 Bracket, Left Wheel 92423E700

57 Screw 26x249

58 Stiffener 94604E700

59 Housing, Blade * 94814E700

60 Ring, Locking 31x11

1–60 Complete Mower Housing Assembly 776007

* Includes Key No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56.

REPAIR PARTSMODEL 42514x8A

46

F–000700L

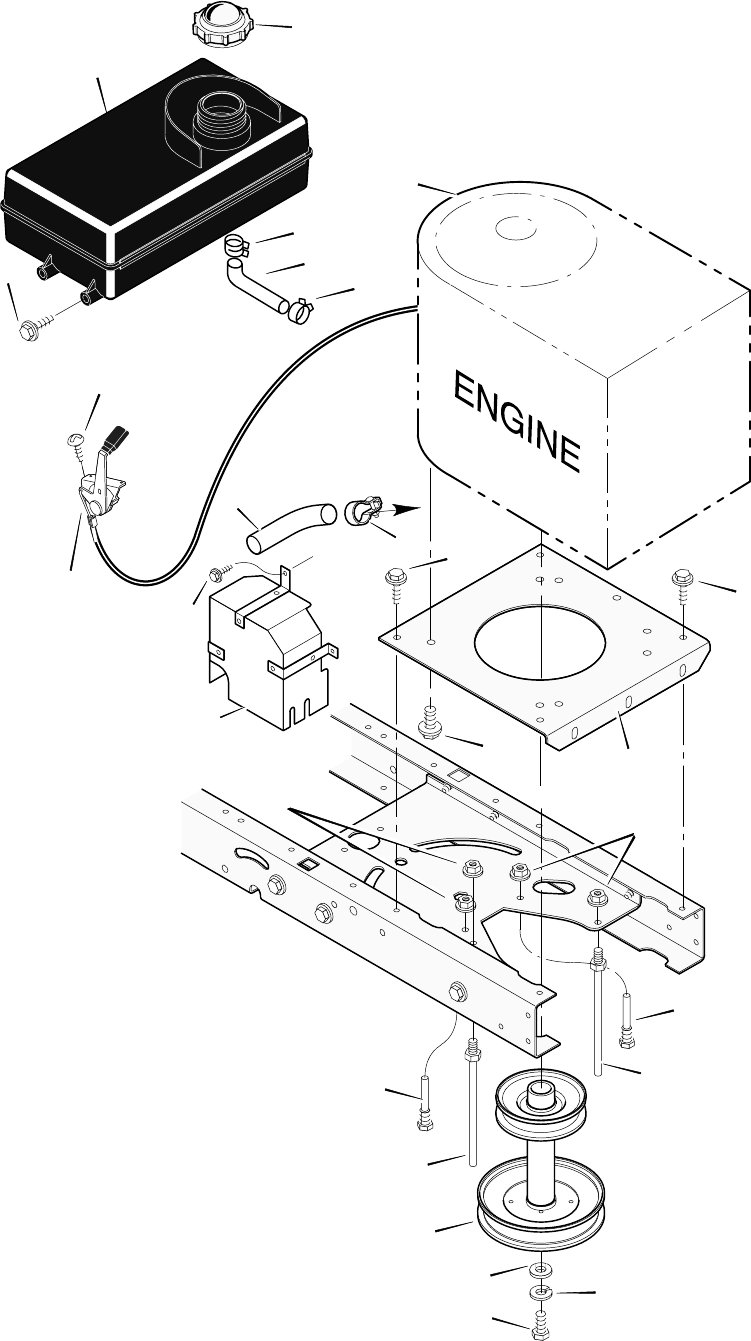

ENGINE MOUNT

1

6

7

8

9

10

11

12

13

14

15

15

21

22

22

23

23

21

2

3

4

5

26

28

29

30

31

REPAIR PARTSMODEL 42514x8A

47

F–000700L

ENGINE MOUNT

Key

No. Description Part No.

1 Fuel Cap 92317

2 Fuel Tank 94073

3 Hose Clamp 95197

4 Fuel Line 23717

5 Hose Clamp 95197

6 Screw 26x201

7 Plate, Engine 94006E700

8 Throttle Control 91989

9 Engine –––––

–– Muffler 95206

–– Gasket, Muffler 91309

–– Adapter, Muffler 95207

–– Screw, Adapter 6x103

–– Bolt, Muffler 9x59

–– Lock, Screw 92378

10 Bolt, Engine Mount 25x7

11 Stack Pulley Assembly 690439 Z

12 Lockwasher 19x35

13 Bolt, Hex 1x140

14 Washer 17x170

15 Screw 26x249

21 Guide, Belt 93349

22 Nut, Flange 15x79Z

23 Guide, Belt 94781

26 Screw 26x253

28 Pipe, Exhaust 92855

29 Clamp 92558

30 Shield, Heat 92550

31 Screw 26x263

REPAIR PARTSMODEL 42514x8A

48

F–000700L

ELECTRICAL SYSTEM

RED RED

GREEN GREEN

YELLOW

YELLOW

ORANGE

VIOLET

BLACK

ORANGE

DC

RED

RED

BLACK

BLACK

YELLOW

YELLOW

ORANGE

WHITE

STARTER

START

SWITCH

STATOR

DIODE

RED DC

OUTPUT

BLACK AC

OUTPUT

HEADLIGHT HARNESS

SPARK

PLUG

ARMATURE

SOLENOID

ORANGE

YELLOW

YELLOW

YELLOW

NO

NC

SEAT SWITCH HARNESS

NC

PTO SWITCH

CLUTCH

BRAKE

SWITCH

SEAT SWITCH

RED

RED

15 AMP

FUSE

YELLOW

YELLOW

1

3

4

56

8

9

2

4

10

7

AFTERFIRE

SOLENOID

UNOCCUPIED

DISENGAGED

( PEDAL UP )

NO

NC 11

RED

AC

GRAY

REPAIR PARTSMODEL 42514x8A

49

F–000700L

ELECTRICAL SYSTEM

Key

No. Description Part

No.

1 Harness, Light Wire 250x92

Socket, Light 92372

Bulb, Light 90084

2 Harness, Chassis Wire 250x87

3 Switch, Ignition 92556

Key, Ignition 20729

Nut, Hex 91489

Cap, Ignition 91488

4 Switch, Limit 94136

5 Fuse 54212

Holder, Fuse 407078

6 Solenoid 94613

Screw, Mounting 26x229

Locknut 15x116

7 Cable, Battery Ground 24x32

Screw, Ground Cable 26x213

8 Battery 21075

Bolt, Carriage 2x82

Wingnut 14x79

9 Harness, Seat Switch Wire 250x67

10 Switch, Seat Sensor 94159

11 Cable 24x31

50

F–000700L

INDEX

51

F–000700L

A

Adjustments

Blade Rotation Control, 22

Clutch, 23

Drive Brake, 23

Mower Housing, Level, 28

Shift Lever, 24

Attachments, 15, 52

B

Battery

Charge, 24

Check, 12

Clean, 24

Install, 12

Removal, 24

Storage, 33

Belt

Motion Drive

Adjust, 23

Replace, 29

Mower Drive

Adjust, 22

Replace, 31

Blade

Inspect, 21

Remove And Install, 21

Sharpen, 21

Blade Control Lever, Operation, 15

Blade Rotation Control

Adjust, 22

Location, 14

C

Clutch

Adjust, 23

Check, 23

Clutch / Brake Pedal, Location, 14

Controls, Location, 14

Cutting Height

Adjust, 28

Change, 16

D

Drive Brake

Adjust, 23

Check, 23

E

Engine

Fuel, 13, 18

Oil, 13, 18

Preparation, 13

Spark Arrester, 13, 20

Starting, 18

Storage, 33

Throttle Control, 15

F

Filter, Fuel, 25

Fuel, Type, 18

Fuse, 33

H

Headlight, Replace Light Bulb, 33

Headlight Switch, Location, 14

I

Ignition Switch, Location, 14

L

Lift Lever

Location, 14

Operation, 16

Lubrication, Mower, 25

M

Maintenance

Adjust, Guage Wheels, 27

Battery

Charge, 24

Clean, 24

Belt

Motion Drive, 29

Mower Drive, 31

Blade, 21

Blade Rotation Control, 22

Clutch, 23

Drive Brake, 23

Filter, Fuel, 25

Fuse, 33

Headlight, 33

Install, Wheels, 32

Lubrication, 25

Mower Housing

Clean, 33

Install, 26

Level, 28

Remove, 26

Muffler, 20

Storage, 33

Maintenance Chart, 20

Motion Drive Belt

Adjust, 23

Replace, 29

Mower Drive Belt

Adjust, 22

Replace, 31

Mower Housing

Clean, 33

Cutting Height, 16

Install, 26

Level Adjustment, 28

Operation, 17

Remove, 26

Muffler, 20

Spark Arrester, 20

O

Oil

Check, 18

Type, 18

Operation

Attachments, 15

Blade Control Lever, 15

Blade Rotation Control, 14

Clutch / Brake Pedal, 14

Headlight Switch, 14

Ignition Switch, 14

Lift Lever, 14, 16

Location Of Controls, 14

Mower Housing, 17

Mowing And Bagging, 19

Operate On Hills, 17

Parking Brake, 14, 16

Shift Lever, 14, 15

Start The Engine, 18

Stop The Unit, 16

Throttle Control, 14, 15

Transport, 16

P

Parking Brake

Location, 14

Operation, 16

Parts Bag, 10

S

Safety Rules

American National Standard Institute, 34

Safe Mowing Guide, 5–7

Seat, Install, 11

Seat Switch, Operation, 18

Shift Lever

Adjust, 24

Location, 14

Operation, 15

Slope Guide, 50

Spark Arrester, 13, 20

Steering Wheel, 11

Storage, 33

T

Throttle Control

Location, 14

Operation, 15

Tire Pressure, 13, 25

Trouble Shooting Chart, 34

W

Warranty, 2

52

F–000700L

LAWN TRACTOR ACCESSORIES

Make your Lawn Tractor do more than you ever imagined.

The accessories shown on this page can be used on your Lawn Tractor. See the Store or Dealer where

you purchased your Lawn Tractor. If you are unable to obtain the necessary information, contact the

Central Parts Distribution Center for your area as listed in your Repair Parts Book.

LAWN SWEEPER

Model No. 24720 SNOW BLADE

Model No. 24478

SNOW THROWER

Model No. 24574

Made in U.S.A.

38” MULCHER KIT

Model No. 24750

40” MULCHER KIT

Model No. 24755

42” MULCHER KIT

Model No. 24758

TIRE CHAINS

Model No. 24530

(For 18x8.5 inch tire)

Model No. 24538

(For 18x9.5 inch tires)

Model No. 24525

(For 20x8 inch tire)

Model No. 24515

(For 20x10 inch tire)

Model No. 24539

(For 23x9.5 inch tire)

GRASS BAGGER

Model No. 24762

9 Bushel Capacity

(For 42” and 46”)

REAR WHEEL WEIGHTS

Model No. 24003

(For 18x9.5 inch tires)

(For 20x8 inch tires)

Model No. 24630

(For 23 inch tires)

GARDEN TILLER

Model No. 13460

GRASS BAGGER

Model No. 24744

7 Bushel Capacity

(For 38”, 40”, and 42”)
