Mustek Systems MBTD120 BT-DH User Manual BT Dongle En indd
Mustek Systems Inc BT-DH BT Dongle En indd
Users Manual
Dongle
Quick Guide
EN DE FR IT ES NL PT SW DK TU PL GR RU FI TC
Model No.: MBT-D120
FCC ID: HWF-MBTD120
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful
interference.
(2) This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any changes or modifi cations not expressly
approved by the party responsible for com-
pliance could void the authority to operate
equipment.
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
BLUETOOTH DONGLE GETTING STARTED 3
EN
Introduction
Thank you for purchasing the Bluetooth USB Dongle! This de-
vice allows for wireless communication between your computer
and other Bluetooth enabled devices.
Quick Guide
Please thoroughly read this guide in order to properly install the
Dongle and device drivers.
Note: Please ‘pair’ the Dongle and Bluetooth device in order to enable
proper communication.
BLUETOOTH DONGLE GETTING STARTED
4
(Figure 1)
Driver Installation
Before using the USB Dongle, please follow the steps below to
install the bundled CD driver.
1. Insert the installer CD into your CD-ROM drive.
2. Close the CD-ROM drive.
3. After the CD menu appears, double-click “ Setup.exe”
icon to start the installation.
4. An installer wizard will automatically launch, then click
“ Install” button to continue. (Please refer to Figure 1)
Note: To manually launch the installer wizard, follow the steps below:
1) Click “Start“ in the Windows Taskbar, then select “Run“.
2) Click “Browse” and select “ Setup.exe”.
3) Click “Open”, then confi rm it.

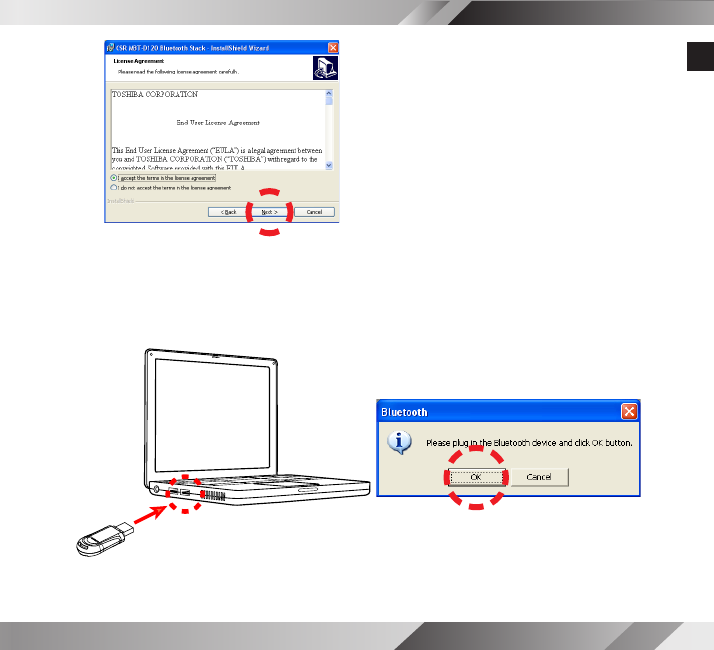

5. Mark “I accept“ item in “License Agreement” window, then
click “Next” button to continue. (Please refer to Figure 2)
BLUETOOTH DONGLE GETTING STARTED 5
EN
6. Please plug in the USB Dongle to a free USB port when
prompted to do so and click “OK” button. (Please refer to
Figure 3)
(Figure 3)
Driver Installation
Note: Please follow the screens to complete installation.
(Figure 2)
7. It will take several minutes to execute installation. Once a
“Found New Hardware Wizard“ window appears, click
BLUETOOTH DONGLE GETTING STARTED
6
“Finish“ button to complete installation. (Please refer to
Figure 4)
8. Please reboot your computer after the installation is
complete.
(Please refer to Figure 5)
(Figure 4)
(Figure 5)
Driver Installation
9. The icon “ ” will display on the Windows taskbar. Then, you
can start to use the Bluetooth Dongle.
