1260 Kempar, Madison Heights, MI 48071, U.S.A. Phone:248-733-0400, Fax: 775-587-5352
Email: info@dfgus.com Website: www.dfgus.com
Warning:
Do not connect this product to electrical power or attempt to operate it before you read
these operating instructions and have been fully trained to operate this product.
1. Indoor use only. Do not expose to rain.
2. Keep hands, long hair, neckties, necklaces and other loose articles away from
roller.
3. Do not place this product on an unstable stand, cart, or surface. The product may
fall and hurt you. If you use a cart, move the product and cart carefully.
4. Do not insert objects or spill liquids into the product. They may damage the unit,
or short out components that may result in fire.
5. The power outlet shall be installed near this product and shall be easily accessible.
6. Unplug the product before moving it. Unplug the power supply when it will not
be in use for an extended period of time.
7. Do not attempt to service this product. Contact DFG or your local dealer if you
need service.
8. In case you need to replace the fuse, please use 3.0-A fuse.
9. Do not operate machine when the cover is not on the machine.
This machine should only plug into 110 V single-phase power outlets. When
using the roller, some motor and roller noises are normal. Roller is tested to last
10,000+ binding cycles. We provide a limited one-year parts and labor warranty
for this machine.
1260 Kempar, Madison Heights, MI 48071, U.S.A. Phone:248-733-0400, Fax: 775-587-5352
Email: info@dfgus.com Website: www.dfgus.com
Dear Customer,
Thank you for purchasing the ETitanCoil binding machine. The following are basic
installation and operation instruction. For advanced punching and binding challenges,
please contact DFG.
Installation
Punching

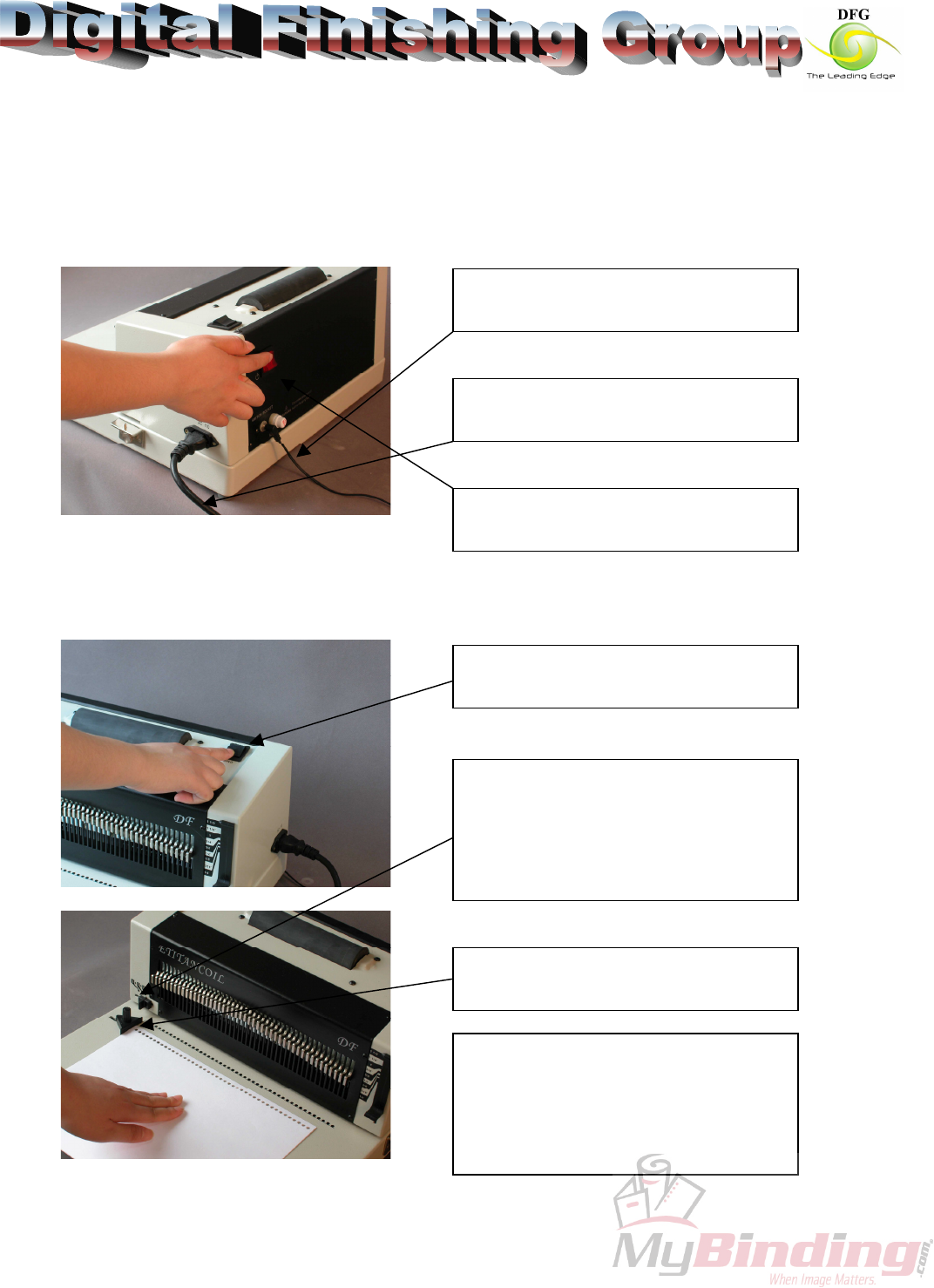

1. Insert foot pedal plug into foot
pedal jack
2. Connect power cord to machine
and power outlet (not shown)
3. Turn on the power switch
1. Change rocker switch to “Punch”
2. Select the punch margin (tip – the
thicker the book, the larger the punch
margin can be. However, you can use
a small punch margin for any book)
3. Set the side guide to center the
sheets for punching
4. Make sure your sheets are all the
way inside, against the back wall, and
then move sheets to the left side
against the side guide. Press the foot
pedal to punch the sheets.
1260 Kempar Madison Heights, MI 48071, U.S.A. Phone:248-733-0400, Fax: 775-587-5352
Email: info@dfgus.com Website: www.dfgus.com
How to Bind Books with Power Roller (up to 7/8”)
1. Change the rocker switch to
“Bind”

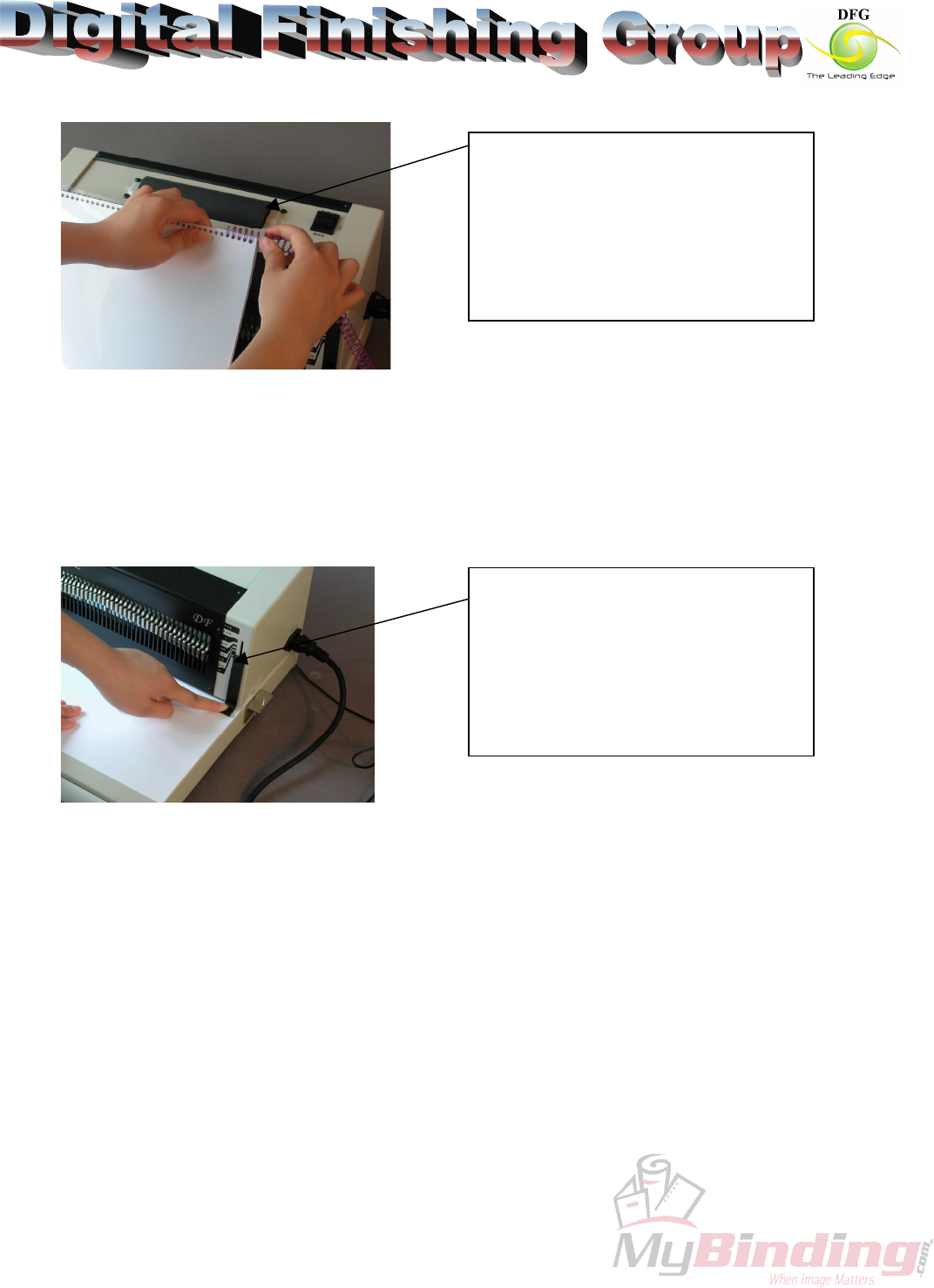

2. Manually turn the spiral coil into
the first 4 or 5 holes
3. Press the foot pedal. Touch the coil
against the moving roller to spin the
coil through the book. (You can
speed up binding by moving the book
to the right while the roller is
spinning the coil through the book.)
1260 Kempar,Madison Heights, MI 48071, U.S.A. Phone:248-733-0400, Fax: 775-587-5352
Email: info@dfgus.com Website: www.dfgus.com

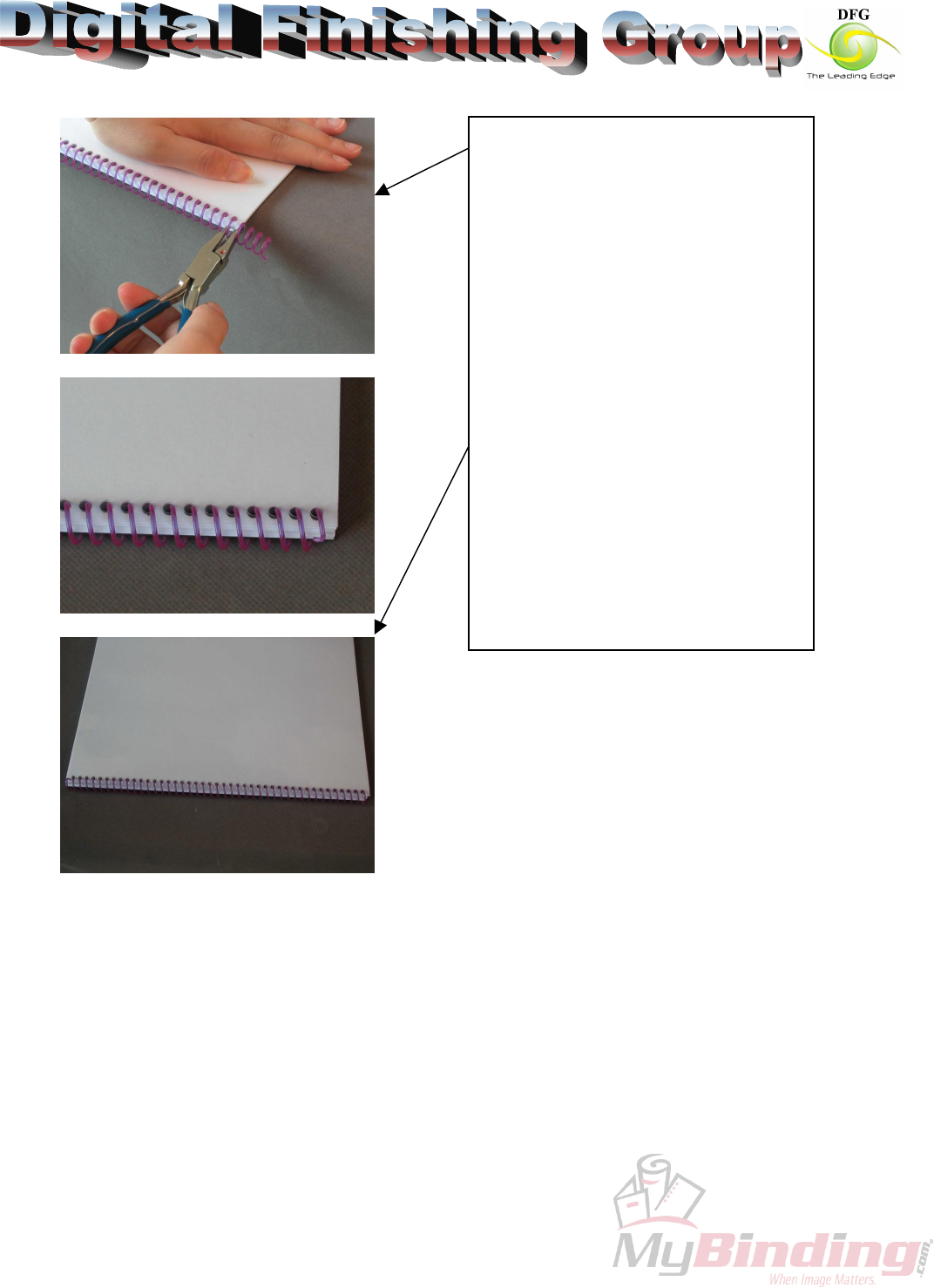

4. Cut and crimp the ends of the
spiral coil.
Right handed
A. Hold pliers with red dot up,
with the coil near you.
B. Place pliers with jaws inside
the coil, near the center.
C. Close the pliers to cut the coil
and keep them closed
D. Optionally twist pliers to bend
crimp more before releasing
E. Release coil, flip the book
over sideways and crimp the
other side using the same
procedure (coils still near
you)
Left handed
Use pliers as described above but
hold them in your left hand and put
the red dot down.
1260 Kempar, Madison Heights, MI 48071, U.S.A. Phone:248-733-0400, Fax: 775-587-5352
Email: info@dfgus.com Website: www.dfgus.com
How to Bind Books Manually (any thickness)
How to Determine Appropriate Coil Size
There are three ways you can choose an appropriate coil size:
1. Use any size coil you like, as long as the coil size is larger than book thickness
2. Use coil that is 2 – 6 mm (1/8” to 1/4”) larger than book thickness
3. Use our coil size selector. See following picture:
Specifications:
Electrical Punch: Capacity: up to 25 sheets of paper (20 lbs), 15-20 sheet punching will
give you a longer punch tool life
Punch Width: Any width
Binding Size: Electric power binding up to 7/8". Manual binding any size.
Full 46 Disengagement Pins: center punching with any size paper without "half-moons"
Electrical Coil Binding: up to 7/8” Anti-Jam Function: Prevents jams before they
happen for trouble-free operation
Side Margin Control: Lets you center holes quickly and easily for perfect alignment
Coil Size Selector: Built-in selector takes the guesswork out of choosing the proper size
element
Punch margin control: Provide strongest binding for any book size
Open Throat and Easy Punch Support: Easily punch any book length
Manually turn your coil into the
book. This is a very easy process.
(Tip: It will be much easier to turn
the front end of the coil)
Cut and crimp the coils (see #4 of
power roller binding instructions)
Put book on the machine base, under
the “Size Selector”.
Move the “Size Selector” down until
its bottom touches the top sheet of the
book.
The top of “Size Selector” will point
to a size you can use on the scale
1260 Kempar, Madison Heights, MI 48071, U.S.A. Phone:248-733-0400, Fax: 775-587-5352
Email: info@dfgus.com Website: www.dfgus.com

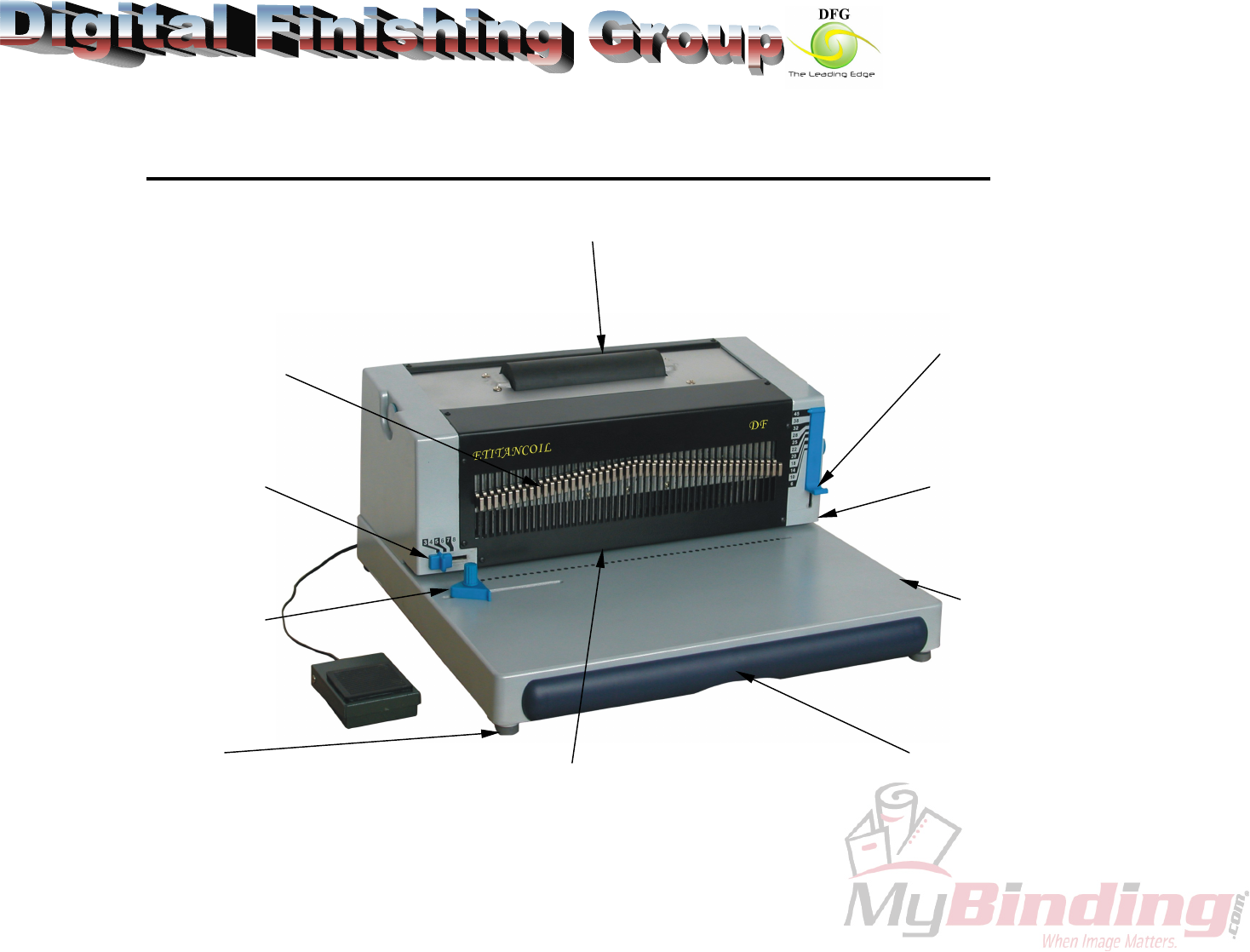

Open Punch Throat
For punching larger
document wider than 11”
Coil Size Selector
For professional appearance of
all documents
Upper Mounted Power Roller Binding
Increases productivity and reduces operator fatigue
Sturdy Die Cast
Metal Construction
For many years of
worry free operation
Non Skid Feet
Side Margin Control
For evenly centered
document punching
Punch Margin Control
Maximizes the tear resistance
of all documents
ETitanCoil - Heavy Duty Electric Punch and Electric Binding
Machine
Electric Punch Capacity
Up to 25 sheets (20 lbs)
Trash Drawer
Full Die Disengagement Pins
To center punch all size documents &
multiply documents without having a
partial hole in the documents
