ISP S3A STITCHER
PARTS LIST
GBC IS AN ACCO BRANDS COMPANY
21

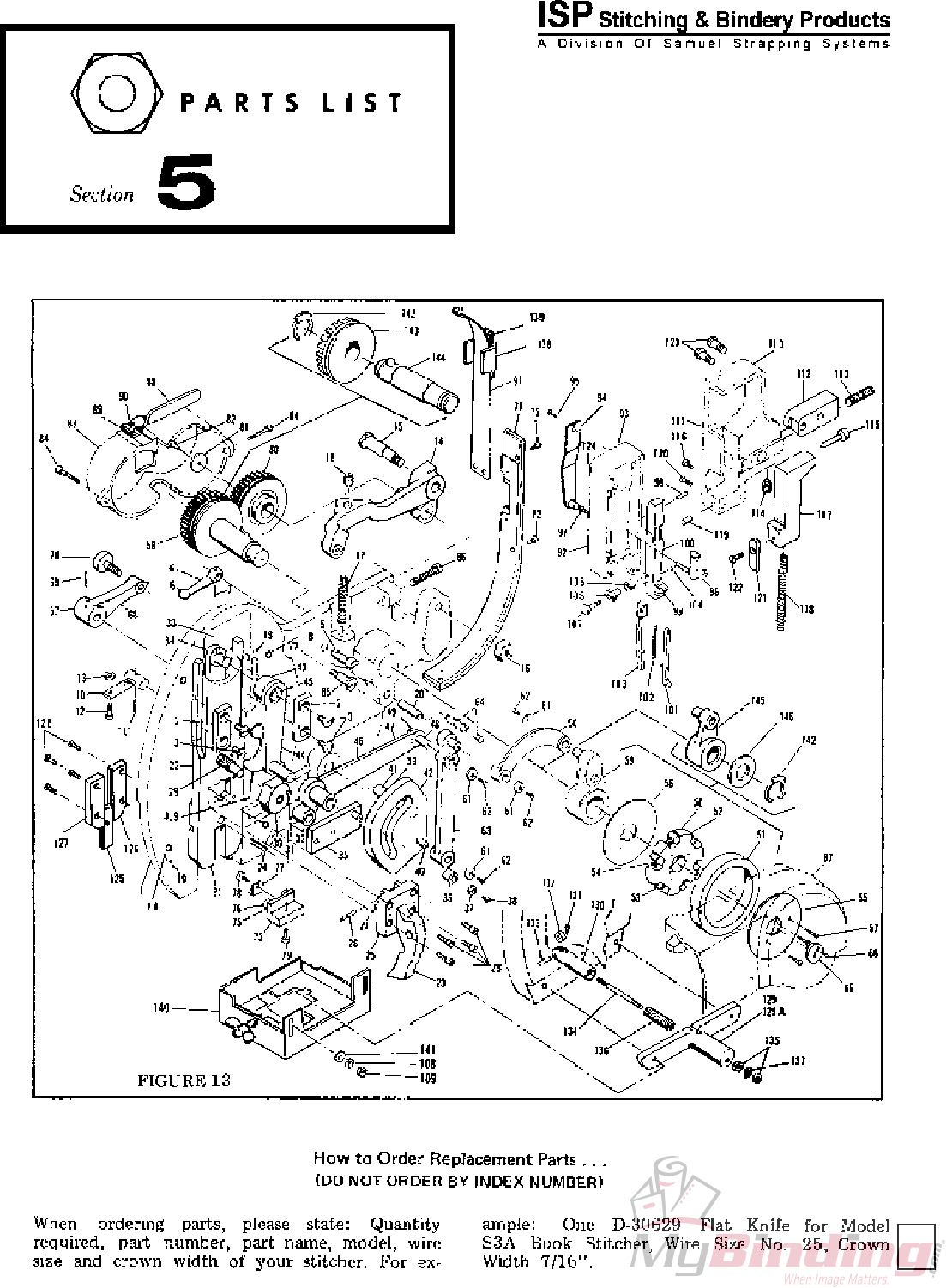

NOTE
The exploded view illustrated on this page contains
all the parts in the stitching head of your ISP S3A
Book Stitcher. Additional pages of parts and parts
listing are provided to aid in maintenance, adjust-
ments and the ordering of replacement parts.
22
23
105 D30936F Roller 1
106 D30931F Eccentric 1
107 D36460F Eccentric Screw 1
108 D13260F Lock Washer 2
109 D30575F Nut 2
110 B6066A Cutter Block Assembly 1
111 C8006F Cutter Block (only) 1
112 D36458F Adjusting Slide 1
113 D36445F Adjusting Screw 1
114 D36441F Lock Screw 1
115 S30058F Wire Guide 1
116 D36447F Wire Guide Screw 1
117 D30026F Flat Knife Holder 1
118 D30425F Knife Holder Spring 1
119 D30630F Round Die (round wire) 1
119 D30253F Roung Die (flat wire) 1
120 CB56i Round Die Screw 1
121 D30629F Flat Knife 1
122 CB312B Flat Knife Screw 1
123 D36446F Attaching Screw 2
124 D36453F Attaching Screw - Front Block 2
125 D30189F Driver, 7/16" Crown, No. 25 1
Wire (round)
125 D30956F Driver, 7/16" Crown, No. 20 x 25 1
Wire (flat)
125 D34001F Driver, 7/16" Crown, No. 19 x 21½ 1
Wire (flat)
126 D30205F L.H. Former, No. 25 Wire (round) 1
126 D37422F L.H. Former, No. 19 x 21½ 1
Wire (flat)
126 D30952F L.H. Former, No. 20 x 25 Wire (flat) 1
127 D30188F R.H. Former, No. 25 Wire (round) 1
127 D37421F R.H. Former, No. 19 x 21½ 1
Wire (flat)
127 D30953F R.H. Former, No. 20 x 25 Wire (flat) 1
Index Part Part Name Number
Number Number Required
128 D30523F Former Screws 4
129 D36993A Shoe Plunger Bracket Assembly 1
129A D30161F Bracket (only) 1
130 D31310F Plunger 1
131 D38065F Screw 1
132 D31903F Roller 1
133 D31904F Roller Pin 1
134 D31302F Plunger Stud 1
135 D13931D Jam Nut 2
136 D48961F Plunger Spring 1
137 D52891F Lock Washer 1
138 D38152F Wiper Body 1
139 D38154F Felt Wiper 1
140 CDD3011 Finger Guard Bracket Assembly 1
141 CB175 Flat Washer 2
142* CD2391 Klip Ring 2
143* CD2347B Feed Gear 1
144* CDD2345B Feed Gear Shaft 1
145* CDD1283A Feed Clutch Arm Assembly 1
146* CB2063 Thrust Washer 1
Index Part Part Name Number
Number Number Required
*Use index number 58, 59, 56, 50, 52, 54, 53, 51, 57, 66, 65,
for machines equipped with one piece feed gear and shaft
assembly (index No. 58).
Use index numbers 142, 143, 144, 145, 146, for machines
equipped with 2 piece feed gear and shaft.
these parts can be ordered as a kit: Use part No.
CBBB3000P4.
PARTS LIST
Stitching Head Assemblies
24
25
26
27
33 CN-9 Toggle Joint End Screw 2
34 CB-622-A Pointer Bar Screw 1
35 D-30536-F Screw 1
36 D-05894-F Clincher Adjusting Screw Nut 1
37 D-30204-F Clincher Adjusting Screw 1
38 D-30541-F Nut 1
39 A-2177-A Table Assembly includes:
B-06067-F Table 1
B-06002-F Table Bracket 1
D-05042-F Screw 6
40 CD-3013 Table Guage 1
41 D-50732-F Table Guage Angle R.H. 1
42 D-50733-F Table Guage Angle L.H. 1
43 D-37725-F Guage Screws 4
44 CB-253 Washer 2
45 D-45194-F Washer 1
CD-3004 Saddle Stop 1
CB-375-A Screw 3/8-16 x 1-1/2 Hex Hd 2
D-30541-F Nut 3/8-16 2
CD-3002 Key Slide 2
CD-3001 Spacer 4
CG-26 Screw #10-32 x 3/8 Button Hd 4
CB-1262 Washer #10 4
CG-59 Wave Washer 4
RTM1327C Interlock Key 2
CG-26-A Screw #10-32 x 1/2 Button Hd 4
CB-278 Nut #10-32 4
NOT SHOWN
PARTS LIST

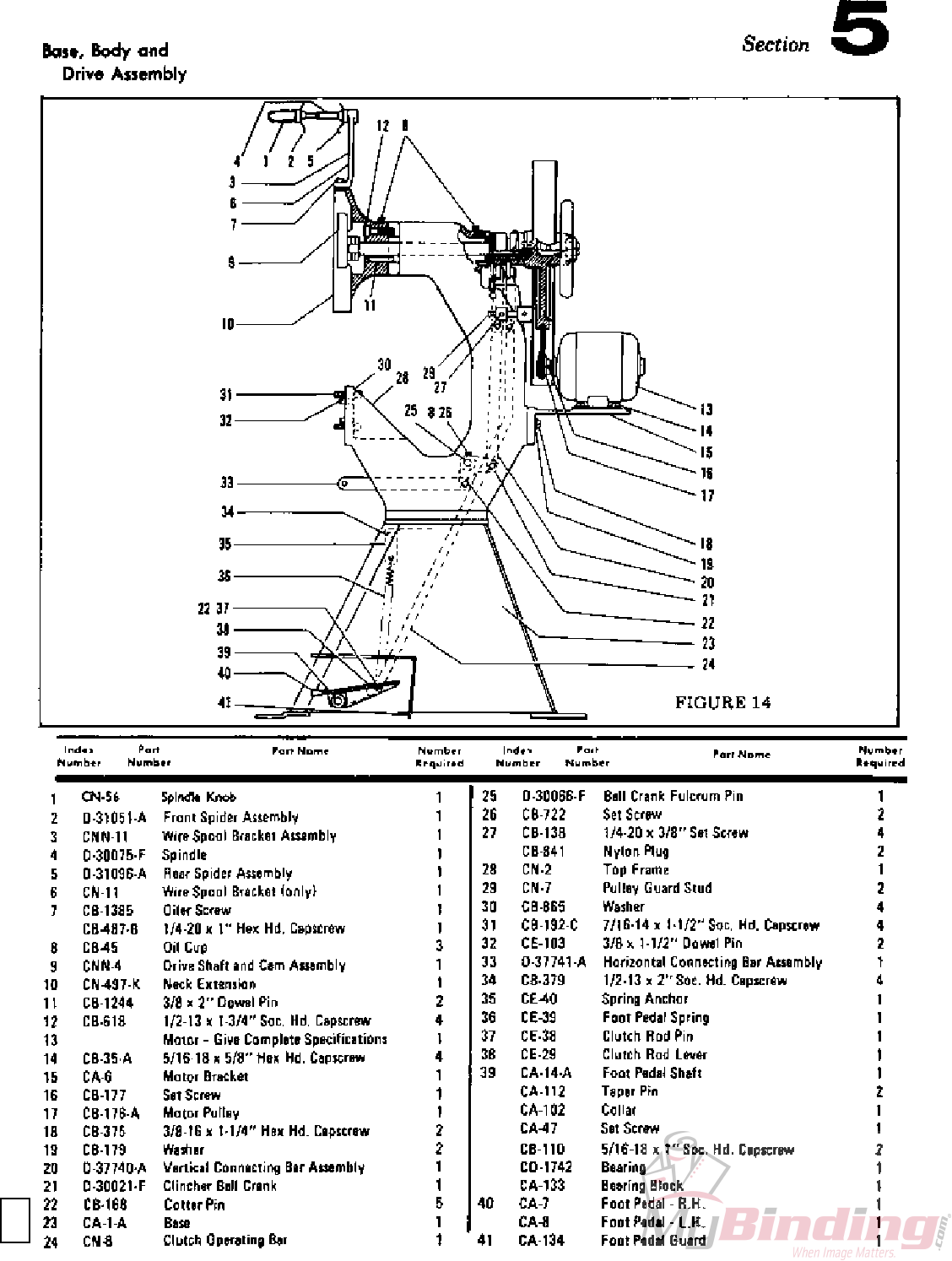

1 CNN-4 Cam & Shaft Assembly 1
*Cam, Pin, and Drive Shaft furnished as an assembly only
CAM and SHAFT Assembly*
Figure 17
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
28

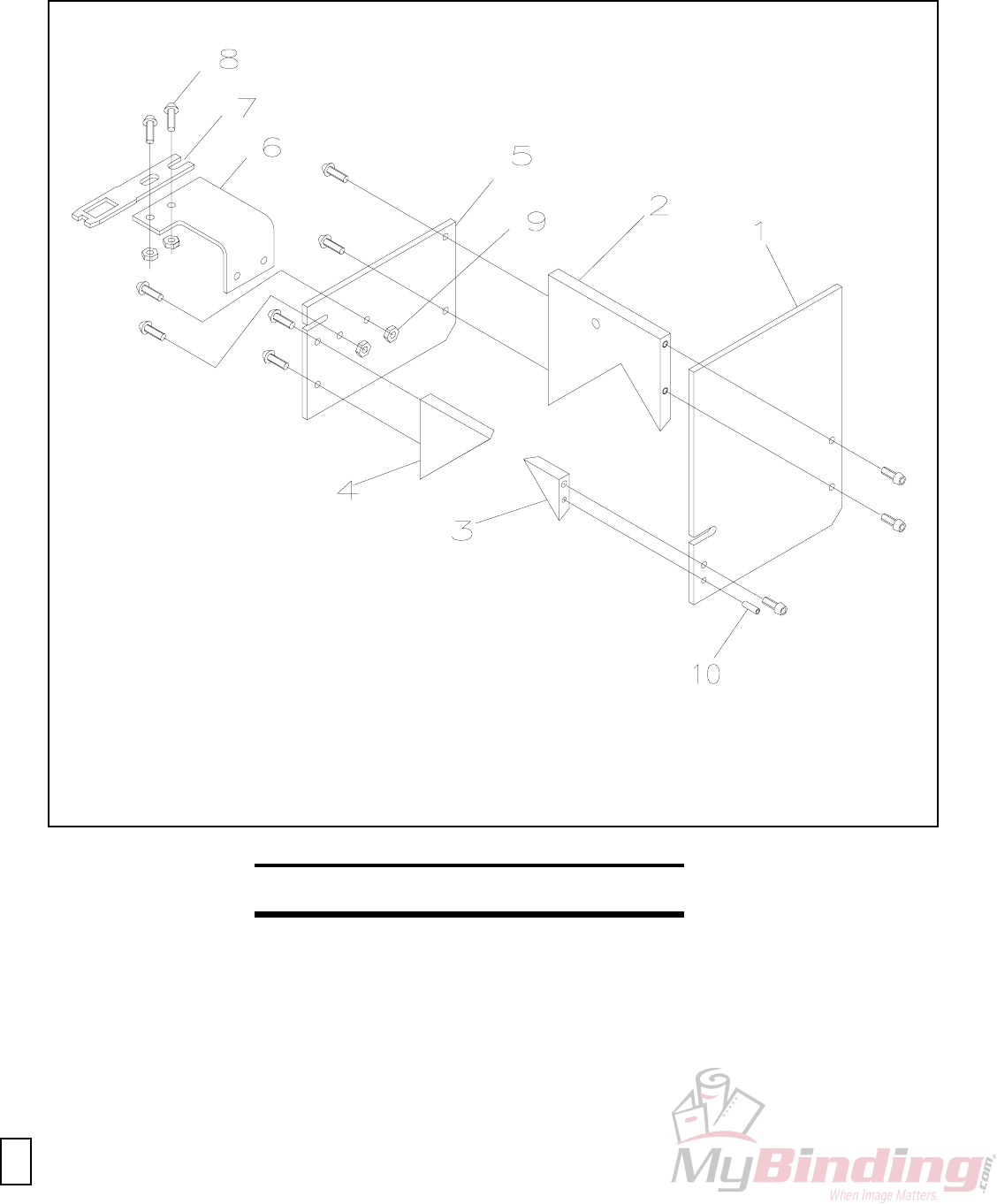

SADDLE FINGER GUARD ASSEMBLY
1 CD-2986 Finger Guard 1
2 CD-2987 Side Guard-RH 1
3 CD-2988 Side Guard-LH 1
4 CD-2989 Side Guard-LH Rear 1
5 CD-2990 Rear Guard 1
6 CD-2992 Key Bracket 1
7
RTM1327C
Interlock Key 1
8 CG-26-A Screw #10-32 x 1/2 Button Head 11
9 CB-278 Nut #10-32 4
10 D-38062-F Roll Pin .156x.500 Long 1
FIGURE 18
5
Section
(CDD2986B)
Index Part Part Name Number
Number Number Required
29

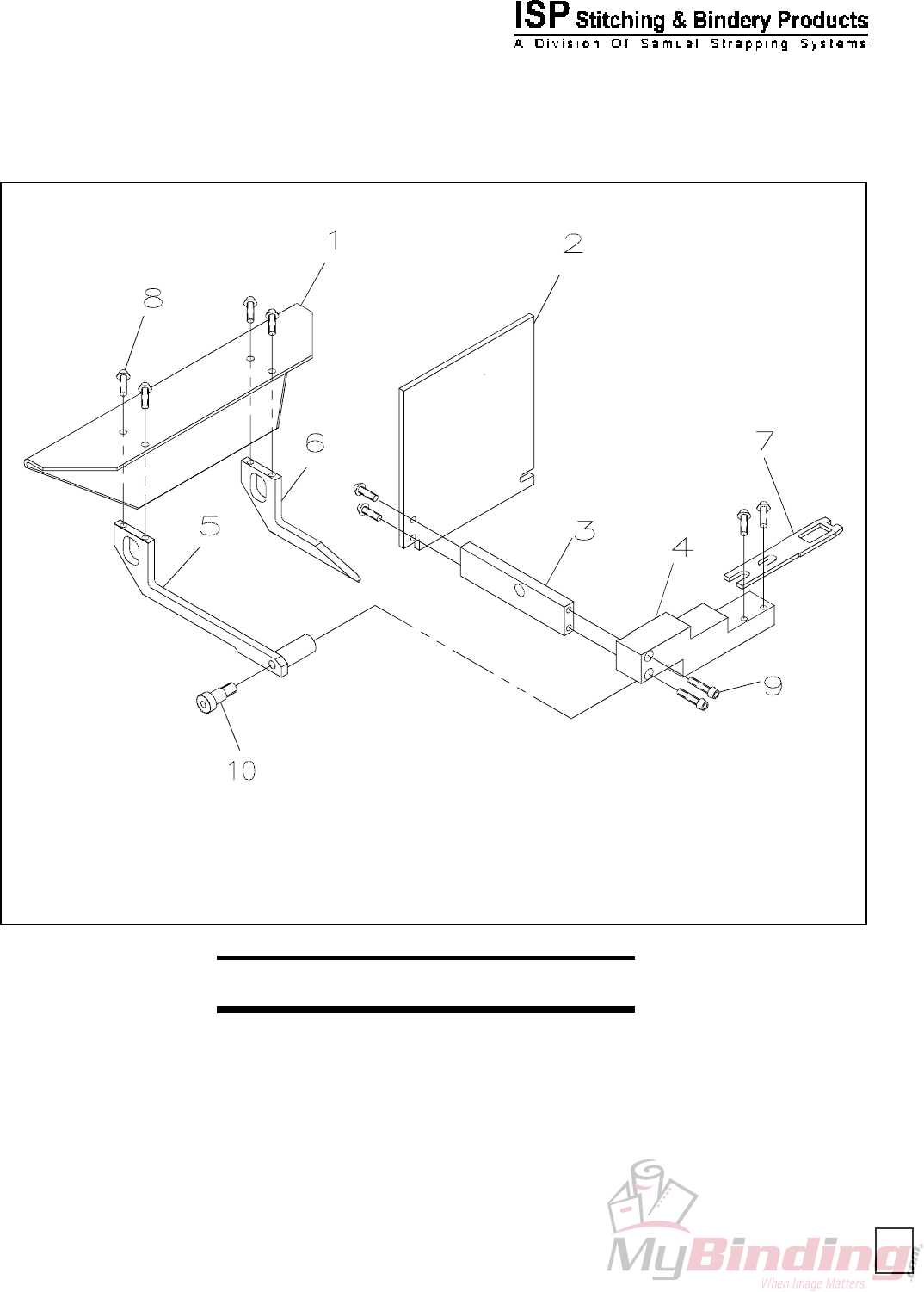

TABLE FINGER GUARD ALLEMBLY
1 CD-3009 Finger Guard Gate 1
2 CD-2995 Front Cover 1
3 CD-2996 Mounting Bar 1
4 CD-2997 Support Bar 1
5 CDD-2998 Gate Arm Assembly 1
6 CD-3010 Side Bar 1
7
RTM1327C
Interlock Key 1
8 CG-26-A Screw #10-32 x 1/2 Button Head 8
9 CB-1090 Screw #10-32 x 1 Soc Hd Cap 2
10 CD-3008 Shoulder Screw 1
FIGURE 19
(CDD3009B)
Index Part Part Name Number
Number Number Required
30

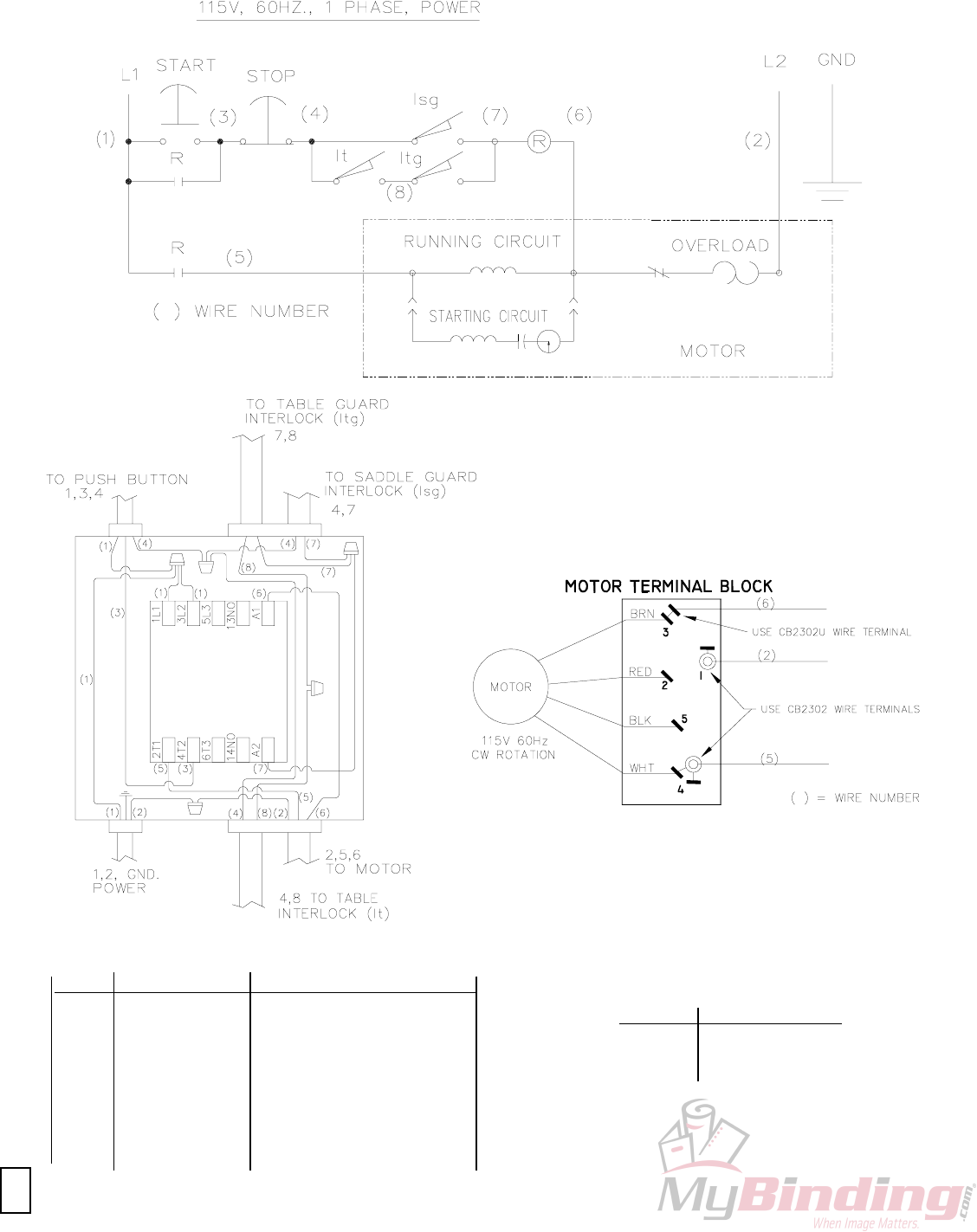

ELECTRICAL SCHEMATIC AND ELECTRICAL ASSEMBLY
COLOR WIRE NUMBER
WHITE 2
BLACK 1,3,4,5,6,7,8
GREEN GROUND
QTY PART# DESCRIPTION
9' E-14 3/8 FLEX. STL. CONDUIT
25' EF1309F 14 GA. STR. WIRE BLACK
2' EF1311F 14 GA. STR. WIRE WHITE
10 D37200F BUSHING
6 CB2302 PRESSURE TERMINAL
2 ERC55 WIRE JOINT
5 CB2302B DISCONNECT TERMINAL
3 CB2302 WIRE JOINT
1 CB2302U DISCONNECT TERMINAL
5
Section
(SK 737W2 Relay Wiring)
(SK 737W2 Motor Wiring)
(SK 737W2 Schematic)
31

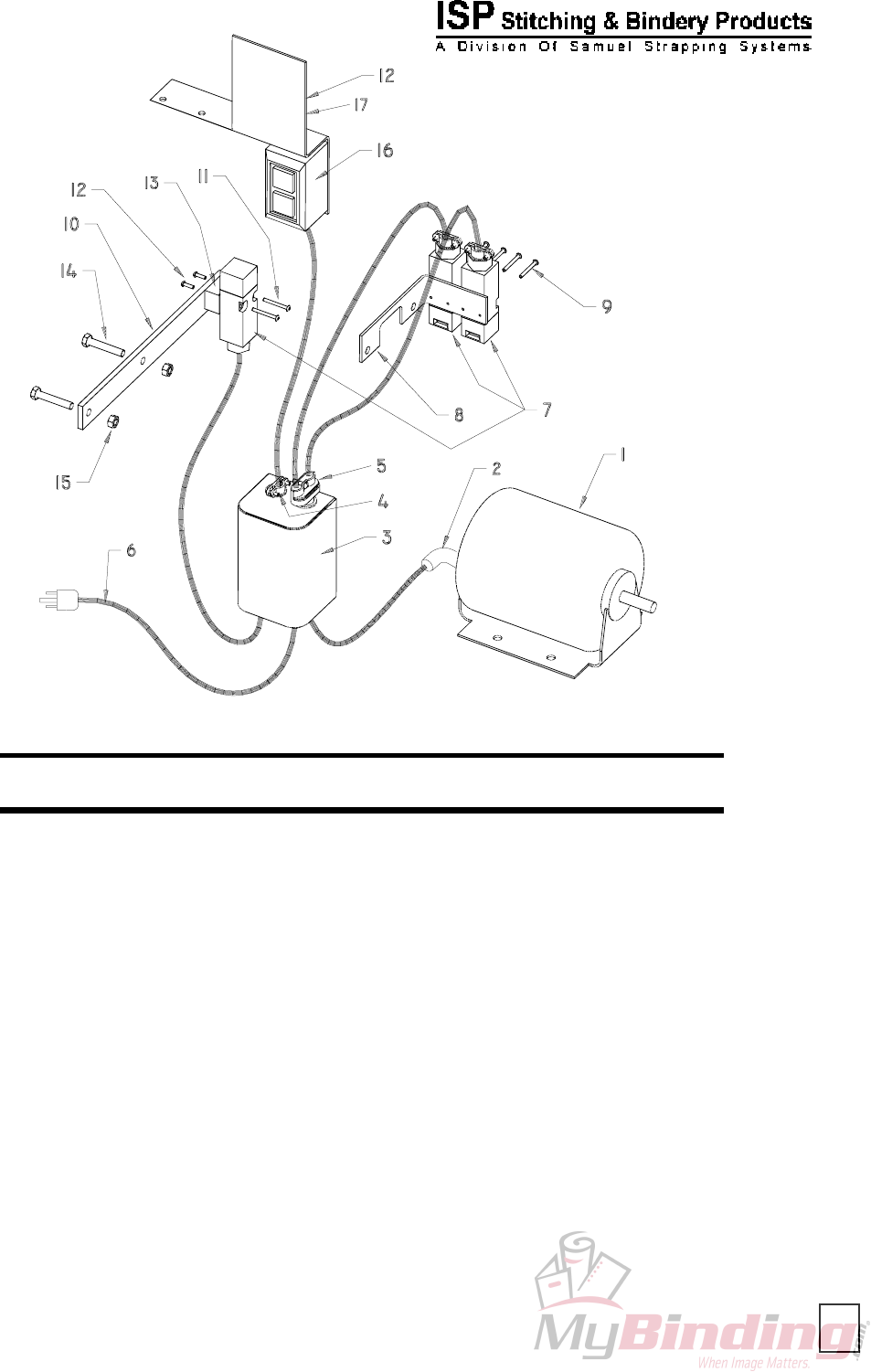

1 M3L MOTOR-1/3 HP. 115V 1
2 CB544 90° CONNECTOR 2
3 CB2454 POWER RELAY 1
CB2455 RELAY ENCLOSURE 1
CB126 SCREW #10-32 x 3/8" RD. HEAD (ENCLOSURE FRAME) 2
CB988 LOCKWASHER #10 2
CB1070B GROUNDING SCREW 1
CB2457 SCREW #8-32 x 1/2" PAN HEAD 1
CB860J NUT #8-32 NYLOK 1
4 CB429 CONNECTOR 5
5 D38384F DUAL CONNECTOR 2
6 CB283 POWER CORD 1
7 RTM1326F INTERLOCK SWITCH 3
8 CD2991A SWITCH BRACKET 1
9 RTM1324F SCREW #6-32 x 1.25" BUTTON HEAD 4
10 CD3003A SWITCH BRACKET 1
11 RTM1324F SCREW #6-32 x 1.25" BUTTON HEAD 2
12 CB287E SCREW #6-32 x 1/2" RD. HD. 2
13 CB3006A SPACER 1
14 CB620 SCREW 5/16-18 x 1 3/4" HEX 2
15 CB102A NUT 5/16-18 2
16 CB285K2 PUSH BUTTON SWITCH 1
CB126 SCREW #10-32 x 1/2 RD. HD. 2
CB988 LOCKWASHER #10 2
CB278 NUT #10-32 2
17 CNN57 SWITCH BRACKET 1
Index Part Part Name Number
Number Number Required
(SK 737W2 Exploded)
INTERLAKE STITCHER S3A
GBC# VENDOR# DESCRIPTION
1726309 CA-9083 CLINCHER POINTS
