I

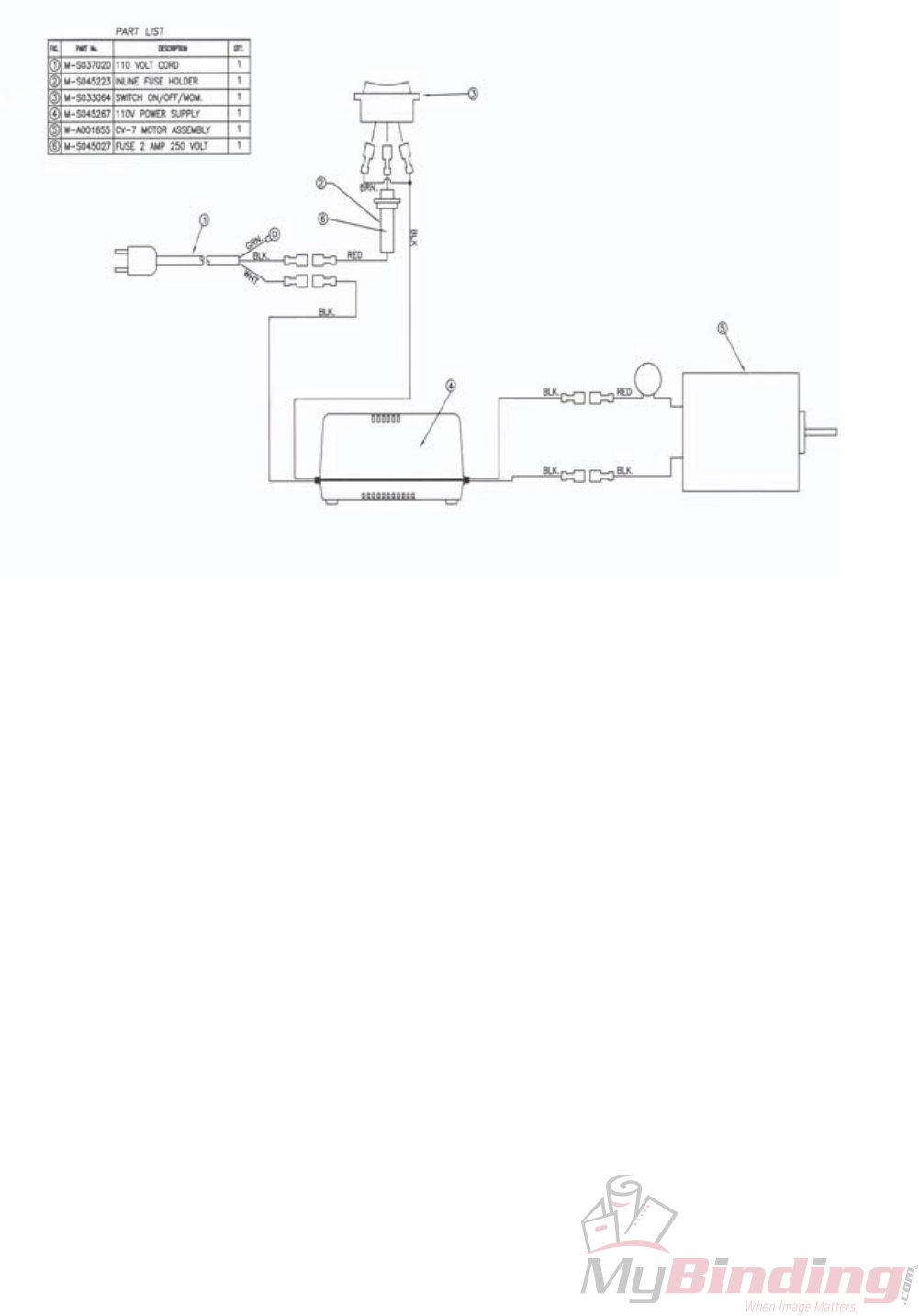

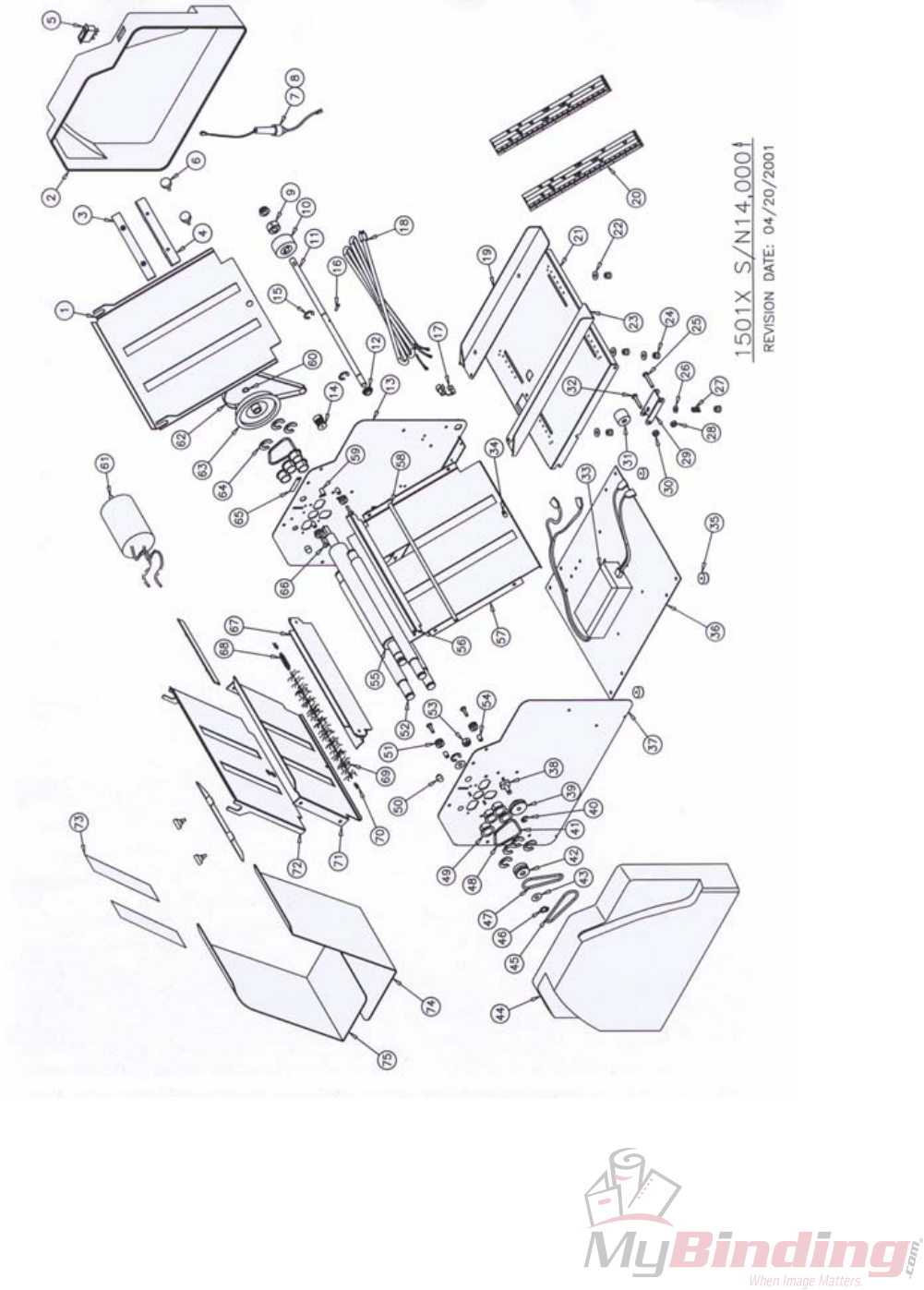

1501X Parts List
Serial Number 14000 and up
Fig. Part Number Description Qty.
1 W-O001602 1st Fold Table Top 1
2 M-O001638 Cover-Switch Side 1
3 W-O001616 Paper Stop Locking Bar 2
4 W-O001615 Paper Stop 2
5 M-S033064 On/Off Momentary Switch 1
6 M-S032007 8-32 x ¼ Thumb Knob 4
7 M-S045223 Inline Fuse Holder 1
8 M-S045027 Fuse 2 Amp 250V 1
9 M-S037302 3/8 Shaft Collar 1
10 M-O001649 CV7 Feed Roller 1
11 W-O001617 Feed Roller Shaft 1
12 M-S014029 3/8 ID Clip Bearing 2
13 W-I001608 Right Side Frame 1
14 M-S022129 3MM 12T X 5MM ID Pulley 1
15 M-S010011 3/8 External “E” Ring 2
16 M-S018064 1/8 x 5/8 Dowel Pin 1
17 M-S035018 Strain Relief 15-1 Heyco 1
18 M-S037020 115V USA Line Cord 1
18 M-S037276 European Cord 10 Amp 1
18 M-S045177 British Line Cord 3 Amp 1
19 W-I001671 Right Side Paper Guide 1
20 M-O001642 1st Fold Table Ruler 2
21 W-A001669 Feed Table 1
22 M-S008045 #10 x 5/16 Fiber Washer 4
23 W-I001670 Left Paper Guide 1
24 M-S032008 8-32 Thumb knob 5
25 M-S001021 10-32 x 1.25 Phl. Pan/hd 1
26 M-S008087 #8 Flat Washer 1
27 M-S031096 1501X Retarder Spring 1
28 M-S007040 10-32 Elastic Nut 1
29 W-O001672 Retarder Holder 1
30 M-S008009 10-32 Hex Keps Nut 1
31 WRA003116 Retarder Assembly 1
32 M-S001081 10-32 x 1 Slot Pan Head 1
33 W-A001653 220V CV7 Trans Assy 1
33 M-S045267 110V CV7 Pwr Supply 1
34 M-O001664 Fold Table Stud 1
II
35 M-S030045 Rubber Foot 4
36 W-O001612 Base Plate 1
37 W-I001607 Left Side Frame 1
38 M-O001683 Step Pulley Idler 1
39 M-O001682 Step Pulley 1
40 M-S010004 5133-25 Ext. “e” ring 1
41 M-O001666 Long Roller Spring 2
42 W-A001677 Feed Pulley 1
43 M-S008015 3/8 SAE Flat Washer 2
44 M-O001637 Cover-Non switch Side 1
45 M-S023052 #224 O-Ring (Idler) 1
46 M-S010021 5555-37 Grip ring, Ext. 1
47 M-S023051 #222 O-Ring (Feed) 1
48 M-O001665 Short Roller Spring 2
49 M-O001625 Capstan Bearing 8
50 M-S030052 ½ Dia. Rubber Bumper 2
51 M-S030051 Grommet .25 ID x .44 OD 7
52 W-O001619 Pressure Roller 3
53 M-O001674 Index Pin 1
54 M-S019032 ¼ x 3/8 x .17 ID Spacer 4
55 W-A001676 Capstan Roller 1
56 W-O001675 Feed Deflector 1
57 W-O001601 1st Fold Table Bottom 1
58 W-O001681 Tie Rod 1
59 M-O003104 Feed Table Pins 1
60 M-S010002 External Retaining Ring 1
61 W-A001655 CV7 Motor Assembly 1
62 M-S025041 130T 3MM HTD Belt 1
63 M-O001633 Capstan Drive Pulley 1
64 M-O001631 Shaft Retaining Ring 7
65 W-O001641 Guide Load Spring 1
66 M-S001117 8-32 x 5/8 Truss Head 4
67 W-A001678 Top Guide Assembly 1
68 M-S031097 ¼ x 1 Extension Spring 1
69 W-A001684 1051X Anti-static Tinsel 1
70 M-S018067 ¼ Hairpin Clip 2
71 W-O001603 2nd Fold Table Bottom 1
72 W-O001604 2nd Fold Table Top 1
73 M-O001643 2nd Fold Table Ruler 2
74 W-O001611 Exit Tray 1
75 W-O001668 2nd Exit Tray 1
