959AF PARTS LIST
I
ITEM# PART NO. QTY. DESCRIPTION
1 M-S013044 1 ¼ X 7/16 X 1 Bushing
2 M-S007018 1 ¼-20 DC Thumb Nut
3 M-S037304 1 Turnbuckle #8-32
4 W-A095255 1 Vacuum Roller Assembly
4A M-O095230 2 Rubber Ring, Vacuum Roller
4B M-S043053 1 ¼ NPT X ½ Hose Fitting
4C M-S031073 1 Compression Spring
4D W-O095255 1 Feed Shaft
4E M-O095216 1 Vacuum Roller
4F M-O095220 1 Air Timing Block
4G M-S020009 2 Clutch Bearing
*4H M-S008084 1 .046 Steel Washer
*4I M-S010010 2 5100-62 Ext Retaining Ring
4J M-S013045 2 .628 X 1 X 1/8 Bushing
4K M-O095038 2 Shaft Collar
4L M-S013050 2 5/8 X ¾ X 3/16 Bushing
5 W-A095307 1 Feed Table Assembly
5A M-O095015 1 Paper Guide Shaft
5B W-O095212 1 R. H. Paper Guide
5C W-O095213 1 L. H. Paper Guide
5D W-O095214 1 L. H. Rod Clamp
5E W-O095215 2 Grip Plate
5F W-O095238 1 R. H. Rod Clamp
5G W-O095307 1 Feed Table
5H M-S043031 2 3/8 X ½ X 90 Hose Fitting
6 M-S043036 66” ½ ID Vinyl Hose
(RH Paper Guide)
6A M-S043036 47” ½ ID Vinyl Hose
(LH Paper Guide)
*6B M-S043036 27” ½ ID Vinyl Hose
(Vacuum Block Hose)
7 W-A095223 1 Retarder Block Assembly
8 M-S032036 1 ¼-20 X 5/8 Thumb Knob
9 M-S008008 1 ¼ X ½ X 1/16 Flat Washer
10 W-A095224 1 Sheet Detector Assembly
11 M-O095222 1 Nose Pipe
*11A M-S002015 1 ¼-20 X ¼ Set Screw
12 W-A095233 2 Guide Finger Assembly
12A W-O095233 2 Guide Finger
12B M-O095221 2 Guide Finger Collar
*12C M-S002055 2 10-32 X 3/16 Brass Tip Set Sc.
*12D M-S003082 2 10-32 X 3/16 SHC Screw
13 M-S033015 1 110VAC Rocker Switch
13A M-S033053 1 220VAC Rocker Switch
959AF PARTS LIST
II
ITEM# PART NO. QTY. DESCRIPTION
14 W-A095310 1 Air Vacuum Manifold Assembly
14A W-O095309 3 Control Valve
*14B M-S037352 1 1/8 X 2 NPT Nipple
*14C M-S037053 1 1/8 NPT X 90 Elbow
*14D M-S043050 1 ¼ NPT X ½ X 90 Degree Fitt.
*14E M-S043031 1 3/8 NPT X ½ 90 Fitting
*14F M-S043034 2 3/8 X 90 Hose Fitting
*14G M-S043049 2 3/8 NPT X ½ Straight Fitting
*14H M-S043032 1 ¼ Straight Hose Fitting
14I M-S018002 3 1/8 X ¾ Roll Pin
*14J M-S010010 6 5100-62 Ext. Retaining Ring
*14K M-S023011 6 O- Ring, .093 X .437 ID
15 M-S015281 1 Air/Vacuum Control Label
*16 M-S043035 4” 5/8” ID Air Pump Hose
*16A M-S043035 7” 5/8” ID Vacuum Pump Hose
17 M-S037347 1 Vacuum Gauge
18 M-S63751547 3 Control Knob
19 W-O095288 1 Front Panel
19A W-O095325 2 Front Cover Bracket
20 W-O095298 1 Pump Vent Guard
21 M-O095219 2 Air/Vacuum Pump
21A MRS045140 2 Pump Start Capacitor
21B M-S037219 2 Filter Element
*21C M-S037052 2 3/8 X 90 Street Elbow
21D M-S043051 2 3/8 NPT X 5/8 Hose Fitting
22 M-S021048 1
100VDC Roller Drive Motor(s/n 4000&up
23 W-O095294 1 Side Cover Mount Bracket(LH)
24 W-O095303 1 Side Cover Mount Bracket(RH)
25 W-O095295 1 Rear Cover Mount Bracket(LH)
26 W-O095302 1 Rear Cover Mount Bracket(RH)
27 W-A095300 1 R.H. Side Frame
28 W-O095304 1 L.H. Main Frame
29 M-O095904 1 R.H. Side Cover
30 M-O095905 1 L.H. Side Cover
31 M-S015267 2 Side Cover Label
32 W-O095289 1 Rear Panel
33 WRA095501 1 Speed Control
33A M-S032057 1 Speed Control Knob
33B M-S015024 1 Speed Control Plate
34 M-S032047 1 Hand Knob
35 M-S022021 2 60/15T Timing Pulley
36 M-S025010 2 210 XLO37 Timing Belt
37 M-S022017 1 12T Motor Pulley
*37A M-S002004 1 8-32 X 3/16 Set Screw
959AF PARTS LIST
III
ITEM# PART NO. QTY. DESCRIPTION
38 M-O003033 2 24T X 3/8 ID Nylon Gear
39 M-O003036 2 18T X ¼ ID Nylon Gear
40 M-O03034A 1 24T X ½ ID Nylon Gear
41 M-O003035 2 18T X 3/8 ID Nylon Gear
42 W-O095136 1 Dual Gear
43 W-O095275 1 Bearing Plate
44 M-S025008 1 144 XLO37 Timing Belt
45 M-S003048 1 10-32 X 1 ½ SHC Screw
46 M-O095204 1 Bushing Retainer
47 M-S013053 1 ½ X 5/8 X 1 Bushing
48 M-S022019 1 44T Timing Pulley w/ Flange
*48A M-S022022 1 Pulley Flange
49 W-S014005 2 Nylon Bearing
50 M-S031035 4 Compression Spring
51 M-A003018 2 Accessory Shaft
51A M-S013010 2 Accessory Shaft Bushing
52 W-O003019 2 Accessory Journal
*53 M-S014021 2 Nyliner Bushing
*54 W-S013008 2 Bushing, Accessory Shaft
*55 M-O003079 2 Guide Roller Arbor
56 M-O003080 2 Rubber Guide Roller
57 M-O003083 2 Scoring Roller
58 M-O003082 2 Lower Back Up Hub
59 M-O003076 2 Guide Roller Back Up Hub
60 W-A03085B 1 7 Tooth Perforator
*60A WRA03085C 1 3 Tooth Perforator (optional)
*60B WRA03085D 1 14 Tooth Perforator (optional)
*60C WRA03085A 1 Slitter (optional)
*60D M-O003132 1 Perforator Stripper
*61 W-O095276 2 Tie Rod
62 WRA095103 1 Stacking Wheel Assembly
62A M-O008011 1 Stacking Wheel Axle
62B W-O095268 2 Stacking Wheel Weight
62C M-S034001 4 Stacking Wheel
62D W-O003093 1 Stacking Wheel Shaft
62E W-O003090 1 Axle Housing
62F W-O008017 1 Square Shaft
62G M-S031050 1 Compression Spring
62H W-O008012 1 Paper Deflector
62I W-O008013 1 Stacking Finger Spring
62J M-S043046 1 Vinyl Tip
63 M-S031060 1 Stack Wheel Support Spring
64 W-A095064 1 Stacking Tray
64A M-S015282 1 Folding Chart
959AF PARTS LIST
IV
ITEM# PART NO. QTY. DESCRIPTION
65 W-O095035 1 Exit Table
66 M-S024002 4 Conveyor Belt
67 W-O095135 1 Conveyor Drive Shaft
68 W-O003064 1 Conveyor Idler Shaft
69 WRA095034 1 Main Drive Roller
69A M-S013013 1 Main Drive Roller Bushing
69B M-S013010 1 Main Drive Roller Bushing
70 WRA003015 3 Folding Roller
70A M-S013009 6 Folding Roller Bushing
70B M-S031059 4 Folding Roller Spring
71 WRA095101 2 Fold Table Assembly
*71A W-A095125 2 Lower Fold Plate
*71B W-O095126 2 Upper Fold Plate
*71C W-O095012 2 Paper Stop
*71D M-O095037 4 Nylon Spacer
*71E M-O095321 4 Paper Stop Clamp
*71F M-S003004 4 ¼-20 X ½ Hex Head Bolt
*71G M-O095036 4 Clamp Spring
*71H W-O095032 2 Paper Stop Tie Bar
*71I M-O095260 4 Adjustment Screw
*71J M-O095131 4 Adjusting Thumb Knob
*71K M-S007086 4 3/8-24 Locking Nut/ Set Screw
*71L M-S008014 4 3/8 X 5/8 X .01 Spring Washer
*71M M-S032036 4 Paper Stop Lock Knob
*71N W-O095124 2 Paper Deflector
*71O M-S015283 4 Fold Table Ruler
*71P M-S030015 14 Paper Stop Rubber Bumpers
*71Q M-S001092 12 6-32 X 3/8 Phillips Screw
*71R M-S007054 12 6-32 Keps Nut
*71S M-O095322 4 Paper Stop Clamp Stud
72 M-O095903 1 14T, 3/8” ID Nylon Gear
73 M-O003066 1 Tie Rod
74 W-O095305 1 Base
75 W-O095265 1 Roller Guard Bracket (RH)
76 W-O095280 1 Roller Guard Bracket (LH)
77 W-O095279 1 Roller Guard
*78 M-S043037 32” Clear Vinyl Hose, Nose Pipe
* M-S043037 24” Clear Vinyl Hose, Exhaust
79 M-S63751408 4 Glide (Foot)
79A M-S63251449 4 ¼ X 20 Keps Nut
80 M-S045002 1 Circuit Breaker
• Not Illustrated

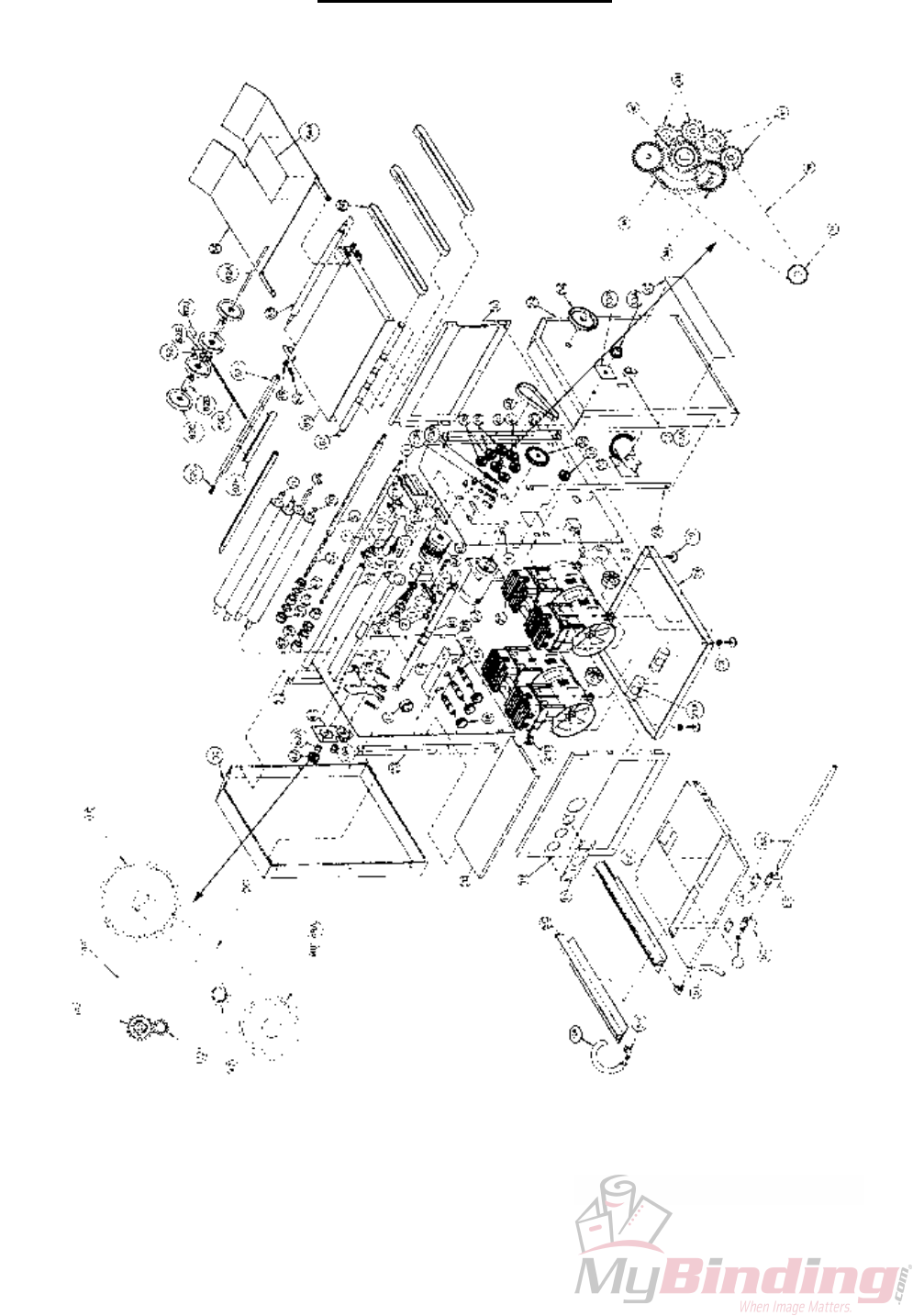

959AF PARTS LIST
V

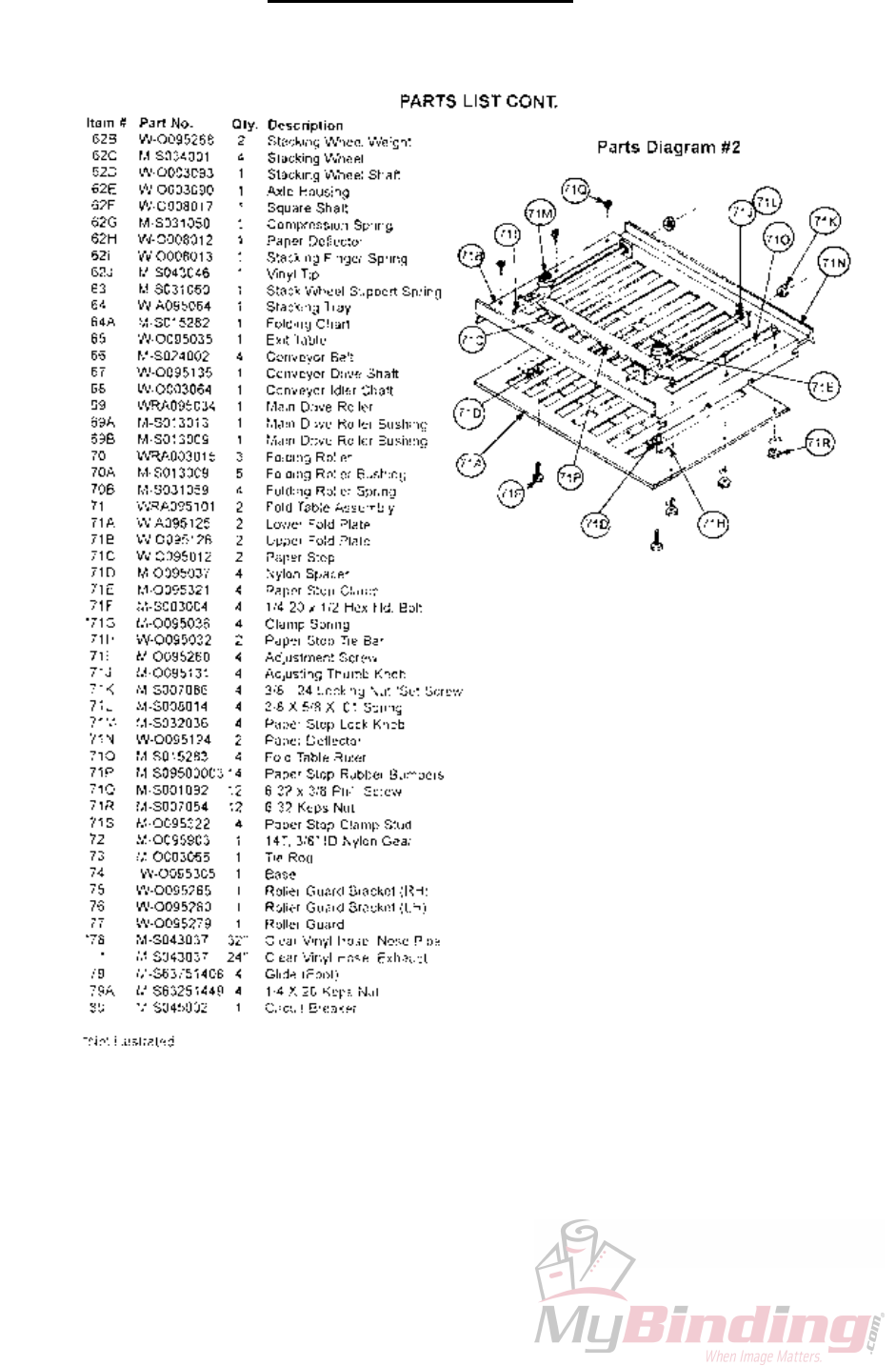

959AF PARTS LIST
VI

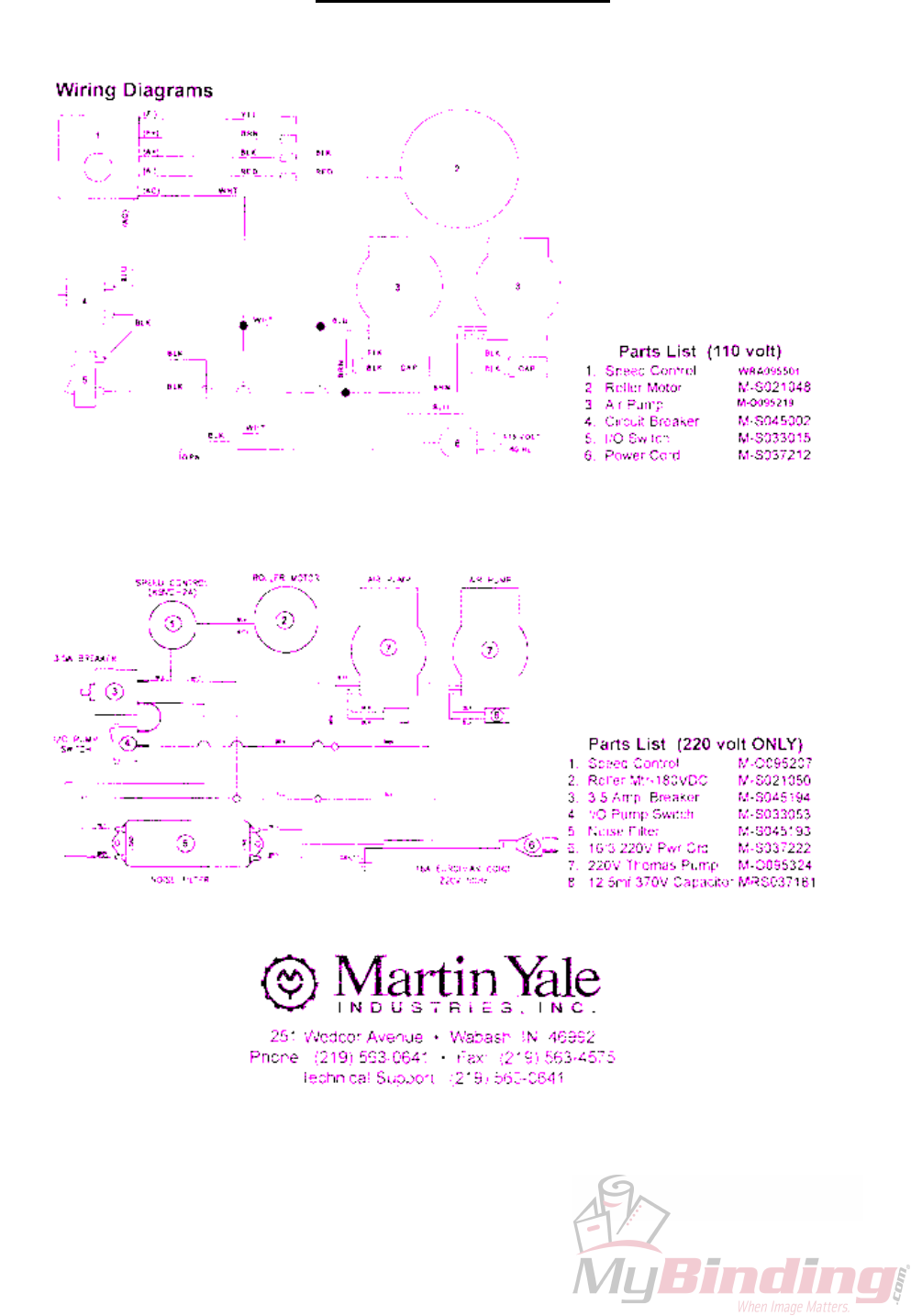

959AF PARTS LIST
VII
