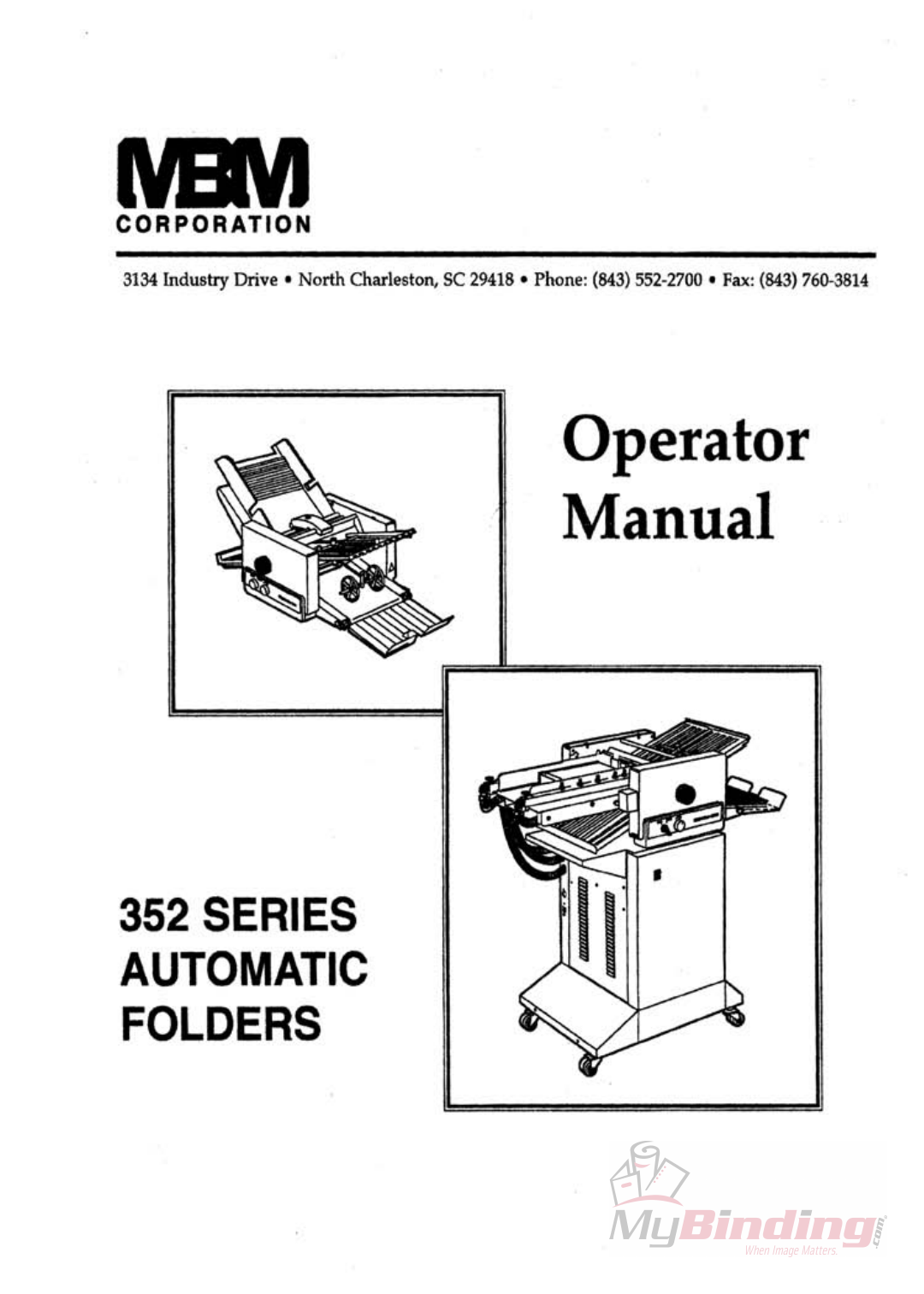

MBM 352

Paper Folder

Instruction Manual

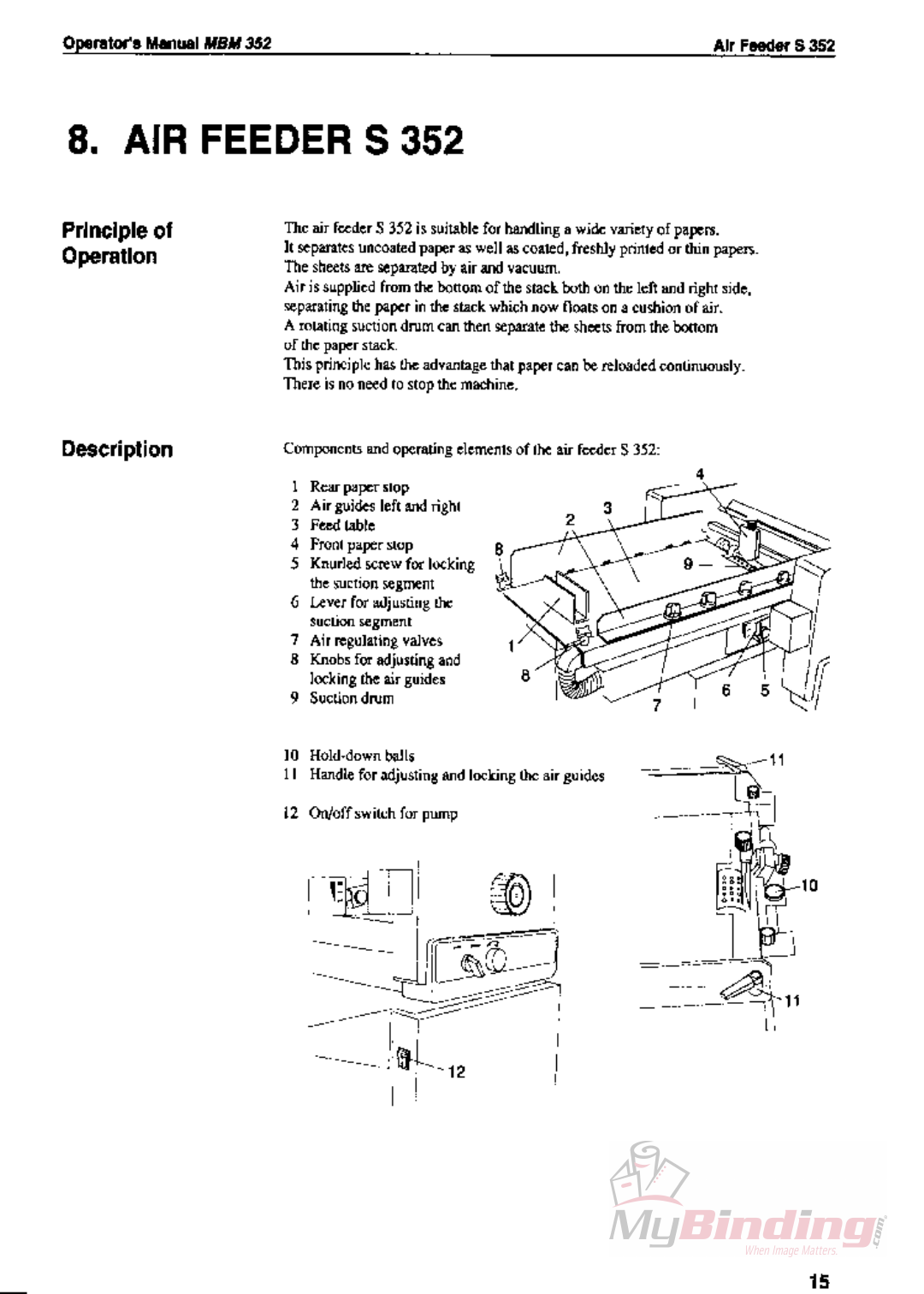

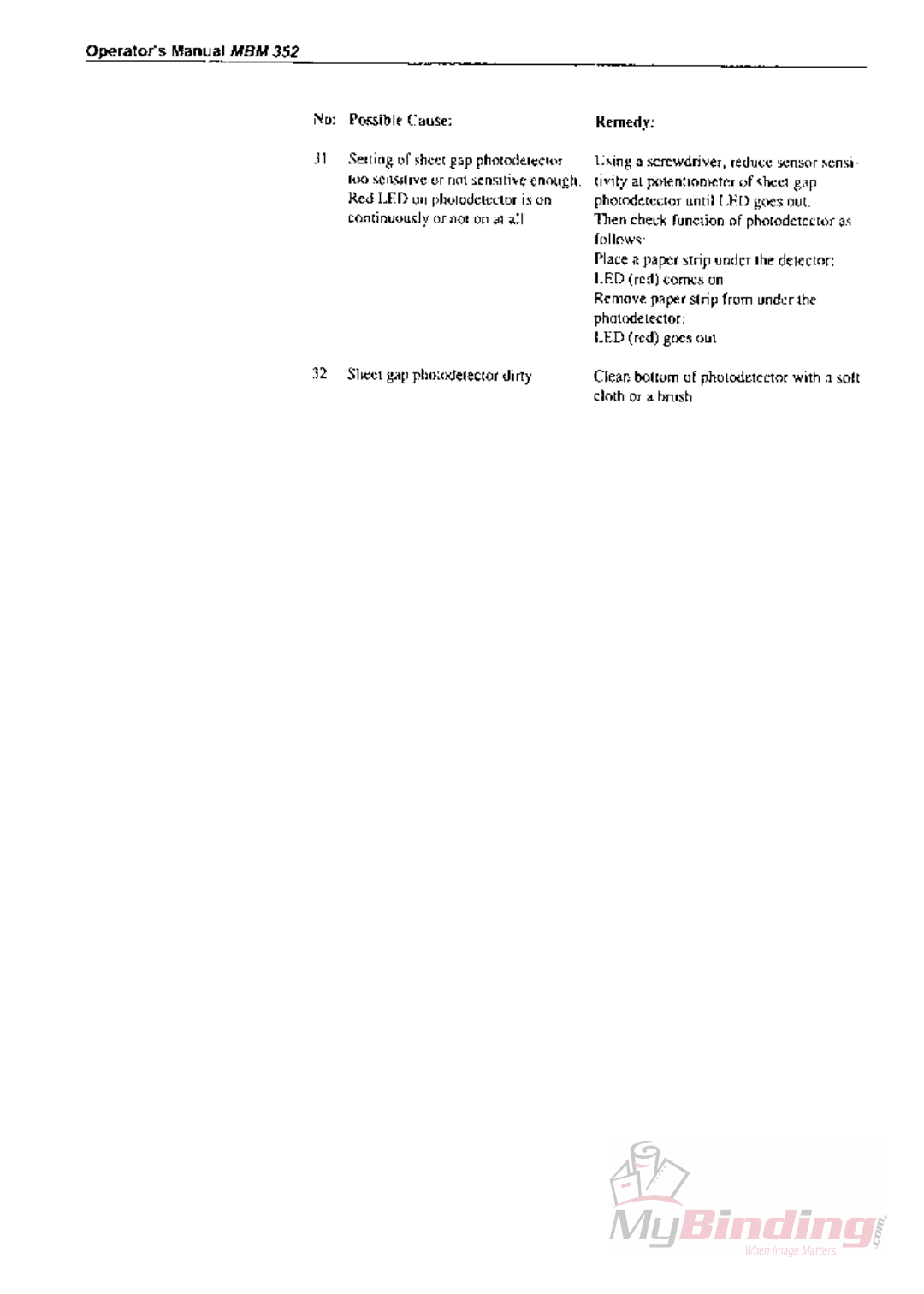

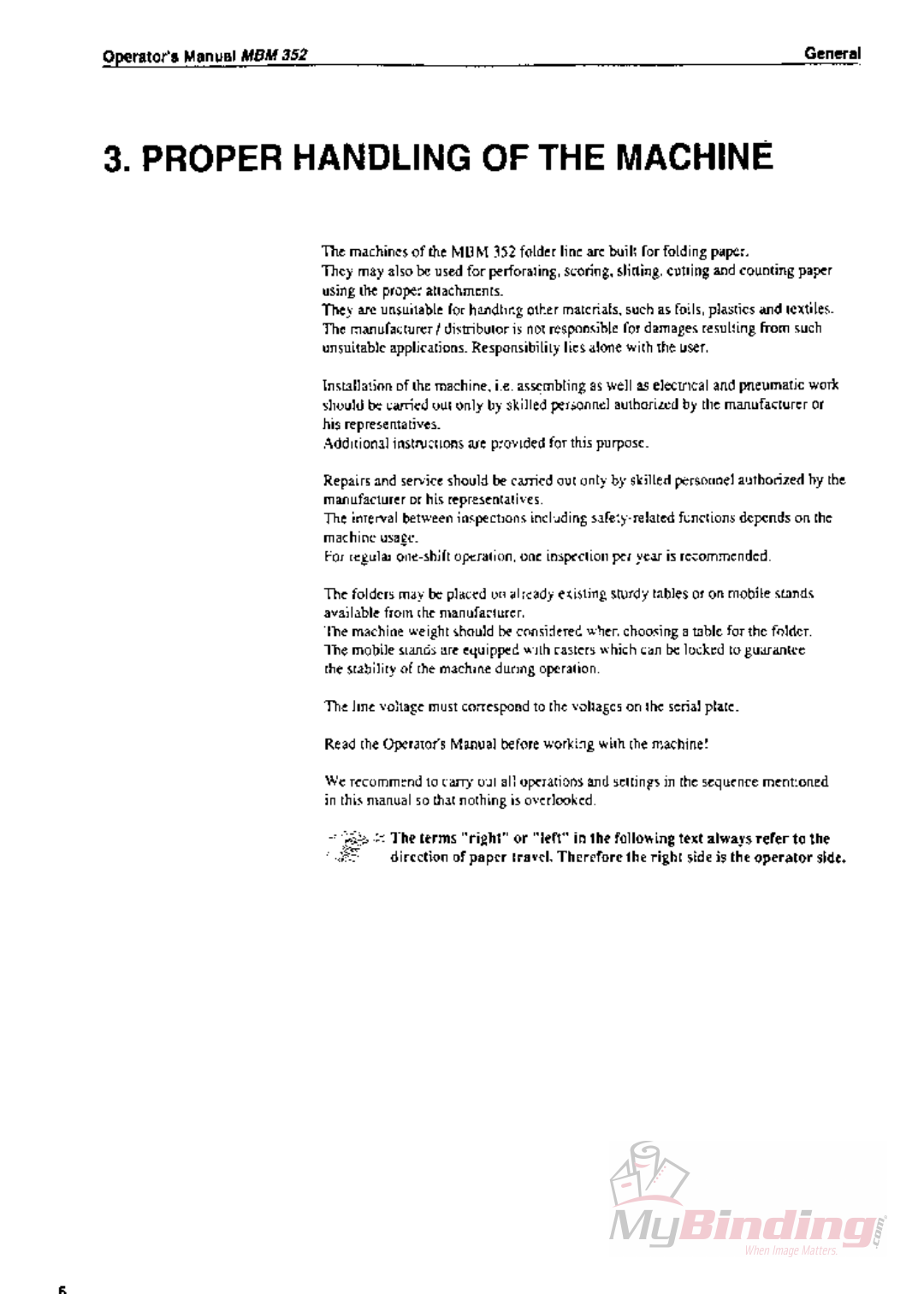

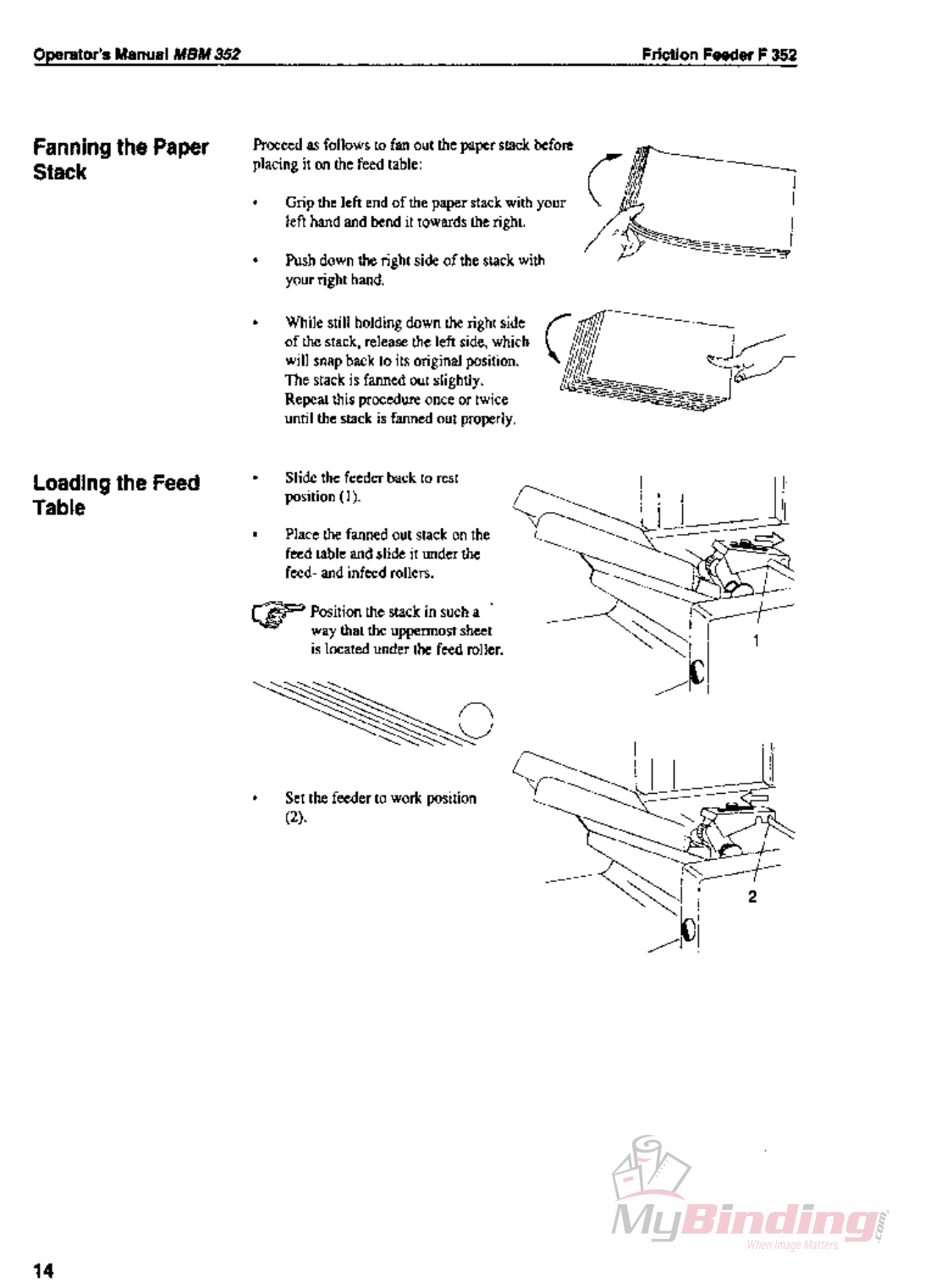

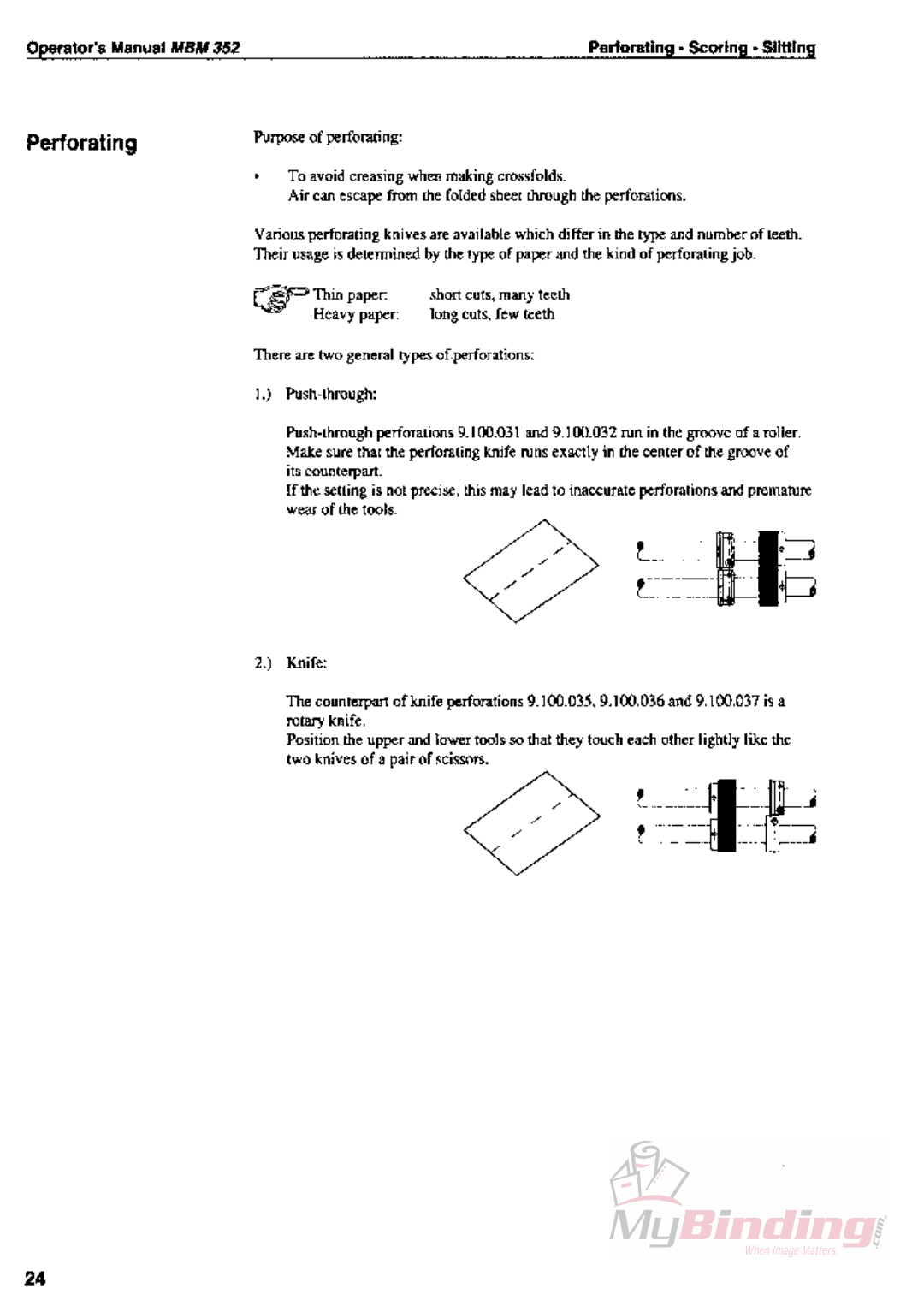

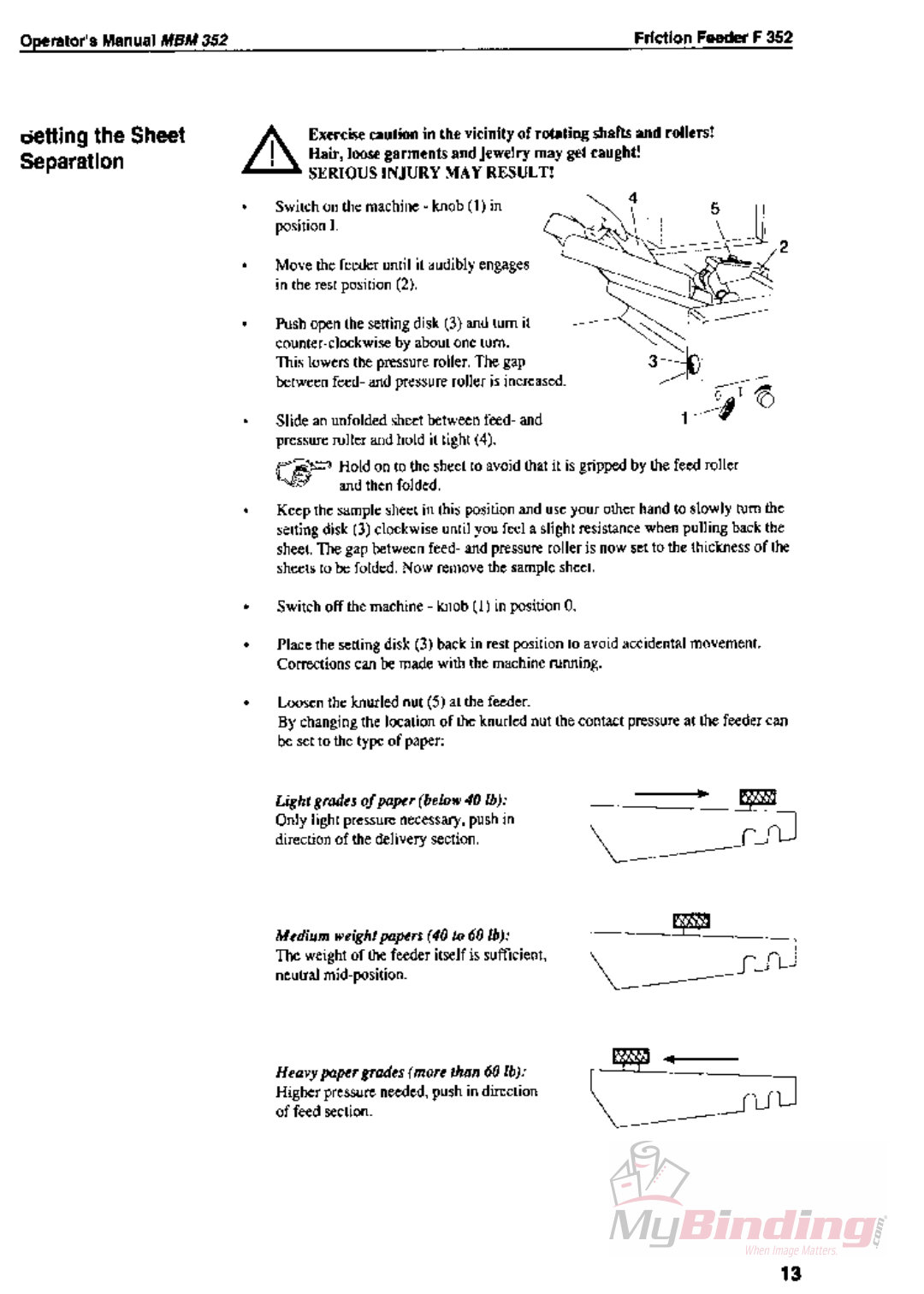

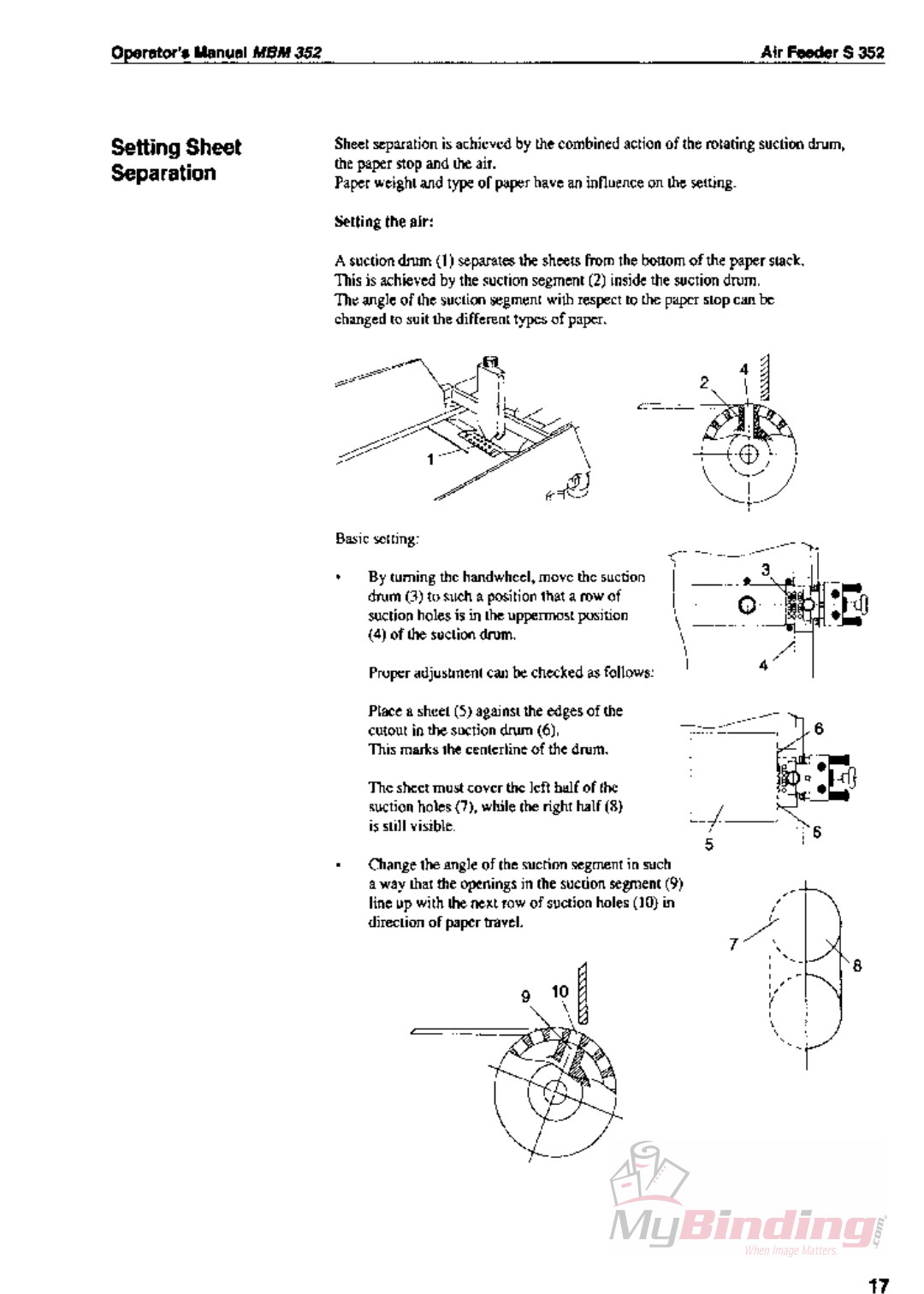

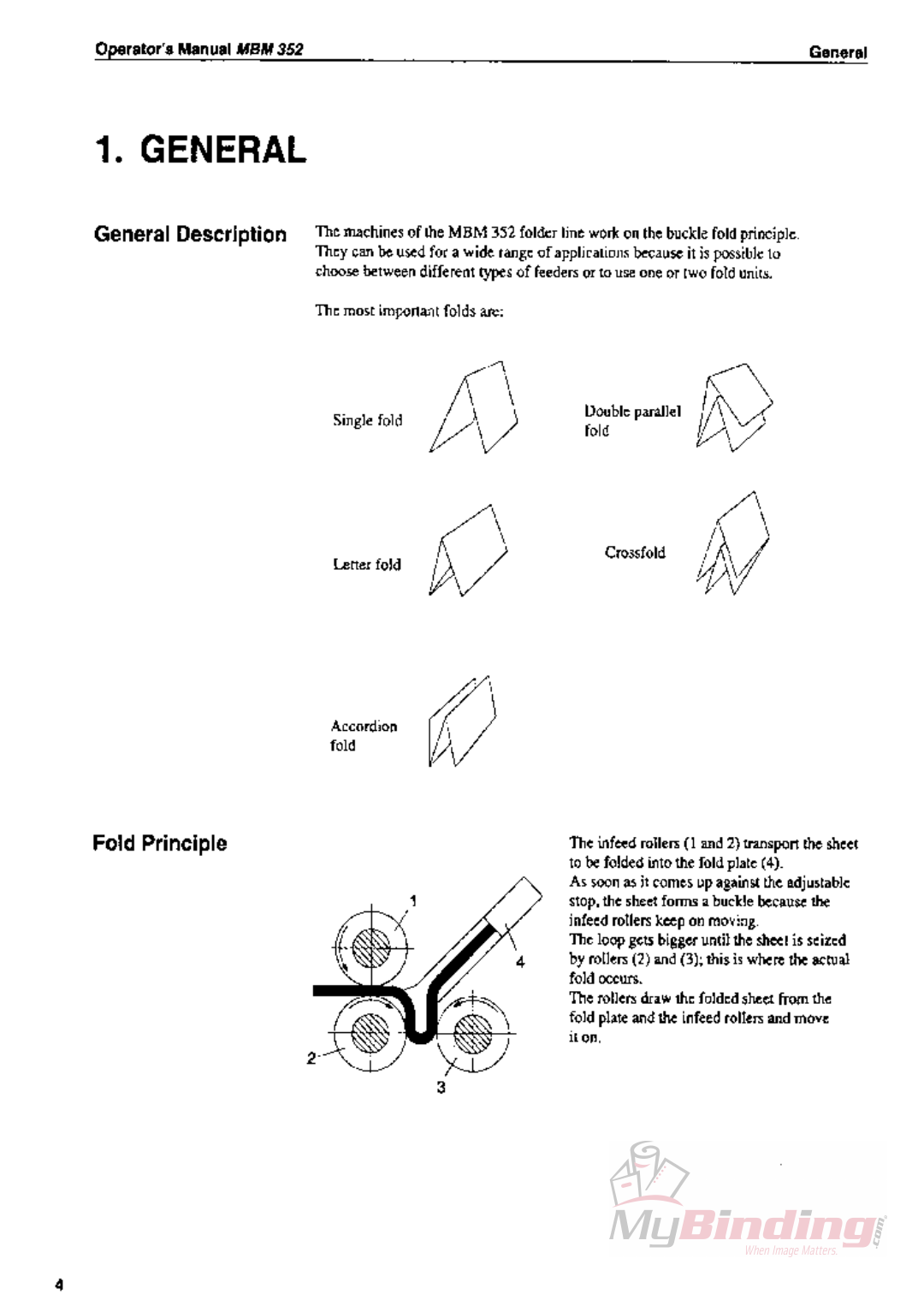

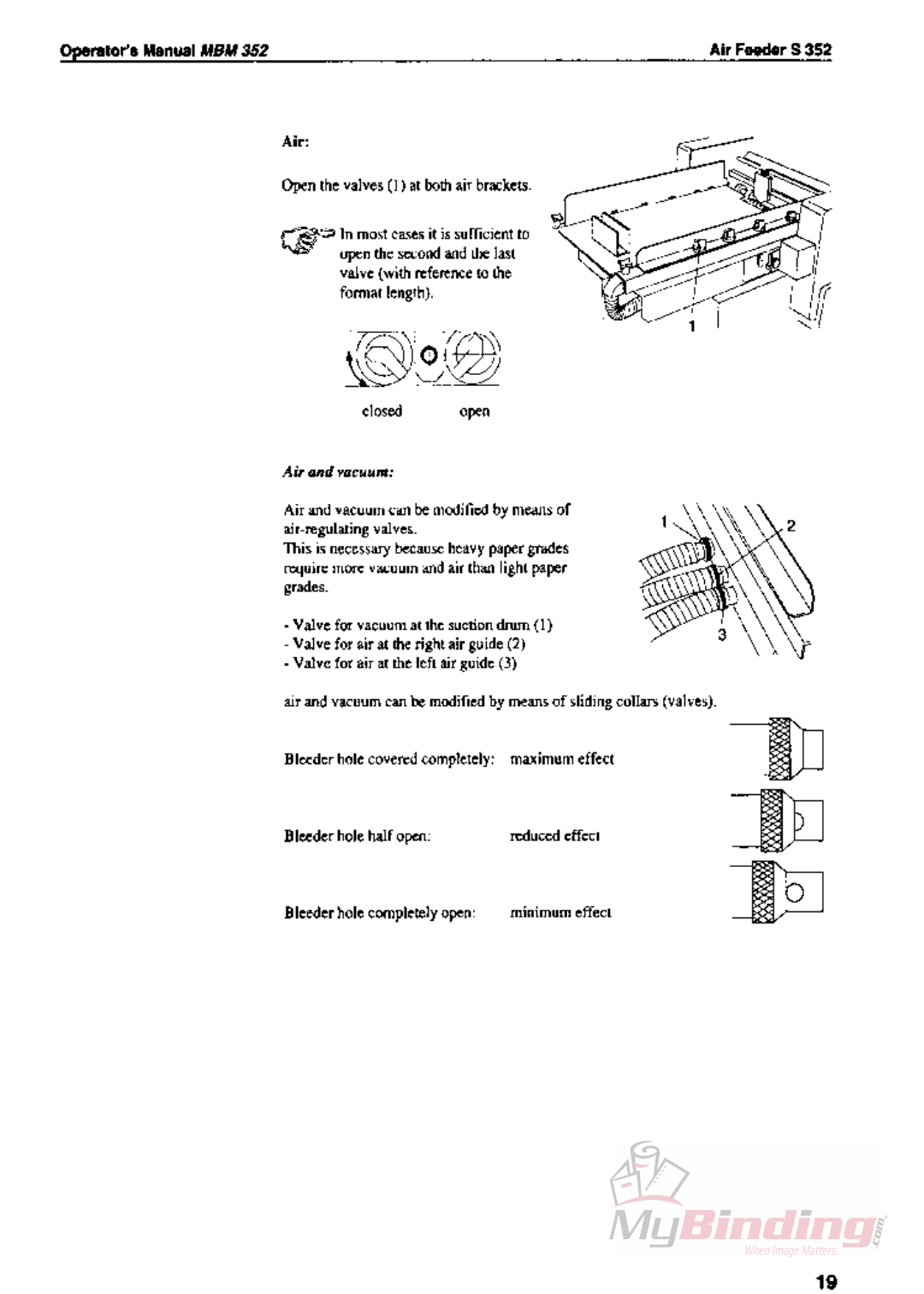

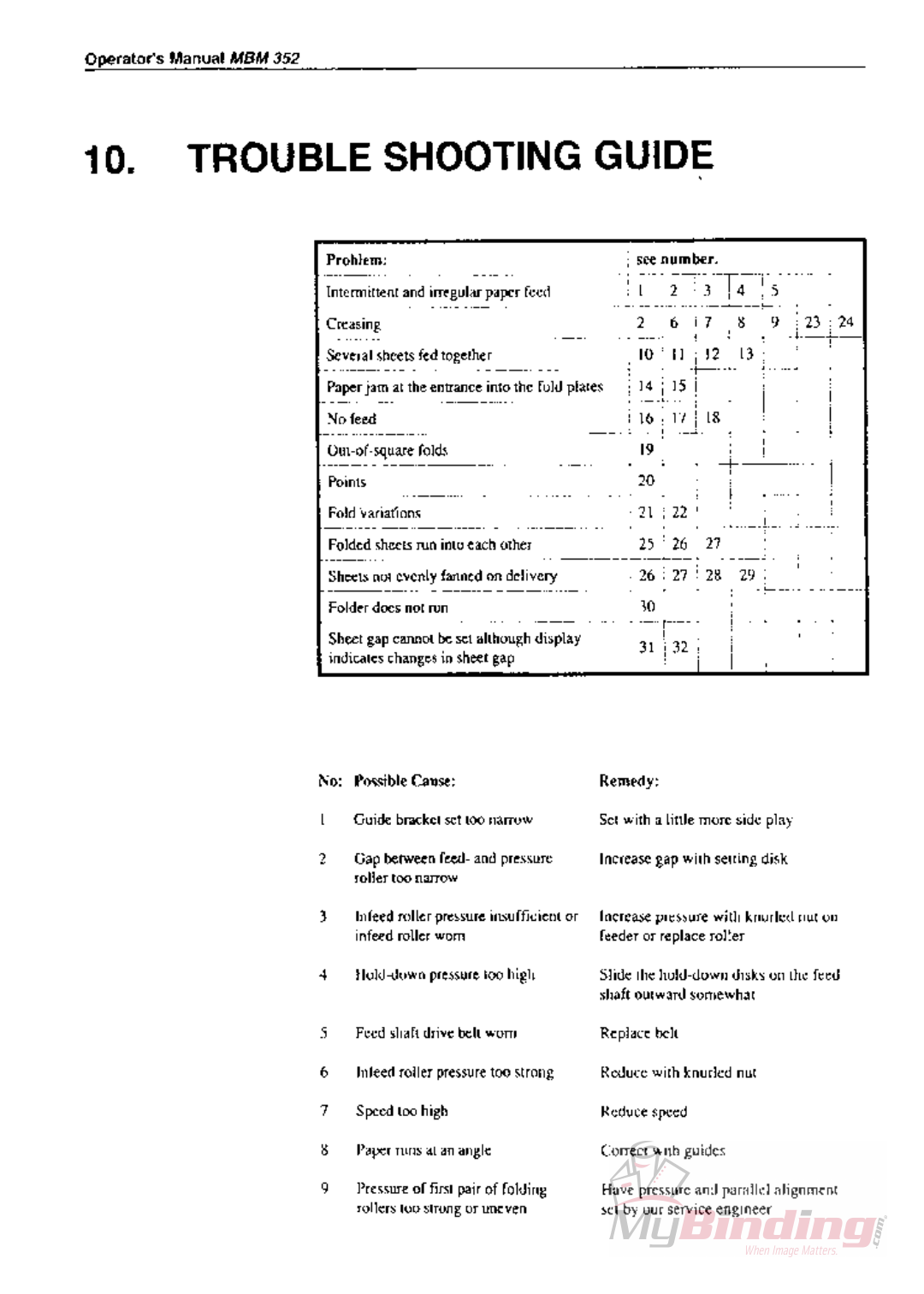

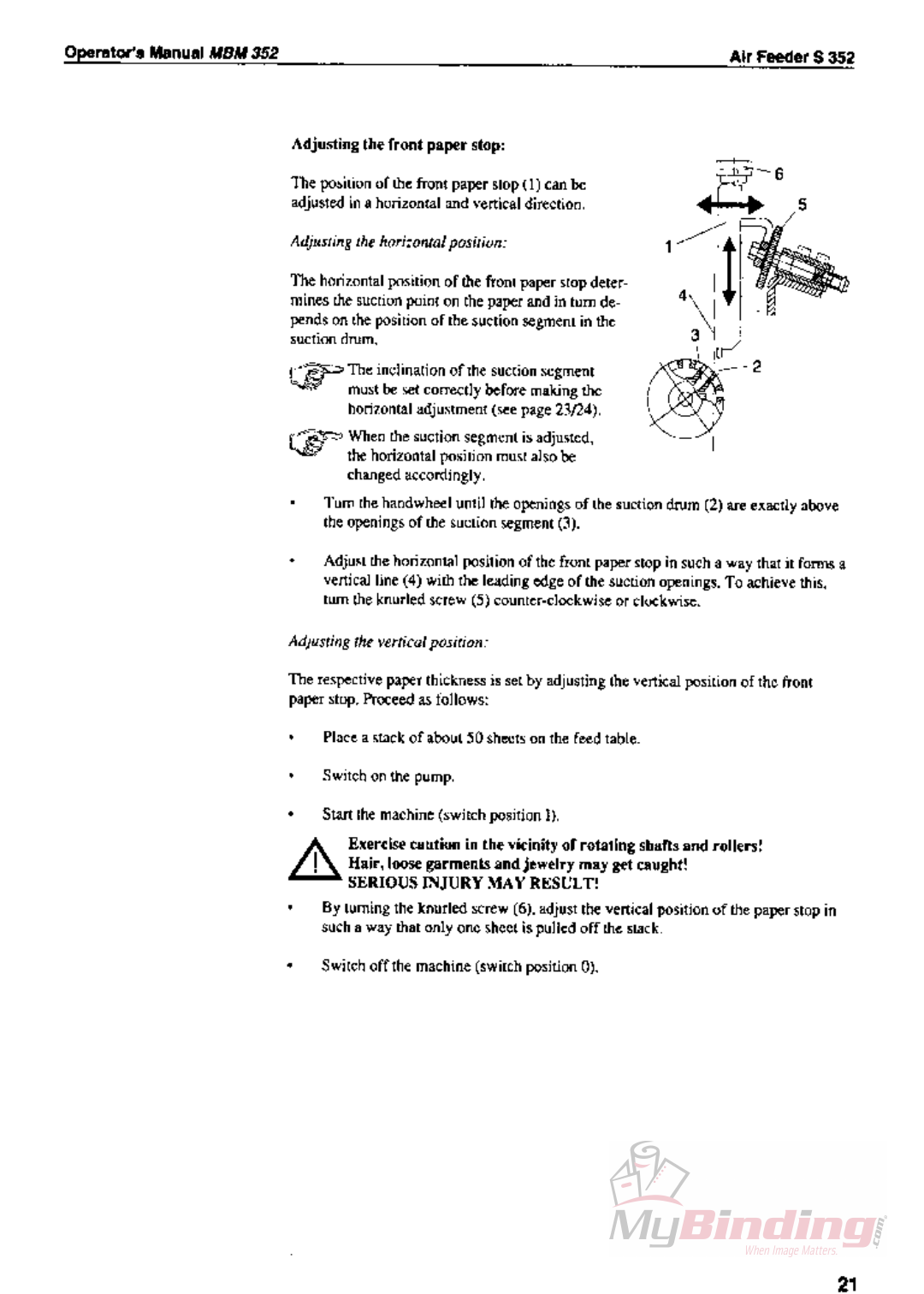

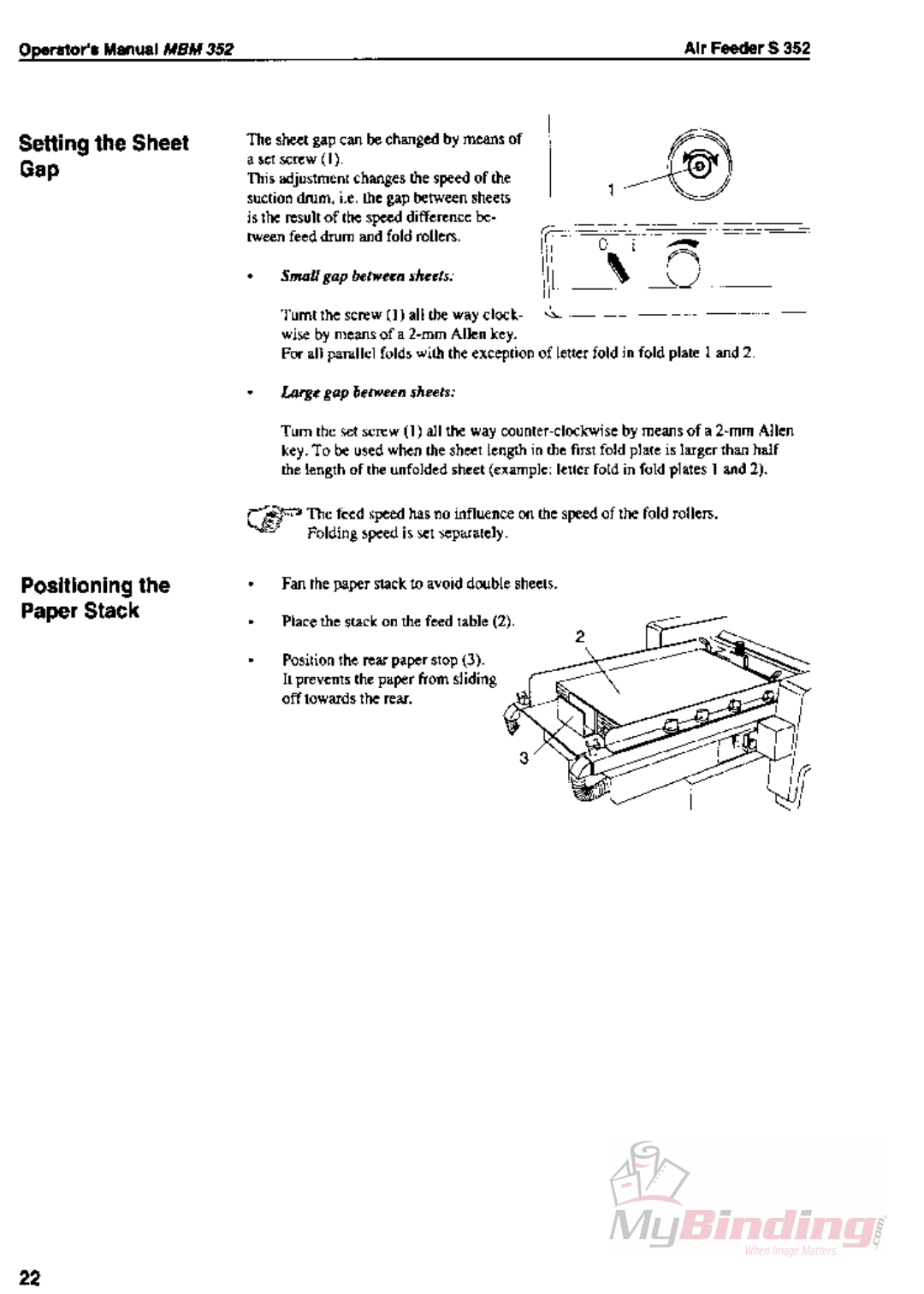

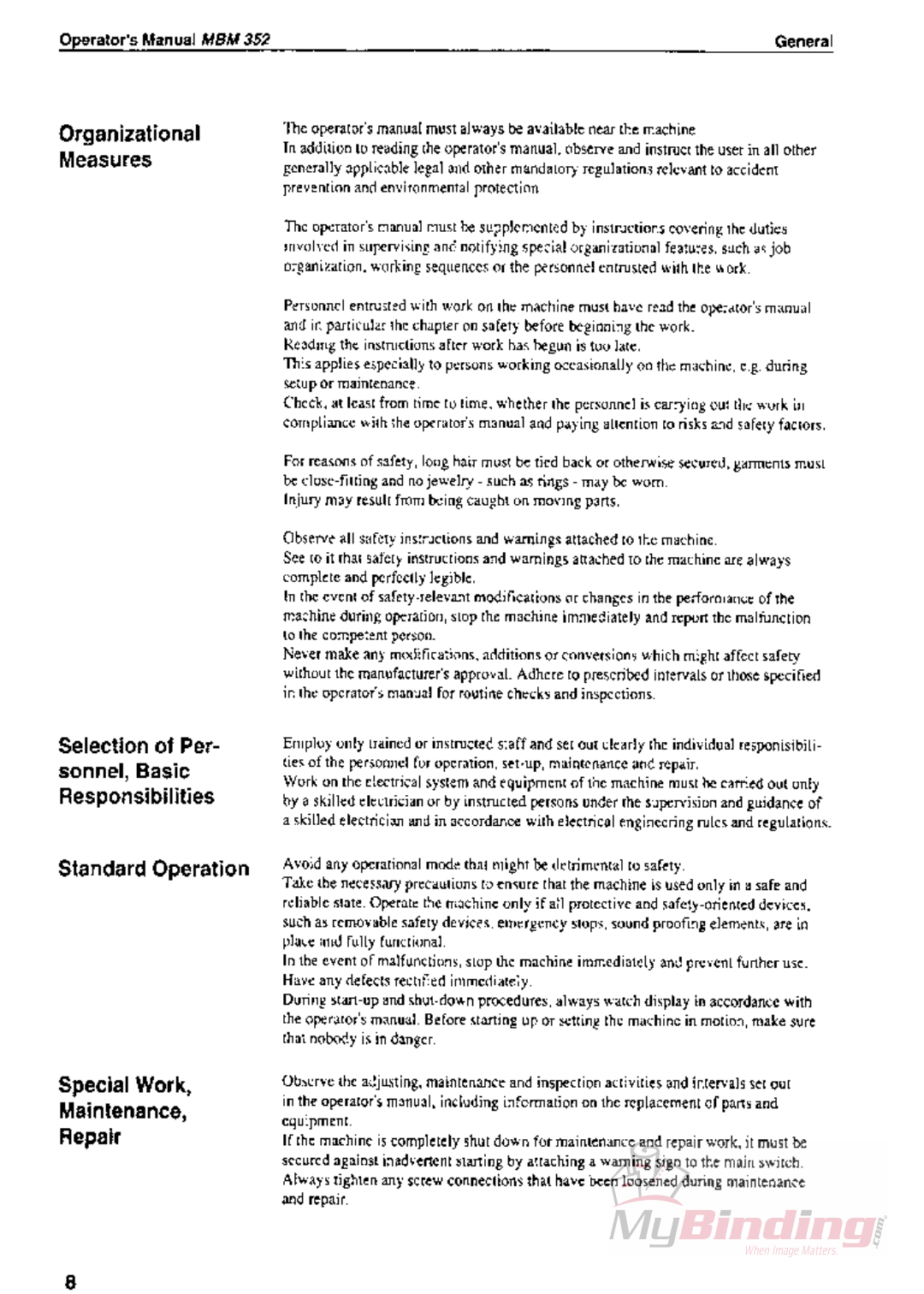

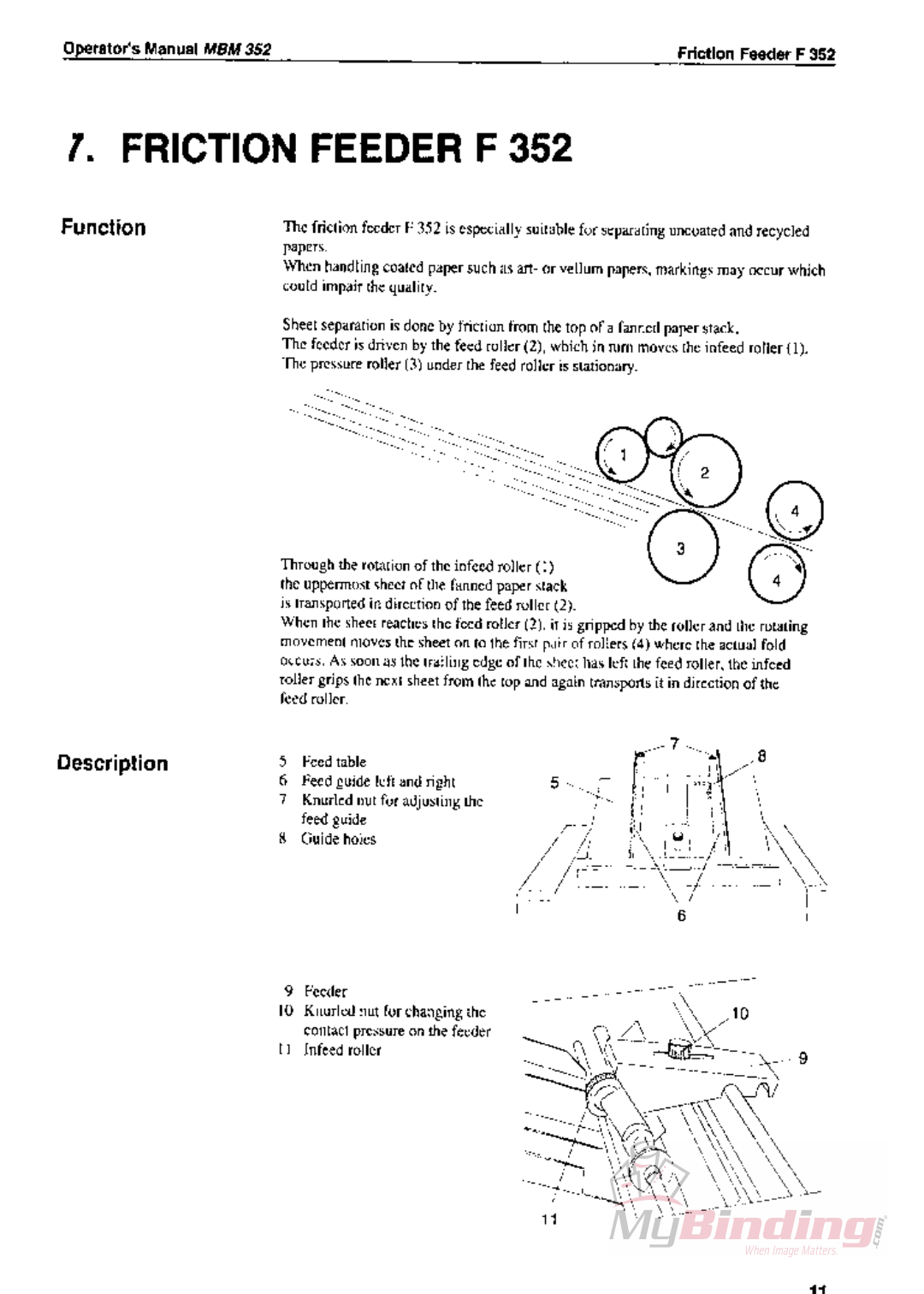

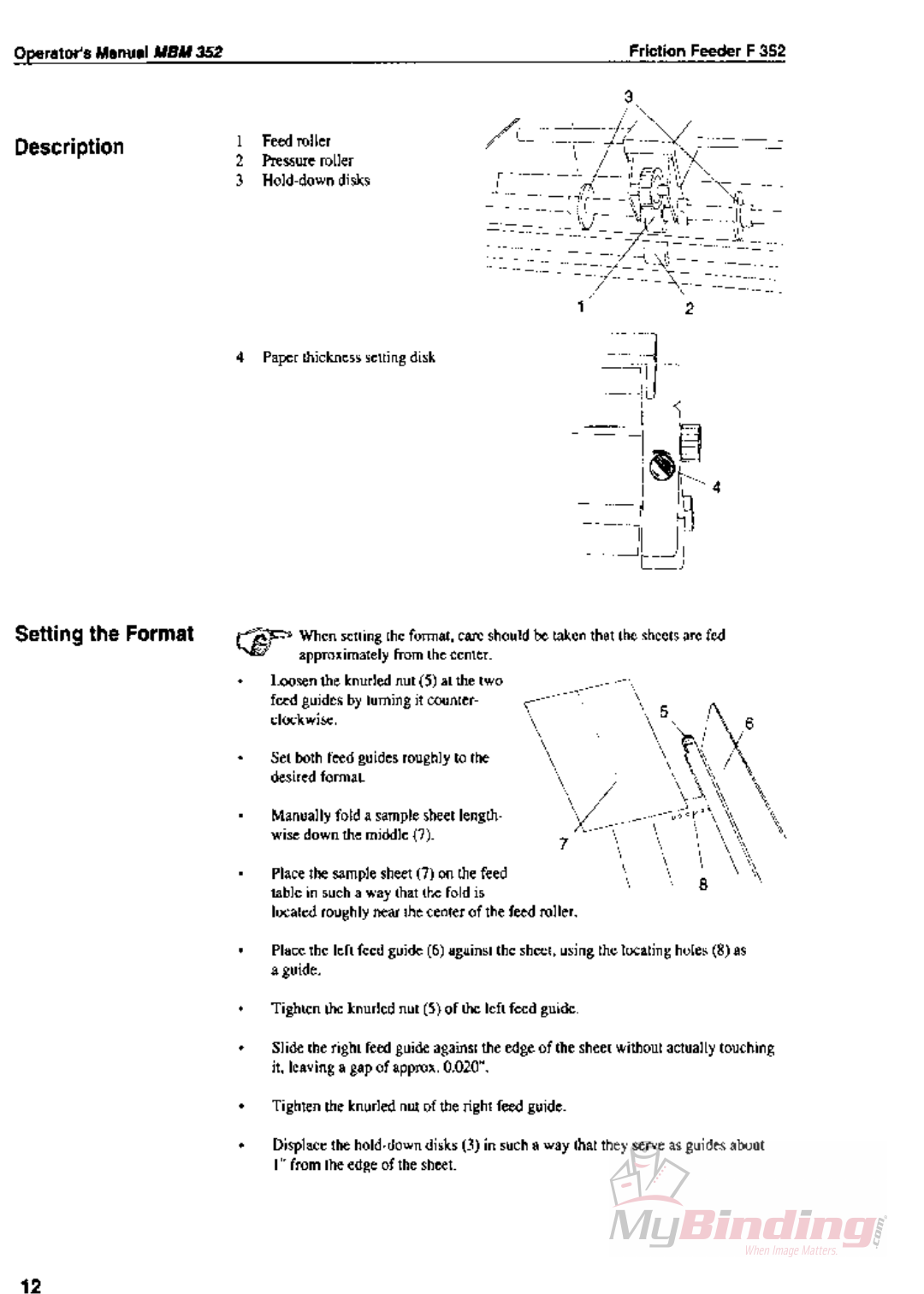

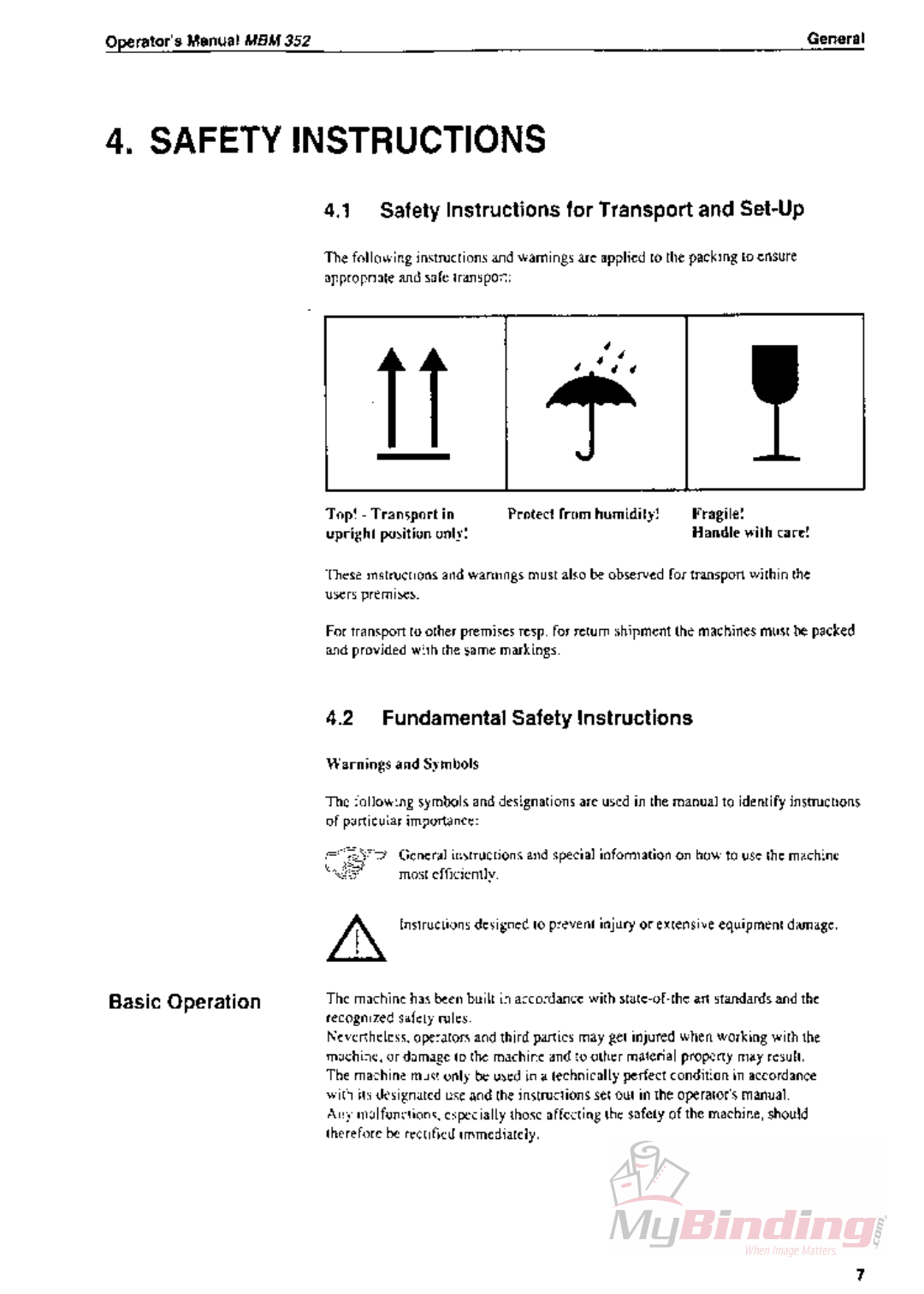

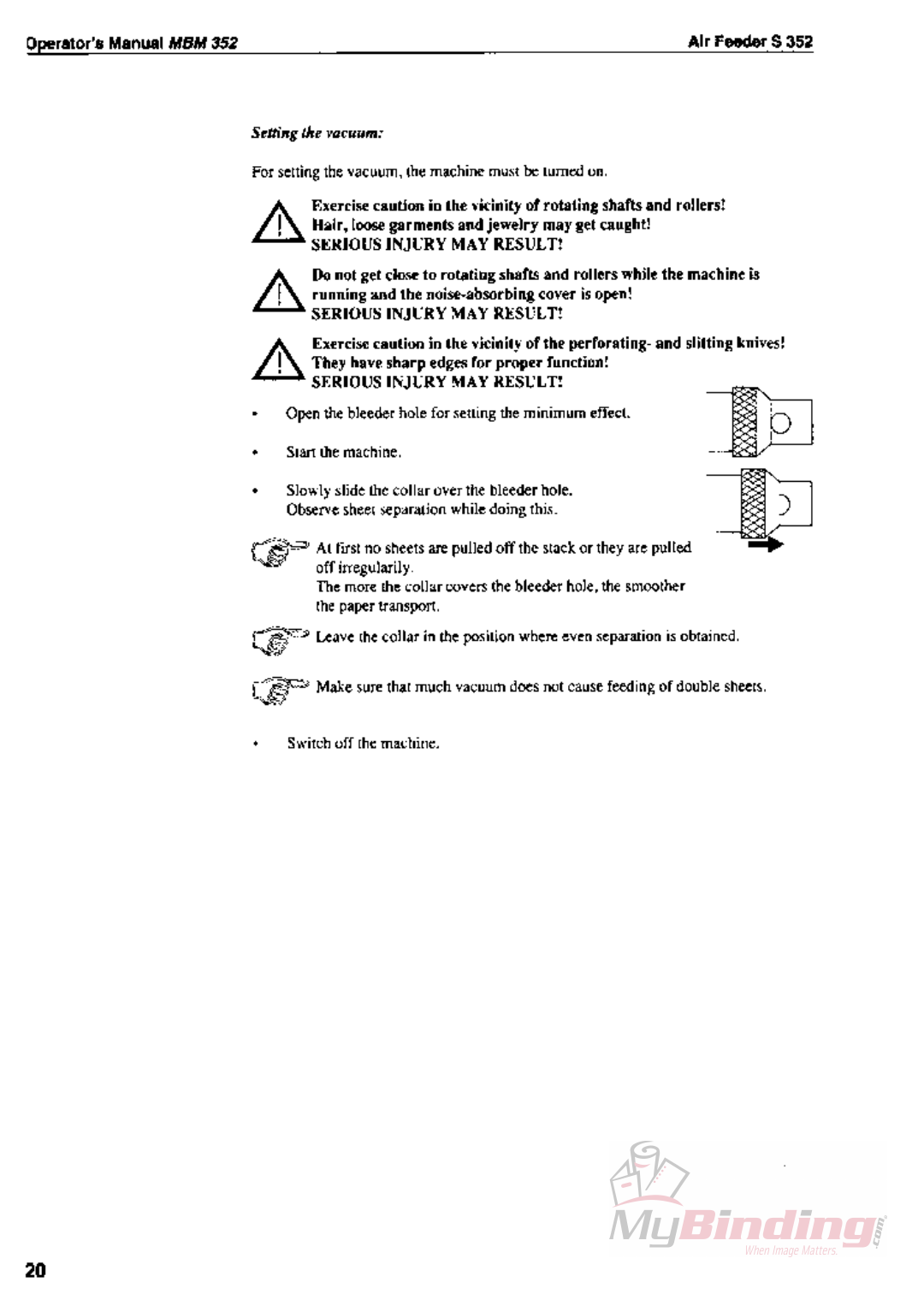

MBM 352S FOLDER

GBC# VENDOR# DESCRIPTION

1723596 3.500.274 FEED ROLLER

1723597 3.004.029 STOP PAWL

1723598 4.001.294 COUNTER PRESSURE ROLLER

1723632 1.033.141 ROUND BELT

1723644 1.033.016 ROUND BELT

1723645 1.030.427 SWITCH

1723647 4.004.389 GEAR

1723651 4.004.465 GEAR

1723653 4.006.465 GEAR

1723655 4.004.415 GEAR

1723705 4.005.622 GEAR

1723706 1.033.018 ROUND BELT

1723708 3.500.174 GEAR

1723709 4.004.420 PCB

1723710 1.037.129 O-RING

1723711 4.004.422 PHOTO DETECTOR

1723633 1.033.139 ROUND BELT

1723643 1.031.093 FLAT BELT

1723707 1.030.193 G FUSE

1723782 2.012.350 KNURLED KNOB

1723784 4.001.909 ROLLER CPL

1723785 4.001.910 ROLLER CPL

1723786 4.001.918 ROLLEER CPL

1723787 4.001.919 ROLLER CPL

1723788 3.500.515 TRANSPORT ROLLER

1723874 M0.510.161 ANTISTATIC PAINT

1724528 1.027.295 CLAMP LEVER

1724558 2.026.556 PAPER STOP

1724578 M4.004.403 MOTOR 110V

1724722 2.027.622 CLAMP PLATE L SHAPE

1723000 3.500.262 INFEED ROLLER

1724749 1.017.440 VACUUM PLUG

1724750 1.140.001 THUMBSCREW

1724757 1.030.427 SWITCH

1724836 3.000.710 TRANSPORT BELT

1724863 4.006.075 HAND WHEEL CPL.

1724864 4.007.024 FOLD PLATE 1 CPL.

1724865 4.006.407 COVER

1724867 1.027.332 KNOB

1724868 1.017.638 COVER

1724869 1.191.027 SHIM

1726029 2.012.520 KNURLED SCREW (CENTER)

1726030 4.004.138 PULLEY

1726031 4.004.401 ENCODER DISC

1726032 4.004.139 HAND WHEEL ASSY CPL.

1726033 2.006.594 SCREW

1726037 9100232 MED PERFORATING TOOL

1726038 1.029.939 POTENTIOMETER

1726039 4.005.581 TRANSPORT ROLLERS CPL.

1726049 1.033.017 ROUND BELT

1726052 1.033.015 V-BELT

1726061 1.033.005 TIMING BELT

MBM 352S FOLDER

1726062 1.033.008 TIMING BELT

1726087 1.030.553 PC BOARD

1726113 4.006.304 STACKER PLATE CPL.

1726206 4.004.307 VALVE

1726207 4.004.308 KNOB

1726220 5.616.002 PLASTIC BALL

1726228 3.500.019 TRANSPORT ROLLER CPL.

1726249 4.006.607 ANTI STATIC BRUSH

1726285 4.004.420 PC BOARD DRIVE MOTOR

1726293 M5.604.012 Y CONNECTOR

1726294 M1.017.440 PLUG

1726381 1.029.368 OVERLOAD PROT SWITCH

1726382 1.030.195 FUSE HOLDER

1726418 3.000.383 KNURLED SCREW

1726419 4.006.308 FANNED DELIVERY CPL.

1726483 9.100.032 MEDIUM PERF WHEEL O/S *

1726559 M1143003 SCREW

1726579 5.616.003 STEEL BALLS

1726597 2001439 BRASS DISC (CONTROL KNOB)

1726598 2006-594 SCREW 2.5MM (CONTROL KNOB)

1726601 0629 PERF STRIP TOOL O/S*

1726603 4006-541 LEFT STRIPPER N/S *

1726604 4006-540 RIGHT STRIPPER N/S *

1726605 0691 PERF WHEEL KIT N/S *

1726765 3.500.098 FEED ROLLER

1726908 AA-10538 SPRING ASSY STACKER

1726913 4.006.1531 HOLD DOWN COMPLETE

1727052 4.007.025 FOLD PLATE 2 CPL.

1727256 1.027.360 SCREW WITH KNOB

1727335 M3000.763 THIN WASHER

1727336 M1019.184 THICK WASHER

1727713 1.023.742 PLASTIC C CLIP

1727756 M1135001 KEY FOR #2 FOLD ROLLER

1727757 4003897 VACUUM DRUM

1727771 1.033.051 FLAT BELT

1728535 4.004.131 PULLEY

1728675 1.000.102 FEED COVER SPRING

1728676 1.027.342 PLASTC C CLIP

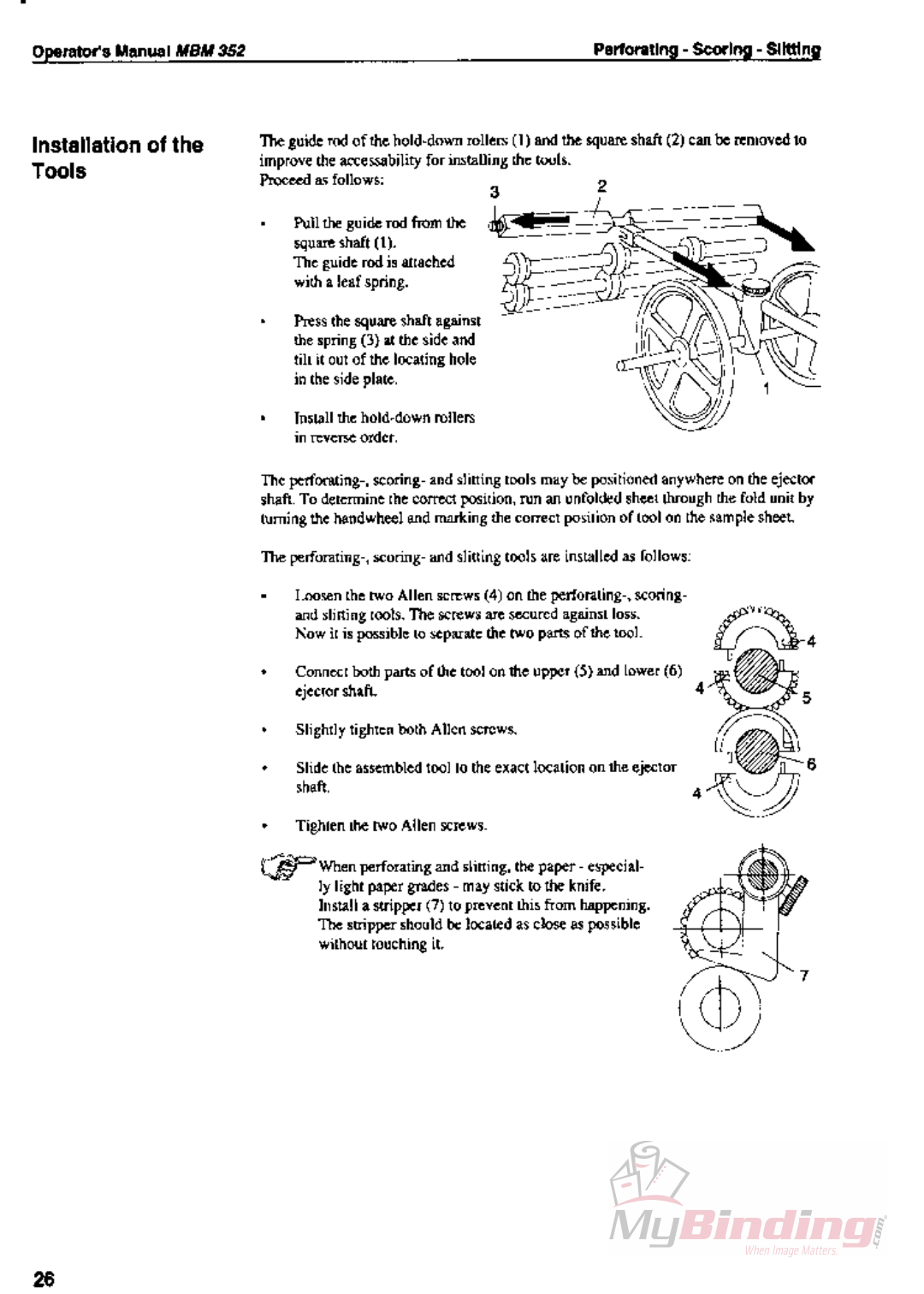

• OLD STYLE – ROUND SHAFT

• NEW STYLE – SQUARE SHAFT
