3134 Industry Drive
North Charleston, South Carolina 29418
800-223-2508, fax: 843-552-2974
www.mbmcorp.com
1675 Sismet Road, unit 4
Mississauga, Ontario L4W 4K8
800-387-2528, fax: 905-840-1114
www.ideal-mbm.com
Dealer:
All technical data is approximate and subject to change. © MBM Corporation, 2/2008.
“SCS” (Safety Cutting System) package: transparent, electronically controlled front safety guard; transparent
safety cover on rear table; main switch and safety lock with key; electronically controlled, true two-hand
operation; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every
position; disc brake for instant blade stop; blade and cutting stick can be changed without removing covers;
blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine
❙
electric blade drive
❙
Solingen steel blade
❙
solid steel blade carrier and adjustable blade guides
❙
patented,
lever-activated, fast-action clamp
❙
precision side guide
❙
spindle-guided back gauge with calibrated
crank
❙
digital display for precise back gauge positioning
❙
bright, LED optical cutting line
❙
all-metal
construction
❙
optional stand (shown) or cabinet
Dimensions (D x W x H): 27 1⁄4x 25 1⁄4x 14 1⁄8inches (41 1⁄2H with stand, 42 1⁄2H with cabinet),
Shipping weight: 191 lbs. (217 with stand, 278 with cabinet).

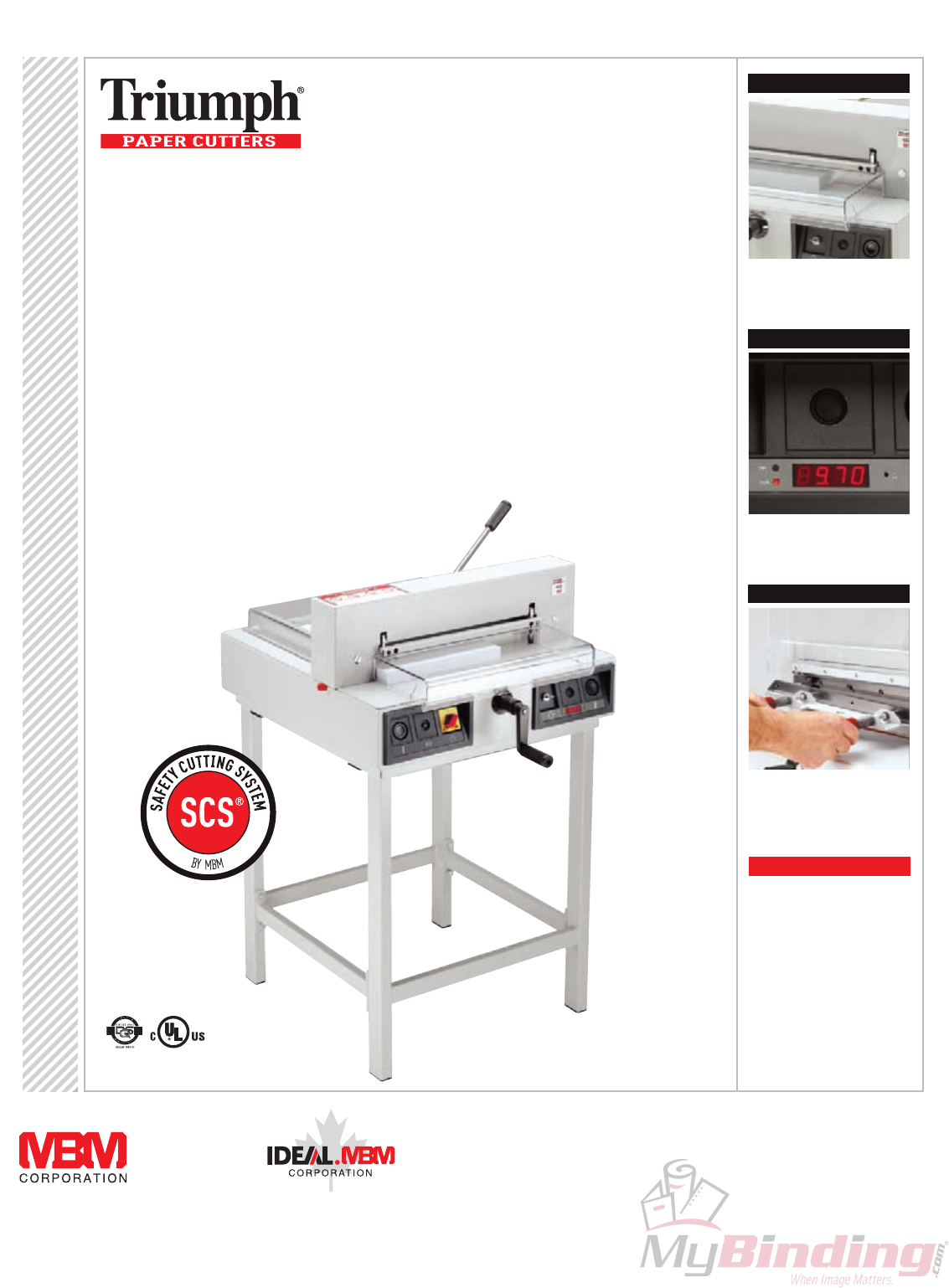

≥4215 semi-automatic cutter with digital display
≥triumph 4215
Cutting width 16 7⁄8"
Cutting height 1 1⁄2"
Narrow cut 1 3⁄8"
Cutting length 15 5⁄16"
behind blade
Table length 9"
in front of blade
Motor 3/5 hp
Power supply 115 V, 60 Hz
front safety guard
The hinged, transparent front
safety guard is electronically
controlled.
Digital Display
A digital measurement readout
ensures exact positioning of
back gauge.
front blade change
The blade changing device covers
edge of blade for safe handling.
