PARTS MANUAL
Standard Horizon PC-45 Cutter
Read this manual, and thoroughly
familiarize yourself with its contents
before operating or servicing this
equipment.
PC45/PM
24
T T I N S
25 26
PC-45
~S/N 229899
2
1
S/N 230001~
27
PC-45

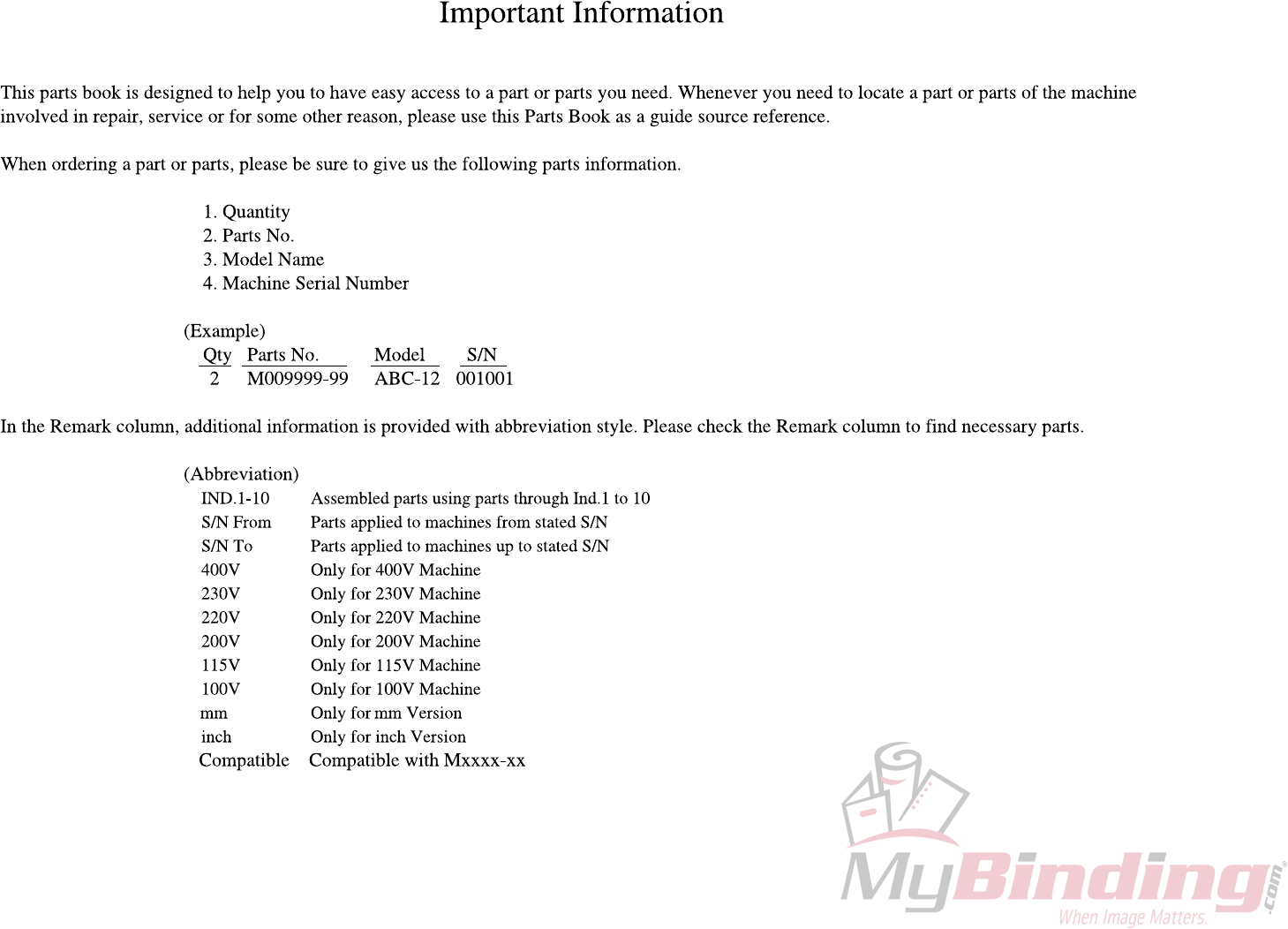

INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks

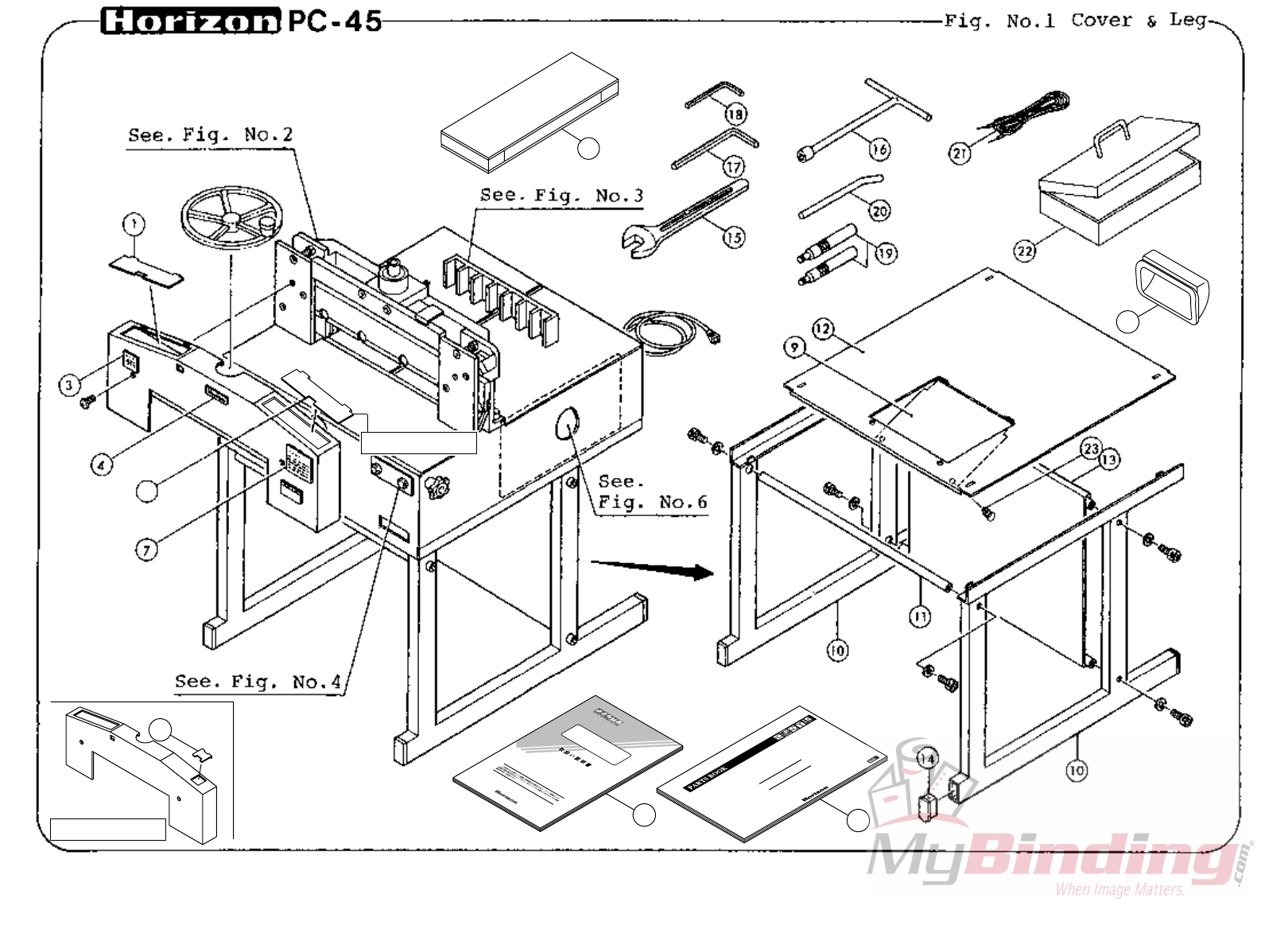

Fi
g
.
1
1 M007119-00 2 DOOR 5031-2055
2 M007122-00 1 229899 DOOR 5031-2066
3 4001533-00 1 CAUTION LABEL
4 4001167-00 1 BRAND PLATE QQS-101
7 4001535-00 1 CAUTION LABEL
9 M007449-02 1 LID 5031-4105
10 M007437-01 1 LEFT LEG 5031-4101
10 M007438-01 1 RIGHT LEG 5031-4101
11 M007445-03 2 STAY 5031-4102
12 M007448-03 1 COVER 5031-4104
13 M007446-05 1 BACK PLATE 5031-4103
14 M001997-01 4 CAP
15 4001745-00 1 SPANNER S-30
16 4004368-00 1 BOX WRENCH T-17
17 4001744-00 1 ALLEN WRENCH 6 mm
18 4001439-00 1 ALLEN WRENCH 4 mm
19 M007396-03 2 KNIFE HOLDER 5031-2061
20 M007217-10 1 002001 ADJUS BAR
21 L50-G3000 1 LEAD WIRE
22 4000965-00 1 BAG
22 4003344-00 1 TOOL BOX
23 M001999-01 1 THUMB SCREW
(
M4
)
24 M007425-01 1 CUTTER BOX
25 UM204005 1 OPERATION MANUAL
26 UB704001 1 PARTSBOOK
27 M118303-01 4 237001 HANDLE
27 M118303-01 4 235020 235020 HANDLE
PC-45
INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks
Fi
g
.

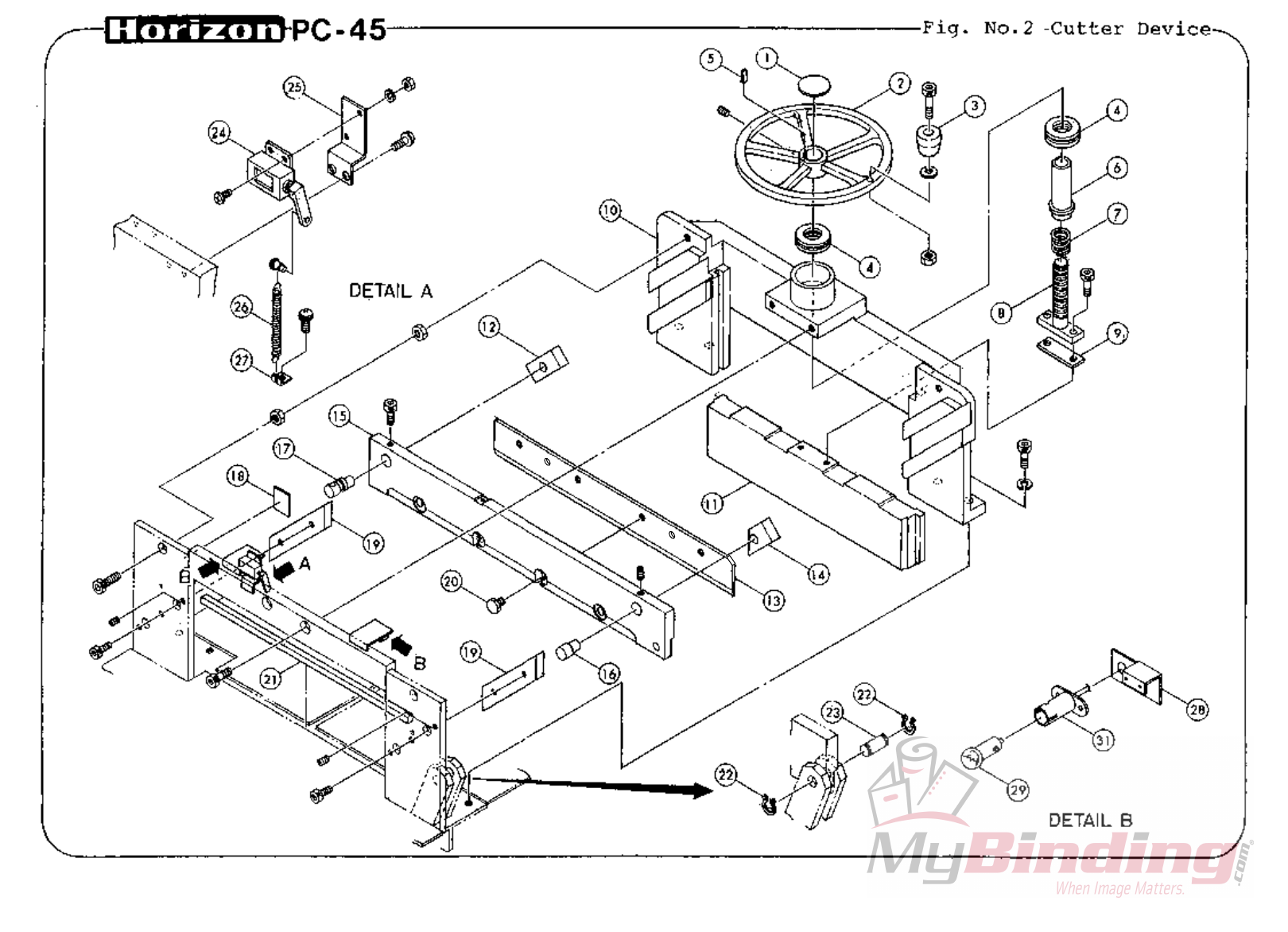

2
1 M007131-01 1 CAP 5031-2049
2 M007382-02 1 CLAMP HANDLE 5031-2047
3 M001725-00 1 KNOB MWE-110
4 4004341-00 1 THRUST BEARING 51206
5 M007343-00 1 KEY 5031-2006
6 M007341-06 1 SCREW SHAFT 5031-2004
7 M007342-02 1 CUSHION SPRING 5031-2005
8 M007338-00 1 SCREW 5031-2003
9 M007405-01 1 SPACER 5031-2069
10 M007336-09 1 CUTTER GUIDE BODY 5031-2001
11 M007337-10 1 PAPER CLAMP PLATE 5031-2002
12 M007406-02 1 SLIDER
(
L
)
5031-2070
13 M007381-05 1 CUTTER 5031-2046
14 M007054-01 1 SLIDER
(
R
)
5031-2008
15 M007345-07 1 CUTTER HOLDER 5031-2007
16 M007348-00 1 SLIDE PIN 5031-2009
17 M007349-01 1 EXCENTRIC SHAFT 5031-2010
18 4000491-00 1 LABEL QQT-134
19 M007350-01 2 ADJUSTING PLATE 5031-2011
20 M007394-02 1 FITTING BOLT 5031-2057
21 M007407-02 1 CUTTING STICK 5031-2071
22 STW-13 2 SNAP RING
23 M007351-01 1 JOINT PIN 5031-2012
24 4004361-00 1 COUNTER RS-204-4
25 M007380-03 1 BRACKET 5031-2044
26 M007383-00 1 SPRING 5031-2050
27 M007399-02 1 HOOK 5031-2065
28 M007395-02 1 BRACKET 5031-2058
29 4002666-00 1 LAMP 24V12W
31 A950305-00 1 LAMP HOLDER MDE-105
PC-45
INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks

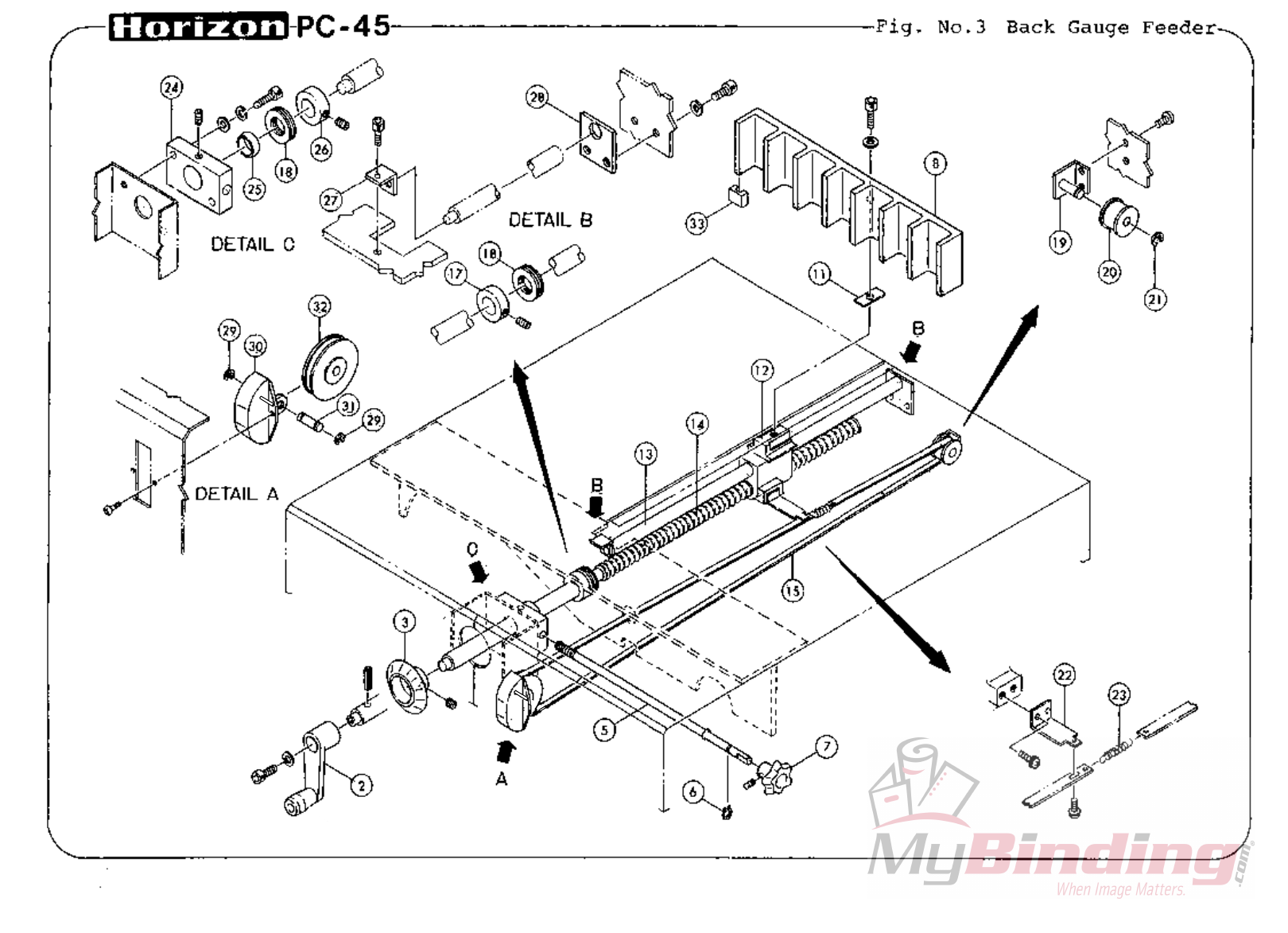

Fi
g
.
3
2 A950805-00 1 HANDLE MWC-103B
3 M001722-02 1 INDICATOR
(
M/M
)
MWS-128
5 M007365-02 1 CLAMP BAR 5031-2026
6 STW-10 1 SNAP RING
7 M007088-00 1 CLAMP KNOB 5031-2064
8 M007378-05 1 BACK GUAGE 5031-2041
11 M007402-01 1 SPACER 5031-2067
(
t=0.1
)
11 M007403-01 1 SPACER 5031-2067
(
t=0.2
)
11 M007404-01 1 SPACER 5031-2067
(
t=0.3
)
12 M007377-08 1 BRACKET
(
M/M
)
5031-2040
13 M007367-02 1 GUIDE BAR 5031-2028
14 A950302-00 1 FEED SCREW
(
M/M
)
5031-2027
15 A950306-00 1 SCALE
(
Inch
)
inch
17 M007371-00 1 COLLAR 5031-2031
18 4004340-00 1 THRUST BEARING 51104
19 M007205-00 1 BRACKET 5031-2038
20 M001848-01 1 PULLEY MTD-110
21 ETWJ-7 1 SNAP RING
22 M007372-02 1 BRACKET 5031-2032
23 M007384-02 1 SPRING 5031-2051
24 M007084-02 1 BLOCK 5031-2025
25 M007085-00 1 METAL 5031-2063
26 M007371-00 1 COLLAR 5031-2031
27 M007368-02 1 BLACKET 5031-2029
28 M007370-02 1 PLATE 5031-2030
29 ETWJ-6 2 SNAP RING
30 A950801-00 1 LENS MFC-105
31 M007090-01 1 PULLEY SHAFT 5031-2033
32 M007091-02 1 PULLEY 5031-2037
33 M001829-04 8 BLOCK
24
25
3
2
27
PC-45
INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks
Fi
g
.

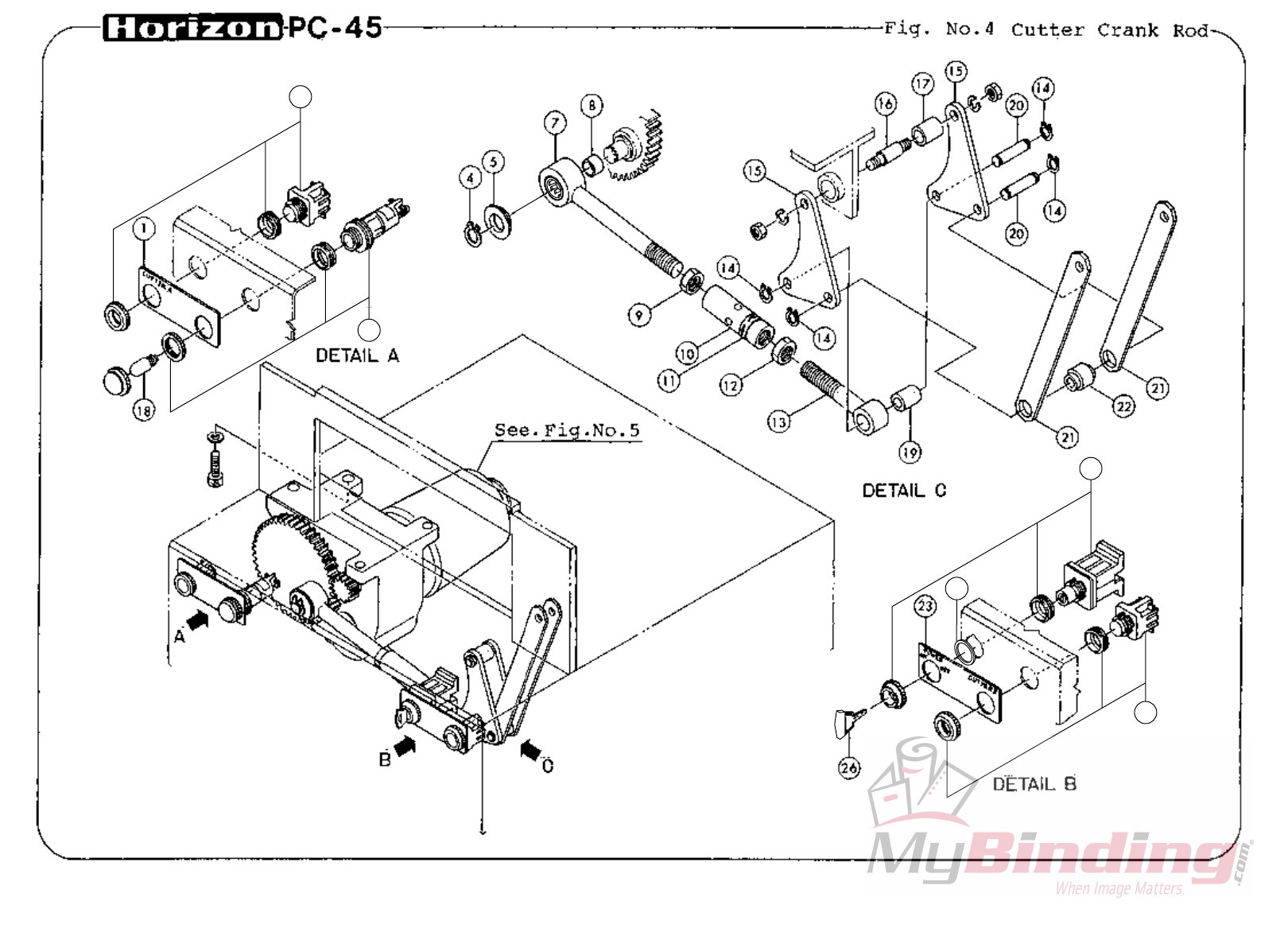

4
1 4000047-01 1 INDICATOR PLATE QQA-137A
2 4004365-01 1 PUSH BUTTON SWITCH ABN2F31-R 120/230V
3 AIDNC-511 1 060030 PILOT LAMP SOCKET
4 STW-20 1 SNAP RING
5 M007083-00 1 SPACER 5031-2024
7 A950303-00 1 CRANK ROD 5031-2020
8 4004543-00 1 INNER RING FIR-202520
9N-20
(
R
)
1 HEX NUT
(
R
)
10 M007082-01 1 TURN BUCKLE
11 4000492-00 1 LABEL QQT-135
12 N-20
(
L
)
1 HEX NUT
(
L
)
13 M007075-00 1 CRANK ROD 5031-2016
14 STW-13 4 SNAP RING
15 M007074-00 2 LINK 5031-2015
16 M007359-00 1 FULCRUM PIN 5031-2019
17 M007358-02 1 METAL 5031-2018
18 4002666-00 1 062001 LAMP E12-24V12W
18 E2-1 1 061899 LAMP
(
120V 7W
)
19 M007357-01 1 METAL 5031-2017
20 M007363-04 2 PIN 5031-2021
21 M007352-01 2 LEVER 5031-2013
22 M007070-00 1 METAL 5031-2014
23 4000318-00 1 INDICATOR PLATE QQA-136
24 4004369-00 1 SELECT SWITCH AHEJ 2A
25 4004364-01 1 PUSH BUTTON SWITCH ABN2F22-R 120/230V
26 M002056-00 2 KEY
27 4018010-00 1 234001 LOCK RING
27
28
PC-45
INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks
Fi
g
.
5
1 4004354-00 3 LIMIT SWITCH
2 M007181-00 1 HOLDER
(
RH
)
5031-3021
3 M007182-00 1 HOLDER
(
LH
)
5031-3021
4 M007408-07 1 GEAR BOX 5031-3001
5 M007436-02 1 SWITCH HOLDER 5031-3027
6 M007418-04 1 MID GEAR 5031-3069
7 M007420-01 1 KEY 5031-3011
8 M007430-01 1 BUSHING 5031-3019
9 M007422-01 1 CRANK GEAR 5031-3013
10 M007435-02 1 DETECTION PLATE 5031-3026
11 M007427-04 1 METAL 5031-3016
12 M007415-02 1 SHAFT 5031-3006
13 M007419-03 1 GEAR 5031-3010
14 M007421-01 1 SPACER 5031-3012
15 M007409-05 1 DRIVE GEAR 5031-3002
16 4004373-00 1 MOTOR
(
120V
)
16 4004374-00 1 MOTOR
(
230V
)
17 M007434-02 2 SPACER 5031-3007
18 M007414-00 1 FLANGE 5031-3005
19 M007410-03 1 FIRST GEAR 5031-3003
20 M007417-01 2 BUSHING 5031-3008
21 M007411-00 1 SECOND GEAR 5031-3004
22 M007416-00 1 SPACER
23 M007178-03 1 CAM BASE 5031-3015
24 M007429-01 1 METAL 5031-3018
25 M007180-01 2 PUSH ROD 5031-3020
26 M007183-02 2 LEAF SPRING 5031-3025

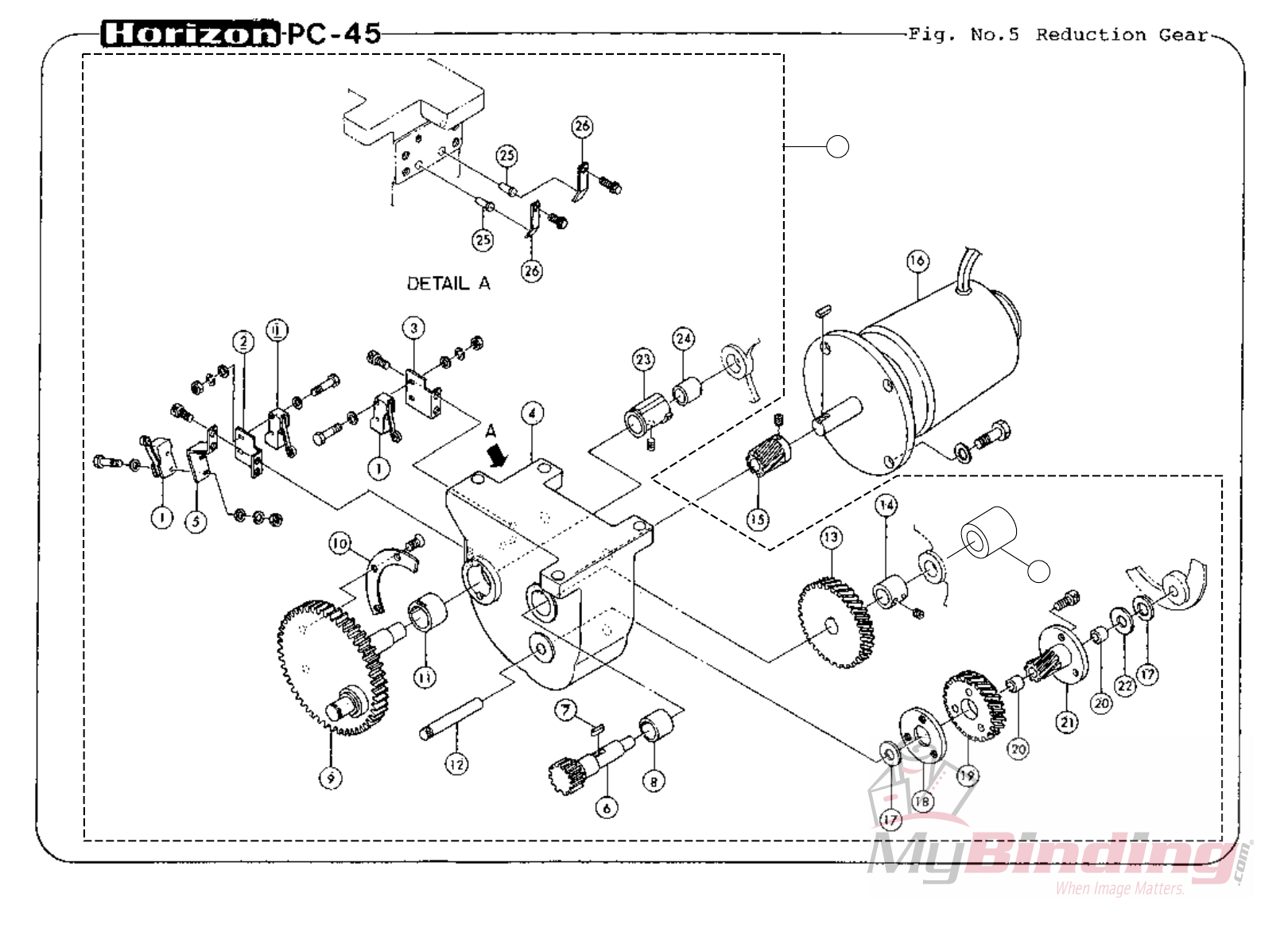

27 A950304-00 1 REDUCER UNIT Ind.1-14&17-26
28 M007428-01 1 SHAFT
25
PC-45
INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks
Fi
g
.
6
1 4000947-00 1 CABLE CLAMP 6P3-6
4 4000533-00 1 EARTH PLATE QQT-188
5 4001228-00 1 POWER CORD 230V
5 4002641-00 1 POWER CORD 120V
5 A950308-00 1 CORD 100V
6 M007215-06 1 CHASSIS 5031-5001
8 M007229-02 1 PLOTECTION PLATE 5031-5018
9 M007458-03 1 BRACKET 5031-5017
9 M007459-03 1 BRACKET
(
L
)
5031-5017
10 4004353-00 1 CONTACTOR BWZ4141
11 4001947-00 1 FUSE HOLDER F33211P
12 4002678-00 1 FUSE HOLDER F71351P
13 4000877-00 1 FUSE
(
1A
)
14 4002267-00 1 FUSE
15 4004363-00 1 RESISTOR 50 Ohm/ 20W
16 4000724-00 1 TRANSFORMER ZBN-30 EX ONLY
17 4000540-00 1 LABEL 5031-5014
18 QPW-115 1 P.C.B. EX ONLY
19 M001790-06 1 SPACER MFD-101
21 4002860-00 1 RELAY FRL-263A
22 4002860-00 1 RELAY FRL-263A
23 4002860-00 1 RELAY FRL-263A
24 4002886-00 1 RELAY FRL-263D
25 QPP-106 1 P.C.B. IND.20-24
18
PC-45
INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks
Fi
g
.

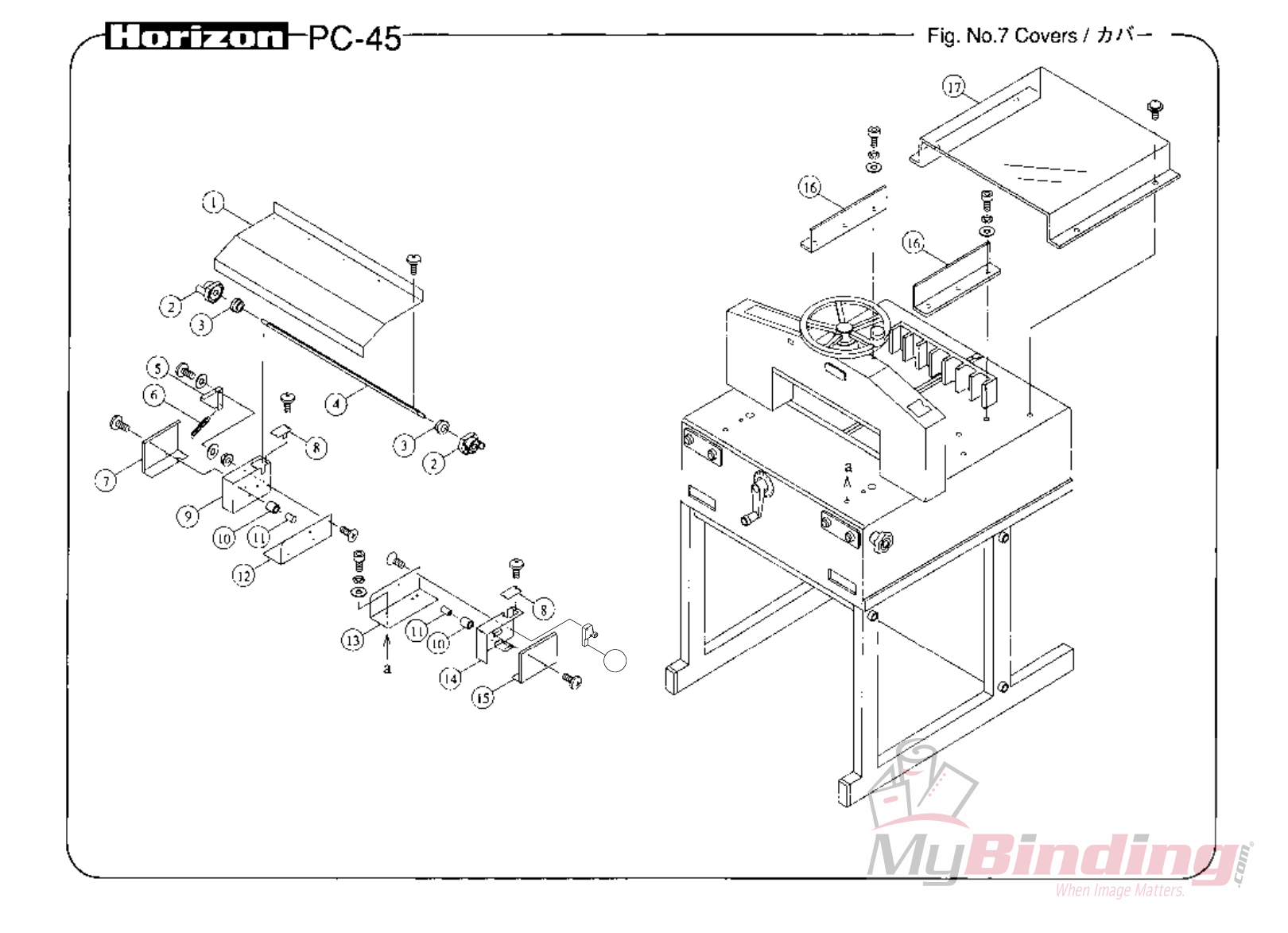

7
1 M013407-00 1 175001 195899 COVER
2 M001962-01 2 175001 195899 CAM
3 M001780-05 2 175001 195899 BUSH
4 M013422-00 1 175001 195899 STAY
5 M013428-00 1 175001 195899 PLATE
6 M013430-01 1 175001 195899 SPRING
7 M013424-00 1 175001 195899 COVER
8 M013419-01 2 175001 195899 CAP
9 M007243-01 1 175001 195899 SIDE PLATE
(
L
)
10 M013426-00 2 175001 CUSHION
11 M013427-00 2 175001 SHAFT
12 M013406-00 1 175001 195899 GAUGE PLATE
(
L
)
13 M013405-00 1 175001 195899 GAUGE PLATE
(
R
)
14 M007242-00 1 175001 195899 SIDE PLATE
(
R
)
15 M013425-00 1 175001 195899 COVER
16 M007379-03 2 SIDE PLATE
17 M013408-05 1 175001 COVER
18 4002994-00 1 195899 LIMIT SWITCH
5
~S/N 229899
PC-45
INDEX Parts No. Qt
y
S/N From ToDescri
p
tion Price Remarks

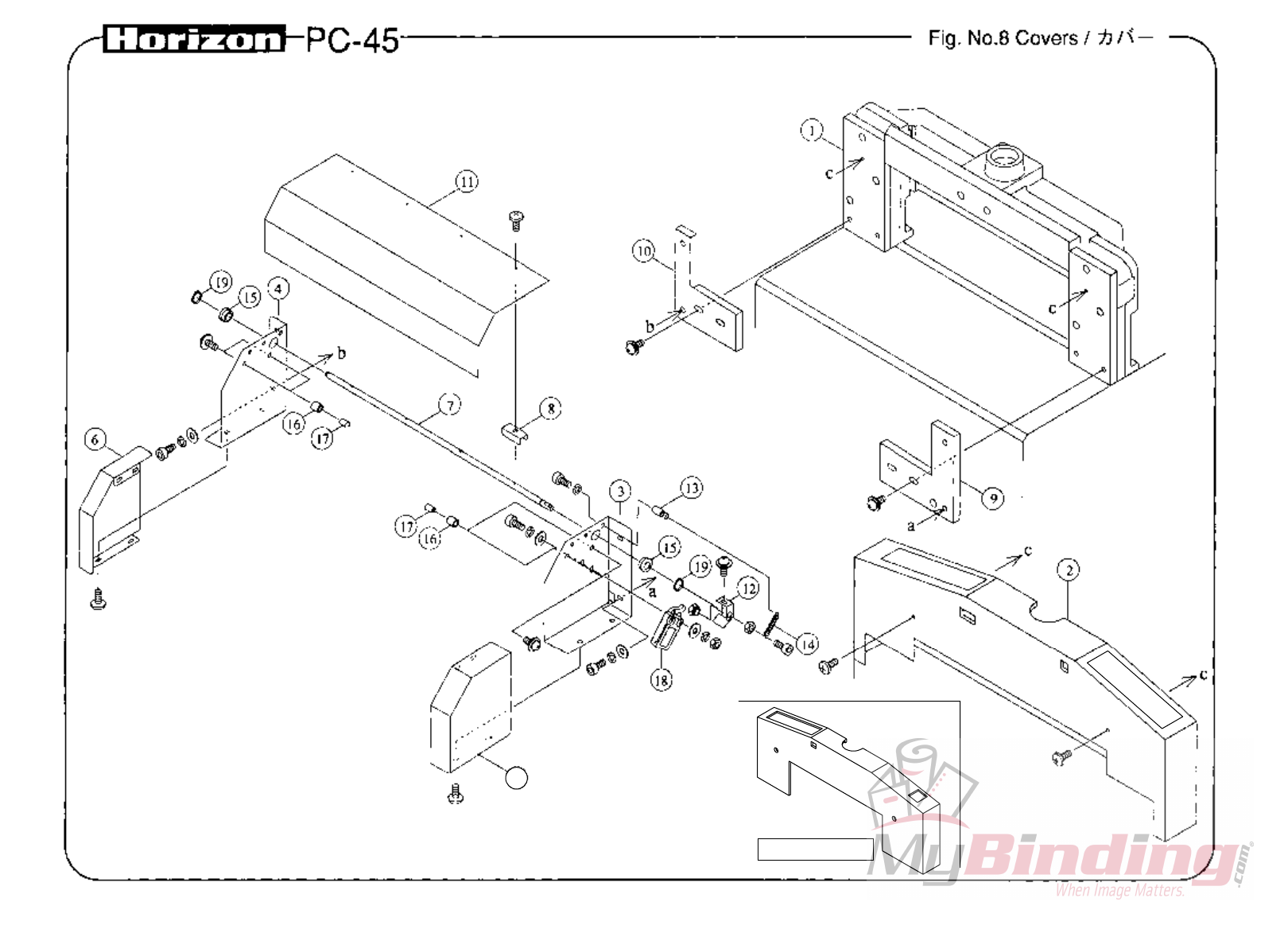

Fi
g
.
8
1 M007301-11 1 FRAME
2 M007385-04 1 229899 TOP COVER
2 M007385-05 1 230001 COVER
3 M084302-10 1 196001 SIDE PLATE
(
R
)
4 M084304-10 1 196001 SIDE PLATE
(
L
)
5 M084305-10 1 196001 COVER
(
R
)
6 M084306-10 1 196001 COVER
(
L
)
7 M084307-10 1 196001 STAY
8 M084209-00 4 196001 PLATE
9 M084310-01 1 196001 PLATE
(
R
)
10 M084312-10 1 196001 PLATE
(
L
)
11 M084316-10 1 196001 COVER
12 M084319-00 1 196001 CAM
13 M084231-00 1 196001 HOOK
14 M037049-00 1 196001 SPRING
15 M001786-00 2 196001 BUSH
16 M013426-00 4 CUSHION
17 M013427-00 4 SHAFT
18 4009647-00 1 196001 LIMIT SWITCH D4D-1162N
19 STW-12 2 196001 SNAP RING
