Nedap MACE is a platform that allows any access control
system to use smartphones as access credentials. The
platform consists of a cloud based service, readers and apps.
MACE apps can receive and contain multiple virtual identity
credentials. These credentials are presented to MACE readers
using NFC, Bluetooth Low Energy or QR. Virtual identity
credentials are sent to the phone in a secured way from the
MACE Server. The MACE Sever accepts imports from 3rd party
access control systems.

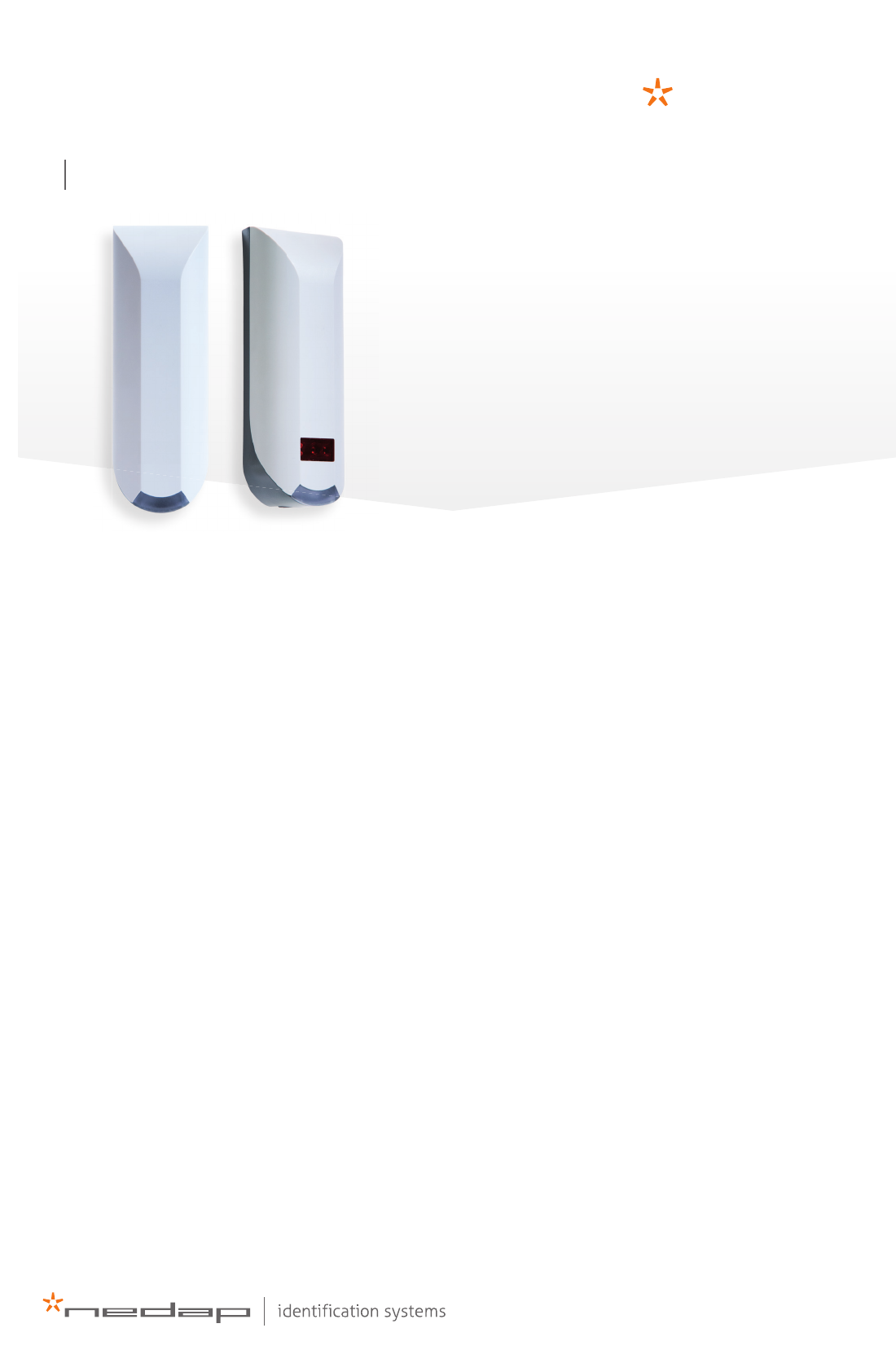

MACE Reader MM
Multi technology reader to be used with MACE apps with

proximity cards. The reader is small enough to be mullion

downloadable tool that connects to the USB port. Read range

MACE Reader MM QR
Multi technology reader to be used with MACE Apps with

reader includes a QR reader that enables reading QR-codes
displayed on a smartphone.
Easy integration
Like all Nedap systems, the MACE Reader MM and MACE
Reader MM QR support a variety of well established industry-
standard protocols, such as Wiegand, clock & data and serial
connections like RS485. This enables seamless integration
into any existing or new building access control system.
Applications
The MACE readers are designed to work in any access control
applications where smartphones are to be used immediately
or in the future. This applies to o.a. building access control
applications, parking management systems and even event
ticketing systems.
KEY FEATURES:
• Enables use of smartphones to identify people
• Supports NFC, Bluetooth Low Energy, proximity-
and smartcard technology and (optionally) QR
• Operates with any access control system
• Combines convenience and security
• Easy set up



Technical information MACE Reader MM (QR)
Operating frequency
Bluetooth low energy 2.402 – 2.480 GHz
NFC & smartcards: 13.56 MHz
Proximity cards: 120 kHz
Dimensions 150 x 50 x 40 mm [5.9 x 2 x 1.6 in]
Weight 0.5 kg [1.1 lbs]
Housing Aluminium (Zamak5) chassis with polycarbonate cover
Color RAL9006 cover and RAL7016 chassis
Protection 
Detection range 
NFC, proximity card and smartcards: up to 5cm
Operating temperature -30...+60°C [-22...+140°F]
Power 12...24 VDC
Current consumption 0.4A@12VDC, 0.2@24VDC
 2 TTL digital inputs for LED control (RED/GREEN)
1 TTL digital input for beeper control
Tamper indication Yes, magnetic tamperswitch
Cable Fixed cable length of 5 meters [16.4 ft] included (pigtail)
Cable length Wiegand 150 m [500 ft] 22AWG
RS485 1200 m [3950 ft] when installed properly
 RS485 and USB2 service interface, additional interfacing options exist. Please
consult your representative.
Output Wiegand, magstripe (clock & data)
Compliance
Europe R&TTE Directive 1999/5/EC
USA: FCC Title 47 Part 15B and 15C


Safety: EN60950-1
EMC: EN301489
Telecom: EN330 330 and EN300 328

UL294
Part nr. 9565523 MACE Reader MM
9565531 MACE Reader MM QR
Documentation
How to order Guide (HTOG)

MACE Firmware Guide
Document version nr. 1.2
