NCXX UX302NC-R LTE USB Modem User Manual LU1250 User Manual FCC
NCXX Inc. LTE USB Modem LU1250 User Manual FCC
NCXX >
Users Manual
1
UX302NC-R
User’s Manual
2
1. About WIRELESS USB MODEM
WIRELESS USB MODEM is a kind of online device which designed for the user
who may use mobile internet to get online, and the user may access to the internet at
anywhere and anytime.
2. Installation
Before installation, Please close the antivirus and security software.

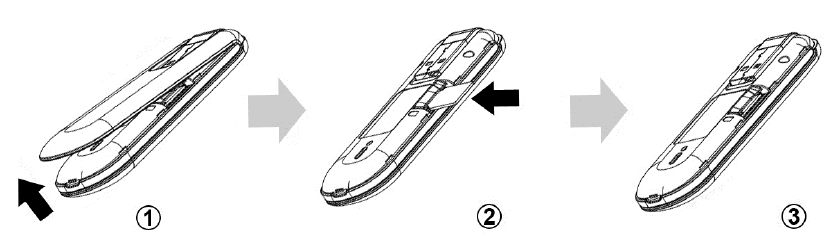

To Insert (U)SIM Card
1. Unfold the protecting cover of the product;
2. Pullout the (U)SIM card socket;
3.Insert the (U)SIM card into the socket ( the golden contact side is
downward )according to the direction indicated in the sketch, and confirm the (U)SIM
card is inserted completely.

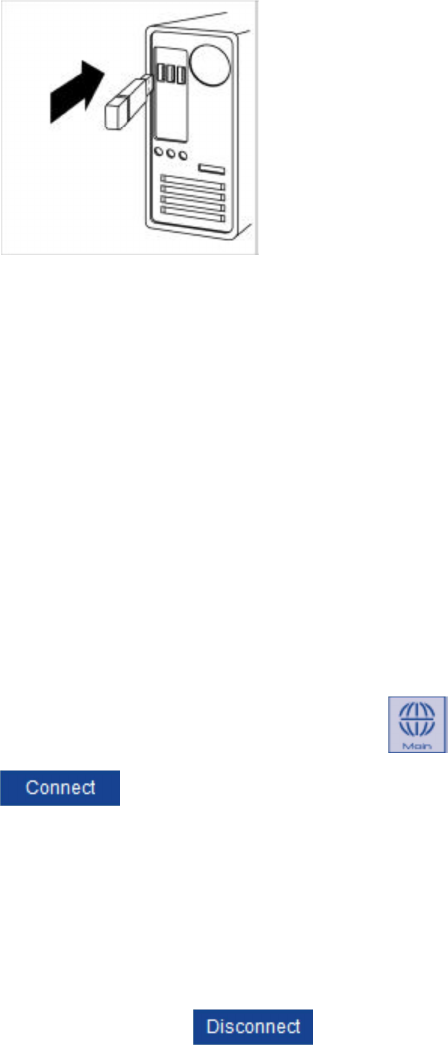

Connect the Computer and the WIRELESS USB MODEM
3
1.Insert MODEM device into the USB socket of the
computer ;
2. After correctly inserted, the installation procedure will
automatically operate; if installation procedure can not
pop up automatically, please open My
Computer---MODEM Disk and then double click
Modem_installation.exe to start installation. Moreover, in the course of installation,
please do not disconnect the device;
3. After installation, restart the computer and click Run Icon to operate the procedure.
4.Users have to use the connection to USB interfaces with USB 2.0 version or higher.
3. Connect to the Internet
Set Up Connection
1. Click the button in the main window open network interface, click
connect to the network.
2. If connection fails, please check APN setting. (Reference help file of customize the
Internet Connection Configuration section).
Disconnection
Click the button of in main window to disconnect the network.
4

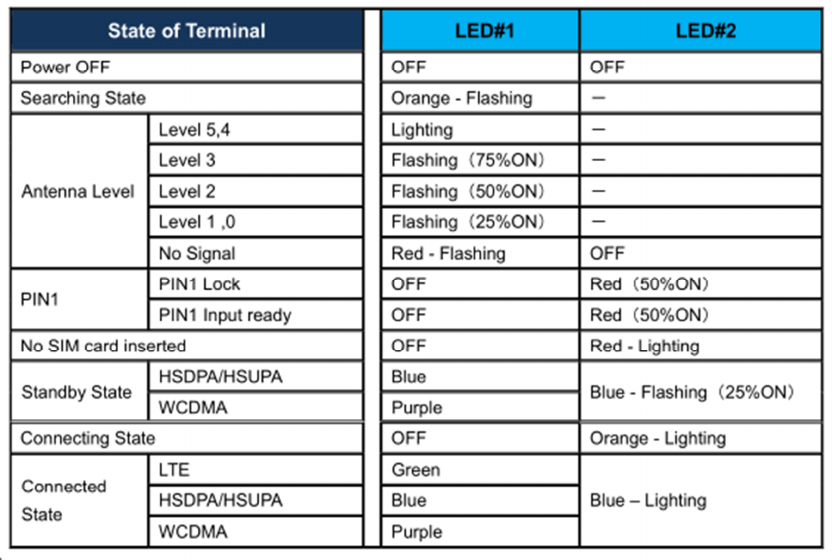

4. Indicating Light
5.
Notes
1. If SMS sending fails, please confirm whether the number of SMS Center is correct
or not.
2. If do not receive the SMS, please check whether the storage space of (U)SIM card
is full or not.
3. The device will be brought about normal heat phenomena if used under the
long-time working environment, weak signal or higher room temperature conditions,
however, it does not affect the use and life of the device.
4. Please avoid contacting with the skin directly for a long time.
5. The device could be used with a separation distance of 1.0cm to the human body.
6. Please make sure the temperature for device will not be higher than 55 ˚C
5
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible
for compliance could void the user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves. This
device is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the
U.S. Government. The exposure standard for wireless device employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by
the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest certified power level
in all tested frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the device while operating can be well below the
6
maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output. SAR
compliance has been established in the host product(s) (laptop computers), tested at 5
mm separation distance to the human body, and tested with USB slot configurations
including Horizontal-UP, Horizontal-Down, Vertical-Front, Vertical-Back. This device
can be used in host product(s) with substantially similar physical dimensions,
construction, and electrical and RF characteristics. The highest SAR value, tested per
FCC RF exposure guidelines for USB dongle, as described in this user guide, is
1.12W/kg. The FCC has granted an Equipment Authorization for this device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this device is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after searching on
FCC ID: SLKUX302NC-R.
6. Remark
For MAC OS or more detailed information of the product, please click <Help> file of
the Setting Menu under the main window.
