NEC Display Solutions of America DV-5500A User Manual EDV5500A PM5

NEC Display Solutions of America, Inc. EDV5500A PM5

Users Manual

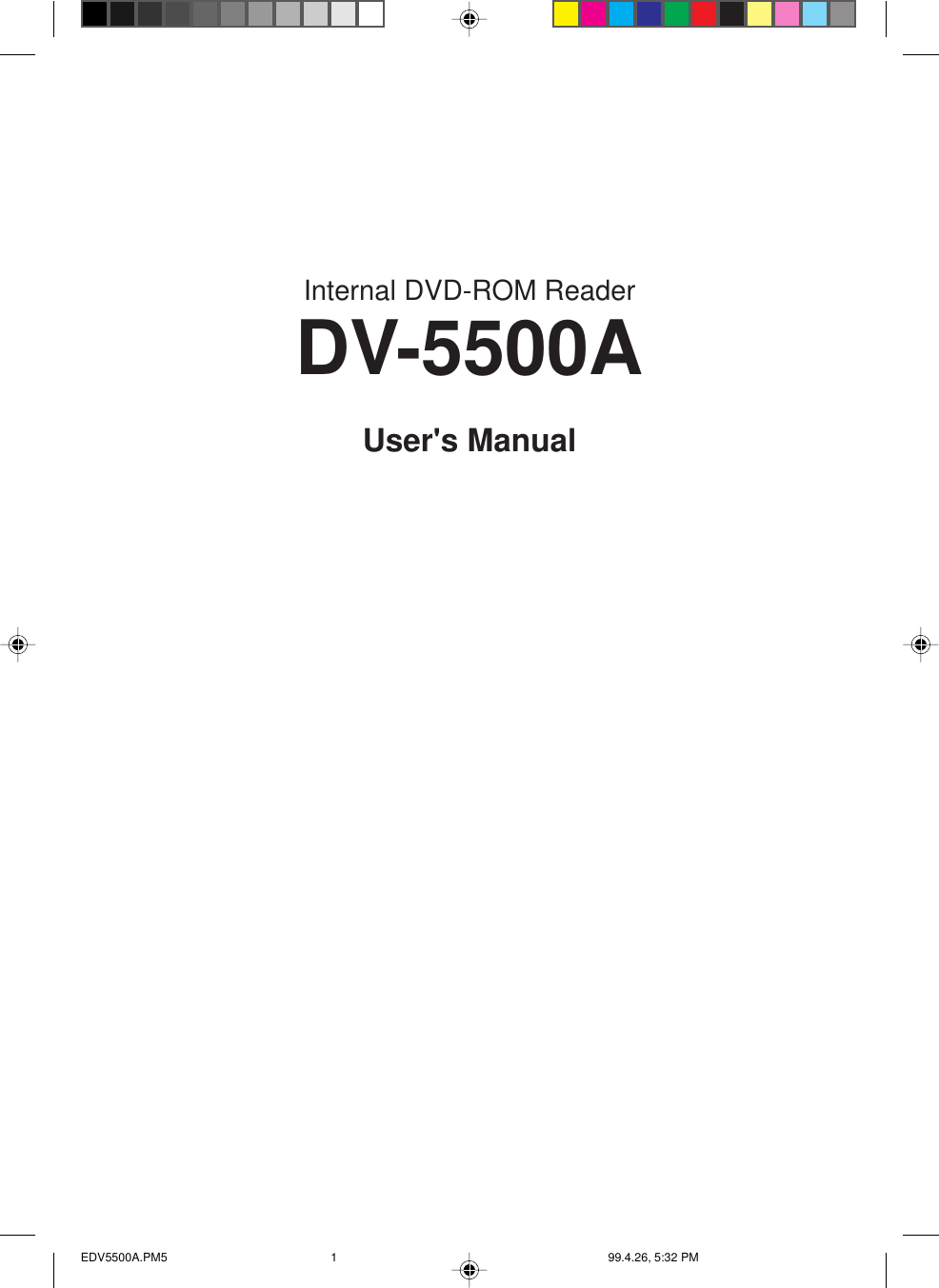

Internal DVD-ROM ReaderDV-5500AUser's ManualEDV5500A.PM5 99.4.26, 5:32 PM1

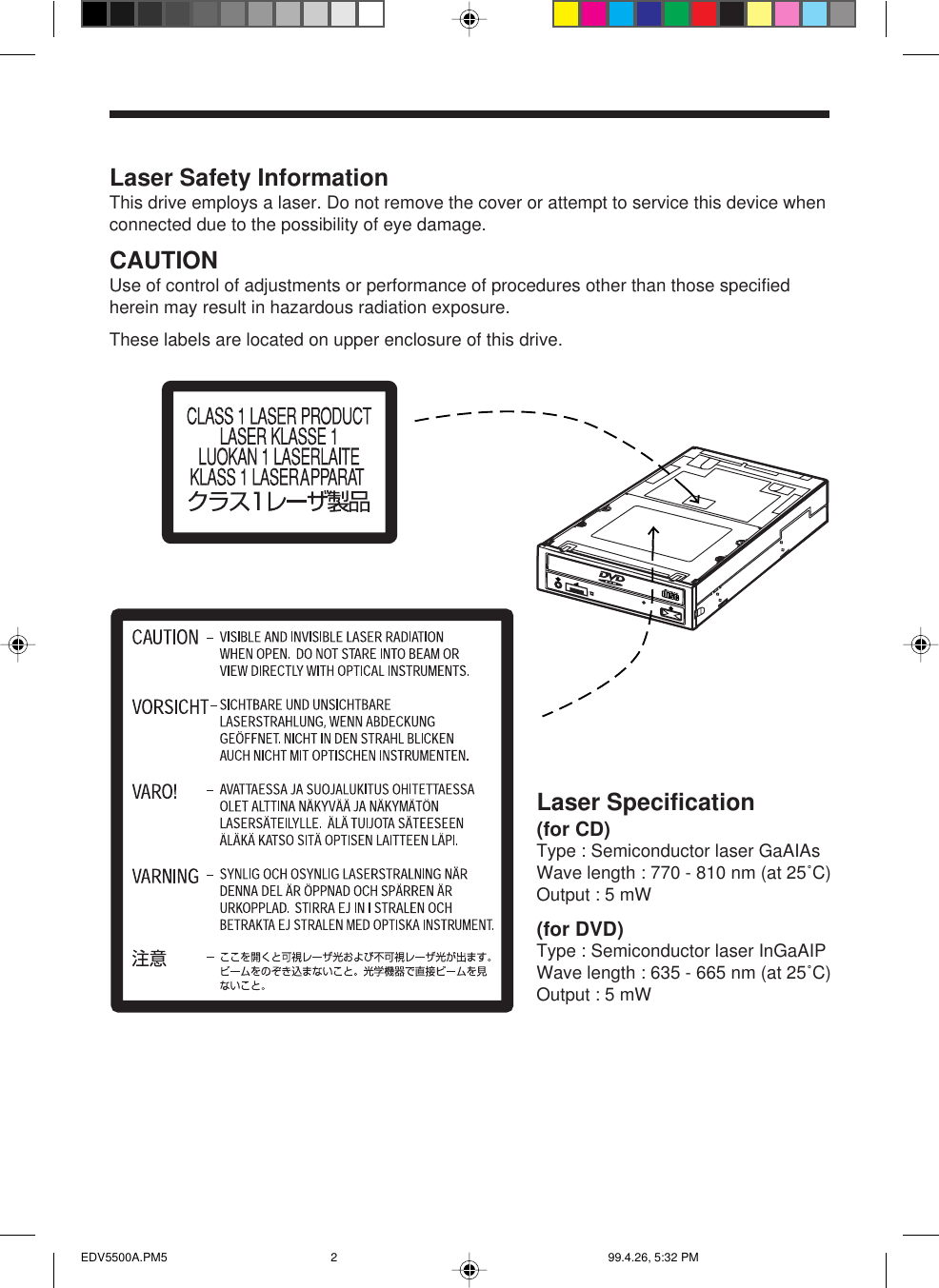

Laser Safety InformationThis drive employs a laser. Do not remove the cover or attempt to service this device whenconnected due to the possibility of eye damage.CAUTIONUse of control of adjustments or performance of procedures other than those specifiedherein may result in hazardous radiation exposure.These labels are located on upper enclosure of this drive.Laser Specification(for CD)Type : Semiconductor laser GaAIAsWave length : 770 - 810 nm (at 25˚C)Output : 5 mW(for DVD)Type : Semiconductor laser InGaAIPWave length : 635 - 665 nm (at 25˚C)Output : 5 mWEDV5500A.PM5 99.4.26, 5:32 PM2

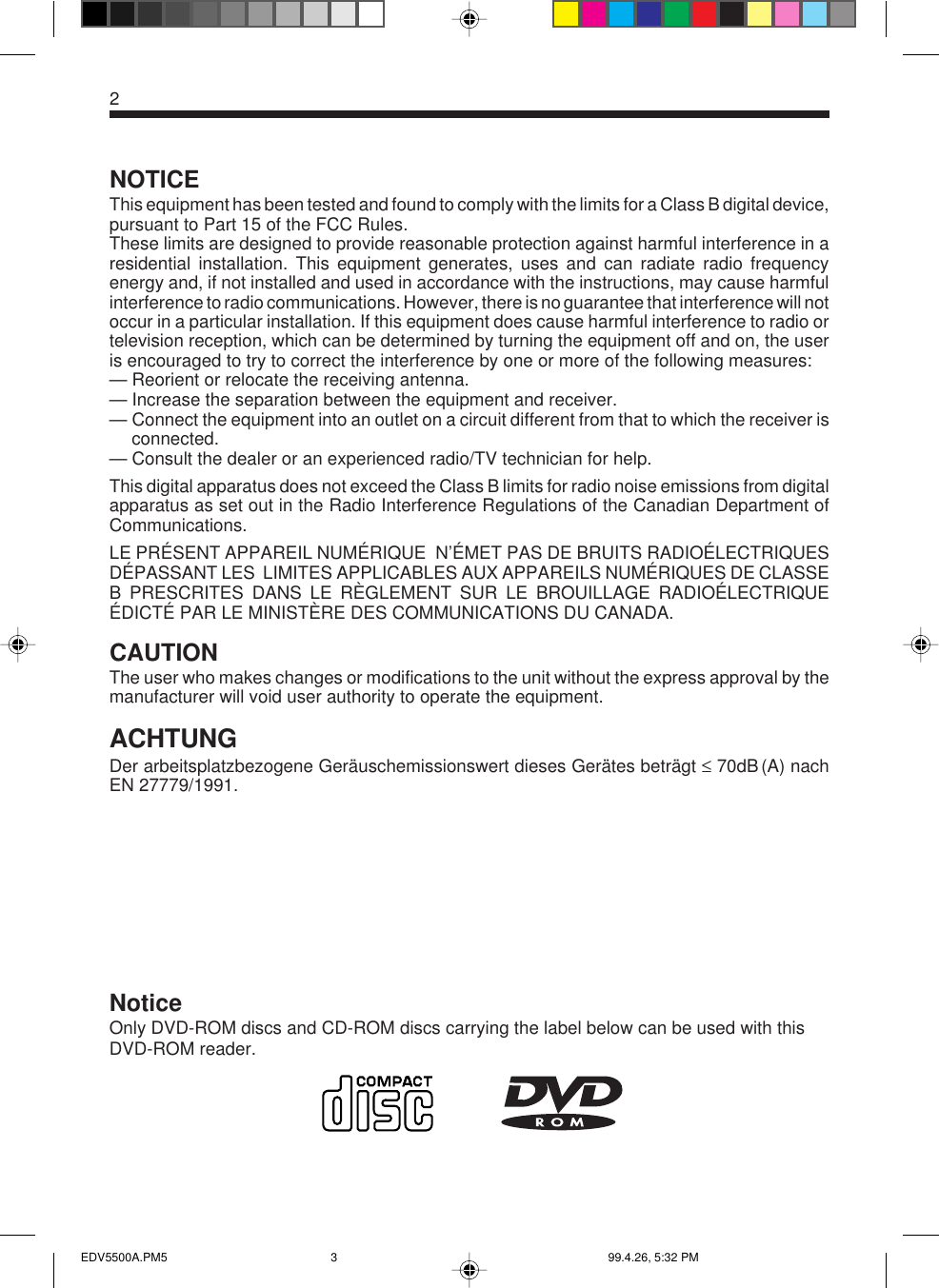

2NOTICEThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the useris encouraged to try to correct the interference by one or more of the following measures:— Reorient or relocate the receiving antenna.— Increase the separation between the equipment and receiver.— Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.— Consult the dealer or an experienced radio/TV technician for help.This digital apparatus does not exceed the Class B limits for radio noise emissions from digitalapparatus as set out in the Radio Interference Regulations of the Canadian Department ofCommunications.LE PRÉSENT APPAREIL NUMÉRIQUE N’ÉMET PAS DE BRUITS RADIOÉLECTRIQUESDÉPASSANT LES LIMITES APPLICABLES AUX APPAREILS NUMÉRIQUES DE CLASSEB PRESCRITES DANS LE RÈGLEMENT SUR LE BROUILLAGE RADIOÉLECTRIQUEÉDICTÉ PAR LE MINISTÈRE DES COMMUNICATIONS DU CANADA.CAUTIONThe user who makes changes or modifications to the unit without the express approval by themanufacturer will void user authority to operate the equipment.ACHTUNGDer arbeitsplatzbezogene Geräuschemissionswert dieses Gerätes beträgt ≤ 70dB (A) nachEN 27779/1991.NoticeOnly DVD-ROM discs and CD-ROM discs carrying the label below can be used with thisDVD-ROM reader.EDV5500A.PM5 99.4.26, 5:32 PM3

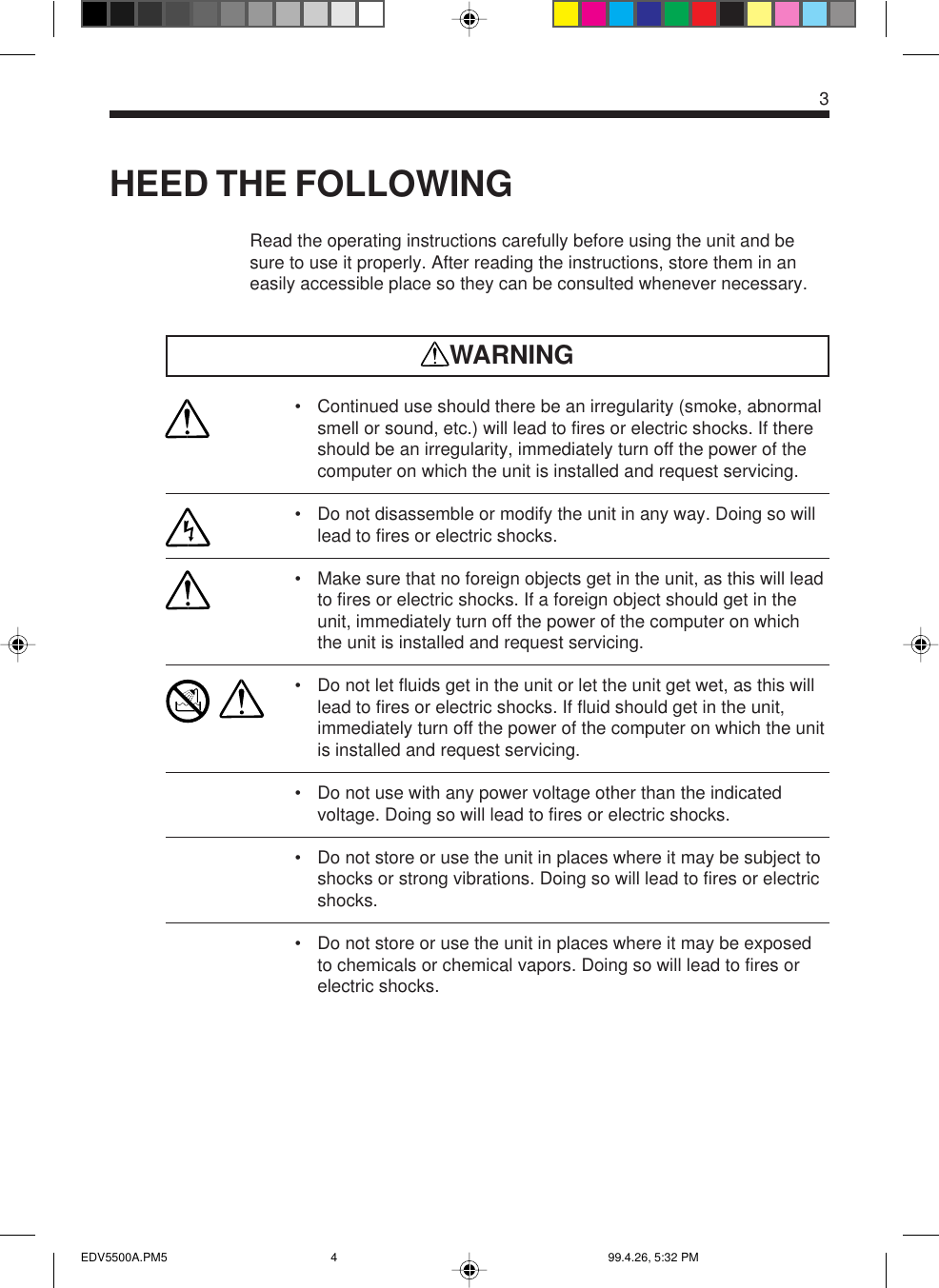

3HEED THE FOLLOWINGRead the operating instructions carefully before using the unit and besure to use it properly. After reading the instructions, store them in aneasily accessible place so they can be consulted whenever necessary.WARNING• Continued use should there be an irregularity (smoke, abnormalsmell or sound, etc.) will lead to fires or electric shocks. If thereshould be an irregularity, immediately turn off the power of thecomputer on which the unit is installed and request servicing.• Do not disassemble or modify the unit in any way. Doing so willlead to fires or electric shocks.• Make sure that no foreign objects get in the unit, as this will leadto fires or electric shocks. If a foreign object should get in theunit, immediately turn off the power of the computer on whichthe unit is installed and request servicing.• Do not let fluids get in the unit or let the unit get wet, as this willlead to fires or electric shocks. If fluid should get in the unit,immediately turn off the power of the computer on which the unitis installed and request servicing.• Do not use with any power voltage other than the indicatedvoltage. Doing so will lead to fires or electric shocks.• Do not store or use the unit in places where it may be subject toshocks or strong vibrations. Doing so will lead to fires or electricshocks.• Do not store or use the unit in places where it may be exposedto chemicals or chemical vapors. Doing so will lead to fires orelectric shocks.EDV5500A.PM5 99.4.26, 5:32 PM4

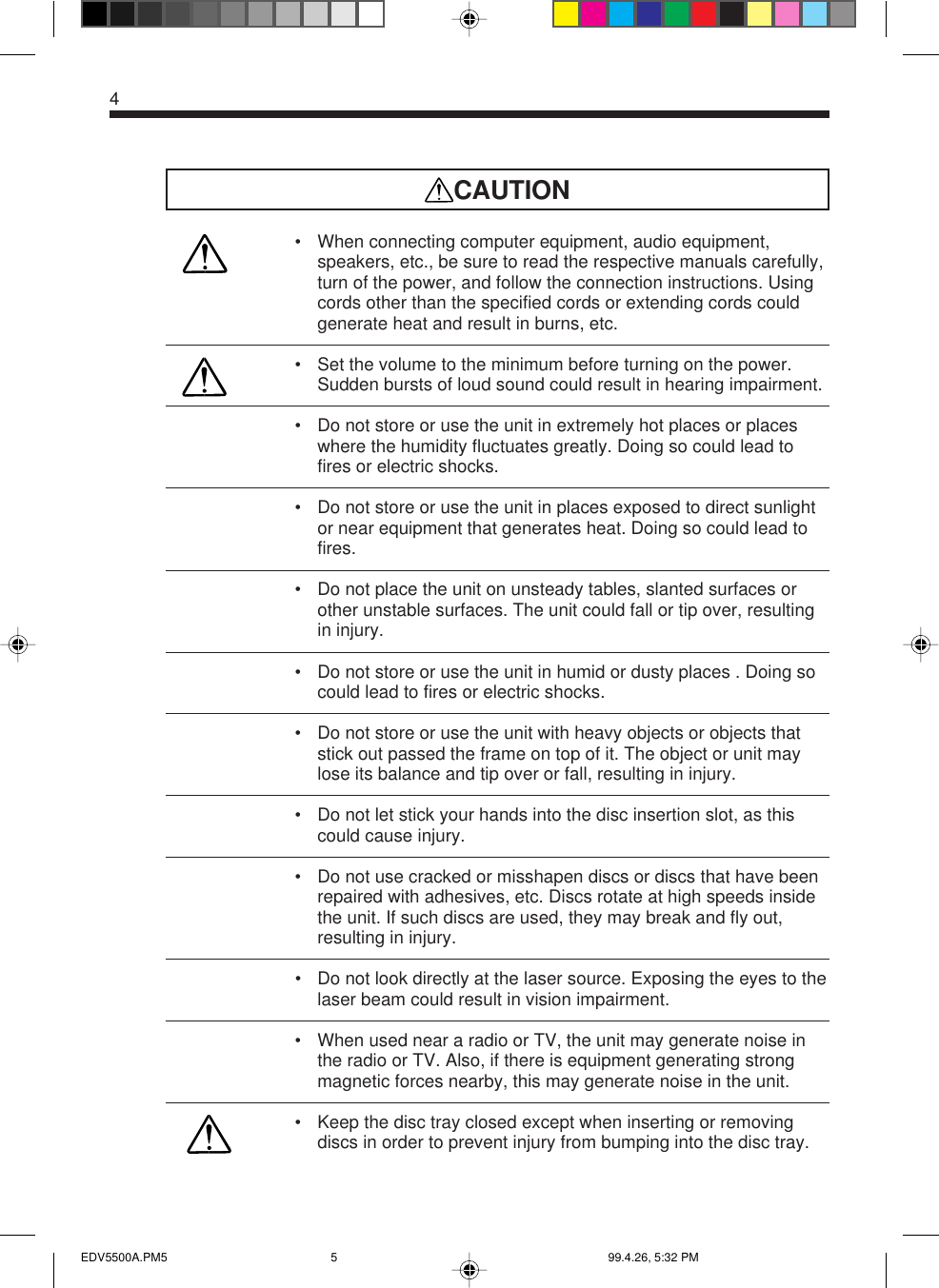

4CAUTION• When connecting computer equipment, audio equipment,speakers, etc., be sure to read the respective manuals carefully,turn of the power, and follow the connection instructions. Usingcords other than the specified cords or extending cords couldgenerate heat and result in burns, etc.• Set the volume to the minimum before turning on the power.Sudden bursts of loud sound could result in hearing impairment.• Do not store or use the unit in extremely hot places or placeswhere the humidity fluctuates greatly. Doing so could lead tofires or electric shocks.• Do not store or use the unit in places exposed to direct sunlightor near equipment that generates heat. Doing so could lead tofires.• Do not place the unit on unsteady tables, slanted surfaces orother unstable surfaces. The unit could fall or tip over, resultingin injury.• Do not store or use the unit in humid or dusty places . Doing socould lead to fires or electric shocks.• Do not store or use the unit with heavy objects or objects thatstick out passed the frame on top of it. The object or unit maylose its balance and tip over or fall, resulting in injury.• Do not let stick your hands into the disc insertion slot, as thiscould cause injury.• Do not use cracked or misshapen discs or discs that have beenrepaired with adhesives, etc. Discs rotate at high speeds insidethe unit. If such discs are used, they may break and fly out,resulting in injury.• Do not look directly at the laser source. Exposing the eyes to thelaser beam could result in vision impairment.• When used near a radio or TV, the unit may generate noise inthe radio or TV. Also, if there is equipment generating strongmagnetic forces nearby, this may generate noise in the unit.• Keep the disc tray closed except when inserting or removingdiscs in order to prevent injury from bumping into the disc tray.EDV5500A.PM5 99.4.26, 5:32 PM5

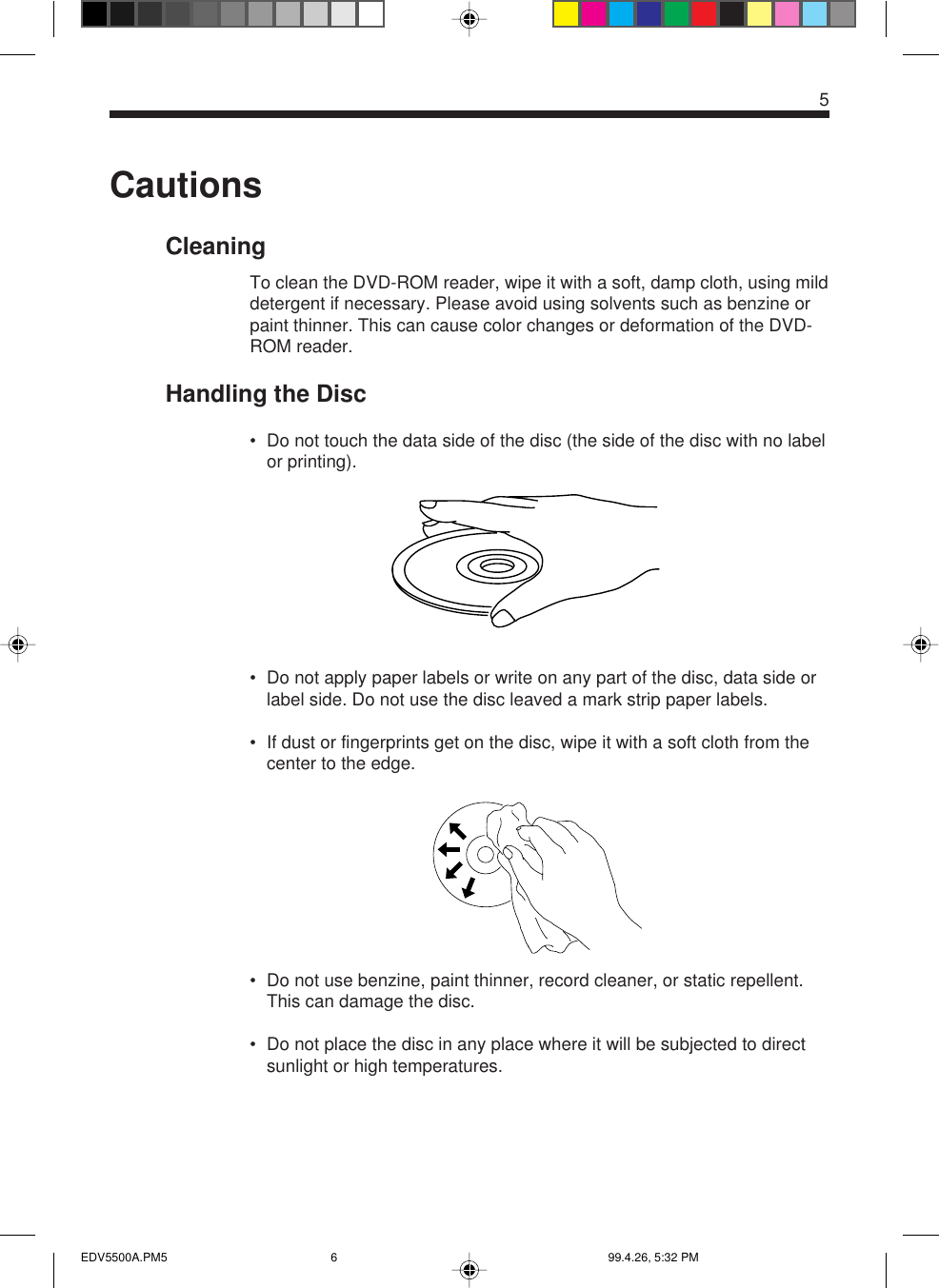

CautionsCleaningTo clean the DVD-ROM reader, wipe it with a soft, damp cloth, using milddetergent if necessary. Please avoid using solvents such as benzine orpaint thinner. This can cause color changes or deformation of the DVD-ROM reader.Handling the Disc• Do not touch the data side of the disc (the side of the disc with no labelor printing).• Do not apply paper labels or write on any part of the disc, data side orlabel side. Do not use the disc leaved a mark strip paper labels.• If dust or fingerprints get on the disc, wipe it with a soft cloth from thecenter to the edge.• Do not use benzine, paint thinner, record cleaner, or static repellent.This can damage the disc.• Do not place the disc in any place where it will be subjected to directsunlight or high temperatures.5EDV5500A.PM5 99.4.26, 5:32 PM6

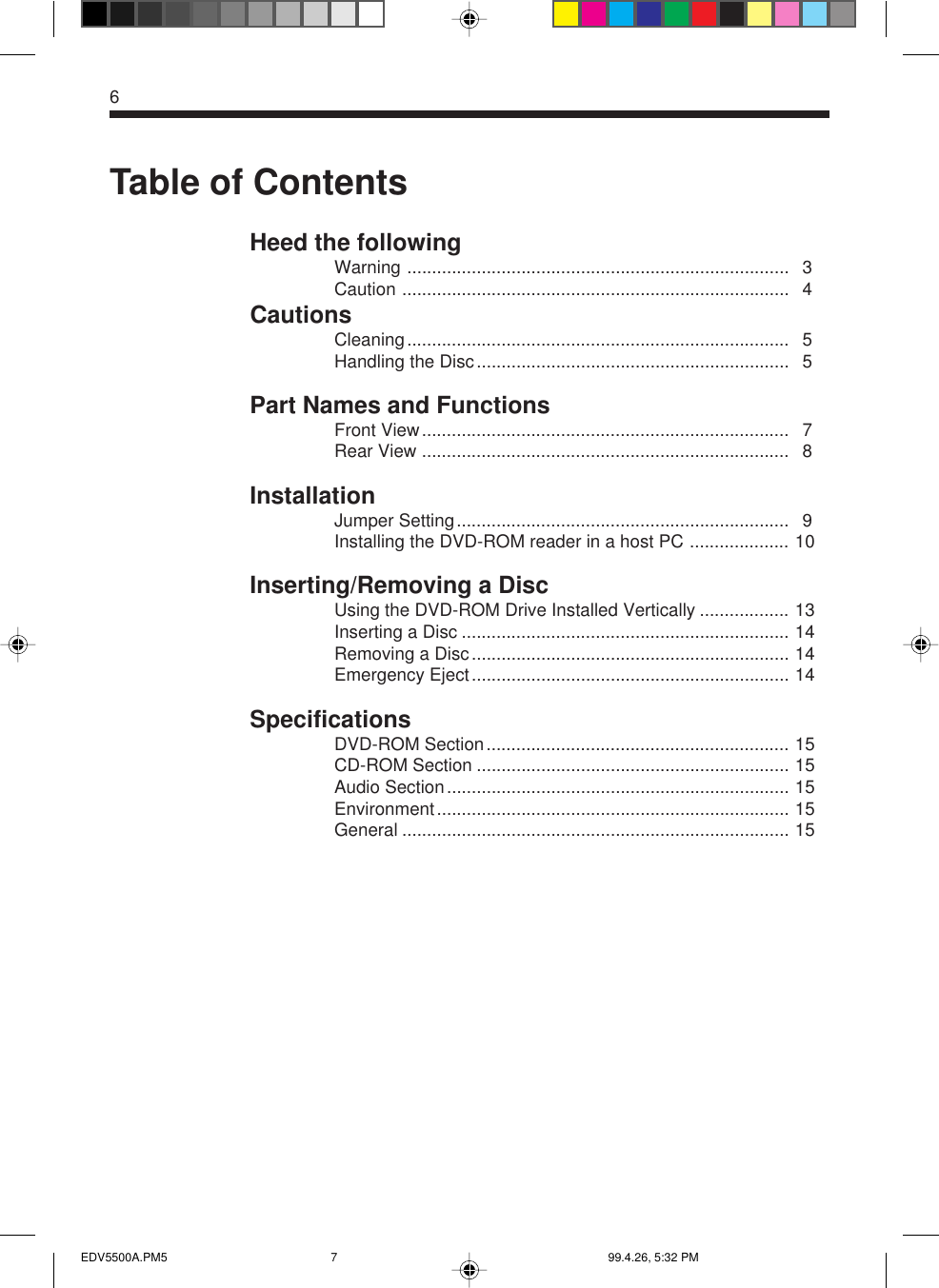

6Table of ContentsHeed the followingWarning ............................................................................. 3Caution .............................................................................. 4CautionsCleaning............................................................................. 5Handling the Disc............................................................... 5Part Names and FunctionsFront View.......................................................................... 7Rear View .......................................................................... 8InstallationJumper Setting................................................................... 9Installing the DVD-ROM reader in a host PC .................... 10Inserting/Removing a DiscUsing the DVD-ROM Drive Installed Vertically .................. 13Inserting a Disc .................................................................. 14Removing a Disc................................................................ 14Emergency Eject................................................................ 14SpecificationsDVD-ROM Section............................................................. 15CD-ROM Section ............................................................... 15Audio Section..................................................................... 15Environment....................................................................... 15General .............................................................................. 15EDV5500A.PM5 99.4.26, 5:32 PM7

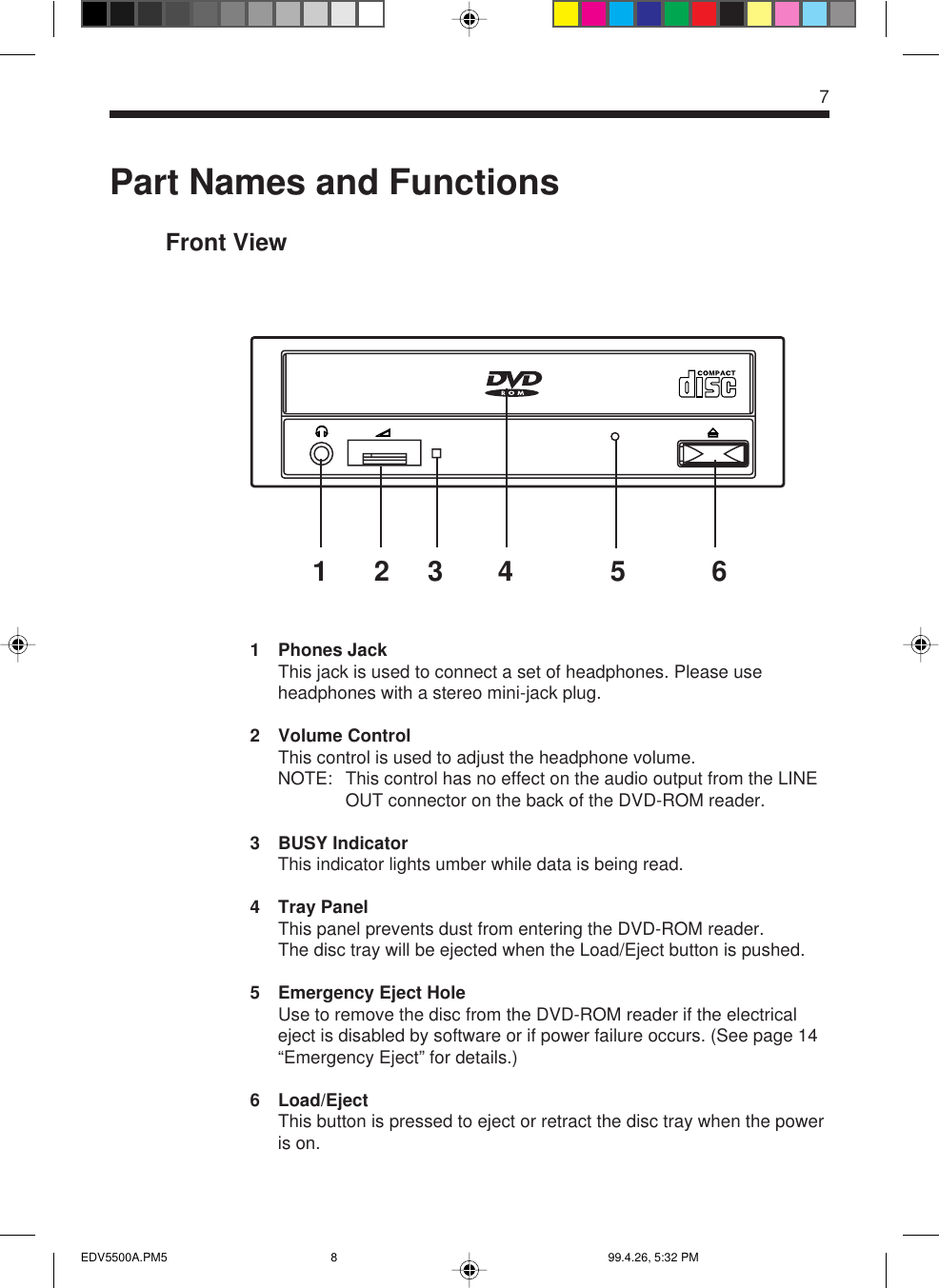

7123 4 5 6Part Names and FunctionsFront View1 Phones JackThis jack is used to connect a set of headphones. Please useheadphones with a stereo mini-jack plug.2 Volume ControlThis control is used to adjust the headphone volume.NOTE: This control has no effect on the audio output from the LINEOUT connector on the back of the DVD-ROM reader.3 BUSY IndicatorThis indicator lights umber while data is being read.4 Tray PanelThis panel prevents dust from entering the DVD-ROM reader.The disc tray will be ejected when the Load/Eject button is pushed.5 Emergency Eject HoleUse to remove the disc from the DVD-ROM reader if the electricaleject is disabled by software or if power failure occurs. (See page 14“Emergency Eject” for details.)6 Load/EjectThis button is pressed to eject or retract the disc tray when the poweris on.EDV5500A.PM5 99.4.26, 5:32 PM8

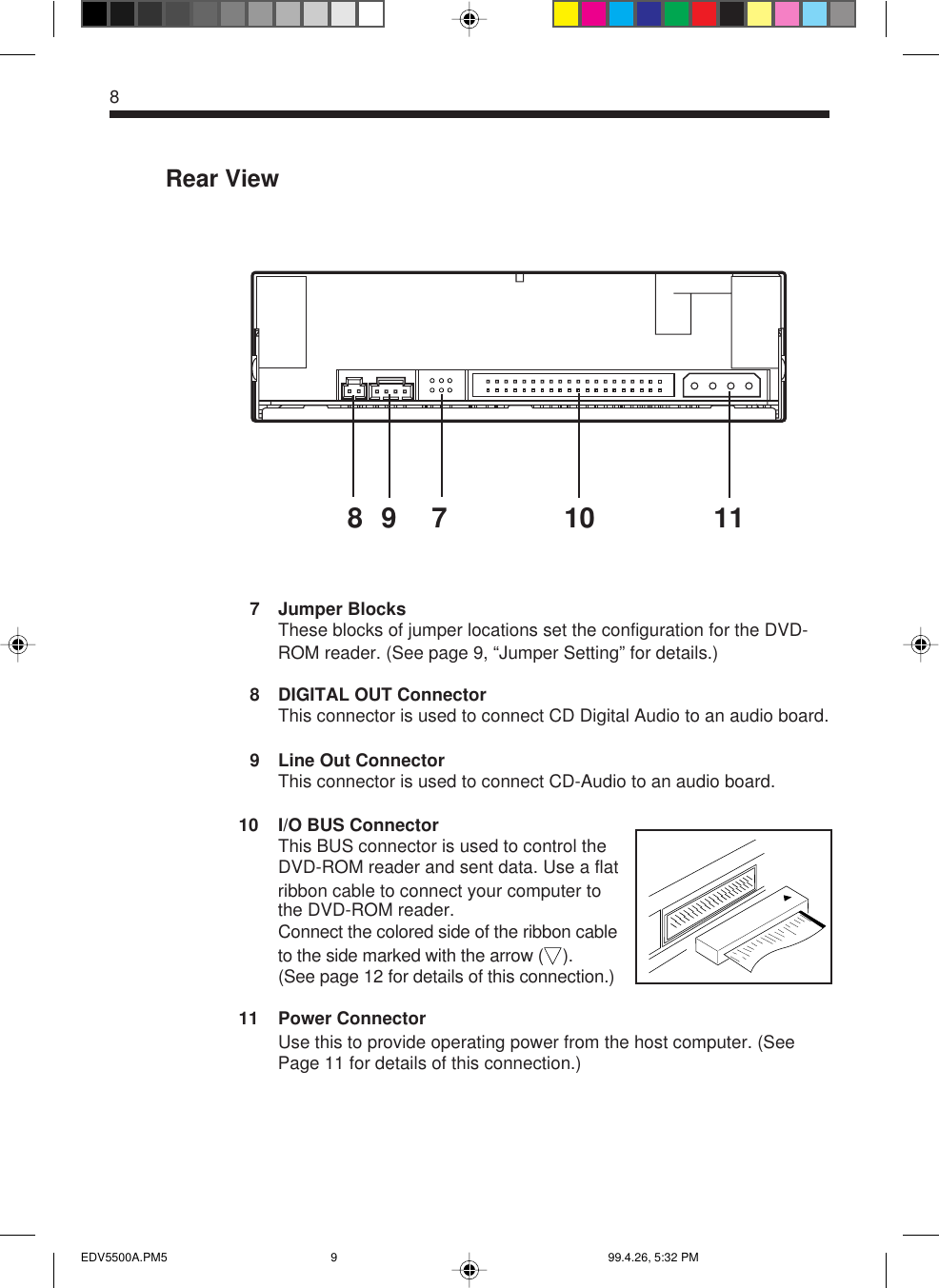

Rear View7 Jumper BlocksThese blocks of jumper locations set the configuration for the DVD-ROM reader. (See page 9, “Jumper Setting” for details.)8 DIGITAL OUT ConnectorThis connector is used to connect CD Digital Audio to an audio board.9 Line Out ConnectorThis connector is used to connect CD-Audio to an audio board.10 I/O BUS ConnectorThis BUS connector is used to control theDVD-ROM reader and sent data. Use a flatribbon cable to connect your computer tothe DVD-ROM reader.Connect the colored side of the ribbon cableto the side marked with the arrow ( ).(See page 12 for details of this connection.)11 Power ConnectorUse this to provide operating power from the host computer. (SeePage 11 for details of this connection.)889 7 10 11EDV5500A.PM5 99.4.26, 5:32 PM9

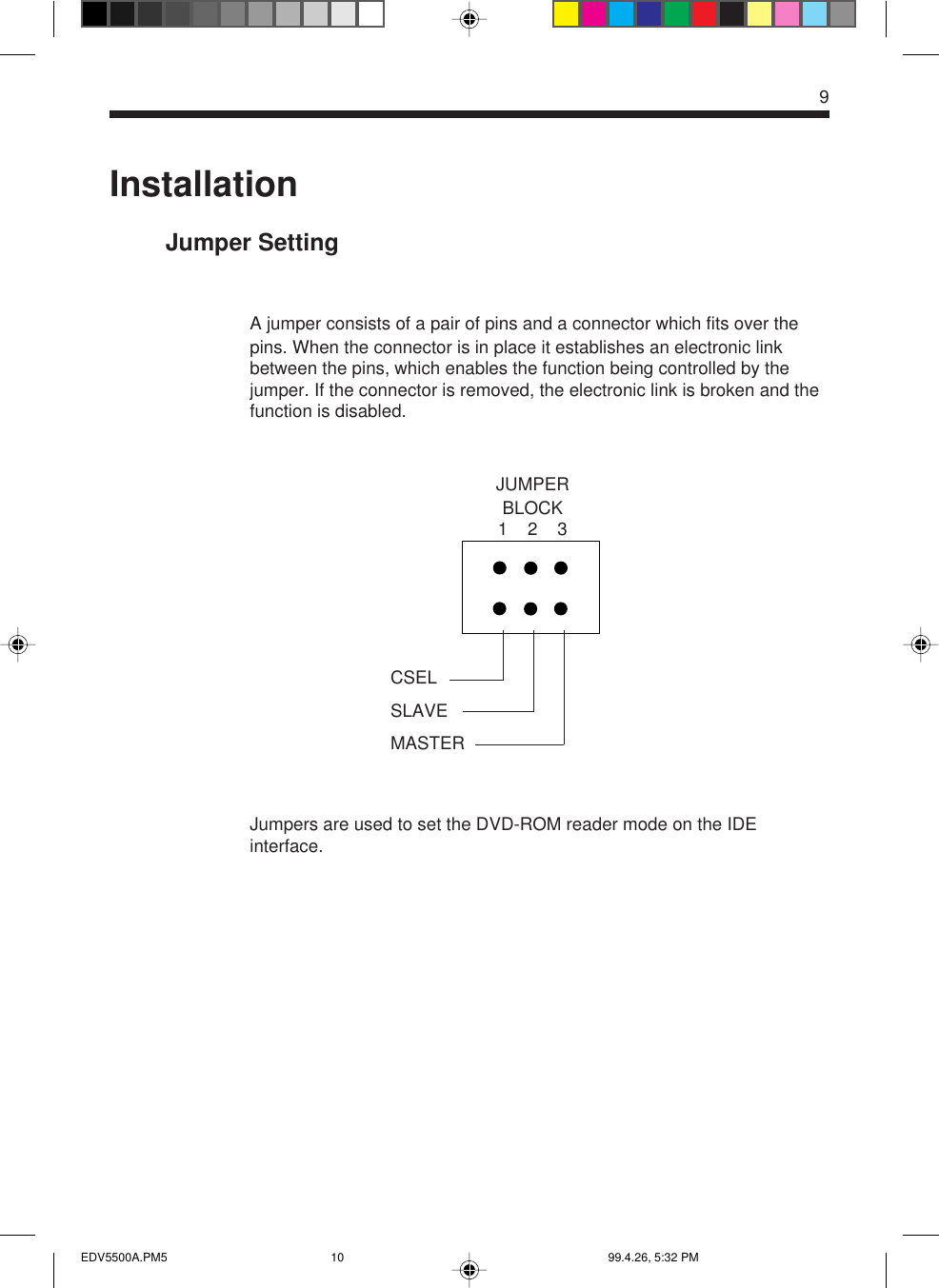

9InstallationJumper SettingA jumper consists of a pair of pins and a connector which fits over thepins. When the connector is in place it establishes an electronic linkbetween the pins, which enables the function being controlled by thejumper. If the connector is removed, the electronic link is broken and thefunction is disabled.Jumpers are used to set the DVD-ROM reader mode on the IDEinterface.JUMPERBLOCK1 2 3CSELSLAVEMASTEREDV5500A.PM5 99.4.26, 5:32 PM10

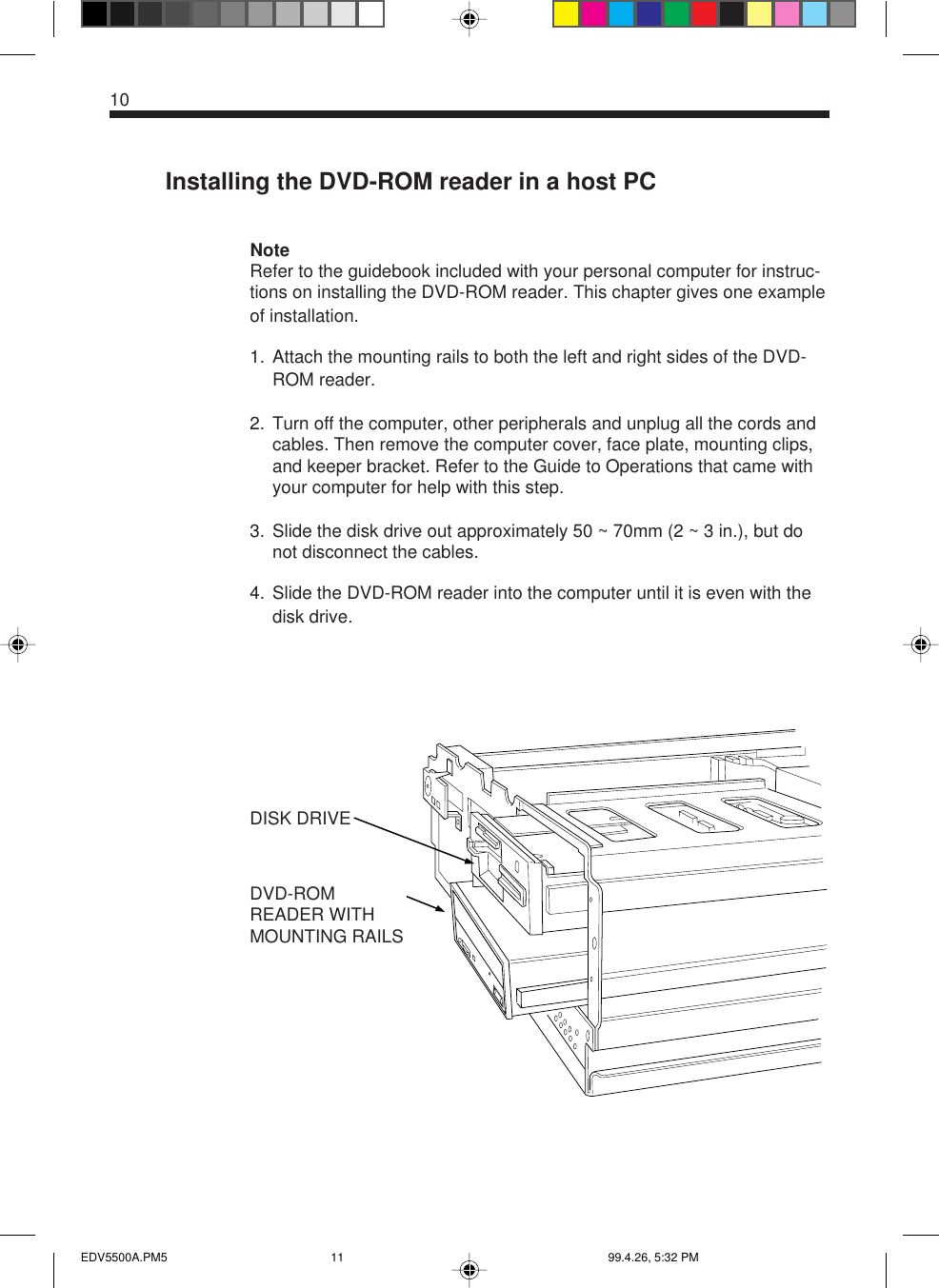

10Installing the DVD-ROM reader in a host PCNoteRefer to the guidebook included with your personal computer for instruc-tions on installing the DVD-ROM reader. This chapter gives one exampleof installation.1. Attach the mounting rails to both the left and right sides of the DVD-ROM reader.2. Turn off the computer, other peripherals and unplug all the cords andcables. Then remove the computer cover, face plate, mounting clips,and keeper bracket. Refer to the Guide to Operations that came withyour computer for help with this step.3. Slide the disk drive out approximately 50 ~ 70mm (2 ~ 3 in.), but donot disconnect the cables.4. Slide the DVD-ROM reader into the computer until it is even with thedisk drive.DVD-ROMREADER WITHMOUNTING RAILSDISK DRIVEEDV5500A.PM5 99.4.26, 5:32 PM11

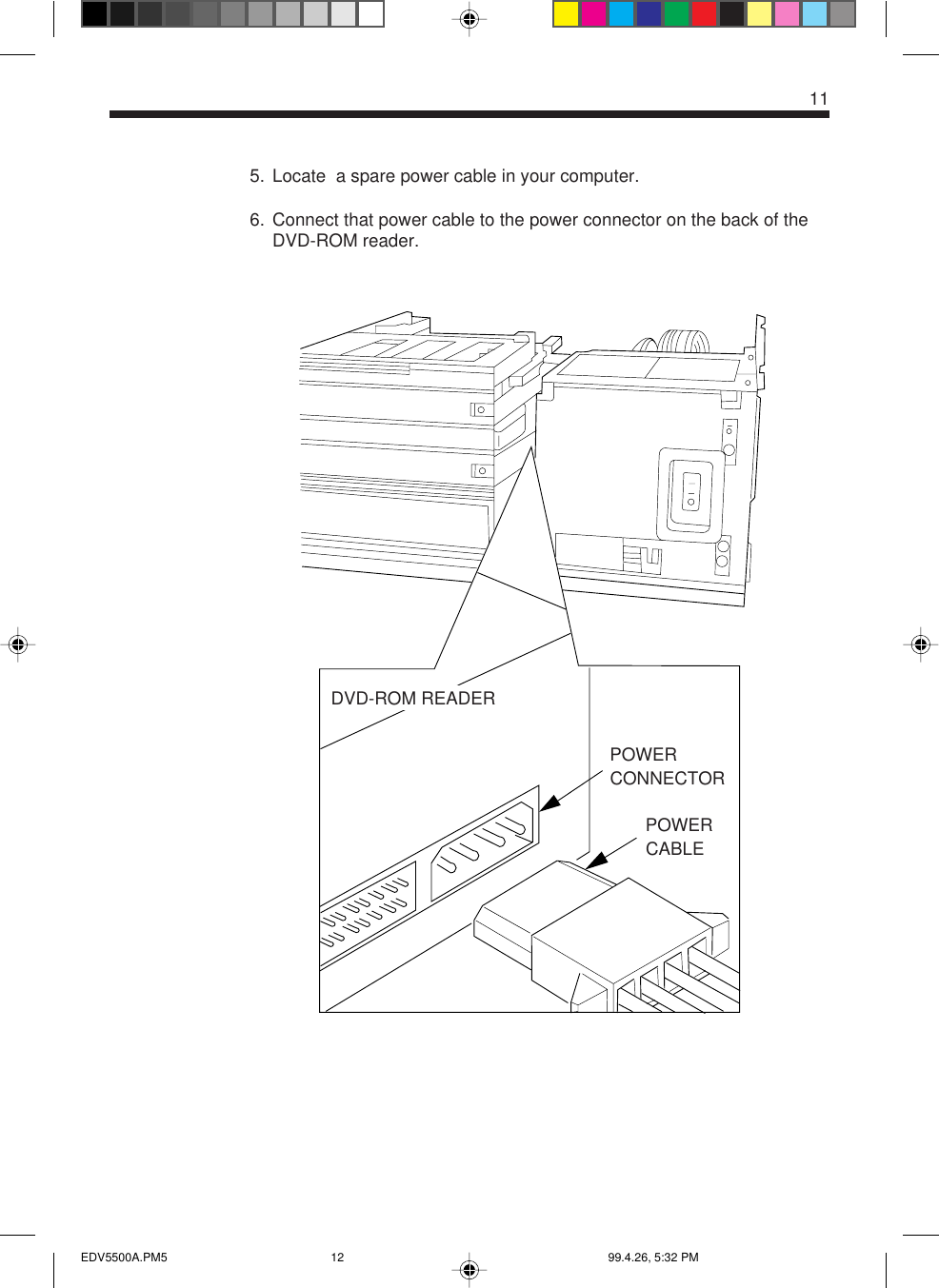

11POWERCABLEPOWERCONNECTORDVD-ROM READER5. Locate a spare power cable in your computer.6. Connect that power cable to the power connector on the back of theDVD-ROM reader.EDV5500A.PM5 99.4.26, 5:32 PM12

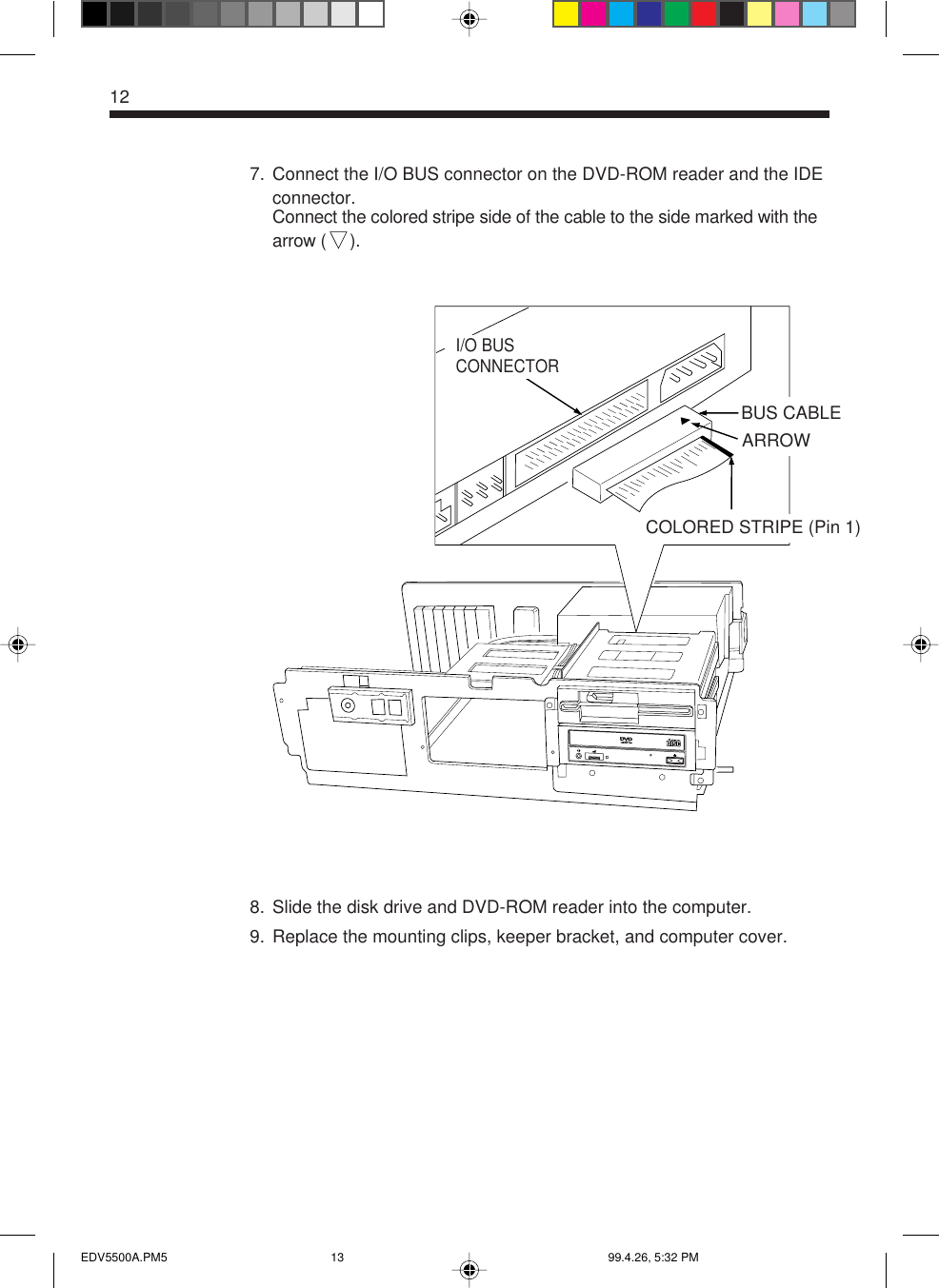

7. Connect the I/O BUS connector on the DVD-ROM reader and the IDEconnector.Connect the colored stripe side of the cable to the side marked with thearrow ( ).8. Slide the disk drive and DVD-ROM reader into the computer.9. Replace the mounting clips, keeper bracket, and computer cover.12I/O BUSCONNECTORBUS CABLECOLORED STRIPE (Pin 1)ARROWEDV5500A.PM5 99.4.26, 5:32 PM13

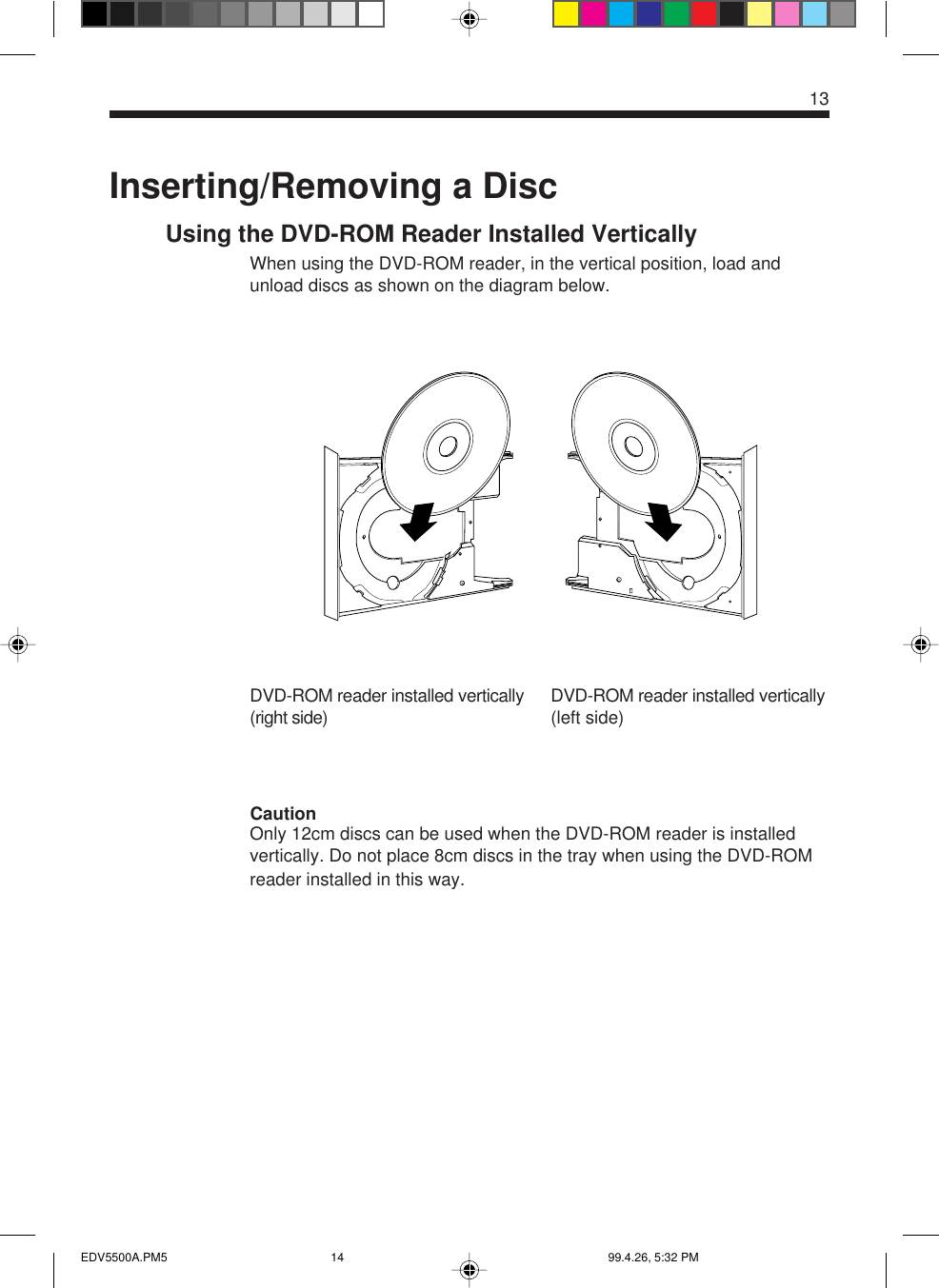

13Inserting/Removing a DiscUsing the DVD-ROM Reader Installed VerticallyWhen using the DVD-ROM reader, in the vertical position, load andunload discs as shown on the diagram below.CautionOnly 12cm discs can be used when the DVD-ROM reader is installedvertically. Do not place 8cm discs in the tray when using the DVD-ROMreader installed in this way.DVD-ROM reader installed vertically(left side)DVD-ROM reader installed vertically(right side)EDV5500A.PM5 99.4.26, 5:32 PM14

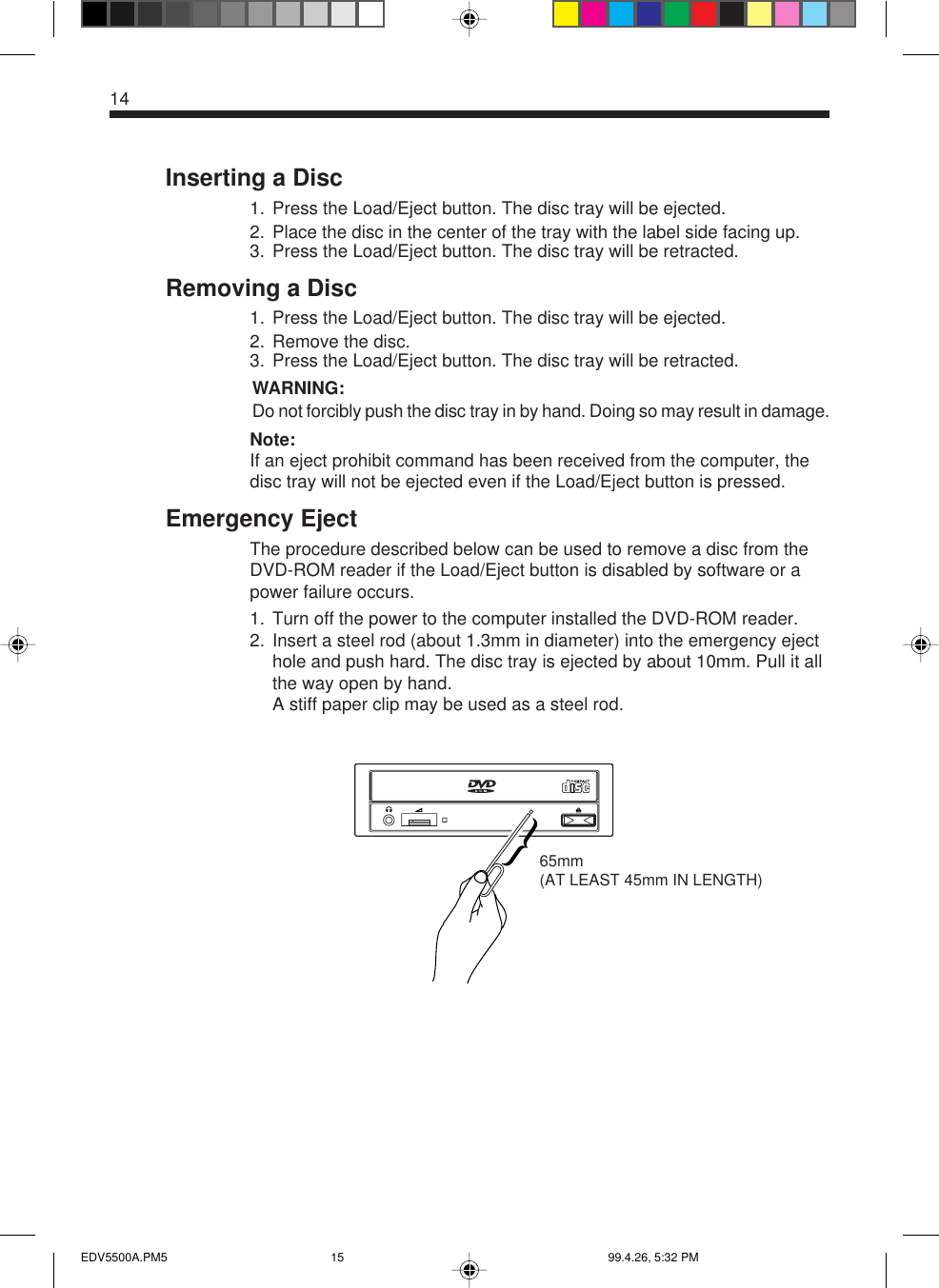

14Inserting a Disc1. Press the Load/Eject button. The disc tray will be ejected.2. Place the disc in the center of the tray with the label side facing up.3. Press the Load/Eject button. The disc tray will be retracted.Removing a Disc1. Press the Load/Eject button. The disc tray will be ejected.2. Remove the disc.3. Press the Load/Eject button. The disc tray will be retracted.WARNING:Do not forcibly push the disc tray in by hand. Doing so may result in damage.Note:If an eject prohibit command has been received from the computer, thedisc tray will not be ejected even if the Load/Eject button is pressed.Emergency EjectThe procedure described below can be used to remove a disc from theDVD-ROM reader if the Load/Eject button is disabled by software or apower failure occurs.1. Turn off the power to the computer installed the DVD-ROM reader.2. Insert a steel rod (about 1.3mm in diameter) into the emergency ejecthole and push hard. The disc tray is ejected by about 10mm. Pull it allthe way open by hand.A stiff paper clip may be used as a steel rod.65mm(AT LEAST 45mm IN LENGTH)EDV5500A.PM5 99.4.26, 5:32 PM15

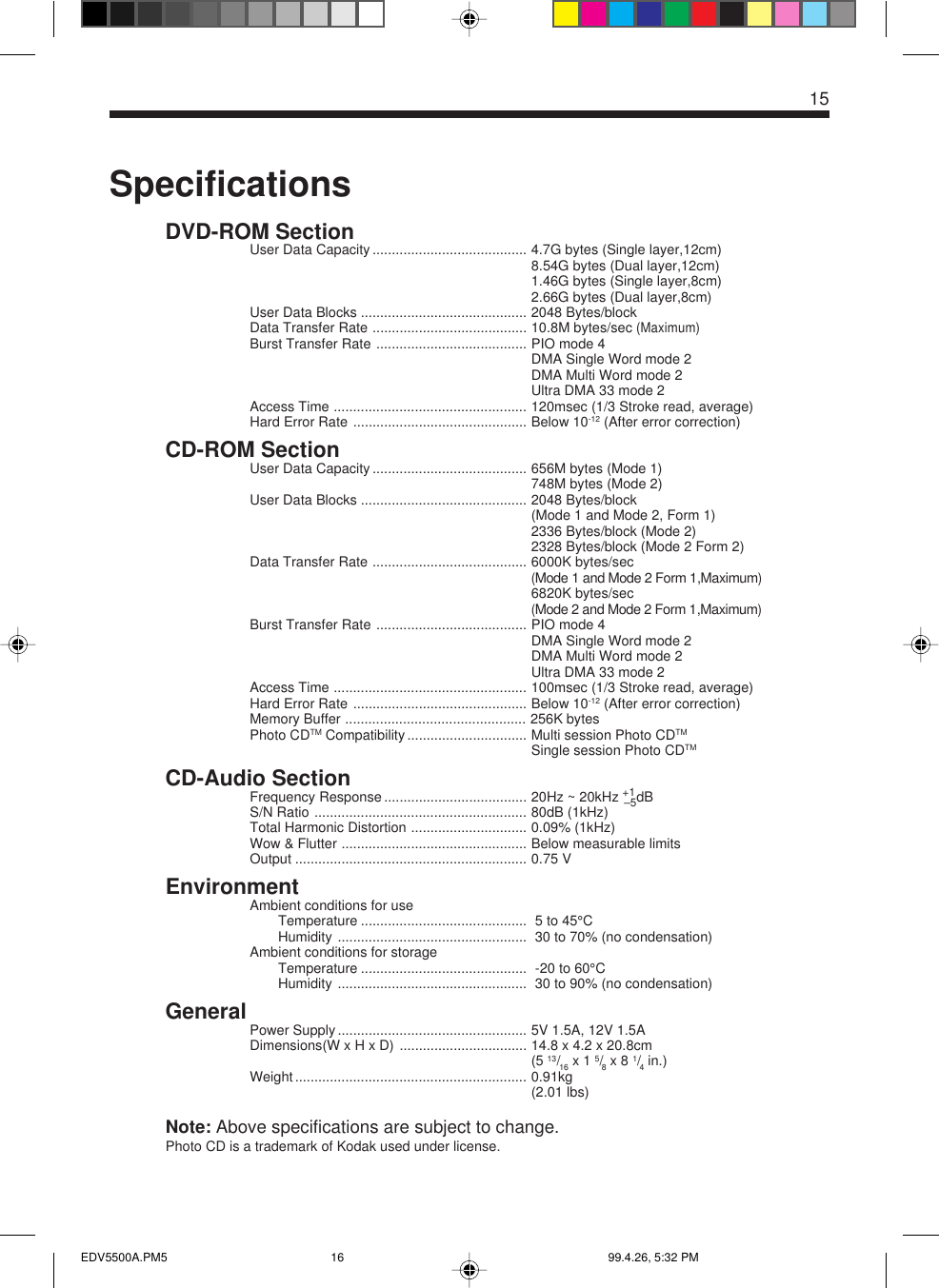

15SpecificationsDVD-ROM SectionUser Data Capacity ........................................ 4.7G bytes (Single layer,12cm)8.54G bytes (Dual layer,12cm)1.46G bytes (Single layer,8cm)2.66G bytes (Dual layer,8cm)User Data Blocks ........................................... 2048 Bytes/blockData Transfer Rate ........................................ 10.8M bytes/sec (Maximum)Burst Transfer Rate ....................................... PIO mode 4DMA Single Word mode 2DMA Multi Word mode 2Ultra DMA 33 mode 2Access Time .................................................. 120msec (1/3 Stroke read, average)Hard Error Rate ............................................. Below 10-12 (After error correction)CD-ROM SectionUser Data Capacity ........................................ 656M bytes (Mode 1)748M bytes (Mode 2)User Data Blocks ........................................... 2048 Bytes/block(Mode 1 and Mode 2, Form 1)2336 Bytes/block (Mode 2)2328 Bytes/block (Mode 2 Form 2)Data Transfer Rate ........................................ 6000K bytes/sec(Mode 1 and Mode 2 Form 1,Maximum)6820K bytes/sec(Mode 2 and Mode 2 Form 1,Maximum)Burst Transfer Rate ....................................... PIO mode 4DMA Single Word mode 2DMA Multi Word mode 2Ultra DMA 33 mode 2Access Time .................................................. 100msec (1/3 Stroke read, average)Hard Error Rate ............................................. Below 10-12 (After error correction)Memory Buffer ............................................... 256K bytesPhoto CDTM Compatibility............................... Multi session Photo CDTMSingle session Photo CDTMCD-Audio SectionFrequency Response ..................................... 20Hz ~ 20kHz +1–5dBS/N Ratio ....................................................... 80dB (1kHz)Total Harmonic Distortion .............................. 0.09% (1kHz)Wow & Flutter ................................................ Below measurable limitsOutput ............................................................ 0.75 VEnvironmentAmbient conditions for useTemperature ........................................... 5 to 45°CHumidity ................................................. 30 to 70% (no condensation)Ambient conditions for storageTemperature ........................................... -20 to 60°CHumidity ................................................. 30 to 90% (no condensation)GeneralPower Supply ................................................. 5V 1.5A, 12V 1.5ADimensions(W x H x D) ................................. 14.8 x 4.2 x 20.8cm....................................................................... (5 13/16 x 1 5/8 x 8 1/4 in.)Weight............................................................ 0.91kg....................................................................... (2.01 lbs)Note: Above specifications are subject to change.Photo CD is a trademark of Kodak used under license.EDV5500A.PM5 99.4.26, 5:32 PM16
