1. AP300 GENERAL

1.1. GENERAL

This installation Manual is valid for installing a DECT transceiver (AP300) to a wall in

horizontal or vertical position. The AP300 is designed for indoor use. When installing an

AP300 outdoors, please use the dedicated Outdoor Cabinet:

Note that there are two types of DECT Tranceivers::

 AP300 (with internal antennas).

 AP300E with directional antenna.

Note: The AP300E must always be installed/used in the outdoor cabinet! For more

information consult the manual for the Outdoor Cabinet for AP300.

1.2. COUNTRY SELECTION

The AP300 is equipped for EMEA, Latin America and North America. However, the DAP

Controller determines the frequency used and the power level. The DAP Controller is the

software that runs on a PC to control the AP300.

There are three types of DAP Controllers available for the AP300:

− DAP Controller – International.

This version is used in EMEA countries and countries that use the European

frequencies and power levels.

− DAP Controller - North America

This version is used in North America.

− DAP Controller - Selective Countries.

This version is used in countries with other frequency ranges than EMEA or North

America

Note: In North America, only the “DAP Controller - North America” will be delivered, so no

other frequencies than the North America frequencies and power levels are possible

in North America.

Note: In Europe, only the “DAP Controller - International” will be delivered, so no other

frequencies than the European frequencies and power levels are possible in

Europe.

4 AP300 Customer Engineer Manual March 2010

1.3. SITE REQUIREMENTS

Usually the Cabinets will be fixed to existing walls in the positions determined by the Site

Survey.

Do not mount the AP300 to a metal wall!

1.4. TEMPERATURE RANGES

The temperature range of the AP300 is:

- 0° to 45° C.

The outside temperature range for the AP300 (all types) mounted in the Outdoor Cabinet is

as follows:

Minimum outside temperature: -20° C

Maximum outside temperature: 45° C

1.5. CABLE SPECIFICATIONS FOR AP300 Types

The cabling to the AP300(E) is “Category 5” Ethernet cabling. The interface is defined as

an SELV interface according EN60950-1. For this reason the following safety restriction is

applicable:

Caution: The cabling and/or the AP300(E) may never be exposed to over-voltages (e.g.

lightning). Therefore, the AP300(E) and cabling associated with it may never

be installed outdoors! However there is an exception: if installed in the Outdoor

Cabinet, and the Outdoor Cabinet is mounted against a wall and the cable is

led directly indoors, it is permitted. For details about this specific installation

refer to the installation manual of the Outdoor Cabinet.

The power for the AP300(E) must be supplied via the Ethernet cable, PoE (IEEE 802.3af).

There is no room for a Mains Power adaptor inside the Outdoor Cabinet.

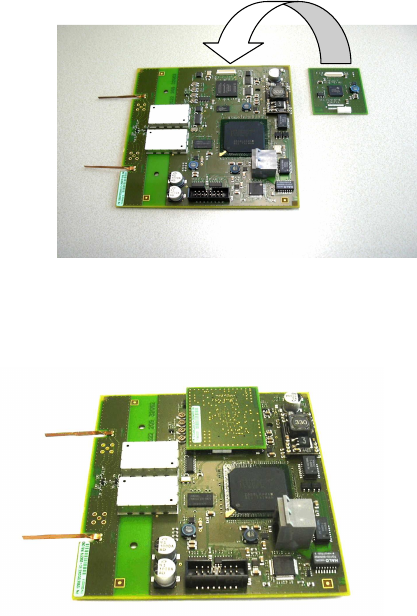

1.6. G.729 DAUGHTER BOARD

The AP300 does support the G.729 codec, but only if the G.729 Daughter Board is

installed.

March 2010 AP300 Customer Engineer Manual 5

If the G.729 Daughter Board is not installed, the AP300 supports only G.711u law or

G.711a law.

Installation of the Daughter Board is described in chapter 4. MOUNTING THE G.729

DAUGHTERBOARD.

1.7. VISUAL CHECK

The equipment must be carefully unpacked and examined for any visible sign of damage.

Anything not in order should be reported back to the supplier, as soon as possible, to avoid

delays during installing due to missing equipment.

1.8. HORIZONTAL OR VERTICAL MOUNTING

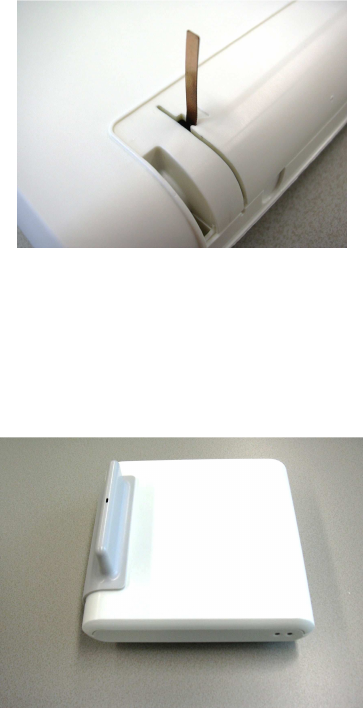

The AP300 can be mounted horizontally or vertically. When mounting vertically, you don’t

need top change the antenna position.

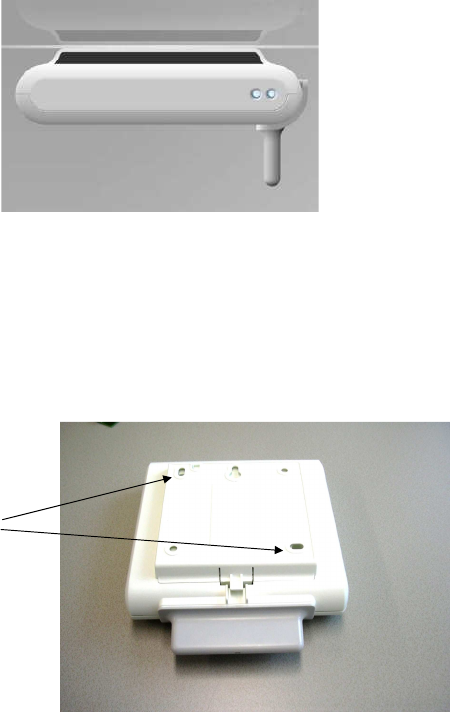

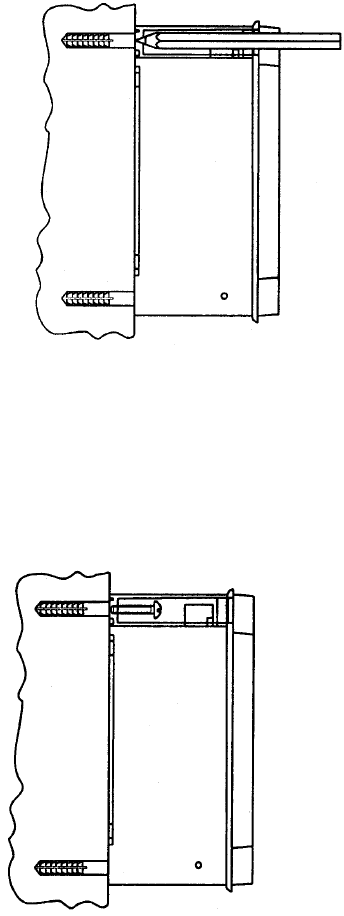

Figure 1. AP300 in vertical position.

When the AP300 must be mounted horizontally, the antenna position must be changed.

6 AP300 Customer Engineer Manual March 2010

Figure 2. AP300 mounted horizontally

1.9. INSTALLATION PROCEDURES

The installation of an Outdoor Cabinet comprises the installation of:

- Adjusting the Antenna position (if necessary).

- Mounting the G.729 Daughter Board (if applicable)

- Mounting the AP300 against the wall.

- Connecting directional antennas.

2. UNPACKING

Procedure for unpacking.

1. Open the card board box and take the AP300 out.

2. Check the AP300 on any damages.

3. Continue with one of the following Chapters:

− When you mount the AP300 vertically, the antenna position will normally be OK,

and when you do not need to install the G.729 Daughter Board, continue with

Chapter 5 MOUNTING THE AP300 AGAINST A WALL.

− When you mount the AP300 horizontally, you probably need to change the

antenna position. Consult Chapter 3. ADJUSTING THE ANTENNA POSITION.

− When you require G.729 codec support, you will have to install the G.729

Daughter Board. Consult Chapter 4. MOUNTING THE G.729 DAUGHTERBOARD

March 2010 AP300 Customer Engineer Manual 7

3. ADJUSTING THE ANTENNA POSITION

Note: You only need to change the antenna position when you mount the AP300

horizontally! In all other cases you don’t need to change the antenna position.

Figure 3. AP300 mounted horizontally

Procedure for Adjusting the Antenna position.

Note: Antenna position can be changed once. You should not change it back!

1. Remove the two screws from the rear side of the cabinet

Figure 4. Rear side of Cabinet.

Screws are

inside these

holes

8 AP300 Customer Engineer Manual March 2010

2. Open the cabinet CAREFULLY! Make sure that you shift the cover of the antenna’s

carefully from the antenna’s.

3. Take the antenna cover from the AP300 cover.

4. To put the antennas in vertical position, bend them carefully as shown in Figure 5.

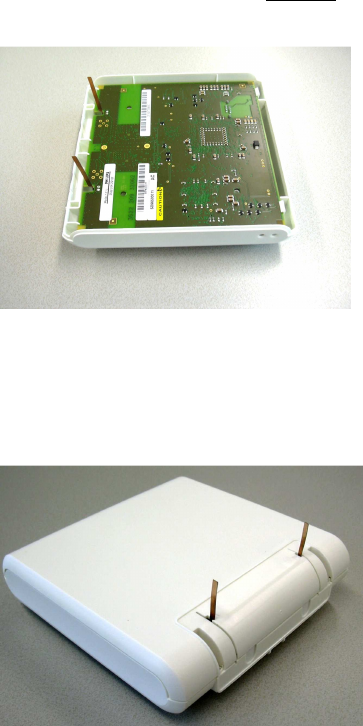

Bend Antennas carefully into vertical position.

Figure 5. Bend Antennas carefully into vertical position.

5. After the antennas are put in the vertical position, close the AP300 cabinet again. In

other words, put the AP300 cover back into position and secure the screws at the rear

side of the cabinet. See Figure 6. Antennas locked into Cover.

Figure 6. Antennas locked into Cover.

March 2010 AP300 Customer Engineer Manual 9

6. Make sure that the antennas are properly locked into the locks in the AP300 cover.

Figure 7. Detail of antenna in lock.

7. Move the antenna cover carefully over the antennas in the vertical position and make

sure that the antennas do not bend. When the antenna cover is in its position, push it

further into its position in the AP300 cabinet to fix it.

Figure 8. Cover installed.

8. Now your AP300 is ready to be installed.

10 AP300 Customer Engineer Manual March 2010

4. MOUNTING THE G.729 DAUGHTERBOARD

Follow the step-by-step procedure below, to install the G.729 daughter board.

1. Make sure that you have the G.729 Daughter board.

2. Open the cabinet. Use steps 4 till 6 in Chapter 3

3. Take the PWB out of the cabinet.

Note: Mind the light conductor for the LEDs. It can drop off!

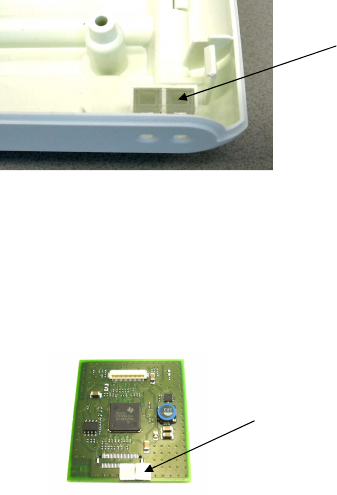

Figure 9. Light conductor for LEDs

4. Now you should have the AP300 PWB and the G.729 Daughter Board as separate

items.

5. Remove the protection foil from the sticky part on the G.729 Daughter Board.

Figure 10. G.729 Daughter Board with sticky foam

Sticky foam

LED Light

conductor

March 2010 AP300 Customer Engineer Manual 11

6. Mount the G.729 Daughter Board onto the main PWB. Push the Daughter Board

carefully onto the main board. The white connector should fit well. Make sure that the

sticky part sticks to the Main Board.

Figure 11. Mounting the G.729 Daughter Board onto the Main board.

Figure 12. G.729 Daughter Board on the Main Board

7. Put the AP300 together in the opposite way, mounting the PWB into the cabinet and

assembling the cabinet. Do not forget to mount the two screws back into the rear side

of the cabinet.

12 AP300 Customer Engineer Manual March 2010

5. MOUNTING THE AP300 AGAINST A WALL

Procedure for mounting the AP300 to the wall:

1. Remove the mounting plate from the AP300 cabinet.

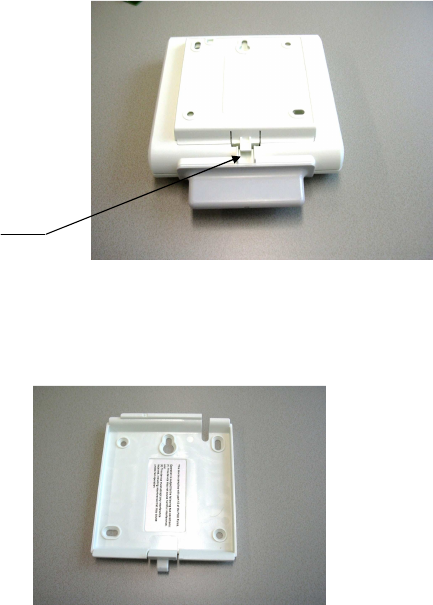

Figure 13. How to take the mounting plate off.

2. Mount the mounting plate to the wall.

Figure 14. Mounting plate..

3. Make sure that the CAT 5 cable to the cabinet has the correct length.

4. If necessary, mount the RJ45 connector to the cable using the tool for mounting an

RJ45 connector plug to a Category 5 cable. For standard colour schemes, consult

Chapter 7. WIRE COLOUR CODING FOR CATEGORY 5 CABLES.

Push clip up to

take mounting

plate off.

March 2010 AP300 Customer Engineer Manual 13

5. Lead the Cat 5 cable to the AP300 cabinet and connect the RJ45 connector. Push

the cable into the groove.

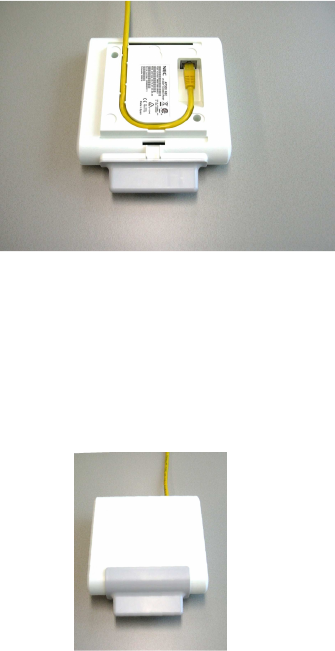

Figure 15. Cable at rear side of the cabinet.

6. Push the cabinet onto the mounting plate.

Note: When pushing the AP300 on to the mounting plate, make sure that you

hear/feel a distinct click. This indicates that the AP300 is firmly mounted to

the mounting plate.

Figure 16. AP300 mounted against the wall.

1.

14 AP300 Customer Engineer Manual March 2010

6. LEDs

6.1. LED Status

The AP300 is equipped with two LEDs.

Top LED – Yellow

This LED represents the status of the AP300. The indications are equal to the status

indication on the AP300 LED.

LED Status (Top LED, Yellow) Meaning

Off No power

0,5 seconds On - 0,5 seconds Off Loading software/firmware

Short flash every 0,25 seconds IP Network error (not connected, no DHCP/TFTP server, no DAP

Controller

Fast blink DAP operational, but trying to synchronize to another DAP

Continuous fast blink Hardware error

Steady On DAP operational (and synchronized to other DAP or is the

synchronization master).

Table 1. AP300 LED Status on top LED

Lower LED – Red/Green

This LED is used to indicate the start-up and network status.

LED Status (lower LED,

Red/Green)

Meaning

RED Steady on Power but FPGA starting up

RED flashing Trying to connect to the network

Green flashing Network status display and showing network activity

Off AP300 operational

Table 2. Lower LED status on the AP300.

March 2010 AP300 Customer Engineer Manual 15

6.2. LED Colours

The colour of the top LED might be different depending on the operational mode. The

following operational modes are distinguished:

• Normal (single band) mode

In the normal single band mode, the top LED will be Yellow.

• Dual Band Mode

In Dual Band mode, the LED colour shows the operational frequency:

• Green .... : Europe/International

• Red ........ : North America / USA

• Site Survey mode (only applicable for the AP300 in the Site Survey Kit.)

• Green .... : Europe/International

• Red ........ : North America / USA

• Blue ....... : Latam

• Magenta . : China and Thailand

16 AP300 Customer Engineer Manual March 2010

7. WIRE COLOUR CODING FOR CATEGORY 5 CABLES

This chapter shows you the normal colour coding for category 5 cables (4 pair) based on

the two standards supported by TIA/EIA: the 568A and 568B standard. These standards

apply to the colour code used with a single cable run: BOTH ENDS MUST USE THE

SAME STANDARD. Which standard to use is a matter of local decision. However, since

they both use the same pin out at the connectors you can mix 568A and 568B cables in

any installation.

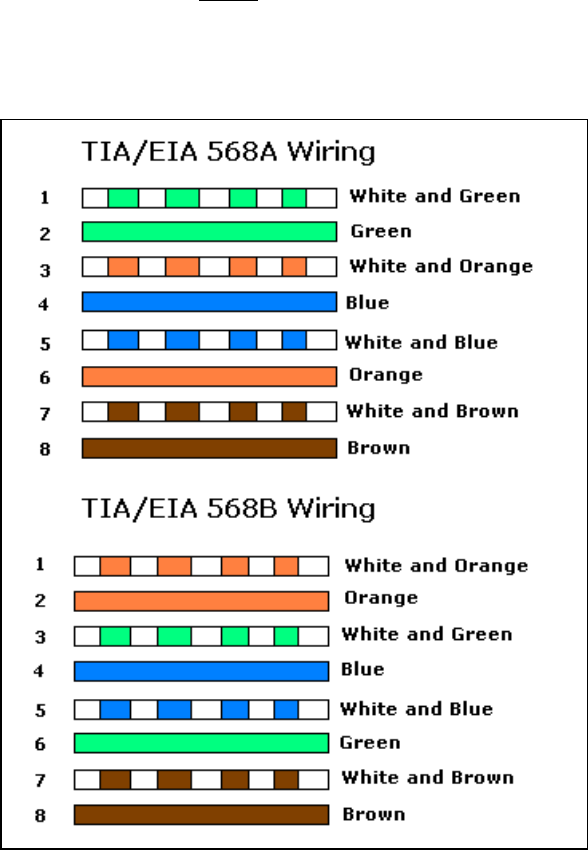

Figure 17 Colour Schemes for Wires in Category 5 Ethernet Cabling.

March 2010 AP300 Customer Engineer Manual 17

8. SPECIFICATIONS

Dimensions / Environment:

− Dimensions (W x D x H) ....... : 145 x 43 x 174

− Outside temperature range ... : 0° C . . . 45° C

− IP Specification .................... : In Outdoor Box = IP66

− Relative Humidity .................. : 5 . . . 95 %

PoE Specifications:

− Voltage at AP300 via PoE ... : 36 . . . . 57 V. DC

− PoE Class ............................. : Class 2

− Power Consumption ............. : 6 Watt maximum

IP Specifications:

− IP Network ............................ : 10/100Base-T IEEE802.3

− Connector: ............................ : RJ45

− Cable .................................... : Cat 5 UTP or better

− IP Version ............................. : IPv4

− DHCP/TFTP support............. : Yes

− Quality of Service .................. : IEEE802.1Q, IEEE802.1P

Audio Algorithm:

− AP300: .................................. : G.711

− AP300 with Daughter Board . : G.711 and G.729

Country/Region support:

− EMEA ................................... : 1880 – 1900 Mhz

− Latin America ........................ : 1910 – 1930 MHz

− North America ....................... : 1920 – 1930 MHz (3 dB lower output power)

Note: Country selection is determined by the DAP Controller Type! See section 1.2

COUNTRY SELECTION.

Outdoor Cabinet Isolated

For AP300 (all types)

Installation Manual

Issue: 03-03-2010

Part No.: 3522 xxx xxxxx

Issue: March 2010

Important

The equipment described in this manual should be installed and maintained

only by professional and qualified engineers in accordance with the procedures

and instructions described in this manual.

Regulatory information European Union

Declaration of Conformity

Hereby, “NEC Unified Solutions”, declares that this “AP300” is in compliance

with the essential requirements and other relevant provisions of Directive

1999/5/EC.

 http://www.nec-unified.com/doc

Product disposal information

The symbol depicted here has been affixed to your product in

order to inform you that electrical and electronic products

should not be disposed of as municipal waste.

Electrical and electronic products including the cables, plugs and

accessories should be disposed of separately in order to allow proper

treatment, recovery and recycling. These products should be taken to

a designated facility where the best available treatment, recovery and

recycling techniques are available. Separate disposal has significant

advantages: valuable materials can be re-used and it prevents the

dispersion of unwanted substances into the municipal waste stream.

This contributes to the protection of human health and the

environment.

Please be informed that a fine may be imposed for illegal disposal of

electrical and electronic products via the general municipal waste

stream.

In order to facilitate separate disposal and environmentally sound recycling

arrangements have been made for local collection and recycling. In case your

electrical and electronic products need to be disposed of please refer to your

supplier or the contractual agreements that your company has made upon

acquisition of these products.

For countries outside the European Union

Disposal of electrical and electronic products in countries outside the European

Union should be done in line with the local regulations. If no arrangement has

been made with your supplier, please contact the local authorities for further

information.

Regulatory information United States

This device contains functions which are not operational in US territories

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Modifications not expressly approved by the manufacturer could void the user’s

authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the equipment.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.”

Privacy of communications may not be ensured when using this equipment.

Exposure to Radio Frequency (RF) Signals:

This base station is a radio transmitter and receiver. It is designed and

manufactured not to exceed the emission limits for exposure to radio frequency

(RF) energy set by the OET Bulletin 65 Supplement C. These limits are part of

comprehensive guidelines and establish permitted levels of RF energy for the

general population. The guidelines are based on the safety standards

previously set by international standards bodies. These standards include a

substantial safety margin designed to assure the safety of all persons,

regardless of age and health.

This device with internal antennas must provide a separation distance of at

least 20 cm from all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

Regulatory information Canada

Operation of this device is subject to the following two conditions: (1) this

device may not cause any interference and (2) this device must accept any

interference, including interference that may cause undesired operation of the

device.

Exposure to Radio Frequency (RF) Signals:

This wireless device is a radio transmitter and receiver. It is designed and

manufactured not to exceed the emission limit for exposure to radio frequency

(RF) energy set by the Ministry of Health (Canada), Safety Code 6. These limits

are part of comprehensive guidelines and established permitted levels of RF

energy for the general population. These guidelines are based on the safety

standards previously set by international standards bodies. These standards

include a substantial safety margin designed to assure the safety of all persons,

regardless of age and health. This device and its antenna must not be co-

located or operating in conjunction with any other antenna or transmitter.

Privacy of communications may not be ensured when using this equipment.

March 2010 Outdoor Cabinet Installation Manual 1

CONTENTS

1. GENERAL REMARKS ........................................................................................ 2

1.1. TOOLING ............................................................................................................ 2

1.2. SITE

REQUIREMENTS ...................................................................................... 2

1.3. TEMPERATURE

RANGES ................................................................................. 2

1.4. CABLE

SPECIFICATIONS

FOR

AP300

T

YPES

................................................... 3

1.5. VISUAL

CHECK .................................................................................................. 3

1.6. INSTALLATION

PROCEDURES ......................................................................... 3

2. INSTALLING AP300 WITH INTERNAL ANTENNAS ......................................... 4

3. INSTALLING A DAP/RFP WITH EXTERNAL ANTENNAS .............................. 10

4. WIRE COLOUR CODING FOR CATEGORY 5 CABLES ................................. 20

5. SPECIFICATIONS ............................................................................................ 21

2 Outdoor Cabinet Isolated - Installation Manual March 2010

1. GENERAL REMARKS

This installation Manual is valid for installing a DECT transceiver (AP300) in an Outdoor

Cabinet. The Outdoor Cabinet is designed for the following transmitter/receiver

(transceiver) types:

 DAP (DECT Access Point) types: AP300 (with internal antennas).

 DAP types: AP300E with directional antenna.

1.1. TOOLING

The following tools are required for the installation:

• An ordinary set of tools, comprising such things as screwdrivers and pliers.

• A drill for fixing a Cabinet to a wall.

• A drill for drilling a hole in the cabinet for the cable swivel. This drill must be 12 mm.

• A tool for mounting an RJ45 connector to the “Category. 5” Ethernet cable.

• An SMA Torque Wrench for securing the coax connector nuts (only in case of the

AP300E with external (directional) antenna).

• A sharp knife for cutting the foam in the Outdoor box (only in case of the AP300E

with external directional antenna).

The following installation materials are needed:

• Four screws to mount the cabinet to the wall.

• If mounted to a brick wall or plaster wall, make sure you have four correct “plugs”

where the screws fit into.

• RJ45 connector plug.

1.2. SITE REQUIREMENTS

Usually the Cabinets will be fixed to existing walls in the positions determined by the Site

Survey.

1.3. TEMPERATURE RANGES

The outside temperature range for the AP300 (all types) mounted in the Outdoor Cabinet is

as follows:

Minimum outside temperature: -20° C

Maximum outside temperature: 45° C

March 2010 Outdoor Cabinet Installation Manual 3

1.4. CABLE SPECIFICATIONS FOR AP300 Types

The cabling to the AP300(E) is “Category 5” Ethernet cabling. However, the cabling (and

AP300(E)) is submitted to the following safety restriction:

Caution: The cabling and/or the AP300(E) may never be exposed to over-voltages (e.g.

lightning). Therefore, the AP300(E) and cabling associated with it may never

be installed outdoors! However there is an exception: if installed in the Outdoor

Cabinet, and the Outdoor Cabinet is mounted against a wall and the cable is

led directly indoors, it is permitted.

The power for the AP300(E) must be supplied via the Ethernet cable, PoE (IEEE 802.3af).

There is no room for a Mains Power adaptor inside the Outdoor Cabinet.

1.5. VISUAL CHECK

The equipment must be carefully unpacked and examined for any visible sign of damage.

Anything not in order should be reported back to the supplier, as soon as possible, to avoid

delays during installing due to missing equipment.

1.6. INSTALLATION PROCEDURES

The installation of an Outdoor Cabinet comprises the installation of:

- Fixing the Cabinet to a wall.

- Installing the AP300(E) in the Cabinet.

- Connecting the Ethernet cable.

4 Outdoor Cabinet Isolated - Installation Manual March 2010

2. INSTALLING AP300 WITH INTERNAL ANTENNAS

Procedure for installing the Outdoor Box with AP300 with internal antennas:

1. Open the Cabinet. To open the cabinet, use a screw driver that fits into the four

plastic screws at the front side of the cabinet. Unfasten the screws.

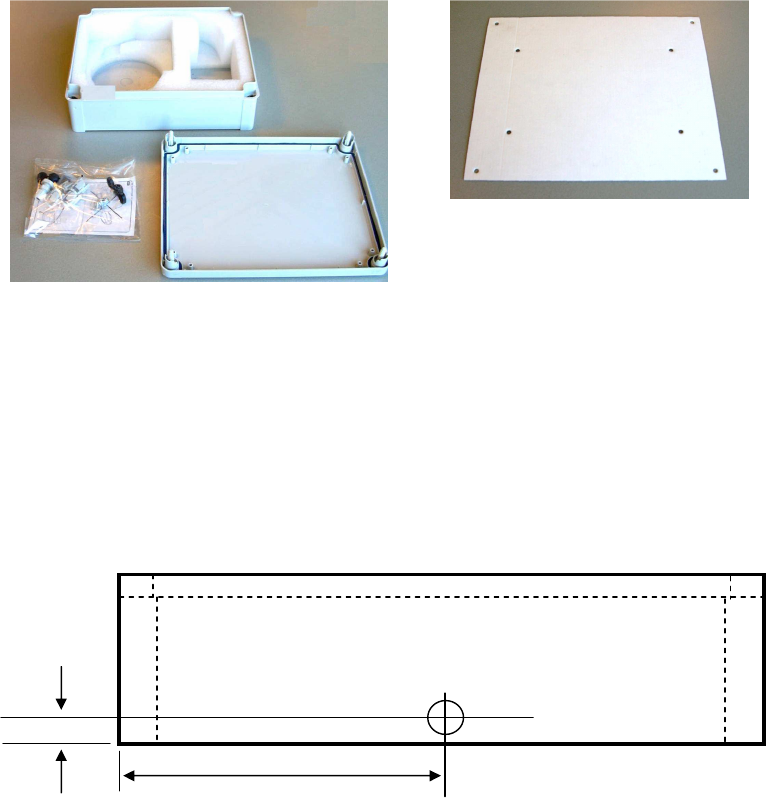

2. Remove the cover from the cabinet. The contents of the cabinet is shown in Figure 1.

Contents of the box.

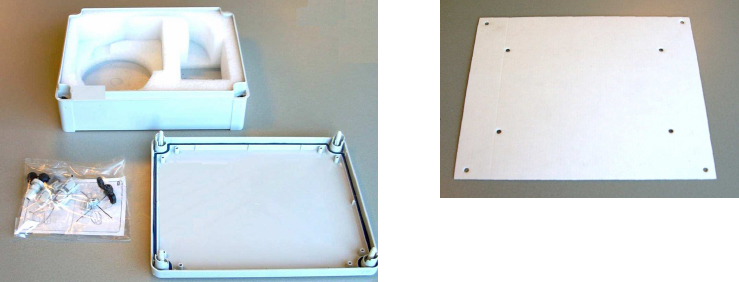

Figure 1. Contents of the box.

3. Remove the foam contents from the cabinet.

4. At the right hand side of the cabinet, you will have to drill a hole for the cable inlet.

Mark the hole as follows:

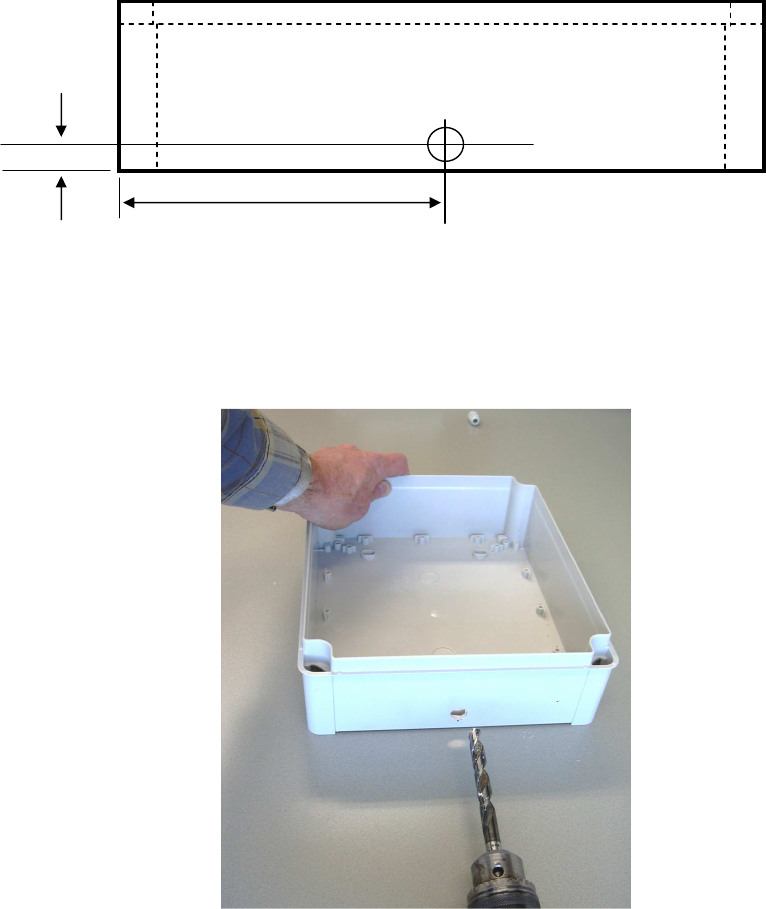

Figure 2. Position of the hole in the cabinet.

Right side of cabinet

117 mm

16 mm

March 2010 Outdoor Cabinet Installation Manual 5

5. Drill a hole for the swivel. Use a 12 mm drill.

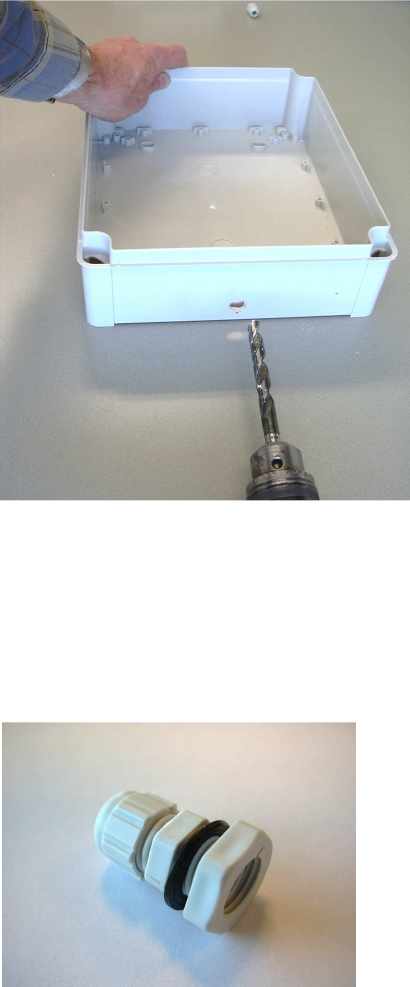

Figure 3. Drilling the hole (12 mm)

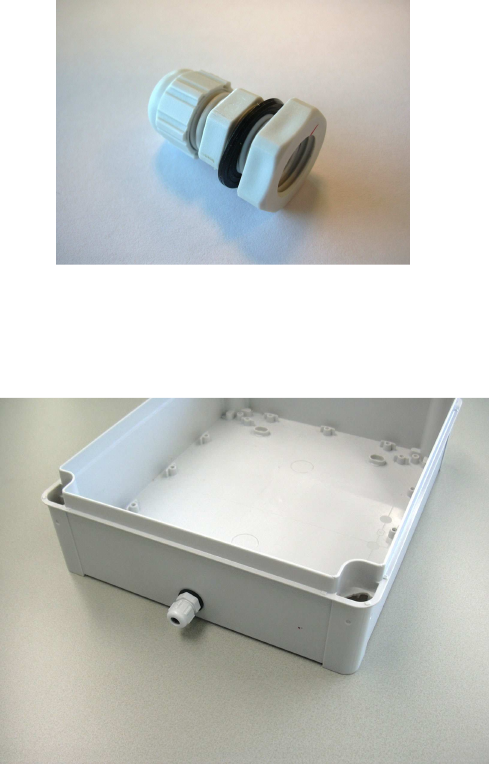

6. Mount the swivel in the hole that you have drilled. Do not forget to install the rubber

ring to seal the conjunction between the swivel and the cabinet. The conjunction must

be waterproof.

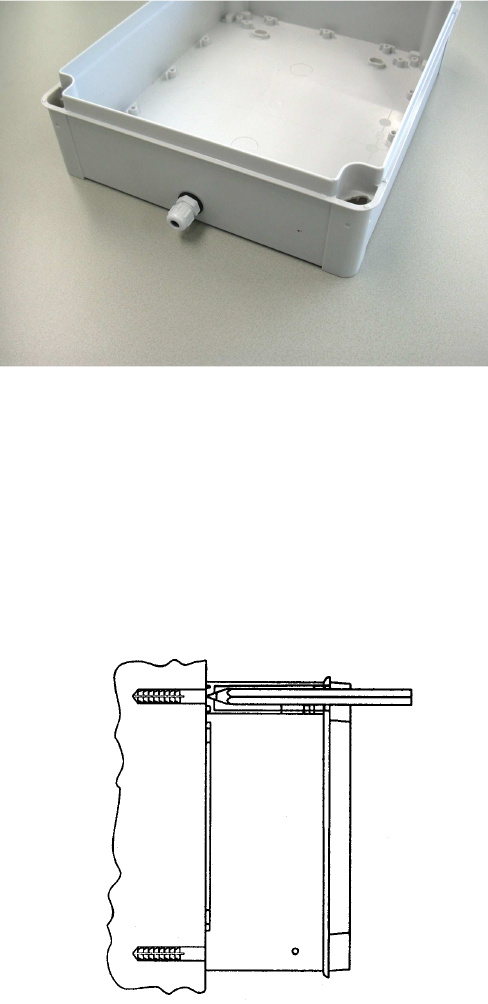

Figure 4. Swivel with black rubber ring.

6 Outdoor Cabinet Isolated - Installation Manual March 2010

Figure 5. Swivel mounted to the cabinet.

7. Put the foam back into the cabinet.

8. Keep the cabinet in the correct position against the wall and mark the mounting holes

in the corners of the cabinet on the wall. If necessary use the template that was

delivered with the cabinet.

Figure 6. Marking the corner holes on the wall.

March 2010 Outdoor Cabinet Installation Manual 7

9. Drill the holes in the wall using an appropriate drill that is applicable for the wall.

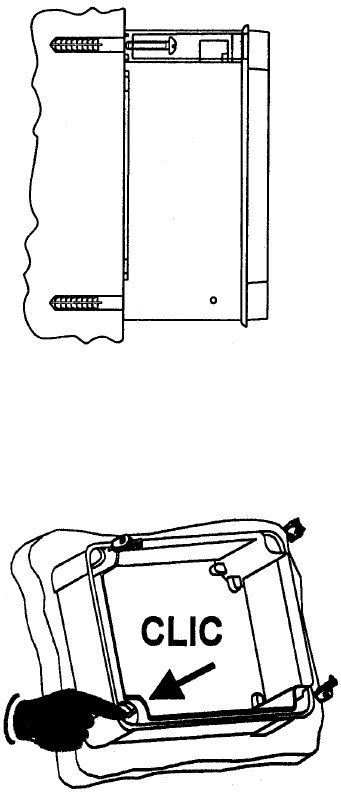

10. Mount the cabinet to the wall. Use appropriate screws and plugs.

Figure 7. Mounting the cabinet to the wall.

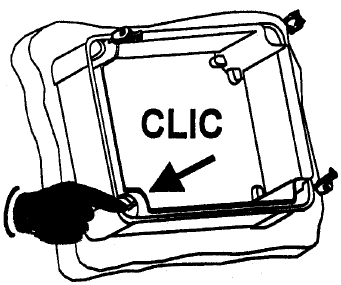

11. Push the special nuts that came with the cabinet into the corner holes of the cabinet.

Figure 8. Pushing the special nuts in place in the corners of the cabinet.

12. Lead the cable via the swivel into the cabinet. Note: the cable length in the cabinet

must be 20 cm (this includes the RJ45 connector which you have to mount to the

cable later on.).

Note: At the outside of the box, the cable must be led directly from the cabinet into

the building to avoid exposing the cable to lightning.

13. Tighten the cable inlet on the swivel and make sure that the cable inlet is waterproof.

8 Outdoor Cabinet Isolated - Installation Manual March 2010

14. Lead the cable to the AP300 and mount the RJ45 connector to it using the tool for

mounting an RJ45 connector plug to a Category 5 cable. For standard colour

schemes, consult Chapter 4. WIRE COLOUR CODING FOR CATEGORY 5

CABLES.

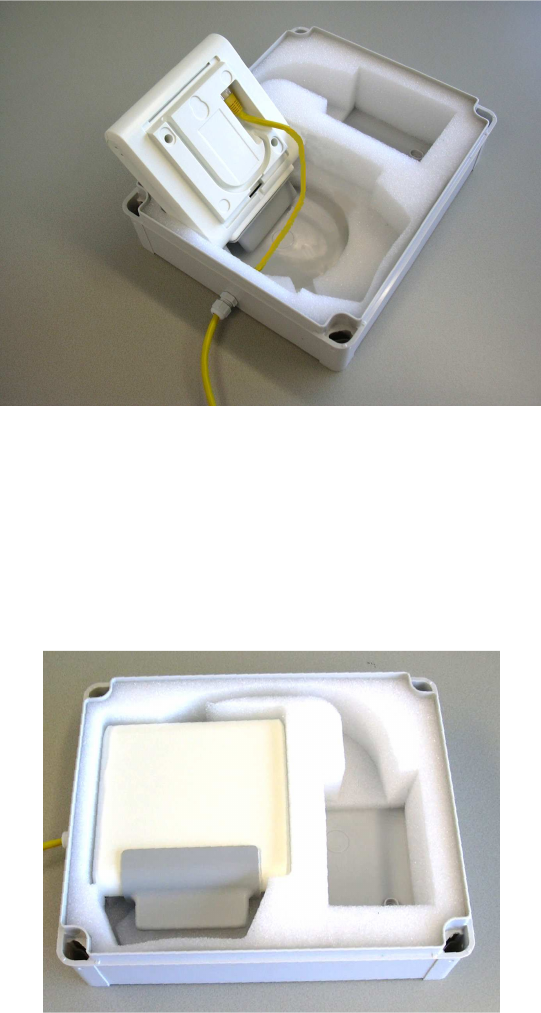

Figure 9. Cable run in the Cabinet.

15. If not yet done, connect the RJ45 connector to the AP300 (at the rear side) and push

the Category 5 Ethernet cable into the round foam-free area in the rear side of the

cabinet.

16. Push the AP300 into its position in the foam.

Figure 10. AP300 in it’s position in the cabinet.

March 2010 Outdoor Cabinet Installation Manual 9

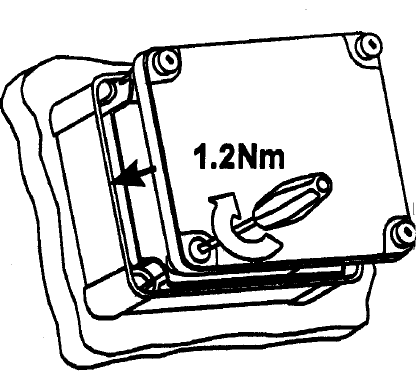

17. Mount the cover of the cabinet onto the cabinet with the four plastic screws in each

corner of the cover. The cabinet is now closed.

Figure 11. Mounting the cover.

10 Outdoor Cabinet Isolated - Installation Manual March 2010

3. INSTALLING A DAP/RFP WITH EXTERNAL ANTENNAS

Before you start installing the cabinet, make sure that you have the installation materials as

described in Section 1.1 TOOLING

Also make sure that you have the AP300E version together with the Directional antenna

and two equal cables for connecting the directional antenna to the AP300E.

Procedure for installing the Outdoor Box with AP300E with directional antenna:

1. Open the Cabinet. To open the cabinet, use a screw driver that fits into the four

plastic screws at the front side of the cabinet. Unfasten the screws.

2. Remove the cover from the cabinet. The contents of the cabinet is shown in Figure

12. Contents of the box.

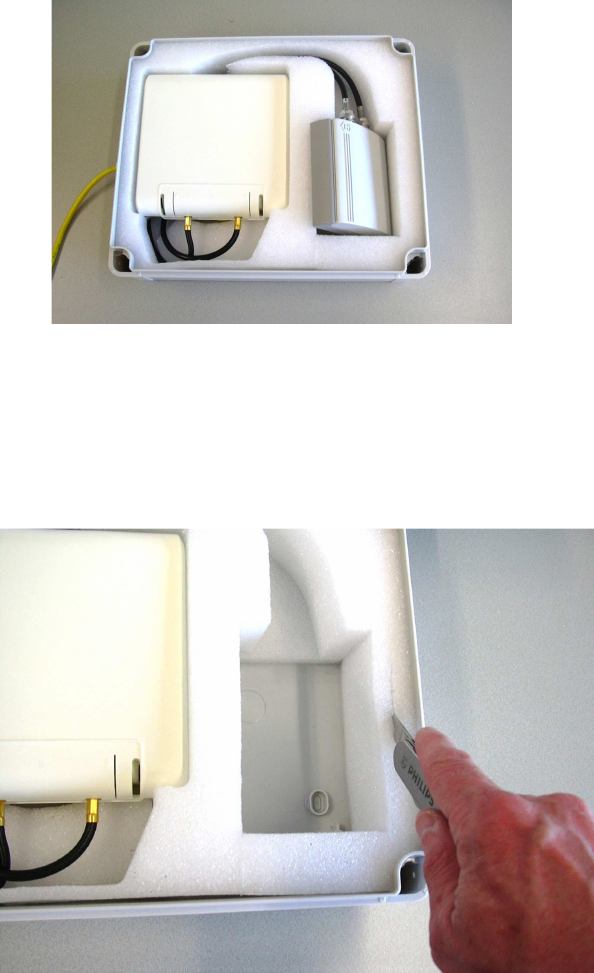

Figure 12. Contents of the box.

3. Remove the foam contents from the cabinet.

4. At the right hand side of the cabinet, you will have to drill a hole for the cable inlet.

Mark the hole as follows:

March 2010 Outdoor Cabinet Installation Manual 11

Figure 13. Position of the hole in the cabinet.

5. Drill a hole for the swivel. Use a 12 mm drill.

Figure 14. Drilling the hole (12 mm)

Right side of cabinet

117 mm

16 mm

12 Outdoor Cabinet Isolated - Installation Manual March 2010

6. Mount the swivel in the hole that you have drilled. Do not forget to install the rubber

ring to seal the conjunction between the swivel and the cabinet. The conjunction must

be waterproof.

Figure 15. Swivel with black rubber ring.

Figure 16. Swivel mounted to the cabinet.

7. Put the foam back into the cabinet.

8. Keep the cabinet in the correct position against the wall and mark the mounting holes

in the corners of the cabinet on the wall. If necessary use the template that was

delivered with the cabinet..

March 2010 Outdoor Cabinet Installation Manual 13

Figure 17. Marking the corner holes on the wall.

9. Drill the holes in the wall using an appropriate drill that is applicable for the wall.

10. Mount the cabinet to the wall. Use appropriate screws and plugs.

Figure 18. Mounting the cabinet to the wall.

11. Push the special nuts that came with the cabinet into the corner holes of the cabinet.

14 Outdoor Cabinet Isolated - Installation Manual March 2010

Figure 19. Pushing the special nuts in place in the corners of the cabinet.

12. Lead the cable via the swivel into the cabinet. Note: the cable length in the cabinet

must be 20 cm (this includes the RJ45 connector which you have to mount to the

cable later on).

Note: At the outside of the box, the cable must be led directly from the cabinet

into the building to avoid exposing the cable to lightning.

13. Tighten the cable inlet on the swivel and make sure that the cable inlet is waterproof.

14. Mount the RJ45 connector to the cable using the tool for mounting an RJ45 connector

plug to a Category 5 cable. For standard colour schemes, consult Chapter 4. WIRE

COLOUR CODING FOR CATEGORY 5 CABLES.

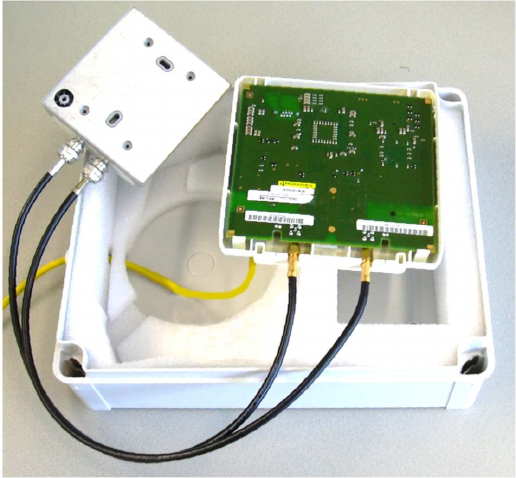

15. Open the AP300E box by means of removing the two screws at the rear side of the

AP300E.

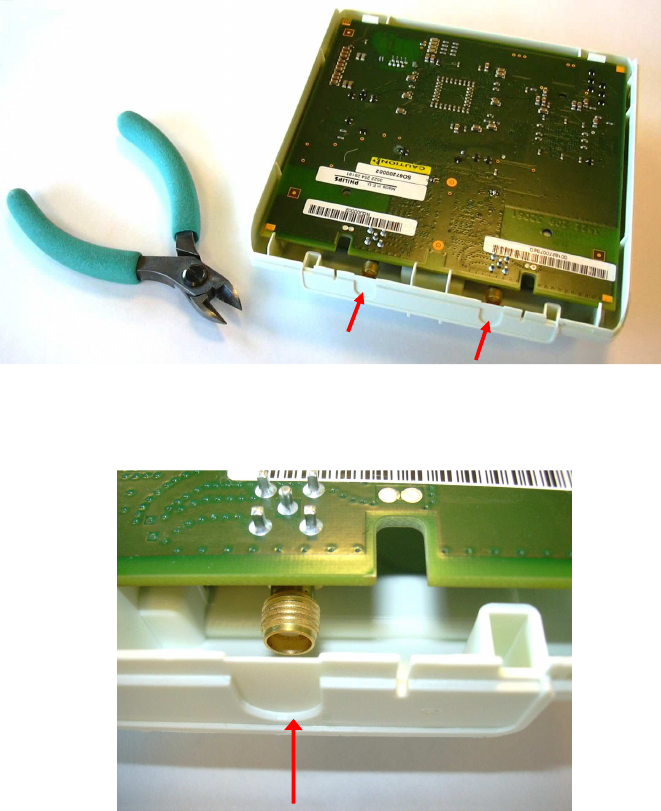

16. Use a small pair of tongs to open the predefined holes in the AP300 cabinet.

March 2010 Outdoor Cabinet Installation Manual 15

Figure 20. AP300 cabinet and pair of tongs.

Figure 21. Detail of the AP300 of predefined hole in the AP300 cabinet.

17. Connect the RJ45 ethernet plug to the AP300E and mount the antenna cables to it.

Also connect the other end of the cables to the Directional antenna.

Note: Use the SMA Torque Wrench to fasten the coax nuts on the AP300E.

Otherwise you can easily damage the screw-thread.

16 Outdoor Cabinet Isolated - Installation Manual March 2010

Figure 22. Connecting the cables to the AP300E

18. Close the AP300E box and mount the two screws at the rear side of the AP300E box.

19. Connect the RJ45 connector to the AP300 (at the rear side).

20. Push the AP300E into its position in the foam.

March 2010 Outdoor Cabinet Installation Manual 17

21. Lead the coax antenna cables via the top side of the foam and determine the position

of the directional antenna. Note that the hole in the foam is not big enough for the

antenna. This is done on purpose, in order to allow various positions of the direction

antenna.

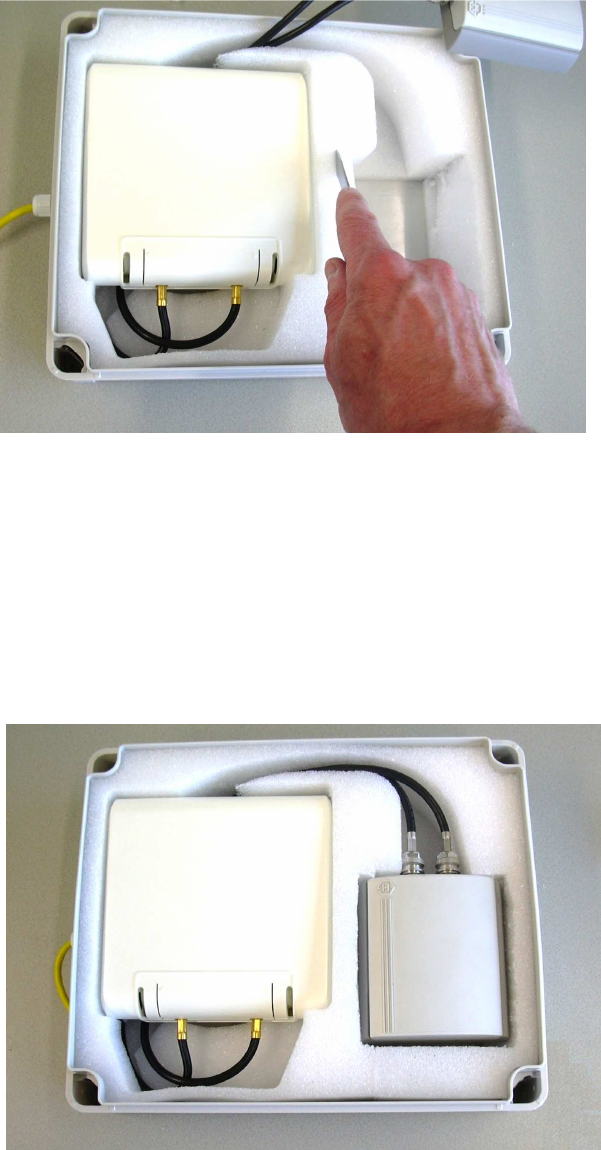

Figure 23. Antenna does not fit into the hole.

22. Cut the hole for the directional antenna to the correct size, to be able to push the

antenna in the hole.

Figure 24. Cutting the foam to allow the antenna to fit into it, in the required position.

18 Outdoor Cabinet Isolated - Installation Manual March 2010

Figure 25. Cutting the foam to allow the antenna to fit into it, in the required position.

23. Lead the coax cables to the antenna via the groove in the top of the foam and push

the antenna into its final position into the foam.

Note: You can change the position of the antenna to the required position in the

foam, by means of turning the antenna or giving it some tilt.

Figure 26. AP300 and directional antenna in their positions.

March 2010 Outdoor Cabinet Installation Manual 19

24. Mount the cover of the cabinet onto the cabinet with the four plastic screws in each

corner of the cover. The cabinet is now closed.

Figure 27. Mounting the cover.

20 Outdoor Cabinet Isolated - Installation Manual March 2010

4. WIRE COLOUR CODING FOR CATEGORY 5 CABLES

This chapter shows you the normal colour coding for category 5 cables (4 pair) based on

the two standards supported by TIA/EIA: the 568A and 568B standard. These standards

apply to the colour code used with a single cable run: BOTH ENDS MUST USE THE

SAME STANDARD. Which standard to use, is a matter of local decision. However, since

they both use the same pin out at the connectors you can mix 568A and 568B cables in

any installation.

Figure 28 Colour Schemes for Wires in Category 5 Ethernet Cabling.

March 2010 Outdoor Cabinet Installation Manual 21

5. SPECIFICATIONS

Dimensions (W x H x D) ............. : 275 x 225 x 80

Outside temperature range ........ : -20° C . . . 45° C

IP Specification ......................... : IP66

NEC Nederland AP300E-001 IP-DECT access point with optional G7A - G.729 compression and external antennas User Manual UserMan

NEC Nederland B.V. IP-DECT access point with optional G7A - G.729 compression and external antennas UserMan

UserMan

Navigation menu

Namespaces

Views

Navigation
