Small size 2.4GHz wireless transceiver module
「ZB24TM-E2036」
The ZB24TM-E2036 is a 2.4GHz Low power wireless transceiver module. The module
contains all required hardware and software to evaluate and develop wireless
communication based on IEEE 802.15.4 PHY.

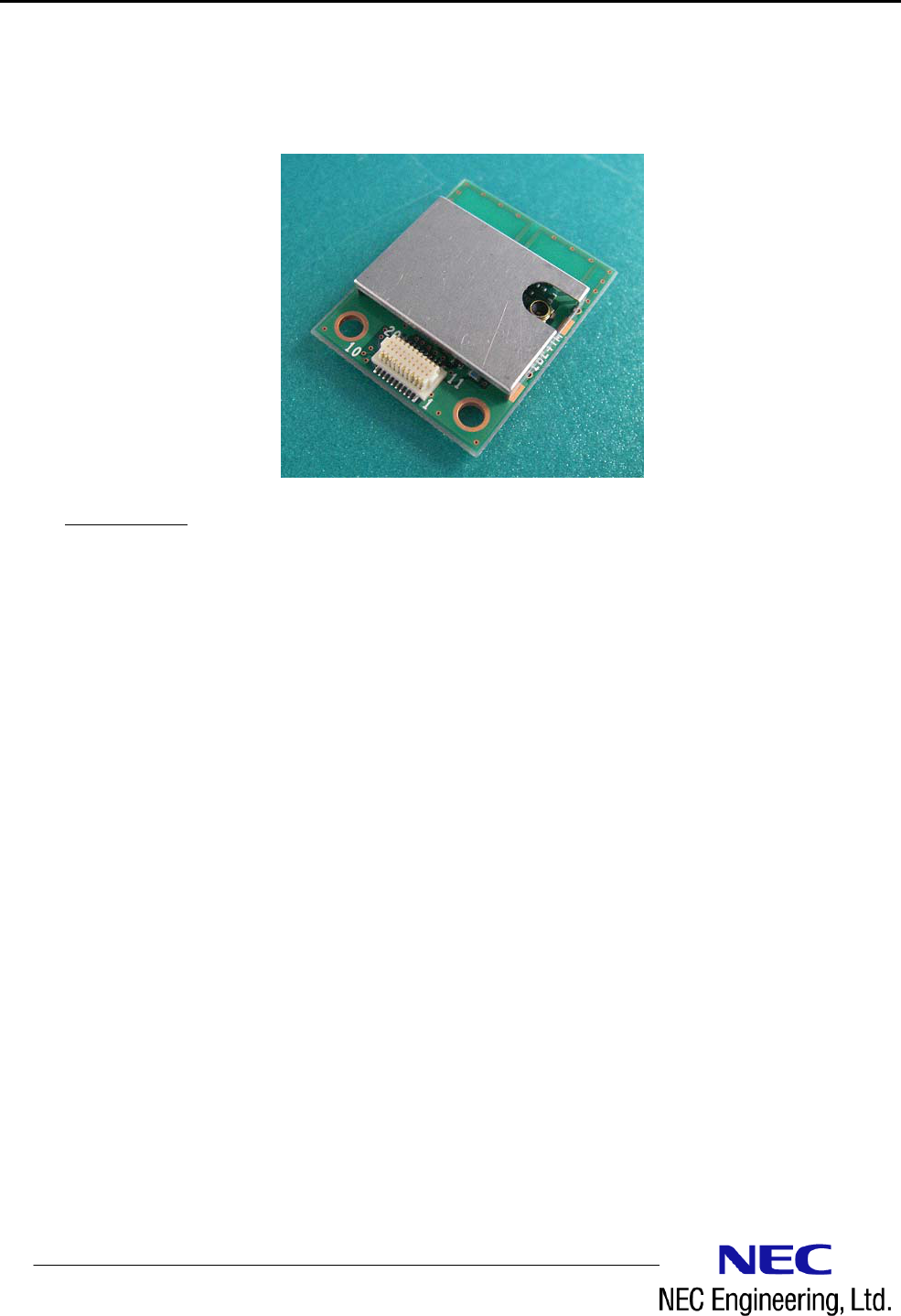

UProduct Photo
＜ Feature＞
・ Integrated by MCU, RF circuits, antenna
・ Equipped with a high performance pattern antenna.
・ Communicated by the functions of device detect and data transmission
・ Based on IEEE802.15.4.PHY
・ 1:N communication style
・ Controlled by UART I/F
・ Low power sleep mode
・ DC3.0V supply voltage
・ Certified Japan Radio Law
資料番号 IT471-A0095-M513
発行年月日 Oct 2012 （Rev1.1）
＜Block diagram＞
＜Dimensions＞
RF +
antenna matching circuit
MCU
External I/F
antenna
UART I/F(TxD,RxD)
(RTS,CTS)
ModuleReset(RESET)
VCC
GND
RF
Connector
Unit：mm
TOP View Side View Bottom View
20
p
in Stackin
g
Connector
Case
資料番号 IT471-A0095-M513
発行年月日 Oct 2012 （Rev1.1）
＜output I/F connector＞
connector type ： Stacking connector 20pin 0.5mm pitch
product name ： JST 20R-JMCS-G-TF(NSA) Receptacle
Signal level ：CMOS
Customer ： Recommended connector
JST 20P3.0-JMCS-G-TF(N) Plug
Stacking height 3mm
・Module pin definitions
Pin
No. Pin name Type Definition State of
reset Detail
1 VCC power Power － DC3.0Ｖ(Recommend power supply voltage)
2 GND GND GND －
3 TxD OUT UART data transmit HiZ
4 RxD IN UART data receive HiZ
5 WAKEUP IN WAKEUP input － Internal Pullup
Sleep mode enable = High /disable = Low input
6 RESET IN RESET input － Internal Pullup
RESET Low input
7 Reserved － Reserved － n.c
8 Reserved － Reserved － n.c
9 Reserved － Reserved － n.c
10 Reserved － Reserved － n.c
11 VCC power power － DC3.0Ｖ(Recommend power supply voltage)
12 GND GND GND －
13 GND GND GND －
14 CTS － Clear to send － n.c
15 RTS － Ready to send － n.c
16 Reserved － Reserved － n.c
17 Reserved － Reserved － n.c
18 Reserved － Reserved － n.c
19 MODE OUT Mode output － Normal mode = Low / sleep mode =High output
20 GND GND GND －
資料番号 IT471-A0095-M513
発行年月日 Oct 2012 （Rev1.1）
＜Specification＞
Product name ZB24TM-E2036
Carrier frequency 2405ＭＨｚ～2480ＭＨｚ （16 channel）
Communication protocol Original protocol
Modulation DS-SS (Direct Sequence Spectrum Spread)
Wireless bit rate Maximum 250Kbps （Subject to the communication environment）
Transmit Power Maximum 3mW (At the feeding point of the antenna)
Outdoor RF
line-of-sight Range
About 200m （Reference value）
Interface ・Serial communication
Baud rate : Maximum 230.4kbps
Data length: 8bit
Parity: no parity
Stop: 1stop bit
Flow control: no flow control
Supply Voltage ・DC 3.0V (Recommended)
・DC 2.1V～3.6V
Current Consumption ・TX: Typ. 35mA
・RX: Typ. 28mA
・Sleep Mode : Typ. 1uA
(power-supply voltage DC 3.0Ｖ)
Operating conditions ・Operating temperature range：-20℃～+75℃
・Operating humidity range：85%RH or less （No do be dewy）
Weight About 2g
Dimensions 25mm×20mm×3.9mm （D×W×H）
Restrictions RoHS-Compliant (Pb free)
Radio Law Japan Radio Law certification
資料番号 IT471-A0095-M513
発行年月日 Oct 2012 （Rev1.1）
＜FCC statement＞
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Modifications not expressly approved by NEC Engineering, Ltd. could void the user's authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Radiofrequency radiation exposure Information:
The radiated output power of the device is far below the FCC radio frequency exposure limits.
Nevertheless, the device shall be used in such a manner that the potential for human contact during
normal operation is minimized.
