ZTⅢ INSTALLATION GUIDE
FCC PART 15
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
SAFETY
This equipment has been tested for safety and found to comply with all applicable
requirements of UL/CSA 60950-1.
Warning
Note to installers: In order to comply with the FCC RF exposure requirements ZT must
be installed with a minimum separation distance of 20 cm from the antennas to the
user or nearby persons.
Install on a secured mounting surface. Take care to attach unit securely.
This device may suffer damage if dropped.
ZT contains two antennas for diversity purposes, only one antenna transmits during
normal operation.
Notice
This document contains proprietary information and may not be reproduced in any
form without express written consent of NEC Corporation. The information contained
herein is subject to change without notice at the discretion of NEC Corporation.
Radio specifications
Frequency range : 1920.35 – 1929.65Mz
Communication Channels : 3 per ZT simultaneous
NEC Infrontia Corporation
ISSUE 1 Printed in Japan

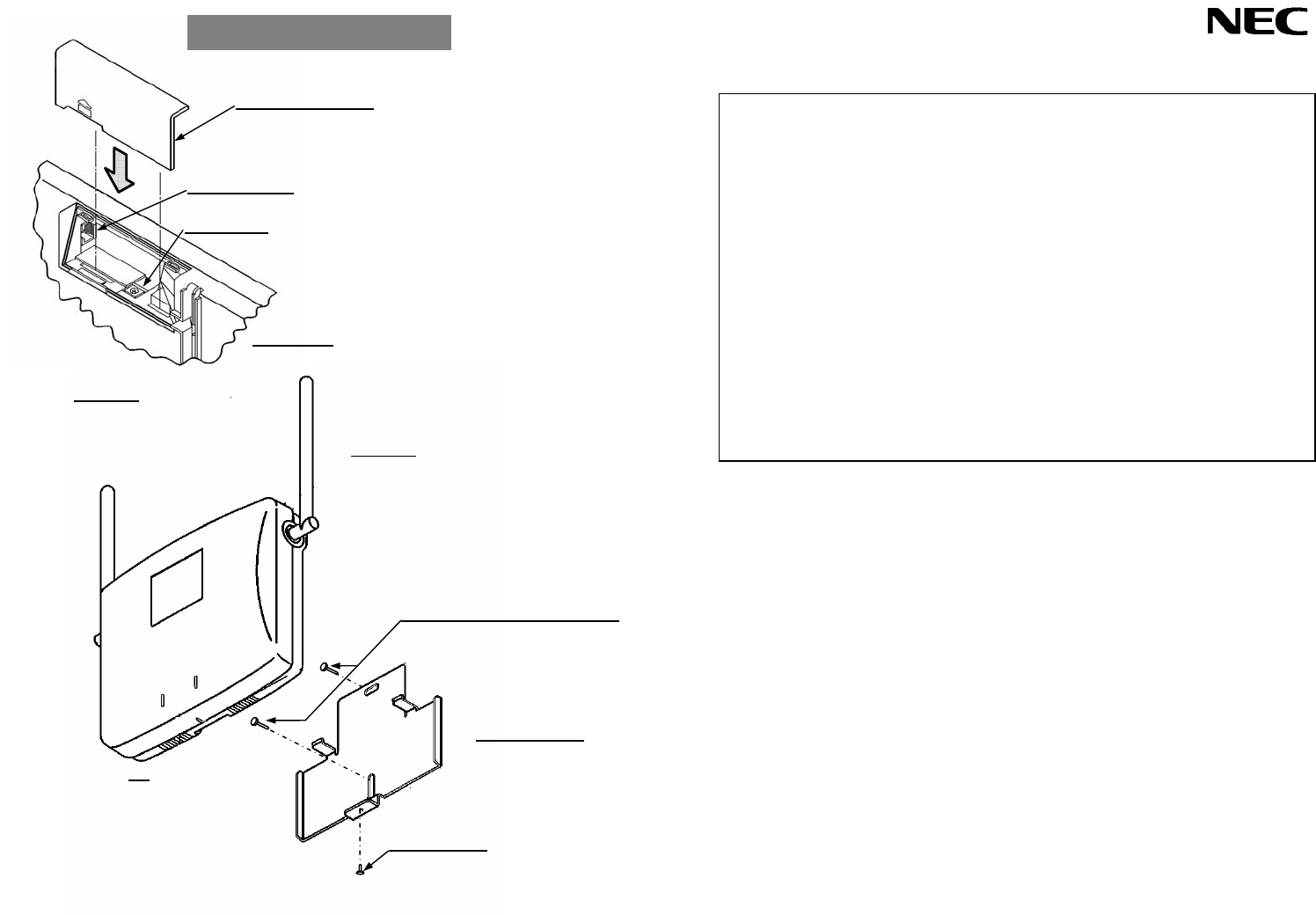

1. Connect the telephone line.
2. Connect the AC adaptor.
(The AC adaptor may be required in some
conditions. Please contact service personnel
for detailed information.)
3. Slide the connector cover to the direction
of the arrow, and put in it.
Connector cover
Modular jack
Rear view
Attention
Over 3.9 inches / 100 mm
Leave space for the antenna.
Screw of ZT
Screw of the mounting tag
Mounting tag
ZT
DC in jack
1. Screw the mounting tag on the wall.
2. Attach the ZT to the mounting tag.
3. Screw the bottom of ZT to the mounting tag.
Attention
When the wall material is weakly,
First, pit the wall.
Second, insert the anchor into the hole.
Third, screw the mounting tag to
the anchor of the wall.
(Ex. Gypsum board)
Att
ac
h
men
t
mo
d
e
l
