NEG TECHNOLOGY F1020D Mobile phone User Manual
NEG TECHNOLOGY CO., LIMITED Mobile phone
User manual
1
User Manual

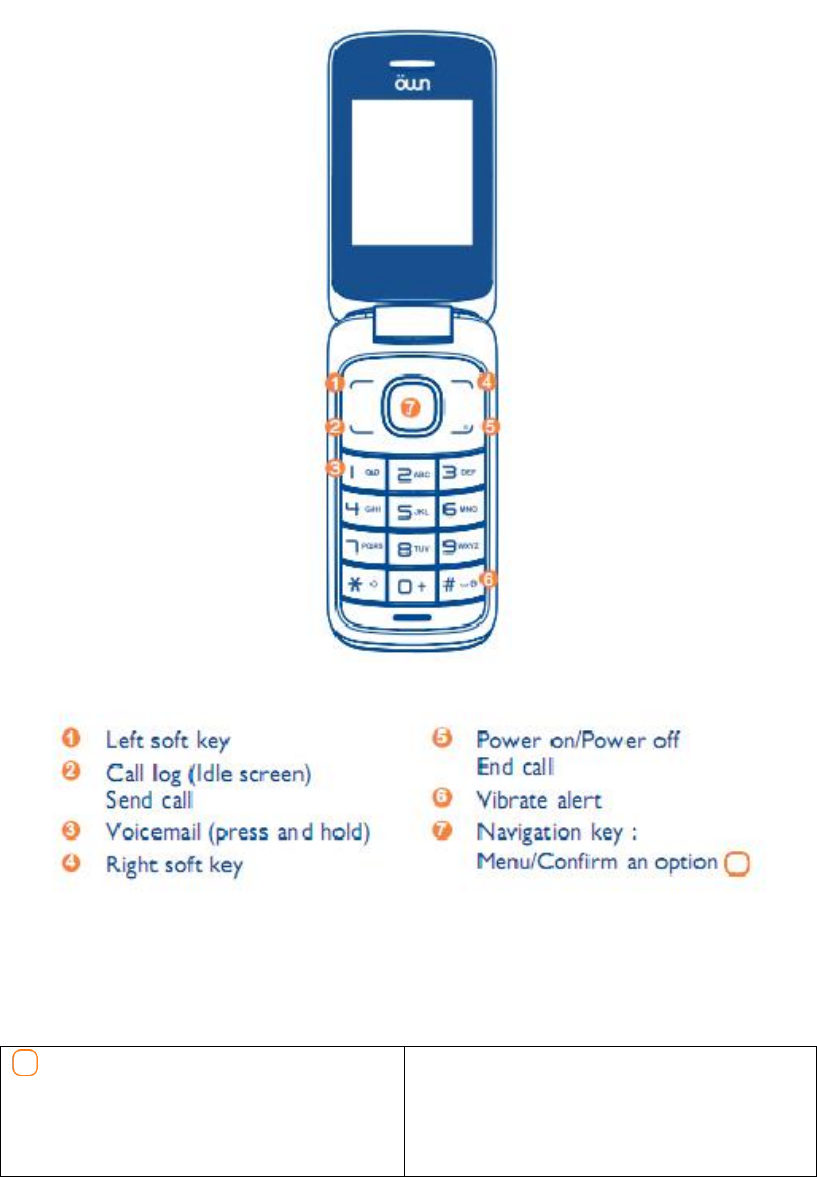

1. Your mobile………..
1.1 Keys
Navigation key
Confirm an option(press the middle of
the key)
Send call
2
Access to call log (idle screen)
Power on/off the handset (long key
-press)
End call
Return to idle
Left soft key
Right soft key
Dial the voicemail number (long key
-press)
From Idle screen
- Short key-press: enter zero
-Long key-press: +, "+" are used for
dialing an international call.
-Press longer time: Input P/W, "P" and
"W" are used for calling the extension
In Edit mode:
- Short key-press:
(space) (text edit mode)
0 (Add numbers)
From Idle screen
- Short key-press:
In Edit mode:
- Short key-press: access the Symbols
table
From Idle screen
- Short key-press:
- Long key-press: activate/deactivate
the vibrator
In Edit mode:
- Short key-press: change input
methods
From Idle screen
- Short key-press: dial ‘5’
1.2 Idle screen icons
Battery charge level.
Meeting mode: your phone vibrates,
but neither rings nor beeps.
3
Headset connected.
Silence mode: your phone neither
rings, beeps nor vibrates.
Alarm clock programmed.
Voicemail message arrived.
Missed calls.
Roaming.
Level of network reception.
Message unread.
MMS unread
Call divert
Message full
Bluetooth activated
2. Getting started.........
2.1 Set-up
Removing and installing the back cove
Removing and installing the battery
Inserting and removing the SIM card
Inserting and removing the TF card
Charging the battery
4
Connect the battery charger to your phone and mains socket respectively.
•The charging may take about 20 minutes to start if the battery is flat.
•Be careful not to force the plug into the socket.
•Make sure the battery is correctly inserted before connecting the charger.
•The mains socket must be near to the phone and easily accessible (avoid electric
extension cables).
•When using your telephone for the first time, charge the battery fully
(approximately 3 hours). You are advised to fully charge the battery ( ).
•To reduce power consumption and energy waste, when battery is fully charged,
disconnect your charger from the plug; reduce the backlight time, etc.
The charge is complete when the animation stops.
2.2 Power on your phone
Hold down the key until the phone powers on.
2.3 Power off your phone
Hold down the key from the idle screen.
3. Calls..........................
3.1 Making a call
Dial the desired number; press the key to place the call. If you make a mistake,
you can delete the incorrect digits by pressing the . To hang up the call, press
the key.
Making an emergency call
If your phone is covered by the network, dial emergency number and press the
key to make an emergency call. This works even without a SIM card and without
typing the PIN code or unlocking the keypad.
3.2 Calling your voicemail 1
You can see SIM voice mail in this menu.
1 Contact your network operator to check service availability.
5
3.3 Receiving a call
When you receive an incoming call, press the key to talk and then hang up using
the key.
3.4 Available functions during the call
During a call, you can use your directory, short messages, etc. without losing your
correspondent.
4 Messages ..............
4.1 Create SMS
From the main menu select “Messages” to create text message. You can type a
message send it to a recipient in the SIM card directory. You can type a message, and
you're also able to insert a pre-defined message from “Templates”. While writing a
message, select “Options” to access all the messaging options.
Specific letters (accent) will increase the size of the SMS, this may cause
multiple SMS to be sent to your recipient.
4.2 Create MMS
Select Messages-Options-New chat-Options-Add subject, it will switch to MMS
interface automatically.
5 Contacts.............
5.1 Consulting your contacts
To access the directory from the idle screen, press the key and select the
icon from the menu.
5.2 Adding a contact
Select the directory in which you wish to create a file, press the “Options”,
select “New” then .
6 Call logs.............
You can access your call memory by pressing from the idle screen, or press the
key and select the icon from the menu.
In this menu, you will see all call history.
6
7 Browser……………
This function enables you to surf the Internet using the mobile phone.
Note: Consulting the local network operator for related fee and specific setup.
8 Camera……………
This function enables you to take pictures. Press to take the picture.
9 Music ............
Use this function to play audio files. Press to play/pause the audio player, short
press or to last or next audio, in audio player interface, press and to
tune volume.
10 Videos.............
Use this function to play video files. You can press to play/pause the video player,
press and to tune volume; short press or to last or next video.
11 FM radio………….
Your phone is equipped with a radio with RDS functionality. You can use the
application as a traditional radio with saved channels. In FM radio interface, press
to play/pause the playing process of the current channel, press and to tune
volume.
12 Recorder………….
Use this function to record audio files. The phone support WAV and AMR. The
recording file you stopped will be stored in record file list automatically.
13 My files…………
7
The phone provides a certain space for users to manage files and support the
memory card. The capacity of the memory card is selectable. You can use the file
manager to conveniently manage various directories and files on the phone and the
memory card.
14 Games..............
Two games were embedded in the phone, for more information please refers to
“help” in the game.
15 Profiles ..............
With this menu, you may personalize ringtones for different events and
environments.
16 Alarm...............
Your mobile phone has a built-in alarm clock with snooze feature.
17 Calculator...............
Press the up, down, left, right and OK key to select ＋, －, ×, ÷ and =
respectively.
Press to delete the figure.
18 Calendar..................
Once you enter this menu, there is a monthly-view calendar for you to view the date;
you can go to any day you want.
19 Fake call..................
You can create fake call through this function.
20 Services...................
STK service is the tool kit of SIM card. This phone supports the service function .The
specific items depend on SIM card and network. Service menu will be automatically
added to the phone menu when supported by network and SIM card.
8
21 Settings ...............
From the main menu, select the menu icon and select the function of your
choice in order to customize your telephone: Call settings, Phone settings,
Connections, Security settings and Restore factory settings.
22 Bluetooth...............
You can transfer data, such as music to other device using Bluetooth.
Search the device and accept/transfer data. The received data is automatically stored
in the directory
23 Image....................
You can view images through this function.
24 Input mode .........
To write messages, there are two writing methods:
- Normal: this mode allows you to type a text by choosing a letter or a sequence of
characters associated with a key. Press the key several times until the desired letter is
highlighted. When you release the key the highlight character is inserted into the
text.
- Predictive with the C-Star mode: this mode speeds up the writing of your text.
Write the word by pressing a key between and . Press the key once and the
word will be modified each time you press a key. As you go on, the word will keep
changing. Example: For “Yesterday”, press on the following keys:
9, 3 ,7,8,3,7->Yester-> 3,2,9->Yesterday
- key in edit mode
Short key-press:
“" (space) (text edit mode)
0 (Add numbers)
FCC Statement：
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
9
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radiofrequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
These limits are part of comprehensive guidelines and establish permitted levels of
RF energy for the general population. The guidelines are based on standards that
were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health. The
exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6
W/kg. * Tests for SAR are conducted with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is determined
at the highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base station antenna, the lower
the power output. Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that it does not exceed the limit established by the
government adopted requirement for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body) as required by the FCC
for each model. The highest SAR value for this model phone when tested for use at
the ear is 0.532W/Kg and when worn on the body, as described in this user guide, is
0.760W/Kg(Body-worn measurements differ among phone models, depending upon
10
available accessories and FCC requirements). While there may be differences
between the SAR levels of various phones and at various positions, they all meet the
government requirement for safe exposure. The FCC has granted an Equipment
Authorization for this model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/ oet/fccid after searching on
FCC ID: 2AAZ8-F1020D Additional information on Specific Absorption Rates (SAR) can
be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at
http://www.wow-com.com. * In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of
tissue. The standard incorporates a sub-stantial margin of safety to give additional
protection for the public and to account for any variations in measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance of 15mm must be maintained
between the user’s body and the handset, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by this device should not contain any
metallic components. Body-worn accessories that do not meet these requirements
may not comply with RF exposure requirements and should be avoided. Use only the
supplied or an approved antenna.
