NEG TECHNOLOGY S4030 Mobile Phone User Manual
NEG TECHNOLOGY CO., LIMITED Mobile Phone
User manual
User Manual
Statement
To make the best use of your phone is in the state , please read
this manual carefully . For the sake of accuracy , this manual
has been validated and reviewed . This manual contains
instructions and descriptions of publication is accurate . But after
the phone and manual may change without notice . The
Company reserves the rights related to this manual !
1
Table of Contents
Safety Information .................................................................................... 4
Appearance and Key Function ............................................................... 7
Introduction ................................................................................................ 8
Call Functions ........................................................................................... 9
Contacts ................................................................................................... 11
Messaging................................................................................................ 15
Internet Browser ..................................................................................... 17
Bluetooth .................................................................................................. 19
Camera ..................................................................................................... 21
2
Gallery ...................................................................................................... 25
Music......................................................................................................... 27
Sound Recorder ...................................................................................... 28
Alarm Clock ............................................................................................. 30
FM Radio .................................................................................................. 31
Settings .................................................................................................... 33
Storage ..................................................................................................... 41
3
Safety Information
Please carefully read the terms below:
Use Safely
Do not use your mobile phone where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRIVE
Hospitals
Please follow limitations.
Please turn off your mobile phone when near medical instruments.
Airports
4
Please follow all flight safety regulations and do not use your phone
during flight.
Toxic Chemicals
Do not use your mobile phone around fuels or chemicals.
Explosion Hazard
Please observe related limitations and do not use your mobile
phone around an area where explosions may occur.
Accessories and Batteries
Please use only Blu authorized accessories and batteries.
Backup
Please remember to keep a written record of all important
information.
Water
Your phone is not waterproof. Keep it away from water and liquids.
5
Emergency Calls
Make sure your mobile phone is switched on and in a service area.
In home screen, tap the phone key and dial 112 and send.
6
Appearance and Key Function
Volume
Power
Back
Home
Menu
Front
Camera
7
Introduction
Installation of the SIM Card
Please install the SIM card before using your phone.
Note: Please keep the SIM card out of the reach of children. The
SIM card and its contact are easily damaged due to scratching or
bending. Please be cautious when carrying, installing or taking out
the SIM card. The SIM card is obtained through your service
provider.
To insert SIM card(s):
1. Switch off the mobile phone and remove the rear cover.
2. Insert the SIM card(s)
3. Replace the rear cover of the mobile phone and power on.
Power On and Off
On - Please ensure the SIM card has been properly inserted into
8
the phone. Long press the Power key to switch on the phone on.
Off - In standby mode, long press on Power key until an options
menu appears. Select OFF in the menu and confirm
Password Lock
You may set a screen unlock picture or a PIN code lock as a
security measure. For further information regarding password locks,
password revision and other functions please enter the security
settings of the phone.
Call Functions
At the dial keyboard, enter the phone number and then click the dial
key. You may choose which SIM card the call will be placed on. If
dialing an extension, you may click the dial pad icon in the bottom of
the screen to open the interface and enter the number of the
extension. You may also enter an input number and call contacts
9
through speed dial.
10
Call Logs
Every telephone number called and received will be saved in the
phones call log. There will be an indicator in the call logs that will
display SIM1 or SIM2. All numbers in the call log can be dialed
directly by clicking the dial icon on the right side of the screen.
When the number appears on the list, click it to view details.
Proximity Sensor
The proximity sensor determines how far away an object is from the
device. During the call or when you place the phone close to the ear,
the backlight will turn off automatically which conserves battery and
prevents inadvertently touching.
Contacts
11
Enter: Click on the applications menu and select contacts
• The default display is the phone contacts and SIM card contacts
• The contacts are organized alphabetically by default.
Click the Search icon to enter the contact search interface.
Add Contact
Search
12
• Any numbers or letters associated with any of the
contacts saved in the list will be shown in the search
results.
• If there were no matches for the inputted contact, the
interface will display no contacts found.
Add New Contact
1. Click “Add Contact” icon
2. Select to save contacts to phone or SIM card
3. You may edit contact picture, name, telephone number, group,
address, and email among other options
4. Click to finish and save contact.
13
14
Messaging
You may use this function to exchange text messages and
multimedia messages with your family and friends. The messages
to and from the same contact or phone number will be saved into a
single conversation so you may see the entire message history
conveniently.
Send an SMS
Application Menu » Messaging » New message
(or use shortcut icon)
1. Click to enter recipient (You may enter contacts from contact
book or enter a new number)
2. Compose Message
3. Send
Send an MMS
15
When creating message, the default message style is SMS. The
message will automatically convert to MMS when adding an
attachment.
1. Click the Paperclip icon in the messaging interface.
2. Click “Attach” to add the following attachments.
16
Internet Browser
Attachment
Type for MMS
Message
17
Menu Functions
Backward
• After browsing through multiple pages, this option will
return the user to the previous page.
Forward
• After browsing through multiple pages, this option will
move to a web page after the current page.
Windows
• You may view all windows open by clicking the windows
icon in the upper right part of the browser.
Bookmarks
• Click the Bookmarks option to make the current URL as a
saved Bookmark.
• Click Bookmarks to opened saved bookmarks.
18
More
Find on page: Search current page.
Share page: Select to share the current page.
Save for offline reading: Saves page for offline reading.
Page info: Display page address and other information of the
current browsing
History: Show your browsing history and view the most visited
pages.
Settings: Contains a variety of browser settings.
Bluetooth
Browser
19
Bluetooth is a short-range wireless communications technology that
devices can use to exchange information and connect to different
types of devices which include headsets, car kits, and other
devices.
Power on Bluetooth
1) Settings » Wireless & Networks » Bluetooth and select to power
on Bluetooth.
2) The Bluetooth icon will appear grey in the in the notification
bar. Click “scan for devices” and the phone will start to scan for all
devices within range.
3) In Bluetooth settings all the devices found will displayed in the list
under the icon.
Note: The maximum detecting time of the phone is 2 minutes.
20
Camera
Camera
Prior to use: Install memory card before using the camera or video
List of available
devices
21
camera. All photos or videos taken by the phone are stored in the
memory card.
Open Camera
1. Applications Menu » Camera
2. Switch to video mode if you want to record videos.
Note: You may also place a camera shortcut on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the file will be saved in the camera’s
gallery folder.
4. You can view the photos by clicking the preview box button.
You may adjust various settings for the camera by pressing Menu
while in the camera interface.
22
When in the camera viewfinder mode, you can switch to video or
photos’ gallery. On the camera viewfinder mode, you will find the
display the preview of the previous picture taken. Click the “preview
box” and the photo will display in full screen.
23
Select from
Camera or Video
Camera Options
24
Gallery
Open Images
Applications Menu » Gallery
Share Pictures
You may share pictures by sending them through Gmail or the
E-mail application. You may also send pictures through the MMS
message function by composing a message and attaching the
picture. Any image can also be sent via the Bluetooth function by
selecting Bluetooth equipment that has been paired.
Adjust Image
Press Menu and Edit to adjust images
Edit light: Fill Light, Highlights, Shadows, Auto-Fix.
Edit image effects: Cross-process, Posturize, Logo, Documentary,
and Fish Eye.
25
Color Effects: Warmth, Saturation, B&W, Sepia, Negative, Tint,
Duo-tone, Doodle.
Crop: Crop, Red Eye, Straighten, Rotate, Flip, Sharpen.
View Images
In the picture interface, click on an album to view images
You can choose to display small or large thumbnails. In the photo
album, scroll the picture towards left to view the next picture or
towards right to view the previous one.
Crop Pictures
1. If you want to adjust the size of the picture, use the crop tools.
Once the arrow appears, pinch your fingers in or out to adjust the
size.
2. If you want to adjust the image and keep its proportion, please
hold down any of the four corners of the image and adjust.
26
Music
Open Music
Application Menu » Music
Song Controls
Player Options
Song Status
27
Search Music
You may choose to search for music from media folder through
artist name, song name, album name. The following formats are
available: AMR, M4A, MIDI, MP3, WAV, and OGG.

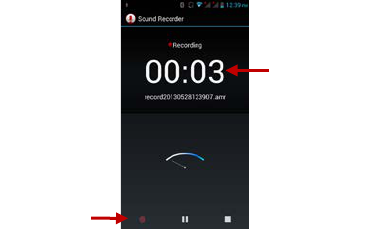

Sound Recorder
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS and also
have the option to make any recorded audio the phones default ring
tone.
Notice: The recorder only uses AMR 3GPP format.
Record
- Keep the phone’s microphone near the voice source.
28
- Click the record button to record the audio.
- Click the stop button to stop recording the audio.
All recordings will be saved in my recording folder in the default
music program.
Recording
Controls
Recording
Time
29
Alarm Clock
1. Click on the Clock icon in the application menu
2. Click set alarm button and enter the alarm clock set interface
where you may add and edit alarms
Click to add, edit
or delete alarms
30
FM Radio
FM Radio
Through this function, you may listen to FM radio on the device.
The FM radio uses the wired headphones as an antenna in order to
receive signal. Before using this function, connect the original
equipment headphones that came with the phone.
Open FM radio
Press the FM Radio icon to open the application.
1. Click “Search” automatic scans of FM channels.
2. Click to add favorite radio stations.
31
Radio
Options
Add Favorite
Radio Stations
Scan
32
FM Radio as Background
Click on the Home key to move the FM Radio program to the
background.
Settings
SIM Management
• Select to disable the SIM card.
• Network Operators.
Wi-Fi / WLAN
• Wi-Fi » Wi-Fi settings » Click Wi-Fi to power on. When
switched on, the Wi-Fi will automatically search for
available networks. Any unsecured network can be used
directly and any secured network requires a password or
33
credentials prior to connection.
Bluetooth
• Press the switch to power on Bluetooth. Once on, the
Bluetooth will automatically scan for any nearby open
equipment.
Data Usage
• Data usage and mobile data traffic limit.
More Wireless & Networks
• Airplane Mode
• VPN
• Tethering & Portable hotspot
• Mobile networks and APN Settings
Note: When in flight mode, Wi-Fi will turn off automatically.
34
Audio Profiles
This option sets the phone tone settings for receiving calls or
notifications. Some of the settings include
• Vibrate, volume, ring tones, ring tones notification and
haptic feedback tones
Display
(a) Brightness (b) Auto rotating screen (c) Wallpaper (d) Screen
Timeout
Storage
• View the SD card and phone memory usage.
• Allows the removal or formatting of the SD card.
• Allows selection of the default memory.
Battery
35
• General power usage
Apps
• Manage applications - Manage and delete installed
applications.
• Running services - Press any of the services listed in the
two-button operation box. Press the ‘Stop’ button to stop
any of the services listed and removes from the "running
services" list.
Location Access
• Use wireless - Use wireless services to find locations in
applications.
• When using the GPS satellite positioning, set accuracy to
street level (Cancel it to save battery).
Security
36
Set up screen locks: Use a pattern, PIN or password to lock the
screen.
• Pattern: The first time there will be simple unlock
instructions and examples. Click “next step” to continue
the security pattern step.
• PIN: Enter PIN number to unlock the screen.
• Password: Set password to unlock the screen.
You may stop the security feature at any time.
Set up SIM card PIN lock
• SIM card PIN (Personal Identification Number) is used to
prevent unauthorized use of SIM cards.
To change a blocked PIN code, you will need to unlock the SIM lock
then go to the Change Password screen. The phone will
automatically prompt you enter the old PIN code and ask to enter a
37
new PIN code twice. The phone will then prompt you that the
change was successful. If you enter the PIN incorrectly three times,
the SIM and PIN codes will be automatically locked. You will need
the PUK code to unlock the phone which is available through your
service provider. If you enter the PUK code incorrectly 10 times, the
SIM card will be permanently locked. Please see your service
provider for a new SIM card.
• Password visible – Make the password visible when it’s
typed.
• Use security credentials - Allow applications to visit
security credentials or other credentials.
• Install from SD card - Install the encrypted certificate from
SD card.
Language & Input
• Language – Change the language of the phone.
38
• Custom Dictionary - Add or delete words to the custom
dictionary.
• Keyboard Settings – (a) Haptic vibration (b) Haptic tones
(c) Capitalizing (d) Speech Input (e) Inputting words (f)
Predictive text function (g) Auto-Text (h) Input keyboard
method
Backup & reset
• Backup Data – Will back up all application data, WLAN
passwords, and other settings to Google's servers
• Restore to Factory Settings - Clear all data stored on the
phone.
Date & Time
• Automation - Use date and time provided by Network.
• Date and Time adjustment.
39
• Time Zone - Select Time Zone according to where your
location.
• Select Date Format - There are 3 kinds of formats you
can choose from: Month-Day-Year, Day-Month-Year and
Year-Month-Day, and Year-Month-Day which is the
default setting
Schedule Power On & Off
• Schedule power on and off
Accessibility
• Power button ends call
• Speak Passwords
• Touch Delay
Developer Options
40
If the phone does not display Developer options, to access: Press
‘Build number’ seven (7) times in the about phone tab in settings.
• The developer options gives access to USB Debugging
and other developer options
About Phone
• You can check the information on status and remaining
power
• You may periodically check for any software or firmware
updates through the System Updates option.
Storage
Connect the phone with the USB cable provided. Once connected,
a connection icon will appear in the status bar. Slide down bar and
click on connection icon. Once in the connection mode interface,
41
select USB mass storage or another option and turn on from the
connection screen.
Some system settings and user interface (UI) options may vary depending on SW version.
42
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
43
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
44
device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to
radio waves. This device is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the U.S.
45
Government.
The highest reported SAR values for head and body are below:
Head: 0.301W/kg(1g); Body:0.660W/kg(1g) respectively.
WARNING!! Read this information before using your phone
In August 1986 the Federal Communications Commission (FCC) of
the United States with its action in Report and Outer FCC 96-326
adopted an updated safety standard for human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the safety
standard previously set by both U.S. and international standards
46
bodies. The design of this phone complies with the FCC guidelines
and these international standards. Use only the supplied or an
approved antenna. Unauthorized antennas modifications, or
attachments could impair call quality, damage the phone, or result
in violation of FCC regulations. Do not use the phone with a
damaged antenna. If a damaged antenna comes into contact with
the skin, a minor burn may result. Please contact your local dealer
for replacement antenna.
BODY-WORN OPERATION:
This device was tested for typical body-worn operations with the
47
back of the phone kept 1.5cm from the body. To comply with FCC
RF exposure requirements, a minimum separation distance of
1.5cm must be maintained between the user's body and the back of
the phone, including the antenna, whether extended or retracted.
Third-party belt-clips, holsters and similar accessories containing
metallic components shall not be used. Body-worn accessories that
cannot maintain 1.5cm separation distance between the user’s
body and the back of the phone, and have not been tested for
typical body-worn operations may not comply with FCC RF
exposure limits and should be avoided.
48
For more information about RF exposure, please visit the FCC
website at www.fcc.gov
Your wireless handheld portable telephone is a low power radio
transmitter and receiver. When it is ON, it receives and also sends
out radio frequency (RF) signals. In August, 1996, the Federal
Communications Commissions (FCC) adopted RF exposure
guidelines with safety levels for hand-held wireless phones. Those
guidelines are consistent with the safety standards previously set
by both U.S. and international standards bodies:
<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICIMIRP>
49
(1996)
Those standards were based on comprehensive and periodic
evaluations of the relevant scientific literature. For example, over
120 scientists, engineers, and physicians from universities,
government health agencies, and industry reviewed the available
body of research to develop the ANSI Standard (C95.1).
Nevertheless, we recommend that you use a hands-free kit with
your phone (such as an earpiece or headset) to avoid potential
exposure to RF energy. The design of your phone complies with the
FCC guidelines (and those standards).
50
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
damage the phone and may violate FCC regulations.
51
