NEMOTO KYORINDO 0001 Dual Shot Alpha User Manual

NEMOTO KYORINDO Co., Ltd. Dual Shot Alpha

User Manual

001-100134.00.01Nemoto Kyorindo Co., Ltd.2-27-20 Hongo, Bunkyo-ku, Tokyo 113-0033, Tokyo Japan06/01/121st EditionContrast Delivery System˴Dual Shot Alpha Operation ManualAlpha

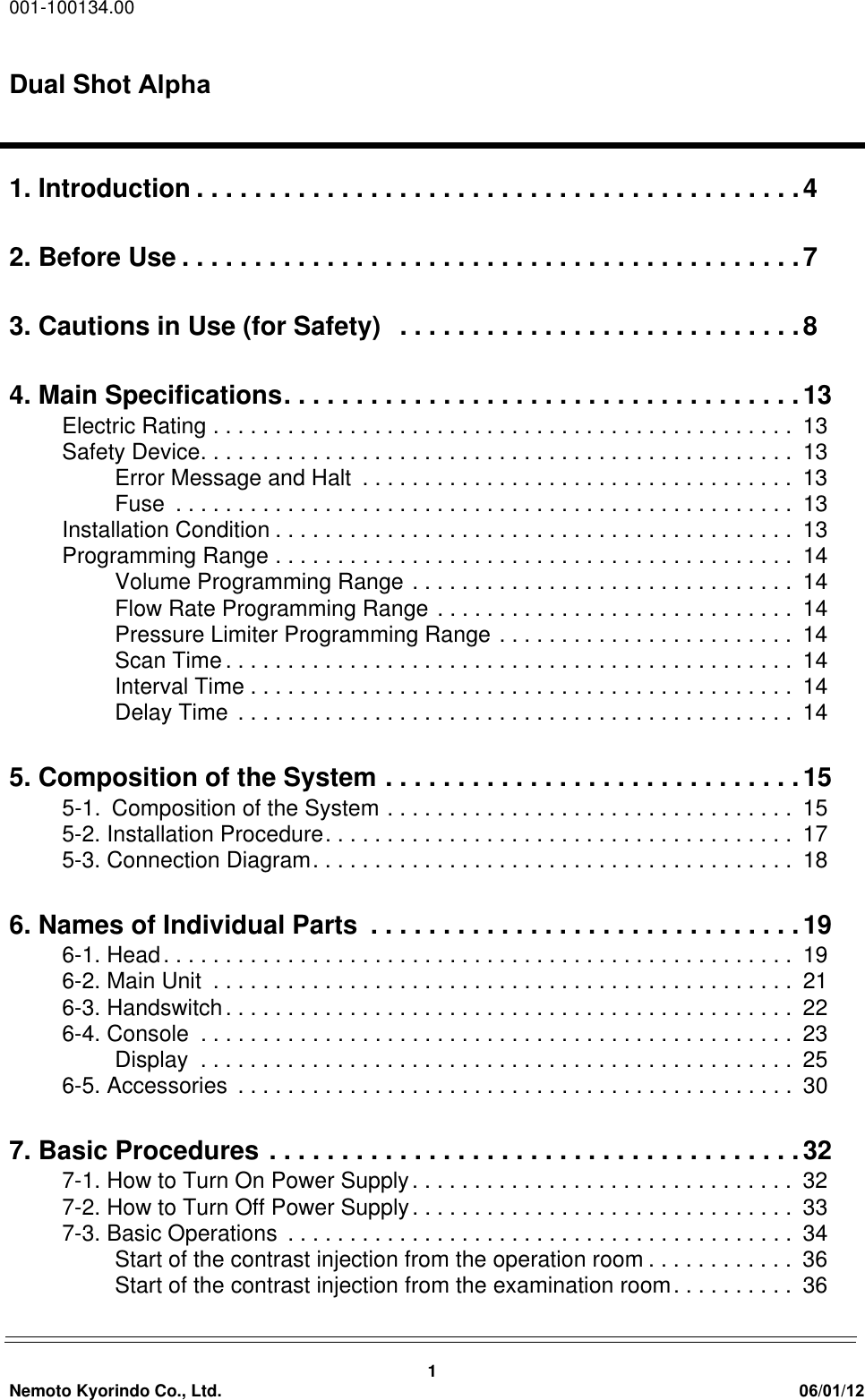

001-100134.00Dual Shot Alpha1Nemoto Kyorindo Co., Ltd. 06/01/121. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42. Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73. Cautions in Use (for Safety) . . . . . . . . . . . . . . . . . . . . . . . . . . . .84. Main Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13Electric Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Safety Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Error Message and Halt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Installation Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Programming Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Volume Programming Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Flow Rate Programming Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Pressure Limiter Programming Range . . . . . . . . . . . . . . . . . . . . . . . . 14Scan Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Interval Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Delay Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145. Composition of the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155-1.Composition of the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155-2. Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175-3. Connection Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186. Names of Individual Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196-1. Head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196-2. Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216-3. Handswitch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226-4. Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256-5. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307. Basic Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .327-1. How to Turn On Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327-2. How to Turn Off Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337-3. Basic Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34Start of the contrast injection from the operation room . . . . . . . . . . . . 36Start of the contrast injection from the examination room. . . . . . . . . . 36

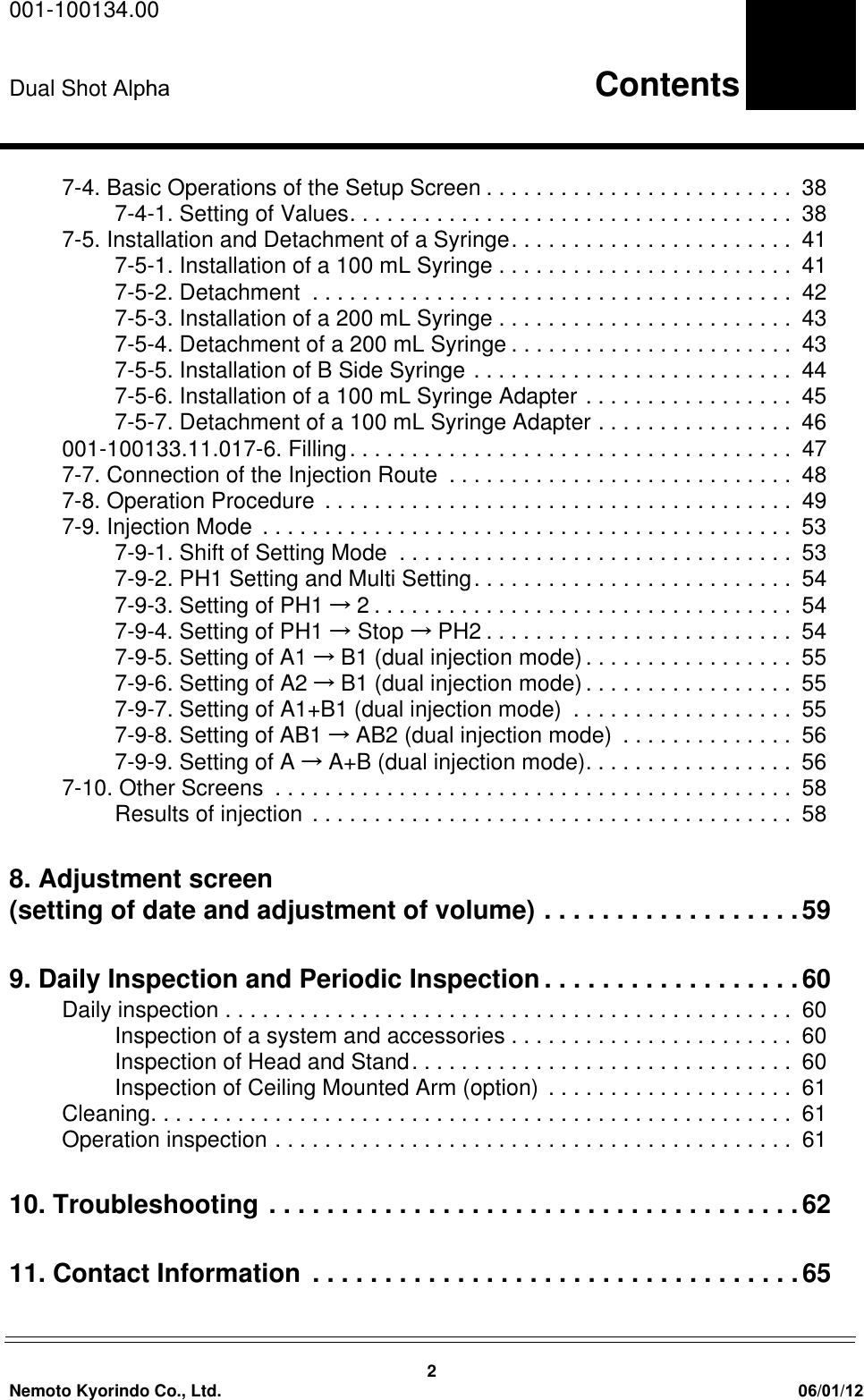

001-100134.00Dual Shot Alpha Contents2Nemoto Kyorindo Co., Ltd. 06/01/127-4. Basic Operations of the Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . 387-4-1. Setting of Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387-5. Installation and Detachment of a Syringe. . . . . . . . . . . . . . . . . . . . . . . 417-5-1. Installation of a 100 mL Syringe . . . . . . . . . . . . . . . . . . . . . . . . 417-5-2. Detachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427-5-3. Installation of a 200 mL Syringe . . . . . . . . . . . . . . . . . . . . . . . . 437-5-4. Detachment of a 200 mL Syringe . . . . . . . . . . . . . . . . . . . . . . . 437-5-5. Installation of B Side Syringe . . . . . . . . . . . . . . . . . . . . . . . . . . 447-5-6. Installation of a 100 mL Syringe Adapter . . . . . . . . . . . . . . . . . 457-5-7. Detachment of a 100 mL Syringe Adapter . . . . . . . . . . . . . . . . 46001-100133.11.017-6. Filling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477-7. Connection of the Injection Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . 487-8. Operation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 497-9. Injection Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 537-9-1. Shift of Setting Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 537-9-2. PH1 Setting and Multi Setting. . . . . . . . . . . . . . . . . . . . . . . . . . 547-9-3. Setting of PH1 ψ2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547-9-4. Setting of PH1 ψ Stop ψPH2 . . . . . . . . . . . . . . . . . . . . . . . . . 547-9-5. Setting of A1 ψB1 (dual injection mode). . . . . . . . . . . . . . . . . 557-9-6. Setting of A2 ψB1 (dual injection mode) . . . . . . . . . . . . . . . . . 557-9-7. Setting of A1+B1 (dual injection mode) . . . . . . . . . . . . . . . . . . 557-9-8. Setting of AB1 ψAB2 (dual injection mode) . . . . . . . . . . . . . . 567-9-9. Setting of A ψA+B (dual injection mode). . . . . . . . . . . . . . . . . 567-10. Other Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58Results of injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 588. Adjustment screen (setting of date and adjustment of volume) . . . . . . . . . . . . . . . . . .599. Daily Inspection and Periodic Inspection . . . . . . . . . . . . . . . . . .60Daily inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60Inspection of a system and accessories . . . . . . . . . . . . . . . . . . . . . . . 60Inspection of Head and Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60Inspection of Ceiling Mounted Arm (option) . . . . . . . . . . . . . . . . . . . . 61Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61Operation inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6110. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6211. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
001-100134.01.01Dual Shot Alpha Introduction3Nemoto Kyorindo Co., Ltd. 06/01/1211. IntroductionThank you for purchasing our Contrast Delivery System Dual Shot.عPlease read this Operation Manual thoroughly before using this system in order touse it properly.ع For easy reference for users, please keep this Operation Manual in a convenient place after reading. ع Please observe cautions given herein including important items to prevent anyhazard to the user of this system or others and damage to any properties that mayarise.ع Markings used in this Operation Manual and their description are as follows.Danger This is used when incorrect operation may directly lead todeath or serious injury, damage of the equipment andoccurrence of fire.Warning This is used when incorrect operation may indirectly lead todeath or serious injury, damage of the equipment andoccurrence of fire.Caution This is used when incorrect operation may cause injury orphysical damage.Marking
001-100134.01.01Dual Shot Alpha Introduction4Nemoto Kyorindo Co., Ltd. 06/01/121عޓInstruction symbolsThe following symbols are used in the “Contrast Delivery System/Dual Shot”.Symbol DescriptionBeware of getting your fingers pinched.Caution! Read the description of Appendix.Indicates to avoid the direct sunlight.Indicates that wet by rain is prohibited.Indicates cautions for handling.Indicates not to turn over.Indicates the temperature condition.Indicates the production date.Indicates that the power of the main unit is ON.Indicates that the power of the main unit is OFF.Indicates that the power of the console is ON/OFF.Indicates a protective earth terminal.

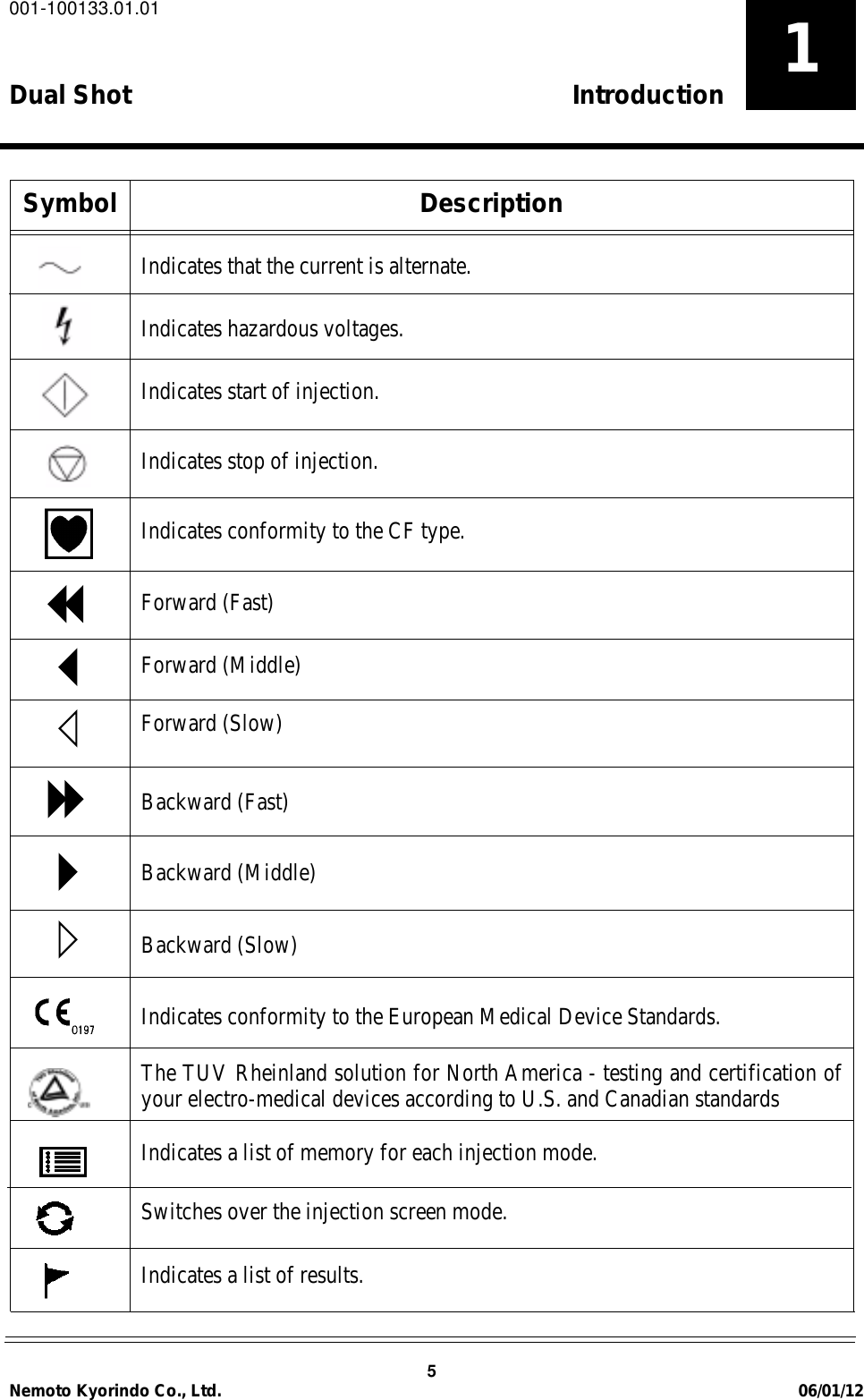

001-100133.01.01Dual Shot Introduction5Nemoto Kyorindo Co., Ltd. 06/01/121Indicates that the current is alternate.Indicates hazardous voltages.Indicates start of injection.Indicates stop of injection.Indicates conformity to the CF type.Forward (Fast)Forward (Middle)Forward (Slow)Backward (Fast)Backward (Middle)Backward (Slow)Indicates conformity to the European Medical Device Standards.The TUV Rheinland solution for North America - testing and certification ofyour electro-medical devices according to U.S. and Canadian standardsIndicates a list of memory for each injection mode.Switches over the injection screen mode.Indicates a list of results.Symbol Description
044-100134.02.01Dual Shot Alpha Before UseOperation Manual 6 Nemoto Kyorindo Co., Ltd.０６／３／１３22.Before Use■  This system is aimed for a medical practitioner to inject contrast medium inradiography.■  Do not use this system for any purpose other than the intended such as injection ofdrugs, chemical therapy and use with connected external equipment other thanspecified by us. We shall not be liable for any malfunction of this system and thefollowings resulting from the use other than the intended.・Any malfunction and/or damage of this system resulting from not adhering to thewarnings and/or operating instructions specified in this Operation Manual.・Any malfunction and/or damage of this system resulting from the deviation ofoperating environment specified in this Operation Manual, such as power source,installation condition, etc.・Any malfunction and/or damage of this system resulting from any naturaldisaster, such as fire, earthquake, flood and lightening.・Any malfunction, damage and accidents of this system resulting from othercompany's products.■  Any future modification may be made to this Operation Manual without any priornotice.■  Multiple Portable Socket-Outlets(MPSO) should not be used for this equipment.■  Please contact us if you need clarification or if you notice any error or concerns in thisOperation Manual. (Refer to the end of this Manual.)■  This system complies with EN 60601-1-2:2001. This system uses high-frequencyenergy for the internal function only and does not provide it to the patients. However,note that even small amount of leakage of the high-frequency energy may damage thehighly-sensitive equipment.Warning

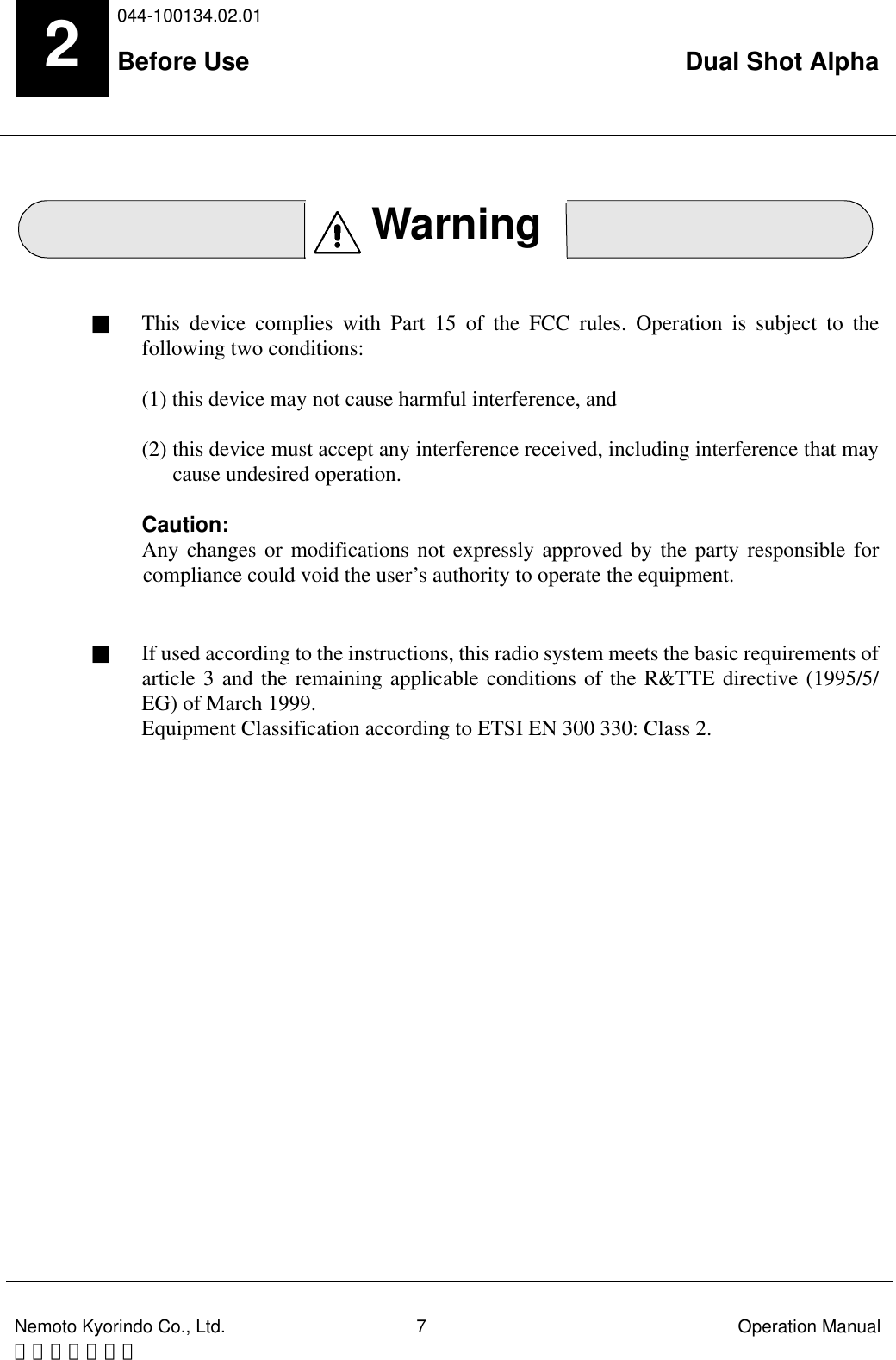

044-100134.02.01Before Use Dual Shot AlphaNemoto Kyorindo Co., Ltd. 7 Operation Manual０６／３／１３2■  This device complies with Part 15 of the FCC rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that maycause undesired operation.Caution:Any changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.■  If used according to the instructions, this radio system meets the basic requirements ofarticle 3 and the remaining applicable conditions of the R&TTE directive (1995/5/EG) of March 1999.Equipment Classification according to ETSI EN 300 330: Class 2.Warning
001-100134.03.01Dual Shot Alpha Cautions in Use (for Safety) 8Nemoto Kyorindo Co., Ltd. 06/01/1233. Cautions in Use (for Safety) ࡮Please read this Operation Manual thoroughly before using this system in order touse it properly.࡮For easy reference for users, please keep this Operation Manual in a convenientplace after reading it.3-1. This system must not be used by anyone other than the qualifiedand trained person.3-2. When installing this system, pay attention to the following.1) Install the system in the area where fluid does not splash.2) Install the system in the dried and light resistant area within the acceptableranges of atmospheric pressure, temperature and humidity. 3) Refrain from dusty place or the place in the air containing salinity or sulfur.4) Do not install the system in the area where chemicals are stored or gasesmay be generated.5) Use this system at the stable condition, avoiding inclination, oscillating andshock.6) Note that the voltage, frequency and current capacity of the power supplyare in the range of tolerance. 7) Connect the earth properly.3-3. Care must be taken to the following prior to operation.1) Be well aware that the combined use with other additional devicesmisguides an exact diagnosis, or has a possibility of causing the dangeroussituation.2) Make sure to use the disposables (syringes, tubes, winged needles, etc.)specifically provided for this system.Danger
001-100134.03.01Dual Shot Alpha Cautions in Use (for Safety) 9Nemoto Kyorindo Co., Ltd. 06/01/1233-4. Pay attention to the following while operating this system.1) Contrast medium and medicine must be injected according to the prescribedusage and dosage.Refer to the instruction manual of the contrast medium if necessary.2) Condition of the whole system and the patient must be watched continu-ously to ascertain that they are in the good state.3) If any unusual conditions are detected in the system and/or of the patients,appropriate actions such as ensuring safety of the patient, stopping thesystem, etc. must be taken.4) Do not use the devices (electric knife, telemeter for medical use, and cellularphone) that generate the high-frequency wave at the place near this system.(It might cause the malfunction of the system.)3-5. After operating this system, follow the procedures described below.1) Put back the switches and dials, etc. to the original state according to thepredefined procedures, and turn the main power off.2) Do not forcibly take off cables, etc. from the outlet by grasping the cableitself and so forth. The cable may be damaged and it may become the causeof a fire and/or electrification.3) For the place to be stored, note the precautions described in the above 1) to4) in 3-2.4) Keep the accessories, cords, and terminals clean.5) The system should be thoroughly cleaned so that it may function withoutcausing any problems in the next operation.3-6. When the system gets trouble, leave the system as it is and ask theprofessional person for repair.3-7. Do not remodel the system.Danger
001-100134.03.01Dual Shot Alpha Cautions in Use (for Safety) 10Nemoto Kyorindo Co., Ltd. 06/01/1233-8. Maintenance and checkup1) The system and its parts should be inspected once a year periodically.2) When the system is operated after a long unused period of time, make surebefore operation that it functions properly and safely.3-9. Others1) There is a risk of possible fire or electrical shock if usage is continued underany abnormal condition, such as but not limited to smoke or unusual smell/noise. Immediately turn off the power switch of the unit and unplug thepower cord from the outlet. Please make sure there is no more smoke beforecontacting us for repair.2) Do not unplug the power cord with wet hands. It could cause electricalshock.3) Never remove the housing. Electrical shock may occur if you touch theinside.4) Do not fabricate, forcefully bend/twist/pull, apply heat to the power cord,put anything heavy on the power cord or place the unit on top of the powercord. If the cord is damaged, please have it replaced. It could cause fire orelectric shock.5) Before use, ensure the status of a stopcock of the injection route surely.Injection with a stopper closed may damage the syringe.6) Pressure limit should not exceed the tolerable pressure* for the syringe andinjection route.* For tolerable pressure limit for the syringe and injection circuit, see the OperationManuals for the syringe and injection route.7) In the condition or injection route set for extreme pressure increase, pressuremay transiently exceed the pressure limit.8) For prevention of accidents (injection of air, reuse of a syringe, etc.) to becaused by forgetting replacement of a used syringe, make sure that a back-ward key is operated after the syringe is removed.9㧕If contrast medium or physiological saline is leaked into the system, turn offthe power switch of the system and remove a power code plug from anoutlet, and call our support center. Continued use at such condition maycause fire or electric shock.Danger

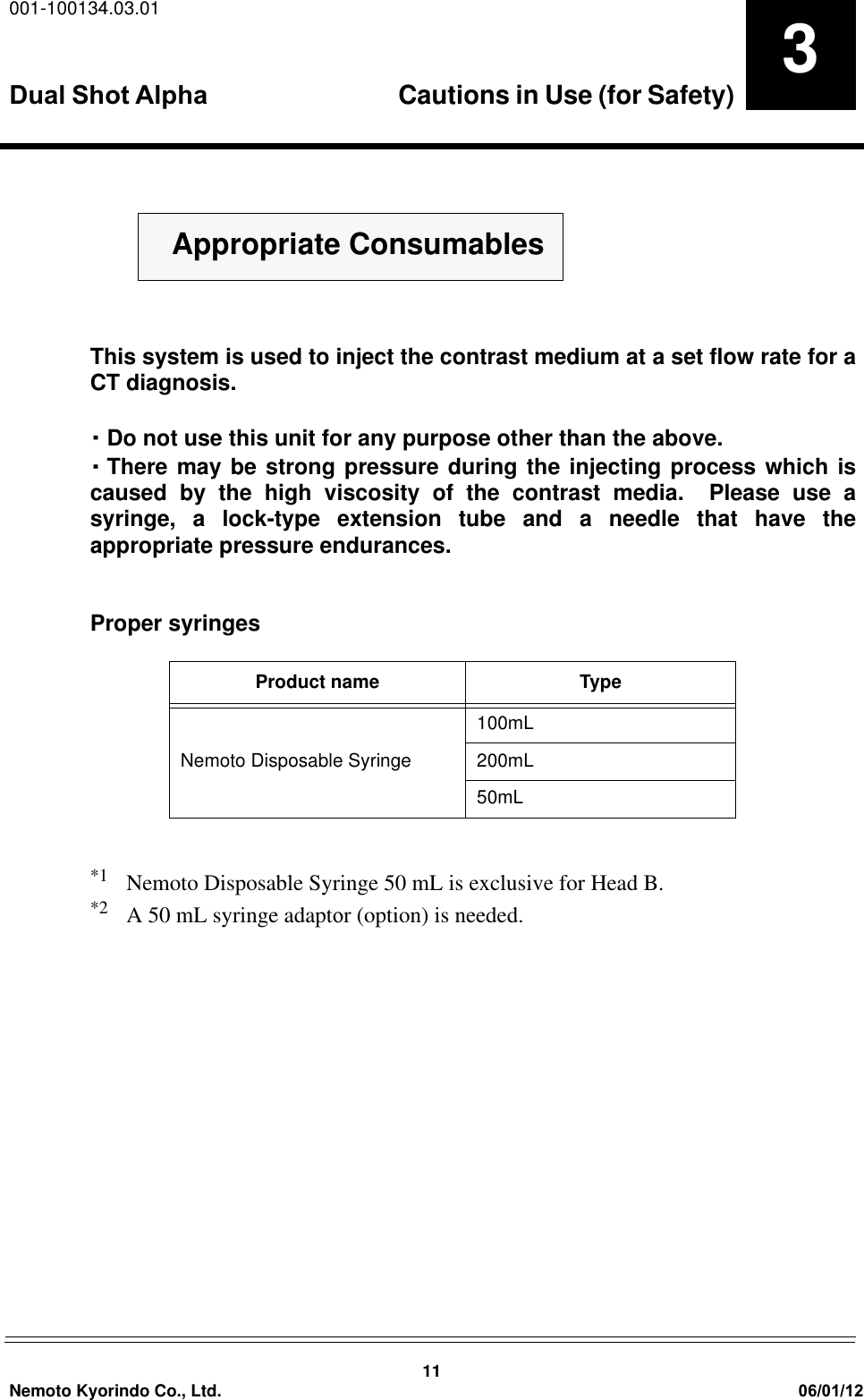

001-100134.03.01Dual Shot Alpha Cautions in Use (for Safety) 11Nemoto Kyorindo Co., Ltd. 06/01/123This system is used to inject the contrast medium at a set flow rate for aCT diagnosis.࡮Do not use this unit for any purpose other than the above.࡮There may be strong pressure during the injecting process which iscaused by the high viscosity of the contrast media. Please use asyringe, a lock-type extension tube and a needle that have theappropriate pressure endurances.Proper syringes*1 Nemoto Disposable Syringe 50 mL is exclusive for Head B.*2 A 50 mL syringe adaptor (option) is needed.Product name TypeNemoto Disposable Syringe100mL200mL50mLޓޓAppropriate Consumables

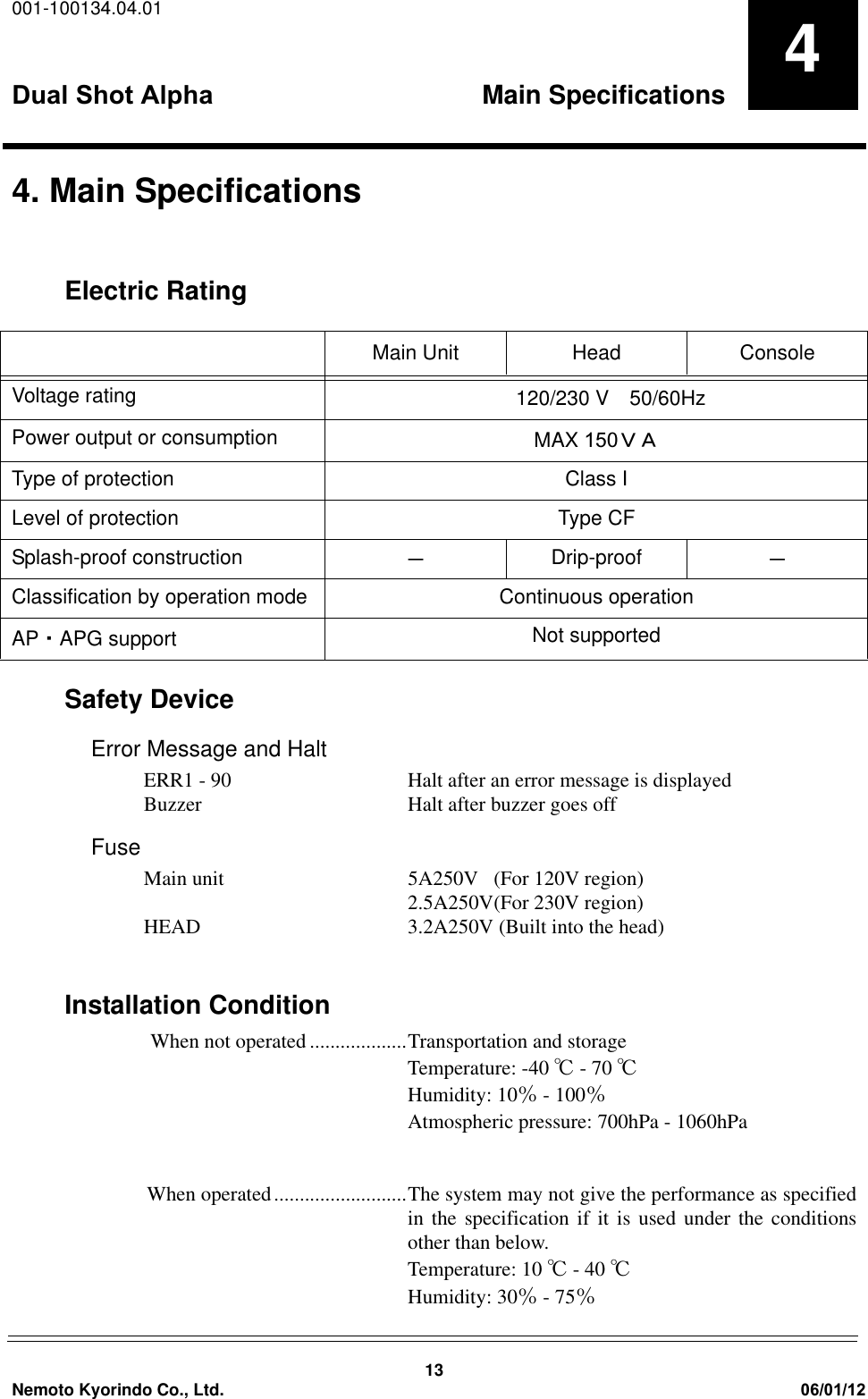

001-100134.04.01Dual Shot Alpha Main Specifications13Nemoto Kyorindo Co., Ltd. 06/01/1244. Main SpecificationsElectric RatingSafety DeviceError Message and HaltERR1 - 90 Halt after an error message is displayedBuzzer Halt after buzzer goes offFuseMain unit 5A250V (For 120V region)2.5A250V(For 230V region)HEAD 3.2A250V (Built into the head)Installation ConditionWhen not operated ...................Transportation and storageTemperature: -40 ͠ - 70 ͠Humidity: 10㧑 - 100㧑Atmospheric pressure: 700hPa - 1060hPaWhen operated..........................The system may not give the performance as specifiedin the specification if it is used under the conditionsother than below.Temperature: 10 ͠ - 40 ͠Humidity: 30㧑 -75㧑Main Unit Head ConsoleVoltage rating 120/230 Vޓ50/60HzPower output or consumption MAX 150㨂㧭Type of protection Class ILevel of protection Type CFSplash-proof construction 㧙Drip-proof 㧙Classification by operation mode Continuous operationAP࡮APG support Not supported

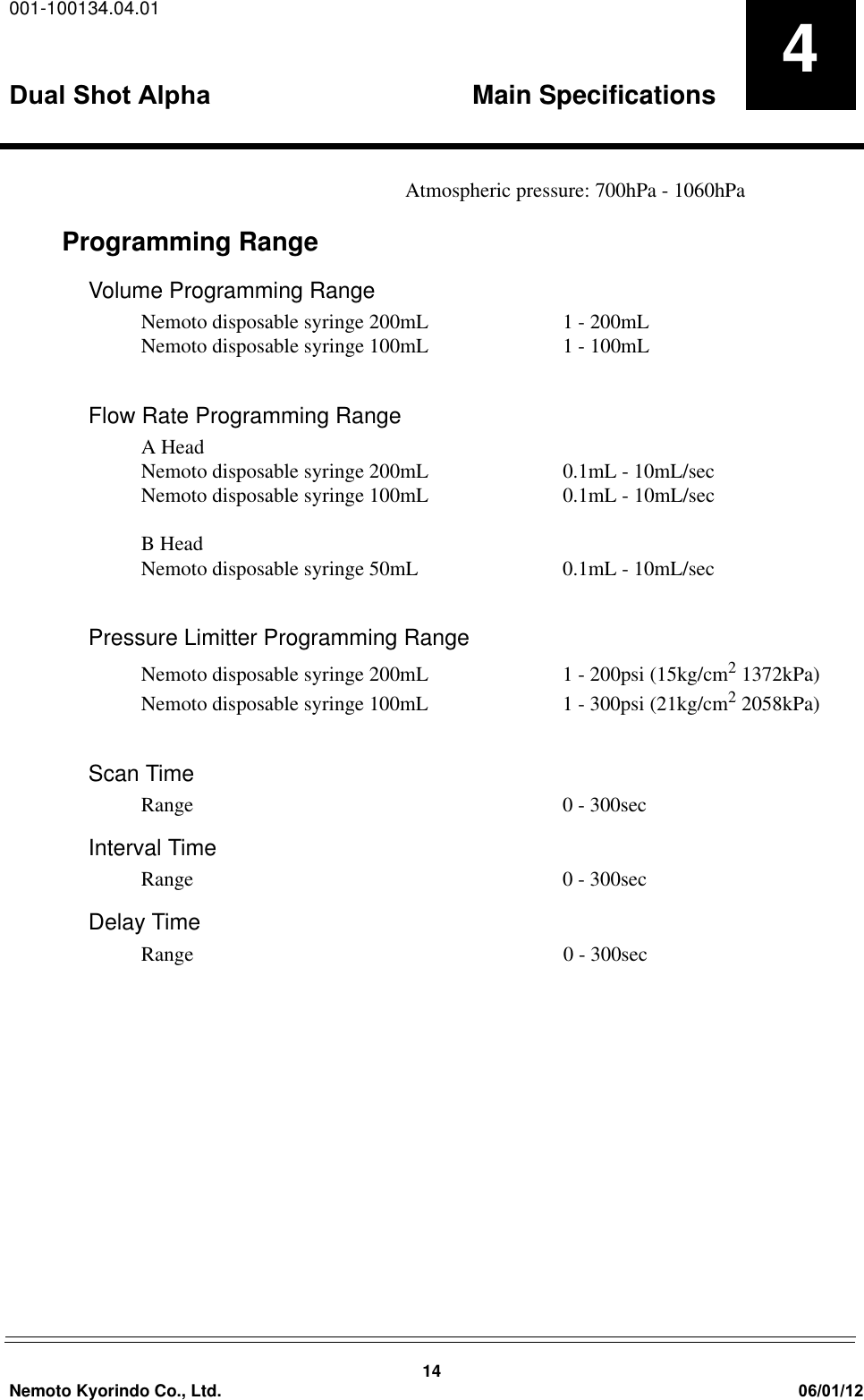

001-100134.04.01Dual Shot Alpha Main Specifications14Nemoto Kyorindo Co., Ltd. 06/01/124Atmospheric pressure: 700hPa - 1060hPaProgramming RangeVolume Programming RangeNemoto disposable syringe 200mL 1 - 200mLNemoto disposable syringe 100mL 1 - 100mLFlow Rate Programming RangeA HeadNemoto disposable syringe 200mL 0.1mL - 10mL/secNemoto disposable syringe 100mL 0.1mL - 10mL/secB HeadNemoto disposable syringe 50mL 0.1mL - 10mL/secPressure Limitter Programming RangeNemoto disposable syringe 200mL 1 - 200psi (15kg/cm2 1372kPa)Nemoto disposable syringe 100mL 1 - 300psi (21kg/cm2 2058kPa)Scan TimeRange 0 - 300secInterval TimeRange 0 - 300secDelay TimeRange 0 - 300sec
001-100134.05.01Dual Shot Alpha Composition of the System15Nemoto Kyorindo Co., Ltd. 06/01/1255. Composition of the System5-1.Composition of the System1) Head (A ceiling mounting type is an option at shipment.)2) Main Unit3) Console4) A set of stand A set of floor stand (a standard set at shipment)Note) A stand set is not included in the type for ceiling mounting.5) Accessories Main unit power cable Console cable Head extension cable Handswitch CompactFlash card Ceiling mounting arm 㧔Option㧕
001-100134.05.01Dual Shot Alpha Composition of the System17Nemoto Kyorindo Co., Ltd. 06/01/1255-2. Installation Procedure1. Assemble the Stand and mount the Head onto it.2. Connect the Head to the Main Unit with the Head Cable.3. Connect the Console to the Main Unit with the Console Cable.4. Connect the Handswitch to the Console.5. Connect the power cable to the Main Unit last, and then, insert the powerplug into the outlet.Screw bolts securely when assembling a stand, etc. It is dangerous when the bolts are loosen.Connect each connector correctly always checking theconnection diagram. It may induce damage in future.When the usable outlet has 2 pins, use a 2 pin/3pin adapter for the power connector and make earth connection.
001-100134.05.01Dual Shot Alpha Composition of the System18Nemoto Kyorindo Co., Ltd. 06/01/1255-3. Connection DiagramNever connect the connectors to any products other than those designated by us.
001-100134.06.01Dual Shot Alpha Names of Individual Parts19Nemoto Kyorindo Co., Ltd. 06/01/1266. Names of Individual Parts6-1. Head<A Head>
001-100134.06.01Dual Shot Alpha Names of Individual Parts20Nemoto Kyorindo Co., Ltd. 06/01/126<B Head>

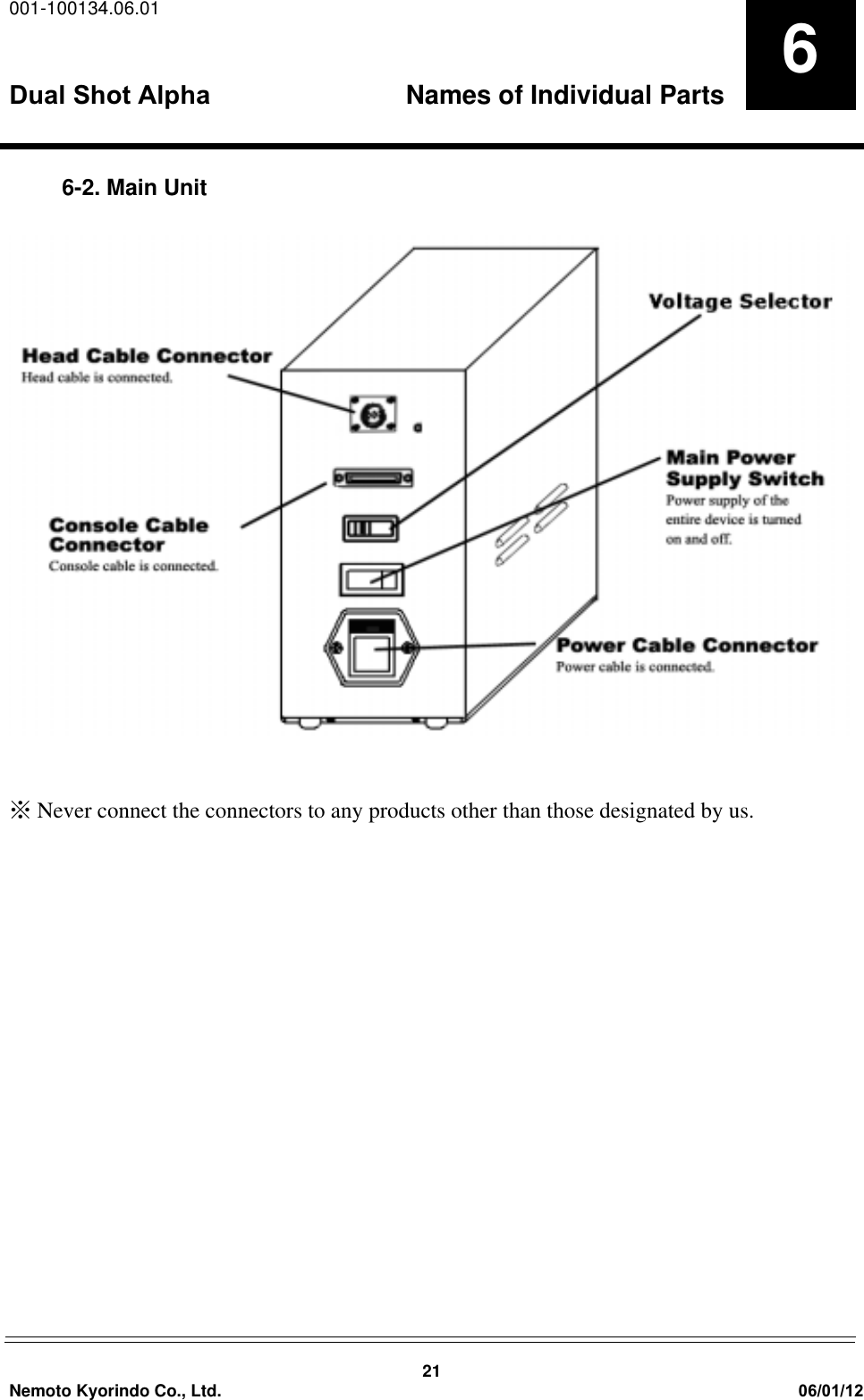

001-100134.06.01Dual Shot Alpha Names of Individual Parts21Nemoto Kyorindo Co., Ltd. 06/01/1266-2. Main Unit̪ Never connect the connectors to any products other than those designated by us.
001-100134.06.01Dual Shot Alpha Names of Individual Parts22Nemoto Kyorindo Co., Ltd. 06/01/1266-3. HandswitchعLEDޓStandby ....................................................lights upޓDuring injecting.......................................blinksޓDuring delay/interval...............................blinksޓInjection termination (not operating)....... lights out
001-100134.06.01Dual Shot Alpha Names of Individual Parts23Nemoto Kyorindo Co., Ltd. 06/01/1266-4. Console*1 The power doesn't enter if there is no main power supply of the main unit.Push the POWER key surely when you turn off the power.*2ޓPush the CH key firmly to switch the injection screen.
001-100134.06.01Dual Shot Alpha Names of Individual Parts24Nemoto Kyorindo Co., Ltd. 06/01/126̪ Never connect the connectors to any products other than those designated by us.
001-100134.06.01Dual Shot Alpha Names of Individual Parts25Nemoto Kyorindo Co., Ltd. 06/01/126Display<Setting Screen 1>It explains each part as an example of A1 ψB1.
001-100134.06.01Dual Shot Alpha Names of Individual Parts26Nemoto Kyorindo Co., Ltd. 06/01/126<Set Screen 2> It explains each part as an example of A1 ψB1.* It is not displayed at shipment setting. Please consult your Dealer if youwant to display.

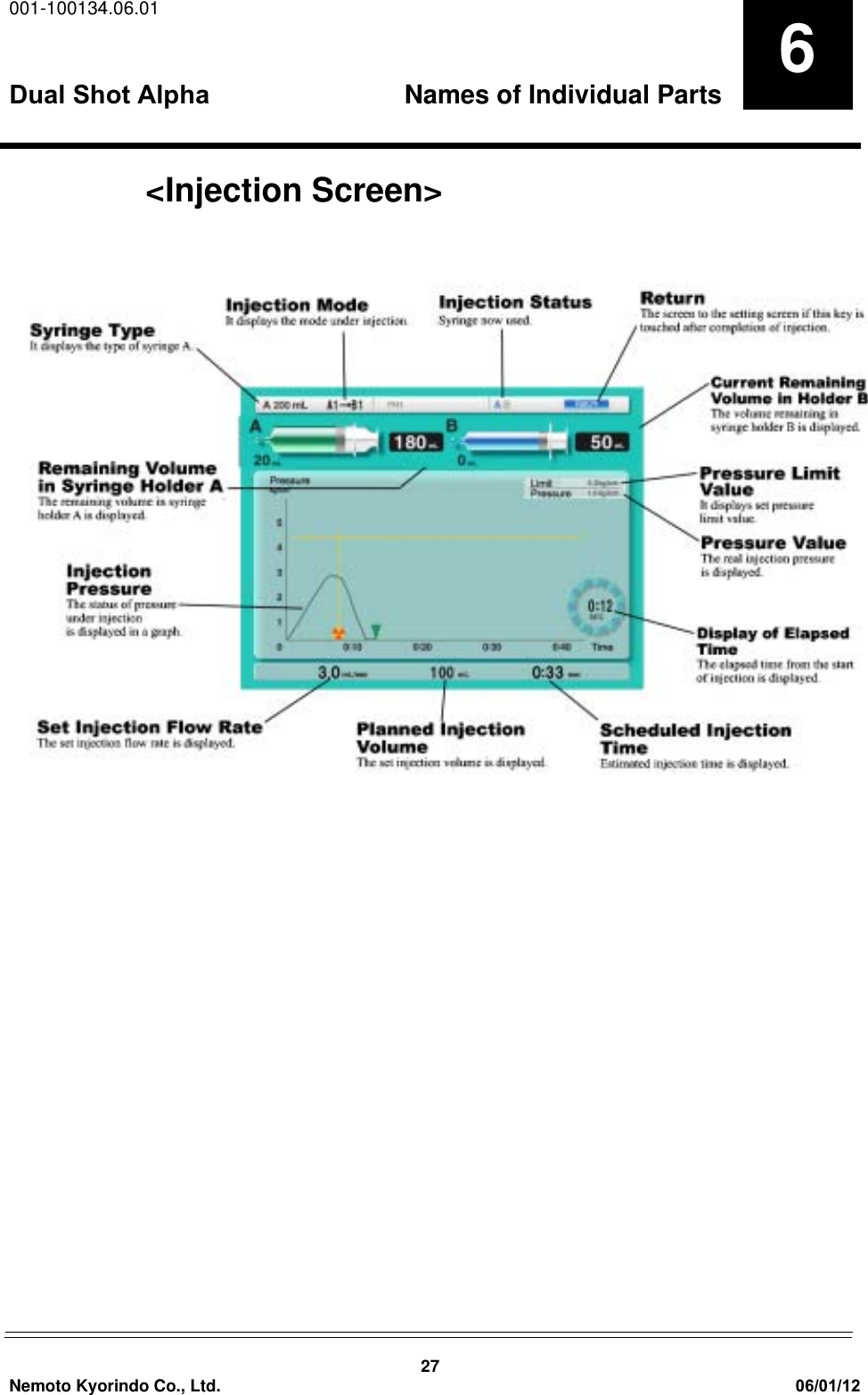

001-100134.06.01Dual Shot Alpha Names of Individual Parts27Nemoto Kyorindo Co., Ltd. 06/01/126<Injection Screen>

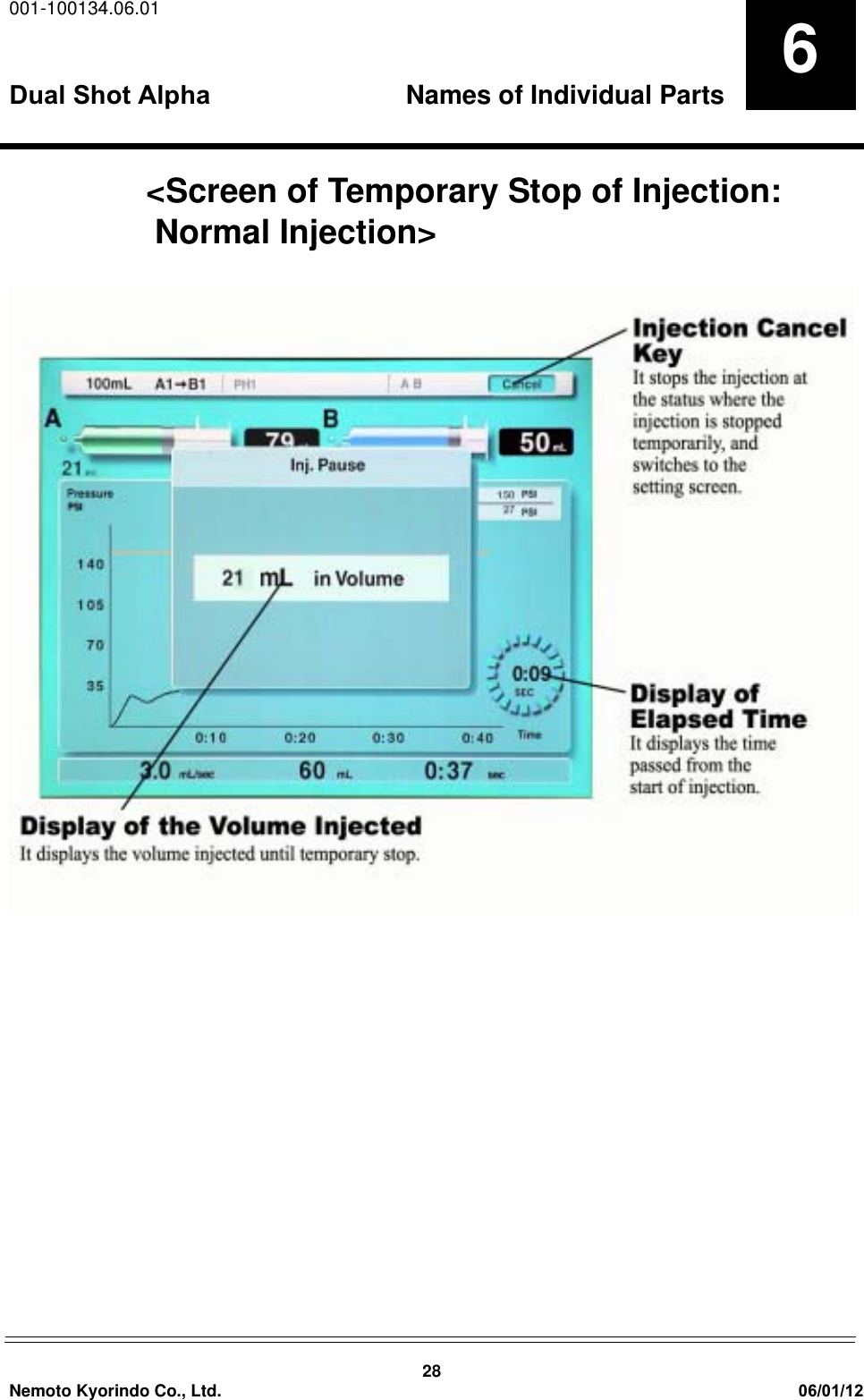

001-100134.06.01Dual Shot Alpha Names of Individual Parts28Nemoto Kyorindo Co., Ltd. 06/01/126<Screen of Temporary Stop of Injection: Normal Injection>

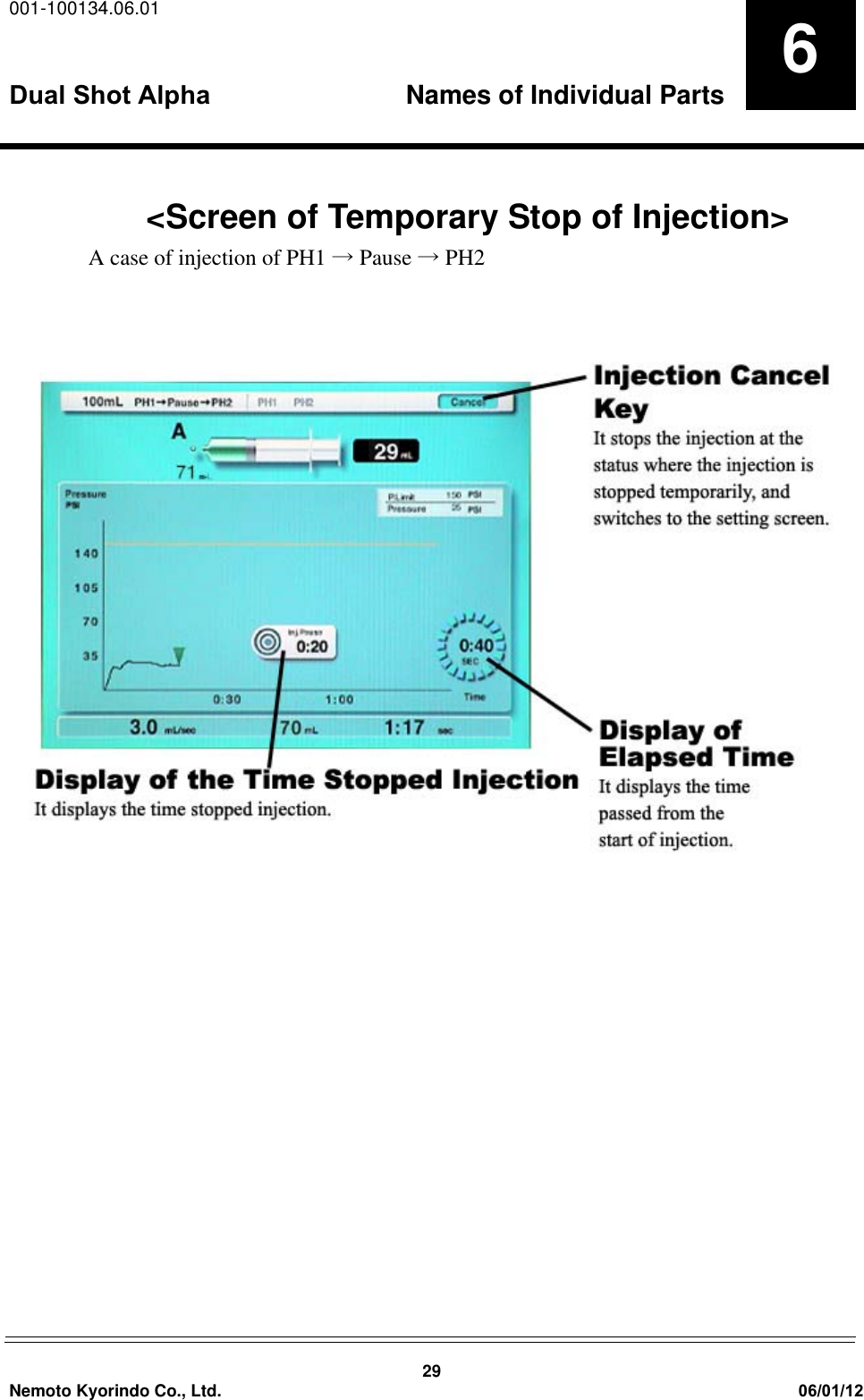

001-100134.06.01Dual Shot Alpha Names of Individual Parts29Nemoto Kyorindo Co., Ltd. 06/01/126<Screen of Temporary Stop of Injection>A case of injection of PH1 ψ Pause ψPH2
001-100134.06.01Dual Shot Alpha Names of Individual Parts30Nemoto Kyorindo Co., Ltd. 06/01/1266-5. AccessoriesOperation manual (this book)It explains how to operate Dual Shot, a contrast delivery system.Be sure to read carefully before use.Read the separate sheets also.HandswitchIt is used to start an injection of the contrast in the operationroom.CompactFlash cardIt is a card for an additional function such as QUICK SELECTMODE.Adapter for a 100 mL syringeIt is used when a 100 mL syringe is used.For usable syringes, see "Recommended consumables".Head extension cableIt is used when a head cable is extended.Please see respective manuals.
001-100134.06.01Dual Shot Alpha Names of Individual Parts31Nemoto Kyorindo Co., Ltd. 06/01/126Stand㧔option㧕It supports the head.It is not included when a ceiling mounting arm is ordered.Power cableIt connects to the AC power.Console cableIt connects the console and the main unit.Ceiling mounting head armIt is used when the ceiling mounting type of the system is used.

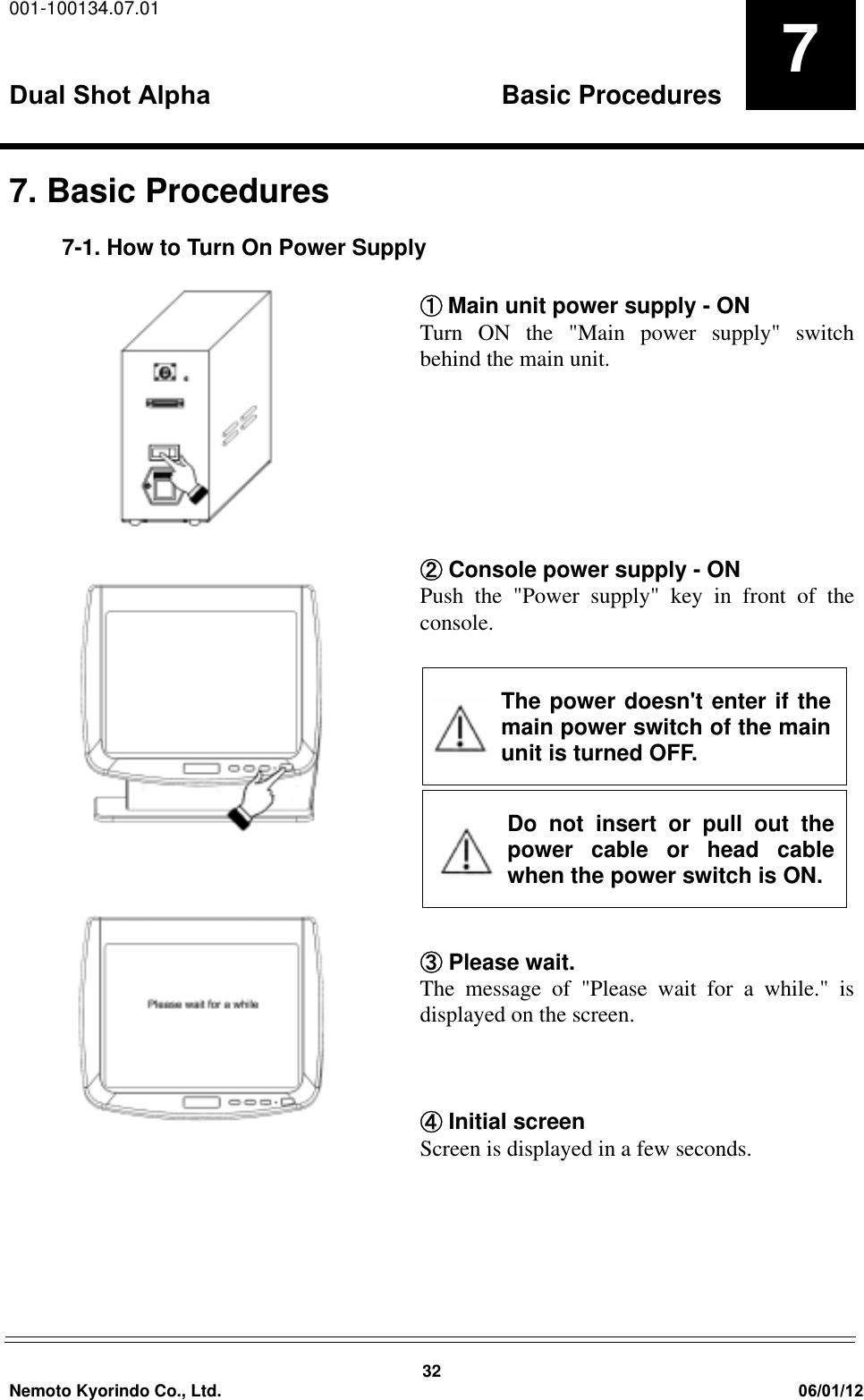

001-100134.07.01Dual Shot Alpha Basic Procedures32Nemoto Kyorindo Co., Ltd. 06/01/1277. Basic Procedures7-1. How to Turn On Power SupplyԘMain unit power supply - ONTurn ON the "Main power supply" switchbehind the main unit.ԙ Console power supply - ONPush the "Power supply" key in front of theconsole.Ԛ Please wait.The message of "Please wait for a while." isdisplayed on the screen.ԛ Initial screenScreen is displayed in a few seconds.The power doesn't enter if themain power switch of the mainunit is turned OFF. Do not insert or pull out thepower cable or head cablewhen the power switch is ON.

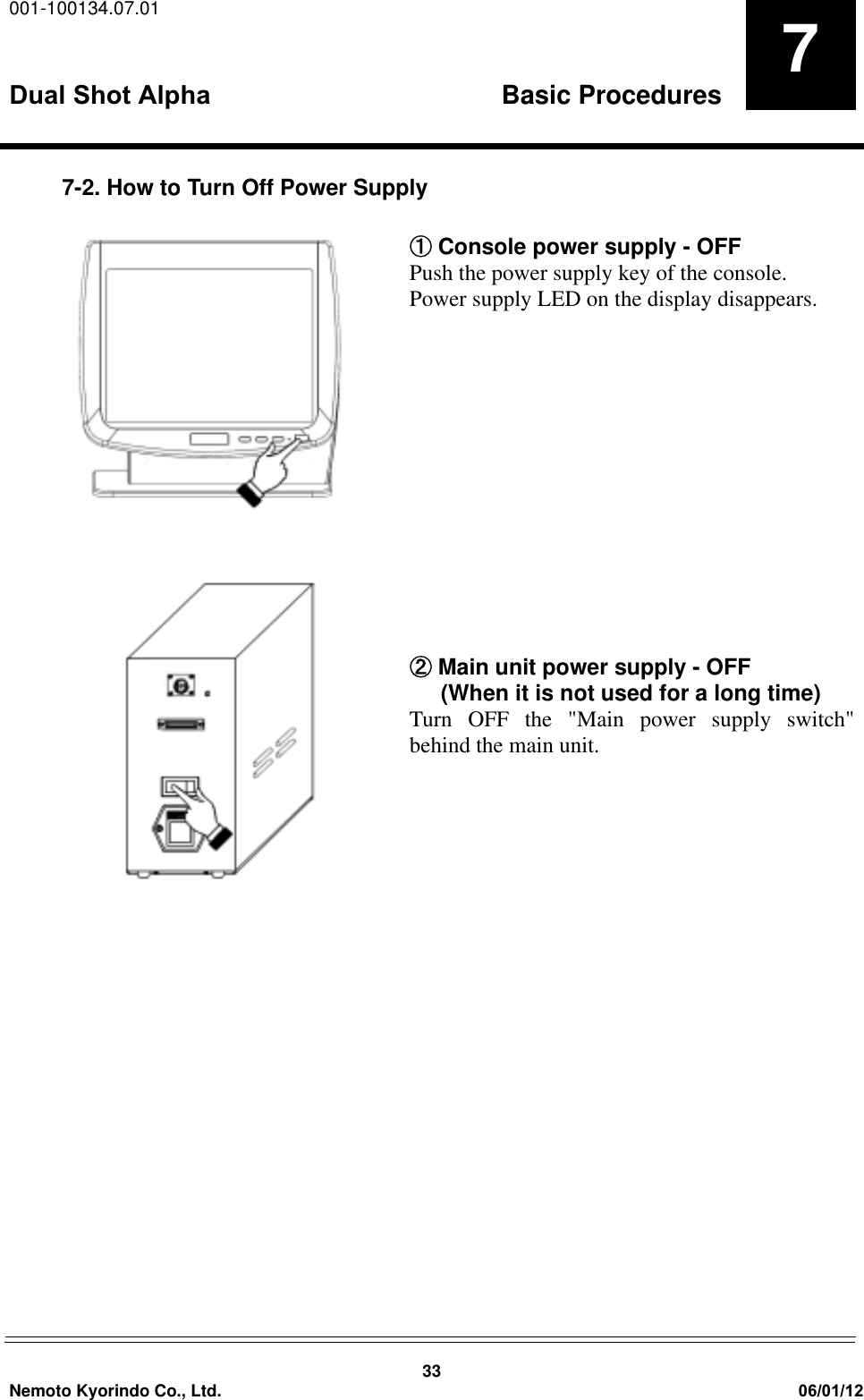

001-100134.07.01Dual Shot Alpha Basic Procedures33Nemoto Kyorindo Co., Ltd. 06/01/1277-2. How to Turn Off Power SupplyԘ Console power supply - OFFPush the power supply key of the console.Power supply LED on the display disappears.ԙ Main unit power supply - OFF (When it is not used for a long time)Turn OFF the "Main power supply switch"behind the main unit.
001-100134.08.01Dual Shot Alpha Basic Procedures34Nemoto Kyorindo Co., Ltd. 06/01/1277-3. Basic OperationsForwardThe presser advances while the key is beingpressed, and pushes the plunger at following speed.(In Middle and Slow speed, the presser stops automaticallyafter advancing 10mL.)ReverseThe presser reverses while the key is beingpressed, and pulls the plunger at low speed.(The presser stops automatically after reversing10mL.)Use the auto-return key to fill the contrast.FastMiddleSlowFastMiddleSlow
001-100134.08.01Dual Shot Alpha Basic Procedures35Nemoto Kyorindo Co., Ltd. 06/01/127Slow movement (jog dial)If the shuttle at the side of the head is movedahead or back, the A head presser lowly movesahead or back.When the shuttle is pulled Ԙin the direction ofthe tip of the head, the presser moves in theinjection direction. When the shuttle is pulledԙin the direction of the back of the head, thepresser moves in the direction of filling the con-trast.Auto-returnThe presser automatically reverses to the edge ofthe back if the button is pressed for more than 2seconds.CheckPress this button after verifying the injectionroute. If this button is not pressed, a contrastinjection can not be performed.ԙԘ
001-100134.08.01Dual Shot Alpha Basic Procedures36Nemoto Kyorindo Co., Ltd. 06/01/127Start of the contrast injection from the operation roomPush up the cover of the handswitch toopenPush up the cover to protect malfunction of thehandswitch.Push the start buttonPush the start button hidden under the cover tostart injection.Startofthecontrastinjection from the examination roomPush the start key of the headPush the start key of the head to start injection.
001-100134.08.01Dual Shot Alpha Basic Procedures37Nemoto Kyorindo Co., Ltd. 06/01/127Stopofinjectionintheexamination roomThere are injection stop buttons on both sidesand the top of the head.Pushing either of these buttons stops injectiontemporarily.Temporary stop of injection with the console buttonThere is an injection stop button in the lowercenter of the front panel of the console.Temporary stop of injection with the handswitchThere is an injection stop button at the lowerside of the handswitch.Indication of temporary stop is displayed on the screen if injection is temporarilystopped.If you want to continue injection, push the start button of the head or handswitch.Then injection starts again.
001-100134.09.01Dual Shot Alpha Basic Operations of the Setup Screen38Nemoto Kyorindo Co., Ltd. 06/01/1277-4. Basic Operations of the Setup Screen7-4-1. Setting of Values٨Change of flow rate.ԘTouch the "Flow Rate" (in the frame)". The touch sound is sounded and a fineadjustment key is displayed.ԙ If you want fine adjustment of the value,touch “+” or “-” in the fine adjustmentframe. The set value will increase ordecrease.If you continue to touch, the valuechanges continuously. The value thatcan be changed continuously is;Flow Rate: up to r2mL/secԚ When you touch the set value part of thefine adjustment frame, a numerical keypad will appear.Input the flow rate value to set and touchthe “ENTER” to complete the setting.
001-100134.09.01Dual Shot Alpha Basic Operations of the Setup Screen39Nemoto Kyorindo Co., Ltd. 06/01/127Touch the frame of the injection volume.A fine adjustment key is displayed.Touch the frame of the set value. A numer-ical key pad will be displayed. A fine adjustment key disappearsautomatically in about five seconds.Injection volume is set with the numericalkey pad. Press the "ENTER" after the numericalsetting is completed. Setting is completed.Touch the frame of the Floe Rate. A fineadjustment key frame will be displayed.Touch the frame of the set value. A numer-ical key pad will be displayed. The fine adjustment key frame disappearsautomatically in about five seconds.Injection flow rate is set with the numeri-cal key pad. Press the "ENTER" after the numericalsetting is completed. Setting is completed.
001-100134.09.01Dual Shot Alpha Basic Operations of the Setup Screen40Nemoto Kyorindo Co., Ltd. 06/01/127Touch the frame of the P.Limit (PressureLimit). The numerical key pad will bedisplayed.1MPa = 1.01972  10 kgf/cm2 = 1.45038  102 psiTouch the frame of the Inj. Delay (InjectionDelay). The numerical key pad will bedisplayed.The left side of ":" shows minutes and theright side shows seconds. Example)Input "1:20" for "one minute and 20seconds".
001-100134.10.01Dual Shot Alpha Installation and Detachment of a Syringe41Nemoto Kyorindo Co., Ltd. 06/01/1277-5. Installation and Detachment of a Syringe7-5-1. Installation of a 100 mL SyringeԘPull the presser to the end position.ԙOpen a syringe clamper with fingers toprepare attachment of a syringe.ԚInstall the adapter for 100 mL syringe, andclose the syringe clamp.(Close the hook under the head for fixing thesyringe adapter tightly.)ԛInstall a syringe in the state that the flange ofthe syringe looks long (or in the state that thescale of the syringe is seen from the side),and turn the syringe so as the scale is placedupside.ԜMove the presser ahead, and closely contactthe plunger of the syringe.Ensure that the claws of the presser headtightly held the plunger.ԝInstall the injection route including an exten-sion tube, etc.
001-100134.10.01Dual Shot Alpha Installation and Detachment of a Syringe42Nemoto Kyorindo Co., Ltd. 06/01/1277-5-2. DetachmentԘRemove the injection route from the patient.ԙTurn the syringe 90 degrees.Ԛ Take out the syringe straight up to detach.

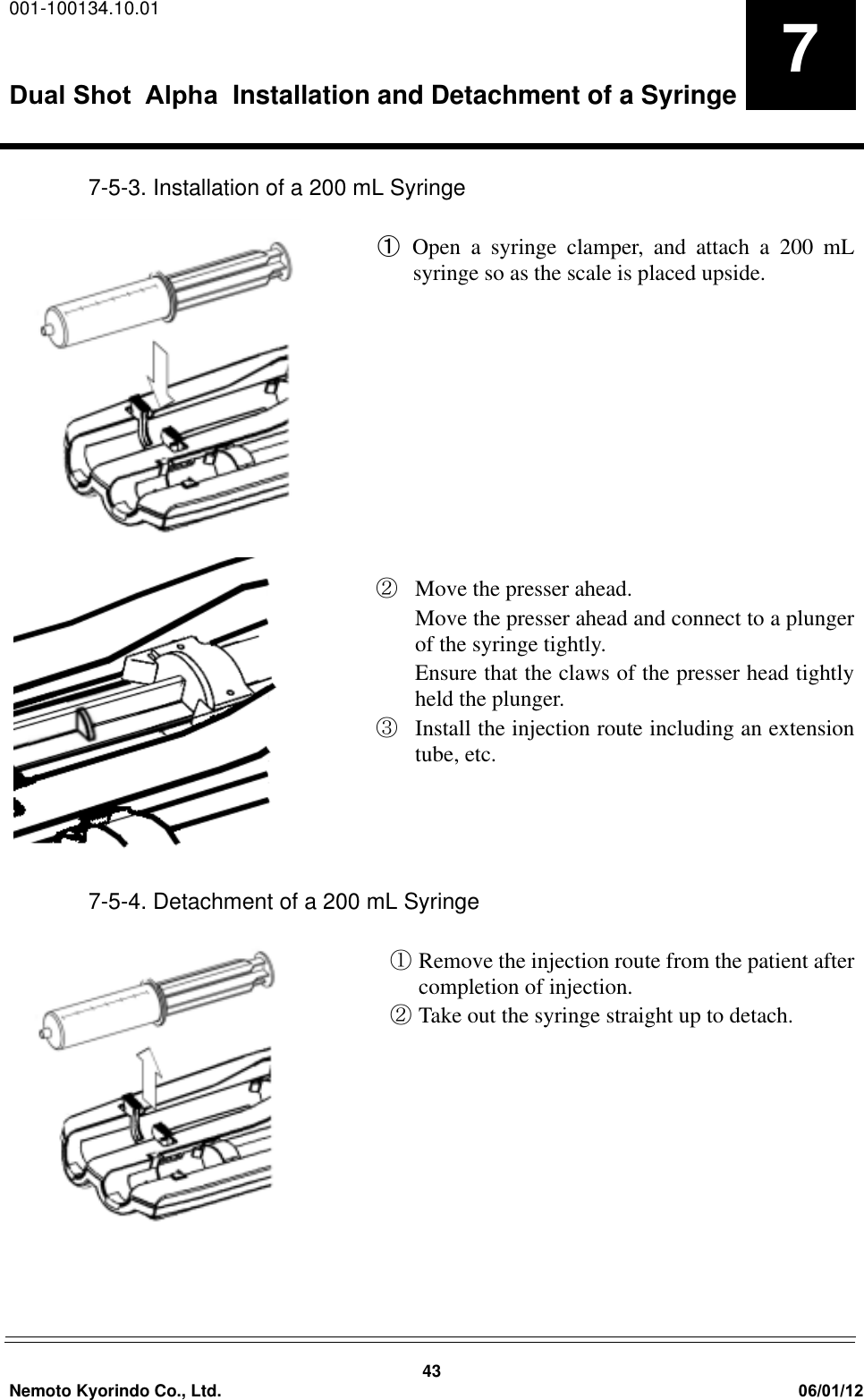

001-100134.10.01Dual Shot Alpha Installation and Detachment of a Syringe43Nemoto Kyorindo Co., Ltd. 06/01/1277-5-3. Installation of a 200 mL SyringeԘOpen a syringe clamper, and attach a 200 mLsyringe so as the scale is placed upside.ԙMove the presser ahead.Move the presser ahead and connect to a plungerof the syringe tightly.Ensure that the claws of the presser head tightlyheld the plunger.ԚInstall the injection route including an extensiontube, etc.7-5-4. Detachment of a 200 mL SyringeԘRemove the injection route from the patient aftercompletion of injection.ԙTake out the syringe straight up to detach.
001-100134.10.01Dual Shot Alpha Installation and Detachment of a Syringe44Nemoto Kyorindo Co., Ltd. 06/01/1277-5-5. Installation of B Side SyringeԘPull the presser to the end position.ԙ Install a syringe in the state that the flange ofthe syringe looks long (or in the state that thescale of the syringe is seen from the side), andturn the syringe so as the scale is placed upside.Ԛ Move the presser ahead, and closely contactthe plunger of the syringe. Ensure that the claws of the presser headtightly held the plunger.
001-100134.10.01Dual Shot Alpha Installation and Detachment of a Syringe45Nemoto Kyorindo Co., Ltd. 06/01/1277-5-6. Installation of a 100 mL Syringe AdapterԘ Open a syringe clamper on the Head A side.ԙInsert the flange of the syringe adapter intothe slot.ԚClose the syringe clamper with fingers.ԛFix the adapter surely with a hook for fixingthe syringe adapter attached at the back sideof the syringe holder.

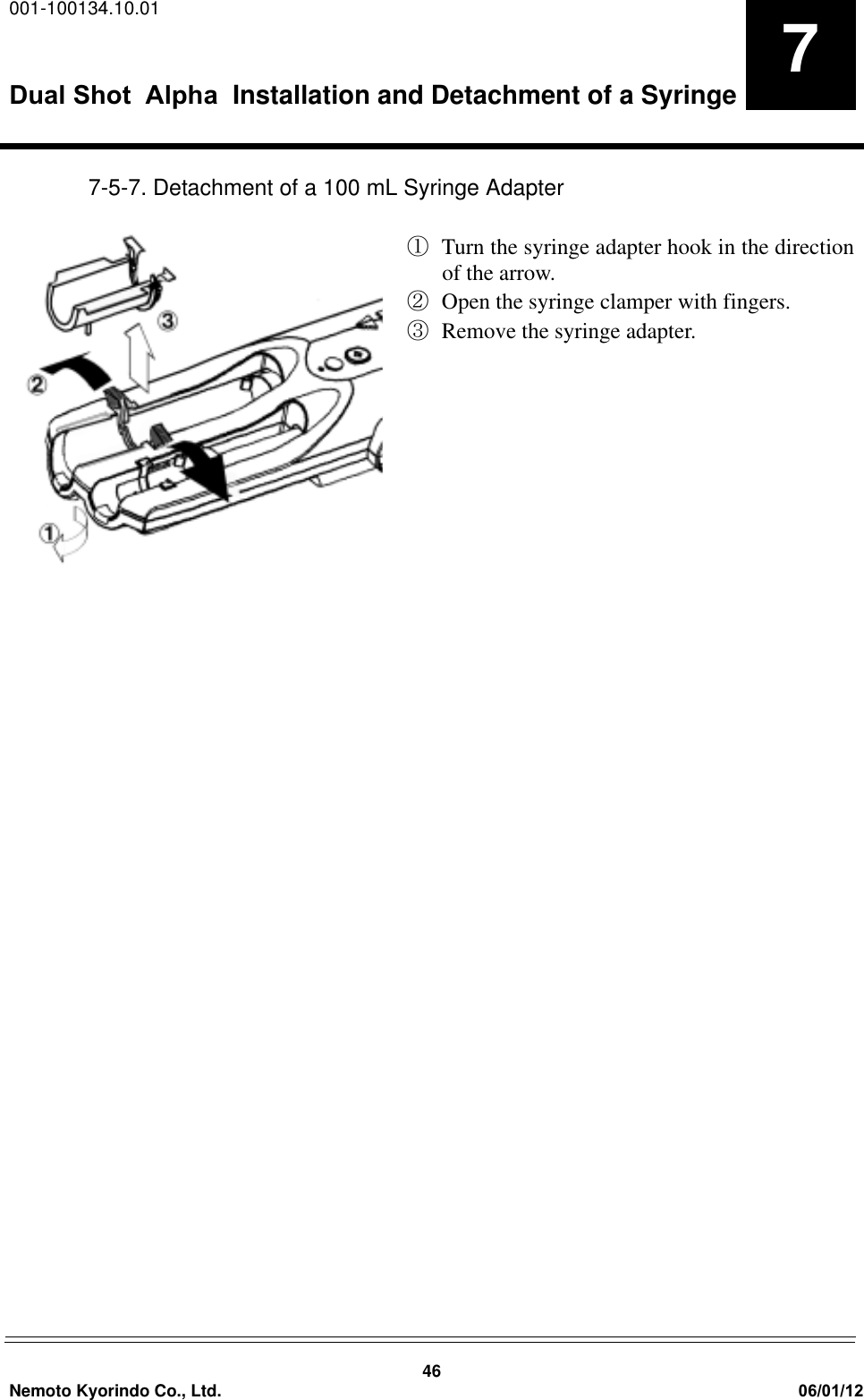

001-100134.10.01Dual Shot Alpha Installation and Detachment of a Syringe46Nemoto Kyorindo Co., Ltd. 06/01/1277-5-7. Detachment of a 100 mL Syringe AdapterԘ Turn the syringe adapter hook in the directionof the arrow. ԙOpen the syringe clamper with fingers.ԚRemove the syringe adapter.
001-100134.11.01Dual Shot Alpha Aspiration and Connection of the Injection Circuit47Nemoto Kyorindo Co., Ltd. 06/01/1277-6. Filling٨Filling contrast medium or physiological saline solutionUpturn the edge of the head and connect thesyringe to the contrast bottle with a tube.Press the auto-return key Ԙfor more than 2seconds. Then filling will start. When thecontrast has reached the designated fillinglevel, press the stop key ԙto stop filling.After the filling is completed, set the injectionroute before use.Filling at faster speed may cause negativepressure in the syringe and produce bubblesinside the syringe. Filling should beperformed slowly.

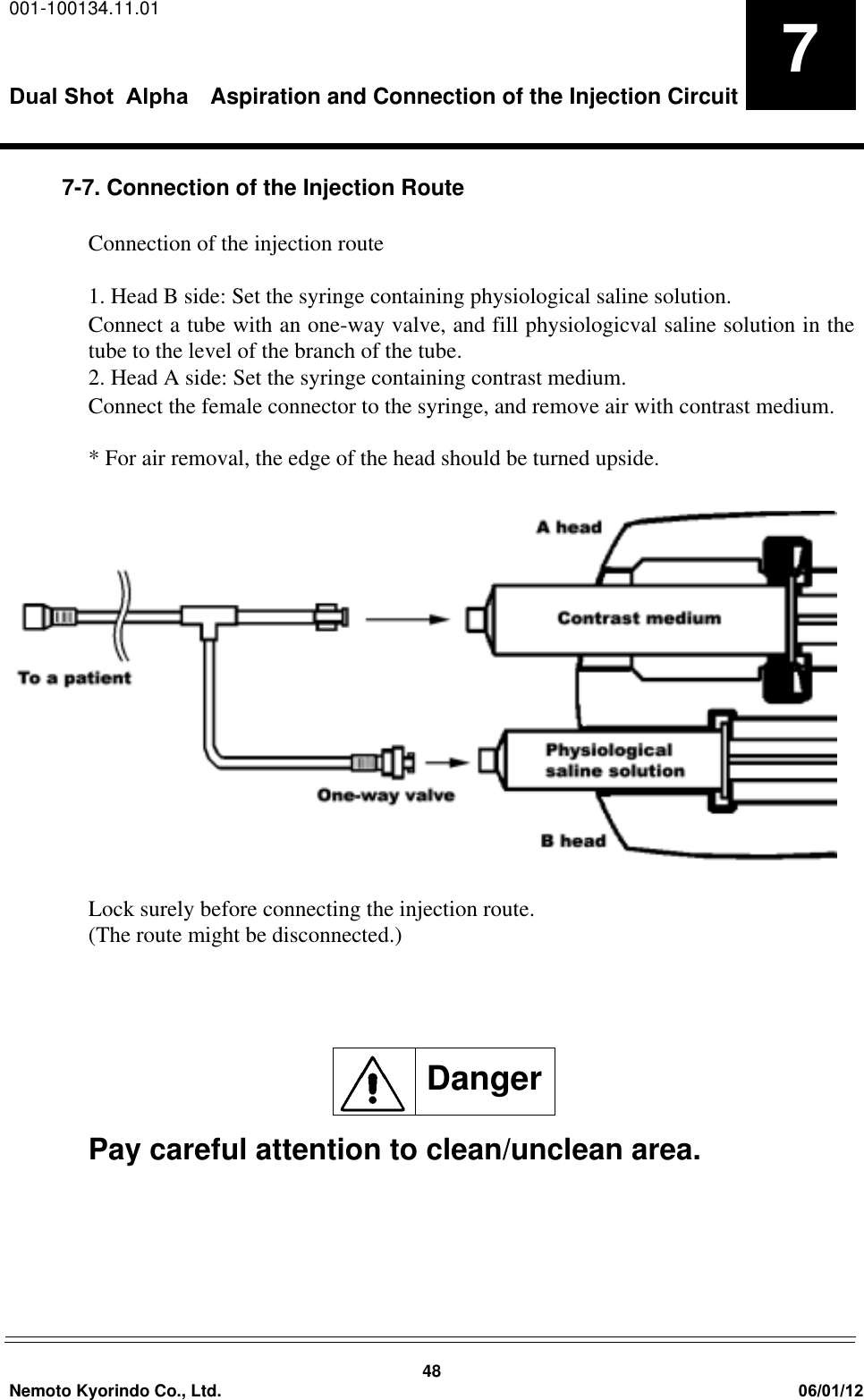

001-100134.11.01Dual Shot Alpha Aspiration and Connection of the Injection Circuit48Nemoto Kyorindo Co., Ltd. 06/01/1277-7. Connection of the Injection RouteConnection of the injection route 1. Head B side: Set the syringe containing physiological saline solution.Connect a tube with an one-way valve, and fill physiologicval saline solution in thetube to the level of the branch of the tube.2. Head A side: Set the syringe containing contrast medium. Connect the female connector to the syringe, and remove air with contrast medium.* For air removal, the edge of the head should be turned upside.Lock surely before connecting the injection route.(The route might be disconnected.)Pay careful attention to clean/unclean area.Danger
001-100134.12.01Dual Shot Alpha Operation Procedure49Nemoto Kyorindo Co., Ltd. 06/01/1277-8. Operation Procedure1) Setting injection parametersSet the injection parameters for contrast medium mostsuitable for each examination.2) Install a syringe into the head.The examination to use both A and B is shown as anexample.Install the syringe filled with the contrast to use in theside A and and the syringe containing the saline in theside B.3) Attach the injection route.Attach the injection route to thesyringe.4) Closely contact the presser to the syringe plunger.
001-100134.12.01Dual Shot Alpha Operation Procedure50Nemoto Kyorindo Co., Ltd. 06/01/127Closely contact the presser of the injector to the plungerof the syringe.The tip of the head is turned upside, and the presser isslowly moved to the direction of injection in order toremove air in a syringe, a tube and a needle.5) Push out air in the syringe for the contrast and thetube. (Push out the contrast to the branch point Ԙofthe tube.)6) Push out air in the syringe containing saline, the tubeand the needle point ԙ.
001-100134.12.01Dual Shot Alpha Operation Procedure51Nemoto Kyorindo Co., Ltd. 06/01/1277)Pushtheair-checkbutton.Push the check button on the head after confirming no aircontained in the injection route.8) Check that start is ready.Confirm that "Start OK" was displayed on the right of thesetting screen.If the “Start OK” is not displayed, the condition unable toinject has been set.9) Start injection.Injection can be started by pushing a start button of thehandswitch in the operation room.Use a start button of the head if you want to start injectionin the examination room.Pay attention to leakage during injection. It may cause damage to a patient. Ifany abnormality is found, stop the system immediately. The system does notstop automatically even if leakage occurred.Danger
001-100134.12.01Dual Shot Alpha Operation Procedure52Nemoto Kyorindo Co., Ltd. 06/01/12710) Low-pressure warningA low-pressure warning may be displayed and operationmay be stopped, if pressure is not loaded continuouslywhile 5 mL of drug solution is injected. Syringe, needleand injection route should be checked.When injection pressure is 0.5kg/cm2 or less, the fol-lowing will occur.0.1 - 1.4 mL/sec --------warning message1.5 - 10.0 ml/sec--------injection stop
001-100134.13.01Dual Shot Alpha Injection Mode53Nemoto Kyorindo Co., Ltd. 06/01/1277-9. Injection Mode7-9-1. Shift of Setting Mode* Please ask your survice staff for change of dual injection mode.
001-100134.13.01Dual Shot Alpha Injection Mode54Nemoto Kyorindo Co., Ltd. 06/01/1277-9-2. PH1 Setting and Multi Setting1) PH1Only the side of the head A operates. Running is completed by one operation forinjection.The system is stopped automatically if theplanned volume has been injected.7-9-3. Setting of PH1 ψ2Only the side of the head A operates.You can divide injection into 2 phases in aserial operation.7-9-4. Setting of PH1 ψ Stop ψPH2Only the side of the head A operates. Inject separately for two phases. If one phase is completed, injection stopstemporarily, and stops until injection startis ordered again.For re-injection, push the STARTbutton of the handswitch or theSTART key of the head.
001-100134.13.01Dual Shot Alpha Injection Mode55Nemoto Kyorindo Co., Ltd. 06/01/1277-9-5. Setting of A1 ψB1 (dual injection mode)Injecting the side B after injection of the side A.Use the heads A and B. After contrast medium is injected from thehead A, physiological saline solution isinjected from the head B.7-9-6. Setting of A2 ψB1 (dual injection mode)Injecting the side B after 2-phases injection on the side A.Use the heads A and B. After contrast medium is injectedseparately for two phases from the head A,physiological saline solution is injectedfrom the head B.7-9-7. Setting of A1+B1 (dual injection mode)Injecting from both sides of A and B at the same time.Use the heads A and B.Injection will be started from both heads Aand B.
001-100134.13.01Dual Shot Alpha Injection Mode56Nemoto Kyorindo Co., Ltd. 06/01/1277-9-8. Setting of AB1 ψAB2 (dual injection mode)(Injecting the side B after injection of the side A) is repeated twice.Use the heads A and B. After contrast medium is injected from thehead A, physiological saline solution isinjected from the head B.This serial operation is repeated twice.7-9-9. Setting of A ψA+B (dual injection mode)Injecting from both sides of A and B at the same time after injecting the side A.Use the heads A and B. After contrast medium in injected from thehead A,contrast medium and physiologicalsaline solution are injected sfrom bothheads A and B at the same time.For setting pressure limit, set a proper value after a syringe adapter isinstalled and the types of tube and needle to be used is checked.Moreover, do not set the pressure limit more than resistance pressure *of the syringe and the injection route.ޓ* Please see the operation manual of injection route for the resistance pressures ofthe syringe and the injection route. In the setting or injection route to increase extreme pressure, the pres-sure may temporarily exceeds the set value of the pressure limit.
001-100134.14.01Dual Shot Alpha Other Screens58Nemoto Kyorindo Co., Ltd. 06/01/1277-10. Other ScreensResults of injectionResults of injection can be confirmed, if necessary. The results of every injection can be listed or drawn in a graph."Table of list": It presents the minimum information including date and themaximum pressure."Graph": It presents the state of pressure from the start to completionof injection.* The results of injection will record the latest results of 20 injections regardlessof injection mode. Old data will be deleted one by one.* Graph of pressure will be deleted if the power supply is dropped.1. Push the "Results key" under the right front of theconsole.2. The newest 5 results are displayed on the InjectionResults screen.Touch the “Page 1” on the center of the screen.Other 15 results will be displayed by 5 results.When you want to see the pressure graph of theinjection result, touch the “Graph” key on the rightside of the results data frame.3. The "GRAPH" button displays the results of thisinjection state.If you want to return to the list display, press the"Return" in the upper right of the screen.
001-100134.15.01Dual Shot Alpha Adjustment screen59Nemoto Kyorindo Co., Ltd. 06/01/1288. Adjustment screen (setting of date and adjustment of volume)Push a switch in the inside of the holewith an end-rounded stick.Ԙ This key is pressed when setting of date and adjustment of sound volume are fin-ished.When this key is pressed, the power supply is automatically turned off. Turn onthe power supply of the device again for use. ԙ It changes date and time. Correct time and date of the injection results, if they arewrong.Ԛ The operation sound volume of the console can be adjusted [0 (silence) - 15(maximum sound)]. ԛ The operation volume of the head can be adjusted [(0 (silence) - 15 (maximumsound)].* Do not turn the display sound volume to 0, as the warning sound vol-ume also changes.

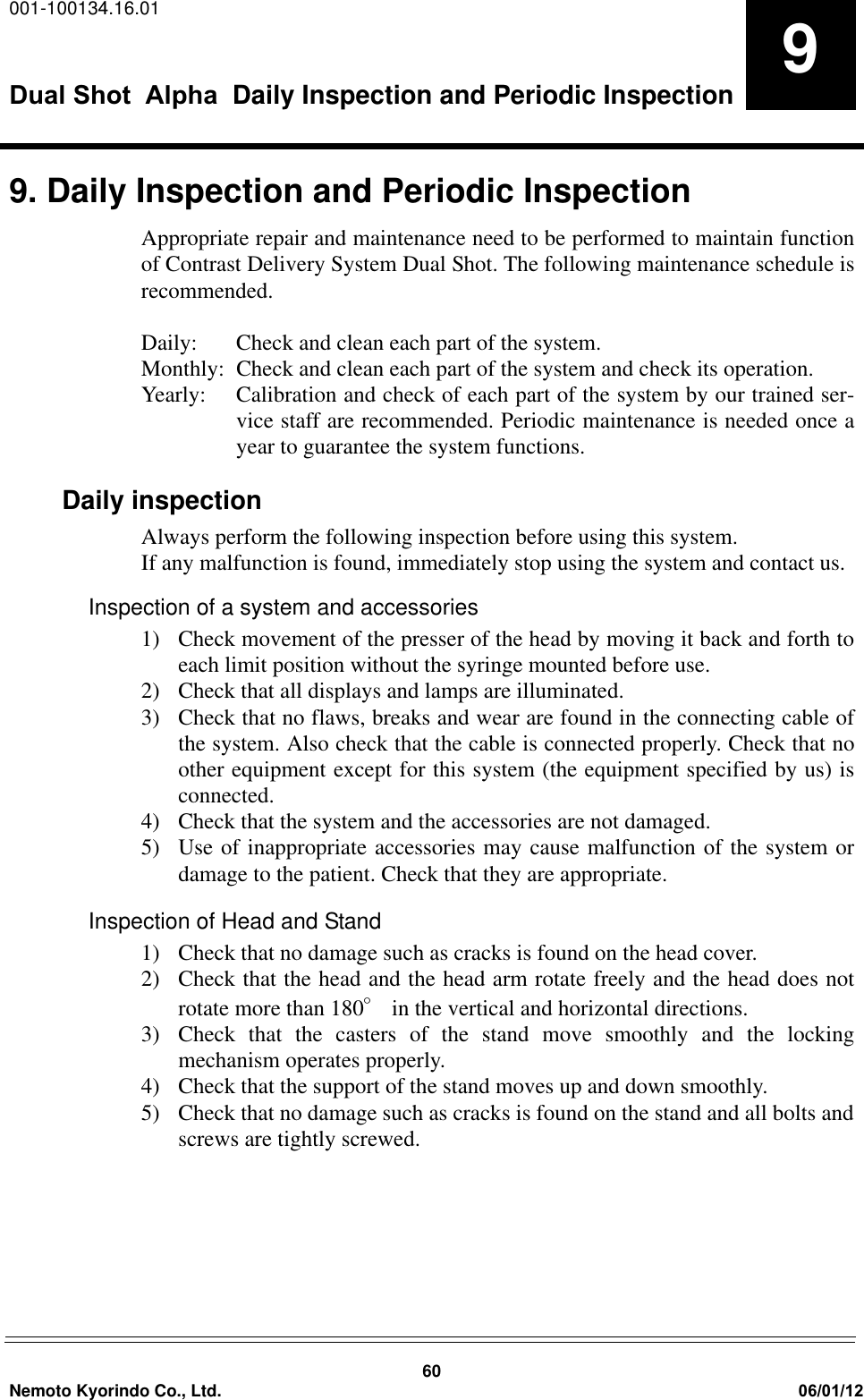

001-100134.16.01Dual Shot Alpha Daily Inspection and Periodic Inspection60Nemoto Kyorindo Co., Ltd. 06/01/1299. Daily Inspection and Periodic InspectionAppropriate repair and maintenance need to be performed to maintain functionof Contrast Delivery System Dual Shot. The following maintenance schedule isrecommended.Daily: Check and clean each part of the system. Monthly: Check and clean each part of the system and check its operation. Yearly: Calibration and check of each part of the system by our trained ser-vice staff are recommended. Periodic maintenance is needed once ayear to guarantee the system functions.Daily inspectionAlways perform the following inspection before using this system. If any malfunction is found, immediately stop using the system and contact us.Inspection of a system and accessories1) Check movement of the presser of the head by moving it back and forth toeach limit position without the syringe mounted before use.2) Check that all displays and lamps are illuminated.3) Check that no flaws, breaks and wear are found in the connecting cable ofthe system. Also check that the cable is connected properly. Check that noother equipment except for this system (the equipment specified by us) isconnected.4) Check that the system and the accessories are not damaged.5) Use of inappropriate accessories may cause malfunction of the system ordamage to the patient. Check that they are appropriate.Inspection of Head and Stand1) Check that no damage such as cracks is found on the head cover.2) Check that the head and the head arm rotate freely and the head does notrotate more than 180q in the vertical and horizontal directions.3) Check that the casters of the stand move smoothly and the lockingmechanism operates properly.4) Check that the support of the stand moves up and down smoothly.5) Check that no damage such as cracks is found on the stand and all bolts andscrews are tightly screwed.
001-100134.16.01Dual Shot Alpha Daily Inspection and Periodic Inspection61Nemoto Kyorindo Co., Ltd. 06/01/129Inspection of Ceiling Mounted Arm (option)1) Check that there are no cracks, bents, wear and looseness in the support andarm.2) Check that the support can be moved lightly without bending.3) When any defects are detected, inform us immediately.Cleaning1) One of the main causes of malfunction is adhesion of the contrast on thehead. Always clean the head after use. In general, the contrast can beremoved easily with a dry cloth immediately after it adheres to it. If the contrast adhered to dried out, remove it with a cloth dampened withwarm water or water.2) Inform us if the contrast gets inside the system.࡮To avoid electric shock, always turn the power off andunplug the power cable when cleaning the system.࡮Never use organic solvents such as thinner andbenzene because they cause malfunction of thesystem as well as are not effective to the contrast.Operation inspection1) Check movement of the presser of the head by moving it back and forth toeach limit position without the syringe mounted before use.2) Move the presser of the head forward by keeping pressing the forward keywithout the syringe mounted, and check that the presser stops at 10mLautomatically.3) Check that all displays and lamps are illuminated.4) Start injection under the injection conditions programmed and check thatthe values of the injection conditions are displayed on the screen and thesystem operates properly.Caution
001-100134.17.01Dual Shot Alpha Troubleshooting62Nemoto Kyorindo Co., Ltd. 06/01/121010. TroubleshootingThis system incorporates an automated diagnostic function to ensure the higher safety inconsideration of various possible malfunctions. When any abnormality occurs, this functionactivates and displays the description and the error number on the screen. Use this automated diagnostic function to deal with troubles of operation of the system or ofconnection.In some cases such as damage of external appearance of the system, abnormal noise, and otherunpredictable malfunction by us 㧖, the automated diagnostic function may not be effective. Insuch a case, please contact us.* Depending on the malfunction, the drug solution of 10mL may be injected until the systemstops.Turn the power off when either of the following errors appears.Pressure limit warning is indicated during injectionProblem Pressure limit is activated. (The flow rate is kept down.)Cause The pressure limit setting is too low for the flow rate. The injection route (needle, tube, catheter, etc.) is too narrow oralmost clogged. Solution The injection conditions need to be reviewed.Error 1Problem Over pressureCause The stopcock is closed. Solution Check the route from the syringe to the tip of the catheter (needle), orconduct an injection test without loading a syringe and see if the Error1 message is still displayed.Error 2Problem Over volumeCause Error in the injection volume count due to the outside noise.Solution Change the location of the main unit, console or head.
001-100134.17.01Dual Shot Alpha Troubleshooting63Nemoto Kyorindo Co., Ltd. 06/01/1210Error 3Problem Abnormal injection flow rateCause More than 25% error of the setting has occurred. Solution Conduct an injection test without loading a syringe. Also, make surethere aren't any scratches on the cable, etc.Error 4Problem Excessive injection timeCause More than 25% error of the setting has occurred. Solution Conduct an injection test without loading a syringe. Also, make surethere aren't any scratches on the cable, etc.Error 5Problem Short of volumeCause More than 25% error of the setting has occurred. Solution Conduct an injection test without loading the syringe. Also, makesure there aren't any scratches on the cable, etc.Error 6Problem Abnormal motor stoppingCause The motor does not work.Solution Conduct an injection test without loading the syringe. Also, makesure there aren't any scratches on the cable, etc.Error 11Problem Encoder troubleCause Disconnection of the head cable, trouble with the motor.Solution Conduct an injection test without loading a syringe. Make sure therearen't any scratches on the cable, etc.
001-100134.17.01Dual Shot Alpha Troubleshooting64Nemoto Kyorindo Co., Ltd. 06/01/1210* Contact your dealer if the problem persists even after checking the above.* Contact your dealer if the problem other than the above occurred.Error 13Problem Trouble with the limit sensorCause Both forward and reverse limits functioned at the same time.Solution Make sure there aren't any scratches on the cable, etc. Turn off/onthe power and check the forward/reverse operation to each limit.Error 14Problem Trouble with the safety circuitCause Motor moves randomly regardless to the operator's intent.Solution Shut off the power supply, and turn on again to see what happens.Error 17Problem Trouble with the head switchCause The switch on the head area is pushed when the power is applied.Solution Shut off the power supply and check the switches on the head area.

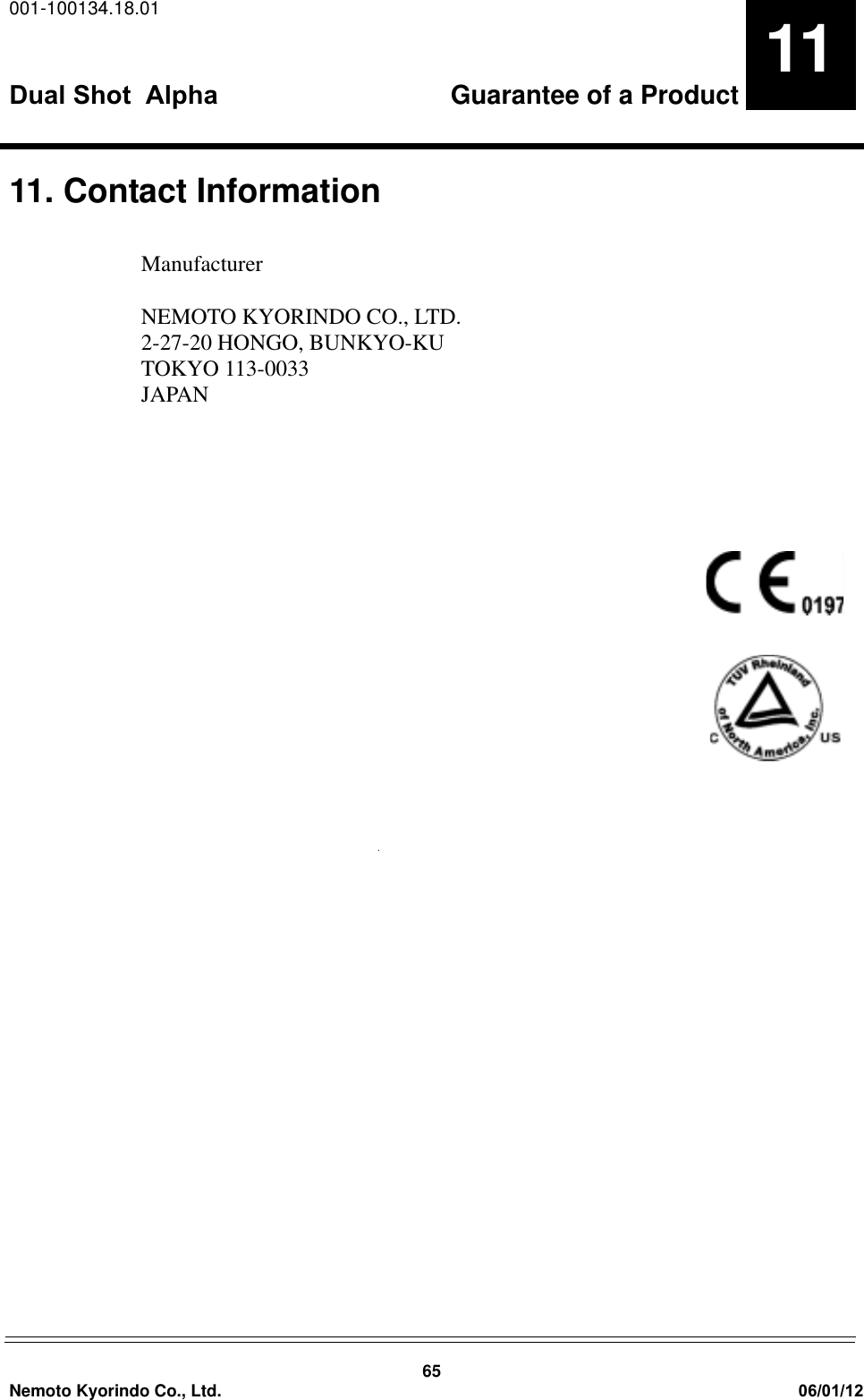

001-100134.18.01Dual Shot Alpha Guarantee of a Product65Nemoto Kyorindo Co., Ltd. 06/01/121111. Contact InformationManufacturerNEMOTO KYORINDO CO., LTD.2-27-20 HONGO, BUNKYO-KUTOKYO 113-0033JAPAN
