Instruction Manual
Siren
NAS-AB01Z
Thank you for your support
Please read the instruction manual carefully before operating
Please keep theinstruction manualafter reading
Shenzhen NEO Electronics Co., LTD
Product Introduction
Siren alarm is an intelligent device that can be controlled remotely by the radio frequency. Siren alarm
send messages via Z-wave network to the Z-Wave main controller. In the Z-Wave network
communications, Siren alarm can be connected to any Z-wave main controller, Different countries or
areas, the radio frequencyof the Z-wave network is different.In the communication between the Siren
alarm and Z-wave main controller, the siren alarm can both send and receive messages. When press
the code button of siren alarm, it will send message to the Z-wave main controller, the Z-wave main
controller can display the on/off status of the siren alarm; when the siren alarm receives messages
from theZ-wave main controller, the siren alarmwill be triggered. The siren alarm is battery powered,
small and easily install. When sirenalarm is working, LED light will flash, and there will be alarm
sound at the same time. The sound is not lower than 90 decibels.
Technical parameters
Power supply:CR123A-1500mAh X 2
Stand-by time: 1 year
Radio Frequency: 868.4MHz EU; 908.4MHz US
Compatible with 300 series and 500 series
Easy installation on wall or any surface
6 sound can be select
Range: up to 70m outdoor
up to 50m indoor
Radio Protocol: Z-wave
Sound intensity:>90 dB
Operation temperature: 0-40℃
Storage temperature:0~60℃
Dimension:(D x W x H):70mm x 68mm x 31mm
Technical Information
When the siren alarm triggered, it will make alarm sound and LED light flashat the
same time.
When the other sensor is triggered, the siren alarm can associate with the
sensorsthrough the Z-wave network.
Siren alarm can be controlled remotely via mobile phoneApp.
Compatible with any Z-Wave main controller.
Product Configuration
Product List
Siren alarm 1pc
Battery 2pcs
Screw 3pcs
Screw stopper 3pcs
Double-side adhesive 1pc
Instruction manual 1pc
The code button
Battery
Screw stopper
Cover
Screw
Siren
Sticker
Including Sensor (Siren alarm) to Z-Wave Network
The siren alarm can be included to the Z-wave network by pressing on the code button.
1) Disassemble the siren alarm and insert the battery into the siren alarm. Make sure the
device is located within the direct range of the controller.
2) Set the controller into the learning mode (see main controller’s operating manual).
3) Quickly, triple click the code button, LED light will flash red.
4)Siren alarm will be detected and included in the Z-Wave network.
5) Wait for the main controller to configure the siren alarm.
Excluding Sensor (Siren alarm) from Z-Wave Network
1) Make sure the sensor is connected to power source.
2) Set the main controller into the learning mode (see main controller’soperating manual).
3) Quickly, triple click the code button, LED light will flash red for 5 times.
4) Wait for the main controller to delete the sensor.
Installation Steps

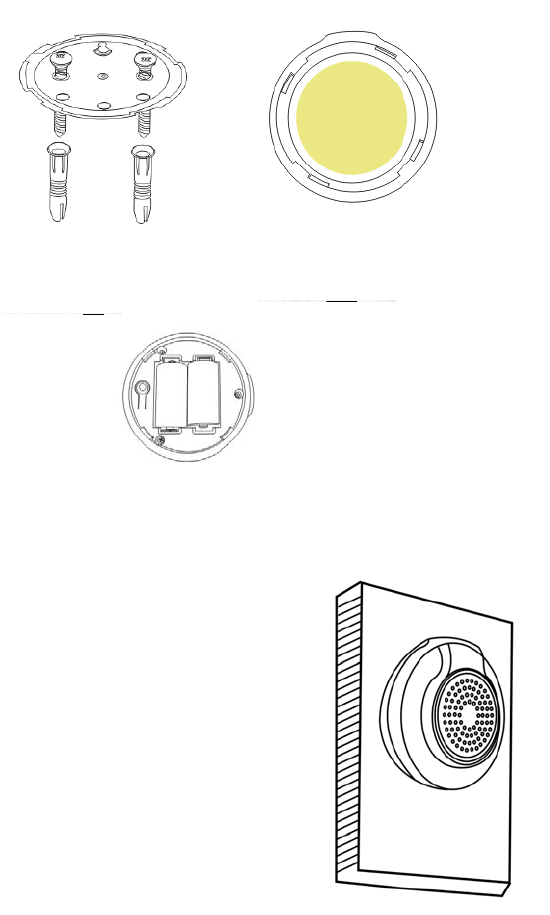

Hardware Installation

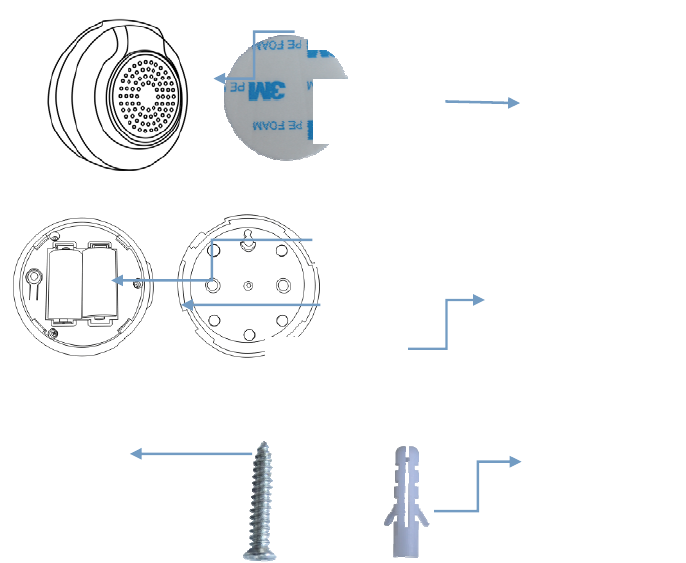

Cover installation
Battery installation
Cover installation
Option One Option Two
Fix the siren alarm with Screws Fix the siren alarm with sticker
Battery installation
Open the siren alarm Install battery Close the siren alarm
Installation example
Tips
When install the siren alarm, please avoid the noisy places.
Please install somewhere easy to find.
Do not install in a ventilated position to affect the effect of the siren alarm.
Do not install at a wet place to prevent the siren alarm from damaging.
When the siren alarms, it would sound and the led would flash red lights.
The siren alarm can be controlled remotely by mobile phone App.
Association allows for direct communication between Z-Wave network devices.
Main controller does not take part in such communication. Using this mechanism,
siren alarm may communicate with other devices even when the main controller is
damaged.
The status of LED lights
1. when the siren alarmis triggered, LED light flashes red for 12 seconds.
2. When the siren alarm installs battery, LED light will flash red for 3 seconds.
3. Quickly, triple click the code button ,add the siren alarmto the Z-WAVE network or delete
siren alarmfrom Z-WAVE network , LED light flashes red for 5 times.
4. Press on the code button for 10 seconds, the siren alarm will be restored to factory default
settings, LED light flashes red for 3 seconds.
5. In the normal condition, the LED light keeps being out.
Associations
This has the effect that when the sensor is triggered, all devices associated with the sensor
will receive the relevant reports. Through an association the sensor may control another
Z-Wave network device, e.g. the alarm device, wall plug, lamp etc.
This Sensor supports two association groups.
Association group 1 is assigned to thesiren alarm status - ON/OFF.Allows for sending
controlled command to the associated device whenever the alarm siren is turned ON or
OFF.
Association group 2reports relay's status to just one device,Z-Wave network's main
controller by default.It's not recommended to modify settings of this association group.
NOTE
Association allows for direct communication between Z-Wave network devices. Main
controller does not take part in such communication.
Restore the Sensor (Siren alarm) to Factory Default Settings
Reset procedure will delete all information on the Z-Wave network or Z-Wave controller ,
and restore the sensor to factory default settings.
1. Remove the sensor’s cover.
2. Make sure the sensor is connected to power source.
3. Press the code button for 10 seconds, LED will flash red for 3 seconds.
4. Release the code button.
NOTE
When the siren alarm is being restored factory settings, please make sure power source is
connected.
Battery Usage Tips
Battery life of the siren alarm is approximately 1years at factory default settings. The
current battery level is displayed in the z-wave main controller. Red battery icon means
the battery needs replaced.
Note
Siren alarm is battery powered. Using batteries other than specified may result in
explosion. Dispose of properly, please observe environmental protection rules.
Guarantee
1. The Guarantee is provided by Shenzhen NEO Electronics Co., Ltd (hereinafter
“Manufacture” )
2. The Manufacturer is responsible for equipment malfunction resulting from physical
defects (manufacturing or material) of the device for 12 months from the date of its
purchasing.
3. During the Guarantee period, the Manufacturer shall remove any defects, free of
charge, by repairing or replacing.
4. In special cases, when the device cannot be replaced with the device of the same type
(e.g. the device is no longer available in the commercial offer), the Manufacturer may
replace it with a different device having technical parameters similar to the faulty one.
Such activity shall be considered as fulfilling the obligations of the Manufacturer.
The Manufacturer shall not refund money paid for the device.
5. The guarantee shall not cover:
mechanical damages (cracks, fractures, cuts, abrasions, physical deformations
caused by impact, falling or dropping the device or other object, improper use or
not observing the operating manual);
damages resulting from external causes, e.g.: flood, storm, fire, lightning, natural
disasters, earthquakes, war, civil disturbance, force majeure, unforeseen accidents,
theft, water damage, liquid leakage ,battery spill, weather conditions, sunlight,
sand, moisture, high or low temperature, air pollution
damages caused by malfunctioning software, attack of a computer virus, or by
failure to update the software as recommended by the Manufacturer;
FCC NOTE：
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR
CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
