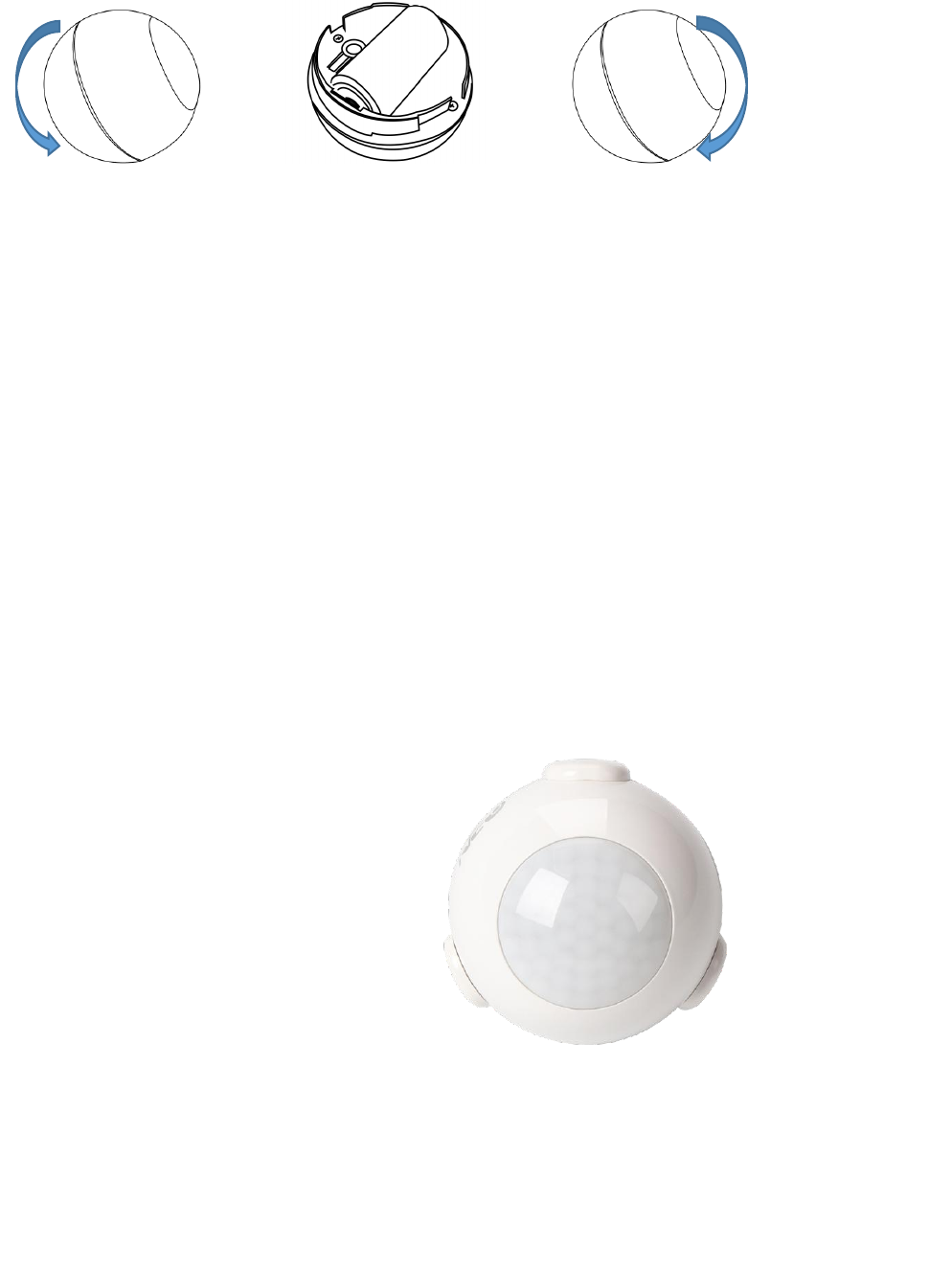

Open the PIR Install the battery Close the PIR
Specification
Reset:
(1) Press the reset button for 6 seconds till the indicator flash rapidly.Then device turns to
smart wifi mode.
(2) Press the reset button again for 6 seconds till the indicator flash slowly. The device turns to
AP mode.
Battery:CR123A-3V X 1
Standby current:13uA
Operate current:120mA-130mA
Standby time:5 years
Operate time:1 year (13 times/day); 2 years (6 times/day)
Wireless type:2.4GHz
Protocol:IEEE 802.11b/g/n
Wireless range:45m
Sensitive distance:6M
Operating temperature:0℃～ 40℃ (32°F～104°F)
Operating humidity:20% ～ 85%
Storage temperature:0℃ ～ 60℃ (32°F ～140°F)
Storage humidity:0% ～ 90%
Size:45mm x 45mm x 45mm
48mm x 48mm x 48mm（Add the base）
Certification: RoHS, FCC, CE,
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
APP Download
1) Android phone:Download"Smart life" from Google play store;IOS device:Download"Smart
life" from APP store.
2) Scan QR code bellow to install.

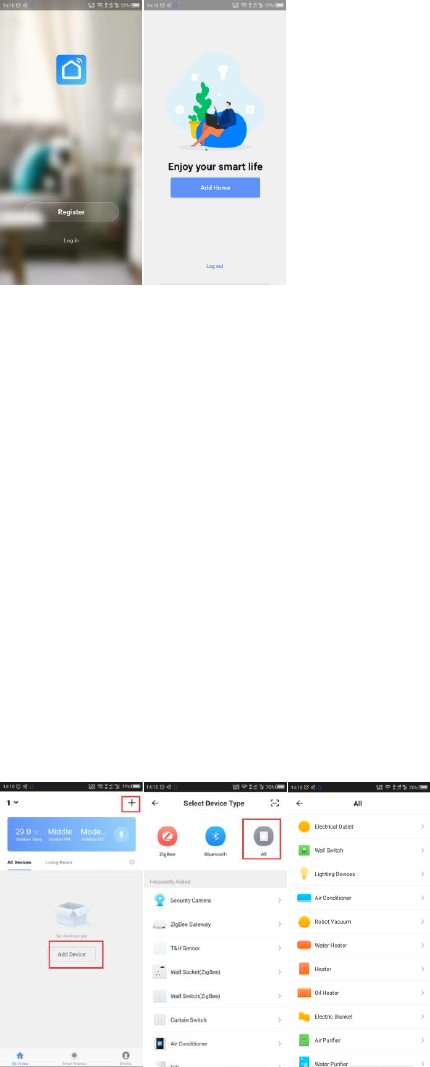

1) .Register and login .
Adding device
The default is Smart Wi-Fi mode as the device is power-up(the indicator light flashes quic
kly); If the indicator light shows and exception, pls press the reset button for 6s, forced re
set into smart wifi mode; Press reset button again for 6s to change AP mode.(the indicato
r light flash slowly)
The configuration mode will last for 2 minutes, after 2 minutes, the light goes off and the
device goes into sleep mode. The user needs to long press reset button to wake up the
device before adding it again.

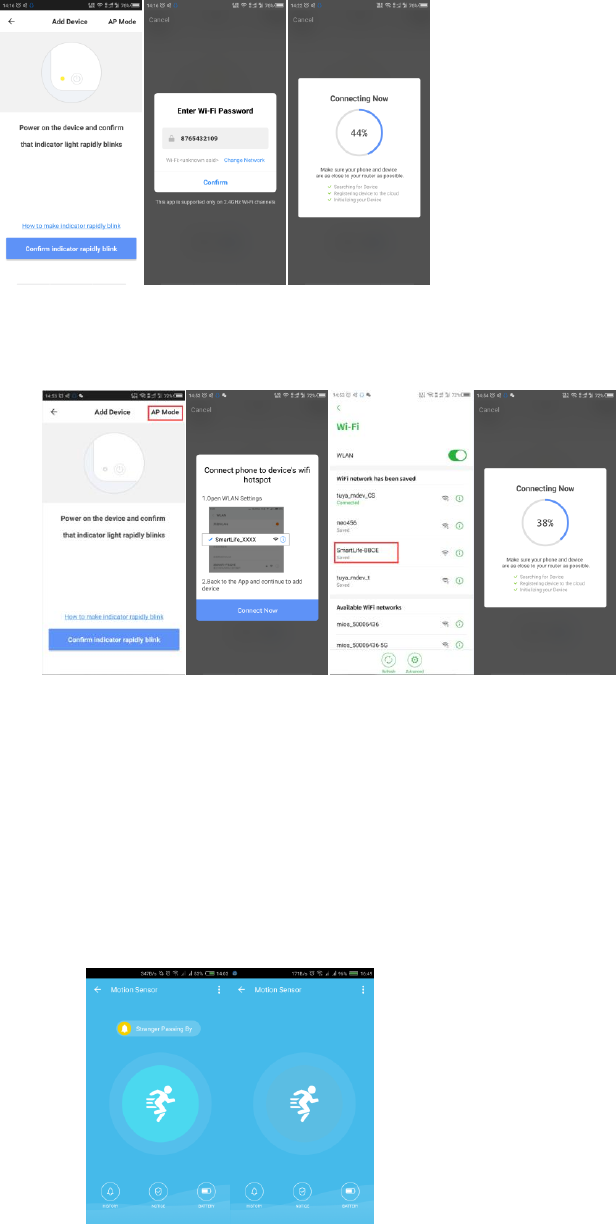

1.Select the item you want to add, use Smart Wi-Fi or AP model
Note: The device currently supports 2.4G wifi signals.
(1) Smart wifi mode, or follow the app instructions
(1) AP compatible mode: In smart wifi mode,press reset button for 6 seconds,indicator
flash slowly.（The next step can be performed in accordance with the app prompt.）
Main functions, operate status and record settings
1. Operate status, alarm | normal (device react time gap is about 1 minute, means device can
only be triggered once in 1 minute)
It takes 3-5 seconds to receive the push notification after the device triggers.

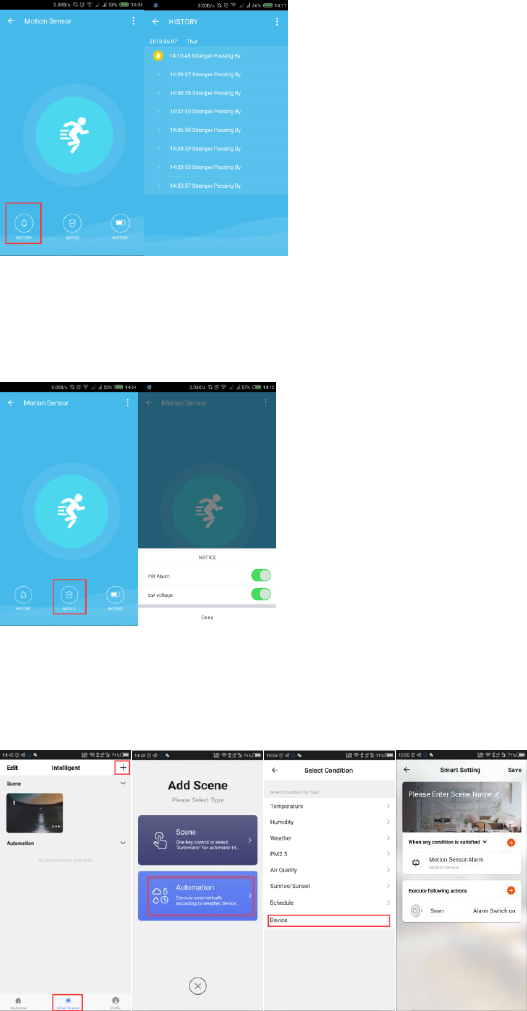

2.Alarm record
3.Turn on and turn off the alarm (no any alarm push notification,only alarm record)
4.Linkage setting: connect 2 devices via scene setting.

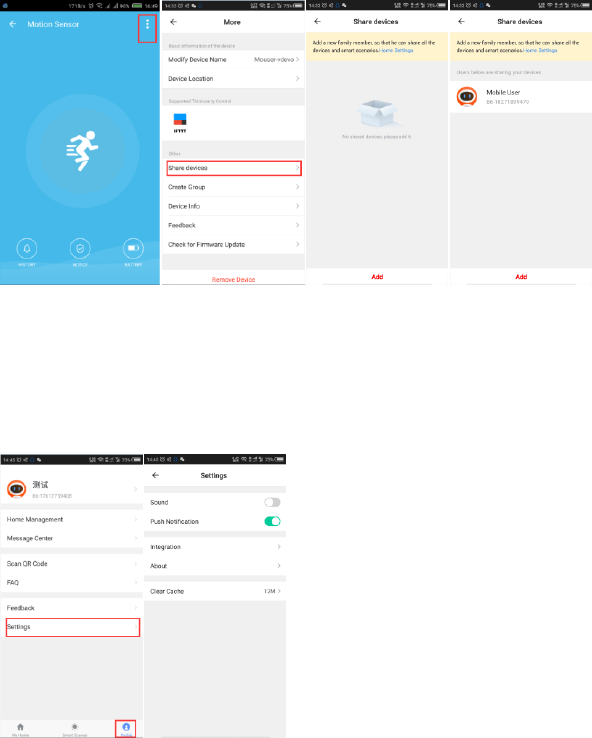

5.Device sharing: other people can control the device without adding it (Note: you can delete
the share by pressing "shared account" for a long time)
Other function:
1..Sound of APP push notification and operate(Background push requires user to give the App
corresponding permission)
2.Reset again:(take out the battery and then install it,wait for about 10-20 seconds to add
device again,if device reset failed )
3.indicator
Device Status
Indicator Status
Smart wifi
Flicker twice a second
AP compatibility mode
Flicker about every two seconds
Trigger status
Indicator lights flicker two times
suspend mode
Indicator is off
Reset
Indicator lights up for 4s and after
2 seconds lights off, device goes
into configuration mode
