NEO ELECTRONICS NAS-WR02W UI Socket User Manual

SHENZHEN NEO ELECTRONICS CO.,LTD UI Socket

UserManual.wiki >

NEO ELECTRONICS >

NAS WR02W User Manual HTML Version

User Manual

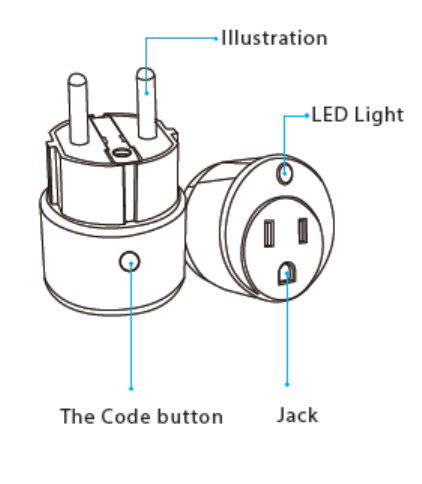

Productconfiguration



Mainfunction

1. Remotecontrolon/off

2. Countdown

3. Timer



Specification

RatedVoltage:AC85‐230V±10%，50/60Hz

RatedCurrent:10A(EU)/15A(US)

WirelessType:2.4GHz,1T1R

Protocol:IEEE802.11b/g/n

WirelessRange：45m

OperatingTemperature:0℃～40℃(32°F～104°F)

OperatingHumidity:20%～85%

StorageTemperature:0℃～60℃(32°F～140°F)

StorageHumidity:0%～90%

Material:PC(V0)

Size:EU65mmx43mmx43mm

US43mmx43mmx50mm

Plugtype:US,EU,UK，AUoptiona

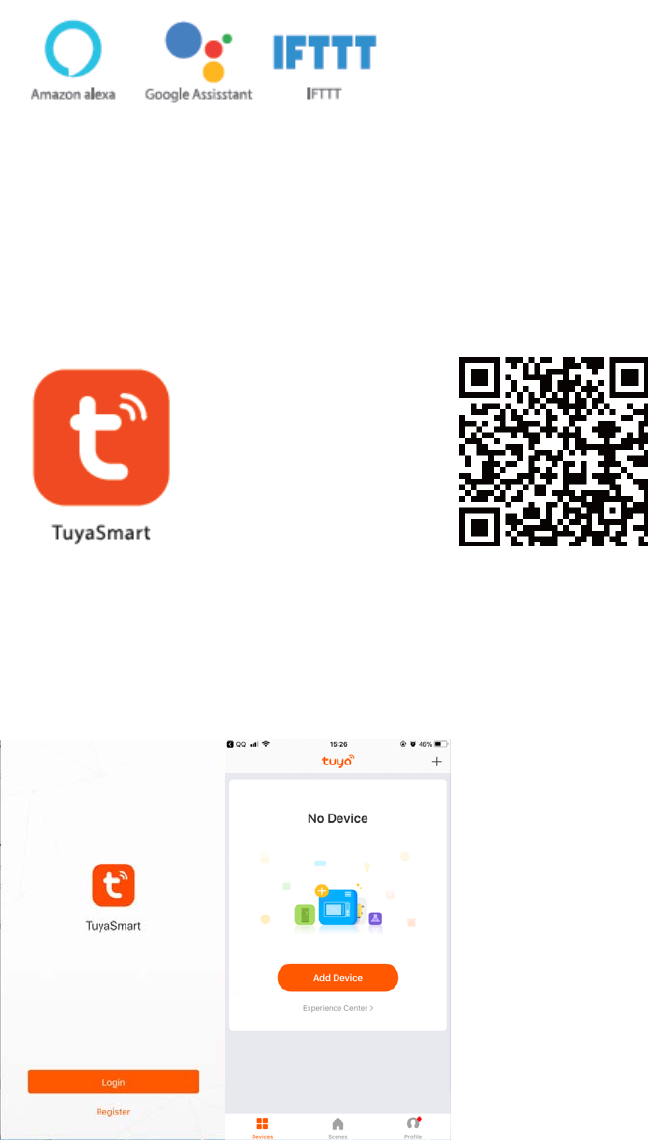

Support：Amazomalexa、googleAssistant、IFTTT



Appdownload

1.Androidphone:download“TuyaSmart”fromGooglePlay.

2.Iphone:download“TuyaSmart”fromAppStore.



AddDevice

1.Run“TuyaSmart”fromyousmartphonedesktop.

2.Registerandlogin



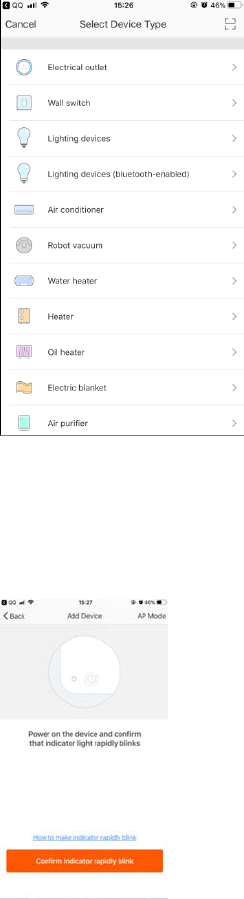

3. Clickthe“AddDevice”Choosethedevicethatyouwanttoadd.



SmartWi‐Fi

1. Pressandholdtheresetbuttonfor6s,theindicatorwillblinkrapidly.ThedeviceisinsmartWi‐Fi

mode.

2. Click“Confirmindicatorrapidlyblink”

3. ConfiguringnetworkbasedonpromptoftheAPP.



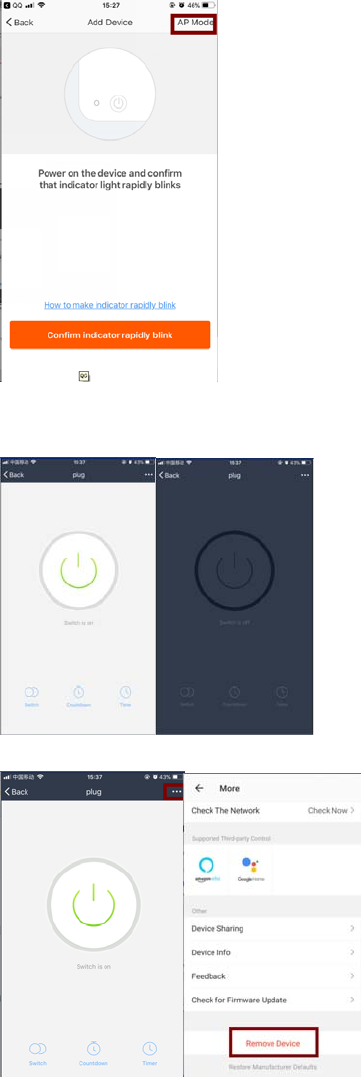

APMode

1. Presstheresetbuttonfor6sagain,theLEDwillblinkslowly.ThedeviceisinAPmode.

2. Clickthe“APMode”

3.ConfiguringnetworkbasedonpromptoftheAPP.



3.plugon/off



4. Reset



Reset：

1.Pressandholdtheresetbuttonfor6s,theindicator

willblinkrapidly.Thedeviceisinsmartwimodeto.

2.Presstheresetbuttonagain,theindicatorwillblink

slowly.ThedeviceisinAPmode.



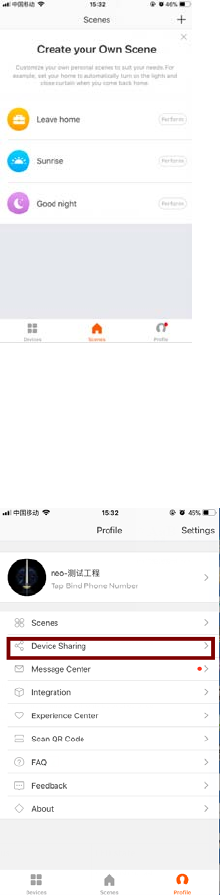

Scenes

Bysettingscene，lettwodevicesarelinkage.



Sharing

Bysharingdevice，letotherpeoplecancontrolthedevicewithoutadding.



Pushinformation

Themultiplealarminthreeminuteswillonlybepushedonce



LEDstate

devicestatusLEDstate

SmartWi‐FiRedLEDwillrapidlyblink

APmodeRedLEDwillslowlyblink

ongreen

offred

resetRedLEDwillrapidlyblink（thefirsttimereset）or

slowly（thesecondtimereset）



§ 15.19 Labelling requirements.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

§ 15.21 Information to user.

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

§ 15.105 Information to the user.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

-Consult the dealer or an experienced radio/TV technician for help.

* RF warning for Portable device:

The device has been evaluated to meet general RF exposure requirement. The device can

be used in portable exposure condition without restriction.


