NETIS SYSTEMS WF2407R 150Mbps Wireless-N High Gain Broadband Router User Manual

NETIS SYSTEMS CO., LTD. 150Mbps Wireless-N High Gain Broadband Router

User Manual

WF-2407
User Manual
netis150Mbps Wireless-N High Gain
Broadband Router
V1.1
2011-04-07
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Certification
FCC CE
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate this equipment. (Example- use
only shielded interface cables when connecting to computer or peripheral devices)
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate the
equipment
1
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Package Contents
The following items should be found in your package:
150Mbps Wireless-N High Gain Broadband Router
Power adapter
Quick Installation Guide
CD-Rom
Ethernet cable
Make sure that the package contains above items. If any of the above items is missing or
damaged, please contact the store you bought this product from.
Brand and Copyright Announcement
Copyright © 2011Netis Corporation.
All rights reserved
is a registered trademark of Netis Corporation. Other trademarks and trade
names may be used in this document to refer to either the entities claiming the marks and
names or their products.
Reproduction in any manner without the permission of Netis Corporation is strictly
forbidden
All the information in this document is subject to change without notice.
USA/Canada Technical Support
Phone: 1-866-71-network or 1-866-716-3896 (free in USA & Canada)
E-mail: usa_support@netis-systems.com
2
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Contents
1.INTRODUCTION .........................................................................................................................6
1.1.PRODUCT OVERVIEW...............................................................................................................6
1.2.MAIN FEATURES ......................................................................................................................6
1.3.SUPPORTING STANDARD AND PROTOCOL.................................................................................6
1.4.WORKING ENVIRONMENT........................................................................................................7
2.HARDWARE INSTALLATION...................................................................................................8
2.1.SYSTEM REQUIREMENT ...........................................................................................................8
2.2.PANEL ......................................................................................................................................8
2.3.RESTORE TO FACTORY CONFIGURATION ...................................................................................9
2.4.HARDWARE INSTALLATION PROCEDURES ................................................................................9
3.LOGIN..........................................................................................................................................11
3.1.CONFIGURE COMPUTER.......................................................................................................... 11
3.1.1.Windows 98/Me............................................................................................................ 11
3.1.2.Windows 2000 ..............................................................................................................12
3.1.3.Windows XP .................................................................................................................14
3.1.4.Windows Vista ..............................................................................................................17
3.1.5.Windows 7 ....................................................................................................................22
3.1.6.MAC OS .......................................................................................................................24
3.2.CHECKING CONNECTION WITH THE ROUTER..........................................................................26
3.3.LOGIN ....................................................................................................................................27
4.ROUTER SETUP ........................................................................................................................29
4.1.STATUS...................................................................................................................................29
4.1.1.Version..........................................................................................................................29
4.1.2.WAN..............................................................................................................................29
4.1.3.LAN ..............................................................................................................................30
4.1.4.Wireless ........................................................................................................................30
4.1.5.Router Status................................................................................................................31
4.1.6.Traffic Statistics............................................................................................................31
4.2.QUICK SETUP.........................................................................................................................31
4.2.1.DHCP (dynamic)..........................................................................................................31
4.2.2.PPPoE..........................................................................................................................32
4.2.3.Static.............................................................................................................................32
4.2.4.Wireless Configuration.................................................................................................33
4.2.5.MAC Clone...................................................................................................................33
4.3.WPS SETTINGS ......................................................................................................................34
4.3.1.WPS Settings ................................................................................................................34
4.3.2.Add a New Device........................................................................................................34
4.3.3.WPS Configuration ......................................................................................................36
4.4.NETWORK ..............................................................................................................................36
3
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.4.1.WAN..............................................................................................................................36
4.4.1.1.Wired Access.......................................................................................................................... 36
4.4.1.2.Wireless Access...................................................................................................................... 37
4.4.2.LAN ..............................................................................................................................38
4.4.3.MAC Clone...................................................................................................................38
4.4.4.Port Settings.................................................................................................................38
4.4.5.IGMP Proxy .................................................................................................................39
4.5.WIRELESS ..............................................................................................................................39
4.5.1.Wireless Settings...........................................................................................................39
4.5.2.Wireless Security ..........................................................................................................40
4.5.2.1.None....................................................................................................................................... 40
4.5.2.2.WEP ....................................................................................................................................... 41
4.5.2.3.WPA-PSK .............................................................................................................................. 41
4.5.2.4.WPA2-PSK ............................................................................................................................ 42
4.5.2.5.WPA/WPA2-PSK................................................................................................................... 42
4.5.3.Wireless MAC Filtering................................................................................................43
4.5.4.WDS Settings................................................................................................................43
4.5.5.Wireless Advanced........................................................................................................44
4.5.6.Wireless Statistics .........................................................................................................46
4.5.7.Multiple AP Settings.....................................................................................................46
4.6.DHCP....................................................................................................................................47
4.6.1.DHCP Settings .............................................................................................................47
4.6.2.DHCP Clients List........................................................................................................47
4.6.3.Address Reservation.....................................................................................................47
4.7.FORWARDING .........................................................................................................................48
4.7.1.Virtual Servers..............................................................................................................48
4.7.2.Port Triggering.............................................................................................................48
4.7.3.DMZ .............................................................................................................................49
4.7.4.UPnP............................................................................................................................49
4.7.5.FTP Private Port..........................................................................................................50
4.8.SECURITY ..............................................................................................................................50
4.8.1.Security Settings...........................................................................................................50
4.8.2.IP Address Filtering .....................................................................................................51
4.8.3.MAC Filtering..............................................................................................................52
4.8.4.Domain Filtering..........................................................................................................53
4.9.STATIC ROUTING....................................................................................................................53
4.10.QOS SETTINGS ......................................................................................................................55
4.11.DYNAMIC DNS......................................................................................................................55
4.12.SYSTEM TOOLS ......................................................................................................................56
4.12.1.Firmware......................................................................................................................56
4.12.2.Time Settings ................................................................................................................56
4.12.3.Password ......................................................................................................................57
4.12.4.WOL .............................................................................................................................57
4.12.5.System Logs..................................................................................................................57
4
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.12.6.Remote Management....................................................................................................58
4.12.7.Factory Defaults...........................................................................................................58
4.12.8.Reboot ..........................................................................................................................58
4.13.ABOUT...................................................................................................................................59
5.TROUBLESHOOTING..............................................................................................................59
5
150Mbps Wireless-NHigh Gain Broadband Router User Manual
1. Introduction
1.1. Product Overview
WF-2407 is a powerful, enhanced; enterprise level product supports 5 multi-functions to
operate for every kind of working environment. It supports high transmit output power and
high data rate which plays different roles of Access Point/WDS/Repeater/AP+WDS/Client
Bridge. It operates seamlessly in the 2.4 GHz frequency spectrum supporting the 802.11b/g/n
wireless standards. Configured up to 1000mW wireless power with 5dBi upgradable antenna,
it provides up to 4 time signal coverage. This device also encrypts all wireless transmissions
by WPA2/WPA/WEP data encryption for your data safety.
1.2. Main Features
Comply with IEEE802.11n/g/b, IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
standards
Support DHCP Client, PPPoE Client, Static IP
Detachable Antenna Design
Enhanced signal booster increase coverage up to 4X than standard wireless N router
Rx sensitivity has 30% of ascension comparing with common products
Support 7 Modes: Access Point/Client Bridge/Repeater/Router/Client Router/WDS .
Support static ARP, MAC filtering, IP access control, DNS filter
Support FTP, PPTP and L2TP pass through
Support UPNP (universal plug and play)
Upgradeable firmware for future functions
Upgradeable antenna to increase range and receive sensitivity
WPS button can easily setup a secure network
Support data encryption mode: WEP, WPA, WPA2
Support WMM
Support DMZ
6
150Mbps Wireless-NHigh Gain Broadband Router User Manual
1.3. Supporting Standard and Protocol
IEEE 802.11b/g/n
IEEE 802.11e
IEEE 802.11h
IEEE 802.11k
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
1.4. Working Environment
Temperature
0° to 40° C (operating)
-40° to 70° C (storage)
Humidity
10% to 90 % non-condensing (operating)
5% to 90% non-condensing (storage)
Power
DC 9V
7
150Mbps Wireless-NHigh Gain Broadband Router User Manual
2. Hardware Installation
2.1. System Requirement
Minimum Requirements:
Broadband (DSL/Cable) modem and service with Ethernet port
802.11n b/g/n wireless adapter or Ethernet adapter and cable for each computer
Internet Explorer® 5.0, Firefox® 2.0 or Safari® 1.4 or higher
2.2. Panel

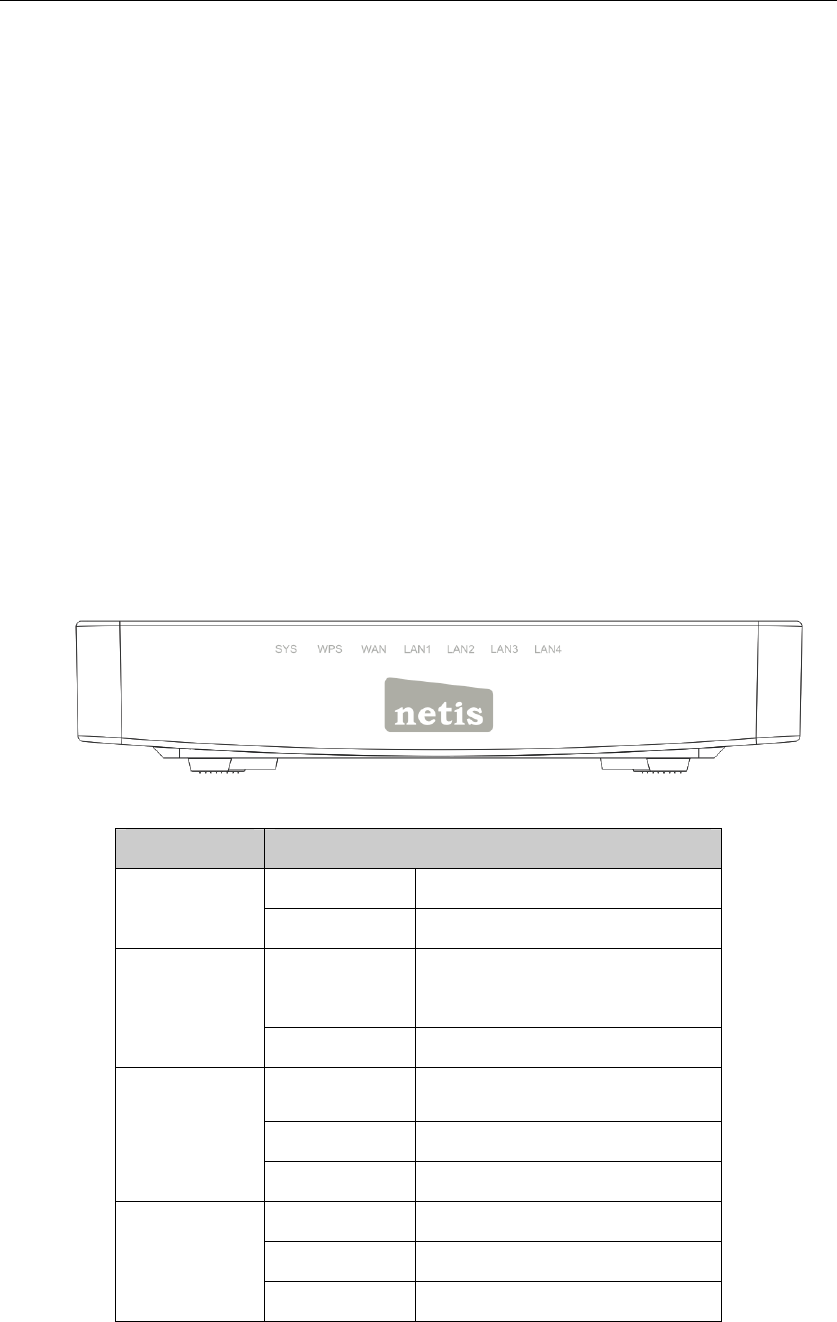

Front panel
Figure 2-1
LED Function
ON and Off Abnormal
SYS
Flashing Normal
Flashing
slowly WPS is running
WPS
OFF WPS is not running
On WAN Connection normal
Flashing Data transmitting
WAN
Off WAN Connection abnormal
On LAN Connection normal
Flashing Data transmitting
LAN
Off LAN Connection abnormal
8
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Rear panel

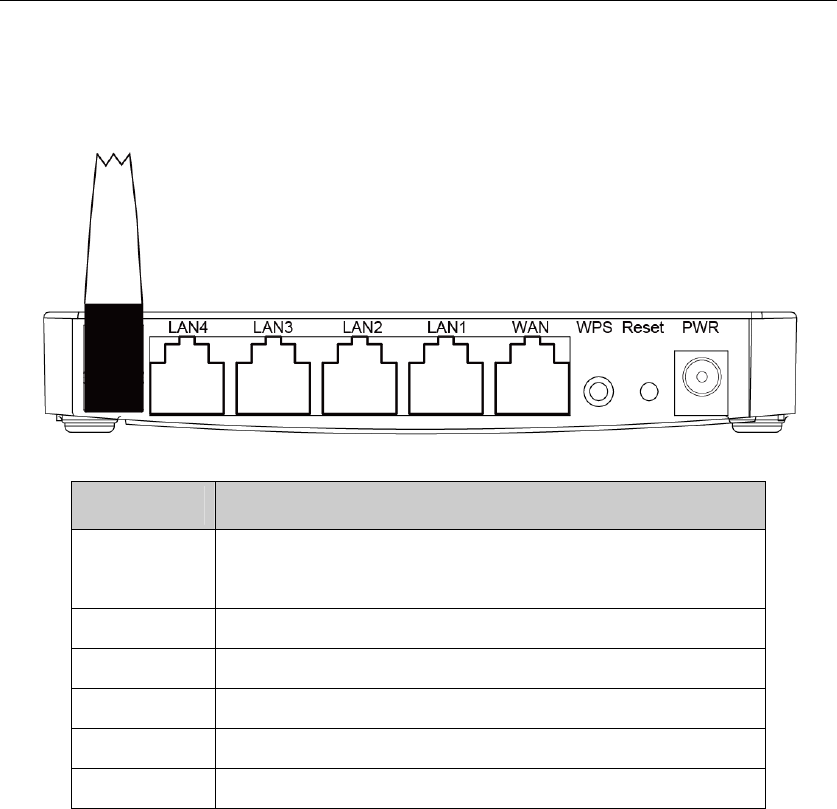

Figure 2-2
Description Function
PWR Connect to Power adapter, please don’t use the unknown
power adapter, otherwise your device may be damaged.
Reset Restore settings
WPS For Wi-Fi Protected Setup with other enabled devices
LAN Connect with computer NIC or Ethernet device
WAN Internet access
Reset Restore settings
2.3. Restore to factory configuration
If the router ever freezes in a setting change process or if you can’t access it because you can’t
remember the IP you have given it or other problem, you may have to utilize the reset button
on the back of the router to put it back to factory settings. You have to press and hole this
button for a few seconds (2-6s) with a pencil when it is working, then release and it will
restore settings to the factory configuration.
The other way to restore factory settings is through the same user interface used in setup.
Click on ‘System management’- ‘Restore’, and click on the ‘Restore’ button.
2.4. Hardware Installation Procedures
The procedures to install the 150Mbps Wireless-N High Gain Broadband Routerplease refers
to the following picture
9
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 2-3

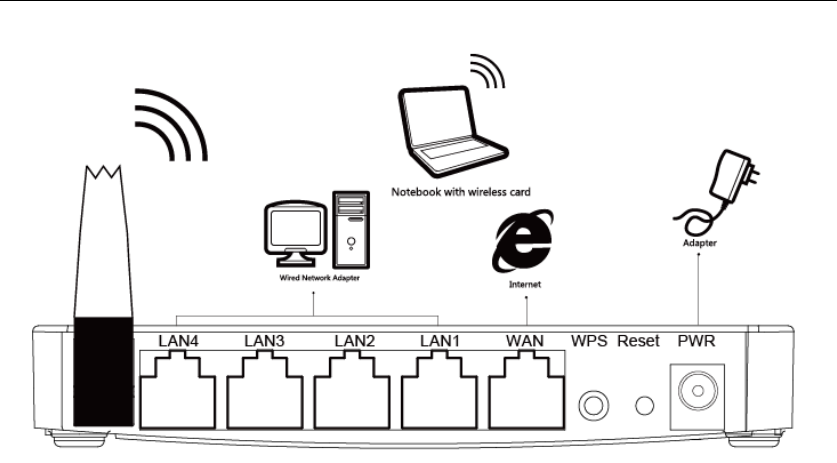

Attach one end of an Ethernet cable to your computers Ethernet port, and the other end
to one of the LAN ports of your router.
Connect another Ethernet cable from your Cable/DSL modem to the WAN port of your
router.
Connect the single DC output connector of the power adapter to the power jack on the
back of the router and plug the Power Adapter into an AC outlet.
10
150Mbps Wireless-NHigh Gain Broadband Router User Manual
3. Login
You can manage the 150Mbps Wireless-N High Gain Broadband Router through the Web
browser-based configuration utility. To configure the device via Web browser, at least one
properly configured computer must be connected to the device via Ethernet or wireless
network. The 150Mbps Wireless-N High Gain Broadband Router is configured with the
default IP address of 192.168.1.1and subnet mask of 255.255.255.0 and its DHCP server is
enabled by default. Before setting up the Router, make sure your PCs are configured to
obtain an IP address automatically from the Router by the steps below.
3.1. Configure computer
3.1.1. Windows 98/Me
1. Go to Start Settings Control Panel.
2. Find and double-click the Network icon. The Network dialog box appears.
3. Click the Configuration label and ensure that you have network card.
4. Select TCP/IP. If TCP/IP appears more than once, please select the item that has an arrow
” pointing to the network card installed on your computer. DO NOT choose the instance of
TCP/IP with the words “Dial Up Adapter” beside it.
5. Click Properties. The TCP/IP Properties dialog box appears.
6. Ensure the Obtain IP Address Automatically is checked.
7. From the WINS Configuration dialog box, Ensure that Disable WINS Resolution is
checked.
8. From the Gateway dialog box, remove all entries from the Installed gateways by selecting
them and clicking Remove.
9. From the DNS Configuration dialog box, remove all entries from the DNS Server Search
Order box by selecting them and clicking Remove. Remove all entries from the Domain
Suffix Search Order box by selecting them and clicking Remove. Click Disable DNS.
10. Click OK, back to Network Configuration dialog box
11. Click OK, if prompted to restart, click YES.
11
150Mbps Wireless-NHigh Gain Broadband Router User Manual
3.1.2. Windows 2000
Please follow the steps below to setup your computer:
1. Go to Start Settings Control Panel
Figure 3-1

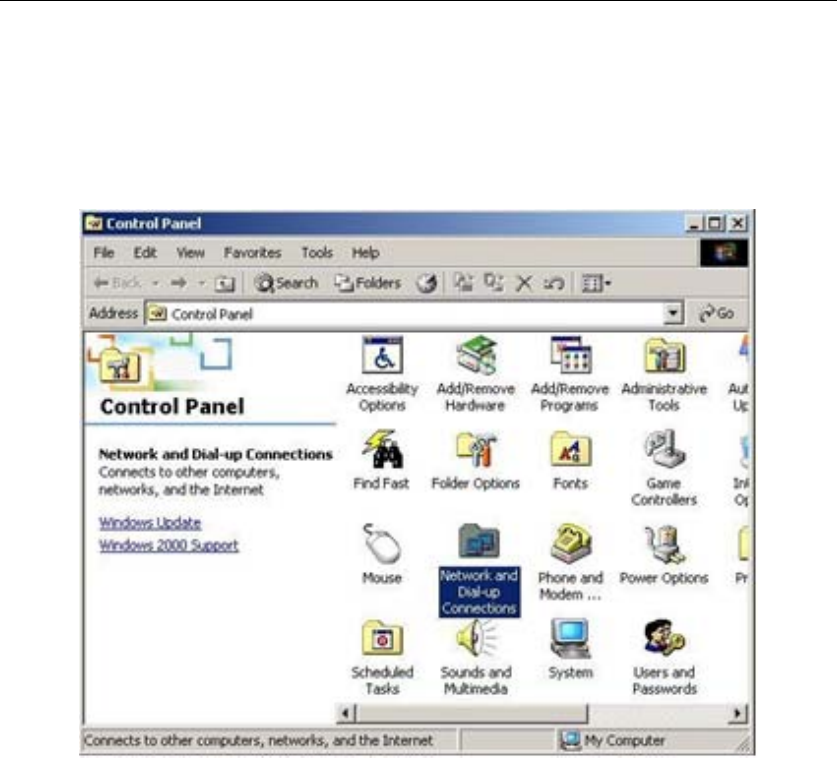

2. Double click the icon Network and Dial-up Connections

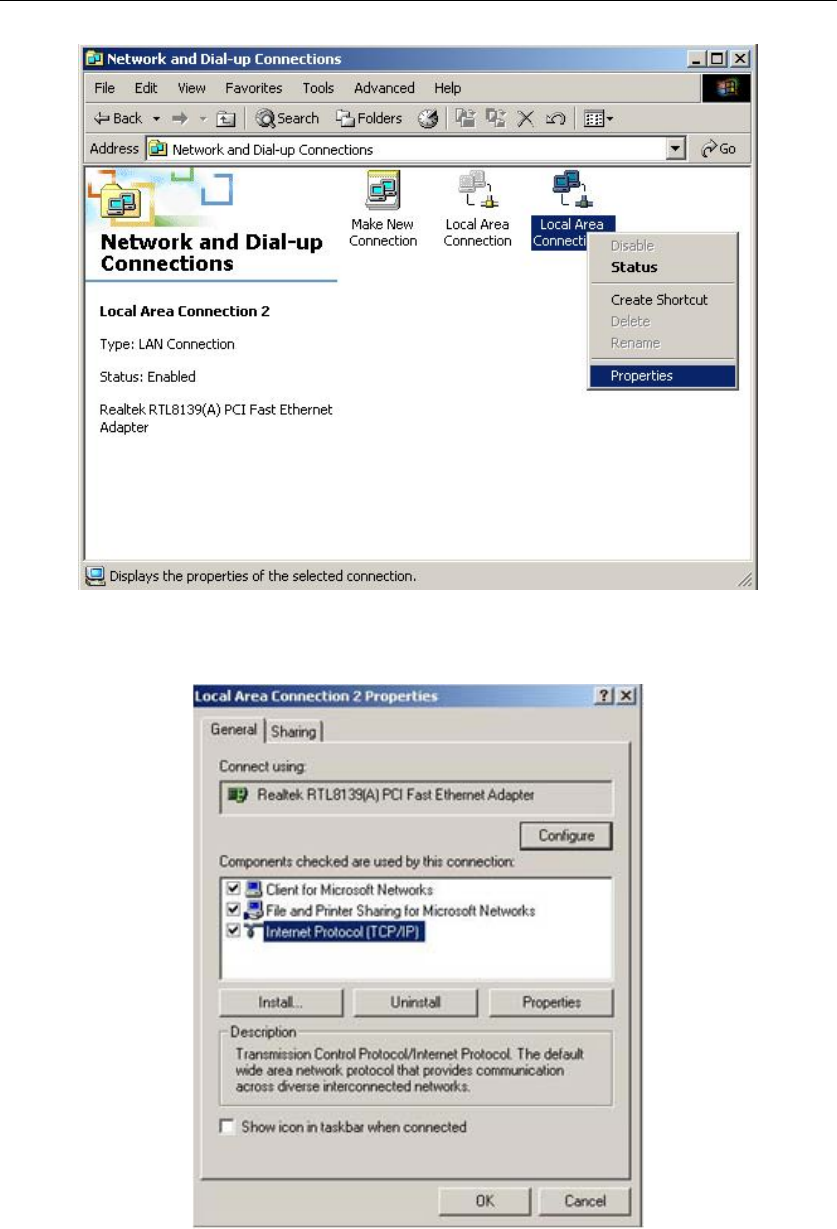

3. Highlight the icon Local Area Connection, right click your mouse, and click Properties
12
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-2

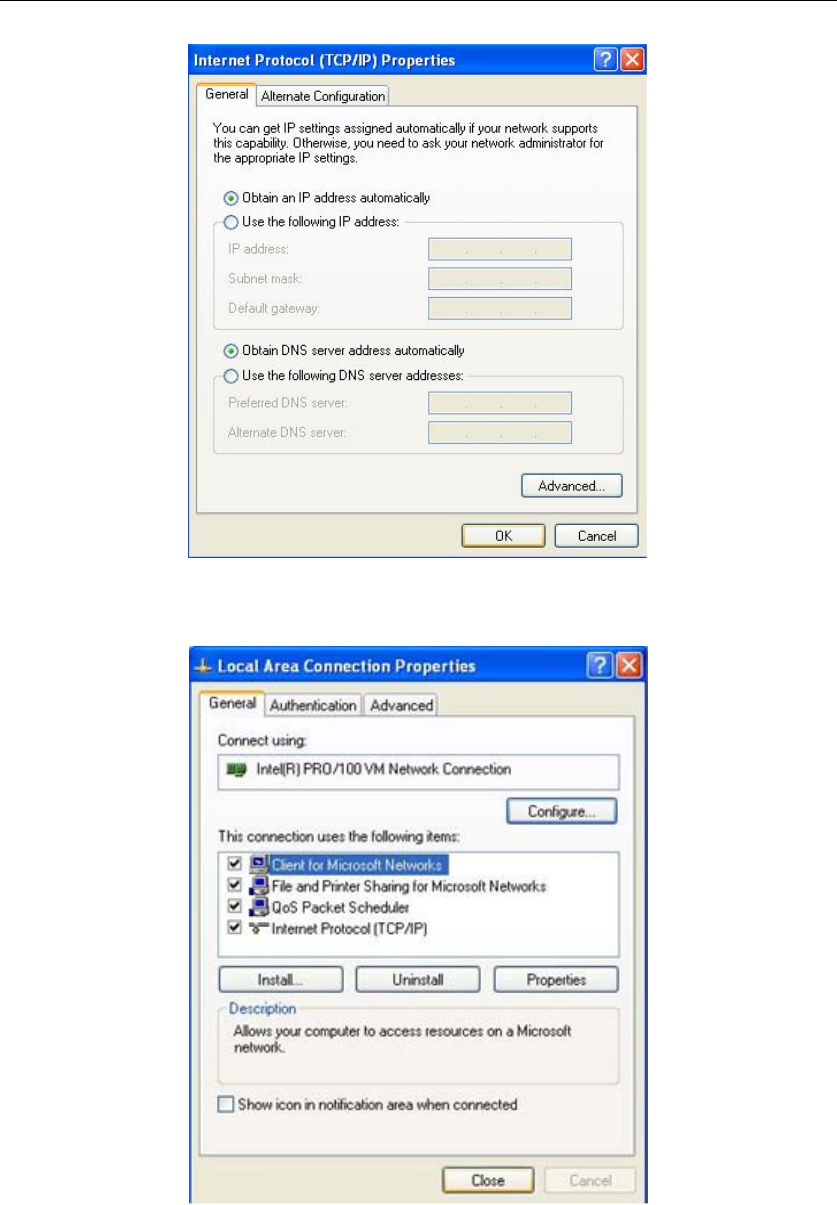

4. Highlight Internet Protocol (TCP/IP), and then press Properties button
Figure 3-3
5. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window
13
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-4
6. Press OK to close the Local Area Connection Properties window
Figure 3-5
3.1.3. Windows XP
Please follow the steps below to setup your computer:
1. Go to Start Settings Control Panel
14
150Mbps Wireless-NHigh Gain Broadband Router User Manual

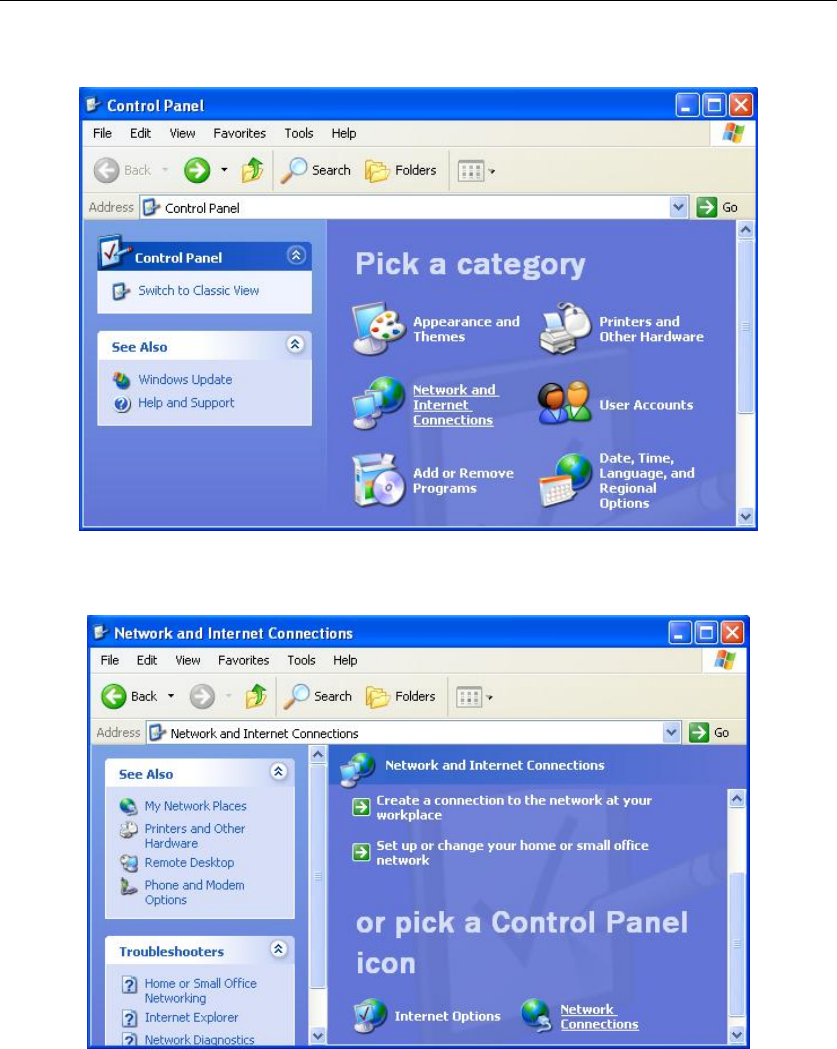

2. Click Network and Internet Connections
Figure 3-6
3. Click Network Connections
Figure 3-7

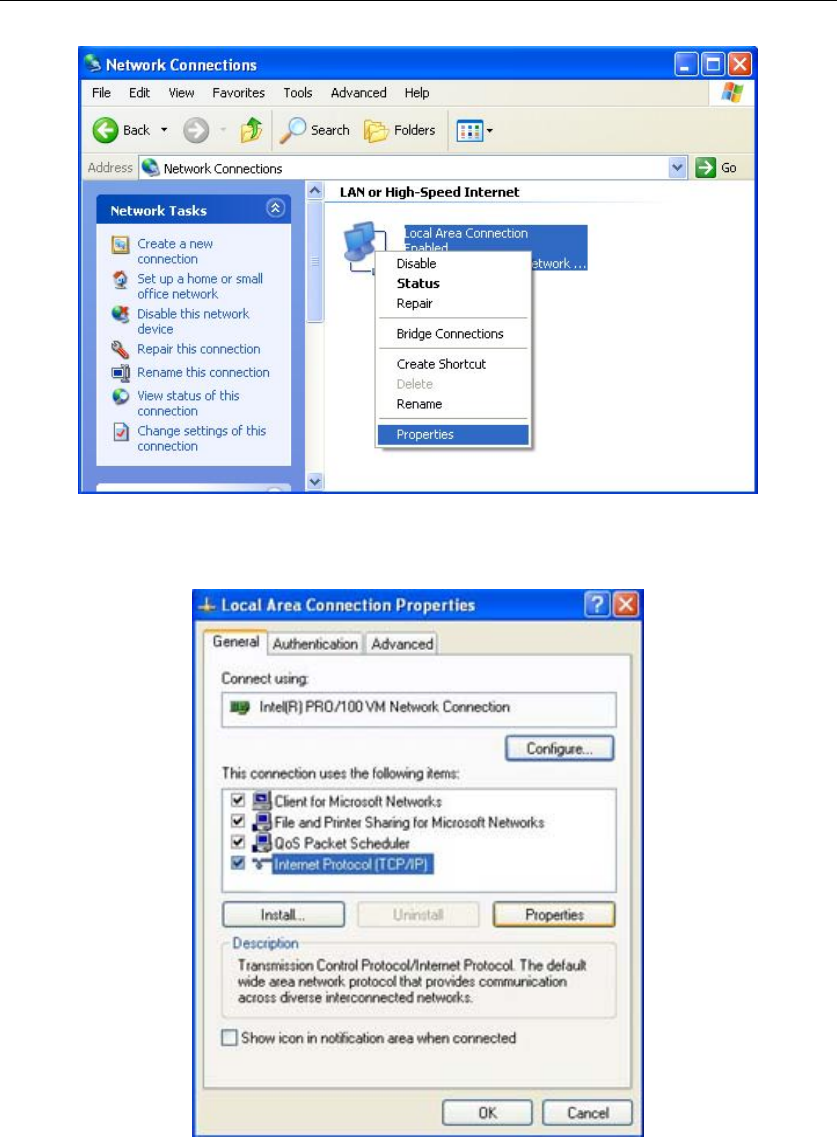

4. Highlight the icon Local Area Connection, right click your mouse, and click Properties
15
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-8
5. Highlight Internet Protocol (TCP/IP), and then press Properties button
Figure 3-9

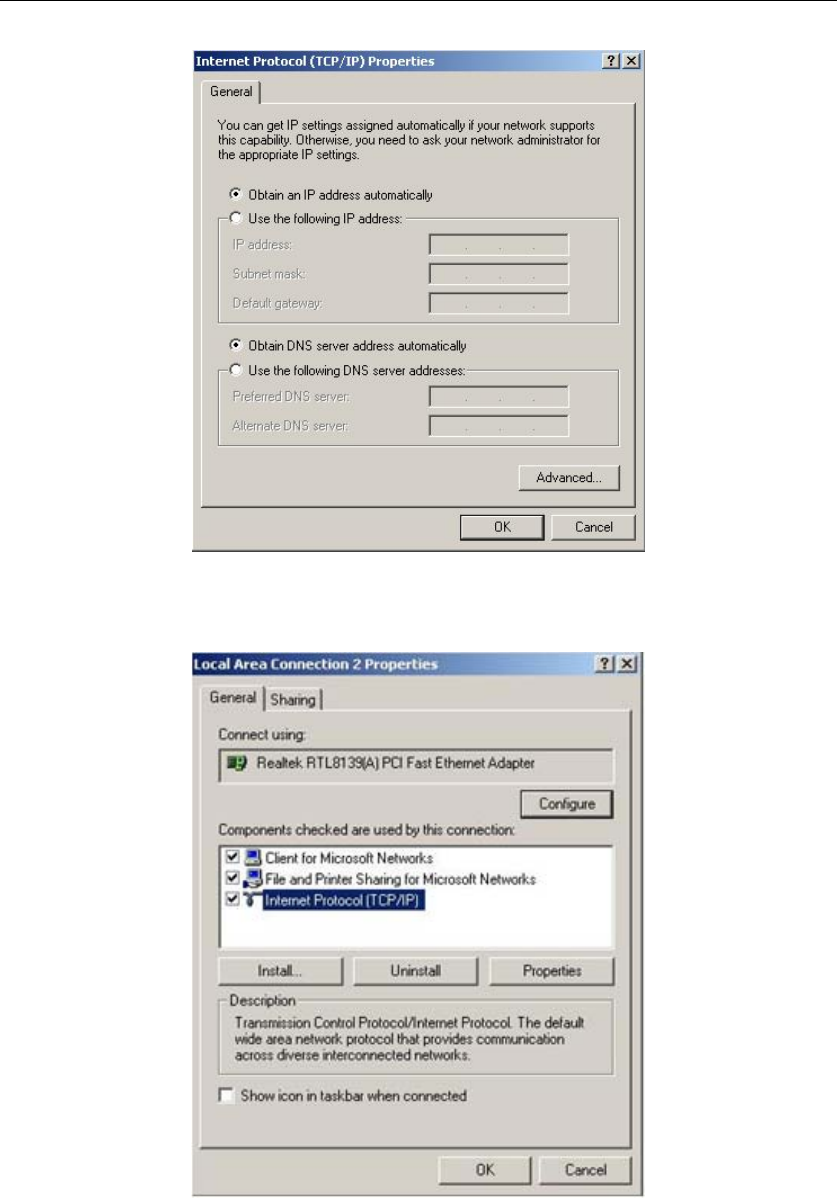

6. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window
16
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-10
7. Press OK to close the Local Area Connection Properties window
Figure 3-11
3.1.4. Windows Vista
Please follow the steps below to setup your computer:
1. Go to Start Settings Control Panel
17
150Mbps Wireless-NHigh Gain Broadband Router User Manual
2. Click Network and Sharing Center
Figure 3-12
3. Click Manage Network Connections
Figure 3-13

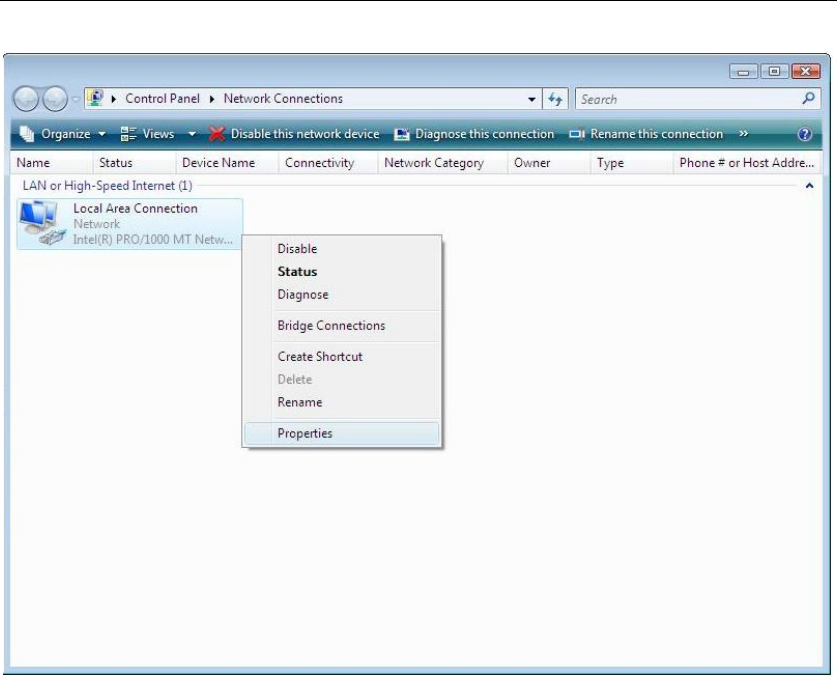

4. Highlight the icon Local Area Connection, right click your mouse, and click Properties
18
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-14

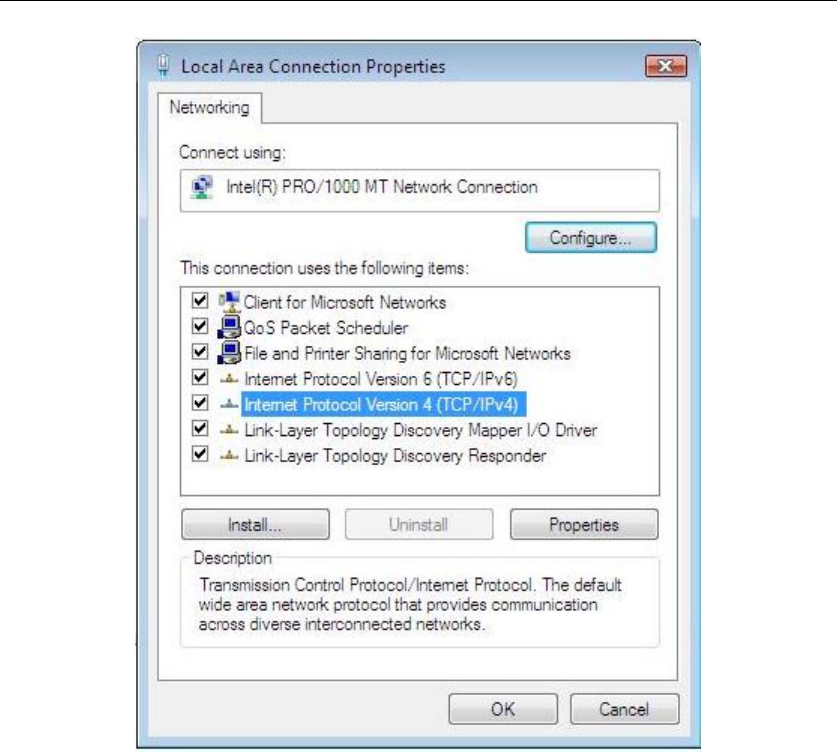

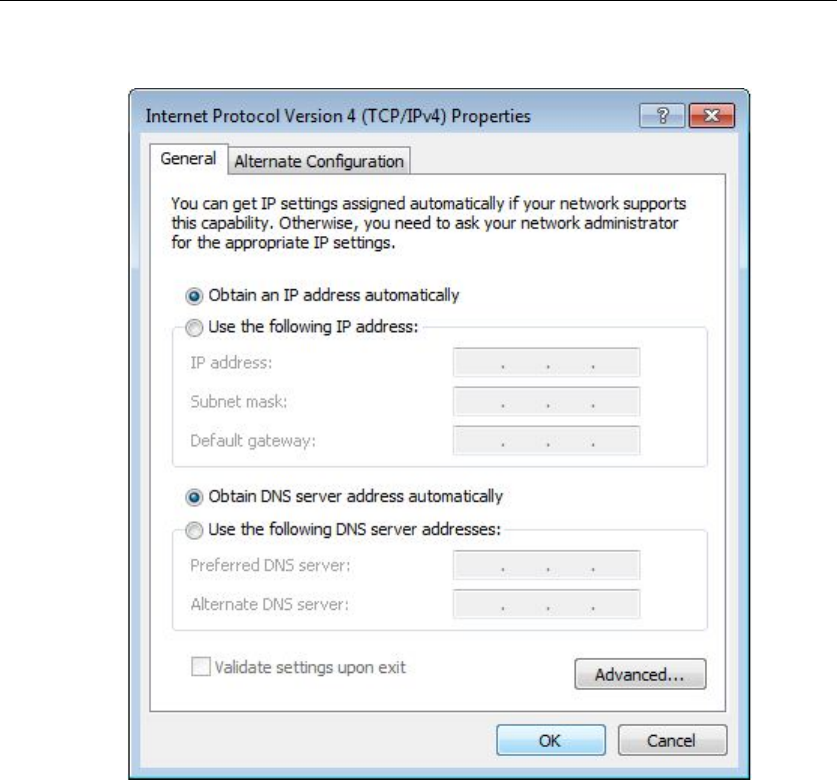

5. Highlight Internet Protocol Version 4 (TCP/IP) and then press Properties button
19
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-15
6. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
and then press OK to close the Internet Protocol (TCP/IP) Properties window
20
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-16
7. Press OK to close the Local Area Connection Properties window
21
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-17
3.1.5. Windows 7
1. Please follow the steps blow to setup your computer:
2. Go to StartControl PanelNetwork and Internet.
3. Click Network and Sharing CenterChange adapter settings.

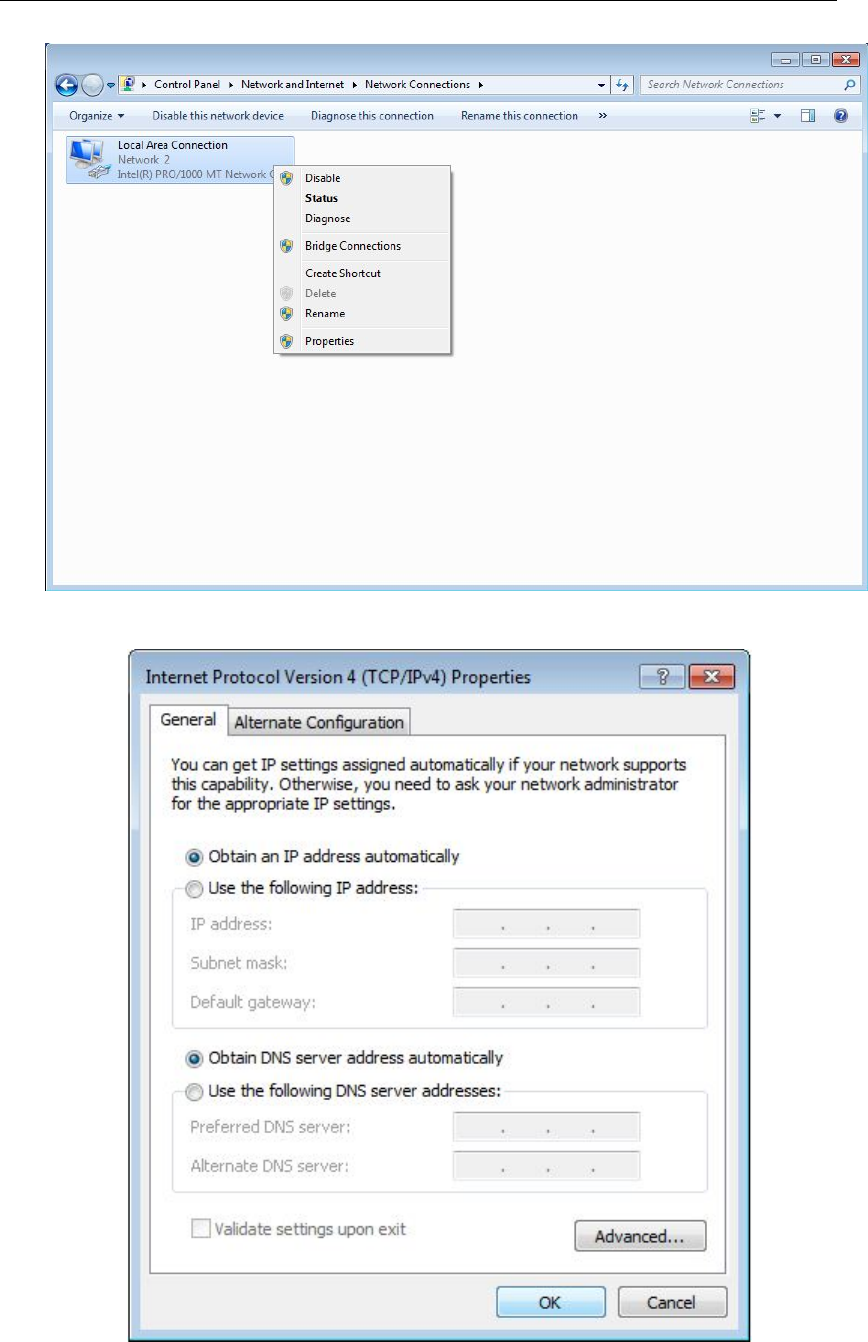

4. Highlight the icon Local Area Connection, right click your mouse, and click
Properties.Highlight Internet Protocol version 4 (TCP/IPv4).
22
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-18
Figure 3-19
5. Choose Obtain an IP address automatically and Obtain DNS server address automatically,
23
150Mbps Wireless-NHigh Gain Broadband Router User Manual
and then press the OK to close the window.
Figure 3-20
6. Press OK to close the Local Area Connection Properties window.

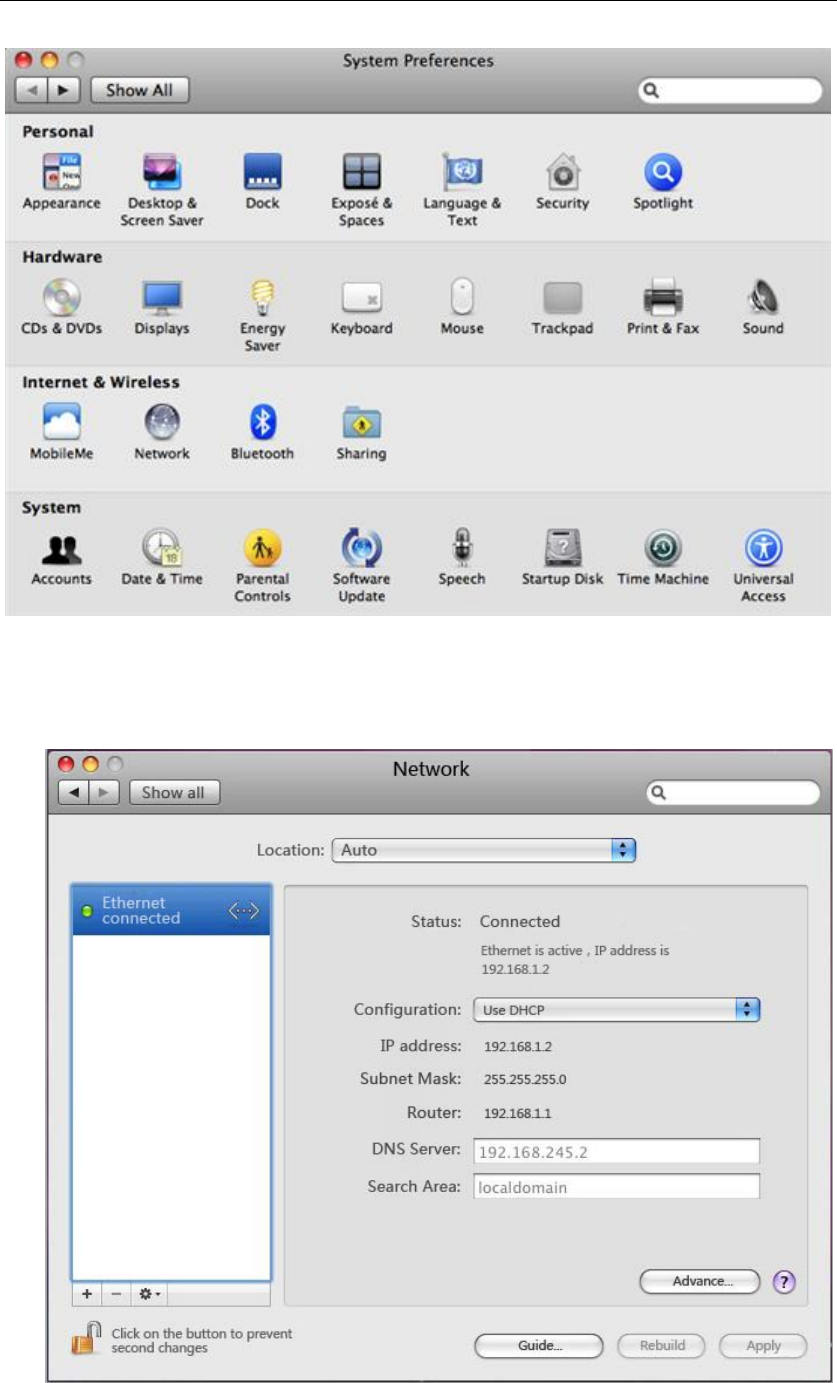

3.1.6. MAC OS
Please follow the steps blow to setup your computer:
1. Go to StartSystem preference SettingsNetwork.
24
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-21
2. Click Network, Select Use DHCP at the Configuration bar, the system will get the IP
address automatically.
Figure 3-22
25
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Press Apply to complete this operation and close the window.
3.2. Checking Connection with the Router
After configuring the TCP/IP protocol, use the ping command to verify if the computer
cancommunicate with the Router. To execute the ping command, open the DOS window
andPing the IP address of the 150MbpsWireless-N High Gain Broadband Router at the DOS
prompt:
For Windows 98/Me: Start -> Run. Type command and click OK.
For Windows 2000/XP: Start -> Run. Type cmd and click OK.
For Windows Vista/7:Start Type cmd at the start search bar and press the Enter.
For MAC OSThesystem will complete this operation automatically.
At the DOS prompt, type the following command:
If the Command window returns something similar to the following:
C:\Documents and Settings\admin>ping 192.168.1.1
Pinging 192.168.1.1 with 32 bytes of data:
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Reply from 192.168.1.1: bytes=32 time=1ms TTL=64
Ping statistics for 192.168.1.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 1ms, Maximum = 1ms, Average = 1ms
Then the connection between the router and your computer has been successfully established.
If the computer fails to connect to the router, the Command window will return the following:
C:\Documents and Settings\admin>ping 192.168.1.1
Pinging 192.168.1.1 with 32 bytes of data:
26
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Ping statistics for 192.168.1.1:
Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),
Verify your computer's network settings are correct and check the cable connection between
the router and the computer.
In order to make the whole network operate successfully, it is necessary to configure the
150Mbps Wireless-N High Gain Broadband Router through your computer has a WEB
browser installed. Please follow up the steps listed below.
3.3. Login

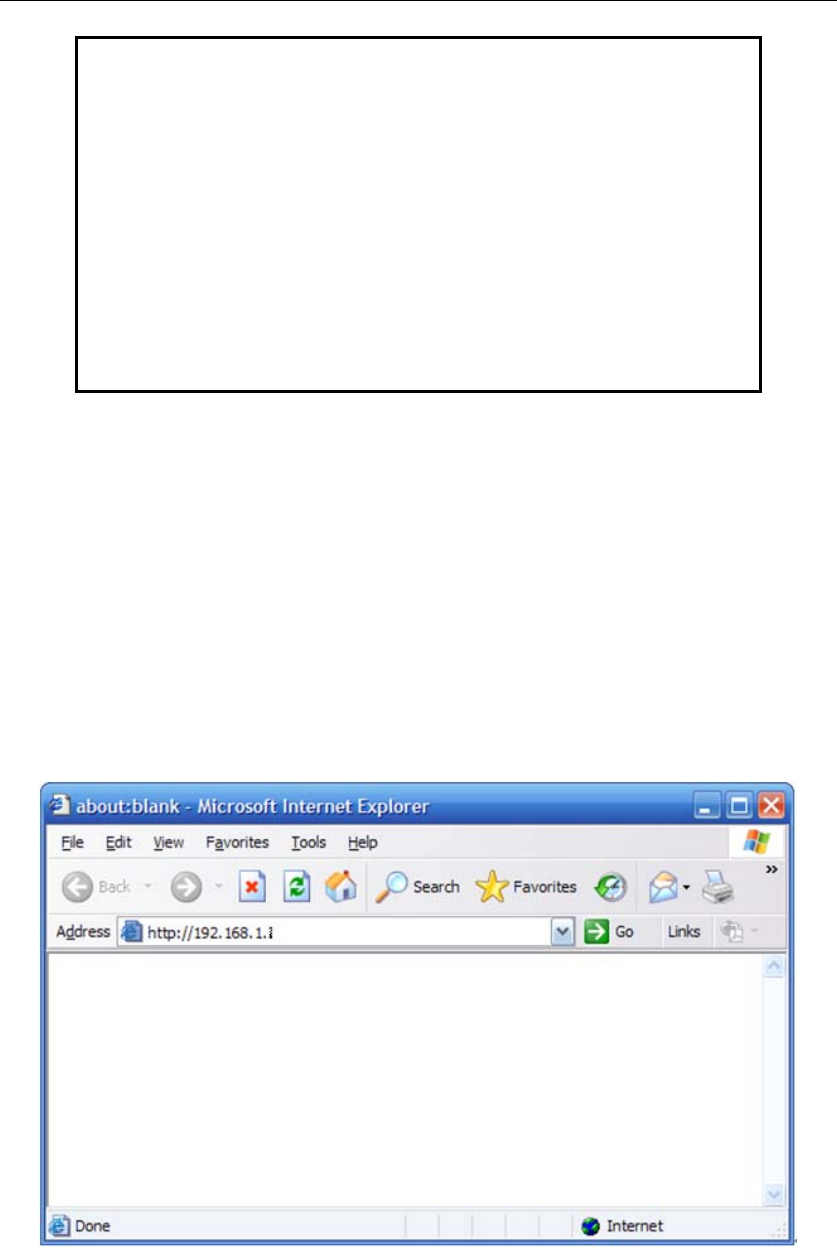

Open a web browser (Safari, Internet Explorer, etc.) on the computer you have just
connected to the router, type http://192.168.1.1in the address bar, and press enter
Figure 3-23

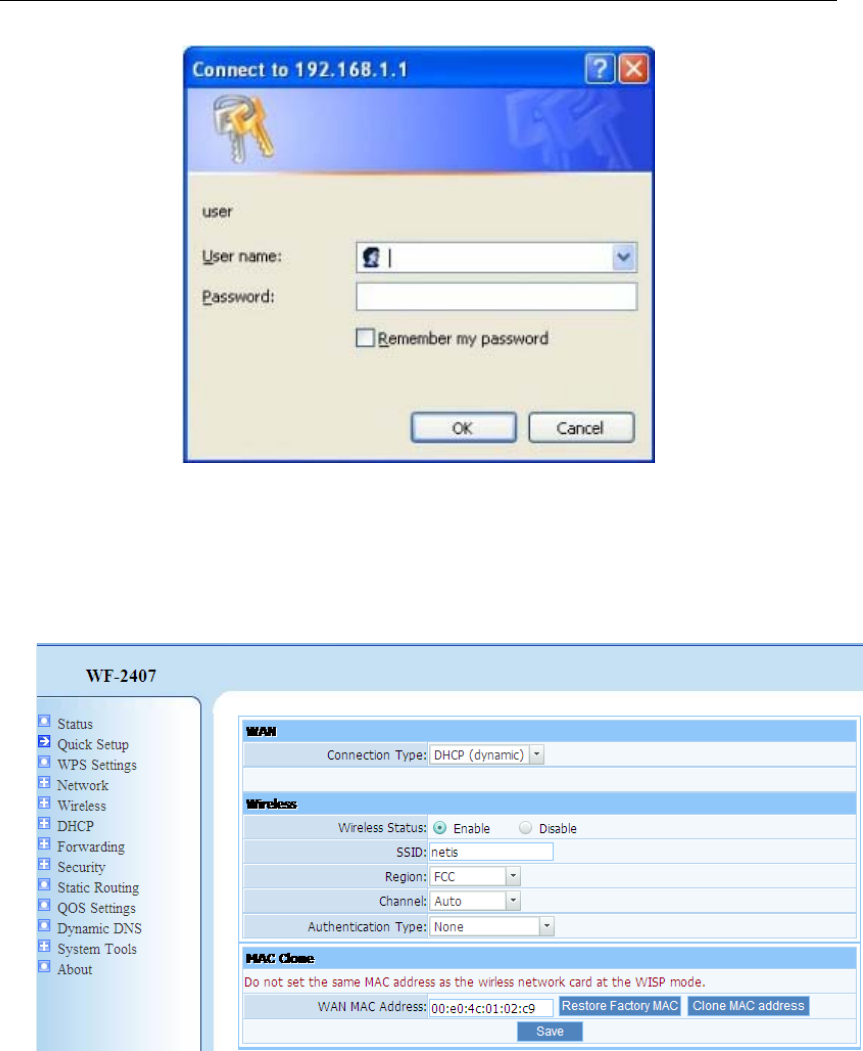

In the pop-up window, enter the user name guest and password guest and then click OK
27
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 3-24
After you have logged in, the router's user interface will be displayed. The left menu
shows the main options to configure the system, and the right screen is the summary
information for viewing and adjusting the configurations.
Figure 3-25
28
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4. Router Setup
4.1. Status
This feature provides running status information and detailed information about router.
4.1.1. Version
Show the hardware version and firmware version.
Figure 4-1
4.1.2. WAN
This feature provides running status information of the WAN port (the port connect to the
Internet)
Figure 4-2

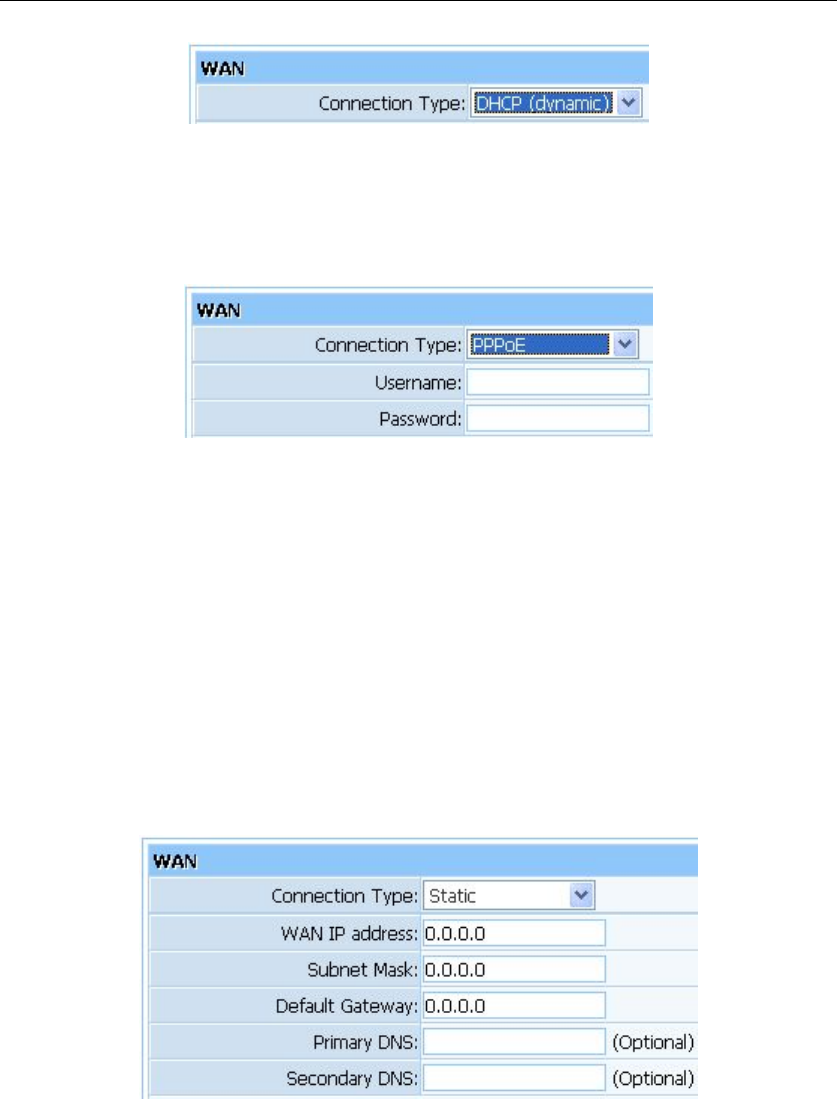

Connection Type: Display routers current connection type, It should be one of
“PPPoE”,“DHCP”, “Static IP”, depending on what kind of connection type your ISP
provides.
Physical Address: The physical address of WAN port, this is a unique address assigned
by manufacturer.
29
150Mbps Wireless-NHigh Gain Broadband Router User Manual
IP Address: The IP address you obtained after connect to the Internet, if you haven’t
connected to the Internet yet, this field is 0.0.0.0.
Subnet Mask: The Subnet mask you obtained after connect to the Internet, if you haven’t
connected to Internet yet, this field is 0.0.0.0.
Default Gateway: The IP address of Default gateway you obtained after connect to the
Internet, if you haven’t connected to Internet yet, this field is 0.0.0.0.
Primary DNS: The DNS server translates domain or website names into IP address, input
the most common DNS server address you used or provided by your ISP.
Secondary DNS: Input IP address of a backup DNS server or you can leave this field
blank
Link Status: Show the current status of link information. You can choose connect or
disconnect by manually.

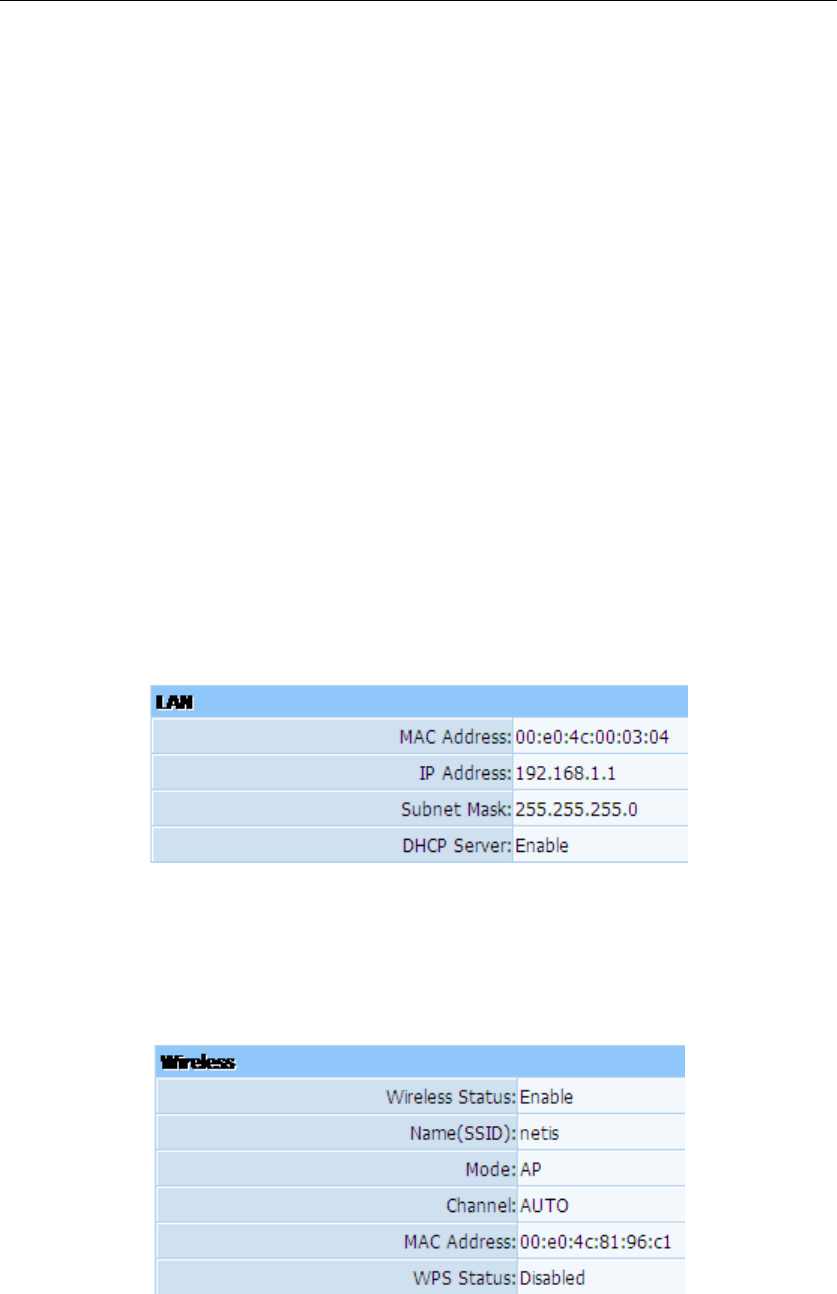

4.1.3. LAN
This item provides information about routers LAN port, display LAN port’s physical address,
IP address and current situation of DHCP server.

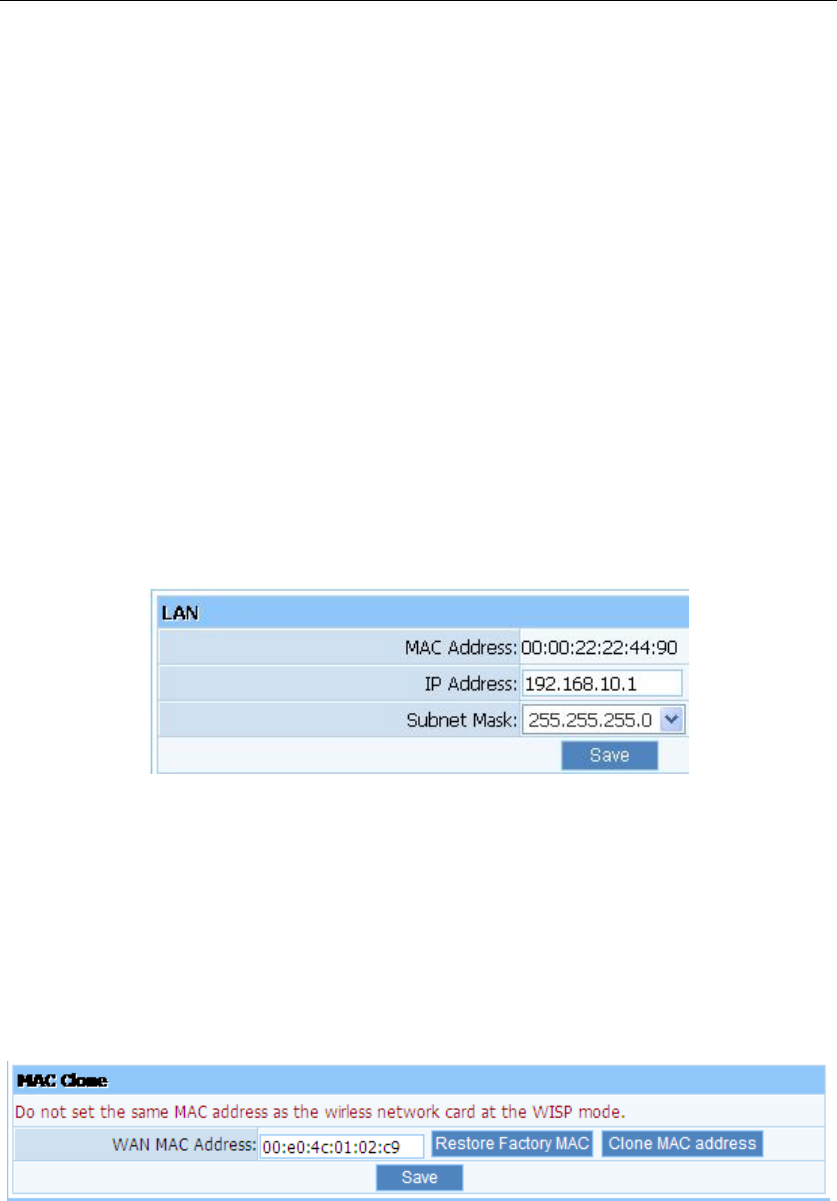

Figure 4-3
4.1.4. Wireless
This item provides current running information of wireless.

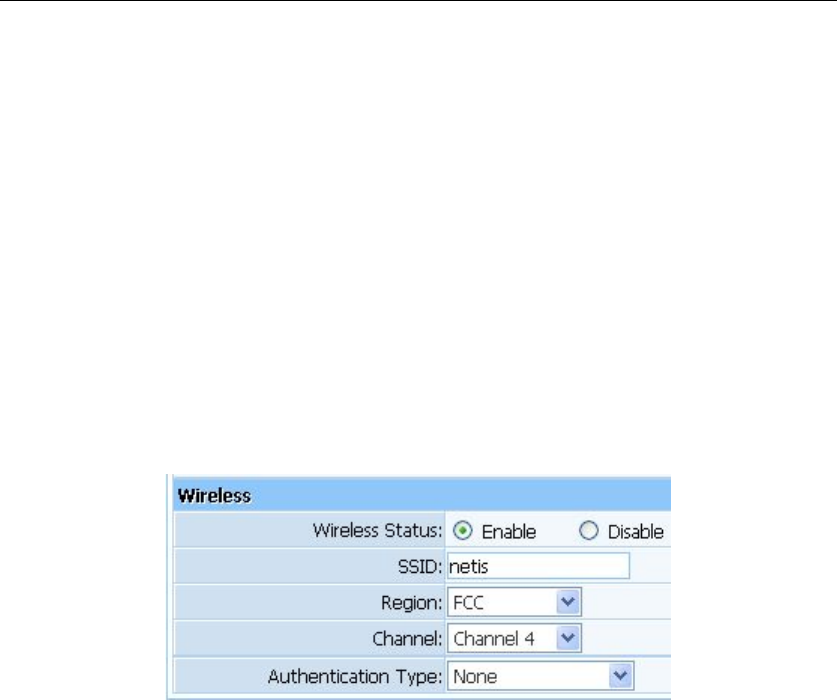

Figure 4-4
Wireless status: Display wireless interface status is enabled or not
Name (SSID): SSID (Service Set Identifier) is your wireless network's name shared
30
150Mbps Wireless-NHigh Gain Broadband Router User Manual
among all points in a wireless network.
Mode: Current wireless mode of wireless router
Channel: Display current channel of your wireless router.
MAC Address: The MAC address is used for wireless communication
WPS Status: Display WPS (Wi-Fi Protected Setup) status is enabled or not.
4.1.5. Router Status

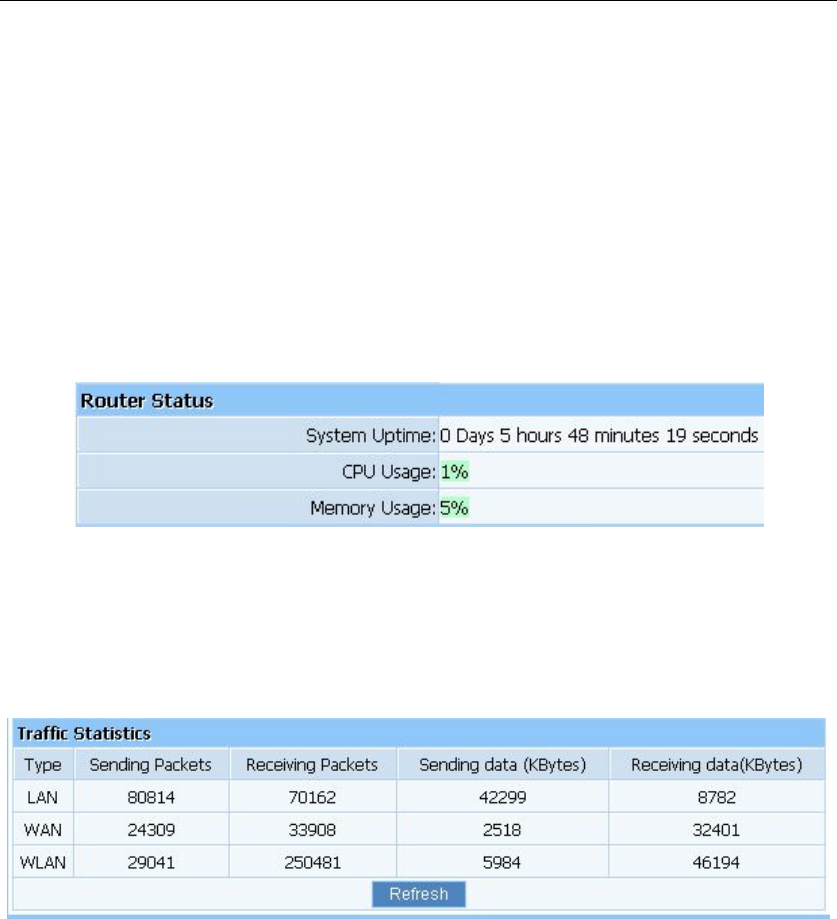

This item provides current running information of System.
Figure 4-5
4.1.6. Traffic Statistics
This item provides statistics information about the bits router sends and received.
Figure 4-6
4.2. Quick Setup
Providing you the convenient and simplest method for configure the router, the purpose of
this item is to provide an easy way for you to use it and configure your router to access the
Internet quickly; including ‘DHCPdynamic’, ‘PPPoE’, ‘Static’and ‘Wireless Configuration’.
This is the most convenient tool for you to configure router.
4.2.1. DHCP (dynamic)
After select this item, you will obtain an IP address from your ISP automatically, those ISP
who supply Cable modem always use DHCP technology.
31
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 4-7
4.2.2. PPPoE
Figure 4-8
If your ISP provides you the PPPoE service (all ISP with DSL transaction will supply this
service, such as the most popular ADSL technique), please select this item. In the
“Convenient configuration” You can input your PPPoE username and password to access the
Internet.
PPPoEUsername: Input PPPoE username provided by ISP
PPPoE Password: Input PPPoE password provided by ISP.
4.2.3. Static
Figure 4-9
This item should only be used when users use a static IP address to access Internet, you
should input your “WAN IP address”, ”subnet mask”,” default gateway” and “DNS server
(domain name server)” according to the information provided by your ISP. And every IP
address should be input in appropriate IP field, a IP address only divided into four IP octets by
sign“.” is acceptable.
WAN IP address: The IP address that your Internet access into
Subnet mask: Specify a Subnet Mask for your WAN segment
32
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Default gateway: It is provided by your ISP
Primary DNS: DNS server is used for resolve domain name. Your ISP will provides you
with at least one DNS IP address, input IP address of your DNS server in this field
Secondary DNS: Input IP address of backup DNS server, or you can leave this field
blank.
4.2.4. Wireless Configuration
You can choose “Enable” or “Disable” to enable or disable the wireless function. The default
setting is “enable”. If you chose the “Disable” status, the router will become a wired
broadband router without wireless function, so be careful when you choose this status.
Figure 4-10
SSID: SSID (Service Set Identifier) is your wireless network's name shared among all
points in a wireless network. The SSID must be identical for all devices in the wireless
network. It is case-sensitive and must not exceed 32 characters. Make sure all points in
the wireless network have the same SSID. For added security, you should change the
default SSID to a unique name.
Region:Choose a correct region which fit your use environment.
Channel: Wireless router communicates to wireless cards in a particular channel, which
can reduce interference between different channels.
Authentication Type: Different authentication types use different encryption types, which
can encrypt wireless data to protect your wireless communication.
4.2.5. MAC Clone
The WAN port of router has a unique MAC address assigned by manufacturer; it called as
“Default MAC”. The “Clone MAC” is used for some special situations; For example, ISP
only allows certain MAC address to access the Internet, thus you can modify your WAN
port’s MAC address in accord with the requirement of ISP, avoiding ISP’s detection.
33
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 4-11
4.3. WPS Settings
Wi-Fi Protect Setup (WPS) function can let you create a safety network easily. You can through
‘PIN Input Config (PIN)’ or ’Push Button (PBC)’to encrypt your network. This router also
provides WPS button, you only need to push the WPS button in this router and the wireless
network card that support WPS function, then the router will be encrypted to WPA2-AES mode
automatically
Note:
If you have configured encryption mode in your router, then when you use this WPS function,
please configure the authentication type to none, and then it will be encrypted to WPA2-AES
mode automatically. If you don’t want to change your authentication type, then when you use
this function, the router will be encrypted to the mode that you have configured.
4.3.1. WPS Settings
Figure 4-12
WPS Status: You can use this function to setup the wireless connection between this router
and wireless network card. The default is Enable.
AP PIN Code: This code can mark a wireless product.
Add A New Device: Add a new device by WPS.
4.3.2. Add a New Device
Figure 4-13
34
150Mbps Wireless-NHigh Gain Broadband Router User Manual

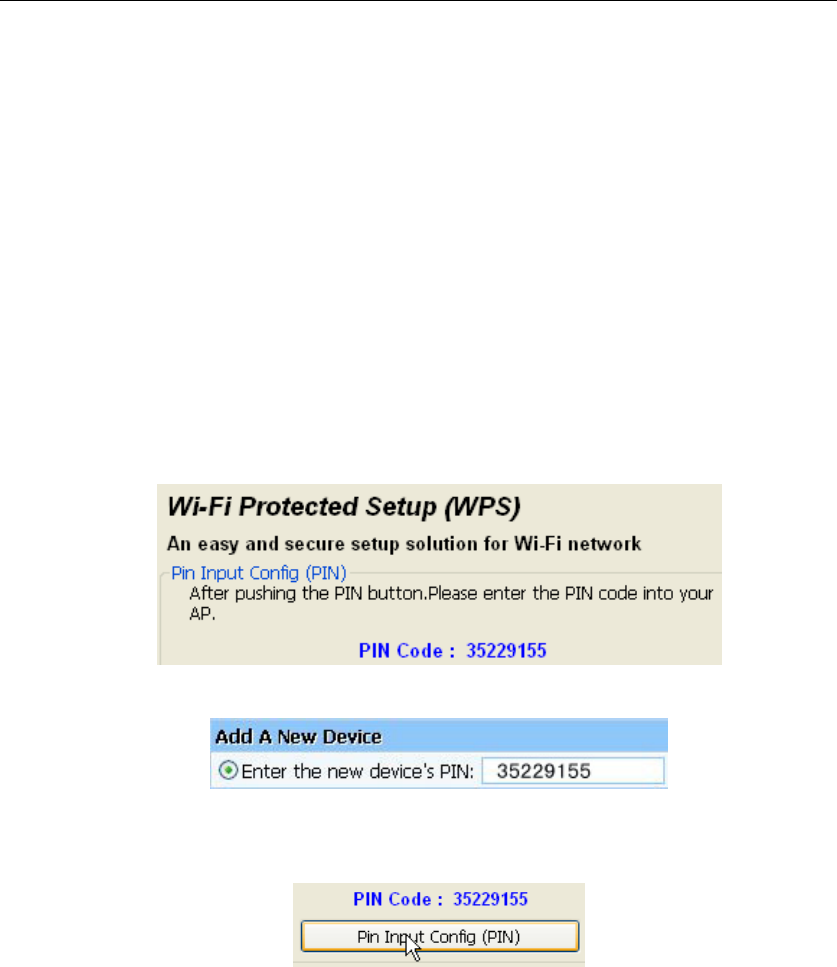

Enter the new device’s PIN: This code can mark a wireless product.
Press the button of the new device in two minutes: New device will send a PIN code to
wireless router.
WPS can connect the wireless adapter and the router in a safe way. If you have a wireless
network card which has WPS button, you may set up a safe network via the following methods.
Method 1:
1. Push the WPS button in the Router until the WPS LED is flashing several times.
2. Push the WPS button in the wireless network cardfor about 3-5seconds.
3. The safe connection will be established automatically.
Method 2:
1. Input the PIN code of the adapters WPS page into the routers WPS configure page, then
click ’connect’.
Figure 4-14
Figure 4-15
2. Push the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter
Figure 4-16
3. Select this router in the pop-up window, then click ‘Select’
4. The connection between the adapter and the router is be established automatically.
Method 3:
1. Select ‘Input PIN from AP’ in WI-FI protect setup page, input PIN of the router, then click
‘PIN Input Config (PIN)’
2. Select this router in the pop-up window, then click ‘Select’
3. The connection between the adapter and the router is be established automatically.
Remark
If there is more than one AP in the PBC mode when you use the method 1, there will be session
overlap. Please using method 2/3 or wait for a while push the button again.
35
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.3.3. WPS Configuration
Display the WPS configuration information.
Figure 4-17
4.4. Network
4.4.1. WAN
This item provides two access types for you to configure the WAN parameters. They are
wired access and wireless access.
4.4.1.1. Wired Access
Figure 4-18
Internet Access Type: Ask for your ISP to get the correct access type.
IP: The IP address you obtained after connect to the Internet, if you haven’t connected to
the Internet yet, this field is 0.0.0.0.
Subnet Mask: The Subnet mask you obtained after connect to the Internet, if you haven’t
connected to Internet yet, this field is 0.0.0.0.
Gateway: The IP address of Default gateway you obtained after connect to the Internet, if
36
150Mbps Wireless-NHigh Gain Broadband Router User Manual
you haven’t connected to Internet yet, this field is 0.0.0.0.
MTU:The MTU (Maximum Transmission Unit) setting specifies the largest packet size
permitted for network transmission. Most DSL users should use the value 1492.You can
set MTU manually, and you should leave this value in the 1200 to 1500 range. If the
value you set is not in accord with the value ISP provide, it may causes some problems,
such as fail to send Email, or fail to browse website. So if that happen, you can contact
your ISP for more information and correct your routers MTU value.
Primary DNS:The DNS server translates domain or website names into IP address, input
the most common DNS server address you used or provided by your ISP.
Secondary DNS: Input IP address of a backup DNS server or you can leave this field
blank.
4.4.1.2. Wireless Access
Figure 4-19
SSID: SSID: SSID (Service Set Identifier) is your wireless network's name shared among
all points in a wireless network. The SSID must be identical for all devices in the
wireless network. It is case-sensitive and must not exceed 32 characters. Make sure all
points in the wireless network have the same SSID. For added security, you should
change the default SSID to a unique name.
Authentication Type: “None” means do not encrypt wireless data.
Internet Access Type: Ask for your ISP to get the correct access type.
IP: The IP address you obtained after connect to the Internet, if you haven’t connected to
the Internet yet, this field is 0.0.0.0.
Subnet Mask: The Subnet mask you obtained after connect to the Internet, if you haven’t
connected to Internet yet, this field is 0.0.0.0.
Gateway: The IP address of Default gateway you obtained after connect to the Internet, if
you haven’t connected to Internet yet, this field is 0.0.0.0.
37
150Mbps Wireless-NHigh Gain Broadband Router User Manual
MTU: The MTU (Maximum Transmission Unit) setting specifies the largest packet size
permitted for network transmission. Most DSL users should use the value 1492.You can
set MTU manually, and you should leave this value in the 1200 to 1500 range. If the
value you set is not in accord with the value ISP provide, it may causes some problems,
such as fail to send Email, or fail to browse website. So if that happen, you can contact
your ISP for more information and correct your routers MTU value.
Primary DNS:The DNS server translates domain or website names into IP address, input
the most common DNS server address you used or provided by your ISP.
Secondary DNS: Input IP address of a backup DNS server or you can leave this field
blank.
4.4.2. LAN
The IP address of LAN port is used for access router itself by computers that connect to the
router directly; here you can set IP address you need. The IP address format is like
***.***.***.***, and default IP address is 192.168.1.1, the default subnet mask is
255.255.255.0.
Figure 4-1
4.4.3. MAC Clone
The WAN port of router has a unique MAC address assigned by manufacturer; it called as
“Default MAC”. The “Clone MAC” is used for some special situations; For example, ISP
only allows certain MAC address to access the Internet, thus you can modify your WAN
port’s MAC address in accord with the requirement of ISP, avoiding ISP’s detection.
Figure 4-21
4.4.4. Port Settings

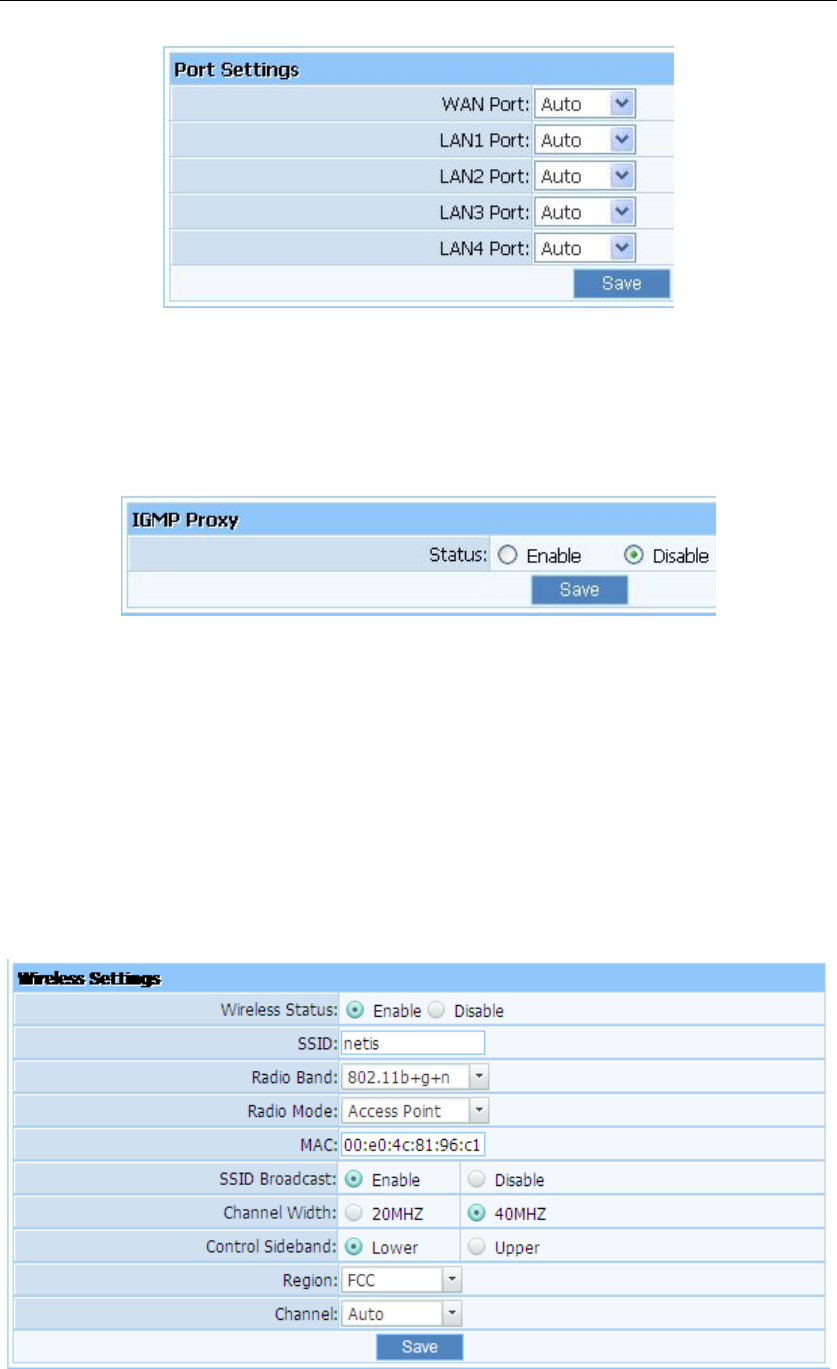

Here you can set the router's WAN and LAN interfaces work at 100M duplex,100M
half-duplex,10M duplex and 10M half-duplex communication mode.
38
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 4-22
4.4.5. IGMP Proxy
Here you can set the IGMP Proxy ‘Enabled’and‘Disabled’.
Figure 4-23
4.5. Wireless
4.5.1. Wireless Settings
Providing basic configuration items for wireless router users, including“wireless network
status”, “SSID”, “Radio Band”, “Radio Mode”, “MAC”, “SSID broadcasting”, “Channel
width”, “Channel sideband”, “Region”and “Channel”severalbasic configuration items.
Figure 4-24
39
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Wireless network status: You can choose “enable” or “disable” to enable or disable the
“Wireless Network Status”,if what you choose is “Disable”, the AP function of wireless
router will be turned off.
SSID: The default is netis.
Radio band: You can select the wireless standards running on your network, if you have
Wireless-N, and Wireless-B/G devices in your network, keep the default setting,
802.11b+g+n
Radio mode: You can select radio mode of wireless router, it contains Access Point,
Client, AP+WDS and WDS. The default setting is AP mode.
MAC: Wireless routers physical address.
SSID Broadcasting: You can select “enable” or “disable” to enable or disable the
broadcast SSID function, If the setting of this field is disable, wireless client can’t obtain
this SSID to login in, then user have to input the SSID value manually.
Channel width: This switch allows you to set Router's wireless bandwidth.20MHz: In
this mode you can get low bandwidth, little interference and slow rate. 40MHz: In this
mode you can get high bandwidth, high interference and rapid rate.Use only when you
have a pure router,draft 802.11n wireless network.
Channel sideband: It controls your wireless router use higher or lower channel when
working on 40MHz.
Region: please select the region where you live in.
Channel: In 20MHz,you can select one channel from 1 to 13 manually, and in 40MHz,
you can select one channel from 1 to 9 or 5 to 13, which provides a choice of avoiding
interference.
4.5.2. Wireless Security
The item allows you to encrypt your wireless communication, and you can also protect your
wireless network from unauthorized user access. It supplies “None”, “WEP”,“WPA-PSK”,
“WPA2-PSK”and “WPA/WPA2-PSK” five different encryption modes.

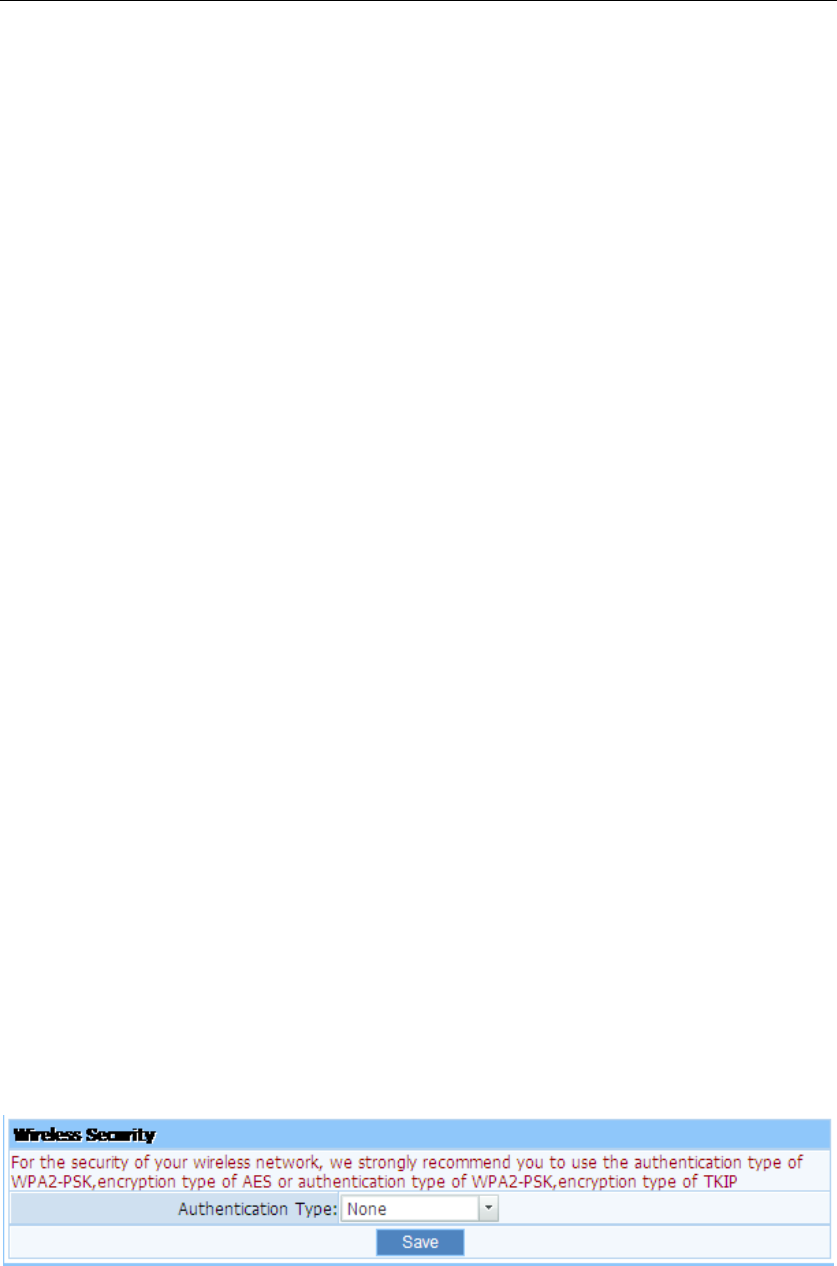

4.5.2.1. None
“None” means do not encrypt wireless data.
Figure 4-25
40
150Mbps Wireless-NHigh Gain Broadband Router User Manual

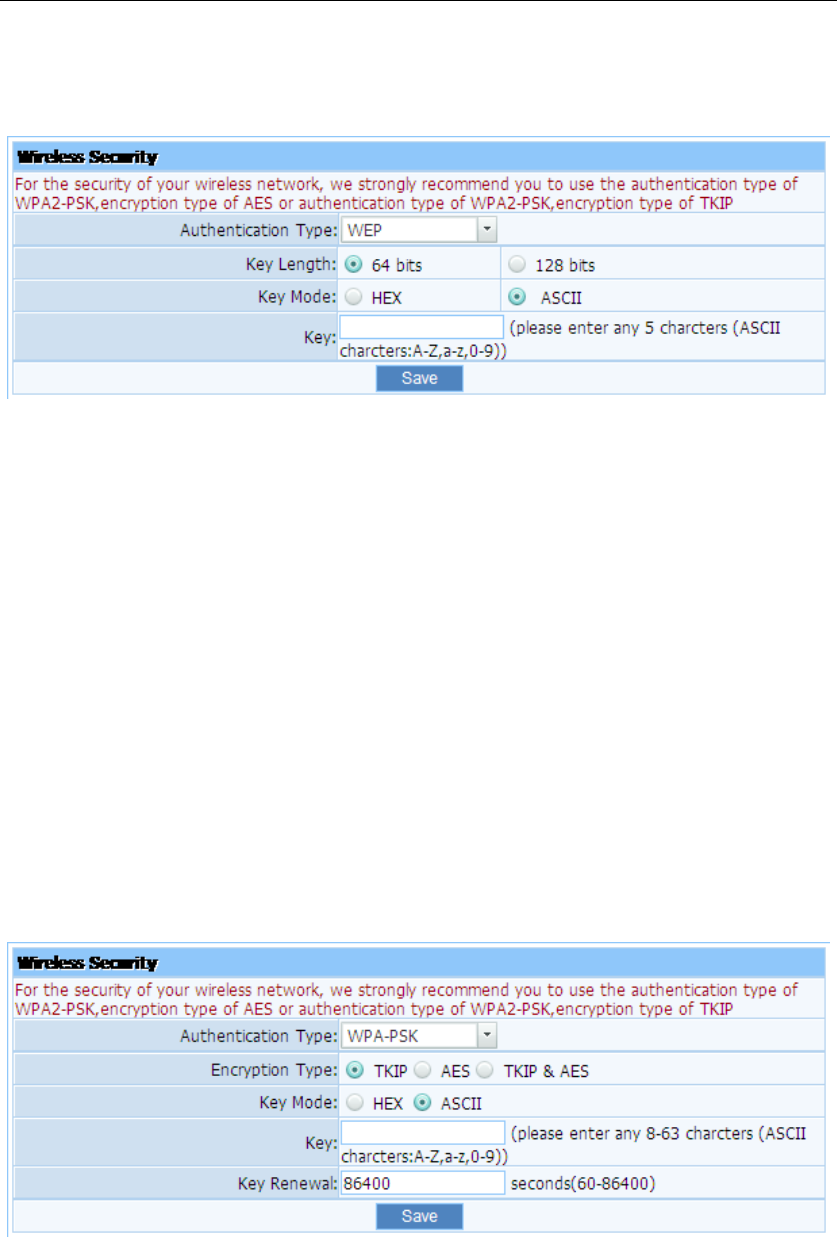

4.5.2.2. WEP
Figure 4-26
Key Length: There are two basic levels of WEP encryption, 64 bits and 128 bits, the
more bits password have, the better security wireless network is, at the same time the
speed of wireless is more slower.
Key Mode: If you select WEP to encrypt your data, choose the bits of password, it should
be 64 bits or 128 bits. Then choose the format of password; it should be HEX or ASCII.
The valid character for HEX format should be numbers from 0 to 9 and letters from A to
F. HEX support mixed letter and number mode. And ASCII supports all characters that in
keyboard.
Key Length description: When you select 64bits, you need to input 10 chars for HEX and
5 chars for ASCII, and when you select 128bits, you need to input 26 chars for HEX and
13 chars for ASCII.
Note: When the WPS is enabled, please not use WEP.
4.5.2.3. WPA-PSK
Figure 4-27
Encryption type: You can select the algorithm you want to use, TKIP, AES or
TKIP&AES. TKIP means “Temporal Key Integrity Protocol”, which incorporates
Message Integrity Code (MIC) to provide protection against hackers. AES, means
“Advanced Encryption System”, which utilizes a symmetric 128-Bit block data.
Key Renewal: you can configure the renewal time between 60 to 86400 seconds.
41
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Key Length description: you need to input 8 to 63 ASCII characters no matter which type
you select.

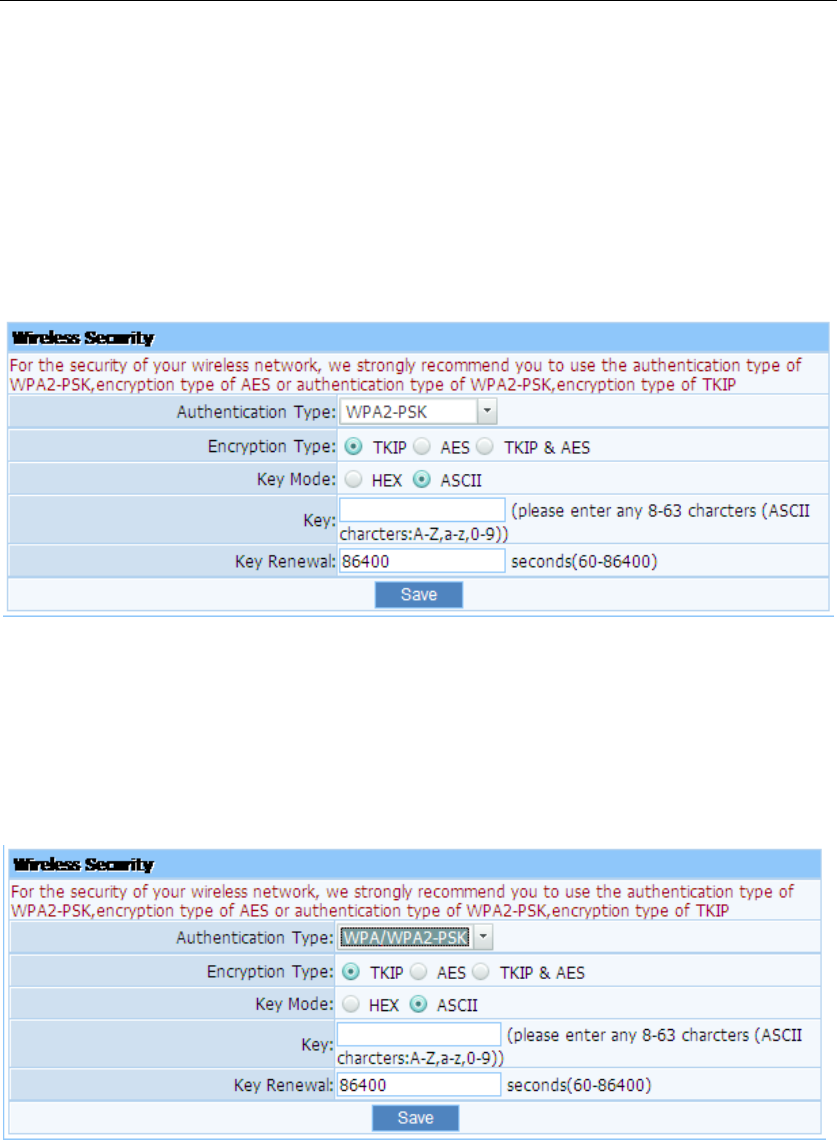

4.5.2.4. WPA2-PSK
The WPA2-PSK is similar to WPA-PSK and with stronger encryption method than WPA-PSK,
using WPA2-PSK; you should input password (leave this value in the range of 8 to 63
characters) and key renewal time (leave this value in the range of 60 to 86400 seconds).
Figure 4-28
4.5.2.5. WPA/WPA2-PSK
This item mixed WPA-PSK and WPA2-PSK mode, which provides higher security level; you
can configure it according with WPA-PSK or WPA2-PSK.
Figure 4-29
42
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.5.3. Wireless MAC Filtering

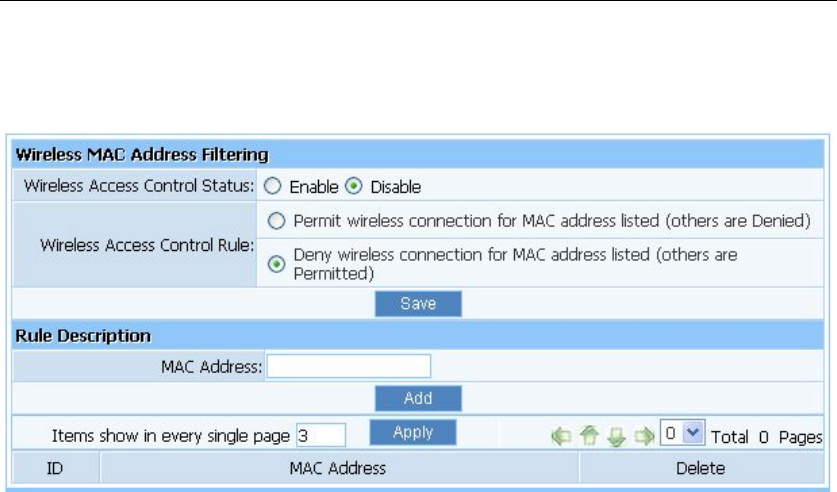

Figure 4-30
MAC Filter Status: the default is disable. You can filter wired users by enabling this
function; thus unauthorized users can not access the network.
Description: describe MAC Filter list to tell from different MAC Filter lists.
Rule: you can select permit or deny. The default is permit.
MAC address: input the MAC address that you want to control. The default format is
**-**-**-**-**-**e.g.: 00-22-33-da-cc-bb.
Follow the following steps to set MAC filter:
1. Enable MAC Filter, then select save.
2. Add MAC address you want to control in the “MAC address” field (the format is
**-**-**-**-**-**), then click “Add” button, and you will see the MAC address has
displayed in the MAC list.
3. There are two items supplied, “Permit wireless connection for MAC address listed (others
are Denied)” and “Deny wireless connection for MAC address listed (others are Permitted)”,
Select the item you want, and click “Save” button.

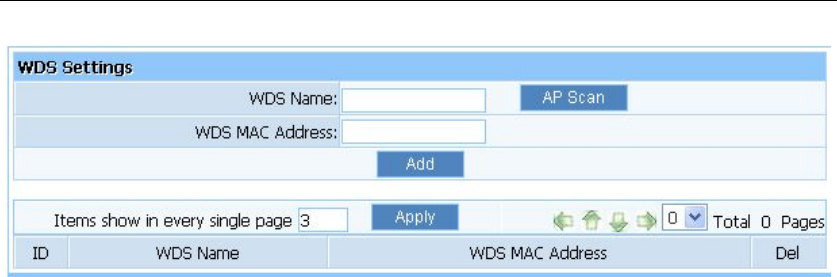

4.5.4. WDS Settings
If you have selected WDS or AP+WDS mode in Wireless Basic-Radio Mode, please do the
following configurations.
43
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 4-2
WDS Name: Give a description of your wireless bridge to tell apart.
WDS MAC Address: If the current working mode is “WDS” or “AP+WDS”, then you
need to configure wireless bridge configuration. Enter MAC address of remote access
point, at the same time the remote access point also need to configure to “WDS”
or ”AP+WDS” mode.
Current WDS Information: It illustrates basic information of all wireless bridge that in
connection status, you may delete unnecessary bridge.
E.g.: If you want setup WDS connection between the AP that the MAC address is
00-22-4f-cc-ae-f5 (we call it AP1) and the AP that the MAC address is 00-22-4f-bc-af-5d (we
call it AP2), please follow the next steps:
1. Select radio mode is WDS in wireless management-basic of AP1.
2. Input WDS name (e.g.: default), input MAC address of AP2 (00-22-4f-bc-af-5d), click add,
then the record named default will appears in WDS list.
3. We can also select radio mode is WDS in wireless management-basic of AP2.
4. Input WDS name (e.g.: Default), input MAC address of AP1 (00-22-4f-cc-ae-f5), click add,
then the record named Default will appears in WDS list.
Note: Before you setup WDS connection, please make sure that AP1 and AP2 is in the same
network, that is if the IP address of AP1 is 192.168.1.1, then the IP address of AP2 should be
192.168.1.x (1<x<255,e.g.: x=8).
4.5.5. Wireless Advanced
These settings are only for more technically advanced users who have a sufficient knowledge
about wireless LAN. These settings should not be changed unless you know what effect the
change will have on your AP.
44
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 4-32
Authentications type: The default is set to “Auto”, which allows “Open System” or
“Shared Key” authentication to be used. Select “Shared Key” if you only want to use
“Shared Key” authentication (the sender and recipient use a WEP key for authentication).
Beacon Interval: The interval time of this 150Mbps Wireless-N High Gain Broadband
Router broadcast a beacon. Beacon is used to synchronize the wireless network.The valid
interval is 20-1000, the default is 100.
RTS Threshold: You can set RTS Threshold value in this field, the valid range should be
256-2347 and default value is 2347. If a network packet is smaller than the preset RTS
threshold size, the RTS/CTS mechanism will not be enabled.
Aggregation: You can accelerate the wireless transmission speed by enabling the
aggregation function. The default is AMPDUAMSDU.
Fragmentation Threshold: It specifies the maximum size of packet during the
fragmentation of data to be transmitted.
Transmission Rate: Transmit rate indicates the transmission speed of wireless LAN
access .The default setting is “Auto” and you can set this value between 1-54Mbps range.
ShortGi: You can select “Enable” or “disable” for shortgi.
Protection: Using 802.11b and 802.11g mixed mode may result in poor network
performance. By enabling 802.11 protection, it will ameliorate performance of 802.11g
devices in your wireless network.
Preamble Type: "Short Preamble" is suitable for heavy traffic wireless network. "Long
45
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Preamble" provides much communication reliability; the default setting is "Long
Preamble”.
High Power :Enhanced signal booster increase coverage up to 4X than standard wireless
N router .
4.5.6. Wireless Statistics
Display current status of the wireless client associate with AP.

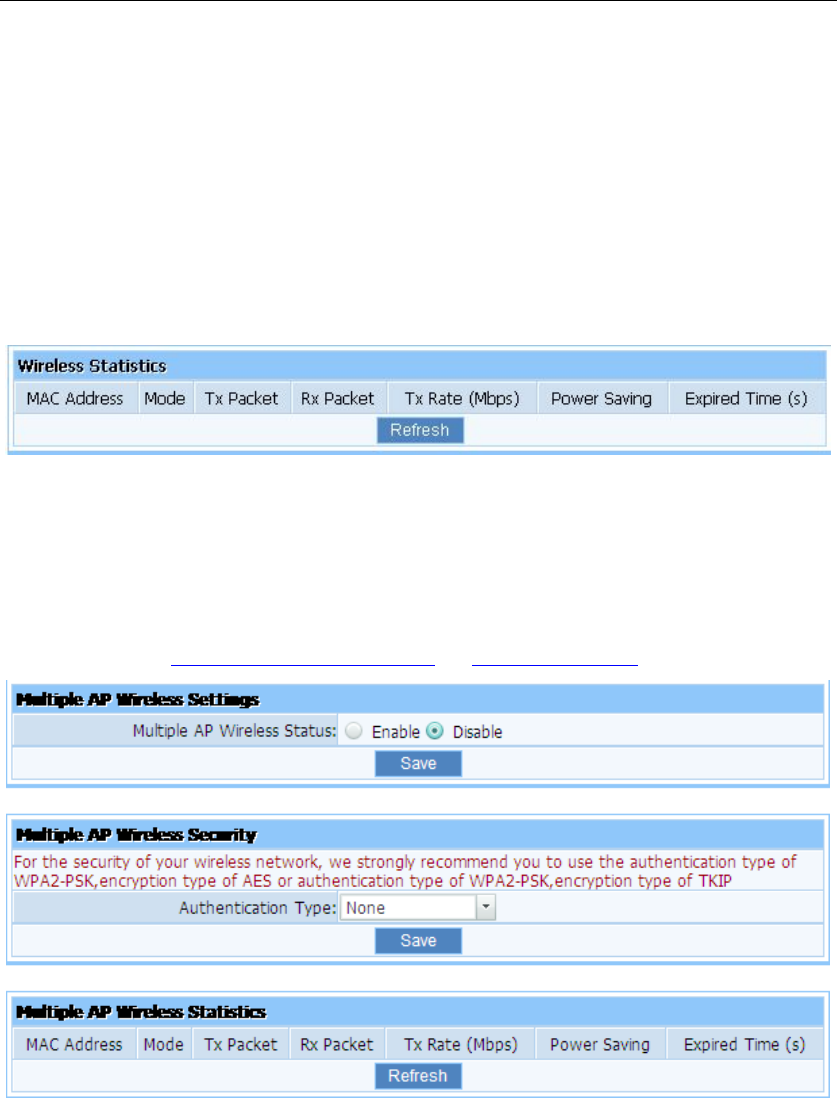

Figure 4-32
4.5.7. Multiple AP Settings
The default status of secondary AP is disable, you can select enable to enable the secondary
AP. Please refer to Quick SetupWireless Security and Wireless Statisticsfor details.
Figure 4-33
46
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.6. DHCP
4.6.1. DHCP Settings
Figure 4-34
4.6.2. DHCP Clients List
Display the state of assigned IP by DHCP Server.
Figure 4-35
4.6.3. Address Reservation
Figure 4-36
Address Reservation: reserve IP address for designed physical address host. If you want
to configure a fixed IP address for some host, please input physical address and IP
address, then click add.
47
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.7. Forwarding
4.7.1. Virtual Servers
Figure 4-37
Description: Describe current virtual server item.
Internal Host IP Address: The “Internal Host IP Address” indicates IP address of the
internal host using virtual server.
Protocol: The protocol item supplies several protocols. For example, if you have web
server within LAN, you can select the HTTP template then the router will input port
number 80 automatically.
External Port: Input an extranet port number(the users in Internet can see these ports).
Internal Port: Input an intranet port number.
4.7.2. Port Triggering
Port trigger module dynamically registers virtual server rules when any IP host generates the
packet from the specified trigger protocol and port.Port trigger module use forward protocol
type and port number and use the IPaddress of host that generates the trigger packet when it
registers a rule.
48
150Mbps Wireless-NHigh Gain Broadband Router User Manual

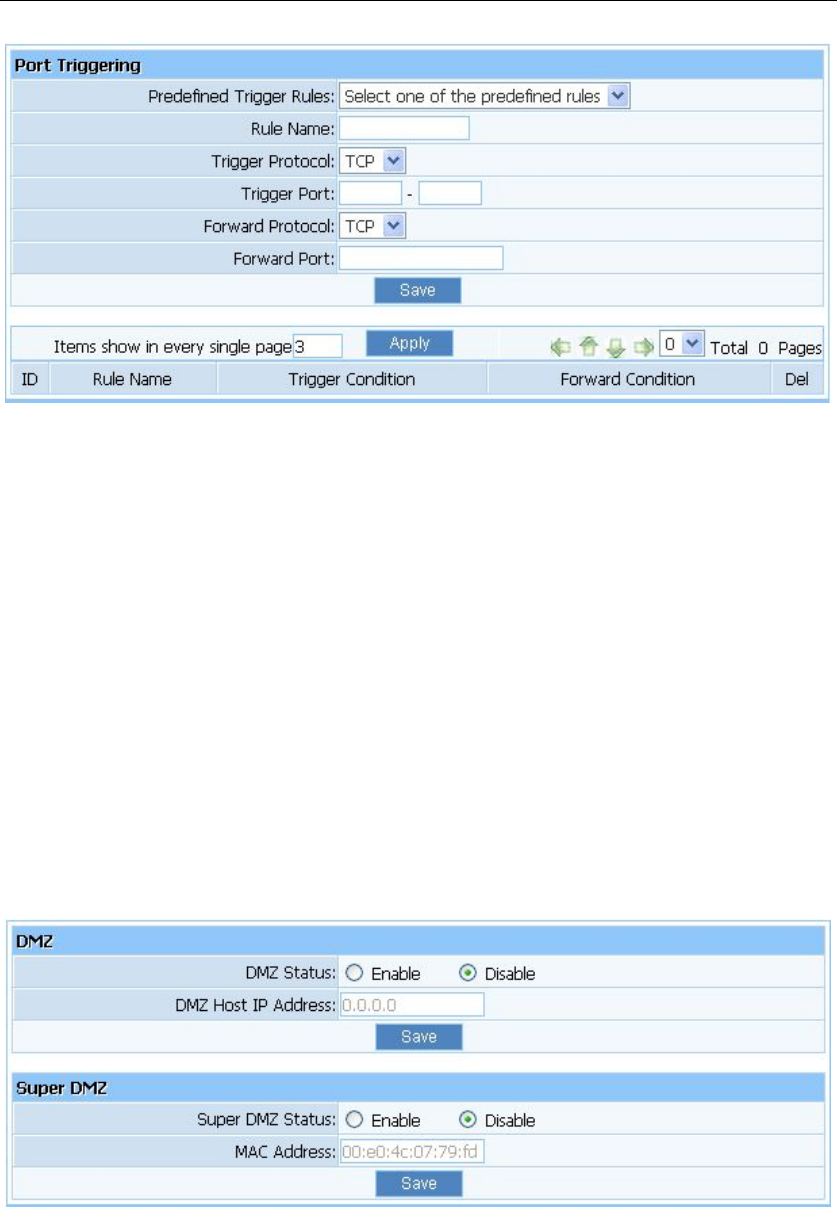

Figure 4-38
Predefined Trigger Rules: select one of the Predefined Rules.
Rule Name: describe one Predefined Trigger that you will configure.
Trigger Protocol: you can select TCP/UDP.
Trigger Port: you can select a part of ports.
Forward Protocol: you can select TCP/UDP.
Forward Port: you can select a part of ports.
4.7.3. DMZ
DMZ opens all the ports of one computer, exposing the computer to the Internet. So it should
only be used for some special-purpose, especial for Internet online games. Using this function
you can select“DMZ” item and input IP address of DMZ host, then click “Save”. For the
purpose of security, we suggested that using “Virtual servicer” instead of “DMZ”.
Figure 4-39

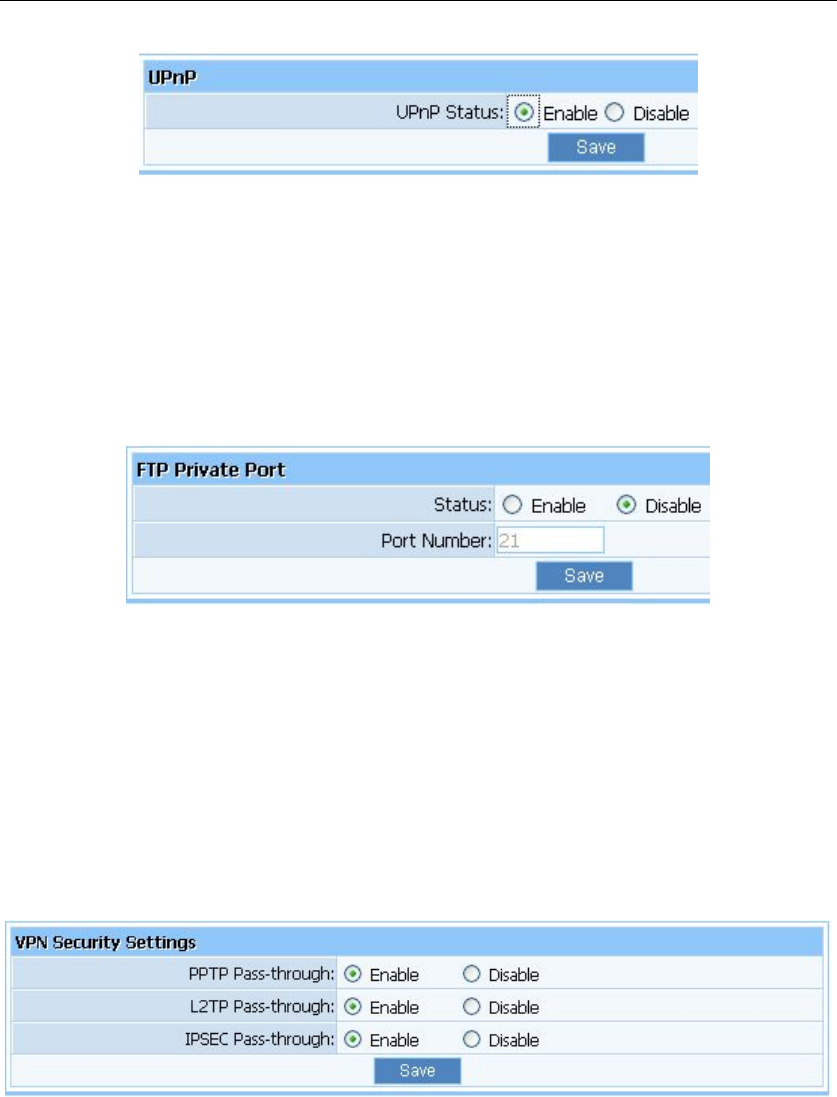

4.7.4. UPnP
The UPnP function supports load Application’s port forward record automatically. Select
“Enable” to enable this function.
49
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 4-40
4.7.5. FTP Private Port
Some games, servers, and applications (such as BT, QQ video, Edunkey, Web server) are no
longer effect when behind the NAT router, so this item provides function of port mapping
from LAN to WAN.
Figure 4-41
4.8. Security
4.8.1. Security Settings
VPN is commonly used for encapsulate and encrypt data across the public network. For VPN
tunnel, the router supports IPSEC pass-through, PPTP pass-through and L2TP pass-through.
Figure 4-42
50
150Mbps Wireless-NHigh Gain Broadband Router User Manual

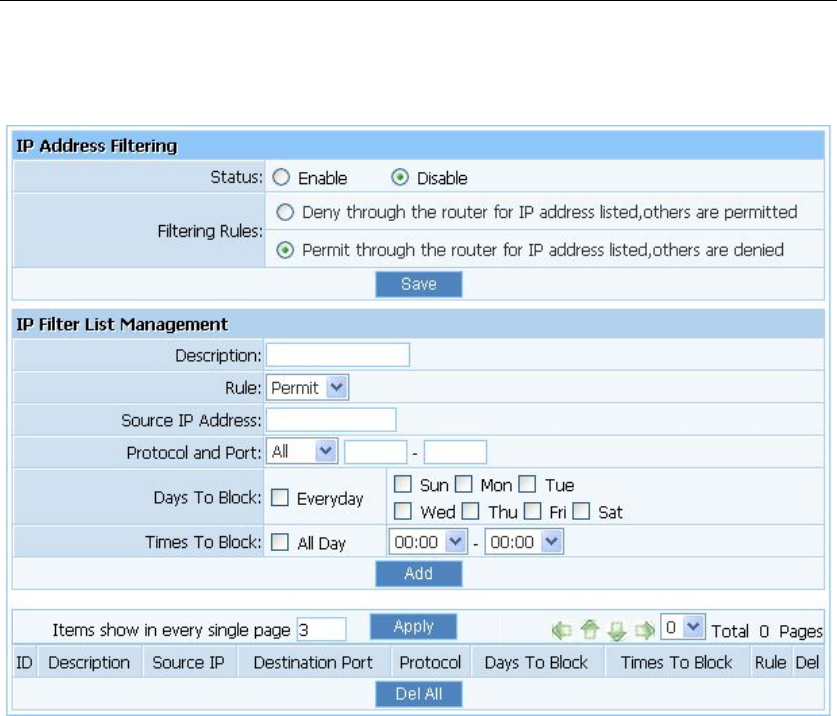

4.8.2. IP Address Filtering
Figure 4-43
Status: the default is disable. The rules of “Internet access control” based on source IP,
port number and protocol.
Description: describe IP Firewall list to tell from different IP Firewall lists.
Rule: you can select permit or deny. The default is permit.
Source IP address: input the source IP address that you want to control. The default
format is ***.***.***.***(e.g: 192.168.2.3).
Protocol and Port: If the rule has already existed in “Protocol Template”. You can select
appropriate item and apply it. Or you can input protocol type and port number manually,
click “add” button, then the item will displayed in the list.
Follow the following steps to set Internet Access Control:
1. You can select “enable” and click “Save” to enable “IP Firewall” function. This is only the
first step; you should continue to create appropriate rules for “IP Firewall”.
2. Input description information for current access control rule in the “Description” field.
Input IP address of host you want to restrict.
3. There are two items supplied, “Permit through the router for IP address listed, others are
denied” and “Denythrough the router for IP address listed, others are permitted”, Select the
item you want, and click “Save” button.
51
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4. If you want to delete certain item on the list, select appropriate item on the list, click
“delete” to delete it.
4.8.3. MAC Filtering

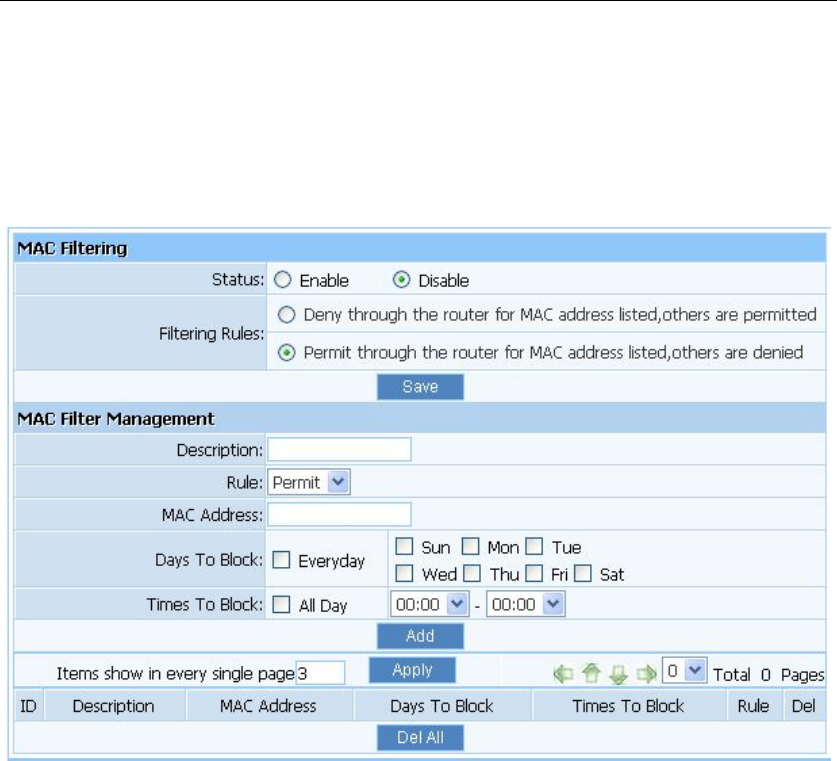

Figure 4-44
Status: the default is disable. You can filter wired users by enabling this function; thus
unauthorized users can not access the network.
Description: describe MAC Filter list to tell from different MAC Filter lists
Rule: you can select permit or deny. The default is permit
MAC address: input the MAC address that you want to control. The default format is
**-**-**-**-**-**e.g.: 00-22-33-da-cc-bb
Follow the following steps to set MAC filter:
1. Enable MAC Filter, then select save.
2. Add MAC address you want to control in the “MAC address” field (the format is
**-**-**-**-**-**), then click “Add” button, and you will see the MAC address has
displayed in the MAC list.
3. There are two items supplied, “Permit wireless connection for MAC address listed (others
are Denied)” and “Deny wireless connection for MAC address listed (others are Permitted)”,
Select the item you want, and click “Save” button.
52
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.8.4. Domain Filtering

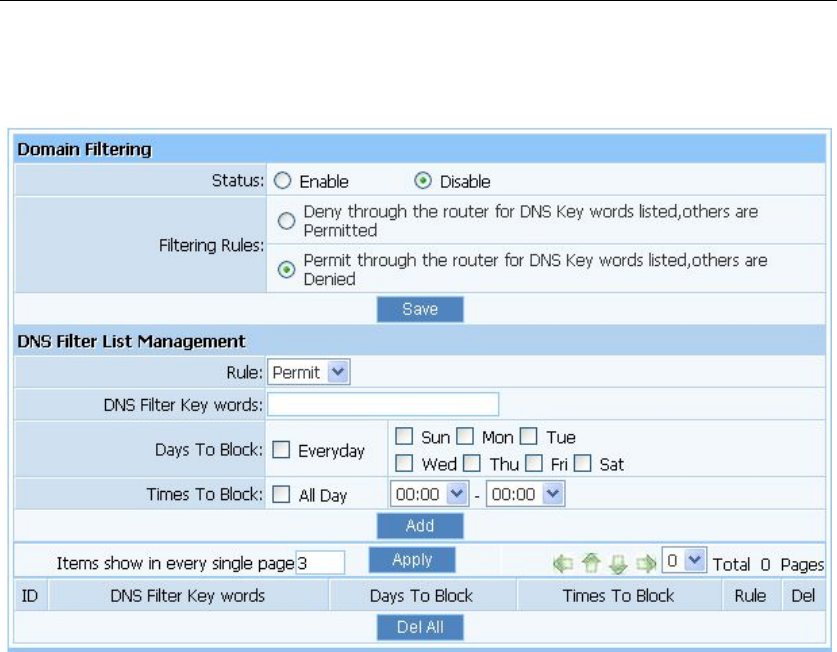

Figure 4-45
Status: the default is disable. “DNS filter”is able to filter certain domain name such as
www.sina.com.
Rule: you can select permit or deny. The default is permit.
DNS Filter Key words: Input website name or Domain name in the “DNS Key Words”
field, such as www.163.com.
Follow these steps to set DNS filter:
1. You can select “enable” and click “Save” to enable “DNS Filter” function. This is only the
first step, you should continued to create appropriate rules for “DNS Filter”.
2.Input DNS Filter Key words.
3. There are two items supplied, “Permit through the router for DNS Key words listed, others
are denied” and “Denythrough the router for DNS Key words listed, others are permitted”,
Select the item you want, and click “Save” button.
4. If you want to delete certain item on the list, select appropriate item on the list, click
“delete” to delete it.
4.9. Static Routing
Most of broadband router and wireless router are using NAT mode, so this feature is designed
for most common network environment.
53
150Mbps Wireless-NHigh Gain Broadband Router User Manual

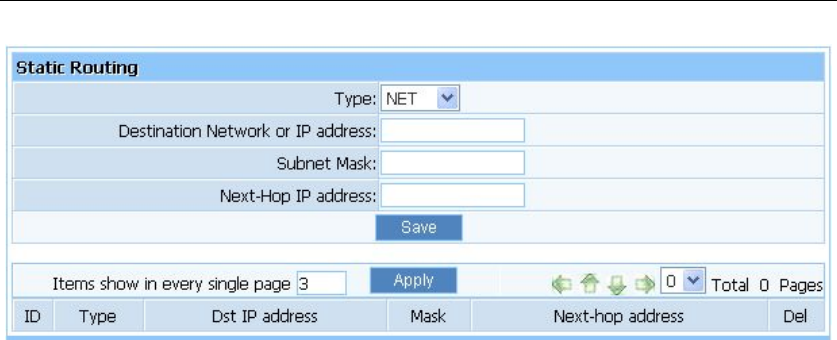

Figure 4-46
Destination Network or IP Address: Specify a certain destination Network or IP address
which static route forward to.
Subnet Mask: Subnet mask is used for distinguish Network portion and Host portion for
an IP address.
Next-hop IP Address: This is an IP address of the next-hop device (and also is the
gateway address for local host) that allows forwarding data between router and remote
network or host.
Routing Table: You can check out all current route items, click “delete” button to delete a
route item existed in routing table.
54
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.10. QOS Settings

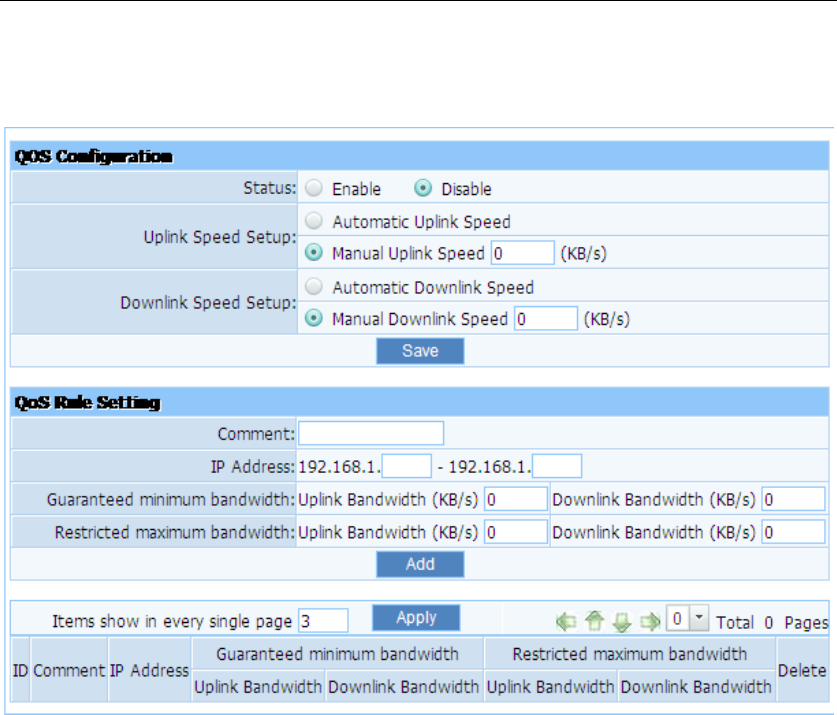

Figure 4-47
Status: QOS switch.
Automatic Uplink Speed: Router adjusts uplink bandwidth automatically.
Manual Uplink Speed (Kbps): User configures uplink bandwidth manually.
IP Address:Set the IP address range for restricted hosts.
Minimum bandwidth: setup uplink and downlink bandwidth.
Maximum bandwidth: setup uplink and downlink bandwidth.
4.11. Dynamic DNS
The DDNS feature allows you using domain name (not IP address) to access Internet. Before
you can use this feature, you need to register an account for DDNS service at DDNS service
providers, such as “roay.cn”,”TZO.com”,”DynDNS”. For more information, you can visit
http://www.oray.net/Help.
55
150Mbps Wireless-NHigh Gain Broadband Router User Manual

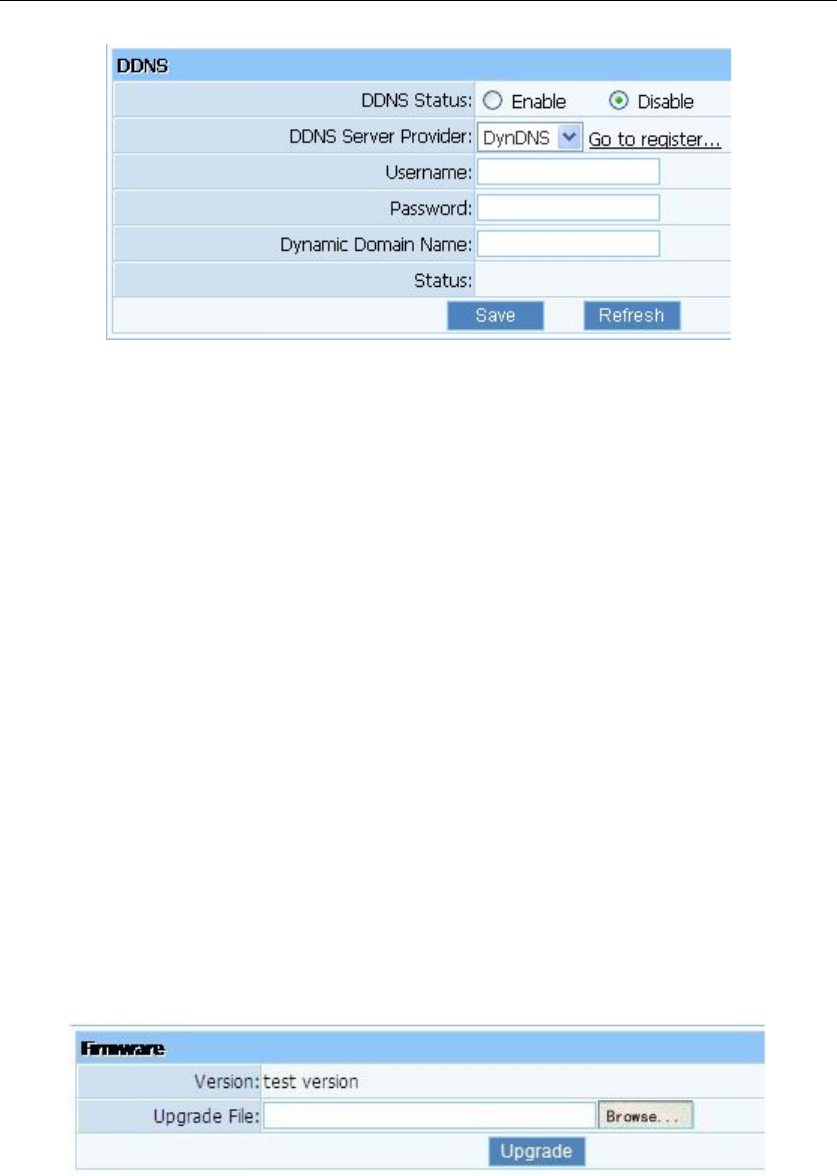

Figure 4-48
DDNS Status: Current status of DDNS server.
DDNS Server Provider: For example, if you want to use service of “roay.cn”, you have
to first register and accounts for it. Other DDNS service providers as the same.
Username, Password, Dynamic Domain Name: After register an DDNS account from
DDNS service providers, you will get “User Name”, “Password”,”Dynamic Domain
Name”, Input information in appropriate field.
4.12. System Tools
System management includes password setup, web Setup, upgrade, reboot, restore, WOL and
System time.
4.12.1. Firmware
Click "Browse..."button and select a File to upgrade, after you have selected the appropriate
file, click "Upgrade" button to execute upgrade procedure. Do not cut off the power supply
during the process of upgrading.
Figure 4-49
4.12.2. Time Settings
You can choose the time server and the time zone for the system time.
56
150Mbps Wireless-NHigh Gain Broadband Router User Manual

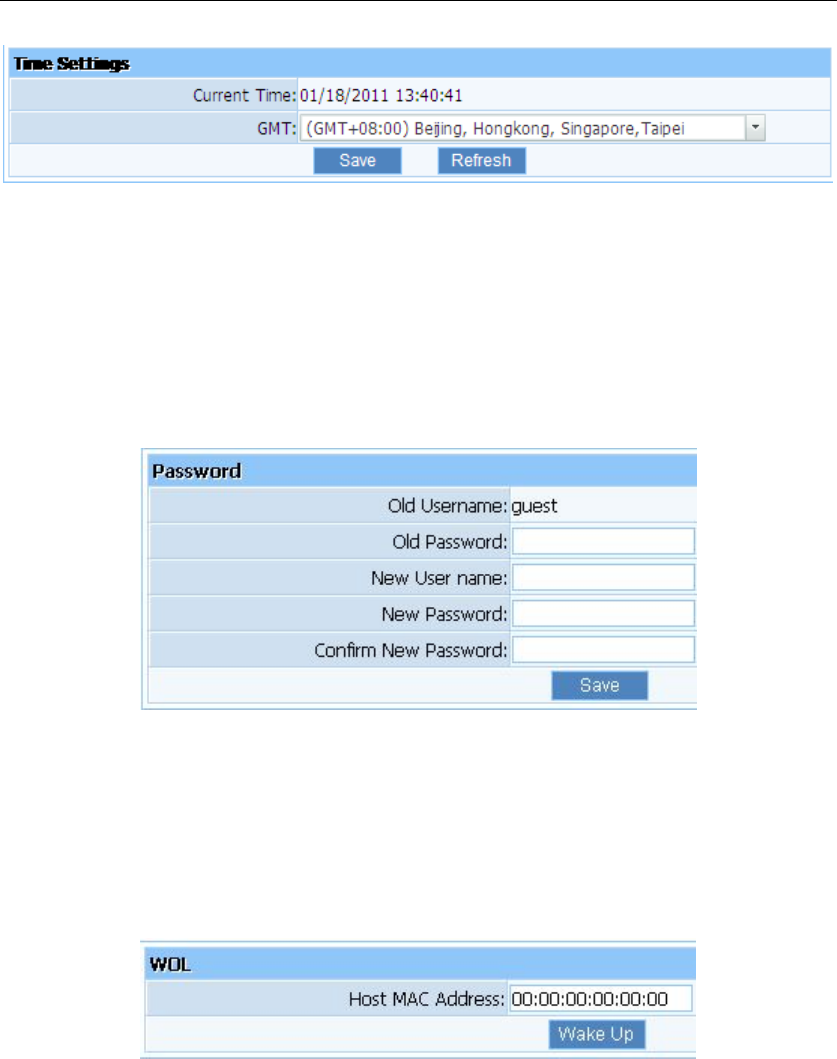

Figure 4-50
4.12.3. Password
The default username/password is guest/guest. To ensure the Routers security, it is suggested
that you change the default password to one of your choice, here enter a new password and
then Re-enter it again to confirm your new password. Click “Save” button to save settings.
Figure 4-51
4.12.4. WOL
Input host MAC address,and then click button of "Wake up" to wake up the target host which
in the LAN.
Figure 4-52
4.12.5. System Logs
Examine system logs.You can configure items shown in one Page, the default is 10.
57
150Mbps Wireless-NHigh Gain Broadband Router User Manual
Figure 4-53
4.12.6. Remote Management
WEB Management Status: the default is disable. Router can be accessed on the remote site
using “Web setup”.Check the “Management Port”and enter the port number and then press
“save” button to enable web management.
Figure 4-54
4.12.7. Factory Defaults
Click "Restore" button, the Router will erase all of your settings and replace them with the
factory defaults, make sure you have backup current settings before click this button.
Figure 4-55
4.12.8. Reboot
Click“Reboot” button to restart the router.
Figure 4-56
58
150Mbps Wireless-NHigh Gain Broadband Router User Manual
4.13. About
Figure 4-57
Thank you for your support.
5. Troubleshooting
1. I cannot access the Web-based Configuration Utility from the Ethernet computer
used to configure the router.
Check that the LAN LED is on. If the LED is not on, verify that the cable for the LAN
connection is firmly connected.
Check whether the computer resides on the same subnet with the router’s LAN IP
address.
If the computer acts as a DHCP client, check whether the computer has been assigned an
IP address from the DHCP server. If not, you will need to renew the IP address.
Use the ping command to ping the router’s LAN IP address to verify the connection.
Make sure your browser is not configured to use a proxy server.
Check that the IP address you entered is correct. If the router’s LAN IP address has been
changed, you should enter the reassigned IP address instead.
2. I forget Password (Reset the Router without Login)
Use a pencil to press the button for about 2-6 seconds when it is working, then leave your
hands, it will restore settings to the factory configuration. The default password is guest.
3. I have some problems related to Connection with Cable Modem
Please follow the following steps to check the problems:
Check whether the DSL modem works well or the signal is stable. Normally there will be
some indicator lights on the modem, users can check whether the signal is ok or the
modem works well from those lights. If not, please contact the ISP.
Check the front panel of the Router, there are also some indicator lights there. When the
physical connection is correct, the Power light and the CPU light should be solid; the
59
150Mbps Wireless-NHigh Gain Broadband Router User Manual
WAN light should be blinking. If you use your computer, the corresponding LAN port
light should be blinking too. If not, please check whether the cables work or not.
Repeat the steps in WAN Setup Connect with Internet through DSL Modem.
4. I can browse the router’s Web-based Configuration Utility but cannot access the
Internet.
Check if the WAN LED is ON. If not, verify that the physical connection between the
router and the DSL/Cable modem is firmly connected. Also ensure the DSL/Cable
modem is working properly.
If WAN LED is ON, open the System Overview page of the Web configuration utility
and check the status group to see if the router’ s WAN port has successfully obtained an
IP address.
Make sure you are using the correction method (Dynamic IP Address, PPPoE, or Static
IP) as required by the ISP. Also ensure you have entered the correct settings provided by
the ISP.
For cable users, if your ISP requires a registered Ethernet card MAC address, make sure
you have cloned the network adapter’ s MAC address to the WAN port of the router.
(See the MAC Address field in WAN Setup.)
5. My wireless client cannot communicate with another Ethernet computer.
Ensure the wireless adapter functions properly. You may open the Device Manager in
Windows to see if the adapter is properly installed.
Make sure the wireless client uses the same SSID and security settings (if enabled) as the
150Mbps Wireless-N High Gain Broadband Router.
Ensure that the wireless adapter’s TCP/IP settings are correct as required by your
network administrator.
If you are using a 802.11b wireless adapter, and check that the 802.11G Mode item in
Wireless Basic Setting page, is not configured to use 802.11G Performance.
Use the ping command to verify that the wireless client is able to communicate with the
router’s LAN port and with the remote computer. If the wireless client can successfully
ping the router’ s LAN port but fails to ping the remote computer, then verify the TCP/IP
settings of the remote computer.
6.I don’t know how to use the router in different modes.
You
Acce
AP: The default setting is AP modeat this point the router can be used as wired and
wireless signal converterIn this mode, you can use wireless access instead of cable access.
can select radio mode of wireless routerin “wireless”—“wireless settings”, it contains
ss Point, WDS,AP+WDS,Client, and Repeater.
Most connections utilize a dynamic ip (DHCP) and the default is already set to this .If you
60
150Mbps Wireless-NHigh Gain Broadband Router User Manual
61
have another connection type (like static User),you will need to click on “Quick Setup” in
the menu and input information given you by your service provider and then click save .
WDS:If you are using this router to spread the wireless coverage of another router,or to
spread the coverage to another router,you can use WDS mode.
You can co
AP+WDS:You can bridge two LAN or two computers via two AP, the wireless signal
will be amplified and transmitted at the same time.
nfigure the routerfollowing the steps in 4.5.4.
You c
Client: In this modethe router function is approximately equal to a wireless adapteryou
can make a wireless connection to the internet.
an configure the router following the steps in 4.5.4.
Attach one end of an Ethernet cable to your computers port,and the other end to one of the
LAN ports of your router.
Configure Your Computer
Select “wireless”-“wireless settings”, select the client mode, click on “AP scan” and you
will see a new window options, select the AP you want to connect to, and click the
“connect” button below.
If your AP is notencrypted, click “save” and reboot the router.
If your AP is encrypted, select “wireless security” and input the key in this interface, then
ve” and reboot the router. click on “sa
Repeater: In this mode, it’s an electronic device that amplifies a signal before
transmitting it again; it can be used in computer networks to extend transmitting distances.
Attach one end of an Ethernet cable to your computers port,and the other end to one of the
LAN ports of your router.
Configure Your Computer according to the QIG
Select “wireless”-“wireless settings”, select the repeater mode, input the Repeater
SSID,then click the “AP Scan”and you will see a new window options, select the AP you
want to connect to, and click the “connect” button below.

Navigation menu
