AM5012 001 User Manual HTML Version

Users Manual

AirMagnet AM-5012-11AG

User Guide

Table of Contents

Definitions and Terminology ...........................................................................................................3

References ........................................................................................................................................5

Introduction......................................................................................................................................6

Expert Analysis Functions Enabled by Sensor ................................................................................8

Enforce Security Policy ...........................................................................................................8

Detect Wireless Intruders and Attacks .....................................................................................8

Lock In Network Performance.................................................................................................9

Ensure Network Reliability......................................................................................................9

Centralizing System Management ...........................................................................................9

Enable Flexible Configuration and User Access......................................................................9

Enable Graphics User Interface from Anywhere in the Network ............................................9

Enable Remote Troubleshooting and Active Tools ................................................................10

Low Overhead On Operational Network...............................................................................10

AirMagnet Sensor Operation Modes .............................................................................................11

Configuration Mode...................................................................................................................11

Analysis Mode ...........................................................................................................................11

Active Control Mode .................................................................................................................12

Hardware Specifications ................................................................................................................13

Mechanical.................................................................................................................................13

Environmental............................................................................................................................13

Power .........................................................................................................................................13

RF...............................................................................................................................................14

Effective Data Rates ...................................................................................................................15

Physical Interfaces .....................................................................................................................15

Internal.......................................................................................................................................15

Compliance................................................................................................................................15

Sensor Powering Options...............................................................................................................16

AC Power...................................................................................................................................16

Definitions and Terminology

802.3

802.11 a

802.11 b

802.11 g

802.11 e

802.1x

ACK Acknowledgement frame

AGC Automatic Gain Control

AID Association Identifier

BCC Binary Convolutional Code

BPSK Binary Phase Shift Keying

CF-End Contention-Free End

CFP Contention-Free Period

CF-Poll Contention-Free Poll

CTS Clear to Send

DA Destination Address

dB Decibels

DBPSK Differential Binary Phase Shift Keying

DCF Distributed Coordination Function

DIFS Distributed Interframe Space

DPSK Differential Phase Shift Keying

DQPSK Differential Quadrature Phase Shift Keying

DS Distribution System

DSSS Direct Sequence Spread Spectrum

EIFS Extended Interframe Space

ESS Extended Service Set

ETSI European Telecommunications Standards Institute

FCC Federal Communications Commission

FCS Frame Check Sequence

FFT Fast Fourier Transform

GFSK Gaussian Frequency Shift Key

GPS Global Positioning System

HR/DSSS High Rate Direct Sequence Spread Spectrum

I/Q Interphase/Quadrature

IAPP Inter-Access Point Protocol

ICI Interchip Interference

ICV Integrity Check Value

IEEE Institute of Electrical and Electronics Engineers

IPSEC VPN

IR Infrared ISI Intersymbol interference

ISM Industrial, Scientific, and Medical

LBT Listen Before Talk

L2TP VPN Layer 2 Tunneling Protocol VPN

LEAP

LLC Logical Link Control

MIB Management Information Base

MIC Message Integrity Check

MKK Ministry of Telecommunications

MMACS Multimedia Mobile Access Communication System

MPDU MAC Protocol Data Unit

MSDU MAC Service Data Unit

NAV Network Allocation Vector

OFDM Orthogonal Frequency Domain Multiplexing

PBCC Packet Binary Convolutional Coding PC Point Coordinator

PCF Point Coordination Function

PEAP

PHY Physical Layer

PIFS Priority Interframe Space

PLCP Physical Layer Convergence Procedure

PMD Physical Medium Dependent

PPDU PLCP Protocol Data Unit PFSF PLCP Signaling Field

PPTP VPN Point to Multiple Point Virtual Private Network

PS Poll Power Save Poll

QAM Quadrature Amplitude Modulation

QPSK Quadrature Phase Shift Keying

RA Receiver Address

RF Radio Frequency

RFID Radio Frequency ID

RSADSI RSA Data Security, Inc.

RTS Request to Send

SA Source Address

SFD Start of Frame Delimiter

SIFS Short Interframe Space

SNR Signal to Noise Ratio

SSH VPN

SSID Service Set Identity

STA Station

TA Transmitter Address

TBT Target Beacon Transmission Time

TIM Traffic Indication Map

TKIP

TLS

TSF Timer Synchronization Factor

TTLS

TU Time Units

WEP

WLAN Wireless LAN

WPA

References

Visit http://www.airmagnet.com for the following referenced documents:

Reference 1 AirMagnet Enterprise Datasheet

Reference 2 AirMagnet Enterprise FAQ

Reference 3 AirMagnet Guided Tour

Reference 4 AirMagnet Impact Study

Introduction

The AirMagnet AM-5012-11AG Sensor provides 24x7 remote monitoring and troubleshooting of

802.11 wireless networks. Sensors are deployed near clusters of access points, and provide

security assessment, performance monitoring, network fault detection and remote

troubleshooting functions. Management staff can easily monitor the security measures in use on

every station and access point device to insure compliance with established policies, and also

automatically scan for dozens of wireless network attacks.

These analysis functions can be monitored and controlled from both centralized and distributed

operations centers. These centers can be located in the building, on the campus, or anywhere in

the world without requiring high travel costs or excessive delay of sending IT expert staff to

remote locations.

Figure 1 shows a complete network including the AM-5012-11AG AirMagnet Sensor.

Companion software functions available for the complete AirMagnet Enterprise system include

the following:

AirMagnet Enterprise Server – provides the dynamic operations control function to the entire

network of bound sensors including sensor activation/deactivation, upgrade of sensor software,

and collection of alerts, data, and statistics for all stations and access points within wireless

segments monitored by the sensors.

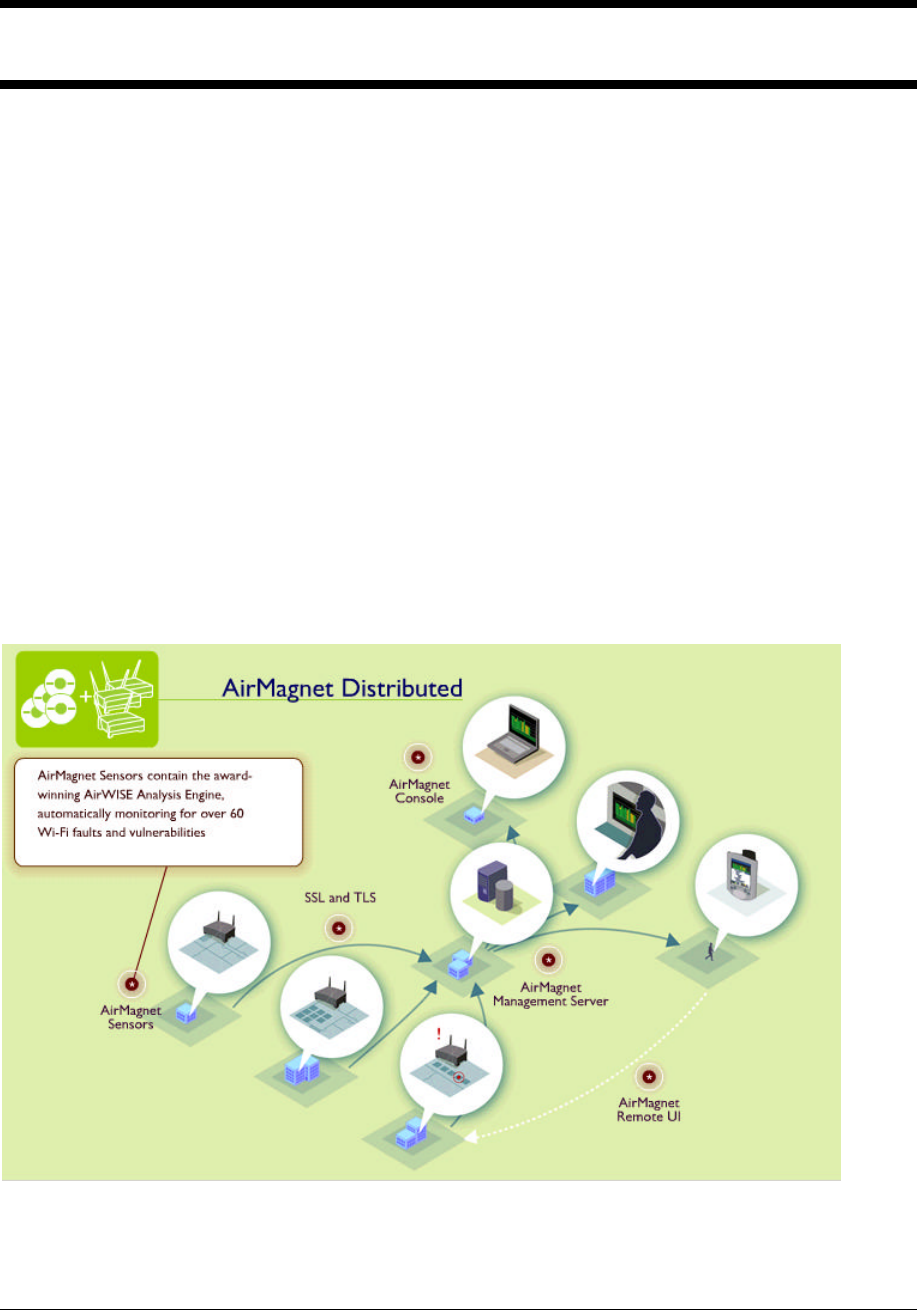

Figure 1: WLAN network including AM-5012-11AG AirMagnet Sensors

AirMagnet Enterprise Console – provides the graphical user interface into the server from any

location in the enterprise wide network.

AirMagnet Enterprise Remote User Interface – provides the graphical user interface into any

individual sensor from any location in the enterprise wide network.

Enterprise Reporter – manages and administers a SQL database of all collected alarms,

monitored traffic, and RF signal/noise information. Also provides a broad set of detailed reports

and trend summaries of key data. Using Reporter the administrator is able to conduct both short-

term and long-term trend analysis and also conduct forward looking capacity planning and

topology reconfiguration planning for the entire wireless network.

Expert Analysis Functions Enabled by Sensor

The intelligent sensor provides around-the-clock coverage of the entire wireless environment

including all 802.11a, 802.11b, and 802.11g channels and infrastructure. Each individual sensor

is armed with the patent-pending AirWISE Analytical Engine that, in real time, monitors and

analyzes the security, performance, and reliability of the wireless network. The sensor enables

the following categories of expert analysis functions. See ANNEX B for a detailed and full

listing of expert analysis functions.

Enforce Security Policy

New security protocols are continually appearing that close the security gap between WLANs

and their wired counterparts. Nevertheless ensuring that all users and stations comply with these

security measures continues to grow as the major issue for wireless networks. AirMagnet Sensors

address this gap by auditing and validating the security of every Wi-Fi device in the network,

providing managers with an easy process to insure all users employ the appropriate level of

security. Supported protocols include:

• wep

• leap

• peap

• tkip

• mic

• 802.1x

• ttls

• tls

• wpa

• pptp vpn

• l2tp vpn

• ssh vpn

• ipsec vpn

Detect Wireless Intruders and Attacks

As Wi-Fi has grown, so have the number and sophistication of wireless attacks. AirMagnet

Sensors are engineered specifically to counter these threats - scanning the environment for

Rogue APs and War-Drivers, Spoofed MAC Addresses, and a host of Denial of Service Attacks

unique to Wi-Fi. Sensors send encrypted real-time alarms in response to an attack, allowing staff

to respond before network operations is negatively impacted.

Lock In Network Performance

Radio Frequency transmissions are inherently susceptible to environmental factors such as

physical obstructions and radio interference from a variety of sources. If not identified and

managed, these factors can lead to unacceptable performance for the end-user. To address this

challenge, AirMagnet Sensors constantly monitor and generate alarms on over 20 key indicators

of network health, allowing IT administrators to take a proactive approach toward the

maintenance of the network.

Ensure Network Reliability

WLANs must both have predictable performance and be highly reliable before being considered

industrial grade. The AirMagnet Enterprise System addresses this need with a suite of alarms and

diagnostics that detect network faults and configuration errors that can lead to outages in the

network. These diagnostics are complemented by active utilities to pin down the sources of

connectivity problems in the network.

Centralizing System Management

The AirMagnet Management Server receives information from every AirMagnet Sensor and

provides a centralized SQL database of all network data and alarms. SNMP traps allow for

seamless integration with leading management consoles such as HP Open View and CA

UniCenter. All sensor-to-server traffic is secured via SSL and TLS insuring management

information remains secure while transiting corporate firewalls and VPNs.

Enable Flexible Configuration and User Access

The Management Server maintains configurations for every Sensor in the System, allowing IT

Personnel to tune sensor thresholds appropriately for each location. Additionally, AirMagnet

Enterprise supports three unique administrative user levels, insuring that the users access only

the level of information appropriate for their role and level of responsibility.

Enable Graphics User Interface from Anywhere in the Network

The AirMagnet Management Console provides the User Interface to the AirMagnet Enterprise

System. From the Management Console, Users can view alarms and WLAN health by Campus,

Building, Floor, or by individual Sensor. Consoles can be run securely whether in a NOC, or

remotely on a laptop – keeping administrators connected to the information they need, regardless

of their location.

Enable Remote Troubleshooting and Active Tools

Using the Remote UI built into the AirMagnet Management Console, Users can leverage a

growing collection of active troubleshooting tools to pinpoint problems in the network. These

tools allow the User to remotely test throughput on a particular AP, diagnose connection

problems, and perform Layer 3dDebugging and end-to-end provisioning. Administrators can

view low level data on every channel and device in the area, alarms, real-time local statistics, and

even packet decodes. Such remote capability greatly reduces the need to dispatch resources

when troubleshooting the WLAN.

Low Overhead On Operational Network

Most remote monitoring systems simply capture wireless packets and resend them to a remote

site for processing, needlessly consuming valuable bandwidth. AirMagnet Sensors, conversely

process locally, sending real-time alarms only when thresholds are reached. Trending data is

saved on the sensor, and securely sent at regular intervals to the Management Server, minimizing

operational load on the network and servers.

AirMagnet Sensor Operation Modes

The Sensor has three operational modes, configuration mode, analysis mode, and active control

mode.

Configuration Mode

The Airmagnet Sensor can be configured both with a serial command line interface (CLI) and

secure HTTPS communications with a remote browser. Key parameters that need to be

configured prior to placing the sensor online include provisioning of the unit’s network

addressing, the server’s network addressing, and the secret key needed for connection to the

server and for administrator logon-override functions. Once the unit is configured it is placed on

the live network and powered up. The sensor can be powered either by an AC-to-DC power

brick or Power-over-Ethernet using an AirMagnet in-line power injector.

After configuration the unit boots up, connects to the server, and receives any additional

configuration parameters. If the administrator has upgraded the sensor software on the server to

a new release, the sensor automatically downloads the software into memory and then writes it to

flash.

Analysis Mode

The majority of the time the sensor is in the analysis mode. The unit scans all configured

channels, measures signal and noise, gathers statistics on management and data traffic, analyzes

security mis-configurations and performance problems, and searches for issues such as rogue

access points and denial of service attacks.

All of the analyzed data is recorded in memory and is reported back to the management server

periodically. The reporting period for accumulated data is configurable. Whenever an event

occurs that generates an alert, such as a security mis-configuration, the alert is sent immediately

to the server.

The administrator can view the consolidated status of the entire network, a subset of the network,

or the specific set monitored and analyzed by an individual sensor. The AirMagnet Enterprise

Console tool is used to view this information collected on the server.

The Analysis mode can be administered from anywhere within the global enterprise network.

Active Control Mode

In active mode the sensor can drill down to an individual access point or station, and diagnose

connection and provisioning problems. Using the Remote User Interface function within the

Console program, the administrator can see a real time display of all scanning and analysis

functions performed by the sensor. He can zero in on channels, individual access points, or

individual stations. He can plot real time displays of all monitored information such as signal,

noise, traffic, and errors. He can also do packet decodes and statistical charting.

The Active Control mode can be administered from anywhere within the global enterprise

network.

Hardware Specifications

The AirMagnet AM-5012-11AG sensor is a robust hardware monitoring analysis device that can

be installed on a shelf, on the wall, or in a ceiling. It can be powered by AC power, or by -48V

Power over Ethernet. The detailed technical specifications are as follows.

Mechanical

Enclosure

Metallic chassis

Dimensions 6.693 in. (17.0 cm) wide; 8.267 in. (21.0 cm) deep

Mounting options

Flat on shelf

Plastic stand for shelf vertical configuration

Wall hanging via dual screw holder at back of housing, or

Using AirMagnet mounting kit for wall and ceiling

Weight 32 oz (909g)

LEDs

Power status

WLAN (5 GHz/2.4 GHz) status

10/100 Base T status

Link status

Switches

Reset switch

RF connectors

Reverse polarity TNC - female

Environmental

Temperature

32º to 131ºF (0º to 55ºC)

Humidity

5 to 95% humidity (non-condensing)

Power

Power supply options

External power adapter w/ 12VDC/1A

Bands 2.4 GHz Band: 802.11b/g

5.25-5.35 GHz Band: 802.11a

5.75 GHz: 802.11a

Country Frequency plans

All worldwide frequency plans (See ANNEX A for detail)

Antenna

Omni-directional

Dual antenna

Receive Sensitivity (Typical @ the antenna ports)

802.11a:

-84dBm @ 6Mbps -77dBm @ 18Mbps -70dBm @ 48Mbps

-82dBm @ 9Mbps -75dBm @ 24Mbps -68dBm @ 54Mbps

-79dBm @ 12Mbps -73dBm @ 36Mbps

802.11b/g:

-91dBm @ 1Mbps -84dBm @ 6Mbps -75dBm @ 24Mbp

-90dBm @ 2Mbps -82dBm @ 9Mbps -73dBm @ 36Mbps

-89dBm @ 5.5Mbps -79dBm @ 12Mbps -70dBm @ 48Mbps

-87dBm @ 11Mbps -77dBm @ 18Mbps -68dBm @ 54Mbps

Transmit Output Power (Typical @ the antenna ports)

7.980mW for 802.11b

10.069mW for 802.11g

17.140mW for 5.150 ~ 5.350GHz

15.922mW for 5.725 ~ 5.825GHz

Effective Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48 & 54Mbps

802.11b

1, 2, 5.5, 11Mbps

Physical Interfaces

Network port

RJ45 Ethernet 10/100 Base T

Serial Port

RS232 DB9

115,200 bps; 8 data bits; no parity; 1 stop bit; no flow control

Internal

Processor

IDT RC32438 200Mhz

Memory

64 Mbytes RAM

8 Mbytes FLASH

Radio

Dual radio – 802.11 a & b/g

Atheros MAC and PHY

Compliance

FCC Part 15C

CE 0560

EN60950 (equivalent UL ETSI 300/328)

IC (Canadian Radio Regulations)

Japan Equipment Radio Regulations

Sensor Powering Options

AC Power

The unit can be powered with AC power. An AC-to-DC power supply converts from AC to 12V

DC.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator &

your body. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct

contact to the transmitting antenna during transmitting.

If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor

environment only.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Airmagnet declares that the AM-5012-11AG (FCC ID: RD7-AM5012-001 ) is limited in CH1~CH11 by

specified firmware controlled in the USA

Canada (IC):

To prevent radio interference to the licensed service, this device is intended to be operated indoors

and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is

installed outdoors is subject to licensing. 1.Operation is subject to the following two conditions: 1) this

device may not cause interference and 2) this device must accept any interference, including interference

that may cause undesired operation of the device.

This device has been designed to operate with an antenna having a maximum gain of 6 dBi. Antenna

having a higher gain is strictly prohibited per regulations of Industry Canada. Therequired antenna

impedance is 50 ohms.

NETSCOUT Systems AM5012-001 802.11a/b/g Wireless Sensor User Manual AirMagnet AM 5012 abg User Guide rev1

Fluke Networks/AirMagnet 802.11a/b/g Wireless Sensor AirMagnet AM 5012 abg User Guide rev1

Users Manual

Navigation menu

Namespaces

Views

Navigation
