NETSCOUT Systems USB11AC NETSCOUT 802.11ac Network USB Adapter User Manual
NETSCOUT Systems, Inc. NETSCOUT 802.11ac Network USB Adapter Users Manual
Users Manual
![](/img.php?id=3457078&img=bg1.png)
I
NETSCOUT 802.11ac
Network USB Adapter
D1080-Z1 User Guide
Version: 1.0
(May, 2017)
II
Copyright ©2017 NETSCOUT SYSTEMS. INC. (NETSCOUT) All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of NETSCOUT.
NETSCOUT makes no representations or warranties, either expressed or implied,
with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Any software described in this
manual is sold or licensed "as is". Should the programs prove defective following
their purchase, the buyer (and not NETSCOUT, its distributor, or its dealer) assumes
the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software. Further, NETSCOUT reserves the
right to revise this publication and to make changes from time to time in the contents
thereof without obligation to notify any person of such revision or changes.
III
Federal Communication Commission
Interference Statement
FCC Part 15
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced Radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any Radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
IV
Federal Communication Commission (FCC) Radiation Exposure
Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. This equipment has
been SAR-evaluated for use in hand. SAR measurements are based on a 50mm spacing
from the body and that compliance is achieved at that distance.
RED Compliance Statement
Safety
This equipment is designed with the utmost care for the safety of those who install
and use it. However, special attention must be paid to the dangers of electric shock
and static electricity when working with electrical equipment. All guidelines of this
and of the computer manufacture must therefore be allowed at all times to ensure the
safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria,
Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg,
the Netherlands, Portugal, Spain, Sweden, and the United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states:
Iceland, Liechtenstein, Norway, and Switzerland.
EU Countries Not intended for use
None.
![](/img.php?id=3457078&img=bg5.png)
V
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves. This
device is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the
U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating positions accepted by the FCC
with the device transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual
SAR level of the device while operating can be well below the maximum value. This
is because the device is designed to operate at multiple power levels so as to use only
the poser required to reach the network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
SAR compliance has been established in the host product(s) (laptop computers),
tested at 50mm separation distance to the human body, and tested with USB slot
configurations including Horizontal-UP, Horizontal-Down, Vertical-Front,
Vertical-Back, Tip. This device can be used in host product(s) with substantially similar
physical dimensions, construction, and electrical and RF characteristics.
The highest SAR value, tested per FCC RF exposure guidelines for USB dongle, as
described in this user guide, is 1.19 W/kg. The FCC has granted an Equipment
Authorization for this device with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this device is on file with
the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: NDD9578221212.
This USB dongle transmitter is approved for use in typical laptop computers. To
comply with FCC RF exposure requirements, this USB dongle should not be used in
other devices or certain laptop and tablet computer configurations where the USB
connectors on the host computer are unable to provide or ensure the necessary
operating configurations intended for the device and its users or bystanders to satisfy
RF exposure compliance requirements. This USB dongle should be installed and
operated with minimum distance 50mm between the radiator & your body.
VI
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le present appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme
si le brouillage est susceptible d’en compromettre le fonctionnement.
Caution:
(i) The device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) For devices with detachable antenna(s), the maximum antenna gain permitted for
devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the
equipment still complies with the e.i.r.p. limit;
(iii) For devices with detachable antenna(s), the maximum antenna gain permitted for
devices in the band 5725-5850 MHz shall be such that the equipment still complies
with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as
appropriate; and
The high-power radars are allocated as primary users (i.e. priority users) of the bands
5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference
and/or damage to LE-LAN devices.
DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350
MHz, 5470-5600MHz, and 5650-5725MHz.
Avertissement:
(i) Le dispositif fonctionnant dans la bande 5150-5250 MHz est reserve uniquement
pour une utilisation a l’interieur afin de reduire les risques de brouillage prejudiciable
aux systemes de satellites mobiles utilisant les memes canaux;
(ii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s)
utilisant les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer a la
VII
imitation P.I.R.E.;
(iii) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s)
amovible(s) utilisant la bande 5725-5850 MHz doit se conformer a la limitation
P.I.R.E specifiee pour l’exploitation point a point et non point a point, selon le cas.
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specified in IEEE 1528 and IEC 62209.
This equipment should be installed and operated with minimum distance 5cm
between the radiator and your body. This device and its antenna(s) must not be
co-located or operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d'exposition DAS incontrolee pour la
population generale de la norme CNR-102 d'Industrie Canada et a ete teste en
conformite avec les methodes de mesure et procedures specifiees dans IEEE 1528 et
IEC 62209.
Cet appareil doit etre installe et utilise avec une distance minimale de 5cm entre
l’emetteuret votre corps. Cet appareil et sa ou ses antennes ne doivent pas etre
co-localises ou fonctionner en conjonction avec tout autre antenne ou transmetteur.
Body SAR: 1.19 W/kg
VIII
Table of Contents
Chapter I: Product Information 1
1-1 Introduction and Safety information ................................................................ 1
1-2 Safety Information ........................................................................................... 2
1-3 System Requirements ...................................................................................... 3

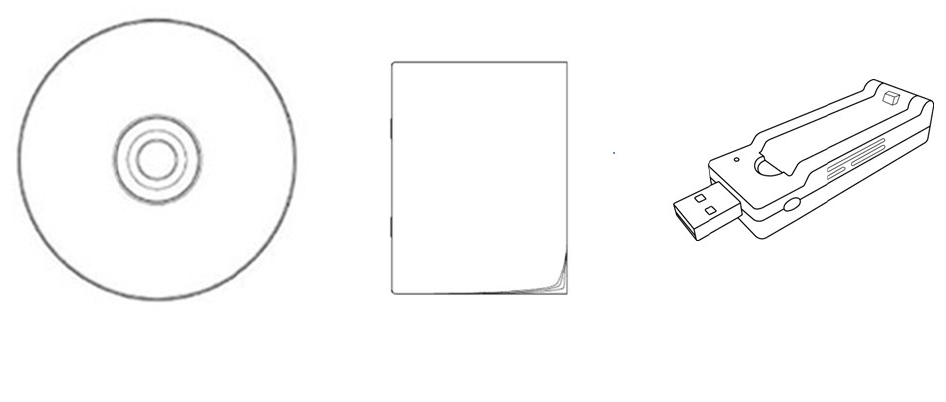

1-4 Package Contents ............................................................................................. 4
1-5 Familiar with your new wireless network adapter ........................................... 5
CHAPTER II: Driver Installation and Configuration 6

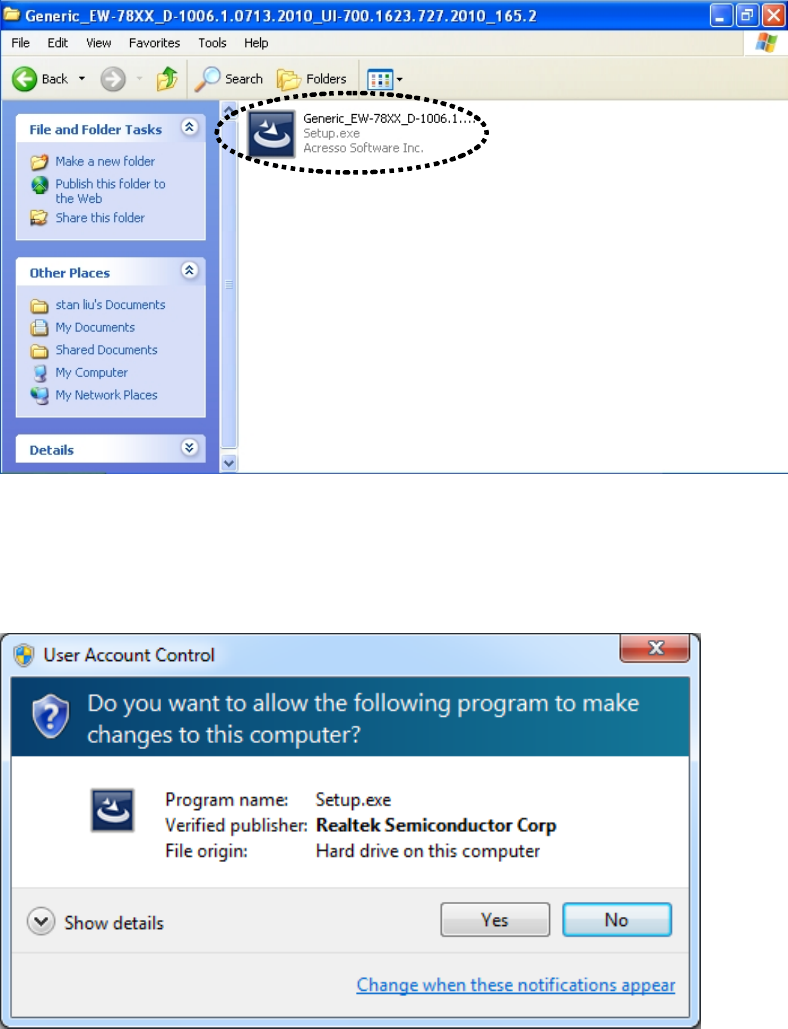

2-1 Network Adapter Installation ...................................................................................... 6
2-2 Connect to Wireless Access Point ........................................................................... 10
2-2-1 Using Realtek Utility .......................................................................... 10

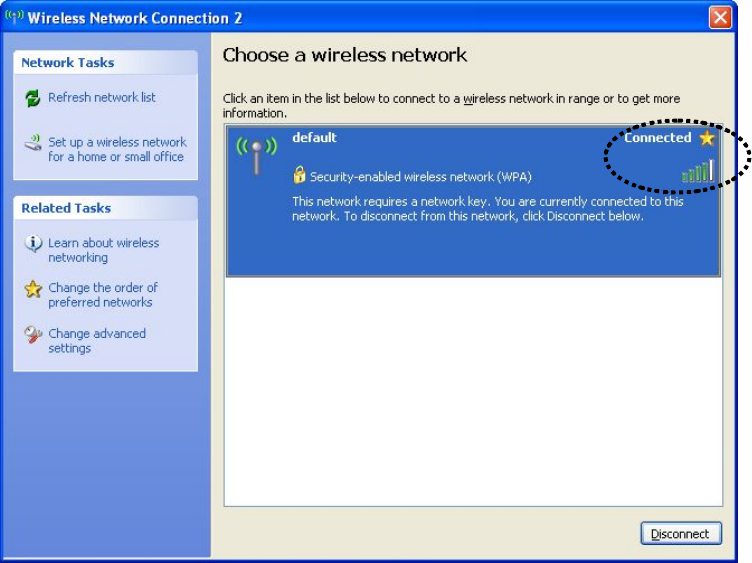

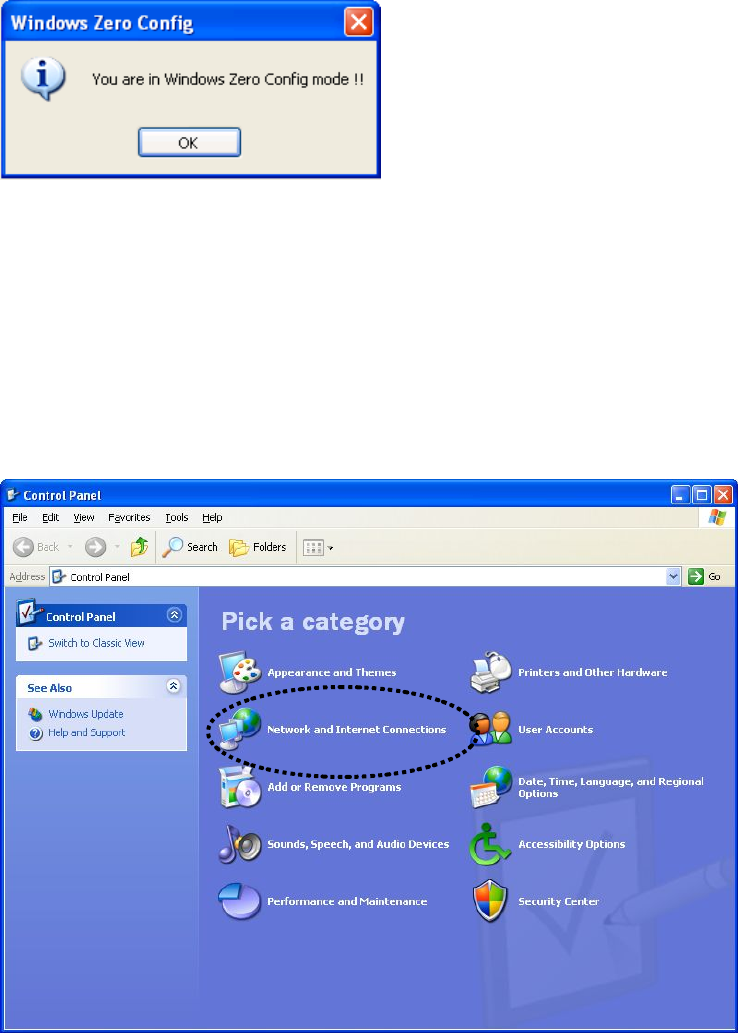

2-2-2 Using Windows Zero Configuration .................................................. 16

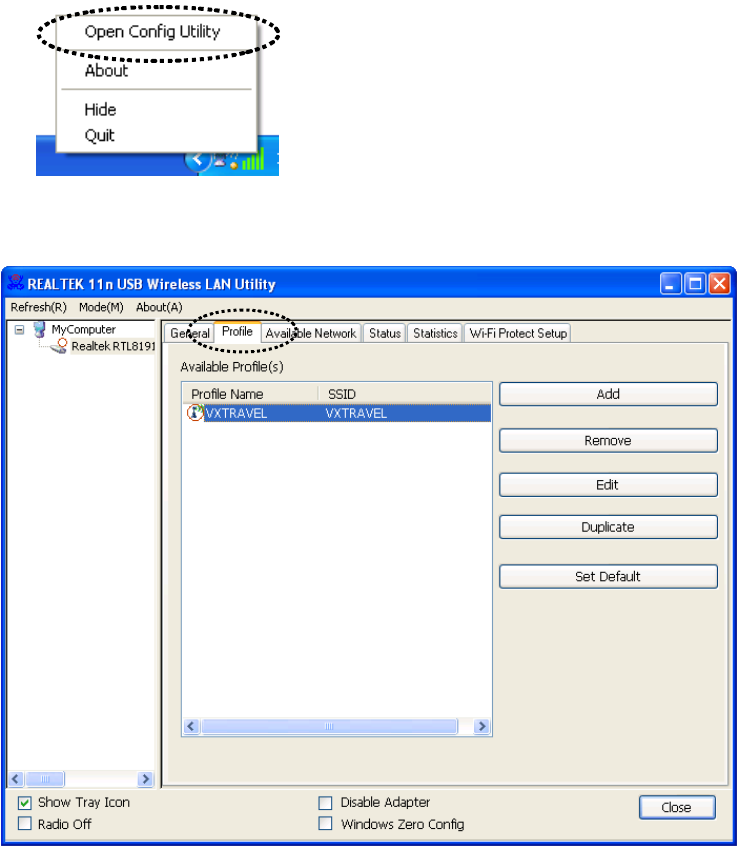

2-3 Connection Profile Management ............................................................................. 21

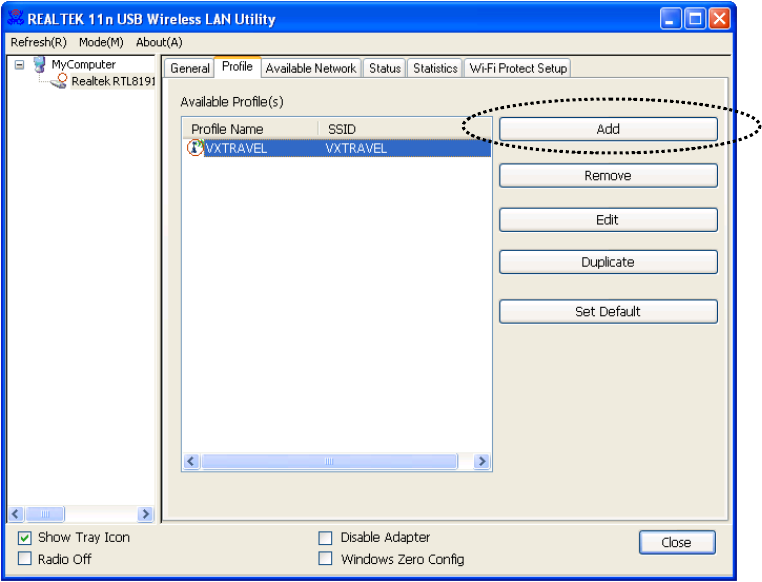

2-3-1 Add a new profile ............................................................................... 22
2-3-2 Remove an existing profile ................................................................ 25
2-3-3 Edit an Existing Profile ...................................................................... 26
2-3-4 Make a Copy of an Existing Profile ................................................... 27
2-3-5 Set as a Default Profile ....................................................................... 28
2-4 View Network Statistics, General Information, and Status ............................. 29
2-4-1 General Information ........................................................................... 29
2-4-2 Status .................................................................................................. 30
2-4-3 View Network Statistics ..................................................................... 31
2-5 Miscellaneous Settings ................................................................................................ 32

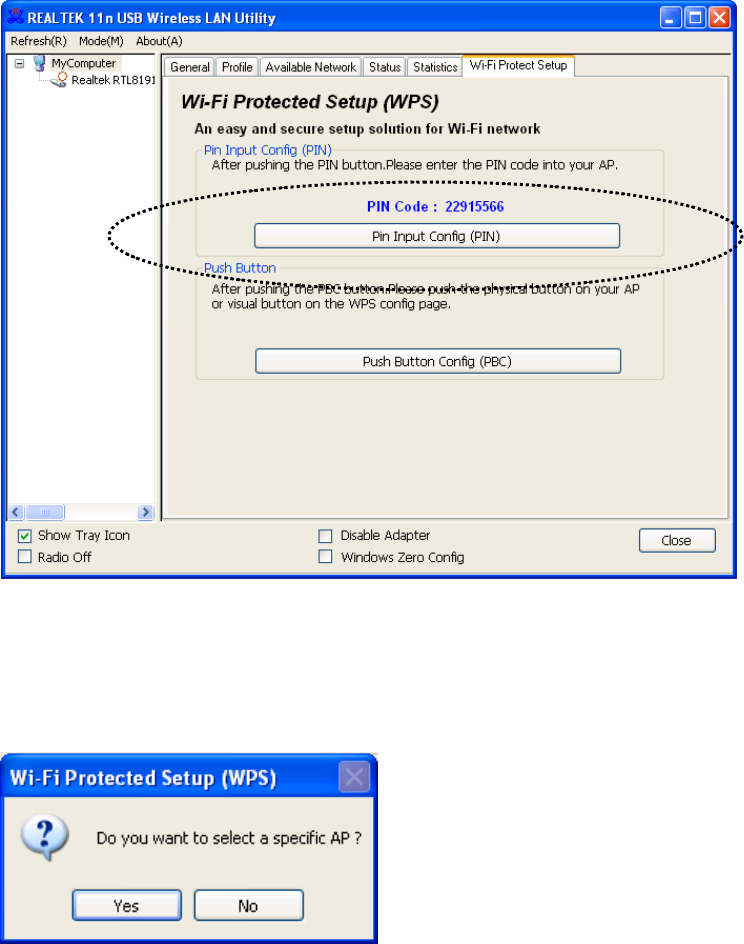

2-6 Establish a Secure Connection with AP by WPS ................................................ 34

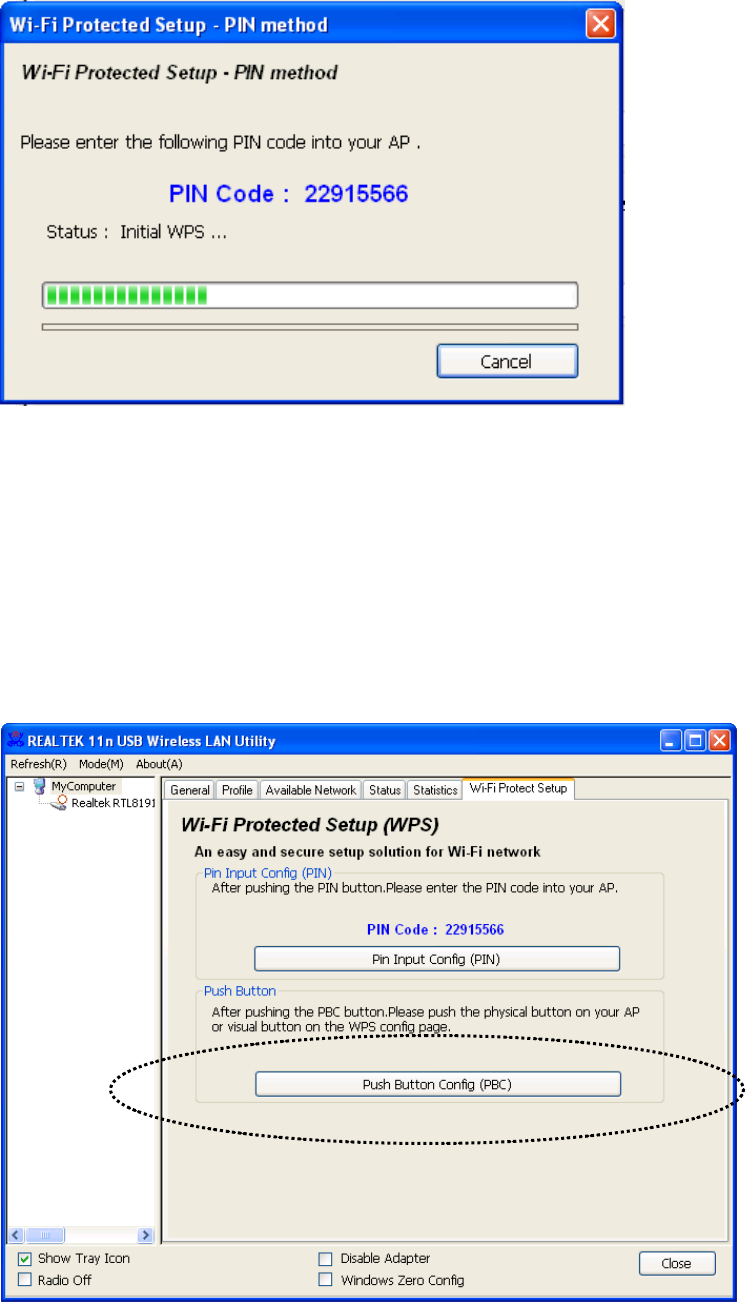

2-6-1 PIN Code ............................................................................................ 36
2-6-2 Push Button ........................................................................................ 38
CHAPTER III: Soft-AP Function 40

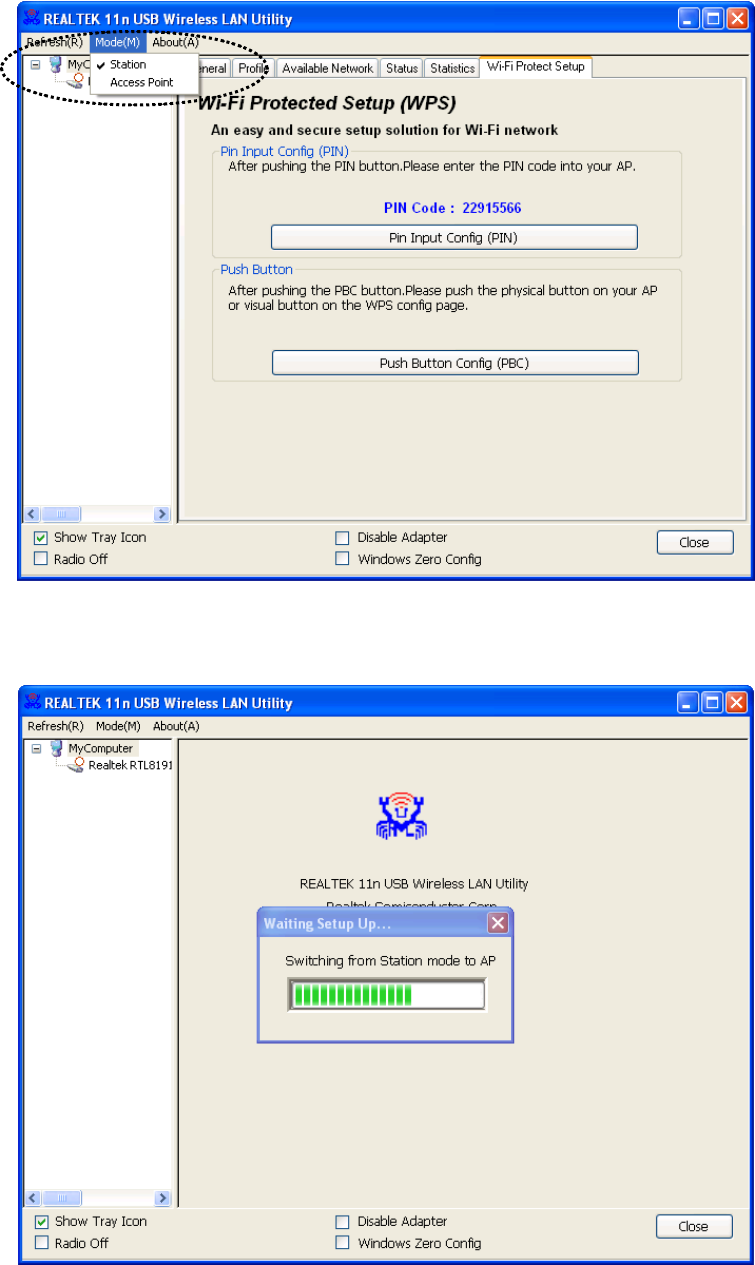

3-1 Switch to AP Mode and Station Mode ..................................................................... 40

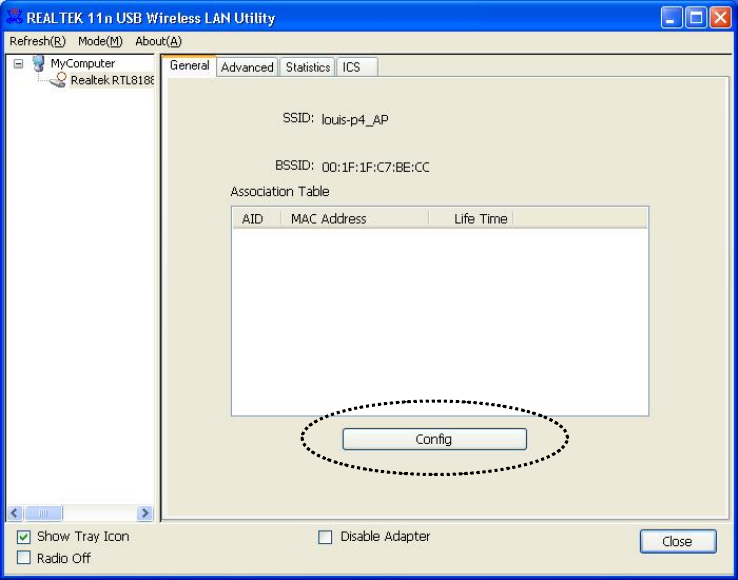

3-1-1 Configure SSID and Channel ............................................................. 43
3-1-2 Setup Soft-AP Security ...................................................................... 45
3-2 Advanced Settings ......................................................................................................... 47
3-3 Wireless Statistics .......................................................................................................... 48
3-4 Internet Connection Sharing (ICS) ......................................................................... 49
CHAPTER IV: Appendix 50
4-1 Hardware Specification .............................................................................................. 50
4-2 Troubleshooting............................................................................................................. 51
4-3 Glossary ............................................................................................................................ 53
1
Chapter I: Product Information
1-1 Introduction and Safety Information
Thank you for purchasing the NETSCOUT 802.11ac Network USB
Adapter, an extreme high-speed 802.11a/b/g/n/ac dual band wireless
network adapter! Excepting common wireless standards 802.11a/b/g/n,
this wireless network adapter is also 802.11ac compatible - data transfer
rate is 867Mbps, and that’s sixteen times faster than 802.11g wireless
network! 802.11ac also provides wider wireless coverage, so you don’t
have to worry if your computer is far from your wireless access point.
With easy-to-install Super Speed USB 3.0 interface - a very common
expansion port of computers - plug this wireless network adapter into any
empty USB 3.0 port of your computer, just that simple!
Other features of this router include:
IEEE 802.11a/b/g/n/ac compatible.
Extreme High transfer data rate – 11ac up to 867Mbps, 11n up to
300Mbps
Support WMM wireless QoS feature.
Support 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x
functions for high level of security.
Support the most popular operating system: Windows
XP/Vista/7/8, Linux, MAC OS
Support WPS (Wi-Fi Protected Setup) hardware button for easy
connection.
Support USB 3.0/2.0 interface. (11ac mode use USB 3.0 is
required )
Portable dongle type design.
2
1-2 Safety Information
In order to keep the safety of users and your properties, use the
following safety instructions:
1. This USB wireless network adapter is designed for indoor use only.
DO NOT expose this network adapter to direct sun light, rain, or snow.
2. DO NOT put this network adapter at or near hot or humid places, like
kitchen or bathroom. Also, do not left this wireless network adapter in the
car in summer.
3. This network adapter is small enough to put in a child’s mouth, and it
could cause serious injury or could be fatal. If they throw the network
adapter, the adapter will be damaged. PLEASE KEEP THIS NETWORK
ADAPTER OUT THE REACH OF CHILDREN!
4. This network adapter will become hot when being used for long time
(This is normal and is not a malfunction). DO NOT put the network
adapter on a paper, cloth, or other flammable objects after the network
adapter has been used for a long time.
5. There’s no user-serviceable part inside the network adapter. If you
found that the network adapter is not working properly, please contact
your dealer of purchase and ask for help. DO NOT disassemble the
network adapter by yourself, warranty will be void.
6. If the network adapter falls into water, DO NOT USE IT AGAIN
BEFORE YOU SEND THE ADAPTER TO THE DEALER OF
PURCHASE FOR INSPECTION.
7. If you smell something strange or even see some smoke coming out
from the network adapter, switch the computer off immediately, and call
dealer of purchase for help.
3
1-3 System Requirements
An empty USB 3.0/2.0 port (11ac mode use Super Speed USB 3.0 is
required ) (May not be able work with USB 1.1 port, and
performance will be greatly reduced)
Windows XP, Vista, Windows 7, Windows 8 operating system
CD-ROM drive
At least 100MB of available disk space
![](/img.php?id=3457078&img=bgc.png)
4
1-4 Package Contents
Before you starting to use this wireless network adapter, please check if
there is any of the items missing in the package, and contact your dealer
of purchase to claim for missing items:
• USB Wireless Network Adapter (1 pcs) ……...………………… 1
• Quick Installation Guide (1 pcs)….………….…………………. 2
• Driver/Utility/Quick Guide/User Manual CD-ROM (1 pcs) …… 3
3 2 1
![](/img.php?id=3457078&img=bgd.png)
5
1-5 Familiar with your new wireless network adapter
1. USB Connector
2. External Wireless Antenna
3. Power/Activity/WPS LED
4. WPS Button (Press 2 seconds to activate WPS pairing mode)
LED Name
Light Status
Description
Power/
Activity/
WPS
Off 1.No wireless network adapter is installed
2.Radio off mode.
On 1.Wireless network adapter is normally
installed
2.Radio on mode.
Blinking 1.Transferring or receiving data.
2.Slow Blinking one time per seconds
means WPS is activated. The network
adapter will wait for 2 minutes to
establish WPS connection.
3. Fast Blinking 30 seconds, then Solid light
15 seconds, means WPS connection is
established successfully.
1
2
3
4
![](/img.php?id=3457078&img=bge.png)
6
CHAPTER II: Driver Installation and Configuration
2-1 Network Adapter Installation
Follow the following instructions to install your new wireless network
adapter:
1. Insert the USB wireless network adapter into an empty Super Speed
USB 3.0 port of your computer when computer is switched on. Never
use force to insert the adapter, if you feel it’s stuck, flip the adapter
over and try again.
Super Speed USB 3.0
![](/img.php?id=3457078&img=bgf.png)
7
2. Insert device driver CDROM into the CD/DVD ROM drive of your
computer, and execute ‘Setup.exe’ program in ‘Driver’ folder.
For Windows Vista / Windows 7 OS, you’ll be prompted to confirm
installation. Click ‘Yes’ to continue.
![](/img.php?id=3457078&img=bg10.png)
8
3. Click ‘Next’ to continue.
Click ‘Next’ to start installation. Installation procedure needs few
minutes to complete, please be patient.
4. Click ‘Finish’ to restart your computer to complete installation
procedure. If you don’t want to restart computer now, select ‘No, I
will restart my computer later’ option and click ‘Finish’. Please note
you have to restart your computer before you can use your new USB
wireless network adapter.
![](/img.php?id=3457078&img=bg11.png)
9

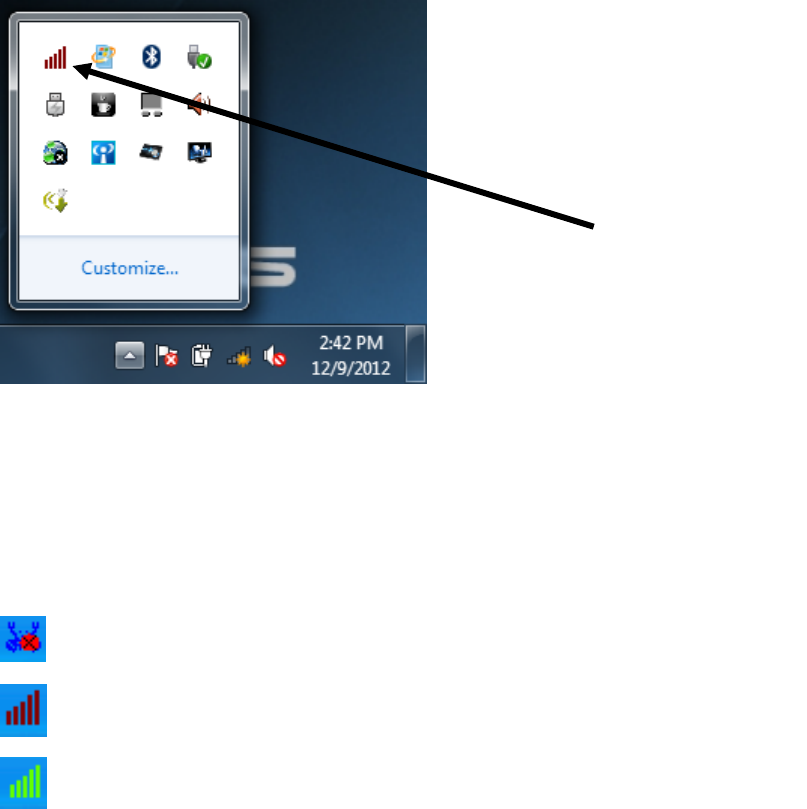

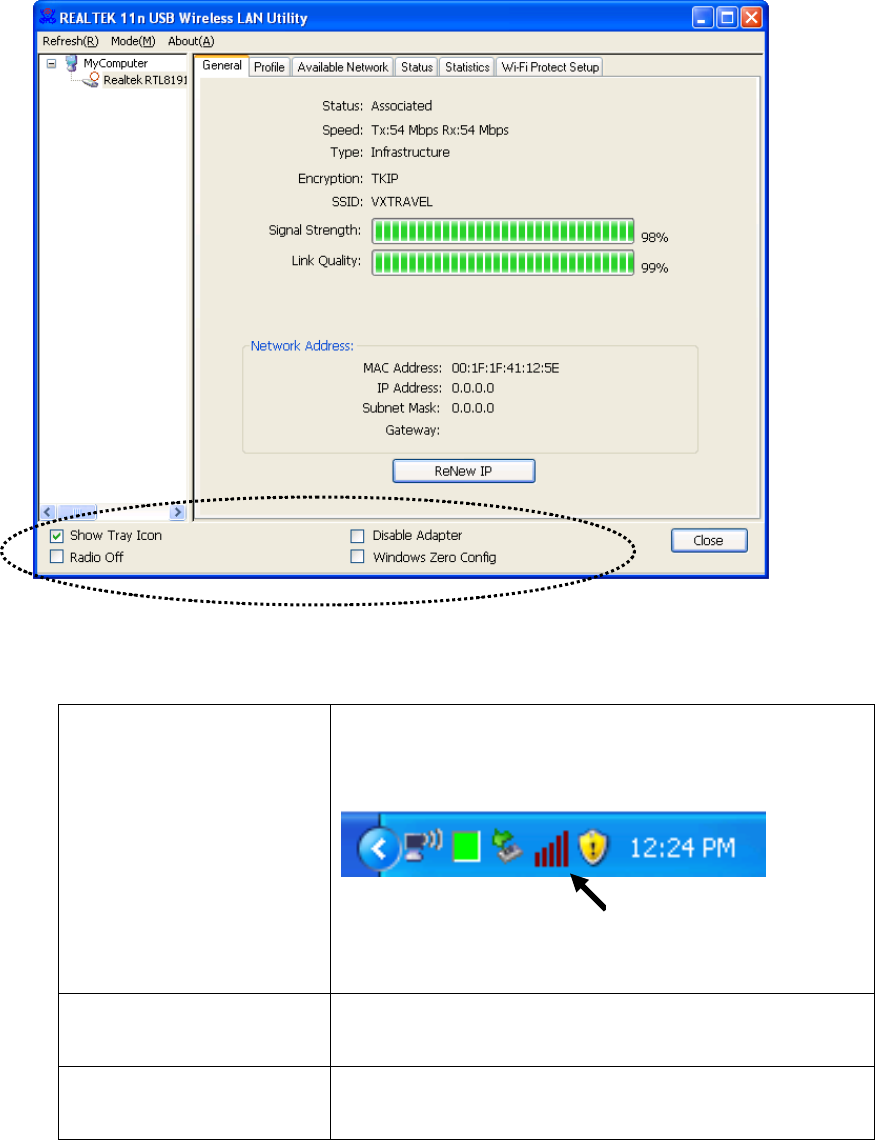

5. A new icon will appear near the clock of system tray:
Left-click the icon will launch wireless network configuration utility,
and you can right-click the icon to show the quick menu of
configuration utility. This icon also uses different color to show the
status of wireless connection:
Wireless network adapter not detected
No connection with access point is established (black).
Connection with access point has been established (green)

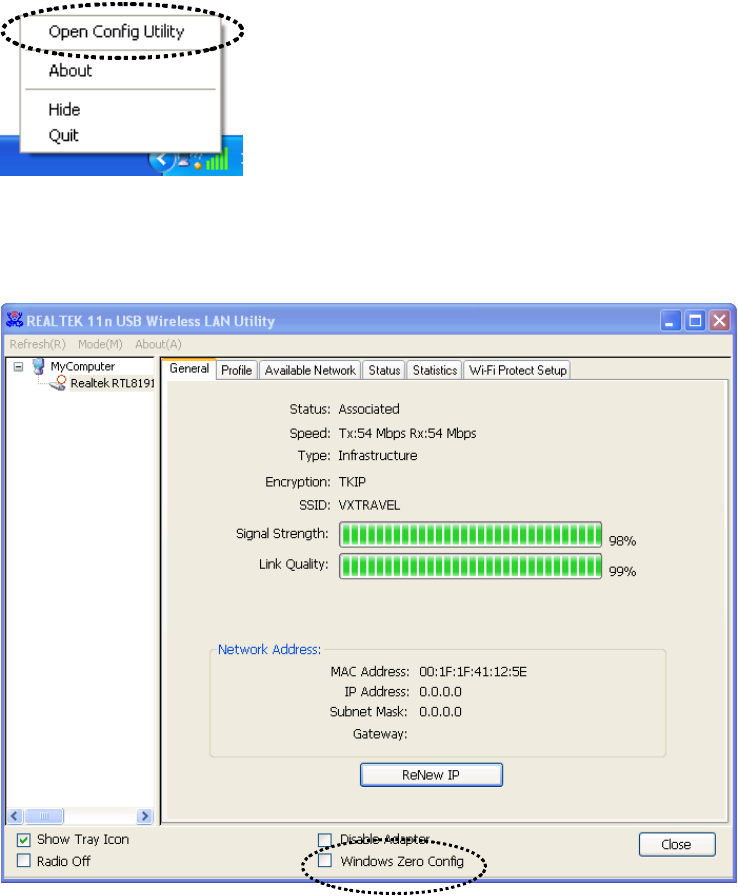

For detailed instructions of wireless network configuration utility,
please see next chapter.
HERE!
![](/img.php?id=3457078&img=bg12.png)
10
2-2 Connect to Wireless Access Point
To use wireless network, you have to connect to a wireless access point
first. You can either use Realtek utility (comes with network adapter
driver), or Windows Zero Config utility (comes with Windows operating
system).
2-2-1 Using Realtek Utility
Please follow the following instructions to use Realtek configuration
utility to connect to wireless access point.

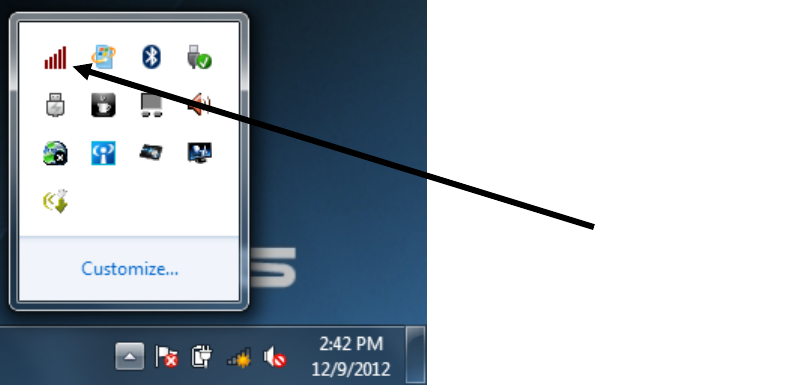

1. Left-click the Realtek configuration utility icon located at lower-right
corner of computer desktop, and configuration menu will appear:
HERE!
![](/img.php?id=3457078&img=bg13.png)
11
2. Wireless utility will appear. Click ‘Available Network’ menu to search
for wireless access points nearby.
3. Please wait for a while, and all wireless access points which can be
reached by this wireless network adapter will be displayed here.
![](/img.php?id=3457078&img=bg14.png)
12
If the wireless access point you wish to connect does not appear here,
you can click ‘Refresh’ button to scan for wireless access points again;
if the wireless access point you’re looking for still not appear, try to
move the computer closer.
When the access point you’re looking for is on the list, left-click it and
then double click it or click ‘Add to Profile’.
4. If a password (Network Key) is required to access the wireless access
point, please input it in ‘Network key’ (and input it again in ‘Confirm
network key’ for confirmation). Click ‘OK’ when password is properly
inputted.
NOTE: Network security type (‘Network Authentication’ and ‘Data
encryption’) will be selected automatically based on wireless access
point’s security setting. It’s not required to change these settings by
yourself.

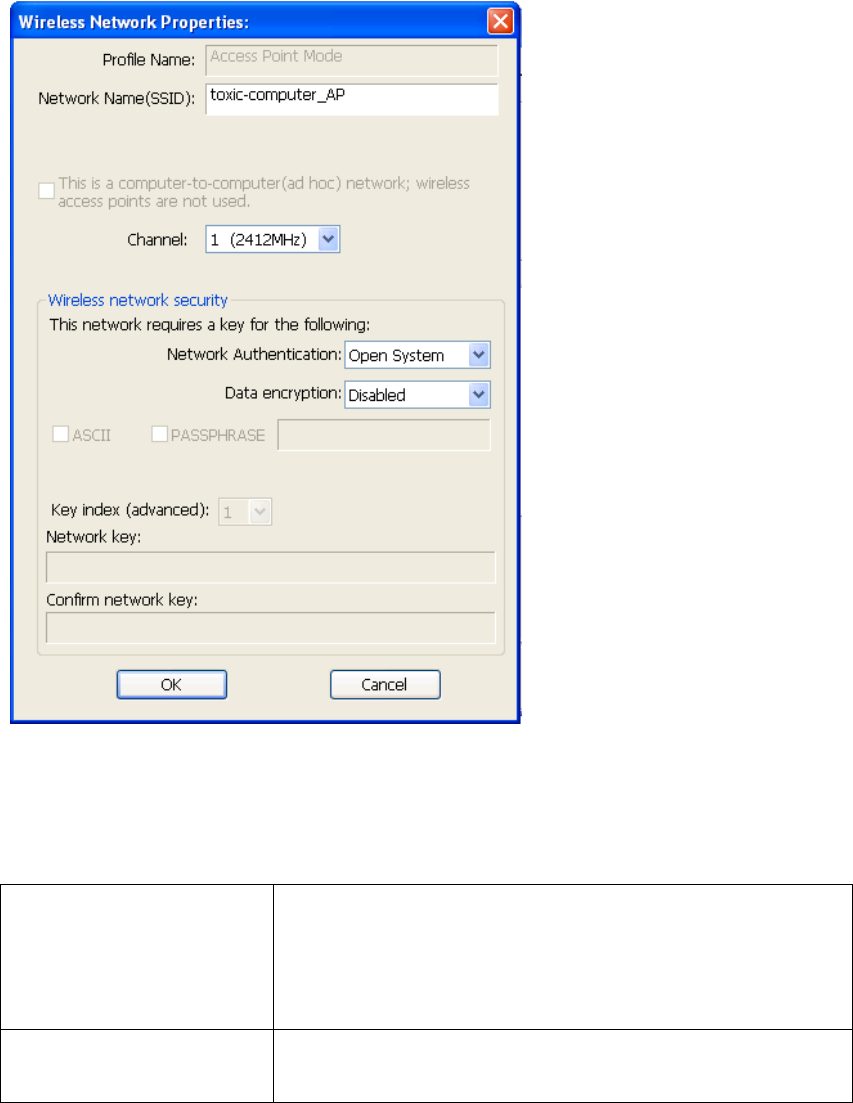

All options in this page will be filled automatically according to the
access point you wish to add to profile. However, you can still modify
any of them to meet your requirement.
![](/img.php?id=3457078&img=bg15.png)
13
Profile name
You can give a name to this profile, so you
can remember its purpose easily. It can be any
phrase to help you remember.
Network Name
(SSID)
The SSID (Service Set ID entities, i.e. access
point’s name). This field will be filled as the
access point you selected when SSID is not
hidden and grayed out. If SSID is hidden, you
have to input correct SSID you yourself.
This is a
computer-to-computer
(ad hoc) network
Check this box if you wish to connect to
another computer / network device by ad hoc
method. When not accessing to wireless
access point, you have to check this box.
Channel
Select wireless channel for ad hoc connection.
This option only appears when you’re using
ad hoc connection.

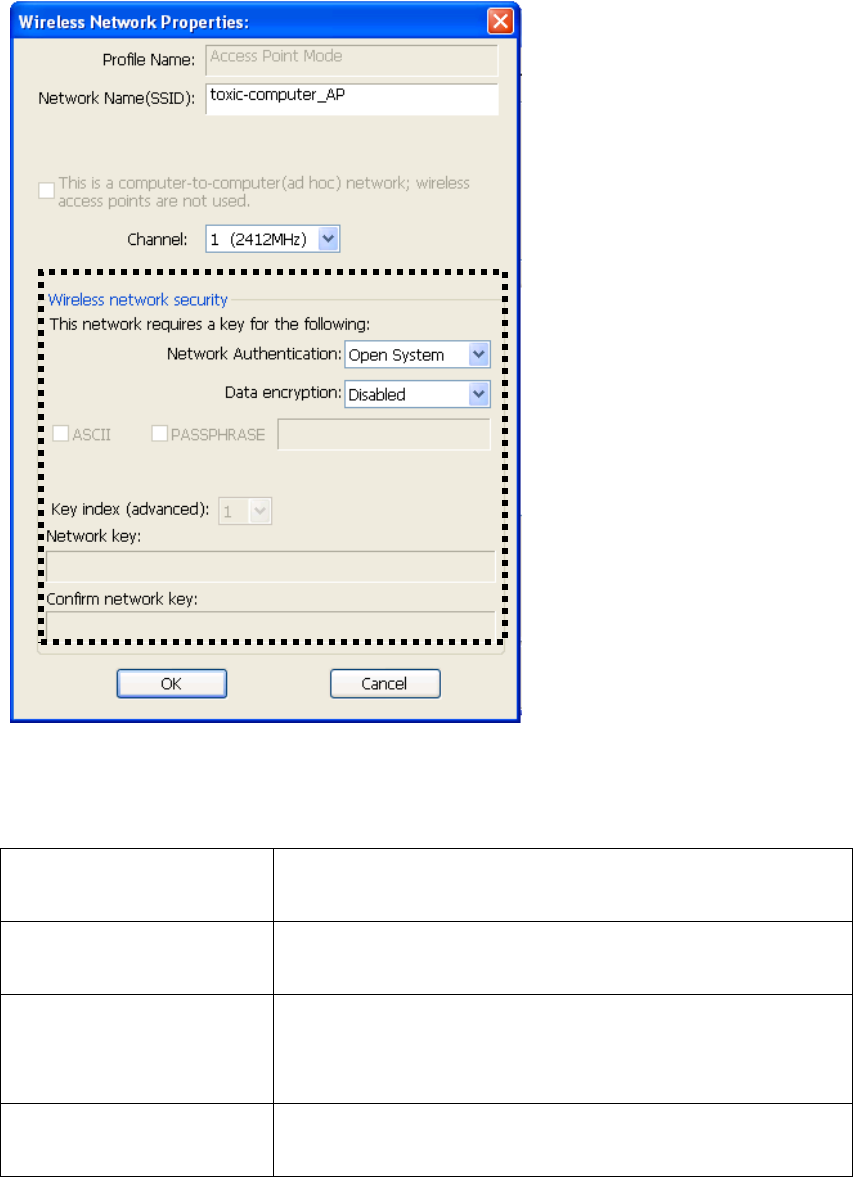

Network
Authentication
Select the network authentication type from
drop-down menu. This setting must be
identical with the setting of wireless access
point you with to connect.
Data encryption
Select the data encryption type from
drop-down menu. This setting must be
identical with the setting of wireless access
point you with to connect.
ASCII /
PASSPHRASE
When the encryption type is ‘WEP’, it’s
required to input a set of ‘passphrase’ to
connect to wireless access point. Check
‘ASCII’ or ‘PASSPHRASE’ depends on the
security setting of access point, and input it in
the box; if you select ‘PASSPHRASE’ you
also need to select the length of the key.
The passphrase must be identical with the
setting of wireless access point you with to
connect.
Key index (advanced)
Select WEP key index. For most of access
points you can select ‘1’, but please refer to
the setting of the access point.
![](/img.php?id=3457078&img=bg16.png)
14
Network key /
Confirm network key
When the encryption type is ‘WPA’ or
‘WPA2-PSK’, it’s required to input a set of
‘passphrase’ to connect to wireless access
point. Please input the same passphrase in two
boxes for confirmation.
EAP TYPE / Tunnel /
Provision Mode
When authentication type is any of 802.1X,
you have to select EAP type, tunnel, and
provision mode from dropdown menu. This
setting must be identical with your 802.1x
authentication server.
Username / Identity /
Domain / Password
Please input 802.1x related authentication
information here.
Certificate
If certification is required to authenticate with
802.1x authentication server, please select a
local certificate from dropdown list.
PAC
Check this box and PAC (Privilege Access
Certificate) will be automatically selected.
Please click ‘OK’ when ready.
![](/img.php?id=3457078&img=bg17.png)
15
5. Network adapter will attempt to connect to access point now, this
may require few seconds to minutes, please be patient. When the ‘Status’
become ‘Associated’, your computer is connected to access point you
selected. Click ‘Close’ to close configuration menu.
NOTE: If you connected to an access point but the connection has been
dropped soon, please check security settings and re-check password
spelling.
NOTE: If you insert the USB wireless network adapter into an USB 3.0
port and connect to an 11ac AP, device driver will doing auto USB mode
switch and shown the message as below photo, or you will heard sounds
of USB insert or unplug, this is the normal states.
![](/img.php?id=3457078&img=bg18.png)
16
2-2-2 Using Windows Zero Configuration
Windows XP and Vista has a built-in wireless network configuration
utility, called as ‘Windows Zero Configuration’ (WZC). You can also use
WZC to configure your wireless network parameter:
1. Right-click Realtek configuration utility icon, and click ‘Open Config
Utility’.
2. Check ‘Windows Zero Config’ box.
3. A message indicating that you’ve been switched to Windows Zero
Configuration mode will appear. Click ‘OK’ to continue.
![](/img.php?id=3457078&img=bg19.png)
17
NOTE: To return to use Realtek utility, uncheck ‘Windows Zero
Config’ box.
4. Click the ‘Start’ button (should be located at the bottom-left corner of
windows desktop), click ‘Control Panel’, then click ‘Network and
Internet Connections’ in Control Panel.
![](/img.php?id=3457078&img=bg1a.png)
18
5. Double click ‘Network Connections’.
6. Right-click ‘Wireless Network Connection’ (it may have a number as
suffix if you have more than one wireless network adapter, please
make sure you right-click the ‘Realtek 8812AU Wireless LAN
802.11ac USB NIC), then select ‘View Available Wireless Networks’.
![](/img.php?id=3457078&img=bg1b.png)
19
7. All wireless access points in proximity will be displayed here. If the
access point you want to use is not displayed here, please try to move
your computer or notebook closer to the access point, or you can click
‘Refresh network list’ to rescan access points. Click the access point
you want to use if it’s shown, then click ‘Connect’.
8. If the access point is protected by encryption, you have to input its
security key or passphrase here. It must match the encryption setting
on the access point.
If the access point you selected does not use encryption, you’ll not be
prompted for security key or passphrase.
![](/img.php?id=3457078&img=bg1c.png)
20
9. If you can see ‘Connected’ message, the connection between your
computer and wireless access point is successfully established.
![](/img.php?id=3457078&img=bg1d.png)
21
2-3 Connection Profile Management
If you need to connect to different wireless access points at different time,
like of access point of your home, office, cybercafe, or public wireless
service, you can store the connection parameters (encryption, passphrase,
security, and so on.) as a profile for every access point, so you don’t have
to input these parameters every time when you want to connect to a
specific wireless access point.
To manage profiles, right-click the Realtek configuration utility icon
located at lower-right corner of computer desktop, then click ‘Open
Config Utility’.
Click the ‘Profile’ menu.
![](/img.php?id=3457078&img=bg1e.png)
22
2-3-1 Add a New Profile
By this function you can setup the connection parameters for a specific
wireless access point in advance, without contacting it first.
If you want to create a new profile, click ‘Profile’ menu, then click ‘Add’
button.
![](/img.php?id=3457078&img=bg1f.png)
23
You’ll be prompted to input connection parameters for the wireless access
point you wish to connect:
Required parameters are:
Profile name
You can give a name to this profile, so you
can remember its purpose easily. It can be any
phrase to help you remember.
Network Name
(SSID)
The SSID (Service Set Identifier, i.e. access
point’s name). This must be identical with the
SSID of the access point you wish to connect.
This is a
computer-to-computer
(ad hoc) network
Check this box if you wish to connect to
another computer / network device by ad hoc
method. When not accessing to wireless
access point, you have to check this box.
Channel
Select wireless channel for ad hoc connection.
This option only appears when you’re using
ad hoc connection.
Network
Authentication
Select the network authentication type from
drop-down menu. This setting must be
identical with the setting of wireless access
point you with to connect.
![](/img.php?id=3457078&img=bg20.png)
24
Data encryption
Select the data encryption type from
drop-down menu. This setting must be
identical with the setting of wireless access
point you with to connect.
ASCII /
PASSPHRASE
When the encryption type is ‘WEP’, it’s
required to input a set of ‘passphrase’ to
connect to wireless access point. Check
‘ASCII’ or ‘PASSPHRASE’ depends on the
security setting of access point, and input it in
the box; if you select ‘PASSPHRASE’ you
also need to select the length of the key.
The passphrase must be identical with the
setting of wireless access point you with to
connect.
Key index
Select WEP key index. For most of access
points you can select ‘1’, but please refer to
the setting of the access point.
Network key /
Confirm network key
When the encryption type is ‘WPA’ or
‘WPA2-PSK’, it’s required to input a set of
‘passphrase’ to connect to wireless access
point. Please input the same passphrase in two
boxes for confirmation.
EAP TYPE /
Tunnel /
Provision Mode
When authentication type is any of 802.1X,
you have to select EAP type, tunnel, and
provision mode from dropdown menu. This
setting must be identical with your 802.1x
authentication server.
Username / Identity /
Domain / Password
Please input 802.1x related authentication
information here.
Certificate
If certification is required to authenticate with
802.1x authentication server, please select a
local certificate from dropdown list.
PAC
Check this box and PAC (Privilege Access
Certificate) will be automatically selected.
When all required parameters are set, click ‘OK’ to create and save a new
profile.
![](/img.php?id=3457078&img=bg21.png)
25
2-3-2 Remove an Existing Profile
When you no longer need an existing profile, you can remove it.
If you want to remove a profile, click ‘Profile’ menu, then select an
existing profile which you wish to remove, and then click ‘Remove’
button.
![](/img.php?id=3457078&img=bg22.png)
26
2-3-3 Edit an Existing Profile
If you have added a profile before, and you wish to change the content of
the profile, you can use this function. Please select a profile from the list
first, then click ‘Edit’ button. You’ll be provided with the contents of
selected profile, and you can edit them. Click ‘OK’ to save changes, or
click ‘Cancel’ to disadapter changes.
![](/img.php?id=3457078&img=bg23.png)
27

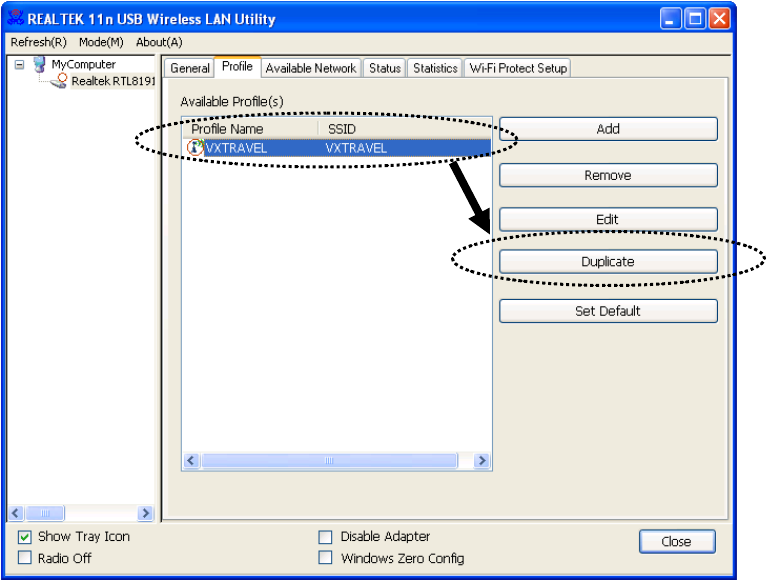

2-3-4 Make a Copy of an Existing Profile
If you need to make a copy of a specific profile, you can use this function.
This function is very convenient when you need to build a new profile
which parameters are similar to any existing profile.
To do this, select an existing profile, then click ‘Duplicate’ button.
You’ll be prompted to input a profile name, please use an identical name
that does not exist in profile list.
![](/img.php?id=3457078&img=bg24.png)
28
2-3-5 Set as a Default Profile
If you wish to use a specific profile as default connection, you can select
a profile in the list, and click ‘Set Default’. Selected profile will become
default selection and Realtek configuration utility will attempt to connect
to selected access point.
![](/img.php?id=3457078&img=bg25.png)
29
2-4 View Network Statistics, General Information, and Status
The configuration utility provides information about network statistics
and link status. If you want to know how your wireless network adapter
works, you can use these functions to get detailed information about the
wireless connection you’re using.
2-4-1 General Information
If you want to know the general information of the access point you’re
connecting to, click ‘General’ menu:
All general information like signal strength and link quality will be
displayed here. These information are very useful when you encounter
some problem on connecting to access point.
If you wish to get a new IP address from DHCP server, you can click
‘ReNew IP’ button.
![](/img.php?id=3457078&img=bg26.png)
30
2-4-2 Status
If you want to know the status of your wireless network adapter, click
‘Status’ menu:
![](/img.php?id=3457078&img=bg27.png)
31
2-4-3 View Network Statistics
To view the statistical data of wireless network adapter, click ‘Statistics’
menu, and the statistics of wireless connection will be displayed:
All connection-related statistics is displayed here. You can click ‘Reset’
button, to reset the statistics of all items back to 0.
![](/img.php?id=3457078&img=bg28.png)
32
2-5 Miscellaneous Settings
There are few functions provided by Realtek configuration utility, you
can access these functions from the bottom of configuration menu:
The descriptions of these function are listed as follow:
Show Tray Icon
Check this box to show an icon on system
tray.
Uncheck this box to hide it.
Radio Off
Switch wireless radio off. Wireless network
functionalities are disabled.
Disable Adapter
Disable wireless network adapter. All
functionalities of configration menu will
HERE!
![](/img.php?id=3457078&img=bg29.png)
33
disappear. To resume, unckeck ‘Disable
Adapter’.
Windows Zero Config
Use Windows Zero Configuration to manage
wireless connections. See section 2-2-2.
![](/img.php?id=3457078&img=bg2a.png)
34
2-6 Establish a Secure Connection with AP by WPS
Wi-Fi Protected Setup (WPS) is the latest wireless network technology
which makes wireless network setup become very simple. If you have
WPS-enabled wireless access point, and you want to establish a secure
connection to it, you don’t have to configure the wireless access point and
setup data encryption by yourself. All you have to do is to go to the WPS
setup page of this wireless adapter, click a button, and then press a
specific button or enter a set of 8-digit code on the wireless access point
you wish to establish a secure connection - just three simple steps!
For older wireless access points, it’s possible to perform a firmware
upgrade to become a WPS-enabled access point. Since they may not have
a hardware button to press for WPS setup, you can use an alternative
WPS setup method - input the pin code. Every WPS-compatible wireless
network adapter support pin code configuration method; you can just
input the code to wireless access point, and the wireless access point and
wireless network adapter will do the rest for you.
This wireless network adapter is compatible with WPS. To use this
function, the wireless access point you wish to connect to must support
WPS function too. Now, please follow the following instructions to
establish secure connection between WPS-enabled wireless access point
and your wireless network adapter.

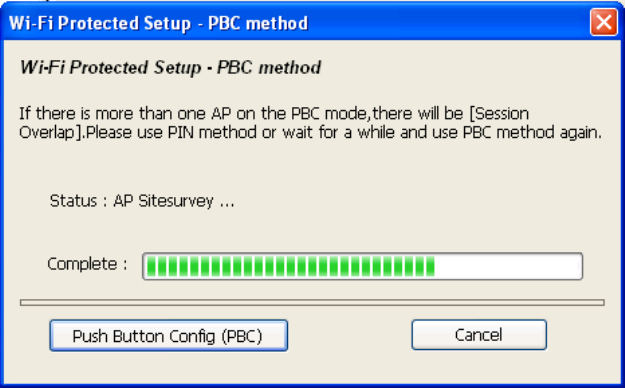

This wireless network adapter supports 2 kinds of WPS: PIN code and
Push-Button.
Follow the following instructions to setup WPS:
1. Right-click Realtek configuration utility icon, and click ‘Open Config
Utility’.
![](/img.php?id=3457078&img=bg2b.png)
35
2. Click ‘Wi-Fi Protect Setup’ menu.
3. You can use PIN code or Push-Button configuration, and
WPS-compatible wireless access point must use the same type of WPS.
For instructions on setup each type of WPS, see next 2 chapters for
detailed instructions.
![](/img.php?id=3457078&img=bg2c.png)
36
2-6-1 PIN Code
To use PIN Code, please click ‘Pin Input Config (PIN)’ button:
You’ll be prompted to select an access point you wish to connect. If you
know its SSID, click ‘Yes’, otherwise click ‘No’.
If you select ‘Yes’, a list of all WPS-compatible AP nearby will be
displayed; you can click ‘Refresh’ to rescan, then select an AP and click
‘Select’ button.
![](/img.php?id=3457078&img=bg2d.png)
37
If you select ‘No’, wireless network adapter will prompt you to enter
8-digit PIN code into your AP, without selecting an AP in advance.
After you select ‘Yes’ or ‘No’ in previous step, network adapter will
attempt to connect to WPS-compatible AP, and an 8-digit number will
appear. Please input this number to AP’s configuration menu within 2
minutes, and network adapter will establish secure connection with AP
automatically.
To stop this procedure before connection is established, click ‘Cancel’.
![](/img.php?id=3457078&img=bg2e.png)
38
2-6-2 Push Button
To use Push-Button WPS configuration, please click ‘Push Button Config
(PBC)’ button. This is the easiest way to establish secure connection by
WPS, but if there’re more than one WPS-compatible AP using
Push-Button config, please use PIN Code instead.
![](/img.php?id=3457078&img=bg2f.png)
39
After you click Push Button Config, a message box will appear:
Please activate Push-Button function on wireless access point now, and
wireless network adapter will establish secure connection with access
point within one minute.
![](/img.php?id=3457078&img=bg30.png)
40
CHAPTER III: Soft-AP Function
Excepting become a wireless client of other wireless access points, this
wireless adapter can act as a wireless service provider also! You can
switch this wireless adapter’s operating mode to ‘AP’ mode to simulate
the function of a real wireless access point by software, and all other
computers and wireless devices can connect to your computer wirelessly,
even share the internet connection you have!
Please follow the instructions in following chapters to use the AP function
of your wireless adapter.
3-1 Switch to AP Mode and Station Mode
The operating mode of the wireless adapter is ‘Station Mode’ (becoming
a client of other wireless access points) by default.
Please follow the following instructions to switch to AP mode:
1. Right-click Realtek configuration utility icon, and click ‘Open Config
Utility’.
![](/img.php?id=3457078&img=bg31.png)
41
2. Select ‘Mode’, and then select ‘Access Point’.
It requires few seconds to switch to AP mode, please be patient.
![](/img.php?id=3457078&img=bg32.png)
42
After mode switch is complete, you’ll see general information of software
AP, which shows AP’s SSID and connected wireless clients.
![](/img.php?id=3457078&img=bg33.png)
43
3-1-1 Configure SSID and Channel
To configure software AP, click ‘Config’ button:
![](/img.php?id=3457078&img=bg34.png)
44
The ‘Wireless Network Properties’ is displayed.
Note that Ad-Hoc mode is not available when network adapter is in AP
mode. The description of major setup items are listed below:
Network Name
(SSID)
Please input the SSID (the name used to identify
this wireless access point) here. Up to 32
numerical characters can be accepted here,
excepting space.
Channel
Please select the wireless channel you wish to
use, from 1 to 13.
To save changes, click ‘OK’; otherwise click ‘Cancel’ to leave this menu
and keep settings untouched.
![](/img.php?id=3457078&img=bg35.png)
45
3-1-2 Setup Soft-AP Security
To setup security options for Soft-AP, configure ‘Wireless Network
Security’ section as follow:
The description of setup items about wireless security are listed below:
Network
Authentication
Select network authentication mode from
dropdown menu.
Data Encryption
Select data encryption method from dropdown
menu.
ASCII /
PASSPHRASE
If the encryption method is WEP, check either
‘ASCII’ or ‘PASSPHRASE’ box and input it in
the box as WEP passphrase.
Key Index
Select WEP key index (1-4). If you don’t know
which one you should use, select 1.
![](/img.php?id=3457078&img=bg36.png)
46
Network key /
Confirm network key
IF network authentication mode is WPA, please
input WPA passphrase in both box.
To save changes, click ‘OK’; otherwise click ‘Cancel’ to leave this menu
and keep settings untouched.
![](/img.php?id=3457078&img=bg37.png)
47

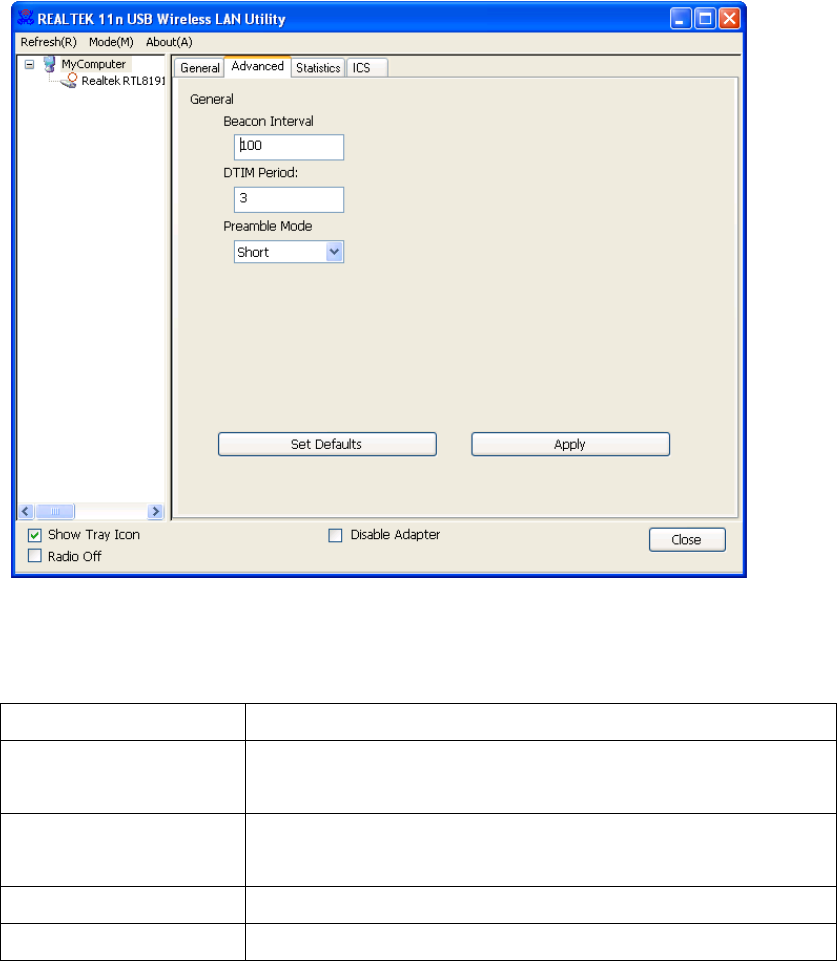

3-2 Advanced Settings
If you want to setup advanced settings of software access point, select
‘Advanced’ menu. If you don’t know the meaning and affects of these
settings, keep them untouched.
The description of all setup items are listed below:
Beacon Interval
Please input wireless beacon time interval here.
DTIM Period
Please input DTIM (Delivery Traffic Indication
Message) here.
Preamble Mode
Select wireless frame preamble mode (long or
short) from dropdown menu.
Set Defaults
Reset all settings back to factory default value.
Apply
Save changes.
If you changed any setting here and cause problem on communicating
with wireless clients, click ‘Set Defaults’ to reset all settings back to
default setting.
![](/img.php?id=3457078&img=bg38.png)
48
3-3 Wireless Statistics
Select ‘Statistics’ menu and the data statistics about software access point
will be displayed.
Click ‘Reset’ to reset the value of every item back to ‘0’.
![](/img.php?id=3457078&img=bg39.png)
49
3-4 Internet Connection Sharing (ICS)
In this page, you can assign a network adapter on your computer as the
path for all wireless clients to get connected to Internet.
If you have only one network adapter (except this software access point),
you don’t have to select network adapter here; if you have more than one
network adapter, select the one you wish to be used as Internet gateway.
Click ‘Apply’ to save changes (‘Apply’ is grayed out when no changes
are made in this page).
50
CHAPTER IV: Appendix
4-1 Hardware Specification
Standards: IEEE 802.11a/b/g/n/ac
Interface: USB 3.0 (USB 2.0 Compatible)
Frequency Band: 2.4000~2.4835GHz (subject to local regulations)
5.150~5.825GHz (subject to local regulations)
Data Rate:
11a: 6/9/12/24/36/48/54Mbps;
11b: 1/2/5.5/11Mbps; 11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps
Securities: WEP 64/128, WPA, WPA2 and IEEE 802.1x
Antenna: 2 internal PIFA antennas (2.4G/5G 2dBi)
Drivers: Windows XP / Vista / 7 / 8, Linux, MAC OS
LED: Link/Act/WPS
TX Power: 2.4GHz: 11b(11M): 16±1.5 dBm , 11g(54M): 14±1.5 dBm
11n(20MHz, MCS7): 14±1.5 dBm,
11n(40MHz, MCS7): 12±1.5 dBm
5GHz: 11a(54M): 12±1.5 dBm,
11n(20MHz, MCS7): 10±1.5 dBm,
11n(40MHz, MCS7): 10±1.5 dBm
11ac(80MHz, VHTMCS9): 10±1.0 dBm
RX Sensitivity: 2.4GHz: 11b(11M): -79±2 dBm, 11g(54M): -65±2dBm
11n(20MHz, MCS7): -64±2dBm,
11n(40MHz, MCS7): -61±2dBm
5GHz: 11a(54M): -70±2dBm,
11n(20MHz, MCS7): -67±2dBm,
11n(40MHz, MCS7): -64±2dBm,
11ac(80MHz, VHTMCS9): -51±2dBm
Dimension: 87.1 (L) x 27.2 (W) x 17.2 (H) mm
Temperature: 32~104°F (0 ~ 40°C), Humidity: 10-95% (Non-Condensing)
Certification: FCC, CE
![](/img.php?id=3457078&img=bg3b.png)
51
4-2 Troubleshooting
If you encounter any problem when you’re using this wireless network
adapter, don’t panic! Before you call your dealer of purchase for help,
please check this troubleshooting table, the solution of your problem
could be very simple, and you can solve the problem by yourself!
Scenario
Solution
I can’t find any wireless
access point / wireless
device in ‘Site Survey’
function.
1. Click ‘Rescan’ for few more times and
see if you can find any wireless access
point or wireless device.
2. Please move closer to any known
wireless access point.
3. ‘Ad hoc’ function must be enabled for
the wireless device you wish to establish
a direct wireless link.
4. Please adjust the position of network
adapter (you may have to move your
computer if you’re using a notebook
computer) and click ‘Rescan’ button for
few more times. If you can find the
wireless access point or wireless device
you want to connect by doing this, try to
move closer to the place where the
wireless access point or wireless device
is located.
Nothing happens when I
click ‘Open Config
Utility’
1. Please make sure the wireless network
adapter is inserted into your computer’s
USB port.
2. Reboot the computer and try again.
3. Remove the adapter and insert it into
another USB port.
4. Remove the driver and re-install.
5. Contact the dealer of purchase for help.
I cannot establish
connection with a certain
wireless access point
1. Click ‘Add to Profile’ for few more
times.
2. If the SSID of access point you wish to
![](/img.php?id=3457078&img=bg3c.png)
52
Scenario
Solution
connect is hidden (nothing displayed in
‘SSID’ field in ‘Site Survey’ function),
you have to input correct SSID of the
access point you wish to connect. Please
contact the owner of access point to ask
for correct SSID.
3. You have to input correct passphrase /
security key to connect an access point
with encryption. Please contact the
owner of access point to ask for correct
passphrase / security key.
4. The access point you wish to connect
only allows network adapters with
specific MAC address to establish
connection. Please go to ‘Status’ menu
and write the value of ‘MAC Address’
down, then present this value to the
owner of access point so he / she can add
the MAC address of your network
adapter to his / her access point’s list.
The network is slow /
having problem when
transferring large files
1. Move closer to the place where access
point is located.
2. There could be too much people using
the same radio channel. Ask the owner
of the access point to change the channel
number.
Please try one or more solutions listed
above.
53
4-3 Glossary
1. What is the IEEE 802.11g standard?
802.11g is the new IEEE standard for high-speed wireless LAN
communications that provides for up to 54 Mbps data rate in the 2.4
GHz band. 802.11g is quickly becoming the next mainstream
wireless LAN technology for the home, office and public networks.
802.11g defines the use of the same OFDM modulation technique
specified in IEEE 802.11a for the 5 GHz frequency band and applies
it in the same 2.4 GHz frequency band as IEEE 802.11b. The
802.11g standard requires backward compatibility with 802.11b.
The standard specifically calls for:
A. A new physical layer for the 802.11 Medium Access Control
(MAC) in the 2.4 GHz frequency band, known as the extended
rate PHY (ERP). The ERP adds OFDM as a mandatory new
coding scheme for 6, 12 and 24 Mbps (mandatory speeds), and 18,
36, 48 and 54 Mbps (optional speeds). The ERP includes the
modulation schemes found in 802.11b including CCK for 11 and
5.5 Mbps and Barker code modulation for 2 and 1 Mbps.
B. A protection mechanism called RTS/CTS that governs how
802.11g devices and 802.11b devices interoperate.
2. What is the IEEE 802.11b standard?
The IEEE 802.11b Wireless LAN standard subcommittee, which
formulates the standard for the industry. The objective is to enable
wireless LAN hardware from different manufactures to
communicate.
3. What does IEEE 802.11 feature support?
The product supports the following IEEE 802.11 functions:
CSMA/CA plus Acknowledge Protocol
Multi-Channel Roaming
Automatic Rate Selection
RTS/CTS Feature
Fragmentation
Power Management
4. What is Ad-hoc?
An Ad-hoc integrated wireless LAN is a group of computers, each
has a Wireless LAN adapter, Connected as an independent wireless
LAN. Ad hoc wireless LAN is applicable at a departmental scale for
54
a branch or SOHO operation.
5. What is Infrastructure?
An integrated wireless and wireless and wired LAN is called an
Infrastructure configuration. Infrastructure is applicable to enterprise
scale for wireless access to central database, or wireless application
for mobile workers.
6. What is BSS ID?
A specific Ad hoc LAN is called a Basic Service Set (BSS).
Computers in a BSS must be configured with the same BSS ID.
7. What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based
on a 40 bit shared key algorithm, as described in the IEEE 802 .11
standard.
8. What is TKIP?
TKIP is a quick-fix method to quickly overcome the inherent
weaknesses in WEP security, especially the reuse of encryption keys.
TKIP is involved in the IEEE 802.11i WLAN security standard, and
the specification might be officially released by early 2003.
9. What is AES?
AES (Advanced Encryption Standard), a chip-based security, has
been developed to ensure the highest degree of security and
authenticity for digital information, wherever and however
communicated or stored, while making more efficient use of
hardware and/or software than previous encryption standards. It is
also included in IEEE 802.11i standard. Compare with AES, TKIP is
a temporary protocol for replacing WEP security until manufacturers
implement AES at the hardware level.
10. Can Wireless products support printer sharing?
Wireless products perform the same function as LAN products.
Therefore, Wireless products can work with Netware, Windows
2000, or other LAN operating systems to support printer or file
sharing.
11. Would the information be intercepted while transmitting on air?
WLAN features two-fold protection in security. On the hardware
side, as with Direct Sequence Spread Spectrum technology, it has
the inherent security feature of scrambling. On the software side,
WLAN series offer the encryption function (WEP) to enhance
security and Access Control. Users can set it up depending upon
their needs.
55
12. What is DSSS? What is FHSS? And what are their differences?
Frequency-hopping spread-spectrum (FHSS) uses a narrowband
carrier that changes frequency in a pattern that is known to both
transmitter and receiver. Properly synchronized, the net effect is to
maintain a single logical channel. To an unintended receiver, FHSS
appears to be short-duration impulse noise. Direct-sequence
spread-spectrum (DSSS) generates a redundant bit pattern for each
bit to be transmitted. This bit pattern is called a chip (or chipping
code). The longer the chip is, the greater the probability that the
original data can be recovered. Even if one or more bits in the chip
are damaged during transmission, statistical techniques embedded in
the radio can recover the original data without-the need for
retransmission. To an unintended receiver, DSSS appears as low
power wideband noise and is rejected (ignored) by most narrowband
receivers.
13. What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency
technique developed by the military for use in reliable, secure,
mission-critical communication systems. It is designed to trade off
bandwidth efficiency for reliability, integrity, and security. In other
words, more bandwidth is consumed than in the case of narrowband
transmission, but the trade off produces a signal that is, in effect,
louder and thus easier to detect, provided that the receiver knows the
parameters of the spread-spectrum signal being broadcast. If a
receiver is not tuned to the right frequency, a spread –spectrum
signal looks like background noise. There are two main alternatives,
Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping
Spread Spectrum (FHSS).
14. What is WPS?
WPS stands for Wi-Fi Protected Setup. It provides a simple way to
establish unencrypted or encrypted connections between wireless
clients and access point automatically. User can press a software or
hardware button to activate WPS function, and WPS-compatible
wireless clients and access point will establish connection by
themselves. There are two types of WPS: PBC (Push-Button
Configuration) and PIN code.
