NEW POS Technology 9210 Smart POS Terminal User Manual

NEW POS Technology Limited Smart POS Terminal Users Manual

Users Manual

NEW9210 www.newpostech.com
Smart POS Terminal
N E W 9 2 1 0
PRODUCT MANUAL
NEW POS TECHNOLOGY
NEW POS TECHNOLOGY LIMITED
NEW POS Technology limited
Contents Checklist
The following items should be found inside the box:
Precautions
Do not use the non-dedicated power supply, because it may be in trouble due to the mismatch
of power.
Do not spill any liquid substance or take any conductive objects into the product, otherwise it
will cause a short circuit and damage the product.
Do not vibrate, shake or knock the product sharply.
Do not plug in or pull out any external components or equipment in a charging state, it may
cause damage to the internal circuitry. Cut off the power before turn off the machine’s power.
Do not place the product in an elevated temperature, humid, dusty or strong electromagnetic
field environment.
When a fault occurs, immediately turn off the power supply and discontinue to use the product,
please contact the service sector related to our company.
Do not open and repair it by yourself.
When the terminal being attacked by unscrupulous environment(such as opening the terminal
shell, etc.), the internal sensitive information stored in the terminal will be erased. For avoiding
unnecessary trouble, you should not open the housing.
When the battery reaches the service life, it can not be thrown away, it should be disposed in
compliance with local laws and regulations or instructions.
1PCS
1PCS
1PCS
1PCS
1PCS
1. POS terminal
2. AC Power Supply
3. Li-ion Battery
4. Thermal paper roll
5. Product Manual
Tag label
Handle
Tear-off knife
www.newpostech.com www.newpostech.com
NEW9210 www.newpostech.com
NEW9210
NEW9210 Figure
NEW POS Technology limitedNEW POS Technology limited
1
17

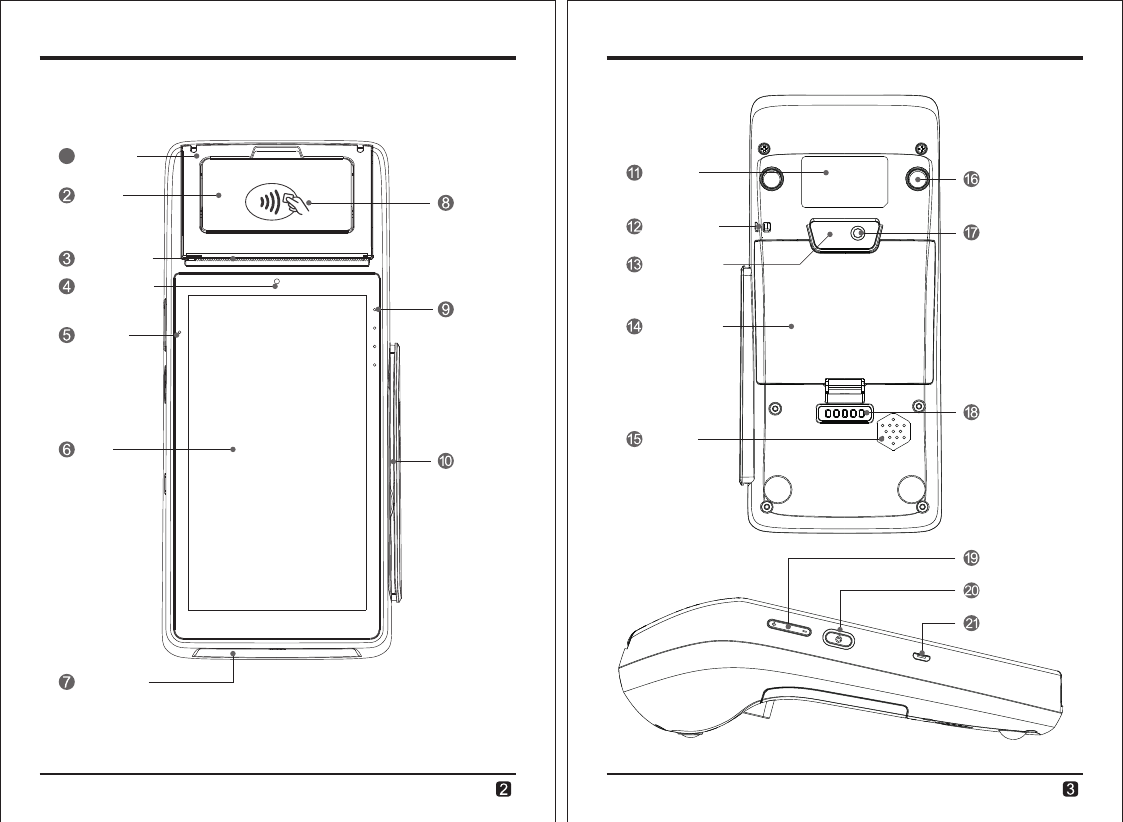

Paper
holder Lid
User smart
card slot
LCD
Charge
indicator
Front camera
Magnetic
stripe card
Programable
Leds
Antenna
inductive zone
Micro USB port
Speaker
Rubber pad
Flash
Base contacts
Rear camera
Battery cover
ON/OFF key
Volume key
Lanyard hole
www.newpostech.com
NEW9210
www.newpostech.com
NEW9210
NEW POS Technology limited

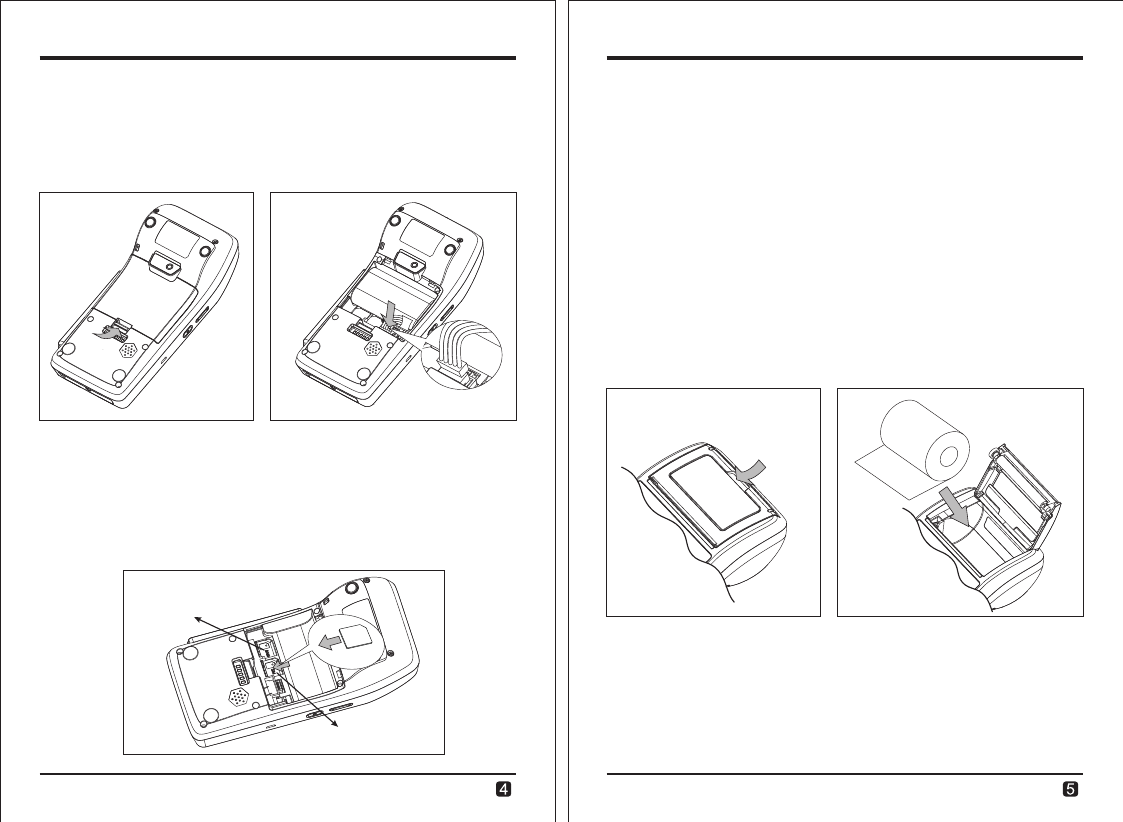

Installation Guidance
1. Install the battery
Open the battery cover of the device.
Connect the cable of the battery to the right side battery connector on the machine and
put the battery to its place. (Tag label on the battery upwards)
Close the battery cover.
Open the battery
cover
Install the battery
NOTE: When removing the battery, please pick up the battery, then gently forced to unplug it to
avoid damage to cables.
2. Install SIM/SAM card
Open the battery cover and remove the battery.
Keep the chip side on the SIM/SAM card downward and unfilled corner outward, insert the
card to the bottom.
Install the battery and then close the battery cover.
Install SIM/SAM/TF card
NOTE: 1. Confirm the machine is turned off when you install or uninstall the SIM/UIM card, or
your card will be damaged.
2. Do not paste any label on the SIM/SAM card to influence your card thickness, or it
may result in loading or removing the card can not be carried out smoothly.
3. Power on/off the device
Power on: press and hold the power key until the LCD display, then the machine will be
turned on.
Power off: press and hold the power key more than 2 seconds, then the screen will give you
a tips, you just choose the shutdown key.
Force shut down: Press the power key more than 8 seconds.
4. Install the printer paper
Pull up the handle and open the paper holder Lid.
Put the printer paper into paper holder Lid according to the direction of the graphic.
Close the paper cover.
NEW POS Technology limited
Open the Paper holder Lid Install the printer paper
NOTE: 1. When install thermal paper, we need the side coated with thermal media facing the
printer heating plate, or you can not print out the characters correctly.
2. Do not keep the printer paperless for long time, or it may cause the roller pasting with
the plate.
3. The temperature is high on the heating plate, please do not touch it without cooling.
4. Tear-off knife edge is sharp, please be careful. Do not touch it for avoiding danger.
SAM
SIM
www.newpostech.com
NEW9210
NEW POS Technology limited NEW POS Technology limited
Technical
Technical Specifications
Project
High Performance 4 Core Processor+Special secure CPU
DRAM:1G, FLASH:8G; Supports Micro SD/TF Card, up to 32G
Android 5.X
5.0 inch 720*1280 pixels capacitive touch screen with e-signature functionality
Track 1/2/3,bi-directioanl,compliant with ISO7811,7812
Supports Memory Card, CPU Card, EMV4.3, PBOC3.0, ISO7816 Standard
13.56MHz. Supports Mifare Card,SONY Felica.
Compliant with ISO/IEC14443 Type A&B
MK/SK, DUKPT, FIXED.3DES, RSA, AES, SHA-256, SM2, SM3, Sm4.
4G/3G/2G, WiFi, Bluetooth.
GPS, BEIDOU, GLONASS
Front Camera:300 thousand pixel;
Rear Cemara:5-mega pixel, with auto flash and focus
720P video recording, 1080P video broadcast
High-speed thermal printer, Paper roll width and diameter: 58mm/40mm
1*Micro USB OTG
1*Power switch, 2*Volume keys
1*SIM, 1*SAM, 1*TF Card
7.2V/2600mAh
Input:100-240V AC, 50/60Hz; Output:5.0V DC, 2.0A
184mm*84mm*58mm(L*W*H)
Temperature:0~ 50 (32~ 122).
Humidity:10% ~ 90% (non-condense).
Temperature: -20 ~ 60(-4~140).
Humidity: 5% ~ 95% (non-condense).
PCI PTS 5.X, EMV LEVEL 1&2, EMVContactless, CE, RoHS
CUP, PBOC3.0, QPBOC3.0
Docking Station
CPU
Memory
System
Display
MS Card Reader
Smart Card Reader
Contactless
Card Reader
Security
Communications
Satellite Positioning
Camera
Multimedia
Printer
Ports
Buttons
Card Slots
Battery
Power
Dimensions
Working
Environment
Storage
Environment
Certifications
Optional
NEW POS Technology limited
1. Warranty valid for 12 months after purchasing date.
2. This warranty will be voided if the product is damaged due to natural disaster, fire,
unauthorized alteration or improper usage.
3. Free Warranty covers original parts only
4. Warranty service will not be provided if no the dealer's stamp or this card is missing.
Note:
Hereby, NEW POS TECHNOLOGY LIMITED declares that the radio equipment type (Smart POS
Terminal, NEW9210) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity
is available at the following internet address:
http://www.newpostech.com/
Notice: This device may be used in each member state in EU
The device is restricted to indoor use when operated in
Be l g i um(BE), Bu l garia( B G ) , Cze ch Re p ublic(CZ),
Denmark(DK), Germany(DE), Estonia(EE), Ireland(IE),
Greece(EL), Spain(ES), France(FR), Croatia(HR), Italy(IT),
Cyprus(CY), Latvia(LV), Lithuania(LT), Luxembourg(LU),
Hungary(HU), Malta(MT), Netherlands(NL), Austria(AT),
Poland(PL), Portugal(PT), Romania(RO), Slovenia(SI),
Sl o vak i a( SK) , Fi n la n d( F I) , S wed en ( SE ) , Un ite d
Kingdom(UK), Turkey(TR), Norway(NO), Switzerland(CH),
Iceland (IS) and Liechtenstein(LI) using frequency in
5150MHz~5350.
The SAR limit of Europe is 2.0 W/kg. Device types Smart POS Terminal has also been tested against
this SAR limit. The highest SAR value reported under this standard during product certification for
use worn on the body is 1.003 W/kg. This device was tested for typical body-worn operations with
the back of the handset kept 0cm from the body. To maintain compliance with RF exposure
requirements, use accessories that maintain a 0cm separation distance between the user's body
and the back of the handset. The use of belt clips, holsters and similar accessories should not
contain metallic components in its assembly. The use of accessories that do not satisfy these
requirements may not comply with RF exposure requirements, and should be avoided.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.
www.newpostech.com
NEW9210 7
NEW POS Technology limited NEW POS Technology limited
NEW POS TECHNOLOGY LIMITED
Address: 14/A, Financial Technology Building, Financial & Technology
B uilding, No.11, Keyuan Rd, Nanshan District, ShenZhen, China
Tel: +86-755-86938425 Fax: +86-755-82790632 Postalcode: 518057
E-mail: Sales@newpostech.com WebSite: www.newpostech.com
NEW POS Technology limited
www.newpostech.com
NEW9210
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Note: The grantee is not responsible for any changes or modifications not expressly approved by
the party responsible for compliance. Such modifications could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types Portable
Smart POS Terminal (FCC ID: WAL9210) has also been tested against this SAR limit. The highest SAR
value reported under this standard during product certification when properly worn on the body is
1.089W/kg. This device was tested for typical body-worn operations with the back of the handset
kept 0cm from the body. To maintain compliance with FCC RF exposure requirements, use
accessories that maintain a 0cm separation distance between the user's body and the back of the
handset. The use of belt clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be avoided.
