Nexxt Solutions - Outdoor Wireless IP Camera

Outdoor Wireless IP Camera

INTRODUCTION

Thank you for purchasing the Nexxt Solutions XPY-310

Outdoor Wireless IP Camera. Featuring an infrared

cut-off ﬁlter, our new XPY is an integrated wireless

IP Camera solution that combines high quality digital

video with network connectivity and a powerful web

server to bring a clear picture to your desktop or

mobile phone from anywhere on your local network

or over the Internet.

Nexxt Solutions - Outdoor Wireless IP Camera

This camera can be mounted indoors or outdoors.

Use the supplied power adaptor to connect the

camera to the AC mains (12V DC, 1.0A).

The warranty does not cover any damage caused

by applying the wrong voltage.

Never attempt to disassemble the unit. The warran-

ty does not cover damages as a result of tampering

with, or the improper alteration of the device.

Do not point the camera at the sun or at any other

strong light source.

Do not install the camera where it can be exposed

to rain or water

Wait at least 10 seconds when powering the

camera on and off. Otherwise, it can cause serious

damage to the CPU.

When updating the camera, please make sure that:

the camera is connected directly to a computer

using a network cable;

all other programs and windows on the computer

have been closed;

the camera remains connected during the entire

ﬁrmware update.

•

BEFORE YOU BEGIN

Nexxt Solutions - Outdoor Wireless IP Camera

FEATURES

The camera combines a high-sensitivity 1/4 CMOS

image sensor with a powerful wireless web server

in order to capture clear images from anywhere,

and to transmit them instantly on your local

network or over the internet.

Can be used on WiFi or wired networks.

It uses the MJPEG hardware compression tech-

nique, which can display high-quality and real-time

video transmission at 25fps on a LAN/WAN con-

nection

Input and output ports with smart motion detection

to connect sirens, smoke detectors, door sensors

or any other external alarm devices.

Selectable image resolution of 640x480 and

320x240 pixels.

The system can be expanded at any time by adding

multiple cameras.

View multiple cameras in split screen view or

choose full screen in order to monitor the activity

from a single camera.

Cameras can be viewed via standard PC or Mac

browsers, including Internet Explorer, Safari,

Chrome and Firefox.

Infrared LEDs for night vision (up to 20 meters).

Includes multi-level user management system,

which can be conﬁgured with passwords for

controlled access.

Easy- to-use web browser controls. They also allow

quick conﬁguration changes via the Settings menu.

Compatibility with smartphones enables you to

view real-time videos over the internet using any

standard browser.

Supports image snapshots and image forwarding

•

Nexxt Solutions - Outdoor Wireless IP Camera

NOTES ON WINDOWS AND MAC COMPATIBILITY:

•

via email and FTP upload.

Bullet type, robust construction with waterproof

casing.

Powder coated ﬁnish to protect camera against

rust.

Fog resistant safety glass for extra protection.

Wide range of temperature operation: -5 to +45 °C

(+22 to +113 °F).

Versatile installation: the camera can be mounted

on the wall or ceiling.

Wireless IP Camera

Wi-Fi antenna

AC power adaptor

Quick installation guide

CD-ROM (includes the IP Super Client software and

a digital copy of the manual)

Network cable

Mounting bracket and hardware

IP camera setup should be completed on a

Windows PC only using Internet Explorer.

Live viewing, taking snapshots, recording and cam-

era conﬁguration are fully supported on computers

with Windows operating systems.

Mac users are only able to:

view live images via compatible web browsers

including Safari, Firefox and Chrome but are limited

to viewing one camera at a time.

take and save snapshot images via the web

browser interface.

PACKAGE CONTENTS

Open the box and make sure all items listed below

are included:

Nexxt Solutions - Outdoor Wireless IP Camera

CAMERA INSTALLATION

Our WiFi Outdoor Surveillance Camera can be set

up in minutes for instant monitoring and live viewing

on your Windows computer and 3G Smartphone -

all via your wireless network router or switch. For

optional recording capabilities, simply install the re-

cording software in your Windows PC and conﬁgure

it according to your particular needs.

Begin by screwing the antenna and bracket to the

camera. Connect the camera using the power

adaptor that comes with the product.

Using a standard Ethernet network cable, connect

the camera to your network.

The camera can either be connected to a router/

switch or directly to a PC with an Ethernet

network cable. We recommend setting up the

camera on your network using a wired connection

prior to using the device in a wireless conﬁgura-

tion.

Continue with the setup of the camera

(as described in the following chapter). Once the

camera has been successfully connected to your

network, it can be mounted on the wall or ceiling

using the wall plugs and screws included with the

device. (The camera set up must be performed

using Windows operating system only).

Nexxt Solutions - Outdoor Wireless IP Camera

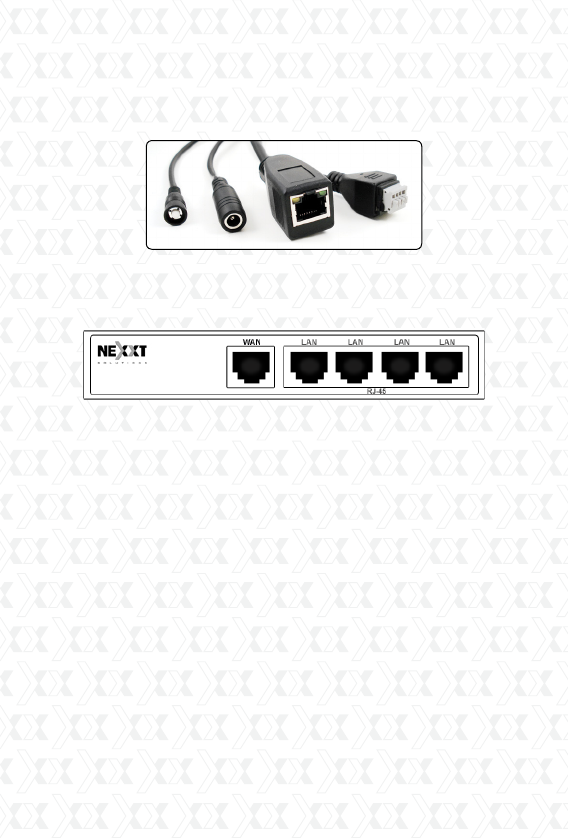

Plug the LAN cable into the RJ-45 connector

on the end of the cable attached to the rear of

the camera.

2.Plug the other end into an available RJ-45 port

on your router.

3. Connect the power cable to the wall outlet.

Please note that if you are using the camera on

a wireless network, you will need to conﬁgure the

camera for wired use, prior to conﬁguring wire-

less settings in the device (later described in this

manual).

Accessing the IP camera

Using the IP Super Client Software

Note: The IP network camera is designed to work in

a local area network (LAN) or over the internet. For

the ﬁrst method, we highly recommend using the

software included in the CD. The installation steps

are described below.

Nexxt Solutions - Outdoor Wireless IP Camera

1. Introduction

The IP camera Super Client is an easy-to-use

software designed for surveillance applications

with multiple cameras. This software includes PT

controls, recording, alarm notiﬁcations, in addition

to a central management feature that allows the

administration, conﬁguration and access control

settings for each individual device.

Adding devices

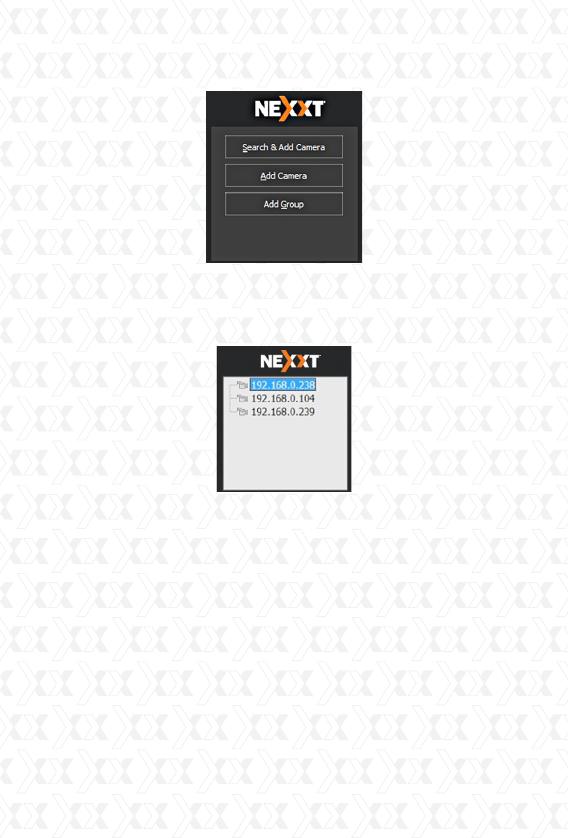

After installing the client software, we need to add

the devices. When running the program, the device

list on the right of the main interface is empty; there

is a guide to show you how to add the devices.

Functions:

Supports up to 81-video monitoring in one screen.

Supports multi-level structured device list.

Supports scheduled recording with alarm.

Supports panoramic recording.

Supports motion detection, sound alert and

external alarm trigger.

Supports audio, SMS, SMS modem, dialing, email,

FTP and alarm output switch.

Supports inquiries, browsing of alarm and opera-

tion log records.

Supports multi-level access management.

Supports remote login to check records and alarm

records.

•

Nexxt Solutions - Outdoor Wireless IP Camera

Click the right button to choose “add new device”

or “add new group”. This program supports a

multi-level structure to manage existing devices.

Now, let’s take the 310-series and 330-series as

examples to introduce the adding device option.

Nexxt Solutions - Outdoor Wireless IP Camera

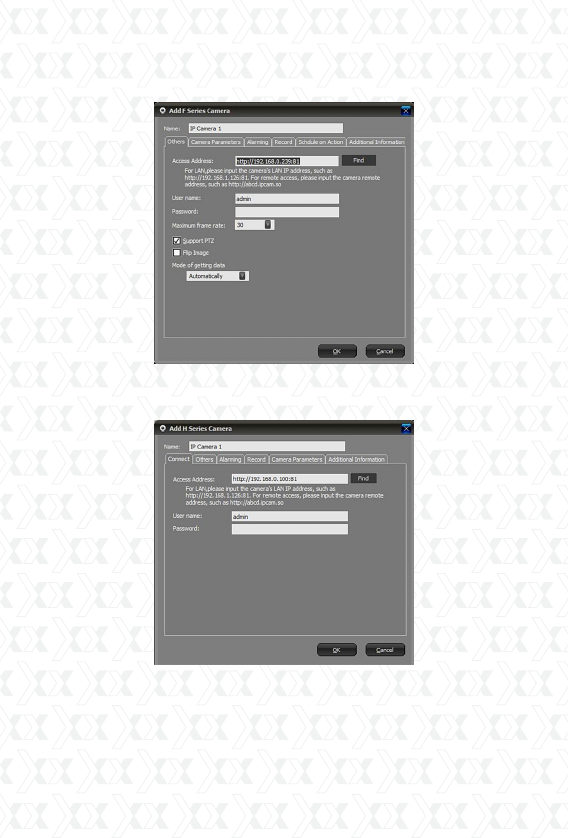

310-Series Image:

330-Series Image:

Nexxt Solutions - Outdoor Wireless IP Camera

Name: name assigned to the camera, used to distin-

guish it from other devices connected. This name

will be displayed on the camera list.

Basic information: the basic information used for

connecting the camera, such as connection method,

username, password, PT protocol, etc.

Device parameters: set size of the image and frame

rate. Not all series have this option available.

Alarm: This menu contains all the alarm-related

settings.

Record: This menu contains all recording related

settings.

Connection Information

IP/Domain mode: This mode provides LAN access

to the camera, or to a camera which has a domain

or ﬁxed IP. To use this mode, an incoming port should

be assigned. By default, this port is set to 81.

Username/Password: The username and password

used to access the camera.

Nexxt Solutions - Outdoor Wireless IP Camera

Forwarding Server: It provides access to videos by

retrieving the ﬁles from the server. This requires the

setup of server settings. This mode cannot support

PT control.

Support P2P: Supports P2P technology. This mode

cannot support PT Control.

Camera Parameters

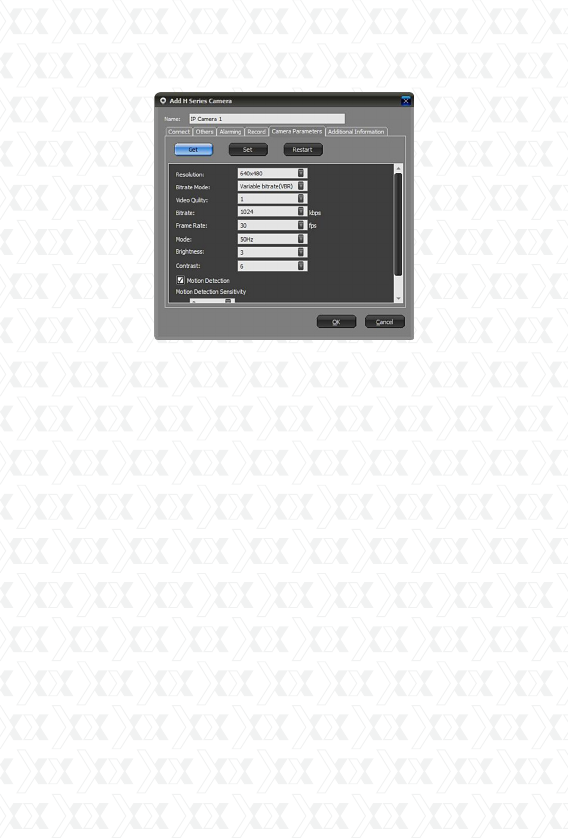

310-Series Image

Nexxt Solutions - Outdoor Wireless IP Camera

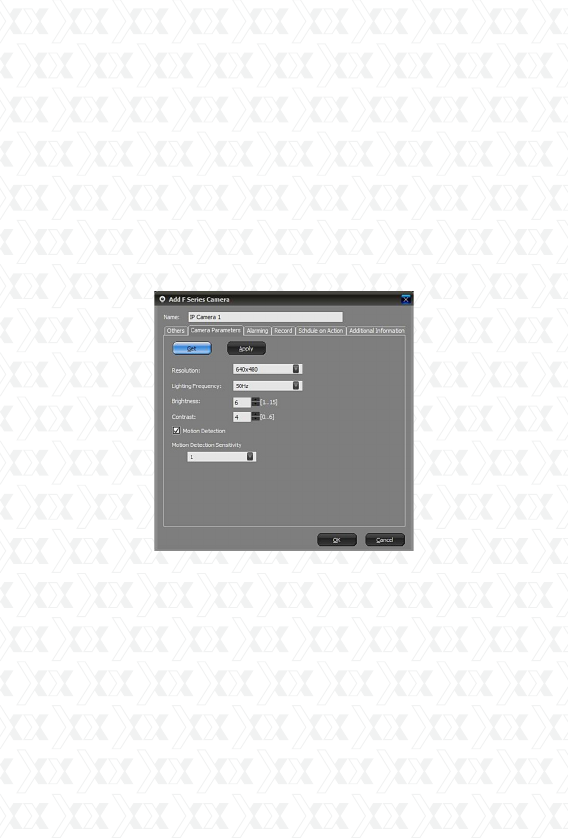

This menu is used to quickly set the camera

parameters. Not all models have this function. Click

the Get button to obtain the current settings. Click

Apply or Set depending on the model to save your

modiﬁcations.

Alarm

It includes all the alarm-related settings. Please

refer to the Alarm section for more details.

Record

It includes all the recording-related settings. Please

refer to the Recording section for more details.

Freq./Time setup

It is used to schedule a timing action to change the

lightning frequency.

Additional information

It is used to enter personal-related information, such

as user name, telephone, address, and memo.

330-Series Image:

Nexxt Solutions - Outdoor Wireless IP Camera

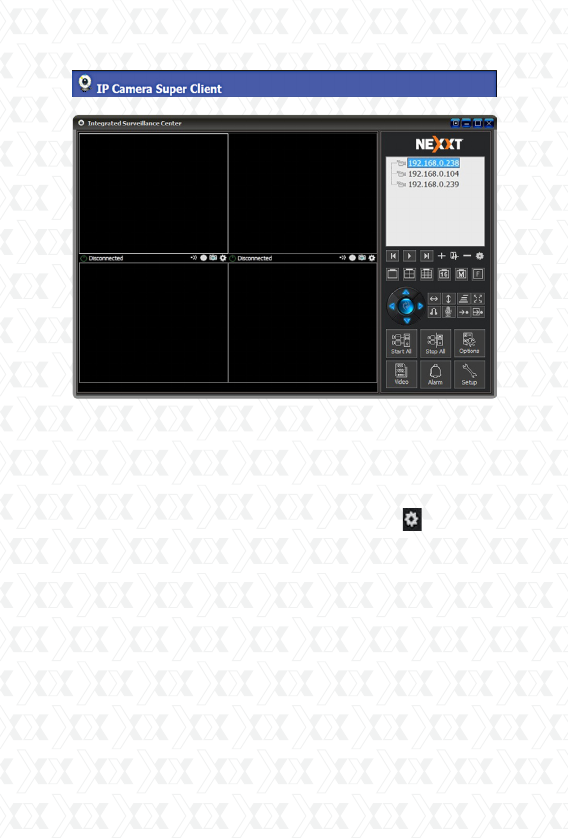

Device Tree Components: this tree provides a visual

representation of all detected devices. Supports

multi-level structure from which users can connect

or disconnect devices in a particular group. Users

can double click on a device to connect it and see

the video in the display area, or click the

Camera/Group Options button to modify the

settings.

Display Control Panel: users can choose between

full view in a single screen or a split screen conﬁgu-

ration of 4, 9,16,25,36,49, 64 or 81 frames.

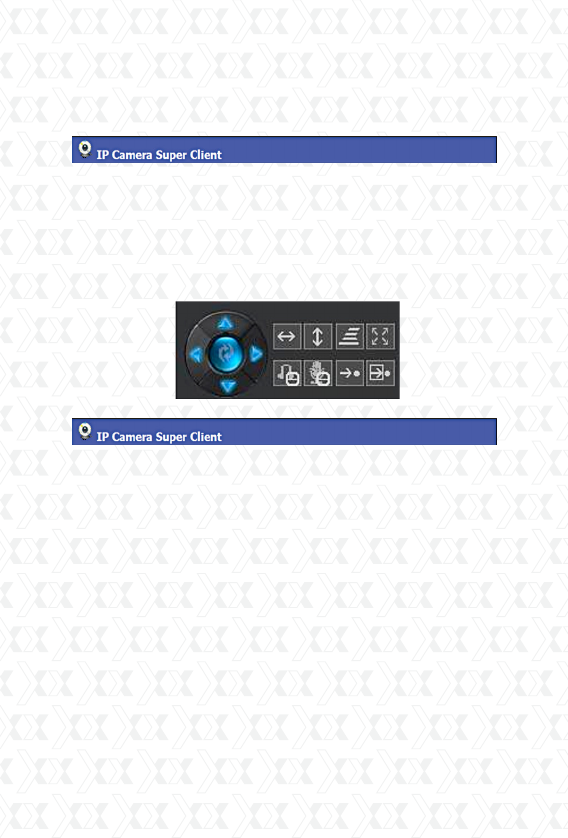

PT Control Panel: direction buttons for controlling

the Pan and Tilt feature of the camera.



Nexxt Solutions - Outdoor Wireless IP Camera

Main Menu: Allows the user to connect or discon-

nect all the devices, open the history manager,

system setup, and other functions.

PT Control

This feature is available based on the model of the

camera. If your camera supports the Pan and Tilt

feature, enable it using the client software. Once

enabled, the movement of the camera can be

controlled with the buttons in the PT control area.

Video Recording

Video recording is a basic function of the client

software, where users can choose to record

continuously, schedule a recording or setup a

recording whenever an alarm is triggered. Under

the Scheduled recording option, users can set

speciﬁed dates and times. Records will be then

saved to the assigned folder path set in the options

settings, and will automatically overwrite the

earliest ﬁles when the disk is full. The user can set

the parameter of how long to keep the ﬁles. For the

IP camera with MJPEG format, the client software

can compress the saved data into MPEG4 format,

which can be used to reduce the usage of space on

the disk.

Nexxt Solutions - Outdoor Wireless IP Camera

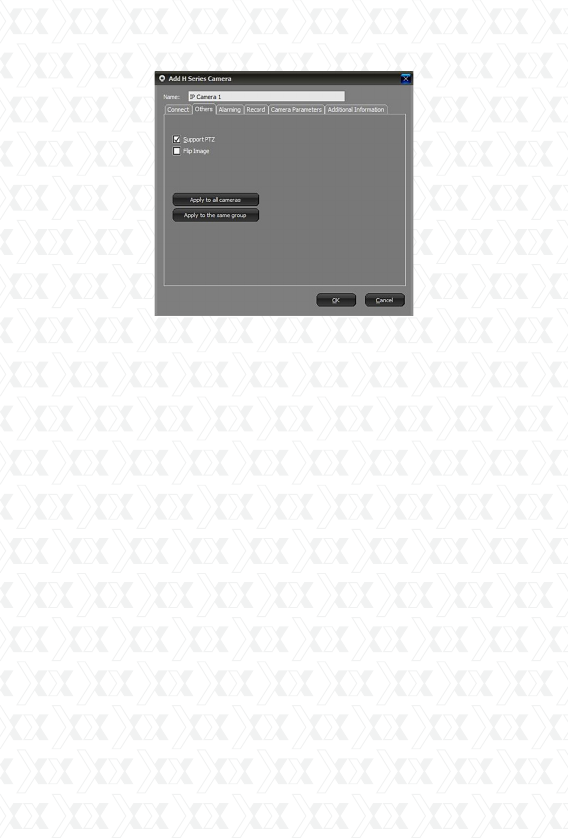

To set record function, right click the device and

choose Camera Options or click the Camera/

Group Options button. Next, go to Alarm tab.

Enable record: when selecting this option, the

recording function will be enabled.

Continuous recording: the client software will

record all the time.

Scheduled recording: users can appoint a certain

period in which the client will start recording.



Nexxt Solutions - Outdoor Wireless IP Camera

Alarm

The Client software supports various kinds of alarm

triggers, alarm events, and can be used to set an

alarm schedule.

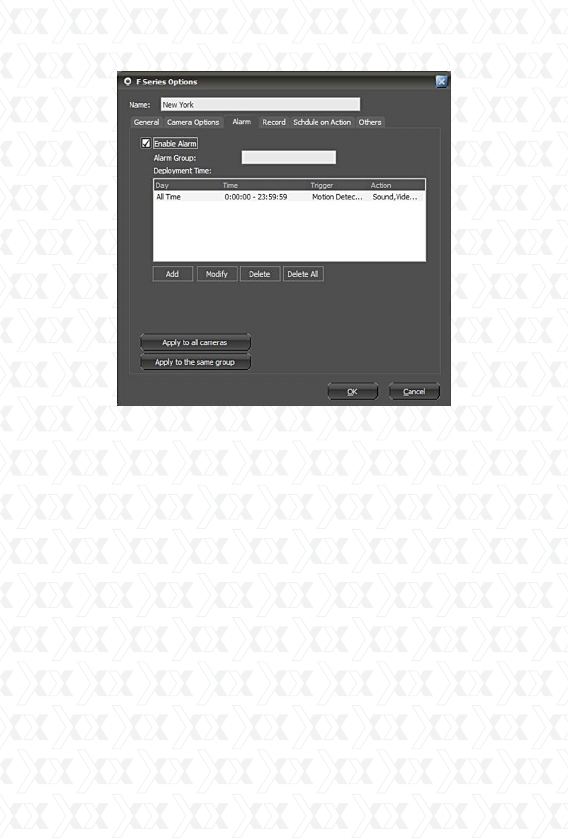

Select the camera in the display area or from the

device list, click the right button to choose Camera

Options, or click the Camera/Group Options

button. Next, go to Alarm tab.



Nexxt Solutions - Outdoor Wireless IP Camera

Enable alarm: in order to use the alarm function,

you must check this option.

Alarm group: it is a user-deﬁned name to identify

and link cameras belonging to the same group.

Alarm lasting time: the period of time the software

will keep the alarm active. That will have the same

duration as the event causing the alarm, which

includes the capturing of audio and the video

recording time.

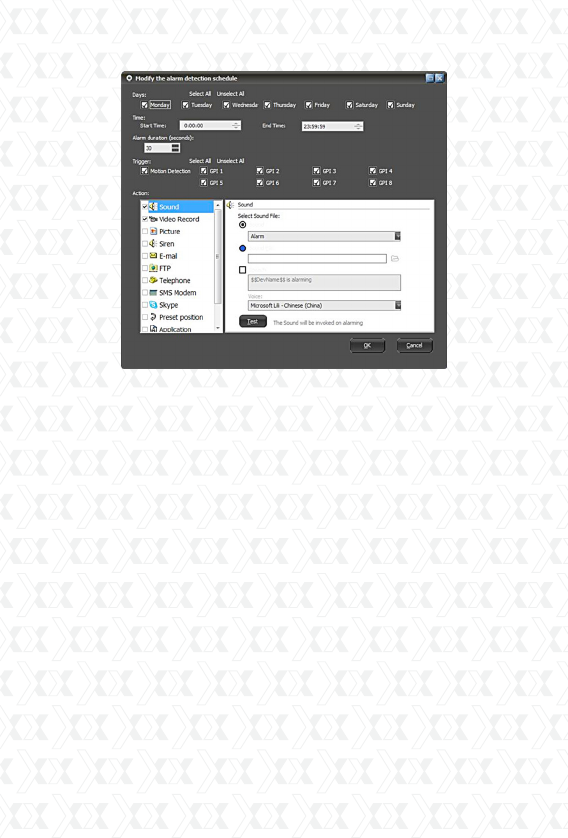

Schedule trigger: sets the schedule during which

alarm can be triggered.

Nexxt Solutions - Outdoor Wireless IP Camera

Days: specify the day(s) of the week the alarm will

be triggered.

Time: sets a starting and ending time for the alarm.

Trigger mode: speciﬁes the type of event that would

trigger an alarm.

It currently supports motion detection and alarm

sensor input (depending on the model).

An action on alarm deﬁnes how the software will

respond once the alert is triggered.

The actions supported are: sound, video recording,

snapshots, alarm siren, email, FTP uploading, SMS,

calling, SMS modem, alarm-output switching,

program executing and URL opening.

Below is the detailed explanation for each alarm

action.

Sound: when an alarm is triggered, the program

will play a sound on the computer to frighten the

intruder. Sounds can be customized.

You can choose the sound from the list in the

Nexxt Solutions - Outdoor Wireless IP Camera

program. Select the sound and click OK to save the

setting.

You can also choose other sound ﬁles from your

local disk drive. In other words, you can record

“Catch the thief” in a ﬁle, save it and then select the

sound ﬁle by clicking the folder button to add the ﬁle

you want.

If you want to read a text on alarm, you can check

the “Speech” icon and edit the contents to be read.

In addition to reading the normal text, the program

also displays the description of pre-deﬁned features,

such the name of the alarm device and alarm time.

These pre-deﬁned contents appear within the “$$”

symbols. The software includes the following

pre-deﬁned content:

$$DevName$$: the name of the device sending the

alert signal.

$$AlarmTime$$: displays the time when the alarm

occurred.

$$Trigger$$: displays the event triggering the

alarm.

If you only need to read a text having no audio

being played, you can choose “sound ﬁle” without

specifying the use of one. Check the “Speech”

box below.

Nexxt Solutions - Outdoor Wireless IP Camera

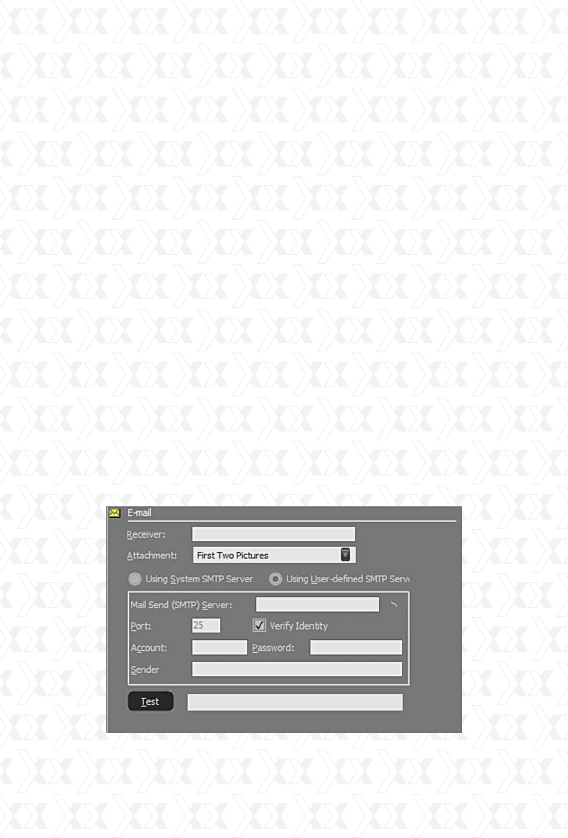

Email: when the alarm goes off, the program will

send an email acknowledgement with the pictures

or video recording attached.

Attachment: the user can choose to send emails

with or without attachments, or with pictures or

videos. However, when choosing to send an attach-

ment, the user needs to have the live recording

function enabled ﬁrst.

Receiver: it is the email address to which the alarm

acknowledgement will be sent to.

Copy: it is the email address or addresses to which

the alarm acknowledgement will send a copy of the

message and attachments. Use commas to sepa-

rate multiple email addresses.

Test: when you click this button, the program will

send a test email. Users can check whether it was

correctly sent or not. If sending fails, the program

will show you the details of the failure.

Users have the option to choose the mail server

according to their own needs.

Nexxt Solutions - Outdoor Wireless IP Camera

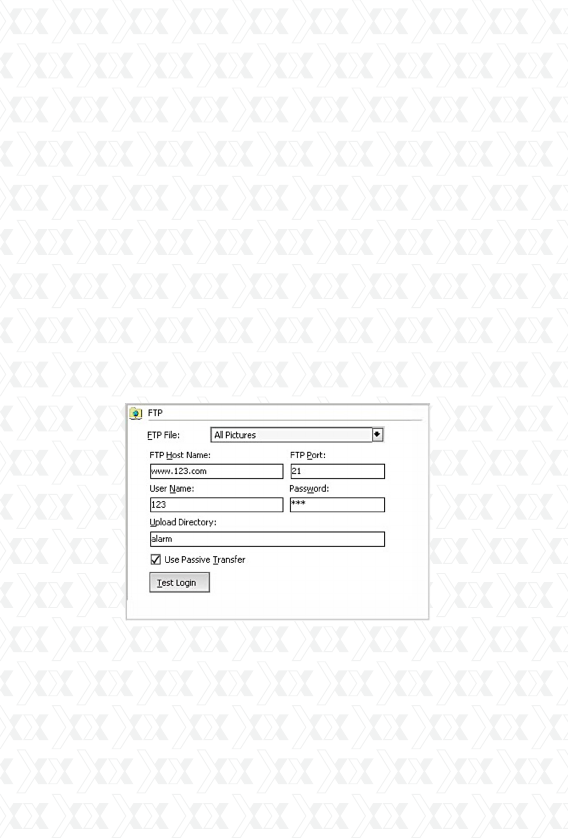

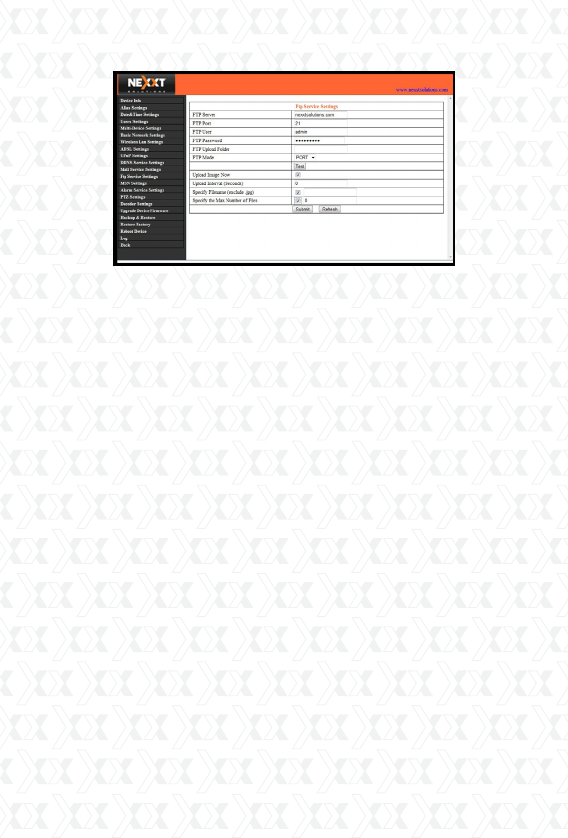

FTP Uploading: when the alarm is triggered, the

program will upload the snapshots to the FTP

server.

Upload ﬁle: three options are available: picture only,

video only, or both picture and video.

FTP host address: account information required to

access the File Transfer Protocol host.

FTP port: the default is set to 21.

User name: the user name used in the FTP login

window.

Password: the FTP password used in the login

window.

Upload Directory: This is the path used for

saving uploaded ﬁles. The program will create

a folder using the time the alarm went off. The

pictures and videos will be saved to this directory.

Dialing: when the alarm is triggered, the program

will dial the assigned telephone number automati-

cally using the PC’s modem. This service requires

a modem to be installed on the PC which supports

dialing functions.

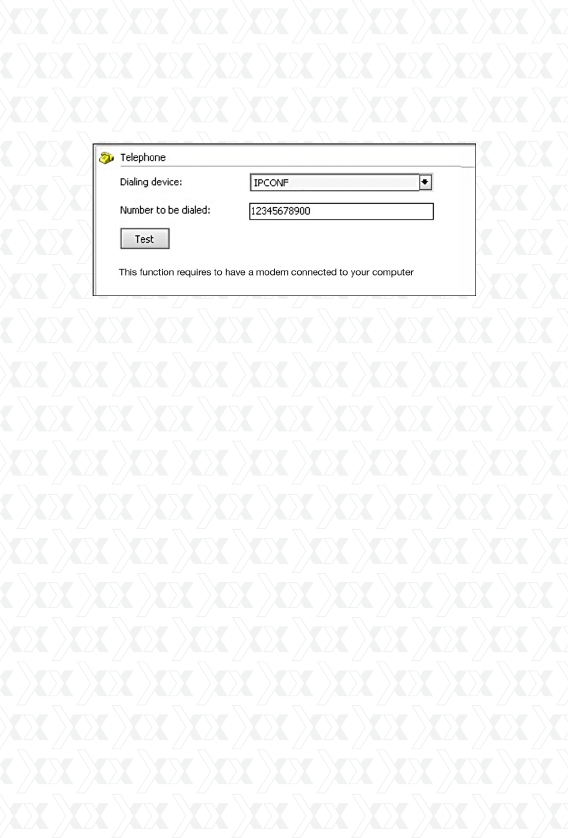

Dialing device: choose the modem from the list that

supports the dialing feature.

Nexxt Solutions - Outdoor Wireless IP Camera

Number to be dialed: the number which will be dialed

once the alarm is triggered.

Test: click Test to make sure this setting is functional.

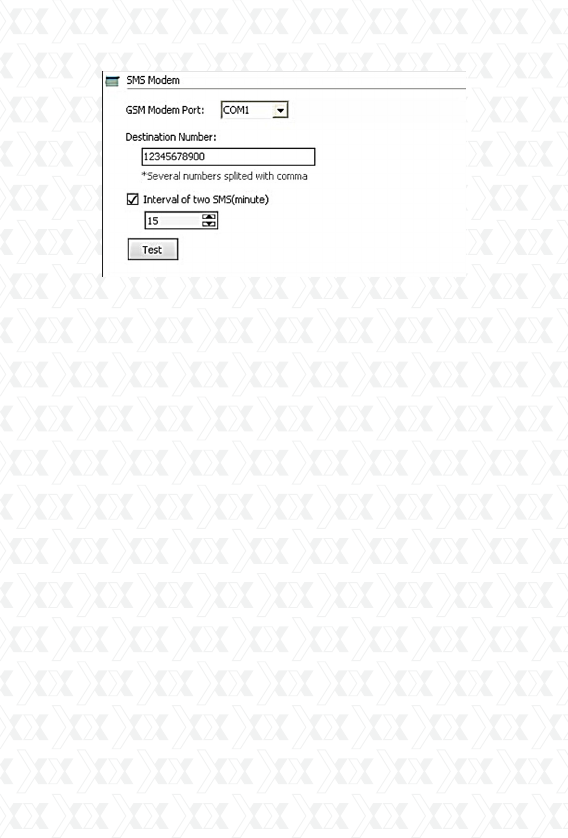

SMS modem: when an alarm is triggered, the pro-

gram will send a Short Message Service transmission

to the assigned phone through the modem.

This service requires an SMS modem to be installed

on the PC.

SMS modem port: the serial port number which is

attributed to the SMS modem.

Receiving phone number: the enabled-SMS land line

or mobile phone number which will receive the

incoming message when the alarm is triggered.

SMS interval (in minutes): deﬁnes the time interval

in minutes that the SMS alerts will go off while the

alarm is active.

Test: click this button to test this service, the

program will send a SMS to the assigned phone

number.

Nexxt Solutions - Outdoor Wireless IP Camera

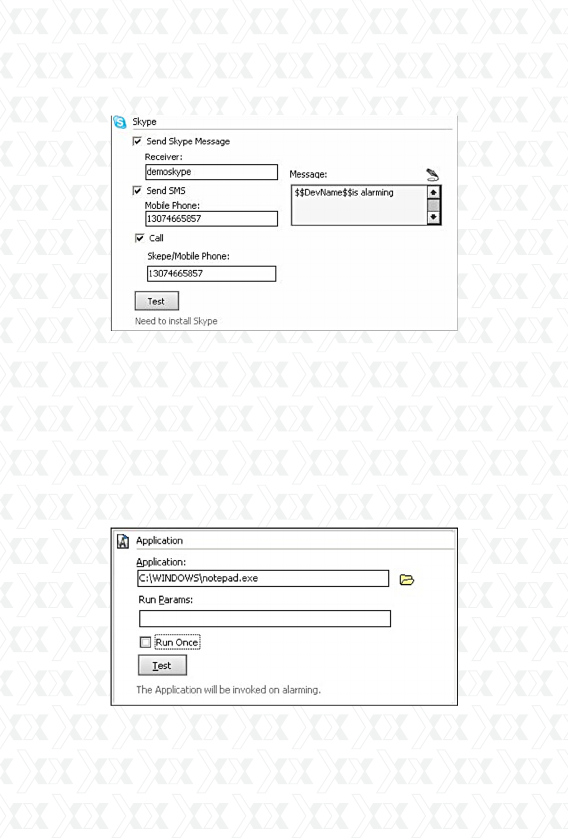

Skype: when an alarm is triggered, the program will

use Skype to send Skype messages, text messages,

Skype calls and call a mobile phone.

This feature requires for Skype to be installed on

your computer. When the alarm is triggered, the

program will call or open the Skype interface, so

that it can execute the actions mentioned above. If

Skype is not running, the program will automatically

start Skype. You can download Skype by going to

http://www.skype.com.

Send Skype Message: this option sends a text

“message” to the designated Skype account.

Send SMS: this option sends a text “message” to

the designated phone. Please note that this feature

requires a Skype account balance. To know more

about using Skype to send SMS, recharge informa-

tion, etc., please visit the ofﬁcial Skype website.

Call: it places a call to the designated Skype account

or to a designated phone number. Please note that

the “dial a designated telephone number” feature

requires a Skype account balance. To know more

about using Skype to make calls, please visit the

Skype ofﬁcial website.

Nexxt Solutions - Outdoor Wireless IP Camera

Application: when the alarm is triggered, the

program will execute the selected program.

Program: it deﬁnes the path for the .exe ﬁle

belonging to the selected program.

Run parameter: the run parameter values should

be entered in this box.

Run once: this option will execute the command only

when the alarm goes off for the ﬁrst time, with no

further action after that.

Test: click Test to make sure this setting is

functional.

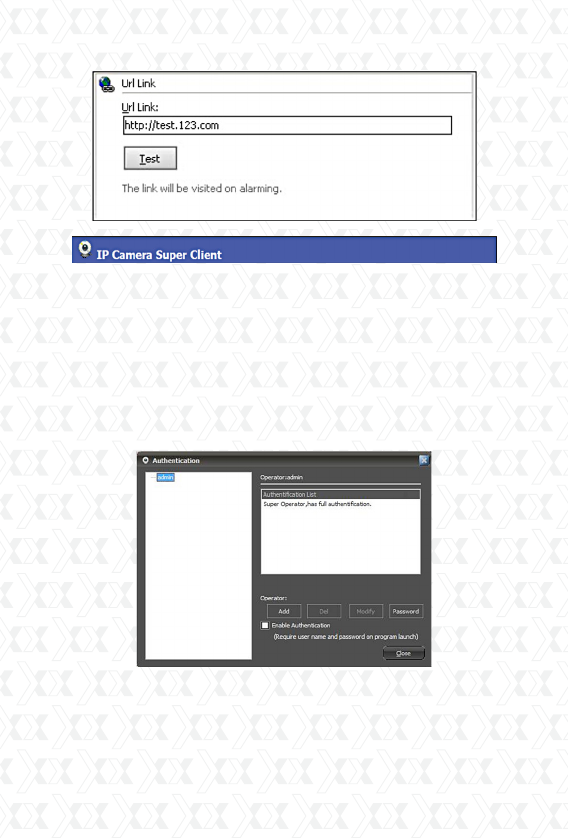

URL Link: when the alarm is triggered, the program

will open the assigned URL. Usually, this is used to

inform other systems about the alert.

Nexxt Solutions - Outdoor Wireless IP Camera

User Account Administration

The Client supports a multi-level management sys-

tem, whereby different users are granted speciﬁc

privileges and passwords for controlled access.

This function is not enabled by default. Please click

the Setup menu button on the lower right side of

the dialog window and choose User Account Setup

to continue.

When this feature is enabled, the program will

always request authentication from users.

By default, the admin account enjoys full administra-

tor privileges. This account can never be deleted;

Nexxt Solutions - Outdoor Wireless IP Camera

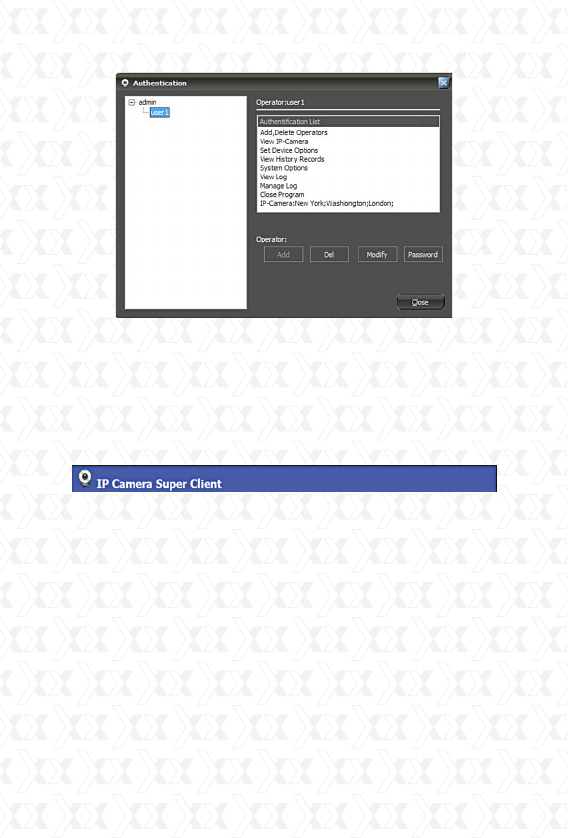

Once you type in the account information and assign

the corresponding permissions, click OK to save it.

Privileges to add or remove accounts mean that the

account operator can include or delete its depen-

dant users. This takes effect only after logging in

with this account.

however, its password can be changed.

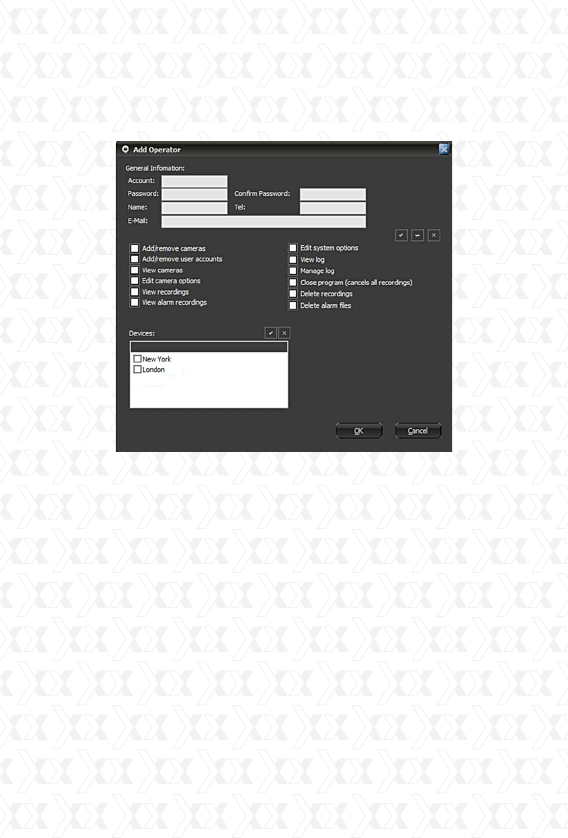

Add operator: click the Add button and the dialogue

box below will appear.

Nexxt Solutions - Outdoor Wireless IP Camera

Delete: the currently selected operator will be

erased.

Modify authority: it changes the permission level

assigned to this operator.

Change password: it allows the user to modify the

existing password.

Log manager

The client software has log management function. It

will keep records of user operation and device con-

nection information. Click the Setup menu button on

the bottom right corner of the dialog box, and then

choose Log Management to open the window.

Nexxt Solutions - Outdoor Wireless IP Camera

After selecting the desired device and date, click the

Find button.

Records publisher

Users can remotely view videos and alarm logs using

the records publishing tool from the client.

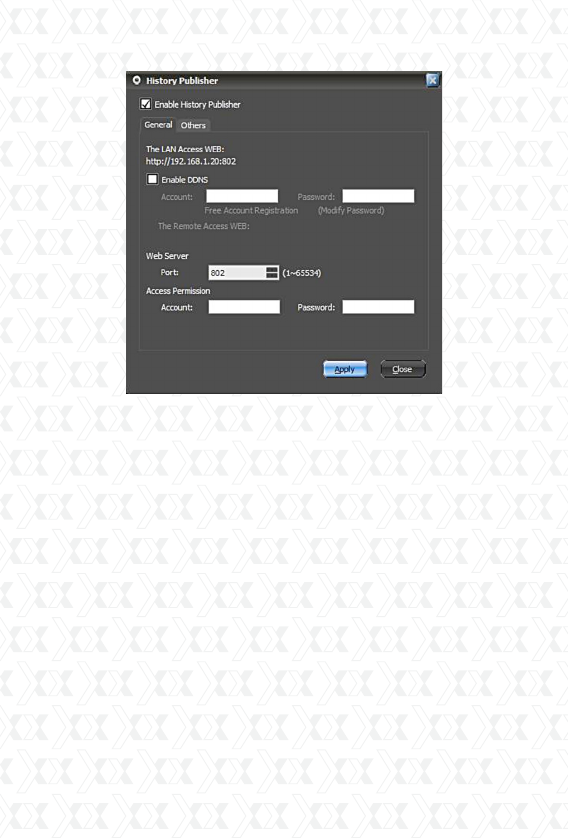

Click the Setup menu on the bottom right corner

of the dialog box, and choose Record History Web

Publisher. The following window will be displayed, as

shown below.

Nexxt Solutions - Outdoor Wireless IP Camera

By default, this function is not enabled. You must

ﬁrst select the Enable History Publisher option and

click the Apply button to enable this feature. The

LAN IP address will be displayed at this point. Users

can directly view records in the LAN if the PC has a

ﬁxed IP address. Records can also be accessed by

entering the IP address and adding the port num-

ber. If using a dynamic IP, then the DDNS feature

must be active to be able to view this information

remotely. This tool should allow users to register a

DDNS account for free. The account name needs to

be longer than 5 characters.

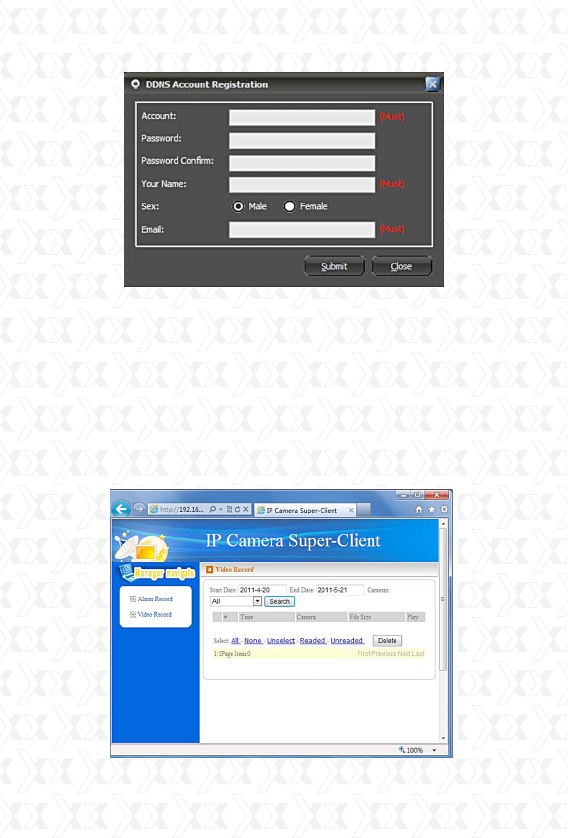

Click on the free account registration option. The

DDNS registration box will appear, as shown below.

Fill the form and click the Submit button to save

your settings. Once completed, it will exhibit the re-

mote access URL. Please note that port forwarding

needs to be set up directly on your router.

Nexxt Solutions - Outdoor Wireless IP Camera

Users can set a password for controlled access

permissions.

The Web server port is the port provided for re-

mote visit. Normally, this value does not need to be

changed, but if that port is being occupied by other

devices, users can assign a different port number

within the 1 ~ 65535 range.

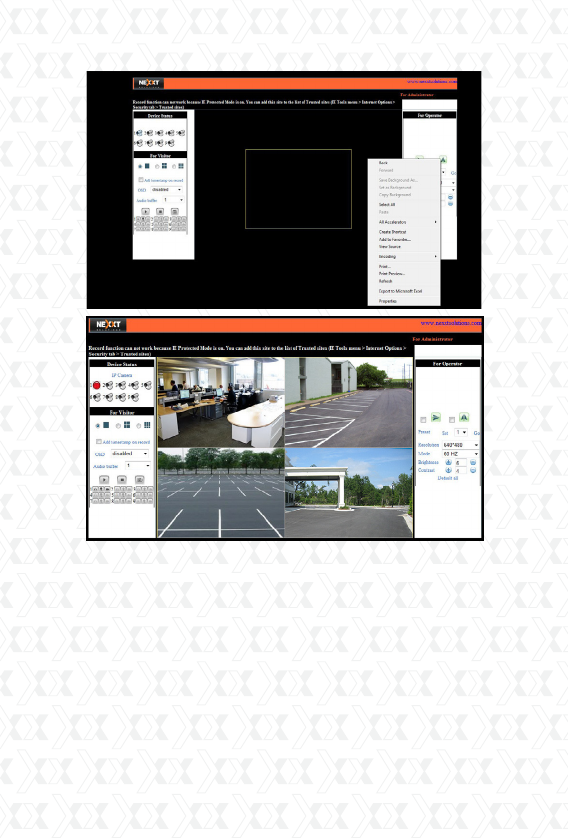

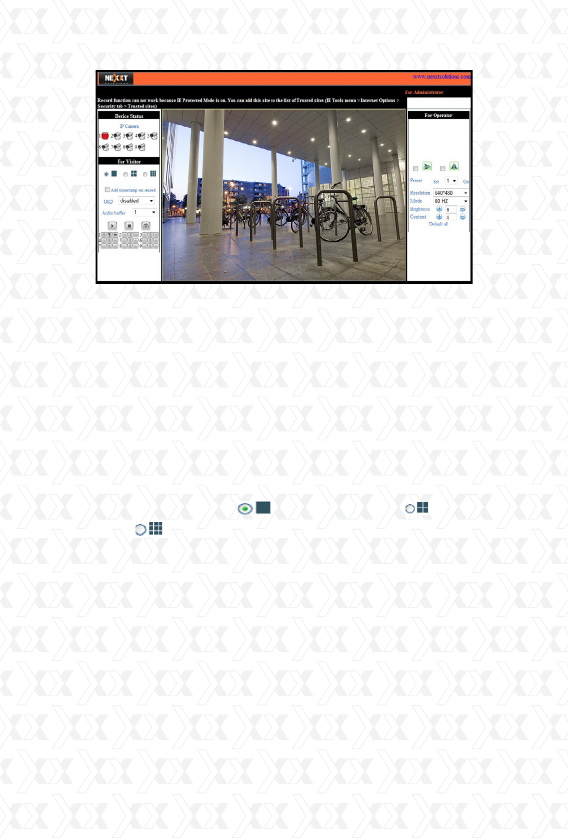

When entering the URL in IE address box, a page

like the one below this will be displayed.

Nexxt Solutions - Outdoor Wireless IP Camera

A list containing all the devices with recorded video

ﬁles will appear. Next, click on any speciﬁc device,

and a list of recordings identiﬁed with the date will

be displayed at this stage.

When the operator chooses a certain date, the

page below will pop up on the screen.

The list contains the ﬁles recorded that day. When

you click on a speciﬁc ﬁle, it will play the video.

Nexxt Solutions - Outdoor Wireless IP Camera

If you access the camera through the Internet

Explorer browser directly, type the camera’s IP

address. To do so, follow the format http://XXX.

XXX.XXX.XXX:81, (“X” represents the IP address

and the “:81” represents the default port

number). When done, the camera login page

will be displayed on the screen.

During playback, the user can rewind or forward

the video, take a snapshot or invert the recorded

images.

The process to remotely access alarm records is

the same as with video records.

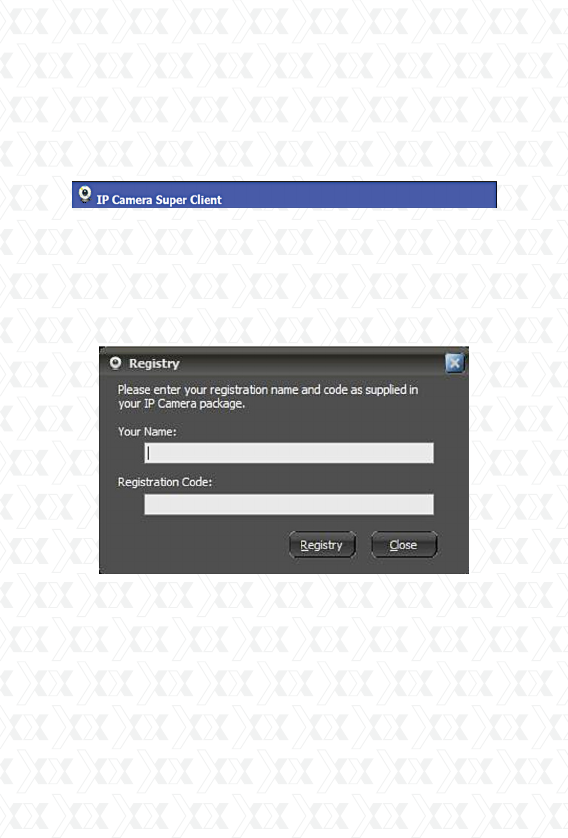

Registration

Go to the Setup menu and select Registration.

Enter the registration name and code, and click

The registration name and code can be found on

the supplied CD-ROM.

Web browser

Nexxt Solutions - Outdoor Wireless IP Camera

By default, the administrator’s username is “admin”

and the password is left blank. You can log on to

this page as an Administrator, Operator or Visitor.

Access privileges will be assigned on the web

browser interface based on the user. Details

regarding access rights and user interface are

included below.

Visitor: When logged in as visitor, the user will be

able to view the main monitoring page for all the

enabled cameras on the network.

Operator: When logged in as an operator, the

user will have access to controls and to certain

parameters associated with the operation of the

camera.

Administrator: When logged in as an administra-

tor, the user will have full access to controls, critical

functions and to the advanced conﬁguration of the

camera.

Click “sign in” to enter your account and password

on the camera login page, as shown below.

Nexxt Solutions - Outdoor Wireless IP Camera

Main User Interface (as seen in Internet Explorer)

Device Status

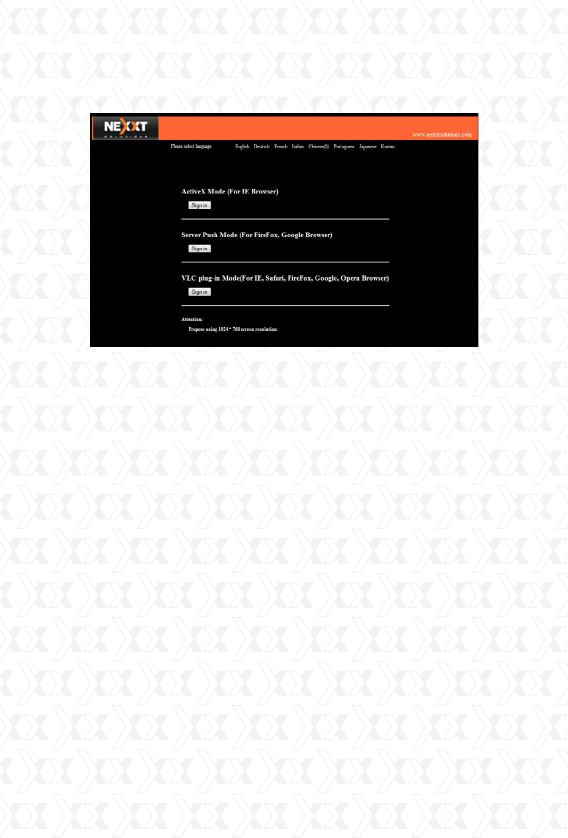

3. If you are using a PC, follow the top link for IE

Browsers. This will activate ActiveX which allows

access to additional features of the user interface.

If you are a Mac user, you can view the camera via

a second link, Server Push Mode. This web browser

mode features limited functionality; however, it

allows you to view live video and take snapshot

pictures using the XPY-310.

Upgrade ﬁrmware

Enter the correct User Name and Password to up-

grade the system ﬁrmware and Web user interface.

Nexxt Solutions - Outdoor Wireless IP Camera

Indicates the number of cameras connected on the

network.

For Viewer

When logged in as visitor, the user will be able to

view the main monitoring page for all the enabled

cameras on the network. This window allows you to

choose between Full View or Split Screen

conﬁgurations. Select the icons according to the view

preferred.

For example: select for Full Screen, for Quad

view or for Multi Split Screen.

Add timestamp on record

When checked, a timestamp will be added in the

bottom right corner of recorded videos.

OSD (On Screen Display) for multi-device settings

The On Screen Display allows you to see the date and

time on the video. Use this option to select the color

of the timestamp or to disable the OSD feature.

Nexxt Solutions - Outdoor Wireless IP Camera

Add timestamp on record

When checked, a timestamp will be added in the

bottom right corner of recorded videos.

OSD (On Screen Display) for multi-device settings

The On Screen Display allows you to see the date

and time on the video. Use this option to select

the color of the timestamp or to disable the OSD

feature.

Audio buffer

Sets the audio buffer time in seconds.

Audio switch

Click to enable the audio stream from the

camera. The icon will change to . In order to be

able to listen to the sound around the camera, you

need to have an earphone or speaker connected to

the computer, and the microphone function enabled.

Click this icon once again when you want to disable

this feature.

Record

Click on the icon to begin video recording. The

camera will create an AVI ﬁle and save it in the

folder you speciﬁed. Click on this button again when

you wish to stop the recording. The audio will be

stored provided that the microphone function has

been previously enabled.

Snapshot: Click on the icon to take a snapshot

image. This button provides users a fast way to

capture a single image of the video from the

camera.





Nexxt Solutions - Outdoor Wireless IP Camera

Note: the video ﬁle would be assigned a name

according to the following format:

Alias_actual date.avi

For example: if the name of the ﬁle containing

the video is XPY310_20101211124441.avi, it

means this recording belongs to the device having

‘XPY310’ as its alias, and that the video was

recorded at 12:44:41 on December 11, 2010.

For operator

When logged in as an operator, the user will have

access to the Operator Page, and to certain

parameters associated with the operation of the

camera.

Mirror

Click the icons to see the horizontal or vertical

mirror image. Video rotation options allow you to

adjust the image if you set up the camera upside

down or in a special position.

Resolution

Select either VGA (640x480) or QVGA (320x240).

Operating mode

Select 50Hz or 60Hz frequency, or Outdoor mode.

Color parameters: click Brightness and Contrast to

adjust the quality of the video.

Default All

Click to return the settings to their factory default

values.



Nexxt Solutions - Outdoor Wireless IP Camera

For Administrator

When logged in as an administrator, the user will

have full access to controls, critical functions and to

the advanced conﬁguration of the system.

Device Information: it displays the device ID, ﬁrm-

ware and embedded Web UI version of the device,

along with other basic information pertaining to the

camera.

Alias Settings: allow the administrator to set a

name to easily identify the IP camera. Anonymous is

the default alias for the XPY310.

Date & Time Settings: these are used to determine

the time zone for your country. You can choose Sync

with NTP Server or Sync with PC Time.

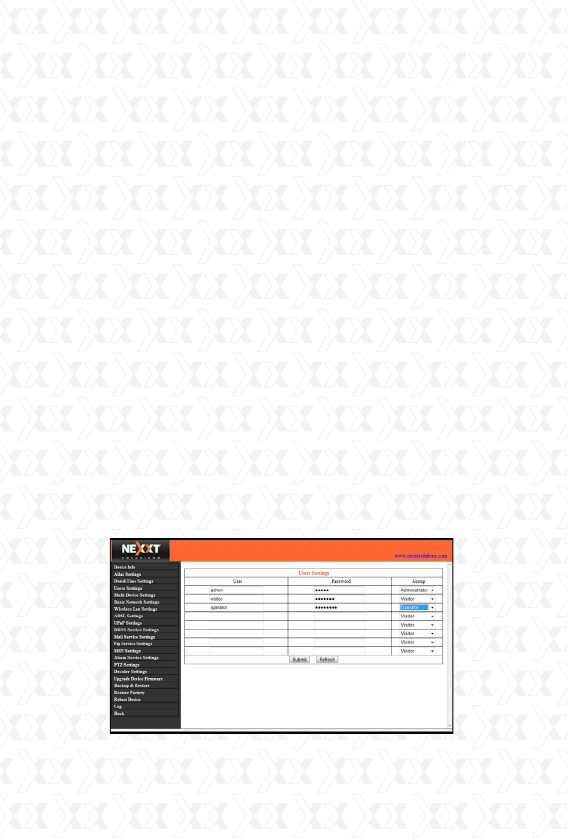

User Settings: the administrator can set up a maxi-

mum of eight (8) user accounts. New users can be

added as an administrator, operator or visitor, each

with their own username and password.

Nexxt Solutions - Outdoor Wireless IP Camera

UPnP Settings - Access this page to ﬁnd out if the

UPnP (Universal Plug and Play) is working correctly

on your computer.

Upgrade Device Firmware - Upgrade the camera’s

Firmware and device embedded web UI software on

this page.

Restore Factory Settings - Restores the original

settings of the device.

Reboot Device - Reboots the device.

Multi-Device Settings

In the Multi Device Settings page, the user can

visualize all devices detected in the LAN. The

ﬁrmware inside the camera supports up to 9

cameras monitoring at the same time. You may

view either 9 or 4 cameras at once in a grid on one

screen, or choose to view a single camera at

a time.

The ‘1st device’ is the default IP camera. You can

add more cameras to the list in the network for

monitoring different areas.

Nexxt Solutions - Outdoor Wireless IP Camera

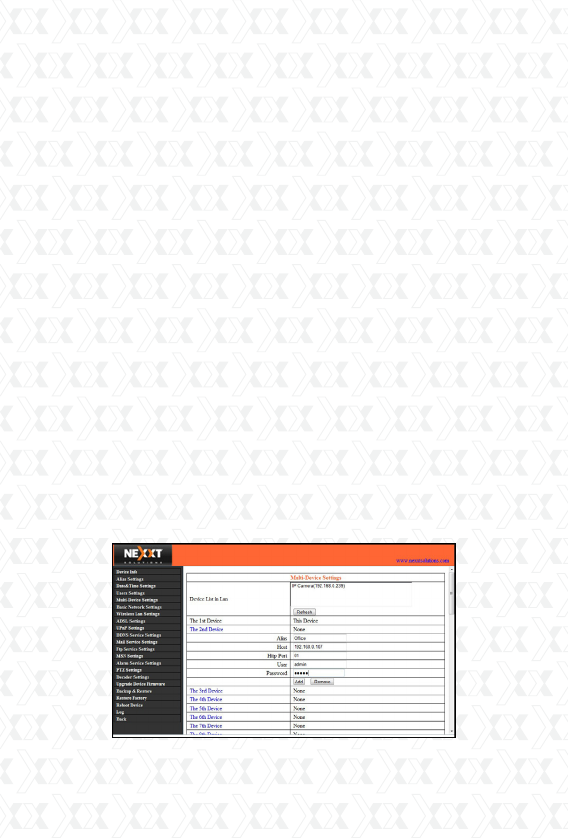

To add cameras to the LAN

Click ‘The 2nd Device’ and double click the IP

camera from the ‘Device List in LAN’. The Alias,

Host and HTTP Port will ﬁll in automatically. Enter

the correct User Name and Password then click

‘Add’. Repeat the same procedure to add additional

cameras.

To add cameras to the Internet

First make sure the camera added can be

accessed on the Internet with the IP address or

DDNS domain. (for example: http://XXX.XXX.XXX.

XXX:81 or http://ipcamera.dyndns.org:81).

Enter the Host in the format: XXX.XXX.XXX.XXX

port: 81 or Host: ipcamera.dyndns.org port: 81.

Enter the correct User Name and Password

followed by ‘Add’. Repeat the same procedure to

add more cameras.

Basic Network Settings

If the router that the IP camera connects to has

a DHCP function, you can choose ‘Obtain IP from

DHCP Server’ or you may ﬁll in the network

parameters manually.

HTTP Port - In most cases, you can leave this value

as 80; however, if your Internet Service Provider

blocks this port, you may have to switch to another

port number, such as 8005.

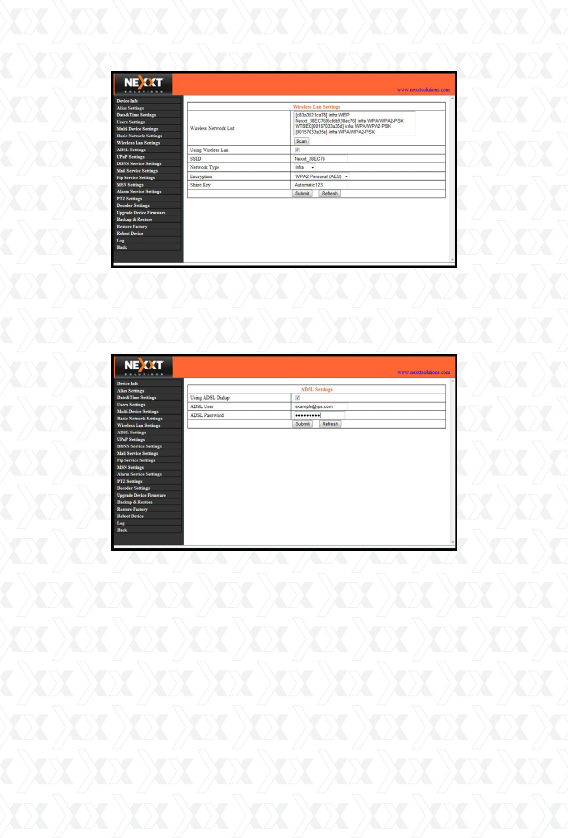

Wireless LAN Settings

Enter the wireless settings page of the Wireless

Router to ﬁnd out the SSID, Channel, Encryption and

Authentication details. This product supports WEP

and WAP security encryption methods.

Nexxt Solutions - Outdoor Wireless IP Camera

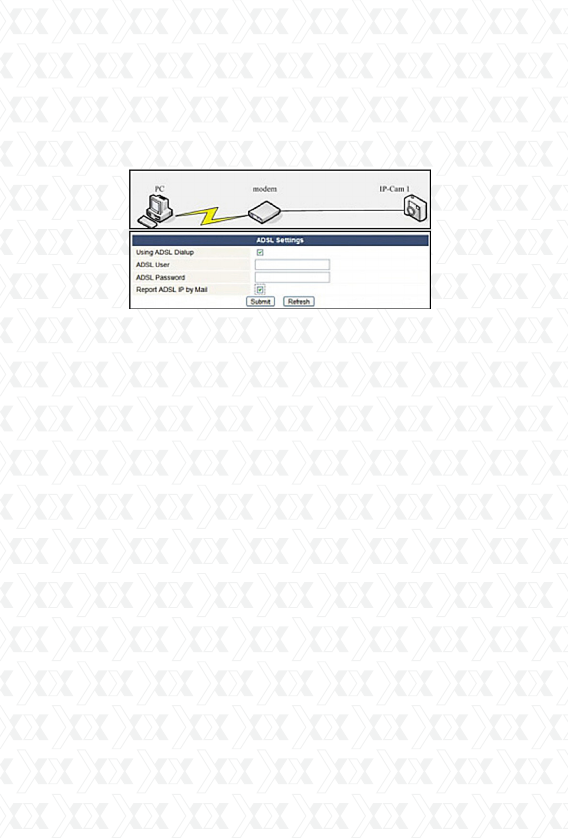

ADSL Settings

When connected to the Internet through ADSL,

you can enter the ADSL username and password

obtained directly from your ISP.

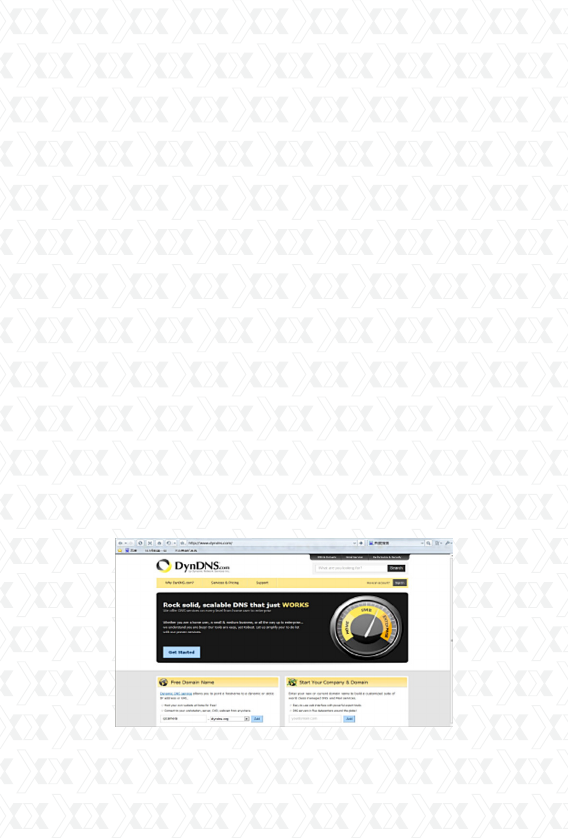

DDNS Service Settings

The system supports protocols from some DDNS

providers such as dyndns.org. Fill in the following

ﬁelds once the DDNS service has been setup.

User and Password: The User Name and Password

used when applying for the domain name.

DDNS Host: The domain name.

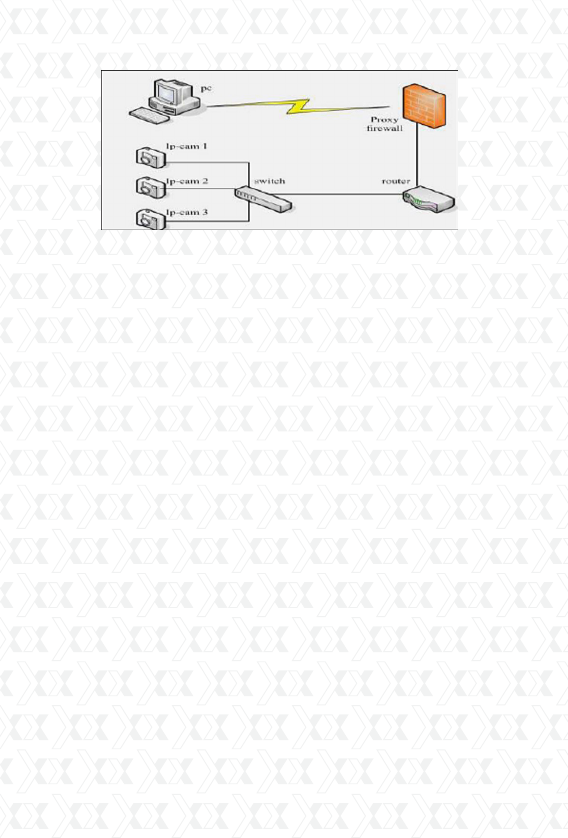

DDNS or Proxy Server: If you access the DDNS host

through a proxy, you should enter the Proxy IP here.

DDNS or Proxy Port: The Proxy Port.

Nexxt Solutions - Outdoor Wireless IP Camera

Mail Service Settings

Conﬁgure the email addresses that will receive and

send mails after an alarm is triggered.

Sender - This device uses the sender mailbox to send

mails.

Receiver - The account used to receive mails from

the Sender. You can set up to 4 receiver mailboxes.

SMTP Server - The SMTP server for the sender

mailbox.

Need Authentication - Check the box if the email

needs authentication. If so, please enter the SMTP

User Name & Password.

Mail test: Set the Mail parameters and click ‘Submit’

before attempting to send a test email.

Nexxt Solutions - Outdoor Wireless IP Camera

There are 8 possible Mail Test errors:

1. Cannot connect to the server.

2. Network Error. Please try later.

3. Server Error.

4. Incorrect username or password.

5. The Sender is denied by the server - The server

needs to authenticate the user; check settings and

try again.

6. The Receiver is denied by the server - Could be

caused by the anti-spam privacy settings of the

server.

7. The message is denied by the server - Could

be caused by the anti-spam privacy settings of the

server.

8. The server does not support the authentication

mode used by the device.

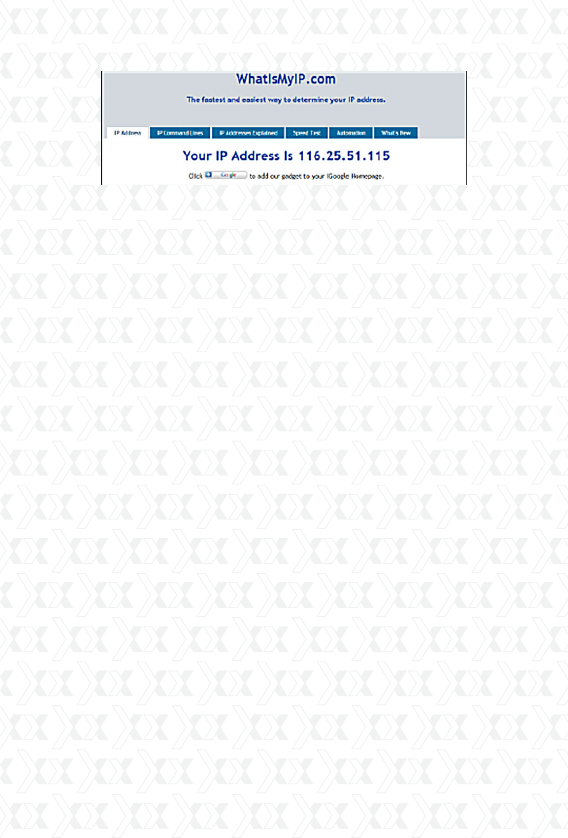

Report Internet IP by Mail - Check the box so when

the IP camera is powered on or the

Internet IP address changes, an email will be

sent. (For example: XPY-310 ‘s address is

http://119.123.207.96:9002). Make sure the

port is mapped to the router correctly by UPnP or

Virtual Map function.

FTP Service Settings

Note: When under Alarm Service Settings the

option “Upload Image on Alarm” is checked, the FTP

Service takes effect.

Nexxt Solutions - Outdoor Wireless IP Camera

FTP Server - The FTP server address.

FTP port - The port usually is 21.

FTP Mode - Supports standard (PORT) mode and

passive (PASV) mode.

Upload Image Now - Check the box to upload an

image. When checked, you can input the upload

interval time in seconds.

FTP Test - Set the FTP parameters and then

click ‘Submit’ before testing the FTP settings. If

successful, the user will be prompted accordingly.

Otherwise, an error message will be displayed.

There are 8 possible FTP test errors:

1. Cannot connect to the server - Please check FTP

Server settings.

2. Network Error. Please try later.

3. Server Error.

4. Incorrect username or password - Check the

username and password.

5. Cannot access the folder - Ensure the folder

exists and your account is authorized.

6. Error in PASV mode - Ensure the server supports

PASV mode.

7. Error in PORT mode - PASV mode should be

selected if the device is behind a NAT.

Nexxt Solutions - Outdoor Wireless IP Camera

8. Cannot upload ﬁle - Ensure your account is

authorized.

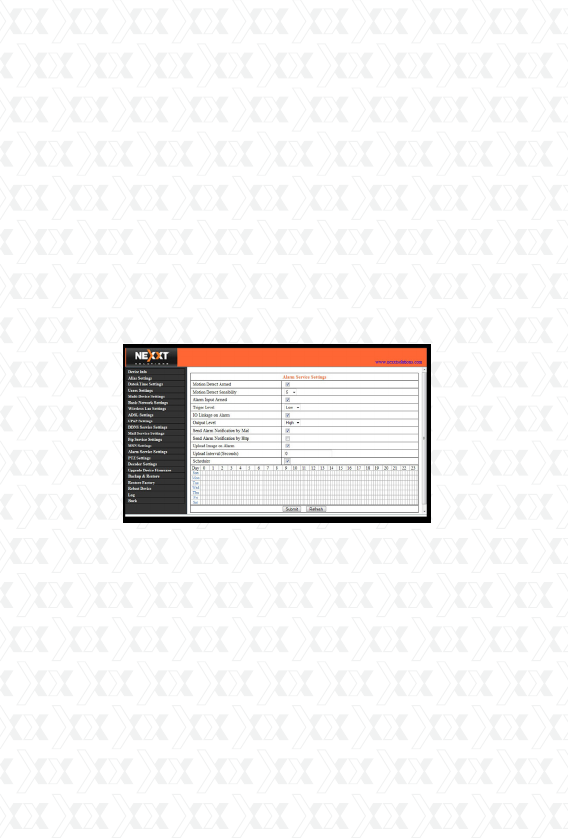

Alarm Service Settings (Motion Detection)

Enter the Alarm Service Settings page to conﬁgure

the Motion Detection function. When motion detec-

tion is enabled, the camera can be triggered to send

email alerts and upload images. In the camera

monitoring page, the green icons will turn to red and

you will hear an alert sound if motion is detected.

Note: The default path for saving recorded ﬁles is

C:\Documents and Settings\All Users\Documents.

Motion Detection Sensitivity - Sensitivity can be

determined in a scale from 1 to 10, 1 being the

setting with the highest motion detection sensitivity,

while 10 represents the lowest sensitivity available

you can preset.

Send Mail on Alarm - Sends picture & mail infor-

mation to the set email address after the alarm is

triggered.

Upload Image on Alarm - Enable this function to

upload an image after the alarm is triggered.

Nexxt Solutions - Outdoor Wireless IP Camera

REC on schedule and save to PC - Enable this

function for automatic recording to start on the

scheduled time for several seconds, and save the

video in the PC when an alarm has been triggered.

ACCESSING THE IP CAMERA

Using the WiFi capability

To use the wireless feature of the IP Camera, a

wireless router is required. Follow the instructions

below to get started after the camera has been

mounted properly.

1. Use the Network cable to connect the IP Camera

to the LAN.

2. Enter IP Camera Tool to search for the camera.

3. When IP address of the camera is listed in the

Result Field of the IP Camera Tool, it means the

basic conﬁguration is completed.

4. Set the security settings in Internet Explorer on

the PC when you view it for the ﬁrst time.

5. Log in to the web browser of the IP camera.

6. Now you can use the IP Camera as a Visitor,

Operator or Administration in the LAN.

7. Open the wireless router setup page and enter

the SSID, Channel, Security Method (NONE,

WEP), kAuthentication Type and Encryption.

Note: This product supports WEP and WAP

security encryption methods.

8. Click “Submit” to reboot the device.

9. Wait at least 30 seconds, then unplug the

ethernet cable followed by the power supply. Power

on the camera once again, making sure only the

power supply is connected. After 30 seconds, if the

Nexxt Solutions - Outdoor Wireless IP Camera

LED blinks, it indicates the IP camera has started

working on WiFi mode.

Connect to the Internet through ADSL directly

1. Use the Network cable to connect the IP Camera

to PC.

2. Enter IP Camera Tool to search for the camera.

3. Log in to the IP camera web browser page as an

Administrator.

4. Enter the ADSL Settings page to input ADSL

User Name and password.

5. Enter DDNS Settings Page and enable the DDNS

service. Next, click ‘Submit’ to reboot the camera.

6. By connecting the IP Camera to the ADSL

directly, you can access the Camera through the

Internet using the domain name.

Note: Choose the option ‘Report ADSL IP by Mail’,

for the ADSL IP address to be sent via email.

Connect to the Internet using a router

Follow the steps below to use a router to access the

Internet by shared ADSL. If a router is set for dial-up

Internet access, setting an ADSL dial-up account

and password on the IP Camera is not required.

Nexxt Solutions - Outdoor Wireless IP Camera

1. Use the Network cable to connect the IP Camera

to the LAN.

2. Open the IP Camera Tool in order to search for

the camera.

3. Log in to the IP camera web browser page as an

Administrator.

4. Enter the DDNS Settings Page to enable the

DDNS service. Next, click ‘Submit’ to reboot the

camera.

5. Now access the Camera directly through the

Internet using the domain name.

Static IP address users

Static IP address users do not need to use DDNS

for remote access. When the settings of the IP

camera in LAN mode are complete, you can access

the Camera directly through the Internet using the

WAN IP.

Two methods are available to obtain the WAN IP

address.

Nexxt Solutions - Outdoor Wireless IP Camera

1: Obtain the WAN IP from a Website

You can discover this easily by turning on a

computer using the same connection as the IP

camera and entering this address: http://www.

whatismyip.com.The page at this address will show

you the current WAN IP.

2: Obtain the WAN IP address from the router

Accessing the IP Camera over the Internet

Users can access the IP Camera from the Internet.

Enter the WAN IP address and port number into the

browser. For example, http://116.25.51.115:85.

Note: Make sure Port mapping is successful. Port

mapping can be conﬁgured in two ways:

•฀Enter฀the฀setting฀page฀of฀the฀router฀which฀the฀IP฀

camera connects with to enable the UPNP func-

tion. To do so, open the IP camera “Upnp Settings”

Obtain the IP address of the router (LAN Gateway

address), User Name and Password for logging

into the router.

Enter the LAN IP address of the router

(ie:192.168.1.1) in the address bar of your PC

browser to log on to the router.

Open the Status page to ﬁnd out the WAN

address of the router. In this example, the address

is 116.25.51.115.

Nexxt Solutions - Outdoor Wireless IP Camera

dialog box, and make sure the status for “Upnp is

successful”.

•฀If฀your฀router฀has฀the฀Virtual฀Map฀function,฀enter฀

the router settings page, add the IP camera’s IP

address and port number to the Virtual map list.

How to use DDNS

When using ADSL, the IP Camera will connect to

the Internet through ADSL automatically. For each

ADSL reconnection, your Internet Service Provider

will re-assign a new IP address for the IP Camera to

facilitate the access. DDNS (Dynamic Domain Name

Server) can map the dynamic IP address of an IP

Camera to a ﬁxed domain name. Therefore, we can

access the IP Camera by the ﬁxed domain name

whether the IP address changes or not. The IP

address is not necessary when using the DDNS via

the domain name to ﬁnd your network.

1. Go to the website that provides free domain

names, such as http://www.dyndns.com. Register

to apply for a free domain name.

Nexxt Solutions - Outdoor Wireless IP Camera

Another way the user can access the IP camera

from a WAN is by using the DDNS domain name.

If the gateway settings and DDNS settings have

been completed, enter the DDNS dynamic domain

name (for example,http://ipcam.vicp.net, do not

add www.) in the address bar of IE to access the IP

Camera. If multiple IP Cameras are connected to

the same router, enter DDNS dynamic domain with

the port number (for example, http://ipcam.vicp.

net: 85) in the address bar of IE to access different

IP cameras.

Accessing the IP Camera from your mobile phone

Compatibility with mobile phones using 3G

Enter DDNS Settings Page to enable the DDNS

service, and click ‘Submit’ to reboot the camera.

Re-log in to the Camera web browser as

Administrator and enter the “DDNS Service

Settings” page to check if the DDNS Status has

been successfully changed to DynDNS.

Enter the ‘UPnP Settings’ page, the UPnP Status

should be ‘Successful UPnP Session’. If not, you

may enter the “Basic Network Settings” page to

change the Http Port. Then click “SUBMIT” and

reboot device.

Re-log in to the Camera homepage to check and

make sure the DDNS Status and UPnP Status

have been successfully conﬁgured.

You only need to enter the domain name (Domain

name+Port number http://ipcam.domain.net:81)

in the IE address bar, and the browser will visit the

IP Camera. Wait for several minutes and the IP

Camera will access the Internet automatically.

Nexxt Solutions - Outdoor Wireless IP Camera

technology (iPhone, Android, Blackberry, and PDAs)

enables you to view real-time videos and change

conﬁguration settings over the internet using any

supported browser.

An IP camera can send a snapshot picture to an

email account accessible via a cell phone. Cell phone

surveillance also allows the user to adjust camera

settings and video resolution for a mobile feed where

video could then be accessible on a cell phone. There

are applications that allow for advanced PT control

at your ﬁngertips, access to multiple cameras from

different locations and even remote video playback.

Follow the steps below to gain access to the IP

Camera from your mobile phone:

Frequently Asked Questions

Note: Please check network connections ﬁrst to

troubleshoot any potential problems. Check if any LED

on the network, server, hub, exchange or network

card is showing signs of malfunction. In case of

abnormal operation, verify that all connections on the

network have been done correctly.

Go to mobile internet browser

Enter http://the external IP address of your

IP Camera: port number.

Demo example: http://y-cam.dtns.net:8152.

This will bring up the authentication window to

enter your user security settings.

Next, a window with 2 different options will pop up.

Select the best option based on the web browser

supported by your particular phone.

Click on ‘Live Video’ to see real time video footage

captured by the camera.

Nexxt Solutions - Outdoor Wireless IP Camera

In addition, you can see the list of problems below,

as it contains the solution to the most common

problems encountered while setting up the camera:

What do I do if I have forgotten the administrator

User Name and/or password?

To reset the administrator User Name and

password, press and hold down the RESET button

for 5 seconds. Release the power button and the

User Name and password will be reset back to their

factory default conﬁguration.

Default administrator User Name: admin

Default administrator password: no password

IP Address conﬁguration

Check whether the IP address of the IP Camera

server shares the same subnet as your work sta-

tion: Click My Computer > Control Panel > Network

& Dial-up Connections > LAN > Attributes >Internet

Protocols (TCP/IP), and check the IP Address and

Subnet Mask. Make sure they are in the same

subnet when conﬁguring the camera’s IP address

manually if you are unable to access IP Camera via a

web browser.

Network Conﬁguration

Double check to ensure that your HTTP server

software is conﬁgured and running properly. If you

are running any ﬁrewall software, make sure it is

allowing inbound connections to port 80. Also, if you

happen to be using a cable/DSL router, verify that

you have set up the port forwarding feature

properly (consult your router’s documentation for

more information).

Nexxt Solutions - Outdoor Wireless IP Camera

If none of these seem to be the problem, it is also

possible that your ISP is blocking inbound connec-

tions to port 80 - many ISPs have done this because

of internet worms, such as Code Red. If this is the

case, you will have to setup your HTTP server on an

alternate port (such as 8080).

Picture Problems

Video streaming is transmitted by the ActiveX

controller. If the ActiveX controller is not installed

correctly, no video image will be seen.

There are two ways to solve this problem:

1. Install the ‘IP Camera Tool’. ActiveX controller will

be installed simultaneously (recommended).

2. Download ActiveX controller and set the Security

Properties of IE on the PC when you view it for the

ﬁrst time: Go to Tools > Internet Properties > Secu-

rity > Custom Level > ActiveX control and Plug-ins.

All 3 options need to be set to ‘Enable’.

- Enable: Download unsigned ActiveX controls.

- Enable: Initialize and script ActiveX controls not

marked as safe.

- Enable: Run ActiveX controls and plug-ins.

Problems with network bandwidth

The image frame rate depends on the following

factors:

1. Network bandwidth.

2. PC performance, network environment and

display preference setting (brightness, theme,

etc).

3. The number of visitors (too many visitors will slow

Nexxt Solutions - Outdoor Wireless IP Camera

down the image frame rate).

4. Choice of switch or hub (use a switch for multiple

IP cameras rather than a hub).

Pop up appears saying ‘Fail to connect to the

device’

This prompt will only appear when using multiple

cameras. Enter the Multi-Device Settings page (log

in as an Administrator) to check whether the Device

settings are correct.

When one of the multiple cameras disconnects,

the icon changes color to yellow and the pop-up

prompt “Failed to connect to the device” is

displayed.

Can’t access the IP camera on the internet?

There could be a number of reasons:

1. ActiveX controller is not installed correctly.

2. The port IP camera being used is blocked by Fire-

wall or an anti-virus software. Use a different port

number and try again.

3. Port mapping failed. There are two ways available

for conﬁguring port mapping:

Open the setting page of the router which the IP

camera connects with to allow the UPNP function.

Go to the IP camera’s ‘UPnP Settings’ to enable

UPnP, making sure the ‘UPnP’ conﬁguration is suc-

cessful.

If your router has the Virtual Map function, enter

the router setting page, and add the IP camera’s IP

address and port number to the Virtual map list.





Nexxt Solutions - Outdoor Wireless IP Camera

Problems with using the Firefox browser -

monitoring pages are not displayed normally

Due to security issues, the Firefox browser does

not support ActiveX controls, but it provides a

plug-in named IE-Tab which enables Firefox to

support ActiveX controls. Using the Firefox browser,

you can access the website as follows:

https://addons.mozilla.org/en-US/ﬁrefox/addon/1419.

On the download page, select the right version for

your browser, download it, and start installing the

plug in. The installation steps for the Firefox browser

(version 2.0.0.18) plug-in are detailed as follows:

1. Select the right version, as shown in the ﬁgure

below.

2. Click ‘Add to Firefox (in Windows)’ to start the download.

3. Wait for the download to complete. A dialog box will

pop-up as shown as in the chart below.

Nexxt Solutions - Outdoor Wireless IP Camera

4. Click the ‘Install Now’ button to start installation.

5. When installation is complete, click ‘Restart

Firefox’ to initialize the browser.

6. Log in to your device and locate the monitoring

page, right click on the web browser page and click

the new menu item named ‘View page in IE-Tab’ to

Nexxt Solutions - Outdoor Wireless IP Camera

Default Parameters

Default network parameters

IP address: Automatically obtained

Subnet mask: 255.255.255.0

Gateway: Automatically obtained

DHCP: Disabled

DDNS: Disabled

Username and password

Default Administrator User Name: admin

Default Administrator Password: no password

Nexxt Solutions - Outdoor Wireless IP Camera

SPECIFICATIONS

Model AIOR6324U1

Specifications

Camera

Image sensor

Lens

Infrared LED

Pixels

Night vision range

Filter

AWS/AGC/AES

Compression format

Minimum illumination

Viewing angle

Image format

Max. frame rate

Resolution

Network interface

Supported protocols

Wi-Fi

Motion detection

Alarm events

Periodic sending

User authentication

Web browser

Simultaneous viewers

Mobile compatibility

Power

Power consumption

Operating temperature

Storage temperature

Operating humidity

Storage humidity

Color

Dimensions

Gross weight

Certifications

Warranty

1/4 color CMOS

6 mm

18 pcs

300,000

20 m

infrared cut-off filter (ICR) to ensure lifelike daytime color and sensitive night time performance

Auto

MJPEG

0.1 Lux

Horizontal: 39.8° Vertical: 34.2 °

PAL/NTSC

25 fps

Resolution 640×480 (VGA), 320×240 (QVGA)

RJ-45 (10BASE-T/100BASE-TX)

TCP/UDP/IP/ARP/ICMP/DHCP/DNS/HTTP/FTP/SMTP/NTP/PPPOE/UPNP/DDNS

IEE802.1 b/g

Motion detection and video recording to local storage

Notification via email, FTP - Video recording to local storage

Send pictures to Email/FTP within the time specified

User/password; administrator/operator/general user

IE 6.0 or above version, Mozilla Firefox, Safari, Opera, Chrome ,etc

10 viewers@320x240 4 viewers@640x480

Supports Nokia, Android, Windows mobile phone, iPhone and other smart cellular phones

with supported web browser (Google Browser and Firefox)

DC 12V 1.0 A

4W/6W (Infrared off/on)

-5 to+45 °C (22 to 113 F°)

-20 to+60 °C (-4 to 140 F°)

20- 80% RH

20- 95%RH

silver

19cm x 8cm x 8cm

1200 g

FCC

Limited one year warranty

Video

Network

Alarm

General

NEXXT SOLUTIONS 310 IP Camera User Manual Manual

NEXXT SOLUTIONS IP Camera Manual

Contents

Manual

Navigation menu

Namespaces

Views

Navigation
