NIDEC MOBILITY G8D-335A-A Remote Control Transmitter User Manual
OMRON Automotive Electronics Co. Ltd. Remote Control Transmitter
User Manual
G8D-335A-A
Transmitter, RF Keyless Entry System
＜As for the undermentioned product,the amount of SW is different by the same circuit＞
【Product No.】 【Function of SW】 【Amount of SW】
G8D-335A-A-NPA LOCK,UNLOCK, SLIDE DOOR LEFT 4SW
SLIDE DOOR RIGHT
G8D-335A-A-NSD LOCK,UNLOCK, PANIC 3SW
G8D-335A-A-NSP LOCK,UNLOCK 2SW

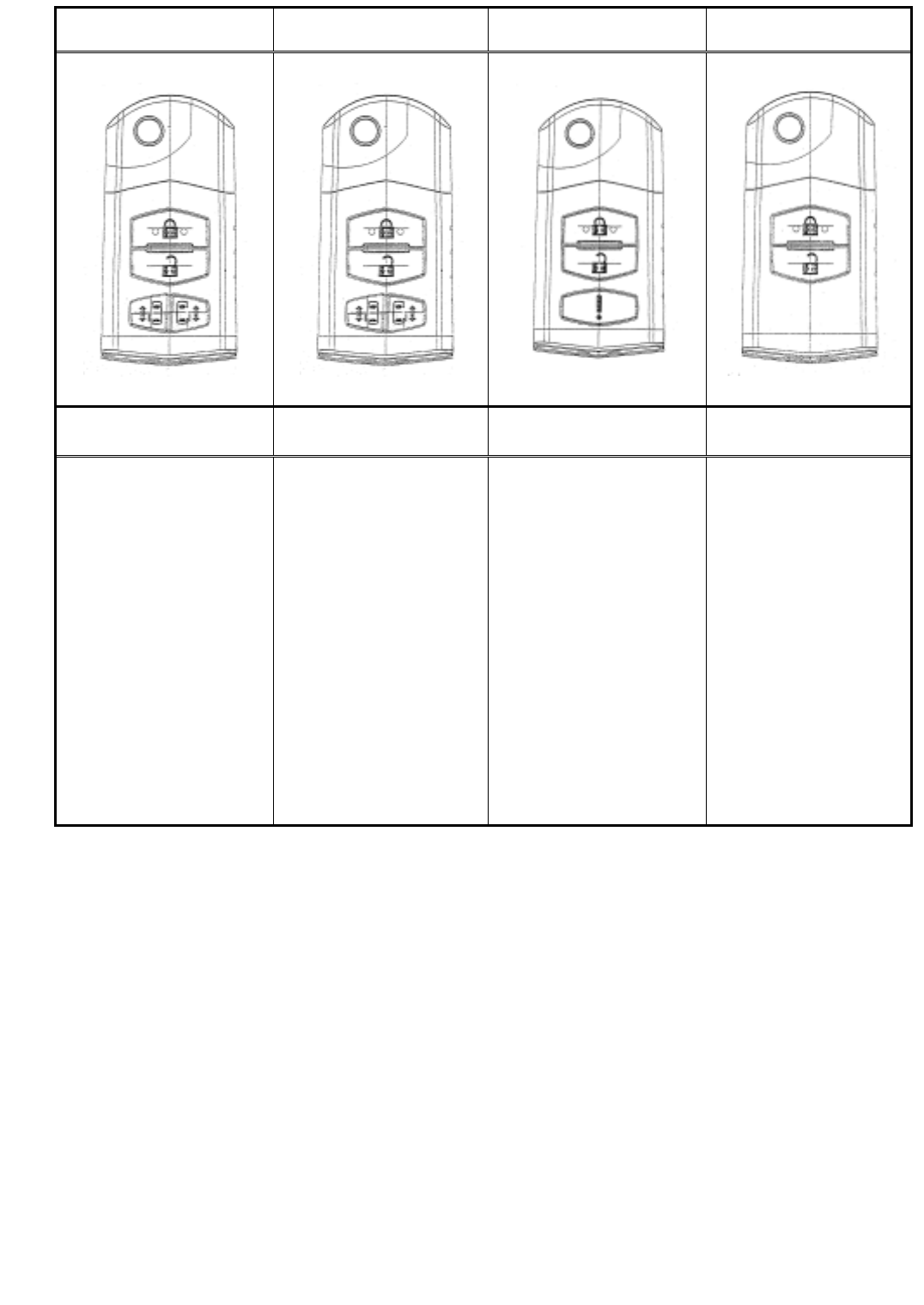

Rough sketch
G8D-335A-A G8D-335A-A-NPA G8D-335A-A-NSD G8D-335A-A-NSP
1. Constitution of the Radio Frequency Keyless Entry
System with Door Lock Controller for vehicle
The radio frequency keyless entry is a system that it controls locking and unlocking the door by
wireless remote controller. This system consists of two components. The TRANSMITTER is a device that
transmits the signal when the button is pressed. The transmission signal consists of several synchronous
codes, unique identification code, and security code and function code. The RECEIVER is fixed inside the
vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the
synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the
receiver decides which operation will be performed. The user can select the following operations by
pressing the button of the remote transmitter.
OPERATION ACTION
LOCK Lock the door
UNLOCK unlock the door (the driver side first, then all doors)
PANIC The horn is beeped, and the headlight and flasher are blinked
SLIDE DOOR LEFT Open or close the left slide door.
SLIDE DOOR RIGHT Open or close the right slide door.
This receiver also controls wired operation. It is available to control the door lock status by using the
silicon switch or the remote door control switch (both driver’s and passenger’s side).

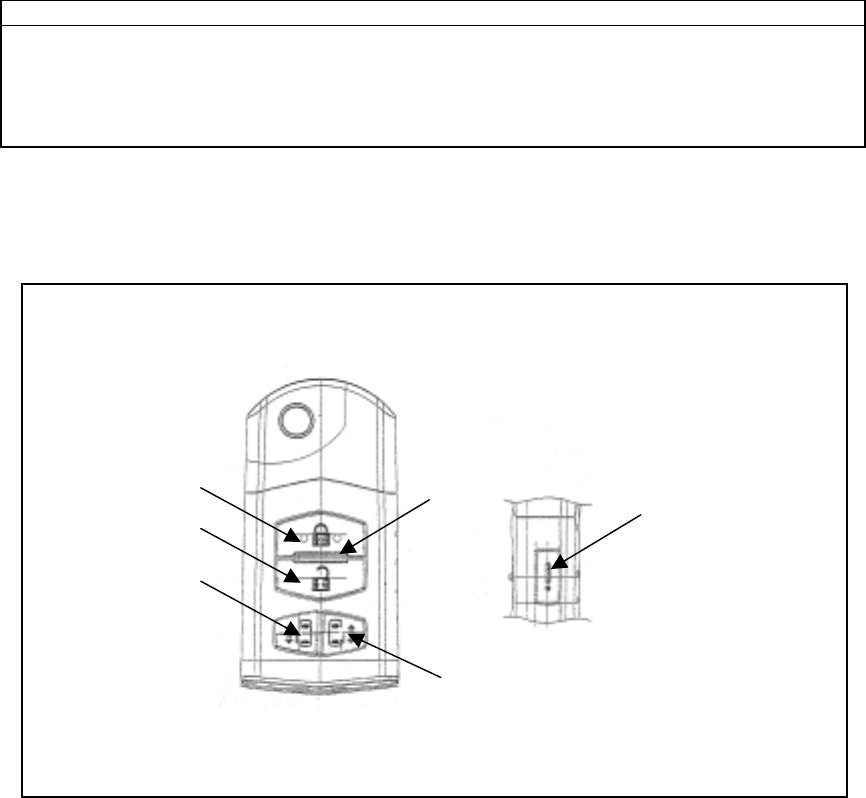

【TRANSMITTER Assy】
UNLOCK button
SLIDE DOOR LEFT
button
LOCK buttonLOCK button LED PANIC button
SLIDE DOOR RIGHT
button
Transmitter
f =313.85MHz
-1-
-
2. User’s manual (provisionally)
【TRANSMITTER Assy】
REMOTE TRANSMITTER
You can lock and unlock your vehicle with the remote transmitter.
LOCK
When you push the LOCK button, all the doors will lock.
You cannot lock any of the doors with the remote transmitter if any door is open or the key is in the
ignition switch.
UNLOCK
When you push the UNLOCK button once, all the door s will unlock. If you unlock the doors with the
remote transmitter, but do not open any of the doors within 30 seconds, the doors will automatically relocks.
You cannot unlock any of the doors with the remote transmitter if the key is in the ignition switch.
PANIC
Panic mode allows you to remotely sound’s horn to attention. To activate this mode, press the PANIC
button. Your vehicle’s horn will beep for about 150 seconds.
To cancel Panic mode before 150 seconds, press any button on the remote transmitter.
SLIDE DOOR LEFT
When you push the SILDE DOOR LEFT button. Open or close the left slide door. To activate this mode,
press and hold the SLIDE DOOR LEFT button for about one second.
SLIDE DOOR RIGHT
When you push the SILDE DOOR RIGHT button. Open or close the right slide door. To activate this mode,
press and hold the SLIDE DOOR RIGHT button for about one second

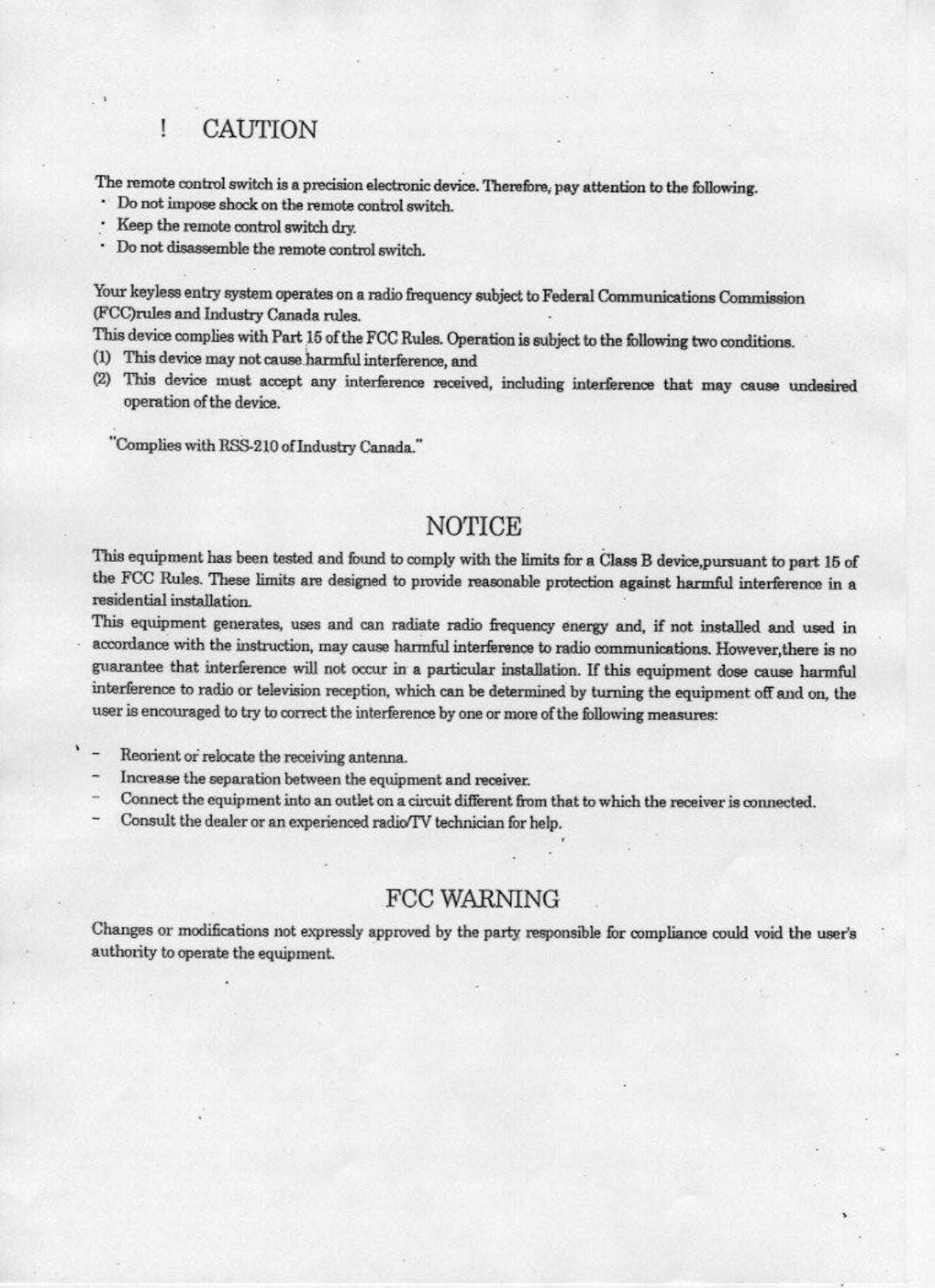

-2-
-
