NIDEC MOBILITY G8D-514H-B Keyless Entry System Receiver User Manual
OMRON Automotive Electronics Co. Ltd. Keyless Entry System Receiver
User Manual
G8D-514H-B
Receiver, RF Keyless Entry System
Table of contents
1. Constitution of the Radio Frequency Keyless Entry system with Door Lock
Controller for vehicle ...................................................................................... 1
2. User’s manual (provisionally) .......................................................................... 2
3. Block diagram ................................................................................................ 3
4. Specification ................................................................................................... 4
5. Features .......................................................................................................... 5
6. PCB ................................................................................................................ 6

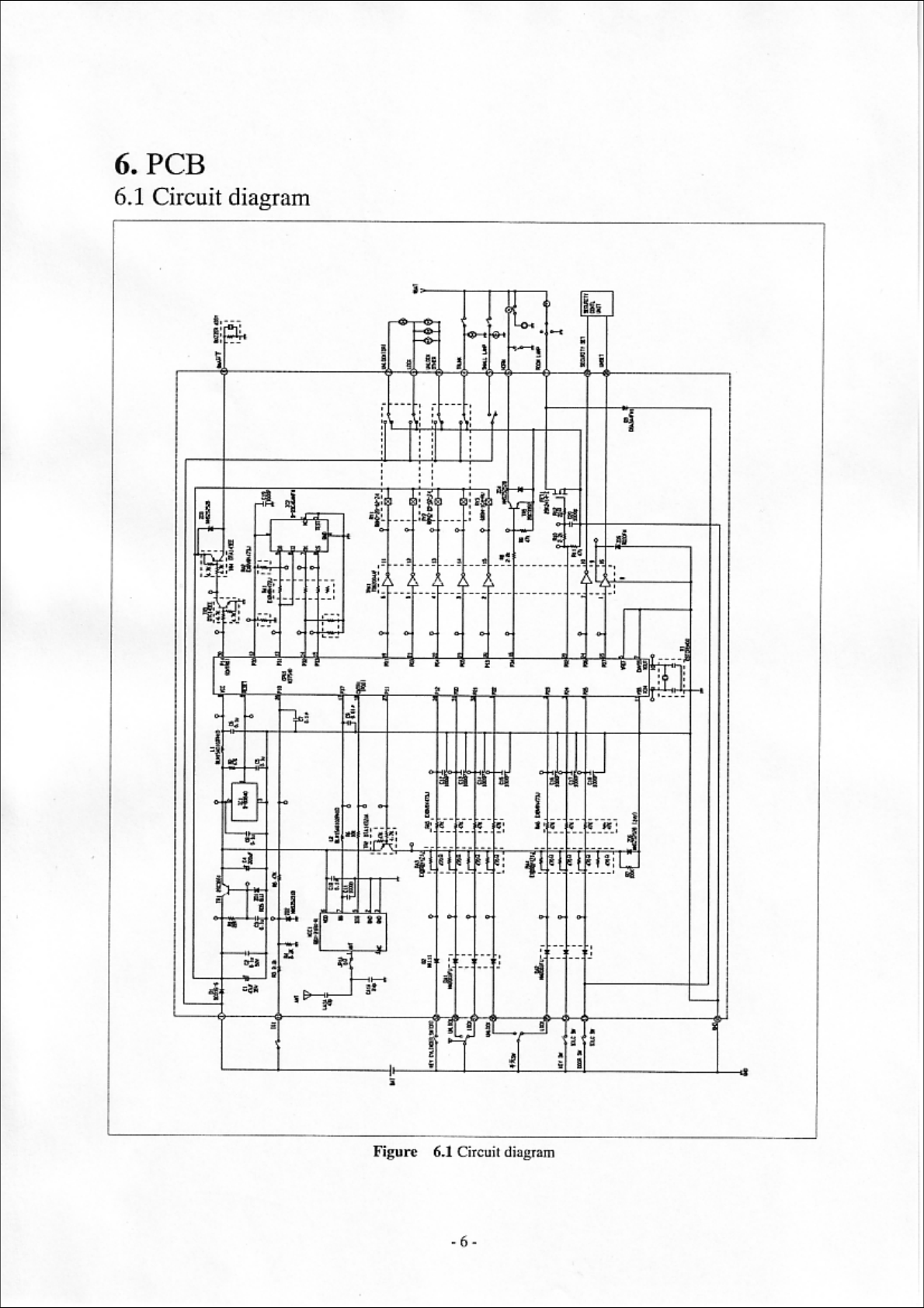

6.1 Circuit diagram ........................................................................................... 6

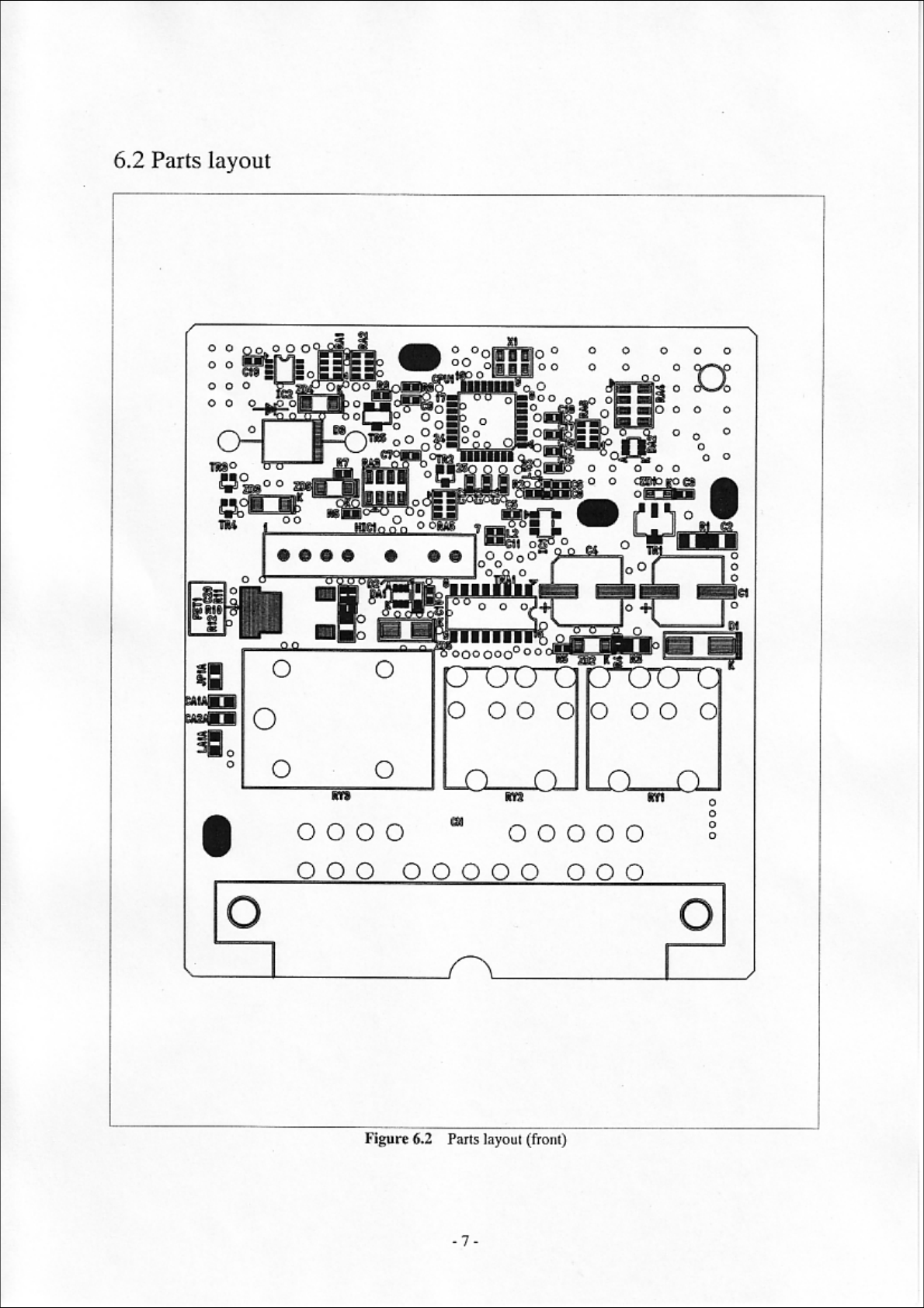

6.2 Parts layout ................................................................................................. 7

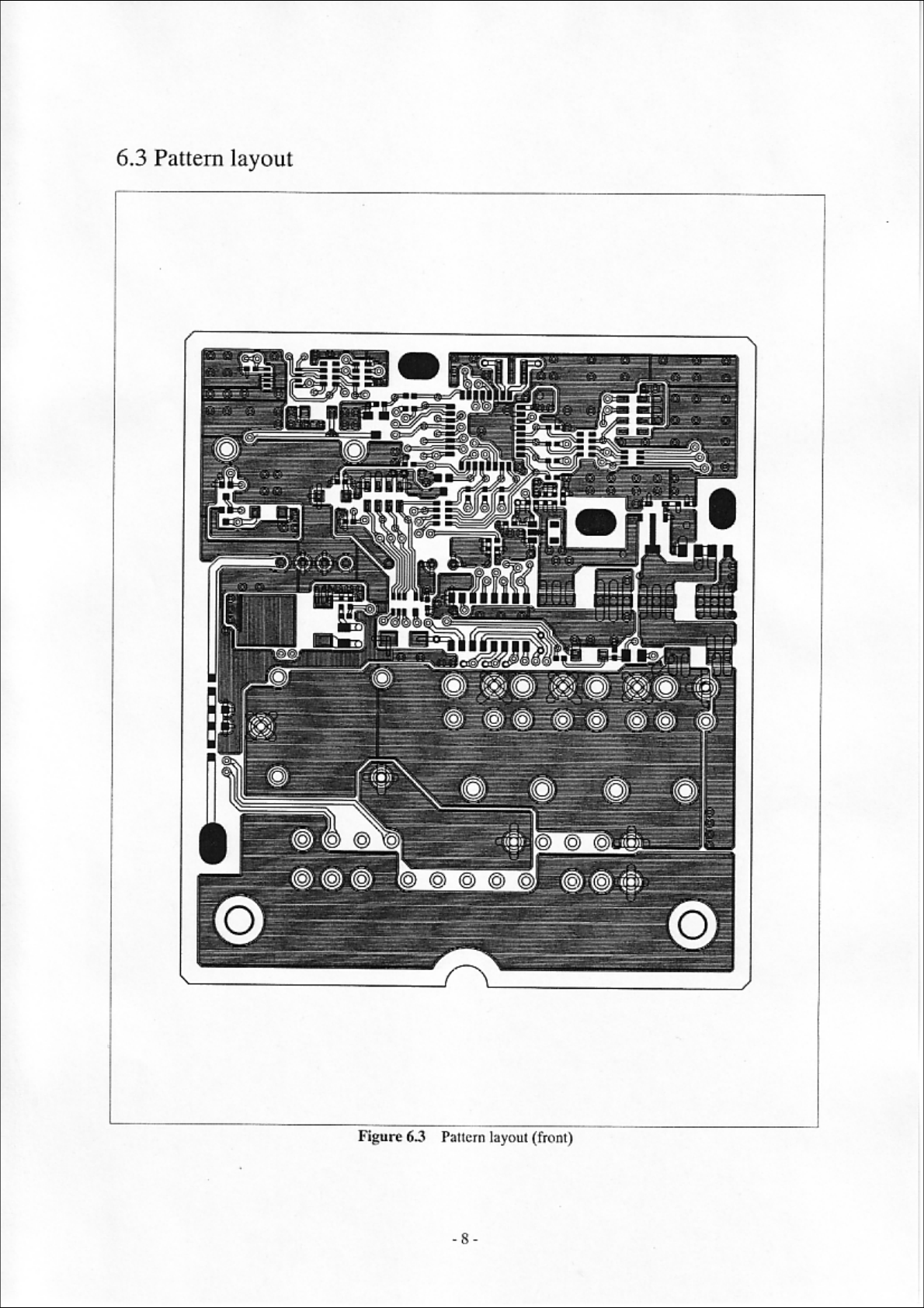

6.3 Pattern layout .............................................................................................. 8
6.4 Parts list …….............................................................................................. 10
7. Connector ..................................................…................................................. 13
8. Photographs .................................................................................................... 14
1. Constitution of the Radio Frequency Keyless Entry
System with Door Lock Controller for vehicle
The radio frequency keyless entry is a system that it controlls locking and unlocking the door by
wireless remote controller. This system consists of two components. The TRANSMITTER is a device that
transmits the signal when the button is pressed. The transmission signal consists of several synchronous
codes, unique identification code, security code and function code. The RECEIVER is fixed inside the
vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the
synchronous code, it runs continuously to receive the signals completely. After receiveing the signal, the
receiver decides which operation will be performed. The user can select the following operations by
pressing the button of the remote transmitter.
OPERATION ACTION
LOCK Lock the door and output the signal to security unit
UNLOCK Unlock the door and output the signal to security unit
BOOT RELEASE Release the boot
PANIC Beep the horn and flush the small light. (it continues 30 seconds)
This receiver also controls wired operation. When the key is in the driver’s side key cylinder, all doors will
Unlock if the key is turned to UNLOCK and hold more than one second. In case of the operation time is shorter,
the only diver’s side door is mechanically unlocked. It is also available to control the door lock status by using
the remote door control switch(both driver’s and passenger’s side).
Transmitter
f = 313.85MHz
- 1 -
2. User’s manual (provisionally)
LOCK
When you push the LOCK button, all the doors will lock. And output the signal to security unit.
You cannot lock any of the doors with the remote transmitter if any door is open or the key is in the
ignition switch.
UNLOCK
When you push the UNLOCK button once, all the door s will unlock. And output the signal to security
unit.
You cannot unlock any of the doors with the remote transmitter if the key is in the ignition switch.
BOOT RELEASE
To open the boot, push the BOOT RELEASE button for approximately 0.5 second.
The boot will not open if the key is in the ignition switch.
PANIC MODE
Panic mode allows you to remotely sound your vehicle’s horn to attract attention. To activate this mode,
press and hold the PANC button for about one second. Your vehicle’s horn will beep for about 30 seconds.
To cancel panic mode before 30 seconds, press any button on the remote transmitter. You can also turn
the ignition switch to ON.
Panic mode will not activate if the ignition switch is in ON.
- 2 -
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for
compliance could void the user's authority to operate the equipment

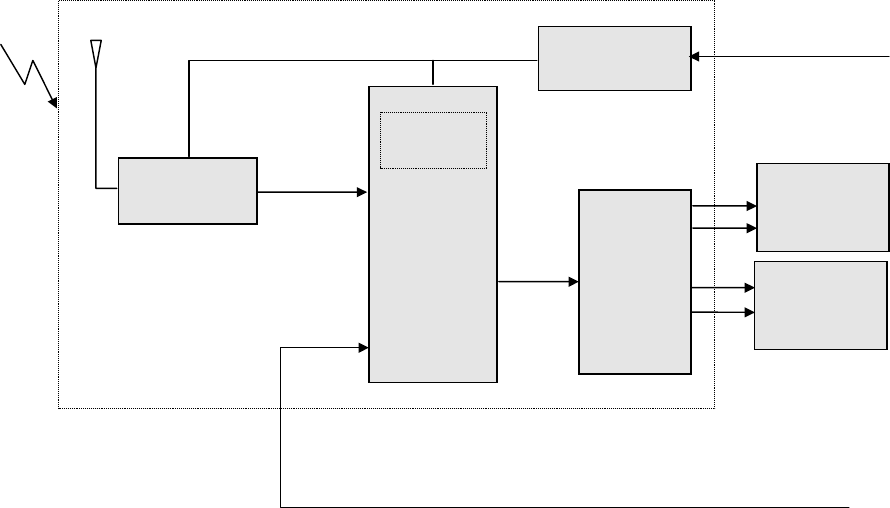

3. Block diagram
This is the block diagram concerning to the receiver.
8BIT
CPU
RECEIVING
MODULE
EEPROM
POWER
SOURCE
(
5V
)
data
DRIVING
CIRCUIT
Signal of vehicle status
input
output
12V (car battery)
SECURITY
UNIT
DOORLOCK
MOTOR
Figure 3.1 block diagram of the receiver
- 3 -
4. Specification
4.1 CPU
Type M37540 (8bit)
Manufacturer: Mitsubishi
ROM 16K bytes
RAM 512 bytes
Clock frequency 5.00MHz
Clock frequency generation CERAMIC resonator
Package 32pinLQFP
4.2 RF block
Local clock frequency 324.55MHz
Frequency generation Crystal resonator
Modulation Single Superheterodyne
Bandwidth ±200KHz
Carrier Detect Sensitivity 30 dBuVemf
4.3 Others
Dimension 70 mm× 80 mm×25 mm
Weight 120 g
Battery Car Battery (DC 12V)
Operation Voltage DC 12V, 10mA
Operation temperature -30℃ ~ +80℃
- 4 -
5. Features
5.1 Integrated controller
The controller works both wireless and wired operation.
You can use it remotely as the receiver of the keyless entry system. You can operate the door lock
remotery using the remote transmitter. It is also avialable to release the boot.
When you turn the door lock switch, the controller works as the door lock controller. The controller
monitors the switch related to the door lock. In case of the status of the switch changed, the controller will
detect and output the signal to the door lock actuator.
/ SIGNAL FORM /
Synchronous Header Identification
code code code
security code
function code
(324bit) (4bit) (56bit)
5.2 Battery saving
The receiver works intermittently to reduce the battery consumption. The microcomupter mounted on
the receiver controlls the power supply for the RF circuit. In case of the microcomputer detects the wake-up
signal during the power supplied, the microcomputer continue supplying the power until the data frame will
be received.
- 5 -
6.4 Parts list
No
PART NAME MANUFACTURE QTY
TYPE SPECIFICATION REMARKS
1
CPU MITSUBISHI 1 M37540M4T-123GP-BTQ
32PIN QFP CPU1
2
EEPROM SEIKO ELECTRONICS 1 S-93C46AMFN-TB IC2
3
VOLTAGE REGULATOR SEIKO INSTRUMENTS 1 S-80840CNMC-B8Z-T2 RESET IC1
WITH RESET FUNCTION 3.904-4.096V
4
CERAMIC OSCILLATOR MURATA 1 CSTCR5M00G15A02-R0 5.0MHz X1
5
DIGITAL TRANSISTOR ROHM 1 DTA143ZUAT106 100mA 0.2W TR2
4.7k-4.7k
6
TRANSISTOR ARRAY TOSHIBA 1 TD62004AF-TP2 500mA 35V TRA1
hfe=1000
7
FET NEC 1 2SK2414-Z-E2 10A,60V FET1
8
DIODE FUJI DENKI 1 SC016-6-TE12RA D1
9
DIODE ARRAY 2 HN2D02FU-TE85L 80mA,80V DA1,2
TOSHIBA
10
ZENER DIODE ON SEMICONDUCTOR 1 MMSZ5231B 500mW,5.1V ZD2
11
ZENER DIODE ON SEMICONDUCTOR 3 MMSZ5252B-T1 500mW,24V ZD3,4,6
12
ZENER DIODE NEC 1 RD30FMB-T1 1W,30V ZD5
13
CAPACITOR NIPPON CHEMI-CON 1 MV35VC-47H63 47uF, C1
±20% 35V
14
CAPACITOR NIPPON CHEMI-CON 1 MV10VC-220H63 220uF C4
±20% 10V
15
CERAMIC CAPACITOR MURATA 1 GRM21BR11H104KA11L 0.1uF,50V C2
2125SIZE
16
CERAMIC CAPACITOR * 1 0.01uF,16V C9
1005SIZE
17
CERAMIC CAPACITOR MURATA 6 GRP155B11A104KA01E 0.1uF,10V C3,5,6,7,8
1005SIZE 10
18
CARAMIC CAPACITOR MURATA 10
GRP155R11H102KA01E 1000pF,50V C11,12,13,14,15
1005SIZE 16,17,18,19,20
19
ZENER DIODE NEC 1 RD5.6UJN2-T1 5.6V ZD1
NOTE:
･ ･ DESIGNED CHECKED APPROVED
･ ･
･ ･
･ ･
･ ･ G8D-514H-B
･ ･ SHEET No ( 1 / 3 )
Ａ ･ ･ NEWLY DESIGNED DETEAILED LISY OF PARTS
SYM DATE E/C CONTENTS E/C No SIGN DWG NO.
No
PART NAME MANUFACTURE QTY
TYPE SPECIFICATION REMARKS
20
CHIP RESISTOR * 1 RK20CAY22J-T1 22Ω,1/8W R12
2125SIZE
21
CHIP RESISTOR ＊ 1 RK20CAY22KJ-T1 22KΩ R1
2125SIZE
22
CHIP RESISTOR * 1 RK20CAY2.2KJ-T1 2.2KΩ,1/10W R3
2125SIZE
23
CHIP RESISTOR * 1 RK10CAZ100KJ-T1 100KΩ,1/16W R7
1005SIZE
24
CHIP RESISTOR * 3 RK10CAZ2.2KJ-T1 2.2KΩ,1/16W R4,8,10
1005SIZE
25
CHIP RESISTOR * 1 RK10CAZ10KJ-T1 10KΩ,1/16W R6
1005SIZE
26
CHIP RESISTOR * 4 RK10CAZ47KJ-T1 47KΩ,1/16W R2,5,9,11
1005SIZE
27
CHIP RESISTOR MATSUSHITA 1 EXBV8V472JV 4.7K×4 RA1
28
CHIP RESISTOR MATSUSHITA 2 EXBS8V471J 470Ω,1/10W RA3,4
ARRAY
29
CHIP RESISTOR MATSUSHITA 3 EXBV8V473JV 47KΩ,1/16W RA2,5,6
ARRAY
30
CORE,FERRITE MURATA 2 BLM15AG102PN1D 50mA L1,2
1005SIZE
31
RF HIC IAM 1 G8X-21RX-R 313.85MHz HIC1
32
CERAMIC CAPACITOR MURATA 1 GRM1881C1H240BZ01D 24pF,50v CA1A
1608SIZE
33
CERAMIC CAPACITOR MURATA 1 GRM1881C1H430BZ01D 43pF,50v LA1A
1608SIZE
34
CHIP RESISTOR * 1 RK16CAY00-T1 0Ω,1/10W JP1A
1608SIZE
35
RELAY OMRON 2 G8ND-2S-02-Z4 DC12V RY1,2
36
RELAY 1 G8SN-1C4-RU-Z4 DC12V RY3
37
CONNECTOR AMP 1 175785-1 070 TYPE 20P CN
38
TAPPING,SCREW * 2 SWCH MFSN-PB M3×8
39
PWB SINKO SEISAKUSYO 1 FCL-CEM3
40
ANNTENA 1 t=1.2
NOTE:
G8D-514H-B
SHEET No ( 2 / 3)
DETEAILED LISY OF PARTS
DWG NO.
No
PART NAME MANUFACTURE QTY
TYPE SPECIFICATION REMARKS
41
CASE 1 ABS BLACK
42
BASE 1 ABS BLACK
43
CERTIFICATE LABEL AMEMIYA INSATSU 1 HIGH QUALITY PAPER LETTER:BLACK
BACK GROUND:PURPLE
44
DIODE HITACHI 1 DSA3A4FM4 D3
45
TRANSISTOR SANYO 1 2SC3651-OTE-TD TR1
Vceo=100V
hfe=800 OR MORE
Ic=0.2A,Pc=0.5W
46
TRANSISTOR ROHM 1 DTC143EETL Ic=100mA TR3
47
TRANSISTOR ROHM 1 DTA143EETL Ic=100mA TR4
48
TRANSISTOR SANYO 1 2SC-3392-6/7-TB hfe=RANK6.7 TR5
49
DIODE MATSUSHITA 1 MA111-(TX) 100mA D2
NOTE:
G8D-514H-B
SHEET No ( 3 / 3)
DETEAILED LISY OF PARTS
DWG NO.
