OMRON Automotive Electronics Co. Ltd. FOB ASSY BIDIRECTIONAL R/C Operation manual OMRON H ai
Users Manual
Climate SW
ANT MODULE
FOB
3
4
CONFIGURATION
Main specifications
After sales service
5
G HW -H001
M O D EL:
S/No.X*******
FCC ID:O U CGH W -H00
1
-001

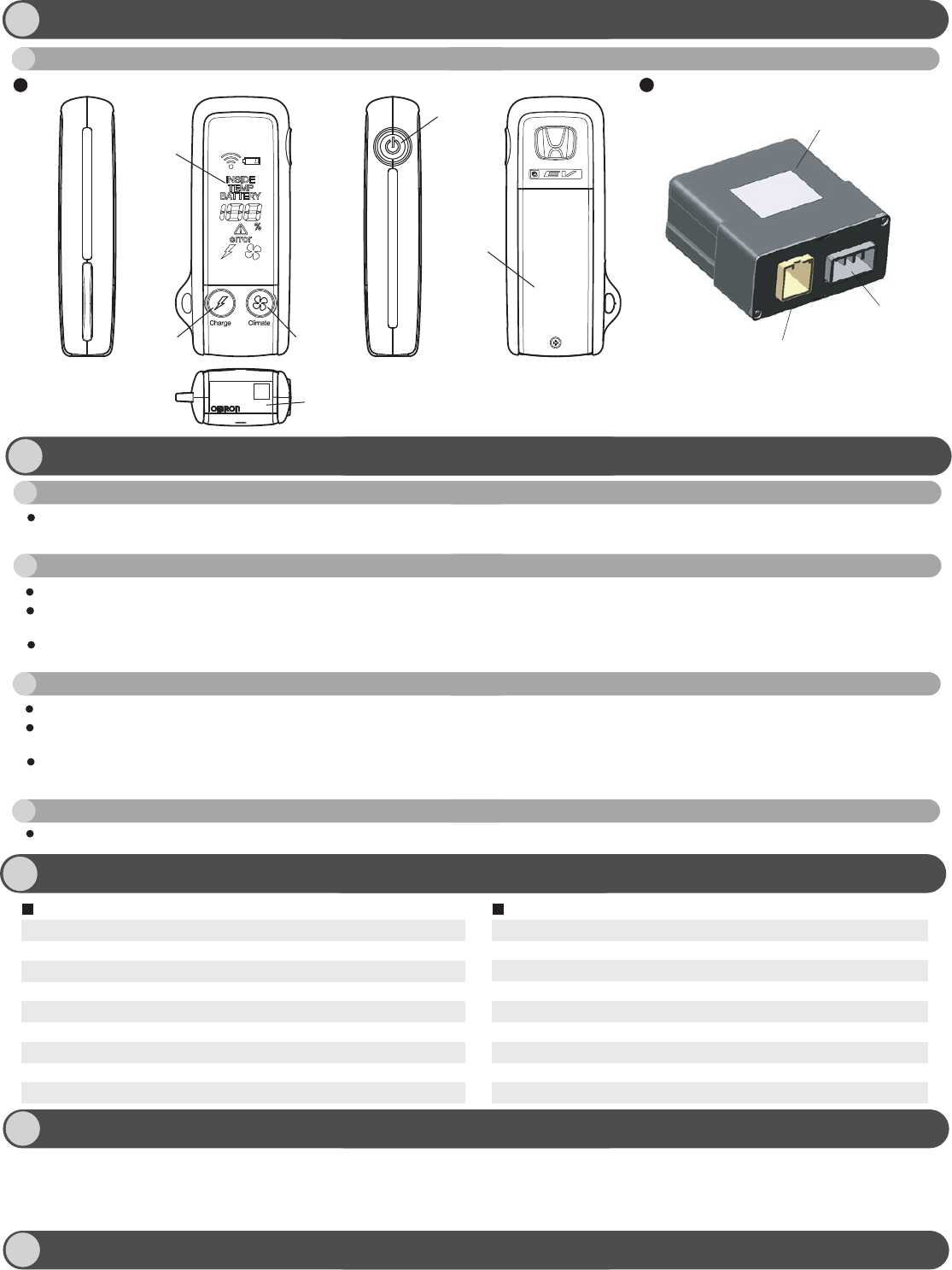

Part names
Product label
CN2 connector
CN1 connector (antenna connector)
How to use
FCC WARNING
OMRON Automotive Electronics Co. Ltd.
6368 nenjyozaka, Okusa, Komaki, Aichi 485-0802 JAPAN
Tel: +81 568 78 6392
URL: http://www.oae.omron.co.jp
Transmission frequency 926.85 MHz
Output power 50 mV/m (3m)
Antenna Internal loading antenna
Switches Power on/off, Charge setting, Climate setting
Link state acknowledgment Buzzer and LCD
Battery Lithium battery (CR2032 x 2)
Operation temp. range -10 C to + 70C
Dimensions 83.8 x 32 x 18.4 mm (Not incl. protrusion)
Weight 35 g
Transmission frequency 926.85 MHz
Output power 50 mV/m (3m)
Power supply 5 V
Current consumption 1.5 mA
Antenna Printed dipole antenna
Operation temp. range -30 C to + 85 C
Dimensions 52 x 25 x 52 mm
Weight 35 g
For after sales service, contact :
Any changes or modifications not expressly approved by the party responsible for product compliance could void the user's authority to operate the equipment.
This device complied with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause any interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
Pressing the power switch for more than 0.5 seconds turn the power of the fob on (with a buzzer sound) and the fob starts transmitting a request signal to obtain vehicle
information. If a response signal from the vehicle is properly received, the vehicle information will be displayed on the LCD with a buzzer sound.
Turning the power of the fob on
You can remotely start/stop charging with the fob.
Pressing the charge switch while vehicle information is displayed on the LCD starts transmitting the setting information.
*Pressing the power switch while vehicle information is displayed on the LCD shows the in-vehicle temperature.
Once the setting is done and a response from the vehicle is properly received, a charging icon will be displayed (or disappeared for charging stop) on the LCD with
a buzzer sound.
Start/stop charging
Turning the power of the fob off
Turning the the air conditioner on/off
Pressing the power switch for more than 0.5 seconds turn the power of the fob off. Also no button operation for more than 30 seconds automatically turns the power off.
You can remotely turn the air conditioner on/off with the fob.
Pressing the climate switch while vehicle information is displayed on the LCD starts transmitting the setting information.
*Pressing the power switch while vehicle information is displayed on the LCD shows the in-vehicle temperature.
Once the setting is done and a response from the vehicle is properly received, a climate icon will be displayed (or disappeared for air conditioning off ) on the LCD with
a buzzer sound.
LCD
Charge SW
Certification label
Power SW
Battery cover
FOB ANTENNA MODULE
1
2
