User manual 1 of 2

www.trimble.comTotal Station Nivo SeriesNivo2.C, Nivo3.C and Nivo5.CInstruction Manual<Hardware>Version A 1.0.0Part Number C241E (1/2)November 2009
Contact InformationTrimble Navigation LimitedEngineering and Construction Division5475 Kellenburger RoadDayton, Ohio 45424-1099USA800-538-7800 (toll free in USA)+1-937-245-5600 Phone+1-937-233-9004 Faxwww.trimble.comLegal NoticesCopyright and Trademarks© 2007-2009, Nikon-Trimble Co. Limited. All rights reserved.All trademarks are the property of their respective owners.It is prohibited to alter this manual in part or whole without express permission.The contents of this manual are subject to change without notice. Although every effort has been made to ensure the accuracy of this manual, please contact your dealer if you find anything in it that is incorrect or unclear.Release NoticeThis is the November 2009 (Revision A) release of the Total Station Nivo Series Instruction Manual. It applies to software release version 1.0.0 for the Total Station Nivo series.ManufacturerNikon-Trimble Co., Ltd.Technoport Mituiseimei Bldg.16-2, Minamikamata 2-chome, Ota-kuTokyo 144-0035 JapanNoticesUSAFCC 15B Class B satisfied.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.CWarning – This equipment has been certified to comply with the limits for a Class B personal computer and peripherals, pursuant to Subpart B of Part 15 of FCC Rules. Only peripherals (computer input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified personal computer and/or peripherals is likely to result in interference to radio and TV reception. The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits established by the FCC for this equipment.You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.European UnionEU EMC Directive satisfied. Authorized Representative in EuropeTrimble GmbHAm Prime Parc 1165479 Raunheim, GermanyCanadaThis Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numérique de la Class B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.TaiwanBattery RecyclingRequirementsThe product contains a removable battery. Taiwanese regulations require that waste batteries are recycled.Notice to Our European Union CustomersFor product recycling instructions and more information, please go to: www.trimble.com/environment/summary.htmlRecycling in EuropeTo recycle Trimble WEEE, call: +31 497 53 2430, and ask for the “WEEE associate,” or mail a request for recycling instructions to:Trimble Europe BVc/o Menlo Worldwide LogisticsMeerheide 455521 DZ Eersel, NLFor Bluetooth unitUSA FCC Part 15 Subpart C/RSS-210, OET bulletin 65 supplement C satisfiedCCaution – Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.CanadaRSS-210 Low Power DeviceOperation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.European Union countries, Iceland, Norway, Liechtenstein, Turkey, SwissEN300 328v1.7.1, EN50360 satisfiedHereby, Nikon-Trimble Co., Ltd., declares that this instrument is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Declaration of Conformity available at http://www.nikon-trimble.com/RF exposure compliance 1) To comply with FCC/IC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.2) This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Total Station Nivo Series Instruction Manual iiiSafety 1In this chapter:QIntroductionQWarnings and CautionsQLaser Safety

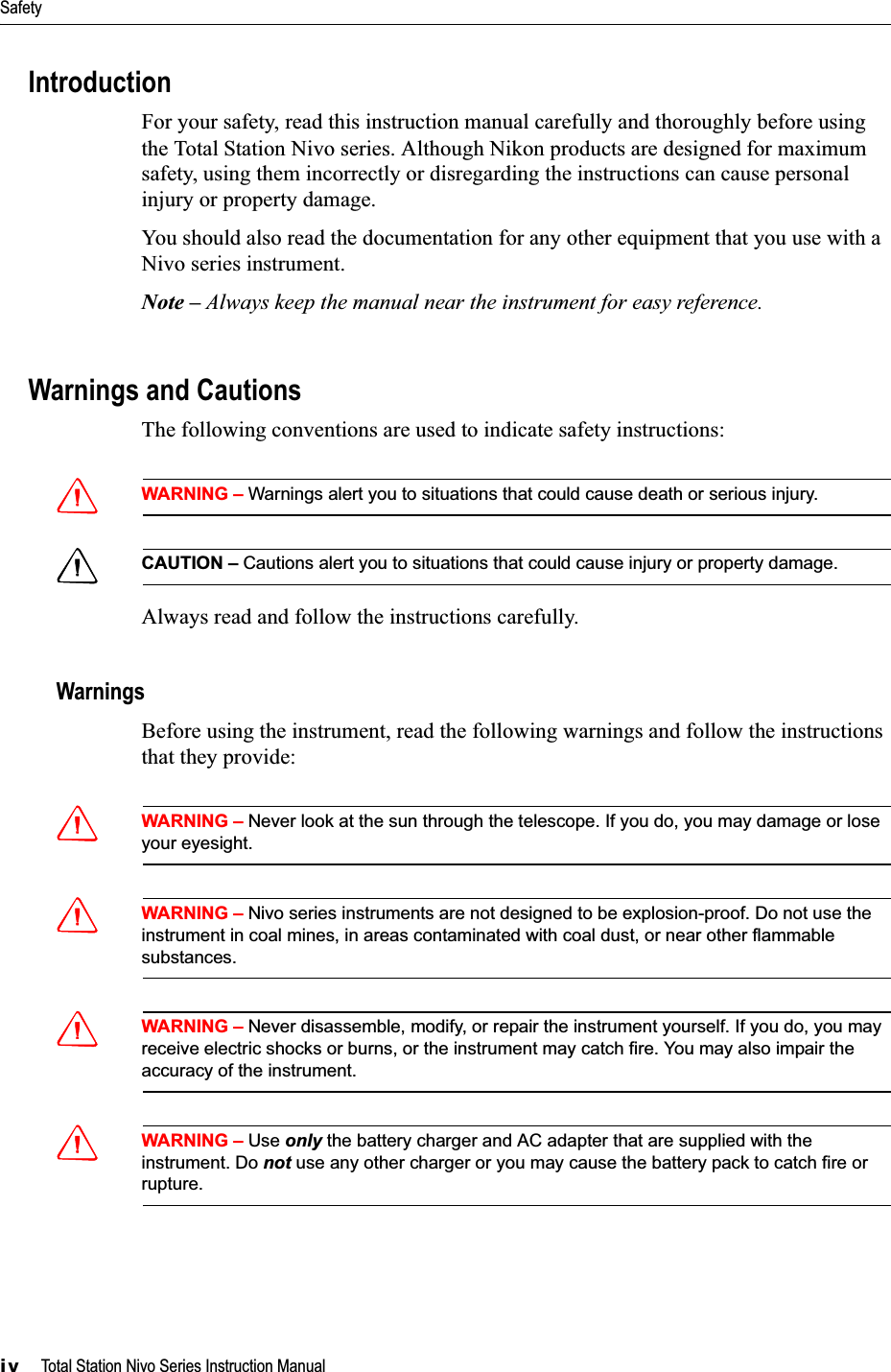

Safetyiv Total Station Nivo Series Instruction ManualIntroductionFor your safety, read this instruction manual carefully and thoroughly before using the Total Station Nivo series. Although Nikon products are designed for maximum safety, using them incorrectly or disregarding the instructions can cause personal injury or property damage.You should also read the documentation for any other equipment that you use with a Nivo series instrument.Note – Always keep the manual near the instrument for easy reference.Warnings and CautionsThe following conventions are used to indicate safety instructions:CWARNING – Warnings alert you to situations that could cause death or serious injury.CCAUTION – Cautions alert you to situations that could cause injury or property damage.Always read and follow the instructions carefully.WarningsBefore using the instrument, read the following warnings and follow the instructions that they provide:CWARNING – Never look at the sun through the telescope. If you do, you may damage or lose your eyesight.CWARNING – Nivo series instruments are not designed to be explosion-proof. Do not use the instrument in coal mines, in areas contaminated with coal dust, or near other flammable substances.CWARNING – Never disassemble, modify, or repair the instrument yourself. If you do, you may receive electric shocks or burns, or the instrument may catch fire. You may also impair the accuracy of the instrument.CWARNING – Use only the battery charger and AC adapter that are supplied with the instrument. Do not use any other charger or you may cause the battery pack to catch fire or rupture.

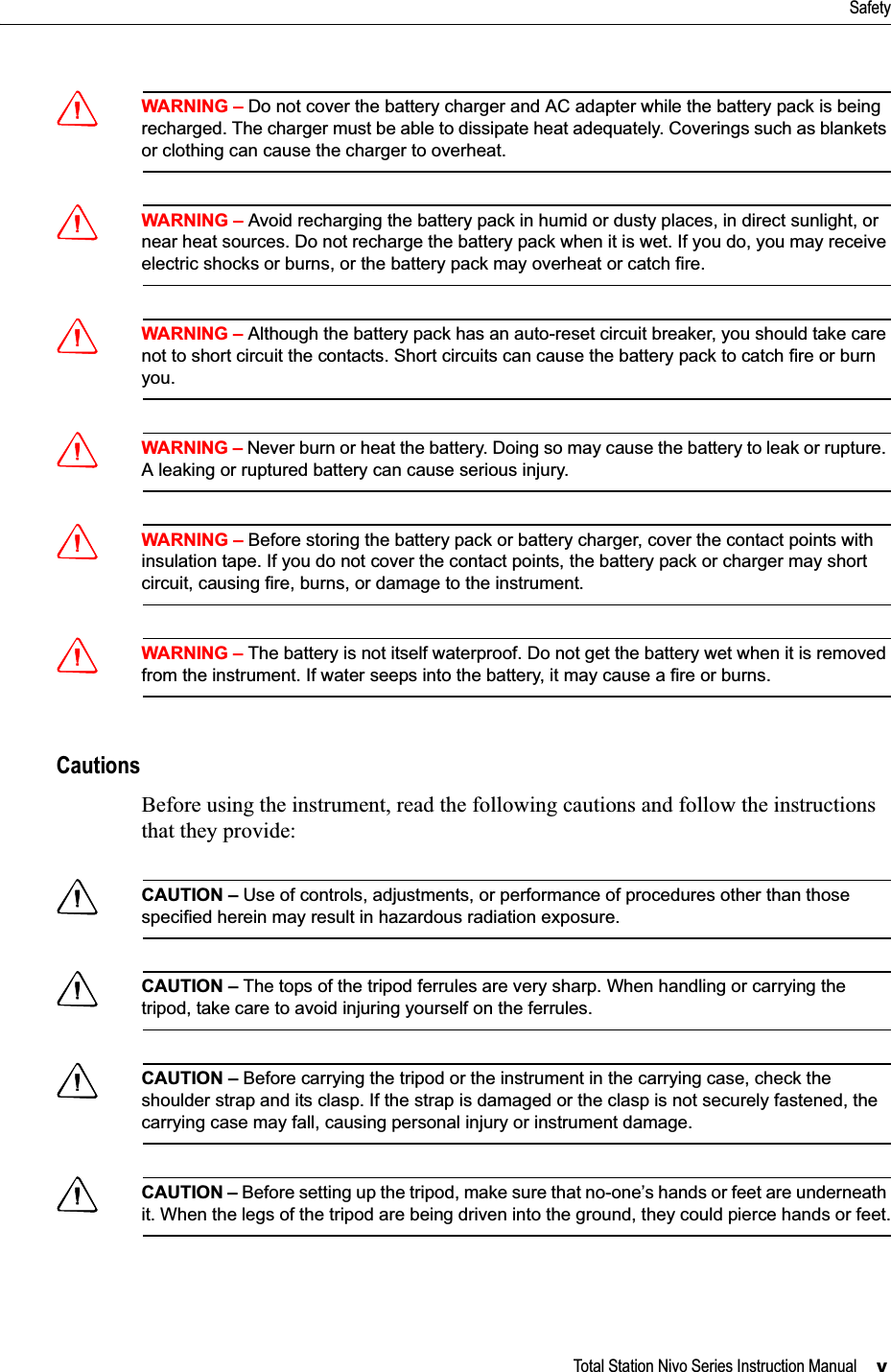

Total Station Nivo Series Instruction Manual vSafetyCWARNING – Do not cover the battery charger and AC adapter while the battery pack is being recharged. The charger must be able to dissipate heat adequately. Coverings such as blankets or clothing can cause the charger to overheat.CWARNING – Avoid recharging the battery pack in humid or dusty places, in direct sunlight, or near heat sources. Do not recharge the battery pack when it is wet. If you do, you may receive electric shocks or burns, or the battery pack may overheat or catch fire.CWARNING – Although the battery pack has an auto-reset circuit breaker, you should take care not to short circuit the contacts. Short circuits can cause the battery pack to catch fire or burn you.CWARNING – Never burn or heat the battery. Doing so may cause the battery to leak or rupture. A leaking or ruptured battery can cause serious injury.CWARNING – Before storing the battery pack or battery charger, cover the contact points with insulation tape. If you do not cover the contact points, the battery pack or charger may short circuit, causing fire, burns, or damage to the instrument.CWARNING – The battery is not itself waterproof. Do not get the battery wet when it is removed from the instrument. If water seeps into the battery, it may cause a fire or burns.CautionsBefore using the instrument, read the following cautions and follow the instructions that they provide:CCAUTION – Use of controls, adjustments, or performance of procedures other than those specified herein may result in hazardous radiation exposure.CCAUTION – The tops of the tripod ferrules are very sharp. When handling or carrying the tripod, take care to avoid injuring yourself on the ferrules.CCAUTION – Before carrying the tripod or the instrument in the carrying case, check the shoulder strap and its clasp. If the strap is damaged or the clasp is not securely fastened, the carrying case may fall, causing personal injury or instrument damage.CCAUTION – Before setting up the tripod, make sure that no-one’s hands or feet are underneath it. When the legs of the tripod are being driven into the ground, they could pierce hands or feet.

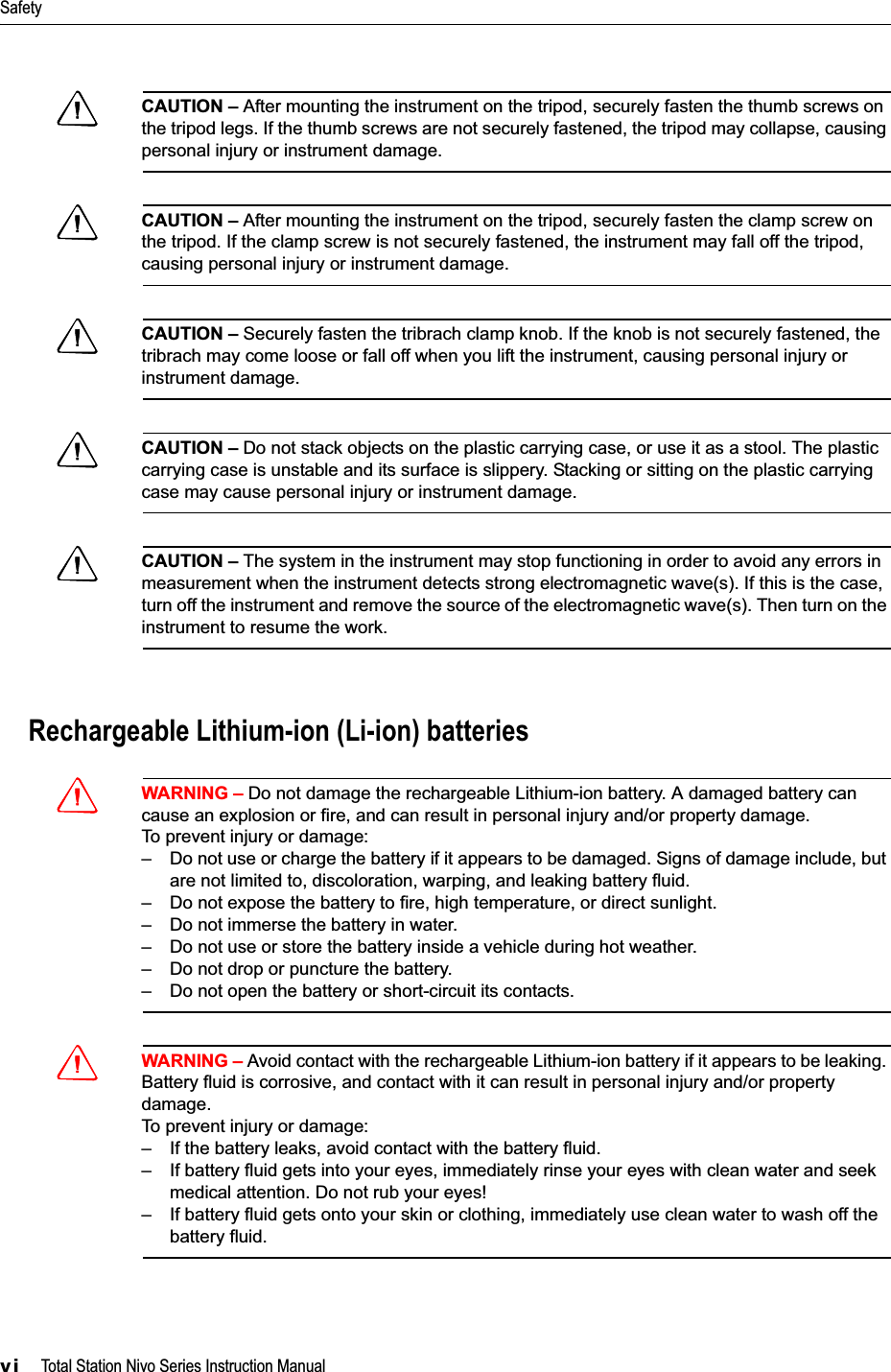

Safetyvi Total Station Nivo Series Instruction ManualCCAUTION – After mounting the instrument on the tripod, securely fasten the thumb screws on the tripod legs. If the thumb screws are not securely fastened, the tripod may collapse, causing personal injury or instrument damage.CCAUTION – After mounting the instrument on the tripod, securely fasten the clamp screw on the tripod. If the clamp screw is not securely fastened, the instrument may fall off the tripod, causing personal injury or instrument damage.CCAUTION – Securely fasten the tribrach clamp knob. If the knob is not securely fastened, the tribrach may come loose or fall off when you lift the instrument, causing personal injury or instrument damage.CCAUTION – Do not stack objects on the plastic carrying case, or use it as a stool. The plastic carrying case is unstable and its surface is slippery. Stacking or sitting on the plastic carrying case may cause personal injury or instrument damage.CCAUTION – The system in the instrument may stop functioning in order to avoid any errors in measurement when the instrument detects strong electromagnetic wave(s). If this is the case, turn off the instrument and remove the source of the electromagnetic wave(s). Then turn on the instrument to resume the work.Rechargeable Lithium-ion (Li-ion) batteriesCWARNING – Do not damage the rechargeable Lithium-ion battery. A damaged battery can cause an explosion or fire, and can result in personal injury and/or property damage.To prevent injury or damage:– Do not use or charge the battery if it appears to be damaged. Signs of damage include, but are not limited to, discoloration, warping, and leaking battery fluid.– Do not expose the battery to fire, high temperature, or direct sunlight.– Do not immerse the battery in water.– Do not use or store the battery inside a vehicle during hot weather.– Do not drop or puncture the battery.– Do not open the battery or short-circuit its contacts.CWARNING – Avoid contact with the rechargeable Lithium-ion battery if it appears to be leaking. Battery fluid is corrosive, and contact with it can result in personal injury and/or property damage.To prevent injury or damage:– If the battery leaks, avoid contact with the battery fluid.– If battery fluid gets into your eyes, immediately rinse your eyes with clean water and seek medical attention. Do not rub your eyes!– If battery fluid gets onto your skin or clothing, immediately use clean water to wash off the battery fluid.

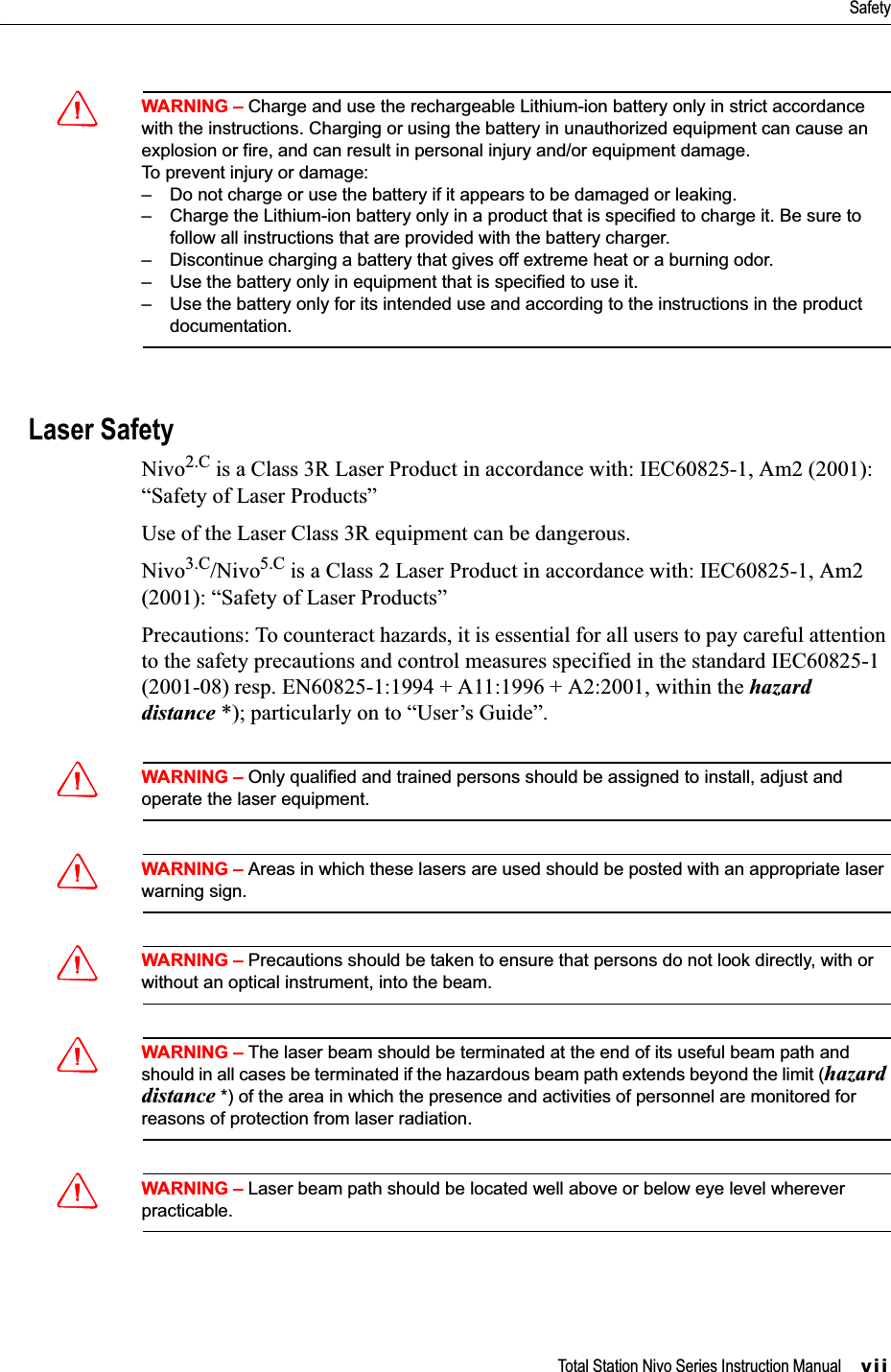

Total Station Nivo Series Instruction Manual viiSafetyCWARNING – Charge and use the rechargeable Lithium-ion battery only in strict accordance with the instructions. Charging or using the battery in unauthorized equipment can cause an explosion or fire, and can result in personal injury and/or equipment damage.To prevent injury or damage:– Do not charge or use the battery if it appears to be damaged or leaking.– Charge the Lithium-ion battery only in a product that is specified to charge it. Be sure to follow all instructions that are provided with the battery charger.– Discontinue charging a battery that gives off extreme heat or a burning odor.– Use the battery only in equipment that is specified to use it.– Use the battery only for its intended use and according to the instructions in the product documentation.Laser SafetyNivo2.C is a Class 3R Laser Product in accordance with: IEC60825-1, Am2 (2001): “Safety of Laser Products”Use of the Laser Class 3R equipment can be dangerous.Nivo3.C/Nivo5.C is a Class 2 Laser Product in accordance with: IEC60825-1, Am2 (2001): “Safety of Laser Products”Precautions: To counteract hazards, it is essential for all users to pay careful attention to the safety precautions and control measures specified in the standard IEC60825-1 (2001-08) resp. EN60825-1:1994 + A11:1996 + A2:2001, within the hazard distance *); particularly on to “User’s Guide”.CWARNING – Only qualified and trained persons should be assigned to install, adjust and operate the laser equipment.CWARNING – Areas in which these lasers are used should be posted with an appropriate laser warning sign.CWARNING – Precautions should be taken to ensure that persons do not look directly, with or without an optical instrument, into the beam.CWARNING – The laser beam should be terminated at the end of its useful beam path and should in all cases be terminated if the hazardous beam path extends beyond the limit (hazard distance *) of the area in which the presence and activities of personnel are monitored for reasons of protection from laser radiation.CWARNING – Laser beam path should be located well above or below eye level wherever practicable.

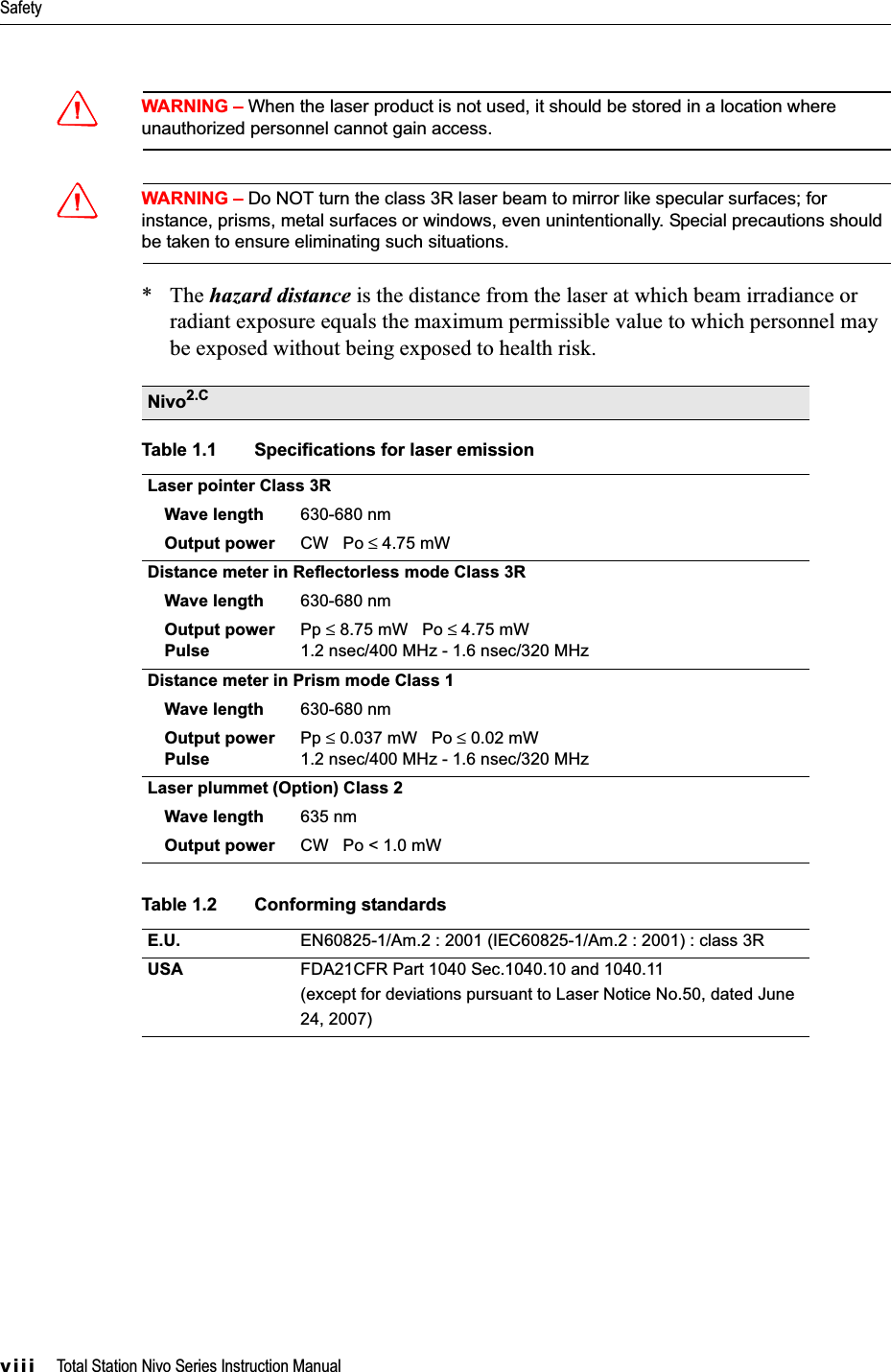

Safetyviii Total Station Nivo Series Instruction ManualCWARNING – When the laser product is not used, it should be stored in a location where unauthorized personnel cannot gain access.CWARNING – Do NOT turn the class 3R laser beam to mirror like specular surfaces; for instance, prisms, metal surfaces or windows, even unintentionally. Special precautions should be taken to ensure eliminating such situations.*The hazard distance is the distance from the laser at which beam irradiance or radiant exposure equals the maximum permissible value to which personnel may be exposed without being exposed to health risk. Nivo2.CTable 1.1 Specifications for laser emissionLaser pointer Class 3RWave length 630-680 nmOutput power CW Po ≤ 4.75 mWDistance meter in Reflectorless mode Class 3RWave length 630-680 nmOutput power PulsePp ≤ 8.75 mW Po ≤ 4.75 mW1.2 nsec/400 MHz - 1.6 nsec/320 MHzDistance meter in Prism mode Class 1Wave length 630-680 nmOutput power PulsePp ≤ 0.037 mW Po ≤ 0.02 mW1.2 nsec/400 MHz - 1.6 nsec/320 MHzLaser plummet (Option) Class 2Wave length 635 nmOutput power CW Po < 1.0 mWTable 1.2 Conforming standardsE.U. EN60825-1/Am.2 : 2001 (IEC60825-1/Am.2 : 2001) : class 3RUSA FDA21CFR Part 1040 Sec.1040.10 and 1040.11(except for deviations pursuant to Laser Notice No.50, dated June24, 2007)

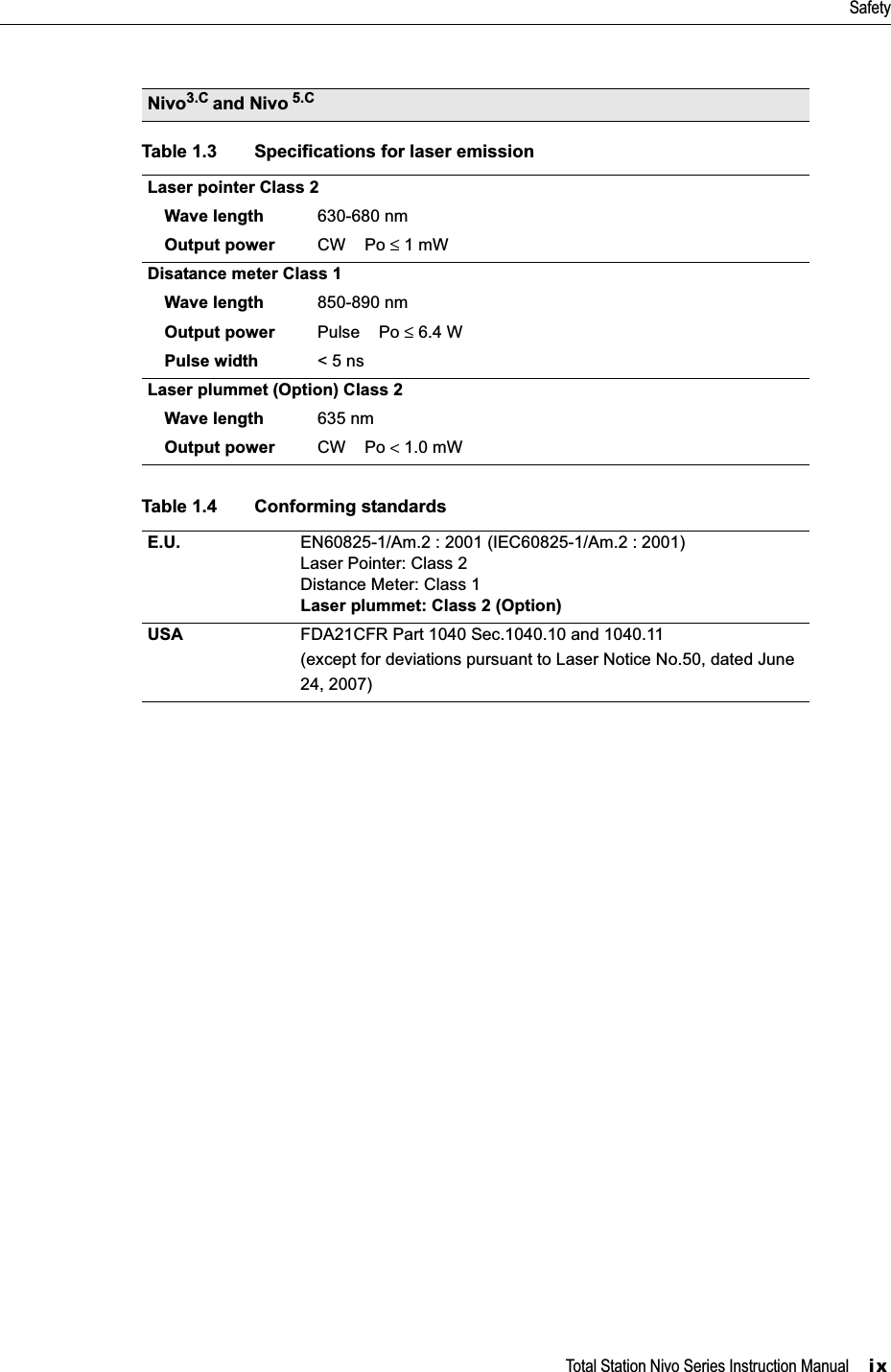

Total Station Nivo Series Instruction Manual ixSafetyNivo3.C and Nivo 5.CTable 1.3 Specifications for laser emissionLaser pointer Class 2Wave length 630-680 nmOutput power CW Po ≤ 1 mWDisatance meter Class 1Wave length 850-890 nmOutput power Pulse Po ≤ 6.4 WPulse width < 5 nsLaser plummet (Option) Class 2Wave length 635 nmOutput power CW Po < 1.0 mWTable 1.4 Conforming standardsE.U. EN60825-1/Am.2 : 2001 (IEC60825-1/Am.2 : 2001) Laser Pointer: Class 2Distance Meter: Class 1Laser plummet: Class 2 (Option)USA FDA21CFR Part 1040 Sec.1040.10 and 1040.11(except for deviations pursuant to Laser Notice No.50, dated June24, 2007)

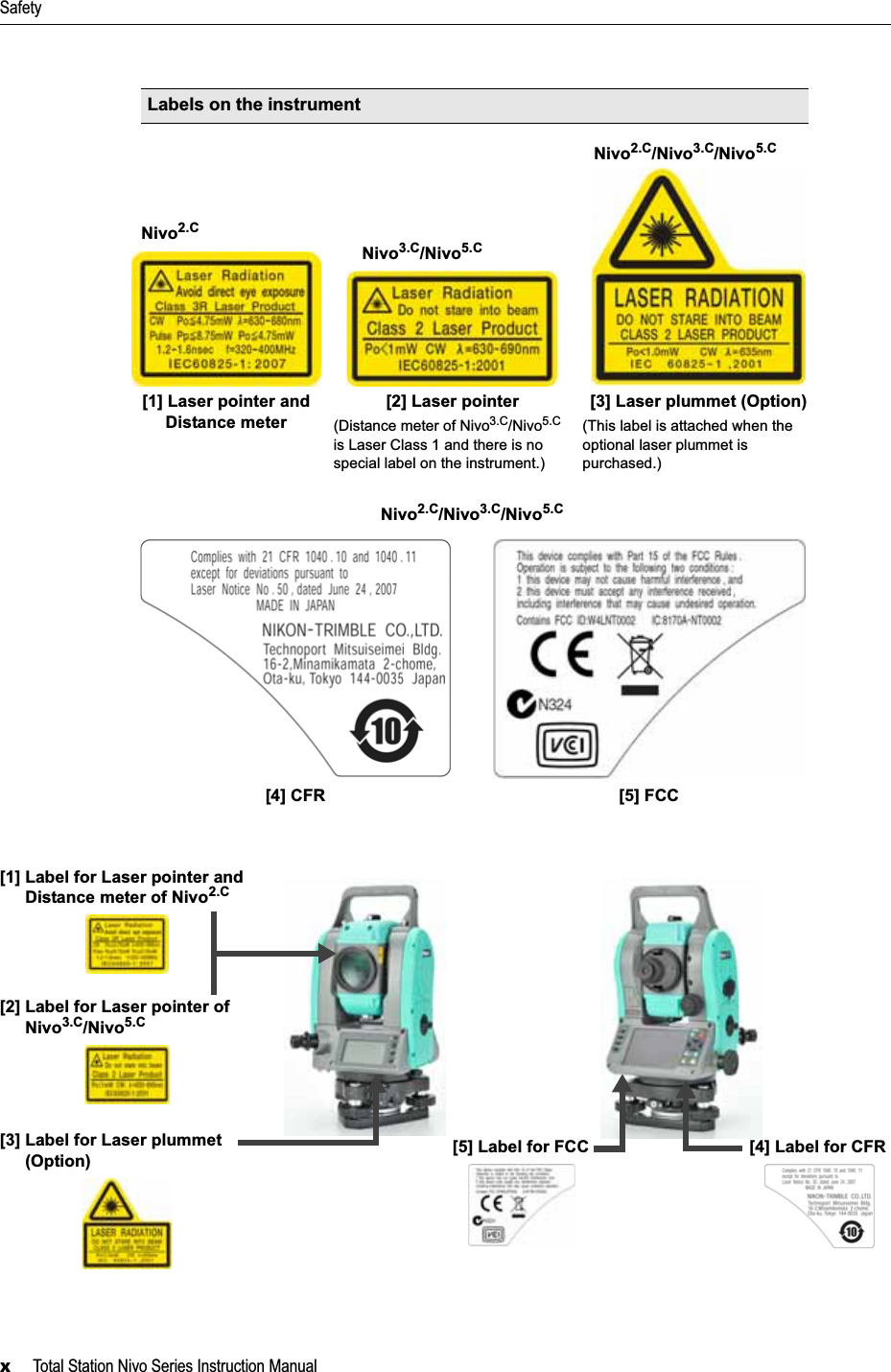

Safetyx Total Station Nivo Series Instruction ManualNivo2.C/Nivo3.C/Nivo5.CLabels on the instrument[1] Laser pointer and Distance meter[2] Laser pointer (Distance meter of Nivo3.C/Nivo5.Cis Laser Class 1 and there is no special label on the instrument.)[3] Laser plummet (Option)(This label is attached when the optional laser plummet is purchased.)[4] CFR [5] FCCNivo3.C/Nivo5.C[1] Label for Laser pointer and Distance meter of Nivo2.C[3] Label for Laser plummet (Option) [5] Label for FCCNivo2.C/Nivo3.C/Nivo5.C[2] Label for Laser pointer of Nivo3.C/Nivo5.CNivo2.C[4] Label for CFR

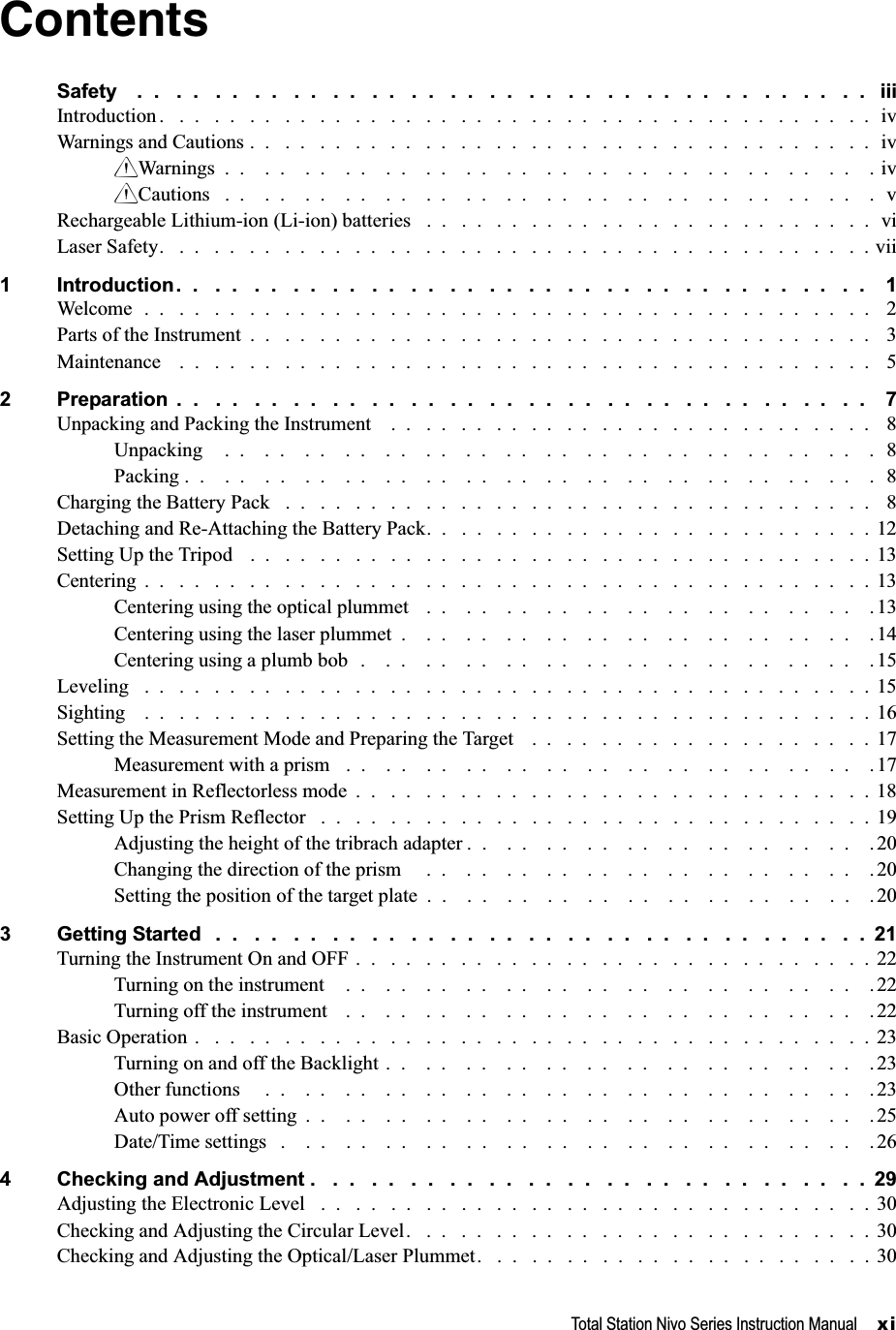

Total Station Nivo Series Instruction Manual xiContentsSafety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iiiIntroduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ivWarnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ivCWarnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ivCCautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vRechargeable Lithium-ion (Li-ion) batteries . . . . . . . . . . . . . . . . . . . . . . . . . . viLaser Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Parts of the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Unpacking and Packing the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Packing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Charging the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Detaching and Re-Attaching the Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . 12Setting Up the Tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Centering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Centering using the optical plummet . . . . . . . . . . . . . . . . . . . . . . .13Centering using the laser plummet . . . . . . . . . . . . . . . . . . . . . . . .14Centering using a plumb bob . . . . . . . . . . . . . . . . . . . . . . . . . . 15Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Sighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Setting the Measurement Mode and Preparing the Target . . . . . . . . . . . . . . . . . . . . 17Measurement with a prism . . . . . . . . . . . . . . . . . . . . . . . . . . .17Measurement in Reflectorless mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Setting Up the Prism Reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Adjusting the height of the tribrach adapter . . . . . . . . . . . . . . . . . . . . . 20Changing the direction of the prism . . . . . . . . . . . . . . . . . . . . . . .20Setting the position of the target plate . . . . . . . . . . . . . . . . . . . . . . . 203 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Turning the Instrument On and OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Turning on the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Turning off the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Turning on and off the Backlight . . . . . . . . . . . . . . . . . . . . . . . . .23Other functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Auto power off setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Date/Time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .264 Checking and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Adjusting the Electronic Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Checking and Adjusting the Circular Level. . . . . . . . . . . . . . . . . . . . . . . . . . . 30Checking and Adjusting the Optical/Laser Plummet. . . . . . . . . . . . . . . . . . . . . . . 30

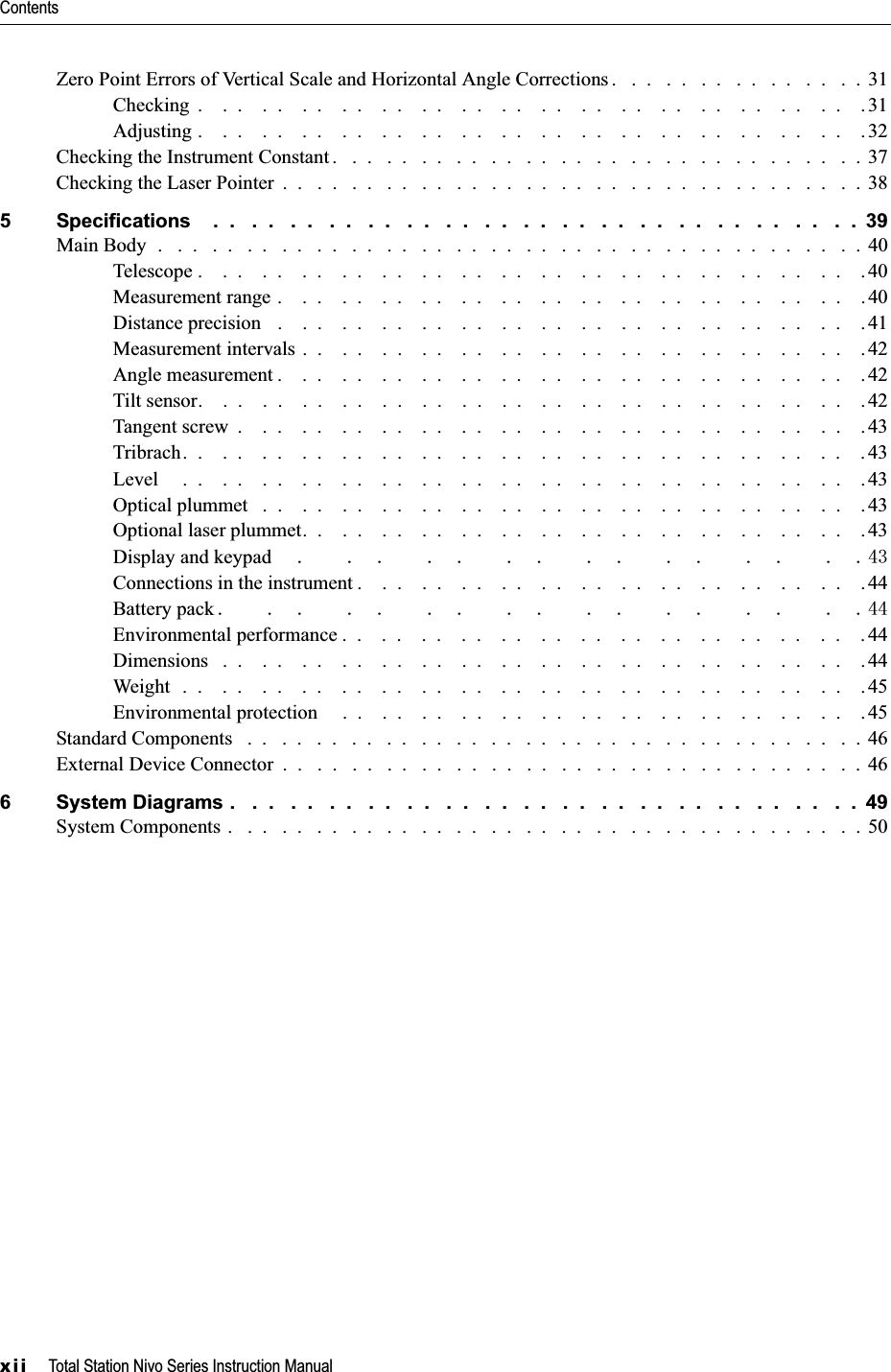

Contentsxii Total Station Nivo Series Instruction ManualZero Point Errors of Vertical Scale and Horizontal Angle Corrections . . . . . . . . . . . . . . . 31Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Checking the Instrument Constant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Checking the Laser Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Main Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Telescope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Measurement range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40Distance precision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41Measurement intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Angle measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42Tilt sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42Tangent screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43Tribrach. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43Optical plummet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Optional laser plummet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Display and keypad  Connections in the instrument . . . . . . . . . . . . . . . . . . . . . . . . . .44Battery pack  Environmental performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 44Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . .45Standard Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46External Device Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466 System Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

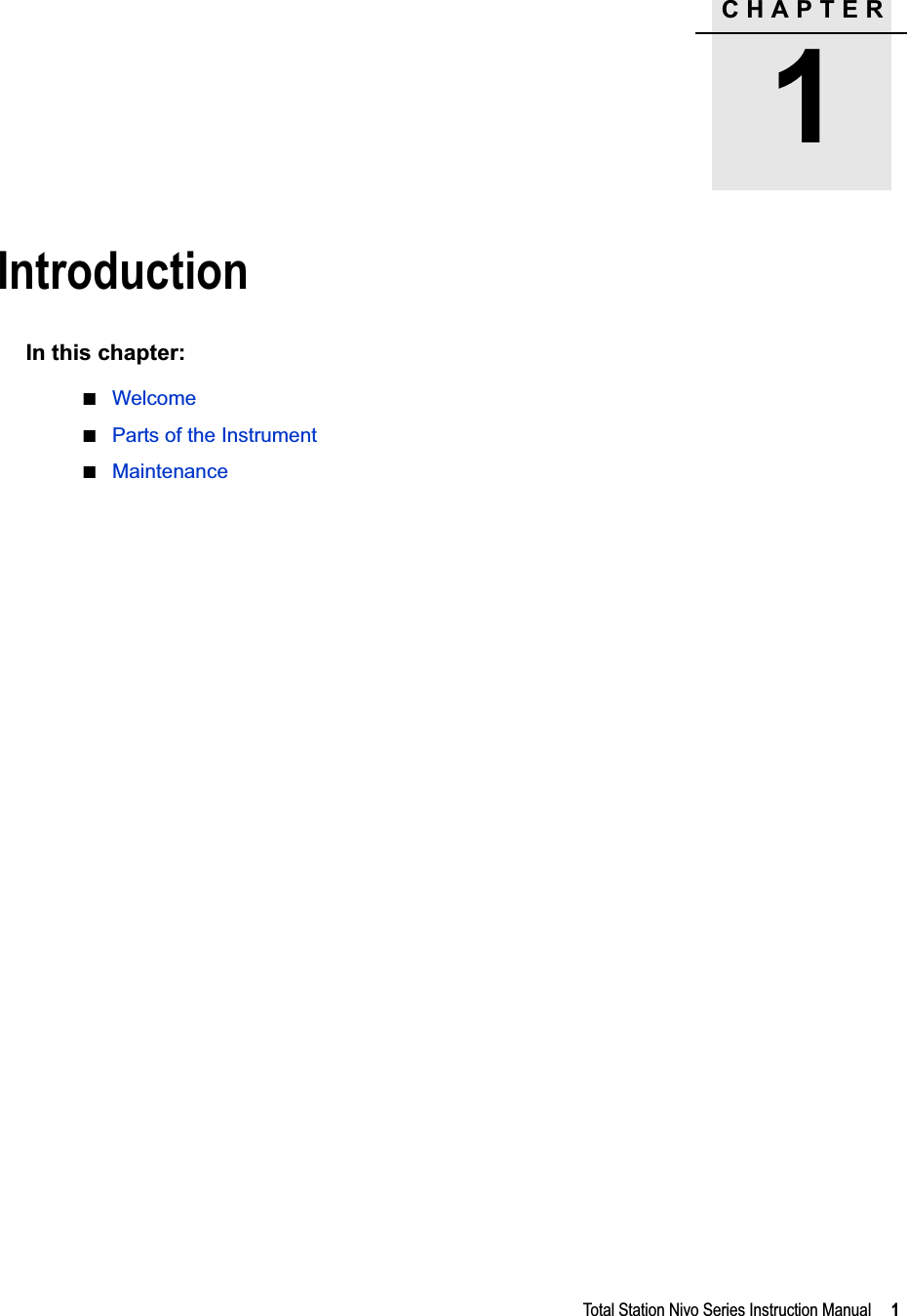

CHAPTER1Total Station Nivo Series Instruction Manual 1Introduction 1In this chapter:QWelcomeQParts of the InstrumentQMaintenance

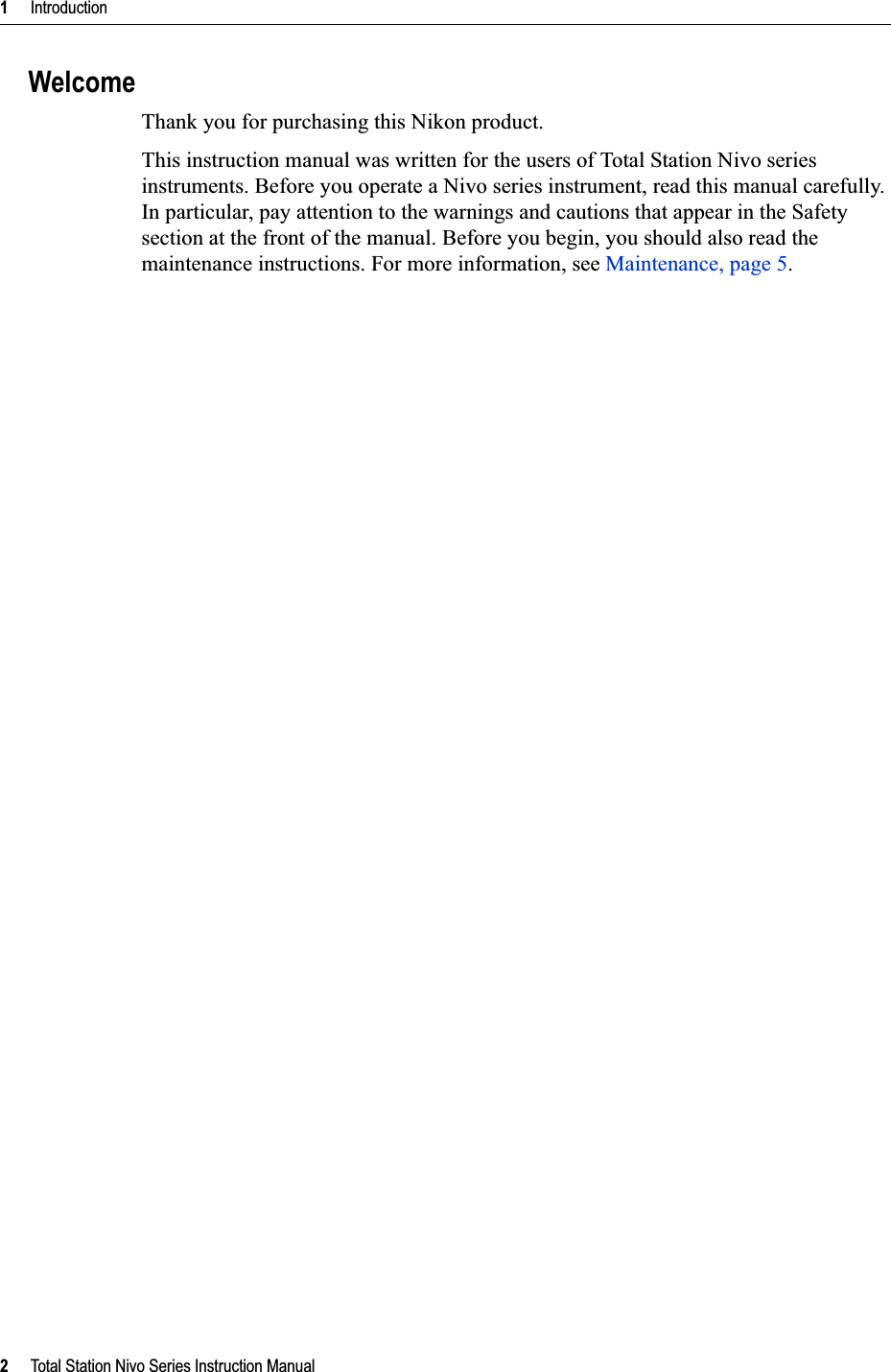

1 Introduction2 Total Station Nivo Series Instruction ManualWelcomeThank you for purchasing this Nikon product. This instruction manual was written for the users of Total Station Nivo series instruments. Before you operate a Nivo series instrument, read this manual carefully. In particular, pay attention to the warnings and cautions that appear in the Safety section at the front of the manual. Before you begin, you should also read the maintenance instructions. For more information, see Maintenance, page 5.

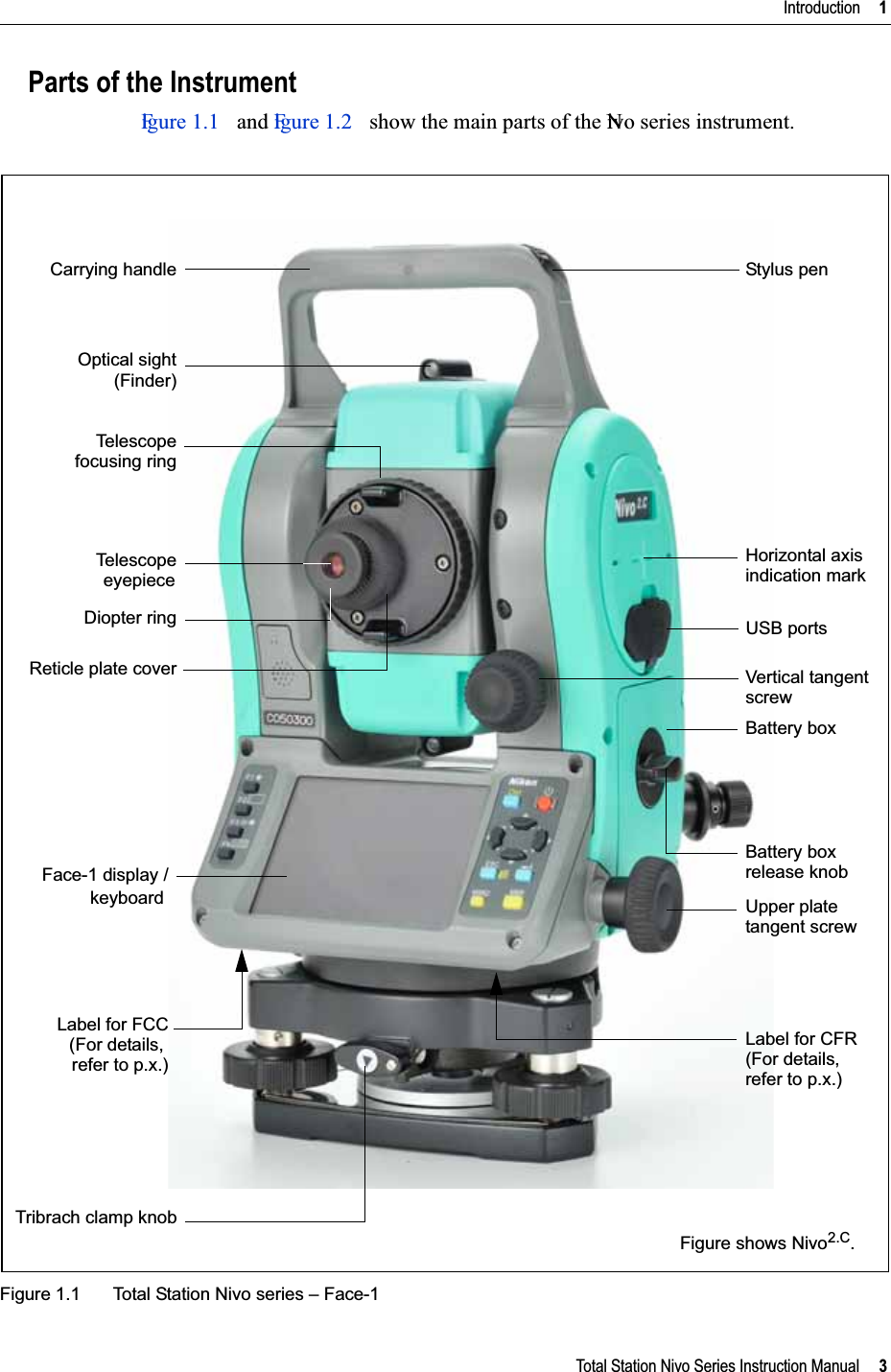

Total Station Nivo Series Instruction Manual 3Introduction 1Parts of the InstrumentFigure 1.1 and Figure 1.2 show the main parts of the Nivo series instrument.Figure 1.1 Total Station Nivo series – Face-1Te l e s c op eTe l e s c op eDiopter ringFace-1 display /Horizontal axis Vertical tangent Battery boxUpper platescrewtangent screwfocusing ring eyepiecekeyboardCarrying handleOptical sight(Finder)Reticle plate coverLabel for CFRTribrach clamp knob Battery box release knobindication markLabel for FCCFigure shows Nivo2.C.USB ports Stylus pen(For details, refer to p.x.) (For details, refer to p.x.)

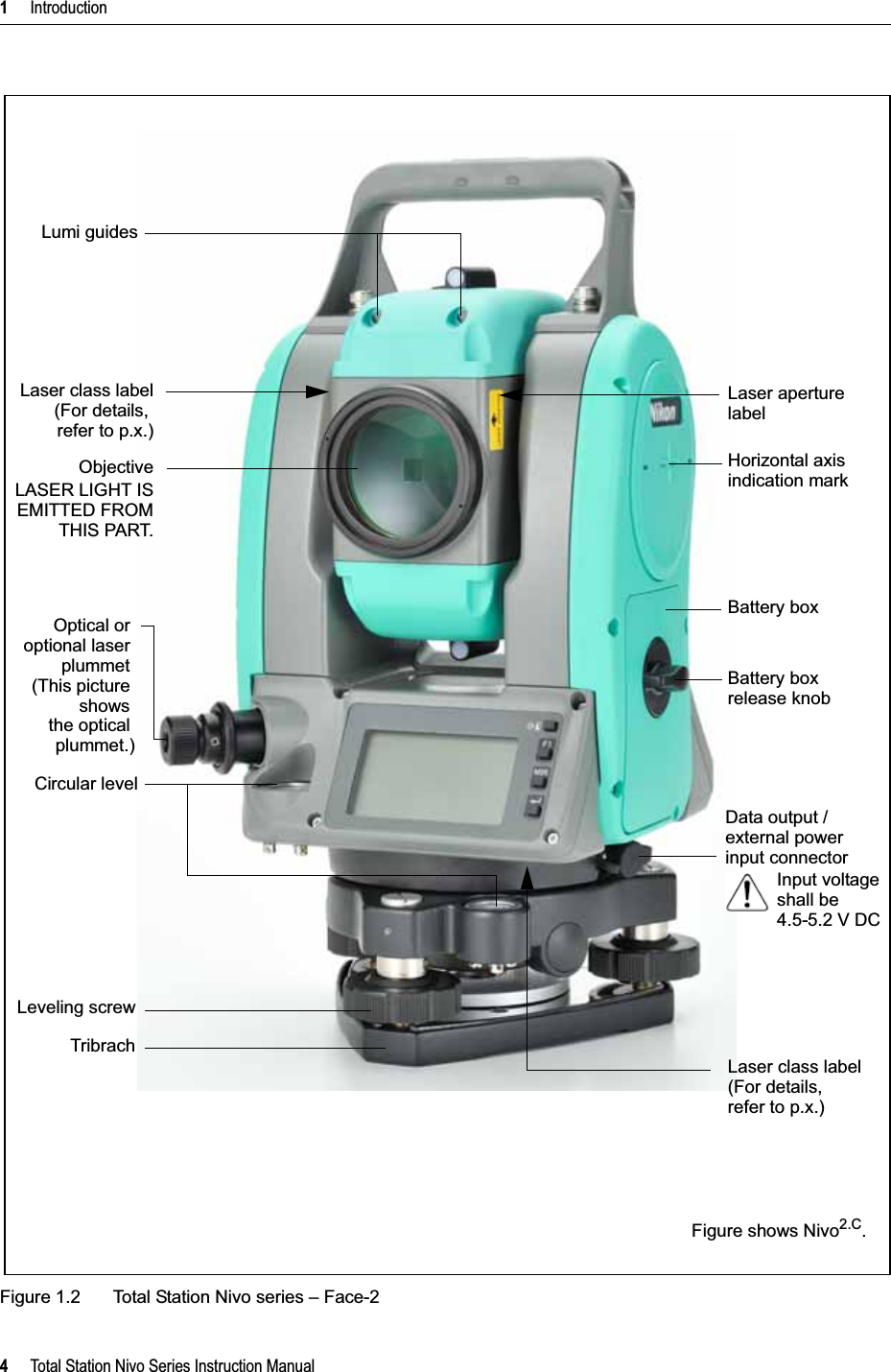

1 Introduction4 Total Station Nivo Series Instruction ManualFigure 1.2 Total Station Nivo series – Face-2Horizontal axisindication markObjectiveBattery box LASER LIGHT ISEMITTED FROMTHIS PART.Data output /external powerinput connectorInput voltageshall be Circular levelBattery boxrelease knobLeveling screwTribrachLaser class labelOptical or optional laser plummet (This picture shows the optical plummet.)4.5-5.2 V DCFigure shows Nivo2.C.Laser aperture Laser class labelLumi guideslabel(For details, refer to p.x.)(For details, refer to p.x.)
Total Station Nivo Series Instruction Manual 5Introduction 1MaintenanceBefore using the instrument, read and follow the following maintenance instructions:•Do not leave the instrument in direct sunlight or in a closed vehicle for prolonged periods. Overheating the instrument may reduce its efficiency.•If the Nivo series instrument has been used in wet conditions, immediately wipe off any moisture and dry the instrument completely before returning the instrument to the carrying case. The instrument contains sensitive electronic assemblies which have been well protected against dust and moisture. However, if dust or moisture gets into the instrument, severe damage could result.•Sudden changes in temperature may cloud the lenses and drastically reduce the measurable distance, or cause an electrical system failure. If there has been a sudden change in temperature, leave the instrument in a closed carrying case in a warm location until the temperature of the instrument returns to room temperature.•Do not store the Nivo series instrument in hot or humid locations. In particular, you must store the battery pack in a dry location at a temperature of less than 30 °C (86 °F). High temperature or excessive humidity can cause mold to grow on the lenses. It can also cause the electronic assemblies to deteriorate, and so lead to instrument failure.•Store the battery pack with the battery discharged.•When storing the instrument in areas subject to extremely low temperatures, leave the carrying case open.•When adjusting the leveling screws, stay as close as possible to the center of each screw’s range. The center is indicated by a line on the screw.•If the tribrach will not be used for an extended period, lock down the tribrach clamp knob and tighten its safety screw.•Do not use organic solvents (such as ether or paint thinner) to clean the non-metallic parts of the instrument (such as the keyboard) or the painted or printed surfaces. Doing so could result in discoloration of the surface, or in peeling of printed characters. Clean these parts only with a soft cloth or a tissue, lightly moistened with water or a mild detergent.•To clean the optical lenses, lightly wipe them with a soft cloth or a lens tissue that is moistened with alcohol.

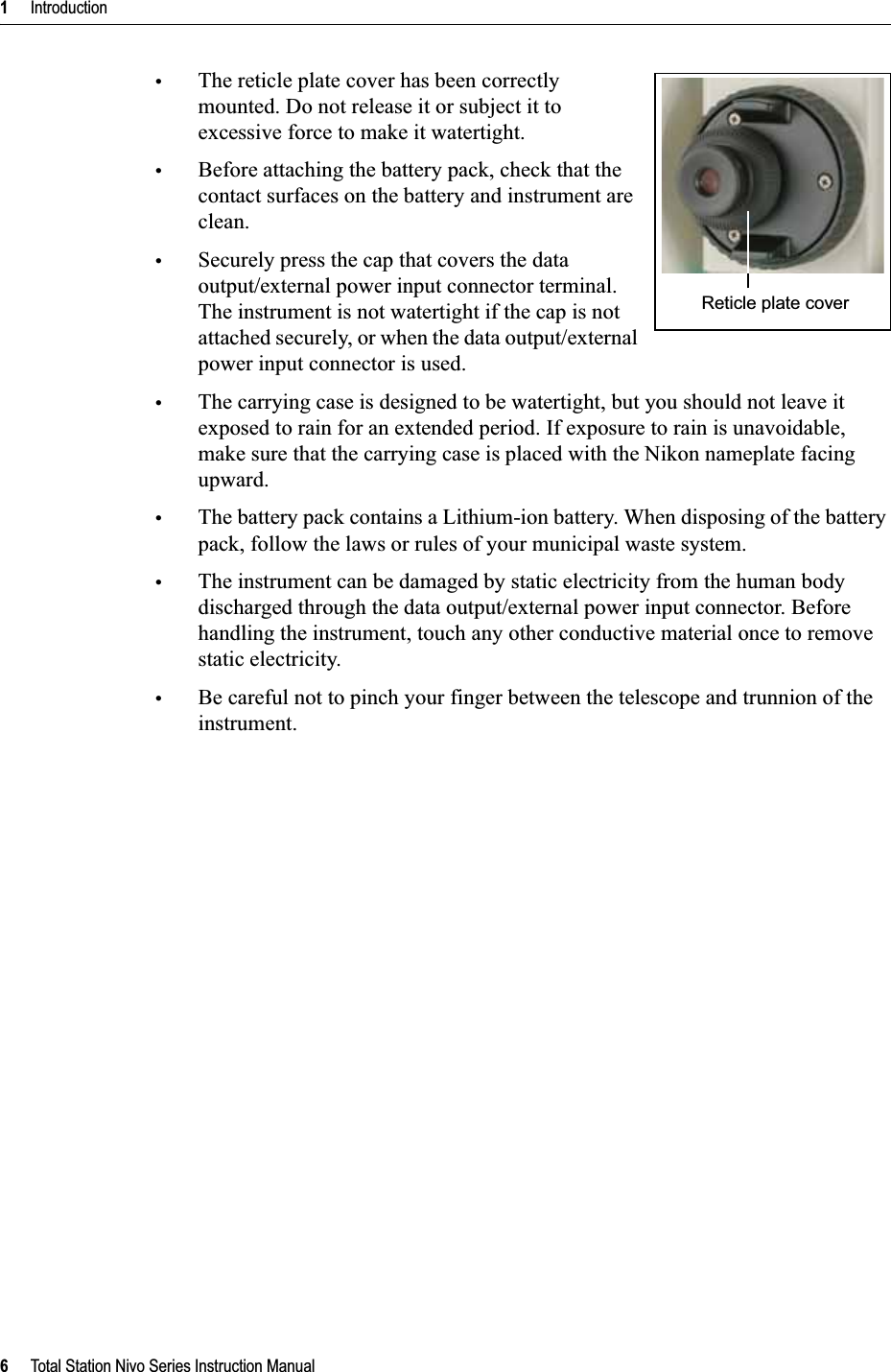

1 Introduction6 Total Station Nivo Series Instruction Manual•The reticle plate cover has been correctly mounted. Do not release it or subject it to excessive force to make it watertight. •Before attaching the battery pack, check that the contact surfaces on the battery and instrument are clean.•Securely press the cap that covers the data output/external power input connector terminal. The instrument is not watertight if the cap is not attached securely, or when the data output/external power input connector is used.•The carrying case is designed to be watertight, but you should not leave it exposed to rain for an extended period. If exposure to rain is unavoidable, make sure that the carrying case is placed with the Nikon nameplate facing upward.•The battery pack contains a Lithium-ion battery. When disposing of the battery pack, follow the laws or rules of your municipal waste system.•The instrument can be damaged by static electricity from the human body discharged through the data output/external power input connector. Before handling the instrument, touch any other conductive material once to remove static electricity.•Be careful not to pinch your finger between the telescope and trunnion of the instrument.Reticle plate cover

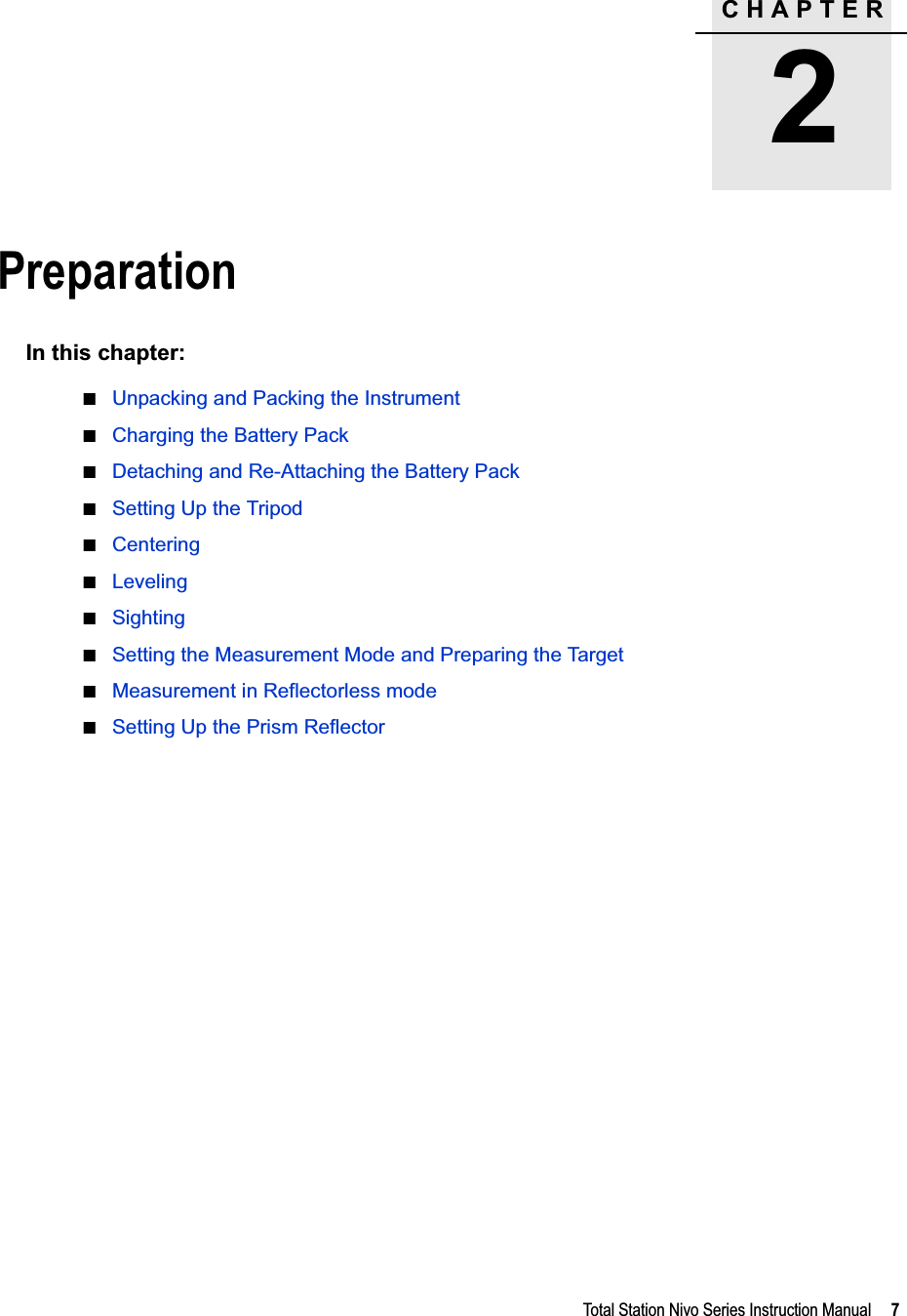

CHAPTER2Total Station Nivo Series Instruction Manual 7Preparation 2In this chapter:QUnpacking and Packing the InstrumentQCharging the Battery PackQDetaching and Re-Attaching the Battery PackQSetting Up the TripodQCenteringQLevelingQSightingQSetting the Measurement Mode and Preparing the TargetQMeasurement in Reflectorless modeQSetting Up the Prism Reflector

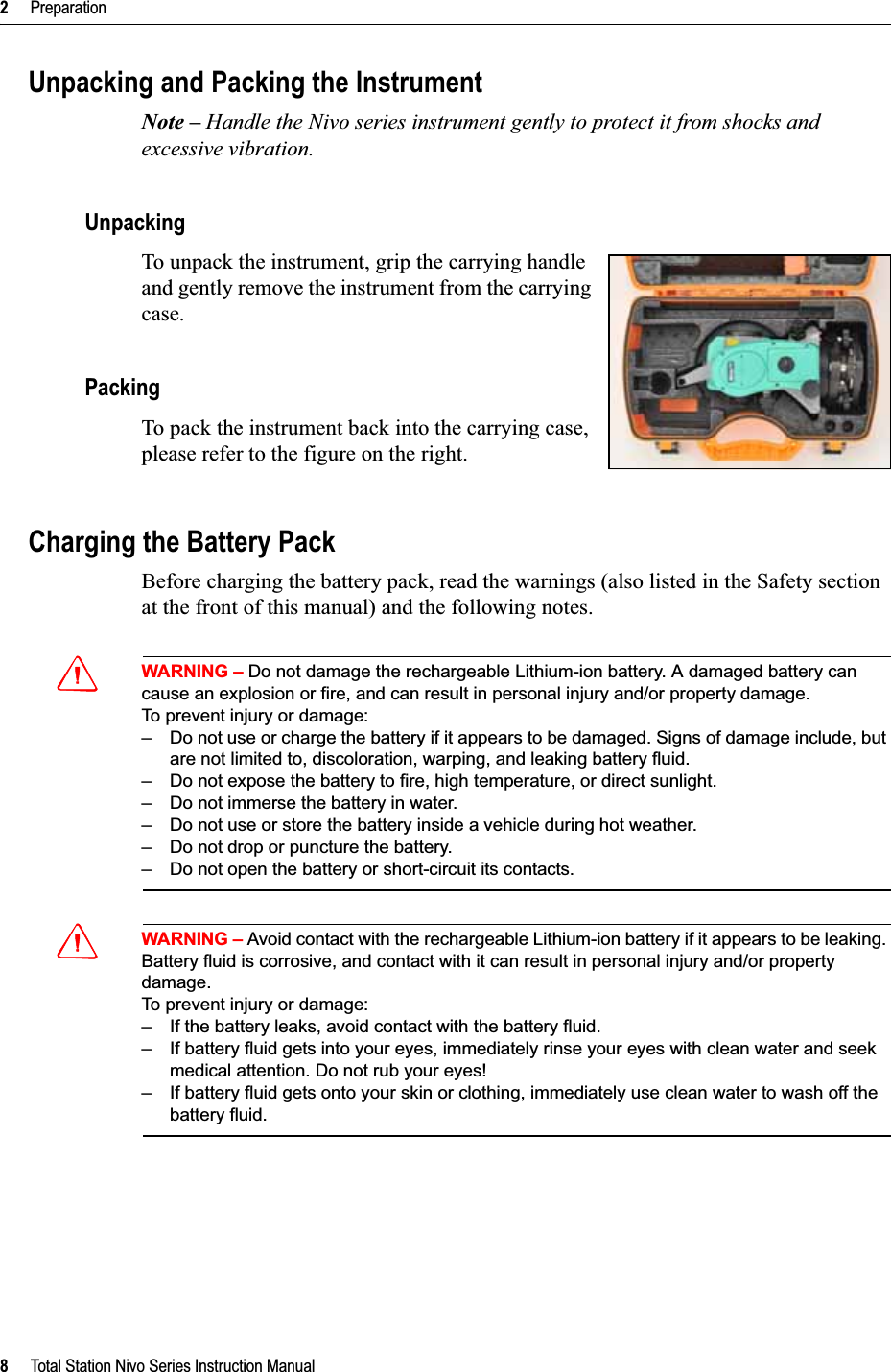

2 Preparation8 Total Station Nivo Series Instruction ManualUnpacking and Packing the InstrumentNote – Handle the Nivo series instrument gently to protect it from shocks and excessive vibration.UnpackingTo unpack the instrument, grip the carrying handle and gently remove the instrument from the carrying case.PackingTo pack the instrument back into the carrying case, please refer to the figure on the right.Charging the Battery PackBefore charging the battery pack, read the warnings (also listed in the Safety section at the front of this manual) and the following notes.CWARNING – Do not damage the rechargeable Lithium-ion battery. A damaged battery can cause an explosion or fire, and can result in personal injury and/or property damage.To prevent injury or damage:– Do not use or charge the battery if it appears to be damaged. Signs of damage include, but are not limited to, discoloration, warping, and leaking battery fluid.– Do not expose the battery to fire, high temperature, or direct sunlight.– Do not immerse the battery in water.– Do not use or store the battery inside a vehicle during hot weather.– Do not drop or puncture the battery.– Do not open the battery or short-circuit its contacts.CWARNING – Avoid contact with the rechargeable Lithium-ion battery if it appears to be leaking. Battery fluid is corrosive, and contact with it can result in personal injury and/or property damage.To prevent injury or damage:– If the battery leaks, avoid contact with the battery fluid.– If battery fluid gets into your eyes, immediately rinse your eyes with clean water and seek medical attention. Do not rub your eyes!– If battery fluid gets onto your skin or clothing, immediately use clean water to wash off the battery fluid.

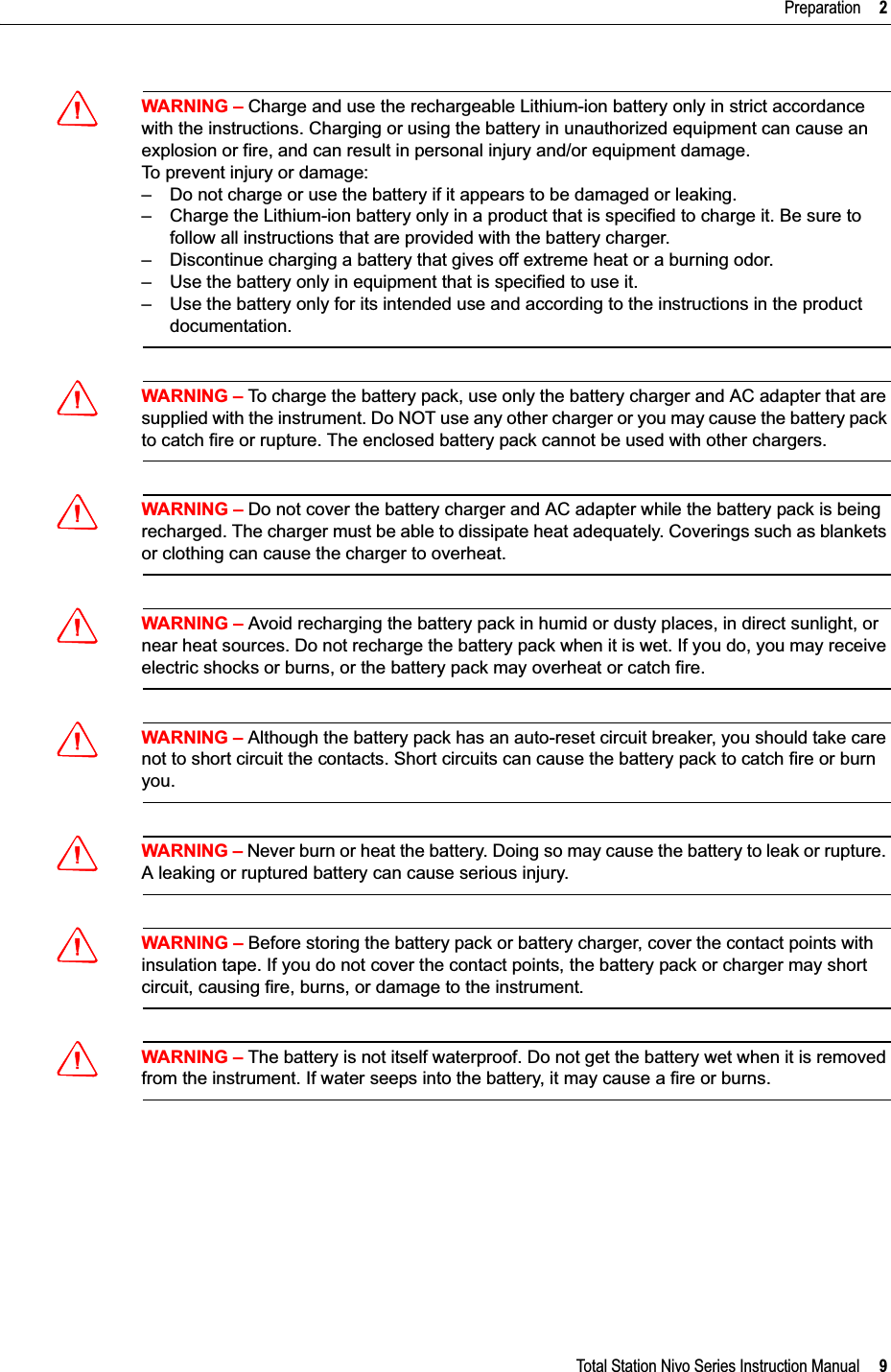

Total Station Nivo Series Instruction Manual 9Preparation 2CWARNING – Charge and use the rechargeable Lithium-ion battery only in strict accordance with the instructions. Charging or using the battery in unauthorized equipment can cause an explosion or fire, and can result in personal injury and/or equipment damage.To prevent injury or damage:– Do not charge or use the battery if it appears to be damaged or leaking.– Charge the Lithium-ion battery only in a product that is specified to charge it. Be sure to follow all instructions that are provided with the battery charger.– Discontinue charging a battery that gives off extreme heat or a burning odor.– Use the battery only in equipment that is specified to use it.– Use the battery only for its intended use and according to the instructions in the product documentation.CWARNING – To charge the battery pack, use only the battery charger and AC adapter that are supplied with the instrument. Do NOT use any other charger or you may cause the battery pack to catch fire or rupture. The enclosed battery pack cannot be used with other chargers.CWARNING – Do not cover the battery charger and AC adapter while the battery pack is being recharged. The charger must be able to dissipate heat adequately. Coverings such as blankets or clothing can cause the charger to overheat.CWARNING – Avoid recharging the battery pack in humid or dusty places, in direct sunlight, or near heat sources. Do not recharge the battery pack when it is wet. If you do, you may receive electric shocks or burns, or the battery pack may overheat or catch fire.CWARNING – Although the battery pack has an auto-reset circuit breaker, you should take care not to short circuit the contacts. Short circuits can cause the battery pack to catch fire or burn you.CWARNING – Never burn or heat the battery. Doing so may cause the battery to leak or rupture. A leaking or ruptured battery can cause serious injury.CWARNING – Before storing the battery pack or battery charger, cover the contact points with insulation tape. If you do not cover the contact points, the battery pack or charger may short circuit, causing fire, burns, or damage to the instrument.CWARNING – The battery is not itself waterproof. Do not get the battery wet when it is removed from the instrument. If water seeps into the battery, it may cause a fire or burns.

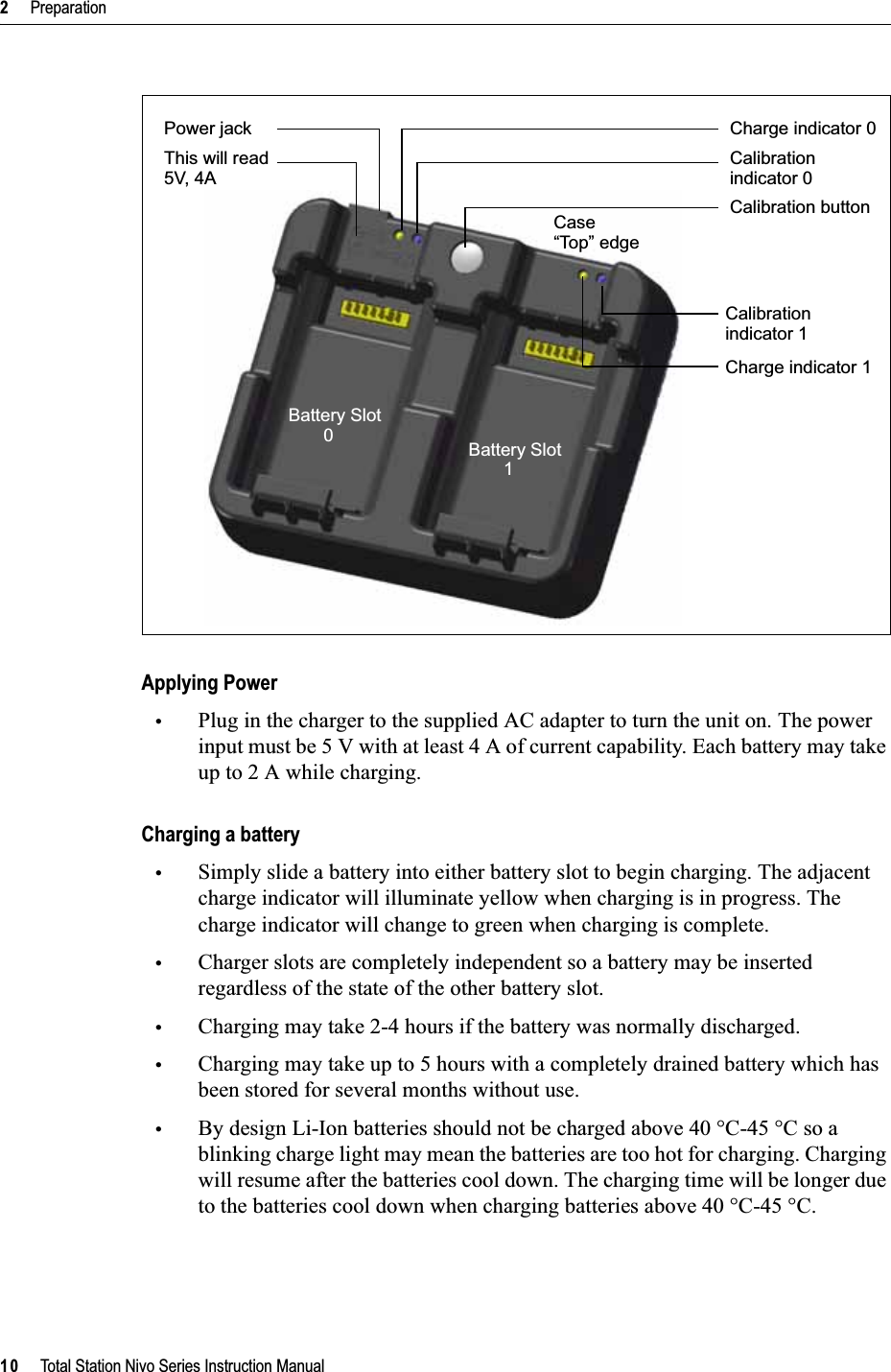

2 Preparation10 Total Station Nivo Series Instruction ManualApplying Power•Plug in the charger to the supplied AC adapter to turn the unit on. The power input must be 5 V with at least 4 A of current capability. Each battery may take up to 2 A while charging.Charging a battery•Simply slide a battery into either battery slot to begin charging. The adjacent charge indicator will illuminate yellow when charging is in progress. The charge indicator will change to green when charging is complete.•Charger slots are completely independent so a battery may be inserted regardless of the state of the other battery slot.•Charging may take 2-4 hours if the battery was normally discharged.•Charging may take up to 5 hours with a completely drained battery which has been stored for several months without use.•By design Li-Ion batteries should not be charged above 40 °C-45 °C so a blinking charge light may mean the batteries are too hot for charging. Charging will resume after the batteries cool down. The charging time will be longer due to the batteries cool down when charging batteries above 40 °C-45 °C.Charge indicator 0Calibrationindicator 0Calibration buttonCalibrationindicator 1Charge indicator 1Power jackThis will read 5V, 4ACase“Top” edgeBattery Slot 0 Battery Slot 1

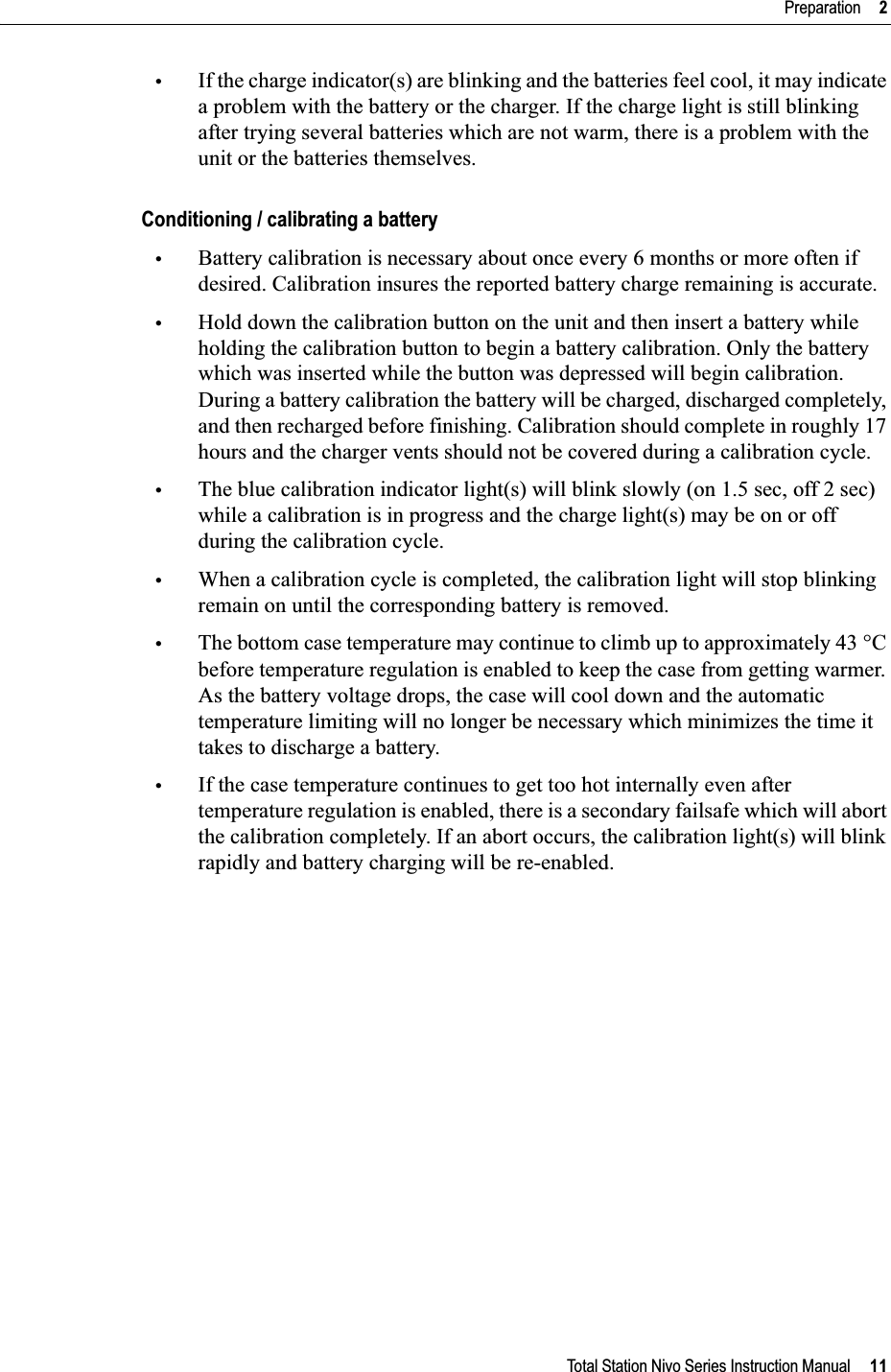

Total Station Nivo Series Instruction Manual 11Preparation 2•If the charge indicator(s) are blinking and the batteries feel cool, it may indicate a problem with the battery or the charger. If the charge light is still blinking after trying several batteries which are not warm, there is a problem with the unit or the batteries themselves.Conditioning / calibrating a battery•Battery calibration is necessary about once every 6 months or more often if desired. Calibration insures the reported battery charge remaining is accurate.•Hold down the calibration button on the unit and then insert a battery while holding the calibration button to begin a battery calibration. Only the battery which was inserted while the button was depressed will begin calibration. During a battery calibration the battery will be charged, discharged completely, and then recharged before finishing. Calibration should complete in roughly 17 hours and the charger vents should not be covered during a calibration cycle.•The blue calibration indicator light(s) will blink slowly (on 1.5 sec, off 2 sec) while a calibration is in progress and the charge light(s) may be on or off during the calibration cycle.•When a calibration cycle is completed, the calibration light will stop blinking remain on until the corresponding battery is removed.•The bottom case temperature may continue to climb up to approximately 43 °C before temperature regulation is enabled to keep the case from getting warmer. As the battery voltage drops, the case will cool down and the automatic temperature limiting will no longer be necessary which minimizes the time it takes to discharge a battery.•If the case temperature continues to get too hot internally even after temperature regulation is enabled, there is a secondary failsafe which will abort the calibration completely. If an abort occurs, the calibration light(s) will blink rapidly and battery charging will be re-enabled.

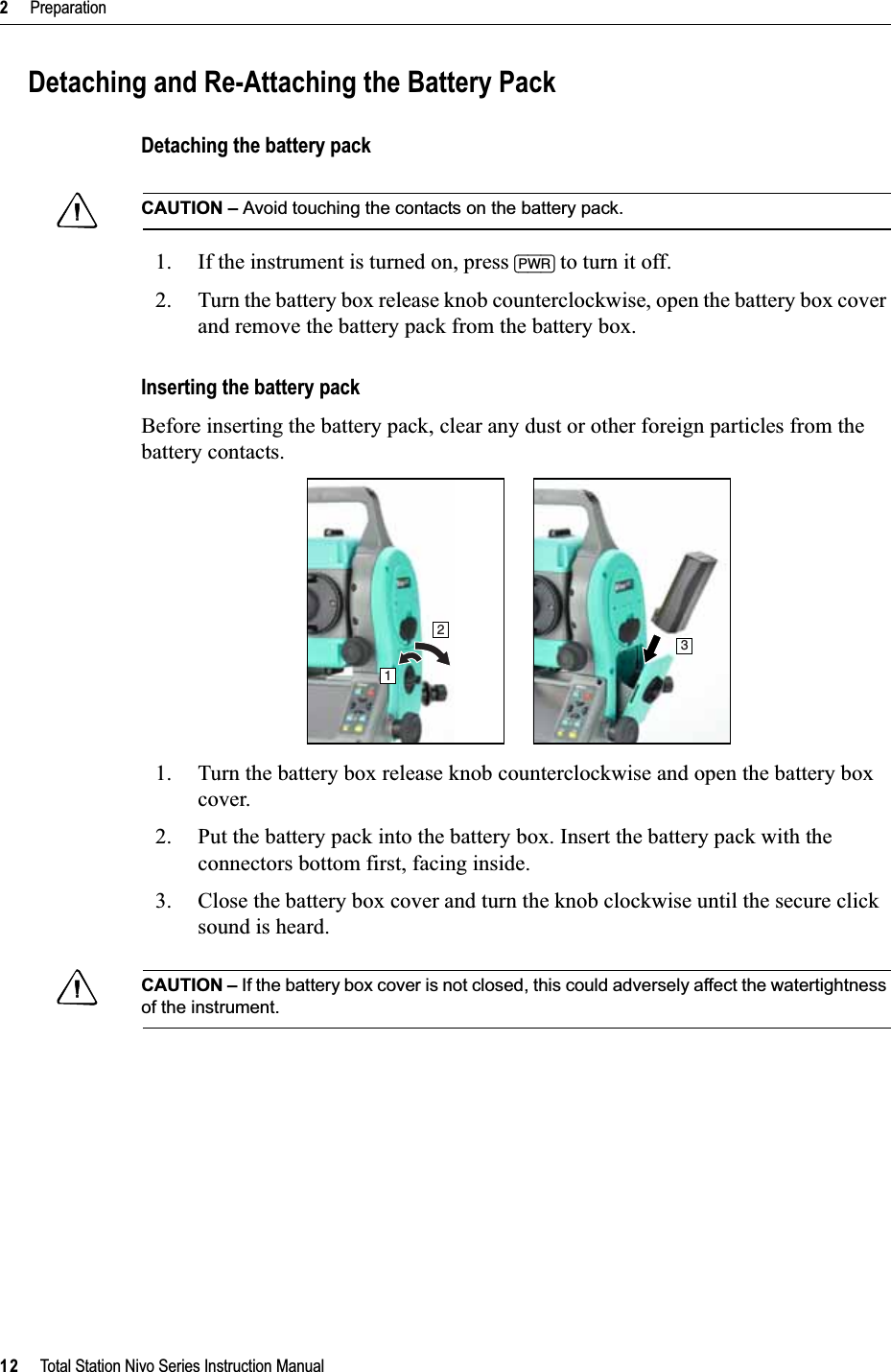

2 Preparation12 Total Station Nivo Series Instruction ManualDetaching and Re-Attaching the Battery PackDetaching the battery packCCAUTION – Avoid touching the contacts on the battery pack.1. If the instrument is turned on, press [PWR] to turn it off.2. Turn the battery box release knob counterclockwise, open the battery box cover and remove the battery pack from the battery box.Inserting the battery packBefore inserting the battery pack, clear any dust or other foreign particles from the battery contacts.1. Turn the battery box release knob counterclockwise and open the battery box cover.2. Put the battery pack into the battery box. Insert the battery pack with the connectors bottom first, facing inside.3. Close the battery box cover and turn the knob clockwise until the secure click sound is heard.CCAUTION – If the battery box cover is not closed, this could adversely affect the watertightness of the instrument.123

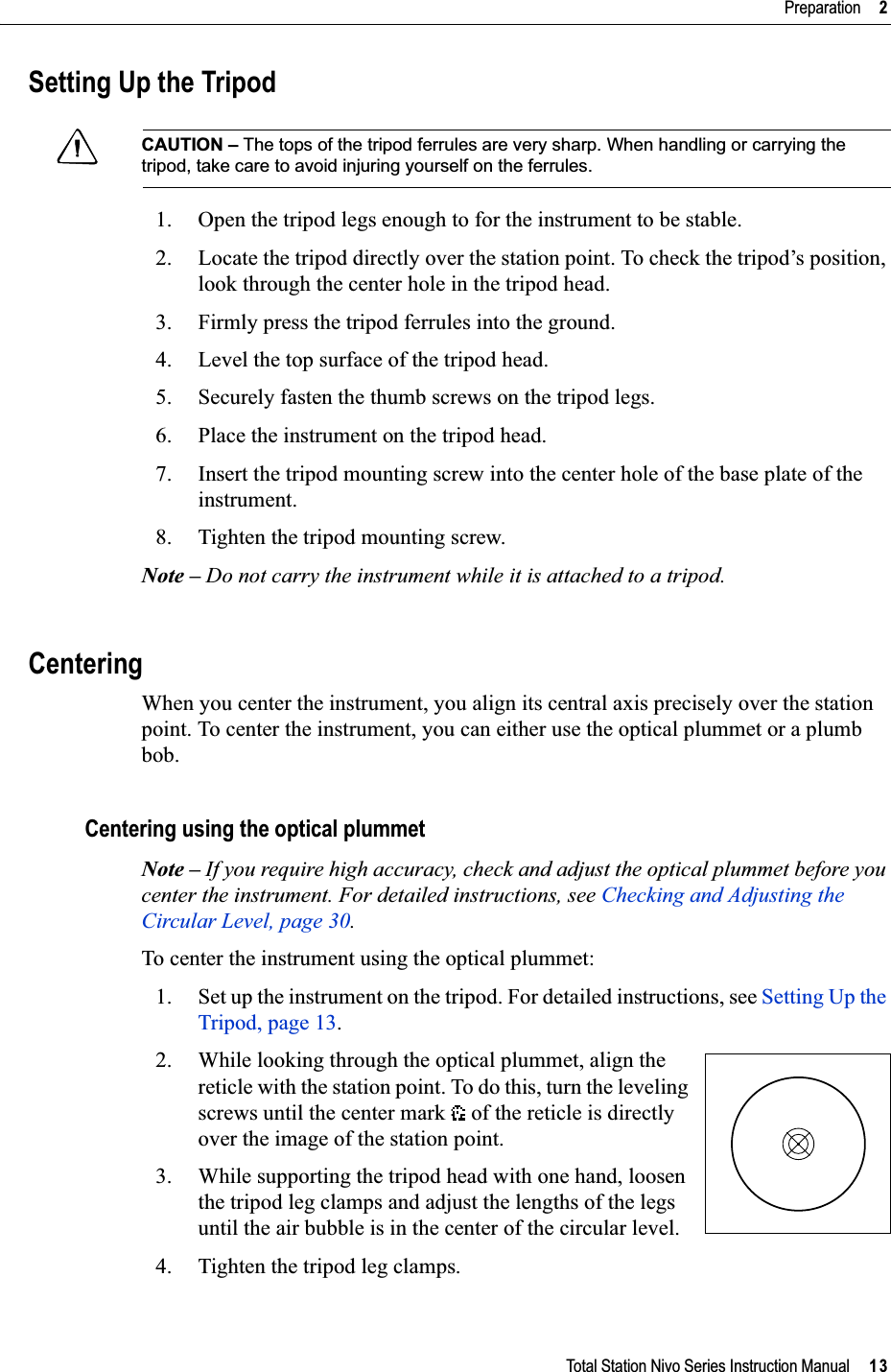

Total Station Nivo Series Instruction Manual 13Preparation 2Setting Up the TripodCCAUTION – The tops of the tripod ferrules are very sharp. When handling or carrying the tripod, take care to avoid injuring yourself on the ferrules.1. Open the tripod legs enough to for the instrument to be stable.2. Locate the tripod directly over the station point. To check the tripod’s position, look through the center hole in the tripod head.3. Firmly press the tripod ferrules into the ground.4. Level the top surface of the tripod head.5. Securely fasten the thumb screws on the tripod legs.6. Place the instrument on the tripod head.7. Insert the tripod mounting screw into the center hole of the base plate of the instrument.8. Tighten the tripod mounting screw.Note – Do not carry the instrument while it is attached to a tripod.CenteringWhen you center the instrument, you align its central axis precisely over the station point. To center the instrument, you can either use the optical plummet or a plumb bob.Centering using the optical plummetNote – If you require high accuracy, check and adjust the optical plummet before you center the instrument. For detailed instructions, see Checking and Adjusting the Circular Level, page 30.To center the instrument using the optical plummet:1. Set up the instrument on the tripod. For detailed instructions, see Setting Up the Tripod, page 13.2. While looking through the optical plummet, align the reticle with the station point. To do this, turn the leveling screws until the center mark of the reticle is directly over the image of the station point.3. While supporting the tripod head with one hand, loosen the tripod leg clamps and adjust the lengths of the legs until the air bubble is in the center of the circular level.4. Tighten the tripod leg clamps.

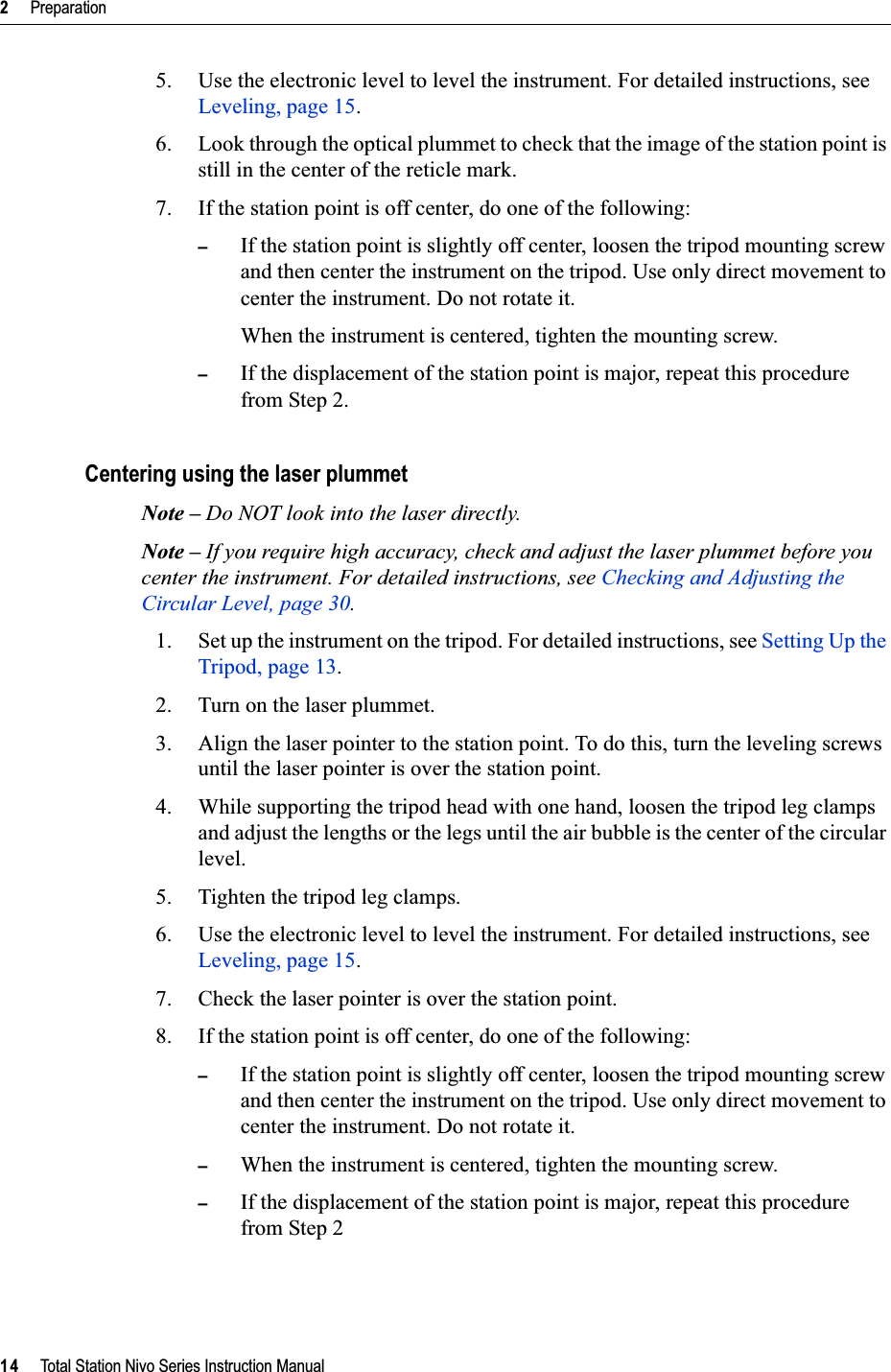

2 Preparation14 Total Station Nivo Series Instruction Manual5. Use the electronic level to level the instrument. For detailed instructions, see Leveling, page 15.6. Look through the optical plummet to check that the image of the station point is still in the center of the reticle mark. 7. If the station point is off center, do one of the following:–If the station point is slightly off center, loosen the tripod mounting screw and then center the instrument on the tripod. Use only direct movement to center the instrument. Do not rotate it.When the instrument is centered, tighten the mounting screw.–If the displacement of the station point is major, repeat this procedure from Step 2.Centering using the laser plummetNote – Do NOT look into the laser directly.Note – If you require high accuracy, check and adjust the laser plummet before you center the instrument. For detailed instructions, see Checking and Adjusting the Circular Level, page 30.1. Set up the instrument on the tripod. For detailed instructions, see Setting Up the Tripod, page 13.2. Turn on the laser plummet.3. Align the laser pointer to the station point. To do this, turn the leveling screws until the laser pointer is over the station point.4. While supporting the tripod head with one hand, loosen the tripod leg clamps and adjust the lengths or the legs until the air bubble is the center of the circular level.5. Tighten the tripod leg clamps.6. Use the electronic level to level the instrument. For detailed instructions, see Leveling, page 15.7. Check the laser pointer is over the station point.8. If the station point is off center, do one of the following:–If the station point is slightly off center, loosen the tripod mounting screw and then center the instrument on the tripod. Use only direct movement to center the instrument. Do not rotate it.–When the instrument is centered, tighten the mounting screw.–If the displacement of the station point is major, repeat this procedure from Step 2

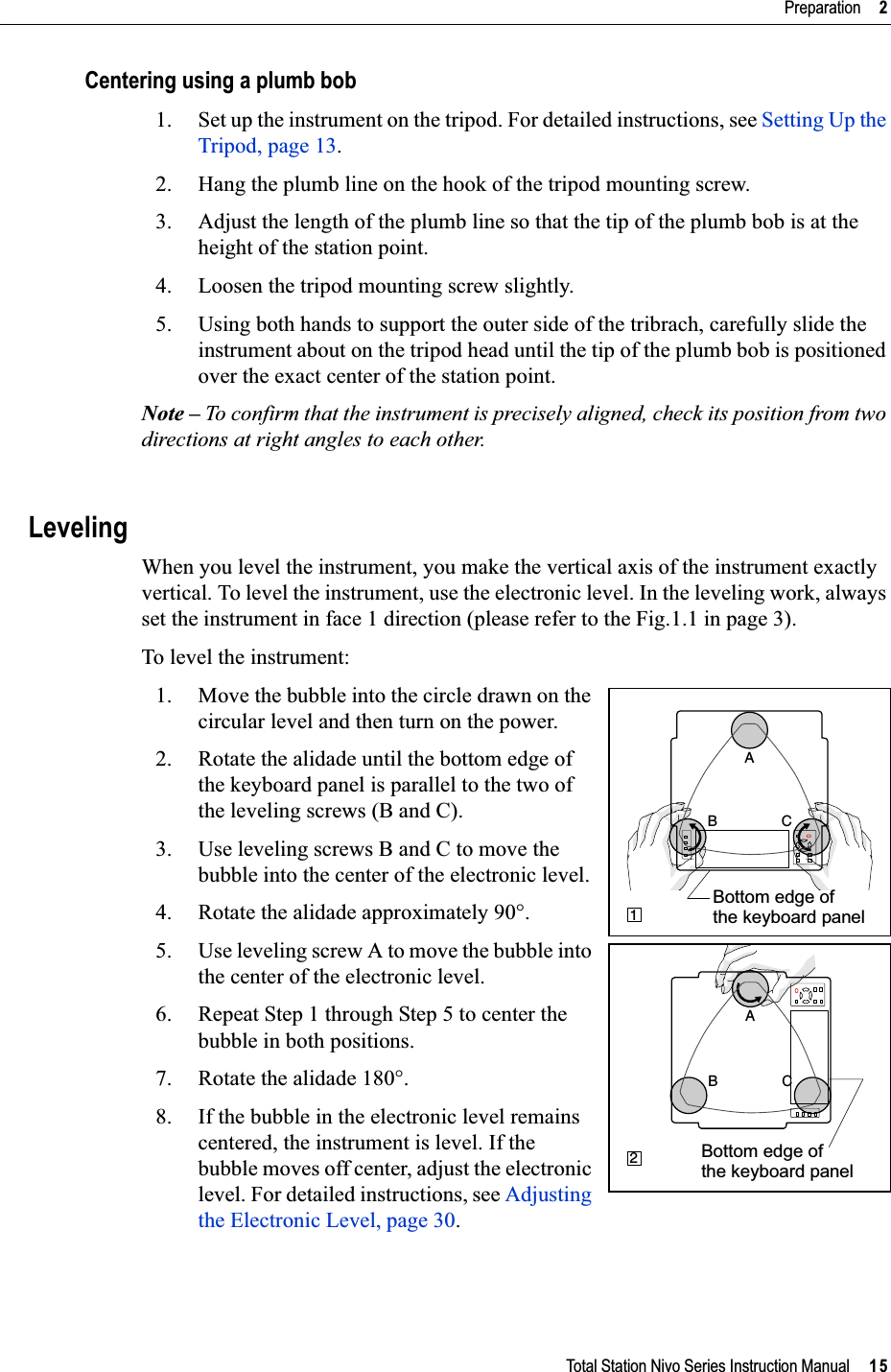

Total Station Nivo Series Instruction Manual 15Preparation 2Centering using a plumb bob1. Set up the instrument on the tripod. For detailed instructions, see Setting Up the Tripod, page 13.2. Hang the plumb line on the hook of the tripod mounting screw.3. Adjust the length of the plumb line so that the tip of the plumb bob is at the height of the station point.4. Loosen the tripod mounting screw slightly.5. Using both hands to support the outer side of the tribrach, carefully slide the instrument about on the tripod head until the tip of the plumb bob is positioned over the exact center of the station point.Note – To confirm that the instrument is precisely aligned, check its position from two directions at right angles to each other.LevelingWhen you level the instrument, you make the vertical axis of the instrument exactly vertical. To level the instrument, use the electronic level. In the leveling work, always set the instrument in face 1 direction (please refer to the Fig.1.1 in page 3).To level the instrument: 1. Move the bubble into the circle drawn on the circular level and then turn on the power.2. Rotate the alidade until the bottom edge of the keyboard panel is parallel to the two of the leveling screws (B and C).3. Use leveling screws B and C to move the bubble into the center of the electronic level. 4. Rotate the alidade approximately 90°.5. Use leveling screw A to move the bubble into the center of the electronic level.6. Repeat Step 1 through Step 5 to center the bubble in both positions.7. Rotate the alidade 180°.8. If the bubble in the electronic level remains centered, the instrument is level. If the bubble moves off center, adjust the electronic level. For detailed instructions, see Adjusting the Electronic Level, page 30.B CA1Bottom edge of the keyboard panelCBA2Bottom edge of the keyboard panel

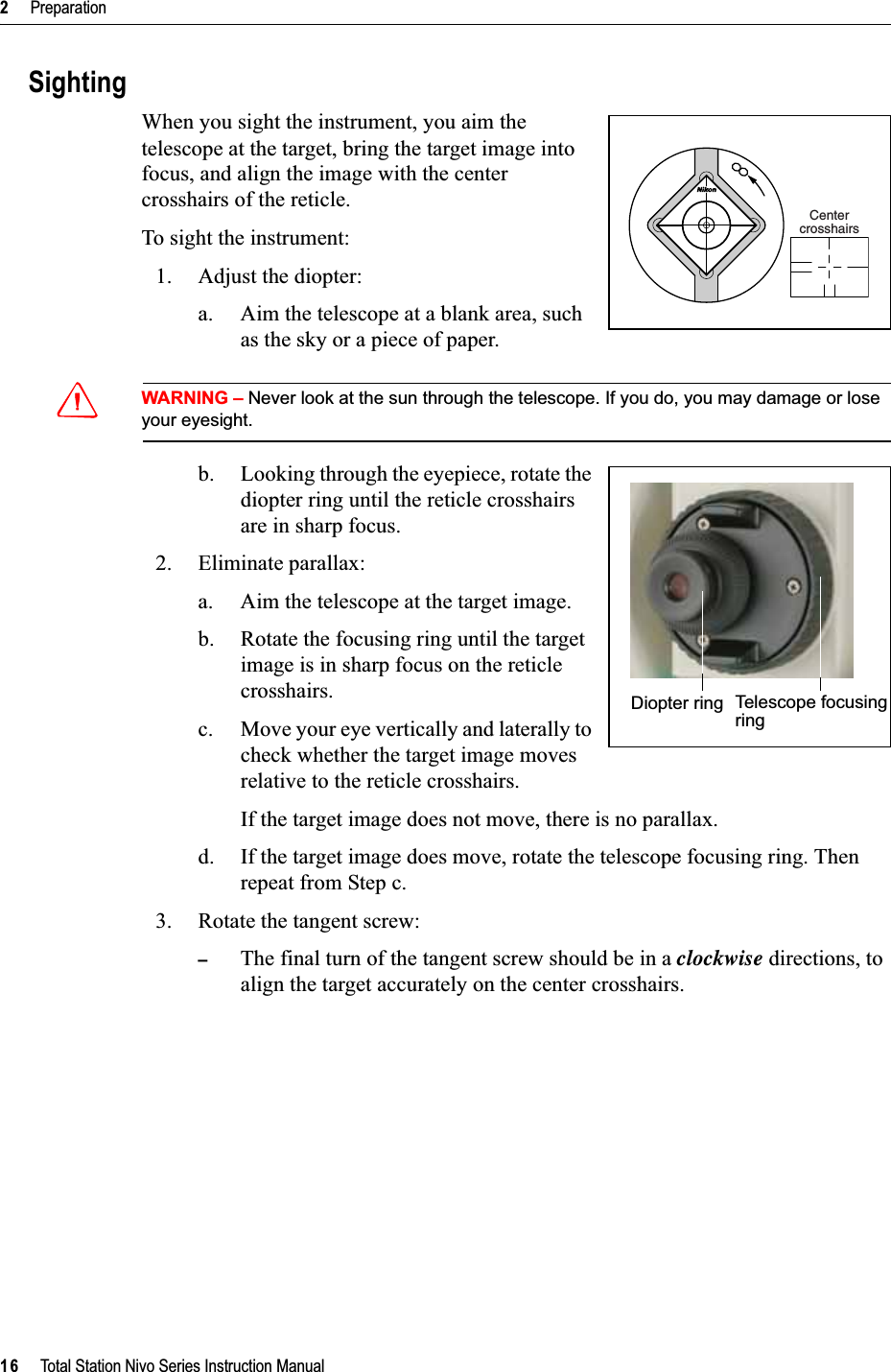

2 Preparation16 Total Station Nivo Series Instruction ManualSightingWhen you sight the instrument, you aim the telescope at the target, bring the target image into focus, and align the image with the center crosshairs of the reticle.To sight the instrument:1. Adjust the diopter:a. Aim the telescope at a blank area, such as the sky or a piece of paper. CWARNING – Never look at the sun through the telescope. If you do, you may damage or lose your eyesight.b. Looking through the eyepiece, rotate the diopter ring until the reticle crosshairs are in sharp focus. 2. Eliminate parallax:a. Aim the telescope at the target image.b. Rotate the focusing ring until the target image is in sharp focus on the reticle crosshairs.c. Move your eye vertically and laterally to check whether the target image moves relative to the reticle crosshairs.If the target image does not move, there is no parallax.d. If the target image does move, rotate the telescope focusing ring. Then repeat from Step c.3. Rotate the tangent screw:–The final turn of the tangent screw should be in a clockwise directions, to align the target accurately on the center crosshairs.CentercrosshairsDiopter ring Telescope focusingring

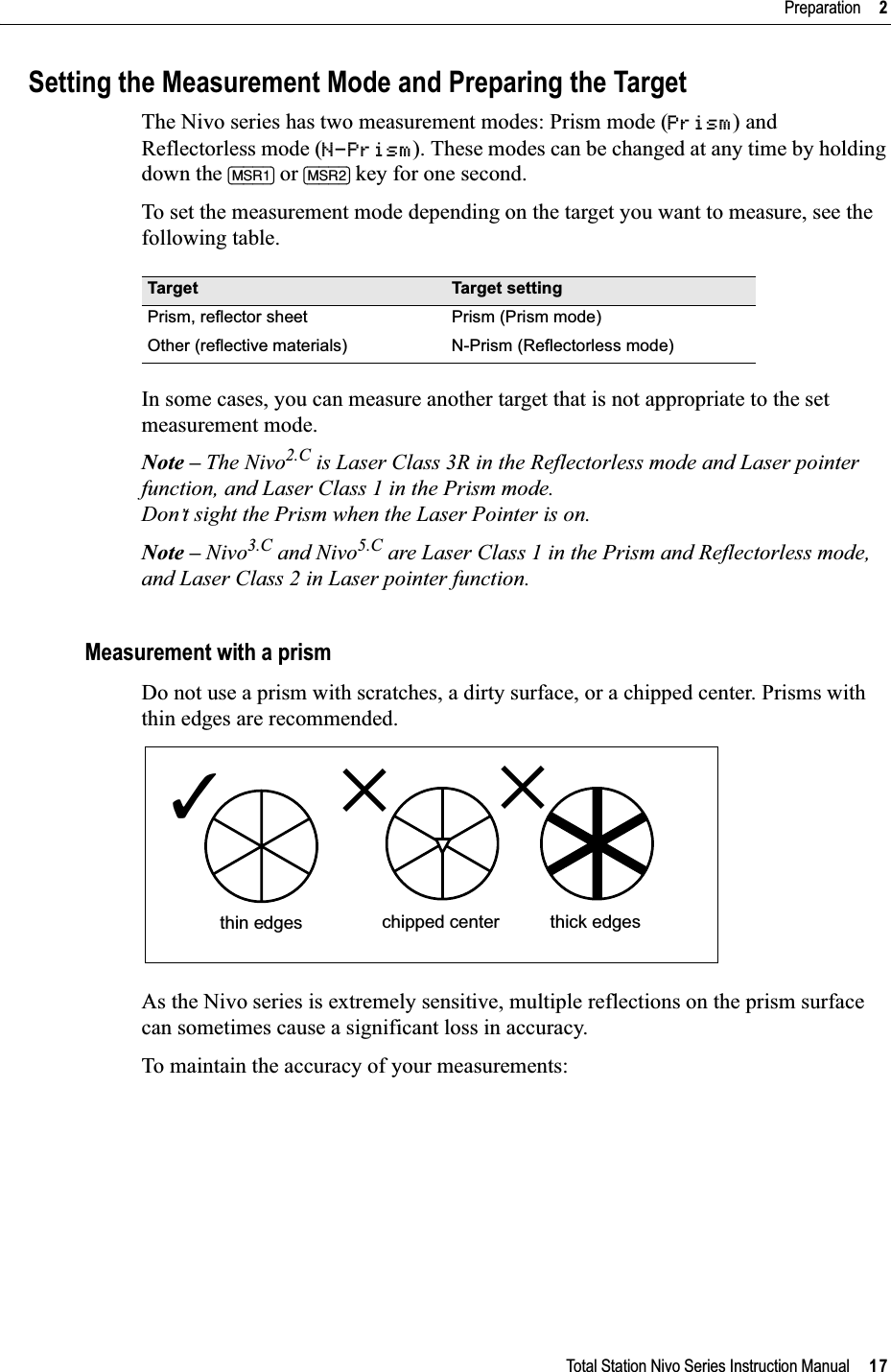

Total Station Nivo Series Instruction Manual 17Preparation 2Setting the Measurement Mode and Preparing the TargetThe Nivo series has two measurement modes: Prism mode (Prism) and Reflectorless mode (N-Prism). These modes can be changed at any time by holding down the [MSR1] or [MSR2] key for one second.To set the measurement mode depending on the target you want to measure, see the following table. In some cases, you can measure another target that is not appropriate to the set measurement mode.Note – The Nivo2.C is Laser Class 3R in the Reflectorless mode and Laser pointer function, and Laser Class 1 in the Prism mode.Don’t sight the Prism when the Laser Pointer is on.Note – Nivo3.C and Nivo5.C are Laser Class 1 in the Prism and Reflectorless mode, and Laser Class 2 in Laser pointer function.Measurement with a prismDo not use a prism with scratches, a dirty surface, or a chipped center. Prisms with thin edges are recommended.As the Nivo series is extremely sensitive, multiple reflections on the prism surface can sometimes cause a significant loss in accuracy.To maintain the accuracy of your measurements:Target Target settingPrism, reflector sheet Prism (Prism mode)Other (reflective materials) N-Prism (Reflectorless mode)thin edges chipped center thick edges✓✕✕

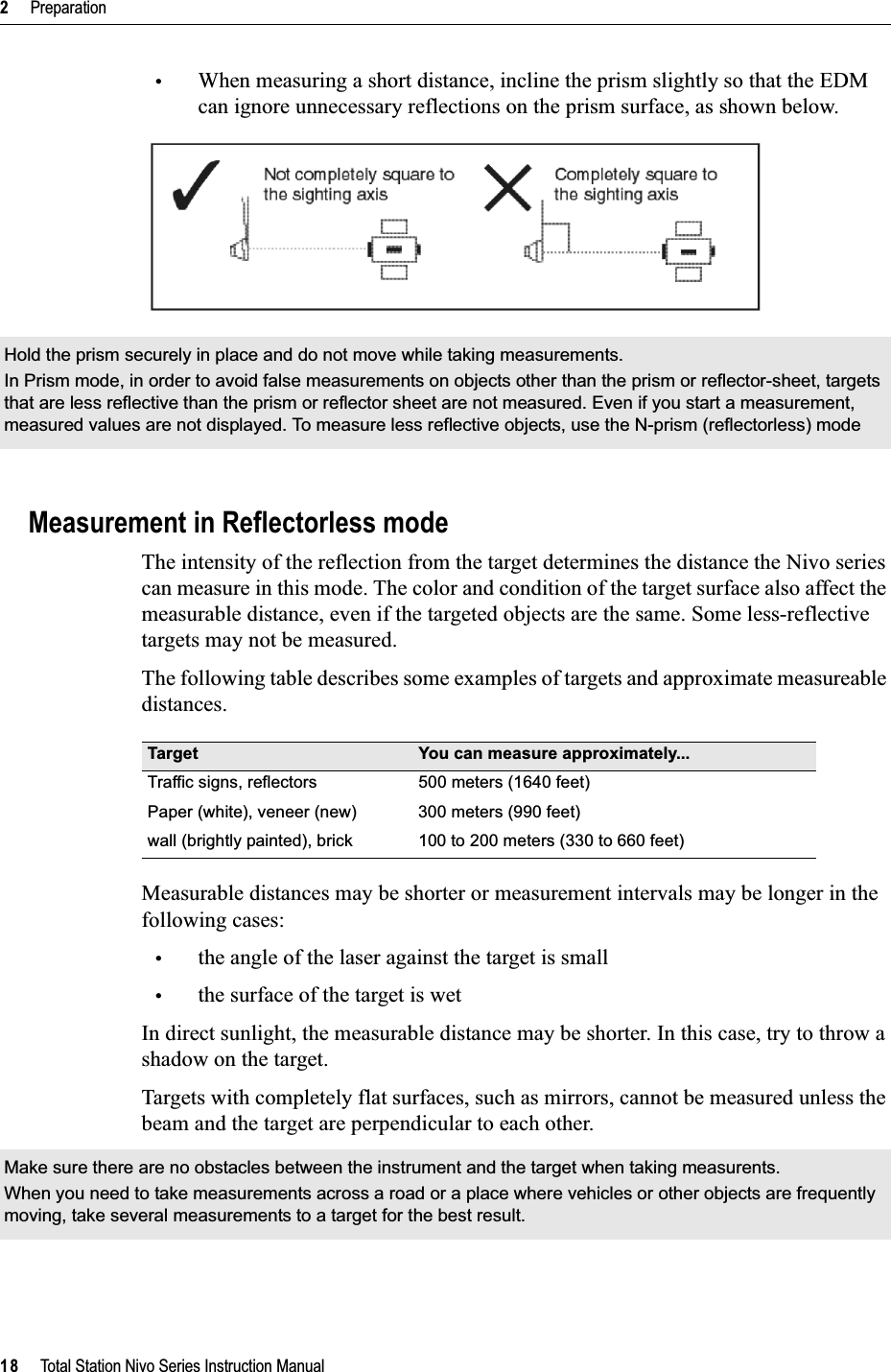

2 Preparation18 Total Station Nivo Series Instruction Manual•When measuring a short distance, incline the prism slightly so that the EDM can ignore unnecessary reflections on the prism surface, as shown below. Measurement in Reflectorless modeThe intensity of the reflection from the target determines the distance the Nivo series can measure in this mode. The color and condition of the target surface also affect the measurable distance, even if the targeted objects are the same. Some less-reflective targets may not be measured.The following table describes some examples of targets and approximate measureable distances.Measurable distances may be shorter or measurement intervals may be longer in the following cases:•the angle of the laser against the target is small•the surface of the target is wetIn direct sunlight, the measurable distance may be shorter. In this case, try to throw a shadow on the target.Targets with completely flat surfaces, such as mirrors, cannot be measured unless the beam and the target are perpendicular to each other.Hold the prism securely in place and do not move while taking measurements.In Prism mode, in order to avoid false measurements on objects other than the prism or reflector-sheet, targets that are less reflective than the prism or reflector sheet are not measured. Even if you start a measurement, measured values are not displayed. To measure less reflective objects, use the N-prism (reflectorless) modeTarget You can measure approximately...Traffic signs, reflectors 500 meters (1640 feet)Paper (white), veneer (new) 300 meters (990 feet)wall (brightly painted), brick 100 to 200 meters (330 to 660 feet)Make sure there are no obstacles between the instrument and the target when taking measurents.When you need to take measurements across a road or a place where vehicles or other objects are frequently moving, take several measurements to a target for the best result.
Total Station Nivo Series Instruction Manual 19Preparation 2Setting Up the Prism Reflector1. Assemble the prism reflector as shown below.2. Adjust the height of the tribrach adaptor (see page 20).3. If necessary, change the direction of the prism (see page 20).4. If you are using a single prism holder, set the position of the target plate (see page 20).Detailed instructions for Step 2 through Step 4 are provided on the following pages.Note – Nivo series must be used with the Tribrach W30 or W30b.Tribrach Tribrach TripodTarget plate for single prismTiltable singleprism holderPrism CTa rge t pol eTriple prism holderHeight adjust-ment adapter is not used.W30/W30badapter 15

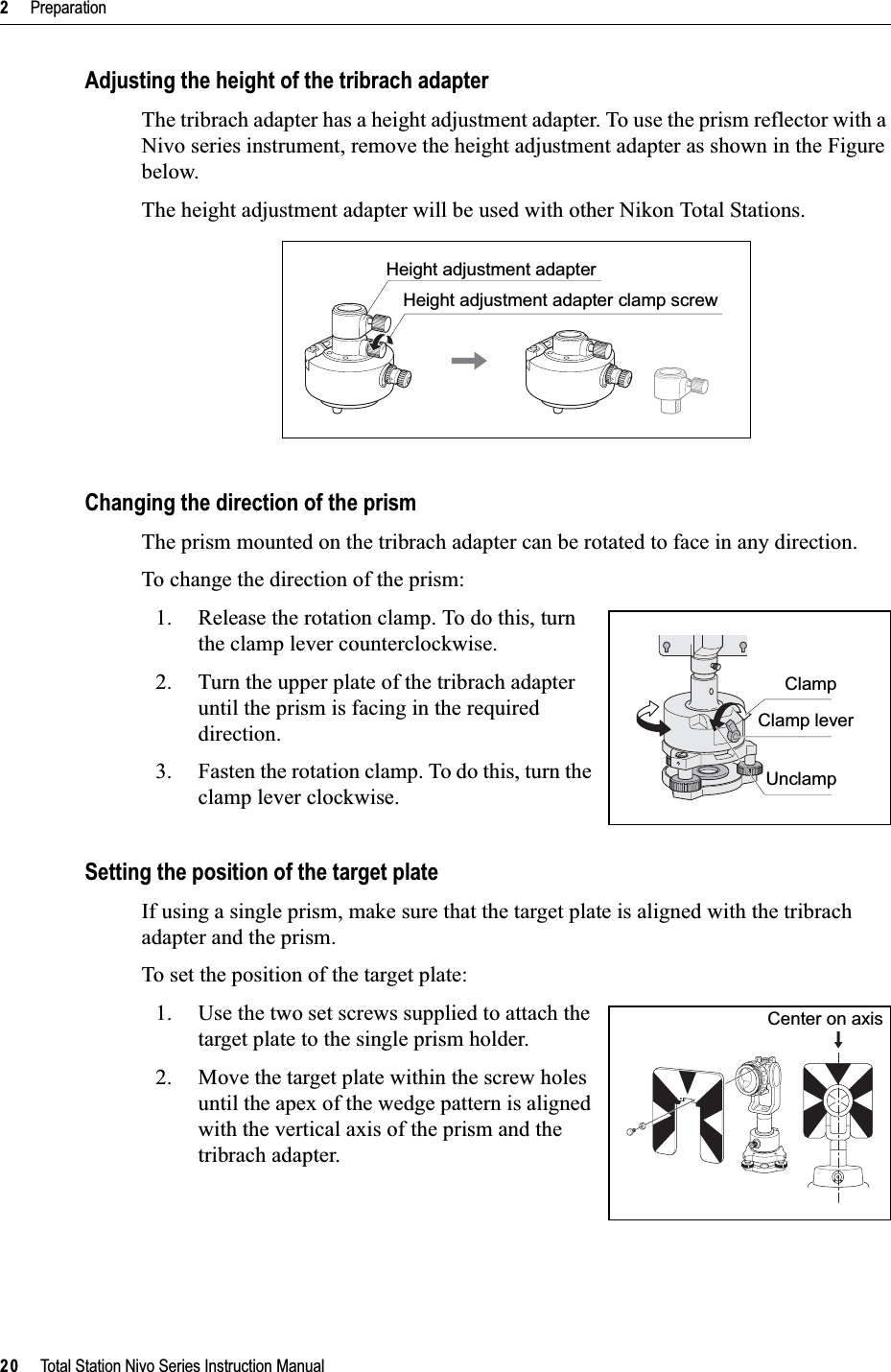

2 Preparation20 Total Station Nivo Series Instruction ManualAdjusting the height of the tribrach adapterThe tribrach adapter has a height adjustment adapter. To use the prism reflector with a Nivo series instrument, remove the height adjustment adapter as shown in the Figure below.The height adjustment adapter will be used with other Nikon Total Stations.Changing the direction of the prismThe prism mounted on the tribrach adapter can be rotated to face in any direction.To change the direction of the prism:1. Release the rotation clamp. To do this, turn the clamp lever counterclockwise.2. Turn the upper plate of the tribrach adapter until the prism is facing in the required direction.3. Fasten the rotation clamp. To do this, turn the clamp lever clockwise.Setting the position of the target plateIf using a single prism, make sure that the target plate is aligned with the tribrach adapter and the prism.To set the position of the target plate:1. Use the two set screws supplied to attach the target plate to the single prism holder.2. Move the target plate within the screw holes until the apex of the wedge pattern is aligned with the vertical axis of the prism and the tribrach adapter.Height adjustment adapterHeight adjustment adapter clamp screwClampClamp leverUnclampCenter on axis
