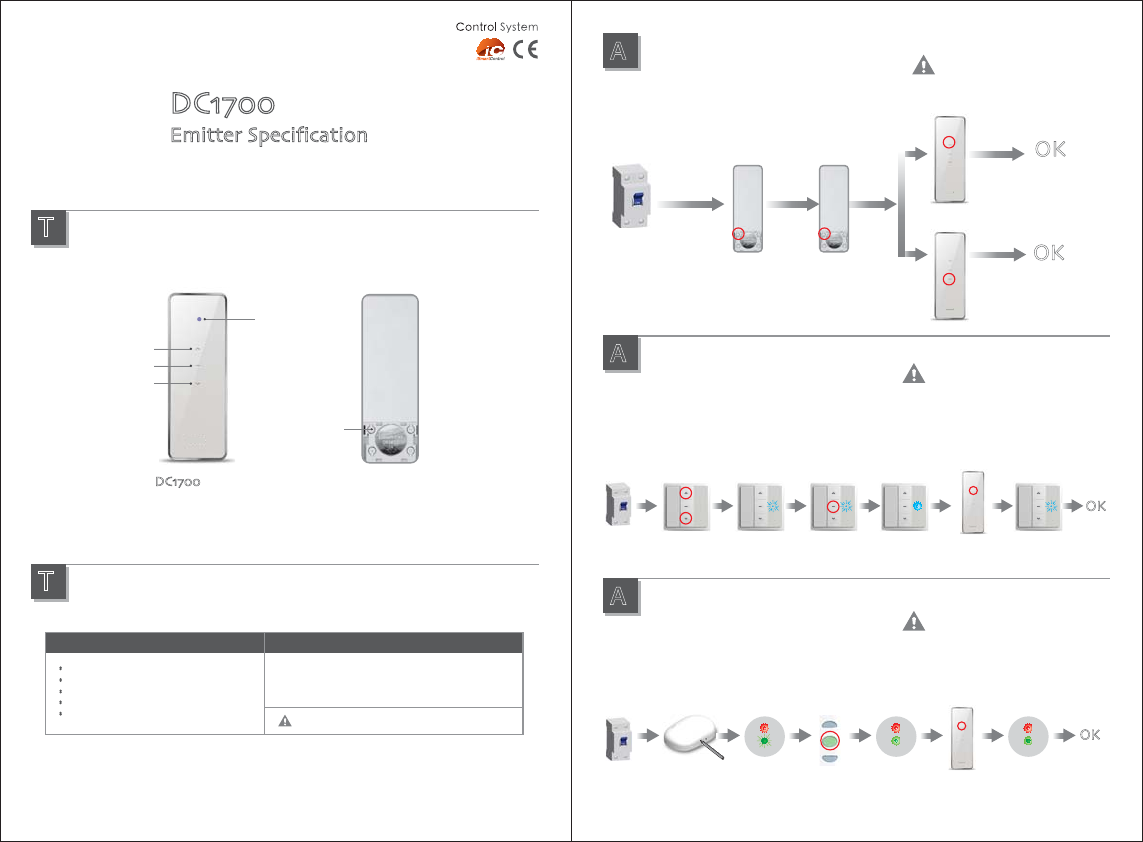

NINGBO DOOYA MECHANIC and ELECTRONIC TECHNOLOGY 17001760 Emitter Specification User Manual eDC1800 A 00
NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. Emitter Specification eDC1800 A 00
User manual
During the settings,the time between
two operation must be shorter than
4s,otherwise it will quit the setting
During the settings,the time between
two operation must be shorter than
6s,otherwise it will quit the setting
During the settings,the time between
two operation must be shorter than
10s,otherwise it will quit the setting
EmitterSpecification
Type specification
Technical support
T
T
Up button
Stop button
Down button
Version NO. : A/00
DC1700
Single - channel emitter
DC1700 back
Setting
button
A
Additional
function
A
Additional
function
Matchable R tubular motor set up
A
Additional
function
Matchable DC1680 set up
Matchable DC136 set up
One receiver store 20 emitters channels at most
One receiver store 20 emitters channels at most
Switch on
Sound from motor
hear long sound
Switch on
Switch on
Press (up+down)×1
at the same time
Indicator
flashing
Indicator long
flashing
Indicator flashing
then extinguished
Setting
is ok
Setting
is ok
Fucntion instructionTechnical specification
Input voltage碋3V (CR2450)
Transmitting frequency碋433MHz
Transmitting power碋10 milliwatt
Operating temperature碋-100C—500C
Transmssion distance碋200 meters open office硽
35 meters on two walls
Notice: transmitter do not exposed to moisture and strike, so as not to affect life.
When you use transmitter, if found emission distance obviously short or less sensitive,
please change another same new battery. Please have batteries for recycling.
P2×1P2×1
Up button×1
Down button×1
OK
OK
Delete all the datas of the motor and
the new emitter has been programmed.
Beep once Beep once
Set up is ok.
The up button control
the motor clockwise
Set up is ok.
The down button control
the motor clockwise
Setting button×1
OK
DC136 DC136 DC136 DC136 DC136
Stop×1 Up×1
OK
DC1680 DC1680 DC1680 DC1680 DC1680
Indicator
flashing
Indicator long
flashing
Indicator flashing
then extinguished
Stop×1 Up×1
Indicator
Run or beep
for hint
Run or beep
for hint
DC1700
DC1700 is Single-channel emitter
