NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. Emitter Specification eDC1800 A 00
Manual
During the settings,the time between
two operation must be shorter than
4s,otherwise it will quit the setting
During the settings,the time between
two operation must be shorter than
6s,otherwise it will quit the setting
During the settings,the time between
two operation must be shorter than
10s,otherwise it will quit the setting
EmitterSpecification
Type specification
Technical support
T
T
Up button
Stop button
Down button
Version NO. : A/00
A
Additional
function
A
Additional
function
Matchable R tubular motor set up
A
Additional
function
Matchable DC1680 set up
Matchable DC136 set up
Switch on
Sound from motor
hear long sound
Switch on
Switch on
Press (up+down)×1
at the same time
Indicator
flashing
Indicator long
flashing
Indicator flashing
then extinguished
Setting
is ok
Setting
is ok
Fucntion instructionTechnical specification
Input voltage碋3V (CR2450)
Transmitting frequency碋433MHz
Transmitting power碋10 milliwatt
Operating temperature碋-100C—500C
Transmssion distance碋200 meters open office硽
35 meters on two walls
P2×1P2×1
Up button×1
Down button×1
OK
OK
Delete all the datas of the motor and
the new emitter has been programmed.
Beep once Beep once
Set up is ok.
The up button control
the motor clockwise
Set up is ok.
The down button control
the motor clockwise
Setting button×1
OK
DC136 DC136 DC136 DC136 DC136
Stop×1 Up×1
OK
DC1680 DC1680 DC1680 DC1680 DC1680
Indicator
flashing
Indicator long
flashing
Indicator flashing
then extinguished
Stop×1 Up×1
Run or beep
for hint
Run or beep
for hint
DC1702
DC1702
15 - channel emitter
DC1702 Back side
Setting
button
P1-
button
P1+
button
LCD screen

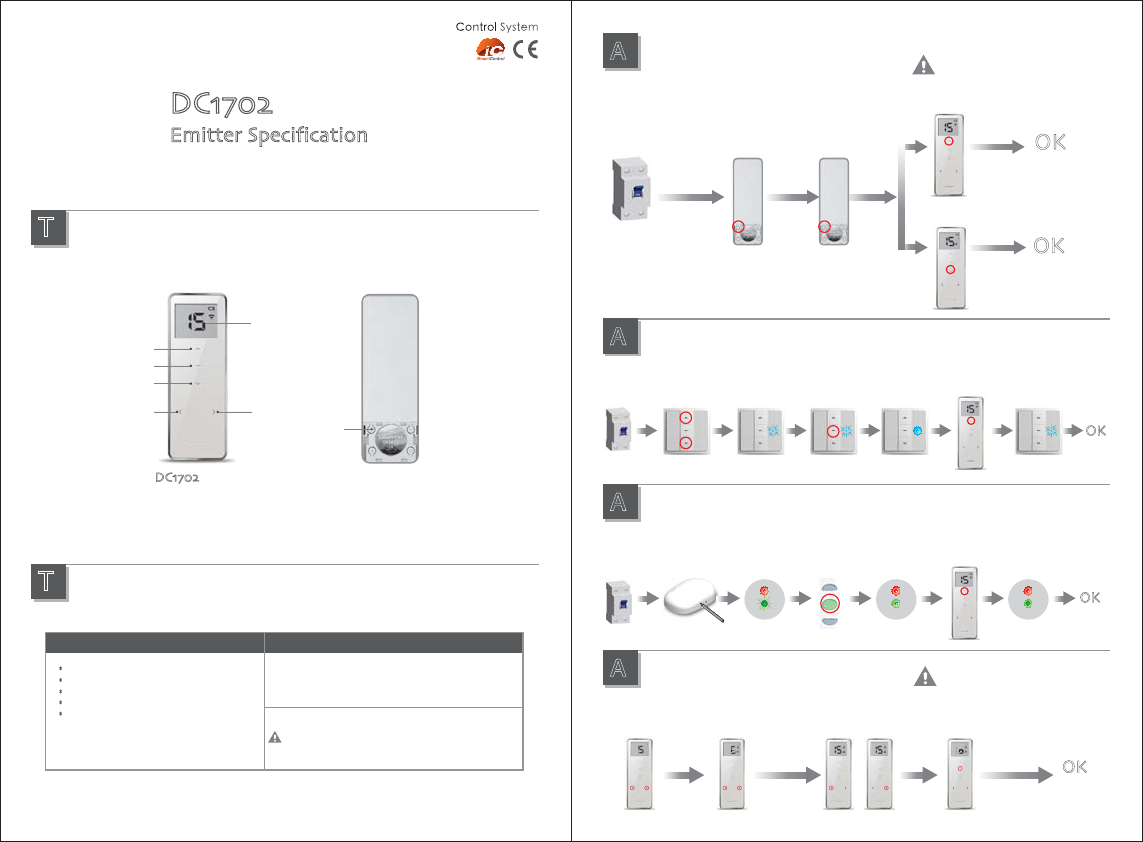

DC1702 is 15-channel LCD emitter. One number of LCD screen means one
control channel. Press “channel choose” button P1- (number descending) or
P1+ (number increasing) to change the channel. On the analogy of this, loose
finger when the indicator light move to suitable channel that you select
effective channel. If LCD screen number show “0” that means all channels if
effective (group control state).
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
Notice: transmitter do not exposed to moisture and strike, so as not to
affect life.When you use transmitter, if found emission distance obviously
short or less sensitive, please change another same new battery. Please
have batteries for recycling.
Setting
is ok
Stop×1
OK
(P1+button+
P1-button)×1
P1+button+P1-
button,hold on
Or
A
Additional
function
The valid channels selection
In the setting state,press the up or down
button you can quit quickly, if you want
to change the valid channels ,reset it.
The screen
will display o
The screen
will display 15
The screen
will display C
Press P1+button or P1-button,
selecting the channel (channl
1 to channel 15) you need
