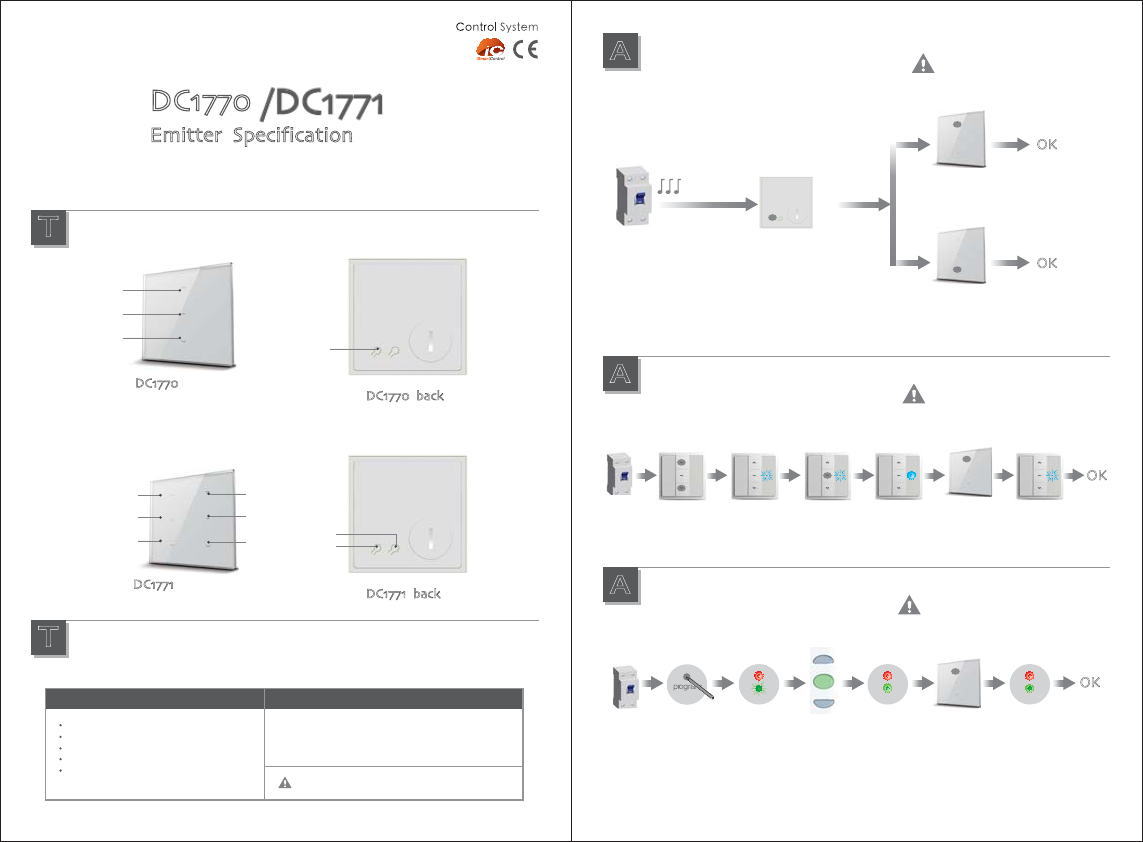

NINGBO DOOYA MECHANIC and ELECTRONIC TECHNOLOGY 17701771 Emitter Specification User Manual eDC1650DC1651 A 02

NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. Emitter Specification eDC1650DC1651 A 02

Manual

DC1770 DC1770 back
DC1771 back
DC1771
Single - channel emitter
Double - channel emitter
setting button
P2
setting
button
P2
DC1770(B)/DC1771(B)
Emitter Specification
Type specification
Technical support
T
T
Version NO. : A/01
Fucntion instructionTechnical specification
Input voltage3V(CR2430)
Transmitting frequency433MHz
Transmitting power10 milliwatt
Operating temperature-50C—500C
Transmssion distance200 meters open office
35 meters on two walls
Transmitter: you can choose single channel DC1770(B), double
channels DC1771(B)
Notice: transmitter do not exposed to moisture and strike, so as not to affect life.
When you use transmitter, if found emission distance obviously short or less sensitive,
please change another same new battery. Please have batteries for recycling.
OK
OK
A
Additional
function
Matchable R tubular motor set up
Delete all the datas of the motor and the
new emitter has been programmed.
Each time, the interval of pressing different
buttons must within 4 seconds when you
re-setting all instructions, otherwise the system
will restore the original state.
OK
2
OK
Switch on
Hear long sound
Hear di di...
Press up button
one time, sound
tip three times
Set up is ok.
The up button control
the motor clockwise
Set up is ok.
The down button control
the motor clockwise
Press down button
one time, sound
tip three times
Sound from motor
hear long sound
Press the setting
button 2 times
A
Additional
function
Matchable DC1680 / DC1681 set up Each time, the interval of pressing different
buttons must within 6 seconds when you re-setting
all instructions, otherwise the system will restore
the original state.
One receiver store 20 emitters channels at most
Switch
on
Press up button
and down button
one time at the
same time
Press the receiver
stop button one
time
Press the emitter
up button one
time
See indicator
flashing
See the receiver
indicator long
flashing
See indicator
flashing
Setting
is ok
A
Additional
function
Matchable DC136 set up
Each time, the interval of pressing different
buttons must within 10 seconds when you re-setting
all instructions, otherwise the system will restore
the original state.
One receiver store 20 emitters channels at most
Switch
on
Press the receiver
set button
Press the receiver
stop button one
time
Press the
emitter up
button one
time
See green
indicator
flashing
See the receiver
indicator long
flashing
See green
indicator
flashing and
extinguished
Setting
is ok
Up
button
Stop
button
Down
button
Up
button
Stop
button
Down
button
Up
button
Stop
button
Down
button
The second channelThe first channel
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
  Reorient or relocate the receiving antenna.
  Increase the separation between the equipment and receiver.
  Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
  Consult the dealer or an experienced radio/TV technician for help.
