NINGBO DOOYA MECHANIC and ELECTRONIC TECHNOLOGY DD1149 Motor Remote Control User Manual DC1800A A 00
NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. Motor Remote Control DC1800A A 00
User manual
DD1149
Three kinds of mode switching
Setting button
Com
Up
Down
Setting button×6S
Setting button×12S
Setting button×20S
Mode 1
Mode 2
Mode 3
Up button or down button×1
Match code 1
Match code 2 Receiver DC177，Power on
Receiver DC177，Power on
Setting button×1 Setting button×1
Setting button×1
Setting button×1 Setting button×1
Setting button×1
Setting button×1
Setting button×1
Setting button×1
(Up+Down) button×1
Receiver DC177，Power on Setting button×1
Or
Deleted code 1
Deleted code 2
OK
OK
OK
OK
OK
OK
OK
OK

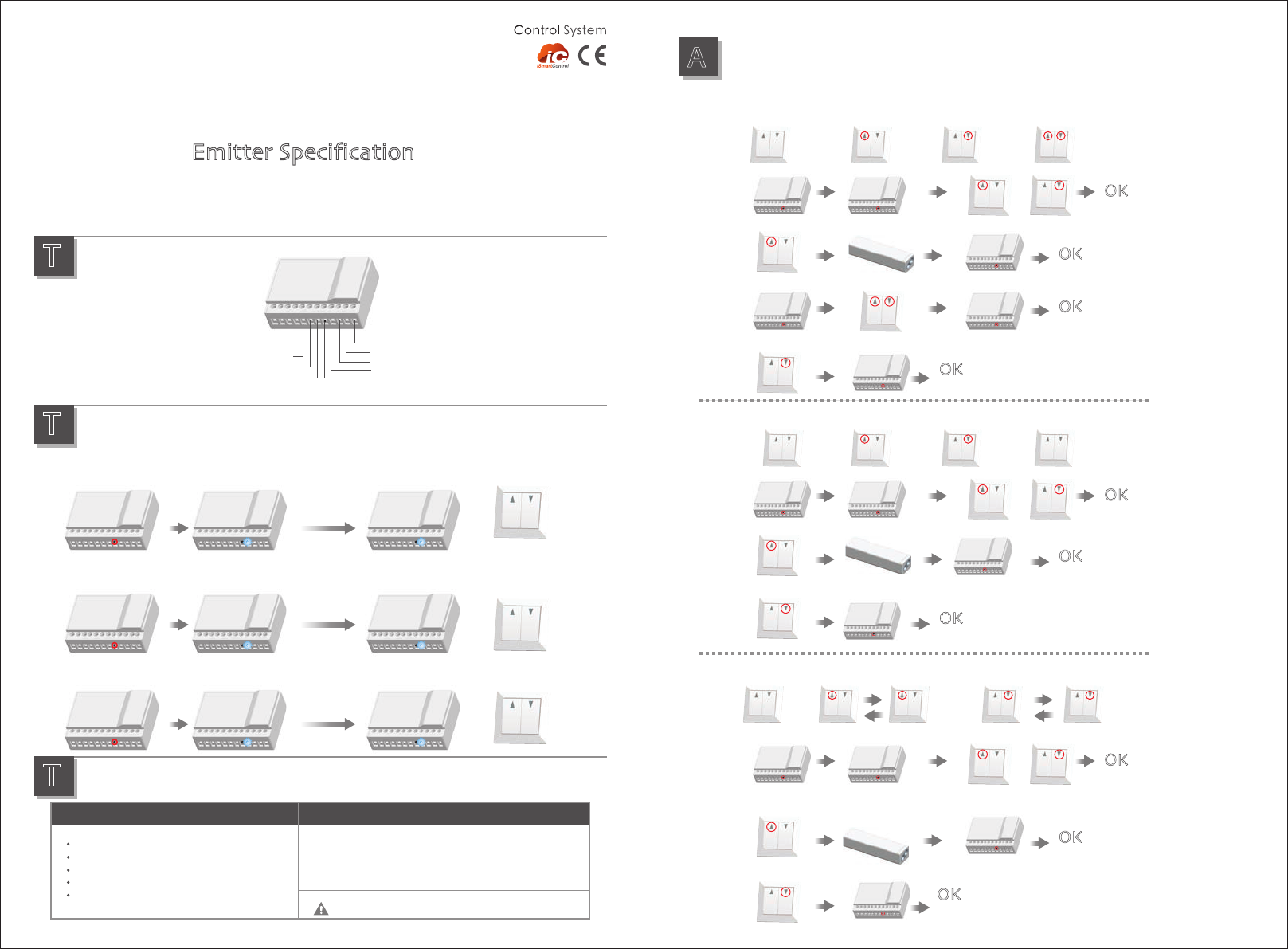

Emitter Specification
Version NO. : A/01
Type specification
T
Negative electrode
T
LED flashes slowly
LED flashes slowly
LED flashes slowly
Stops flashing, enter the
pulse switch mode
Fast flashing two times to enter
the non-bounce switch mode
Flashes three times quickly,
enter the loop switch mode
Double loop switch Double loop switch
Technical support
T
Fucntion instructionTechnical specification
Input voltage：12V/24V
Transmitting frequency：433MHz
Transmitting power：10 milliwatt
Operating temperature：-100C—500C
Transmitting distance：200 meters open office，
35 meters on two walls
Transmitter: you can choose emitter DC1149

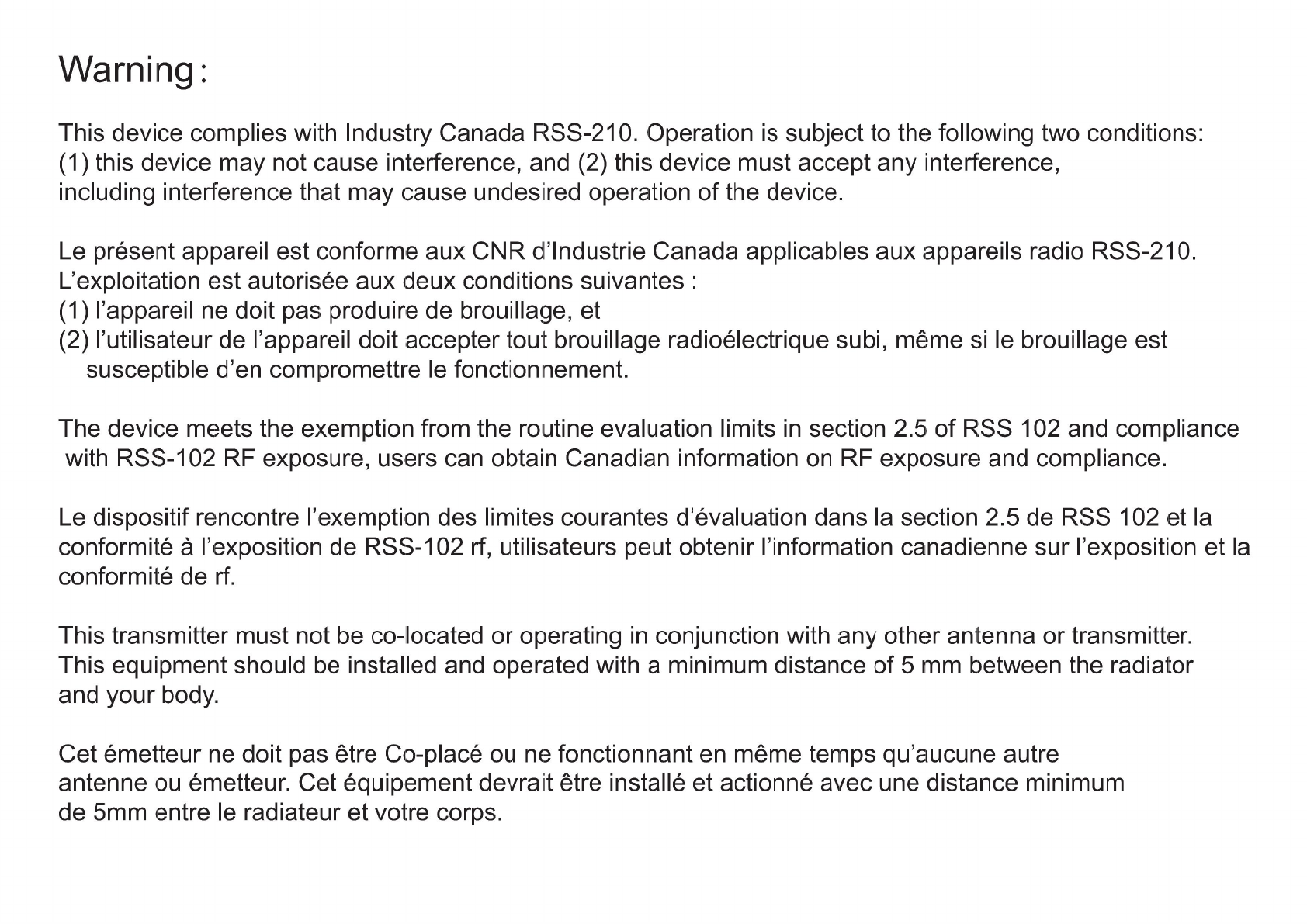

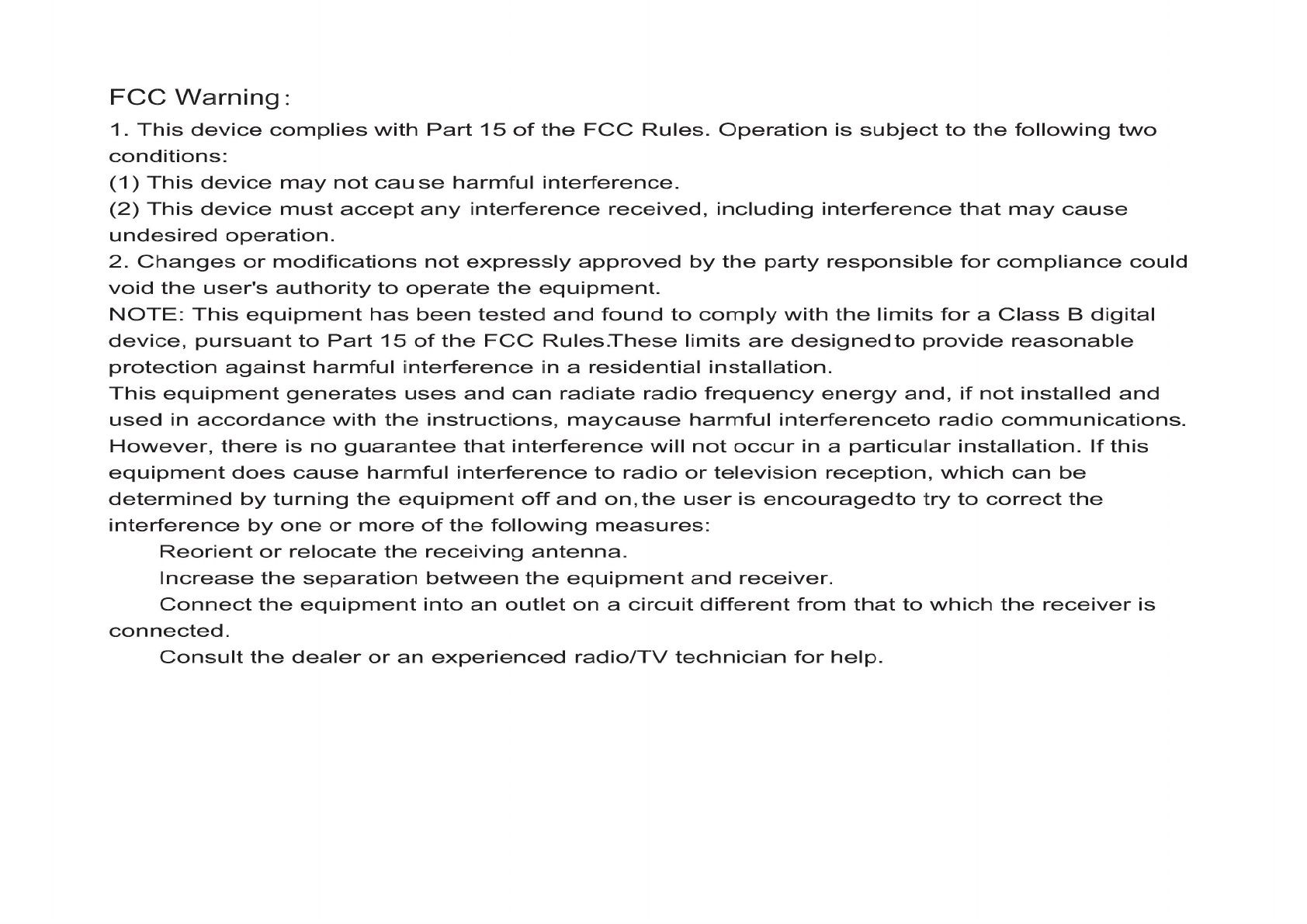

Notice: transmitter do not exposed to moisture and strike, so as not to affect life.
A
Additional
function
Three models described
Up button control
the motor upward
Up button control
the motor upward
Up button control
the motor upward
Up button control
the motor stop
Down button control
the motor downward
Down button control
the motor downward
Down button control
the motor downward
Down button control
the motor stop
(Up+Down) button
control the motor stop
Setting
is ok
Setting
is ok
Setting
is ok
Setting
is ok
Setting
is ok
Setting
is ok
Setting
is ok
Setting
is ok
Match code 2
Deleted code
Deleted code
Release the buttons con-
trol the motor stops
Please close
the down button
Please close
the up button
Please close
the down button
Please close
the down button
Please close
the up button
DC24V +
DC12V +
LED
DC1149
Up button or down button×1
Match code 1
Match code 2
Setting button×1 Setting button×1
Or OK
Setting
is ok
Up button or down button×1
Match code 1
Setting button×1 Setting button×1
Or OK
Setting
is ok
Please close
the up button
Double pulse switch
(Noninterlocked)
Double pulse switch
(Noninterlocked)
Not rebound
double switch
Not rebound
double switch
