NINGBO DOOYA MECHANIC and ELECTRONIC TECHNOLOGY DD1522 Emitter User Manual eDD1520 DD1522 A 00
NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. Emitter eDD1520 DD1522 A 00
User Manual
Setting
is ok
Stop×1
OK
(P1+button+
P1-button)×1
P1+button+P1-
button,hold on
Or
The screen
will display o
The screen
will display 15
The screen
will display C
Press P1+button or P1-button,
selecting the channel (channl
1 to channel 15) you need
A
Additional
function
DD1522 valid channels selection
In the setting state,press the up or down
button you can quit quickly, if you want
to change the valid channels ,reset it.
DD1522 fifteen channels double control emitter: each channel had the same
function with DD1520. One number of LCD screen means one control
channel. Press “channel choose” button P1- (number descending) or P1+
(number increasing) to change the channel. On the analogy of this, loose
finger when the indicator light move to suitable channel that you select
effective channel. If LCD screen number show “0” that means the group
control status. Under the status of group control, pressing a way button will
start the group-control function of a way, a way of all the channels will be
availabe.Pressing b way buttons will start the group-control function of b
way, b way of all the channels will be availabe.
p1- p1+

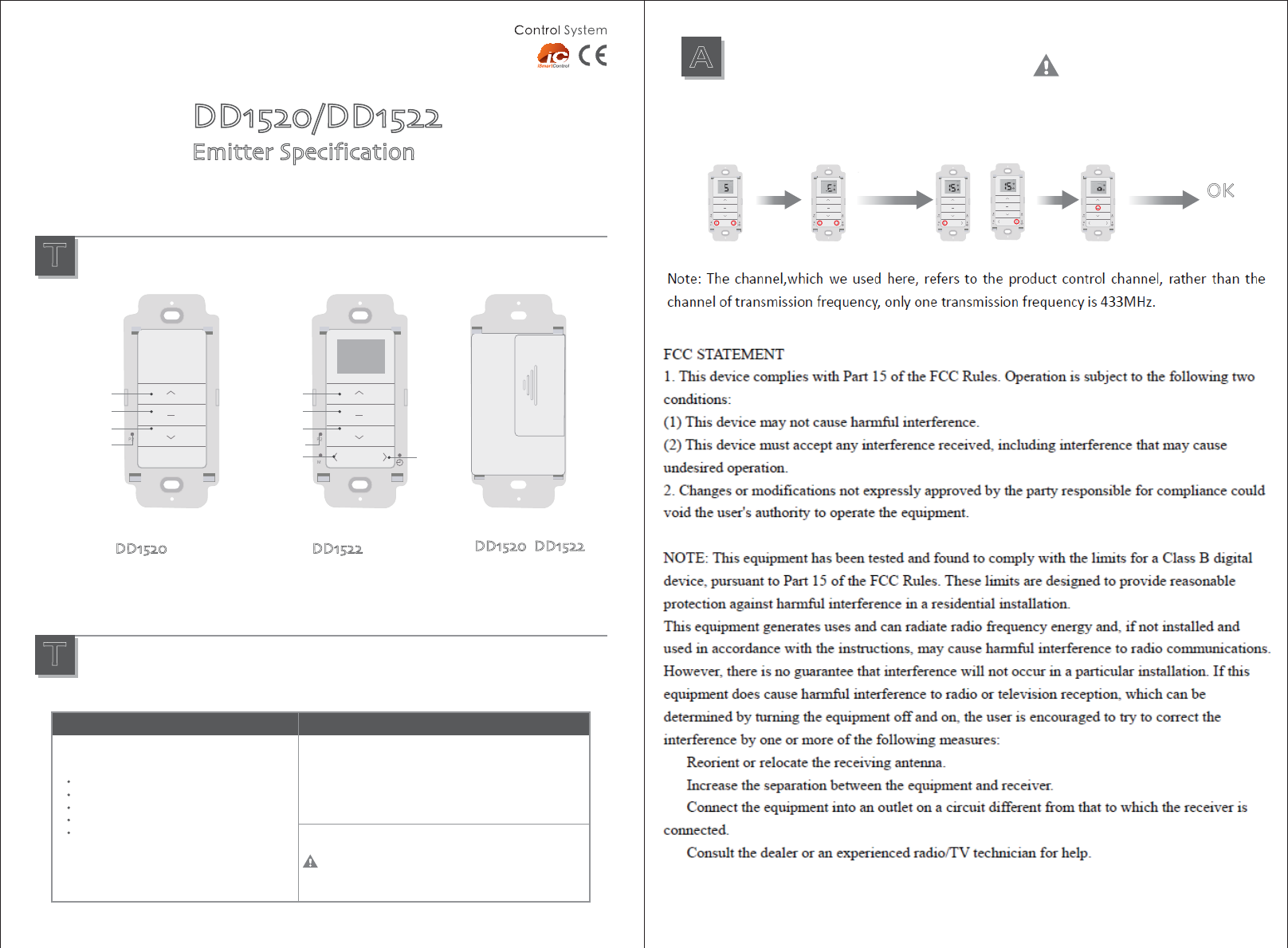

DD1520/DD1522
EmitterSpecification
Type specification
Technical support
T
T
DD1520 DD1522
Back side
DD1520
Single - channel emitter
DD1522
15 - channel emitter
Up button
Stop button
Down button
Up button
Stop button
Down button
Version NO. : A/00
Fucntion instructionTechnical specification
Input voltageᱶ3V
Transmitting frequencyᱶ433MHz
Transmitting powerᱶ10 milliwatt
Operating temperatureᱶ-100C—500C
Transmssion distanceᱶ200 meters open officeᱨ
35 meters on two walls
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
Notice: transmitter do not exposed to moisture and strike, so as not to
affect life.When you use transmitter, if found emission distance obviously
short or less sensitive, please change another same new battery. Please
have batteries for recycling.
Setting buttonSetting button
