NINGBO DOOYA MECHANIC and ELECTRONIC TECHNOLOGY DM350328 Tubular Motor User Manual bwpdf
NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. Tubular Motor bwpdf
User manual

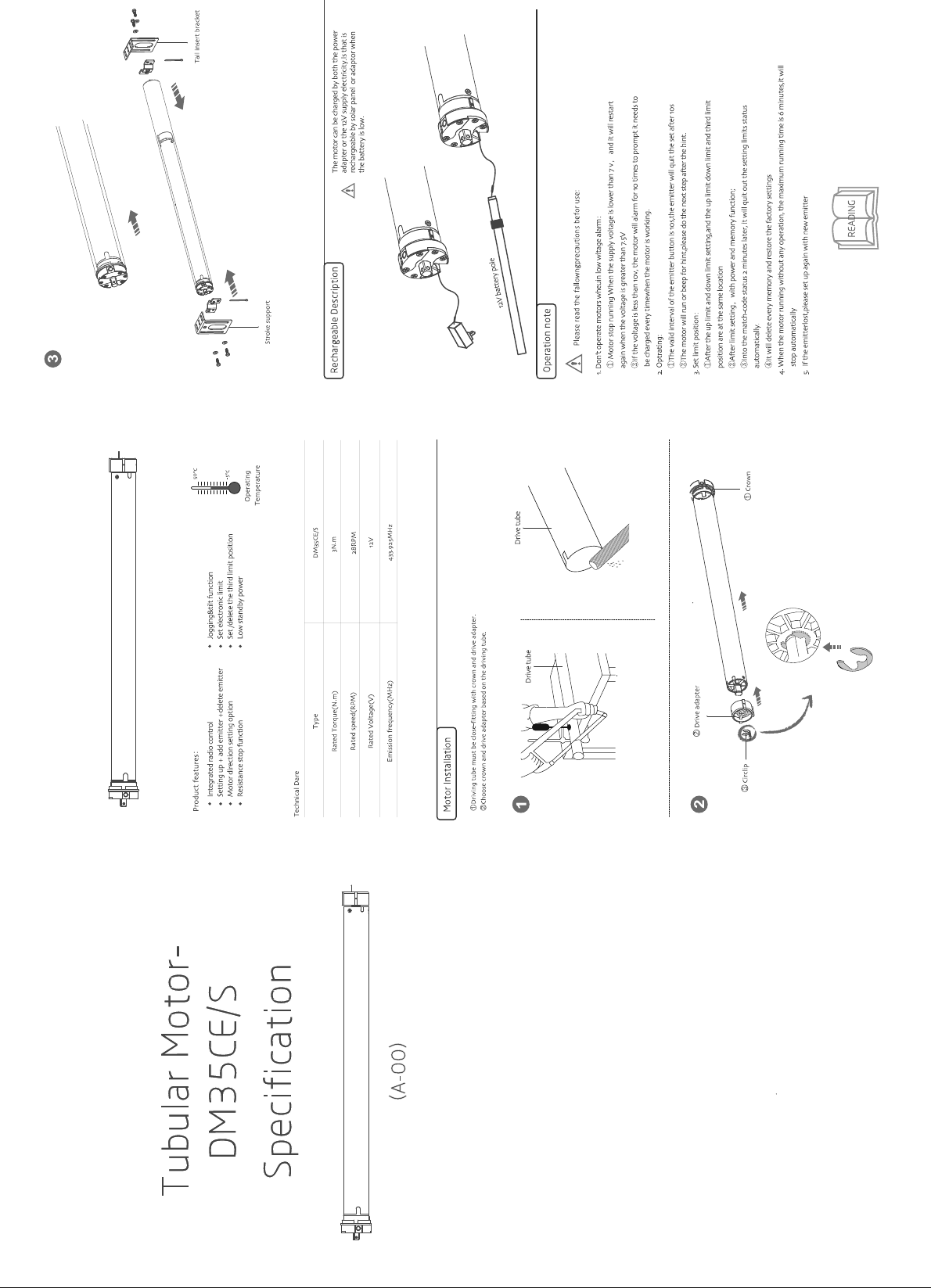

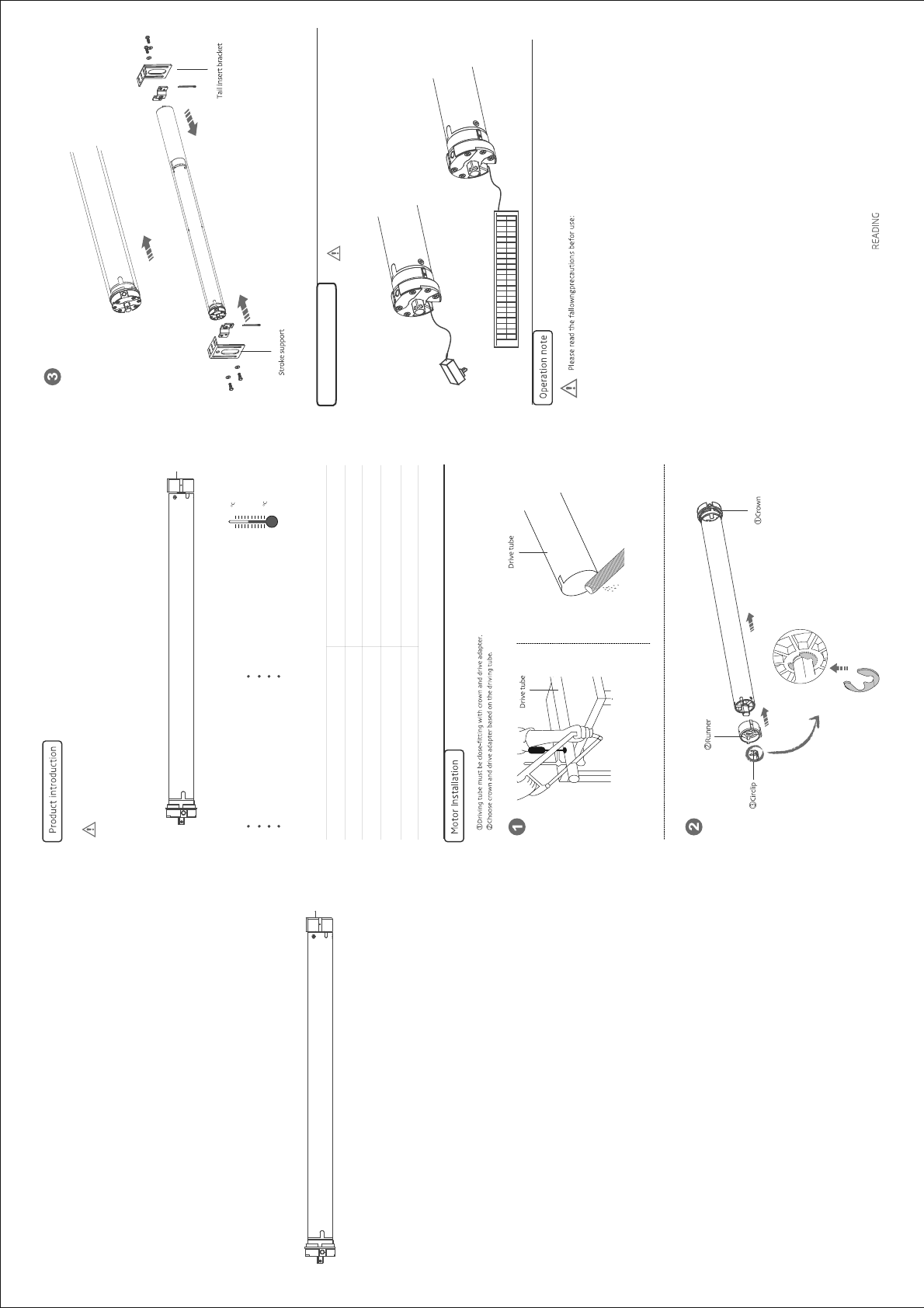

Tubular Motor-
DM35LE/S
Specification
（A-OO）
Rated Voltage(V)
Rated Torque(N.m)
DM35LE/S
3N.m
12V
Functional featuresᱶ
Jogging&tilt function
Set electronic limit
Set /delete the third limit position
Low standby power
Integrated radio control
Setting up+add emitter+delete emitter
Motor direction setting option
Resistance stop function
-10
85
Emission frequency(MHz) 433.925MHz
Rated speed(RPM) 28RPM
1. Please charge the battery and make sure it is fully charged before the first use
2. Don’t operate motors wheuin low wltage alarm:
᰷Motor stop running When the supply voltage is lower than 7 v， and it will restart
again when the voltage is greater than 7.5V
If the voltage is less than 10v, the motor will alarm for 10 times to prompt it needs
to be charged every timewhen the motor is working.
3. Optratingᱶ
᰷The valid interval of the emitter button is 10s,the emitter will quit the set after 10s
The motor will run or beep for hint,please do the next step after the hint.
4. Set limit positionᱶ
᰷After the up limit and down limit setting,and the up limit down limit and third limit
position are at the same location
After limit setting，with power and memory function;
Into the match-code status 2 minutes later, it will quit out the setting limits status
automatically
It will delete every memory and restore the factory settings
5. When the motor running without any operation, the maximum running time is 6
minutes,it will stop automatically
6. If the emitterlost,please set up again with new emitter
The motor has a built-in battery,using the charger to
recharge.You can also use solar panels to charge;when
the battery is low, insert thecharge,charger light shows
red light.batteries isfull when the red light turns to green.
Note：When the battery power is low,you can hear the alarm ten "beep" every time the
motor runs. It indicates the battery needs to be charged. Then plug in the charger with
red light.The light turns green when the battery is fully charged.
Operating
temperature
Parameter
Type
Rechargeable Description
Signal wire

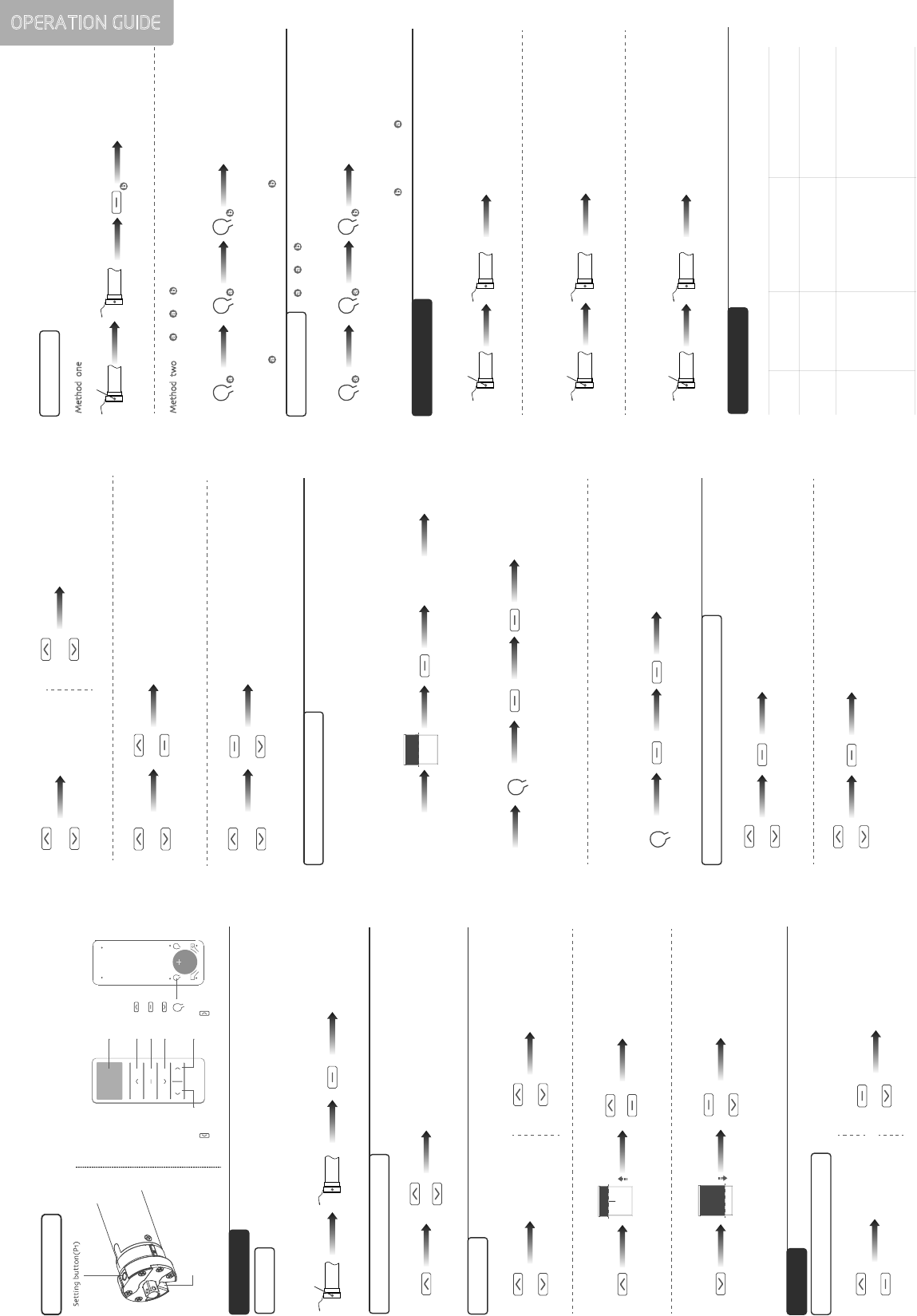

OPERATION GUIDE
1
2
PHENOMENON REASON
The motor alarms
when it is working
PROCESSING METHOD
Charge the battery
The motor is
not running
a，Activate the motor after fully charged
b，Set up the match code
c，Contact the engineers for after-sales
The voltage is low in the
alarm mode
a，The battery is not activated.
b，The emitter is not matched.
c，If press P1 button for a long
time while with no reaction.may
be the power is short-ciralit or the
ciralit board or the motor is
broken.
NUMBER
1, The third limit position setting
①After the up limit and down limit setting, you can set the third limit point between them as the half open position;
Press 2s
Press 1s
Press 1s
Press 1s
Press 5sPress 5s
Press 5s Press 1s
Press 1s Press 1s Press 1s
Press 1s Press 1s
Press 1s
Press 1s
Press 5s Press 1s
Press 2s
Press 2s
Press 2s
Press 2s
Press 2s
Run for hint x2
“Di” x3
Run for hint x2
“Di” x3
Run for hint x2
“Di” x3
Run for hint x2
“Di” x3
Run for hint x2
“Di” x3
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
Run for hint x1
Run for hint x2
“Di” x3
Run for hint x1
Run for hint x2
“Di” x3
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
“Di” x1
If you need to reverse the rotateon of the motor controlled by the emitter,please run the reverse of
direction setting(as lists in the second point of the P1 button setting)
Up
Stop
Down
Setting
Button specification
3 3
3
4 Add Emitter
P2 →P2 →P2
P2 →P2 →P2
5 Delete one emitter
3 Dot-move/Continuous moving function switch switch
2, The third limit cancel (P2→Stop→Stop)
P1 BUTTON OPERATION
2, Set up limit
3, Set down limit
( Up→Up+Stop)
3
3
3 3
3
(Down→Stop+Down)
Run for hint x3
2 The third limit position setting
1 Fine-tune up/down limit position
Enter the limit setting mode
Notes: Repetitive operation dot-move and continuous moving function switching cycle, under the
dot-move function, according to the upor down button more than 2S release motor linkage operation.
3
0
3
2OZNO[S)KRR
<
Channel᮰᮱
3
Channel ᮰᮱
3
3
or orDot-move Continuous moving
Dot-move function
Continuous moving
function
+
+
++
Adjust the new
up limit point
Adjust the new
down limit point
+Confirm the new up limit point
Confirm the new down limit point
+
+
+
+
or
FACTORY MODE
FACTORY MODE
USER MODE
Functions that can be operated under any mode
Note: After setting up the up and down limit into user mode.
Note: Can not be fine-tune up/down limit position at the same time.
loosen P1
Display
1 Setting up
Run for hint x1
Run for hint x1
loosen P1
Set up is ok
The blind
run down
The blind
run up
The blind
run down
2 The reverse of direction setting
Successful change
the direction
3 limit position
1, Enter the limit setting mode
Confirm the Blind
to stop in the up
limit position
Confirm the Blind
to stop in the down
limit position
The up
limit point
The down
limit point
Set up is ok
Set up is ok
Enter fine-tune
up limit mode
Enter fine-tune
down limit mode
Press 1s
Press 2s Press 2s
Press 1s Press 1s
Press 1s Press 1s Press 1s
Long Press P1
loosen P1
Long Press P1
loosen P1
Long Press P1
loosen P1
Run for hint x2
“Di” x3
Run for hint x2
“Di” x3
Run for hint x2
“Di” x3
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
Run for hint x1 “Di” x1
Run for hint x1
“Di” x1
Run for hint x1
“Di” x1
Dot-move Continuous moving
or
or
or
or
Press 1s
Press 1s Press 2s
Press 1s Press 2s
Press 2s
Already set
up, down
limit position
Any
position
The third limit position
(any position)
The motor
stops
Set up is ok
Set up is ok
Long press the stop button for 2s,the roller blinds will move to the third limit
Method two
Method one
Note:Emitter is the one already matched code, while emitter has not
Emitter adding is ok
Emitter adding is ok
One emitter
is deleted
Note:With the same method,you only can delete the emitter not the emitter
1, Activate motor for the first time
2, The reverse of direction setting
3, Restore factory settings
Run for hint x1
Run for hint x2
“Di~~”x1
“Di”x2
“Di”x3
Set up is ok
Successful change
the direction
Activate is ok
FAULT AND SOLUTION
Recharger or
solar rechargeable
board port
