NINGBO DOOYA MECHANIC and ELECTRONIC TECHNOLOGY DQ7007A ID SMART BOX CONTROL User Manual
NINGBO DOOYA MECHANIC & ELECTRONIC TECHNOLOGY CO., LTD. ID SMART BOX CONTROL
User manual
Quick Guide
id Smart Box
868MHz wireless smart home system
FOR MORE INFORMATION, PLEASE VISIT
OUR WEBSITE
www.dooya.com
Dooya Copyright 2016 Designed By Dooya Team
FOR MORE INFORMATION, PLEASE VISIT
OUR WEBSITE
www.dooya.com
Network Port: 1×RJ45 (10/100 BaseT)
Antenna: Built-in
Working Temperature: -10℃ to 45℃
Point of Control: 30
Storage Temperature: -40℃ to 55℃
Dimension: 158mm×83mm×30mm
Power Input: DC 5V
Installation: Desktop or wall-mounted
Rated Current: 1.5A
Radio Frequency: 433MHz
Standby power: ≤200mA
Rated Power: ＜2W
Radio Coverage: 35m (Indoors)
Protection Class: IP20
Specification
Power
Indicator
Ethernet
Indicator
Operation
Indicator
The ID Smart Box shall be positioned
close to the central area of the house,
50cm above floor, on desktop or
mounted on the wall. The Box shall be
clear of metal covering and kept away
from humid environments. The Box
quires connection to a Wifi Router to
allow control via smart devices such as
iPhone or iPad.
Installation Requirements
id Smart Box
Specifications id Smart Box
Device And Accessories

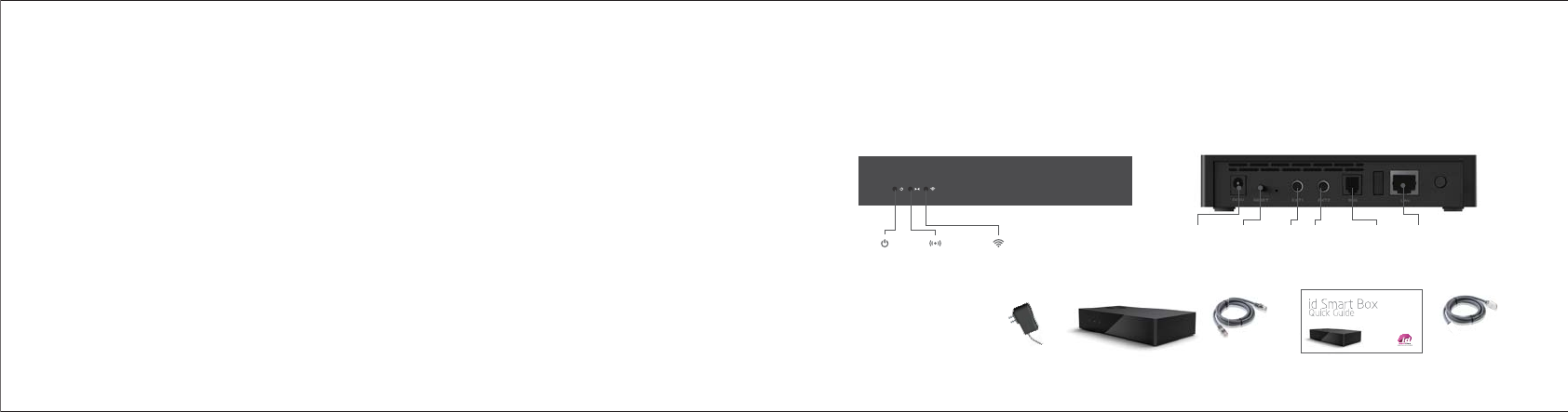

LAN port (RJ45)RESET RJ9Power
DC 5V
SMART BOX | 01 SMART BOX | 02
Power Adapter (various plug
types available)
Smart Box Network Cable Instruction Manual
Package List
Note：Do not use the connector marked “NOT FOR USE”
EXT 1
(Not for use）
EXT 2
(Not for use）
Telephone line

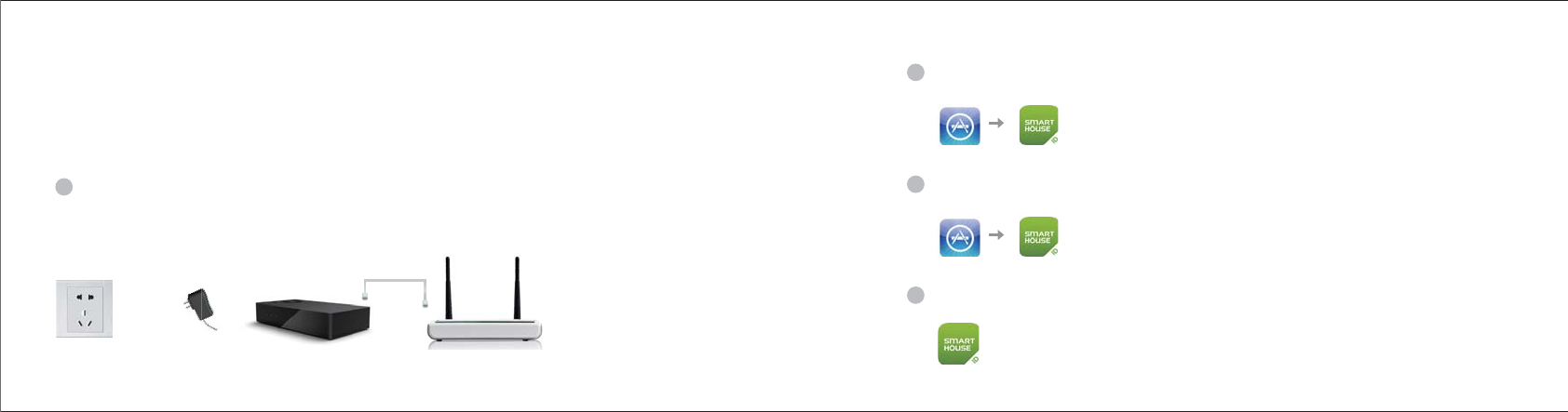

Plug in power, use network cable to connect the LAN port on the Box and WIFI router.
(Note: Please enable DHCP (Dynamic Host Configuration Protocol）in the router). When
power indicator on the Box stops blinking, please proceed to next step
id Smart Box
Setup
1
wiring
LAN Cable Connection
SMART BOX | 03 SMART BOX | 04
Power Supply Power Adapter (various plug
types available)
Smart Box WiFi Router
For Android smartphone users, download and install id Smarthome in the website
www. herzborg. de
4
For iPhone users, download and install id SmartHome app from Apple Store.
2
For iPad users, download and install id SmartHome app from Apple Store.
3
5
Make sure your smart phone is connected to the same WiFi router.

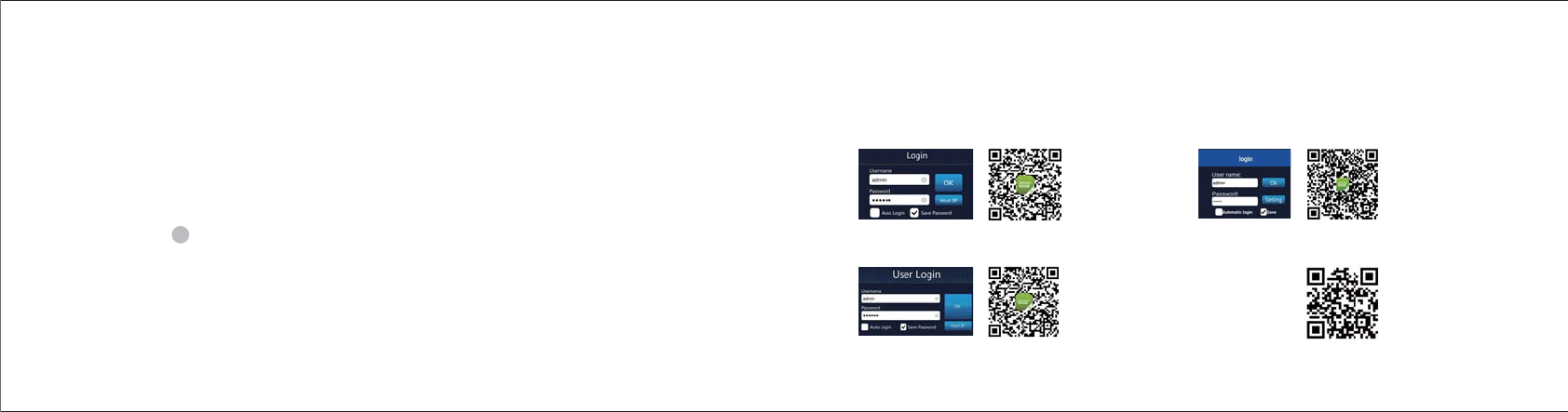

Activate idSmartHome APP on the phone, input "admin" as user name and
"123456" as default password. Tick "Save User Name and Password" and
"Auto Login" if you prefer not to repeat the login process next time.
For more detailed operation instruction, please scan the QR barcode on the
right and download an electronic copy from the web.
APP for iPhone
APP for iPad
APP for Android
id Smart Box
Control
SMART BOX | 05 SMART BOX | 06
Download complete
Operation instruction
