NITGen NAC-2500LR COMMERCIAL User Manual USERS MANUAL

NAC-2500LR User Manual

- 2 -

NITGEN Customer Service Center

Tel. 080-060-1600

(Toll Free)

Fax. +82-31-451-6722

E-mail: customer@nitgen.com

URL: http://www.nitgen.com

 Reproduction of part or all of the contents in any form is prohibited

other than in accordance with the permissions.

 Product specification can be changed and upgraded to improve

functionality without prior notice.

 NITGEN, NITGEN logo are registered trademark of NITGEN.

- 3 -

Table of Contents

CHAPTER 1. INTRODUCTION .................................................................... 5

1.1 Product Introduction ......................................................................................... 5

1.2 Product Features and Specification .................................................................. 7

CHAPTER 2. HOW TO USE ....................................................................... 12

2.1 Detailed Product Parts .................................................................................... 12

2.2 LCＤ Screen Layout ....................................................................................... 14

2.3 Fingerprint Use ................................................................................................ 15

2.4 Authentication .................................................................................................. 16

2.4.1Fingerprint ................................................................................................... 16

2.4.2Password ...................................................................................................... 21

2.4.3RF Card (optional) ....................................................................................... 22

2.4.3Others: Automatic Attendance Mode ........................................................... 23

CHAPTER 3. ENVIRONMENT SETTING ................................................... 24

3.1 Menu Composition .......................................................................................... 24

3.2 Entering into Menu ......................................................................................... 27

3.3 Basic Menu ....................................................................................................... 28

3.4 Detailed Menu .................................................................................................. 30

3.4.1 User Management ....................................................................................... 30

- 4 -

3.4.2 Fingerprint Sensor Setting .......................................................................... 45

3.4.3 UI (User Interface) Setting ......................................................................... 54

3.4.4 System Setting ............................................................................................ 57

3.4.5 Network Setting ....................................................................................... 66

3.4.6 Cofirmation of Terminal Information ...................................................... 72

3.4.7 Factory Default Setting ............................................................................... 74

APPENDIX 1: NETWORK CONNECTION ERROR AND SOLUTIONS ..... 78

APPENDIX 2: TERMINAL INITIALIZATION ERROR AND SOLUTIONS .. 80

APPENDIX 3: LAW AND REGULATION .................................................... 81

APPENDIX 4: WIEGAND PROTOCOL FORMAT ...................................... 82

APPENDIX 5 : EMERGENCY SCREEN ..................................................... 84

- 5 -

Chapter 1. Introduction

1.1 Product Introduction

 Overview

The use of biometrics system continuously increases in various

authentication systems and in areas that require a higher level

of security because of its ease of use and economical benefits.

Among a number of biometrics system, a fingerprint recognition

system is not only easy to use but also enables economical

product development. It takes up the most part of the market

as it allows a wide variety of application. NITGEN, a leader

in the fingerprint recognition area, has provided fingerprint

recognition solutions for the management of PC security,

knowledge, safe, access control, electronic payment and

financial clearings. Continuous R&D activities and quality

management ensure that NITGEN meets evolving needs and demands

of the market and the customers.

NITGEN access control system is a culmination of world-renowned

technologies from NITGEN including fingerprint recognition

algorithms, optical sensor, embedded design and software

applications. Unlike legacy access control systems that use

only password and ID card, it provides the ease of use and tight

security with no risk of forgetting password, stolen cards or

forgery. The system is designed to provide maximum operational

efficiency over the network by enabling remote monitoring on

terminals that have been independent so far.

NITGEN access control system allows various combinations of FR

card, password and fingerprints. It also meets the common set

of requirements and special needs in the corporate and

- 6 -

government sectors with such functions as shortened ID, 1:N

matching and voice guidelines.

The manual gives in-depth explanation as to how to use NITGEN

access control terminal (NAC-2500LR).

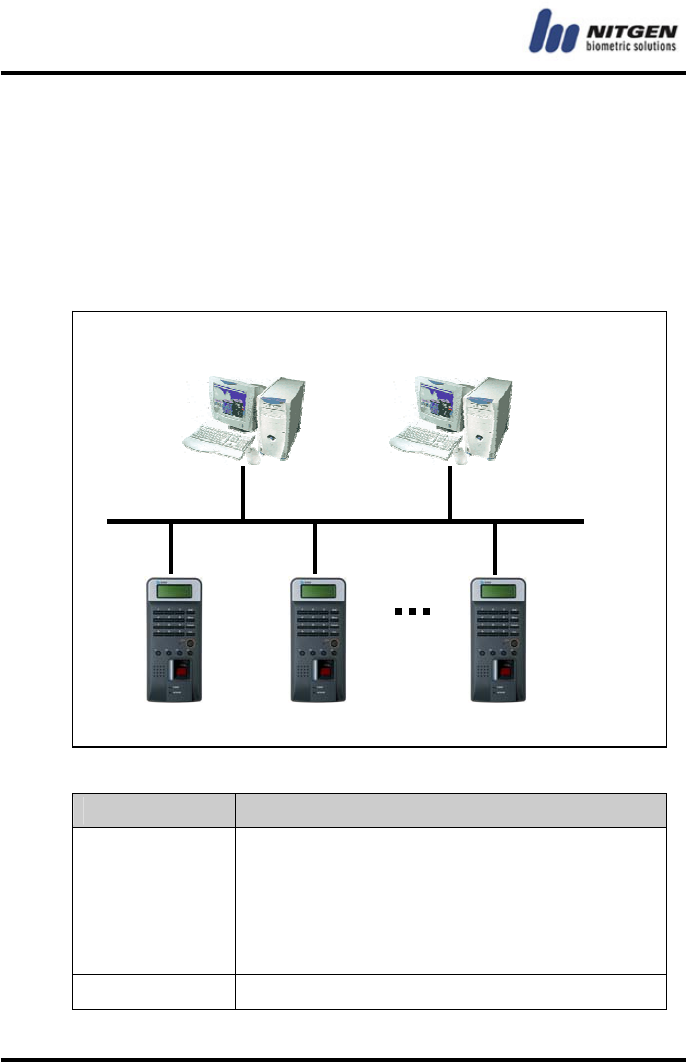

 System Components

Main Features

Server PC

1. Server S/W : Access Sever

2. Terminal communication, log data

collection

3. user information & log DB

4. authentication

Client PC 1. Client S/W : Remote Manager/Monitor

Network

Server PC

Terminal

Client PC

NAC-2500

Access Server

Remote Manager

Remote Monitor

- 7 -

2. user registration and other management

3. Terminal status and event monitoring

Terminal

( NAC-2500LR )

1. user check and authentication

2. access door control

NITGEN access control terminal(NAC-2500LR) can be used alone for

full functionality or can be used in connection with the network

together with admin programs (Access Server, Remote Manager,

Remote Monitor) in order to reduce the number of terminals and

to ensure an easier and a more effective management. Server

S/Wand Client S/W can be placed within one PC.

1.2 Product Features and Specification

 Product Features

NITGEN access control system (NAC-2500LR) has the following

features.

① access control and management on small & medium number of

users

② a combination of various authentication methods

(fingerprint, password, RF card)

③ network-based access control on terminals for multiple

users

④ easy remote management on the system (Server/Client PC can

be separated)

⑤ view on user’s access history and various additional

functions

- 8 -

⑥ real-time access monitoring

⑦ access control by period and time

⑧ SDK (S/W Developer’s Kit) for the development of

application programs such as attendance management program

(separate)

⑨ high-speed 1:N authentication

⑩ enhanced user-friendliness and ease of use (shortened ID,

Auto-on)

⑪ perfectly verifies the authorized user with its fake

fingerprint identification function

 System Specification (Connected to Server)

Specification Details

Connection

Terminal

Maximum 255 units

Remote

Management 8 concurrent accesses to server

# of Users to be

Registered

10,000 users

Network TCP/IP, 10M bps

Authentication

Type

fingerprint, password, RF card

(optional)

Authentication

Speed

1:1 mode: less than 1 second

1:N mode: refer to Application Note

Note) Enterprise version software

 Unlimited terminal access. (Proportional to system

- 9 -

capacity)

 Unlimited number of registered users. (Proportional to

system capacity)

 1:1 server authentication only.

 Detailed Specification: Terminal

Function Spec.

Display

Type 128 * 32 Dots LCD

Language Default: Korean, English

Additional Type A:

Japanese, Chinese, Spanish

French, Thai, Indonesian

Additional Type B:

Polish, Farsi, Malay, Hebrew

, Vietnamese(voice only) ,

Portuguese

Sensor

Model OPP03 LFD

Type Optical

Resolution 500 DPI

Additional Auto on / Latent Image Check

Live Finger Detection

Authentication

Speed 1:1 mode: less than 1 sec

1:N mode: Application Note

Algorithm FRR: less than 0.1%,

FAR: less than 0.001%

# of registered

users Terminal 2000(1 fingerprints per user)

1000(2 fingerprints per user)

Communication TCP/IP 10 base-T Ethernet

(optional)

- 10 -

RS-485 Max. 115200bps

(Custom requirement)

Wiegand 1. Input: provided with the

use of external card reader

2. Output

Access Controller mode:

Facility Code and ID

Reader mode:

Values read from Card

reader

※4 characters only for ID

Size Case 90 (W)* 200 (L)* 48 (H) mm

Door support Dead Bolt / Strike / EM Lock / auto door

Power

Adapter 1 In: AC 100V ~ 240V, 50/60 Hz

Out: DC 12V, 3A (24V OK)

Adapter 2 In: AC 100V ~ 240V, 50/60 Hz

Out: DC 5V, 3A

Additional

Function

Guidelines recorded in voice

Downloadable logo/firmware

ID length (4 ~ 15 digits)

Authentication results to be displayed in

LED

Optional

Network Board

Door Control Board

RF Module

[125KHz HID(3M 500 ㎶/m]

- 11 -

Temperature

Storage -25℃ ~ 65℃

Operation -20℃ ~ 60℃ (with no dew

condensation)

Humidity

Storage 15% ~ 90% RH

Operation 25% ~ 85% RH

WARNING

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT

CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEIVICE MUST ACCEPT ANY

INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE

UNDESIRED OPERATION.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR

TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS

TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE

USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

- 12 -

Chapter 2. How to Use

2.1 Detailed Product Parts

① LCD: All activities are displayed with text message.

② Key pad: Used for ID input and environment setting. Details

are as follows.

Key Description

0 ~ 9 To type in numbers

*, #

To move a curser up and down for menu selection

and to change direction.

*(Backward), #(Forward)

①

②

③ ⑤

④

⑥

- 13 -

Enter To complete ID type-in or environment setting.

Delete To erase typed-in numbers one by one or to move

to higher level in menu.

Menu To set or change an environment.

F1 ~ F4

User-customizable buttons that can be used for

attendance management including

arrival/leave/go-out/return. F1~F4 can be set

freely depending on software requirements.

SHIFT Reserved

AUX Reserved

③ Speaker: Used for recorded voice guidelines and warnings.

④ LED lamp: Showing operations of the terminal. Each lamp

represents the followings.

Function Operation Color

Authentication

To display the results of

authentication. Green for

success and red for failure.

Green/red

Power To display power status wit LED

on for power on. Red

Network

To display network connection

with LED on for network

connected.

Green

⑤ fingerprint input sensor and Auto-On switch: To contact and

- 14 -

take fingerprint. With no operation of key pad, fingerprint will

be automatically input by touching the fingerprint input sensor

with a finger. It is a cutting-edge fingerprint sensor that

prevents use of fake fingerprints

⑥ Reset switch: To reset the terminal if the terminal is not

in normal operation unexpectedly.

2.2 LCＤ Screen Layout

 Initial Screen of Terminal

The initial screen of terminal is as follows. The bottom line

displays current date and time.

P ㅣ a c e Y o u r F P

1 3 : 4 6 : 1 7

- 15 -

2.3 Fingerprint Use

To prevent authentication errors from occurring during the

registration and authentication of fingerprint, please follow the

methods below.

① To maximize the contact area and press the surface evenly.

On a scale of 0 to 100% (0%: minimum power 100%:

maximum power), please press the surface with

approximately 50%~70% power.

② Please place the core of fingerprint shape in the center. In

general, the core of fingerprint is located in the same line

with half moon in user’ s fingernail and therefore, place the

half moon in the center of fingerprint sensor.

- 16 -

2.4 Authentication

NITGEN Access Control System recognizes fingerprint, password,

and RF CARD (optional) for authentication. Users can get

authentication by freely choosing any method depending on

their own environment.

2.4.1Fingerprint

The following methods can be used to check access right with

fingerprints.

• 1:1 Match

It is to input fingerprint after feeding an ID that is already

registered. It matches input fingerprint with an already

registered fingerprint for a specific ID on a 1:1 basis. The

time required for authentication for 1:1 match is substantially

short regardless of the number of users. There is no need to

set the mode in a system. Authentication procedure begins

when fingerprint is input after ID is typed in.

First, please input user ID and then press ENTER or place your

finger on a sensor if Auto-ON is enabled.

I N P U T I D :

1 2 3 4

P l a c e Y o u r F P

- 17 -

• 1:N Match

It does authentication only with a registered fingerprint. The

authentication procedure is simple but it can take relatively

longer time than the 1:1 match when a number of users try to

access the system. There is no need to set the mode in a

system. A simple input of fingerprint will initiate the

authentication process. If it takes too long for 1:N authentication

due to too many users, please try ‘ 1:N time set’ in which

authentication is retried by typing in ID when authentication is

not completed within in the set time. Please refer to the following

details for ‘ 1:N authentication time.’

• Authentication with Shortened ID (SID)

Users can select ID with characters between 4~15

depending on default setting. Shortened authentication is

designed to simplify an ID input procedure in which the

authentication begins with only a couple of characters from a

S u c c e s s !

P l a c e Y o u r F P

S u c c e s s !

- 18 -

set ID to be input. For example, if a user uses an ID of 1234

567, the 1:N match against any IDs starting with 12xxxxx is

initiated in the system when the user inputs 12 followed by a

fingerprint. There is no need to set the mode in a system.

• Authentication for attendance mode

It does authentication by using function keys (F1~F4).

Before trying authentication, please press an appropriate

function key and proceed with authentication. In this case,

the result associated with the pressed function key remains

in log history which can be used for attendance data. For

example, if a user presses F1 and then inputs an ID, the

ID+F1 remain in log history. Also, if a user presses F1 only

and then proceeds with 1:N authentication, an appropriate ID

is searched to remain ‘ ID+F1’ record.

The following shows an LCD display when pressing F1.

I N P U T I D :

1

P l a c e Y o u r F P

S u c c e s s !

F 1 - I N P U T I D :

- 19 -

* In order to use attendance mode, the option of terminal is

set in by Menu-> system options(4) -> Function mode(4) ->

T&A

• Expanded attendance mode

It does authentication by using extended function keys

(F11~F19, F21~F29, F31~F39, F41~F49)

Before trying authentication, please press an appropriate

function key and select approprating number with a Left key (*)

or a Right Key (#). In case of pressing the left key, it is

decressed the number of function. And in case of pressing

Left Key (*), it is incressed the number of function displayed

in LCD.

* Right key input (#)

P l a c e Y o u r F P

S u c c e s s !

F 1 - I N P U T I D :

1 2 3 4

F 1 1 - I N P U T I D :

1 2 3 4

- 20 -

* Leftt key input (*)

To set or delete the expanded attendance mode, please take the

following steps.

1) To set the mode: Please set Menu->System Option (4) -> Function

Mode (4) -> T&A -> Auto T&A -> expanded T&A -> YES

2) To delete the mode: Please set Menu->System Option (4) ->

Function Mode (4) -> T&A -> Auto T&A -> expanded -> NO

• Function key Display

You can choose the display message when press the

function key. The option is set in Menu -> UI Option(3) ->

FuncKey Disp -> Mode1 or Mode2

Option F1 KEY F2 KEY F3 KEY F4 KEY

Off F1 F2 F3 F4

Mode1 Clock In Clock Out Absense Return

Mode2 Check In Check Out F3 F4

If the option of function key display is set by mode1,

Follwing message is displayed when you press the F1 key.

C l o c k I n :

1 2

F 1 9 - I N P U T I D :

1 2 3 4

- 21 -

*

* In order to use Function key display, the option of terminal

is set by Menu-> system options(4) -> Function mode(4)

-> T&A

• Authentication failure message

The following messages are displayed depending on authentication

method and causes of failure.

An error message for matching failure.

The following message is displayed when image capturing is

failed. When the message is displayed, please check if

your fingerprint is too dry or too wet.

2.4.2Password

It checks the right to access by using 4~8 digit password and

it is used in special occasions including damaged

fingerprint.

M a t c h i N g E r r o r

T i m e o u T !

- 22 -

Password can be set up to 8 digits.

2.4.3RF Card (optional)

User identity is confirmed through a RF CARD that he or she has.

By registering RF CARD numbers in the system, the use of lost

or stolen card can be prevented. To initiate authentication

by using a RF CARD, you can either contact RF card when the

initial screen appears or contact RF card when the following

message is displayed after typing in user ID.

Please place your card in front of the fingerprint sensor when

the following message appears.

The following message appears in case of success.

I N P U T I D :

1 2 3 4

I N P U T P A s s w d

: * * * * *

C o n t a c t R F c a r d

O n S e n s o r

S u c c e s s !

- 23 -

2.4.3Others: Automatic Attendance Mode

The result of attendance can automatically remain in log history

only with general 1:N authentication. When a specific attendance

status is repeated many times, the user does not need to take

trouble to press the same function key (F1~F4) each time.

In an automatic attendance mode, the initial screen changes as

follows and when the 1:N match is tried, the authentication

result is automatically attached with the relevant attendance

status.

To set or delete the automatic attendance mode, please take the

following steps.

1) To set the mode: Please set Menu->System Option (4) -> Function

Mode (4) -> T&A -> Auto T&A -> YES

2) To delete the mode: Please set Menu->System Option (4) ->

Function Mode (4) -> T&A -> Auto T&A -> NO

2.4.4 Others : Free Scan(1:1 match only)

In free scan mode (1:1match only), 1:N match and Authentication

with Shortened ID are forbidden. The option is set by MENU -> FP

OPTION (2) -> Free Scan Mode (7) -> YES or NO

It’s possible to use all of authentications (1:1, 1:N, SID match),

if the option is set in“NO”.

F 1 - I N P U T I D :

1 2 3 4

- 24 -

Chapter 3. Environment Setting

3.1 Menu Composition

The following table shows the entire menu composition of

terminal. The menu is helpful in setting initial environment,

user registration, fingerprint recognition device, and network.

To use the menu, please press the menu button on the key pad

of Terminal.

Please refer to chapter 3 for user registration, information

change, user deletion, number of registered users and

version-related information.

Higher menu Detailed Menu

Sub menu

1 User

Management

1User registration

2User info change

3User deletion

4Deletion of all users

2 Fingerprint

sensor setting

1Sensor brightness (1~100)

2Security level 11:1 mode

21:N mode

(Please try menu 3

times after setting

number 1)

3Capture mode

4Time setting for

fingerprint input

5AUTO-ON setting

- 25 -

61:N time setting 1Whether to use 1:N

time setting or not

2Time setting

(“time setting”

possible only when it

is on)

7Free Scan mode

3 UI setting 1Language

2Voice guideline

3Button tone

4Function Key Disp

4 System Setting 1Log storing

2RF card

3WIEGAND 1OFF

226BIT

334BIT

4Function key setting 1AC

2T&A (Auto T&A)

5Authentication

mode

6Time setting

7Terminal mode

8Time zone

5 Network 1Terminal ID

2TCP/IP 1DHCP yes or no?

2Terminal IP

3Sebnet Mask

4Gateway

5Server IP

3Time limit

4Port setting

6 Information 1Number of users

- 26 -

2Firmware version

7 Factory default 1DB Format

2Factory format

3Number of

registered

fingerprints

4Number of

characters in ID

5Reset terminal

- 27 -

3.2 Entering into Menu

 Master Authentication

At the time of initial installation of terminals, environment

can be set without master’s authentication. However, master

authentication is a must in order to change environment

settings after master setting. To view menu, please press a

master button which will display the following screen for

master authentication. You can see the menu after inputting the

ID of master and conduction authentication with selected

authentication methods including fingerprint, password and RF.

I N P U T M A S T E R I D

1 2 3 4

For an independently installed terminal that does not

use any network, an initially registered user will be

automatically registered as master. Please refer to

chapter 3 “user registration” for detailed

registration method. During the initial user

registration, default values at “authority setting”

will be set as master.

When using network, an initially registered user can

choose between either a master or a normal user. It is

the same as a registration process for normal users.

- 28 -

 Result Display

The following message is displayed if master authentication is

successful. After one second, you can enter into the menu.

However, you will get a failure message when the authentication

is not successful which is same as the failure message for

general authentication failure.

3.3 Basic Menu

The following screen is enabled after pressing a menu button

at the initial screen of terminal and if master authentication

is successful. You can choose basic menu by pressing #, * keys

or number keys.

The following explains the basic menu. If you press ENTER in the

basic menu, you can move to detailed menu which is a sub menu of

each basic menu. Please press DELETE to go back to the basic menu

S u c c e s s !

[ M E N U ]

1 2 3 4 5 6 7

- 29 -

from detailed menu or to go back to the initial screen from the

basic menu.

The higher menu has the following 7 categories.

U s e r M a n a g e r

1 2 3 4 5 6 7

F P O p t i o n

1 2 3 4 5 6 7

U I O p t i o n

1 2 3 4 5 6 7

S y s t e m O p t i o n

1 2 3 4 5 6 7

N e t w o r k

1 2 3 4 5 6 7

I n f o r m a t i o n

1 2 3 4 5 6 7

F a c t o r y I n i t

1 2 3 4 5 6 7

- 30 -

3.4 Detailed Menu

3.4.1 User Management

The user management menu manages database in which user

information is stored. It is accessible only through master’s

authentication (see Master Authentication in chapter 2.) Four

sub menus are provided including user registration, change and

deletion. Use direction buttons and choose ENTER.

3.4.1.1 User Registration

It is designed to store the information of users into database

who will use the access controller. Please register the user

with the following procedures after master authentication.

[ U s e r M a n a g e r ]

1 2 3 4

R e g i s t e r U s e r

1 2 3 4

- 31 -

1) To input user ID

When user registration menu is selected, you will see the

following screen that waits for the input of user ID. After typing

in an appropriate user ID, please press ENTER. If the same ID

already exists, a failure message will be displayed and the system

goes back to a previous menu.

2) Authority setting

The following explains how to set user authority between

I N P U T I D :

1 2 3 4

User registration is conducted in terminal when the

terminal mode is set at SO. It can be conducted either in

server or in terminal if the mode is set at NL. Note that

terminal registration is possible if network is in normal

operation under the NL mode, but is not possible if network

is disconnected.

To change SO mode into NL mode, user DB in the terminal

should all be erased and re-re

g

istered.

To correct ID during typing, please use a delete button.

It will erase characters one by one or will go back to

a higher menu when no character is input.

- 32 -

normal user and master. Please use a directional key and press

ENTER to finish.

• Normal user: no right to terminal management with access

authority only via identification.

• Master: terminal manager who has not only the right to access

but also user DB management, environment setting and other

menu.

3) Choice on Authentication

Please choose the authentication mode of users among

fingerprint, password, RF CARD, and other combinations.

Please use a directional key and press ENTER to finish.

U s e r T y p e

N O R M A L / M A S T E R

A u t h e n . M o d e

1 2 3 4 5 6 7 8 9 10

If RF is not selected during system setting,

authentication with RF will not be displayed in

authentication mode screen.

- 33 -

• How to use by authentication mode

※Legend: FP(fingerprint), PW(password), RF(RF CARD),

Enter()

“/”(OR combination), “&”(AND combination)

Mode Description

fingerprint Fingerprint only for authentication.

① ID + fingerprint (1:1 match)

② fingerprint (1:N match)

password Password only for authentication.

① ID +  + PW + 

RF RF CARD only for authentication.

① RF

fingerprint/p

assword

Fingerprint or password for authentication

with priority on fingerprint.

Password authentication is re-tried if ID is

already input with a failed fingerprint

authentication. However, authentication is

failed if ID is not already input with a

failed fingerprint authentication.

① ID + FP (FP failure, PW +)

② FP (FP failure = authentication failure)

fingerprint/R

F

Fingerprint or RF CARD for authentication with

priority on fingerprint.

RF CARD authentication is re-tried if ID is

already input with a failed fingerprint

authentication. However, authentication is

failed if ID is not already input with a failed

- 34 -

fingerprint authentication.

① ID + FP (FP failure, RF)

② FP (FP failure = authentication failure)

③ RF

password/RF Password or RF CARD for authentication.

① RF

② ID +  + PW +  (PW failure, RF)

fingerprint&

password Both fingerprint and password authentication

should be a success. Note that ID should be

typed in first before fingerprint.

① FP + PW + 

② ID + FP + PW + 

fingerprint&

RF

Both fingerprint and RF CARD authentication

should be a success to complete

authentication. It has the following three

options.

① RF + FP

② FP(1:N match) + RF

③ ID + FP + RF

password& RF Both password and RF CARD authentication

should be a success to complete

authentication.

① RF + PW + 

② ID +  + PW +  + RF

fingerprint&

password& RF

Fingerprint, password, RF CARD authentication

should all be a success to complete

authentication.

① FP + PW +  + RF

② ID + FP + PW +  + RF

③ RF +  + FP + PW + 

- 35 -

From the above table of authentication methods, shortened ID

authentication can be used for fingerprint authentication

(see 1.6 Authentication of chapter 1.)

4) Fingerprint input

User’s fingerprint is input if fingerprint or

fingerprint-included authentication is selected.

Fingerprints will be input twice. Please lift your finger

after the first time and then place it again for the second

time.

Place your finger for fingerprint input.

Please remove your finger from fingerprint sensor when the

following message is displayed.

Please place your finger again.

F P

1 2 3 4 5 6 7 8 9 10

P l a c e F P 1

R e m o v e F P

- 36 -

You will get a success message for successful fingerprint

input and will get a failure message for failed fingerprint

input. In case of failure, you will go back to the initial

registration screen.

The NAC-2500 includes a routine that checks similar

fingerprints during registration. If similar fingerprints

are registered already, the following message will be

displayed. In this case, it is convenient to use a different

finger for fingerprint registration.

5) Password input

User password is input when password or password-included

authentication is selected. Your password can be between 4~8

P l a c e F P 2

S u c c e s s !

D u b C h e c k E r r

- 37 -

digits.

For security reason, the input password will be displayed as

『*』.

The input password is confirmed.

You will get a success message for successful password input

and will get a failure message for failed password input. In

case of failure, you will go back to the initial registration

screen.

6) RF CARD input

When RF CARD is selected at System Setting, users can be

registered by using RF CARD. Please approach user’s RF CARD

near fingerprint sensor. Make sure that RF option is

P W

1 2 3 4 5 6 7 8 9 10

I N P U T P a S s w d 1

: * * * * *

I N P U T P a S s w d 2

: * * * * *

S u c C e s S !

- 38 -

selected during terminal environment setting.

You will get a success message for successful RF CARD input

and will get a failure message for failed RF CARD input. In

case of failure, you will go back to the initial registration

screen.

7) Other Registration Methods

The previous methods can be freely combined for registration.

Please refer to the following.

1.fingerprint 2. Password 3.RF 4.fingerprint /password 5.

Fingerprint/ RF

6. Password / RF 7. Fingerprint & password 8. Fingerprint &

RF

9. Password & RF 10. Fingerprint & password & RF

R F

1 2 3 4 5 6 7 8 9 10

C o n t a c t R F c a r d

O n S e n s o R

S u c c e s s !

- 39 -

3.4.1.2 User Information Change

It is designed to change user information including changes in

fingerprint, password, RF CARD, Authentication, and

authority.

When choosing『user information change』, the following screen

will be displayed to input user ID.

After inputting ID and pressing ENTER, the following

changeable items will be displayed. Please use a directional

key and press ENTER to finish.

1) Fingerprint change

The menu is designed to change registered fingerprint for

individual registered users. Just like fingerprint

registration, fingerprints should be input twice. Make sure

that you should remove your finger after the first time and

M o d i F y U s e r

1 2 3 4

I N P U T I D :

1 2 3 4

M o d i f y U s e r

1 2 3 4 5

- 40 -

place it again for the second time.

Please input fingerprint.

Please remove your finger from fingerprint sensor when the

following screen appears.

Please input the same fingerprint again.

You will get a success message for successful fingerprint

input and will get a failure message for failed fingerprint

input. In case of failure, you will go back to the initial

registration screen.

F P

1 2 3 4 5

P l a c e F P 1

R e m o v e F P

P l a c c F P 2

S u c c e s s !

- 41 -

Just like fingerprint registration, similar fingerprints are

checked.

2) Authentication method change

Please selected authentication method that will be changed.

1.Fingerprint 2.password 3.RF 4.fingerprint / password 5.

Fingerprint/RF

6. Password / RF 7. Fingerprint & password 8. Fingerprint &

RF

9. Password & RF 10. Fingerprint & password & RF

3) Authority change

It changes the authority of individual registered users. User

authority consists of normal and master user. Master users

D u b C h e c k E r r

A u t h e n . M o d e

1 2 3 4 5

U s e r T y p e

1 2 3 4 5

- 42 -

can enter into menu to do various terminal controls.

Therefore, it is desirable to allocate master user authority

only to a limited number of users.

4) Password change

Registered password can be changed.

Please input new password.

Please input the password again.

You will get a success message for successful input and will

get a failure message for failed input. In case of failure, you

will go back to the initial registration screen.

3) RF CARD change

U s e r T y p e

N O R M A L / M A S T E R

P a s s W o r d

1 2 3 4 5

I N P U T P a s s w d 1

:

I N P U T P a s s w d 2

:

- 43 -

RF CARD of individual registered users can be changed.

Please contact the RF CARD when the following message appears.

You will get a success message for successful input and will

get a failure message for failed input. In case of failure, you

will go back to the initial registration screen.

3.4.1.3 User Deletion

Registered users can be deleted and deleted.

Please input user ID to be delete. When the ID does not exist,

C h a n g e R F

1 2 3 4 5

C o n t a c t R F c a r D

O n S e N s o r

S u c c e s s !

D e l e t e U s e r

1 2 3 4

- 44 -

the process fails and goes back to the initial screen.

Please confirm the selection.

The following message appears for successful deletion.

3.4.1.4 Deletion of All Users

All users can be deleted at once.

I N P U T I D :

A r e Y o u S u r e ?

Y E S / N O

S u c c e s s !

D e l e t e A l l

1 2 3 4

Please be careful as it will delete all registered users

within a terminal.

- 45 -

When 『yes』is selected, the deleting procedure begins.

3.4.2 Fingerprint Sensor Setting

As a second option underneath the main menu, there is an option

to select fingerprint sensor. You can choose the following in the

main menu.

There are the following 7 categories within a sub menu.

3.4.2.1 Brightness

The first category is sensor brightness. It is recommended

A r e Y o u S u r e ?

Y E S / N O

S u c C e s s !

F P O p t i o n

1 2 3 4 5 6 7

F P O p t i o n

1 2 3 4 5 6 7

- 46 -

that the initial value is not changed.

3.4.2.2 Security Level

The security level will be set for 1:1 match. It is not possible

to set security level for 1:N match and when needed, only a

NITGEN after sales engineer can set the level.

Please press ENTER to go into a sub menu.

• You can set the security level for 1:1 mode by choosing 1.

However, it is recommended that the value is not changed.

B r i g h t n e s s

1 2 3 4 5 6 7

B r i g h t n e s s

( 0 - 1 0 0 ) : 5 5

S e c u . L e v e l

1 2 3 4 5 6 7

S e c u . L e v e l

1

- 47 -

1 : 1 M o d e

( 1 - 9 ) : 5

S u c c e s s !

- 48 -

3.4.2.3 Capture Mode

The product provides four capture modes for fingerprint

including normal, latent, intelli and LFD(Live Finger

Detection). The normal mode provides the highest speed. The

latent capture is relatively slower but can capture latent

fingerprints on the surface of a sensor. The Intelli is

relatively slower in speed, yet it analyzes the fingerprints

of users to capture the optimal fingerprint image the LFD

provides that prevents use of fake fingerprints.

The initial setting is 『LFD』. Please use a directional key

and press ENTER to finish.

C a p t u r e M o d e

1 2 3 4 5 6 7

Please press ENTER to go into a sub menu.

N o r m a l / L a t e n t

/ I n t e l l i / L F D

When you choose to use LFD, the following submenu will be

additionally displayed to select Live Finger Detection Level.

The initial setting is 『LOW』

However, the authentication ratio may deteriorate if the

value is set by HIGH

L F D L e v e l

L O W / M I D / H I G H

- 49 -

The following message will be displayed when an appropriate

function is successfully selected.

S u c c e s s !

- 50 -

3.4.2.4 Fingerprint Input Time (1 ~ 30 seconds)

It is to set time limit for fingerprint input to a terminal.

If a fingerprint is not input within the selected time, a

failure message will be displayed to encourage a re-try.

Please press ENTER to go into a sub menu.

S e n s o r T i m e o u t

1 2 3 4 5 6 7

The values can vary between 1~30.

The default value is 『5 seconds』. Please type in an appropriate

time with number keys and press ENTER to finish.

S e n s o r T i m e o u t

( 1 - 3 0 ) : 5

S u c c e s s !

- 51 -

3.4.2.5

Auto-On Setting

It allows an automatic input of fingerprint without pressing

an Enter key by simply placing a finger on fingerprint sensor.

A u t o - O n C h e c k

1 2 3 4 5 6 7

Please press ENTER to go into a sub menu.

A u t o - O n C h e c k

O N / O F F

S u c c e s s !

The default value is 『ON』.

- 52 -

3.4.2.6 1:N Time Setting

It limits the time for 1:N match, especially when the 1:N match

time becomes too long due to many users. As most authentications

take place at the beginning of 1:N match, it is unlikely to find

an appropriate fingerprint after some time has passed since the

search is initiated. As such, the function is designed to

eliminate any inconvenience users may suffer due to long

waiting. If the function is not enabled, 1:N search is conducted

for all DB within a terminal.

1 : N T i m e o u t

1 2 3 4 5 6 7

The following shows sub menus.

Please determine if you wish to use the function or not.

U s e T i m e o u t

1 2

U s e T i m e o u t

O N / O F F

S u c c e s s !

When selecting On to activate the function, you have to set the

limit for Timeout. The default value is 『3 seconds』.

- 53 -

S e t T i m e o u t

1 2

Please select appropriate timeout limit.

S e t T i m e O u t

( 2 - 9 ) : 2

S u c c e s s !

3.4.2.7 Free Scan Mode (1:1 match only mode)

It forbide 1:N match and SID match in terminal if the option is

set in ON. The default value is 『OFF』

F r e e S c a n M od e

1 2 3 4 5 6 7

F r e e S c a n M o d e

O N / O F F

- 54 -

3.4.3 UI (User Interface) Setting

The third function under the main menu is UI setting.

3.4.3.1 Language

You can select the type of language for LCD display.

In case of language Type A, you can select Korean, English,

Japanese, Chinese, Spanish French, Thai and Indonesian.

In case of language Type B, you can select Korean, English,

Polish, Farsi, Malay, Hebrew, Vietnamese(voice only), and

Portuguese.

U I O p t i o n

1 2 3 4 5 6 7

L a n g u a g e

1 2 3 4

E n g l i s h

1 2 4 4 5 6 7 8

S u c c e s s !

- 55 -

3.4.3.2 Voice Guidelines

V o i c e

1 2 3 4

V o i c e

O N / O F F

S u c c e s s !

- 56 -

3.4.3.3

Button tone

It decides whether you will hear a button tone or not when a

specific button is pressed.

3.4.3.4

Function Key Display

It can select the message when you press the function key(F1~F4)

B e e p

1 2 3 4

B e e p

O N / O F F

S u c c e s s !

F u n c K e y D i s p

1 2 3 4

F u n c K e y D i s p

O F F / M O D E 1 / M O D E 2

- 57 -

The default value is 『OFF』

When the option is set in mode1 or mode2, Extended attendance mode

is not supportted in NAC2500.

The following table shows the message depending on the option of

fucntion key display.

Option F1 KEY F2 KEY F3 KEY F4 KEY

Off F1 F2 F3 F4

Mode1 Clock In Clock Out Absense Return

Mode2 Check In Check Out F3 F4

3.4.4 System Setting

The fourth main menu is system setting.

You can then enter into the sub menu of System Option.

3.4.4.1 Log Storage

The first menu decides whether to store log or not.

S u c c e s s !

S y s t e m O p t i o n

1 2 3 4 5 6 7

S y s t e m O p t i o n

1 2 3 4 5 6 7 8

- 58 -

When log is on, relevant authentication log during user

authentication is sent to a server.

L O G

1 2 3 4 5 6 7 8

L O G

O N / O F F

- 59 -

3.4.4.2 RF CARD

It is to select whether RF CARD is used for user authentication.

Please use a directional button and press ENTER to finish.

You have three options: OFF RF CARD is not used, 26bit for

low frequency HID card, 34bit for high frequency Mifare

card.

R F c a r d

1 2 3 4 5 6 7 8

R F c a r d

O F F / 2 6 b i t / 3 4 b i t

S u c c e s s !

- 60 -

3.4.4.3

Wiegand

It decides whether to use Wiegand communication protocol to

send authentication results and user ID to a server.

Please press ENTER to go into a sub menu.

Please decide whether to use Wiegnad protocol or not. When

choosing OFF, item number 2 and 3 will disappear from Wiegand

menu.

When you choose to use Wiegand, you have to select Facility code

for the relevant bit display. If RF is set at 26 bits in the

previous menu, Wiegand should be set at 26 bits. 34 bits RF should

be matched against 34 bits wiegand.

Facility code for 26 bits has values between 1~255.

W I E G A N D

1 2 3 4 5 6 7 8

U s e W i e g a n d ?

1 2 3

U s e W i e g a n d ?

O N / O F F

2 6 b i T

1 2 3

- 61 -

Please set the facility code for 34 bits.

% please refer to the appendix for details about Wiegand output

format.

F a c i l i t y C o d e

( 1 - 2 5 5 ) :

3 4 b i t

1 2 3

F a c i l i t y C o d e

( 1 - 3 2 7 6 7 ) :

- 62 -

3.4.4.4

Function Key

It decides whether to use Function keys (F1~F4) or not. When

access control mode is set, function keys will not be used. Yet,

attendance mode will use function keys. In case of Function key

mode, you have to decide to use Auto T&A and Expanded T&A.

AC refers to access control mode and T&A refers to attendance

mode.

If you decide to use T&A mdoe, following the message is also

displayed to decide Auto T&A mode. The default value is 『NO』

When you select to use T&A mdoe, following the message is also

displayed to decide expanded T&A mode. The default value is 『NO』

F u n c t i o n M o d e

1 2 3 4 5 6 7 8

F u n c t i o n M o d e

A C / T & A

A u t o T & A M o d e

Y E S / N O

E x p a n d e d T & A

Y E S / N O

- 63 -

3.4.4.5 Authentication Mode

Please select authentication mode.

There are 2 modes available. In SO mode, a terminal is not

connected to network and operates standalone. In this case,

database only within the terminal is searched for

authentication. In NL mode, a terminal is connected to network

and it requires a server authentication. Please refer to

Access manager manual for details on server authentication.

3.4.4.6 Time Setting

You can set time for a terminal.

The setting is sustained for 9 hours during power shortage.

A u T h M o d e

1 2 3 4 5 6 7 8

A u t h M o d e

S O / N L

T i m e S e t t i n g

1 2 3 4 5 6 7 8

2 0 0 6 / 0 3 / 0 1

1 1 : 4 6 : 1 9

- 64 -

3.4.4.7

Terminal Mode

Terminal mode is an option to control Wiegand output. When a

terminal is set at normal mode, wiegand output is Facility Code

and user ID. If it is set at reader mode, wiegand output is ay

values read from a card reader.

T e r m i n a l M o d e

1 2 3 4 5 6 7 8

T e r m i n a l M o d e

R e a d e r / A c c e s s

- 65 -

3.4.4.8

Time zone

It is to decide whether to use Time zone or not. It Time zone

is on, the function will be used. Please refer to Access

manager manual for details on the use of time zone.

T i m e z o n e M o d e

1 2 3 4 5 6 7 8

T i m e z o n e M o d e

O N / O F F

- 66 -

3.4.5 Network Setting

The fifth main menu is network setting.

When selecting network setting, you will find the following

4 sub menu.

3.4.5.1Terminal ID

The values for Terminal ID should not be overlapping within

one server and a unique number for each terminal is used

for network access.

The values can vary between 1~255.

N e t w o r k

1 2 3 4 5 6 7

[ N e t w o r k ]

1 2 3 4

T e r m i n a l I D

1 2 3 4

T e r m i n a l I D

( 1 - 2 5 5 ) : 2 5 5

- 67 -

3.4.5.2

TCP/IP

The following is about TCP/IP setting.

There are 5 sub-menus out of which 2 may not appear depending

on DHCP setting.

① DHCP

T C P / I P

1 2 3 4

U s e D H C P ?

1 2 3 4 5

U s e D H C P ?

O N / O F F

- 68 -

② Terminal IP

Terminal IP is manually set. It does not appear if DHCP is

ON.

③ Subnet Mask

Subnet mask is manually set. It does not appear if DHCP is

ON.

T e r m i n a l I P

1 2 3 4 5

T e r m i n a l I P

0 . 0 . 0 . 0

s u b n e t m a s k

1 2 3 4 5

s u b n e T m a s k

2 5 5 . 2 5 5 . 0 . 0

- 69 -

④ Gateway

Gateway can be set when needed and it is used mostly when

connected to external network. If the system is used only

within Intranet, you do not need to input any value for it.

⑤ Server IP

Please input Server IP that has an Access Server installed and

the value of the IP should be a fixed IP.

G a t e w a Y

1 2 3 4 5

G a t e w a y

0 . 0 . 0 . 0

S e r v e r I P

1 2 3 4 5

S e r v e r I P

0 . 0 . 0 . 0

- 70 -

3.4.5.3

Limiting Communication Time

A terminal sends a signal on a regular basis in order to check

connection status to a server, and the current menu selects the

cycle. The value should be set with an extreme caution and both

long and short time have strength and weakness.

When the time is short, the terminal status is quickly reflected

to a server. In turn, longer time makes a response slower. If

the value is too small, network connection is on and off

continuously if communication lines are not in a good

condition.

Therefore, this value should be changed depending on network

environment and mostly, it is desirable to use factory setting

values.

N / W T i m e o u T

1 2 3 4

N / W T I m e o u T

( 2 - 2 0 ) : 3

- 71 -

3.4.5.4

Port Setting

Please input connection port number to be used for a server.

In most cases, factor setting values do not change.

P o r t N u m b e r

1 2 3 4

P o r t N u m b e r

: 7 3 3 2

- 72 -

3.4.6 Cofirmation of Terminal Information

You can check terminal information from the sixth main menu.

3.4.6.1 Number of Users

It gives information on the number of users currently

registered in a terminal. There are normal users and master

users.

Currently, the system has 123 normal users and 4 master users.

I n f o r m a t i o n

1 2 3 4 5 6 7

# O f U s e r

1 2

N O R M A L : 1 2 3

M A S T E R : 4

- 73 -

3.4.6.2 Version Check

You can find information on the version of firmware in a

terminal.

The current firmware version is 2.500-00.

F / W V e r s i o n

1 2

F / W V e r s i o n

2 . 5 0 0 - 0 0

- 74 -

3.4.7 Factory Default Setting

The menu is used only once during factory testing or site

installation.

3.4.7.1

DB Format

All DB are formatted.

When format is completed, the system goes back to the initial

screen.

F a c t o r y I n i t

1 2 3 4 5 6 7

D B F o r m a t

1 2 3 4 5

D B F o r m a t

Y E S / N O

A r e Y o u S u r e ?

Y E S / N O

F o r m a t i n g . .

- 75 -

3.4.7.2

Factory Format

Factory Format is a command to restore all information stored

within a terminal into initial values including user DB, option

DB, log information and logo. Therefore, the function should be

used with an extreme caution.

F a c t o r y F o r m a t

1 2 3 4 5

F a c t o r y F o r m a t

Y E S / N O

A r e Y o u S u r e ?

Y E S / N O

F o r m a t i n g . .

- 76 -

3.4.7.3

Number of Registered Fingerprint

It determines the number of fingerprint that can be registered

per one user between 1 and 2. (Will expand to 5 in future)

However, the value cannot be change if there is DB.

3.4.7.4

Number of Characters in ID

The length of ID for a site will be selected. As the length of

ID is a fixed value for each site, the function should be

used with an extreme caution. The value cannot be changed

if there is DB in existence.

F P N u m b e r

1 2 3 4 5

F P N u m b e r

1 / 2

I D L e n g t h

1 2 3 4 5

I D L e n g t h

( 4 - 1 5 ) : 4

- 77 -

3.4.7.5

Reset Terminal

Terminals can be reset without disassembling. Please choose 『yes』

in a confirmation screen to reset a terminal.

R e s e t T e r m

1 2 3 4 5

A r e Y o u S u r e ?

Y E S / N O

- 78 -

Appendix 1: Network Connection Error and

Solutions

When a terminal is not registered in a server, it should be

registered on the server.

When a terminal ID is not valid, please check the ID again and

set it again with a valid ID (1~255.)

If the number of user ID characters in a server and a terminal

is not the same, please set the same number of characters for

both IDs.

If the number of registered user fingerprints in a server and

a terminal is not the same, please set the same number of

fingerprints for the server and the terminal.

0 0 1

U N R E G I S T E R

0 0 2

T E R I D E R R

0 0 3

I D # E R R

- 79 -

When a terminal ID conflicts, please change the terminal ID into

an unregistered one.

When MAC Address is not consistent, please contact the customer

service center.

0 0 4

# F P E R R

0 0 5

T E R I D C O N F LICT

0 0 6

M A C A D D R ERR

- 80 -

Appendix 2: Terminal Initialization Error

and Solutions

The following is a list of terminal initialization errors and

solutions.

Err. Code Details Solution

001

Unidentified Error Rebooting or A/S

002

FPGA Initialization

Failure Rebooting or A/S

003 LCD Initialization

Failure

To check LCD module

connection or A/S

004 RTC Initialization

Failure A/S

005 Optic module Error To check Optic module

connection or A/S

010

System Software Error

A/S

011 A/S

012 A/S

013 A/S

014 A/S

015 Rebooting

016 A/S

※ Error code 001~003 refer to steps before LCD initialization

and therefore do not appear on LCD screen.

- 81 -

Appendix 3: Law and Regulation

Device Type User Guideline

B-level Device

(home communication

device)

The device is designed for home users

and can be used for all locations

including residential areas as it is

registered as a qualified device

against electromagnetic wave.

- 82 -

Appendix 4: Wiegand Protocol Format

1. Wiegand Input

- 26 Bit

P 8 Bit (site code) 16 Bit (card number) P

LSB MSB

- 34 Bit

P 16 Bit (site code) 16 Bit (card number) P

LSB MSB

- 83 -

2. Wiegand Output

 Output: MSB → LSB

 Even Parity: Odd number 1

 Odd Parity: Even number 1

Terminal mode <Access Controller>

- 26 Bit

P 8 Bit (facility code) 16 Bit (user ID) P

Even Parity Odd Parity

LSB MSB

- 34 Bit

P 16 Bit (facility code) 16 Bit (user ID) P

Even Parity Odd Parity

LSB MSB

Terminal mode <Reader>

Wiegand Input to be used without any change.

- 84 -

Appendix 5 : EMERGENCY Screen

1) EMERGENCY (Door Open)

When a door is forced open by an unauthorized user for access,

doors with door sensors detect the attempt and display the

following EMERGENCY message.

In this case, the emergency will be cancelled when the door

is checked by a system manager who enters into the menu in

a terminal. Please check the following if the emergency

message continuously appears.

Door sensor Y or N Check

Yes - operation of door sensor

- connection status of door sensor

No If warning time for “door open” is

set at 0 (see 2.4 Door Setting)

E M E R G E N C Y !

D o o r O p e n !

NITGen NAC-2500LR COMMERCIAL User Manual USERS MANUAL

NITGen Co., Ltd. COMMERCIAL USERS MANUAL

USERS MANUAL

Navigation menu

Namespaces

Views

Navigation
