NITGen NAC-3000R ACCESS CONTROLLER User Manual UserMan NAC 3000R
NITGen Co., Ltd. ACCESS CONTROLLER UserMan NAC 3000R
NITGen >
MANUAL
Access Controller NAC-3000R
Terminal User Manual
- 2 -
FCC NOTICE
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit difference from that to which
the receiver is connected.
- Consult the dealer of an experienced radio/TV technician for help.
NOTE : The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could
void the user’s authority to operate the equipment.
CAUTION : Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
- 3 -
Table of Contents
Chapter 1 Before You Start
1.1 About the product ------------------------------------------------ 5
1.2 Features and specifications ----------------------------------- 7
1.3 Product details----------------------------------------------------- 10
1.4 LCD screen--------------------------------------------------------- 12
1.5 How to input fingerprint------------------------------------------ 13
1.6 Authentication types --------------------------------------------- 14
Chapter 2 Environment Setup
2.1 Menu configuration ------------------------------------------------ 17
2.2 Fingerprint Option -------------------------------------------------- 20
2.3 UI Option ------------------------------------------------------------- 26
2.4 Door Option ---------------------------------------------------------- 28
2.5 System Option ------------------------------------------------------ 30
2.6 Gate Permission --------------------------------------------------- 35
2.7 Network --------------------------------------------------------------- 37
2.8 Factory Initialization ----------------------------------------------- 41
Chapter 3 How to Use the Terminal
3.1 User Management ------------------------------------------------- 44
3.2 Information ----------------------------------------------------------- 58
- 4 -
Chapter 1
Before You Start
1.1 About the product - 4
1.2 Features and specifications - 7
1.3 Product details - 11
1.4 LCD screen - 13
1.5 How to input fingerprint - 15
1.6 Authentication types - 16
- 5 -
1.1 About the product
Overview
Biometric systems are recently used in various authentication systems. They are
increasingly used not only in environments that require high level of security but
also in many other places because they are convenient and economical. Among
various biometric systems, the fingerprint recognition system takes up most of the
market because it is easy to use as well as economical and capable of developing
various types of applications. NITGEN, a global leader in the fingerprint recognition
industry, provides various fingerprint authentication solutions such as PC security,
knowledge management, vaulting service, access control, electronic approval, and
financial payment. NITGEN actively responds to customer needs through
continuous research, development and quality management.
The NITGEN access control system is an advanced product in which core
technologies of NITGEN recognized worldwide such as fingerprint recognition
algorithm, optical sensors, embedded design technology, and software application
technology are organically combined and optimized. In addition, unlike other
existing access control systems that use passwords or ID cards only, it is free from
such risks as loss of password and abuse or duplication of card, providing excellent
convenience and security. It is designed to maximize operational efficiency,
enabling integrated monitoring and systematic management of terminals which
have been operated independently on a remote location via the network.
The NITGEN access control system can use various combinations of RF card,
password and fingerprint authentication. Designed to meet both universal uses and
specific uses, it can be used in various customer environments including
enterprises and government agencies due to such convenient built-in features as
group ID, short ID, 1:N authentication, interphone and voice instruction.
This manual describes how to use NITGEN’s access control terminal (NAC-3000R).
- 6 -

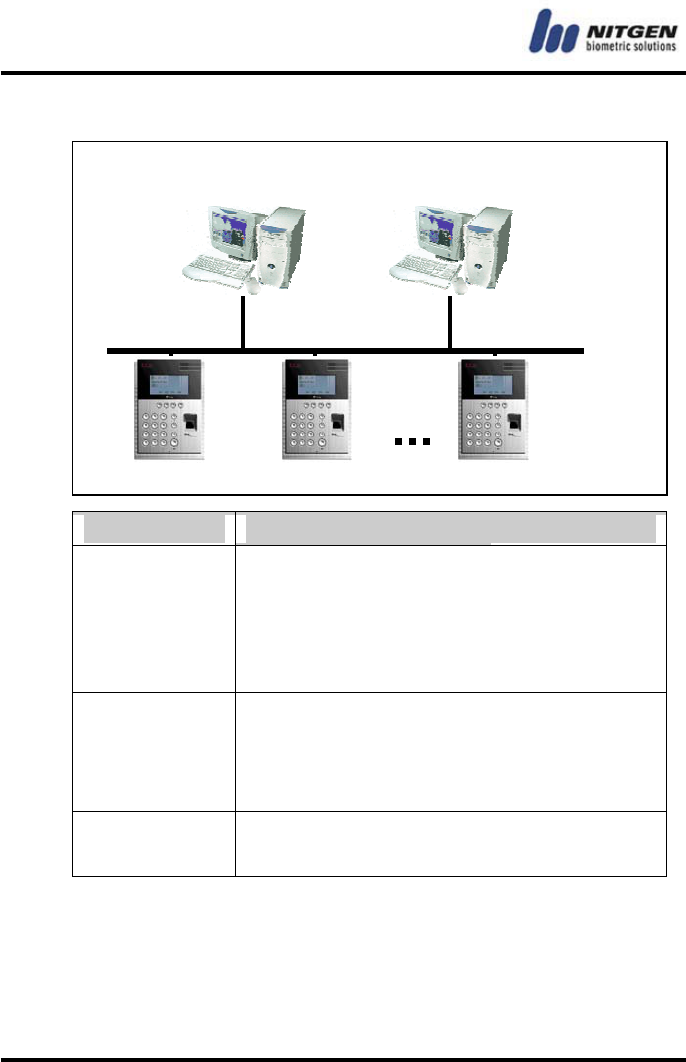

System configuration
Component Main Features
Server PC
1. Server software: Access Sever
2. Terminal communication and log data
collection
3. User information and log database
4. Performing authentication
Client PC
1. Client software: Remote Manager/Remote
Monitor
2. User registration and management
3. Monitoring terminal status and events
Terminal
(NAC-3000R)
1. Performing user authentication
2. Door control
You can use all features with the NITGEN access control terminal (NAC-3000R) only.
If you use it with the management programs (Access Server, Remote Manager and
Remote Monitor ) in network environment, you can manage a number of terminals
more easily and efficiently. You can use the server and client software in one PC.
Network
Server PC
Termin al
Client PC
NAC-3000
Access Server
Remote Manager
Remote Monitor
- 7 -
1.2 Features and specifications
Product features
The NITGEN access control system (NAC-3000R) has the
following features:
① Control and manage access of a large number of people.
② Combine several authentication types
(fingerprint, password, and RF card).
③ Control multiple access control terminals via the network.
④ Manage remote systems easily (running server and client PCs
independently).
⑤ Provide various additional features including user access
lookup and interphone.
⑥ Real-time monitoring of access status.
⑦ Access control by period and time.
⑧ SDK (Software Developer’s Kit) is provided for development of
various applications such as time & attendance (not supplied).
⑨ High speed 1:N authentication is available.
⑩ Enhanced user convenience (short ID/group ID authentication
and Auto-on).
- 8 -
System specifications (when connected with the server)
Section Content
Access terminal Connection allowed up to 255 terminals
Remote
management Simultaneous server access up to 8
Number of users
to register
5,000 users (2 fingerprints per 1 user)
10,000 users (1 fingerprint per 1 user)
Network 10 Mbps, TCP/IP
Authentication
type
Fingerprint, password and RF card
(optional)
Authentication
speed
Less than 1 second (1:1 authentication)
1:N mode :
average 2.5 seconds(1,000FP, Server)
average 2 seconds(500FP, Terminal)
average 1 second(300FP, Terminal)
PentiumⅣ 1GHz, 512MB RAM
Terminal specifications
Section Content
Size 128 * 64 Dots LCD
Display Language English, Korean
Model OPP01
Type Optical
Resolution 500 DPI
Sensor
Additional Auto on / Latent Image Check
Speed
1:1 mode: T < 1sec.
1:N mode
-Avg. 2.5sec(1,000FP, Server)
-Avg. 2sec (500FP, Terminal)
-Avg. 1sec (300FP, Terminal)
※PentiumⅣ 1GHz, 512MB RAM
Authentication
Algorithm FRR: 0.1 % or less, FAR:
0.001 % or less
- 9 -
Number of
users to
register
Terminal 2,000 users (2 FP per 1 user)
4,000 users (1 FP 1 user)
TCP/IP 10 base-T Ethernet
RS-232C Max 115200 bps (optional)
Communication
Wiegand 26 bit, 34 bit mode(output only)
※ID Length : 4digit
Case 135 (W)*45 (L)*202.5 (H) mm
Size Bracket 102.4(W)*26.6(L)*157.5(H) mm
Supported
doors Deadbolt / Strike / EM Lock / Auto door
Power Adaptor
Input: AC 100 V ~ 240 V, 50/60
Hz
Output: DC 12 V, 3 A
Interphone MIC and Speaker included
Voice instruction (English / Korean)
Alarm Buzzer
Downloading Logo / Firmware
Additional
features
Variable ID length (4 ~ 15 digit)
UPS (2.9Ah)
Option
RF Module (HID)
Operation -20℃ ~ 60℃ (With no icing or
condensation)
Temperature
Stroage -20℃ ~ 65℃
Operation 25% ~ 85% RH
Humidity
Stroage 15% ~ 90% RH
- 10 -
1.3 Product details
A. LED lamps: They indicates the terminal operation
status. The below table shows what they mean from
the left:
Lamp Operation Status Color
Power Power status. The LED is on while the
power is supplied. Red
Door Open/close status of the door. The LED
is on while the door is open. Green
Network Network connection status. The LED is
on while connected to the network. Green
② LCD screen: It displays menus and options for all operations.
①
②
③
⑦
⑤
④
⑥
- 11 -
③ Keypad: It is used to enter user ID or set up environment. For
each key description, please see the following table:
Keys Description
0 ~ 9 Number keys.
< > Direction keys. Move the cursor up and down
when selecting menu items.
Enter Press this key to complete such operation as ID
input or environment setup.
Cancel Delete the entered numbers one by one, or move
to the upper-level of the menu.
Call A guest can use it to talk to someone inside with
the interphone.
Menu Set or modify the settings.
F1 ~ F4
Define time & attendance features: arriving,
leaving, going out for outside duty and coming
back from outside duty. You can freely set the
function keys in accordance with the
requirements of the related software.
④ Speaker: For voice instruction, interphone communication, and
alarms.
⑤ Fingerprint input sensor: Put the fingerprint here.
⑥ Auto-On switch: No keyboard operation is required. Fingerprint
is automatically read in when placing the
finger on the fingerprint input sensor.
⑦ Microphone: It is connected to the internal interphone.
- 12 -
1.4 ＬＣＤ screen
Initial screen

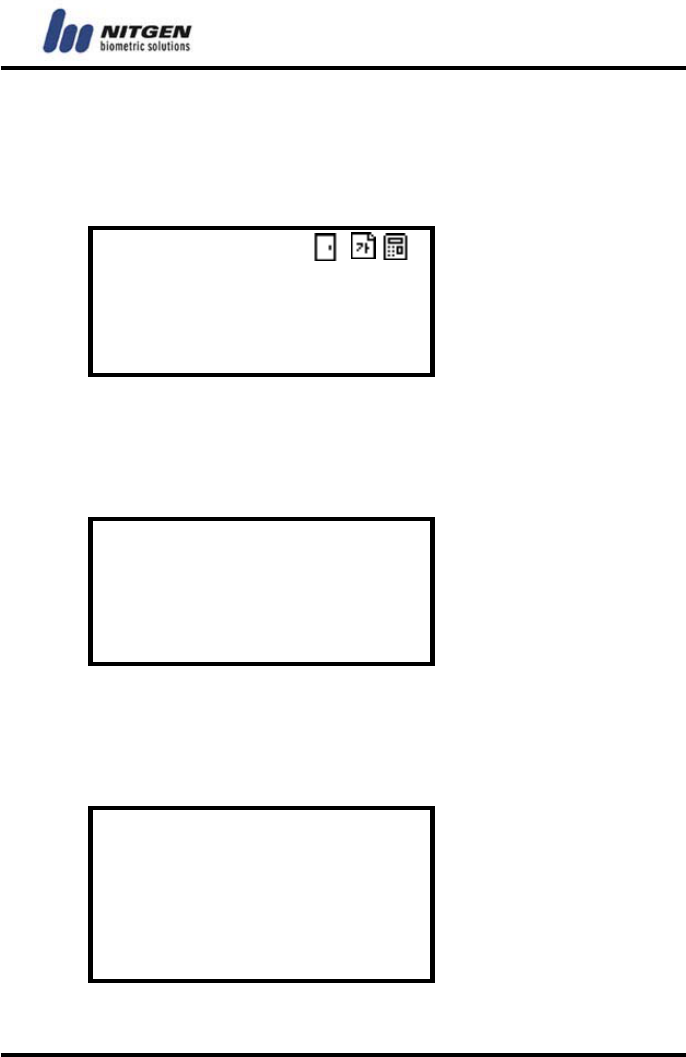

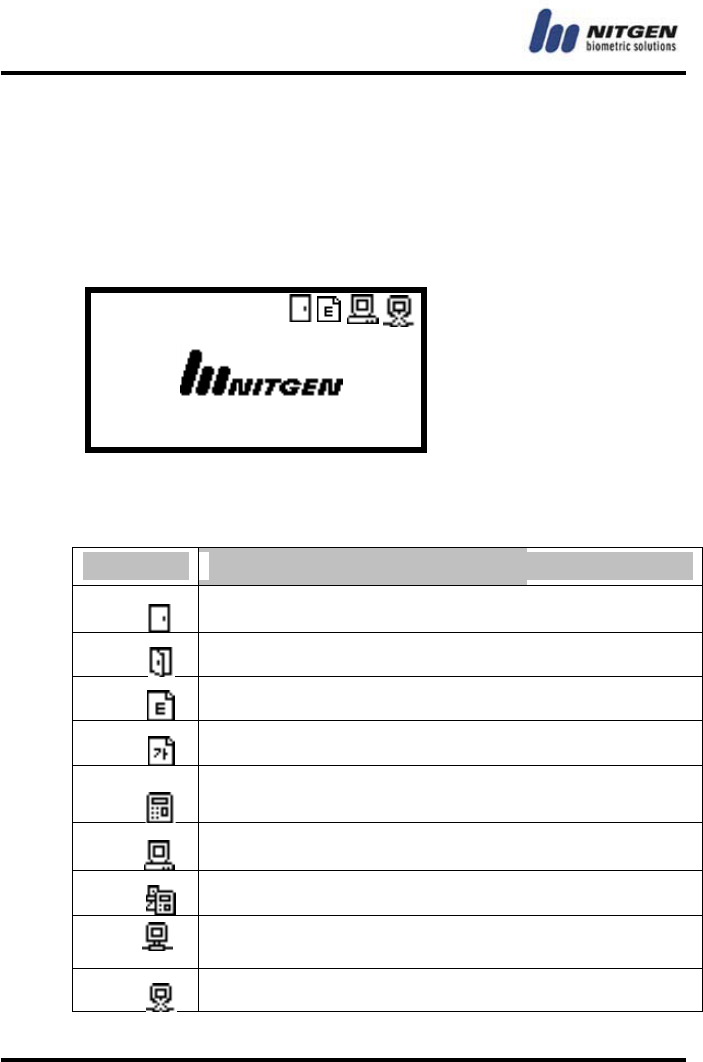

The initial screen of the terminal is as below. The icons in the
upper part of the LCD screen indicate the status of the terminal.
The logo in the middle of the screen can be defined by the
manager, and current date and time are displayed at bottom.
J A N - 3 1 -0 3 1 0 :4 9
Initial screen
The below table describes the icons in the LCD screen.
Icon Description
The door is connected to the door lock device.
The door is open after the user authentication is validated.
The display language is English.
The display language is Korean.
Terminal mode
SO (Stand Alone): All operations take place in the terminal alone.
NS (Network Server): Authentication is done in the server.
NL (Network Local): Authentication is done in the terminal
and the log is saved in the server.
The terminal is connected to the server.
The terminal is not connected to the server.
- 13 -
1.5 How to input fingerprint
When you enroll and authenticate user fingerprint, do the
followings to avoid authentication error:
B. Press your finger evenly to maximize the input area. If
we say the weakest push as 0%, and the strongest
push as 100%, apply 50~70% of force.
② Make sure that the core of the fingerprint is at the center of the
fingerprint input window. In general, the core of the fingerprint is
on the same line as the lunula of the fingernail. So locate the
lunula of the fingernail at the center of the fingerprint input
window.
- 14 -
1.6 Authentication types
With the NITGEN access control system, you can use fingerprints,
passwords, and RF cards (optional) for authentication. Depending
on customer environment, you can use one of the following
authentication types as you need.
Fingerprint authentication
Use fingerprints to validate access authentication with the
following types:
• 1:1 authentication
In this mode, enter a pre-registered ID first and then a fingerprint.
The enrolled fingerprint corresponding to the ID will be compared
to the entered fingerprint on a 1:1 basis. The 1:1 authentication
type takes a short time regardless of the number of users. There
is no need to make any special settings in the system. After
entering the ID, enter the fingerprint to perform authentication.
• 1:N authentication
Only enrolled fingerprints are used for authentication. Though
the authentication procedure is simple, this method will take a
little longer than the 1:1 authentication if there are many users.
There is no need to make any special settings in the system.
• Short ID (SID) authentication
The user ID can be 4 – 15 digits long depending on the initial
setting. This method simplifies ID input procedure. Instead of
entering the entire registered ID, you can enter only the first part
of the ID for authentication. For example, if the user ID is 1234
567, enter 12 only and then the fingerprint. Then the system will
perform 1:N authentication for all Ids that start with 12xxxxx.
There is no need to make any special settings in the system.
- 15 -
• Group authentication
For group authentication, you can specify a group ID of 1 – 4 digits
long for each user group. You will enter a group ID and a
fingerprint for authentication. For example, you can use the unit
number for public housing like an apartment as a group ID. You
can specify a group ID when you register a user. Unlike other
methods, you must enter the group ID, and then press F1
before entering the fingerprint to perform group authentication.
Password authentication
A password of 4 – 8 digits long is used to validate access
authentication. You can use this method in such a special case as
when the fingerprints are damaged.
RF card authentication (optional)
The RF card of a user is used to identify the user. You can register
the RF card number to the system in advance to provide against
loss or theft of the RF card.
- 16 -
Chapter 2
Environment Setup
2.1 Menu configuration - 19
2.2 Fingerprint Option - 22
2.3 UI Option - 27
2.4 Door Option - 29
2.5 System Option
- 31
2.6 Gate Permission - 36
2.7 Network - 39
2.8 Factory Initialization
- 43
- 17 -
2.1 Menu configuration
Features
The terminal menu is configured as follows. You can use this menu
to set the initial environment, register users, and set the fingerprint
recognition device and the network. You can use the menu button
on the terminal keypad.
For more information on how to register, modify and delete users,
and check the version, please refer to Chapter 3.
Menu Command
User
Manager
1. Register User
2. Modify User
3. Delete User
4. Delete All
FP Option
1. Sensor Option
2. Secu. Level
3. Latent Check
4. Sensor Timeout
5. Auto-On Check
UI Option
1. Language
2. Voice
3. Button Beep
Door Option 1. Open Duration
2. Warn. Duration
System Option
1. Encryption
2. Log
3. RF Card
4. Wiegand
5. Function Mode
6. Terminal Mode
7. Time Setting
- 18 -
Gate Permit
1. Date
2. Time [From]
3. Time [To]
Network
1. Terminal ID
2. TCP/IP
3. N/W Timeout
Information 1. # of User
2. F/W Version
Factory Ini.
1. DB Format
2. FP Number
3. ID Length
Master authentication
When you install the terminal for the first time, you can set the
environment without master authentication. But after the master
has been registered, you should pass master authentication to
change the terminal settings with menu.
In standalone mode without the network connection, the
first registered user will be the master. For more information
on how to register users, refer to "Register users" in
Chapter 3. When you register the first user, the default use
r
type becomes Master.
In network environment, you can choose either Normal o
r
Master for the first registered user. In other words, the
registration procedure of the first user is the same with
other normal procedure.
- 19 -
If you press the menu button to show the menu, the following
screen will appear for master authentication. Enter the Master ID
and proceed with the pre-defined authentication type (fingerprint,
password and RF) to display the menu.
Ｉｎｐｕｔ Ｍａｓｔｅｒ ＩＤ
：１２３４
Ｊａｎ－３１－０３ ０４：２７
Result screen
If you succeed, the following message will appear, followed by the
menu screen.
Ｓｕｃｃｅｓｓ!
If you fail, the following message will appear and you will go back
to the initial screen. This failure message means that the changes
you made have not been applied.
Ｆａｉｌ！
- 20 -
2.2 Fingerprint Option
Use this menu to set the operation environment of the fingerprint
input sensor. It has the following 5 submenus. Move to the
submenu you want to choose with the direction keys and press the
Enter key.
ＦＰ Ｏｐｔｉｏｎ
１．Ｓｅｎｓｏｒ Ｏｐｔｉｏｎ
２．Ｓｅｃｕ． Ｌｅｖｅｌ
３．Ｌａｔｅｎｔ Ｃｈｅｃｋ
４．Ｓｅｎｓｏｒ Ｔｉｍｅｏｕｔ
５．Ａｕｔｏ－Ｏｎ Ｃｈｅｃｋ
Sensor Option
Set the sensor options to get a clear fingerprint image. The sensor
option values are the internal settings of the CMOS image sensor.
You can set gain, brightness and contrast. The defaults of Gain,
Brightness and Contrast are 2, 40 and 20 respectively.
• Gain (1 / 2 / 4 / 8)
Ｓｅｎｓｏｒ Ｏｐｔｉｏｎ
１．Ｇａｉｎ
（１／２／４／８）：２
Enter a gain value and press the Enter key. Then the brightness
setup screen will appear.
These values can largely affect the fingerprint recognition
performance because they are very sensitive. So it is highl
y
recommended that default values be used without an
y
modification if possible.
- 21 -
• Brightness (0~100)
Ｓｅｎｓｏｒ Ｏｐｔｉｏｎ
１．Ｂｒｉｇｈｔｎｅｓｓ
（０ － １００）：４０
Enter a brightness value and press the Enter key. Then contrast
setup screen will appear.
• Contrast (0~100)
Ｓｅｎｓｏｒ Ｏｐｔｉｏｎ
１．Ｃｏｎｔｒａｓｔ
（０ － １００）：２０
If the recognition performance is decreased because it is
very dry (i.e. in winter), adjust Brightness between 20 and
30 (recommendation: 20).
If the recognition performance is decreased because it is
very wet (i.e. in summer), adjust Brightness between 50
and 80 (recommendation: 60).
- 22 -
Security Level
Specify security level if you use fingerprint authentication. You can
choose a level between 1 and 9. The greater the number is, the
higher the security level is. You can specify security levels for 1:1
mode and 1:N mode separately to use the system more efficiently.
In general, set the 1:N mode security level higher than the 1:1
mode one.
• 1:1 mode
In this mode, you should input ID first and then your fingerprint.
The enrolled fingerprint corresponding to the ID will be compared
to the entered fingerprint on a 1:1 basis. So you can set lower
security level in this mode than in 1:N mode without degrading
security.
Ｓｅｃｕ． Ｌｅｖｅｌ
１．１：１ Ｍｏｄｅ
（１ － ９）: ５
If a high level of security is required, you will need to specif
y
a high security level. But a high security level can increase
the false rejection rate (fail to authenticate the right person)
depending on the status of the fingerprint. In contrast, a low
security level may increase the false acceptance rate (allo
w
authentication for the wron
g
p
erson
)
.
- 23 -
• 1:N mode
In this mode, you need to input fingerprint only without ID. It is
recommended to set a higher security level in this mode than in
1:1 mode. The default is 8.
Ｓｅｃｕ． Ｌｅｖｅｌ
２．１：Ｎ Ｍｏｄｅ
（１ － ９）: ８
In the 1:N mode, if you set the security level too low, the
false acceptance rate may increase, resulted in degrading
security. On the other hand, if you set it too high, the false
rejection rate may increase, resulted in inconvenience.
- 24 -
Latent Check
It prevents recognition error possibly caused by latent fingerprint
image in the fingerprint input window because of sweat or sebum.
The initial setting is 『ON』. Move to the value you want to choose
with the direction keys and press the Enter key.
Ｌａｔｅｎｔ Ｃｈｅｃｋ
ＯＮ ／ ＯＦＦ
Sensor Timeout (1 ~ 30 seconds)
Set the timeout of fingerprint input. The LED blinks and the
terminal waits for fingerprint input during the specified seconds.
After that time, the LED will be turned off. The default is 『5 』. Use
the number keys to enter the value and press the Enter key.
Ｓｅｎｓｏｒ Ｔｉｍｅｏｕｔ
（１ － ３０）: ５
This feature can increase security but it may slow down
authentication time. So if high level of security is required,
you can use this feature. But you'd better not use this
feature in an environment where convenience and
quickness are more important (i.e. when used fo
r
attendance management).
- 25 -
Auto-On Check
Auto-On check is an automatic finger detection function. If
someone place finger on the sensor, it detects finger and simuates
pressing Enter Key.
The initial setting is 『ON』. Move to the value you want to choose
with the direction keys and press the Enter key.
Ａｕｔｏ－Ｏｎ Ｃｈｅｃｋ
ＯＮ ／ ＯＦＦ
- 26 -
2.3 UI (User Interface) Option
Use this menu to set the user environment such as display
language, voice instruction and alarm. The following three
submenus are provided. Move to the submenu you want to choose
with the direction keys and press the Enter key.
ＵＩ Ｏｐｔｉｏｎ
１．Ｌａｎｇｕａｇｅ
２．Ｖｏｉｃｅ
３．Ｗａｒｎ． Ｂｅｅｐ
Language
Select either ENG (English) or KOR (Korean) to set the language
for LCD screen display. Move to the value you want to choose with
the direction keys and press the Enter key.
Ｌａｇｕａｇｅ
ＥＮＧ ／ ＫＯＲ
Voice
Provide voice instruction on how to use the terminal for fingerprint
authentication. Move to the value you want to choose with the
direction keys and press the Enter key.
Ｖｏｉｃｅ
ＯＮ ／ ＯＦＦ
- 27 -
Button Beep
Decide whether to use button beep. Move to the value you want to
choose with the direction keys and press the Enter key.
Ｂｕｔｔｏｎ Ｂｅｅｐ
ＯＮ ／ ＯＦＦ
- 28 -
2.4 Door Option
Use this menu to set the door open and close behaviors operated
by the terminal. Move to the submenu you want to choose with the
direction keys and press the Enter key.
Ｄｏｏｒ Ｏｐｔｉｏｎ
１．Ｏｐｅｎ Ｄｕｒａｔｉｏｎ
２．Ｗａｒｎ． Ｄｕｒａｔｉｏｎ
Open Duration
Specify how long the door will be open after user authentication is
validated. You can specify a value between 1 and 20. Use the
number keys to enter the value and press the Enter key.
Ｏｐｅｎ Ｄｕｒａｔｉｏｎ
（１ － ２０） ： ５
- 29 -
Warning Duration
It gives an alarm if the door is still open after the specified time
elapses. If the alarm sounds, check why the door is not closed and
take necessary steps to make sure that the door closes normally.
Specify a value between 1 and 20, but it should be greater than
the door open time. Use the number keys to enter the value and
press the Enter key.
Ｗａｒｎ． Ｄｕｒａｔｉｏｎ
（１ － ２０） ： １０
These features may not work in some types of doors.
- 30 -
2.5 System Option
Use this menu to set the terminal system. The following 7
submenus are provided. Move to the submenu you want to choose
with the direction keys and press the Enter key.
Ｓｙｓｔｅｍ Ｏｐｔｉｏｎ
１．Ｅｎｃｒｙｐｔｉｏｎ
２．Ｌｏｇ
３．ＲＦＣａｒｄ
４．ＷＩＥＧＡＮＤ
５．Ｆｕｎｃｔｉｏｎ Ｍｏｄｅ
６．Ｔｅｒｍｉｎａｌ Ｍｏｄｅ
７．Ｔｉｍｅ Ｓｅｔｉｎｇ
Encryption
Decide whether to encrypt incoming and outgoing content of
terminal in network communication. Move to the value you want to
choose with the direction keys and press the Enter key.
Ｅｎｃｒｙｐｔｉｏｎ
Ｎｏ Ｕｓｅ／ＤＥＳ
If you use encryption, security and system stability will be
enhanced. On the other hand, it will take longer to perform
encryption and decryption.
- 31 -
Log
Decide whether to save access information. If the terminal is
connected to the network, access information is transferred to the
server in real-time, whereas if it is in standalone mode without
network connection, information is saved within the terminal. Move
to the value you want to choose with the direction keys and press
the Enter key.
Ｌｏｇ
ＯＮ ／ ＯＦＦ
RF Card
Decide whether to use RF card for user authentication. Move to
the value you want to choose with the direction keys and press the
Enter key.
ＲＦ Ｃａｒｄ
ＯＮ ／ ＯＦＦ
You can save up to 3,000 latest events in a terminal.
RF is optional. If the terminal is not equipped with RF
module, this feature is not available.
- 32 -
Wiegand
Decide whether to use wiegand protocol for transmission
authentication result and user ID to sever.
Ｗｉｅｇａｎｄ
ＯＦＦ/２６ｂｉｔ／３４ｂｉｔ
Function Mode
Set the function keys of the keypad (F1 ~ F4) either for access
control (AC) or for time & attendance (T&A). If you choose 『AC』,
F1 will be used for group authentication. If you choose 『T&A』,
function keys from F1 to F4 will be used for time & attendance -
arriving, leaving, going out for outside duty and coming back from
outside duty (inter-operating with the time & attendance software is
required). Move to the value you want to choose with the direction
keys and press the Enter key.
Ｆｕｎｃｔｉｏｎ Ｍｏｄｅ
ＡＣ ／ Ｔ＆Ａ
Wiegand communication works only if the length of user ID
is 4 digit.
- 33 -
Terminal mode
The terminal can be used in one of the following three modes.
Move to the value you want to choose with the direction keys and
press the Enter key.
• SO (Standalone Only):
One terminal is used independently. All settings such as user
registration, deletion, and access control are performed in the
terminal alone. Event log information is saved within the terminal.
• NL (terminal authentication):
User authentication is done by the terminal while various log
events are sent to the server in real-time instead of being saved
within the terminal.
• NS (server authentication):
User authentication is done by the server.
Please refer to the authentication modes described above and
choose the proper one.
Ｔｅｒｍｉｎａｌ Ｍｏｄｅ
ＳＯ ／ ＮＬ ／ ＮＳ
- 34 -
Time Setting
Set the current date and time to be displayed in the LCD screen.
Use the number keys to enter the date and time. When you enter
the year and press the Enter key, the cursor moves to “month,”
and so on (year →month →day →hour →minute →second). Use
the 24 hour format for hour setting.
Ｔｉｍｅ Ｓｅｔｔｉｎｇ
２００３ ／ ０４ ／ １７
０２ ： ３７ ： １３
- 35 -
2.6 Gate Permission
Use this menu to set the permission time of the access control
system. The following three submenus are provided.
Ｇａｔｅ Ｐｅｒｍｉｓｓｉｏｎ
１．Ｄａｔｅ
２．Ｔｉｍｅ ［Ｆｒｏｍ］
３．Ｔｉｍｅ ［Ｔｏ］
Date
Specify days of the week when the terminal is enabled. By default,
all days of the week are checked with 『*』. The terminal is enabled
on the day with the mark . Use the direction keys to move to the
day and press the Enter key to set the availability. If you press the
Enter key on an enabled day with the check mark, it becomes
disabled. Keep in mind that access is prohibited on disabled days.
Ｄａｔｅ
Ｍｏｎ ＊
Ｔｕｅ ＊
Ｗｅｄ ＊
Ｔｈｒ ＊
Ｄａｔｅ
Ｆｒｉ ＊
Ｓａｔ ＊
Ｓｕｎ ＊
Ｓａｖｅ ＆ Ｅｘｉｔ
When you complete the setting, select 『Ｓａｖｅ ＆ Ｅｘｉｔ』.
- 36 -
Time [From]
Set the start time of the day when the terminal begins to work. For
example, if you want to use the terminal from 9 am to 9 pm, set the
start and end times respectively as follows. Use the number keys
to enter the value and press the Enter key.
Ｔｉｍｅ ［Ｆｒｏｍ］
（０ － ２４） ： ９
Time [To]
Set the end time of the day when the terminal stops to work. Use
the number keys to enter the value and press the Enter key.
Ｔｉｍｅ ［Ｔｏ］
（０ － ２４） ： ２１
If you restrict access time, user access is allowed only within
the specified time frame. But the authentication can be
enabled by the terminal master who has the authority to
change the time restriction setting with menu.
If you want to specify the time expending two days such as
from 1 pm today to 2 am the next day, set the start time as
13 and the end time as 2.
- 37 -
2.7 Network
Use this menu to set the network environment to connect the
terminal to the network. The following four submenus are provided.
Move to the submenu you want to choose with the direction keys
and press the Enter key.
Ｎｅｔｗｏｒｋ
１．Ｔｅｒｍｉｎａｌ ＩＤ
２．ＴＣＰ／ＩＰ
３．Ｎ／Ｗ Ｔｉｍｅｏｕｔ
４．Ｐｏｒｔ Ｎｕｍｂｅｒ
Terminal ID
Set a unique ID for the terminal. Considering that several terminals
can be connected to the server via the network, make sure that the
ID matches the one specified in the management program.
Ｔｅｒｍｉｎａｌ ＩＤ
（１－２５５） ： １
- 38 -
TCP/IP
Set TCP/IP of the terminal.
① DHCP
You can decide whether to use DHCP that automatically assigns
IP addresses to network clients. If you choose to use DHCP by
selecting 『ON』, you can skip step ② and ③.
ＴＣＰ／ＩＰ
１．ＤＨＣＰ
ＯＮ ／ ＯＦＦ
② Terminal IP
An IP address consists of 4 numbers and each of the number
has 3 digits. Entering all 3 digits for a number will move the
cursor to the next field so that you can start to enter the next
number. But you should press the Enter key to move to the next
field if a number has less than 3 digits.
２．Ｔｅｒｍｉｎａｌ ＩＰ
＿＿０． ０． ０． ０．
- 39 -
③ Subnet Mask
The first two numbers of Subnet Mask are fixed as 255.255.
Enter the rest numbers with the same way as you enter the
terminal IP address.
３．Ｓｕｂｎｅｔ Ｍａｓｋ
２５５．２５５．＿＿０． ０．
④ Server IP
Enter the server IP address with the same way as you enter the
terminal IP address.
4．Ｓｅｖｅｒ ＩＰ
＿＿０． ０． ０． ０．
Network Timeout
When the terminal communicates with the server via the network,
it will be assumed that the network connection is disabled if there
is no response within the specified time. You can specify a value
between 2 and 20. If the network environment is not stable, start
with 5 seconds and then increase the value gradually.
Ｎ／Ｗ Ｔｉｍｅｏｕｔ
（２ － ２０） ： ５
- 40 -
Port Number
Set the port number for when the terminal communicates with the
server via the network. You can specify a value between 1 and
65535.
Ｐｏｒｔ Ｎｕｍｂｅｒ
： １３３８
If the server communication cycle is too short, it may cause
too much communication burden on the networking. If it is
too long, the real-time monitoring system may not work well.
So set the value properly for your environment.
- 41 -
2.8 Factory Initialization
Use this menu to initialize the current settings to factory defaults.
To u s e『ＦＰ Ｎｕｍｂｅｒ』 or 『ＩＤ Ｌｅｎｇｔｈ』, you must
delete all users because they are not available if there is left any
one registered user.
Ｆａｃｔｏｒｙ Ｉｎｉ．
１．ＤＢ Ｆｏｒｍａｔ
２．ＦＰ Ｎｕｍｂｅｒ
３．ＩＤ Ｌｅｎｇｔｈ
DB Format
Format the flash memory where user information is stored and the
memory where log information is stored. If you select DB Format,
the following message appears.
Ａｒｅ ｙｏｕ ｓｕｒｅ？
ＹＥＳ ／ ＮＯ
Choose “YES” to start formatting. The following message will
appear, showing you that formatting is in progress.
Ｆｏｒｍａｔｉｎｇ…
When formatting is complete, you will return to the initial screen.
- 42 -
Ｆａｃｔｏｒｙ Ｉｎｉ．
１．ＤＢ Ｆｏｒｍａｔ
２．ＦＰ Ｎｕｍｂｅｒ
３．ＩＤ Ｌｅｎｇｔｈ
Fingerprint Number
Choose the number of fingerprints you can enroll for each user ID.
Move to the value you want to choose with the direction keys and
press the Enter key.
ＦＰ Ｎｕｍｂｅｒ
１ ／ ２
ID Length
Specify the user ID length between 4 and 15.
ＩＤ Ｌｅｎｇｔｈ
（４ － １５） ： ４
If you choose 1, you can register up to 4,000 users, and i
f
you choose 2, you can register up to 2,000 users.
You can't change the ID length if there is left any one
registered user.
- 43 -
Chapter 3
How to Use
the Terminal
3.1 User Manager
- 47
3.2 Information - 61
- 44 -
3.1 User Manager
Use this menu to manage the database where user information is
stored. You can access this menu only through master
authentication. (Refer to "Master authentication" in Chapter 2.)
Four submenus are provided: Register User, Modify User, Delete
User and Delete All. Move to the submenu you want to choose
with the direction keys and press the Enter key.
Ｕｓｅｒ Ｍａｎａｇｅｒ
１．Ｒｅｇｉｓｔｅｒ Ｕｓｅｒ
２．Ｍｏｄｉｆｙ Ｕｓｅｒ
３．Ｄｅｌｅｔｅ Ｕｓｅｒ
４．Ｄｅｌｅｔｅ Ａｌｌ
Register User
Register users who will use the access control system. User
information will be stored in the database. After you pass master
authentication, use the following procedure to register users.
If the terminal mode is NL or NS, only 『Ｒｅｇｉｓｔｅｒ
Ｕｓｅｒ 』 will be displayed on the screen. The othe
r
features are available only in the server.
- 45 -
① Input ID
If you choose Register User, the below screen will appear so
that you can input a user ID. Enter an ID and press the Enter key.
If an identical ID already exists, an error message will appear
and you will go back to the previous menu.
Ｉｎｐｕｔ ＩＤ
:
② Input Group ID
When you finish Input ID process, the next Group ID screen will
appear so that you can specify the group where the user
belongs to. If you do not want to use the group ID, press the
In SO terminal mode, user registration is performed in the
terminal. In NL or NS terminal mode, it is done in the terminal
or the server. In the NL or NS mode, however, you can
register users as long as the network works well. If the
terminal is disconnected, you can't register users.
If you want to change the SO terminal mode to NL or NS,
you must delete the entire users in the terminal database
and re-register.
To modify the ID during the input process, use the Cancel
button. Pressing the Cancel button will delete numbers one
by one if there are any numbers entered. If there's nothing,
you will return to the upper-level menu.
- 46 -
Enter key to move to the next step. Input a group ID in 4 or less
digits, and press the Enter key.
Ｉｎｐｕｒ Ｇｒｏｕｐ ＩＤ
0
③ User Type
Choose Normal or Master user type. Use the direction keys to
make a choice, and press the Enter key to finalize the setting.
• Normal: Normal users do not have the privilege to manage the
terminal. They will have the access privilege only after they pass
authentication.
• Master: As terminal managers, master users have door access
privilege and can manage the user database and set the
environment with corresponding menu items. You can specify
master users up to 8.
Ｕｓｅｒ Ｔｙｐｅ
Ｎｏｒｍａｌ / Ｍａｓｔｅｒ
If you did not select group ID in the initial environment setup,
the group ID input step will be skipped.
- 47 -
④ Authentication Mode
Choose one of user authentication modes - fingerprint,
password, RF card and several combinations of the three.
Move to the value you want to choose with the direction keys
and press the Enter key.
Ａｕｔｈｅｎ． Ｍｏｄｅ
- ＦＰ
- ＰＷ
- ＲＦ
- ＦＰ / ＰＷ
- ＦＰ / ＲＦ
- ＰＷ / ＲＦ
- ＦＰ & ＰＷ
- ＦＰ & ＲＦ
- ＰＷ & ＲＦ
- ＦＰ & ＰＷ & ＲＦ
• How to use the authentication modes
※Legend: FP (fingerprint), PW (password), RF (RF card),
Enter()
“/” (OR combination), “&” (AND combination)
Classification Description
FP Authenticate by fingerprint only.
① ID + fingerprint (1:1 authentication)
② fingerprint input (1:N authentication)
If you did not select RF when you setup the system, any
authentication modes including RF will not be displayed in
the screen.
- 48 -
PW Authenticate by password only.
① ID + + PW +
RF Authenticate by RF card only.
① RF
FP/PW Authenticate by fingerprint or password. Try
fingerprint first. If you input the ID first and
fails in the fingerprint authentication, you can
try password authentication. But if you fail in
the fingerprint authentication without ID input,
you can't try password authentication and
authentication fails.
① ID + FP (if FP fails, try PW +)
② FP (if FP fails, authentication fails)
FP/RF Authenticate by fingerprint or RF card. Try
fingerprint first.
If you input the ID first and fails in the
fingerprint authentication, you can try RF card
authentication. But if you fail in the fingerprint
authentication without ID input, you can't try
RF card authentication and authentication
fails.
① ID + FP (if FP fails, try RF)
② FP (if FP fails, authentication fails)
③ RF
PW/RF Authenticate by password or RF card.
① RF
② ID + + PW + (if PW authentication fails,
try RF)
FP&PW Authenticate by fingerprint and password. You
should succeed in both.
- 49 -
① FP + PW +
② ID + FP + PW +
FP&RF You should succeed in both fingerprint and RF
card. The following three methods are
available.
① RF + FP
② FP(1:N authentication) + RF
③ ID + FP + RF
PW&RF You should succeed in both password and RF
card.
① RF + PW +
② ID + + PW + + RF
FP&PW&RF You should succeed in fingerprint, password
and RF card.
① FP + PW + + RF
② ID + FP + PW + + RF
③ RF + + FP + PW +
When you try one of the above modes, short ID and group ID
authentications are also available (refer to "1.6 Authentication
types" in Chapter 1).
⑤ Input Fingerprint
If you select fingerprint authentication mode or other one that
includes fingerprint authentication, you must input your
fingerprint. You should do it twice. After the first input, take your
finger off, and then input the fingerprint again.
- 50 -
Place the fingerprint on the sensor.
Ｐｌａｃｅ Ｙｏｕｒ ＦＰ
If the following screen appears after the first fingerprint input,
take your finger off from the sensor.
Ｒｅｍｏｖｅ ＦＰ
Place the same fingerprint again.
Ｐｌａｃｅ ＦＰ ａｇａｉｎ
If the fingerprint input is successful, a success message will
appear. If it fails, a failure message will appear and you will
return to the initial registration screen.
- 51 -
⑥ Input password
If you select password authentication mode or other one that
includes password authentication, you must enter the password.
Password can be 4 - 8 characters long.
Ｉｎｐｕｔ ｐａｓｓｗａｒｄ
For security, password is displayed as 『*』.
Ｉｎｐｕｔ ｐａｓｓｗａｒｄ
* * * *
Enter the password again for confirmation.
Ｃｏｎｆｉｒｍ ｐａｓｓｗａｒｄ
* * * *
If the password input is successful, a success message will
appear. If it fails, a failure message will appear and you will
return to the initial registration screen.
- 52 -
⑦ Input RF card.
If you chose to use RF card when you setup the system, use the
RF card to register the user. Place the RF card near the
fingerprint input sensor. If you did not choose the RF option
when you setup the terminal environment, press the Enter key to
go to the next step.
Ｃｏｎｔａｃｔ ＲＦ Ｃａｒｄ
Ｐｒｅｓｓ Ｅｎｔｅｒ ｔｏ
ｓｋｉｐ
If the RF input is successful, a success message will appear. If it
fails, a failure message will appear and you will return to the
initial registration screen.
Modify User
Use this feature to change the information on a registered user.
You can change fingerprint, password, group ID, RF card,
authentication mode and user type. If you select『Ｍｏｄｉｆｙ
Ｕｓｅｒ』, the following screen will appear so that you can enter
the user ID whose information you want to modify.
Ｉｎｐｕｔ ＩＤ
１２３４
- 53 -
Enter the ID and press the Enter key, and you'll see the following
items in the displayed screen. Move to the submenu you want to
choose with the direction keys and press the Enter key.
Ｍｏｄｉｆｙ Ｕｓｅｒ
１．ＦＰ
２．Ｐａｓｓｗａｒｄ
３．Ｇｒｏｕｐ ＩＤ
４．ＲＦ Ｃａｒｄ
５．Ａｕｔｈｅｎ． Ｍｏｄｅ
６．Ｕｓｅｒ Ｔｙｐｅ
• Fingerprint
Change the fingerprint of each registered user. As you did in the
first fingerprint enrollment, input the fingerprint twice. After the
first input, take your finger off, and then input the fingerprint
again.
Place the fingerprint on the sensor.
Ｐｌａｃｅ ｙｏｕｒ ＦＰ
If the following screen appears after the first fingerprint input,
take your finger off from the sensor.
Ｒｅｍｏｖｅ ＦＰ
- 54 -
Place the same fingerprint again.
Ｐｌａｃｅ ＦＰ ａｇａｉｎ
• Password
Change the password of each registered user.
Enter a new password.
Ｉｎｐｕｔ ｐａｓｓｗａｒｄ
＊＊＊＊
Enter the password again for confirmation.
Ｃｏｎｆｉｒｍ ｐａｓｓｗａｒｄ
* * * *
- 55 -
• Group ID
Change the group ID where the user belongs to.
Enter a new group ID. If you don't want to use a group ID, press
the Enter key to skip this step.
Ｉｎｐｕｔ Ｇｒｏｕｐ ＩＤ
０
• Contact RF Card
Change the RF card of each registered user.
Ｃｏｎｔａｃｔ ＲＦ Ｃａｒｄ
• Authentication Mode
Change the authentication mode of each registered user.
Select a new authentication mode you want to use.
Ａｕｔｈｅｎ． Ｍｏｄｅ
- ＦＰ
- ＰＷ
- ＲＦ
- ＦＰ / ＰＷ
- ＦＰ / ＲＦ
- ＰＷ / ＲＦ
- ＦＰ & ＰＷ
- ＦＰ & ＲＦ
- ＰＷ & ＲＦ
- ＦＰ & ＰＷ & ＲＦ
- 56 -
• User Type
Change a user type of each registered user.
Choose either Normal or Master.
Ｕｓｅｒ Ｔｙｐｅ
Ｎｏｒｍａｌ / Ｍａｓｔｅｒ
Delete User
Enter the user ID you want to delete.
Ｉｎｐｕｔ ＩＤ
The below confirmation screen will appear. Choose either YES or
NO, and press the Enter key.
Ｄｅｌｅｔｅ Ｕｓｅｒ？
ＹＥＳ / ＮＯ
- 57 -
Delete All
Delete all registered users in the terminal.
Choose either YES or NO, and press the Enter key.
Ｄｅｌｅｔｅ ａｌｌ?
ＹＥＳ / ＮＯ
If you choose 『YES』 to delete all users, the following message
will appear, showing you that deletion is in progress.
Ｄｅｌｅｔｉｎｇ…
When deletion is complete, the following message will appear, and
you will return to the previous screen.
Ｄｅｌｅｔｅｄ！
All registered users in the terminal will be deleted. Please
use this feature very carefully.
- 58 -
3.2 Information
You can check the terminal information with this menu.
Ｉｎｆｏｒｍａｔｉｏｎ
１．＃ ｏｆ Ｕｓｅｒ
２．Ｆ／Ｗ Ｖｅｒｓｉｏｎ
Number of User
It shows you the total number of users registered in the terminal.
The number of normal and master users are displayed separately
on the screen.
＃ ｏｆ Ｕｓｅｒ
Ｎｏｒｍａｌ： １２４
Ｍａｓｔｅｒ： ４
Firmware Version
It shows you the firmware version of the terminal.
Ｆ／Ｗ Ｖｅｒｓｉｏｎ
１．０
