Note: This report may not be duplicated without prior written consent of Bay Area Compliance
Laboratory Corporation. This report must not be used by the client to claim product
endorsement by NVLAP or any agency of the U.S. Government.
FCC PART 15 CLASS B
EUT User Manual
FOR
NMB TECHNOLOGIES
9730 Independence Ave.,
Chatsworth, CA 91311
FCC ID: AQ6-RT2900
August 30, 2000
This Report Concerns:
Original Report
Equipment Type:
Keyboard - Peripheral, ITE
Test Engineer: Brian Tan
Test Date: April 28, 2000
Reviewed By:
John Y. Chan - Director, Compliance Engineering
Prepared By: Bay Area Compliance Laboratory Corporation
230 Commercial Street, Suite 2
Sunnyvale, CA 94086
(408) 732-9162
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 2 of 11
TABLE OF CONTENTS
1 - GENERAL INFORMATION................................................................................................................................. 3
1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).............................................................................. 3
1.2 OBJECTIVE ............................................................................................................................................................ 3
1.3 RELATED SUBMITTAL(S)/GRANT(S)...................................................................................................................... 3
1.4 TEST METHODOLOGY............................................................................................................................................ 3
1.5 TEST FACILITY ...................................................................................................................................................... 3
1.6 TEST EQUIPMENT LIST .......................................................................................................................................... 4
1.7 EQUIPMENT UNDER TEST (EUT)........................................................................................................................... 4
APPENDIX A – USER MANUAL .............................................................................................................................. 5
APPENDIX B – AGENT AUTHORIZATION LETTER....................................................................................... 10
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 3 of 11
1 - GENERAL INFORMATION
1.1 Product Description for Equipment Under Test (EUT)
The NMB Technologies, Model RT2900 or the "EUT" as referred to in this report is a standard Keyboard
which could bring users closer and keeps users in touch with desktop world. The EUT measures 17.9 ”Lx
6.12”Wx 1.25”H.
• The EUT was connected to a Mid -Tower host system which provides for one (1) 3.5” floppy drive,
one (1) IDE hard drive, one (1) CD-ROM drive, one (1) IBM motherboard, and one (1) modem card.
1.2 Objective
This Class B report is prepared on behalf of NMB Technologies in accordance with Part 2, Subpart J, and
Part 15, Subparts A and B of the Federal Communication Commissions rules and to ICES-003 of the
Canadian Interference-Causing Equipment Regulations.
The objective of the manufacturer is to demonstrate compliance with FCC Part 15 Class B limits for
conducted and radiated margin and to ICES-003 requirements for Information Technology Equipment.
1.3 Related Submittal(s)/Grant(s)
No Related Submittals
1.4 Test Methodology
All measurements contained in this report were conducted with ANSI C63.4 –1992, American National
Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions
measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was
performed at an antenna-to-EUT distance of 10 meters.
1.5 Test Facility
The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and
conducted emission measurement data is located in the back parking lot of the building at 230 Commercial
Street, Suite 2, Sunnyvale, California, USA.
Test sites at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to
the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI).
The details of these reports has been found to be in compliance with the requirements of Section 2.948 of
the FCC Rules on February 11 and December 10, 1997 and Article 8 of the VCCI regulations on
December 25, 1997. The facility also complies with the radiated and AC line conducted test site criteria
set forth in ANSI C63.4-1992.
The Federal Communications Commission and Voluntary Control Council for Interference has the reports
on file and is listed under FCC file 31040/SIT 1300F2 and VCCI Registration No.: C-674 and R-657. The
test sites has been approved by the FCC and VCCI for public use and is listed in the FCC Public Access
Link (PAL) database.
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 4 of 11
Additionally, Bay Area Compliance Laboratory Corporation is a National Institute of Standards and
Technology (NIST) accredited laboratory, under the National Voluntary Laboratory Accredited Program
(NVLAP). The scope of the accreditation covers the FCC Method - 47 CFR Part 15 - Digital Devices,
IEC/CISPR 22: 1993, and AS/NZS 3548: Electromagnetic Interference - Limits and Methods of
Measurement of Information Technology Equipment test methods under NVLAP Lab Code 200167-0.
1.6 Test Equipment List
Manufacturer Description Model Serial
Number Cal. Due
Data
HP Spectrum
Analyzer 8568B 2610A02165 12/6/00
HP Spectrum
Analyzer 8593B 2919A00242 12/20/00
HP Amplifier 8349B 2644A02662 12/20/00
HP Quasi-Peak
Adapter 85650A 917059 12/6/00
HP Amplifier 8447E 1937A01046 12/6/00
A.H. System Horn Antenna SAS0200/571 261 12/27/00
Com-Power Log Periodic
Antenna AL-100 16005 11/2/00
Com-Power Biconical
Antenna AB-100 14012 11/2/00
Solar Electronics LISN 8012-50-R-24-BNC 968447 12/28/00
Com-Power LISN LI-200 12208 12/20/00
Com-Power LISN LI-200 12005 12/20/00
BACL Data Entry
Software DES1 0001 12/20/00
1.7 Equipment Under Test (EUT)
Manufacturer Description Model Serial Number FCC ID
NMB Keyboard RT2900 41100077/41100081 AQ6-RT2900
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 5 of 11
Appendix A – USER MANUAL
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 6 of 11
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 7 of 11
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 8 of 11
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 9 of 11
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 10 of 11

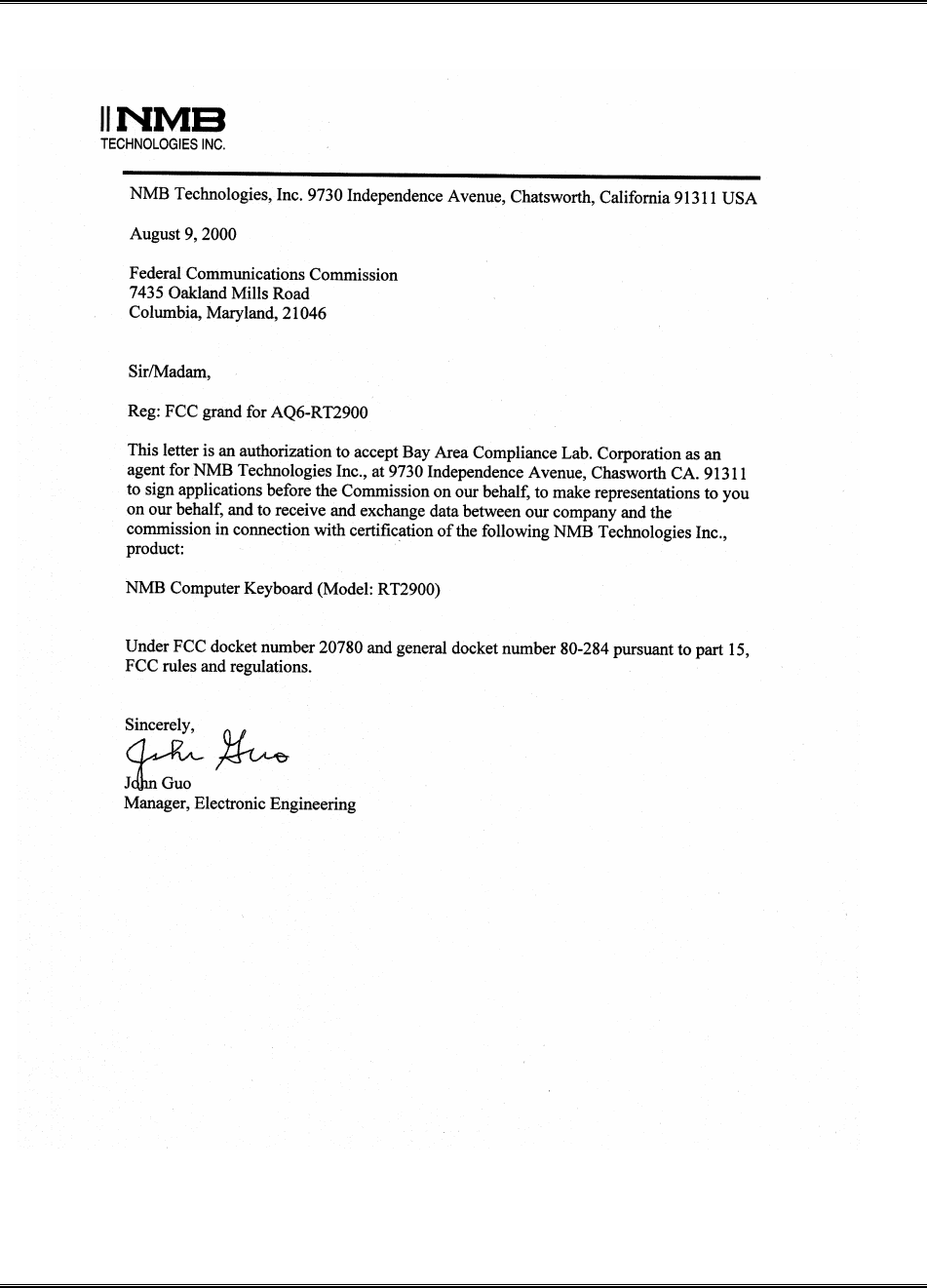

Appendix B – AGENT AUTHORIZATION LETTER
NMB Technologies FCC ID: AQ6-RT2900
Report # User manual FCC ID Class B Report
Page 11 of 11
