NMB Technologies VGP-WRC3 USB Keyboard Adapter User Manual
NMB Technologies Corp. USB Keyboard Adapter
Users Manual
33
CONNECT button (To be placed)
Press to enable the receiver to
communicate with the keyboard.
CONNECTOR
To be connected with the main
board in PC via USB interface.
To maintain good communication, operate the wireless keyboard within the distance
limitation of keyboard: approximately 32 feet (approximately 10 m) from the receiver.
Confirm that the supplied AA batteries are properly installed in keyboard.
Press the CONNECT button of the receiver (located on the left of the computer) first,
and then press the CONNECT button on the bottom of the keyboard.
Avoid using radio-controlled toys or equipment, CB radios, and other wireless devices in
the area near the wireless keyboard. These devices may cause interference, causing the
keyboard to stop working properly.
Do not place metal furniture near the receiver or wireless keyboard, as this may create
interference, causing the keyboard to stop working properly.
Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard.
Always use the same type and manufacture of battery.
Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used,
new or different types of batteries can damage the keyboard.
To connect the receiver and the wireless keyboard

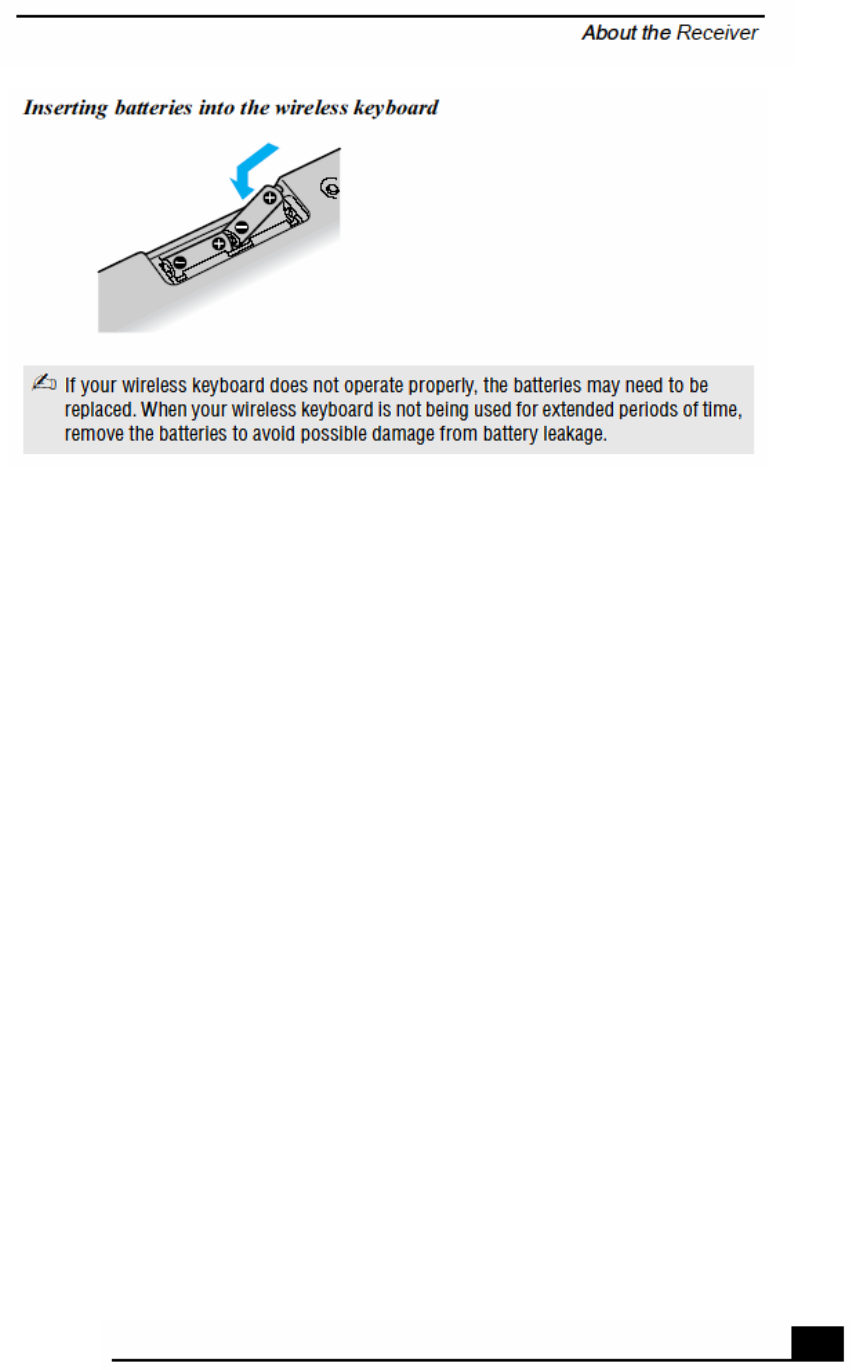

1. Insert the supplied two AA batteries (1) into the battery compartment on the bottom of
the wireless keyboard.
2. Turn on the computer.
3. Slide the POWER switch (2) at the top of the keyboard to turn on the keyboard.
4. Press the CONNECT button (3) on the left of the computer (receiver).
5. Press the CONNECT button (4) on the bottom of the keyboard.
Communication between the wireless keyboard and the computer should now be established.
Steps 4 and 5 must be completed within 10 seconds of each other.
34
Non-Modification statement: Chan
g
es or modifications not ex
p
ressl
y
a
pp
roved b
y
the
p
art
y
res
p
onsible for com
p
liance could void the user's authorit
y
to o
p
erate the e
q
ui
p
ment.
Minimum safet
y

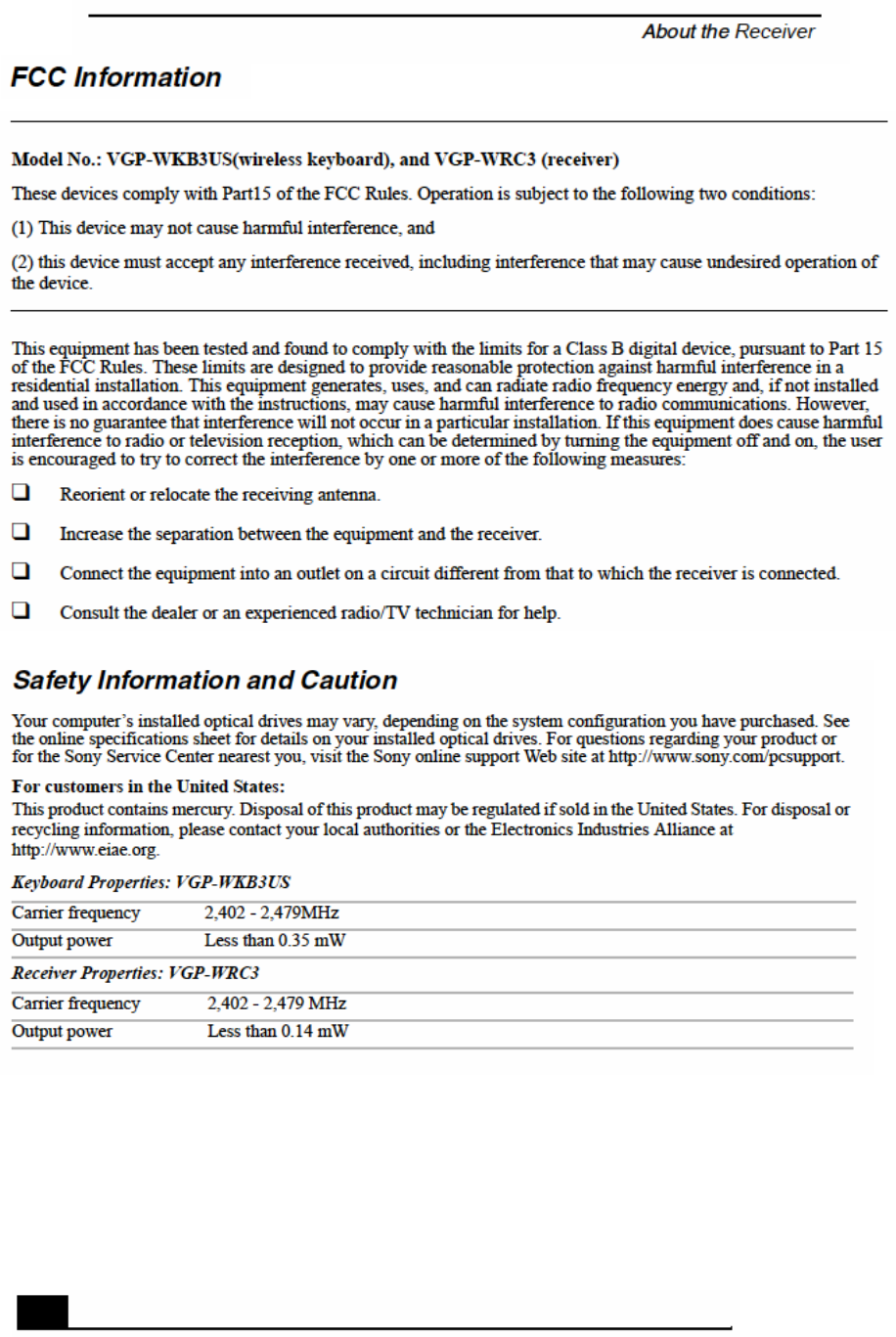

distance statement: The device has met the FCC 15.247 re
q
uirment.
In order to comply with the FCC RF exposure requirment, the user must keep 20cm away
from the antenna.
