NMB Technologies VGPWKB10 Wireless Keyboard User Manual 4960 US UG
NMB Technologies Corp. Wireless Keyboard 4960 US UG
Contents
- 1. User Manual 1
- 2. User Manual 2
User Manual 2
1
nN
>
Using the Keyboard
Using the Keyboard
A wireless keyboard is supplied with your computer.
The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions.
Using the Wireless Keyboard

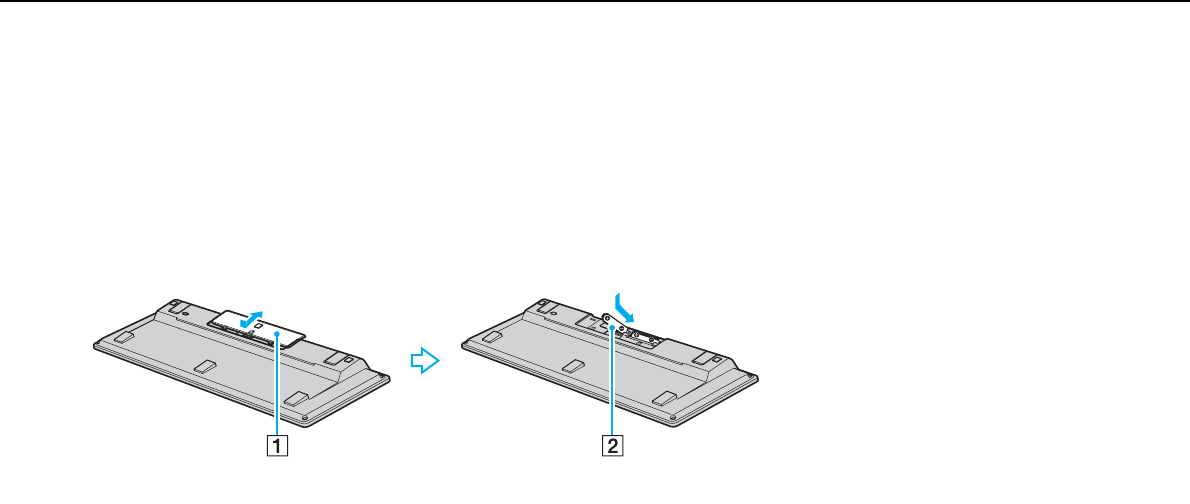

Two AA alkaline batteries are supplied with your wireless keyboard. Before attempting to use the wireless keyboard, remove
the battery compartment cover (1) from the bottom of the wireless keyboard and install the supplied two AA batteries (2) into
the battery compartment.
✍
If the wireless keyboard does not operate properly, the batteries may need to be replaced. If you do not intend to use the wireless keyboard for an
extended period of time, remove the batteries to avoid possible damage from battery leakage.
If the wireless keyboard is left unused for 20 minutes or longer, your computer enters Sleep mode. To bring it back into Normal mode, press any key
on the wireless keyboard.
2
nN
>
Using the Keyboard
!
To maintain good communication, operate the wireless keyboard within the distance limitations of keyboard: approximately 32.8 feet (10 m) from your
computer.
Confirm that the supplied AA batteries are properly installed.
If you find your wireless keyboard not working, for example after you used the keyboard with another VAIO model, reconnect the keyboard. See To
connect the wireless keyboard (page 6) for the detailed procedure.
Avoid using any wireless devices that exchange radio signals on the 2.4 GHz frequency band near the wireless keyboard. These devices may cause
interference, causing the keyboard to stop working properly.
Do not place metal furniture or objects near your computer or wireless keyboard, as this may create interference, causing the keyboard to stop working
properly.
Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard. Be sure to use the same type and manufacture of the battery.
Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the wireless
keyboard.
3
nN
>
Using the Keyboard
✍
Illustrated above is the English keyboard as an example.
AFunction keys
Perform certain tasks. The task associated with each function
key varies among software applications except the following
combinations with the Fn key to change the LCD brightness of
your computer screen.
Fn+F5: Decreases lighting intensity of the LCD screen.
Fn+F6: Increases lighting intensity of the LCD screen.
!
When the HDMI input is selected, you cannot use the function keys on the
wireless keyboard to change the LCD brightness. To change the brightness for
the HDMI input, see Using the HDMI Input Control Buttons for the procedure.
BVAIO button
Starts the Media Gallery.
CSleep button
Provides a lower level of power consumption.
For details on power management, see Using the Power
Saving Mode.
DPower switch
Slide the switch to turn the wireless keyboard on and off.Zoom
buttons
EZoom buttons
Change the size of an image or a document displayed on some
software.
Press to make the view look smaller and further away (zoom
out).
Press to make the view look bigger and closer (zoom in).
See the help file included with the VAIO Control Center for
more information.
4
nN
>
Using the Keyboard
FMuting button
Turns the volume on and off.
GVolume control buttons
Increase (+) or decrease (-) the volume.
!
When the HDMI input is selected, you cannot use the volume control buttons on the
wireless keyboard to change the volume. To change the volume for the HDMI input, see
Using the HDMI Input Control Buttons for the procedure.
HWindows key
Displays the Start menu.
IE key
Ejects the optical disc drive tray when used in combination with the
Fn key.
JApplications key
Displays a shortcut menu in certain software applications.
KDirectional arrow keys
Move the pointer on the computer screen.
LIndicator lights
(Battery): Turns off when the AA batteries for the wireless
keyboard are sufficient and blinks when the batteries wear out.
(Caps lock): Turns on when the Caps Lock key is activated.
(Connect): Blinks slowly when connection between the
computer and the wireless keyboard is down, blinks rapidly
when the keyboard is ready for connection with the computer,
and turns off when the connection is established.
MNumeric keypad
Use the numeric keypad to type numbers or to perform basic
math calculations.
6
nN
>
Using the Keyboard

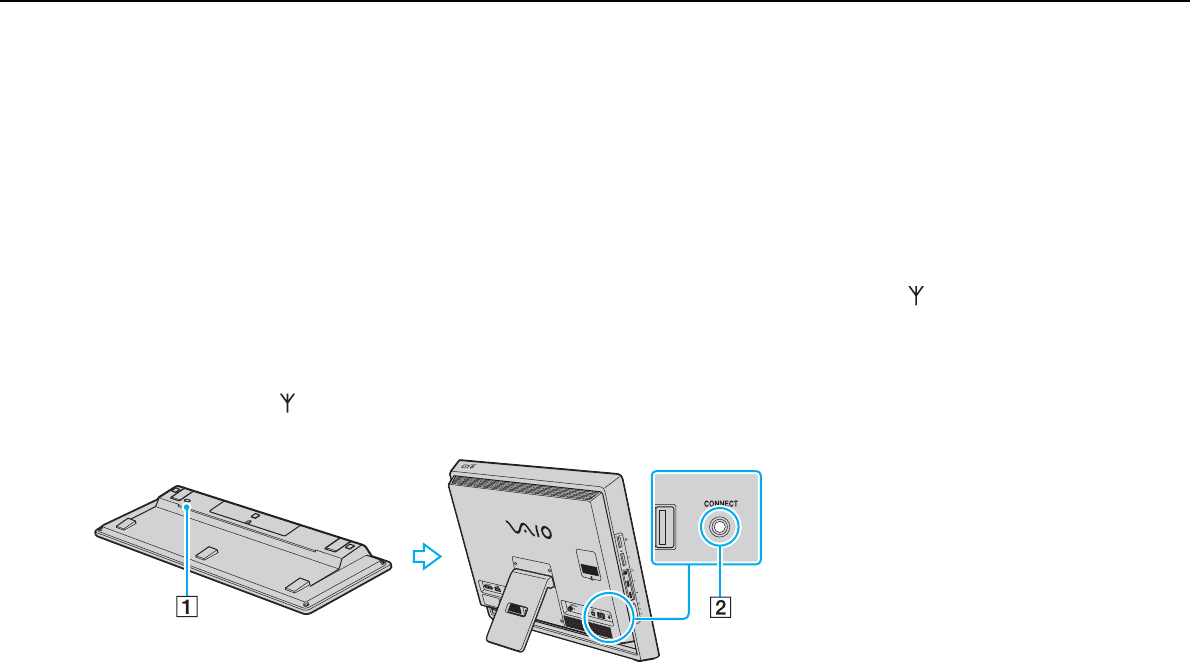

To connect the wireless keyboard
!
To connect the wireless keyboard, it must be located within a range of approximately 11.8 inches (30 cm) to approximately 39.4 inches (1 m) from the
computer.
1Make sure the supplied two AA batteries are properly installed.
2Turn on the computer.
3Slide the power switch on the back of the keyboard to the ON position.
4Press the CONNECT button (1) on the bottom of the keyboard.
5Press the CONNECT button (2) on the back of the computer while the connect indicator light is blinking rapidly.
The rapid-blinking connect indicator light turns off when connection is established between the computer and the
keyboard. If not, repeat the procedure.
!
The connect indicator light blinks rapidly for about one minute to indicate that the keyboard is ready for connection with the computer. If no
connection is made during this period, the indicator light goes blinking slowly to indicate that the connection is down.
