NORDICTRACK Elliptical Manual L1001442

User Manual: NORDICTRACK NORDICTRACK Elliptical Manual NORDICTRACK Elliptical Owner's Manual, NORDICTRACK Elliptical installation guides

Open the PDF directly: View PDF .
Page Count: 24

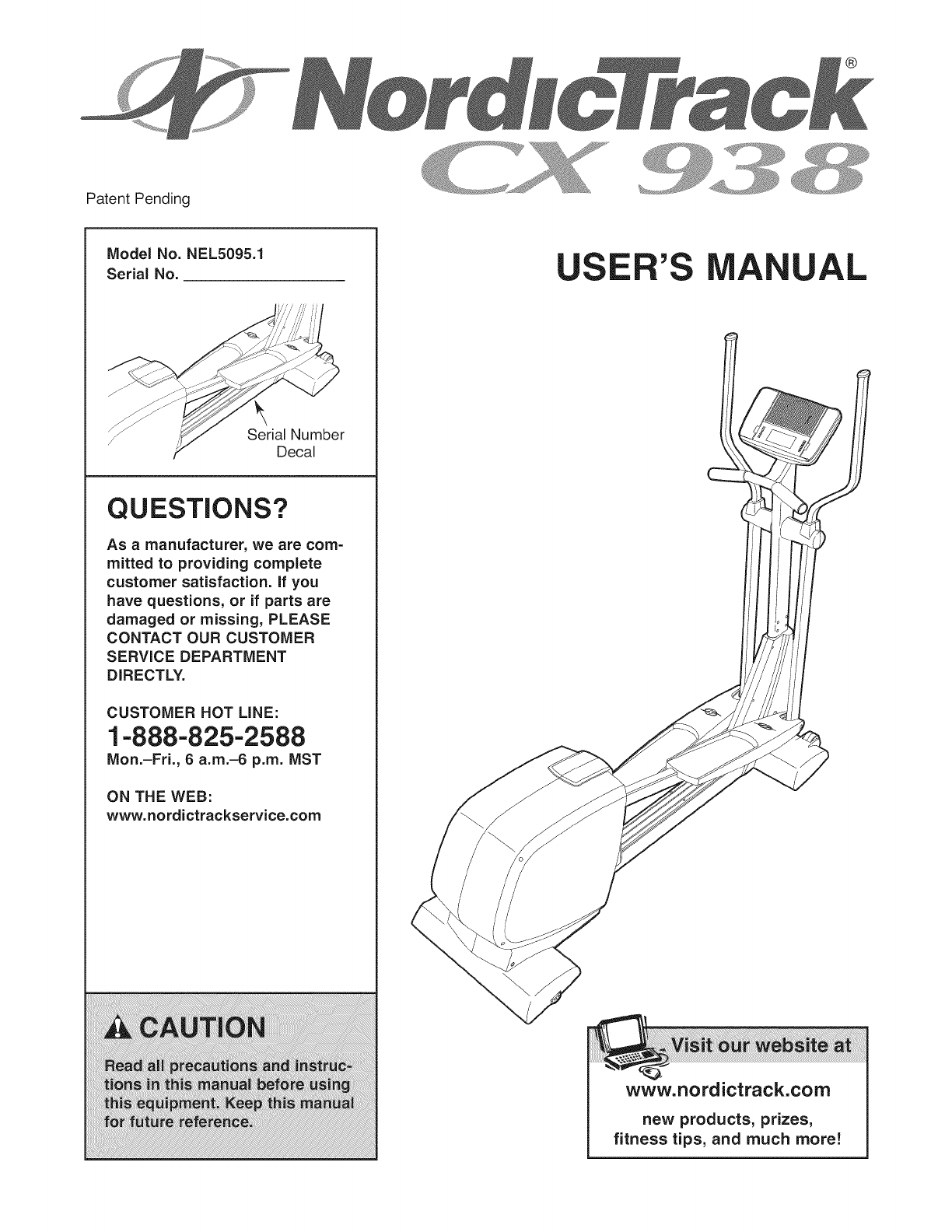

PatentPending

Model No. NEL5095.1

Serial No.

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CUSTOMER HOT LINE:

1-888-825-2588

Mon.-Fri., 6 a.m.-6 p.m. MST

ON THE WEB:

www.nordictrackservice.com

A UAL

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

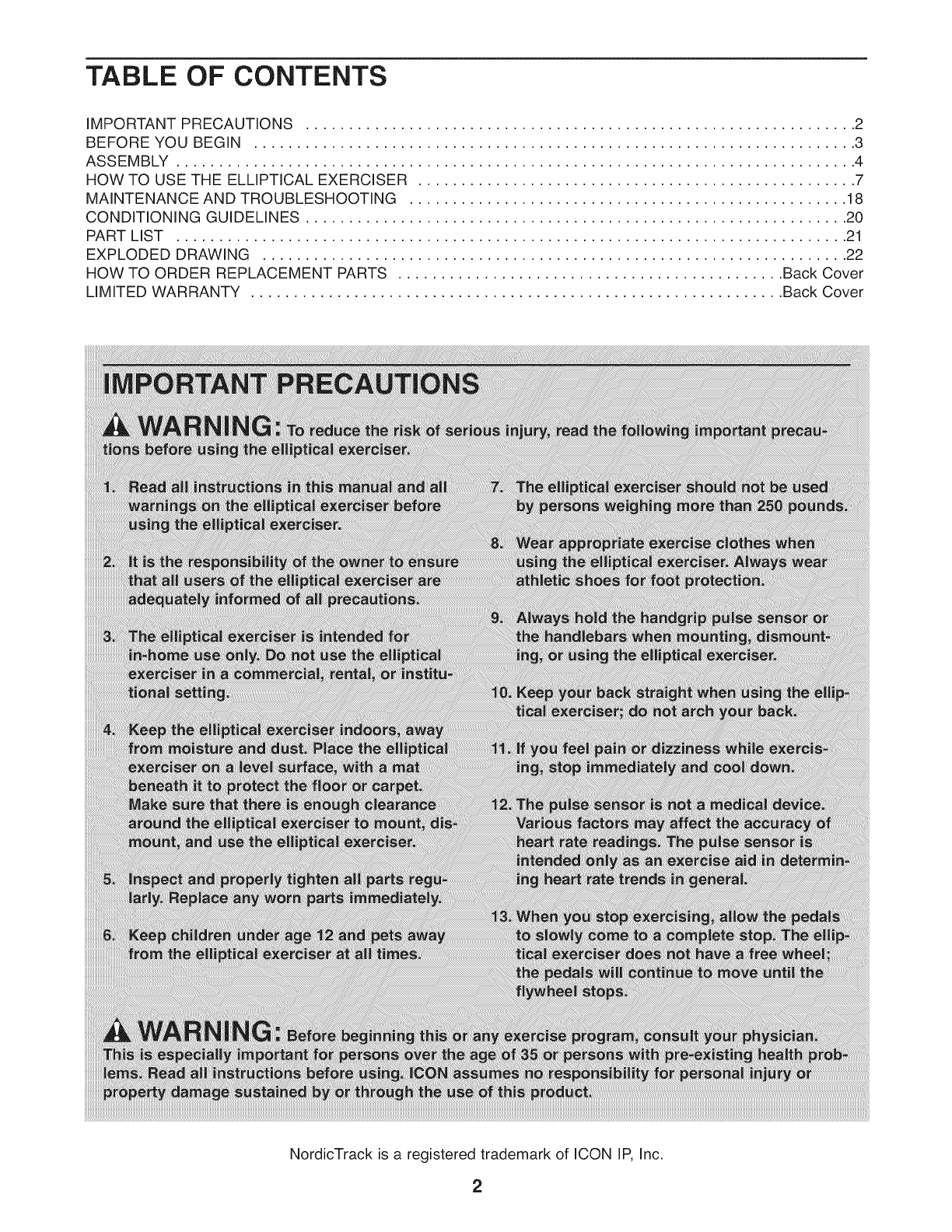

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................ 2

BEFORE YOU BEGIN ...................................................................... 3

ASSEMBLY ............................................................................... 4

HOW TO USE THE ELLIPTICAL EXERCISER ................................................... 7

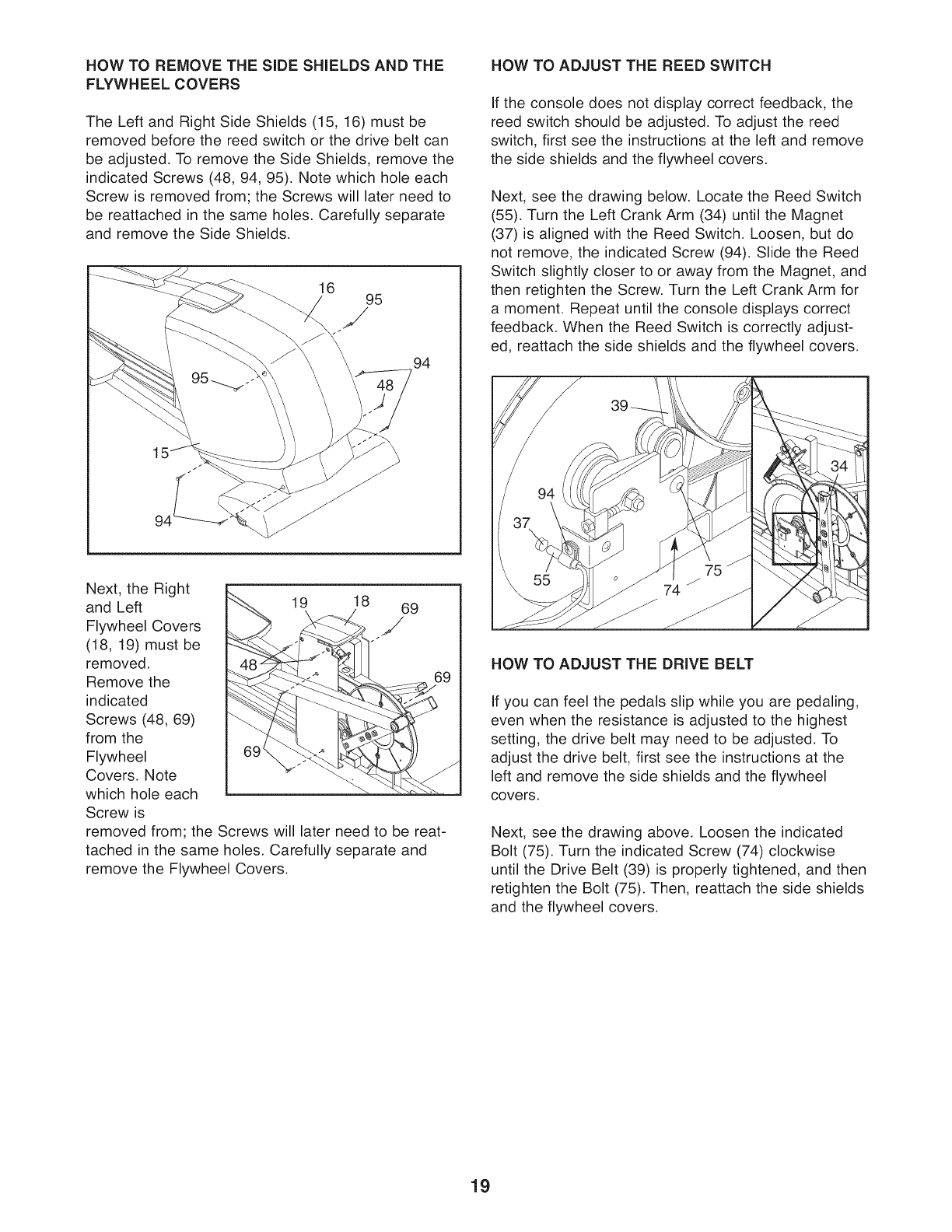

MAINTENANCE AND TROUBLESHOOTING ................................................... 18

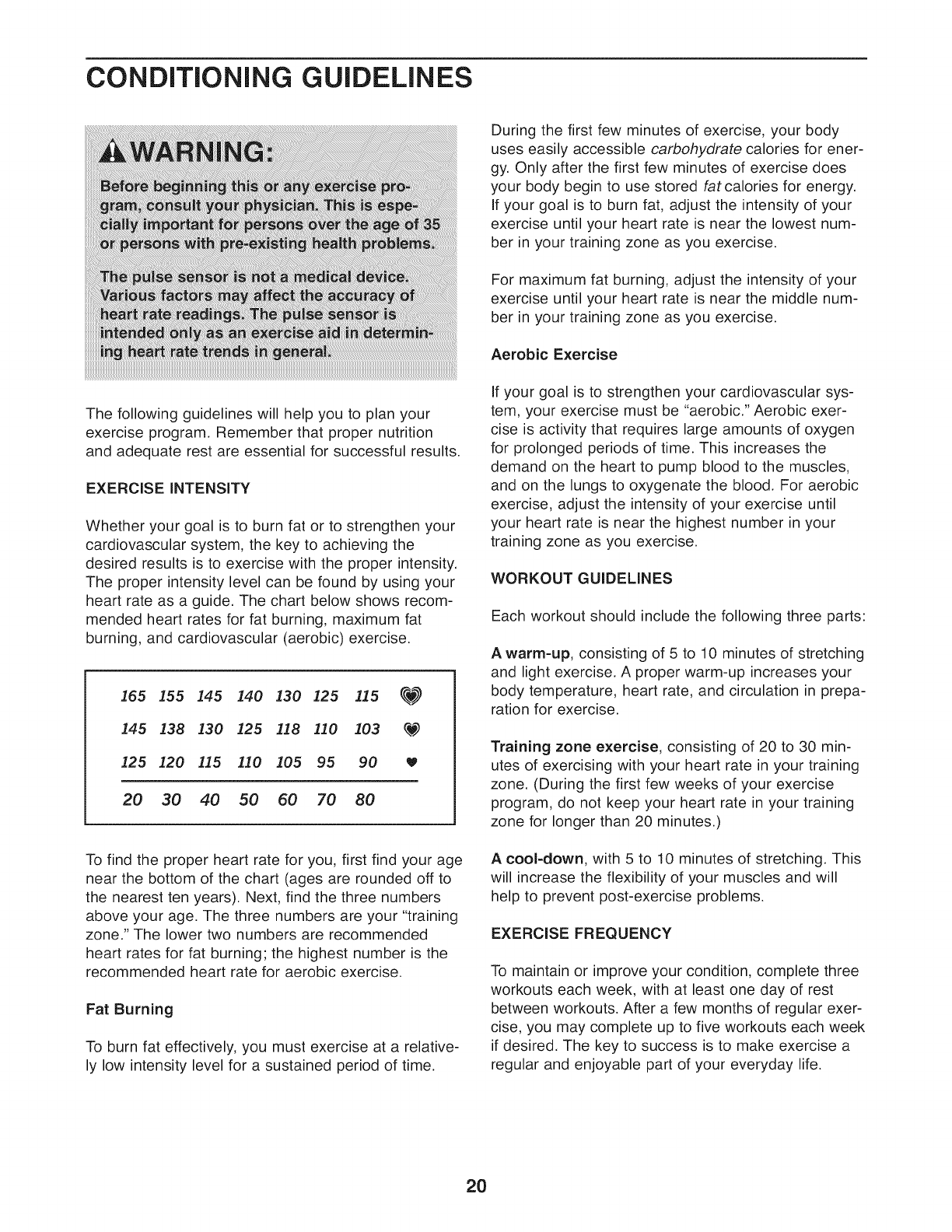

CONDITIONING GUIDELINES ............................................................... 20

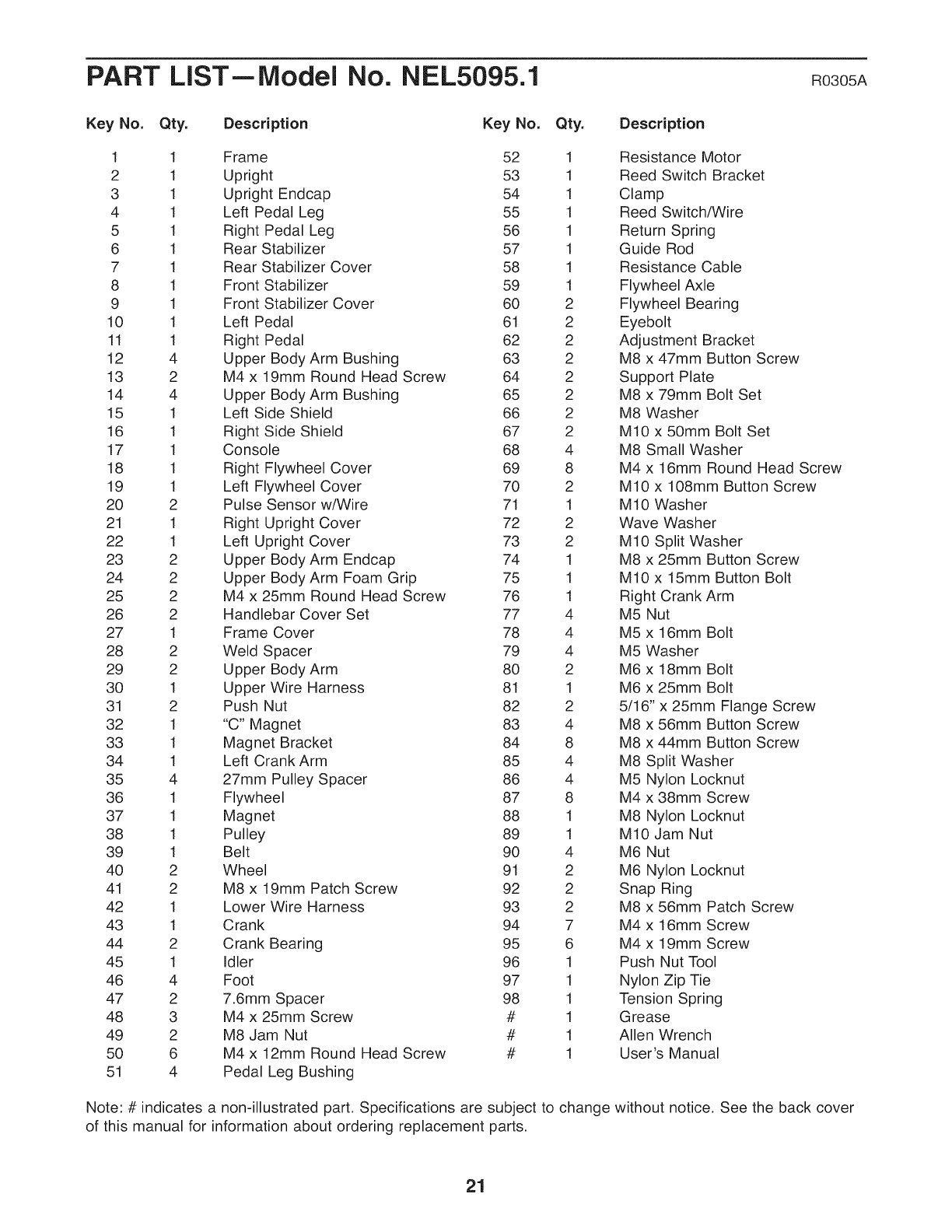

PART LIST .............................................................................. 21

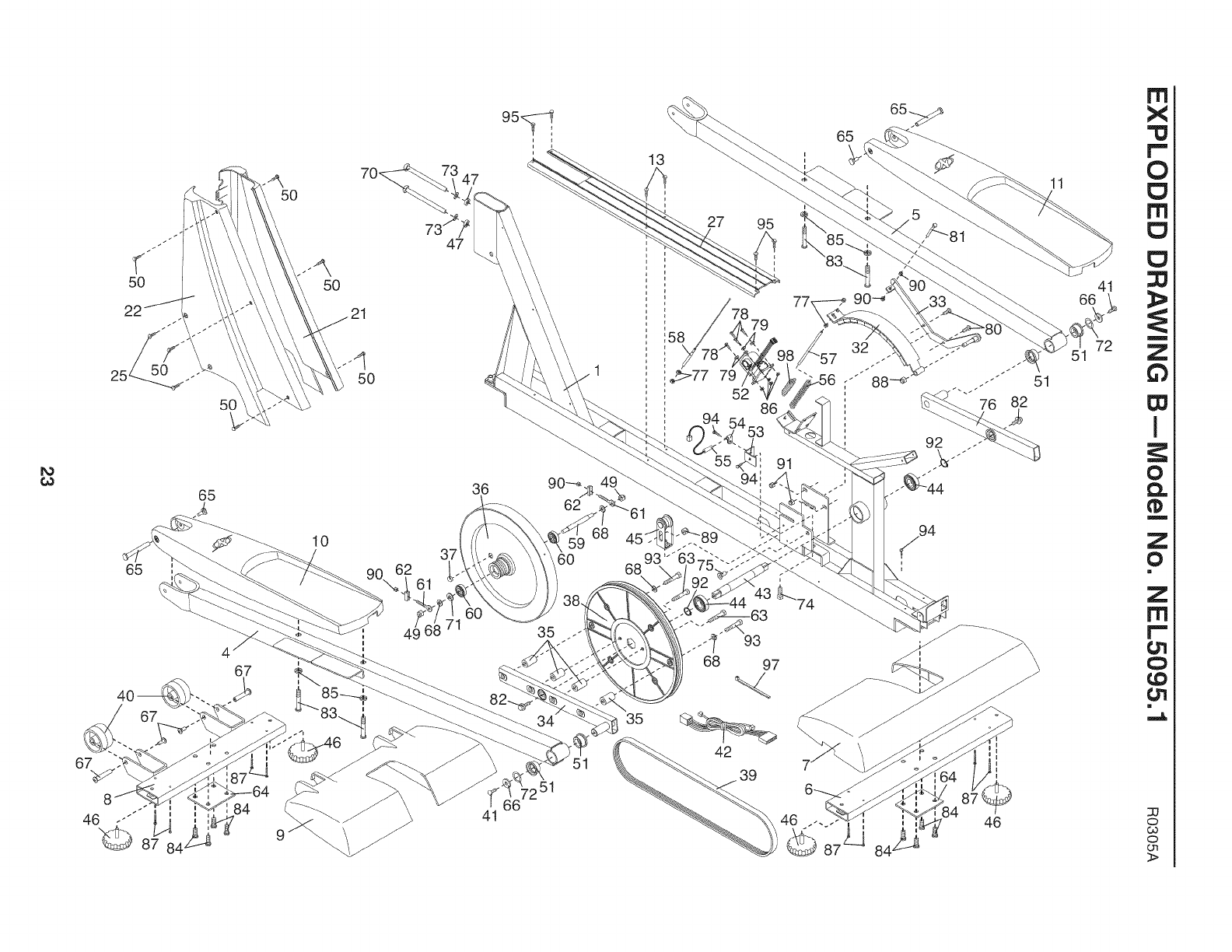

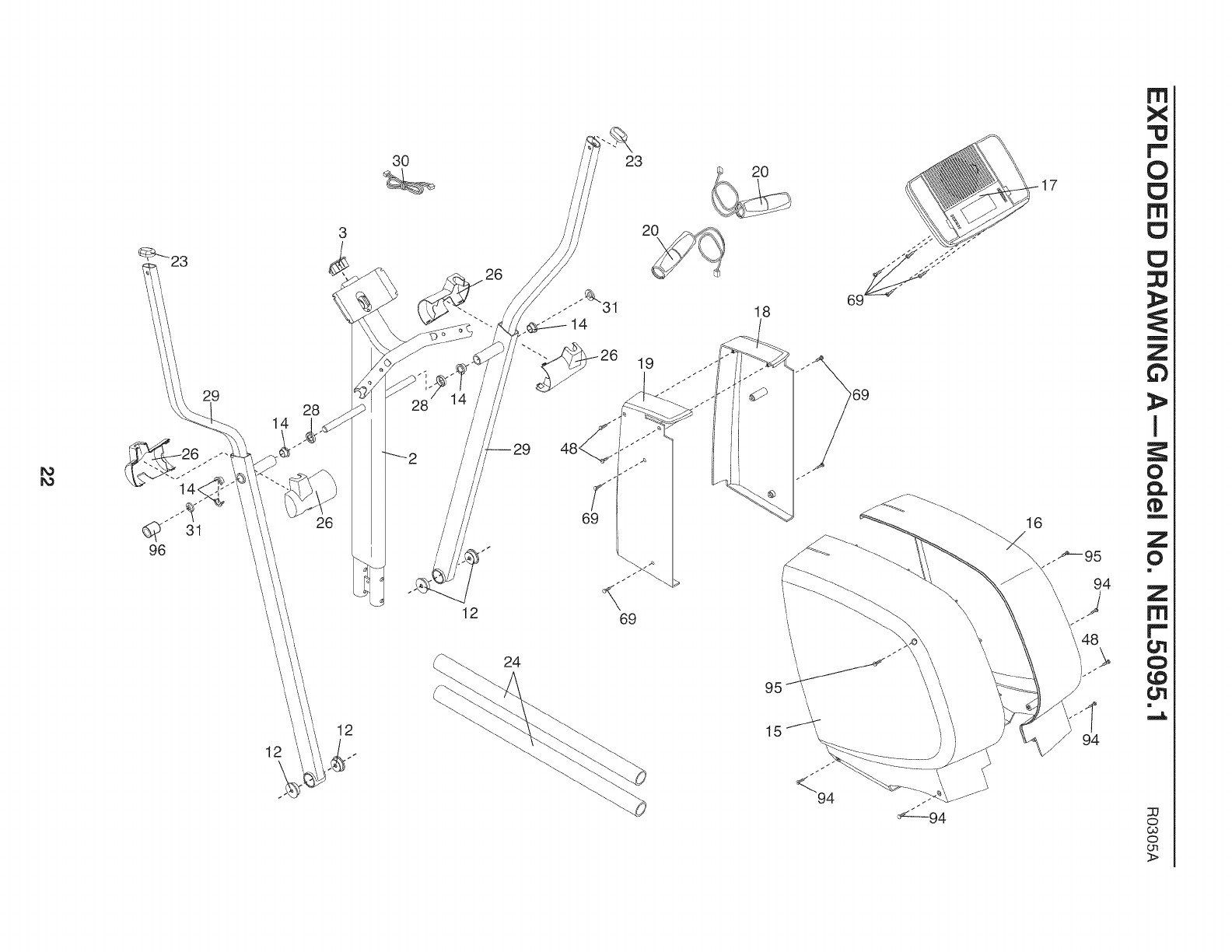

EXPLODED DRAWING .................................................................... 22

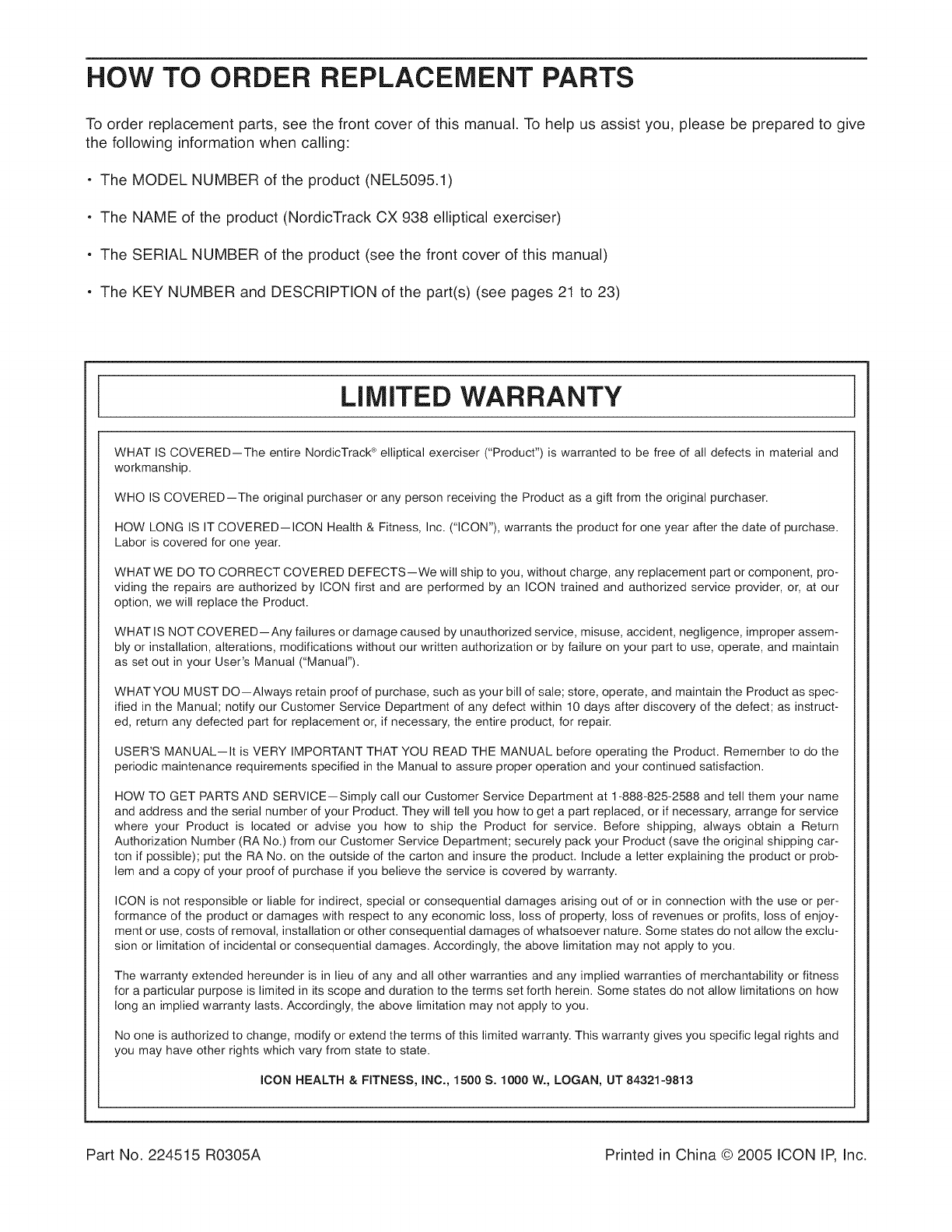

HOW TO ORDER REPLACEMENT PARTS ............................................. Back Cover

LIMITED WARRANTY .............................................................. Back Cover

NordicTrack is a registered trademark of ICON IP, Inc.

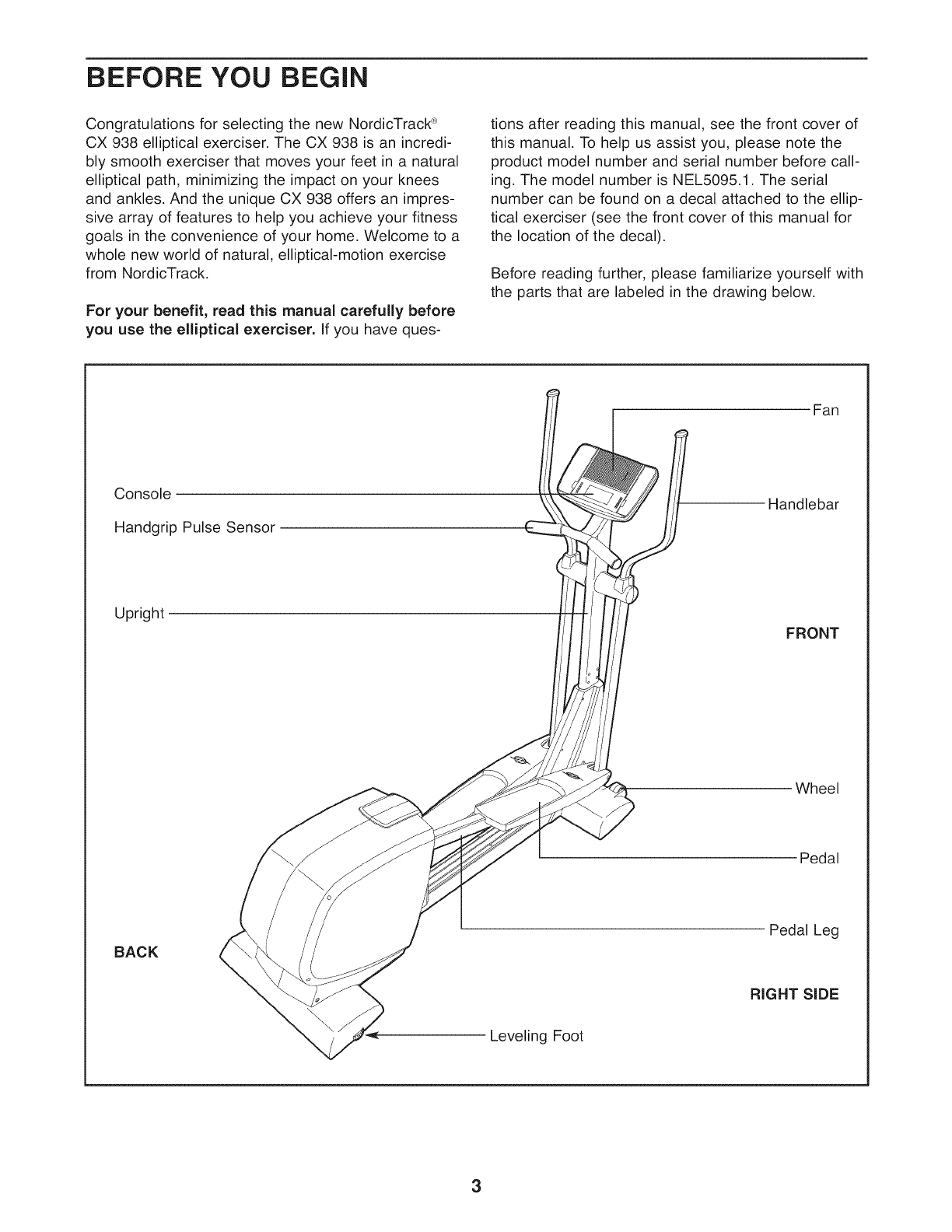

BEFORE YOU BEGIN

Congratulations for selecting the new NordicTrack ®

CX 938 elliptical exerciser. The CX 938 is an incredi-

bly smooth exerciser that moves your feet in a natural

elliptical path, minimizing the impact on your knees

and ankles. And the unique CX 938 offers an impres-

sive array of features to help you achieve your fitness

goals in the convenience of your home. Welcome to a

whole new world of natural, elliptical-motion exercise

from NordicTrack.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, see the front cover of

this manual. To help us assist you, please note the

product model number and serial number before call-

ing. The model number is NEL5095.1. The serial

number can be found on a decal attached to the ellip-

tical exerciser (see the front cover of this manual for

the location of the decal).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Fan

Console

Handgrip Pulse Sensor

Handlebar

Upright FRONT

Wheel

Pedal

BACK

Pedal Leg

RIGHT SIDE

Leveling Foot

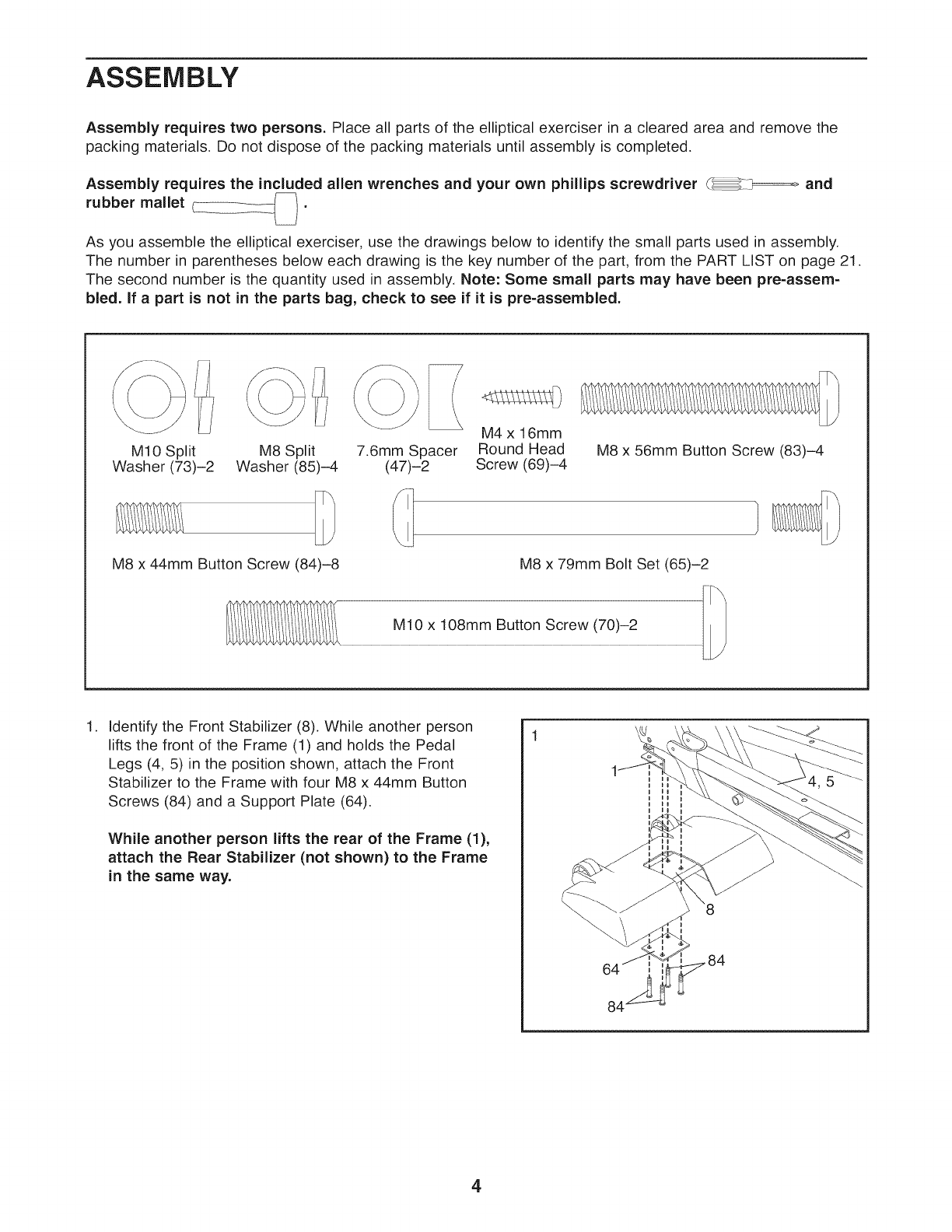

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included alien wrenches and your own phillips screwdriver and

rubber mallet ( _.

As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.

The number in parentheses below each drawing is the key number of the part, from the PART LIST on page 21.

The second number is the quantity used in assembly. Note: Some small parts may have been pre=assem=

bled. If a part is not in the parts bag, check to see if it is pre=assembled.

M10 Split M8 Split

Washer (73)-2 Washer (85)-4

M8 x 44mm Button Screw (84)-8

7.6mm Spacer

(47)-2

M4 x 16mm

Round Head

Screw (69)-4 M8 x 56mm Button Screw (83)-4

M8 x 79mm Bolt Set (65)-2

M10 x 108mm Button Screw (70)-2

.Identify the Front Stabilizer (8). While another person

lifts the front of the Frame (1) and holds the Pedal

Legs (4, 5) in the position shown, attach the Front

Stabilizer to the Frame with four M8 x 44mm Button

Screws (84) and a Support Plate (64).

While another person lifts the rear of the Frame (1),

attach the Rear Stabilizer (not shown) to the Frame

in the same way.

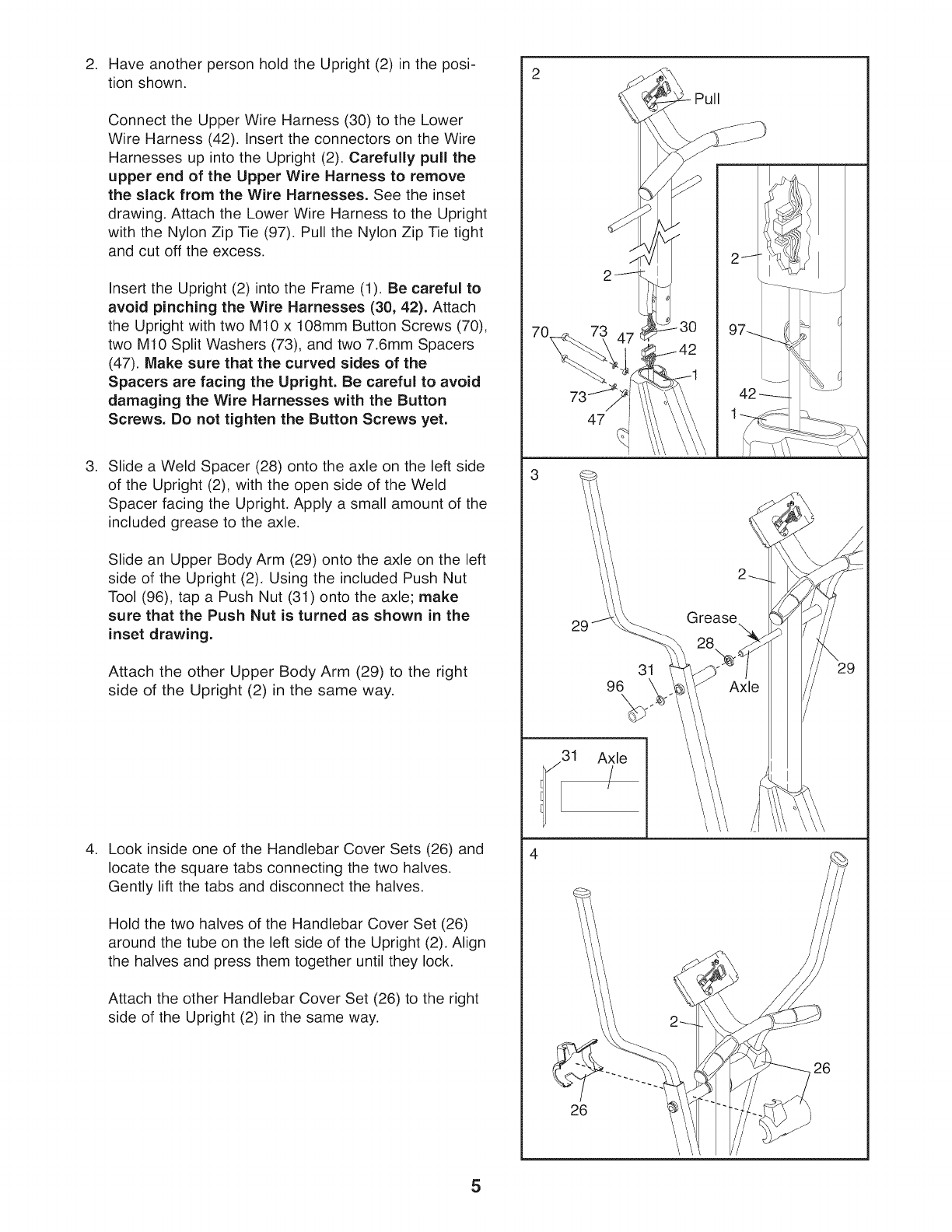

.Have another person hold the Upright (2) in the posi-

tion shown.

Connect the Upper Wire Harness (30) to the Lower

Wire Harness (42). Insert the connectors on the Wire

Harnesses up into the Upright (2). Carefully pull the

upper end of the Upper Wire Harness to remove

the slack from the Wire Harnesses. See the inset

drawing. Attach the Lower Wire Harness to the Upright

with the Nylon Zip Tie (97). Pull the Nylon Zip Tie tight

and cut off the excess.

Insert the Upright (2) into the Frame (1). Be careful to

avoid pinching the Wire Harnesses (30, 42). Attach

the Upright with two M10 x 108mm Button Screws (70),

two M10 Split Washers (73), and two 7.6mm Spacers

(47). Make sure that the curved sides of the

Spacers are facing the Upright. Be careful to avoid

damaging the Wire Harnesses with the Button

Screws. Do not tighten the Button Screws yet.

.Slide a Weld Spacer (28) onto the axle on the left side

of the Upright (2), with the open side of the Weld

Spacer facing the Upright. Apply a small amount of the

included grease to the axle.

Slide an Upper Body Arm (29) onto the axle on the left

side of the Upright (2). Using the included Push Nut

Tool (96), tap a Push Nut (31) onto the axle; make

sure that the Push Nut is turned as shown in the

inset drawing.

Attach the other Upper Body Arm (29) to the right

side of the Upright (2) in the same way.

.Look inside one of the Handlebar Cover Sets (26) and

locate the square tabs connecting the two halves.

Gently lift the tabs and disconnect the halves.

Hold the two halves of the Handlebar Cover Set (26)

around the tube on the left side of the Upright (2). Align

the halves and press them together until they lock.

Attach the other Handlebar Cover Set (26) to the right

side of the Upright (2) in the same way.

Identify the Left Pedal (10), which has a notch near

the right side. Place the Left Pedal on the Left Pedal

Leg (4). Next, apply a generous amount of grease to

the long side of an M8 x 79mm Bolt Set (65) and the

faces of the two indicated Upper Body Arm Bushings

(12). Have a second person hold the lower end of the

left Upper Body Arm (29) inside of the bracket on the

Left Pedal Leg. Attach the Left Pedal and the left Upper

Body Arm to the Left Pedal Leg with the Bolt Set.

Attach the other end of the Left Pedal (10) to the Left

Pedal Leg (4) with two M8 x 56mm Button Screws (83)

and two M8 Split Washers (85).

Repeat this step on the right side of the elliptical exer-

ciser.

See step 2. Tighten the two M10 x 108mm Button

Screws (70).

The Console (17) requires four "D" batteries (not

included); alkaline batteries are recommended.

Remove the battery cover from the bottom of the

Console. Insert four batteries into the battery compart-

ment; make sure that the batteries are oriented as

shown by the diagram inside the battery compart-

ment. Reattach the battery cover.

Have another person hold the Console (17) near the

Upright (2). Connect the Upper Wire Harness (30) to

the wire harness on the Console. Connect the Pulse

Wire (20) to the pulse wire on the Console.

Carefully insert all excess wiring down into the Upright

(2). Attach the Console (17) to the Upright with four M4

x 16mm Round Head Screws (69). (Note: The Screws

may be found in the console box.) Be careful to avoid

pinching the wires.

Notch

Face 12 \

Batteries

Battery

Do not pinch

the wires

during this step.

8. Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the

elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.

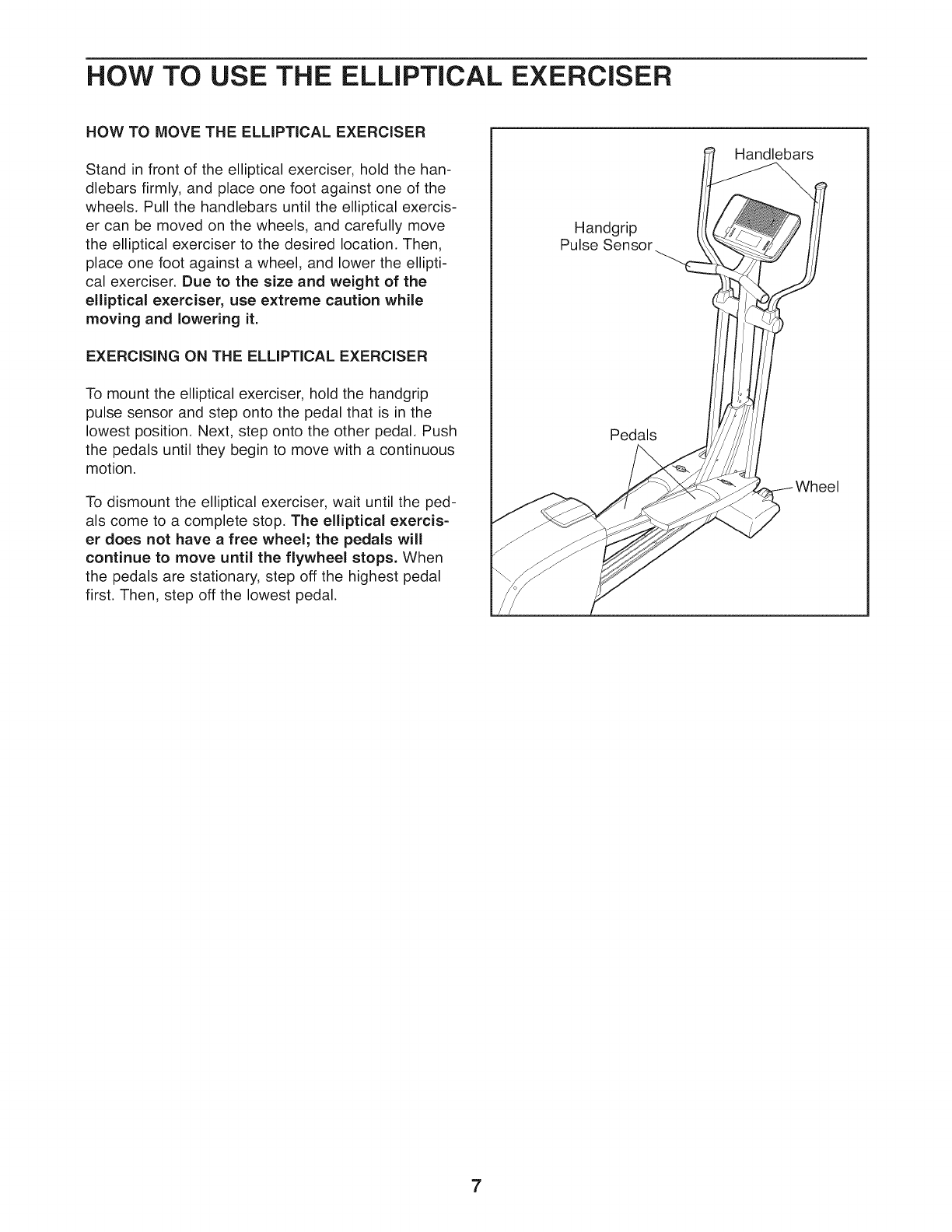

HOW TO USE THE ELLiPTiCAL EXERCISER

HOW TO MOVE THE ELLiPTiCAL EXERCISER

Stand in front of the elliptical exerciser, hold the han-

dlebars firmly, and place one foot against one of the

wheels. Pull the handlebars until the elliptical exercis-

er can be moved on the wheels, and carefully move

the elliptical exerciser to the desired location. Then,

place one foot against a wheel, and lower the ellipti-

cal exerciser. Due to the size and weight of the

elliptical exerciser, use extreme caution while

moving and lowering it.

EXERCISING ON THE ELLIPTICAL EXERCISER

To mount the elliptical exerciser, hold the handgrip

pulse sensor and step onto the pedal that is in the

lowest position. Next, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion.

To dismount the elliptical exerciser, wait until the ped-

als come to a complete stop. The elliptical exercis-

er does not have a free wheel; the pedals will

continue to move until the flywheel stops. When

the pedals are stationary, step off the highest pedal

first. Then, step off the lowest pedal.

Handgrip

Pulse Sensor

Pedals

Handlebars

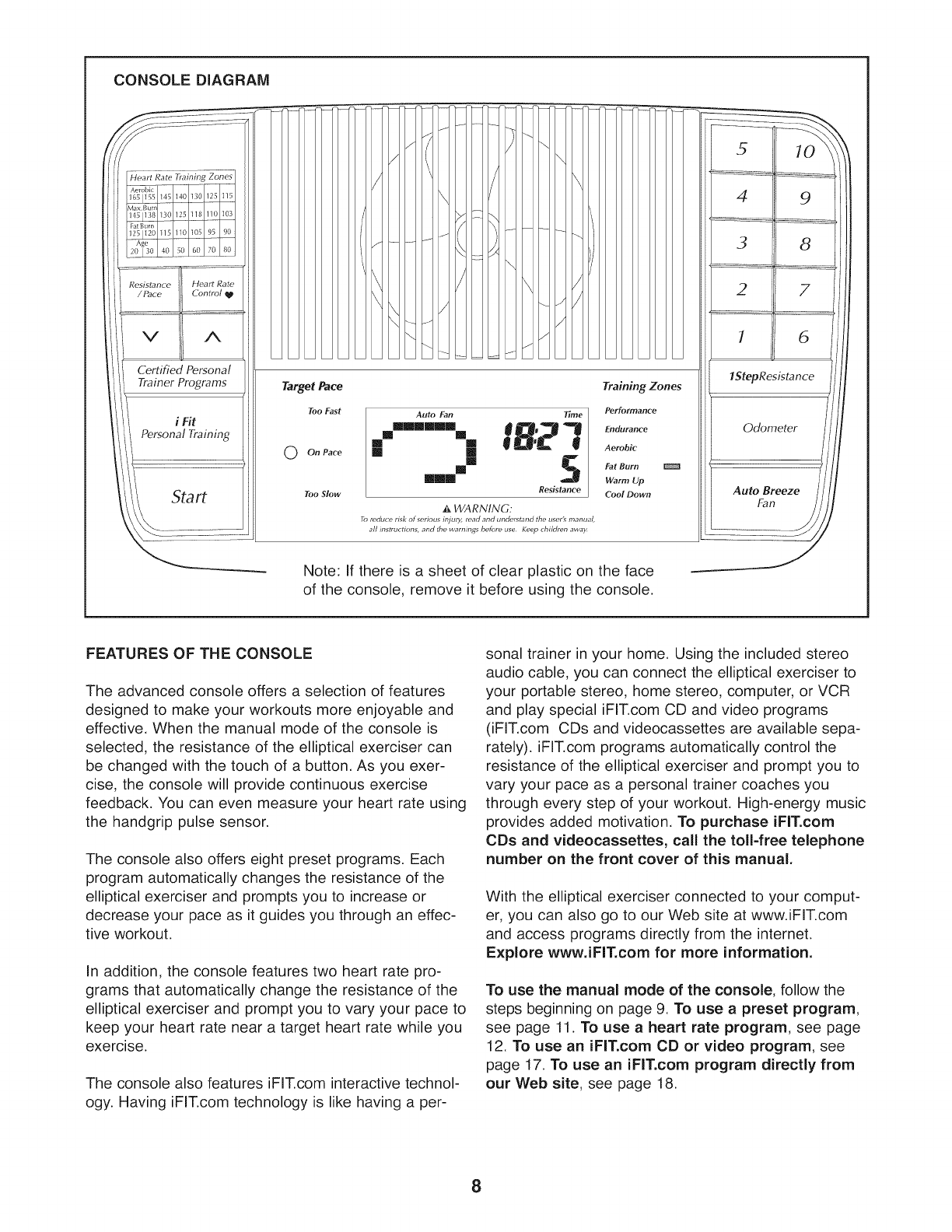

CONSOLE DIAGRAM

Cerlified Personal

Trainer Programs

iFit

Personal Training

Start

Target Pace

Too Fast

On Pace

Too Slow

Auto Fan

mmmmmm

[] []

[]

@@@

Time

Resistance

•1,WARNING:

Tu reduu, risk of serious it_jury, read and und_,rstand lhe user's manual,

all instructions, and the warnings betore use Keep children away

Training Zones

Performance

Endurance

Aerobic

Fat Burn

WarmUp

Cool Down

15tepResistance

Odometer

Auto Breeze

Fan

Note: If there is a sheet of clear plastic on the face

of the console, remove it before using the console.

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more enjoyable and

effective. When the manual mode of the console is

selected, the resistance of the elliptical exerciser can

be changed with the touch of a button. As you exer-

cise, the console will provide continuous exercise

feedback. You can even measure your heart rate using

the handgrip pulse sensor.

The console also offers eight preset programs. Each

program automatically changes the resistance of the

elliptical exerciser and prompts you to increase or

decrease your pace as it guides you through an effec-

tive workout.

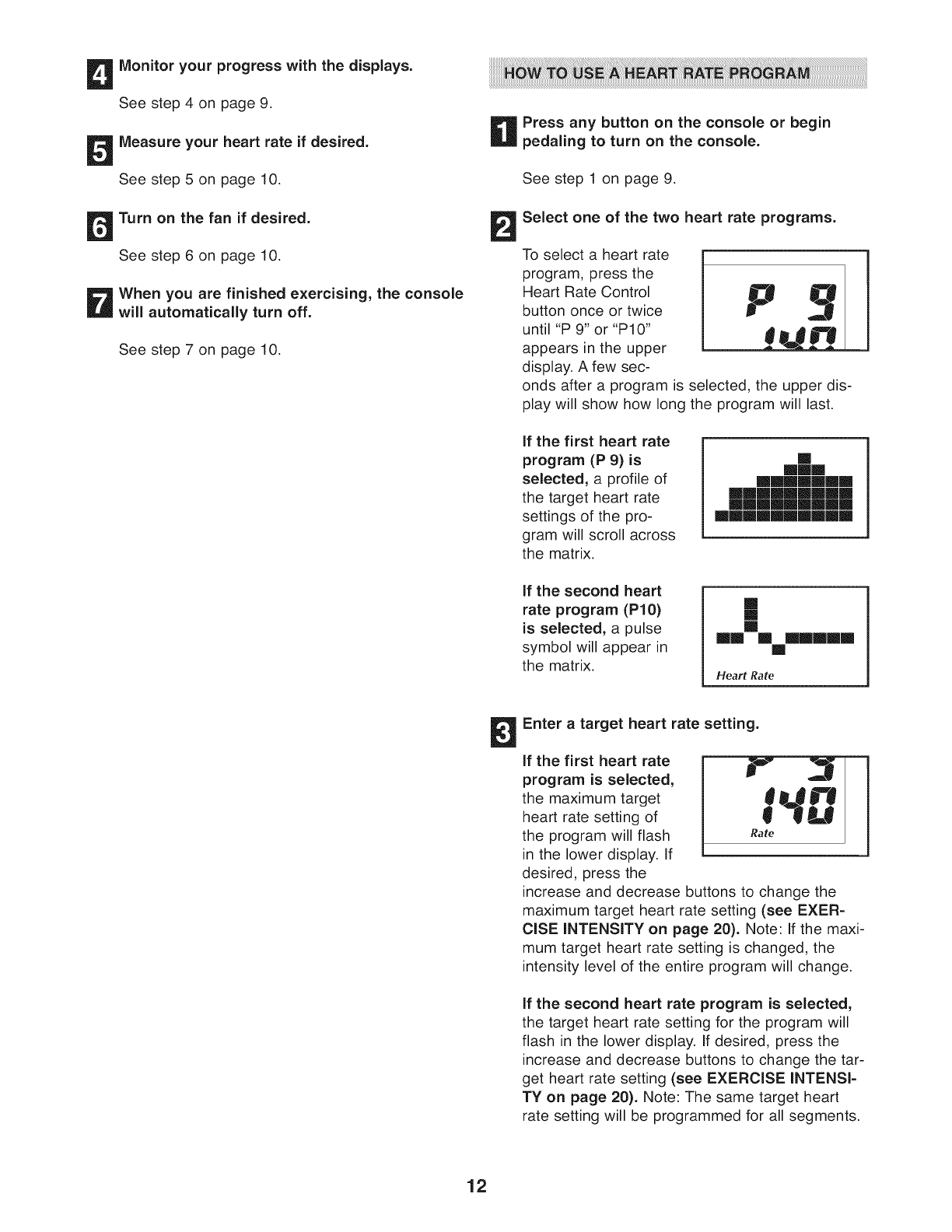

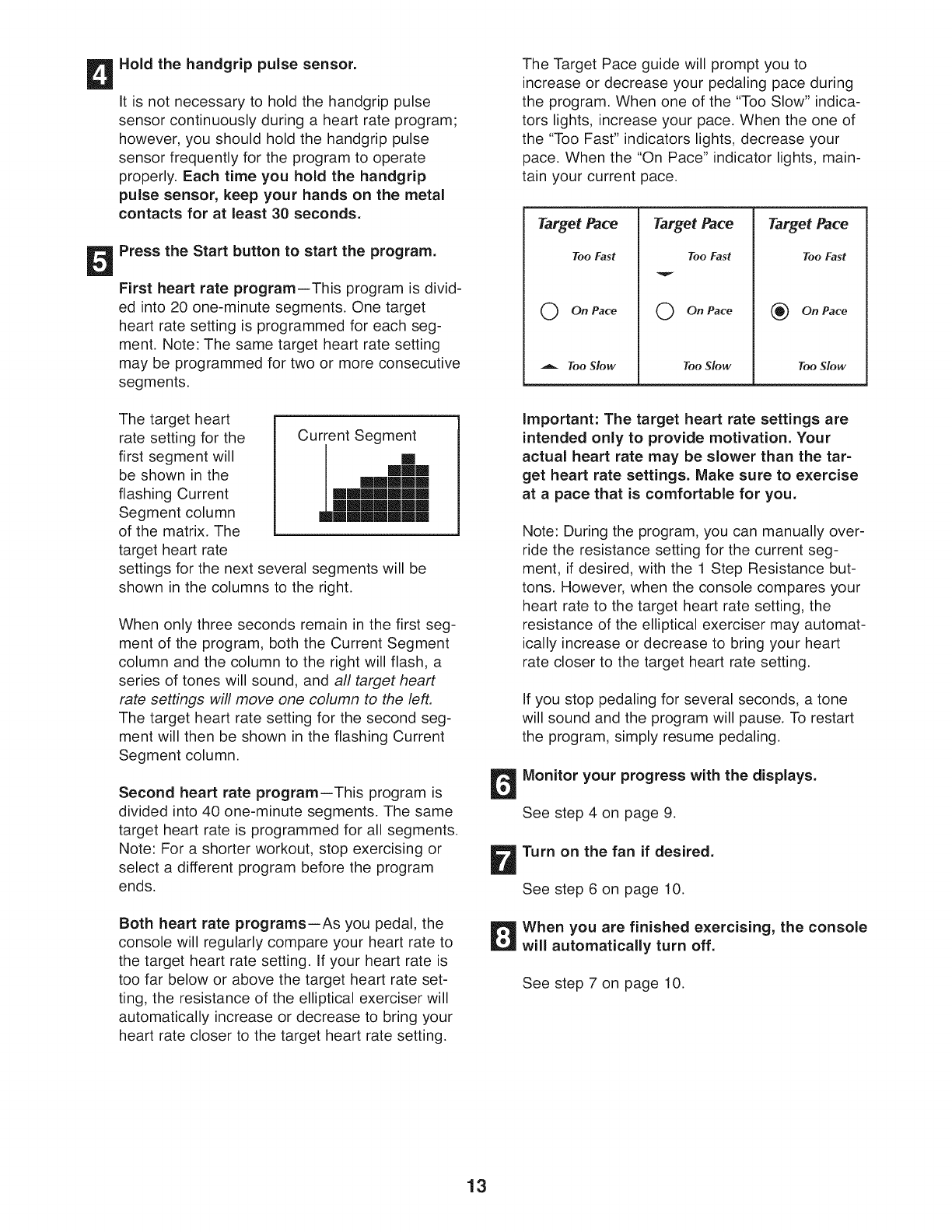

In addition, the console features two heart rate pro-

grams that automatically change the resistance of the

elliptical exerciser and prompt you to vary your pace to

keep your heart rate near a target heart rate while you

exercise.

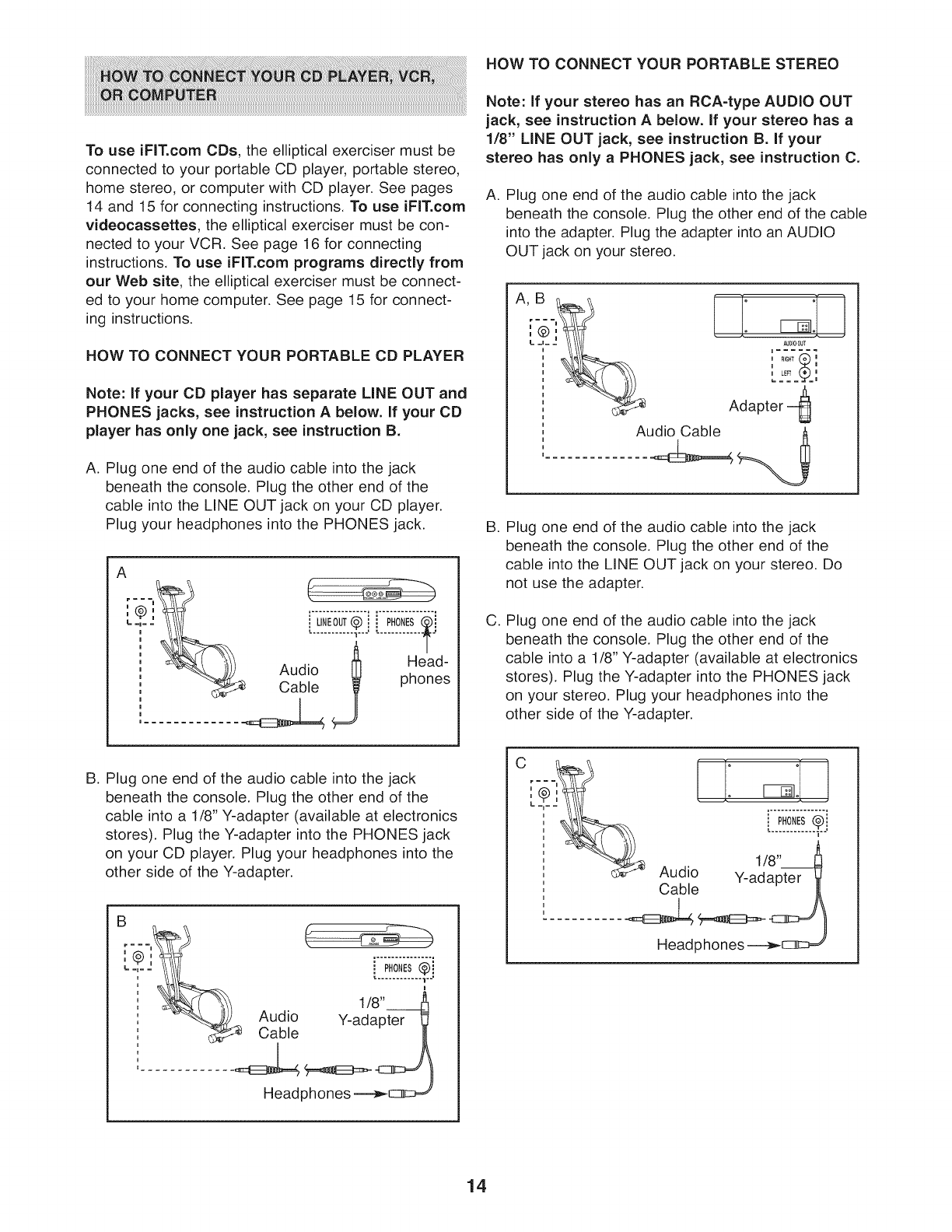

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com technology is like having a per-

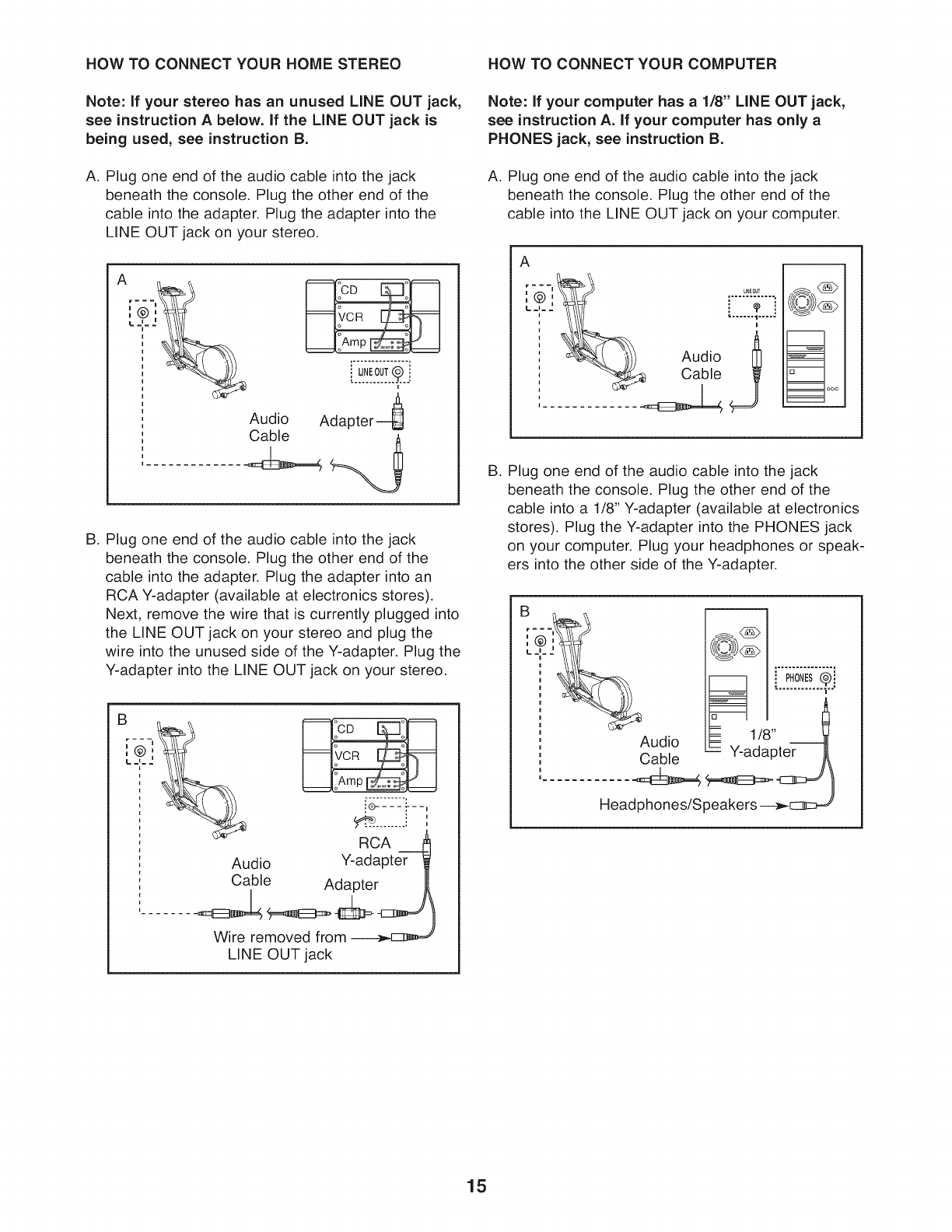

sonal trainer in your home. Using the included stereo

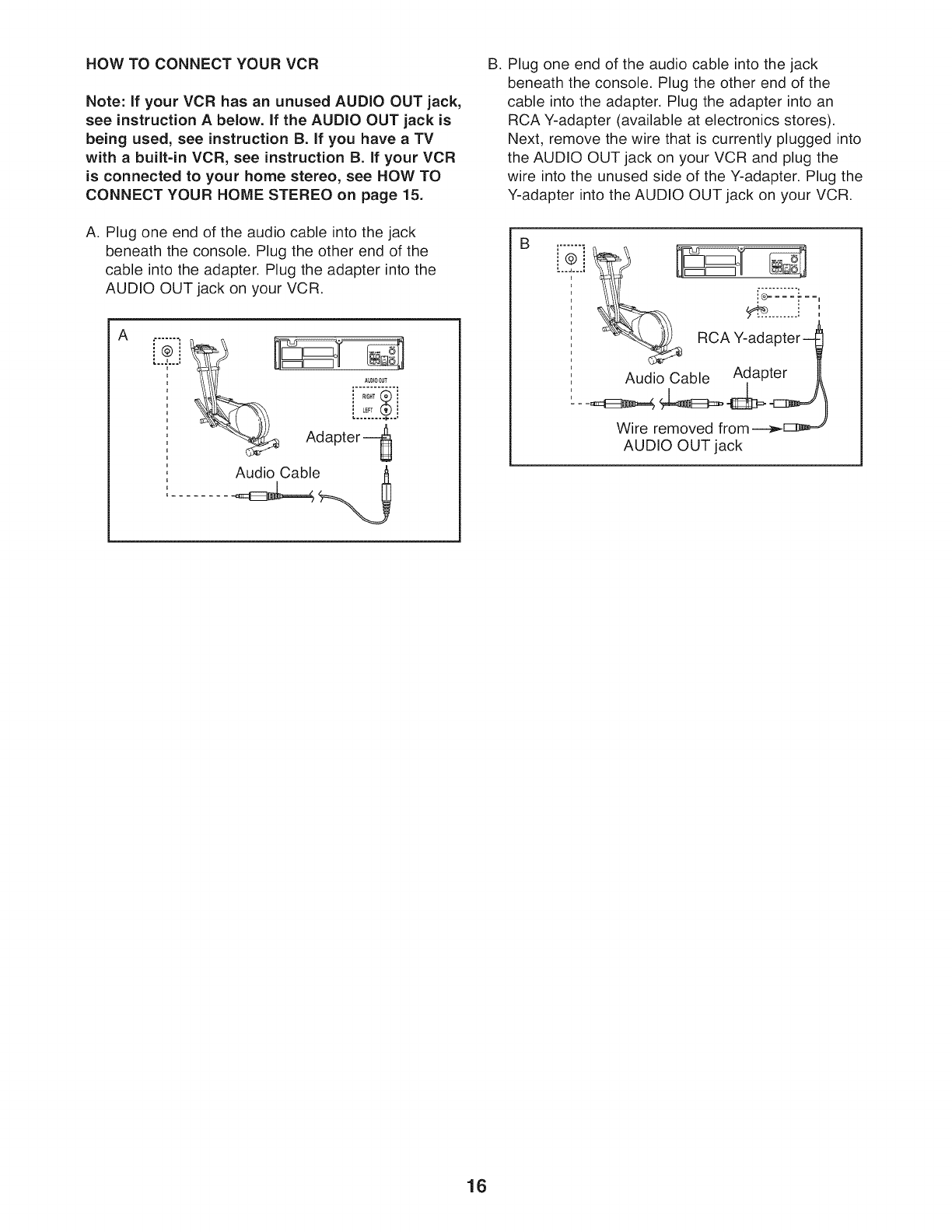

audio cable, you can connect the elliptical exerciser to

your portable stereo, home stereo, computer, or VCR

and play special iFIT.com CD and video programs

(iFIT.com CDs and videocassettes are available sepa-

rately), iFIT.com programs automatically control the

resistance of the elliptical exerciser and prompt you to

vary your pace as a personal trainer coaches you

through every step of your workout. High-energy music

provides added motivation. To purchase iFIT.com

CDs and videocassettes, call the toll-free telephone

number on the front cover of this manual

With the elliptical exerciser connected to your comput-

er, you can also go to our Web site at www.iFIT.com

and access programs directly from the internet.

Explore www.iFlT.com for more information.

To use the manual mode of the console, follow the

steps beginning on page 9. To use a preset program,

see page 11. To use a heart rate program, see page

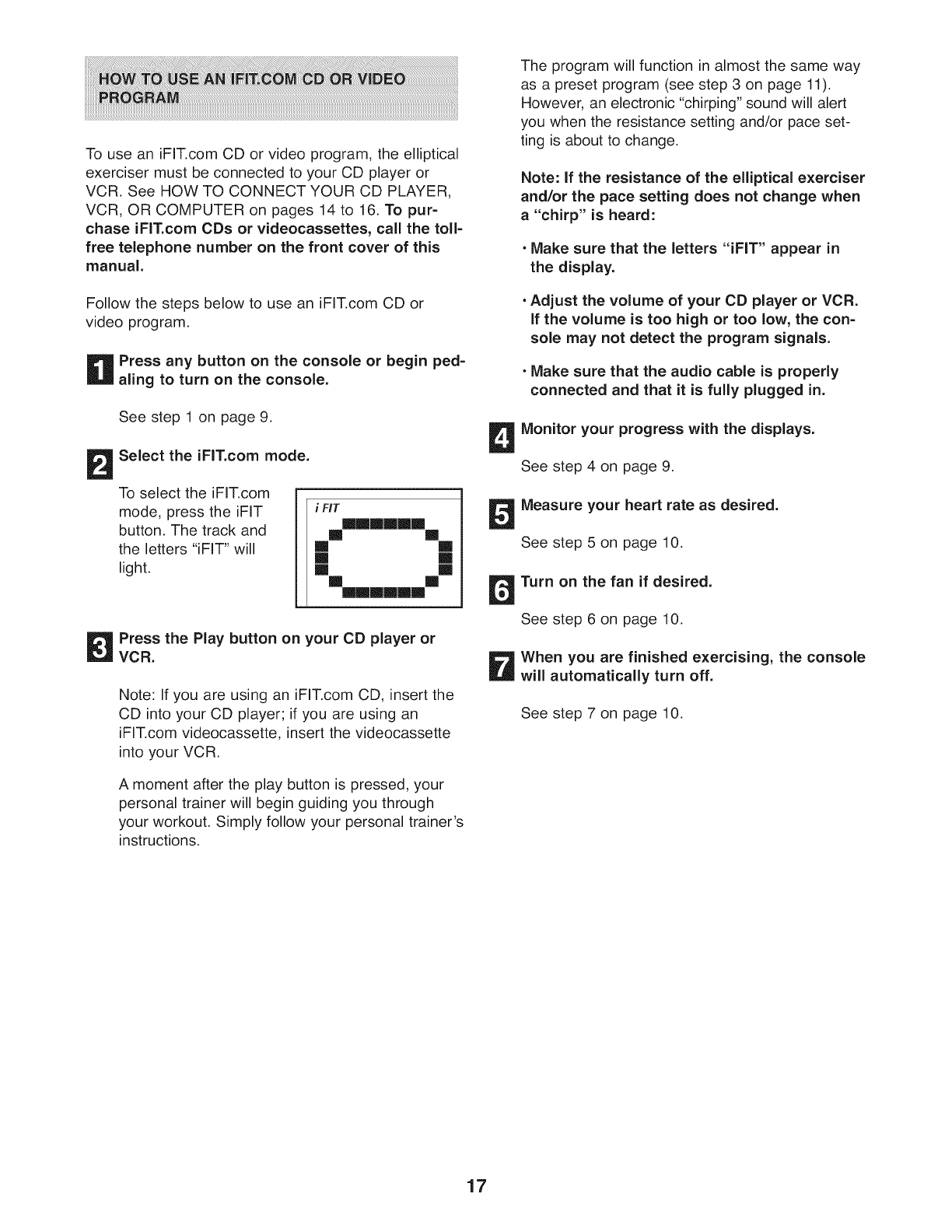

12. To use an iFIT.com CD or video program, see

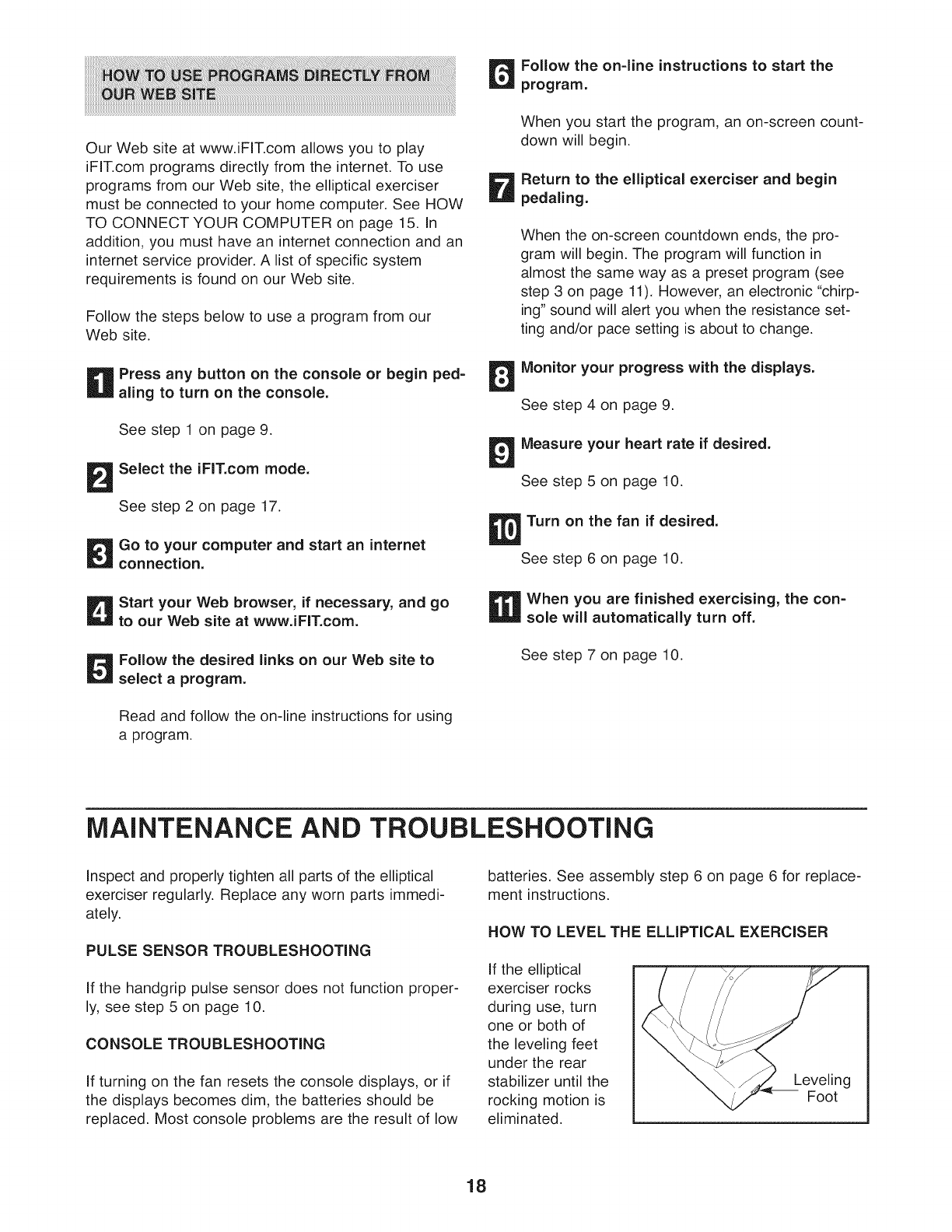

page 17. To use an iFIT.com program directly from

our Web site, see page 18.

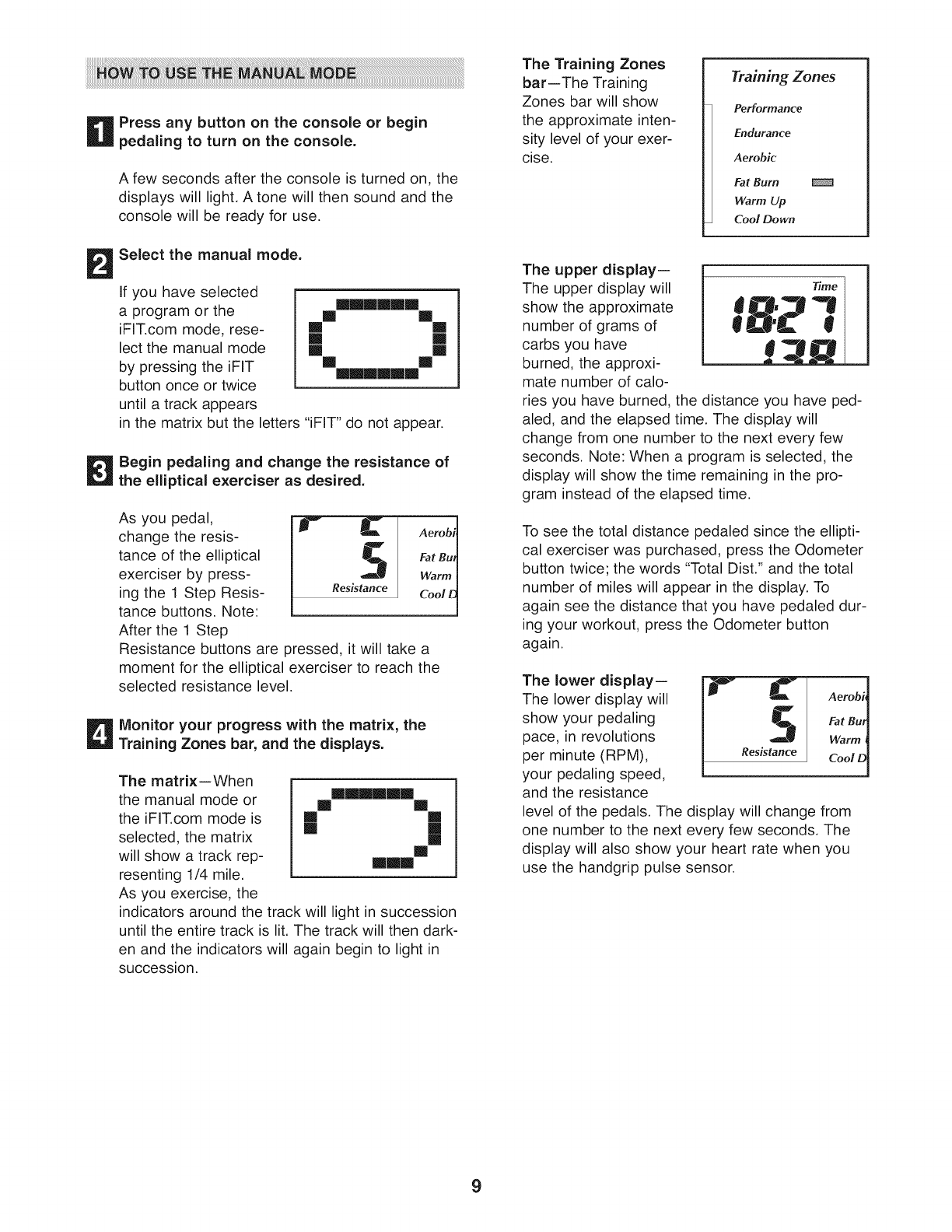

_ ress any button on the console or begin

pedaling to turn on the console.

A few seconds after the console is turned on, the

displays will light. A tone will then sound and the

console will be ready for use.

Select the manual mode.

If you have selected

a program or the

iFIT.com mode, rese-

lect the manual mode

by pressing the iFIT

button once or twice

until a track appears

in the matrix but the

mmmmmm

m m

[] []

______

letters "iFIT" do not appear.

Begin pedaling and change the resistance of

the elliptical exerciser as desired.

As you pedal,

change the resis-

tance of the elliptical

exerciser by press-

ing the 1 Step Resis-

tance buttons. Note:

After the 1 Step

1Aer°bil

!2 EatB.1

WarmI

Resistance Cool I

Resistance buttons are pressed, it will take a

moment for the elliptical exerciser to reach the

selected resistance level.

Monitor your progress with the matrix, the

Training Zones bar, and the displays.

The matrix--When

the manual mode or

the iFIT.com mode is

selected, the matrix

will show a track rep-

resenting 1/4 mile.

As you exercise, the

______

[] []

[]

___

indicators around the track will light in succession

until the entire track is lit. The track will then dark-

en and the indicators will again begin to light in

succession.

The Training Zones

bar--The Training

Zones bar will show

the approximate inten-

sity level of your exer-

cise.

Training Zones

Performance

Endurance

Aerobic

Fat Burn

Warm Up

Cool Down

The upper display--

The upper display will

show the approximate

number of grams of

carbs you have

burned, the approxi-

mate number of calo-

ries you have burned, the distance you have ped-

aled, and the elapsed time. The display will

change from one number to the next every few

seconds. Note: When a program is selected, the

display will show the time remaining in the pro-

gram instead of the elapsed time.

To see the total distance pedaled since the ellipti-

cal exerciser was purchased, press the Odometer

button twice; the words "Total Dist." and the total

number of miles will appear in the display. To

again see the distance that you have pedaled dur-

ing your workout, press the Odometer button

again.

The lower display--

The lower display will

show your pedaling

pace, in revolutions

per minute (RPM),

your pedaling speed,

and the resistance

Aerobi]

JZ EotBuI

Warm1

Resistance Cool DI

level of the pedals. The display will change from

one number to the next every few seconds. The

display will also show your heart rate when you

use the handgrip pulse sensor.

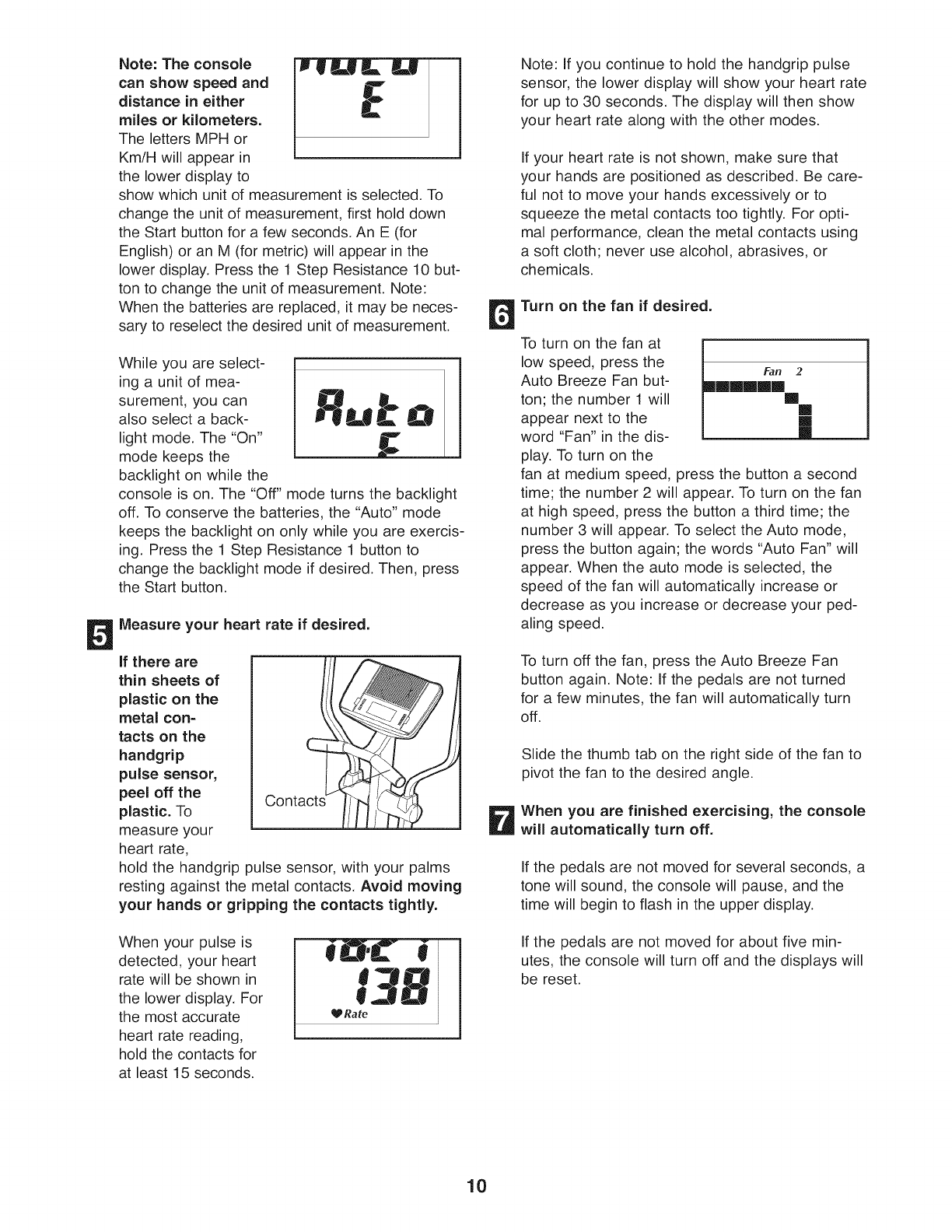

Note: The console

can show speed and

distance in either

miles or kilometers.

The letters MPH or

Km/H will appear in

the lower display to

show which unit of measurement is selected. To

change the unit of measurement, first hold down

the Start button for a few seconds. An E (for

English) or an M (for metric) will appear in the

lower display. Press the 1 Step Resistance 10 but-

ton to change the unit of measurement. Note:

When the batteries are replaced, it may be neces-

sary to reselect the desired unit of measurement.

While you are select-

ing a unit of mea-

surement, you can

also select a back-

light mode. The "On"

mode keeps the

backlight on while the

QIL °

console is on. The "Off" mode turns the backlight

off. To conserve the batteries, the "Auto" mode

keeps the backlight on only while you are exercis-

ing. Press the 1 Step Resistance 1 button to

change the backlight mode if desired. Then, press

the Start button.

Measure your heart rate if desired.

if there are

thin sheets of

plastic on the

metal con-

tacts on the

handgrip

pulse sensor,

peel off the

plastic. To

measure your

heart rate,

hold the handgrip pulse sensor, with your palms

resting against the metal contacts. Avoid moving

your hands or gripping the contacts tightly.

When your pulse is

detected, your heart

rate will be shown in

the lower display. For

the most accurate

heart rate reading,

hold the contacts for

at least 15 seconds.

Note: If you continue to hold the handgrip pulse

sensor, the lower display will show your heart rate

for up to 30 seconds. The display will then show

your heart rate along with the other modes.

If your heart rate is not shown, make sure that

your hands are positioned as described. Be care-

ful not to move your hands excessively or to

squeeze the metal contacts too tightly. For opti-

mal performance, clean the metal contacts using

a soft cloth; never use alcohol, abrasives, or

chemicals.

Turn on the fan if desired.

To turn on the fan at

low speed, press the

Auto Breeze Fan but-

ton; the number 1 will

appear next to the

word "Fan" in the dis-

play. To turn on the

An 2

mmmmmm mm

fan at medium speed, press the button a second

time; the number 2 will appear. To turn on the fan

at high speed, press the button a third time; the

number 3 will appear. To select the Auto mode,

press the button again; the words "Auto Fan" will

appear. When the auto mode is selected, the

speed of the fan will automatically increase or

decrease as you increase or decrease your ped-

aling speed.

To turn off the fan, press the Auto Breeze Fan

button again. Note: If the pedals are not turned

for a few minutes, the fan will automatically turn

off.

Slide the thumb tab on the right side of the fan to

pivot the fan to the desired angle.

When you are finished exercising, the console

will automatically turn off.

If the pedals are not moved for several seconds, a

tone will sound, the console will pause, and the

time will begin to flash in the upper display.

If the pedals are not moved for about five min-

utes, the console will turn off and the displays will

be reset.

_ ress any button on the console or begin

pedaling to turn on the console.

See step 1 on page 9.

Select one of the eight preset programs.

To select one of the

eight preset pro-

grams, press the

Resistance/Pace but-

ton repeatedly until

"P 1," "P 2," "P 3,"

"P 4," "P 5," "P 6,"

"P 7," or "P 8" appears in the upper display.

When a preset program is selected, a profile of

the resistance settings of the program will scroll

across the matrix and the maximum resistance

setting of the program will flash in the lower dis-

play. A few seconds after a program is selected,

the upper display will show how long the program

will last.

Press the Start button or begin pedaling to

start the program.

Each program is divided into several one-minute

segments. One resistance setting and one pace

setting are programmed for each segment. Note:

The same resistance setting and/or pace setting

may be programmed for two or more consecutive

segments.

The resistance

setting for the first

segment will be

shown in the

flashing Current

Segment column

of the matrix, (The

pace settings are

Current Segment

•, |

I ml[]m[]

/a=mma=mm

mmmmmmmm

not shown in the matrix,) The resistance settings

for the next several segments will be shown in the

columns to the right.

As you exercise, the Target Pace guide will help

you to keep your pedaling pace near the pace

setting for the current segment. When one of the

"Too Slow" indicators lights, increase your pace.

When the one of the "Too Fast" indicators lights,

decrease your pace. When the "On Pace" indica-

tor lights, maintain your current pace.

Target Pace

Too Fast

On Pace

AToo Slow

Target Pace

Too Fast

On Pace

Too Slow

Target Pace

Too Fast

On Pace

Too Slow

important: The pace settings are intended

only to provide motivation. Your actual pace

may be slower than the pace settings. Make

sure to exercise at a pace that is comfortable

for you.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a

series of tones will sound, and all resistance set-

tings will move one column to the left. The resis-

tance setting for the second segment will then be

shown in the flashing Current Segment column,

and the resistance of the elliptical exerciser will

change to the resistance setting for the second

segment, Note: If all of the indicators in the

Current Segment column are lit after the resis-

tance settings have moved to the left, the resis-

tance settings may move downward so only the

highest indicators appear in the matrix.

The program will continue until the resistance

setting for the last segment is shown in the

Current Segment column and the last segment

ends.

Note: During the program, you can override the

resistance setting for the current segment, if

desired, by pressing the 1 Step Resistance but-

tons, However, when the next segment begins,

the resistance will change if a different resistance

setting is programmed for the next segment.

If you stop pedaling for several seconds, a tone

will sound and the program will pause, To restart

the program, simply resume pedaling.

Monitor your progress with the displays.

See step 4 on page 9.

Measure your heart rate if desired.

See step 5 on page 10.

Turn on the fan if desired.

See step 6 on page 10.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 10.

_ ress any button on the console or begin

pedaling to turn on the console.

See step 1 on page 9.

Select one of the two heart rate programs.

To select a heart rate

program, press the

Heart Rate Control

button once or twice

until "P 9" or "P10"

appears in the upper

display. A few sec-

onds after a program is selected, the upper dis-

play will show how long the program will last.

if the first heart rate

program (P 9) is

selected, a profile of

the target heart rate

settings of the pro-

gram will scroll across

the matrix.

mmm

mmmmmmm

mmmmmmmmm

mmmmmmmmmm

if the second heart

rate program (P10)

is selected, a pulse

symbol will appear in

the matrix.

mm m mmmmm

Heart Rate

Enter a target heart rate setting.

If the first heart rate

program is selected,

the maximum target

heart rate setting of

the program will flash

in the lower display. If

desired, press the

increase and decrease buttons to change the

maximum target heart rate setting (see EXER-

CISE INTENSITY on page 20). Note: If the maxi-

mum target heart rate setting is changed, the

intensity level of the entire program will change.

If the second heart rate program is selected,

the target heart rate setting for the program will

flash in the lower display, If desired, press the

increase and decrease buttons to change the tar-

get heart rate setting (see EXERCISE INTENSI-

TY on page 20). Note: The same target heart

rate setting will be programmed for all segments.

Hold the handgrip pulse sensor.

It is not necessary to hold the handgrip pulse

sensor continuously during a heart rate program;

however, you should hold the handgrip pulse

sensor frequently for the program to operate

properly. Each time you hold the handgrip

pulse sensor, keep your hands on the metal

contacts for at least 30 seconds.

Press the Start button to start the program.

First heart rate program--This program is divid-

ed into 20 one-minute segments. One target

heart rate setting is programmed for each seg-

ment. Note: The same target heart rate setting

may be programmed for two or more consecutive

segments.

The target heart

rate setting for the

first segment will

be shown in the

flashing Current

Segment column

of the matrix. The

target heart rate

CurrentSegment

mmm

mmmmm

immmmmmm

/mmmmmmm

mmmmmmmm

settings for the next several segments will be

shown in the columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash, a

series of tones will sound, and all target heart

rate settings will move one co/umn to the left.

The target heart rate setting for the second seg-

ment will then be shown in the flashing Current

Segment column.

Second heart rate program--This program is

divided into 40 one-minute segments. The same

target heart rate is programmed for all segments.

Note: For a shorter workout, stop exercising or

select a different program before the program

ends.

Both heart rate programs--As you pedal, the

console will regularly compare your heart rate to

the target heart rate setting, if your heart rate is

too far below or above the target heart rate set-

ting, the resistance of the elliptical exerciser will

automatically increase or decrease to bring your

heart rate closer to the target heart rate setting.

The Target Pace guide will prompt you to

increase or decrease your pedaling pace during

the program. When one of the "Too Slow" indica-

tors lights, increase your pace. When the one of

the "Too Fast" indicators lights, decrease your

pace. When the "On Pace" indicator lights, main-

tain your current pace.

Target Pace

Too Fast

On Pace

ATOOSlow

Target Pace

Too Fast

On Pace

Too Slow

Target Pace

Too Fast

(_ On Pace

Too Slow

Important: The target heart rate settings are

intended only to provide motivation. Your

actual heart rate may be slower than the tar-

get heart rate settings. Make sure to exercise

at a pace that is comfortable for you.

Note: During the program, you can manually over-

ride the resistance setting for the current seg-

ment, if desired, with the 1 Step Resistance but-

tons. However, when the console compares your

heart rate to the target heart rate setting, the

resistance of the elliptical exerciser may automat-

ically increase or decrease to bring your heart

rate closer to the target heart rate setting.

If you stop pedaling for several seconds, a tone

will sound and the program will pause. To restart

the program, simply resume pedaling.

Monitor your progress with the displays.

See step 4 on page 9.

Turn on the fan if desired.

See step 6 on page 10.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 10.

HOW TO CONNECT YOUR PORTABLE STEREO

To use iFIT.com CDs, the elliptical exerciser must be

connected to your portable CD player, portable stereo,

home stereo, or computer with CD player. See pages

14 and 15 for connecting instructions, To use iFIT.com

videocassettes, the elliptical exerciser must be con-

nected to your VCR, See page 16 for connecting

instructions, To use iFIT.com programs directly from

our Web site, the elliptical exerciser must be connect-

ed to your home computer. See page 15 for connect-

ing instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below, if your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your CD player.

Plug your headphones into the PHONES jack.

[iJ_ Audi[i!!!!"!!!_i "IIiPH°!!i_!iid_

___._ j phones

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

1/8" LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable

into the adapter. Plug the adapter into an AUDIO

OUT jack on your stereo.

A,B

i RIGHT _ i

iLEFT i

L--- i

Adapter --_

Audio Cable

Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your stereo. Do

not use the adapter.

Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into a 1/8" Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your stereo. Plug your headphones into the

other side of the Y-adapter.

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into a 1/8" Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your CD player. Plug your headphones into the

other side of the Y-adapter.

, _-__ Audio Y-adapter

Headphones ------_-c3::>_

_Udil° Y-ada_

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER

Note: If your stereo has an unused LiNE OUT jack,

see instruction A below. If the LiNE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the adapter. Plug the adapter into the

LINE OUT jack on your stereo.

A[-6-i

Audio

iLINEOUT(_)

Adapter --_

Cable

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the adapter. Plug the adapter into an

RCA Y-adapter (available at electronics stores).

Next, remove the wire that is currently plugged into

the LINE OUT jack on your stereo and plug the

wire into the unused side of the Y-adapter. Plug the

Y-adapter into the LINE OUT jack on your stereo.

r---

RCA

Audio Y-adapter

Cable Adapter

........

Wire removed from

LINE OUT jack

Note: If your computer has a 1/8" LiNE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the LINE OUT jack on your computer.

r- ,): .......

Audio

Cable =

=ooo

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into a 1/8" Y-adapter (available at electronics

stores). Plug the Y-adapter into the PHONES jack

on your computer. Plug your headphones or speak-

ers into the other side of the Y-adapter.

Audio

Cable

@®

i..!!.°.".!!....¢,i

=1/8"

= Y-adapter

Headphones/Speakers __

HOW TO CONNECT YOUR VCR

Note: if your VCR has an unused AUDIO OUT jack,

see instruction A below, if the AUDIO OUT jack is

being used, see instruction B. if you have a TV

with a built-in VCR, see instruction B. if your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 15.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the adapter. Plug the adapter into the

AUDIO OUT jack on your VCR.

A_®_

AUDI00UT

RIGHT

LEFT

Audio Cable t_

......... __

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

cable into the adapter. Plug the adapter into an

RCA Y-adapter (available at electronics stores).

Next, remove the wire that is currently plugged into

the AUDIO OUT jack on your VCR and plug the

wire into the unused side of the Y-adapter. Plug the

Y-adapter into the AUDIO OUT jack on your VCR.

RCA ad i'......

Audio Cable Adapter

Wire removed from

AUDIO OUT jack

To use an iFIT.com CD or video program, the elliptical

exerciser must be connected to your CD player or

VCR. See HOW TO CONNECT YOUR CD PLAYER,

VCR, OR COMPUTER on pages 14 to 16. To pur-

chase iFIT.com CDs or videocassettes, call the toll-

free telephone number on the front cover of this

manual.

Follow the steps below to use an iFIT.com CD or

video program.

B ress any button on the console or begin ped-

aling to turn on the console.

See step 1 on page 9.

Select the iFIT.com mode.

To select the iFIT.com

mode, press the iFIT

button, The track and

the letters "iFIT" will

light.

i FIT

mgMMMMg

gg gg

[] m

m []

gg m

gg gg

mgMMMMg

Press the Play button on your CD player or

VCR.

Note: If you are using an iFIT.com CD, insert the

CD into your CD player; if you are using an

iFIT.com videocassette, insert the videocassette

into your VCR.

A moment after the play button is pressed, your

personal trainer will begin guiding you through

your workout. Simply follow your personal trainer's

instructions.

The program will function in almost the same way

as a preset program (see step 3 on page 11).

However, an electronic "chirping" sound will alert

you when the resistance setting and/or pace set-

ting is about to change.

Note: If the resistance of the elliptical exerciser

and/or the pace setting does not change when

a "chirp" is heard:

•Make sure that the letters "iFIT" appear in

the display.

•Adjust the volume of your CD player or VCR.

If the volume is too high or too low, the con-

sole may not detect the program signals.

•Make sure that the audio cable is properly

connected and that it is fully plugged in.

Monitor your progress with the displays.

See step 4 on page 9.

Measure your heart rate as desired.

See step 5 on page 10.

Turn on the fan if desired.

See step 6 on page 10.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 10.

Our Web site at www.iFIT.com allows you to play

iFIT.com programs directly from the internet. To use

programs from our Web site, the elliptical exerciser

must be connected to your home computer. See HOW

TO CONNECT YOUR COMPUTER on page 15. In

addition, you must have an internet connection and an

internet service provider. A list of specific system

requirements is found on our Web site.

Follow the steps below to use a program from our

Web site.

B ress any button on the console or begin ped-

aling to turn on the console.

See step 1 on page 9.

Select the iFIT.com mode.

See step 2 on page 17.

Go to your computer and start an internet

connection.

Start your Web browser, if necessary, and go

to our Web site at www.iFIT.com.

Follow the desired links on our Web site to

select aprogram.

Read and follow the on-line instructions for using

a program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the elliptical exerciser and begin

pedaling.

When the on-screen countdown ends, the pro-

gram will begin. The program will function in

almost the same way as a preset program (see

step 3 on page 11). However, an electronic "chirp-

ing" sound will alert you when the resistance set-

ting and/or pace setting is about to change.

Monitor your progress with the displays.

See step 4 on page 9.

Measure your heart rate if desired.

See step 5 on page 10.

Turn on the fan if desired.

See step 6 on page 10.

When you are finished exercising, the con-

sole will automatically turn off.

See step 7 on page 10.

MAINTENANCE AND TROUBLESHOOTING

Inspect and properly tighten all parts of the elliptical

exerciser regularly. Replace any worn parts immedi-

ately.

PULSE SENSOR TROUBLESHOOTING

If the handgrip pulse sensor does not function proper-

ly, see step 5 on page 10.

CONSOLE TROUBLESHOOTING

If turning on the fan resets the console displays, or if

the displays becomes dim, the batteries should be

replaced. Most console problems are the result of low

batteries. See assembly step 6 on page 6 for replace-

ment instructions.

HOW TO LEVEL THE ELLIPTICAL EXERCISER

If the elliptical

exerciser rocks

during use, turn

one or both of

the leveling feet

under the rear

stabilizer until the

rocking motion is

eliminated.

Foot

HOWTO REMOVE THE SiDE SHIELDS AND THE

FLYWHEEL COVERS

The Left and Right Side Shields (15, 16) must be

removed before the reed switch or the drive belt can

be adjusted. To remove the Side Shields, remove the

indicated Screws (48, 94, 95). Note which hole each

Screw is removed from; the Screws will later need to

be reattached in the same holes. Carefully separate

and remove the Side Shields.

16 95

Next, the Right

and Left 19 18 69

Flywheel Covers j/

(18, 19) must be

removed.

Remove the

indicated

Screws (48, 69)

from the

Flywheel

Covers. Note

which hole each

Screw is

removed from; the Screws will later need to be reat-

tached in the same holes. Carefully separate and

remove the Flywheel Covers.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. To adjust the reed

switch, first see the instructions at the left and remove

the side shields and the flywheel covers.

Next, see the drawing below. Locate the Reed Switch

(55). Turn the Left Crank Arm (34) until the Magnet

(37) is aligned with the Reed Switch. Loosen, but do

not remove, the indicated Screw (94). Slide the Reed

Switch slightly closer to or away from the Magnet, and

then retighten the Screw. Turn the Left Crank Arm for

a moment. Repeat until the console displays correct

feedback. When the Reed Switch is correctly adjust-

ed, reattach the side shields and the flywheel covers.

HOW TO ADJUST THE DRIVE BELT

If you can feel the pedals slip while you are pedaling,

even when the resistance is adjusted to the highest

setting, the drive belt may need to be adjusted. To

adjust the drive belt, first see the instructions at the

left and remove the side shields and the flywheel

covers.

Next, see the drawing above. Loosen the indicated

Bolt (75). Turn the indicated Screw (74) clockwise

until the Drive Belt (39) is properly tightened, and then

retighten the Bolt (75). Then, reattach the side shields

and the flywheel covers.

CONDiTiONiNG GUiDELiNES

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition

and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat

burning, and cardiovascular (aerobic) exercise.

I65 155 145 140 130 125 115 _

145 138 130 125 Ii8 110 i03 _W2

125 120 115 I10 I05 95 90

20 30 40 50 60 70 80

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers are your "training

zone." The lower two numbers are recommended

heart rates for fat burning; the highest number is the

recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relative-

ly low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for ener-

gy. Only after the first few minutes of exercise does

your body begin to use stored fat calories for energy.

If your goal is to burn fat, adjust the intensity of your

exercise until your heart rate is near the lowest num-

ber in your training zone as you exercise.

For maximum fat burning, adjust the intensity of your

exercise until your heart rate is near the middle num-

ber in your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be "aerobic." Aerobic exer-

cise is activity that requires large amounts of oxygen

for prolonged periods of time. This increases the

demand on the heart to pump blood to the muscles,

and on the lungs to oxygenate the blood. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone as you exercise.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up, consisting of 5 to 10 minutes of stretching

and light exercise. A proper warm-up increases your

body temperature, heart rate, and circulation in prepa-

ration for exercise.

Training zone exercise, consisting of 20 to 30 min-

utes of exercising with your heart rate in your training

zone. (During the first few weeks of your exercise

program, do not keep your heart rate in your training

zone for longer than 20 minutes.)

Acool-down, with 5 to 10 minutes of stretching. This

will increase the flexibility of your muscles and will

help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week

if desired. The key to success is to make exercise a

regular and enjoyable part of your everyday life.

PART LISTmModel No. NEL5095.1 ROSOSA

Key No. Qty. Description Key No. Qty. Description

1 1 Frame 52 1 Resistance Motor

2 1 Upright 53 1 Reed Switch Bracket

3 1 Upright Endcap 54 1 Clamp

4 1 Left Pedal Leg 55 1 Reed Switch/Wire

5 1 Right Pedal Leg 56 1 Return Spring

6 1 Rear Stabilizer 57 1 Guide Rod

7 1 Rear Stabilizer Cover 58 1 Resistance Cable

8 1 Front Stabilizer 59 1 Flywheel Axle

9 1 Front Stabilizer Cover 60 2 Flywheel Bearing

10 1 Left Pedal 61 2 Eyebolt

11 1 Right Pedal 62 2 Adjustment Bracket

12 4 Upper Body Arm Bushing 63 2 M8 x 47mm Button Screw

13 2 M4 x 19mm Round Head Screw 64 2 Support Plate

14 4 Upper Body Arm Bushing 65 2 M8 x 79mm Bolt Set

15 1 Left Side Shield 66 2 M8 Washer

16 1 Right Side Shield 67 2 M10 x 50mm Bolt Set

17 1 Console 68 4 M8 Small Washer

18 1 Right Flywheel Cover 69 8 M4 x 16mm Round Head Screw

19 1 Left Flywheel Cover 70 2 M10 x 108mm Button Screw

20 2 Pulse Sensor w/Wire 71 1 M10 Washer

21 1 Right Upright Cover 72 2 Wave Washer

22 1 Left Upright Cover 73 2 M10 Split Washer

23 2 Upper Body Arm Endcap 74 1 M8 x 25mm Button Screw

24 2 Upper Body Arm Foam Grip 75 1 M10 x 15mm Button Bolt

25 2 M4 x 25mm Round Head Screw 76 1 Right Crank Arm

26 2 Handlebar Cover Set 77 4 M5 Nut

27 1 Frame Cover 78 4 M5 x 16mm Bolt

28 2 Weld Spacer 79 4 M5 Washer

29 2 Upper Body Arm 80 2 M6 x 18mm Bolt

30 1 Upper Wire Harness 81 1 M6 x 25mm Bolt

31 2 Push Nut 82 2 5/16" x 25mm Flange Screw

32 1 "C" Magnet 83 4 M8 x 56mm Button Screw

33 1 Magnet Bracket 84 8 M8 x 44mm Button Screw

34 1 Left Crank Arm 85 4 M8 Split Washer

35 4 27mm Pulley Spacer 86 4 M5 Nylon Locknut

36 1 Flywheel 87 8 M4 x 38mm Screw

37 1 Magnet 88 1 M8 Nylon Locknut

38 1 Pulley 89 1 M10 Jam Nut

39 1 Belt 90 4 M6 Nut

40 2 Wheel 91 2 M6 Nylon Locknut

41 2 M8 x 19mm Patch Screw 92 2 Snap Ring

42 1 Lower Wire Harness 93 2 M8 x 56mm Patch Screw

43 1 Crank 94 7 M4 x 16mm Screw

44 2 Crank Bearing 95 6 M4 x 19mm Screw

45 1 Idler 96 1 Push Nut Tool

46 4 Foot 97 1 Nylon Zip Tie

47 2 7.6mm Spacer 98 1 Tension Spring

48 3 M4 x 25mm Screw # 1 Grease

49 2 M8 Jam Nut # 1 Allen Wrench

50 6 M4 x 12mm Round Head Screw # 1 User's Manual

51 4 Pedal Leg Bushing

Note: # indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

\ 29

\ 12

\69

18 69

r""

ITI

0'1

¢0

rjl

467

1,,,,,

10 68 ¢"94 Z

60 , 0

62 .

34 35

68 97

66 7251

i"rl

¢0

HOW TO ORDER REPLACEMENT PARTS

To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give

the following information when calling:

• The MODEL NUMBER of the product (NEL5095.1

• The NAME of the product (NordicTrack CX 938 elliptical exerciser)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the part(s) (see pages 21 to 23)

LIMITED WARRANTY

WHAT IS COVERED--The entire NordicTrack ®elliptical exerciser ("Product") is warranted to be free of all defects in material and

workmanship.

WHO IS COVERED--The original purchaser or any person receiving the Product as a gift from the original purchaser.

HOW LONG IS IT COVERED--ICON Health & Fitness, Inc. ("ICON"), warrants the product for one year after the date of purchase.

Labor is covered for one year.

WHAT WE DO TO CORRECT COVERED DEFECTS--We will ship to you, without charge, any replacement part or component, pro-

viding the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our

option, we will replace the Product.

WHAT IS NOT COVERED--Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assem-

bly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain

as set out in your User's Manual ("Manual").

WHAT YOU MUST DO--Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as spec-

ified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instruct-

ed, return any defected part for replacement or, if necessary, the entire product, for repair.

USER'S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the

periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.

HOW TO GET PARTS AND SERVICE--Simply call our Customer Service Department at 1-888-825-2588 and tell them your name

and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for service

where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return

Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping car-

ton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or prob-

lem and a copy of your proof of purchase if you believe the service is covered by warranty.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or per-

formance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoy-

ment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclu-

sion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness

for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how

long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

No one is authorized to change, modify or extend the terms of this limited warranty. This warranty gives you specific legal rights and

you may have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

NORDICTRACK Elliptical Manual L1001442

Navigation menu

Versions of this User Manual:

Views

Navigation
