Outdoor Heat Pump

13 SEER High Efficiency Split System

These units have been designed and tested for capacity and efficiency in accordance with A.R.I.

Standards. Split System Heat Pump units are designed for use with a wide variety of fossil fuel

furnaces, electric furnaces, air handlers, and evaporator coil combinations.

These instructions are primarily intended to assist qualified individuals experienced in the proper

installation of heating and/or air conditioning appliances. Some local codes require licensed

installation/service personnel for this type of equipment. Read all instructions carefully before

starting the installation.

USER'S INFORMATION

Read this owner information to become familiar with the capabilities and use of your appliance.

Keep this with literature on other appliances where you have easy access to it in the future. If a

problem occurs, check the instructions and follow recommendations given. If these suggestions

don't eliminate your problem, call your servicing contractor.

Heat Pump Principle of Operation

WINTER HEATING

1. Outdoor air enters heat pump.

2. Cold, heat-transfer section (outdoor coil)

extracts heat from outdoor air as refrigerant

evaporates from a liquid to a gas.

3. Refrigerant, compressed to a hot gas by

heat pump, carries the heat to the hot heat-

transfer section (indoor coil).

4. Hot, heat-transfer section (indoor coil)

releases the heat to indoor air as refrigerant

condenses from a gas to a liquid.

5. Air handler circulates the heat throughout

the home.

6. Refrigerant returns to outdoor coil and

evaporates once again to absorb more

heat.

SUMMER COOLING

1. Indoor air enters the air handler section.

2. Cold, heat-transfer section (indoor coil)

extracts heat from indoor air as refrigerant

evaporates from a liquid to a cold gas.

3. Refrigerant, drawn to heat pump and

compressed to a hot gas by heat pump,

carries the heat outdoors.

4. Hot, heat-transfer section (outdoor coil)

releases the heat as refrigerant condenses

from a gas to a liquid.

5. Heat pump (outdoor fan) discharges the

heat to outside air.

6. Refrigerant returns to indoor coil and

evaporates once again to absorb more

heat.

OPERATING iNSTRUCTiONS

TO OPERATE YOUR HEAT PUMP

FOR COOLING

1. Set the thermostat system switch to COOL

and the thermostat fan switch to AUTO. (See

Figure 1)

.Set the thermostat temperatu re to the desired

temperature level using the temperature

selector. Please refer to the separate

detailed thermostat user's manual for

complete instructions regarding thermostat

programming. The outdoor unit and indoor

blower will both cycle on and off to maintain

the indoor temperatu re at the desired cooling

level.

NOTE: If the thermostat temperature level is

re-adjusted, or the thermostat system switch

is repositioned, the outdoor unit may not

start immediately. The outdoor unit contains

a protective timer circuit which holds the unit

off for approximately five minutes following a

previous operation, or the interruption of the

main electrical power.

TO OPERATE YOUR HEAT PUMP

FOR HEATING

1. Set the thermostat system switch to HEAT

and the thermostat fan switch to AUTO. (See

Figure 1)

.Set the thermostat temperature to the

desired temperature level using the

temperature selector. Please refer to

the separate detailed thermostat user's

manual for complete instructions regarding

thermostat programming. The outdoor unit

and indoor blower will both cycle on and off

to maintain the indoor temperature at the

desired heating level.

NOTE: Ifthe thermostat temperature level is

re-adjusted, or the thermostat system switch

is repositioned, the outdoor unit may not

start immediately.The outdoor unit contains

a protective timer circuit which holds the unit

off for approximately five minutes following

a previous operation, or the interruption of

the main electrical power.

Emergency Heat:

The thermostat includes a system switch

position termed EM. HT. This is a back-up

heating mode to be used only if there is a

suspected problem with the outdoor unit.With

the system switch set to EM. HT. the outdoor

unit will be locked off, and supplemental heat

(typically electric resistance heating) will be

used as a source of heat. Sustained use of

electric resistance heat in place of the heat

pump will result in an increase in electric

utility costs.

Defrost:

During cold weather heating operation, the

outdoor unit will develop a coating of snow

and ice on the heat transfer coil. This is

FAN SWITCH SYSTEM SWITCH

Figure 1. Typical Thermostat

normal,andtheunitwillperiodicallydefrost

itself.Duringthedefrostcycle,theoutdoor

fanwillstop,andthecompressorwillcontinue

torunandheattheoutdoorcoil,causingthe

snowandicetomelt.Afterthesnowandice

havemelted,somesteammayrisefromthe

outdoorunitasthewarmcoilcausessome

meltedfrostto evaporate.

TO OPERATEYOUR HEAT PUMP

FOR AUTOMATIC COOLING AND

HEATING--

TO MAINTAIN YOUR HEAT PUMP--

CAUTION:

Be certain the electrical power to

the outdoor unit and the furnace/air

handler is disconnected before

doing the following recommended

maintenance.

1. Regularly:

1. Set the thermostat system switch to AUTO

and the thermostat fan switch to AUTO. (See

Figure 1)

Note: Thermostats will vary. Some models

will not include the AUTO mode, and others

will have the AUTO in place of the HEAT and

COOL, and some will include all three.

2_ Set the thermostat temperature to the

desired heating and cooling temperature

level(s). The outdoor unit and the indoor

blower will then cycle on and off in either

the heating or cooling mode of operation as

required to automatically maintain the indoor

temperature within the desired limits.

TO SHUT OFFYOUR HEAT

PUMP--

Set the thermostat system switch to OFF and the

thermostat fan switch to AUTO. (See Figure 1)

The system will not operate, regardless of the

thermostat temperature selector(s) setting.

TO OPERATE THE INDOOR

BLOWER CONTINUOUSLY--

Set the thermostat fan switch to ON (See Figure

1).The indoor blower will start immediately, and

will run continually until the fan switch is reset

to AUTO.

Clean or replace the indoor air filter at the

start of each heating and cooling season,

and when an accumulation of dust and

dirt is visible on the air filter. Inspect the

filter monthly.

Remove any leaves and grass clippings

from the coil in the outdoor unit, being

careful not to damage the aluminum

fins.

Check for any obstruction such as twigs,

sticks, etc.

Certain models have external panels

fabricated from a premium grade of

stainless steel designed to inhibit cor-

rosion. For such units, if the unit is

located in a coastal region or other area

subjected to high concentrations of salt,

then the unit should be hosed off after

storms and monthly otherwise to maintain

its new appearance.

CAUTION:

Do not over-oil, or oil motors not

factory-equipped with oil tubes. The

compressor is hermetically "sealed"

and does not require lubrication.

2. Before Calling a Service Technician, Be

Certain:

The continuous indoor blower operation can be

obtained with the thermostat system switch set

in any position, including OFR

The continuous indoor blower operation is

typically used to circulate the indoor air to

equalize a temperature unbalance due to a sun

load, cooking, or fireplace operation.

The unit thermostat is properly set--see

"To OperateYour Heat Pump for Cooling"

and "To Operate Your Heat Pump for

Heating."

The unit disconnect fuses are in good

condition, and the electrical power to the

unit is turned on.

ReadYour Warranty

Please read the separate warranty document

completely. It contains valuable information

about your system.

GENERAL INFORMATION

Read the following instructionscompletely before

performing the installation.

Outdoor Unit Section -- Each outdoor unit

is shipped with a refrigerant charge adequate

to operate the outdoor section with an indoor

matching coil or air handler. Units with braze

connections include the proper amount of

refrigerant for an additional 15 ft. of refrigerant

lines the same size as the valve fittings.

NOTE: DO NOT USE ANY PORTION OF

THE CHARGE FOR PURGING OR LEAK

TESTING.

Matching coils and air handlers may be shipped

with a small holding charge to pressurize them to

keep out contaminants.To release the pressure,

read the indoor section installation instructions

carefully.

Liquid and Suction Lines -- Fully annealed,

refrigerant grade copper tubing should be used

when installing the system. Refrigerant suction

line tubing should be fully insulated.

Field Connections for Electrical Power

Supply -- All wiring must comply with current

provisions of the "National Electrical Code"

(ANSI/NFPA 70) and with applicable local

codes having jurisdiction. The minimum size of

electrical conductors and circuit protection must

be in compliance with information listed on the

outdoor unit data label.

SAFETY CONSIDERATIONS

Pressures within the System -- Split

system heat pump equipment contains liquid

and gaseous refrigerant under pressure.

Installation and servicing of this equipment

should be accomplished by qualified, trained

personnel thoroughly familiar with this type of

equipment. Under no circumstances should the

Homeowner attempt to install and/or service

the equipment.

Labels, Tags, Precautions -- When working

with this equipment, follow all precautions in the

literature, on tags, and on labels provided with

the equipment. Read and thoroughly understand

the instructions provided with the equipment prior

to performing the installation and operational

checkout of the equipment.

Brazing Operations-- Installation of equipment

may require brazing operations. Safety codes

must be complied with. Safety equipment (e.g.;

safety glasses, work gloves, fire extinguisher,

etc.) must be used when performing brazing

operations.

WARNING".

Ensure all electrical power to the unit

is off prior to installing or servicing the

equipment. Failure to do so may cause

personal injury or death.

SITE PREPARATION

Unpacking Equipment -- Remove the

cardboard carton and User's Manual from the

equipment. Take care to not damage tubing

connections when removing from the carton.

inspect for Damage -- Inspect the equipment

for damage prior to installing the equipment at

the job site. Ensure coil fins are straight and, if

necessary, comb fins to remove flattened and

bent fins.

Preferred Location of the Outdoor Unit at the

Job Site -- Conduct a survey of the job site to

determine the optimum location for mounting

the outdoor unit. Overhead obstructions,

poorly ventilated areas, and areas subject to

accumulation of debris should be avoided. The

outdoor unit should be installed no closer than

18 inches from the outside walls of the facility

and in an area free from overhead obstructions

to ensure unrestricted airflow through the

outdoor unit.

Facility Prerequisites -- Electrical power

supplied must be adequate for proper operation

of the equipment.The system must be wired and

provided with circuit protection in accordance

with local building codes and the National

Electrical Code.

iNSTALLiNG THE OUTDOOR UNiT

Slab Mount--The site selected for a slab mount

installation requires a stable foundation and one

not subject to erosion. The slab should be level

and anchored (if necessary) prior to placing the

equipment on the slab.

Cantilever Mount --The cantilever mount

should be designed with adequate safety factor

to support the weight of the equipment, and for

loads subjected to the mount during operation.

Installed equipment should be adequately

secured to the cantilever mount and levelled

prior to operation of the equipment.

Roof Mount --The method of mounting should

be designed so as not to overload roof structures

nor transmit noise to the interior of the structure.

Refrigerant and electrical line should be routed

through suitably waterproofed openings to

prevent water leaking into the structure.

INSTALLING THE INDOOR UNIT

The indoor section should be installed before

proceeding with routing of refrigerant piping.

Consult the Installation Instructions of the indoor

unit (i.e.: air handler, furnace, etc.) for details

regarding installation.

CONNECTING REFRIGERANT

TUBING BETWEEN THE iNDOOR

AND OUTDOOR UNiT

General -- Once outdoor and indoor unit

placement has been determined, route refrigerant

tubing between the equipment inaccordance with

sound installation practices. Refrigerant tubing

should be routed in a manner that minimizes the

length of tubing and the number of bends in the

tubing. Refrigerant tubing should be supported

in a manner that the tubing will not vibrate or

abrade during system operation. Tubing should

be kept clean of foreign debris during installation

and installation of a liquid line filter drier is

recommended if cleanliness or adequacy of

system evacuation is unknown or compromised.

Every effort should be made by the installer

to ensure that the field installed, refrigerant

containing components of the system have been

installed in accordance with these instructions

and sound installation practices so as to insure

reliable system operation and longevity.

The maximum recommended interconnecting

refrigerant line length is 75 feet, and the

vertical elevation difference between the indoor

and outdoor sections should not exceed 20

feet. Consult long line application guide for

installations in excess of these limits.

Filter Dryer Installation -- A filter dryer is

provided with PS series models only and must

be installed inthe liquid line of the system. If the

installation replaces a system with a filter dryer

already present in the liquid line, the filter dryer

must be replaced with the one supplied with the

unit. The filter dryer must be installed in strict

accordance with the manufacturer's installation

instructions.

For all other series models, installing a filter

dryer is optional. However, it is good installation

practice to install a filter dryer when replacing

the evaporator and/or condenser of a system.

When installing, the filter dryer must be installed

in strict accordance with the manufacturer's

installation instructions.

Optional Equipment- Optional equipment

(e.g.: liquid line solenoid valves, etc.) should

be installed in strict accordance with the

manufacturer's installation instructions.

ELECTRICAL CONNECTIONS

WARNING:

Turn off all electrical power at the main

circuit box before wiring electrical

power to the outdoor unit. Failure to

comply may cause severe personnel

injury or death.

Wiring Diagram/Schematic -- A wiring

diagram/schematic is located on the inside cover

of the electrical box of the outdoor unit. The

installer should become familiar with the wiring

diagram/schematic before making any electrical

connections to the outdoor unit.

Outdoor Unit Connections --The outdoor

unit requires both power and control circuit

electrical connections. Refer to the unit wiring

diagram/schematic for identification and location

of outdoor unit field wiring interfaces.

Control Circuit Wiring --The outdoor unit is

designed to operate from a 24VAC Class IIcontrol

circuit. Control circuit wiring must comply with

the current provisions of the "National Electrical

Code" (ANSI/N FPA 70) and with applicable focal

codes having jurisdiction.

Thermostat connections should be made in

accordance with the instructions supplied with

the thermostat, and with the instructions supplied

with the indoor equipment. A typical residential

installation with a heat pump thermostat and air

handler are shown below.

Electrical Power Wiring -- Electrical power

wiring must comply with the current provisions

of the "National Electrical Code" (ANSI/NFPA

70) and with applicable local codes having

jurisdiction. Use of rain tight conduit is

recommended. Electrical conductors shall have

minimum circuit ampacity in compliance with the

outdoor unit rating label.The facility shall employ

electrical circuit protection at a current rating no

greater than that indicated on the outdoor unit

rating label. Refer to the unit wiring diagram for

connection details.

Minimum Circuit Ampacity-- Electrical wiring

to the equipment must be compatible and in

compliance with the minimum circuit ampacity

listed on the outdoor unit data label.

COPPER WiRE SiZE i AWG

(1% Voltage Drop)

Supply Wire Length-Feet Supply Circuit

200 150 100 50 Ampacity

6 8 10 14 15

4 6 8 12 20

4 6 8 10 25

4 4 6 10 30

3 4 6 8 35

3 4 6 8 40

2 3 4 6 45

2 3 4 6 50

Wire Size based on N.E.C. for 60° type copper

conductors.

Maximum Fuse/Circuit Breaker Size-- Circuit

protection for the outdoor unit must be compatible

with the maximum fuse/circuit breaker size listed

on the outdoor unit data label.

Disconnect Switch--An elect rically compatible

disconnect switch must be within line of sight of

the outdoor unit. This switch shall be capable of

electrically de-energizing the outdoor unit.

Optional Equipment -- Optional equipment

requiring connection to the power or control

circuits must be wired in strict accordance with

current provisions of the "National Electrical

Code" (ANSI/NFPA 70), with applicable local

codes having jurisdiction, and the installation

instructions provided with the equipment.

Optional Equipment (e.g.: liquid line solenoid

valves, hard start kits, low suction pressure

cutout switch kit, high pressure cutout switch kit,

refrigerant compressor crankcase heater, etc.)

should be installed in strict accordance with the

manufacturer's installation instructions.

STARTUP AND CHECKOUT

WARNING:

Ensure electrical power to the unit is

off prior to performing the following

steps. Failure to do so may cause

personal injury or death.

Air FHters -- Ensure air filters are clean and in

place prior to operating the equipment.

Thermostat-- Set the room the rmostat function

switch to OFF, fan switch to AUTO, and adjust the

temperature setpoint to its highest setting.

Prior to applying electrical power to the outdoor

unit, ensure that the unit has been properly and

securely grounded, and that power supply

connections have been made at both the facility

power interface and outdoor unit.

Outdoor Unit -- Ensure the outdoor coil and

top of the unit are free from obstructions and

debris, and all equipment access/control panels

are in place.

Using extreme caution, apply power to the unit

and inspect the wiring for evidence of open,

shorted, and/or improperly wired circuits.

Thermostat

G R W2C E 0 Y

0 C {

Brown i/li! W|

ora_ q2-J

_or_-__ -_

Heater

Kits

Grey _ C

j4 _ NOTE: Jumper

betweenW2 and E is

required when no OD

T-Star is used.

)

Air Handier

i!_ w2

COY

Heat Pump OD

Section

Typical Heat Pump with Standard Air Handier

A typical installation with a heat pump thermostat, air handler, and heat pump with an outdoor

thermostat.

Thermostat ]

GRW2C EOY

Gteen _/G_=-----J L}_

Red j

White j W

Grey :tRY'c

,Iii

Air Handier

--R

J_,--w2

COY

Heat Pump OD

Section

Typical Heat Pump with

OutdoorThermostat and Air Handier

Functional Checkout:

CAUTION:

if equipped with a compressor

crankcase heater, wait 24 hours prior

to performing a function checkout to

allow for heating of the compressor

crankcase. Failure to comply may

result in damage and could cause

premature failure of the system.

Indoor Blower -- Set the thermostat function

switch to COOLING and the fan switch to ON.

Verify that the indoor blower is operating and

that airflow is not restricted. Set the fan switch

back to AUTO.

NOTE: This module does not provide safety

protection! The Comfort Alert TM module is a

monitoring device and cannot shut down the

compressor directly.

LED Description (See Figure 2)

POWER LED (Green): indicates voltage

is present at the power connection of the

module.

ALERT LED (Yellow): communicates an

abnormal system condition through a unique

flash code.The ALERT LED will flash a number

of times consecutively, pause and then repeat

the process. The number of consecutive

flashes, defined as the Flash Code, correlates

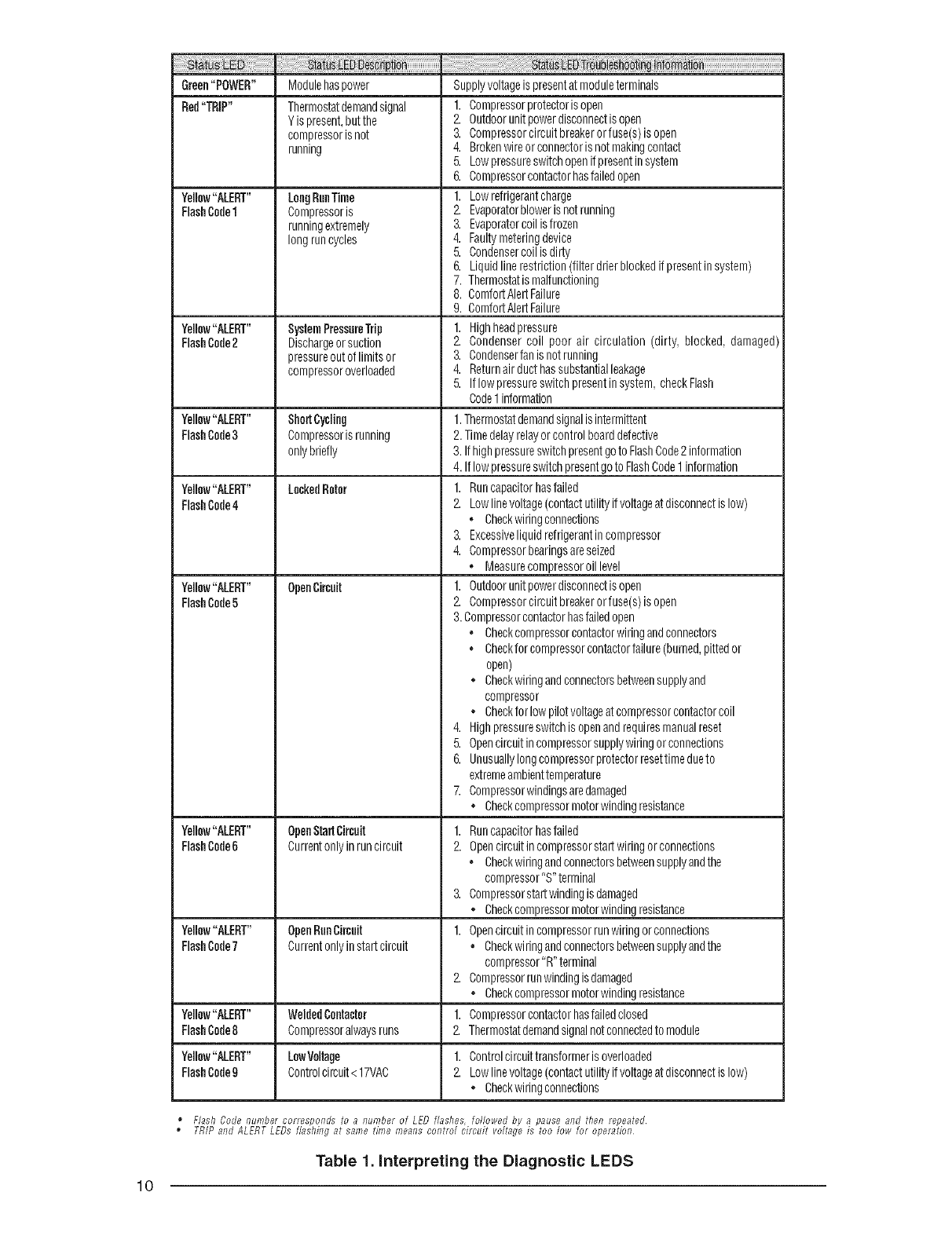

to a particular abnormal condition. Detailed

descriptions of specific ALERT Flash Codes are

shown in Table 1 of this manual.

Positive Temperature Coefficient Resistor

(PTCR) -- (select models) A PTCR is factory

installed and located on the control panel of the

outdoor unit. The PTCR is a soft start device for

use with reciprocating compressors. If a hard

start kit is needed on this model the soft start

(PTCR) must be removed first.

Low=Pressure Switch -- A low-pressure

switch is factory-installed in select models only.

If provided, this switch is located in the suction

line internal to the outdoor unit. The switch is

designed to protect the compressor from a loss

of charge. Under normal conditions, the switch

is closed. If the suction pressure falls below 5

psig, then the switch will open and de-energize

the outdoor unit. The switch will close again

once the suction pressure increases above 20

psig. Please note that the switch interrupts the

thermostat inputs to the unit. Thus, when the

switch opens and then closes, there will be a 5

minute short cycling delay before the outdoor

unit will energize.

Comfort Alert TM Diagnostics (Select Models)

-- The Comfort Alert TM diagnostics module is

a breakthrough innovation for troubleshooting

heat pump and air conditioning system failures.

The module installs easily in the electric box of

the outdoor unit near the compressor contac-

tot. By monitoring and analyzing data from the

Copeland Scroll compressor® and the thermo-

stat demand, the module can accurately detect

the cause of electrical and system related failures

without any sensors. A flashing LED indicator

communicates the ALERT code and guides the

service technician more quickly and accurately

to the root cause of a problem.

TRIP LED (Red): indicates there is a demand

signal from the thermostat but no current to the

compressoris detected bythe module.TheTRIP

LED typically indicatesthe compressor protector

is open or may indicate missing supply power

to the compressor.

The scroll compressor's run (R), common (C) and

start (S) wires are routed through the holes inthe

Comfort Alert TM module marked "R,'"C" and "S."

The common (C) wire need not be routed through

the module for it to operate properly.

24 VAC Power Wiring -- The Comfort Alert TM

module requires a constant nominal 24 VAC

power supply.The wiring to the module's R and

C terminals must be directly from the indoor unit

or thermostat.

iiL ....iJ

. i .......

=/i

Figure 2. Comfort Alert TM Diagnostics

Module

cc_fortIc

Alert i

LOW Voltage

Terminals

DFT IDFT DF2

I¥ v

Fa IT2 I _Ap

_CD_ _L=J |

\/ I.L

LPS HPS Defrost Control Board

Figure 3.24VAC Comfort Alert TM

Wiring Diagram

The module cannot be powered by the C terminal

on a defrost board or other control board without

experiencing nuisance alerts.

NOTE: After the thermostat demand signal is

connected, verify that 24 VAC across Y and

C when demand is present.

NOTE: Factory installed modules may have

different thermostat demand signal wiring.

Follow manufacturer's wiring instructions

when replacing module.

TROUBLESHOOTING

interpreting The Diagnostic LEDs - When

an abnormal system condition occurs, the

Comfort Alert TM module displays the appropriate

ALERT and/orTRIP LED will flash a number of

times consecutively, pause and then repeat the

process.To identify a Flash Code number, count

the number of consecutive flashes.

Every time the module powers up, the last ALERT

Flash Code that occurred prior to shut down is

displayed for one minute.

Cooling -- Gradually lower the thermostat

temperature setpoint below the actual room

temperature and observe that the outdoor unit

and indoor blower energize. Feel the air being

circulated by the indoor blower and verify that

it is cooler than ambient temperature. Listen

for any unusual noises. If present, locate and

determine the source of the noise and correct

as necessary.

Short Cycle Protection -- With the system

operating in COOLING mode, note the setpoint

temperature setting of the thermostat, and

gradually raise the setpoint temperature until

the outdoor unit and indoor blower de-energize.

Immediately lower the setpoint temperature of

the thermostat to its original setting and verify

that the indoor blower is energized and that the

outdoor unit remains de-energized. Verify that,

after approximately 5 minutes, the outdoor unit

energizes and that the temperature of the air

supplied to the facility is cooler than ambient

temperature.

Heating -- Lower the thermostat setpoint

temperature to the lowest obtainable setting and

set the thermostat function switch to HEATING.

The indoor blower and outdoor unit should stop

running.After a minimum of five minutes, increase

the setpoint temperature of the thermostat to the

maximum setting.Verify that the outdoor unit and

indoor blower have energized. Feel the air being

circulated by the indoor blower and verify that

it is warmer than ambient temperature. Listen

for any unusual noises. If present, locate and

determine the source of the noise and correct

as necessary.

NOTE: Other sources for heating (i.e.: electric

furnace, fossil fuel furnace, air handler with

electric heat options, etc.) that interface with

the unit should be functionally checked to verify

system operation and compatibility. Refer to the

installation instructions for this equipment and

perform a functional checkout in accordance

with the manufacturer's instructions.

OUTDOOR THERMOSTAT (if supplied)

The outdoor thermostat prevents the electrical

auxiliary heat (if used) from operating above a

desired set point. Selection of the set point is

determined from the building design heat load.

The thermostat is adjustable from 45°F to 0°R

The factory temperature setting is at 40°R

Defrost CycleTimer --The defrost cycle timer

controls the time interval of the hot gas defrost

after the defrost sensor closes. It is located

in the lower left corner of the defrost control

board. Three interval settings are available: 30

minutes, 60 minutes, and 90 minutes.Time setting

selection is dependent on the climate where the

unit is being installed.

Example 1. Dry climate of Southern

Arizona. A 90 minute setting is

recommended.

Example 2. Moist climate of Seattle,

Washington. A 30 minute setting is

recommended.

Green"POWER"

Red"TRIP"

Yellow"ALERT"

FlashCode1

Yellow"ALERT"

FlashCode2

Yellow"ALERT"

FlashCode3

Yellow"ALERT"

FlashCode5

Yellow"ALERT"

FlashCode6

Yellow"ALERT"

FlashCode7

YeIIow"ALERT" WeldedContoctor

FlashCede8 Compressoralwaysruns

Yellow"ALERT" LewVoltage

FlashCede9 Controlcircuit<17VAC

i_i!!iiiiii_i!_i_i_i_i_ili_i_i_i_i_i_i_i!_ii_!i_i_i_i_!i!I¸!I!I¸!I!I¸!I!I¸!I!I¸!I!I¸!I!I¸!I!I¸!I!I¸!I!I¸!I!I!_

Modulehaspower

Thermostatdemandsignal

Yis present,butthe 2.

compressorisnot 3.

running 4.

LongRnnTime 1.

Compressoris 2.

runningextremely 3.

longruncycles 4.

SystemPressureTrip 1.

Dischargeorsuction 2.

pressureoutoflimitsor 3.

compressoroverloaded 4.

ShortCycling

Compressorisrunning

onlybriefly

LockedRotor

OpenCircuit

OpenStartCircuit 1.

Currentonlyinruncircuit 2.

OpenRanCircuit 1.

Currentonlyinstartcircuit

iiii_i_i_i_!i_i_i_i_i_!_!_i_!_!i!!i!i_!i_i!i_!i!;!;!;!;!;!;!;!;!;!;!;!;!;i_i_!!!_!!_!_i_ii_ii_i_i!iiii_iiiiiiiiii_iiiiiiiii_i_i_i_i;i;_!_!_ifi_ii__!!_i_!_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_

Supplyvoltageispresentatmoduleterminals

1. Compressorprotectorisopen

Outdoorunitpowerdisconnectisopen

Compressorcircuitbreakerorfuse(s)isopen

Brokenwireorconnectorisnotmakingcontact

Lowpressureswitchopenifpresentinsystem

Compressorcontactorhasfailedopen

Lowrefrigerantcharge

Evaporatorblowerisnotrunning

Evaporatorcoilisfrozen

Faultymeteringdevice

Condensercoilisdirty

Liquidlinerestriction(filterdrierblockedifpresentinsystem)

Thermostatismalfunctioning

ComfortAlertFailure

Highheadpressure

Condensercoil poorair circulation(dirty, blocked,damaged)

Condenserfanisnotrunning

Returnairducthassubstantialleakage

Iflowpressureswitchpresentinsystem,checkFlash

Code1information

1.Thermostatdemandsignalisintermittent

2.Timedelayrelayorcontrolboarddefective

3. IfhighpressureswitchpresentgotoFlashCode2information

4. IflowpressureswitchpresentgotoFlashCode1information

1. Runcapacitorhasfailed

2. Lowlinevoltage(contactutilityifvoltageatdisconnectislow)

,, Checkwiringconnections

3. Excessiveliquidrefrigerantincompressor

4. Compressorbearingsareseized

,, Measurecompressoroillevel

1. Outdoorunitpowerdisconnectisopen

2. Compressorcircuitbreakerorfuse(s)is open

3.Compressorcontactorhasfailedopen

* Checkcompressorcontactorwiringandconnectors

o Checkforcompressorcontactorfailure(burned,pittedor

open)

,, Checkwiringandconnectorsbetweensupplyand

compressor

,, Checkforlowpilotvoltageatcompressorcontactorcoil

Highpressureswitchisopenandrequiresmanualreset

Opencircuitincompressorsupplywiringorconnections

Unusuallylongcompressorprotectorresettimedueto

extremeambienttemperature

Compressorwindingsaredamaged

,, Checkcompressormotorwindingresistance

Runcapacitorhasfailed

Opencircuitincompressorstartwiringorconnections

o Checkwiringandconnectorsbetweensupplyandthe

compressor"S"terminal

Compressorstartwindingisdamaged

* Checkcompressormotorwindingresistance

Opencircuitincompressorrunwiringorconnections

,, Checkwiringandconnectorsbetweensupplyandthe

compressor"R'terminal

2. Compressorrunwindingisdamaged

,, Checkcompressormotorwindingresistance

1. Compressorcontactorhasfailedclosed

2. Thermostatdemandsignalnotconnectedto module

1. Controlcircuittransformerisoverloaded

2. Lowlinevoltage(contactutilityifvoltageatdisconnectis low)

,, Checkwiringconnections

Flash Code number corresponds to a number of LED flashes followed by a pause and then repeated

TRIP and ALERTLFDe flashing at same time means control circuit vollage is too low for operation

Table 1. interpreting the Diagnostic LEDS

ii!i!;! il

Green LED is not on, Determine if both R and C module terminals are

module does not power up connected. Verify voltage is present at module's R and

C terminals. Review 24VAC Power Wiring (page 4) for

R and C wiring.

Green LED intermittent, Determine if R and Y terminals are wired in reverse.

module powers up only Verify module's R and C terminals have a constant

when compressor runs source. Review 24VAC Power W iring (page 4) for R

and C wiring.

TRIP LED is on but system Verify Y terminal is connected to 24VAC at contactor

and compressor check OK coil. Verify voltage at contactor coil falls below 0.5VAC

when off.

TRIP LED and ALERT LED Verify R and C terminals are supplied with 19-28VAC.

flashing together

ALERT Flash Code 3 Verify Y terminal is connected to 24VAC at contactor coil.

(Compressor Short Cycling) Verify voltage at contactor coil falls below 0.5VAC when

displayed incorrectly off.

ALERT Flash Code 5, 6 or 7 Check that compressor run and start wires are through

(Open Circuit, Open Start Circuit module's current sensing holes. Verify Y terminal is

or Open Run Circuit) displayed connected to 24VAC at contactor coil. Verify voltage at

incorrectly contactor coil falls below 0.5VAC when off.

ALERT Flash Code 6 (Open Check that compressor run and start wires are routed

Start Circuit) displayed for Code 7 through the correct module sensing holes.

(Open Run Circuit) or vice versa

ALERT Flash Code 8

(Welded Contactor)

displayed incorrectly

Determine if module's Y terminal is connected. Verify Y

terminal is connected to 24VAC at contactor coil. Verify

24VAC is present across Y and C when thermostat demand

signal is present. If not, R and C are reverse wired. V erify

voltage at contactor coil falls below 0.5VAC when off.

Table 2. Module Wiring Troubleshooting

To set the cycle timer, place the timing pin on

the defrost control board to the desired time

interval post.

Note: All units are shipped from the factory with

the default time setting of 30 minutes. Maximum

heating performance can be achieved by setting

the time to 90 minutes.

Defrost Test Procedure

1. Terminals"R'-'C" must have 18-30v present

between them in order for time delay and

defrost sequences to be initiated.

2. With compressor running in heat mode,

first jump the "T2"-'DFT" test pins. This

will indicate to board that defrost T-stat is

closed. Defrost T-stat closes at 32 °, opens

at 68° .

3. Next jump the "Test" pin to "C" on terminal

strip.This will initiate defrost test in 5, 10 or

15 seconds (This is determined by 30, 60

or 90 minutes defrost pin settings). Factory

setting will be 30 minutes.

4. When the reversing valve shifts to the

defrost mode, quickly remove jumper from

"Test'-'C'. If the jumper is not removed

within a 5 second period, the defrost test

will terminate. Unit will continue to stay in

defrost mode Until :

A) Board recognizes that defrost

sensor has reached 68° and

opened or

B) "T2"-'DFT'jumper is removed or

C) 10 minutes have elapsed (board

override)

Ifthe above steps will not initiate a defrost, replace

the defrost board.

Anti Short Cycle Timer Test

The 5 minute time delay featu re can be bypassed

or shortened to 1 second by jumping the "Test"

to "C" terminal.

Note: If jumper is left on the "Test" to "common"

pins permanently, the defrost cycle will become

inoperable.

OptionalEquipment-- A functionalcheckout

should be performed in accordance with

the checkout procedures supplied with the

equipment.

Adjustment of Refrigerant Charge:

CAUTION'.

Split system heat pump equipment

contains liquid and gaseous refrigerant

under pressure. Adjustment of

refrigerant charge should only be

attempted by qualified, trained

personnel thoroughly familiar with the

equipment. Under no circumstances

should the homeowner attempt to

install and/or service this equipment.

Failure to comply with this warning

could result in equipment damage,

personal injury, or death.

NOTE: The following Refrigerant Charging

Charts are applicable to listed assemblies of

equipment and at listed airflows for the indoor

coil. Assemblies of indoor coils and outdoor units

not listed are not recommended and deviations

from rated airflows or non-listed equipment

combinations may require modifications to the

expansion device(s) and refrigerant charging

procedures for proper and efficient system

operation.

Refrigerant Charging Chart -- Refer to

Refrigerant Charging Charts for correct system

charging, and to Orifice Usage Chart for correct

restrictor sizes.

NOTE: Linesets over 15 feet in length may

require additional refrigerant charge. NORDYNE

recommends 0.6 oz. of refrigerant per foot for

any lineset over 15 feet.

13 SEER Split System Heat Pump Orifice

Usage with ZRK3 Compressor

Model Restrictor Bore Size (inches)

Number indoor Outdoor

1.5 ton 0.053 0.040

2.0 ton 0.061 0.047

2.5 ton 0.069 0.049

3.0 ton 0.078 0.057

3.5 ton 0.083 0.059

4.0 ton 0.090 0.065

5.0 ton 0.101 0.067

System Charge

R-22 (oz.)

101

139

155

248

246

268

13 SEER Split System Heat Pump Orifice

Usage with CRK7 Compressor

Model

Number System Charge

R-22 (oz.)

Restrictor Bore

Size (inches)

Indoor Outdoor

0.061 0.049

0.068 0.049

2.0 ton 120

2.5 ton 144

Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with ZRK3 Compressors

REFRIGERANT CHARGING CHARTS LEGEND FOR COOLING/HEATING MODES OF OPERATION

*Note: All pressures are listed in psig. and all temperatures in deg. F.

Shaded boxes indicate flooded conditions

- Rated design values. Suction Pressure will be lower than design value if indoor air flow, entering dry bulb,

or entering wet bulb temperatures are lower than design.

Discharge temperatures greater than charted values indicates a refrigerant undercharge.

1-1/2

TON

Suction

Press.

OUTDOOR TEMPERATURE (°F)

70 75 80 85 90 95 100 105

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.

140 135

143 140 155 137

145 146 157 143 170 140

147 150 160 148 172 145 185 142

151 153 162 152 175 150 187 147 200 144

166 155 177 154 189 151 202 149

181 157 192 155 204 153 217 151 I

196 159 207 157 219 155

199 163 211 161 222 159

214 165 226 163 237 161

229 167 241 165 252 I163

244 169 256 I167

259 172

Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with ZRK3 Compressors

TON

Suction

Press.

71 149

73 151

75 154

77 156

79 160

70 75

Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp.

137

143 164 141

148 166 146

153 169 151

155 171 156

175 159

OUTDOOR TEMPERATURE (°F)

80 85 90 95

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp.

100 105

Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp.

179 145

181 150 194 149

184 155 196 153 209 152

186 159 198 158 211 157

190 162 202 162 213 161 226 160

205 166 217 165 228 164

208 169 220 169 232 168

224 173 235 173

239 177

247 172

250 176

254 180

262 175

265 180

269 184

Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with ZRK3 Compressors

2-1/2

TON

Suction

Press.

OUTDOOR TEMPERATURE (°F)

85 9070 75 80 95

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.

100 105

Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp.

240 164

243 169 255

247 173 258

261

143 136

145 141 158 139

147 147 160 144 173 142

150 152 162 149 175 147 188 145

153 155 165 154 177 152 190 149 202 147

168 157 180 156 192 154 204 152

183 159 195 158 207 156 219 154

198 161 210 160 221 158

202 165 213 164 225 162

217 168 228 166

232 170 167

171

176

Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with ZRK3 Compressors

TON

Suction

Press.

OUTDOOR TEMPERATURE (°F)

70 75 80 85 90 95 100 105

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.

148 144

150 149 164 147

152 155 166 152 179 149

155 158 168 157 181 154 195 152

159 161 171 161 183 159 197 156 210 154

174 164 187 163 199 161 212 158

190 166 202 165 214 163 228 161 I

206 168 218 167 230 165

209 172 221 171 233 169

225 174 237 173 249 171

240 177 252 175 264 173

256 180 268 178

271 182

Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with ZRK3 Compressors

3-1/2

TON

Suction

Press.

OUTDOOR TEMPERATURE (°F)

70 75 80 85 90 95 100 105

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.

144 150

146 155 159 152

148 161 161 157 175 153

152 163 164 162 177 158 191 154

155 165 167 164 179 163 193 159 206 156

171 167 183 166 195 164 208 160

186 169 198 167 210 165 224 162 I

202 171 214 169 226 166

205 174 217 172 229 170

221 176 233 174 245 171

236 178 248 175 260 172

252 180 264 177

267 181

_o Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with ZRK3 Compressors

TON

Suct.

Press.

OUTDOOR TEMPERATURE (°F)

70 75 80 85 90 95 100 105

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.

132 130

134 136 149 135

136 141 151 140 166 140

137 149 153 145 168 145 183 145

140 152 154 152 170 150 185 149 200 149

158 155 172 155 188 154 203 153

176 158 190 158 205 158 220 157

193 162 207 162 222 162

197 166 211 166 225 166

214 170 229 170

232 174

243 170

246 174 260 174

250 178 264 178

267 183

Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with ZRK3 Compressors

TON

Suct.

Press.

70 75

Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp.

143 146

145 152 159 149

147 157 161 154

148 164 163 159

152 167 165 165

169 168

OUTDOOR TEMPERATURE (°F)

80 85 90 95

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp.

100 105

Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp.

175 152

178 157 192 155

180 162 194 159 208 157

182 167 196 164 210 161

185 170 198 168 212 166 226 164

202 172 215 170 228 168

205 175 218 174 232 172

222 178 235 176

238 180

248 174

252 178 265 176

255 182 268 180

271 185

I'o

oRefrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with CRK7 Compressors

TON

Suct.

Press.

OUTDOOR TEMPERATURE (°F)

70 75 80 85 90 95 100 105

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.

159 152

162 157 173 152

164 162 175 157 187 152

167 166 178 162 189 157 201 152

171 168 181 165 191 162 203 157 215 152

184 168 195 165 205 161 217 157

198 169 208 165 219 161 230 156

212 169 222 165 233 161

215 172 226 169 236 165 I2461160

229 173 239 169 250 164

243 173 253 169 263 164

257 173 267 169

270 173

Refrigerant Charging Charts for Cooling Mode of Operation

13 SEER Split System Restrictor Cooling Charging Charts with CRK7 Compressors

2-1/2

TON

Suction

Press.

OUTDOOR TEMPERATURE (°F)

70 75 80 85 90 95 100 105

Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.

Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.

149 153

151 158 164 153

154 164 166 158 179 153

156 167 168 163 181 158 194 153

160 170 171 167 183 163 196 158 208 153

175 170 186 167 198 162 210 158

190 170 201 166 213 162 225 157

204 170 216 166 227 162

208 174 219 170 231 166

223 174 234 170

238 174

246 165

249 170 260 165

252 174 264 169

267 174

I'o

TXV Refrigerant Charging Chart with ZRK3 Compressors

1.5 Ton HP ZRK3 TXV Charging Chart

1/)

v,=

1/)

--I

375

350

325

300

275

25O

225

200

175

150

125

Remove refrigerantwhen above curve f

80 85 90 95

Add refrigerantwhen below cuwe_

100 105 110 115 120 125 130

Liquid Temperature (F)

2.0 Ton HP ZRK3 TXV Charging Chart

350

325

300

#,,,

"_ 275

250

"0 225

rJ"

--I 200

175

Remove refrigerantwhen above curve

150 '' '' ' ''' '''' ''' ' '' '' ' ''' '''' ''' ' '' '' ''' ' '' ''

75 80 85 90 95 100 105 110 115 120 125 130

Liquid Temperature (F)

Add refrigerantwhenbelow cuwe_

TXV Refrigerant Charging Chart with ZRK3 Compressors Continued

2.5 Ton HP ZRK3 TXV Charging Chart

350

325

_"_ 300

O't

D..

_" 275

250

"_ 225

.._

--I 2OO

175

150

:S.

Remove refrigerant when above curve

J" Add refrigerantwhen below cuwe_

80 85 90 95 100 105 110 115 120 125 130

Liquid Temperature (F)

3.0 Ton HP ZRK3 TXV Charging Chart

350

325

300

,_ 275

250

225

•-, 2oo

175

Remove refrigerant when above cu_e_ f

J Add refrigerant when below curve

150 '''' '''' '''' '''' '''' '''' '''' '''' '''' '''' '''' ''''

75 80 85 90 95 100 105 110 115 120 125 130 135

Liquid Temperature (F)

TXV Refrigerant Charging Chart with ZRK3 Compressors Continued

3.5 Ton HP ZRK3 TXV Charging Chart

(/}

.-I

350

325

3OO

275

25O

225

2OO

175

Remove refrigerant when above curve_

JAdd refrigerant when below curve I

150 ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' '

75 80 85 90 95 100 105 110 115 120 125 130 135

LiquidTemperature (F)

4.0 Ton HP ZRK3 TXV Charging Chart

350

325

300

275

250

225

200

175

150

Remove refrigerant when above curve_ J

J Add refrigerant when below curve I

75 80 85 90 95 100 105 110 115 120 125 130 135

LiquidTemperature (F)

TXV Refrigerant Charging Chart with ZRK3 Compressors Continued

5.0 Ton HP ZRK3 TXV Charging Chart

350 /-

330 /

310

_,. 290

_270

@ 250

¢ 230

I-

"_ 210

,,-I 190

170

150

Removerefrigerantwhen above curve_

J Add refrigerant when below curve I

75 80 85 90 95 100 105 110 115 120 125 130 135

Liquid Temperature (F)

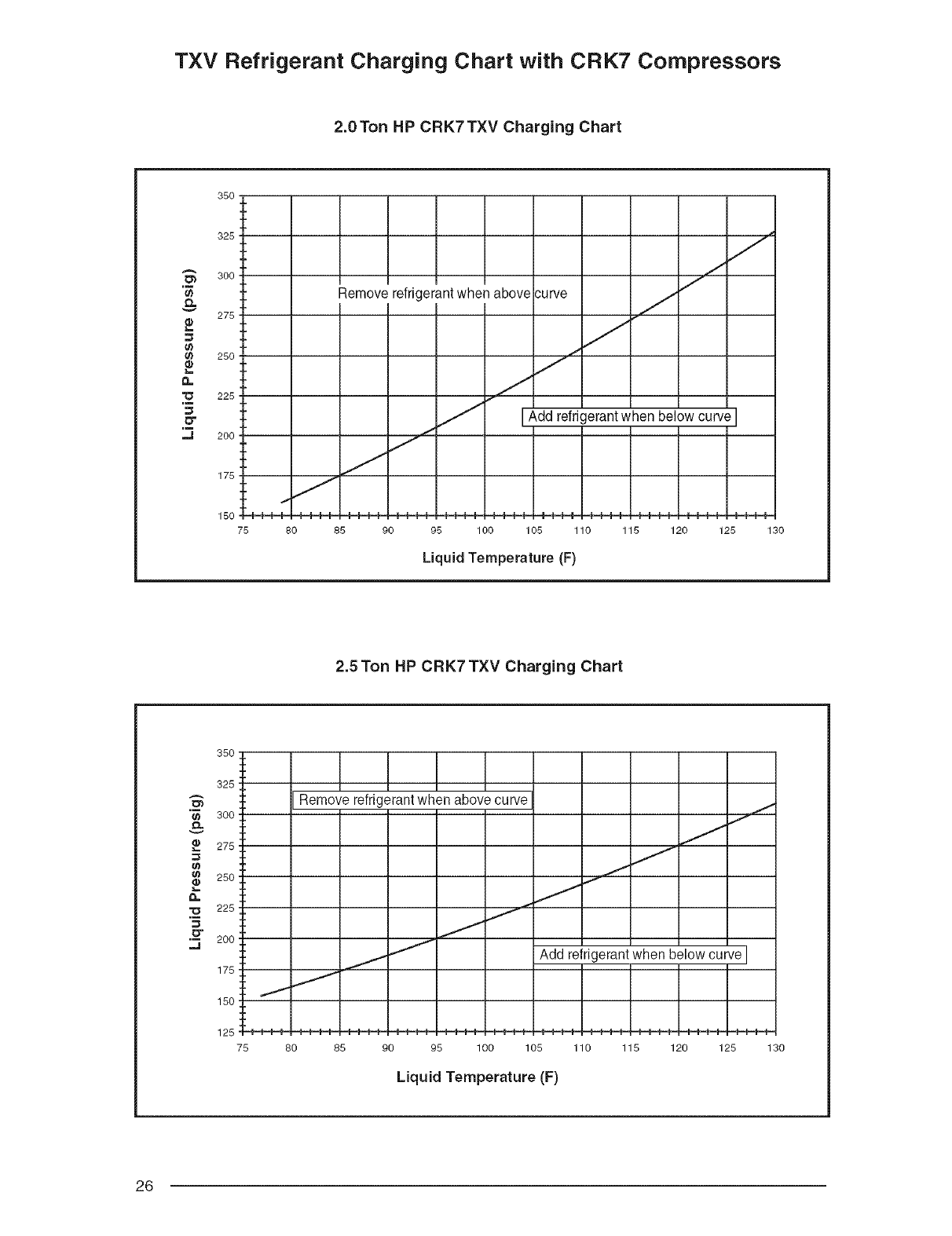

TXV Refrigerant Charging Chart with CRK7 Compressors

2.0Ton HP CRK7TXV Charging Chart

350

Q,,

.=J

325

3O0

275

250

225

200

175

150

Removerefrigerantwhen above 3urve j

J EAdd refrigerant When below curve]

80 85 90 95 100 105 110 115 120 125 130

Liquid Temperature (F)

2.5 Ton HP CRK7 TXV Charging Chart

350

325

.m 300

_ 275

250

225

._" 200

Remove refrigerant when above curve

175 _j_.._

150

125 _± _ _±_ 1_ • _ L_

75 80 85 90 95 100

Add refrigerantwhen below curve_

105 110 115 120 125 130

Liquid Temperature (F)

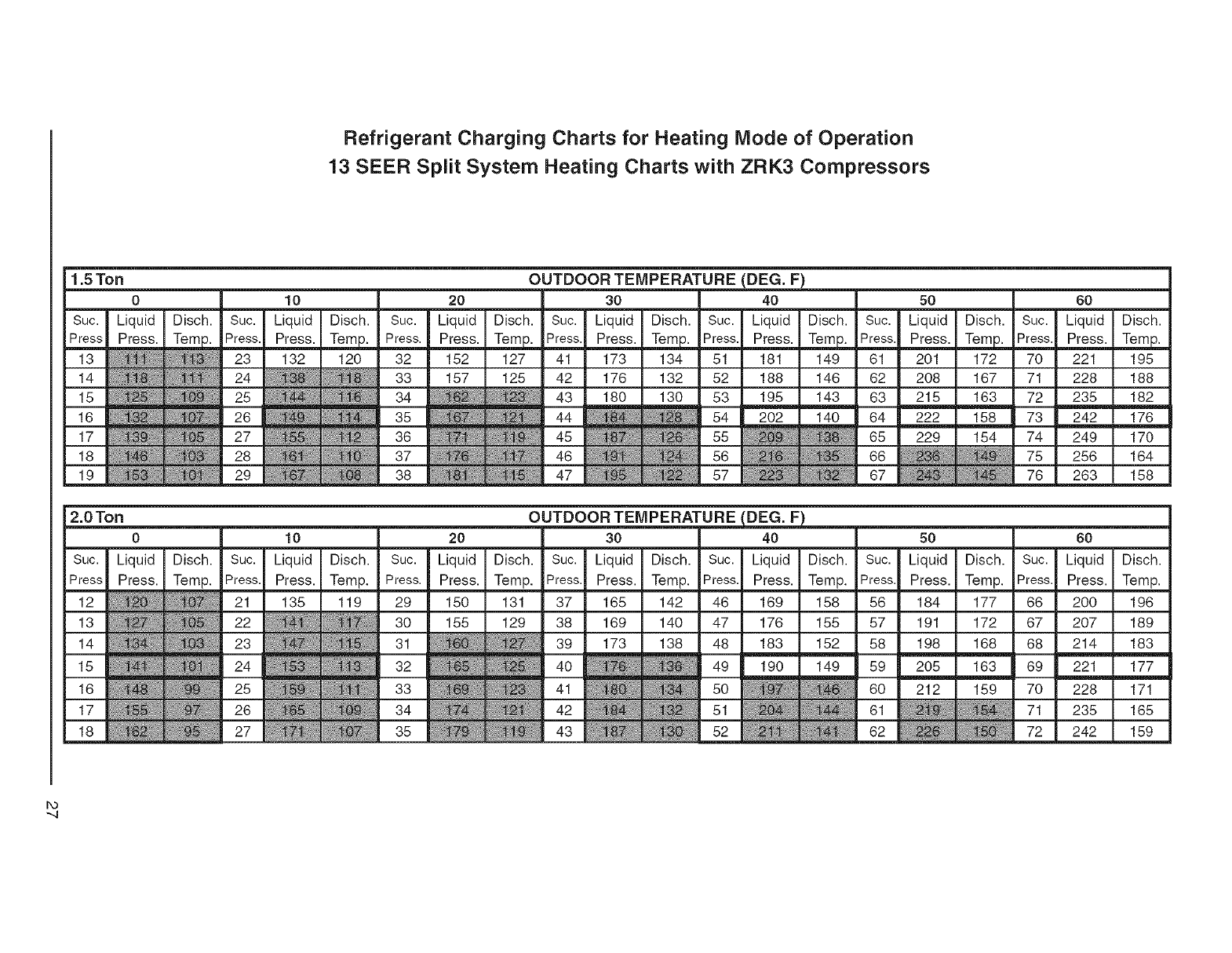

Refrigerant Charging Charts for Heating Mode of Operation

13 SEER Split System Heating Charts with ZRK3 Compressors

i 1.5 Ton

o10

OUTDOOR TEMPERATURE (DEG. F)

20 30 40 50 6O

2.0Ton

010

OUTDOOR TEMPERATURE

20 30 40 50 6O

r',o

,.,.,j

I'o

(3o Refrigerant Charging Charts for Heating Mode of Operation

13 SEER Split System Heating Charts with ZRK3 Compressors

2.5 Ton OUTDOOR TEMPERATURE (DEG. F)

0 10

Suc. I Liquid Disch. Suc.

Press.! Press. Temp. Press.

22 _ 137 119

14 23

30 138

31 1164 1127 140 1185 1136

32 41

33 42

34 43 52

20 30 40

I O,soh

Press. Temp. Press.! Press. Temp. Press. Press. Temp.

i 159 129 39 I 181 48 191 I 153

49 198 I 150

50 205 I 147

18 27 35 44 53

19 28 36 45 54

50 60

Suc. Liquid Disch. Suc. Liquid Disch.

Press Press. Temp. Press. Press. Temp.

56 211 174 65 230 196

57 218 170 66 237 190

58 225 165 67 244 183

59 232 161 68 251 177

60 239 157 69 258 171

61 70 265 165

62 71 272 159

3.0 Ton OUTDOOR TEMPERATURE (DEG. F)

10 20 30

Press!Press. I Temp. Press. ! Press. I Temp. Pres& ! Press. ! Temp.

22 I 136 I 125 31 _ 156 I 130 40 _ 176 I 136

Suc. Liquid

Press. Press.

Disch.

Temp.

151

Suc.

Press

49 183 59 175 68 218

14 23 32I 1511128I 41I 18oI1_ I 5o 19o11_8I 8o 208117o 89 225

42 32 I 51 61 215 I 166 70 232 187

43 _ 52 62 222 I 161 71 239 181

44 53 63 229 157 72 246 174

18 27 36 45 54 64 73 253 168

19 28 37 46 55 65 74 260 162

50 60

Liquid [ Disch. Suc. Liquid Disch.

Press.| Temp. Press. Press. Temp.

201 | 199

193

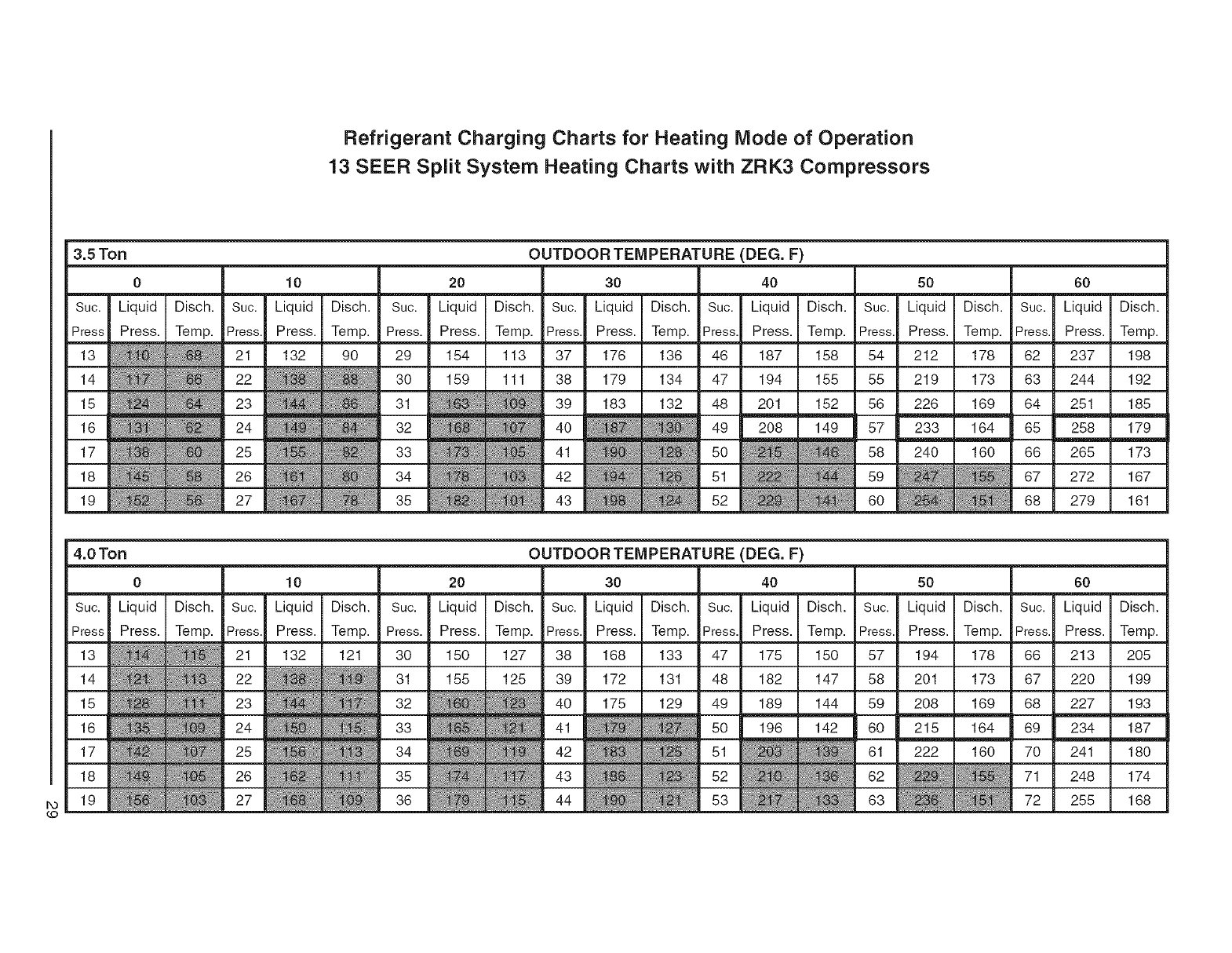

Refrigerant Charging Charts for Heating Mode of Operation

13 SEER Split System Heating Charts with ZRK3 Compressors

57 233

58 240

3.5Ton OUTDOORTEMPERATURE (DEG. F)

Diseh_. Suc'--m_ Disch-'--m'Suc_=_" Suc_-_" Suc. Liquid

Press. Temp. Press. Press. Temp. Press. Press. I Temp. Press. Press. ! Temp. Press Press. /

132 _0 2_ 1s4 113 37 1781138 48 187I 1s8j54 212! 178 82 237 1_8

,_ _ _oI ,5_I,,, I _ I 179 I,_ I 47 I 194 1155I 55 219 1173 63 244 192

58 228_ 8.....5_4251 185

65 258 179

I 160 66 265 173

67 272 167

Disch. Suc. Liquid Disch.

Temp. Press. Press. Temp.

19 27 35 43 52 60 68 279 161

IX)

t.o

4.0Ton

OUTDOOR TEMPERATURE (DEG. F)

10 20 30

P_ss! P_.!_mp.P_ss!P_.!_mp.Press.!Press.Temp.

21 I 132 I 121 30 I 15o I 127 38 I 168 I 133

131

40 50 60

.l-!

Suc. Liquid Disch. Suc. Liquid Disch. Suc. Liquid Disch.

Press.! Press. Temp. Press Press. Temp. Press. Press. Temp.

47 | 175 150 57 194 178 66 213 205

199173 67 220

169 68 227 193

164 69 234 187

160 70 241 180

71 248 174

72 255 168

48 I _ I 147 58 201

_ ! 18_I1_ 5_ 208

50 2 60 215

51 _ 61 222

52 62

53 63

oRefrigerant Charging Charts for Heating Mode of Operation

13 SEER Split System Heating Charts with ZRK3 Compressors

5.0Ton OUTDOOR TEMPERATURE (DEG. F)

10 20 30

Sue.

Press.

1481

ICJ II JI 8UC.

Press.

Liquid

Press

236

243

250

257

264

Suc. I

Press.I

65 I

66 I

67 I

68 I

69 I

7O I

71 I

Liquid

Press.

262

269

276

283

290

297

304

Disch.

Temp.

212

206

200

193

187

181

175

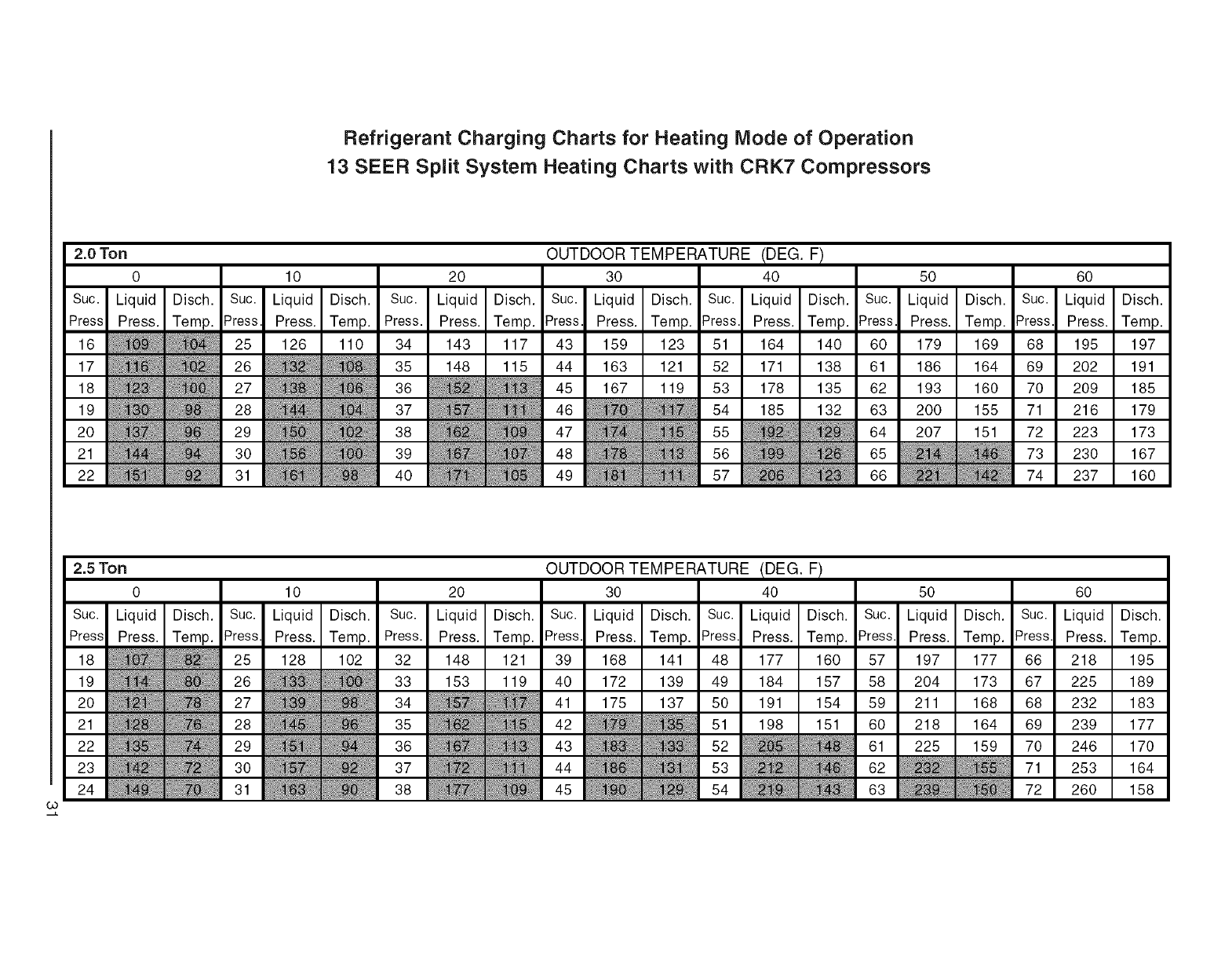

Refrigerant Charging Charts for Heating Mode of Operation

13 SEER Split System Heating Charts with CRK7 Compressors

2.0 Ton

0 10

OUTDOOR TEMPERATURE

20 30 40 50 60

2.5 Ton

0 10

OUTDOOR TEMPERATURE

20 30 40 50 60

iNSTALLER: PLEASE LEAVE

THESE iNSTALLATiON iNSTRUCTiONS

WiTH THE HOMEOWNER.

II 708452A

@We £n_urage

profess{onalfsm

ThroughTechnician

CedJf_cat_onby Nt_TE

708452A (Replaces 7084520)

Specifications and illustrations subject to change

without notice and without incurring obligations.

Printed in U.S.A. (02/06)

NORDYNE Air Conditioner/heat Pump(outside Unit) Manual L0611385

Navigation menu

Versions of this User Manual:

Views

Navigation
