NPG Display Branch NL1503 LCD Monitor User Manual 00Cover all p65
NPG Display Ltd Taiwan Branch LCD Monitor 00Cover all p65
users manual
MultiSync
User’s Manual
Bedienerhandbuch
Manual del usuario
Manuel Utilisateur
Manuale utente
00Cover_all.p65 2/26/02, 10:05 AM1
00Cover_all.p65 2/26/02, 10:05 AM2
TCO’99
l English TCO'99 document.
MultiSync Model
Congratulations! You have just purchased a TCO’99 approved and labeled
product! Your choice has provided you with a product developed for
professional use. Your purchase has also contributed to reducing the burden
on the environment and also to the further development of environmentally
adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging
the adaptation of goods and services to the environment. The main problem, as far as
computers and other electronics equipment are concerned, is that environmentally harmful
substances are used both in the products and during the manufacturing. Since it has not been
possible for the majority of electronics equipment to be recycled in a satisfactory way, most of
these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (Internal) and natural (external) environments.
Since all methods of conventional electricity generation have a negative effect on the
environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to
conserve energy. Electronics equipment in offices consume an enormous amount of energy
since they are often left running continuously.
What does labelling involve?
This product meets the requirements for the TCO’99 scheme which provides for international
and environmental labelling of personal computers. The labelling scheme was developed as a
joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens
Energimyndighet (The Swedish National Energy Administration).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of
electrical and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands concern restrictions on the presence and use of heavy metals,
brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among
other things. The product must be prepared for recycling and the manufacturer is obliged to
have an environmental plan which must be adhered to in each country where the company
implements its operational policy. The energy requirements include a demand that the computer
and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower
level in one or more stages. The length of time to reactivate the computer shall be reasonable
for the user.
Labelled products must meet strict environmental demands, for example, in respect of the
reduction of electric and magnetic fields, physical and visual ergonomics and good usability.
01b_English 2/26/02, 10:06 AM2
Environmental Requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In
turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can
consist of flame retardant substances. Most flame retardants contain bromine or chloride and
these are related to another group of environmental toxins, PCBs, which are suspected to give
rise to severe health effects, including reproductive damage in fisheating birds and mammals,
due to the bioaccumulative* processes. Flame retardants have been found in human blood and
researchers fear that disturbances in foetus development may occur.
TCO’99 demand requires that plastic components weighing more than 25 grams must not
contain flame retardants with organically bound chlorine and bromine. Flame retardants are
allowed in the printed circuit boards since no substitutes are available.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning.
TCO’99 requirement permits the inclusion of lead since no replacement has yet been
developed.
Cadmium**
Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses.
TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the
electrical or electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous
system and is toxic in high doses.
TCO’99 requirement states that batteries may not contain any Mercury. It also demands that no
mercury is present in any of the electrical or electronics components associated with the display
unit.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone
and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth
of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the
manufacturing and assembly of the product or its packaging.
*Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.
To obtain complete information on the environmental criteria document, order from:
TCO Development Unit
SE-114 94 Stockholm
SWEDEN
FAX Number: +46 8 782 92 07
E-mail (Internet): development@tco.se
You may also obtain current information on TCO’99 approved and labelled products by visiting
their website at:
http://www.tco-info.com/
01b_English 2/26/02, 10:06 AM3
TCO’95
MultiSync Model
Congratulations! You have just purchased a TCO’95 approved and labeled
product! Your choice has provided you with a product developed for
professional use. Your purchase has also contributed to reducing the burden
on the environment and also, to the further development of environmentally
adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging
the adaptation of goods and services to the environment. The main problem, as far as
computers and other electronics equipment are concerned, is that environmentally harmful
substances are used both in the products and during the manufacturing. Since it has not been
possible for the majority of electronics equipment to be recycled in a satisfactory way, most of
these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (Internal) and natural (external) environments.
Since all methods of conventional electricity generation have a negative effect on the
environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to
conserve energy. Electronics equipment in offices consume an enormous amount of energy
since they are often left running continuously.
What does labelling involve?
This product meets the requirements for the TCO’95 scheme which provides for international
and environmental labelling of personal computers. The labelling scheme was developed as a
joint effort by the TCO (The Swedish Confederation of Professional Employees),
Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The
National Board for Industrial and Technical Development in Sweden).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of
electrical and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands concern restrictions on the presence and use of heavy metals,
brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among
other things. The product must be prepared for recycling and the manufacturer is obliged to
have an environmental plan which must be adhered to in each country where the company
implements its operational policy. The energy requirements include a demand that the computer
and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower
level in one or more stages. The length of time to reactivate the computer shall be reasonable
for the user.
Labelled products must meet strict environmental demands, for example, in respect of the
reduction of electric and magnetic fields, physical and visual ergonomics and good usability.
TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional
Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and
NUTEK (The National Board for Industrial and Technical Development in Sweden).
01b_English 2/26/02, 10:06 AM4
Environmental Requirements
Brominated flame retardants
Brominated flame retardants are present in printed circuit boards, cables, wires, casings and
housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer
casing can consist of flame retardant substances. These are related to another group of
environmental toxins, PCBs, which are suspected to give rise to similar harm, including
reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes.
Flame retardants have been found in human blood and researchers fear that disturbances in
foetus development may occur.
TCO’95 demand requires that plastic components weighing more than 25 grams must not
contain organically bound chlorine and bromine.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning.
TCO’95 requirement permits the inclusion of lead since no replacement has yet been
developed.
Cadmium**
Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million)
of cadmium. The colourgenerating layers of display screens must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury
damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million)
of mercury. It also demands that no mercury is present in any of the electrical or electronics
components concerned with the display unit, except the back-light system.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing
of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer
in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent
increased risks of skin cancer (malignant melanoma).
The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during the
manufacturing of the product or its packaging.
*Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.
To obtain complete information on the environmental criteria document, order from:
TCO Development Unit
SE-114 94 Stockholm
SWEDEN
FAX Number: +46 8 782 92 07
E-mail (Internet): development@tco.se
You may also obtain current information on TCO’95 approved and labelled products by visiting
their website at:
http://www.tco-info.com/
01b_English 2/26/02, 10:06 AM5
Warning, Caution,Declaration......................................................................English-1
Contents.............................................................................................................English-2
Quick Start.......................................................................................................English-3

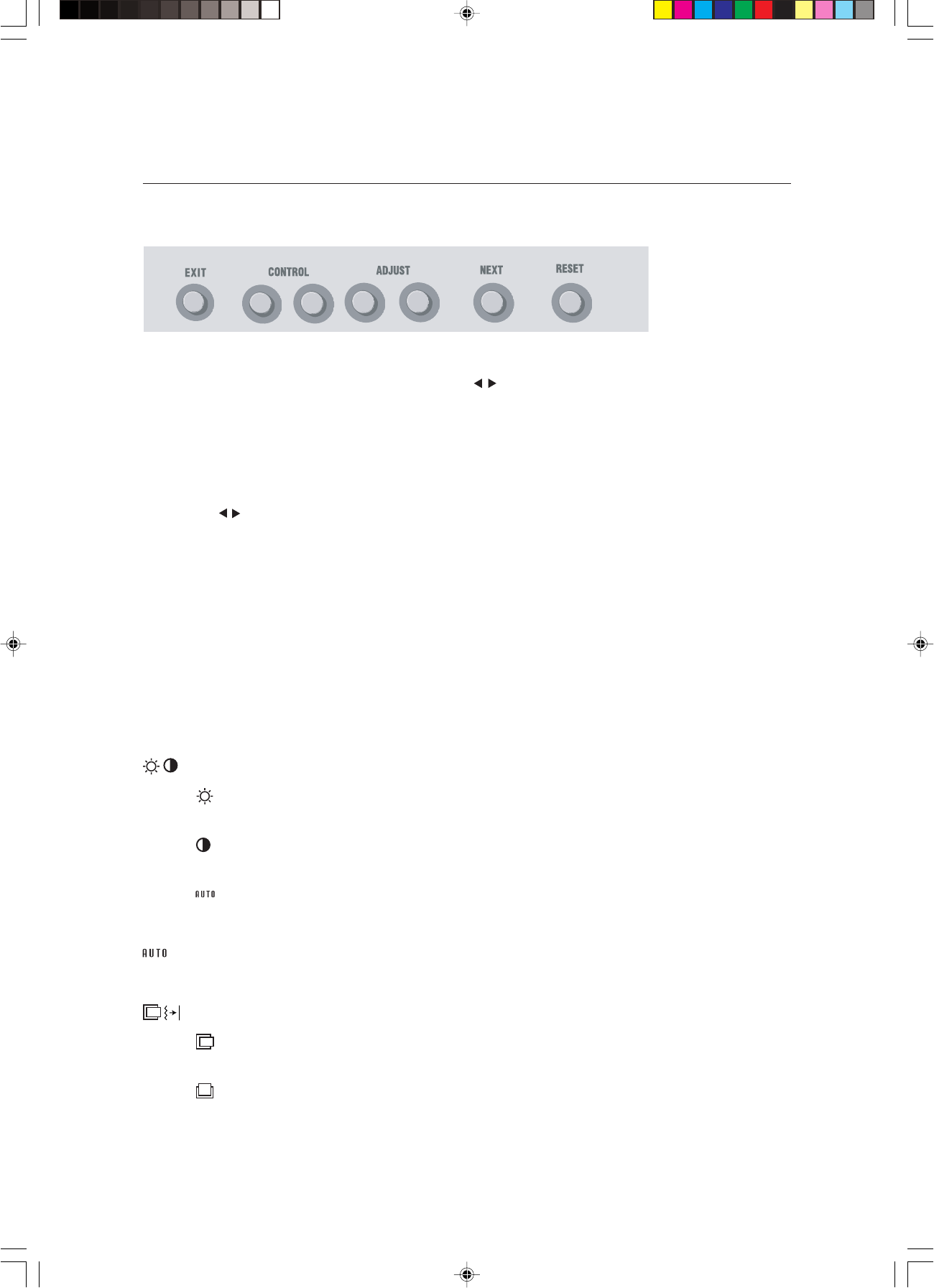

Controls.............................................................................................................English-7
Recommended Use........................................................................................English-11
Specifications................................................................................................English-13
Features.......................................................................................................... English-14
Troubleshooting ............................................................................................ English-15
Warnung, Vorsicht, Erklärung..................................................................... Deutsch-1
Inhalt...............................................................................................................Deutsch-2
Kurzanleitung................................................................................................Deutsch-3
Bedienelemente ............................................................................................Deutsch-7
Einsatzempfehlungen ................................................................................ Deutsch-11
Technische Daten........................................................................................Deutsch-13
Merkmale und Funktionen ........................................................................ Deutsch-14
Fehlerbehebung .......................................................................................... Deutsch-15
Advertencia, Peligro, Declaración...............................................................Español-1
Contenido ........................................................................................................ Español-2
Inic rápido ....................................................................................................... Español-3
Controles ......................................................................................................... Español-7
Uso recomendado ........................................................................................ Español-11
Especificaciones........................................................................................... Español-13
Características............................................................................................. Español-14
Solución de problemas................................................................................ Español-15
Avertissement, Attention, Déclaration ....................................................Français-1 .
Sommaire........................................................................................................Français-2
Mise en marche rapide ................................................................................Français-3
Commandes....................................................................................................Français-7
Conseils d,utilisation..................................................................................Français-11
Caractéristiques.........................................................................................Français-13
Fonctions ......................................................................................................Français-14
Dépannage....................................................................................................Français-15
Avvertenza, Attenzione,Dichiarazione......................................................Italiano-1
Contenuto .......................................................................................................Italiano-2
Guida rapida................................................................................................... Italiano-3
Controlli.......................................................................................................... Italiano-7
Uso consigliato .............................................................................................Italiano-11
Specifiche tecniche.....................................................................................Italiano-13
Caratteristiche.............................................................................................Italiano-14
Ricerca guasti...............................................................................................Italiano-15
Index
01b_English 2/26/02, 10:06 AM6
English
Deutsch
Español
Français
Italiano
01b_English 2/26/02, 10:06 AM7
Declaration
Declaration of the Manufacturer
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS
UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE
FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock.
Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been
included. Therefore, it should be read carefully in order to avoid any problems.
CAUTION
WARNING
RISK OF ELECTRIC SHOCK • DO NOT OPEN
Caution:
When operating the MultiSync with a 100-240V AC power source in Europe, use the power cord
provided with the monitor.
In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a
power cord is not supplied with this equipment please contact your supplier.
When operating the MultiSync with a 100-240V AC power source in Australia, use the power cord
provided with the monitor.
For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with
the safety standard of your particular country.
ENERGYSTA R is a U.S. trademark.
As an ENERGYSTAR ® Partner, NEC-Mitsubishi Electronics Display of America, Inc. has determined that this product meets the ENERGYSTA R
guidelines for energy efficiency. The ENERGYSTA R emblem does not represent EPA endorsement of any product or service.
IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of International Business Machines Corporation.
Apple and Macintosh are registered trademarks of Apple Computer Inc.
Microsoft and Windows are registered trademarks of the Microsoft Corporation.
NEC is a registered trademark of NEC Corporation.
All other trademarks or registered trademarks are property of their respective owners.
English-1
We hereby certify that the colour monitor
MultiSync
is in compliance with
Council Directive 73/23/EEC:
–EN 60950
Council Directive 89/336/EEC:
–EN 55022
–EN 61000-3-2
–EN 61000-3-3
–EN 55024
and marked with
NEC-Mitsubishi Electric Visual Systems, Corp.
MS Shibaura Bldg., 13-23,
Shibaura 4-chome,
Minato-Ku, Tokyo 108-0023, Japan
01b_English 2/26/02, 10:06 AM8
English
Contents

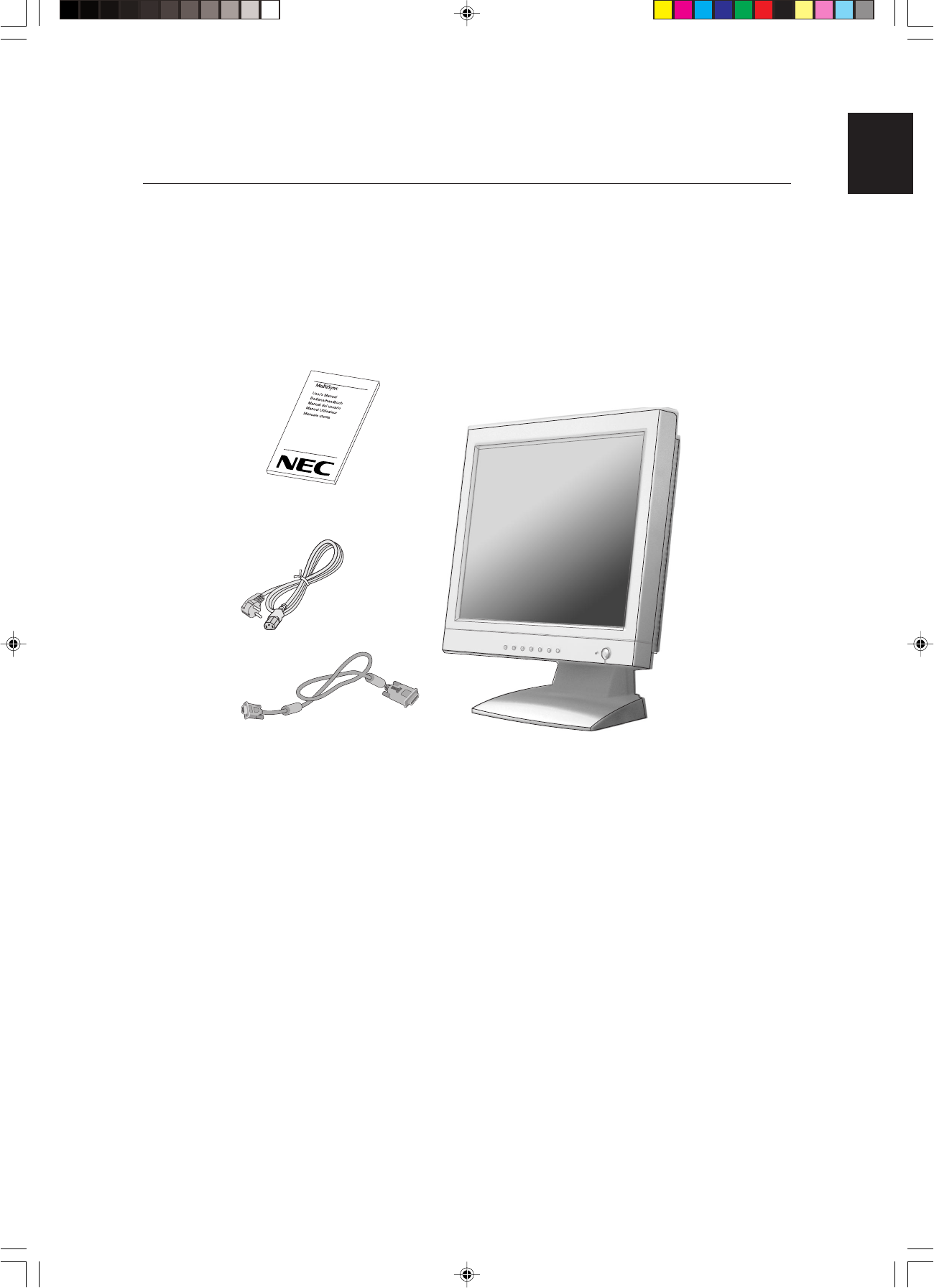

Your new NEC MultiSync LCD monitor box* should contain the following:
•MultiSync
monitor with tilt base
•Power Cord
•Video Signal Cable (15-pin mini D-SUB male to DVI-A)
•User’s Manual
User’s Manual
Video Signal Cable
(15-pin mini D-SUB male to DVI-A)
English-2
*Remember to save your original box and packing material to transport or ship the monitor.
Power Cord
01b_English 2/26/02, 10:06 AM9
Quick Start
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or Mac with DVI digital output: Connect the DVI-D to DVI-D signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to the
connector of the display card in your system (Figure A.2).
For the Mac: Connect the MultiSync Macintosh cable adapter to the computer (Figure B.1).
Attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter
(Figure B.1).
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Remove connector cover. Connect the DVI signal cable to the connector on the back of the
monitor. Place the video signal cable (Figure C.1).
Replace connector cover.
NOTE: Incorrect cable connections may result in irregular operation, damage display quality/
components of LCD module and/or shorten the module’s life.
4. Remove power cord cover. Connect one end of the power cord to the AC inlet on the back of
the monitor and the other end to the power outlet (Figure D.1). Replace the power cord
cover.
NOTE: Please refer to Caution section of this manual for proper selection of AC power cord
5. Press an arrow point “ ” portion with take off connector cover.
6. Check the Vacation Switch on the right hand side of the monitor is in the ON position. Turn on
the monitor with the Power Button (Figure E.1) and the computer.
NOTE: There are two switches: one on the right side and one on the front side of the monitor.
DO NOT switch on/off quickly.
7. To complete the setup of your MultiSync LCD monitor, use the following OSM controls:
•Auto Adjust Contrast (Analog input only)
•Auto Adjust (Analog input only)
Refer to the Controls section of this User’s Manual for a full description of these OSM controls.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s
Manual.

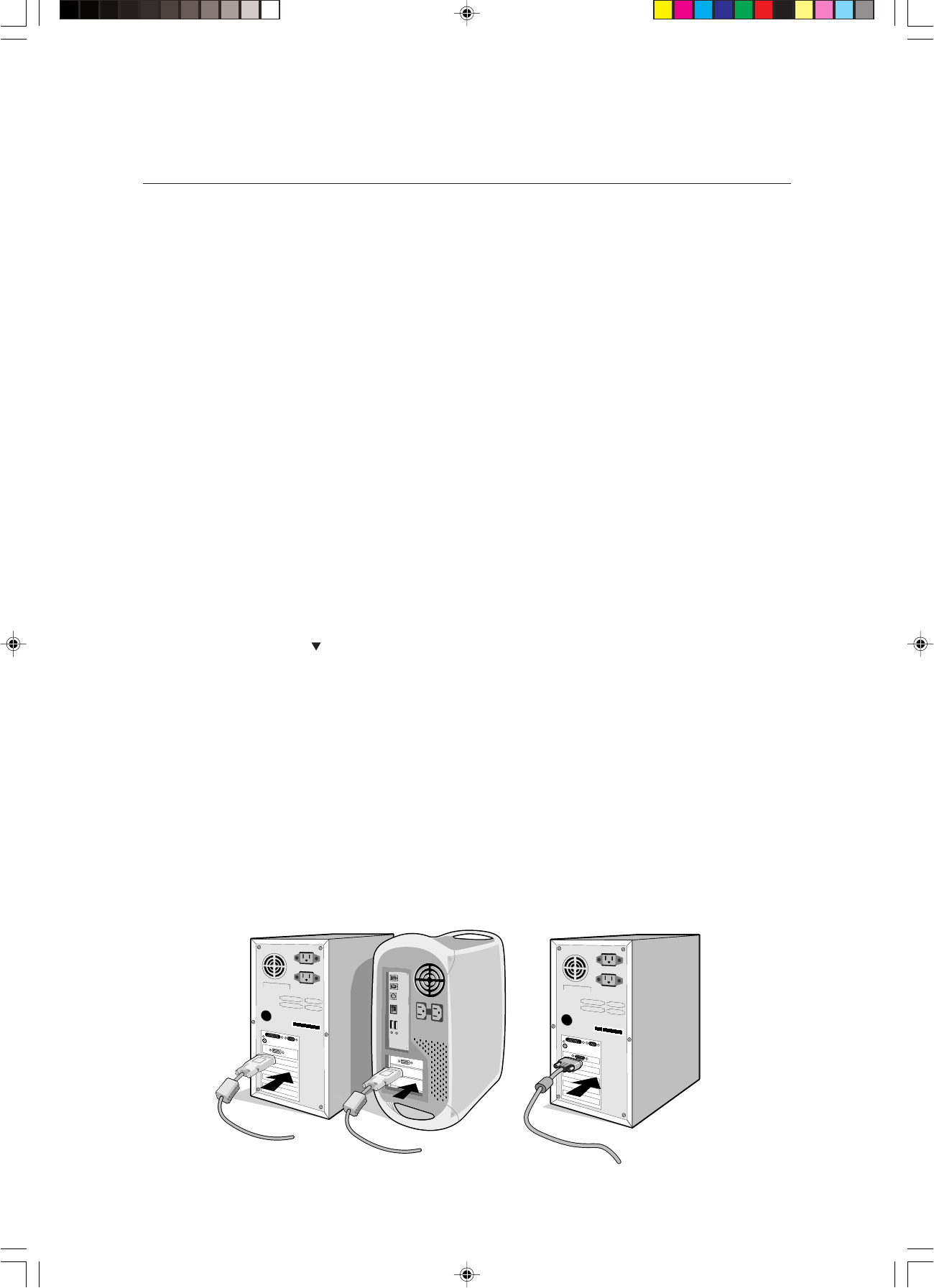

Figure A.1 Figure A.2
English-3
01b_English 2/26/02, 10:06 AM10
English

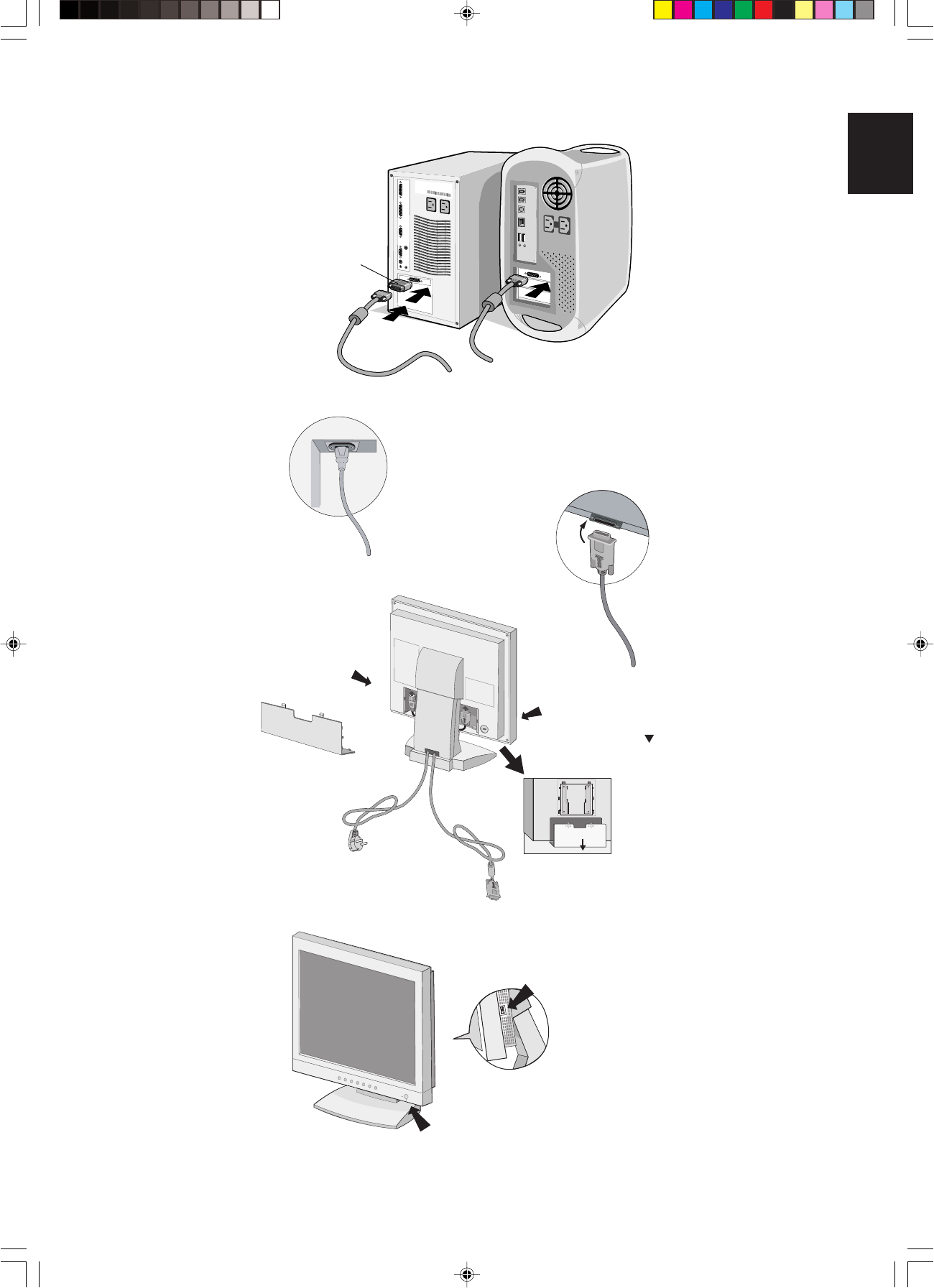

Figure B.1
Macintosh Cable
Adapter (not included)
Macintosh G3 and G4 do not
need a Macintosh cable adapter
Figure E.1
Input1
Input2
Vacation Switch
Power Button
Power Cord
Power Cord (EU)
Figure D.1
Figure C.1
Signal cable
Signal cable
Connector Cover
Press an arrow point “ ”
portion with take off connector
cover
English-4
01b_English 2/26/02, 10:06 AM11
Figure G.1
36mm

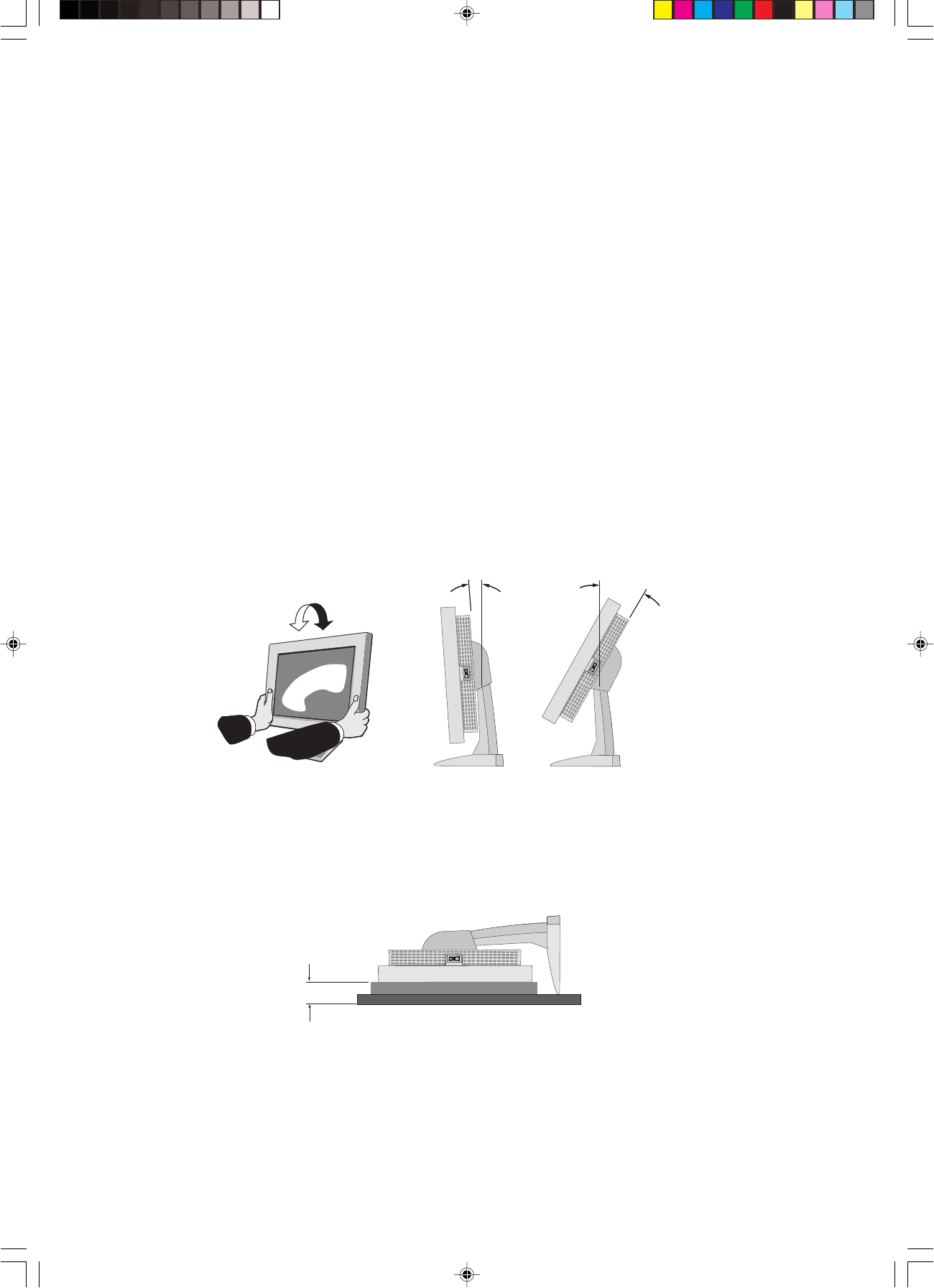

Figure F.1 Figure F.2
Tilt
Grasp both sides of the monitor screen with your hands and adjust the tilt as desired.
(Figure F.1).
The movable scope for elevation and depression of LCD is -5°~30°angle. (Figure F.2).
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place monitor face down on a non-abrasive surface (Place the screen on a 36 mm platform so
that the stand is parallel with the surface.) (Figure G.1).
3. To take off back cover, please follow the instructions of arrow while pressing two side of monitor.
(Figure G.2).
Next, lift up the stand, dismantle upper cover, then go on to dismantle the stand cover.
(Figure G.3).
Return the stand to its original position, remove the 4 screws that connect the monitor to the
stand, and lift off the stand assembly. (Figure G.4).
4. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
-5°30 °
English-5
01b_English 2/26/02, 10:06 AM12
English

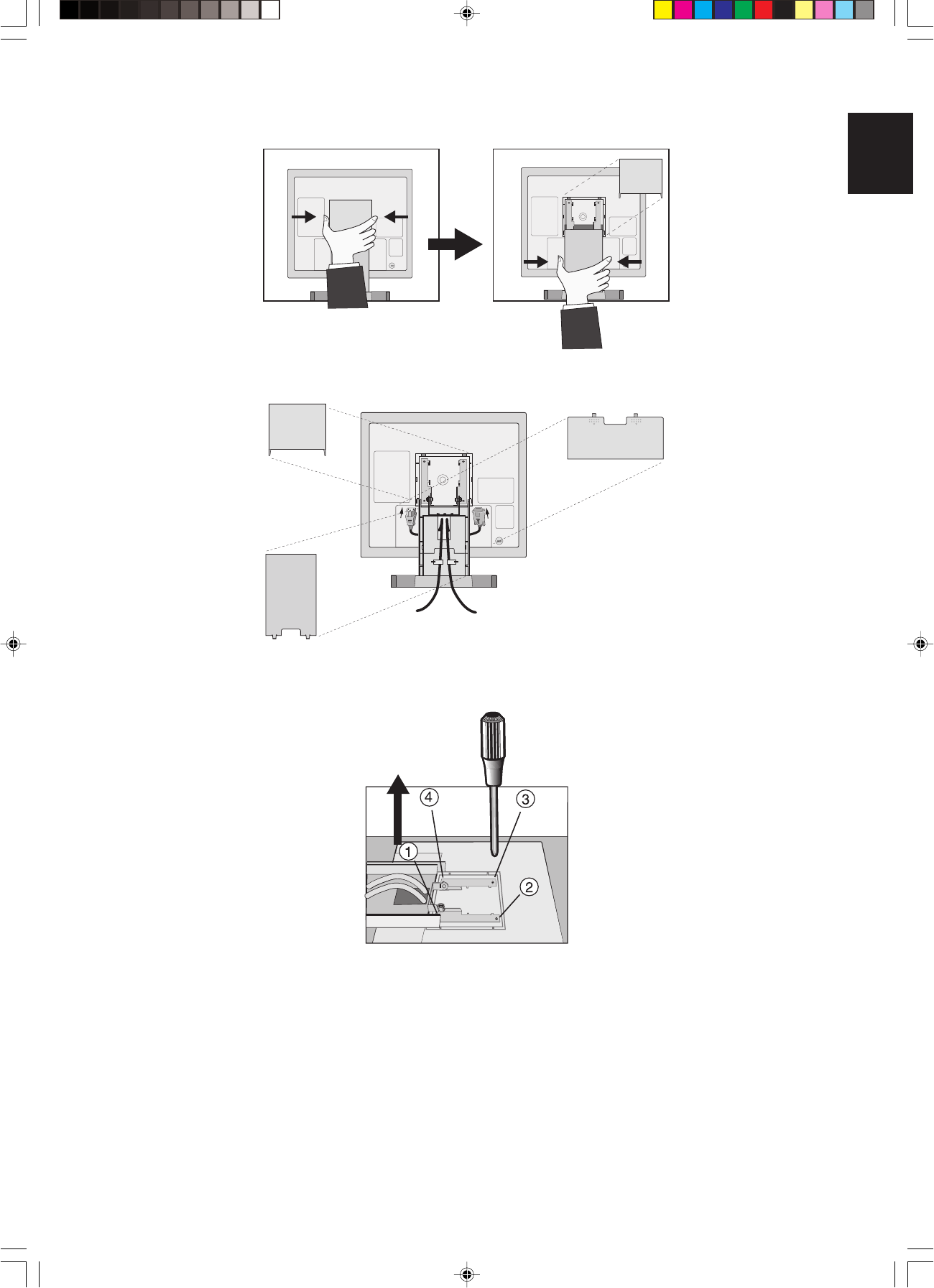

Figure G.2
Figure G.3
Caution: Please use the attached screws (4pcs) when mounting. To fulfil the safety
requirements the monitor must be mounted to an arm which guaranties the necessary
stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).
Figure G.4
English-6
01b_English 2/26/02, 10:06 AM13
Controls
OSM (On-Screen-Manager) Controls
The OSM controls on the front of the monitor function as follows:
To access OSM press any of the control buttons ( / , –, +).
To change DVI/D-SUB signal input, press the NEXT button.
NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear
allowing you to cancel the RESET function by pressing the EXIT button.
Brightness/Contrast Controls
BRIGHTNESS
Adjusts the overall image and background screen brightness.
CONTRAST
Adjusts the image brightness in relation to the background.
AUTO ADJUST (Analog input only)
Adjusts the image displayed for non-standard video inputs.
Auto Adjust (Analog input only)
Automatically adjusts the Image Position, the H. Size and Fine setting.
Position Controls (Analog input only)
LEFT/RIGHT
Controls Horizontal Image Position within the display area of the LCD.
DOWN/UP
Controls Vertical Image Position within the display area of the LCD.
English-7
Menu
Exits the OSM controls.
Exits to the OSM main menu.
Moves the highlighted area left/right to select control menus.
Moves the highlighted area up/down to select one of the controls.
Moves the bar left/right to increase or decrease the adjustment.
Activates Auto Adjust function.
Enter the sub menu.
Moves the highlighted area of main menu right to select one of the controls.
Resets the highlighted control menu to the factory setting.
Resets the highlighted control to the factory setting.
Control
EXIT
CONTROL /
ADJUST -/+
NEXT
RESET
01b_English 2/26/02, 10:06 AM14
English

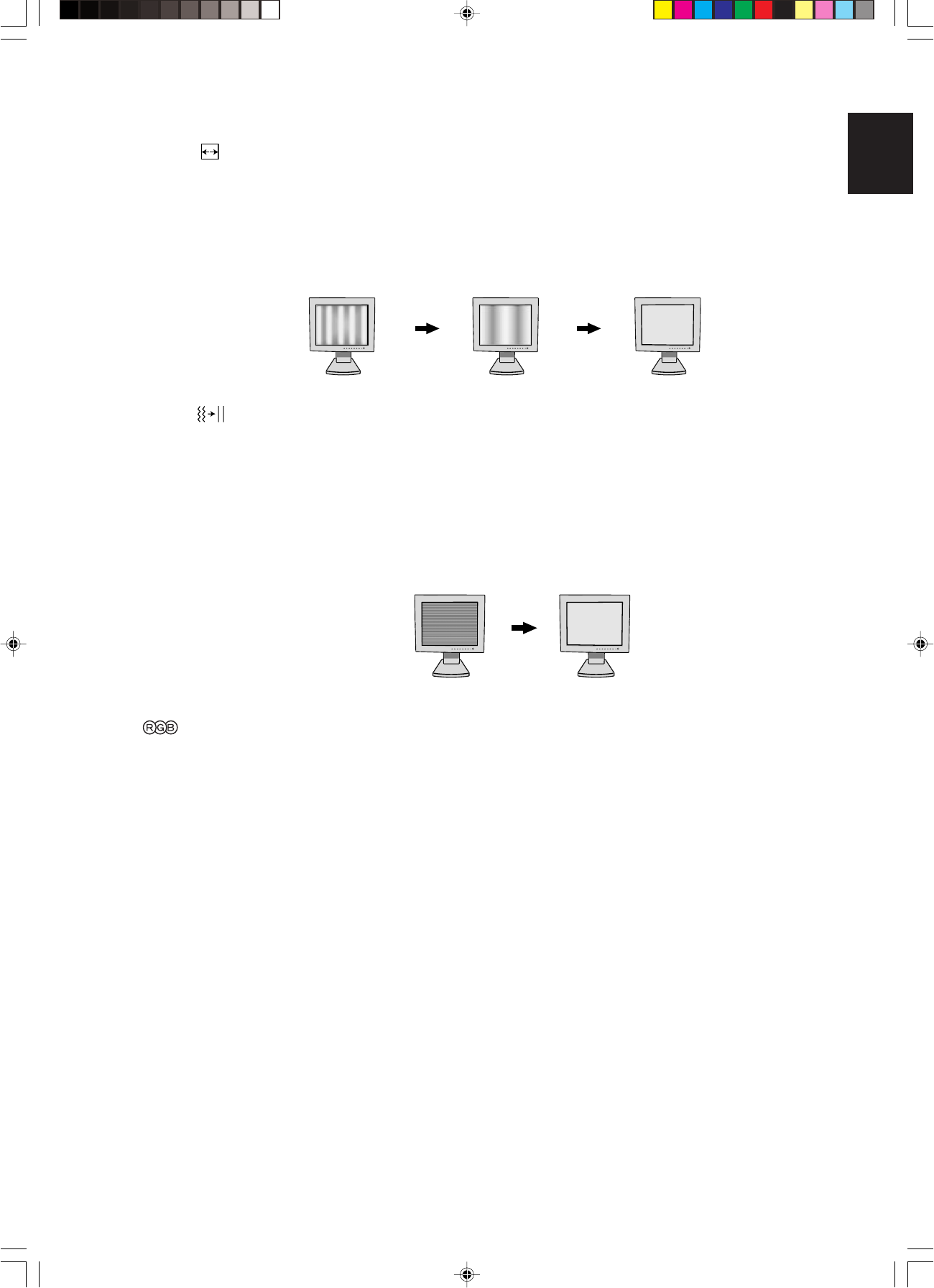

H. SIZE
Adjusts the horizontal size by increasing or decreasing this setting. Should the
“AUTO Adjust function” do not give you a satisfactory picture setting, a further
tuning can be performed using the “H.Size” function (dot clock). For this a Moiré
test pattern could be used. This function may alter the width of the picture. Use
left/Right Menu to center the image on the screen. If the H.Size is wrongly
calibrated, the result would look like on the left drawing. The image should be
homogeneous.
FINE
Improves focus, clarity and image stability by increasing or decreasing this
setting. Improves focus, clarity and image stability by increasing or decreasing
this setting. Should the “Auto Adjust function” and the “H.Size” function do not
give you a satisfactory picture setting, a fine tuning can be performed using the
“Fine” function. It improves focus, clearity and image stability by increasing or
decreasing this setting. For this a Moiré test pattern could be used. If the Fine
value is wrongly calibrated, the result would look like on the left drawing. The
image should be homogeneous.
Colour Control Systems
Six colour presets select the desired colour setting (sRGB and NATIVE colour
presets are standard and cannot be changed). Colour temperature increases or
decreases in each preset.
R,Y,G,C,B,M,S
Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and
Saturation depending upon which is selected. The change in colour will appear
on screen and the direction (increase or decrease) will be shown by the colour
bars.
sRGB
sRGB mode dramatically improves the colour fidelity in the desktop
environment by a single standard RGB colour space. With this colour supported
environment, the operator could easily and confidently communicate colours
without further colour management overhead in the most common situations.
NATIVE
Original colour presented by the LCD panel that is unadjustable.
When FINE value is wrong. When FINE value is correct.
When H.SIZE value is wrong. When H.SIZE value is improved. When H.SIZE value is correct.
English-8
01b_English 2/26/02, 10:06 AM15
Tools 1
SHARPNESS
This function is digitally capable to keep crisp image at any timings. It is
continuously adjustable to get distinct image or soft one as you prefer, and set
independently by different timings.
EXPANSION MODE
Sets the zoom method.
H-EXPANSION
The horizontal image is expanded to approximately 2 times.
V-EXPANSION
The vertical image is changeable.
DVI SELECTION
This function selects EDID Data for ANALOG signal or DIGITAL signal on the
DVI input.
When the DVI-D is connected to DVI, DVI Selection is recommended to be
selected to DIGITAL.
When the DVI-A is connected to DVI, DVI Selection is recommended to be
selected to ANALOG.
DIGITAL
EDID DATA for DVI DIGITAL input is available.
ANALOG
EDID DATA for DVI ANALOG input is available.
Tools 2
LANGUAGE
OSM control menus are available in seven languages.
OSM POSITION
You can choose where you would like the OSM control image to appear on your
screen. Selecting OSM Location allows you to manually adjust the position of
the OSM control menu left, right, down or up.
OSM TURN OFF
The OSM control menu will stay on as long as it is use. In the OSM Turn Off
submenu, you can select how long the monitor waits after the last touch of a
button to shut off the OSM control menu. The preset choices are 10, 20, 30, 45,
60 and 120 seconds.
OSM LOCK OUT
This control completely locks out access to all OSM control functions. When
attempting to activate OSM controls while in the Lock Out mode, a screen will
appear indicating the OSM controls are locked out. To activate the OSM Lock
Out function, press , then and hold down simultaneously. To de-activate the
OSM Lock Out, press , then and hold down simultaneously.
RESOLUTION NOTIFIER
This optimal resolution is 1024 x 768. If ON is selected, a message will appear
on the screen after 30 seconds, notifying you that the resolution is not at
1024 x 768.
English-9
01b_English 2/26/02, 10:06 AM16
English
FACTORY PRESET
Selecting Factory Preset allows you to reset all OSM control settings back to the
factory settings. Individual settings can be reset by highlighting the control to be
reset and pressing the RESET button.
Information
DISPLAY MODE
Provides information about the current resolution display and technical data
including the preset timing being used and the horizontal and vertical
frequencies.
Increases or decreases the current resolution. (Analog input only).
MONITOR INFO
Indicates the model and serial numbers of your monitor.
OSM Warning
OSM Warning menus disappear with Exit button.
NO SIGNAL: This function gives a warning when there is no Horizontal or
Vertical Sync Signal present and advises you to check all Video Inputs on the
monitor and computer to make sure they are properly connected. After power is
turned on or when there is a change of input signal or video is inactive, the No
Signal window will appear.
RESOLUTION NOTIFIER: This function gives a warning of use with optimized
resolution. After power is turned on or when there is a change of input signal or
the video signal doesn’t have proper resolution, the Resolution Notifier window
will open. This function can be disabled in the TOOL menu.
OUT OF RANGE: This function gives a recommendation of the optimized
resolution and refresh rate. After the power is turned on or there is a change of
input signal or the video signal doesn’t have proper timing, the Out Of Range
menu will appear.
NOTE: If “ CHANGE DVI SELECTION” is displayed, switch to DVI SELECTION.
English-10
01b_English 2/26/02, 10:06 AM17
Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN
SETTING UP AND USING THE MULTISYNC LCD COLOUR MONITOR:
•DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or
removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing
to qualified service personnel.
•Do not spill any liquids into the cabinet or use your monitor near water.
•Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage
points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
•Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
•Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,
causing serious damage to the monitor.
•Do not place any objects onto the monitor and do not use the monitor outdoors.
•The inside of the flourescent tube located within the LCD monitor contains mercury. Please follow
the bylaws or rules of your municipality to dispose of the tube properly.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
•When the power supply cord or plug is damaged.
•If liquid has been spilled, or objects have fallen into the monitor.
•If the monitor has been exposed to rain or water.
•If the monitor has been dropped or the cabinet damaged.
•If the monitor does not operate normally by following operating instructions.
•Do not bend power cord.
•Do not use monitor in high temperatured, humid, dusty, or oily areas.
•Do not cover vent on monitor.
•If monitor is broken, do not come in contact with the liquid crystal.
•If glass is broken. Handle with care.
•Allow adequate ventilation around the monitor so that heat can properly dissipate.
Do not block ventilated openings or place the monitor near a radiator or other
heat sources. Do not put anything on top of monitor.
•The power cable connector is the primary means of detaching the system from
the power supply. The monitor should be installed close to a power outlet which is
easily accessible.
•Handle with care when transporting. Save packaging for transporting.
CAUTION
English-11
01b_English 2/26/02, 10:06 AM18
English

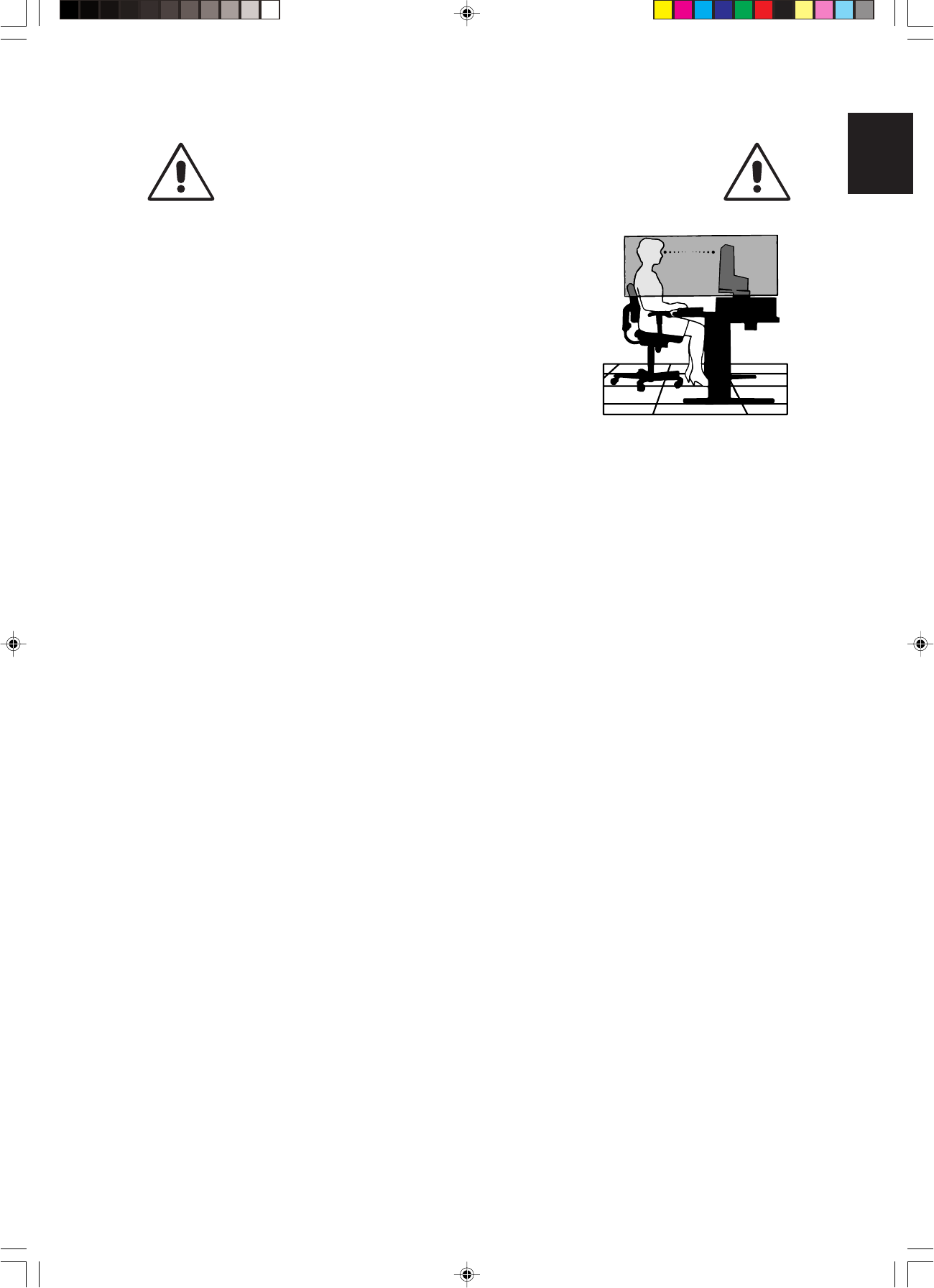

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN
REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
•For optimum performance, allow 20 minutes for warm-up.
•Adjust the monitor height so that the top of the screen is at or
slightly below eye level. Your eyes should look slightly downward
when viewing the middle of the screen.
•Position your monitor no closer than 40 cm and no further away
than 70 cm from your eyes. The optimal distance is 58 cm.
•Rest your eyes periodically by focusing on an object at least 6 m
away. Blink often.
•Position the monitor at a 90° angle to windows and other light
sources to minimize glare and reflections. Adjust the monitor tilt so
that ceiling lights do not reflect on your screen.
•If reflected light makes it hard for you to see your screen, use an antiglare filter.
•Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning
solution or glass cleaner!
•Adjust the monitor’s brightness and contrast controls to enhance readability.
•Use a document holder placed close to the screen.
•Position whatever you are looking at most of the time (the screen or reference material) directly
in front of you to minimize turning your head while you are typing.
•Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence
(after-image effects).
•Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
•Use the preset Size and Position controls with standard signals.
•Use the preset Colour Setting.
•Use non-interlaced signals with a vertical refresh rate between 60-75 Hz.
•Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye
fatigue to insufficient contrast.
English-12
01b_English 2/26/02, 10:06 AM19
16,777,216
30 kHz to 60 kHz
50 Hz to 75 Hz
640 x 480 at 60 Hz to 75 Hz*1
720 x 400 at 70 Hz*1
800 x 600 at 56 Hz to 75 Hz*1
832 x 624 at 75 Hz*1
1024 x 768 at 60 Hz to 75 Hz*2
304 mm/12.0 inches
228 mm/9.0 inches
AC 100-240 V, 50-60 Hz
1 A @ 100-240 V
Monitor Specifications (NL1502)
LCD Module Diagonal:
Viewable Image Size:
Native Resolution (Pixel Count):
Display Colours Analog input:
Synchronization Range Horizontal:
Vertical:
Resolutions Supported Landscape:
Active Display Horizontal:
Area (Lanscape) Vertical:
Power Supply
Input Signal Video:
Sync:
Current Rating
MultiSync Monitor
38 cm/15 inches
38 cm/15 inches
1024 x 768
DVI-I (TMDS)
Separate sync.TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Compostite sync. Positive/Negative
Notes
Active matrix; thin film transistor
(TFT) liquid crystal display (LCD);
0.297 mm dot pitch;
300cd/m2 white luminence, typical;
450:1 contrast ratio, typical
Depends on display card
used.
Automatically
Automatically
Some systems may not
support all modes listed.
Dependent upon signal
timing used, and does not
include border area.
Specifications
Viewing Angle Left/Right:
Up/Down:
± 75°
-60° to + 50°
DVI Digital Input TMDS, 80 MHz max., Single Link
350.5 mm (W) x 362.1 mm (H) x 160.7 mm (D)
13.8 inches (W) x 14.3 inches (H) x 6.3 inches (D)
Dimensions Landscape:
Image Formation Time 25ms (Typ.) tr=6 ms,tf=19 ms
5 °C to 35 °C
30% to 80%
0 to 3,050 m
-20 °C to +60 °C
10% to 85%
0 to 14,000 m
Weight
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
4.8 kg (10.6 lbs)
*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear
different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In
flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the
resolution must be done.
*2 NEC-Mitsubishi Electronics Display cites recommended resolutions at 75 Hz for optimal display performance.
NOTE: Technical specifications are subject to change without notice.
English-13
01b_English 2/26/02, 10:06 AM20
English
Features
sRGB Colour Control: A new optimized colour management standard which allows for colour
matching on computer displays and other peripherals. The sRGB, which is based on the
calibrated colour space, allows for optimal colour representation and backward compatibility with
other common colour standards.
Reduced Footprint: Provides the ideal solution for environments requiring superior image
quality but with size and weight limitations. The monitor’s small footprint and low weight allow
it to be moved or transported easily from one location to another.
Colour Control System: Allows you to adjust the colours on your screen and customize the
colour accuracy of your monitor to a variety of standards.
OSM (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of
your screen image via simple to use on-screen menus.
ErgoDesign Features: Enhance human ergonomics to improve the working environment,
protect the health of the user and save money. Examples include OSM controls for quick and
easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance
with MPRII and TCO guidelines for lower emissions.
Plug and Play: The Microsoft solution with the Windows 95/98/2000 operating system facilitates
setup and installation by allowing the monitor to send its capabilities (such as screen size and
resolutions supported) directly to your computer, automatically optimizing display performance.
IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that
allow the monitor to shift to a lower power consumption level when on but not in use, saving two-
thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs
of the workplace.
Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning
frequency, thus displaying the resolution required.
FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly
expanding image size.
Wide Viewing Angle Technology: Allows the user to be able to see the monitor from any angle
(±75° degrees) from any orientation – Portrait or Landscape. Provides full ±75° viewing angles
either up, down, left or right.
VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to any
VESA standard (75 mm pitch) third party mounting arm or bracket. Allows for the monitor to be
mounted on a wall or an arm using any third party compliant device.
DVI-I: The intergrated interface ratified by the Digital Display Working Group (DDWG) that
allows both digital and analog connectors through one port. The “I” stands for intergration for
both digital and analog. The digital portion is TMDS based.
DVI-D: The digital only subset of DVI ratified by the Digital Display Working Group (DDWG) for
digital connections between computers and displays. As a digital only connector, analog support
is not provided for through a DVI-D connector. As a TMDS based digital only connection, only a
simple adapter is necessary for compatibility between DVI-D and other TMDS based digital
connectors such as DFP and P&D.
DVI-A: The analog only subset of DVI ratified by the Digital Display Working Group (DDWG) for
analog connections between computers and displays. As an analog only connector, digital
support is not provided for through a DVI-A and/or a D-Sub 15pin connector.
P&D: Plug and Display - The VESA standard for digital flat panel monitor interfaces. It is more
robust than DFP since it allows for other options through a single connector (options like USB,
analog video and IEEE-1394-995). The VESA committee has recognized that DFP is a subset
of P&D. As a TMDS based connector (for the digital input pins), only a simple adapter is
necessary for compatibility between P&D and other TMDS based digital connectors such as DVI
and DFP.
English-14
01b_English 2/26/02, 10:06 AM21
Troubleshooting
No picture
•The signal cable should be completely connected to the display card/computer.
•The display card should be completely seated in its slot.
•Check the Vacation Switch should be in the ON Position. Front power Switch and computer
power switch should be in the ON position.
•Check to make sure that a supported mode has been selected on the display card or system
being used. (Please consult display card or system manual to change graphics mode.)
•Check the monitor and your display card with respect to compatibility and recommended
settings.
•Check the signal cable connector for bent or pushed-in pins.
•Check the signal input.
Power Button does not respond
•Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.
•Check the Vacation Switch on the right hand side of the monitor.
Image persistence
•Image persistence is when a “ghost” of an image remains on the screen even after the
monitor has been turned off. Unlike CRT monitors, LCD monitors’ image persistence is not
permanent. To alleviate image persistence, turn the monitor off for as long as an image was
displayed. If an image was on the monitor for one hour and a “ghost” of that image remains,
the monitor should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC-Mitsubishi Electronic Displays recommends
using a screen saver at regular intervals whenever the screen is idle.
Image is unstable, unfocused or swimming is apparent
•Signal cable should be completely attached to the computer.
•Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing
the fine total. When the display mode is changed, the OSM Image Adjust settings may need
to be readjusted.
•Check the monitor and your display card with respect to compatibility and recommended
signal timings.
• If your text is garbled, change the video mode to non-interlace and use 75 Hz refresh rate.
Message “OUT OF RANGE” is displayed (screen is either blank or
shows rough images only)
•Image is displayed only roughly (pixels are missing) and OSM warning “OUT OF RANGE” is
displayed: Either signal clock or resolution is too high. Choose one of the supported modes.
•OSM warning “OUT OF RANGE” is displayed on a blank screen: Signal frequency is out of
range. Choose one of the supported modes.
LED on monitor is not lit (no green or amber colour can be seen)
•Power Switch should be in the ON position and power cord should be connected.
English-15
01b_English 2/26/02, 10:06 AM22
English
Display image is not sized properly
•Use the OSM Image Adjust controls to increase or decrease the Coarse total.
•Check to make sure that a supported mode has been selected on the display card or system
being used. (Please consult display card or system manual to change graphics mode.)
No Video
•If no video is present on the screen, turn the Power button off and on again.
•Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).
English-16
