QUICK START GUIDE
LET’S GET STARTED!
IN THE BOX CHARGE CHARGE INDICATORS
IQbuds – Left & Right
Close the case lid to charge IQbuds.
Connect the case to a USB power
source to charge case and buds.
Time to fully charge earbuds: 1.5
hours. Time to fully charge case:
2.5 hours.
Place earbuds in case.
NOTE: The left and right earbuds
can go in either slot in the charger.
With the lid closed and pressing the
front button for longer than 2 seconds
(“long press”) displays the main battery
charge status on the front LEDs for 5
seconds. 4 green lights means the case
is fully charged.
NOTE: “Short press” displays earbud
charging status, “long press” displays
case charging status.
When you close the lid, the earbud
charge status displays for 5 seconds then
switches o. Pressing the front button
for 2 seconds (“short press”) displays
the earbud charge status for another 5
seconds. Opening the lid displays the
earbud charge status on the inner LEDs
for 5 seconds. Red lights indicate charge
in progress. Two green lights mean they
are fully charged.
STEP 1 STEP 2Charging/Carrying Case
Earbuds Charging Case
Ear Tips
USB Cord
L
IQbud charge in progress
IQbud fully charged
Front
Button
100%
75%
50%
25%
FIT GET THE APP CONTROLS
STEP 1 STEP 2 STEP 3
Try dierent sizes to
get the best fit. The
ear tip should seal the
ear to deliver the best
music quality and noise
reduction.
Rotate bud toward the
back of your head. Bud
should be seated snugly
within the ear at a slight
angle.
PAIR WITH YOUR DEVICE
Insert bud with tip down. Left tap-touch sensor Right tap-touch sensor
MUSIC PHONE CALL ENVIRONMENT
RIGHTLEFT
Tap
Double
Tap
Long
Tap
5s Very
Long Tap
Tap
Double
Tap
Long
Tap
5s Very
Long Tap
Play/pause
Activate Siri /
Google Now
Activate Pairing
Mode
Toggle SINC on/o
Activate Siri/Google
Now
Switch Location
Profile
Activate Pairing
Mode
© 2016 Nuheara Inc. All rights reserved. Nuheara, IQbuds™ and SINC™ Technology are trademarks of Nuheara Inc.
DOC1000001 REV01
Answer Call
Reject /
Hang up Call
More Information
SUPPORT
www.nuheara.com/support
WARRANTY
www.nuheara.com/warranty
REGISTER
www.nuheara.com/register
SAFETY INFORMATION
www.nuheara.com/safety
MANUAL
www.nuheara.com/manual
TERMS & CONDITIONS
www.nuheara.com/terms
RETURN POLICY
www.nuheara.com/return-policy
CONNECT WITH US
STEP 1
Remove IQbuds from charge case.
STEP 2
Put on IQbuds.
STEP 3
Press and hold tap-touch sensor
for 5 seconds. IQbuds will play a
notification sound.
STEP 4
You can now pair with your device.
Project #
Name:
AW Description:
Other:
Veritiv Design P/N:
Veritiv AW P/N:
Customer P/N:
Customer AW P/N:
ECO#:
Printing Method:
PHX-21892050-01-PPR-3
Nuheara IQbuds

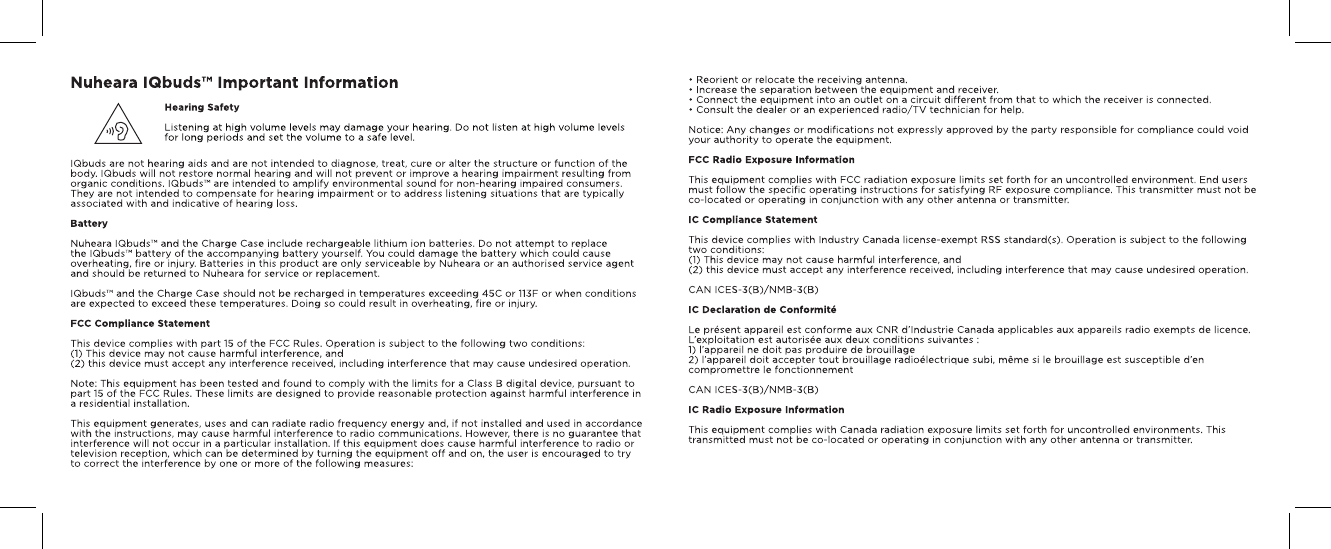

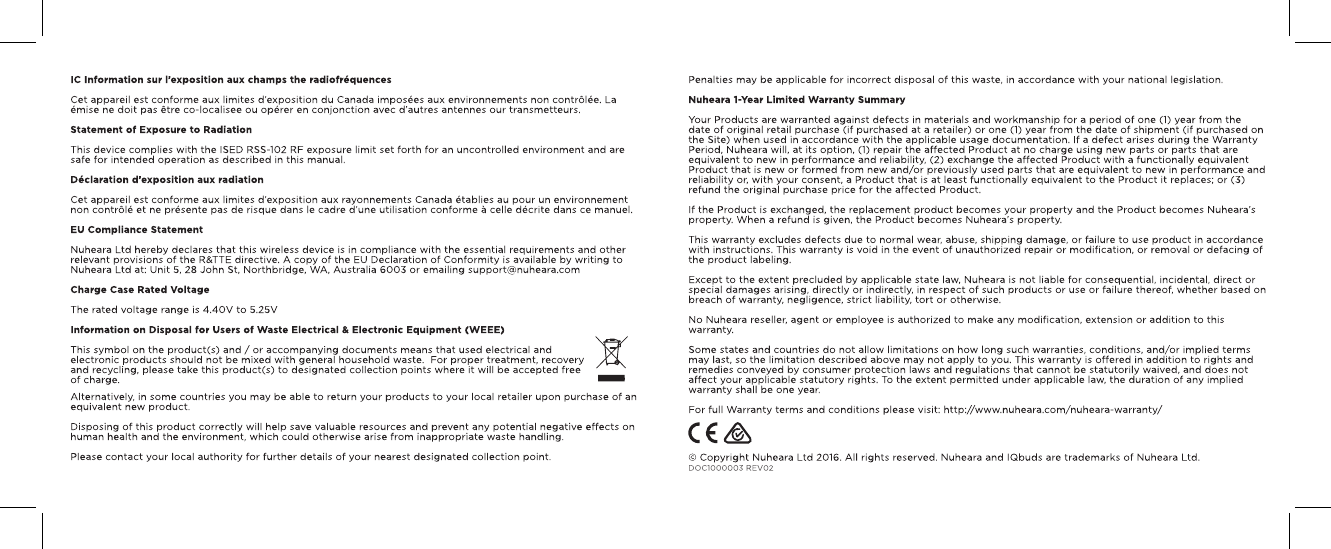

Regulatory Insert
