NVIDIA E1729 NB106-N NGFF WWAN MODULE User Manual revision3

NVIDIA Corporation NB106-N NGFF WWAN MODULE revision3

Contents

user manual revision3

DS028 | April 13, 2014
NVIDIA CONFIDENTIAL | Prepared and Provided Under NDA
Datasheet
NVIDIA NB106-N NGFF WWAN
MODULE SUMMARY DATASHEET
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| ii
DOCUMENT CHANGE HISTORY
DS028
Version Date Authors Description of Change
1.0 24 Mar 2014 shixiangc Initial release
1.1 25 Mar 2014 shixiangc New photo with IC number for Figure 3
1.2 13 Apr 2014 shixiangc New photo for Figure 3, re-wording Section
1.2.2, and added Appendix on test antenna
1.3 29 Apr 2014 shixiangc New photo for Figure 2, new introduction and
new gain figures in Appendix on test antenna
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| iii
TABLE OF CONTENTS
1.0
NVIDIA NB106-N NGFF WWAN MODULE ...................................................... 4
1.1
General features ................................................................................................ 4
1.2
Statements ...................................................................................................... 7
Federal Communications Commission (FCC) Statements ............................................ 7
1.2.1
Industry Canada (IC) Statements ....................................................................... 8
1.2.2
1.3
Product images ................................................................................................. 9
APPENDIX A: ANTENNA USED IN NB106-N WWAN MODULE FCC AND IC TESTS ...... 10
LIST OF FIGURES
Figure 1: Module mechanical drawing based on PCIe M.2 Type 3042 specification ...... 5
Figure 2: NVIDIA NB106-N module top view ................................................... 9
Figure 3: NVIDIA NB106-N module bottom view .............................................. 9
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028 | 4
1.0 NVIDIA NB106-N NGFF WWAN MODULE
NVIDIA NB106-N NGFF WWAN module is a 2G/3G/4G mobile broadband data-only
module. It is primarily designed for North and Latin America, but can also be used in other
parts of the world. It is in PCIe M.2 form factor and will be powered by batteries.
1.1 GENERAL FEATURES
LTE FDD : Band 2/4/5/7/17
DC-HSPA+/HSPA+/HSPA/UMTS: Band 1/2/4/5
GSM/GPRS/EDGE: 1900/1800/900/850 MHz
LTE DL 2*2 MIMO
Receive diversity in all DC-HSPA+/HSPA+/LTE bands
Transmit Power:
LTE: +23dBm (3GPP TS 36.101 R8 Power Class 3)
DC-HSPA+/HSPA+: +23dBm (3GPP TS 34.121 Power Class 3)
EDGE 900M/850MHz: +26dBm (3GPP TS 45.005 Power Class E2)
EDGE 1900MHz/1800MHz: +25dBm (3GPP TS 45.005 Power Class E2)
GSM/GPRS 900M/850MHz: +32dBm (3GPP TS 45.005 Power Class 4)
GSM/GPRS 1900MHz/1800MHz: +29dBm (3GPP TS 45.005 Power Class 1)
AT commands:
3GPP TS 27.007 and 27.005
NVIDIA proprietary AT commands
Power supply:
Release Notes
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| 5
3.2 V to 4.6V
Temperature range:
-10°C to 55°C
Dimensions:
PCIe M.2 Type 3042 form factor
42 mm x 30 mm x 2.3 mm

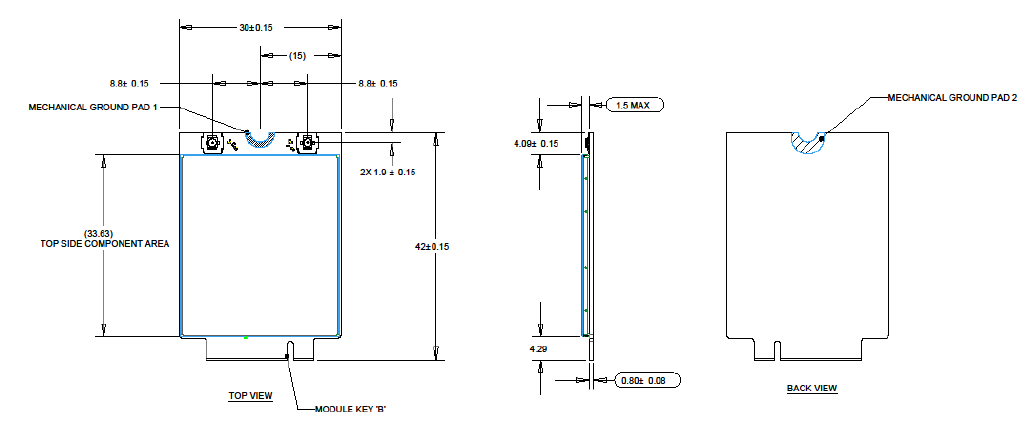

Figure 1: Module mechanical drawing based on PCIe M.2 Type 3042
specification
Weight: 6g
USB driver:
CDC-ACM
CDC-NCM
MBIM
Data Features:
LTE UL (50 Mbps)/DL (100 Mbps) (CAT3)
DC-HSPA+ :UL (5.76 Mbps)/DL (42 Mbps)
HSPA+ :UL (5.76 Mbps)/DL (21 Mbps)
WCDMA PS: UL (384 kbps)/ DL (384 kbps)
EDGE: UL (236.8 kbps)/ DL (236.8 kbps)
GPRS: UL (85.6 kbps)/ DL (85.6 kbps)
Release Notes
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| 6
SMS
MO / MT PDU mode
Location based services
eCID
SUPL2.0 (requires 3rd party SW & HW platform integration)
Additional features
SAR sensor: 2 proximity sensors are supported for PA power backoff
SIM hot-plug
Interface
PCIe M.2 75 pins
HSIC or USB data interface
2 Antenna ports (main and diversity):
-- 50 Ohm low profile standard MHF4 coaxial connectors per PCIe M.2 spec
SIM card interface (1.8/3.0V) plus SIM detect signal line
SAR GPIO
OC (over current notification)
I2S for audio
GPIOs
Power supply
Reset
Approval and Certifications
FCC
Industry Canada
PTCRB
RoHS Compliant
Release Notes
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| 7
1.2 STATEMENTS
Federal Communications Commission (FCC) Statements
1.2.1
Federal Communications Commission (FCC) Statements:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including any interference that may cause undesired
operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Warning: The FCC requires that you be notified that any changes or modifications to
this device not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
This Transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Only those antennas with same type and lesser gain filed under this FCC ID number can be
used with this device.
The final system integrator must ensure there is no instruction provided in the user manual
or customer documentation indicating how to install or remove the transmitter module.
Release Notes
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| 8
Required end product labeling:
Any device incorporating this module must include an external, visible, permanent marking
or label which states: “Contains FCC ID: VOB-E1729.”
Industry Canada (IC) Statements
1.2.2
Industry Canada (IC) Statements:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.
Déclaration d'exposition aux radiations:
Cet appareil est conforme aux limites d'exposition aux rayonnements définies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance
minimale de 20 centimètres entre le radiateur et votre corps.
Required end product labeling:
Any device incorporating this module must include an external, visible, permanent marking
or label which states: “Contains IC:7361A-E1729.”
Release Notes
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| 9
1.3 PRODUCT IMAGES

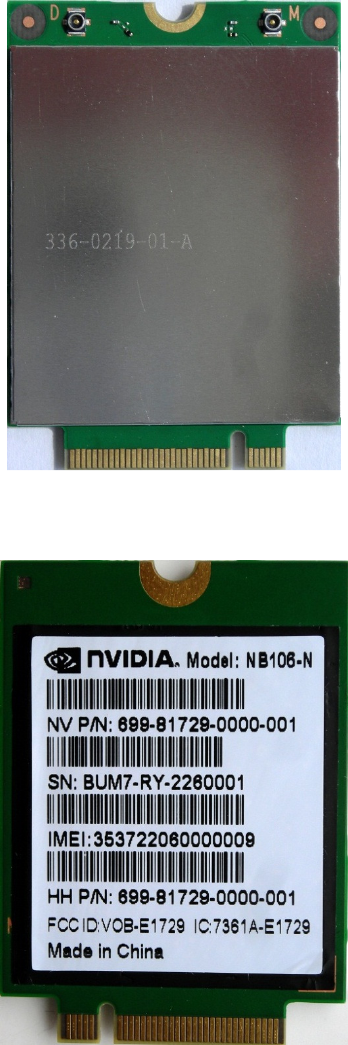

Figure 2: NVIDIA NB106-N module top view
Figure 3: NVIDIA NB106-N module bottom view
Release Notes
NVIDIA CONFIDENTIAL
NVIDIA NB106-N NGFF WWAN module summary datasheet
DS028
| 10
Appendix A: Antenna Used in NB106-N WWAN Module FCC and IC
Tests
NB106-N WWAN module does not have its own transmitting antenna. Transmitting power
is delivered to the connector of the main antenna. In the tests on NB106-N NGFF WWAN
module for FCC and IC certification, a dipole antenna is used and connected to the main
antenna connector.
The antenna gains listed in the following table are the maximum permissible ones that
comply with ERP/EIRP and MPE Limit.
2G/3G Operation Band Cellular PCS Band 3G Band 2 3G Band 4 3G Band 5
Frequency (MHz) 824 – 849 1850 – 1910 1850 – 1910 1712.4 – 1752.6 824 – 850MHz
Antenna Gain (dBi) 5.95 4.51 10.30 6.56 12.60
LTE Operation Band Band 2 Band 4 Band 5 Band 7 Band 17
Frequency (MHz) 1850 – 1910 1,710 – 1,755 824 – 849 2,500 – 2,570 704 – 716
Antenna Gain (dBi) 8.25 5.78 9.51 9.25 10.90
