NVIDIA P2575 Remote Control User Manual Jarvis User Guide NAx
NVIDIA Corporation Remote Control Jarvis User Guide NAx
NVIDIA >
Users Manual
i
SHIELD Remote
Table of Contents
ii
Table of Contents
About Your SHIELD remote .......................................................................................................... 1
using your shield remote ................................................................................................................. 2
Shield Remote ............................................................................................................................. 2
How to Connect Your remote to a shield device ............................................................................ 4
How to Connect Your remote ..................................................................................................... 4
How to Connect Your remote ..................................................................................................... 4
How to Reconnect the remote ......................................................................................................... 5
HOW TO TROUBLESHOOT CONNECTION PROBLEMS ................................................... 5
How to Charge Your remote ........................................................................................................... 6
How to ......................................................................................................................................... 6
How to CHECK the REMOTE BATTERY LEVEL ...................................................................... 6
Using your remote........................................................................................................................... 7
Using headphones with your remote............................................................................................... 9
Compliance………………………………………………………………………………………14
1
ABOUT YOUR SHIELD REMOTE
Your NVIDIA® SHIELD™ remote makes it easy to access all of your favorite movies, music,
and TV on your SHIELD device, with familiar navigation buttons and integrated voice search
capability.
Your remote includes the following features:
•
Navigation D-pad and center Select button
•
Familiar Android Back and Home buttons
•
Integrated microphone for voice search
•
Stereo headphone jack for private listening
•
Volume control*
•
Bluetooth connectivity for easy control without line of site
•
Internal rechargeable battery and USB charging cable
Your SHIELD remote is compatible with all SHIELD devices.
* Your TV or A/V receiver must support HDMI-CEC system volume control in order to the
control volume level of those devices. Otherwise, the volume control will mute and unmute only.
If headphones are plugged in, SHIELD remote can control the volume level of the headphones.
2
USING YOUR SHIELD REMOTE
The SHIELD remote box includes one SHIELD remote, one USB charging cable, one Support
Guide, and one Quick Start Guide.

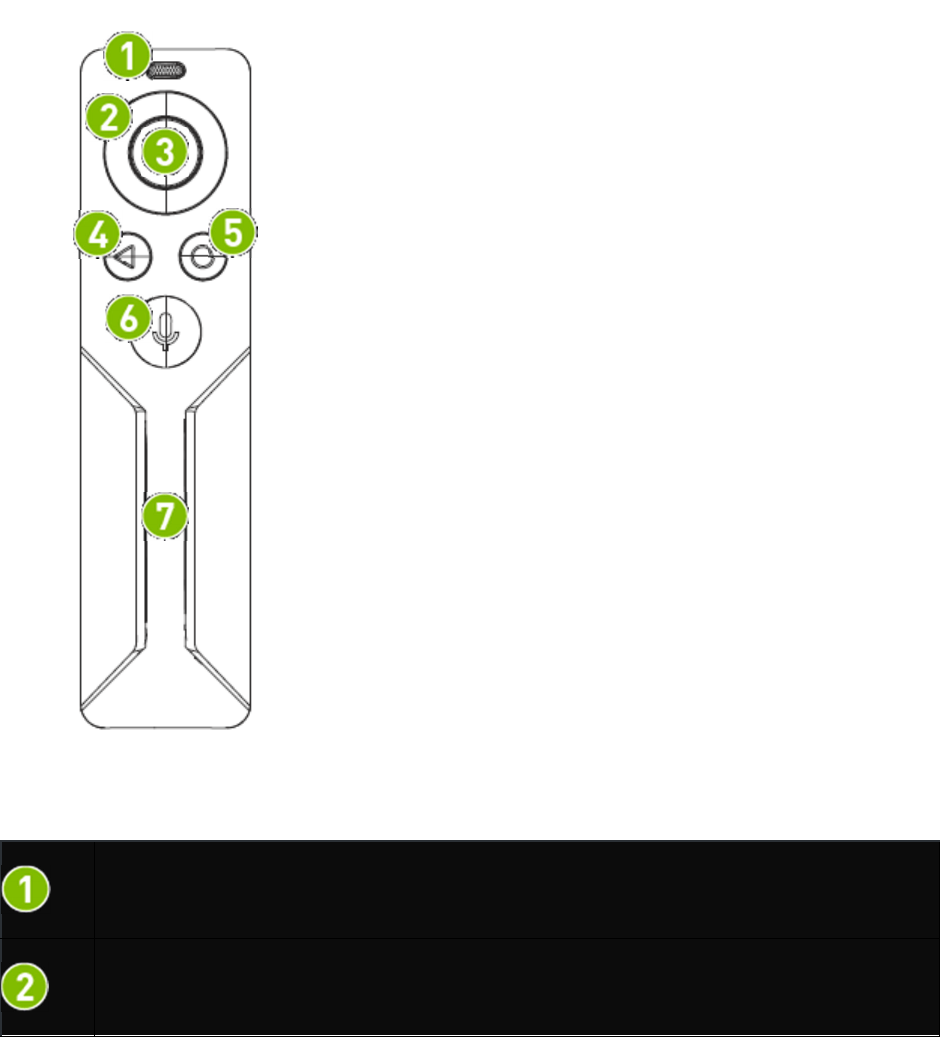

SHIELD REMOTE
Integrated microphone
D-pad
SHIELD Remote
3
Select Button
Back button
Home button
Voice search button with indicator light
Volume touch control
4
HOW TO CONNECT YOUR REMOTE TO
A SHIELD DEVICE
The first time you use your SHIELD remote, you must establish a connection with a SHIELD
device. This connection is saved for future use.
HOW TO CONNECT YOUR REMOTE
NOTE If you connect the remote to another SHIELD device, the previous connection
is removed. Follow the steps in this procedure to establish the connection again.
• On your SHIELD device, open the SHIELD accessories app and select
Add an accessory.
• Press the center Select button on your SHIELD remote to turn it on. The
indicator light on the Voice search button will flash green to indicate that it is in
connection mode. If the indicator light is not flashing, press and hold the Back and
Home buttons for 5 seconds.
• Once connected, your remote will appear in the SHIELD accessories menu along
with a status of its battery level.
HOW TO CONNECT YOUR REMOTE
NOTE For mobile SHIELD devices, make sure that Bluetooth is enabled in Settings
before trying to establish a connection.
SHIELD Remote
5
HOW TO RECONNECT THE REMOTE
Your remote automatically reconnects when the SHIELD device and the remote are turned on
and in range.
1. Turn on your SHIELD device.
2. Turn on the remote by picking it up.
NOTE You do not need to turn off your remote. It will sleep automatically when
inactive. Simply pick it up again to turn it back on.
HOW TO TROUBLESHOOT
CONNECTION PROBLEMS
•
Verify that the remote has enough charge.
•
Verify that the remote’s indicator light is flashing at the same time that
the SHIELD device is searching for an accessory. - On the remote,
hold the Back
and Home buttons for 5 seconds until the indicator light starts flashing.
Open the SHIELD accessories app on your SHIELD device to initiate the
connection process.
•
Verify that the SHIELD device has Bluetooth turned on.
•
Verify that only one remote or controller in range is attempting to
connect to the SHIELD device. The connection process for one accessory must
complete before you can connect another accessory.
•
Verify that only one SHIELD device in range is attempting to connect to
the remote.
•
Verify that the SHIELD device has the latest system update.
•
If you are still having trouble, please contact customer support.
6
HOW TO CHARGE YOUR REMOTE
Your remote's battery provides months of use on a full charge and up to 9 hours of private
listening using the headphone jack. The remote charges from empty to full in 2 hours.
1. Plug the micro-USB end of the USB cable into the micro-USB slot of the remote.
2. Plug the standard USB end of the USB cable into a USB power source, such as an AC
adapter or a USB port on SHIELD console.
USB port. Connect the micro-USB end of the charging cable.
NOTE A USB charging cable is provided in the box with your SHIELD remote.
However, any Micro-USB charging cable can be used to charge the remote.
HOW TO
HOW TO CHECK THE REMOTE
BATTERY LEVEL
1. Connect the remote to a SHIELD device.
2. The remote battery level is shown in the SHIELD accessories app.
Micro-USB port
7
USING YOUR REMOTE
To
Action
Wake your
SHIELD* Press the Select button
Move through
content Use the navigation D-pad to press up, down, left or right
Select an item Press the Select button
Go to the previous
screen Press the Back button
Go to Home screen
Press the Home button
Voice search Press the Voice search [mic image here] button then say your command. If
you’re using an app when you press the Voice search button, you’ll search
within that app.
Control volume
level
Swipe the volume touch area to bring up the onscreen volume controls.
Swipe up or swipe down to change the volume. **
Put remote in
connection mode Press and hold Back and Home buttons together for 5 seconds
Hard reset the
remote Press and hold Back and Home and Voice search [mic image
here] buttons together for 8 seconds.
* If you TV supports HDMI-CEC, waking your SHIELD device will also turn on your TV and
change the TV input to your SHIELD device. If your SHIELD device was in a powered off state,
SHIELD remote cannot wake the device.
8
** Your TV or A/V receiver must support HDMI-CEC system volume control in order to the
control volume level of those devices. Otherwise, the volume control will mute and unmute only.
If headphones are plugged in, SHIELD remote can control the volume level of the headphones.
9
USING HEADPHONES WITH YOUR
REMOTE
Your remote supports headphones for private listening.
Plug the headphones into the 3.5-mm jack on the back of the remote to route the TV audio to
your headphones. To route the audio back to the TV, unplug the headphones.
NOTE Not all 3.5-mm audio jacks are made to the same standard. There are two
audio jack standards.
• Cellular Telecommunications Industry Association (CTIA), and
• Open Mobile Terminal Platform (OMTP).
If you use an OMTP headset, you’ll probably experience audio or chat issues.
However, if your headset or earbuds use the OMTP standard, you can purchase an
adapter to convert the device to CTIA. These adapters are available at many
electronic retail stores.
Headphone jack
10
COMPLIANCE
The SHIELD Remote is compliant with the regulations listed in this section.
United States
Federal Communications Commission (FCC)
FCC ID: VOB-P2575
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including any interference that may cause undesired operation of
the device.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning: The FCC requires that you be notified that any changes or modifications to this
device not expressly approved by the manufacturer could void the user’s authority to operate
the equipment.
Caution: Within the 5.15 to 5.25 GHz band (5 GHz radio channels 34 to 48) this device is
restricted to indoor operations to reduce any potential for harmful interference to co-channel
Mobile Satellite System (MSS) operations.
RF Radiation Exposure Statement:
SHEILD Remote has been tested and complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment when used with the NVIDIA accessories supplied or
designated for this product. During testing, the SHIELD Remote was placed in positions that
simulate use against the body. The use of any other accessories may not ensure compliance
with FCC RF exposure guidelines.
SHIELD Remote
11
Underwriters Laboratories (UL)
I.T.E E204896
California Energy Commission (CEC)
This product meets the applicable energy efficiency requirements for a battery charging system
Canada
Industry Canada (IC)
IC: 7361A-P2575
CAN ICES-3(B)/NMB-3(B)
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the
device.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
RF Radiation Exposure Statement:
SHIELD Remote has been tested and complies with IC RSS 102 RF radiation exposure limits set
forth for an uncontrolled environment when used with the NVIDIA accessories supplied or
designated for this product. During testing, the SHIELD Remote was placed in positions that
simulate use against the body. The use of any other accessories may not ensure compliance
with IC RSS 102RF exposure guidelines.
Déclaration d'exposition aux radiations:
12
SHIELD Remote a ete testee conformemment aux normes d’exposition d’emission RF de la IC
RSS 102 pour un environement non controle lors d’utilisation avec les accessoires fournis or
recommendes par NVIDIA. Pendant les tests, la SHIELD Remote a ete positionnee afin de simule
la presence du corps humain. L’utilisation d’accessoires autres que ceux recommendes par
NVIDIA ne guarantis pas la compatibilite avec les normes d’emission RF de la IC RSS 102.
European Union
European Conformity; Conformité Européenne (CE)
This device bears the CE mark and class-2 identifier (Alert not required for 2.4G WLAN only) in
accordance with Directive 1999/5/EC
This device complies with the following Directives:
EMC Directive for Class B, I.T.E equipment.
R&TTE Directive for radio equipment
Low Voltage Directive for electrical safety
RoHS Directive for hazardous substances
A copy of the Declaration of Conformity to the essential requirements may be obtained directly
from NVIDIA GmbH (Floessergasse 2, 81369 Munich, Germany).
