TempConfidential_P2930_Users_Manual-rev1

SHIELD Remote

NVIDIA P2930

Table of Contents

About Your SHIELD remote .......................................................................................................... 1

using your shield remote ................................................................................................................. 2

Shield Remote ............................................................................................................................. 2

How to Connect Your remote to a shield device ............................................................................ 4

How to Connect Your remote ..................................................................................................... 4

How to Reconnect the remote ......................................................................................................... 5

HOW TO TROUBLESHOOT CONNECTION PROBLEMS ................................................... 5

How to ......................................................................................................................................... 6

How to CHECK the REMOTE BATTERY LEVEL ...................................................................... 6

using your remote ........................................................................................................................... 7

using Voice Search AND COMMANDS ....................................................................................... 9

How to Use Voice Search ........................................................................................................... 9

How to Use Voice Commands .................................................................................................... 9

ABOUT YOUR SHIELD REMOTE

Your NVIDIA® SHIELD™ remote makes it easy to access all of your favorite movies, music,

and TV on your SHIELD device, with familiar navigation buttons and integrated voice search

capability.

Your remote includes the following features:

•

Navigation D-pad and center Select button

•

Familiar Android Back and Home buttons

•

Integrated microphone for voice search

•

Stereo headphone jack for private listening

•

Volume control*

•

Bluetooth connectivity for easy control without line of site

•

Internal rechargeable battery and USB charging cable

Your SHIELD remote is compatible with all SHIELD devices.

* Your TV or A/V receiver must support HDMI-CEC system volume control in order to the

control volume level of those devices. Otherwise, the volume control will mute and unmute only.

If headphones are plugged in, SHIELD remote can control the volume level of the headphones.

USING YOUR SHIELD REMOTE

The SHIELD remote box includes one SHIELD remote, one USB charging cable, one Support

Guide, and one Quick Start Guide.

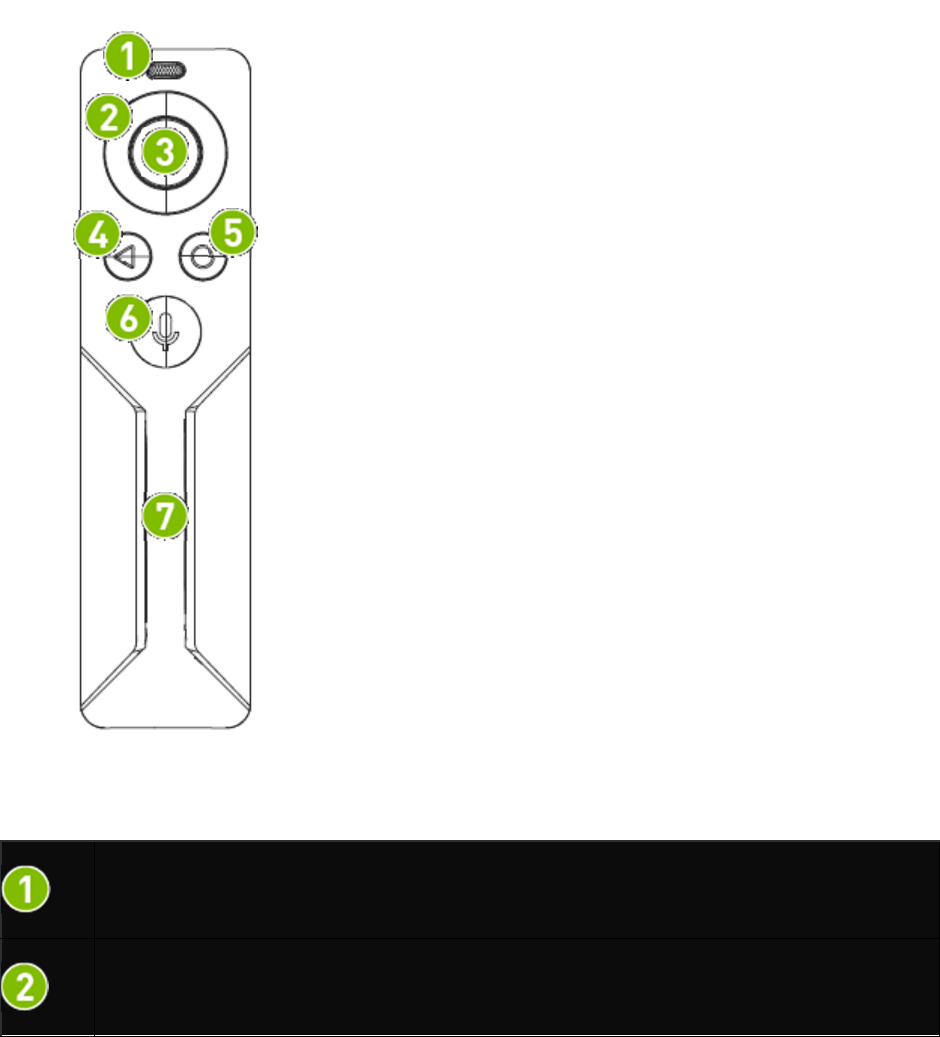

SHIELD REMOTE

Integrated microphone

D-pad

SHIELD Remote

Select Button

Back button

Home button

Voice search button with indicator light

Volume touch control

HOW TO CONNECT YOUR REMOTE TO

A SHIELD DEVICE

The first time you use your SHIELD remote, you must establish a connection with a SHIELD

device. This connection is saved for future use.

HOW TO CONNECT YOUR REMOTE

NOTE If you connect the remote to another SHIELD device, the previous connection

is removed. Follow the steps in this procedure to establish the connection again.

• On your SHIELD device, open the SHIELD accessories app and select

Add an accessory.

• Press the center Select button on your SHIELD remote to turn it on. The

indicator light on the Voice search button will flash green to indicate that it is in

connection mode. If the indicator light is not flashing, press and hold the Back and

Home buttons for 5 seconds.

• Once connected, your remote will appear in the SHIELD accessories menu along

with a status of its battery level.

HOW TO CONNECT YOUR REMOTE

NOTE For mobile SHIELD devices, make sure that Bluetooth is enabled in Settings

before trying to establish a connection.

SHIELD Remote

HOW TO RECONNECT THE REMOTE

Your remote automatically reconnects when the SHIELD device and the remote are turned on

and in range.

1. Turn on your SHIELD device.

2. Turn on the remote by picking it up.

NOTE You do not need to turn off your remote. It will sleep automatically when

inactive. Simply pick it up again to turn it back on.

HOW TO TROUBLESHOOT

CONNECTION PROBLEMS

•

Verify that the remote has enough charge.

•

Verify that the remote’s indicator light is flashing at the same time that

the SHIELD device is searching for an accessory. - On the remote,

hold the Back

and Home buttons for 5 seconds until the indicator light starts flashing.

Open the SHIELD accessories app on your SHIELD device to initiate the

connection process.

•

Verify that the SHIELD device has Bluetooth turned on.

•

Verify that only one remote or controller in range is attempting to

connect to the SHIELD device. The connection process for one accessory must

complete before you can connect another accessory.

•

Verify that only one SHIELD device in range is attempting to connect to

the remote.

•

Verify that the SHIELD device has the latest system update.

•

If you are still having trouble, please contact customer support.

HOW TO

HOW TO CHECK THE REMOTE

BATTERY LEVEL

1. Connect the remote to a SHIELD device.

2. The remote battery level is shown in the SHIELD accessories app.

USING YOUR REMOTE

Action

Wake your

SHIELD* Press the Select button

Move through

content Use the navigation D-pad to press up, down, left or right

Select an item Press the Select button

Go to the previous

screen Press the Back button

Go to Home screen

Press the Home button

Voice search Press the Voice search [mic image here] button then say your command. If

you’re using an app when you press the Voice search button, you’ll search

within that app.

Control volume

level

Swipe the volume touch area to bring up the onscreen volume controls.

Swipe up or swipe down to change the volume. **

Put remote in

connection mode Press and hold Back and Home buttons together for 5 seconds

Hard reset the

remote Press and hold Back and Home and Voice search [mic image

here] buttons together for 8 seconds.

* If you TV supports HDMI-CEC, waking your SHIELD device will also turn on your TV and

change the TV input to your SHIELD device. If your SHIELD device was in a powered off state,

SHIELD remote cannot wake the device.

** Your TV or A/V receiver must support HDMI-CEC system volume control in order to the

control volume level of those devices. Otherwise, the volume control will mute and unmute only.

If headphones are plugged in, SHIELD remote can control the volume level of the headphones.

USING VOICE SEARCH AND

COMMANDS

Your SHIELD remote supports voice search and commands. Use the integrated microphone to

search without typing, ask questions and get answers, open apps, and play songs and movies. To

start a Google search, initiate voice commands and ask your question.

How to Use Voice Search

1. On your remote, press the Voice search [mic image here] button to open Google Now in

listening mode.

2. Ask a question or speak your search terms. For example, you can say "When was

NVIDIA founded?"

NOTE You do not need to say "OK Google" first.

How to Use Voice Commands

1. On your remote, press the Voice search [image here] button to open Google Now in

listening mode.

2. Speak your command.

•

To open a game or app, say "Open" and the name of the game or app.

•

To listen to music, say "Listen to" and the name of the song.

•

To watch a movie, say "Watch" and the name of the movie.

For more commands, please visit the Google voice command support page.

SHIELD Legal

HEALTH AND SAFETY INFORMATION

Important Safety Information

NVIDIA products are designed to operate safely when installed and used according to the product instructions and

general safety practices. The guidelines included in this document explain the potential risks associated with equipment

operation and provide important safety practices designed to minimize these risks. By carefully following the information

contained in this document you can protect yourself from hazards and create a safer environment.

This product is designed and tested to meet IEC-60950-1, the Standard for Safety of Information Technology Equipment.

This also covers the national implementation of IEC-60950-1 based safety standards around the world e.g. UL-60950-1.

These standards reduce the risk of injury from the following hazards:

• Electric shock: Hazardous voltage levels contained in parts of the product

• Fire: Overload, temperature, material flammability

• Mechanical: Sharp edges, moving parts, instability

• Energy: Circuits with high energy levels (240 volt-amps) or potential as burn hazards

• Heath: Accessible parts of the product at high temperatures

• Chemical: Chemical fumes and vapors

• Radiation: Noise, ionizing, laser, ultrasonic waves

Retain and follow all product safety and operating instructions. Always refer to the documentation supplied with your

equipment. Observe all warnings on the product and in the operating instructions.

Read all safety information below and operating instructions before using the SHIELD to avoid injury.

WARNING: FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE,

ELECTRIC SHOCK OR OTHER INJURY OR DAMAGE.

ELECTRICAL EQUIPMENT CAN BE HAZARDOUS IF MISUSED. OPERATION OF THIS PRODUCT, OR SIMILAR

PRODUCTS, MUST ALWAYS BE SUPERVISED BY AN ADULT. DO NOT ALLOW CHILDREN ACCESS TO THE

INTERIOR OF ANY ELECTRICAL PRODUCT AND DO NOT PERMIT THEM TO HANDLE ANY CABLES.

To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the safety labels included

on the equipment.

This symbol in conjunction with any of the following symbols indicates the presence of a potential hazard. The potential

for injury exists if warnings are not observed. Consult your documentation for specific details.

This symbol indicates the presence of hazardous energy circuits or electric shock hazards. Refer all servicing to qualified

personnel.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure. Refer all maintenance,

upgrades, and servicing to qualified personnel.

This symbol indicates the presence of electric shock hazards. The area contains no user or field serviceable

parts. Do not open for any reason.

SHIELD Remote

To reduce the risk of electric shock, personal injury, or damage to the equipment, observe the following precautions:

• Follow all cautions and instructions marked on the equipment.

• Do not bend, drop, crush, puncture, incinerate, or push objects into openings of the device.

• Do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an

electrical storm.

• Do not use the SHIELD in rain or near sink, or other wet locations. Take care not to spill any food or liquid into

the device. In case the SHIELD device gets wet, unplug all cables and turn off before cleaning, and allow it to

dry thoroughly before turning it on again.

• Do not expose the SHIELD to any gas which is not normally contained in the atmosphere. It may cause mis-

operation or defects.

• Never turn on any equipment when there is evidence of fire, water, or structural damage.

• Place the product away from radiators, heat registers, stoves, amplifiers, or other appliances that produce heat.

• Never force a connector into a port. Check for obstructions on the port. If the connector and port don't join with

reasonable ease, they probably don't match. Make sure that the connector matches the port and that you have

positioned the connector correctly in relation to the port.

• Operate the AC adapter in a ventilated area.

• When you are using the NVIDIA SHIELD, it is normal for the system and/or AC power adapter to get warm.

• Do not use conductive tools that could bridge live parts.

• Do not make mechanical or electrical modifications to the equipment.

• Never attempt to reconnect the SHIELD yourself. This device does not contain any user-serviceable parts. Do

not attempt to open, disassemble, or remove the battery. You run the risk of electric shock..

• Operate the SHIELD in a place where the temperature is always between 5 and 30°C (41 to 86°F).

• Store the SHIELD in a place where the temperature is always betwen 0 and 35°C (32 to 95°F) with relative

humidity of 70% or lower. When taking the device from a low temperature condition, allow the device to reach

room temperature before turning the power on.

• Use this product only with approved equipment and/or accessories

• If the product sustains damage requiring service, disconnect the product from the AC electrical outlet and refer

servicing to an NVIDIA authorized service provider.

Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer and

birth defects or other reproductive harm. (California law requires this warning be provided to California

customers.

COMPLIANCE

The SHIELD Remote compliant with the regulations listed in this section.

UNITED STATES

Federal Communications Commission (FCC)

FCC ID: VOB-P2930

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including any interference that may cause

undesired operation of the device.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning: The FCC requires that you be notified that any changes or modifications to

this device not expressly approved by the manufacturer could void the user’s authority

to operate the equipment.

RF Radiation Exposure Statement:

SHIELD Remote has been tested and complies with FCC RF radiation exposure limits set

forth for an uncontrolled environment when used with the NVIDIA accessories supplied

or designated for this product.

Underwriters Laboratories (UL)

I.T.E E204896

CANADA

Industry Canada (IC)

IC: 7361A-P2930

SHIELD Remote

CAN ICES-3(B)/NMB-3(B)

This device complies with Industry Canada’s license-exempt RSSs. Operation is subject

to the following two conditions: (1) this device may not cause interference, and (2) this

device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils

radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)

l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en

compromettre le fonctionnement.

RF Radiation Exposure Statement:

SHIELD Remote has been tested and complies with IC RSS 102 RF radiation exposure

limits set forth for an uncontrolled environment when used with the NVIDIA accessories

supplied or designated for this product. During testing, the SHIELD Tablet was placed in

positions that simulate use against the body. The use of any other accessories may not

ensure compliance with IC RSS 102RF exposure guidelines.

Déclaration d'exposition aux radiations:

SHIELD Remote a ete testee conformemment aux normes d’exposition d’emission RF de

la IC RSS 102 pour un environement non controle lors d’utilisation avec les accessoires

fournis or recommendes par NVIDIA. Pendant les tests, la tablette SHIELD a ete

positionnee afin de simule la presence du corps humain. L’utilisation d’accessoires

autres que ceux recommendes par NVIDIA ne guarantis pas la compatibilite avec les

normes d’emission RF de la IC RSS 102.

EUROPEAN UNION

European Conformity; Conformité Européenne (CE)

This device bears the CE mark in accordance with Directive 1999/5/EC

This device complies with the following Directives:

R&TTE Directive for radio equipment

Low Voltage Directive for electrical safety

RoHS Directive for hazardous substances

A copy of the Declaration of Conformity to the essential requirements may be obtained

directly from NVIDIA GmbH (Floessergasse 2, 81369 Munich, Germany).

A LIRE AVANT TOUTE UTILISATION D'UN JEU VIDEO PAR VOUS-MEME OU PAR VOTRE

ENFANT

I. - Précautions à prendre dans tous les cas pour l'utilisation d'un jeu vidéo.

Evitez de jouer si vous êtes fatigué ou si vous manquez de sommeil.

Assurez-vous que vous jouez dans une pièce bien éclairée en modérant la luminosité de

votre écran.

Lorsque vous utilisez un jeu vidéo susceptible d'être connecté à un écran, jouez à bonne

distance de cet écran de télévision et aussi loin que le permet le cordon de

raccordement.

En cours d'utilisation, faites des pauses de dix à quinze minutes toutes les heures.

II. - Avertissement sur l'épilepsie.

Certaines personnes sont susceptibles de faire des crises d'épilepsie comportant, le cas

échéant, des pertes de conscience à la vue, notamment, de certains types de

stimulations lumineuses fortes: succession rapide d'images ou répétition de figures

géométriques simples, d'éclairs ou d'explosions. Ces personnes s'exposent à des crises

lorsqu'elles jouent à certains jeux vidéo comportant de telles stimulations, alors même

qu'elles n'ont pas d'antécédent médical ou n'ont jamais été sujettes elles-mêmes à des

crises d'épilepsie. Si vous-même ou un membre de votre famille avez déjà présenté des

symptômes liés à l'épilepsie (crise ou perte de conscience) en présence de stimulations

lumineuses, consultez votre médecin avant toute utilisation. Les parents se doivent

également d'être particulièrement attentifs à leurs enfants lorsqu'ils jouent avec des

jeux vidéo. Si vous-même ou votre enfant présentez un des symptômes suivants :

vertige, trouble de la vision, contraction des yeux ou des muscles, trouble de

l'orientation, mouvement involontaire ou convulsion, perte momentanée de

conscience, il faut cesser immédiatement de jouer et consulter un médecin.

AUSTRALIA AND NEW ZEALAND

Australian Communications and Media Authority

This product meets the applicable EMC requirements for Class B, I.T.E equipment and

applicable radio equipment requirements

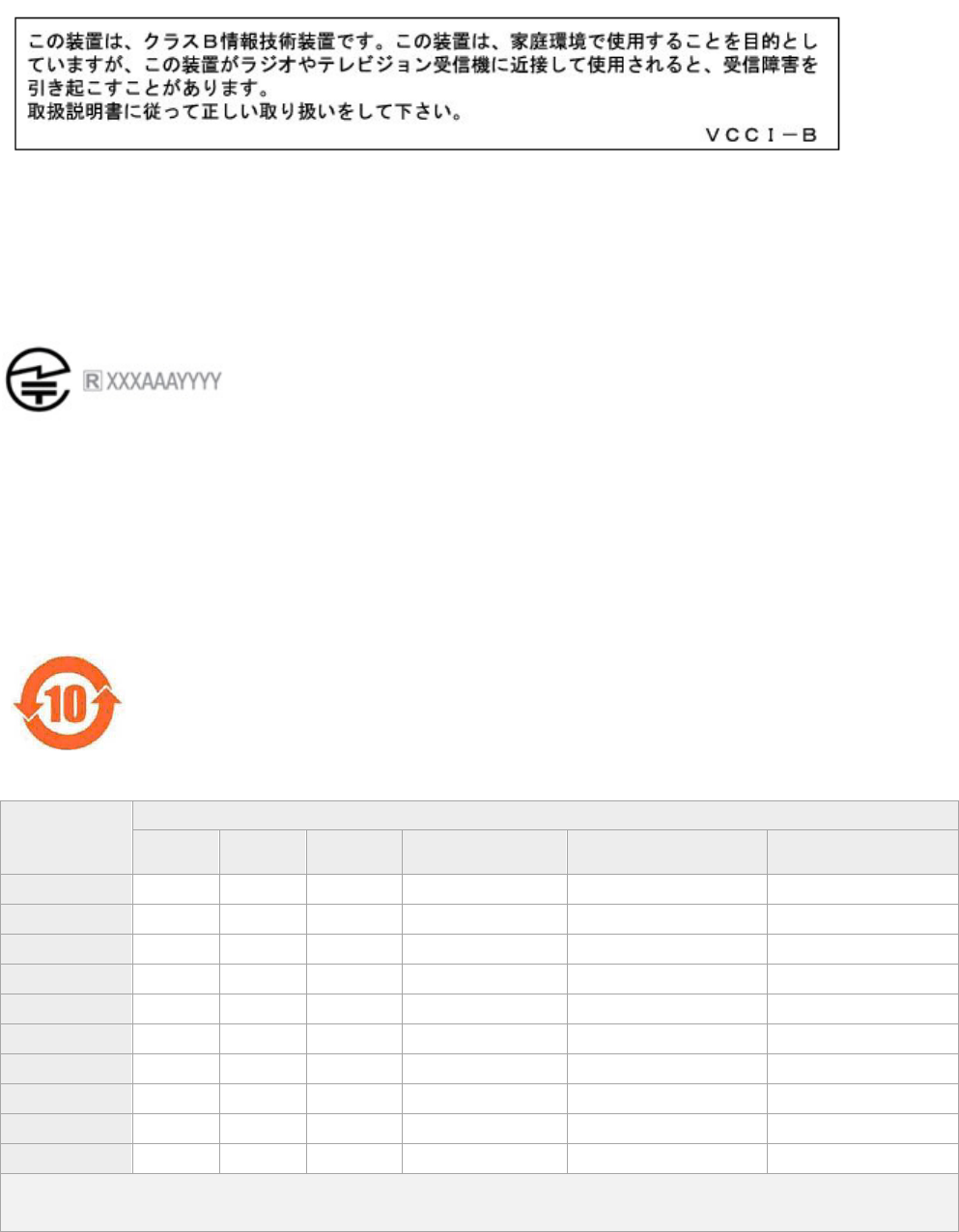

JAPAN

Voluntary Control Council for Interference (VCCI)

SHIELD Remote

Translation:

This is a Class B product based on the standard of the VCCI Council. If this is used near a

radio or television receiver in a domestic environment, it may cause radio interference.

Install and use the equipment according to the instruction manual.

Radio/ Telecommunications Certification

CHINA

State Radio Regulation of China (SRRC)

CMIIT ID: YYYYxxxxxx

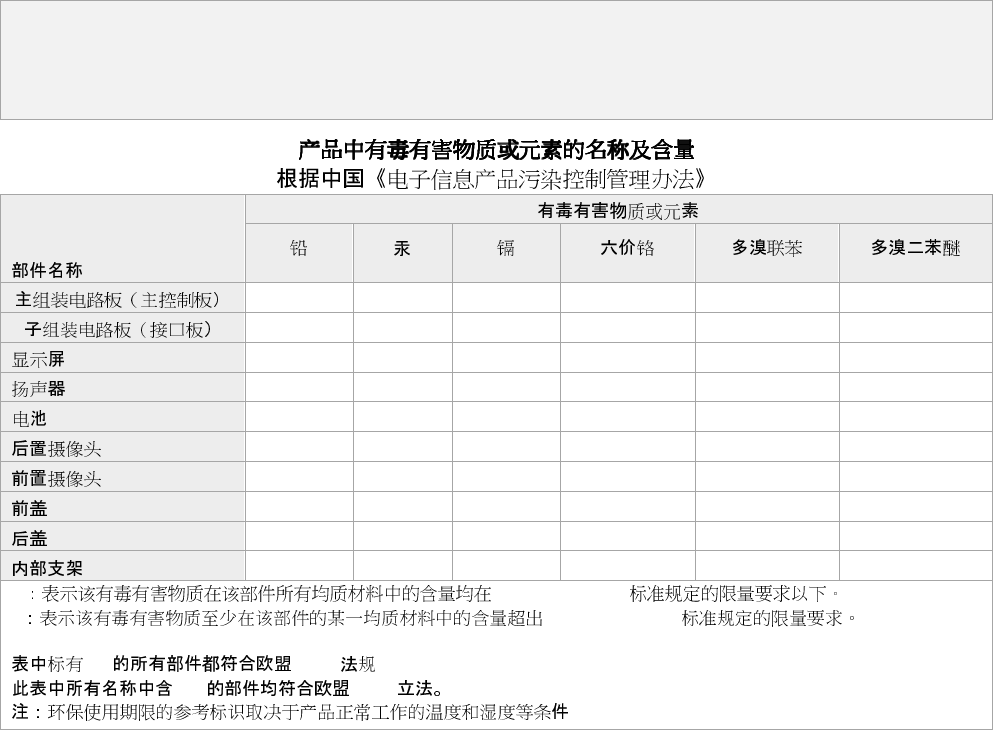

China RoHS Material Content Declaration

Table of Toxic and Hazardous Substances/Elements and their Content

(As required by China’s Management Methods for Controlling Pollution by Electronic Information Products)

Part Name

Toxic and Hazardous Substances and Elements

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent Chromium

(Cr(VI))

Polybrominated Biphenyls

(PBB)

Polybrominated Diphenyl

ethers (PBDE)

Main PCB X 0.005g O O O O O

Daughter PCB O O O O O O

Display O O O O O O

Speakers O O O O O O

Battery O O O O O O

Rear Camera O O O O O O

Front Camera O O O O O O

Front Cover O O O O O O

Rear cover O O O O O O

Mid chassis O O O O O O

O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in GB/T

26572-2011.

: Indicates that this toxic or hazardous substance contained in at least one of the homogeneo

us materials used for this part is above the limit

requirement in GB/T 26572-2011.

All parts named in this table with an “X” are in compliance with the European Union’s RoHS Legislation. 0.005g of lead as required to make a viable

connection between Silicon Die and Substrate as allowed per RoHS Exemption 15 Note: The referenced Environmental Protection Use Period

Marking was determined according to normal operating use conditions of the product such as temperature and humidity.

(Pb)

(Hg)

(Cd)

(Cr(VI))

(PBB)

(PBDE)

X O O O O O

O O O O O O

OGB/T 26572-2011

XGB/T 26572-2011

“X” RoHS

SHIELD Remote

SOUTH KOREA

Radio Research Agency (RRA)

Korean Agency for Technology and Standards (KATS)

MSIP-CRM-NVA-P2930

B (B )

( ) ,

Translation:

Class B Equipment (For Home Use Broadcasting & Communication Equipment)

This equipment is home use (Class B) electromagnetic wave suitability equipment and to be used mainly at home and

it can be used in all areas.

TAIWAN

National Communications Commission

INDIA

Wireless Planning & Coordination Wing (WPC)

ETA CERTIFICATION NO: XXXX/YYYY/WROL

RUSSIA/KAZAKHSTAN/BELARUS

EurAsian Customs Union

This device complies with the technical regulations of the Customs Union (CU TR)

This device complies with the rules set forth by Federal Agency of Communications and

the Ministry of Communications and Mass Media

Federal Security Service notification has been filed.

SINGAPORE

Infocomm Development Authority of Singapore (IDA)

BLUETOOTH

Bluetooth v4.1

Declaration ID: Dxxxxxx

NOTICES AND TRADEMARKS

Complies with

IDA Standards

[Dealer License #]

SHIELD Remote

The information provided in this document is believed to be accurate and reliable as of the date provided. However,

NVIDIA Corporation (“NVIDIA”) does not give any representations or warranties, expressed or implied, as to the accuracy

or completeness of such information. NVIDIA shall have no liability for the consequences or use of such information or for

any infringement of patents or other rights of third parties that may result from its use. This publication supersedes and

replaces all other specifications for the product that may have been previously supplied.

NVIDIA reserves the right to make corrections, modifications, enhancements, improvements, and other changes to this

specification, at any time and/or to discontinue any product or service without notice. Customer should obtain the latest

relevant specification before placing orders and should verify that such information is current and complete.

NVIDIA products are sold subject to the NVIDIA standard terms and conditions of sale supplied at the time of order

acknowledgment, unless otherwise agreed in an individual sales agreement signed by authorized representatives of

NVIDIA and customer. NVIDIA hereby expressly objects to applying any customer general terms and conditions with

regard to the purchase of the NVIDIA product referenced in this specification.

NVIDIA products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life

support equipment, nor in applications where failure or malfunction of the NVIDIA product can reasonably be expected to

result in personal injury, death or property or environmental damage. NVIDIA accepts no liability for inclusion and/or use

of NVIDIA products in such equipment or applications and therefore such inclusion and/or use is at customer’s own risk.

NVIDIA makes no representation or warranty that products based on these specifications will be suitable for any specified

use without further testing or modification. Testing of all parameters of each product is not necessarily performed by

NVIDIA. It is customer’s sole responsibility to ensure the product is suitable and fit for the application planned by customer

and to do the necessary testing for the application in order to avoid a default of the application or the product.

Weaknesses in customer’s product designs may affect the quality and reliability of the NVIDIA product and may result in

additional or different conditions and/or requirements beyond those contained in this specification. NVIDIA does not

accept any liability related to any default, damage, costs or problem which may be based on or attributable to: (i) the use

of the NVIDIA product in any manner that is contrary to this specification, or (ii) customer product designs.

No license, either expressed or implied, is granted under any NVIDIA patent right, copyright, or other NVIDIA intellectual

property right under this specification. Information published by NVIDIA regarding third-party products or services does

not constitute a license from NVIDIA to use such products or services or a warranty or endorsement thereof. Use of such

information may require a license from a third party under the patents or other intellectual property rights of the third party,

or a license from NVIDIA under the patents or other intellectual property rights of NVIDIA. Reproduction of information in

this specification is permissible only if reproduction is approved by NVIDIA in writing, is reproduced without alteration, and

is accompanied by all associated conditions, limitations, and notices.

ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND

OTHER DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA

MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE

MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT,

MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. Notwithstanding any damages that customer

might incur for any reason whatsoever, NVIDIA’s aggregate and cumulative liability towards customer for the products

described herein shall be limited in accordance with the NVIDIA terms and conditions of sale for the product.

HDMI

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC.

ARM

ARM, AMBA and ARM Powered are registered trademarks of ARM Limited. Cortex, MPCore and Mali are trademarks of

ARM Limited. All other brands or product names are the property of their respective holders. ʺARMʺ is used to represent

ARM Holdings plc; its operating company ARM Limited; and the regional subsidiaries ARM Inc.; ARM KK; ARM Korea

Limited.; ARM Taiwan Limited; ARM France SAS; ARM Consulting (Shanghai) Co. Ltd.; ARM Germany GmbH; ARM

Embedded Technologies Pvt. Ltd.; ARM Norway, AS and ARM Sweden AB.

OpenCL

OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc.

Trademarks

NVIDIA, the NVIDIA logo, GeForce, and SHIELD are trademarks and/or registered trademarks of NVIDIA Corporation in

the U.S. and other countries. Other company and product names may be trademarks of the respective companies with

which they are associated.

Google, Android, and Gmail are trademarks and/or registered trademarks of Google Inc.

The Bluetooth® word, mark, and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such

marks is under license.

Wi-Fi CERTIFIED and Wi-Fi CERTIFIED Miracast are registered marks of the Wi-Fi Alliance.

Steam is a trademark of Valve.

Other trademarks and trade names are those of their respective owners.

NVIDIA P2930 SHIELD Remote User Manual P2930 User Guidex

NVIDIA Corporation SHIELD Remote P2930 User Guidex

TempConfidential_P2930_Users_Manual-rev1

Navigation menu

Namespaces

Views

Navigation
